CE-WR0012-S1 - Wireless transmitter Siig - Free user manual and instructions

Product Type	Wireless Transmitter
Brand	Siig
Model	CE-WR0012-S1
Dimensions (L x W x H)	80 x 40 x 15 mm
Weight	50 g
Power Supply	5V DC via USB or 2x AAA batteries (not included)
Transmission Range	Up to 30 meters (line of sight)
Operating Frequency	2.4 GHz
Signal Type	Digital wireless, 2.4 GHz
Supported Devices	Audio/video sources with standard output (e.g., HDMI, RCA)
Number of Channels	4 selectable
Audio Support	Stereo, 2.0 channels
Maximum Video Resolution	1080p (Full HD)
Latency	< 30 ms (low latency)
Connectors	1x HDMI input (or RCA), 1x USB power
Indicator Lights	Power and link LEDs
Mounting	Desktop or wall-mountable ( screws included)
Operating Temperature	0°C to 40°C
Humidity	10% to 85% non-condensing
Maintenance	Wipe with a soft, dry cloth. Do not use liquids or solvents.
Safety Precautions	Do not expose to water or extreme temperatures. Unplug when not in use.
Spare Parts & Repairability	No user-serviceable parts. Contact Siig service center for repairs.
Certifications	CE, FCC

Frequently Asked Questions - CE-WR0012-S1 Siig

How do I pair the transmitter with a receiver?

Connect both devices to power. Press and hold the pairing button on both units for 5 seconds. The LED will blink rapidly and then become solid when paired.

What is the maximum transmission range?

The Siig CE-WR0012-S1 has a range of up to 30 meters (100 feet) in open space. Walls and obstacles may reduce the range.

Can I use multiple receivers with one transmitter?

Yes, the transmitter can send a single signal to multiple compatible receivers. Each receiver must be paired separately.

Why is there no video or audio?

Ensure both devices are powered on and paired. Check that the input source is correctly connected to the transmitter. Also verify that the receiver is connected to the display or speakers.

How do I change the channel?

Channels can be changed using the dip switches on the side of the transmitter and receiver. Set both to the same channel number (1-4) to avoid interference.

Does this support 4K resolution?

No, the device supports up to 1080p Full HD. For 4K, please consider a different Siig model.

Can I use it for audio only?

Yes, you can connect an audio source (e.g., via RCA) to the transmitter. The receiver will output analog audio.

How do I reset the device to factory settings?

Perform a factory reset by pressing and holding the reset button (located near the power port) for 10 seconds. The LEDs will flash rapidly, then release.

Is the transmitter waterproof?

No, the transmitter is not waterproof. Keep it away from water and moisture to avoid damage.

Can I mount it on a wall?

Yes, the device has mounting holes on the bottom. Use the included screws to fix it to a wall or other surface.

USER MANUAL CE-WR0012-S1 Siig

Wireless Presenter Quick Installation Guide

Introducing the Wireless Presenter

The Wireless Presenter allows you to remotely control presentations effectively. No longer are you restricted to standing in one spot nor needing the help of another person during your presentation.

Features and Benefits

• Fully compatible with Microsoft PowerPoint and Open Office Suite
• USB receiver stores conveniently inside the remote
• Integrated Laser beam pointer
• Adopts 2.4GHz radio frequency
• Up to 50ft of wireless range
• True plug & play with no software required
• Simple to use with dedicated function keys

System Requirements

• PC or Mac computer with an available USB port
- Windows ^ 2000 / XP (32-/64-bit) / Vista (32-/64-bit)
• Mac OS X v10.0 or later

Package Contents

• 2.4GHz RF Wireless Presenter & receiver
- AAA battery
- Quick Installation Guide

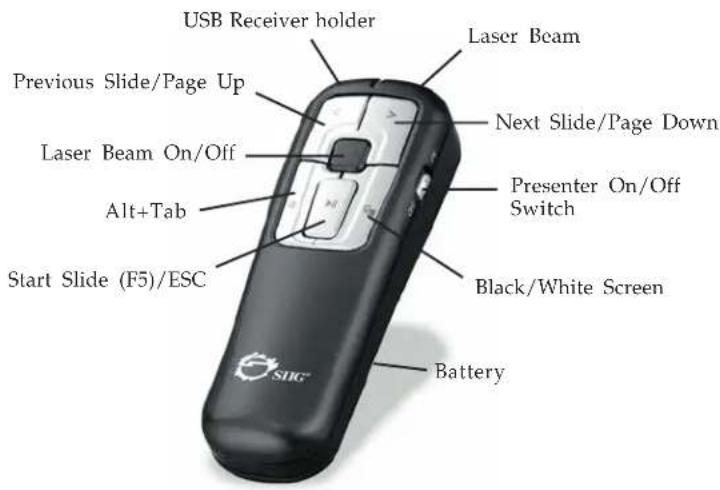

Layout

USB Receiver holder Previous Slide/Page Up Laser Beam Next Slide/Page Down Laser Beam On/Off Alt+Tab Presenter On/Off Switch Start Slide (F5)/ESC Black/White Screen Battery

Figure 1: Layout

Using the Wireless Presenter

1. Take out the USB receiver attached to the top of the remote.
2. Plug the USB receiver into a USB port and the drivers will load automatically.
3. Switch on the presenter and start using it. Make sure to switch it off when not in use to preserve the battery life.

Technical Support and Warranty

QUESTIONS? SIIG's Online Support has answers! Simply visit our web site at www.siig.com and click Support. Our online support database is updated daily with new drivers and solutions. Answers to your questions could be just a few clicks away. You can also submit questions online and a technical support analysts will promptly respond.

SIIIG offers a 5-year manufacturer warranty with this product. Please see our web site for more warranty details. If you encounter any problems with this product, please follow the procedures below.

A) If it is within the store's return policy period, please return the product to the store where you purchased from.

B) If your purchase has passed the store's return policy period, please follow these steps to have the product repaired or replaced.

Step 1: Submit your RMA request.

Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA. If the product is determined to be defective, an RMA number will be issued.

Step 2: After obtaining an RMA number, ship the product.

- Properly pack the product for shipping. All software, cable(s) and any other accessories that came with the original package must be included.

- Clearly write your RMA number on the top of the returned package. SIIG will refuse to accept any shipping package, and will not be responsible for a product returned without an RMA number posted on the outside of the shipping carton.

- You are responsible for the cost of shipping. Ship the product to the following address:

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

RMA#:

- SIIG will ship the repaired or replaced product via Ground in the U.S. and International Economy outside of the U.S. at no cost to the customer.

About SIIG, Inc.

Founded in 1985, SIIG, Inc. is a leading computer upgrade manufacturer of I/O connectivity products, including PCIe, PCI & ISA serial and parallel ports, USB, Serial ATA & UltraATA controllers, FireWire (1394a/b), networking, sound cards, and other accessories. SIIG is the premier one-stop source of upgrades.

SIIG products offer comprehensive user manuals, many user-friendly features, and are backed by an extensive manufacturer warranty. High-quality control standards are evident by the overall ease of installation and compatibility of our products, as well as one of the lowest defective return rates in the industry. SIIG products can be found in computer retail stores, mail order catalogs, through major distributors, system integrators, and VARs in the Americas and the UK, and through e-commerce sites.

PRODUCT NAME

2.4GHz RF Wireless Presenter

FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE

FCC COMPLIANCE STATEMENT:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE

SII G, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

Ph: 510-657-8688

2.4GHz RF Wireless Presenter is a trademark of SllG, Inc. SllG and the SllG logo are registered trademarks of SllG, Inc. Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mac and Mac OS are registered trademarks of Apple computer. Other names used in this publication are for identification only and may be trademarks of their respective companies.
