Product Type	20.1" TFT-LCD Monitor (Security)
Brand	Orion
Model	Premium 20RTH
Screen Size	20.1 inches
Max Resolution	640 x 480 @ 60Hz
Pixel Pitch	0.637 x 0.637 mm
Brightness	300 cd/m²
Contrast Ratio	800:1
Aspect Ratio	4:3
Viewing Angle (H/V)	178° / 178°
Display Color	16.2 million
Response Time	< 25 ms
Video System	NTSC / PAL
Horizontal Frequency	31 – 48 kHz
Vertical Frequency	55 – 75 Hz
Panel Lamp Life	50,000 hours
Packing Dimensions (WxHxD)	17.7 x 15 x 4.7 inches
Weight	17.6 lbs
Power Consumption	55 W
Power Source	DC12V adapter (Auto Switching) / 5A
Inputs	RGB, Composite Video (AV1, AV2), S-Video, Audio (stereo), PC Stereo
OSD Controls	Brightness, Contrast, Color, Input Select, etc.
Remote Control	Included with battery
Key Lock	Yes (press and hold ▲ and ◀ for 5 seconds)
Warranty	2-Year Limited Warranty
Cleaning	Use soft cloth; unplug before cleaning; no chemical liquids
Safety	Do not open; keep ventilation; place on stable surface; avoid pressure on panel

Frequently Asked Questions - Premium 20RTH ORION

How do I connect the monitor to a video source?

Connect the video source to one of the inputs: RGB, Composite (AV1/AV2), or S-Video. Use the corresponding cable (VGA for RGB, RCA for composite). Then plug in the power adapter and turn on the monitor.

What should I do if the screen doesn't show anything?

First, check if the power supply is properly connected and the power LED is green. Ensure the monitor is turned on. Then verify that the correct input source is selected using the SOURCE button on the monitor or remote. Also check the signal cable connections.

How do I clean the monitor?

Unplug the monitor from the wall outlet before cleaning. Use a soft, dry cloth. Do not use liquid or chemical cleaners, as they may cause fading or breakage.

How can I adjust the brightness and contrast?

Press the MENU button to open the OSD. Navigate to the Picture Menu using the arrow keys. Select Brightness or Contrast and adjust with the left/right arrow keys. Press MENU to exit.

What input sources are supported?

The monitor supports RGB (VGA), Composite Video (AV1 and AV2), and S-Video (Y/C) inputs. Audio inputs are available for AV1 and AV2 (stereo) as well as PC stereo in.

How do I use the remote control?

Insert the included battery into the remote. Point it at the IR receiver on the monitor. Use the buttons: POWER to turn on/off, MUTE for sound, VIDEO1/VIDEO2/S-VIDEO/RGB to select source, VOL+/- for volume, and MENU for OSD.

How do I set up the OSD menu?

Press MENU to access the main menu. Use ▲/▼ to highlight a selection, then press INPUT/SELECT to enter. Use ◀/▶ to adjust settings. Press MENU again to exit or return to previous menu.

How can I lock the buttons to prevent accidental changes?

Press and hold the ▲ and ◀ buttons simultaneously for 5 seconds. The Key Lock feature will activate, disabling all front-panel buttons except POWER. Repeat to unlock.

What is the warranty period and how to claim?

The monitor comes with a 2-Year Limited Warranty from Orion Images against defects in materials and workmanship. For claims, contact Orion Images at 714-766-6300 or [e-mail].

What are the power requirements for this monitor?

The monitor operates on DC12V, 5A. Use the included AC power adapter (auto switching). Do not use a different power supply as it may damage the device.

USER MANUAL Premium 20RTH ORION

Black rectangular electronic device with a black screen and a black handle, shown against a white background (no visible text or symbols)

20.1” TFT-LCD MONITOR (SECURITY)

Warning Statements

* Follow this safety instruction to use the monitor properly and prevent the damages.

* This safety instruction has “Warning” and “Caution” as below.

WARNING: If the user does not follow this instruction, it may cause the serious damage to the user.

CAUTION: If the user does not follow this instruction, it may cause the slight damage to the user or cause some damages to the monitor.

* Keep this user's guide book for later use.

Warning Statements

How to fix

1. Do not open this product as it contains high voltage inside.
2. It may create an electric shock.
3. It the user disassembles and remove the back cover, it does not make sure
4. To make up for the damages and do a service and exchange the monitor..

Cautions

Install this monitor some distance From the wall and do not install unless Proper ventilation is provided.

Cartoon illustration of a smiling computer monitor with arms and legs, no text or symbols present

Place this product on a stable place. If not, it may fall, causing serious Damages to the monitor and people.

Cartoon illustration of a computer monitor character with a sad face and waving hands (no text or symbols)

The openings must not be blocked by curtain, rug or other similar surface.

Cartoon illustration of a computer monitor with a sad face and frowning expression (no text or symbols)

When carrying this monitor, be careful not to damage the panel and drop it. It may cause some trouble.

Before carrying the monitor, tum it off and Unplug the signal cables and the power code From the wall outlet.

Cartoon illustration of a smiling computer monitor with a hand gesture and a small phone connected to it (no text or symbols)

Take the power plug out from the wall outlet. Do not pull the cable. It may snap the inner wires and cause overheating and fire.

Install this monitor about 50cm far from the eyes and an angle of 0\~15 degrees below eyes. Too close installation may cause having weak sight.

Do not press the LCD panel with hands or the sharpened material hardly.

Cartoon illustration of a computer monitor character with arms and facial expression (no text or symbols)

For cleaning, unplug the monitor from the Wall outlet. Do net use the liquid cloth. Use the soft cloth.

Do not use the chemical liquid for cleaning. It may cause fading and breakage.

TABLE OF CONTENTS

1. INSTALLATION 6

1.1 Parts 6
1.2 Connection 7
1.3 Remote Controller 8

1. FEATURES 9

2.1 Specifications 9

1. OSD SETTING 10-11
2. CONTROL BUTTON 12
3. INFORMATION TO THE USER 13
4. TROUBLESHOOTING 14
5. LIMITED LIFETIME WARRANTY 15

INSTALLATION

1.1 Parts

Remove the package cover and place the product on a flat and secure surface or in the installation location. Check whether all the following device and accessories are included with the main system.

TFT-LCD MONITOR

USER MANUAL

AC POWER ADAPTOR

VGA CABLE

REMOCON

BATTERY

POWER CORD

INSTALLATION

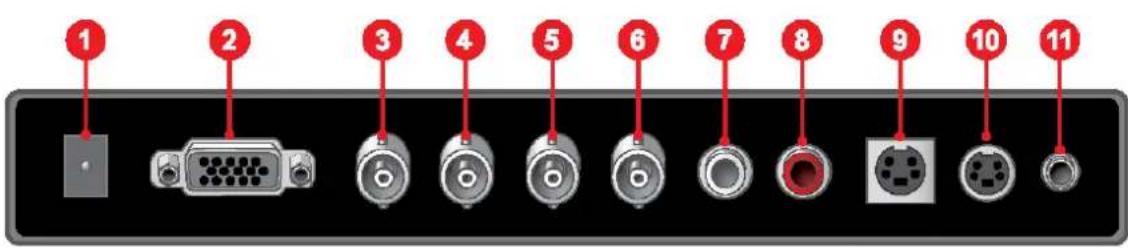

1.2 Connection

1. DC 12V IN

2. RGB IN

RGB signal input

1. VIDEO 1(AV1) IN

Composite signal input for AV1

1. VIDEO 1(AV1) OUT

Video looping output for AV1

1. VIDEO 2(AV2) IN

Composite signal input for AV2

1. VIDEO 2(AV2) OUT

Video looping output for AV2

1. AUDIO 1 IN

Stereo audio signal input. This input is for AV1, S-VIDEO

1. AUDIO 2 IN

Stereo audio signal input. This output is for AV2

1. S-VIDEO (Y/C) IN

Y/C separated signal input

1. S-VIDEO (Y/C) OUT

Y/C separated signal looping output

1. PC STEREO IN

INSTALLATION

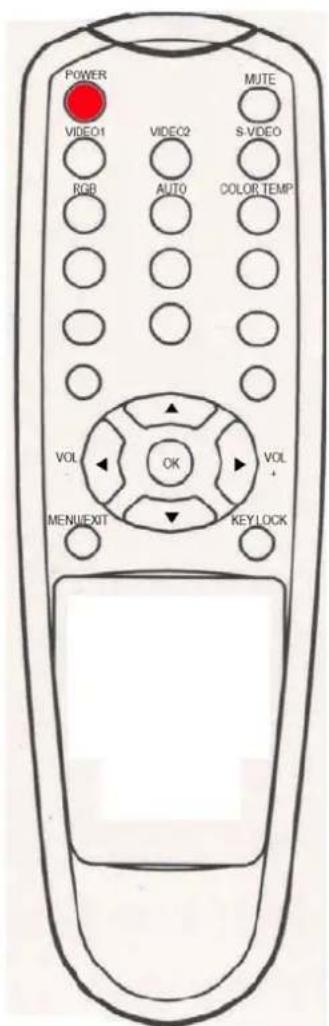

1.3 Remote Controller

1. POWER

Turns the power ON or OFF. There will be a few seconds delay before the display appears.

2. MUTE

Mute the sound.

3. VIDEO1

Select Video1 source.

4. VIDEO2

Select Video2 source.

5. S-VIDEO

Select S-Video source.

6. RGB

Select RGB source.

7. AUTO

Auto geometry adjustment in RGB source.

8. COLOR

TEMP

Select color temperature.

9. VOL-/VOL+ (◀▶)

Increases or decreases the level of audio volume.

10. UP/DOWN(▲▼)

Move to OSD menu.

11. MENU / EXIT

Activates and exits the On Screen Display.

12. KEY LOCK

Prevents unauthorized operation of the equipment by locking the buttons. Key Lock feature by pressing and holding the ▲ and ◀ buttons for five seconds.

FEATURES

2.1 Specifications (20 Inch)

VIDEO
Screen Size 20.1"
Pixel Type Active Matrix TFT
Max. Resolution 640 x 480 @	60Hz
Pixel Pitch 0.637 x 0.637mm
Brightness	300 cd/m2
Contrast Ratio 800 : 1
Aspect Ratio 4:3
Viewing Angle (H/V) 178 / 178
Display Color 16.2 Million
Response Time < 25ms
Video System NTSC / PAL
Frequency (H) 31 ~ 48KHz
Frequency (V) 55 ~ 75Hz
Panel Lamp Life 50,000hours
MECHANICAL
Packing Dimension
W x H x D 17.7 x 15 x 4.7
Weight	17.6lbs
Power Consumption	55W
Power Source	DC12V adapter (Auto Switching) / 5A

NOTE : Technical specifications are subject to change without notice..

OSD (On Screen Display) SETTING

3.1 OSD MENU Description

Menu Selection

1. Press the MENU key to access the Main menu.
2. Use the and ▼ arrow key to highlight a selection
3. Press the INPUT/SELECT key to select an item.
4. Use the and ▼ arrow key to highlight a selection.
5. Use the and arrow key to adjust the setting on a selected item.
   NOTE : If you don't connect RGB port, RGB SETUP menu is not select.

A. Input Select

Inputs can be set to VIDEO, S-VIDEO and RGB mode.

Press the SOURCE/▼ key then you can change the input source.

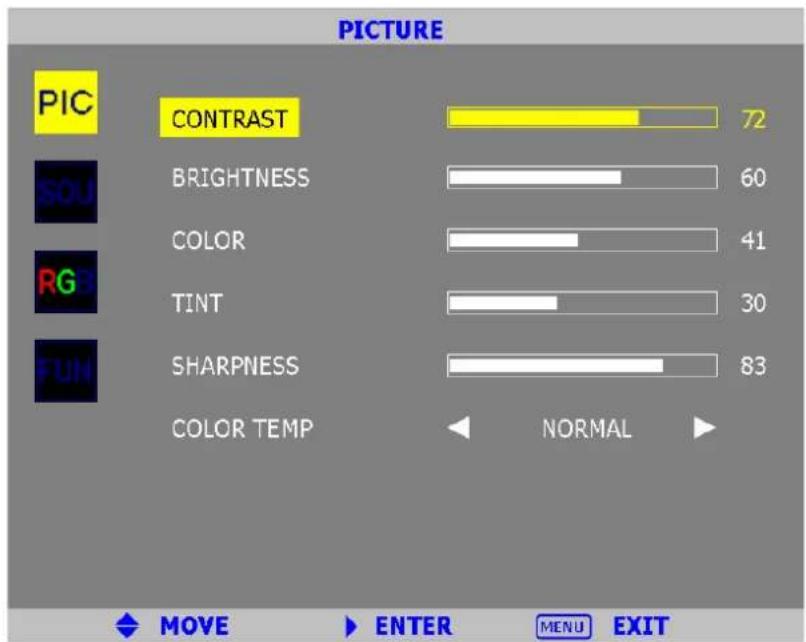

B. Picture Menu

OSD (On Screen Display) SETTING

1. Press the MENU key and then ▼/◄ or ▲/► key to select the PICTURE menu.
2. Press the INPUT / SELECT key and then ▼/◄ or ▲/► key to select the adjustment item you need.
3. Press the INPUT / SELECT key to active the item.

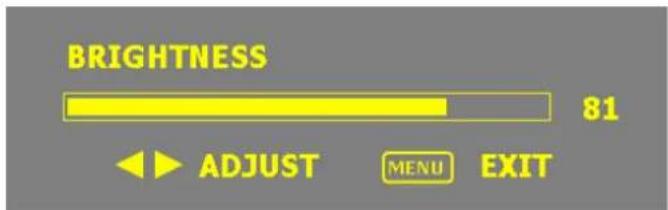

EX) If you select the BRIGHTNESS, then the picture below appears on the screen.

1. Press the MENU key to move the previous menu..

NOTE : TINT item is NTSC input only.

C. Color Temp Menu

If you want to change of color value on RGB source,

1. Select COLOR MODE on RGB MENU.

2. Press the INPUT/SELECT key and then select COLOR TEMP.

3. Change the USER and then ▼/◄ or ▲/► key to select the adjustment item you need.

4. Press the INPUT/SELECT key to active the item.
5. Press the MENU ke v to move the previous menu.

CONTROLL BUTTON

Menu/EXIT: Activates and exits the OSD.

SOURCE/▼: Select input source, and select the OSD menu.

AUTO/▲: Move the OSD menu and auto adjustment of RGB source.

◀ (VOL-): Decreases the level of volume and move the previous menu.

▶/SELECT (VOL+): Increases the level of volume and select the OSD menu.

Turns the power ON or OFF. There will be a few seconds delay before the display appears.

The power LED(next to the power switch) lights with green when the power is turned ON.

The power is turned off by pressing the power switch again and the power LED goes Red.

LED LENSE:

IR RECEIVE LENSE:

INFORMATION TO THE USER

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio / TV technician for help.

WARNING:

The manufacturer is not responsible for any Radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment."

TROUBLESHOOTING

* When the following troubles are occurred, follow the trouble shooting. Before contacting a service center.

Troubleshooting	Troubleshooting Tip
The screen doesn’t show up	1. Make sure if the power supply is connected property
	2. Turn on the power.
	3. Select the input signal right for the connected port.
The screen is too light or to dark	Control the BRIGHTNESS
The screen size is not fit for the PC signal	Press the AUTO key among keys in the front.(It is used only in the PC signal)
The screen color shows strange in the PC signal	In the FUNCTION menu of OSD menu, perform the AUTO-ADJUST.

2Year Limited Warranty

All Orion Images products carry a limited warranty from ship date against defects in materials and workmanship. Orion Images is not liable for improper installation that results in damage to mounts, adapters, display equipment or personal injury.

Contact Orion Images

In the event of missing and/or damage equipment, or technical questions, the following information can help in the completion of the installation.

Address: 7300 Bolsa Avenue, Westminster, CA 92683

Tel: [phone] / Fax: [phone]

Email: [e-mail]

Website: http://www.orionimages.com
