Economy 18REDE - Tracking ORION - Free user manual and instructions

Product Type	LED Security Monitor
Model	Orion Economy 18REDE (18.5")
Screen Size	18.5 inches
Panel Resolution	1366 x 768 @60Hz
Brightness	250 cd/m²
Contrast Ratio	1000:1
Aspect Ratio	16:9
Viewing Angle (H/V)	170°/160°
Display Colors	16.7 million
Response Time	< 5ms
Video Systems	NTSC / PAL / SECAM
Horizontal Frequency	60 ~ 81KHz
Vertical Frequency	55 ~ 75Hz
Panel Lamp Life	30,000 hours
Dimensions (W x H x D)	18.3" x 13.8" x 5.9"
Net Weight	3.42 kg (7.56 lbs)
Power Source	DC 12V / 3.7A adapter (auto-switching)
Power Consumption	< 25W
Inputs	HDMI, VGA (15-pin D-Sub), AV1 (composite), AV2 (composite), S-Video, PC Audio, DC 12V
Outputs	AV1 out (video looping), AV2 out (video looping)
Control	Front buttons (Menu, Source, Auto, Volume, Power) and remote controller
OSD Menu	Picture, System, Function adjustments
Safety	Do not open; high voltage inside; install with proper ventilation; stable placement
Cleaning	Unplug, use soft cloth; no chemical liquids
Accessories Included	Power adapter, VGA cable, remote controller, user guide
Warranty	2-year limited warranty

Frequently Asked Questions - Economy 18REDE ORION

How do I connect external devices to the Orion Economy 18REDE monitor?

You can connect devices via HDMI, VGA, AV1 and AV2 composite, or S-Video ports. Use the remote or front button to select the correct input source.

Why is the screen blank when powered on?

Ensure the power adapter is properly connected and the monitor is turned on. Check that the correct input source is selected. Also verify the signal cable is securely attached.

How can I adjust the picture settings?

Press the MENU button to open the OSD. Use arrow keys to navigate to Picture Menu to adjust brightness, contrast, color, etc. For PC signals, use Auto Adjust in the Function menu.

What is the proper viewing distance and angle?

For optimal viewing, place the monitor about 50 cm (20 inches) from your eyes at an angle of 0 to 15 degrees below eye level to reduce eye strain.

Can I mount this monitor on a wall?

The manual does not include VESA mount specifications, but the monitor has a base stand. If you intend to mount it, ensure the wall mount is compatible and properly installed to avoid damage.

How do I clean the screen safely?

Always unplug the monitor before cleaning. Use a soft, dry cloth. Do not use liquid cleaners or chemical sprays as they may cause fading or damage.

What should I do if the image is distorted or flickering?

For PC input, press the AUTO button on the front panel to auto-adjust. You can also manually adjust Clock and Phase in the Function OSD menu.

Is the monitor compatible with both PC and video devices?

Yes, it supports PC (VGA/HDMI) and video sources (AV1, AV2, S-Video, HDMI). It also handles multiple video systems: NTSC, PAL, SECAM.

What is the warranty coverage?

The Orion Economy 18REDE comes with a 2-year limited warranty covering defects in materials and workmanship. Improper installation or damage from misuse is not covered.

How do I contact support for missing parts or technical issues?

Contact Orion Images at: Address: 7300 Bolsa Avenue, Westminster, CA 92683. Phone: [phone]. Email: [e-mail]. Website: http://www.orionimages.com

USER MANUAL Economy 18REDE ORION

18.5"/ 21.5"/ 23" ECONOMIC LED DISPLAY MONITOR

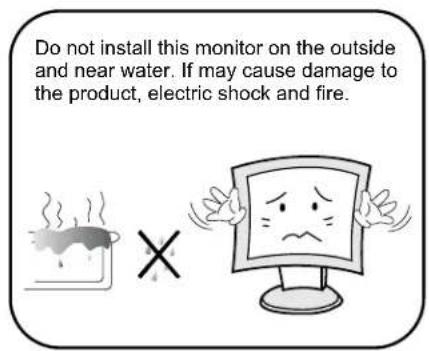

Warning Statements

* Follow this safety instruction to use the monitor properly and prevent the damages.

* This safety instruction has “Warning” and “Caution” as below.

WARNING: If the user does not follow this instruction, it may cause the serious damage to the user.

CAUTION: If the user does not follow this instruction, it may cause the slight damage to the user or cause some damages to the monitor.

* Keep this user's guide book for later use.

Warning Statements

How to fix

1. Do not open this product as it contains high voltage inside.
2. It may create an electric shock.
3. It the user disassembles and remove the back cover, it does not make sure
4. To make up for the damages and do a service and exchange the monitor..

Cautions

Install this monitor some distance From the wall and do not install unless Proper ventilation is provided.

Place this product on a stable place. If not, it may fall, causing serious Damages to the monitor and people.

The openings must not be blocked by curtain, rug or other similar surface.

When carrying this monitor, be careful not to damage the panel and drop it. It may cause some trouble.

Before carrying the monitor, turn it off and Unplug the signal cables and the power code From the wall outlet.

Take the power plug out from the wall outlet. Do not pull the cable. It may snap the inner wires and cause overheating and fire.

Install this monitor about 50cm far from the eyes and an angle of 0\~15 degrees below eyes. Too close installation may cause having weak sight.

Do not press the LCD panel with hands or the sharpened material hardly.

For cleaning, unplug the monitor from the Wall outlet. Do net use the liquid cloth. Use the soft cloth.

Do not use the chemical liquid for cleaning. It may cause fading and breakage.

TABLE OF CONTENTS

1. INSTALLATION 6

1.1 Unpacking 6
1.2 Part List 6
1.3 Main Functional Button 7
1.4 Connection 8
1.5 Remote Controller 9

2. OSD SETTING 10-12

3. FEATURES 13

3.1 Specifications 13

4. APPENDIX 14

5. INFORMATION TO THE USER 15

6. TROUBLESHOOTING 16

7. LIMITED WARRANTY 17

INSTALLATION

1.1 Unpacking

Remove the package cover and place the product on a flat and secure surface or in the installation location. This equipment should be unpacked and handled with care. If an item appears to have been damaged in shipment, notify the shipper immediately. Check whether all the following device and accessories are included with the main system. If any items are missing, notify your Sales or Customer Service Representative.

1.2 Part List

The following table lists the parts included:

LED SECURITY MONITOR

USER'S GUIDE

EXTERNAL POWER CABLE

POWER ADAPTOR

VGA CABLE

REMOTE CONTROLLER

1.3 Main Functional Button

18.5 / 21.5 Inch Display

23 Inch Display

1 MENU/EXIT

Activate and exit the OSD.

2 ▼/SOURCE

Select input source and move the OSD menu.

3 ▲/AUTO

Move the OSD menu and auto adjustment of RGB source.

4 ◀/VOLUME

Decrease the level of volume and move the previous menu.

5 ▶/SELECT

Increase the level of volume and move the OSD menu.

6

Turns the power ON or OFF. There will be a few seconds delay before the display appears. The power LED(next to the power switch) lights with green when the power is turned ON. The power is turned off by pressing the power switch again and the power LED goes Red.

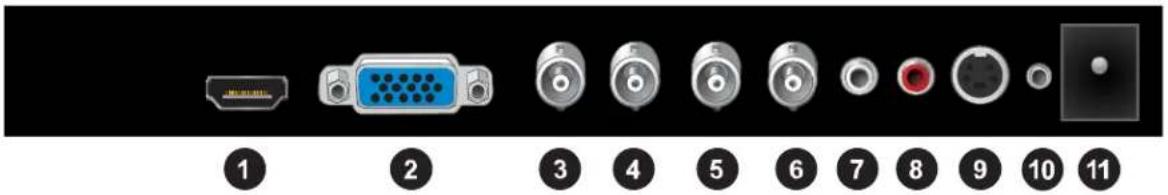

1.4 Connection

1 HDMI In

Connect the HDMI signal cable.

2 VGB In (15 Pin D-SUB)

Connect the VGA signal cable.

3 AV1 In

Composite signal input for AV1.

4 AV1 Out

Video looping output for AV1.

5 AV2 In

Composite signal input for AV2.

6 AV2 Out

Video looping output for AV2.

7 8 AUDIO In

Stereo audio signal input. This input for AV1 and S-VIDEO.

9 S-VIDEO In

Y/C separated signal input.

10 PC AUDIO In

11 DC 12V In

1.5 Remote Controller

A. SOURCE SELECT

Press the button to select the desired input source.

(AV 1, S-VIDEO, RGB... etc)

B. CONTROL MENU

■ POWER
Turn the monitor ON or OFF.
■ MUTE
Temporarily silences the sound.

■ AUTO

Adjust the picture quality of the screen.

■ MENU

Activates and exits the OSD menu.

■ ◀ ▶ △ ▼

Adjust the right, left, down, up, of the OSD menu.

■ VOL -

Decrease the sound.

■ VOL +

Increase the sound.

■ OK / SWAP / PIP / POP

This function key is not appropriate for this type of monitor.

OSD (On Screen Display) SETTING

A. INPUT Select

Inputs can be set to AV1, AV2, S-VIDEO, HDMI and PC mode.

B. MENU SELECTON

1 Press the MENU/EXIT key to access the main menu.
2 Use the ▲ and ▼ arrow key to highlight a selection.
3 Press the ▶/SELECT key to select an item.
4 Use the ▲ and ▼ arrow key to highlight a selection.
5 Use the ◀ and ▶ arrow key to adjust the setting on a selected item.

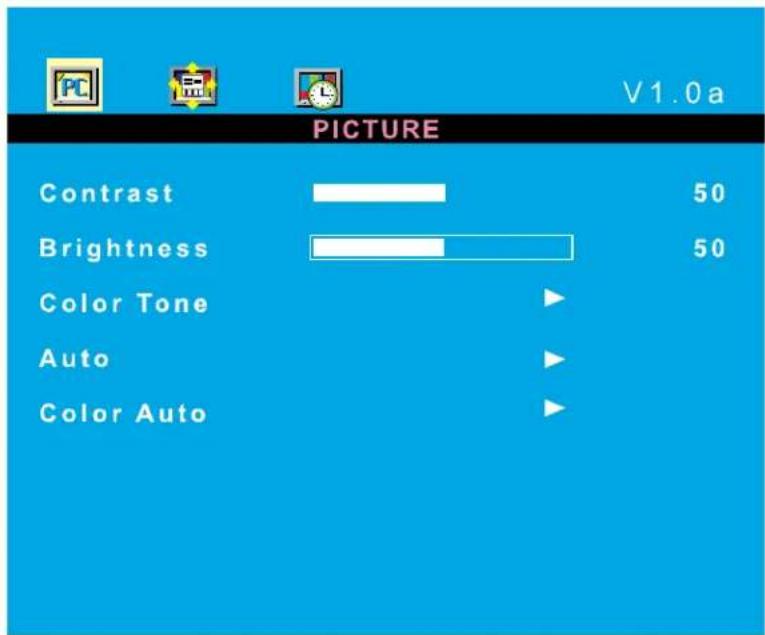

■ C. PICTURE MENU on OSD

1 Press MENU/EXIT button and then ◀ or ▶ button to select PICTURE menu.
2 Press ▲ or ▼ arrow button to select the adjustment item you need.
3 Press ◀ or ▶ to activate the item.

Ex) if you select the BRIGHTNESS, below picture appears on the bottom of the screen.

4 Press MENU/EXIT to previous screen.

1 Press MENU/EXIT and then ◀ or ▶ to select the SYSTEM menu.
2 Press ▲ or ▼ to select and control the adjustable menu item.
3 Press ◀ or ▶ to activate the menu item.
4 Press MENU/EXIT to previous screen.

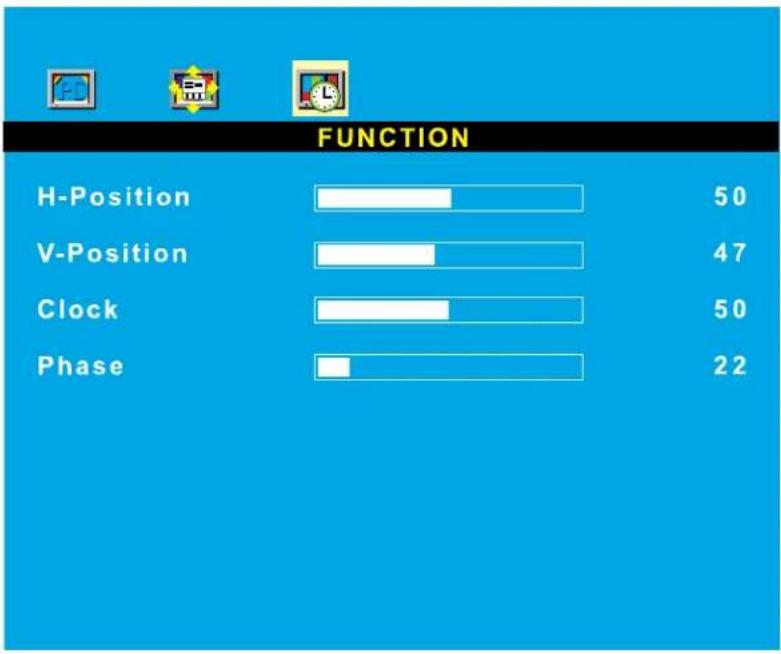

■ E. FUNCTION MENU on OSD

1 Press MENU/EXIT and then ◀ or ▶ to select the FUNCTION menu.
2 Press ▲ or ▼ to select and control the adjustable menu item.
3 Press ◀ or ▶ to activate the menu item.
4 Press MENU/EXIT to previous screen.

FEATURES

3.1 Specification

VIDEO

Screen Size	18.5"	21.5"	23"
Pixel Type	Active Matrix TFT	Active Matrix TFT	Active Matrix TFT
Panel Resolution	1366 x 768 @60Hz	1920 x 1080 @60Hz	1920 x 1080 @60Hz
Pixel Pitch	0.3mm x 0.3mm	0.248 x 0.248 mm	0.265 x 0.265 mm
Brightness	250cd/m 3	250cd/m 2 250cd/m 2
Contrast Ratio	1000 : 1	1000:1 1000:1
Aspect Ratio	16 : 9	16 : 9	16 : 9
Viewing Angle (H/V)	170°/160°	170°/160°	170°/160°
Display Color	16.7 Million	16.7 Million	16.7 Million
Response Time	< 5ms	< 5ms	< 5ms
Video System	NTSC / PAL / SECAM	NTSC / PAL / SECAM	NTSC / PAL / SECAM
Frequency (H)	60 ~ 81KHz	60 ~ 81KHz	60 ~ 81KHz
Frequency (V)	55 ~ 75Hz	55 ~ 75Hz	55 ~ 75Hz
Panel Lamp Life	30,000hours	30,000hours	30,000hours

MECANICAL

Outline DimensionW x H x D	18.3" x 13.8" x 5.9"	21.1" x 15.9" x 5.9	23.1" x 16.8" X 6.3"
Net Weight	3.42Kg (7.56 lbs)	3.99Kg (8.818 lbs)	4.99Kg (11.02 lbs)
Power Consumption	< 25W	< 30W	< 30W
Power Source	DC12V / 3.7A adapter (Auto Switching)

APPENDIX

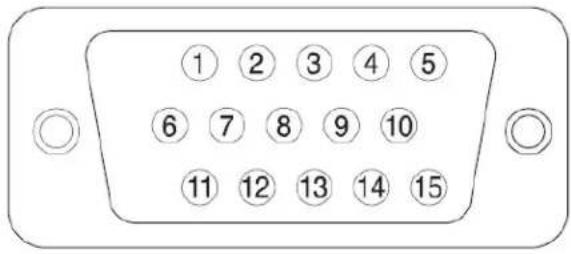

4.1 D-SUB Connector PIN Assignment

PIN NO.	PIN Name	PIN NO.	PIN Name
1	RED VIDEO	9	NC
2	GREEN VIDEO	10 SIGNAL CABLE DETECT
3	BLUE VIDEO	11	GROUND
4	GROUND	12 SDA (for DDC)
5	GROUND	13	H-SYNC
6	RED GROUND	14	V-SYNC
7	GREEN GROUND	15 SCL (for DDC)
8	BLUE GROUND

INFORMATION TO THE USER

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio / TV technician for help.

WARNING:

The manufacturer is not responsible for any Radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment."

TROUBLESHOOTING

* When the following troubles are occurred, follow the trouble shooting. Before contacting a service center.

Troubleshooting	Troubleshooting Tip
The screen doesn’t show up	1. Make sure if the power supply is connected property
	2. Turn on the power.
	3. Select the input signal right for the connected port.
The screen is too light or to dark	Control the BRIGHTNESS
The screen size is not fit for the PC signal	Press the AUTO key among keys in the front.(It is used only in the PC signal)
The screen color shows strange in the PC signal	In the FUNCTION menu of OSD menu, perform the AUTO-ADJUST.

2Year Limited Warranty

All Orion Images products carry a limited warranty from ship date against defects in materials and workmanship. Orion Images is not liable for improper installation that results in damage to mounts, adapters, display equipment or personal injury.

Contact Orion Images

In the event of missing and/or damage equipment, or technical questions, the following information can help in the completion of the installation.

Address: 7300 Bolsa Avenue, Westminster, CA 92683

Tel: [phone] / Fax: [phone]

Email: [e-mail]

Website: http://www.orionimages.com
