USER MANUAL Corridor 6529 BDI

Product Registration

Registering your new BDI product allows us to send you important product updates, service information and helpful hints related to your BDI products. Register today and you will be entered to win free a BINK table from BDI. www.bdiusa.com/product-registration/

Placement and Maintenance

Corridor® Office furniture is designed for indoor use on level floors. Clean glass with glass cleaner, and steel parts and wood veneer with a moist cloth.

Your Corridor® Office furniture is engineered for easy assembly. Carefully follow this procedure to prevent any damage. Do not use power tools for assembly of this product.

Step 1

Unpack and identify the parts listed below. The assembly workspace should be a non-marring surface such as carpet. For missing hardware pieces, please contact BDI Customer Service at [e-mail]. For all other concerns, please contact your BDI retailer.

T1 4mm Hex Wrench

H1 1/4-20 x 12mm Machine Screw x 16

H2 M4 x 37mm Machine Screw x 8

H3 1/4-20 x 63mm Machine Screw x 6

H4 Bumper x 6

C2 Pull x 4

C4 Small File Bar x 2

C5 Large File Bar

C5 Large File Bar x 1

C6 File Bar Clip x 4

Tool Required:

Phillips screwdriver

C1 Glass Panel x 1

A1 Cabinet x 1 C7 Base Stretcher x 2 C3 Right Le

C8 Left Leg x 1
C3 Right Leg x 1

Designed by Matthew Weatherly. These distinctive product configurations are protected by US and international patents, trade dress, and/or copyright laws. Corridor & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2015, BDI Made in China. 02.05.2016 V2

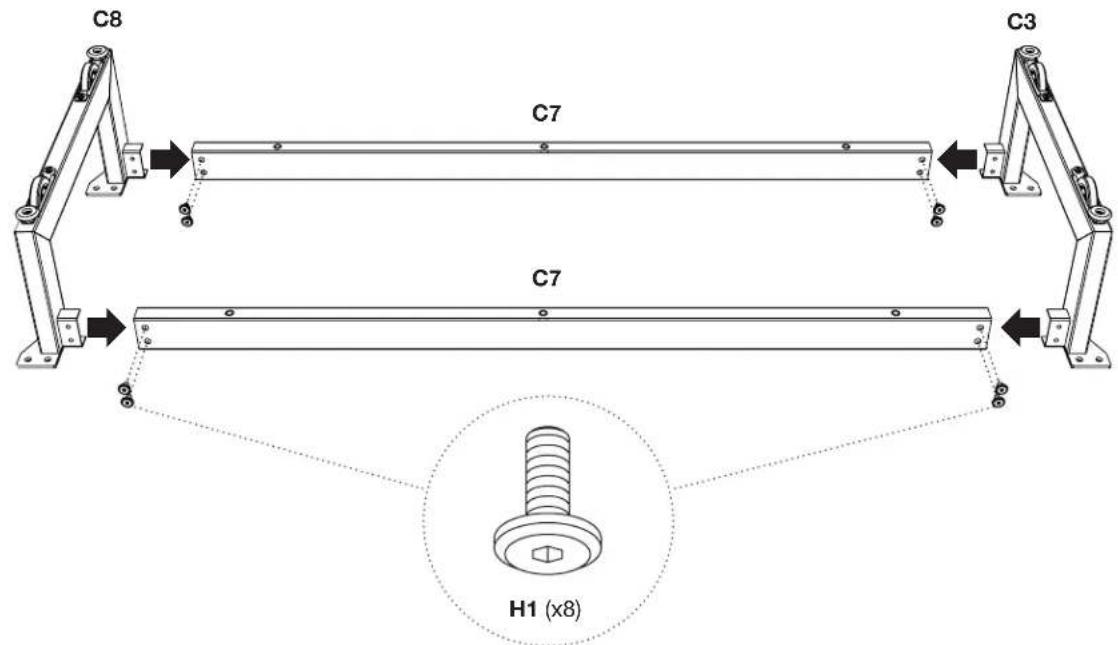

Step 2 - Build Base Assembly

Slide Left Leg C8 and Right Leg C3 into Base Stretcher C7 and attach by using Hex Wrench and Screw H1.

C8 C7 C3 C7 H1 (x8)

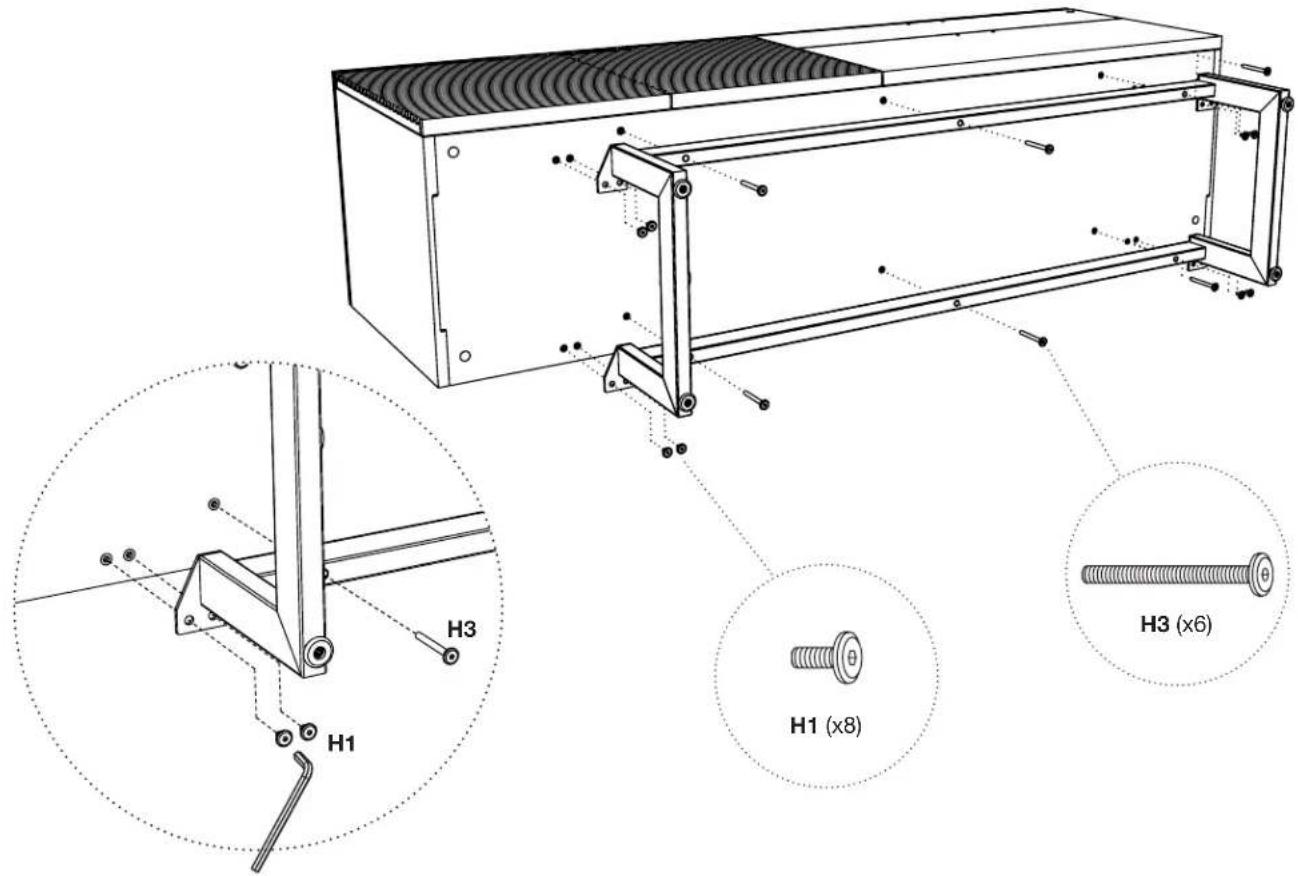

Step 3 - Attach Leg Assembly to Cabinet using Screws H1 and H3 and tighten with Hex Wrench.

Technical diagram of a mechanical assembly with labeled components H1, H3, and H1 (x8), including exploded views and assembly details.

Step 4 - Install Bumpers H4 in locations shown below onto the top of cabinet. Carefully position Glass Panel flush with the edges of cabinet.

C1 H4 (x6)

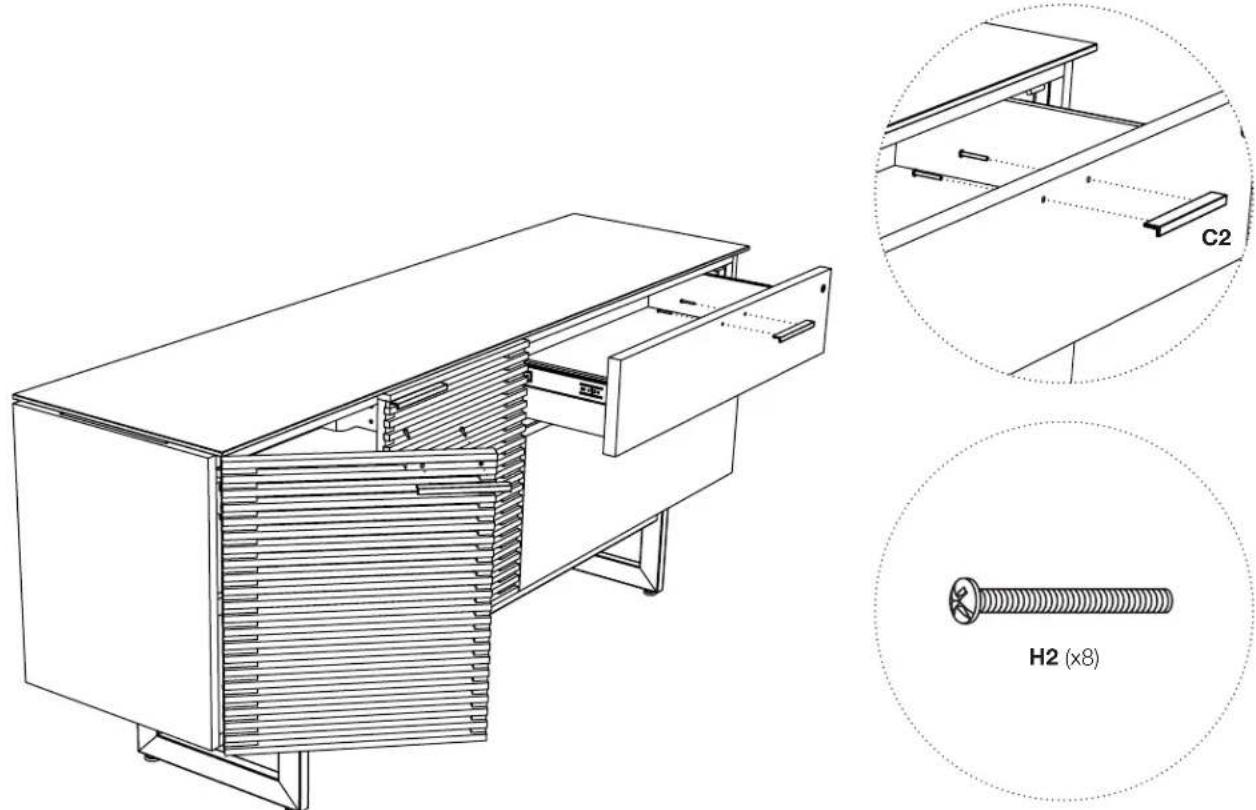

Step 5 - Attach Pulls C2 to cabinet door and drawers using Screws H2 and tighten with a Phillips screwdriver.

Technical line drawing of a cabinet with internal drawers and a separate inset showing a bolt assembly (no text or symbols)

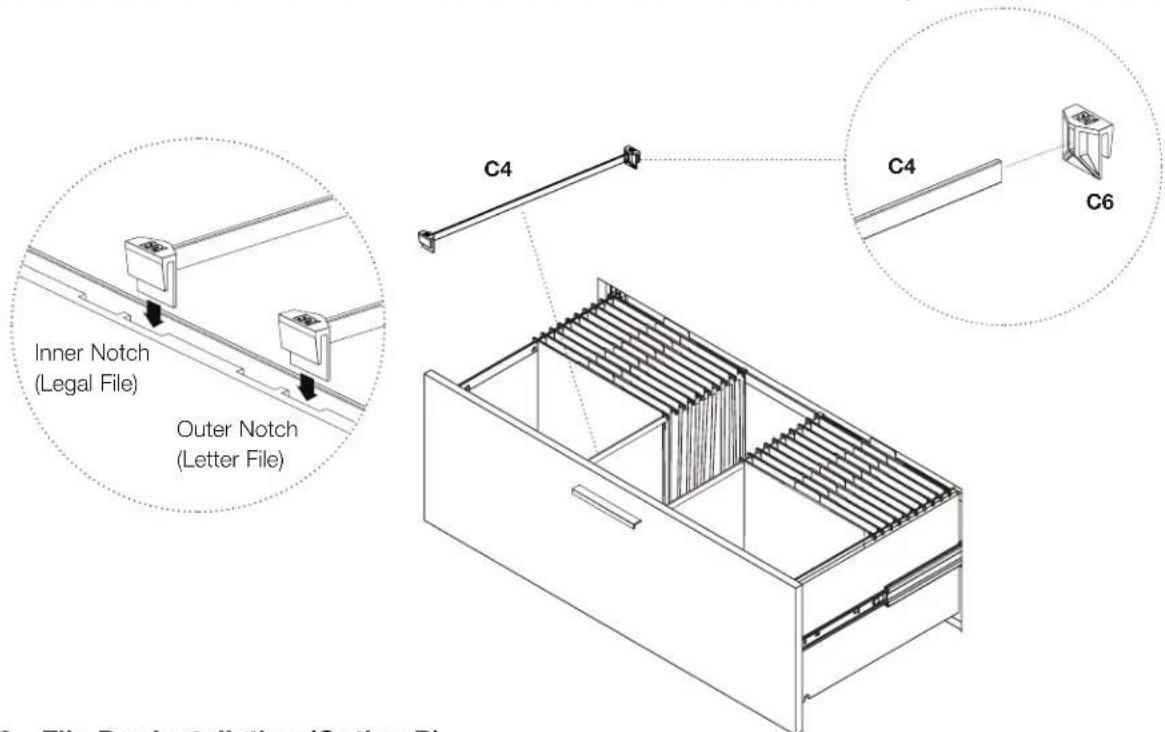

Step 7 - File Bar Installation (Option A)

For files facing forward, attach File Bar Clip C6 to both ends of Small File Bar C4 as shown.

For letter files, use the outer notches on the front and back of the drawer. For legal files, use the inner notches.

Inner Notch (Legal File) Outer Notch (Letter File) C4 C4 C6 3. File Product Installations (Options B)

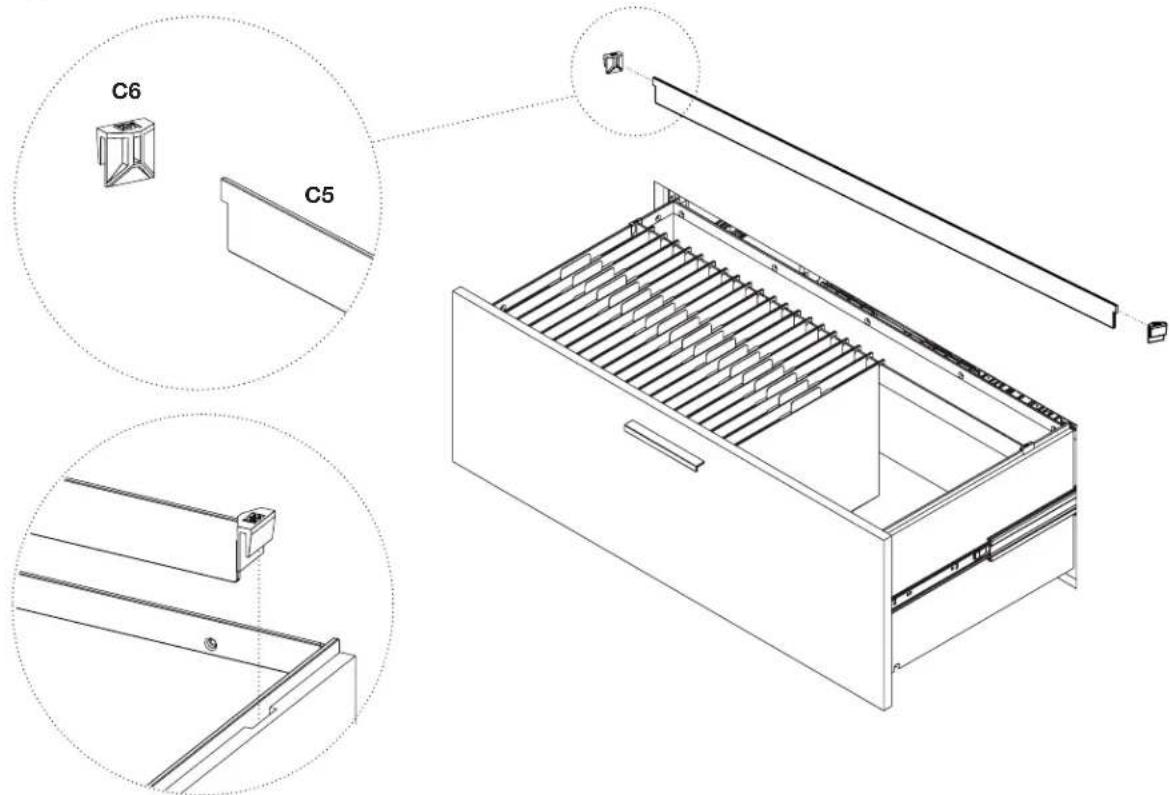

Step 8 - File Bar Installation (Option B)

For files facing sideways, attach File Bar Clip C6 to both ends of Large File Bar C5 as shown. Place the file bar assembly in the notches located on the left and right drawer side panels. For side facing legal files, skip this step altogether.

C6 C5

Corridor lateral file cabinets are pre-assembled with matching locks. If you require unique locks for your home or office use, please contact BDI Customer Service at [e-mail] to purchase a unique lock and key replacement kit which includes a lock assembly and two keys. To replace the lock please follow the instructions below.

Optional - Lock Removal and Installation

1. Open the drawer which houses the lock.
2. Using a Phillip's screw driver, loosen the 2 screws that secure the lock assembly to the back of the drawer facia panel.
3. Replace it with the new lock assembly and re-tighten the 2 screws.

Tool Required: Phillips screwdriver
