Product Type	Suitcase with built-in scale and removable charger
Brand	Princess
Model	New Orleans
Scale Maximum Load (S/M/L)	10 kg / 15 kg / 20 kg
Scale Tolerance	±2.5 kg
Scale Units	kg / lbs (selectable)
Lock Type	3-digit combination lock (pull or push mechanism)
Lock Default Code	0-0-0
Battery Type (Scale)	CR2032 (A-brand recommended)
Battery Location	Rear side of scale, inside suitcase
Charger Type	Removable power box charger
Charger Installation	Sliding cover inside suitcase, zip-tie cut on first use
Charger Lock Feature	Sliding cover can be locked to secure contents
Safety Instructions	Do not expose to rain or humidity; use only CR2032 batteries
Maintenance	Replace battery when scale does not respond or displays 'LO'
Usage Instructions	Place on flat surface, press ON/OFF, lift by side handle, hold still for weight

Frequently Asked Questions - New Orleans PRINCESS

How do I set the combination lock on my Princess New Orleans suitcase?

The lock comes set to 0-0-0. Press the A button in the direction of the arrow, hold it, turn the wheels (B) to your desired 3-digit code, then release the button. Ensure you do not release the button while setting the code.

How do I use the built-in scale?

Place the suitcase on a flat surface with the LCD screen facing upward. Press the 'ON/OFF' button. When '0' appears, lift the suitcase by the side handle and hold it still for a few seconds. The weight will be displayed on the screen.

How do I switch between kilograms and pounds?

Press the 'KG/LBS' button to toggle the display between kilograms (kg) and pounds (lbs).

How do I replace the battery if the scale stops working?

If the scale does not respond or shows 'LO', replace the battery. The battery is a CR2032 located on the rear side of the scale (inside the suitcase). Slide open the cover, replace the battery respecting polarity, and close the cover.

Can I remove the charger from the suitcase?

Yes, the charger is removable. Open the zipper inside the suitcase, cut the zip tie (if first use), pull up the lid, slide out the charger unit, then close and lock the sliding cover.

How do I lock the charger compartment?

After removing the charger, you can lock the sliding cover. This prevents anyone from placing items in your suitcase without your knowledge.

What type of battery does the scale use?

The scale uses a CR2032 lithium battery. Only use A-brand CR2032 batteries for reliable performance.

What is the maximum weight the scale can measure?

The maximum load depends on the suitcase size: 10 kg for size S, 15 kg for size M, and 20 kg for size L. Tolerance is ±2.5 kg.

Is the suitcase waterproof?

No, never expose the suitcase to rain or humidity. This may cause damage to the built-in scale.

What should I do if the scale displays 'LO'?

'LO' indicates low battery. Replace the CR2032 battery following the instructions in the manual.

USER MANUAL New Orleans PRINCESS

Here you can find our instruction manuals.

Below is an overview of our most common instructions for use.

If you don't see the manual you're looking for, don't worry! Let us know via our contact page and one of our colleagues will contact you as soon as possible.

PULL LOCK INSTRUCTIONS

• The lock is set to 0-0-0
• Press the A button in the direction of the arrow
• While holding in the button, choose your 3-digit code by turning the wheels (B)
• Release the button to set your code
• Make sure that you do not release the button while setting the code

PUSH LOCK INSTRUCTIONS

• The lock is set to 0-0-0
• Press the A button in the direction of the arrow
• While holding in the button, choose your 3-digit code by turning the wheels (B)
• Release the button to set your code
• Make sure that you do not release the button while setting the code

SUITCASE WITH A BUILT-IN SCALE

Note: Please read these instructions carefully. Observe the instructions for safe use.

Use the product with care and for the purpose for which it is intended.

Failure to do so may cause the wrong weight to display or potentially cause damage. Store these instructions for future use.

1) SAFETY INSTRUCTIONS

• Never expose the suitcase to rain or humidity. This may cause damage to the scale.
• Only use A-brand CR2032 batteries.

2) SPECIFICATIONS

• Maximum load for suitcases in size S/M/L 10/15/20 kg
- Tolerance ± 2.5kg
- Unit on display kg, lbs

3) INSTRUCTIONS FOR USE

• Place the luggage on a flat surface, with the LCD scale screen facing upwards.
• Press the button marked 'ON/OFF'.

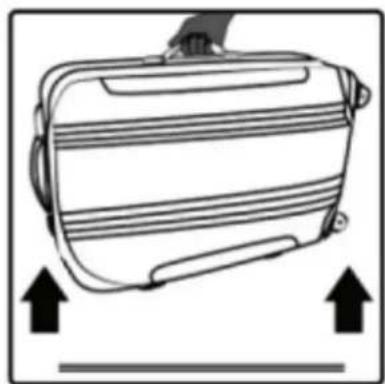

• Once the number zero (0) is displayed on the LCD screen, lift the suitcase by the side handle. Hold the suitcase still for a few seconds.
• The total weight of the luggage will be displayed on the LCD screen.
• Switch off the scale by pressing the 'ON/OFF' button again.
• By pressing the button marked 'KG/LBS', the LCD display will toggle between kilograms and pounds.

4) MAINTENANCE

Check and replace the battery if the scale does not respond to the 'ON/OFF' button, or the display reads 'LO'.

The battery is located on the rear side of the scale, i.e. on the inside of the suitcase. Here you will find a cover.

Slide it open to replace the battery. Pay attention to the positive/negative pole markings.

Diagram of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Line drawing of a suitcase with upward arrows indicating motion or movement (no text or symbols)

POWER BOXPOWER BOX

The charger is removable and can also be used as a separate unit.

REMOVING THE CHARGER

Open the zipper inside the suitcase. When using it for the first time, cut off the zip tie.

Pull up the lid and slide out the charger-unit. Close and lock the sliding cover.

Three technical line drawings of a mechanical housing component with cutouts and mounting holes, shown from different angles (no text or symbols present)

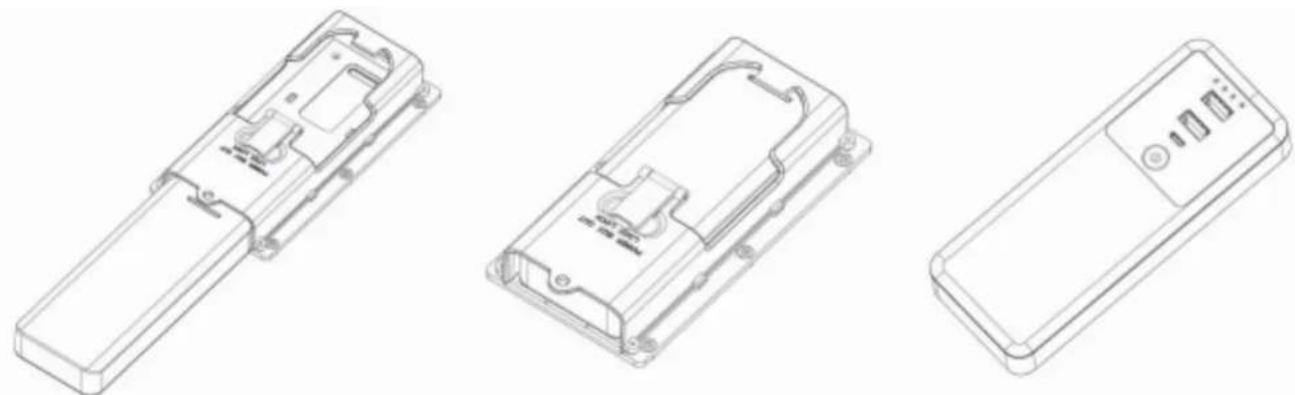

PLACING THE CHARGER

Three technical line drawings of a remote control casing (no text or symbols)

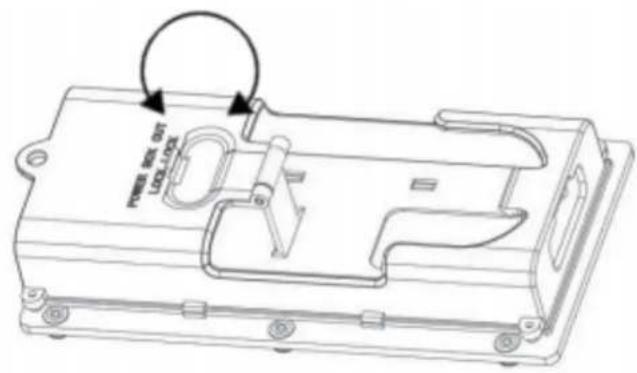

LOCKING THE CHARGER

Once you have removed the charger, lock the sliding cover. This will prevent somebody from placing something in your suitcase without you noticing.

Top-down schematic of a device casing with mounting holes and a central internal component (no text or symbols)

TRAVEL LIKE A ROYAL
