Kyoto - Kitchen appliance PRINCESS - Free user manual and instructions

Product Type	Suitcase with built-in scale and lock
Brand	Princess
Model	Kyoto
Scale Type	Built-in weighing scale
Scale Maximum Load (S/M/L)	10 kg / 15 kg / 20 kg
Scale Tolerance	± 2.5 kg
Scale Units	kg, lbs
Scale Display	LCD screen
Lock Type	3-digit combination lock (pull or push mechanism)
Lock Default Code	0-0-0
Power Box	Removable charger, can be used separately
Scale Battery	CR2032 coin cell battery
Scale Battery Location	Inside the suitcase, on the rear side of the scale
Usage Instructions	Place on flat surface, press ON/OFF, wait for zero, lift by handle, read weight
Maintenance	Replace battery if display shows 'LO' or no response
Safety Precautions	Do not expose to rain or humidity; use only CR2032 batteries
Charger Removal	Open inner zipper, cut zip tie, pull up lid, slide out charger, lock sliding cover
Charger Locking	Lock sliding cover after removal to prevent unauthorized access

Frequently Asked Questions - Kyoto PRINCESS

How do I set a new combination on the lock?

For pull lock: Ensure lock is at 0-0-0. Press button A in direction of arrow, hold it, turn wheels B to your desired 3-digit code, then release button A. For push lock: Same procedure but with push mechanism. Do not release the button while setting the code.

What is the maximum weight the built-in scale can measure?

The maximum load depends on suitcase size: S (10 kg), M (15 kg), L (20 kg). Tolerance is ±2.5 kg. The scale displays weight in kg or lbs.

How do I use the built-in scale?

Place the suitcase on a flat surface with the LCD screen facing upward. Press the ON/OFF button. Wait for zero (0) to display, then lift the suitcase by the side handle and hold still for a few seconds. The weight will appear on the screen. Press ON/OFF again to turn off. Use KG/LBS button to toggle units.

What type of battery does the scale use and how do I replace it?

The scale uses one CR2032 coin cell battery. If the scale does not respond or displays 'LO', replace the battery. The battery compartment is inside the suitcase on the rear side of the scale. Slide open the cover, replace the battery respecting polarity (+/-), and close the cover.

Can I remove the charger from the suitcase?

Yes, the charger is removable and can be used as a separate unit. Open the inner zipper, cut the zip tie (if first time), pull up the lid, and slide out the charger-unit. Then close and lock the sliding cover.

How do I lock the sliding cover after removing the charger?

After removing the charger, simply lock the sliding cover. This prevents others from placing items in your suitcase without your knowledge.

What should I do if the scale displays 'LO'?

'LO' indicates low battery. Replace the CR2032 battery as described in the user manual. Ensure you use only A-brand CR2032 batteries.

Is the suitcase waterproof?

No. Do not expose the suitcase to rain or humidity as it may damage the scale and lock mechanism. Store in a dry place.

Can I use the scale while the suitcase is in motion?

No. For accurate measurement, the suitcase must be placed on a flat surface and held still while lifting. Movement will cause incorrect readings.

How often should I replace the battery?

Battery life depends on usage. Replace when the scale becomes unresponsive or shows 'LO'. For best performance, remove the battery if the scale is not used for extended periods.

USER MANUAL Kyoto PRINCESS

Here you can find our instruction manuals.

Below is an overview of our most common instructions for use.

If you don't see the manual you're looking for, don't worry! Let us know via our contact page and one of our colleagues will contact you as soon as possible.

PULL LOCK INSTRUCTIONS

- The lock is set to 0-0-0

- Press the A button in the direction of the arrow

- While holding in the button, choose your 3-digit code by turning the wheels (B)

- Release the button to set your code

- Make sure that you do not release the button while setting the code

PUSH LOCK INSTRUCTIONS

• The lock is set to 0-0-0
• Press the A button in the direction of the arrow
• While holding in the button, choose your 3-digit code by turning the wheels (B)
• Release the button to set your code
• Make sure that you do not release the button while setting the code

SUITCASE WITH A BUILT-IN SCALE

Note: Please read these instructions carefully. Observe the instructions for safe use.

Use the product with care and for the purpose for which it is intended.

Failure to do so may cause the wrong weight to display or potentially cause damage. Store these instructions for future use.

1) SAFETY INSTRUCTIONS

• Never expose the suitcase to rain or humidity. This may cause damage to the scale.
• Only use A-brand CR2032 batteries.

2) SPECIFICATIONS

• Maximum load for suitcases in size S/M/L 10/15/20 kg
- Tolerance ± 2.5kg
- Unit on display kg, lbs

3) INSTRUCTIONS FOR USE

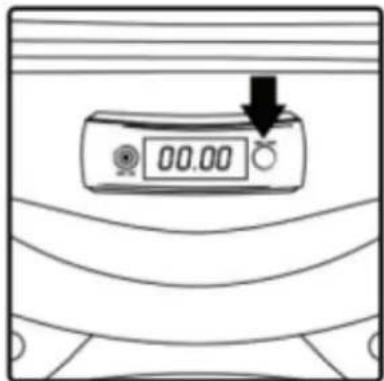

• Place the luggage on a flat surface, with the LCD scale screen facing upwards.
• Press the button marked 'ON/OFF'.
• Once the number zero (0) is displayed on the LCD screen, lift the suitcase by the side handle. Hold the suitcase still for a few seconds.
• The total weight of the luggage will be displayed on the LCD screen.
• Switch off the scale by pressing the 'ON/OFF' button again.
• By pressing the button marked 'KG/LBS', the LCD display will toggle between kilograms and pounds.

4) MAINTENANCE

Check and replace the battery if the scale does not respond to the 'ON/OFF' button, or the display reads 'LO'.

The battery is located on the rear side of the scale, i.e. on the inside of the suitcase. Here you will find a cover.

Slide it open to replace the battery. Pay attention to the positive/negative pole markings.

POWER BOXPOWER BOX

The charger is removable and can also be used as a separate unit.

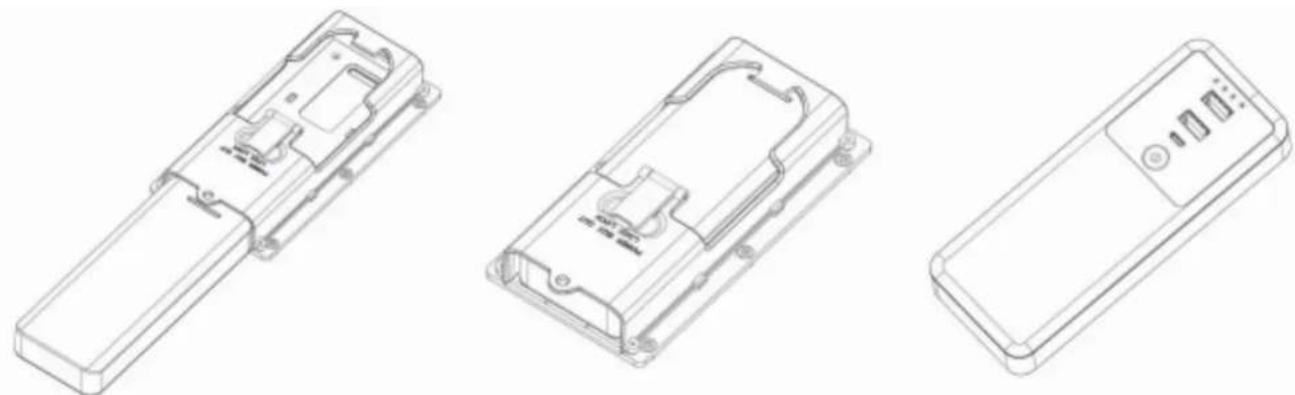

REMOVING THE CHARGER

Open the zipper inside the suitcase. When using it for the first time, cut off the zip tie.

Pull up the lid and slide out the charger-unit. Close and lock the sliding cover.

PLACING THE CHARGER

LOCKING THE CHARGER

Once you have removed the charger, lock the sliding cover. This will prevent somebody from placing something in your suitcase without you noticing.

TRAVEL LIKE A ROYAL
