Seattle - Home PRINCESS - Free user manual and instructions

Product Type	Suitcase with built-in scale and removable charger
Brand	Princess
Model	Seattle
Available Sizes	S, M, L
Scale Capacity (Size S)	10 kg
Scale Capacity (Size M)	15 kg
Scale Capacity (Size L)	20 kg
Scale Tolerance	±2.5 kg
Scale Units	kg / lbs (switchable)
Scale Display	LCD
Scale Battery	1 x CR2032 (replaceable)
Lock Type	3-digit combination lock (push and pull mechanisms)
Lock Default Code	0-0-0
Lock Setting	Press button A, set code with wheels B, release button
Removable Charger	Yes, internal power bank can be removed for separate use
Charger Location	Inside suitcase, accessed via zipper and sliding cover
Safety Note	Do not expose suitcase scale to rain or humidity
Maintenance	Replace scale battery when display shows "LO"
Battery Replacement	Open battery cover on rear side (inside suitcase), replace CR2032
Lifting Handle	Side handle for scale operation
Scale Control	ON/OFF and KG/LBS buttons

Frequently Asked Questions - Seattle PRINCESS

How do I set the combination lock on my Princess Seattle suitcase?

The lock comes set to 0-0-0. To set your own code, press the A button in the direction of the arrow, hold it, turn the wheels (B) to your desired 3-digit code, then release the button. Ensure you do not release the button while setting the code.

How do I reset the lock to a new code?

To reset, follow the same procedure: press and hold button A, set new code, release. There is no separate reset procedure.

How do I use the built-in scale to weigh my suitcase?

Place the suitcase on a flat surface with the LCD screen facing upward. Press the ON/OFF button. When the display shows "0", lift the suitcase by the side handle and hold steady for a few seconds. The weight will appear on the screen. Press ON/OFF again to turn off.

How do I switch between kilograms and pounds on the scale?

Press the KG/LBS button to toggle between kilograms and pounds on the LCD display.

What type of battery does the scale require and how do I replace it?

The scale uses one CR2032 battery. To replace, locate the battery cover on the rear side (inside the suitcase). Slide it open, replace the battery respecting polarity (+/-), and slide it closed.

How do I remove and use the power bank (charger) from the suitcase?

Open the zipper inside the suitcase (cut the zip tie if first use). Pull up the lid and slide out the charger unit. Close and lock the sliding cover. The charger can then be used as a separate power bank.

What are the maximum weight capacities for each size (S, M, L)?

For size S: 10 kg, size M: 15 kg, size L: 20 kg. Tolerance is ±2.5 kg.

What should I do if the scale displays "LO"?

"LO" indicates low battery. Replace the CR2032 battery as described above.

Can I use the suitcase lock without setting a custom code?

Yes, by default the lock is set to 0-0-0 and can be used without changing. However, it is recommended to set a personal code for security.

Is the scale accurate and how do I get the best results?

For accurate results, ensure the scale is on a flat surface, lift the suitcase smoothly without jerking, and hold still. The scale has a tolerance of ±2.5 kg. Avoid exposing the scale to rain or humidity.

USER MANUAL Seattle PRINCESS

Here you can find our instruction manuals.

Below is an overview of our most common instructions for use.

If you don't see the manual you're looking for, don't worry! Let us know via our contact page and one of our colleagues will contact you as soon as possible.

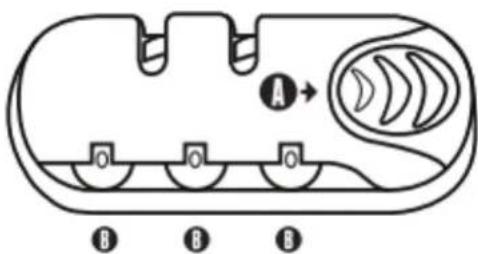

PULL LOCK INSTRUCTIONS

- The lock is set to 0-0-0

- Press the A button in the direction of the arrow

- While holding in the button, choose your 3-digit code by turning the wheels (B)

- Release the button to set your code

- Make sure that you do not release the button while setting the code

PUSH LOCK INSTRUCTIONS

• The lock is set to 0-0-0
• Press the A button in the direction of the arrow
• While holding in the button, choose your 3-digit code by turning the wheels (B)
• Release the button to set your code
• Make sure that you do not release the button while setting the code

SUITCASE WITH A BUILT-IN SCALE

Note: Please read these instructions carefully. Observe the instructions for safe use.

Use the product with care and for the purpose for which it is intended.

Failure to do so may cause the wrong weight to display or potentially cause damage. Store these instructions for future use.

1) SAFETY INSTRUCTIONS

• Never expose the suitcase to rain or humidity. This may cause damage to the scale.
• Only use A-brand CR2032 batteries.

2) SPECIFICATIONS

• Maximum load for suitcases in size S/M/L 10/15/20 kg
- Tolerance ± 2.5kg
- Unit on display kg, lbs

3) INSTRUCTIONS FOR USE

• Place the luggage on a flat surface, with the LCD scale screen facing upwards.

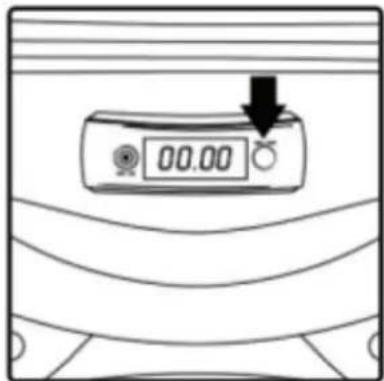

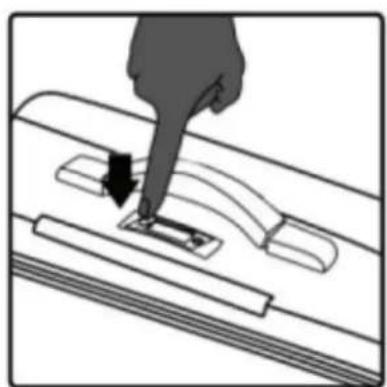

• Press the button marked 'ON/OFF'.

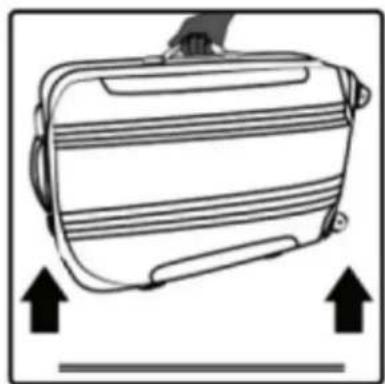

• Once the number zero (0) is displayed on the LCD screen, lift the suitcase by the side handle. Hold the suitcase still for a few seconds.
• The total weight of the luggage will be displayed on the LCD screen.
• Switch off the scale by pressing the 'ON/OFF' button again.
• By pressing the button marked 'KG/LBS', the LCD display will toggle between kilograms and pounds.

4) MAINTENANCE

Check and replace the battery if the scale does not respond to the 'ON/OFF' button, or the display reads 'LO'.

The battery is located on the rear side of the scale, i.e. on the inside of the suitcase. Here you will find a cover.

Slide it open to replace the battery. Pay attention to the positive/negative pole markings.

Diagram of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Diagram of a suitcase with upward arrows indicating motion or movement (no text or symbols)

POWER BOXPOWER BOX

The charger is removable and can also be used as a separate unit.

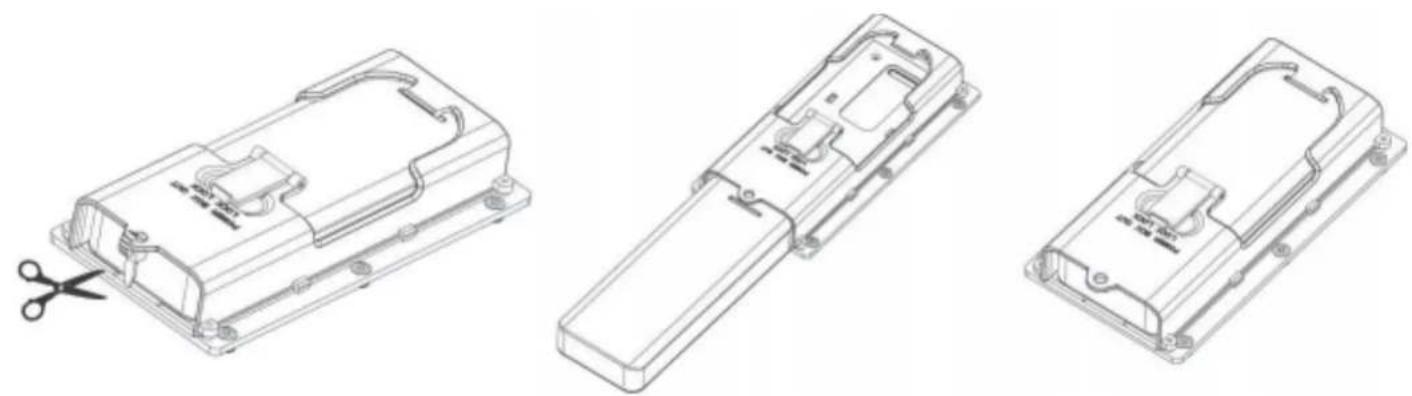

REMOVING THE CHARGER

Open the zipper inside the suitcase. When using it for the first time, cut off the zip tie.

Pull up the lid and slide out the charger-unit. Close and lock the sliding cover.

Three technical line drawings of a mechanical housing component with cutouts and mounting holes, shown from different angles (no text or symbols present)

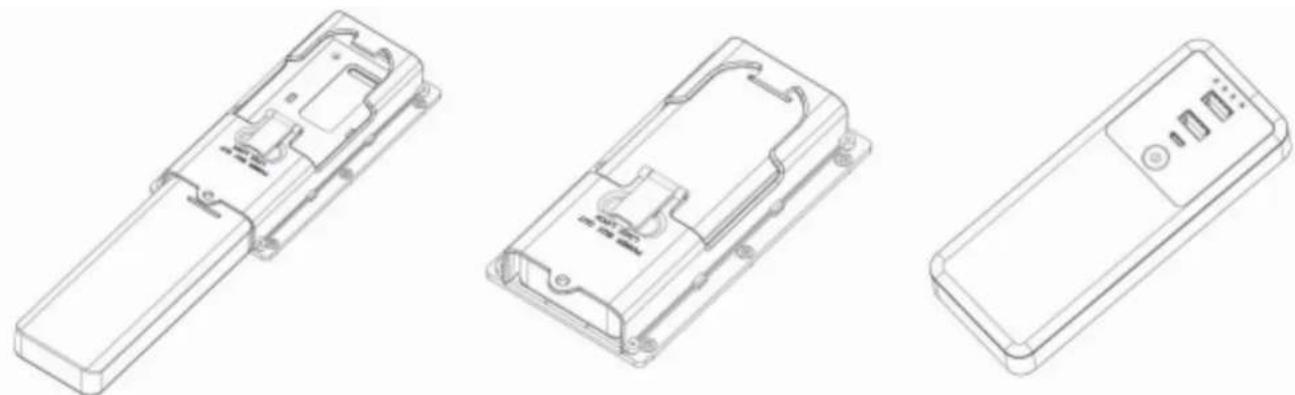

PLACING THE CHARGER

Three technical line drawings of a remote control casing (no text or symbols)

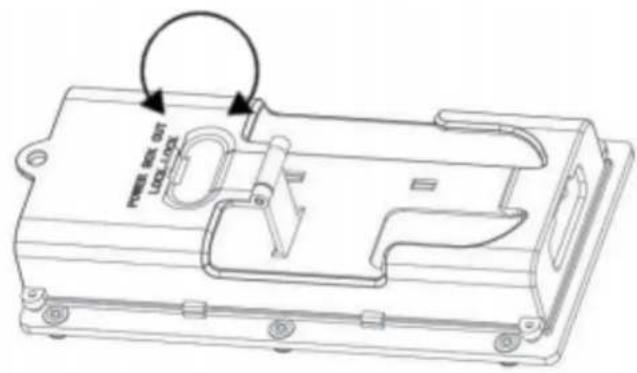

LOCKING THE CHARGER

Once you have removed the charger, lock the sliding cover. This will prevent somebody from placing something in your suitcase without you noticing.

Top-down schematic of a device casing with mounting holes and a central internal component (no text or symbols)

TRAVEL LIKE A ROYAL
