Brand	Princess
Model	Perth
Product Type	Suitcase with built-in scale and removable charger
Scale Type	Digital LCD
Scale Maximum Load (S/M/L)	10 kg / 15 kg / 20 kg
Scale Tolerance	±2.5 kg
Scale Units	kg / lbs (switchable)
Scale Battery	1 x CR2032 (A-brand)
Lock Type	3-digit combination lock (push and pull variants)
Lock Default Code	0-0-0
Charger Type	Removable rechargeable battery pack
Charger Access	Inside suitcase via zipper (cut zip tie on first use)
Maintenance	Replace CR2032 battery when scale shows 'LO' or unresponsive
Safety Precautions	Do not expose to rain or humidity; use only A-brand CR2032 batteries
Lock Setting Instructions	Press A button, choose code with wheels, release button
Scale Usage	Place on flat surface, press ON/OFF, lift by side handle, read weight
Charger Removal	Slide out charger unit after opening zipper and unlocking sliding cover
Charger Locking	Lock sliding cover after removing charger to prevent unauthorized access

Frequently Asked Questions - Perth PRINCESS

How do I set the combination lock on my Princess Perth suitcase?

The lock comes preset to 0-0-0. To set your own code, press the A button in the direction of the arrow, hold it, turn the wheels (B) to your desired 3-digit code, then release the button. Do not release the button while setting the code.

How do I use the built-in scale?

Place the suitcase on a flat surface with the LCD screen facing up. Press the ON/OFF button. When the display shows zero, lift the suitcase by the side handle and hold it steady. The weight will appear on the screen. Press ON/OFF again to turn off. Press KG/LBS to switch units.

What is the maximum weight the scale can measure?

The maximum load depends on suitcase size: S: 10 kg, M: 15 kg, L: 20 kg. Tolerance is ±2.5 kg.

How do I replace the scale battery?

If the scale does not respond or shows 'LO', replace the battery. The battery compartment is on the rear side of the scale (inside the suitcase). Slide open the cover and replace with a new CR2032 battery (A-brand only), observing polarity.

How do I remove the charger from the suitcase?

Open the zipper inside the suitcase. If it's the first use, cut the zip tie. Pull up the lid and slide out the charger unit. Then lock the sliding cover to prevent items from being placed inside unnoticed.

Can I use any brand of CR2032 battery?

It is recommended to use only A-brand CR2032 batteries to ensure proper function and avoid damage.

What should I do if the scale displays an incorrect weight?

Ensure the suitcase is on a flat, stable surface and you hold it still while lifting. Check the battery level (replace if low). The scale has a tolerance of ±2.5 kg.

How do I lock the charger compartment after removing it?

After removing the charger, slide the cover back into place and lock it. This prevents anyone from putting items into the suitcase without you knowing.

Is the suitcase waterproof?

No. Do not expose the suitcase to rain or humidity, as it may damage the scale. It is not waterproof.

Can I reset the combination lock if I forget my code?

The manual does not provide a reset method. It is advisable to note your code or use the default 0-0-0. If locked out, you may need to contact Princess support.

USER MANUAL Perth PRINCESS

Here you can find our instruction manuals.

Below is an overview of our most common instructions for use.

If you don't see the manual you're looking for, don't worry! Let us know via our contact page and one of our colleagues will contact you as soon as possible.

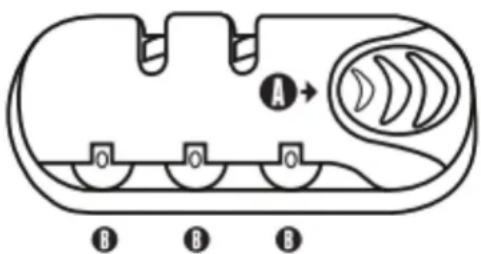

PULL LOCK INSTRUCTIONS

• The lock is set to 0-0-0
• Press the A button in the direction of the arrow
• While holding in the button, choose your 3-digit code by turning the wheels (B)
• Release the button to set your code
• Make sure that you do not release the button while setting the code

PUSH LOCK INSTRUCTIONS

• The lock is set to 0-0-0
• Press the A button in the direction of the arrow
• While holding in the button, choose your 3-digit code by turning the wheels (B)
• Release the button to set your code
• Make sure that you do not release the button while setting the code

SUITCASE WITH A BUILT-IN SCALE

Note: Please read these instructions carefully. Observe the instructions for safe use.

Use the product with care and for the purpose for which it is intended.

Failure to do so may cause the wrong weight to display or potentially cause damage. Store these instructions for future use.

1) SAFETY INSTRUCTIONS

• Never expose the suitcase to rain or humidity. This may cause damage to the scale.
• Only use A-brand CR2032 batteries.

2) SPECIFICATIONS

• Maximum load for suitcases in size S/M/L 10/15/20 kg
- Tolerance ± 2.5kg
- Unit on display kg, lbs

3) INSTRUCTIONS FOR USE

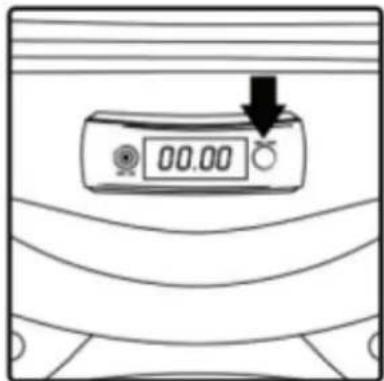

• Place the luggage on a flat surface, with the LCD scale screen facing upwards.

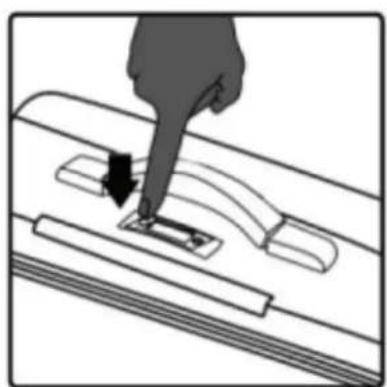

• Press the button marked 'ON/OFF'.

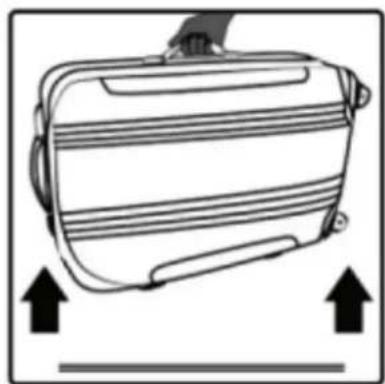

• Once the number zero (0) is displayed on the LCD screen, lift the suitcase by the side handle. Hold the suitcase still for a few seconds.
• The total weight of the luggage will be displayed on the LCD screen.
• Switch off the scale by pressing the 'ON/OFF' button again.
• By pressing the button marked 'KG/LBS', the LCD display will toggle between kilograms and pounds.

4) MAINTENANCE

Check and replace the battery if the scale does not respond to the 'ON/OFF' button, or the display reads 'LO'.

The battery is located on the rear side of the scale, i.e. on the inside of the suitcase. Here you will find a cover.

Slide it open to replace the battery. Pay attention to the positive/negative pole markings.

Diagram of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Diagram of a suitcase with upward arrows indicating motion or movement (no text or symbols)

POWER BOXPOWER BOX

The charger is removable and can also be used as a separate unit.

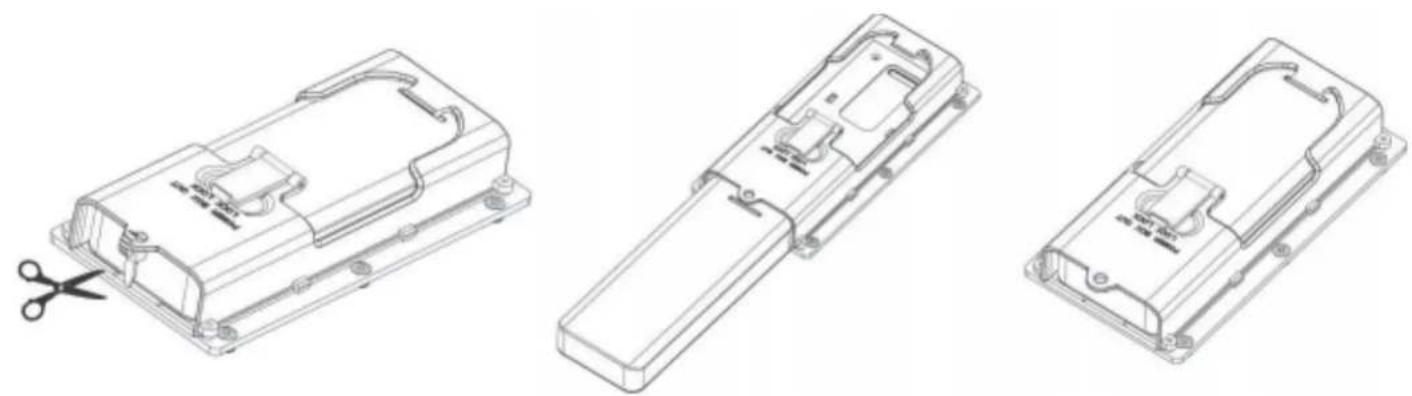

REMOVING THE CHARGER

Open the zipper inside the suitcase. When using it for the first time, cut off the zip tie.

Pull up the lid and slide out the charger-unit. Close and lock the sliding cover.

Three technical line drawings of a mechanical housing component with cutouts and mounting holes, shown from different angles (no text or symbols present)

PLACING THE CHARGER

Three technical line drawings of a remote control casing (no text or symbols)

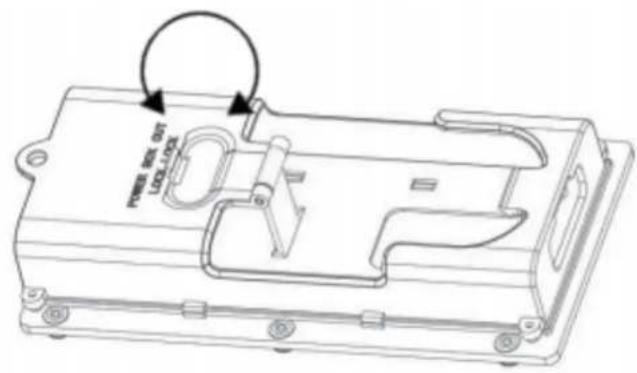

LOCKING THE CHARGER

Once you have removed the charger, lock the sliding cover. This will prevent somebody from placing something in your suitcase without you noticing.

Top-down schematic of a device casing with mounting holes and a central internal component (no text or symbols)

TRAVEL LIKE A ROYAL
