Canberra - Home PRINCESS - Free user manual and instructions

Product Type	Suitcase with built-in scale, combination lock, and removable charger
Brand	Princess
Model	Canberra
Lock Type	3-digit combination lock (push or pull mechanism)
Default Lock Code	0-0-0
Scale Type	Digital LCD scale
Scale Units	Kilograms (kg) and pounds (lbs), toggleable
Scale Maximum Load (by size)	Size S: 10 kg, Size M: 15 kg, Size L: 20 kg
Scale Tolerance	±2.5 kg
Scale Battery Type	CR2032 (1x)
Scale Battery Location	Rear side of scale, inside suitcase (under cover)
Charger Type	Removable power box (power bank)
Charger Location	Inside suitcase, accessible via zipper
Charger Lock	Sliding cover lock for security
Scale Usage	Place on flat surface, press ON/OFF, lift by side handle, hold steady
Maintenance	Replace scale battery when display shows "LO"
Safety Precautions	Do not expose scale to rain or humidity; use only brand CR2032 batteries
Included Accessories	Removable charger unit, combination lock

Frequently Asked Questions - Canberra PRINCESS

How do I set the combination lock on my Princess Canberra suitcase?

The lock comes set to 0-0-0. Press the A button in the direction of the arrow. While holding it, turn the wheels (B) to your desired 3-digit code. Release the button to set. Do not release the button while setting the code.

How do I use the built-in scale?

Place the suitcase on a flat surface with the LCD screen facing up. Press ON/OFF. When the display shows 0, lift the suitcase by the side handle and hold it steady. The weight will appear. Press ON/OFF again to turn off.

How do I replace the scale battery?

If the display shows LO or the scale does not respond, replace the battery. The battery is located on the rear side of the scale (inside the suitcase). Slide open the cover and replace with a CR2032 battery, observing polarity.

What type of battery does the scale require?

The scale uses one CR2032 lithium coin battery. Use only A-brand batteries for best performance and safety.

How do I remove the charger unit from the suitcase?

Open the zipper inside the suitcase. If first use, cut the zip tie. Pull up the lid and slide out the charger unit. Close and lock the sliding cover.

How do I lock the charger compartment after removing the charger?

After removing the charger, lock the sliding cover by sliding it into place. This prevents others from placing items into the suitcase without your knowledge.

What is the maximum weight the scale can measure?

The maximum load depends on suitcase size: 10 kg for Size S, 15 kg for Size M, and 20 kg for Size L. The tolerance is ±2.5 kg.

How do I switch the scale between kilograms and pounds?

Press the button marked KG/LBS to toggle between kilograms and pounds on the LCD display.

What should I do if the scale displays 'LO'?

The LO indicator means the battery is low. Replace the CR2032 battery as described in the manual. Use a brand battery.

Can I use the charger separately from the suitcase?

Yes, the charger is removable and can be used as a separate power bank. Follow the instructions to remove it from the suitcase.

USER MANUAL Canberra PRINCESS

Here you can find our instruction manuals.

Below is an overview of our most common instructions for use.

If you don't see the manual you're looking for, don't worry! Let us know via our contact page and one of our colleagues will contact you as soon as possible.

PULL LOCK INSTRUCTIONS

• The lock is set to 0-0-0
• Press the A button in the direction of the arrow
• While holding in the button, choose your 3-digit code by turning the wheels (B)
• Release the button to set your code
• Make sure that you do not release the button while setting the code

PUSH LOCK INSTRUCTIONS

• The lock is set to 0-0-0
• Press the A button in the direction of the arrow
• While holding in the button, choose your 3-digit code by turning the wheels (B)
• Release the button to set your code
• Make sure that you do not release the button while setting the code

SUITCASE WITH A BUILT-IN SCALE

Note: Please read these instructions carefully. Observe the instructions for safe use.

Use the product with care and for the purpose for which it is intended.

Failure to do so may cause the wrong weight to display or potentially cause damage. Store these instructions for future use.

1) SAFETY INSTRUCTIONS

• Never expose the suitcase to rain or humidity. This may cause damage to the scale.
• Only use A-brand CR2032 batteries.

2) SPECIFICATIONS

• Maximum load for suitcases in size S/M/L 10/15/20 kg
- Tolerance ± 2.5kg
- Unit on display kg, lbs

3) INSTRUCTIONS FOR USE

• Place the luggage on a flat surface, with the LCD scale screen facing upwards.

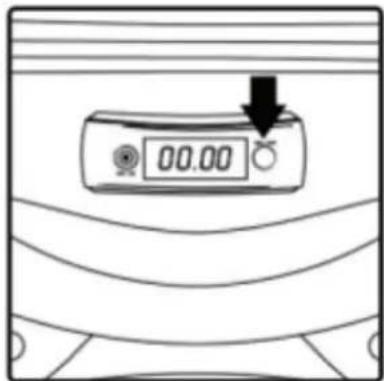

• Press the button marked 'ON/OFF'.

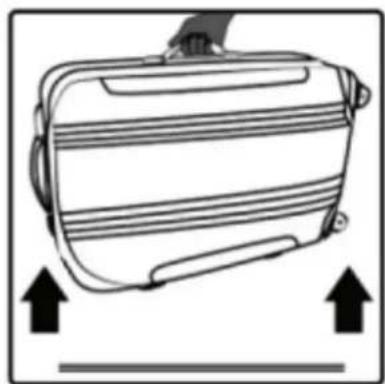

• Once the number zero (0) is displayed on the LCD screen, lift the suitcase by the side handle. Hold the suitcase still for a few seconds.
• The total weight of the luggage will be displayed on the LCD screen.
• Switch off the scale by pressing the 'ON/OFF' button again.
• By pressing the button marked 'KG/LBS', the LCD display will toggle between kilograms and pounds.

4) MAINTENANCE

Check and replace the battery if the scale does not respond to the 'ON/OFF' button, or the display reads 'LO'.

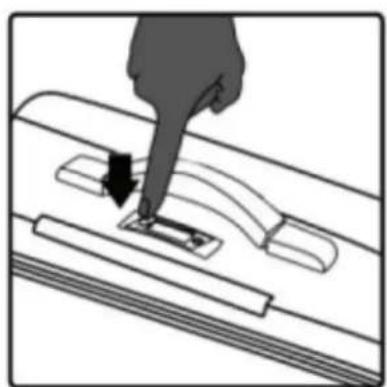

The battery is located on the rear side of the scale, i.e. on the inside of the suitcase. Here you will find a cover.

Slide it open to replace the battery. Pay attention to the positive/negative pole markings.

Diagram of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Diagram of a suitcase with upward arrows indicating movement or force (no text or symbols)

POWER BOXPOWER BOX

The charger is removable and can also be used as a separate unit.

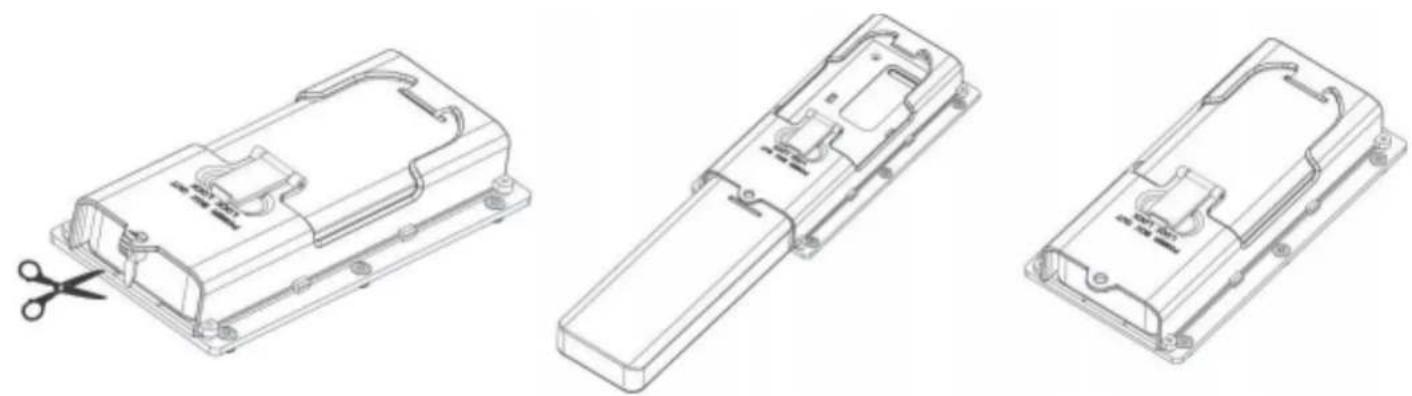

REMOVING THE CHARGER

Open the zipper inside the suitcase. When using it for the first time, cut off the zip tie.

Pull up the lid and slide out the charger-unit. Close and lock the sliding cover.

Three technical line drawings of a mechanical housing component with cutouts and mounting holes, shown from different angles (no text or symbols present)

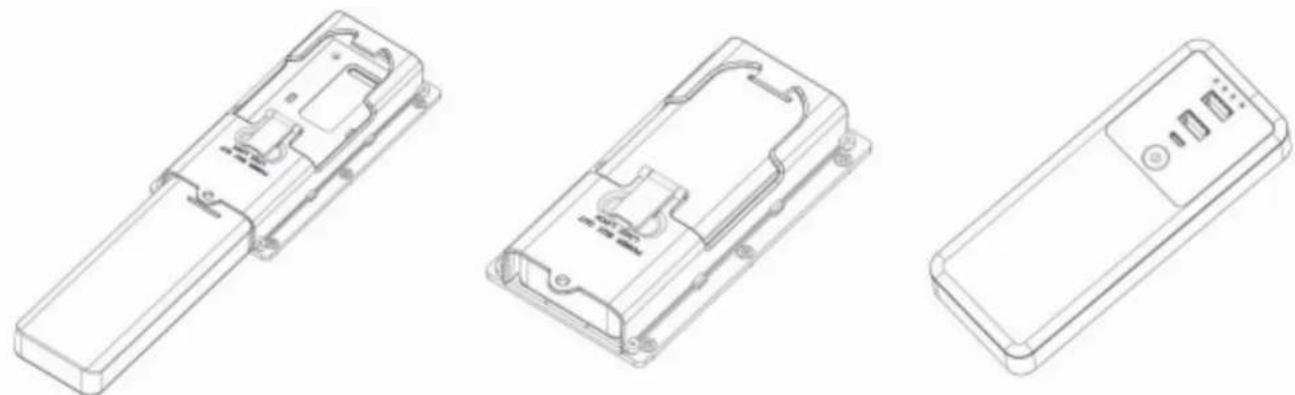

PLACING THE CHARGER

Three technical line drawings of a remote control casing (no text or symbols)

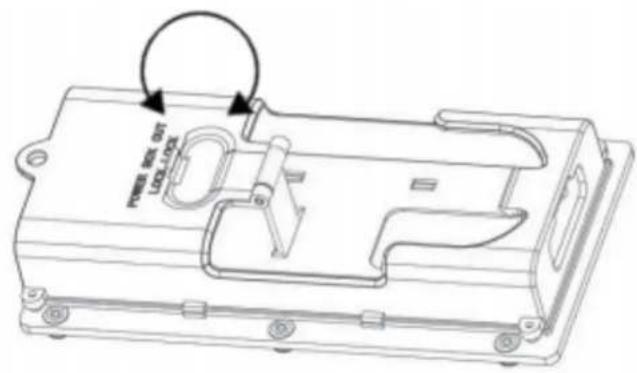

LOCKING THE CHARGER

Once you have removed the charger, lock the sliding cover. This will prevent somebody from placing something in your suitcase without you noticing.

Top-down schematic of a device casing with mounting holes and a central internal component (no text or symbols)

TRAVEL LIKE A ROYAL
