Product Type	Suitcase with Built-in Digital Scale and Removable Charger
Brand	Princess
Model	Pamplona
Scale Type	Digital
Max Weight Capacity (Size S)	10 kg
Max Weight Capacity (Size M)	15 kg
Max Weight Capacity (Size L)	20 kg
Weight Tolerance	±2.5 kg
Display	LCD
Weight Units	Kilograms and Pounds (switchable)
Lock Mechanism	3-digit combination (pull type and push type)
Battery for Scale	1 x CR2032 (included)
Charger	Removable Power Box
Charger Features	Can be used as separate power unit
Safety	Sliding cover lock prevents unauthorized access
Scale Power	Battery-powered
Scale Operation	Press ON/OFF, lift suitcase by side handle
Maintenance	Replace battery when display shows "LO"
Battery Location	Inside suitcase, rear side of scale
Included Items	Suitcase, scale, combination lock, charger, battery

Frequently Asked Questions - Pamplona PRINCESS

How do I set the combination lock?

The lock is set to 0-0-0 by default. Press the A button in the direction of the arrow, hold it, choose your 3-digit code by turning the wheels (B), then release the button to set your code. Ensure you do not release the button while setting the code.

How do I use the built-in scale?

Place the suitcase on a flat surface with the LCD scale screen facing up. Press the 'ON/OFF' button. Once zero (0) appears, lift the suitcase by the side handle and hold still for a few seconds. The weight will display on the LCD screen.

How do I remove the charger?

Open the zipper inside the suitcase and cut the zip tie if first use. Pull up the lid and slide out the charger-unit. Close and lock the sliding cover after removal.

What battery does the scale use?

It uses one CR2032 battery. Use only A-brand CR2032 batteries for best performance.

How do I switch between kg and lbs?

Press the button marked 'KG/LBS' to toggle the display between kilograms and pounds.

What is the maximum weight for the scale?

The maximum load depends on suitcase size: 10 kg for size S, 15 kg for size M, and 20 kg for size L. Tolerance is ±2.5 kg.

How do I replace the scale battery?

When the display shows 'LO', replace the battery. The battery is on the rear side of the scale (inside the suitcase). Slide open the cover and replace with a new CR2032 battery, respecting polarity.

Can the charger be used separately?

Yes, the charger is removable and can be used as a separate unit for charging devices.

What should I do if the scale shows 'LO'?

The battery is low. Replace the CR2032 battery as described in the maintenance section.

How do I lock the charger compartment?

After removing the charger, lock the sliding cover to prevent anyone from placing items into your suitcase without your knowledge.

USER MANUAL Pamplona PRINCESS

Here you can find our instruction manuals.

Below is an overview of our most common instructions for use.

If you don't see the manual you're looking for, don't worry! Let us know via our contact page and one of our colleagues will contact you as soon as possible.

PULL LOCK INSTRUCTIONS

• The lock is set to 0-0-0
• Press the A button in the direction of the arrow
• While holding in the button, choose your 3-digit code by turning the wheels (B)
• Release the button to set your code
• Make sure that you do not release the button while setting the code

PUSH LOCK INSTRUCTIONS

• The lock is set to 0-0-0
• Press the A button in the direction of the arrow
• While holding in the button, choose your 3-digit code by turning the wheels (B)
• Release the button to set your code
• Make sure that you do not release the button while setting the code

SUITCASE WITH A BUILT-IN SCALE

Note: Please read these instructions carefully. Observe the instructions for safe use.

Use the product with care and for the purpose for which it is intended.

Failure to do so may cause the wrong weight to display or potentially cause damage. Store these instructions for future use.

1) SAFETY INSTRUCTIONS

• Never expose the suitcase to rain or humidity. This may cause damage to the scale.
• Only use A-brand CR2032 batteries.

2) SPECIFICATIONS

• Maximum load for suitcases in size S/M/L 10/15/20 kg
- Tolerance ± 2.5kg
- Unit on display kg, lbs

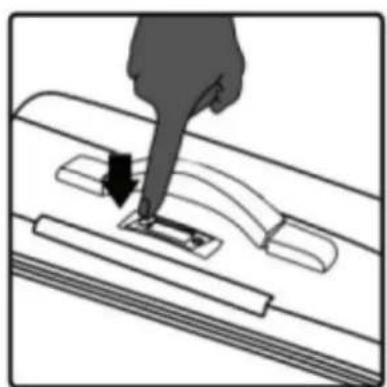

3) INSTRUCTIONS FOR USE

• Place the luggage on a flat surface, with the LCD scale screen facing upwards.
• Press the button marked 'ON/OFF'.
• Once the number zero (0) is displayed on the LCD screen, lift the suitcase by the side handle. Hold the suitcase still for a few seconds.
• The total weight of the luggage will be displayed on the LCD screen.
• Switch off the scale by pressing the 'ON/OFF' button again.
• By pressing the button marked 'KG/LBS', the LCD display will toggle between kilograms and pounds.

4) MAINTENANCE

Check and replace the battery if the scale does not respond to the 'ON/OFF' button, or the display reads 'LO'.

The battery is located on the rear side of the scale, i.e. on the inside of the suitcase. Here you will find a cover.

Slide it open to replace the battery. Pay attention to the positive/negative pole markings.

Diagram of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Diagram of a suitcase with upward arrows indicating movement or force (no text or symbols)

POWER BOXPOWER BOX

The charger is removable and can also be used as a separate unit.

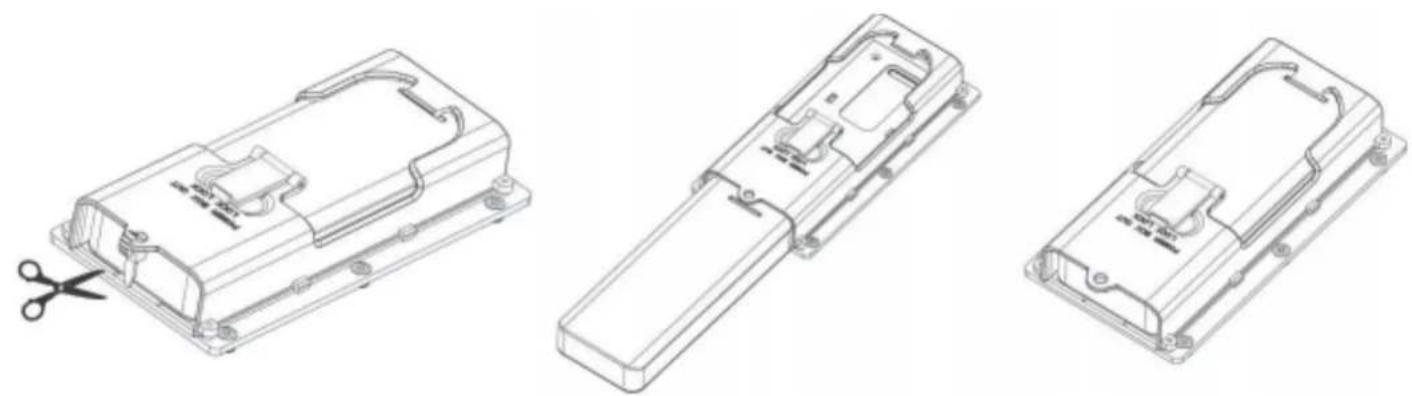

REMOVING THE CHARGER

Open the zipper inside the suitcase. When using it for the first time, cut off the zip tie.

Pull up the lid and slide out the charger-unit. Close and lock the sliding cover.

Three technical line drawings of a mechanical housing component with cutouts and mounting holes, shown from different angles (no text or symbols present)

PLACING THE CHARGER

Three technical line drawings of a remote control casing (no text or symbols)

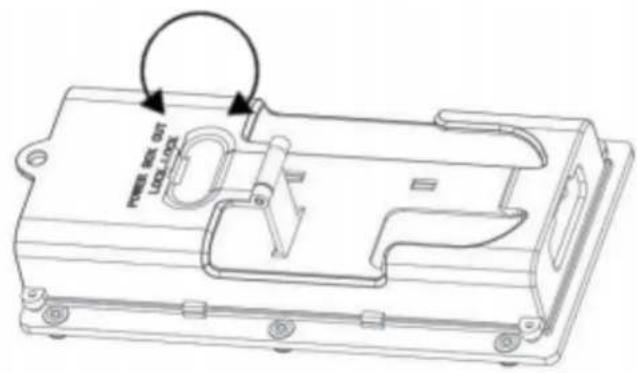

LOCKING THE CHARGER

Once you have removed the charger, lock the sliding cover. This will prevent somebody from placing something in your suitcase without you noticing.

Top-down schematic of a device casing with mounting holes and a central internal component (no text or symbols)
