Product Type	Suitcase with built-in scale, combination lock, and removable charger
Brand	Princess
Model	Sydney
Available Sizes	S, M, L
Maximum Load (Scale)	10 kg (S), 15 kg (M), 20 kg (L)
Scale Tolerance	±2.5 kg
Scale Display Units	kg or lbs (switchable)
Scale Battery	CR2032 (A-brand recommended)
Lock Type	3-digit combination lock (pull or push style)
Default Combination	0-0-0
Charger	Removable, rechargeable power box
Charger Location	Inside suitcase, behind zipper and sliding cover
Main Functions	Weigh luggage, secure with combination lock, charge devices via removable power box
Maintenance	Replace scale battery when display shows 'LO' or scale unresponsive
Safety Precautions	Do not expose to rain or humidity; use only A-brand CR2032 batteries
Spare Parts	CR2032 battery, charger unit
Repairability	Battery replacement possible; charger can be removed and replaced

Frequently Asked Questions - Sydney PRINCESS

How do I set the combination lock on my Princess Sydney suitcase?

The lock comes preset to 0-0-0. Press the A button in the direction of the arrow, hold it, and turn the wheels (B) to your desired 3-digit code. Release the button to set. Ensure not to release the button while turning the wheels.

How can I reset the lock if I forget the combination?

If you forget the code, you may need to contact customer support. There is no manual reset procedure provided in the manual. Always store your combination in a safe place.

How do I weigh my suitcase using the built-in scale?

Place the suitcase on a flat surface with the LCD screen facing up. Press the 'ON/OFF' button. When '0' appears, lift the suitcase by the side handle and hold steady for a few seconds. The weight will display on the screen.

How do I switch between kilograms and pounds on the scale?

Press the button marked 'KG/LBS' to toggle the display between kilograms and pounds.

What should I do if the scale does not turn on or shows 'LO'?

Replace the battery with a new CR2032 battery. The battery compartment is on the rear side of the scale (inside the suitcase). Slide open the cover, replace the battery respecting polarity, and close.

How do I remove the charger from the suitcase?

Open the zipper inside the suitcase. If first use, cut the zip tie. Pull up the lid and slide out the charger unit. Close and lock the sliding cover to secure the opening.

Can I use the charger separately from the suitcase?

Yes, the charger is removable and can be used as a separate unit to charge devices.

Why should I lock the sliding cover after removing the charger?

Locking the sliding cover prevents anyone from placing objects into your suitcase without your knowledge, enhancing security.

What type of battery does the scale require?

The scale uses a CR2032 battery. It is recommended to use A-brand batteries for optimal performance.

Is the Princess Sydney suitcase waterproof?

No, do not expose the suitcase to rain or humidity as it may damage the scale and other components.

USER MANUAL Sydney PRINCESS

Here you can find our instruction manuals.

Below is an overview of our most common instructions for use.

If you don't see the manual you're looking for, don't worry! Let us know via our contact page and one of our colleagues will contact you as soon as possible.

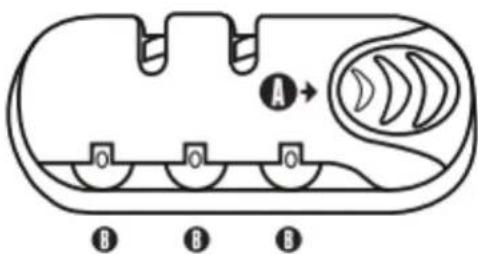

PULL LOCK INSTRUCTIONS

- The lock is set to 0-0-0

- Press the A button in the direction of the arrow

- While holding in the button, choose your 3-digit code by turning the wheels (B)

- Release the button to set your code

- Make sure that you do not release the button while setting the code

PUSH LOCK INSTRUCTIONS

• The lock is set to 0-0-0
• Press the A button in the direction of the arrow
• While holding in the button, choose your 3-digit code by turning the wheels (B)
• Release the button to set your code
• Make sure that you do not release the button while setting the code

SUITCASE WITH A BUILT-IN SCALE

Note: Please read these instructions carefully. Observe the instructions for safe use.

Use the product with care and for the purpose for which it is intended.

Failure to do so may cause the wrong weight to display or potentially cause damage. Store these instructions for future use.

1) SAFETY INSTRUCTIONS

• Never expose the suitcase to rain or humidity. This may cause damage to the scale.
• Only use A-brand CR2032 batteries.

2) SPECIFICATIONS

• Maximum load for suitcases in size S/M/L 10/15/20 kg
- Tolerance ± 2.5kg
- Unit on display kg, lbs

3) INSTRUCTIONS FOR USE

• Place the luggage on a flat surface, with the LCD scale screen facing upwards.
• Press the button marked 'ON/OFF'.
• Once the number zero (0) is displayed on the LCD screen, lift the suitcase by the side handle. Hold the suitcase still for a few seconds.
• The total weight of the luggage will be displayed on the LCD screen.
• Switch off the scale by pressing the 'ON/OFF' button again.
• By pressing the button marked 'KG/LBS', the LCD display will toggle between kilograms and pounds.

4) MAINTENANCE

Check and replace the battery if the scale does not respond to the 'ON/OFF' button, or the display reads 'LO'.

The battery is located on the rear side of the scale, i.e. on the inside of the suitcase. Here you will find a cover.

Slide it open to replace the battery. Pay attention to the positive/negative pole markings.

Diagram of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Diagram of a suitcase with upward arrows indicating movement or force (no text or symbols)

POWER BOXPOWER BOX

The charger is removable and can also be used as a separate unit.

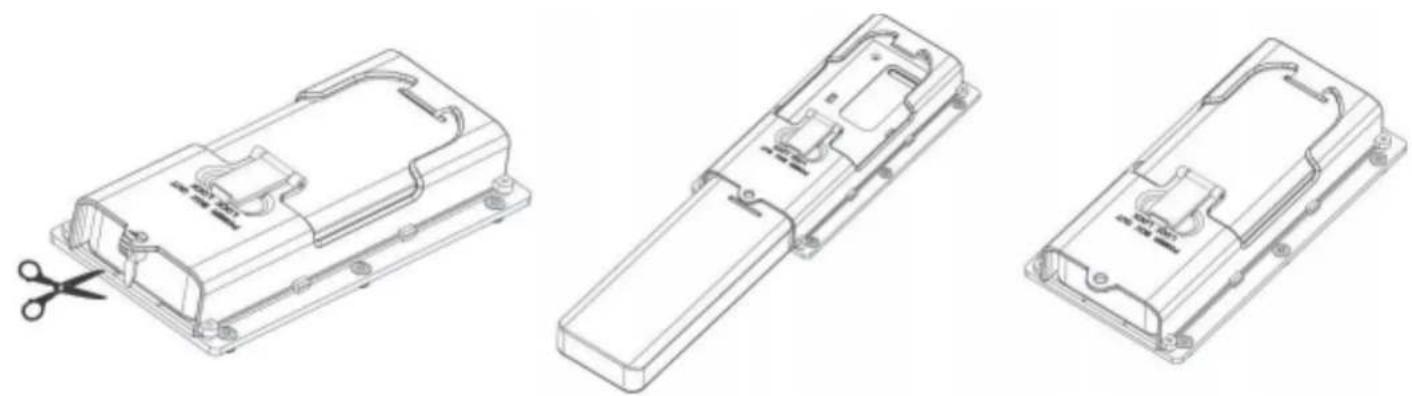

REMOVING THE CHARGER

Open the zipper inside the suitcase. When using it for the first time, cut off the zip tie.

Pull up the lid and slide out the charger-unit. Close and lock the sliding cover.

Three technical line drawings of a mechanical housing component with cutouts and mounting holes, shown from different angles (no text or symbols present)

PLACING THE CHARGER

Three technical line drawings of a remote control casing (no text or symbols)

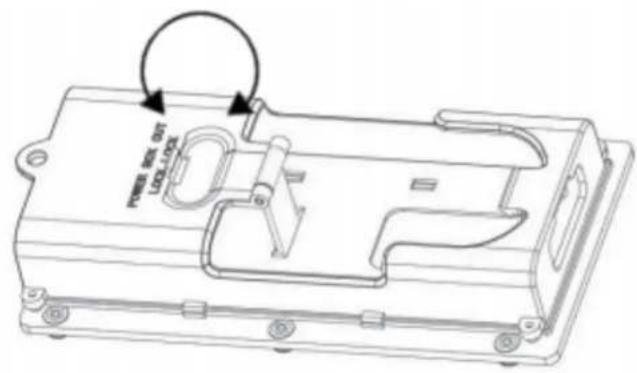

LOCKING THE CHARGER

Once you have removed the charger, lock the sliding cover. This will prevent somebody from placing something in your suitcase without you noticing.

Top-down schematic of a device casing with mounting holes and a central internal component (no text or symbols)

TRAVEL LIKE A ROYAL
