Product Type	License Plate Recognition (LPR) Network Camera
Brand	Geovision
Model	GV-LPC1200
Image Sensor	1 MP B/W Progressive Scan CCD
Resolution	1280 x 720 (HD 720p)
Max Frame Rate	30 fps at 1280 x 720
Lens Type	Motorized Varifocal Lens, 4.7 ~ 47 mm, 10x Optical Zoom
Max Vehicle Speed for Recognition	200 km/h (124.27 mph)
IR Distance	Up to 20 m (65.6 ft)
Video Compression	H.264, MJPEG (Dual Stream)
Audio	Two-way audio (mic in, line out)
Digital I/O	2 Inputs / 2 Outputs (dry contact)
TV-Out	BNC connector (NTSC/PAL)
Network Interface	10/100/1000 Base-T Ethernet, RJ-45
Protocols	DHCP, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), RTSP, SMTP, SNMP, etc.
Power Supply	DC 12V, 5A (AC adapter included)
Power Consumption	Max 54 W
Dimensions (W x H x D)	406 x 145 x 109 mm (16 x 5.7 x 4.3 in)
Weight (without bracket)	2.62 kg (5.78 lb)
Ingress Protection	IP67 (weatherproof)
Vandal Resistance	IK10 (metal casing)
Operating Temperature	-40°C to 50°C (-40°F to 122°F)
Built-in Heater & Fan	Yes (heater below 5°C, fan always on)
Maintenance	Replace silica gel bag upon opening; replace 3V lithium battery annually
Safety Notes	Disconnect power before handling; allow IR LED casing to cool

Frequently Asked Questions - GV-LPC1200 Geovision

What is the maximum speed of vehicles that can be recognized?

The GV-LPC1200 can recognize license plates on vehicles traveling up to 200 km/h (124.27 mph).

Does this camera have built-in LPR processing?

Only the GV-LPR1200 model features a built-in LPR processor for standalone recognition and database matching. The GV-LPC1200 requires an external GV-System or GV-VMS for LPR functionality.

What is the maximum IR distance?

The camera provides up to 20 meters (65.6 feet) of IR illumination for clear night-time license plate capture.

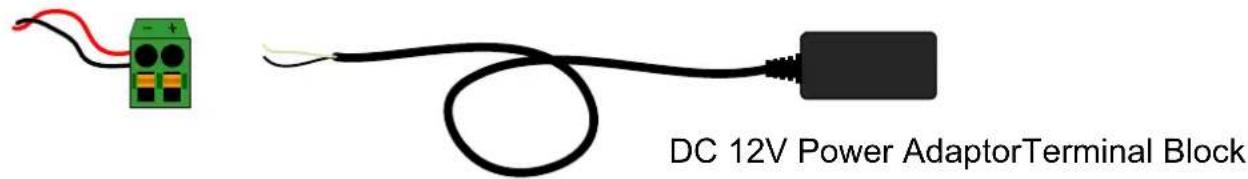

How is the camera powered?

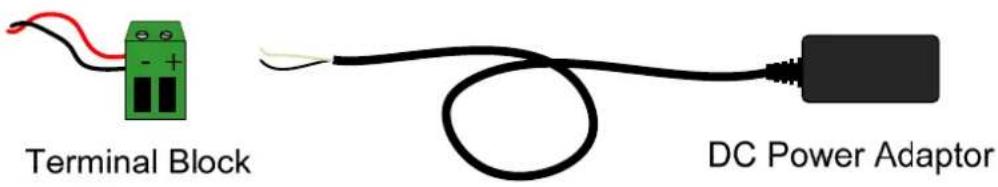

It uses a DC 12V, 5A power adapter (included). PoE is not supported; power must be supplied via the 2-pin terminal block.

Is the camera suitable for outdoor installation?

Yes, it has IP67 weatherproof protection and IK10 vandal resistance for metal casing. For outdoor use, ensure the camera is mounted above the junction box and cables are waterproofed.

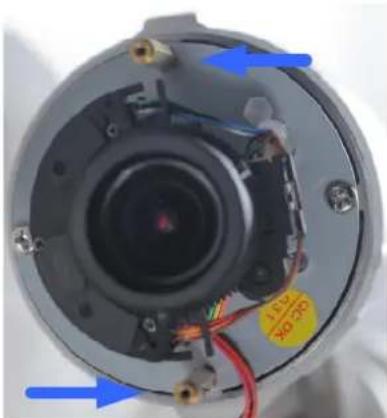

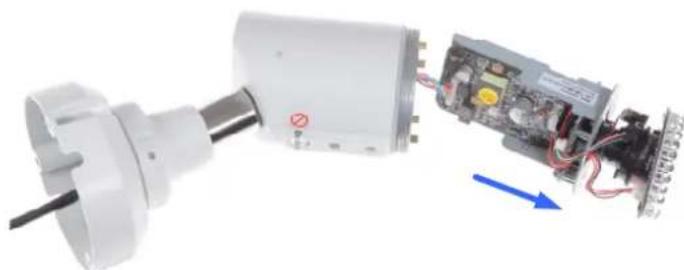

How do I replace the silica gel bag?

After opening the camera housing, remove the old silica gel bag and insert a new one. The new bag must be placed within 2 minutes of exposure to open air to prevent fogging.

Does this camera support local recording?

The GV-LPC1200 does not have a memory card slot. Only the GV-LPR1200 has a micro SD slot for LPR database or event snapshots, not video recording.

What web browsers are supported for accessing the camera?

Supported browsers include Microsoft Internet Explorer 7+, Google Chrome, Mozilla Firefox, Safari, and Microsoft Edge. For non-IE browsers, download the GV-Web Viewer for full functionality.

Does it support two-way audio?

Yes, the camera has audio input (mic) and output (speaker) connectors for two-way communication with the surveillance area.

What is the lens specification?

It has a motorized varifocal lens with a focal length of 4.7 to 47 mm and 10x optical zoom, allowing remote adjustment of zoom and focus via the web interface.

USER MANUAL GV-LPC1200 Geovision

Before attempting to connect or operate this product,

please read these instructions carefully and save this manual for future use.

IPLPRCAM-E

GeoVision Inc

© 2016 GeoVision, Inc. All rights reserved.

Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of GeoVision.

Every effort has been made to ensure that the information in this manual is accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein. Features and specifications are subject to change without notice.

Note: No memory card slot or local storage function for Argentina.

GeoVision, Inc.

9F, No. 246, Sec. 1, Neihu Rd.,

Neihu District, Taipei, Taiwan

Trademarks used in this manual: GeoVision, the GeoVision logo and GV series products are trademarks of GeoVision, Inc. Windows and Windows XP are registered trademarks of Microsoft Corporation.

June 2016

Preface

Welcome to the GV-IP LPR Camera User's Manual.

The GV-IP LPR Camera has a series of models designed to meet different needs. This manual is designed for the following models and firmware versions:

Models Firmware Version
GV-IP LPR Camera 5R 1.01
GV-LPC1100	1.01
GV-LPC1200	1.10
GV-LPR1200	1.10
GV-LPC2210	1.02
GV-LPC2211 1.0
GV-LPC2011	1.0

Note: GV-LPC1100 is also referred to as GV-IP LPR Camera 10R.

IMPORTANT: When using GV-LPC1200 / GV-LPR1200 for the first time, you need to remove the plastic insulation film under the battery and change the silica gel bag. For details, see 1.3.6 Replacing the Silica Gel Bag and 1.3.7 Fitting the Battery.

Contents

Naming Definition...... vii

Options......viii

Note for Connecting to GV-System / GV-VMS ix

Note for Installing Camera Outdoor....x

Note for Silica Gel Bags....x

Chapter 1 Introduction....2

1.1 GV-IP LPR Camera 5R 2

1.1.1 Features....3

1.1.2 System Requirements.... 4

1.1.3 Packing List....5

1.1.4 Device Installation.... 6

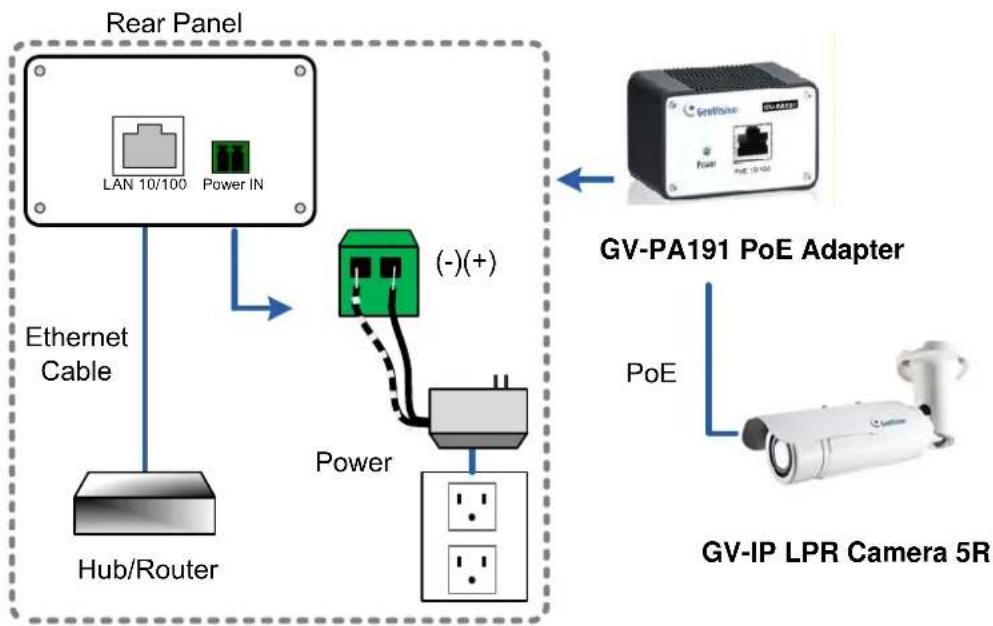

1.1.5 Connecting the Camera 7

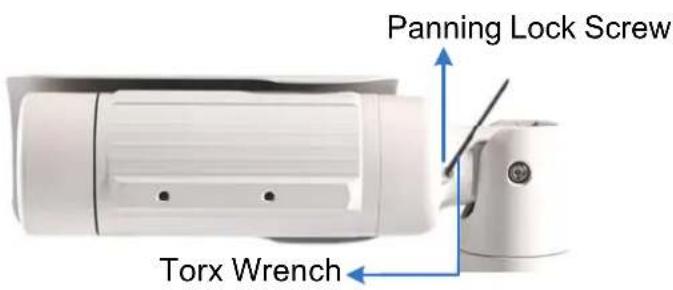

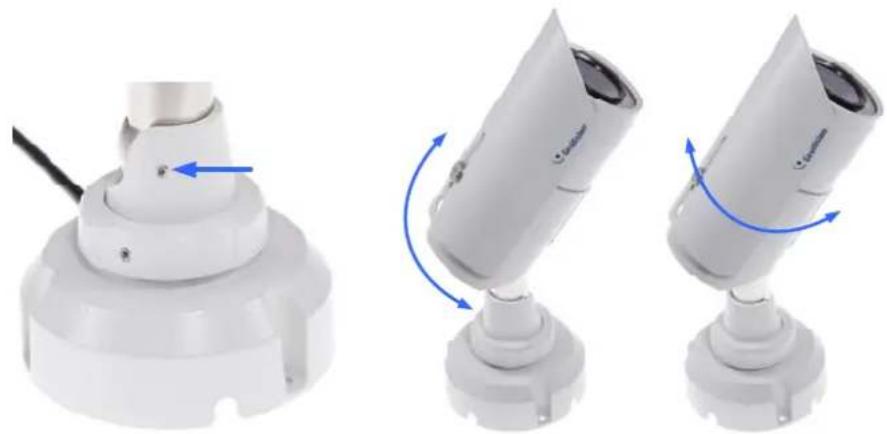

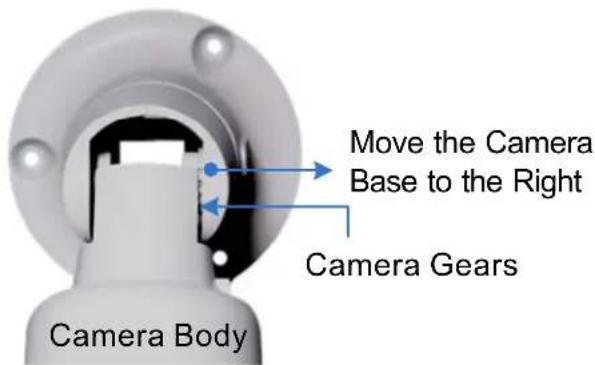

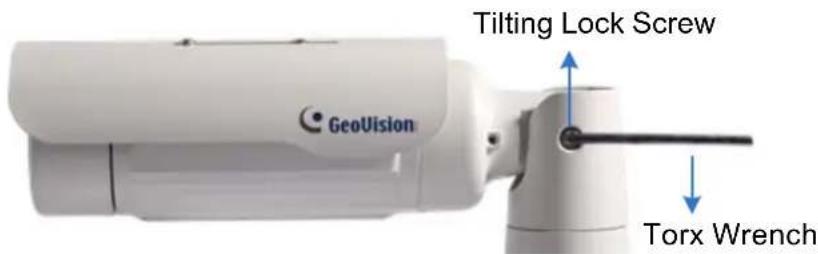

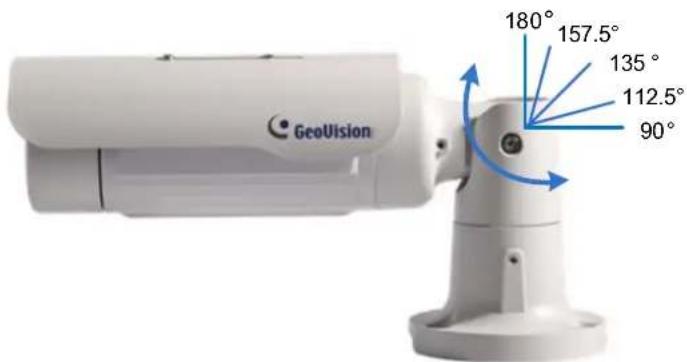

1.1.6 Adjusting the Angles 8

1.1.7 Replacing the Silica Gel Bag 11

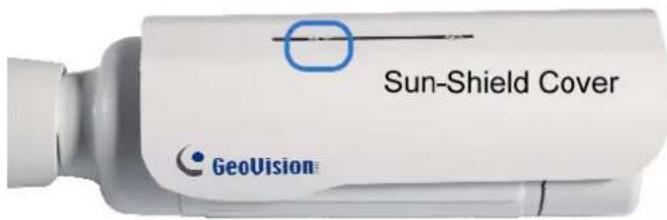

1.1.8 Installing the Sun-Shield Cover.... 12

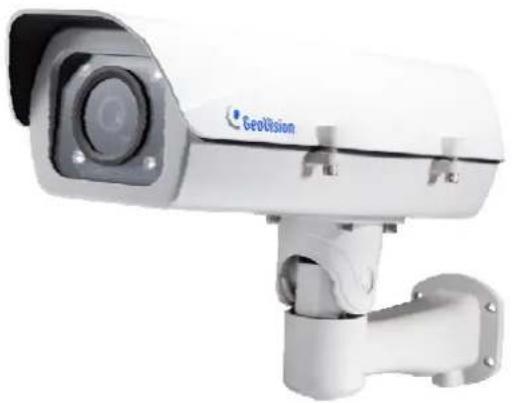

1.2 GV-LPC1100 13

1.2.1 Features.... 14

1.2.2 System Requirements.... 15

1.2.3 Packing List.... 16

1.2.4 Device Installation.... 17

1.2.5 Connecting the Camera 19

1.2.6 Replacing the Silica Gel Bag 23

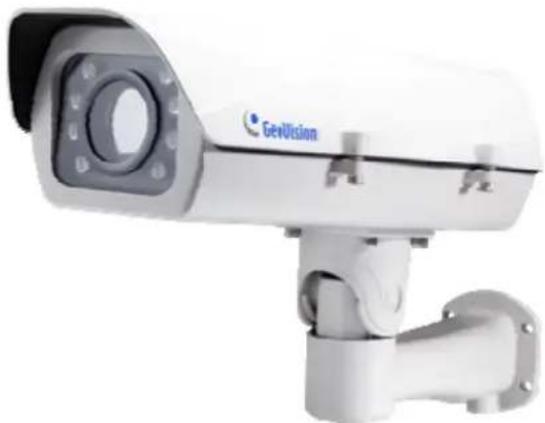

1.3 GV-LPC1200 / LPR1200 24

1.3.1 Features....25

1.3.2 System Requirements.... 26

1.3.3 Packing List....27

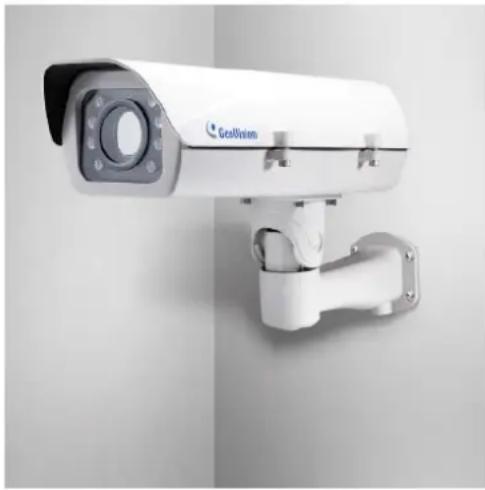

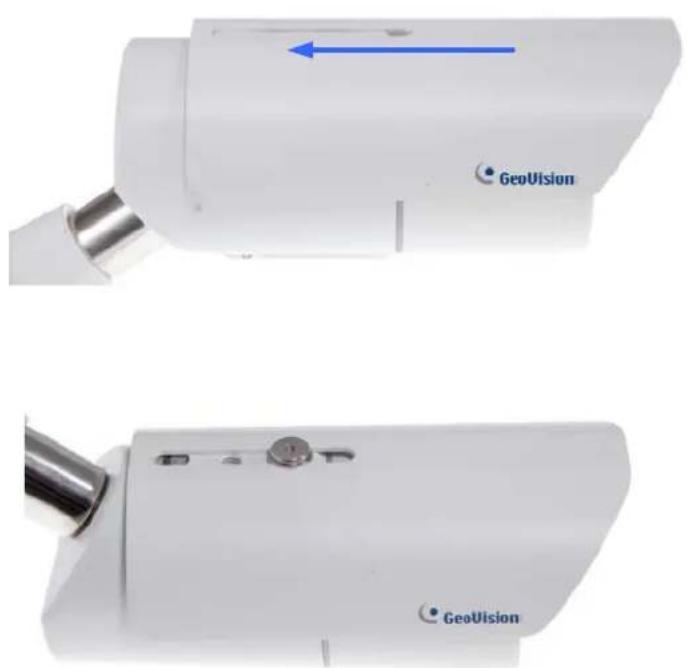

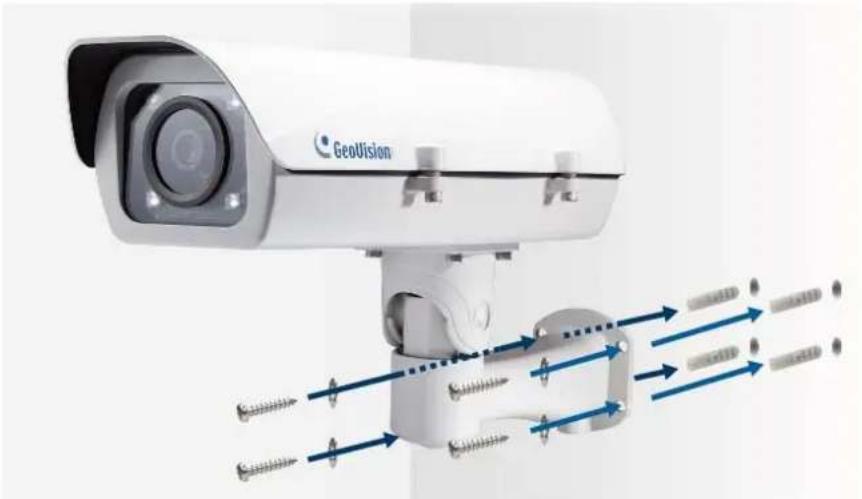

1.3.4 Installing the Camera 28

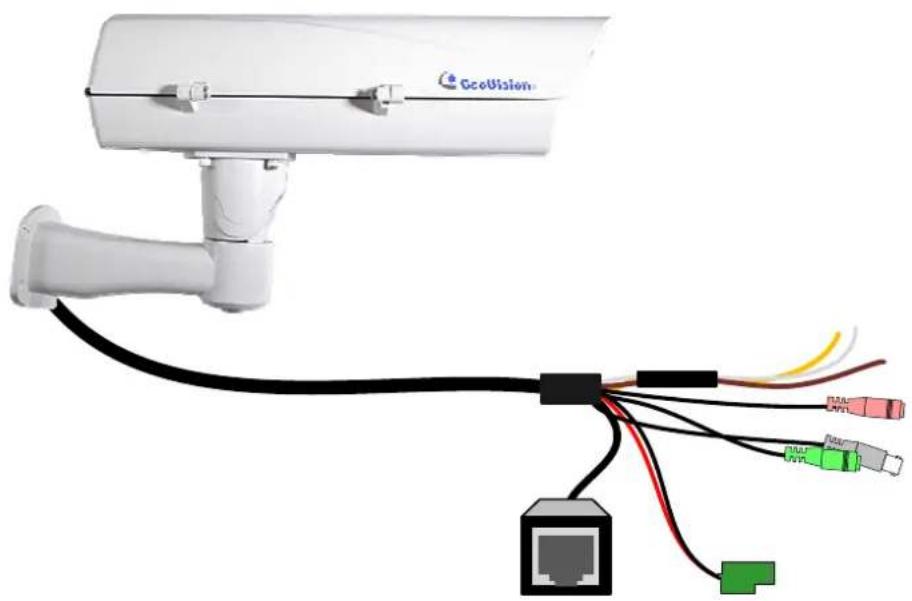

1.3.5 Connecting the Camera 30

1.3.7 Fitting the Battery.... 34

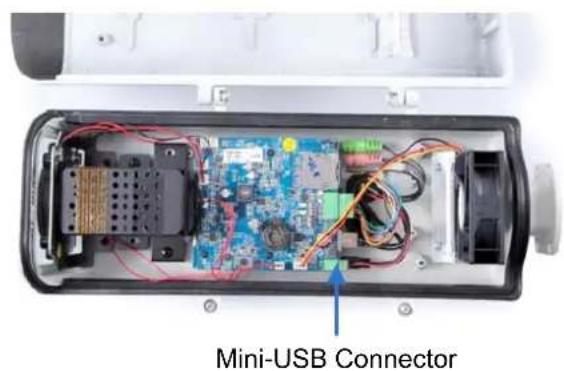

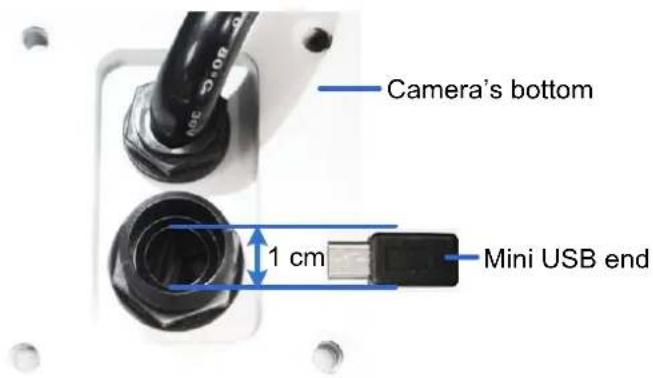

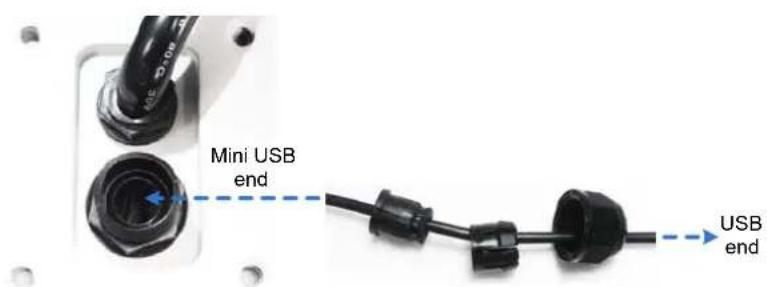

1.3.8 Installing a Mini USB Cable 35

1.4 GV-LPC2210 38

1.4.1 Features....39

1.4.2 System Requirements.... 40

1.4.3 Packing List....41

1.4.4 Device Installation.... 42

1.4.5 Connecting the Camera 44

1.4.6 Replacing the Silica Gel Bag 47

1.5 GV-LPC2211/2011 48

1.5.1 Features....49

1.5.2 System Requirements.... 51

1.5.3 Packing List....52

1.5.4 Device Installation.... 53

1.5.5 Connecting the Camera 57

1.5.6 Replacing the Silica Gel Bag 58

Chapter 2 Getting Started....59

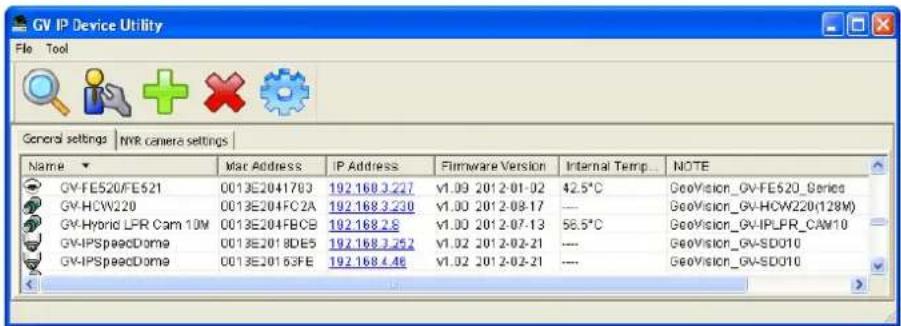

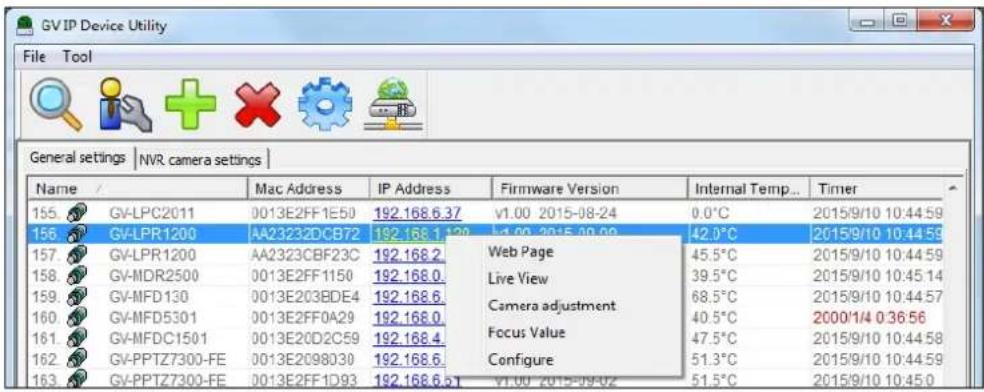

2.1 Looking Up the IP Address....59

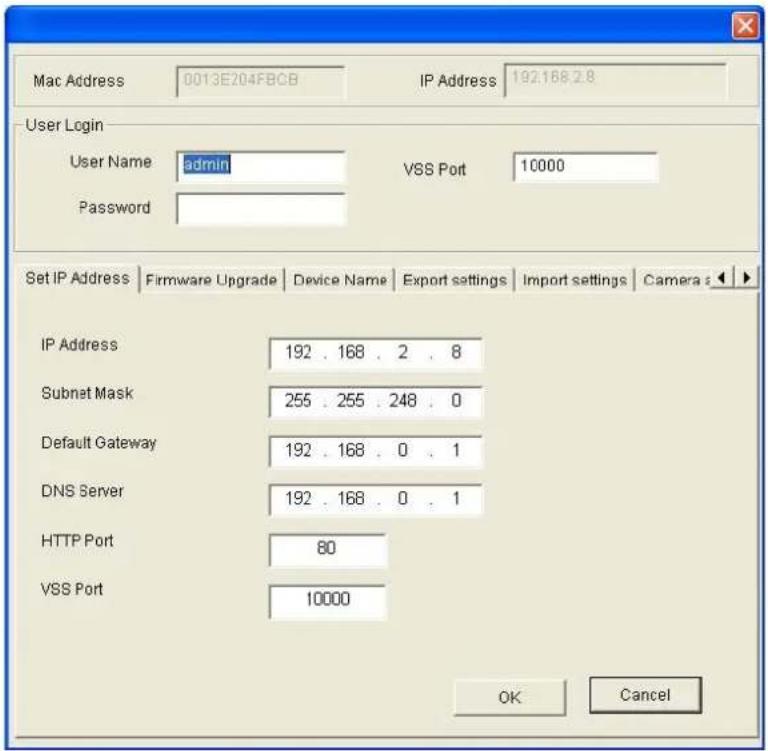

2.2 Changing the IP Address....61

2.2 Configuring the Basics 62

Chapter 3 Accessing the Camera....63

3.1 Accessing Your Surveillance Images 63

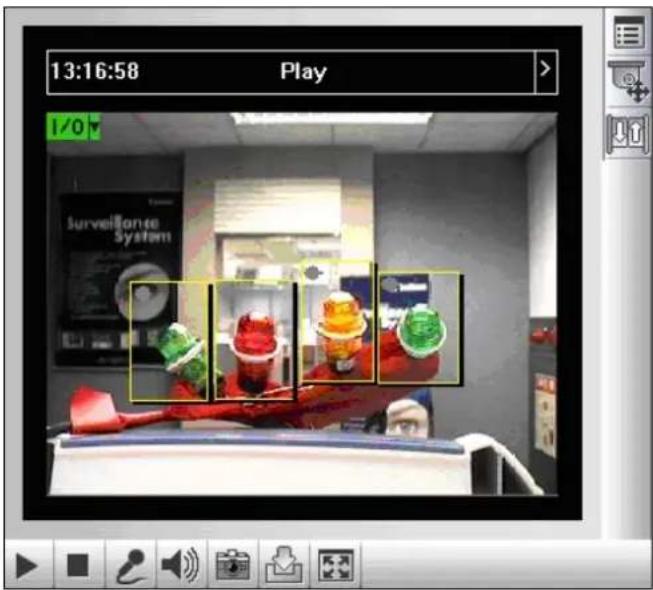

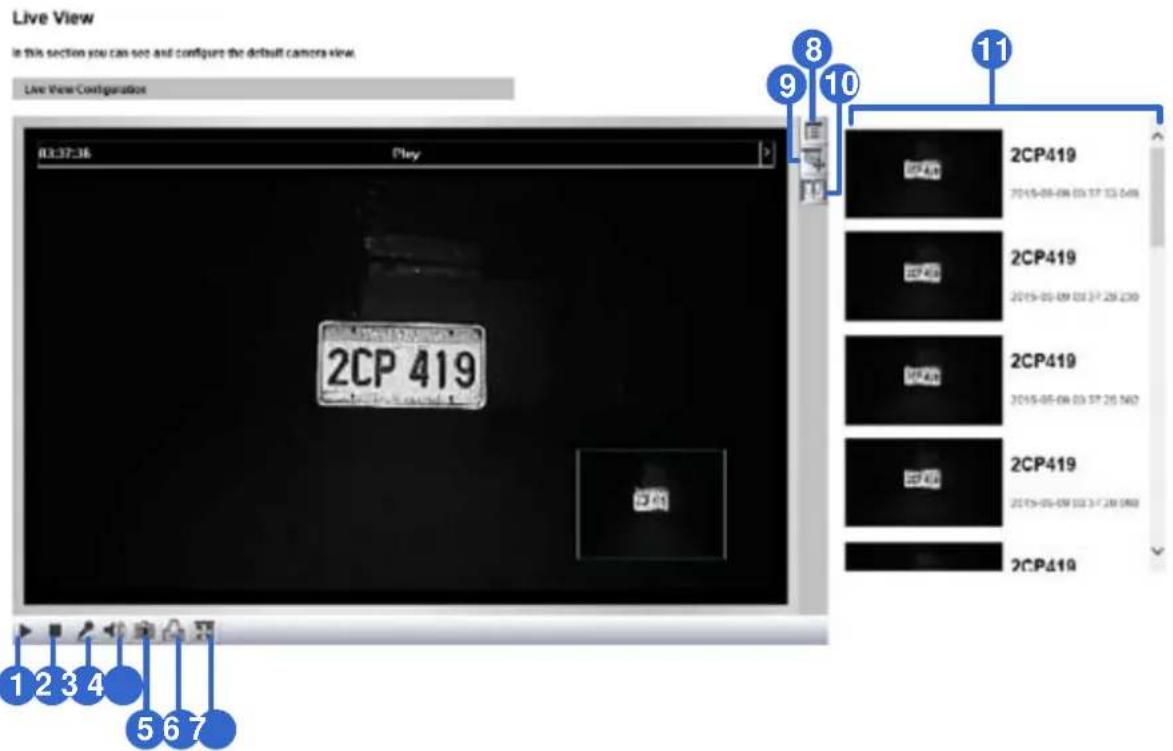

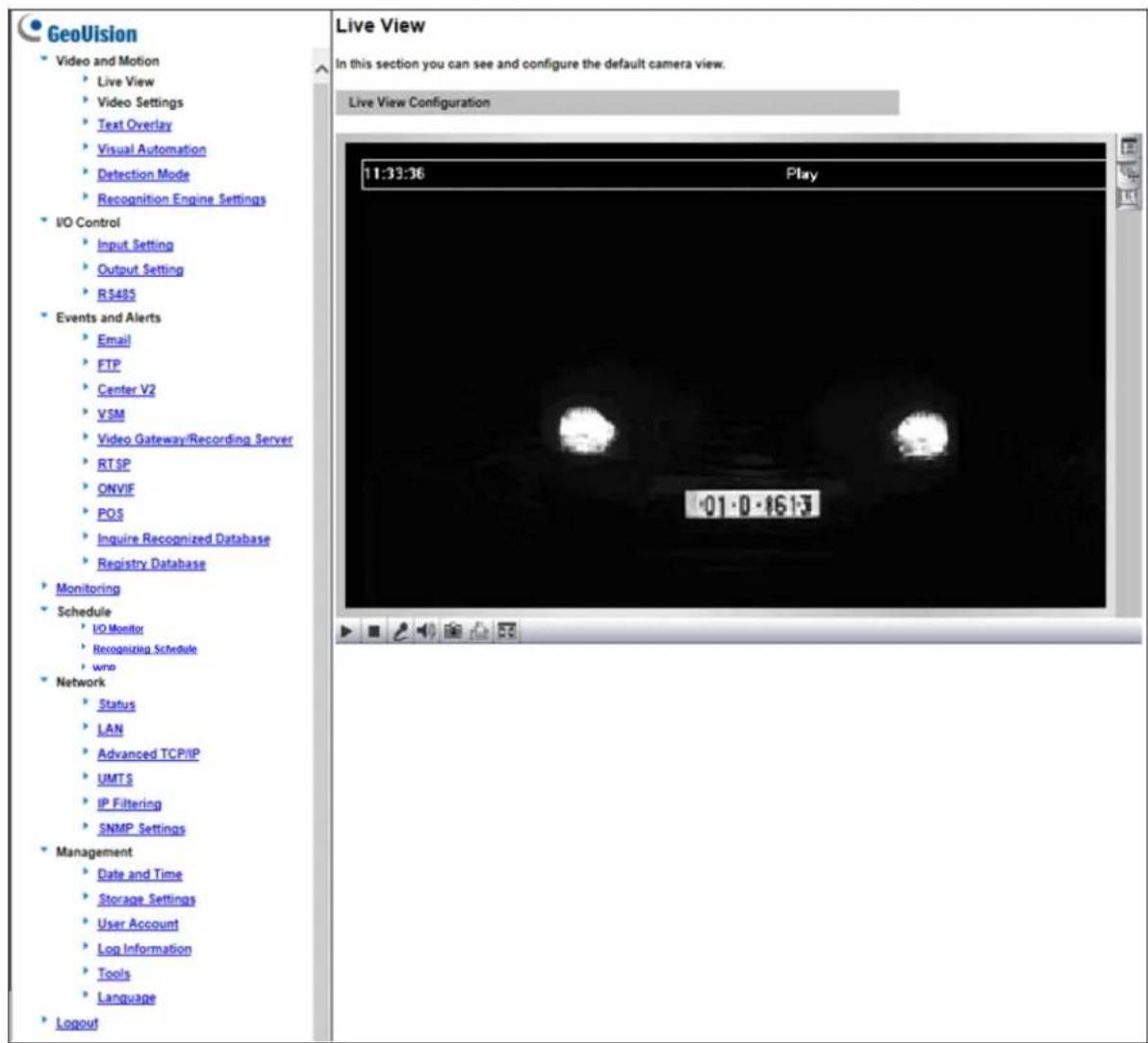

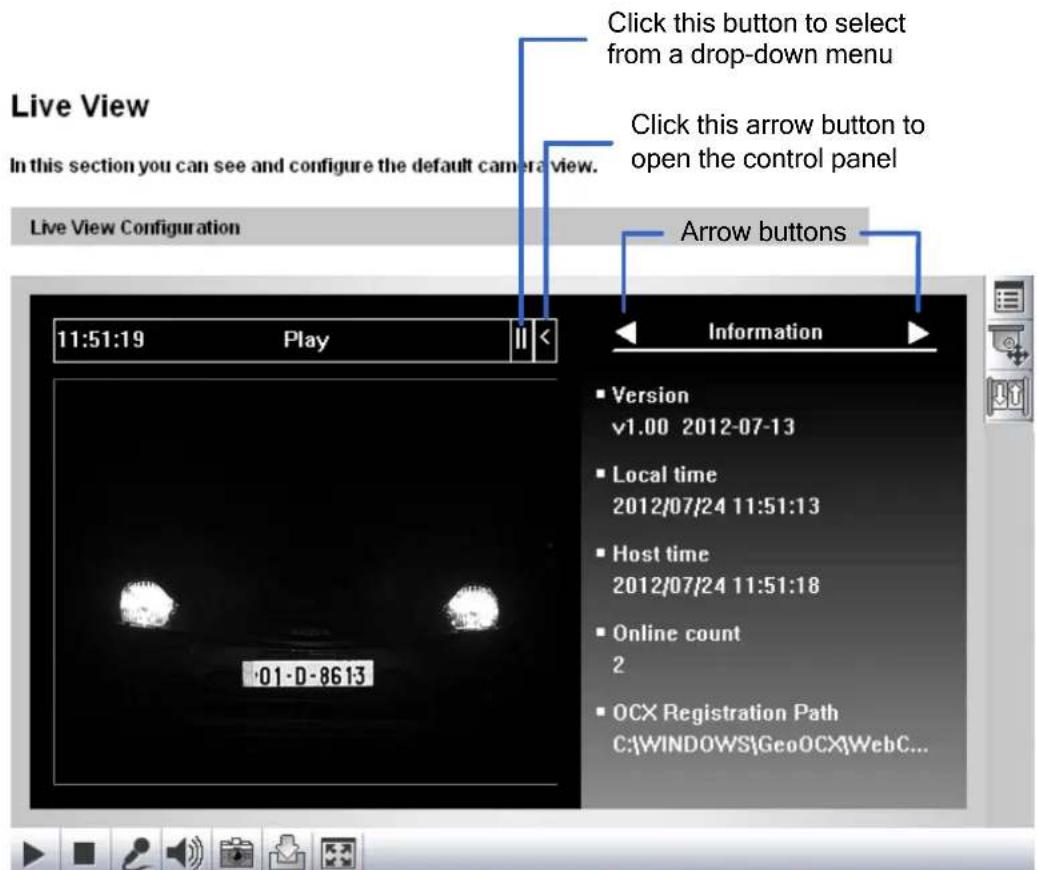

3.2 The Live View Window 65

3.3 The Control Panel of the Live View Window 67

3.4 Snapshot of a Live Video 71

3.5 Video Recording....71

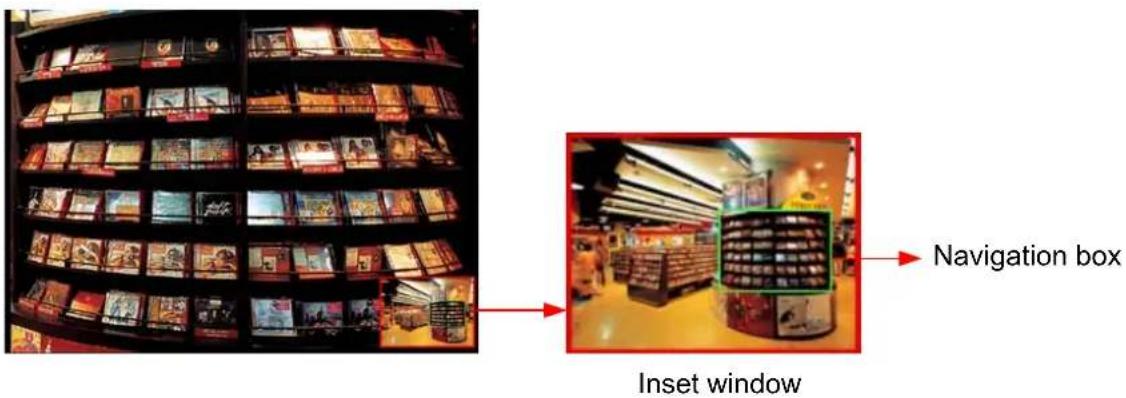

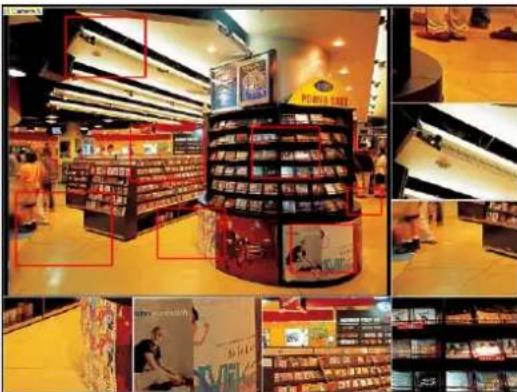

3.6 Picture-in-Picture and Picture-and-Picture View 72

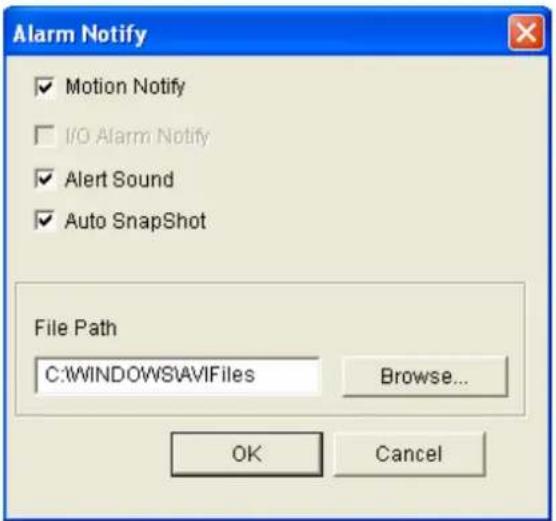

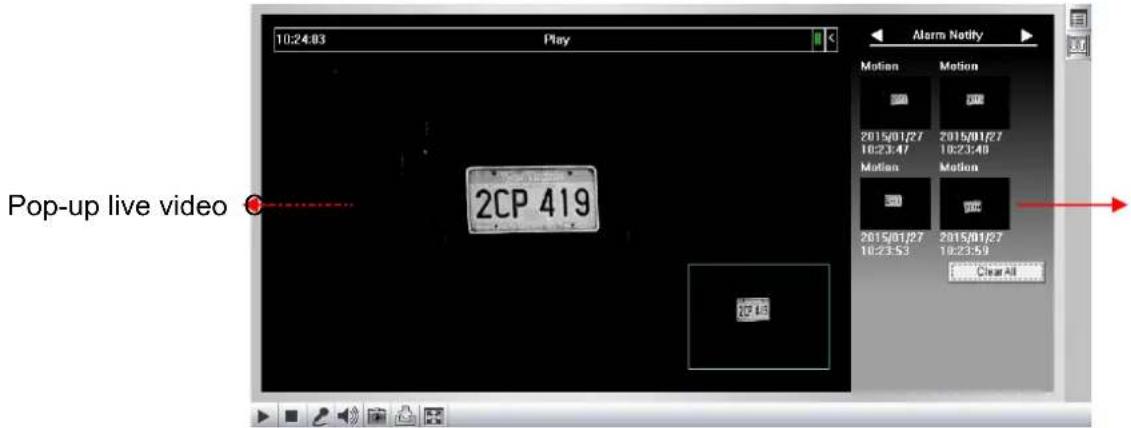

3.7 Alarm Notification 74

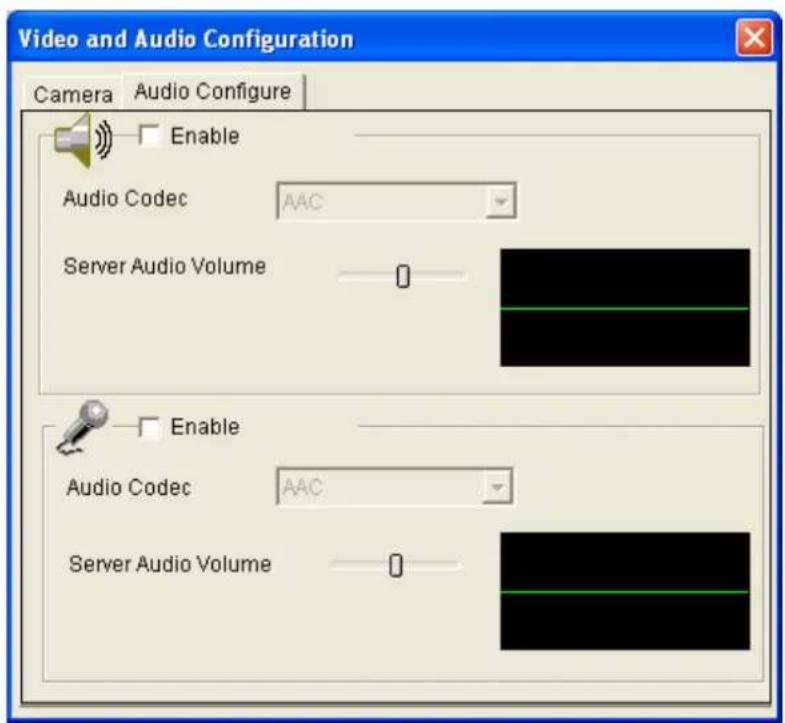

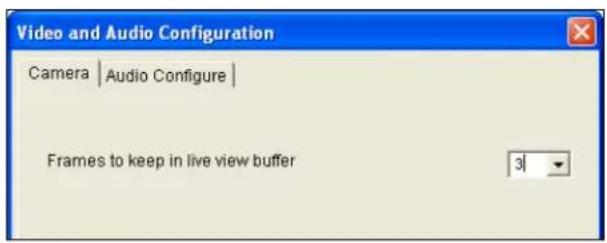

3.8 Video and Audio Configuration.... 75

3.9 Remote Configuration 76

3.10 Camera Name Display 76

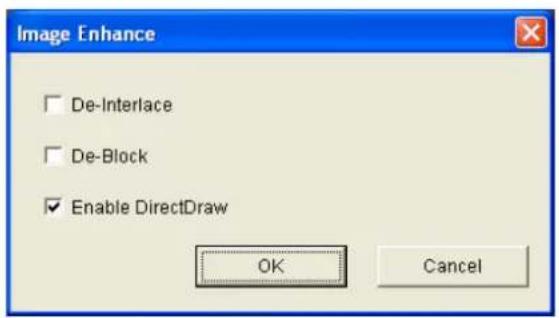

3.11 Image Enhancement 76

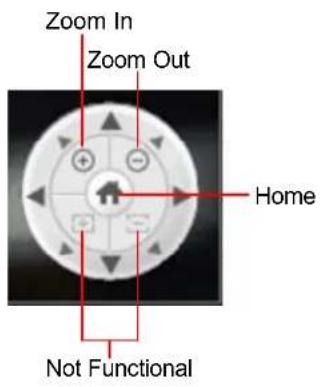

3.12 Digital PTZ....77

3.13 I/O Control 78

3.14 Visual Automation....79

Chapter 4 Administrator Mode....80

4.1 Video & Motion 82

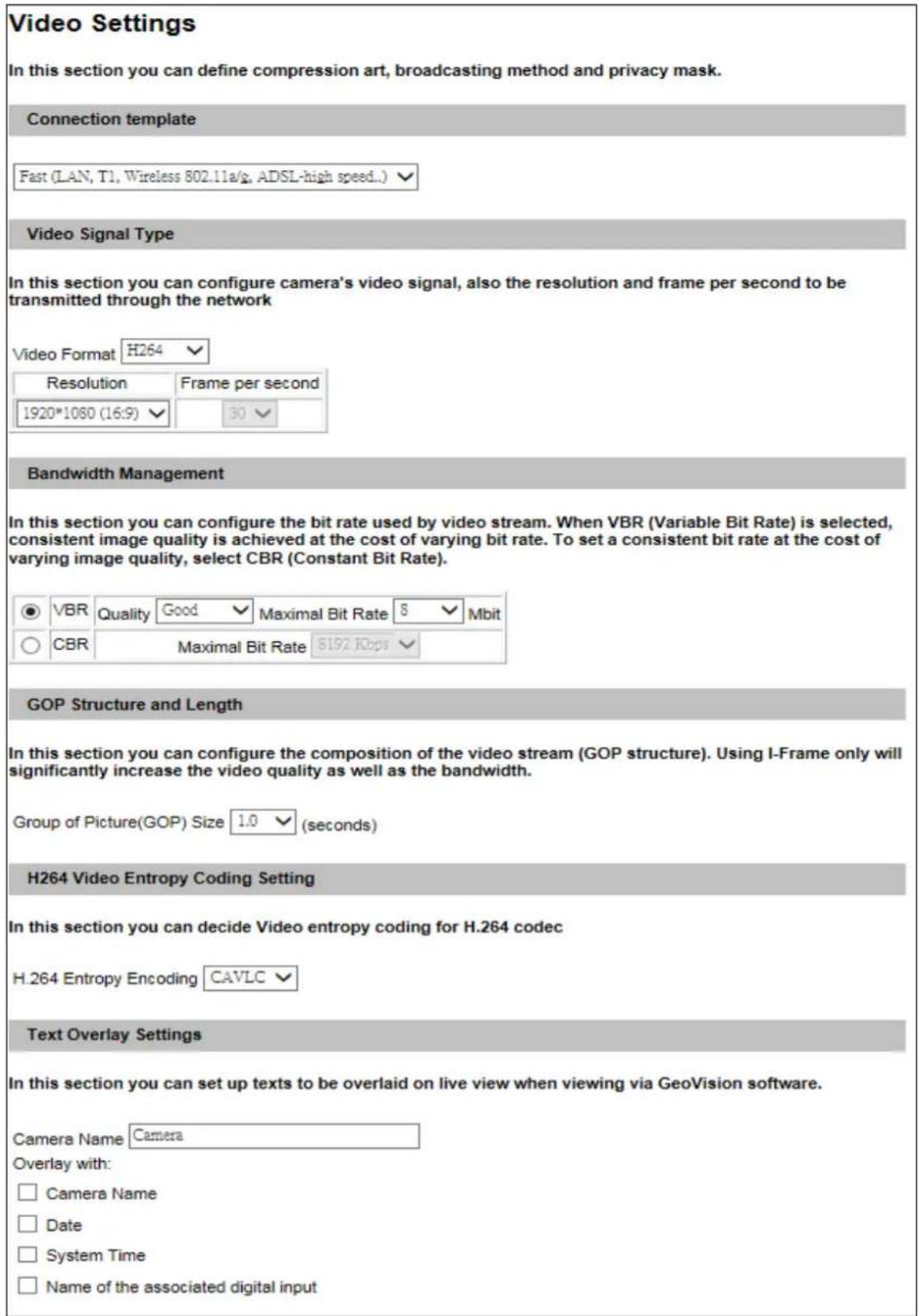

4.1.1 Video Settings 83

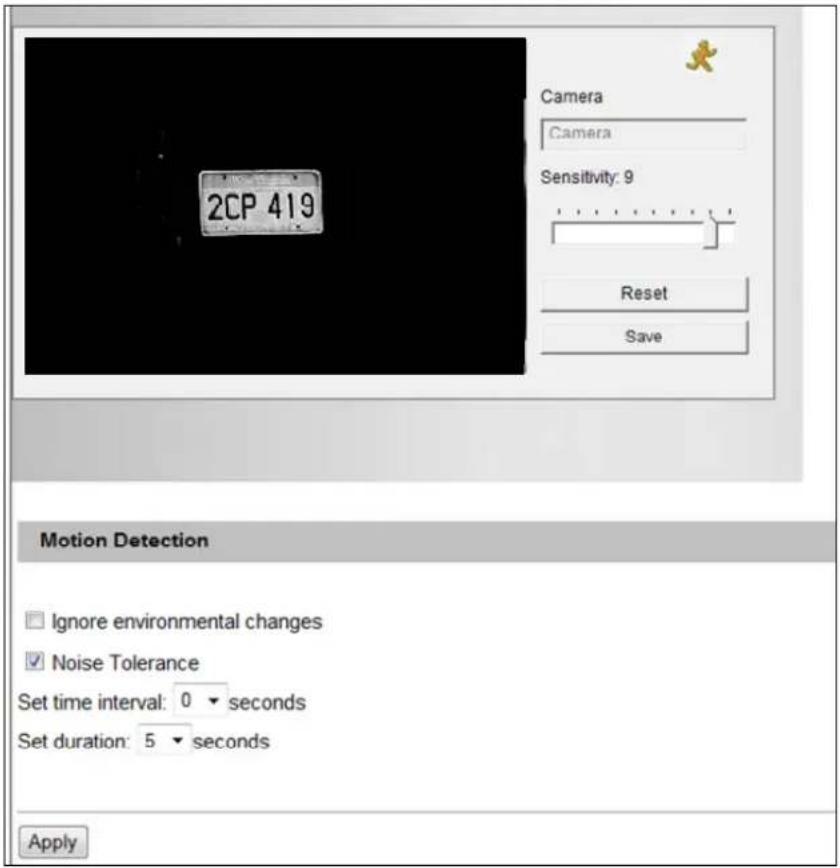

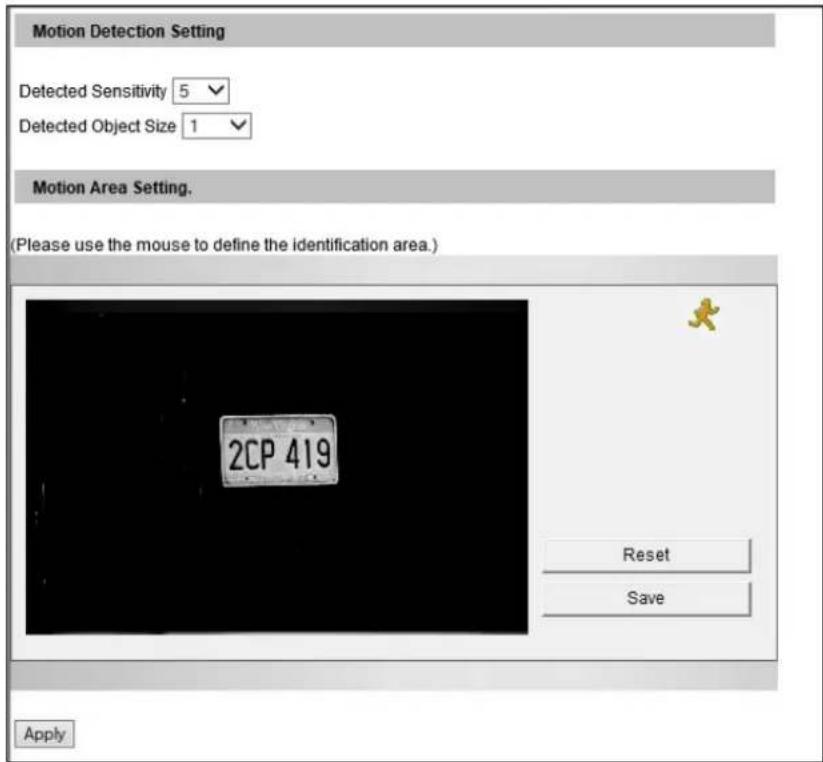

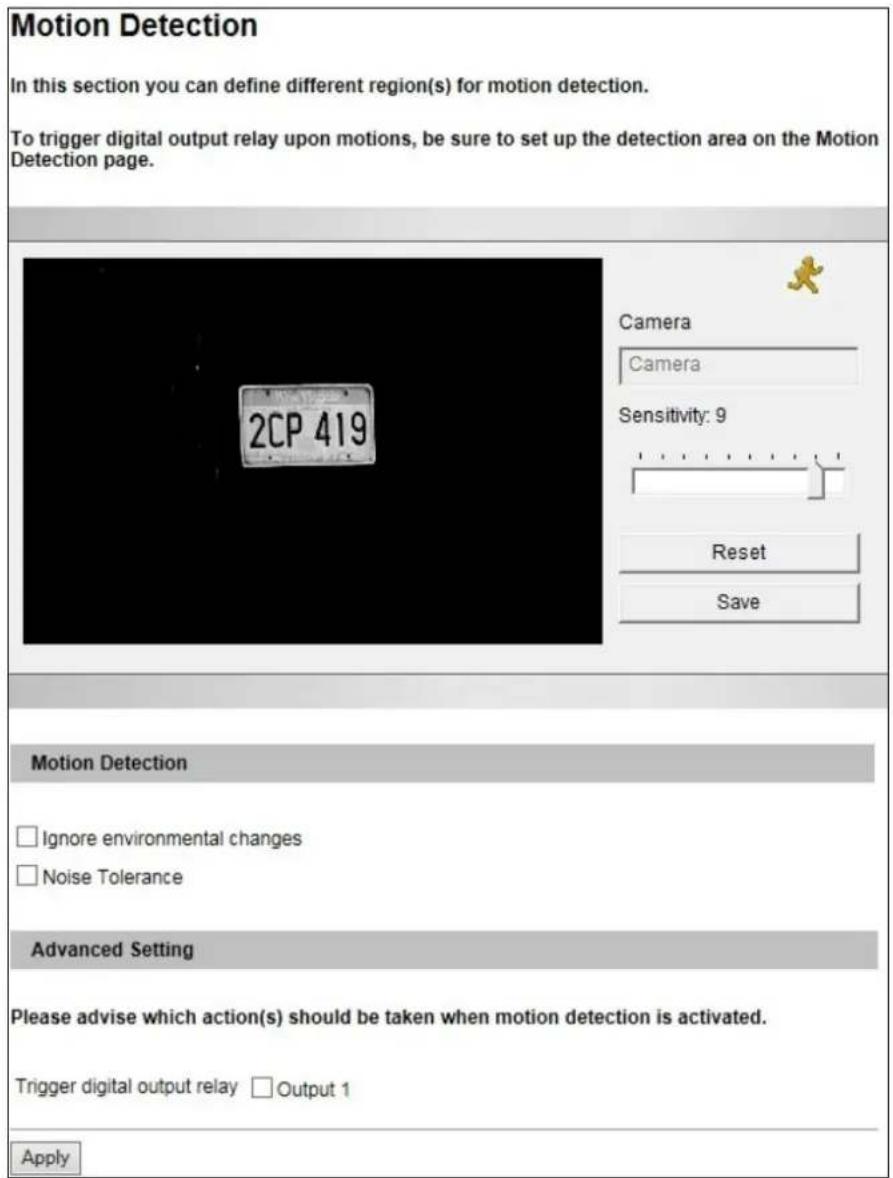

4.1.2 Motion Detection / Detection Mode....90

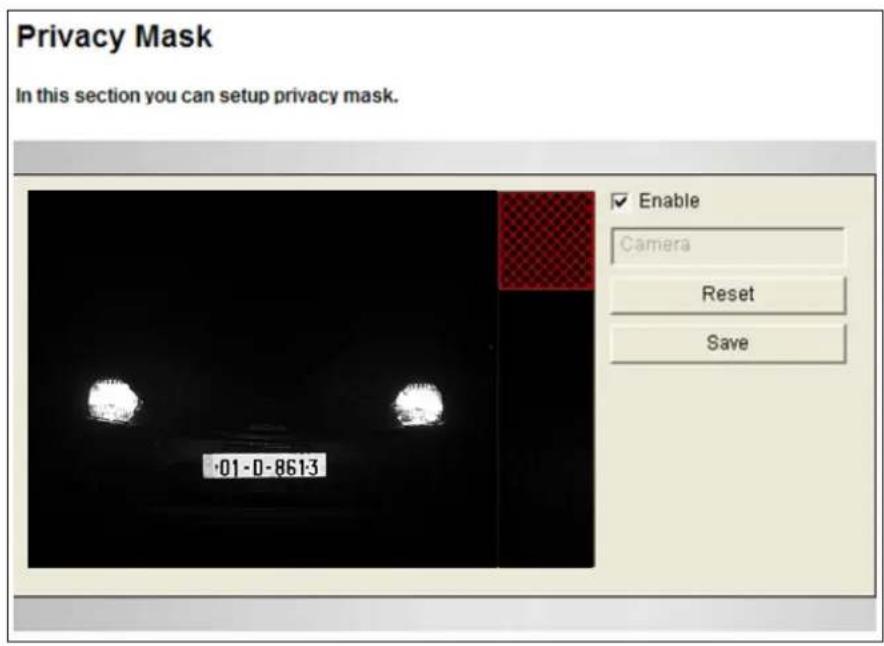

4.1.3 Privacy Mask....96

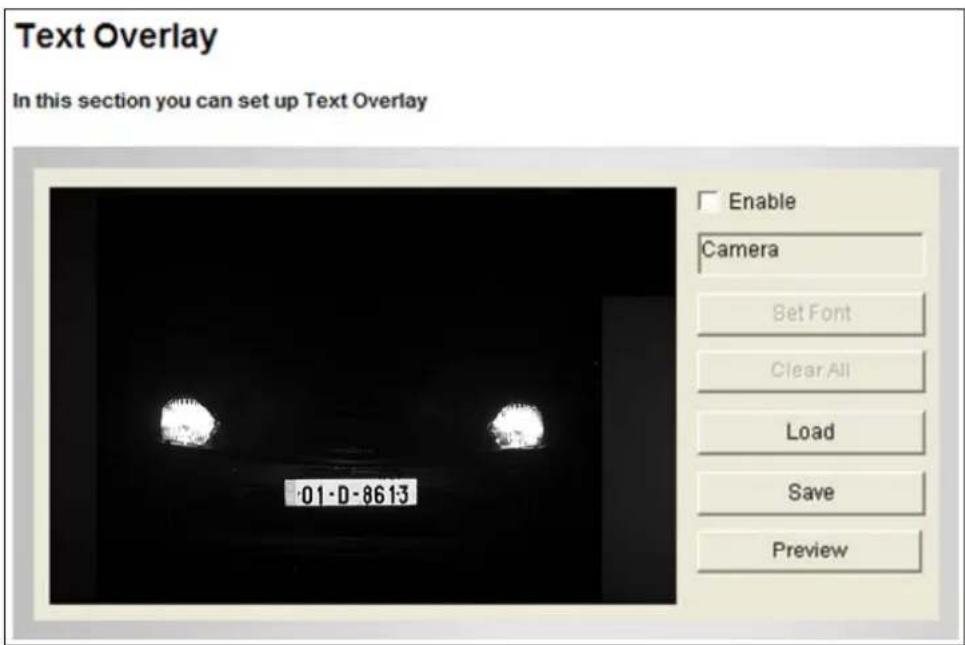

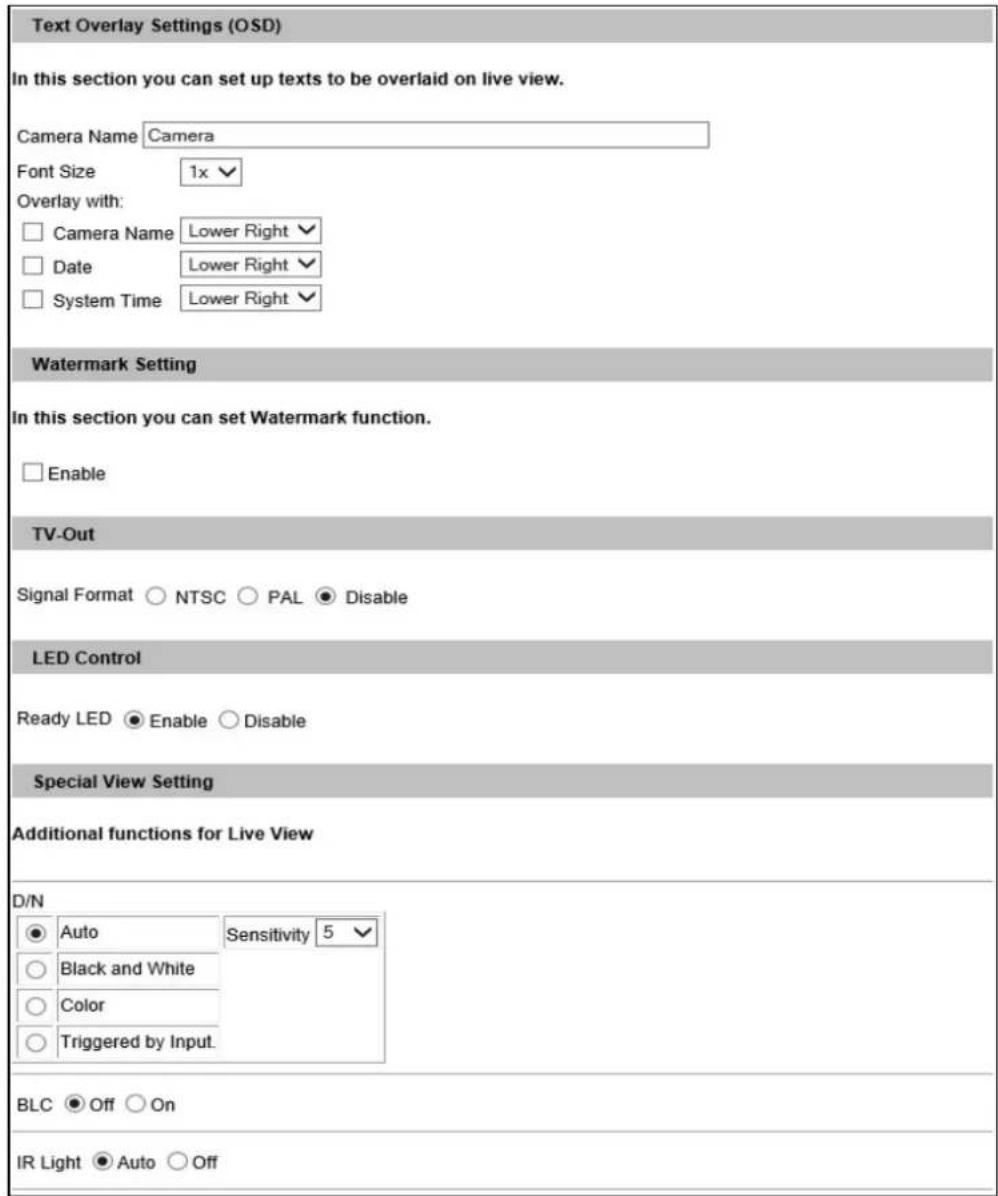

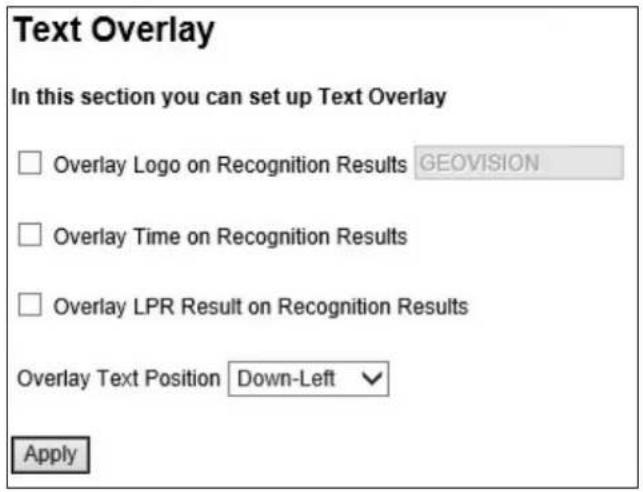

4.1.4 Text Overlay 97

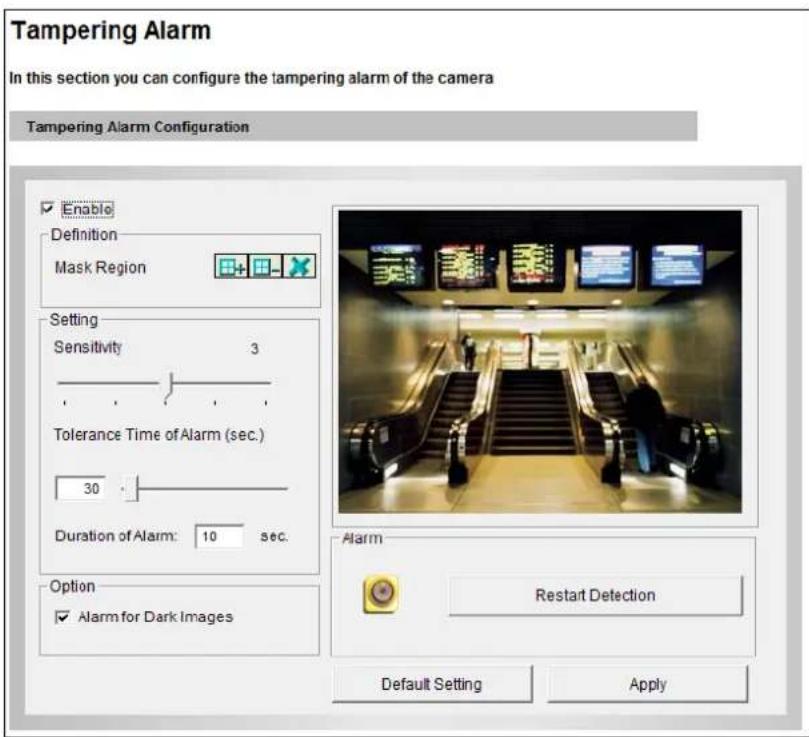

4.1.5 Tampering Alarm 98

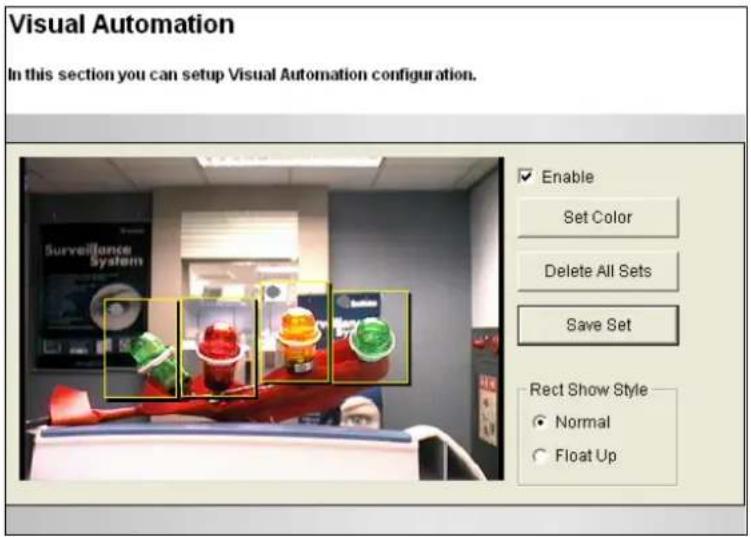

4.1.6 Visual Automation 100

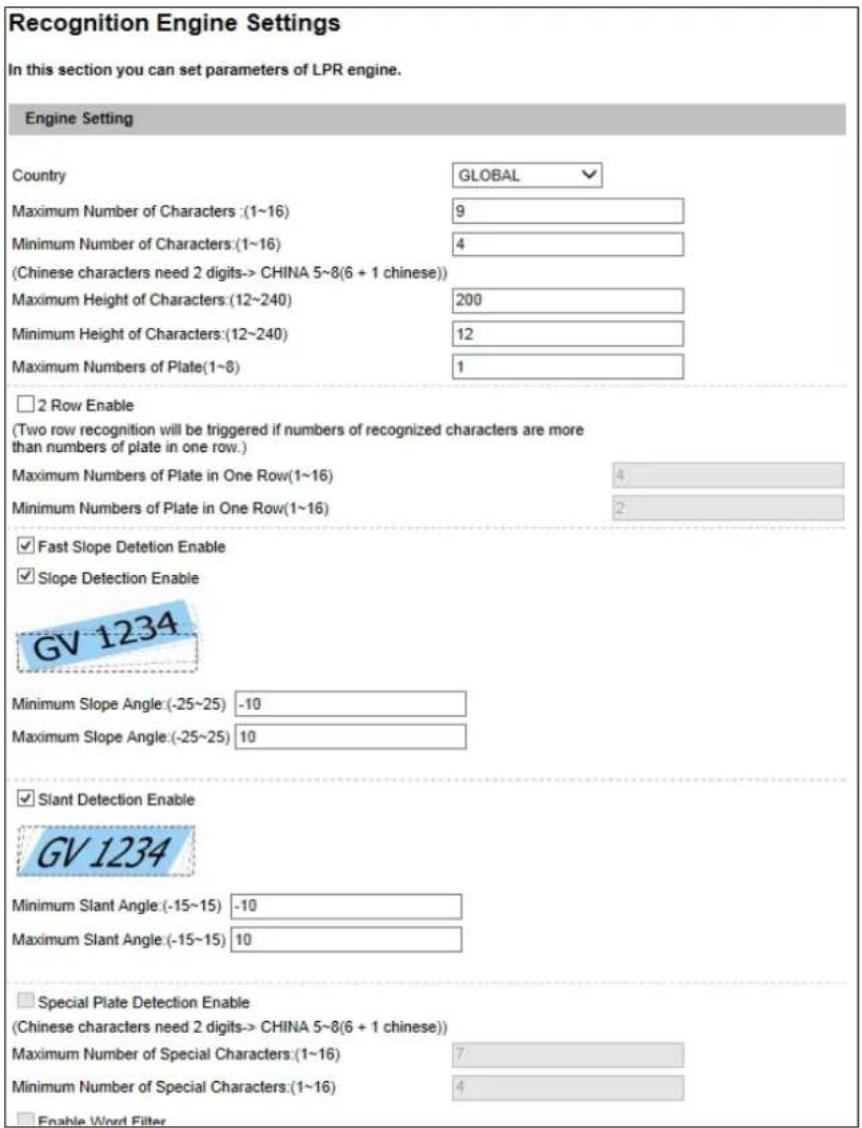

4.1.7 Recognition Engine Settings.... 101

4.2 I/O Control 105

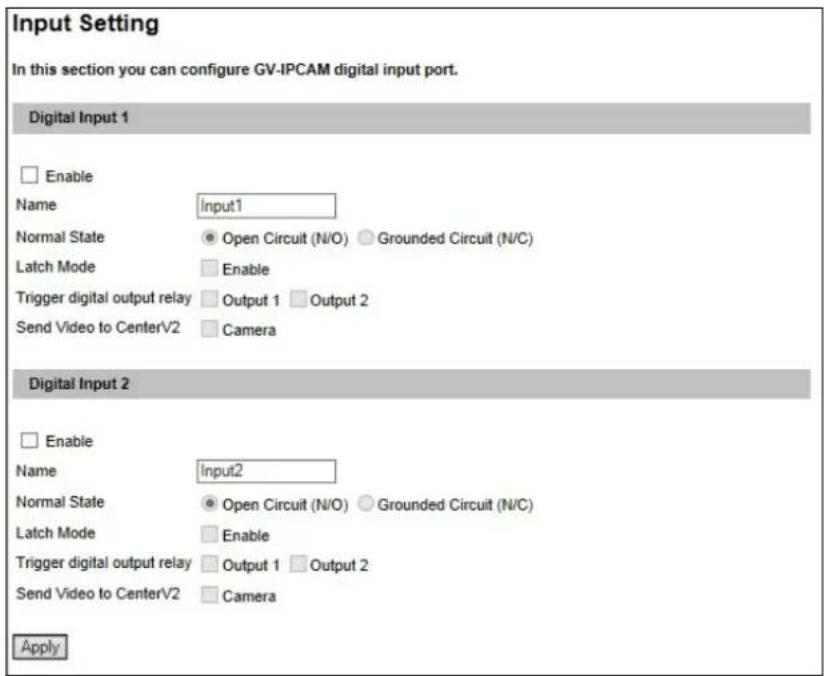

4.2.1 Input Settings 105

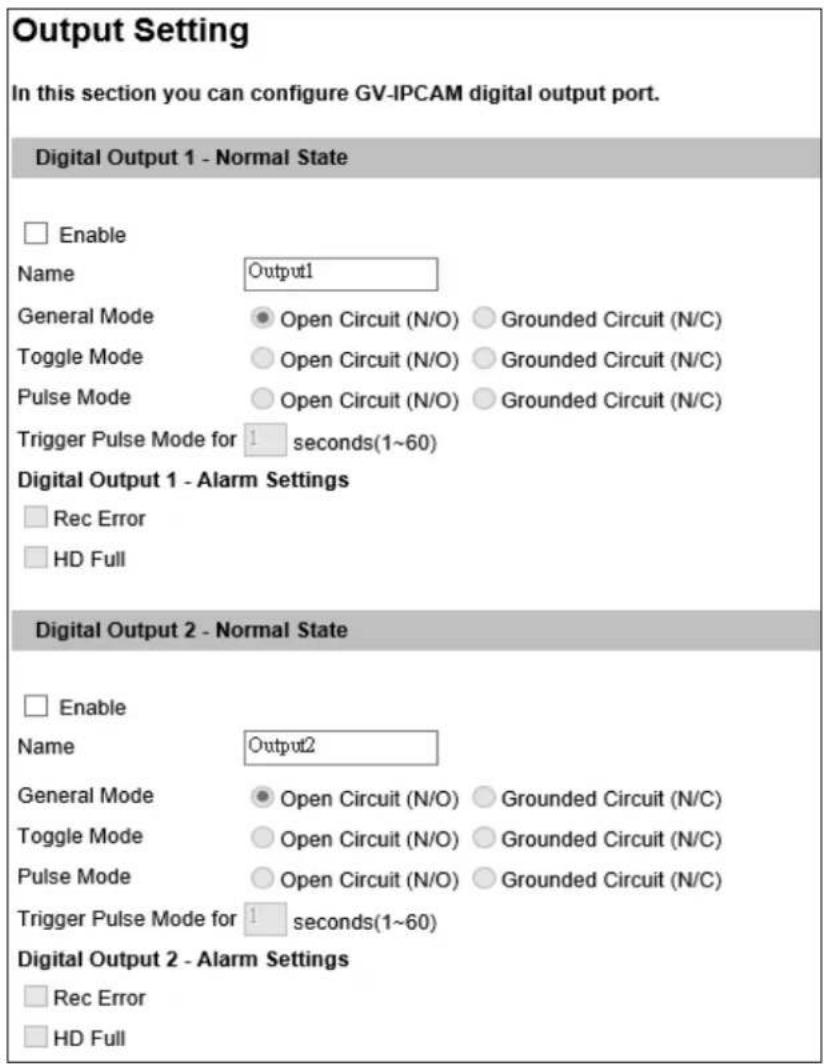

4.2.2 Output Settings 106

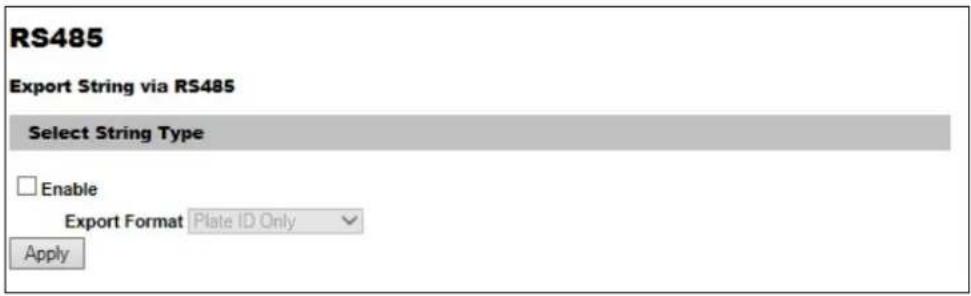

4.2.3 RS485 108

4.3 Events & Alerts 109

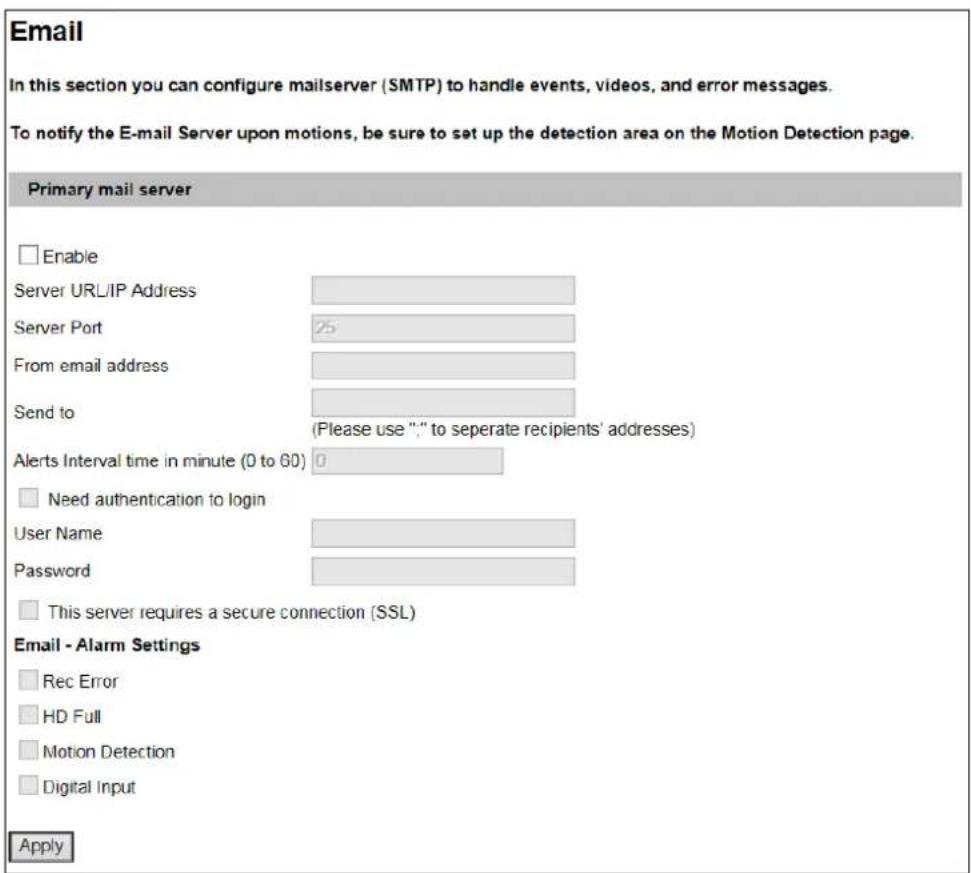

4.3.1 E-mail.... 110

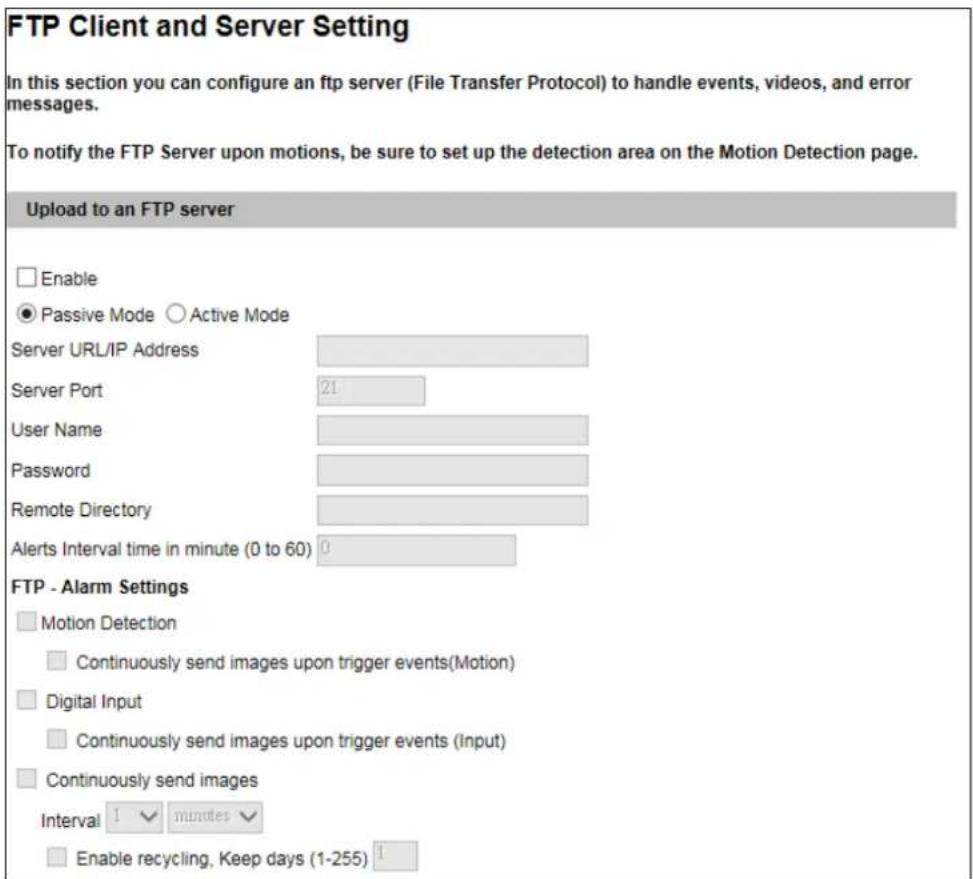

4.3.2 FTP 112

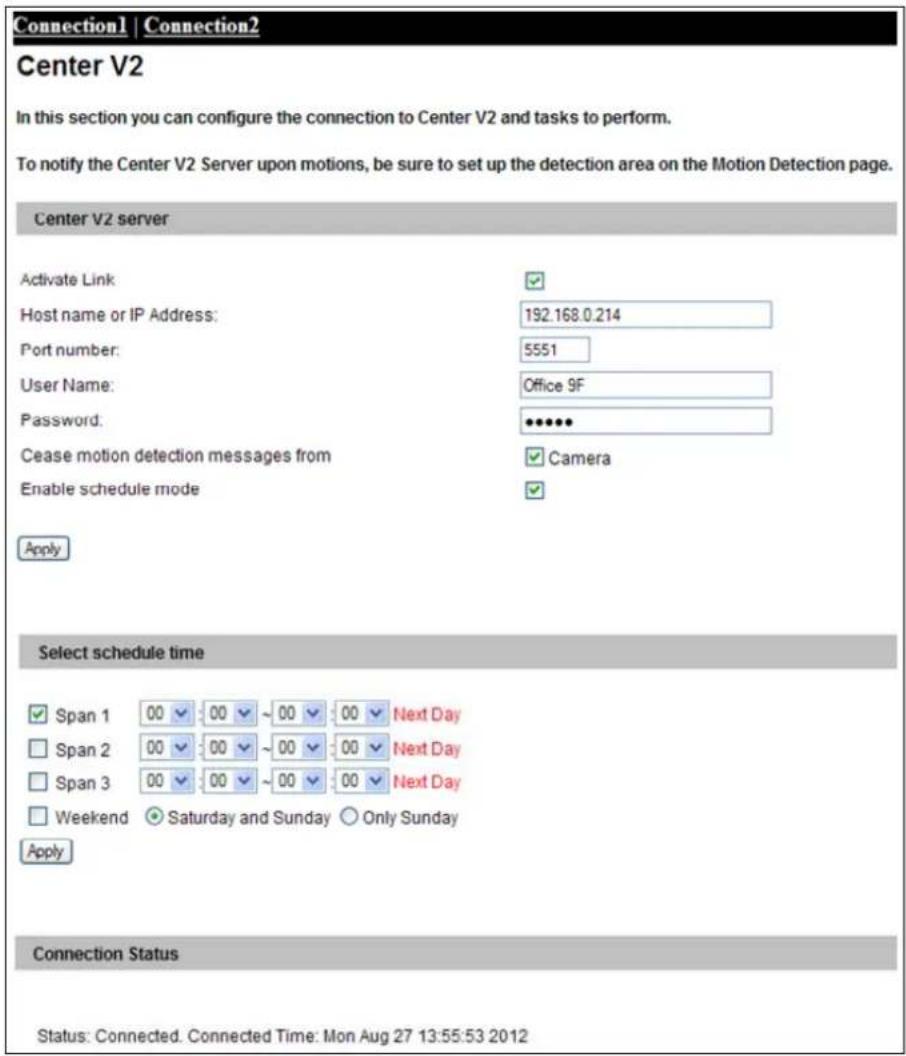

4.3.3 Center V2.... 114

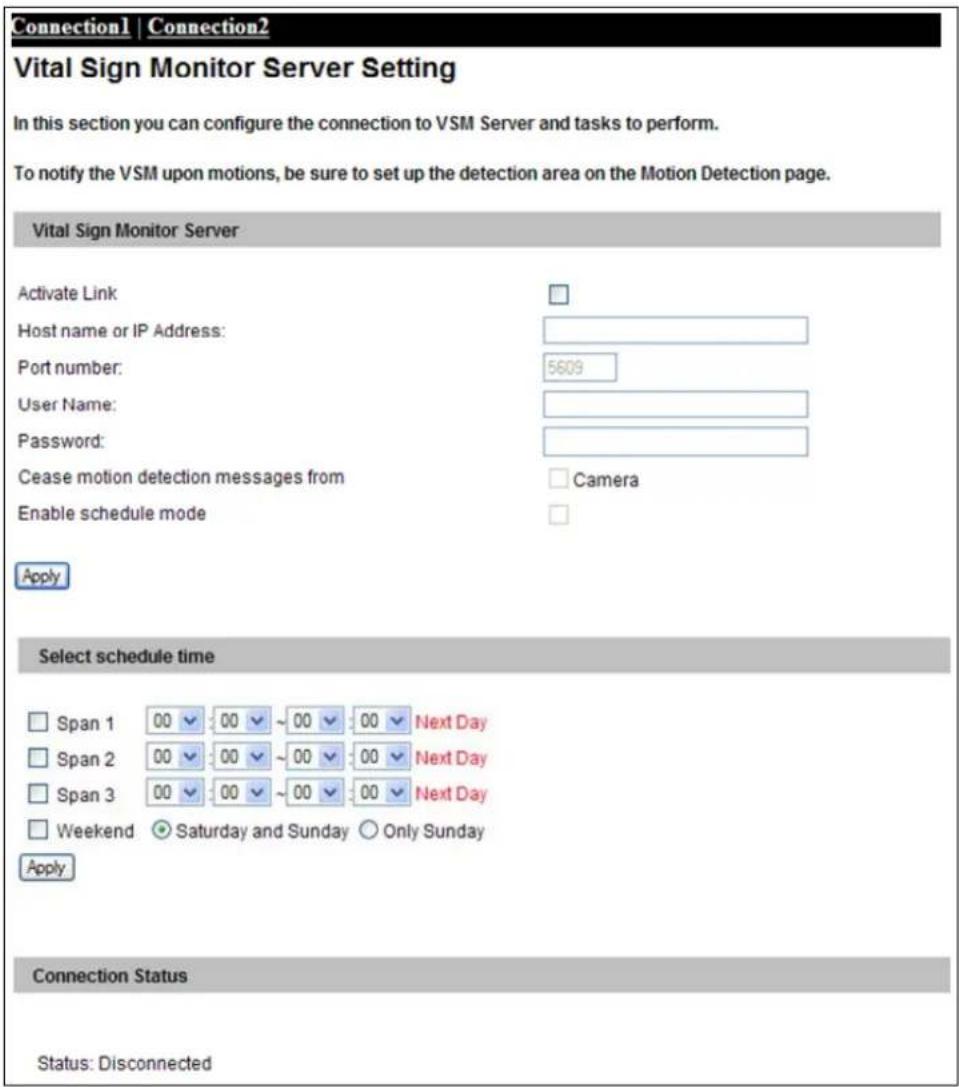

4.3.4 VSM (Vital Sign Monitor).... 116

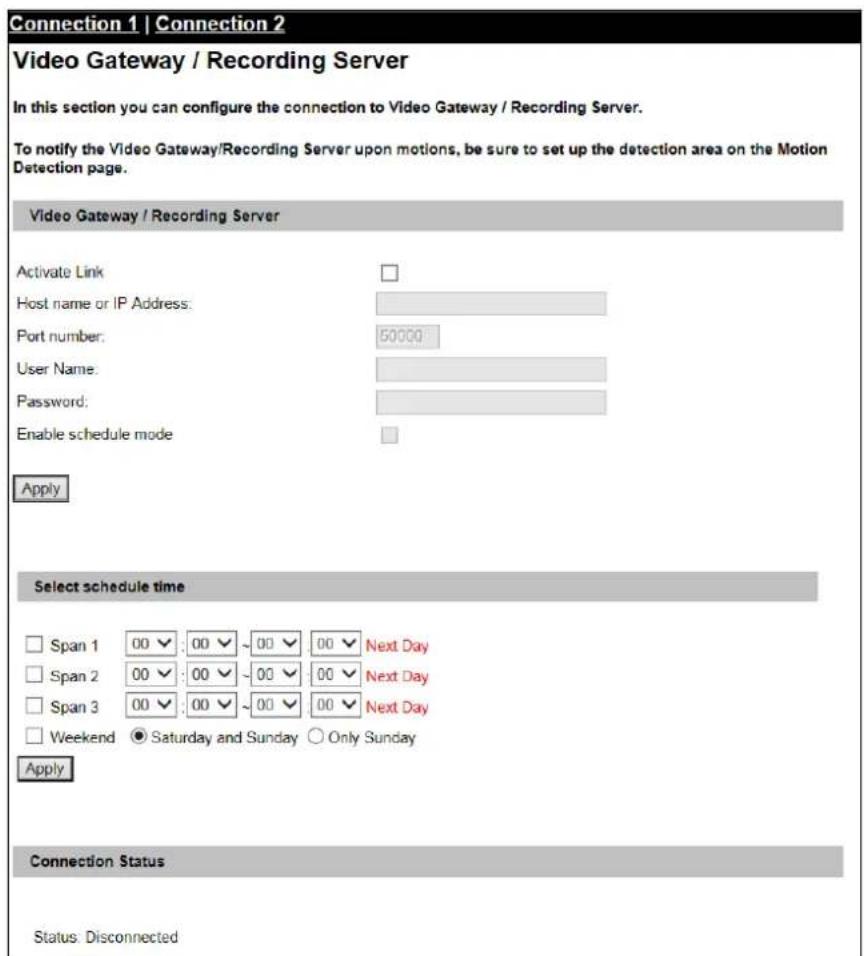

4.3.5 GV-Video Gateway / GV-Recording Server.... 118
4.3.6 RTSP....120

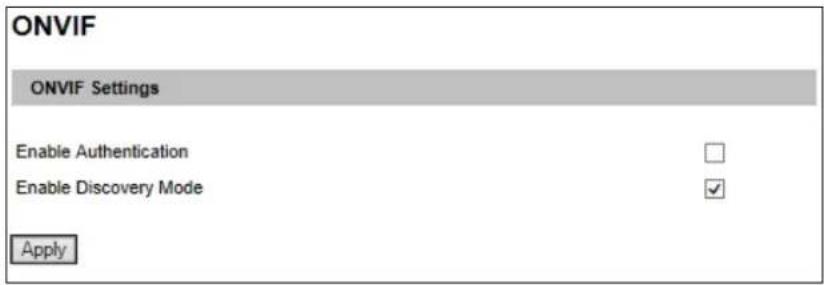

4.3.7 ONVIF 121

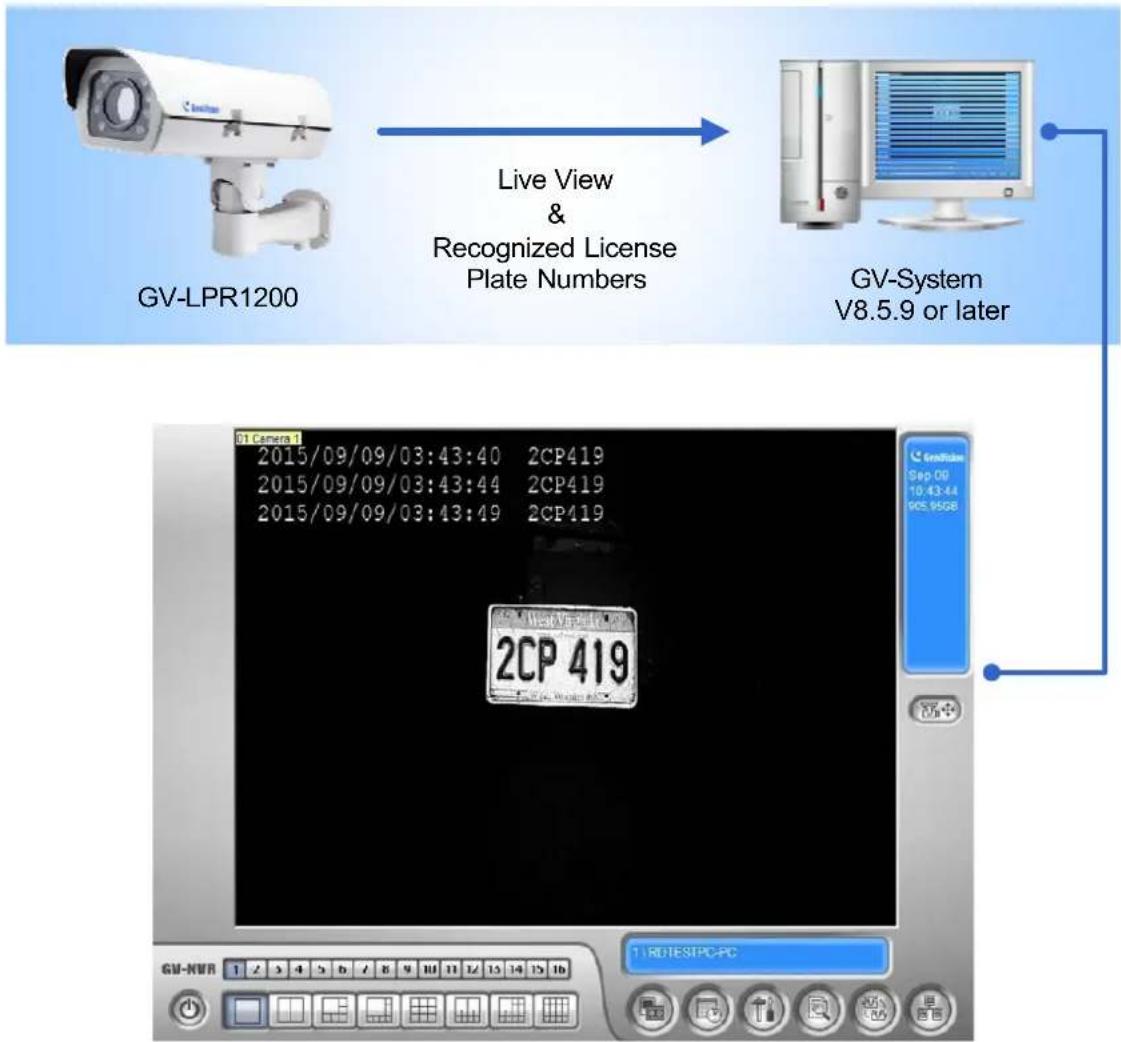

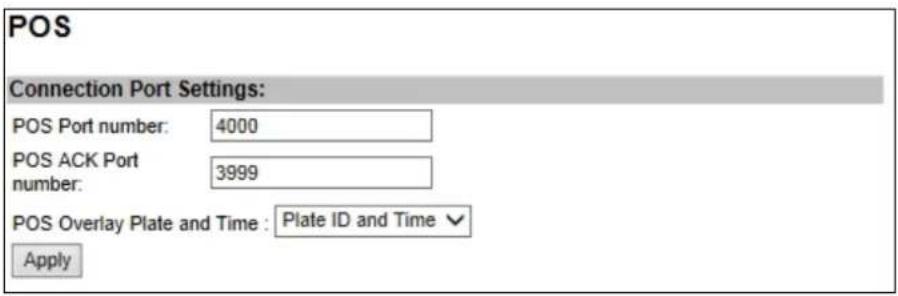

4.3.8 POS 122

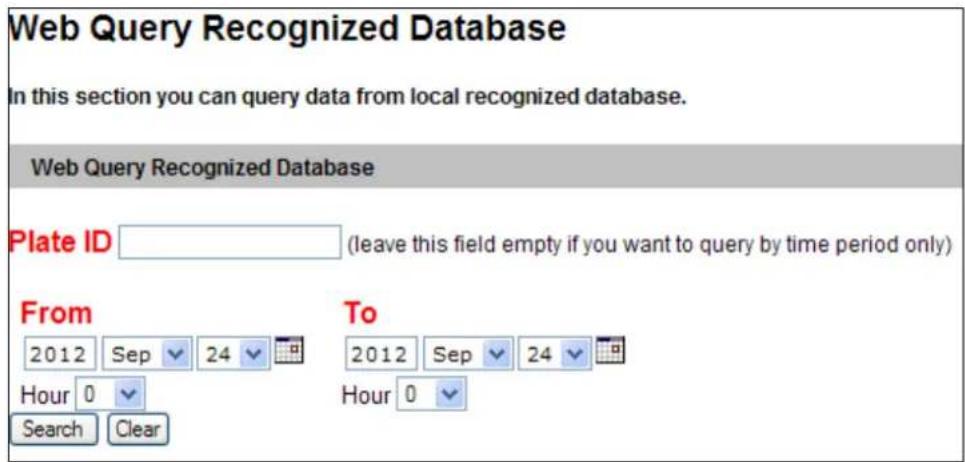

4.3.9 Inquire Recognized Database.... 124

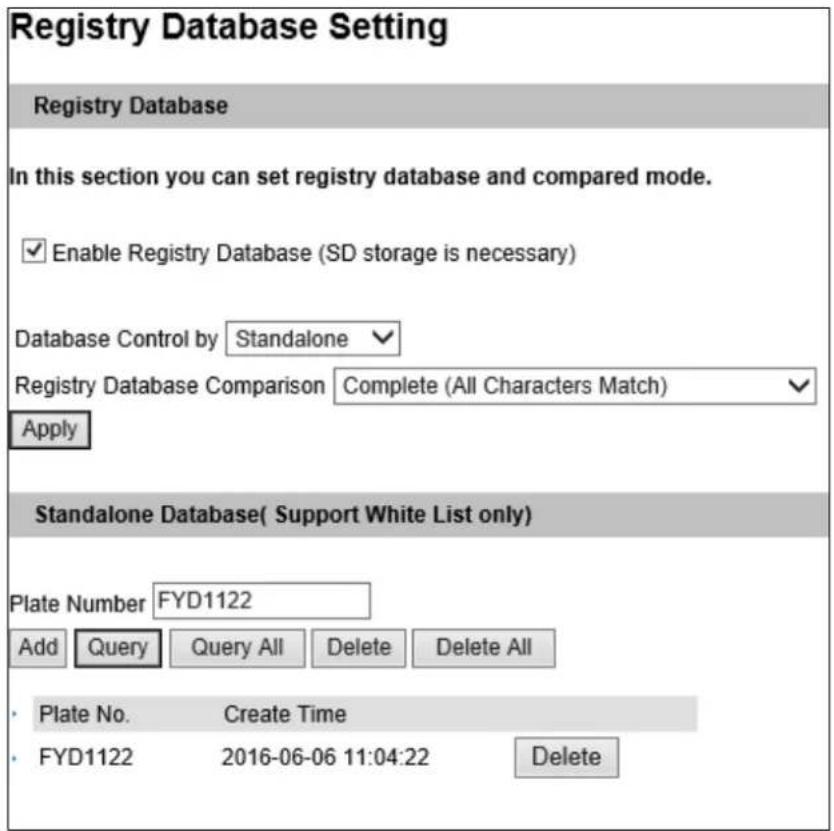

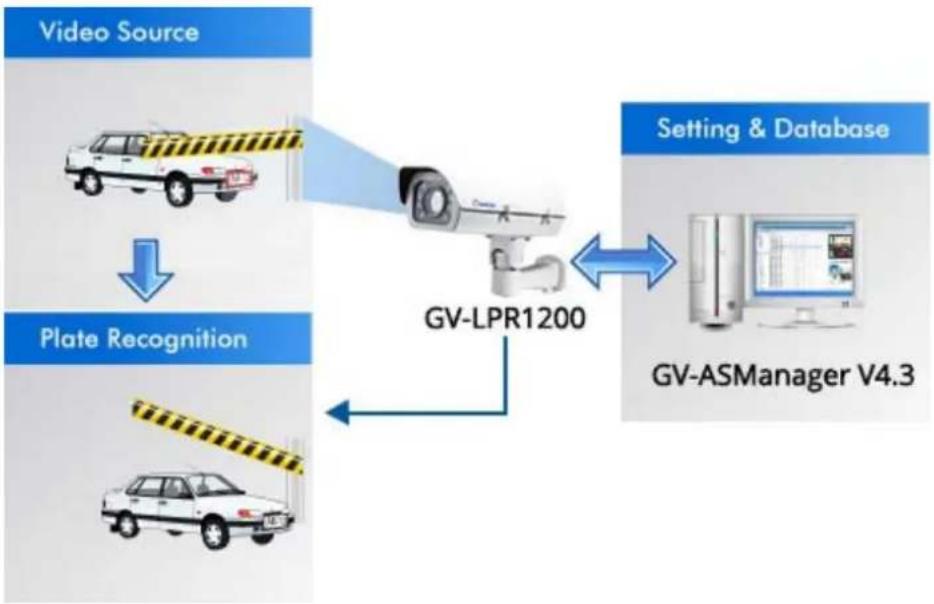

4.3.10 Registry Database.... 125

4.4 Monitoring....128

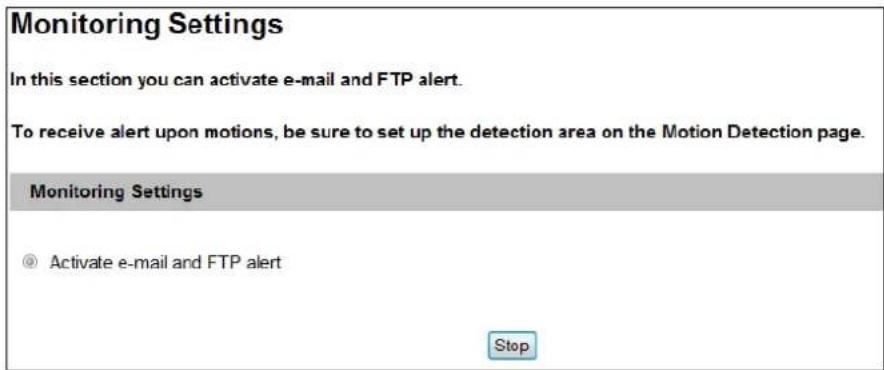

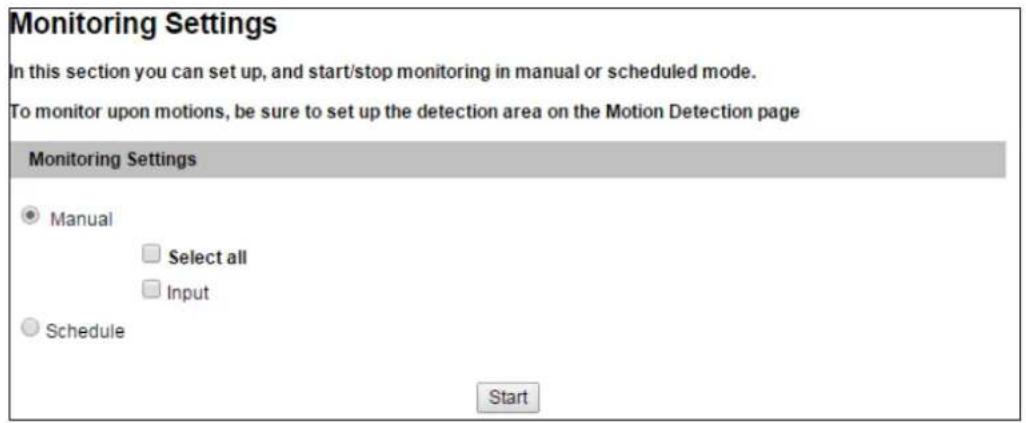

4.4.1 Monitoring Settings 128

4.5 Schedule 130

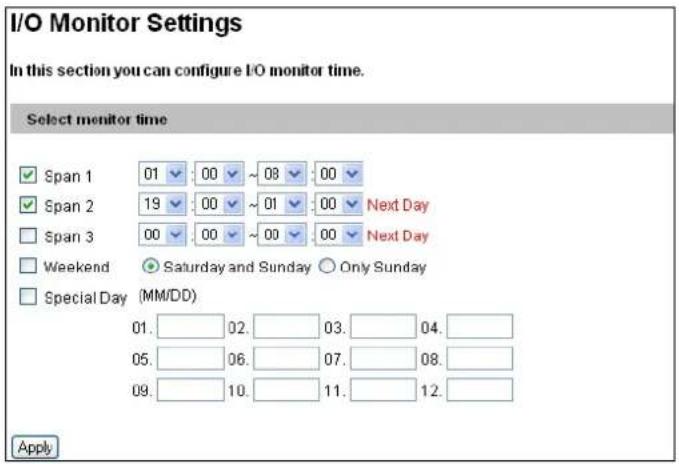

4.5.1 I/O Monitoring Settings 130

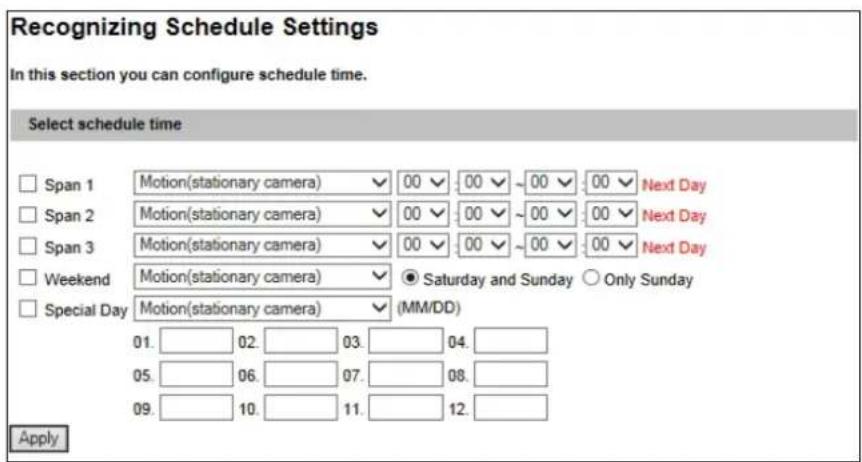

4.5.2 Recognizing Schedule Settings 131

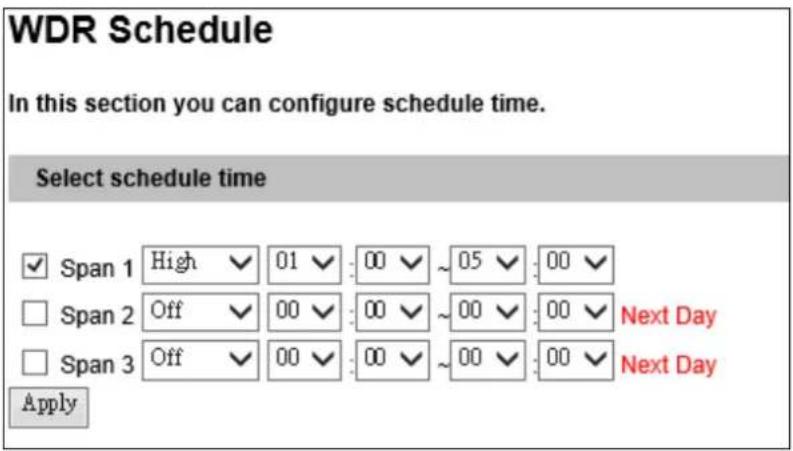

4.5.3 WDR Settings 132

4.6 Network 133

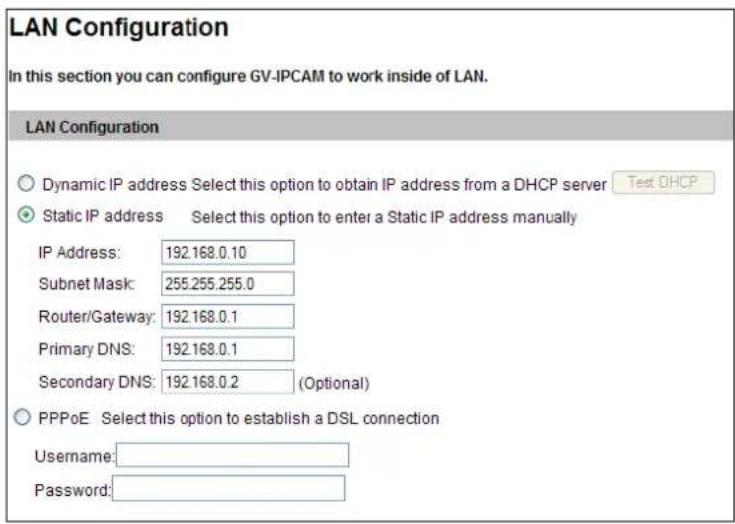

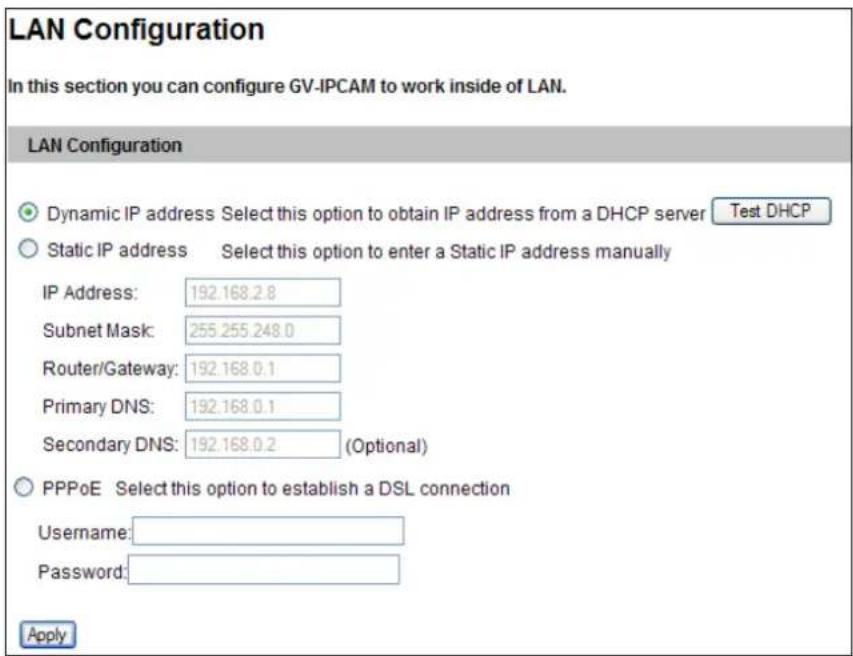

4.6.1 LAN Configuration.... 133

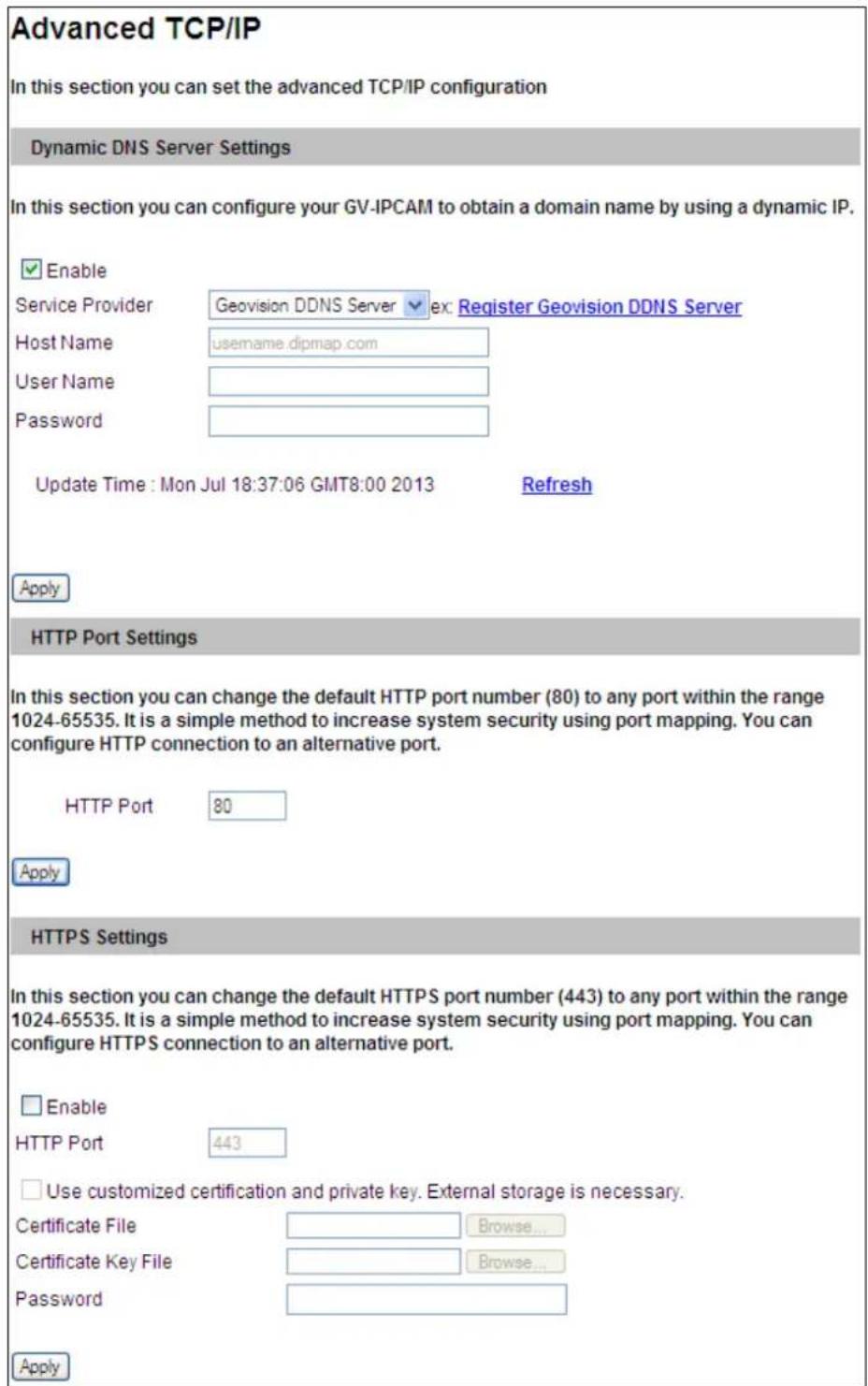

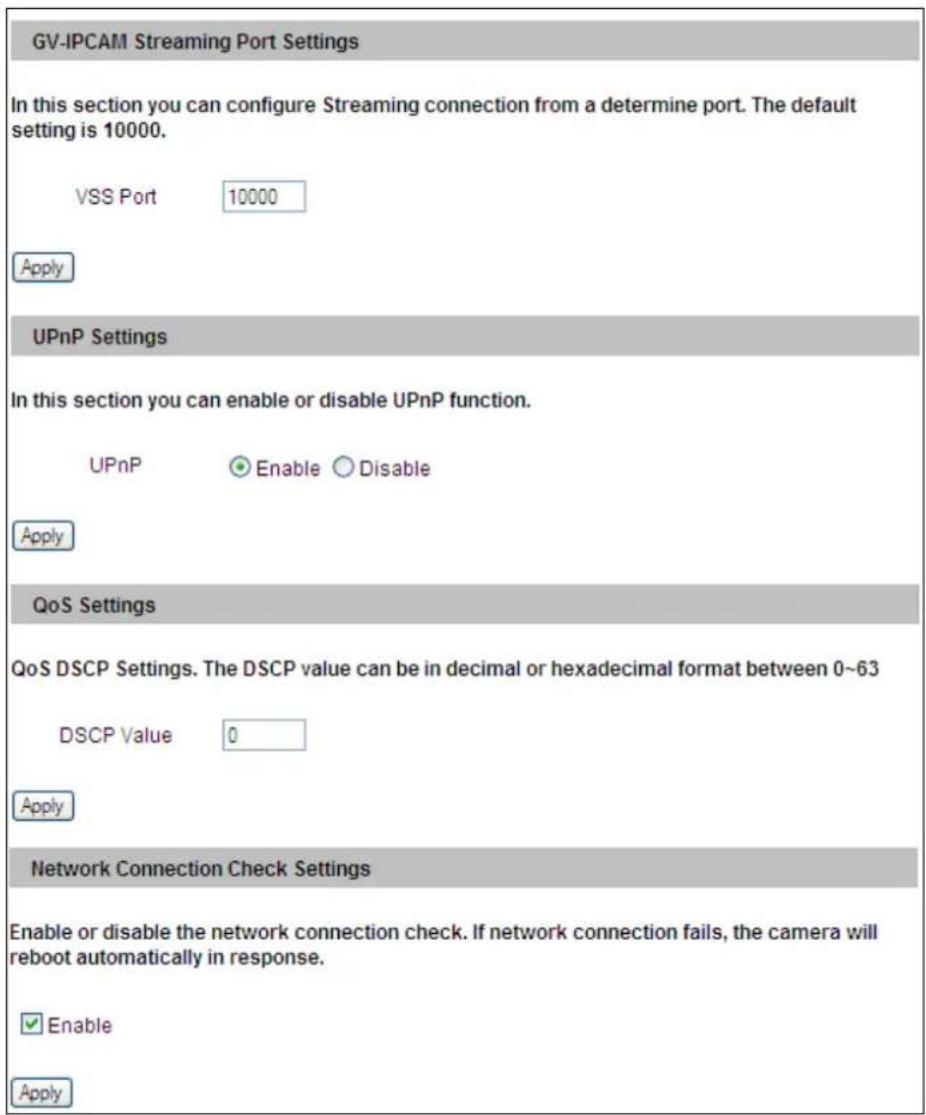

4.6.2 Advanced TCP/IP 135

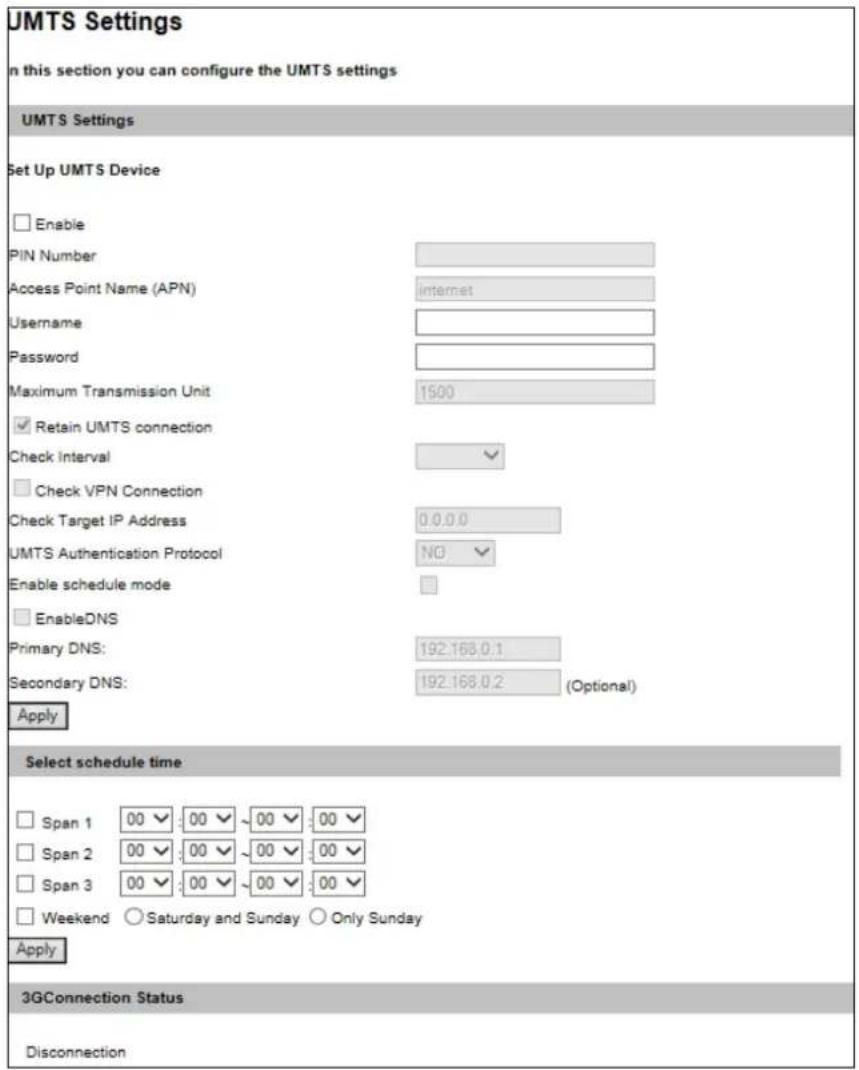

4.6.3 UMTS....139

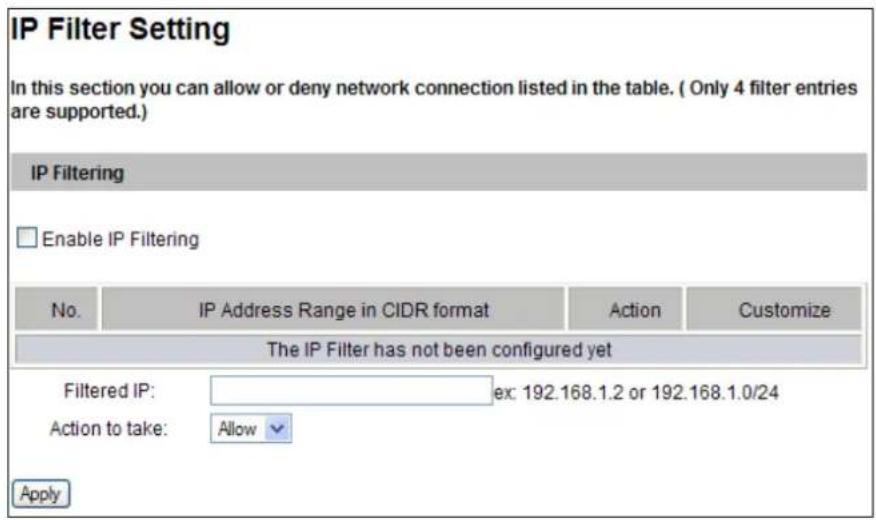

4.6.4 IP Filtering....141

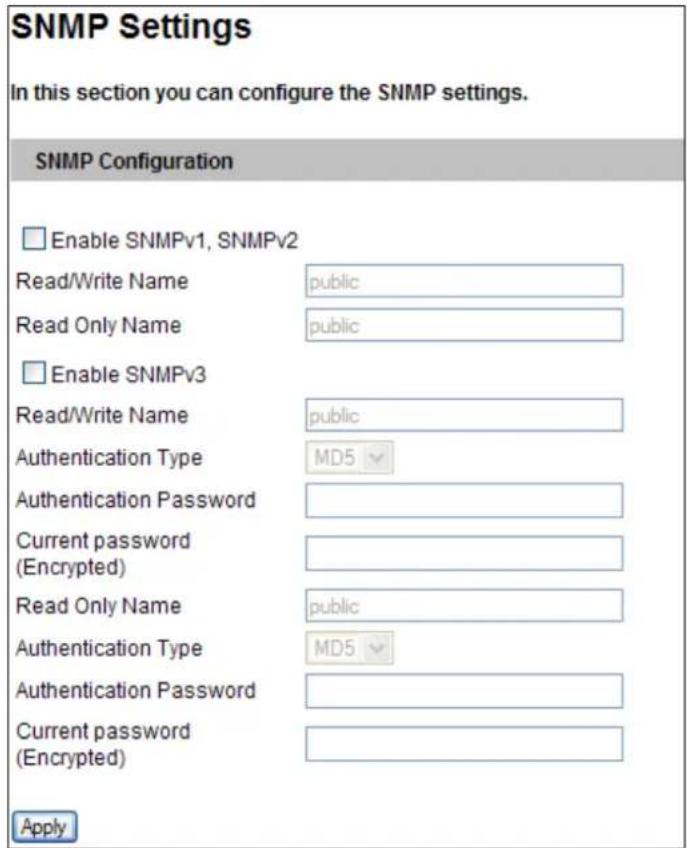

4.6.5 SNMP Settings.... 142

4.7 Management 144

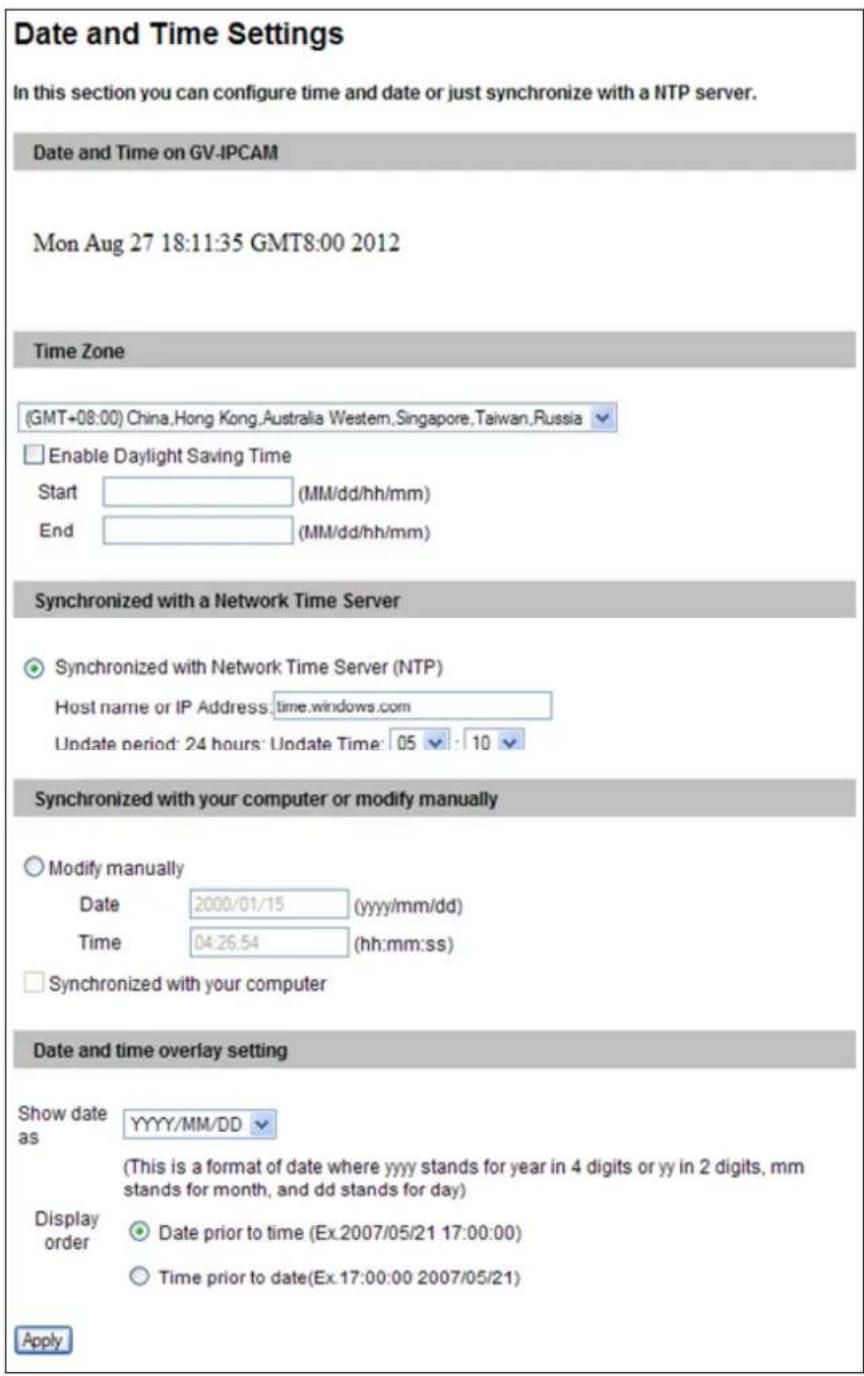

4.7.1 Date and Time Settings.... 144

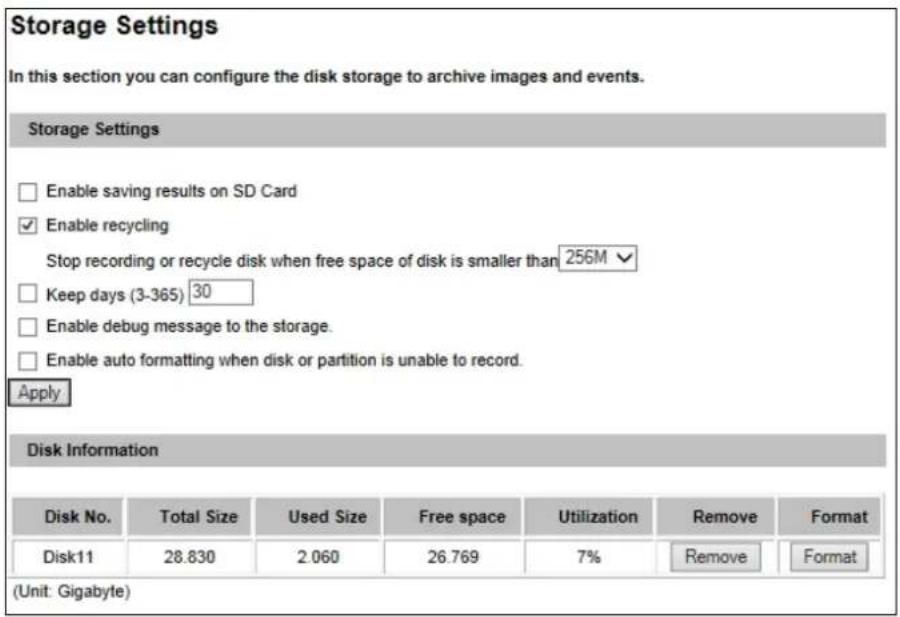

4.7.2 Storage Settings.... 146

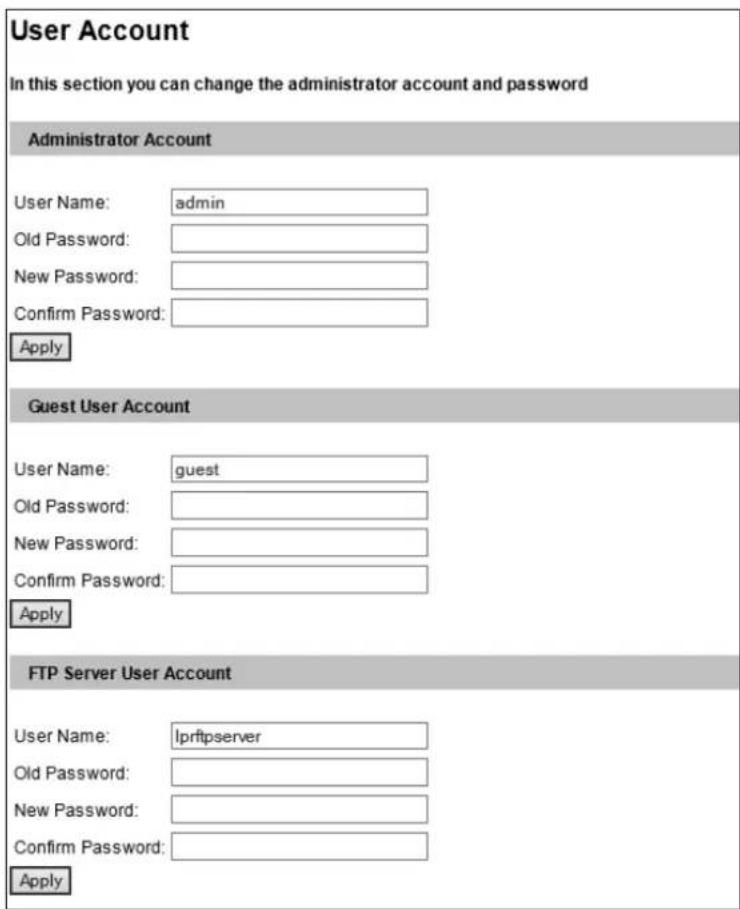

4.7.3 User Account.... 148

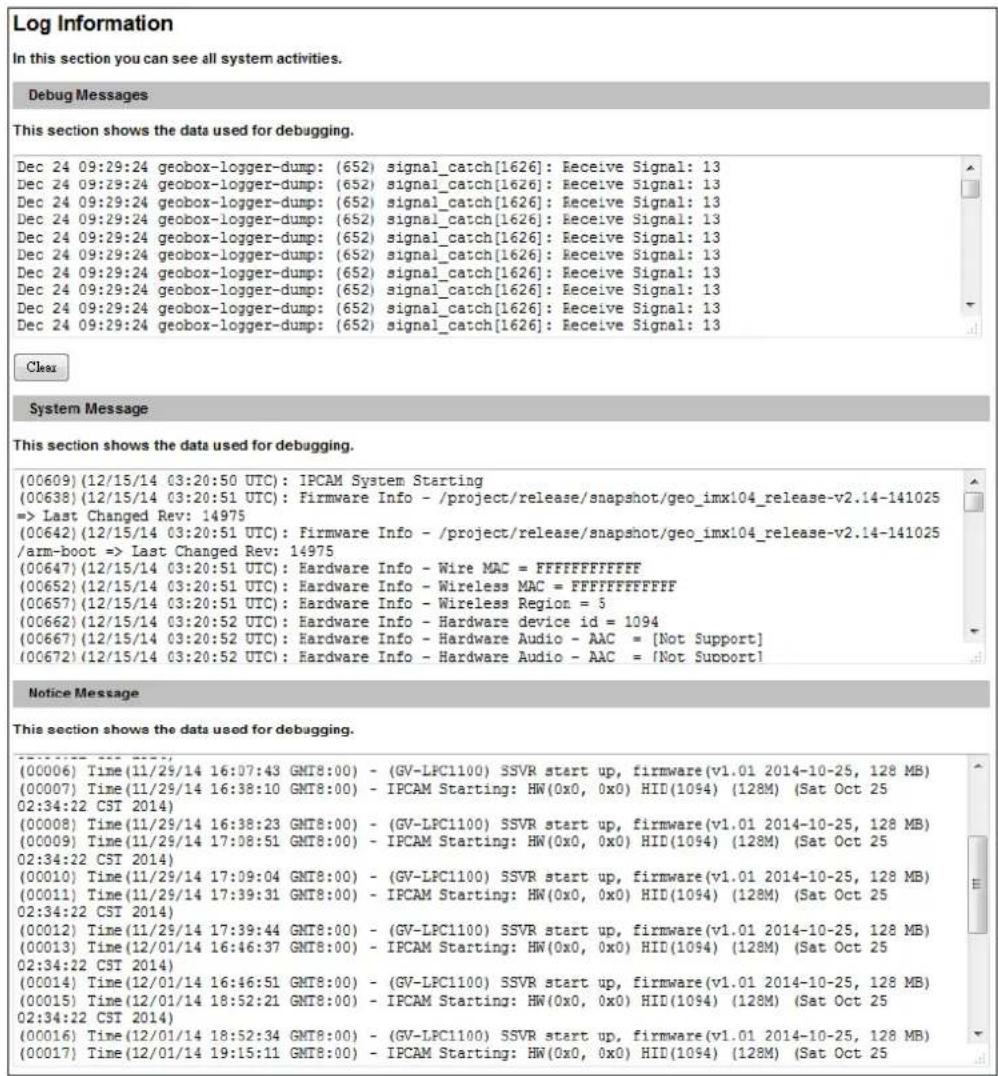

4.7.4 Log Information 149

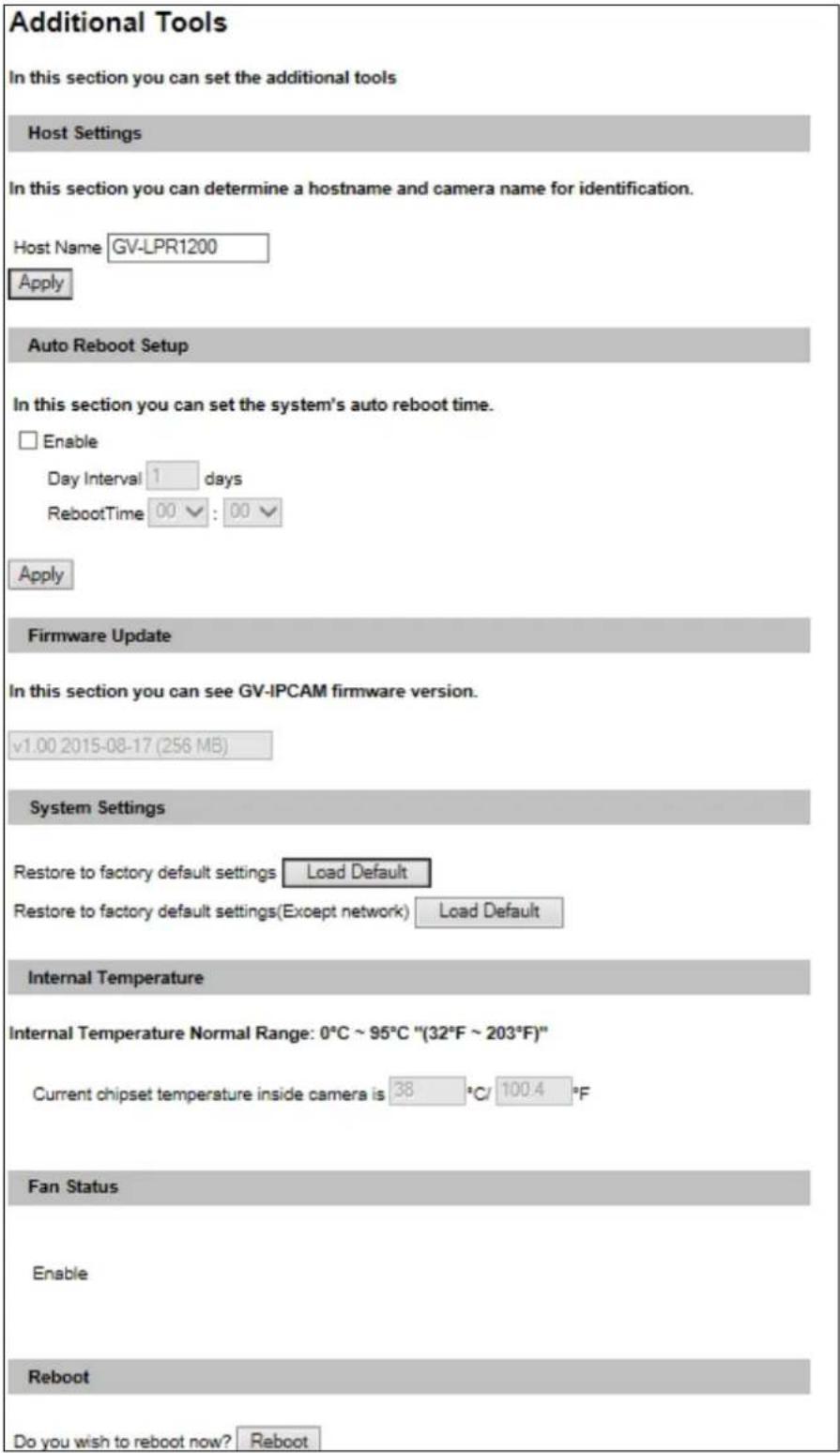

4.7.5 Tools....150

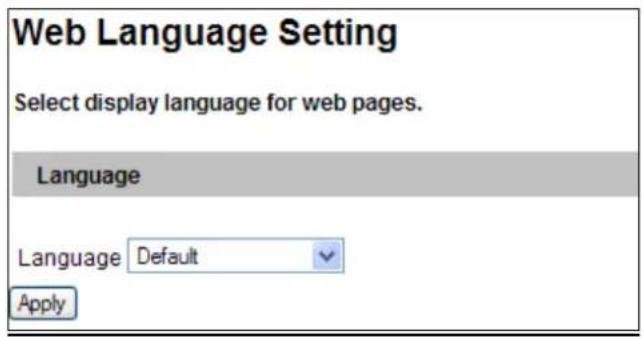

4.7.6 Language 152

Chapter 5 Advanced Applications.... 153

5.1 Upgrading System Firmware.... 153

5.1.1 Using the Web Interface.... 154

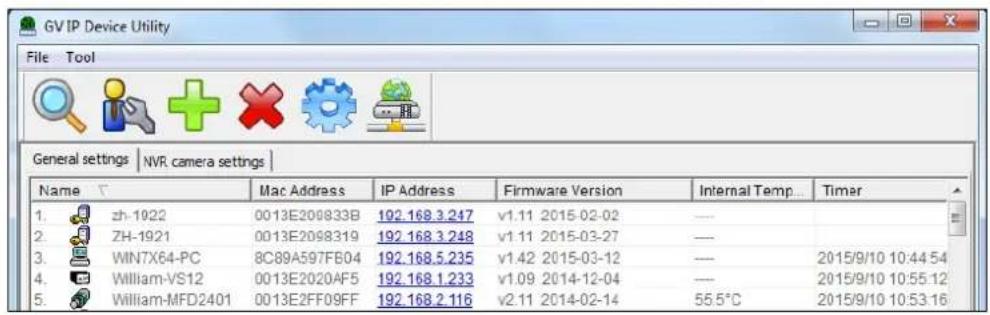

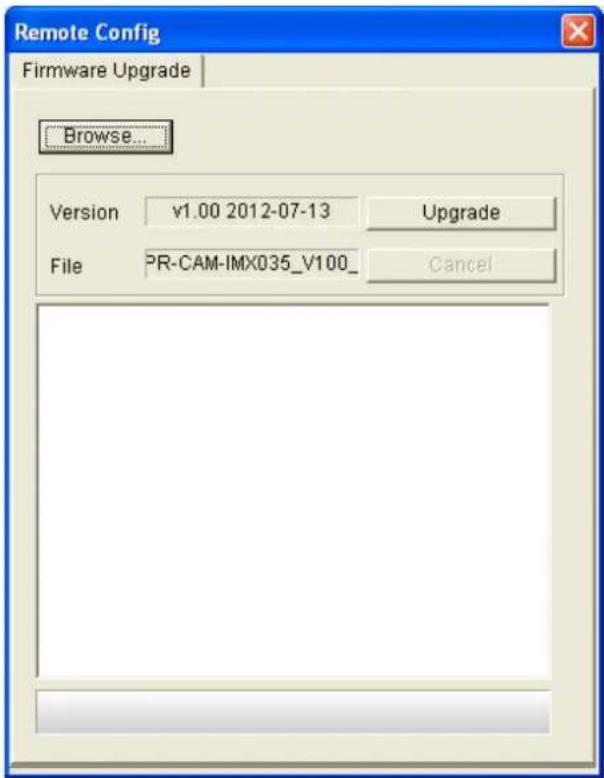

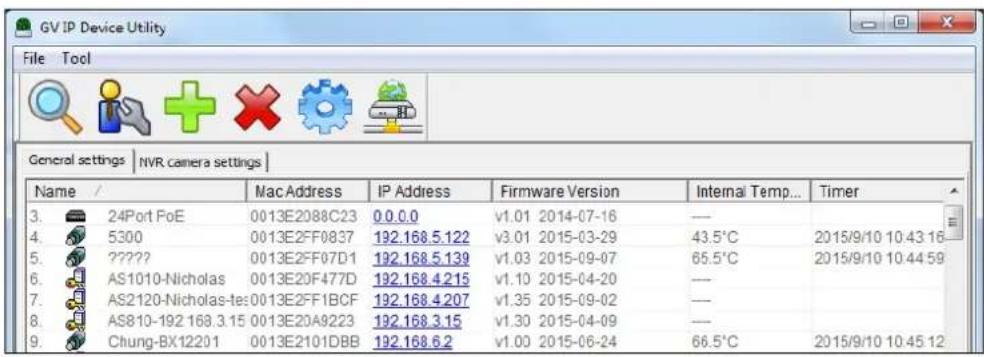

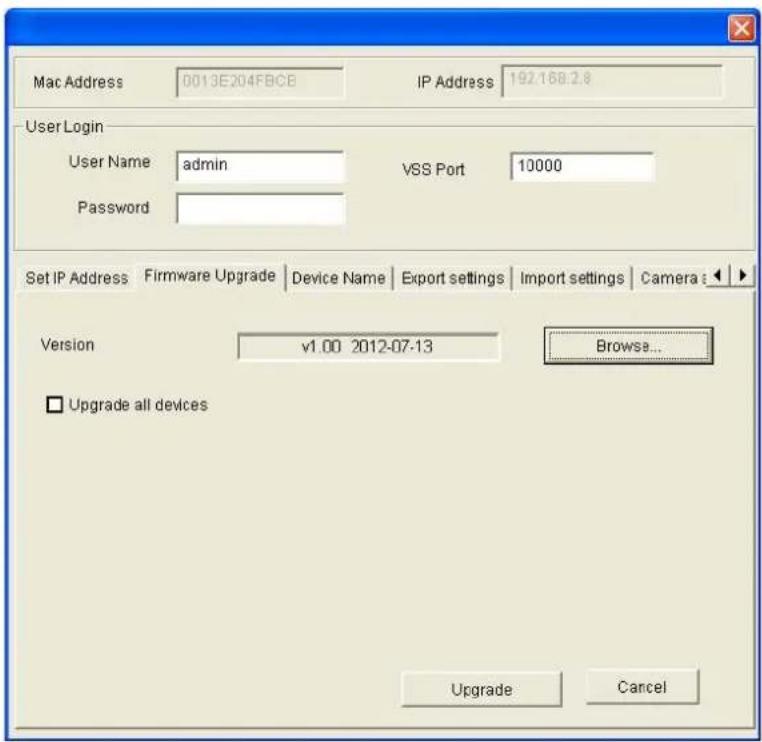

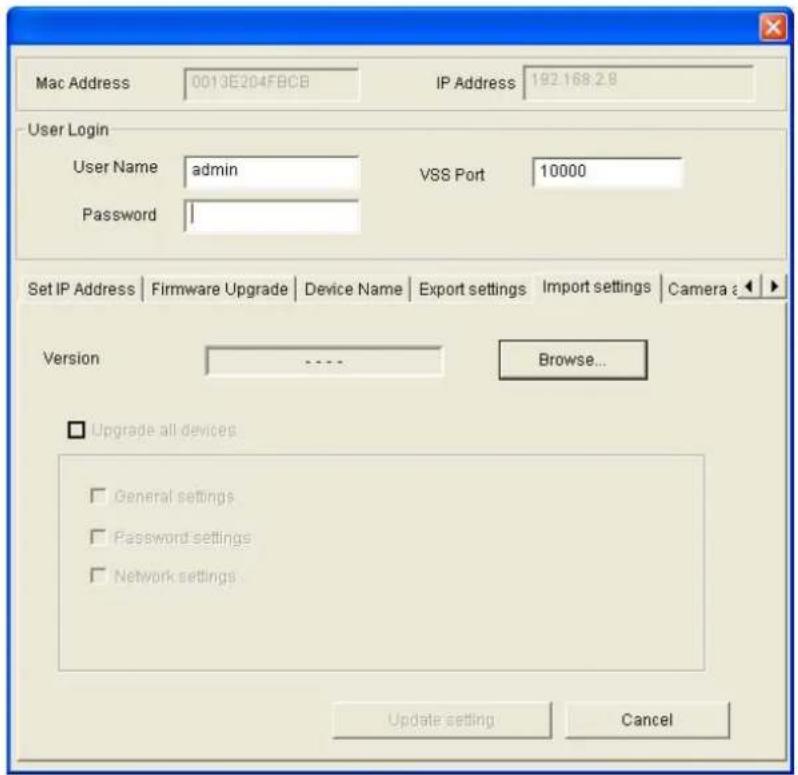

5.1.2 Using the GV-IP Device Utility.... 155

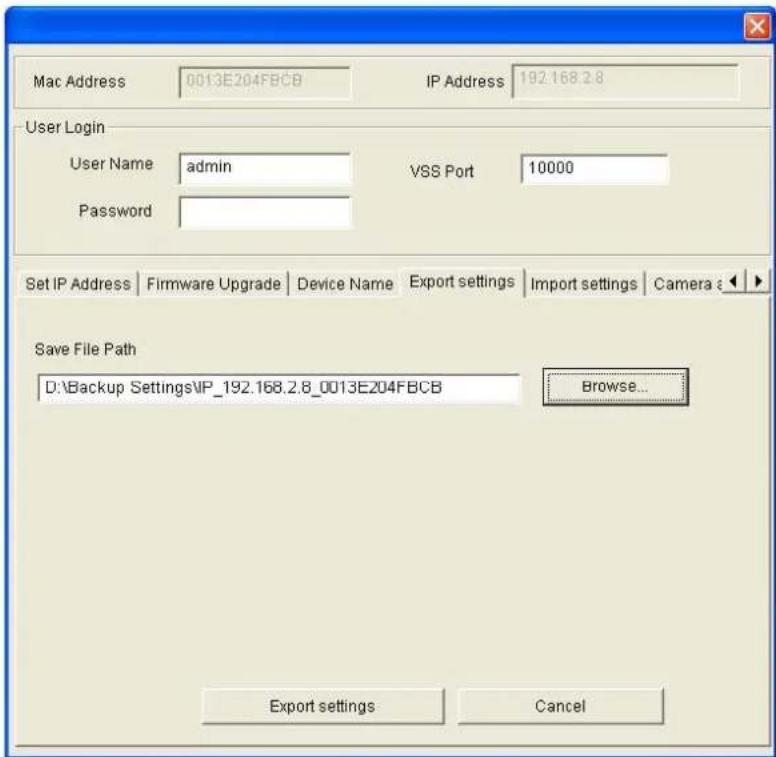

5.2 Backing Up and Restoring Settings.... 158

5.3 Restoring to Factory Default Settings.... 160

5.3.1 Using the Web Interface.... 160

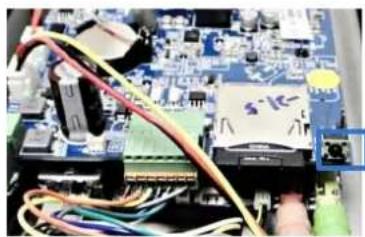

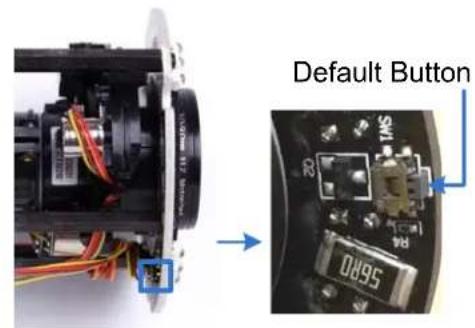

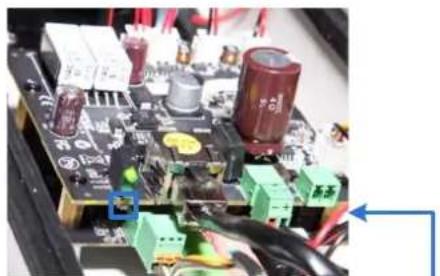

5.3.2 Directly on the Camera 160

5.4 Verifying Watermark 162

5.4.1 Accessing AVI Files.... 162

5.4.2 Running Watermark Proof.... 162

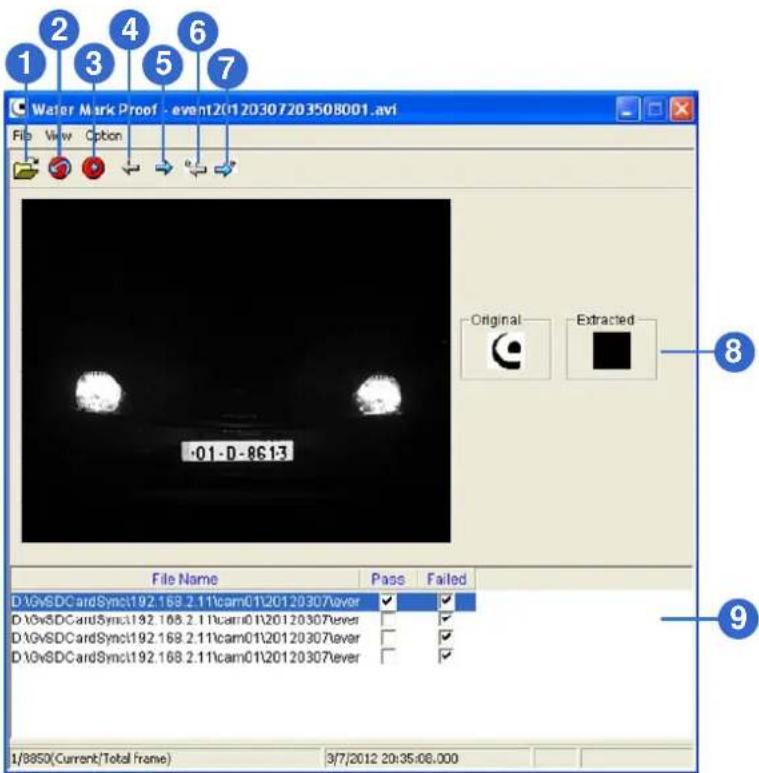

5.4.3 The Watermark Proof Window 163

Chapter 6 DVR Configurations ...... 164

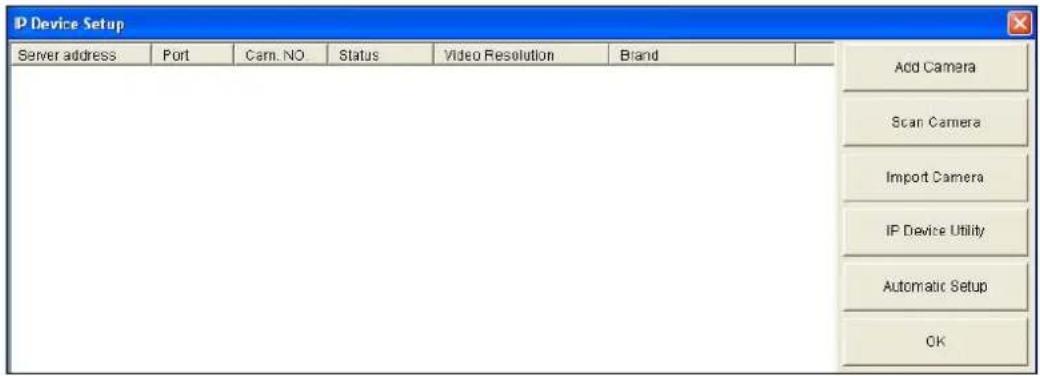

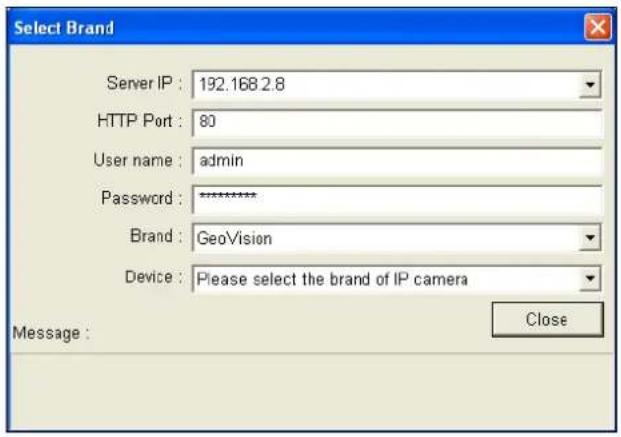

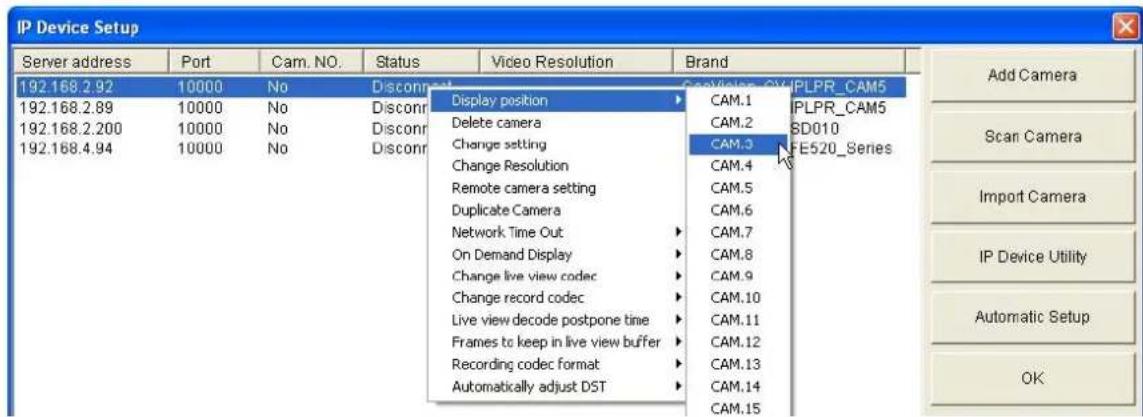

6.1 Setting Up IP Cameras on GV-System 165

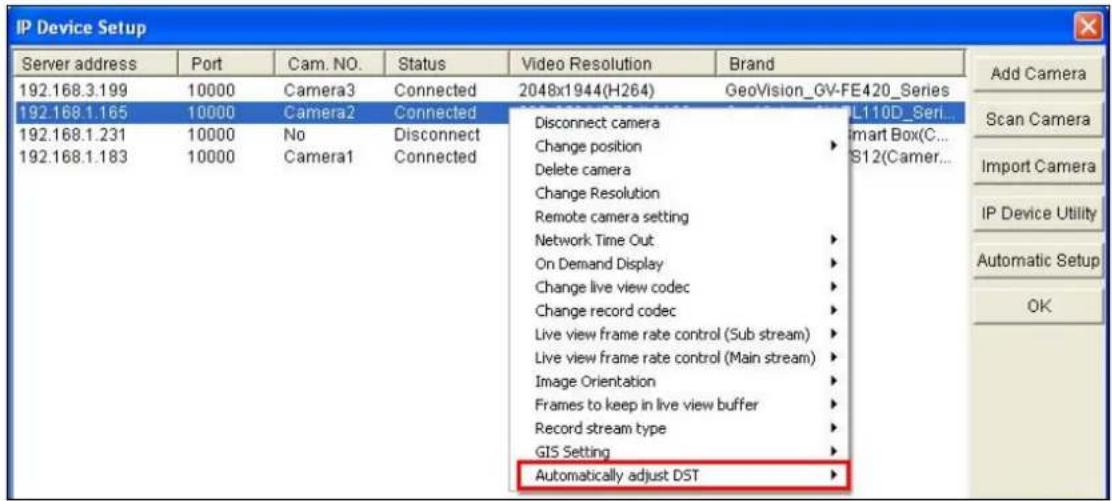

6.1.1 Customizing Camera Settings 168

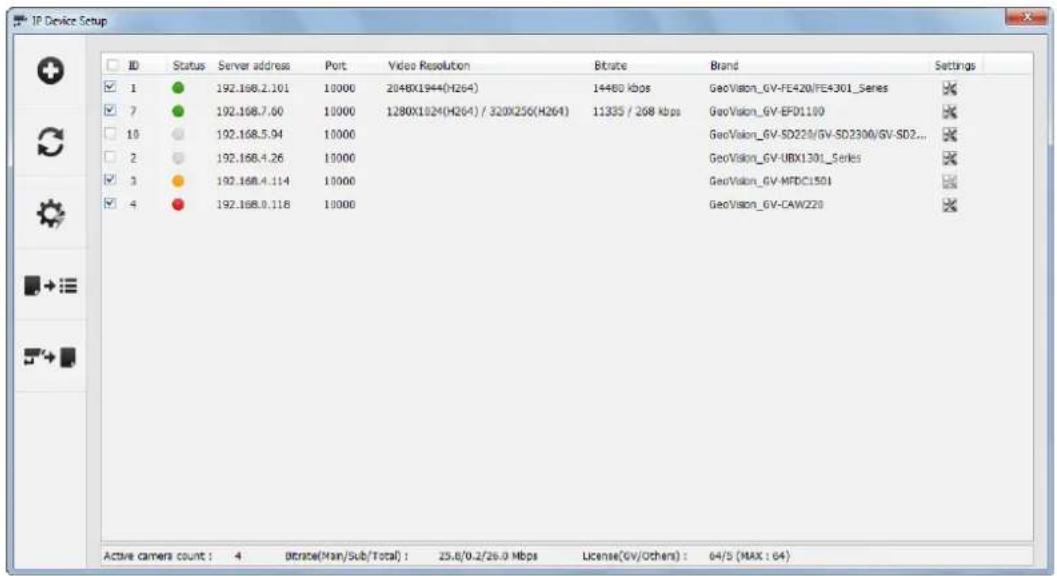

6.2 Setting Up IP Cameras on GV-VMS.... 170

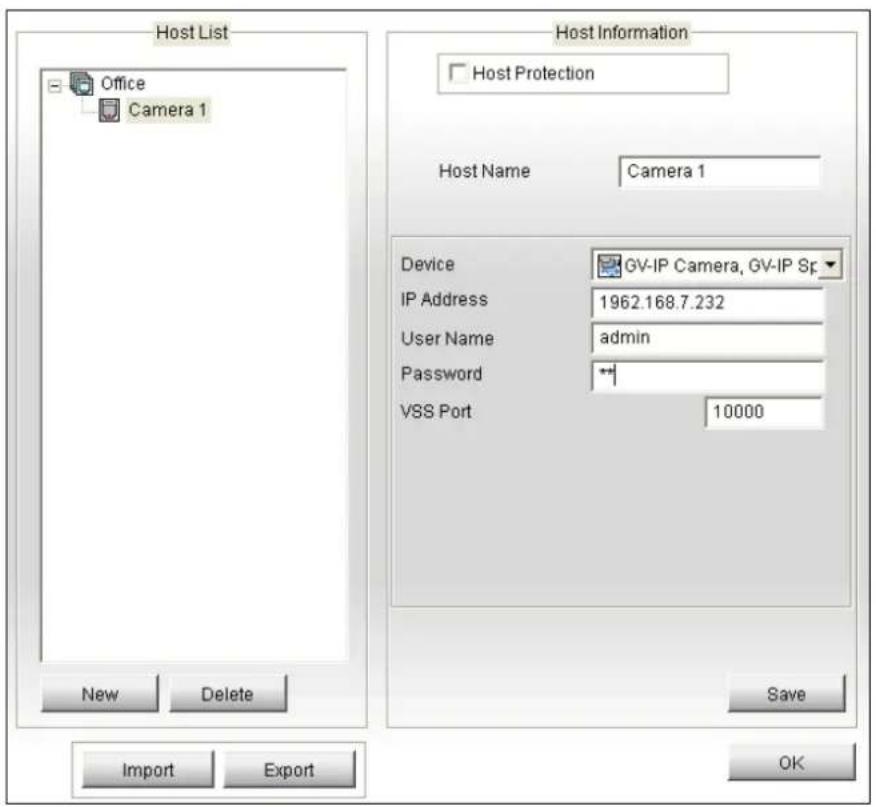

6.3 Remote Monitoring with Multi View 173

6.4 Remote Monitoring with E-Map 175

Chapter 7 CMS Configurations.... 177

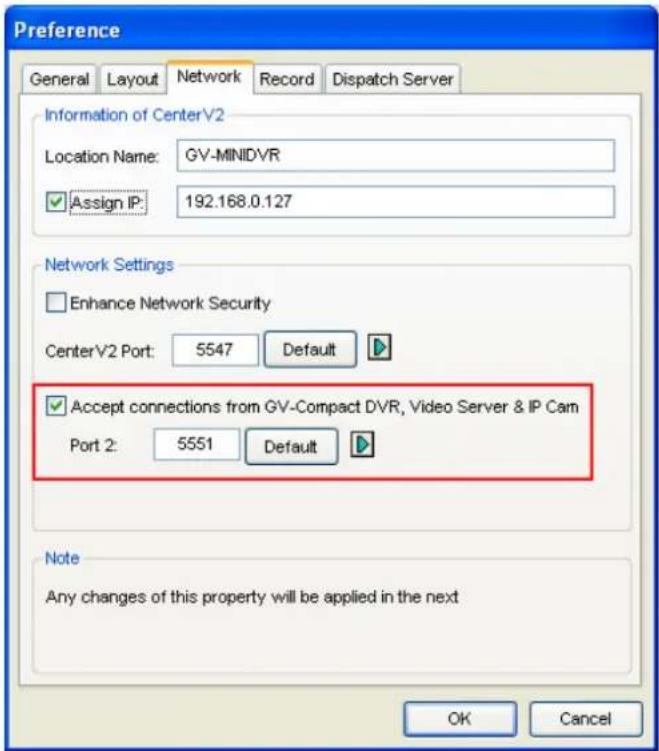

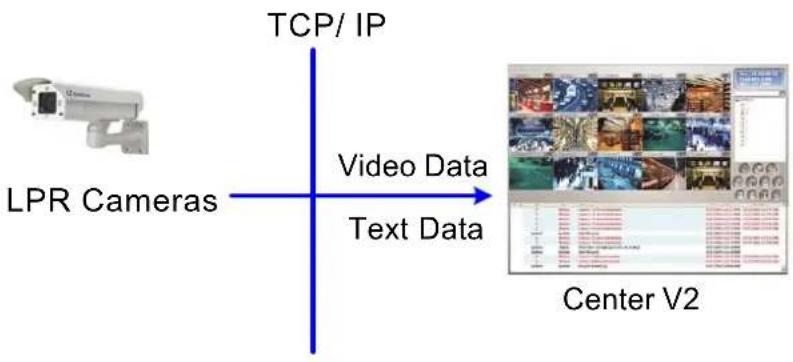

7.1 Center V2 177

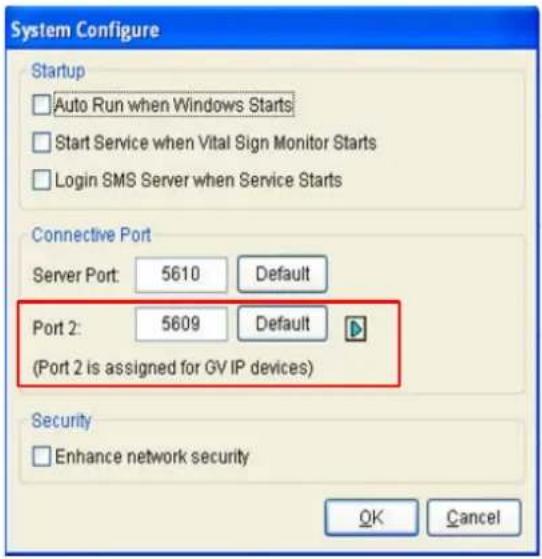

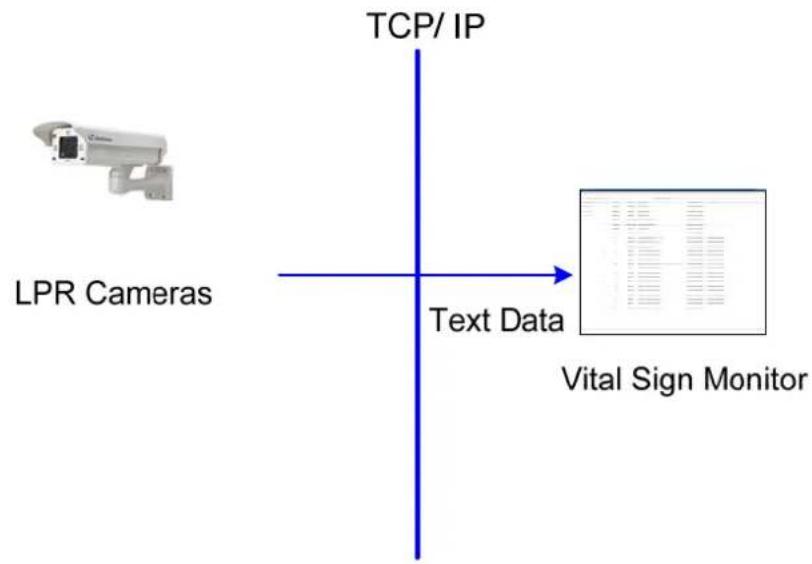

7.2 Vital Sign Monitor 179

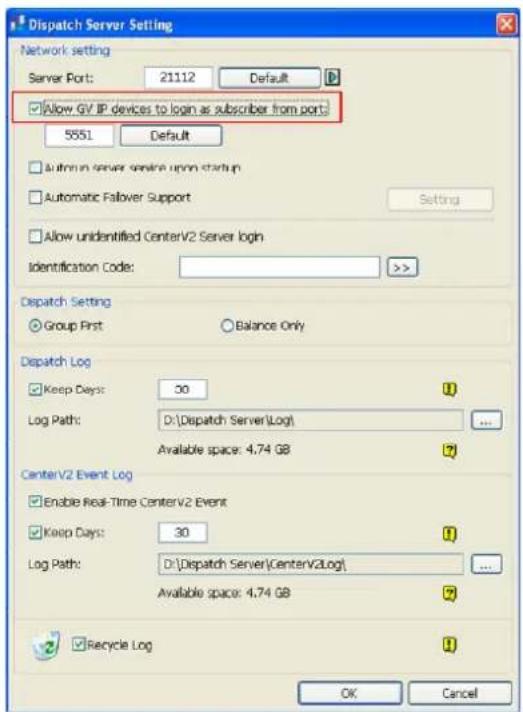

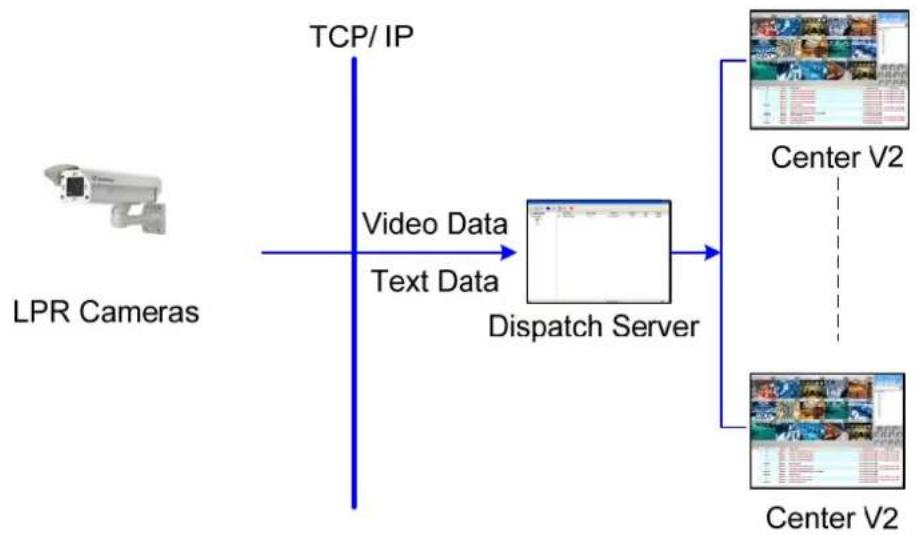

7.3 Dispatch Server....180

Chapter 8 Smart Device Connection.... 181

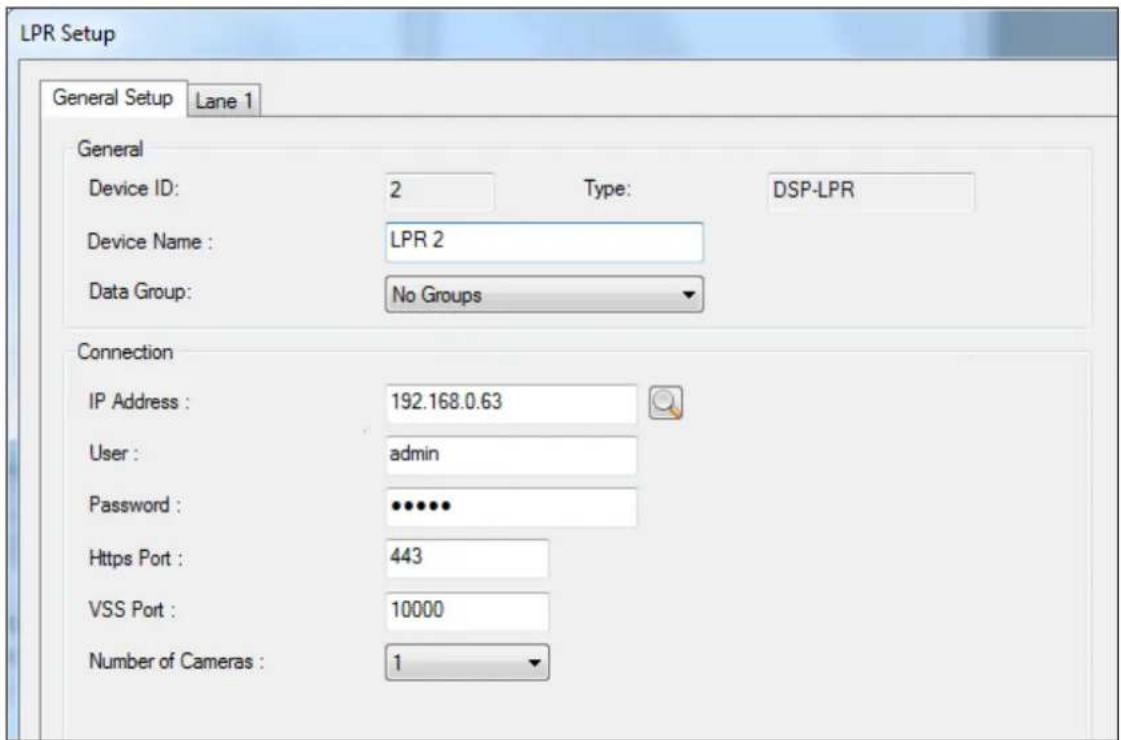

Chapter 9 GV-ASManager Connection.... 182

Specifications 185

GV-IP LPR Camera 5R 185

GV-LPC1100 188

GV-LPC1200 / LPR1200 192

GV-LPC2210....196

GV-LPC2211 / 2011 200

Appendix 203

A. The CGI Command ...... 203

B. RTSP Protocol Support 204

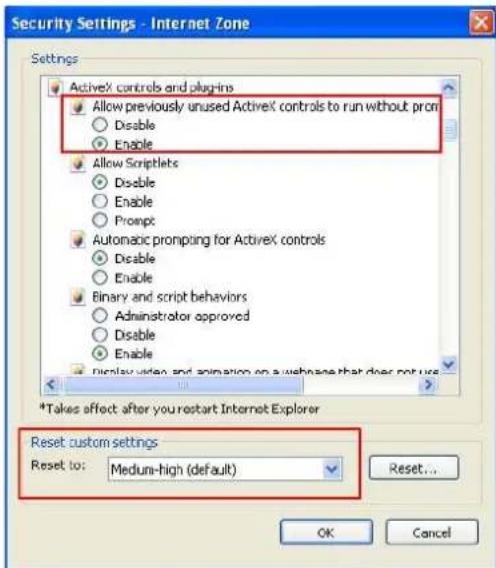

C. Settings for Internet Explorer 8 or later 205
D. Supported UMTS Protocol (3G Modem) 206

Naming Definition

GV-System	GeoVision Analog and Digital Video Recording Software. The GV-System also refers to Multicam System, GV-NVR system, GV-DVR system and GV-Hybrid DVR system at the same time.
GV-VMS	GeoVision Video Management System for IP cameras.
PC LPR	PC LPR refers to GV-DVR LPR and GV-VMS LPR. A GV-System or GV-VMS can be turned into a GV-DVR LPR / GV-VMS LPR simply by installing the LPR Plugin and inserting an LPR Dongle. PC LPRs are capable of comparing captured license plates with the database from GV-ASManager.

Options

Optional devices can expand your camera's capabilities and versatility. Contact your dealer for more information.

Device Description
GV-PA191 PoE Adapter	The GV-PA191 PoE adapter is designed to provide power and network connection to the cameras over a single Ethernet cable. The GV-PA191 PoE adapter is only available for GV-IP LPR Camera 5R and GV-LPC2211 / 2011.
GV-PA482 PoE Adapter	The GV-PA482 PoE adapter is designed to provide power and network connection to the cameras over a single Ethernet cable. The GV-PA482 PoE adapter is only available for GV-LPC1100 and GV-LPC2210.

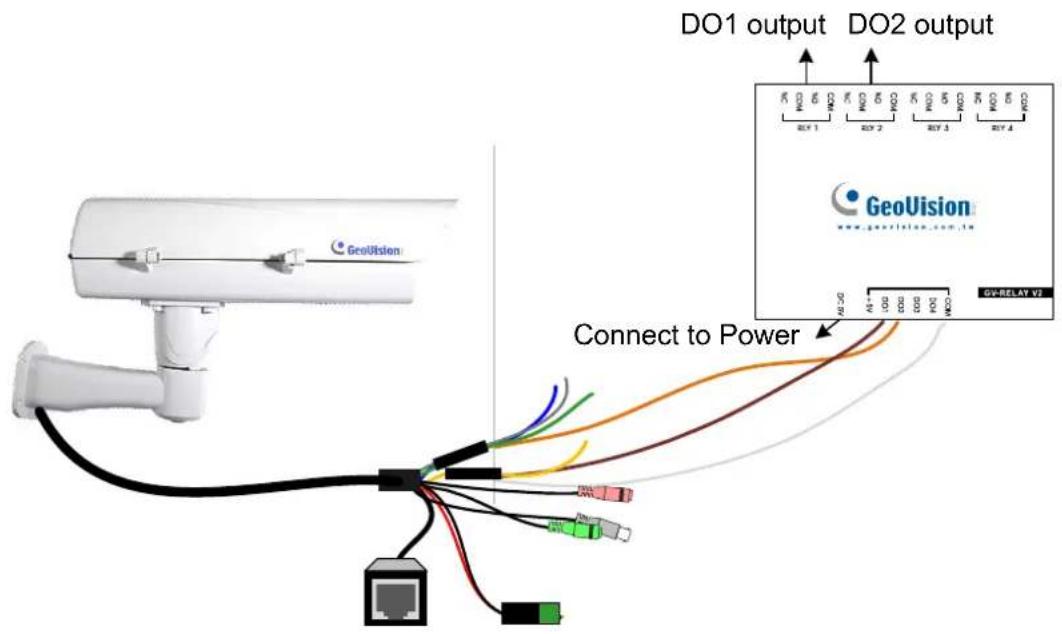

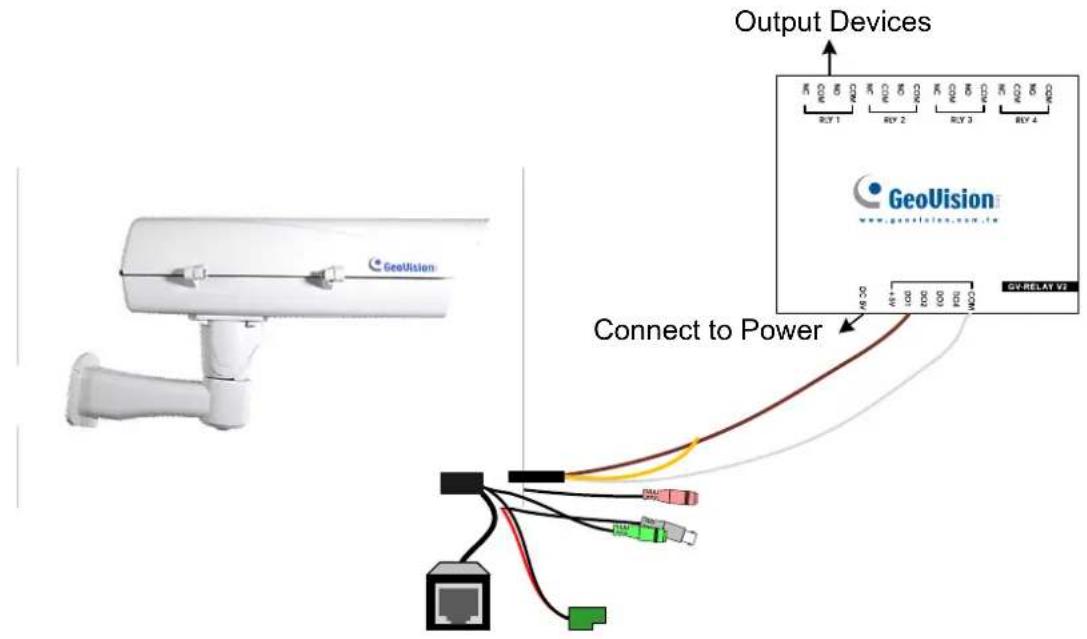

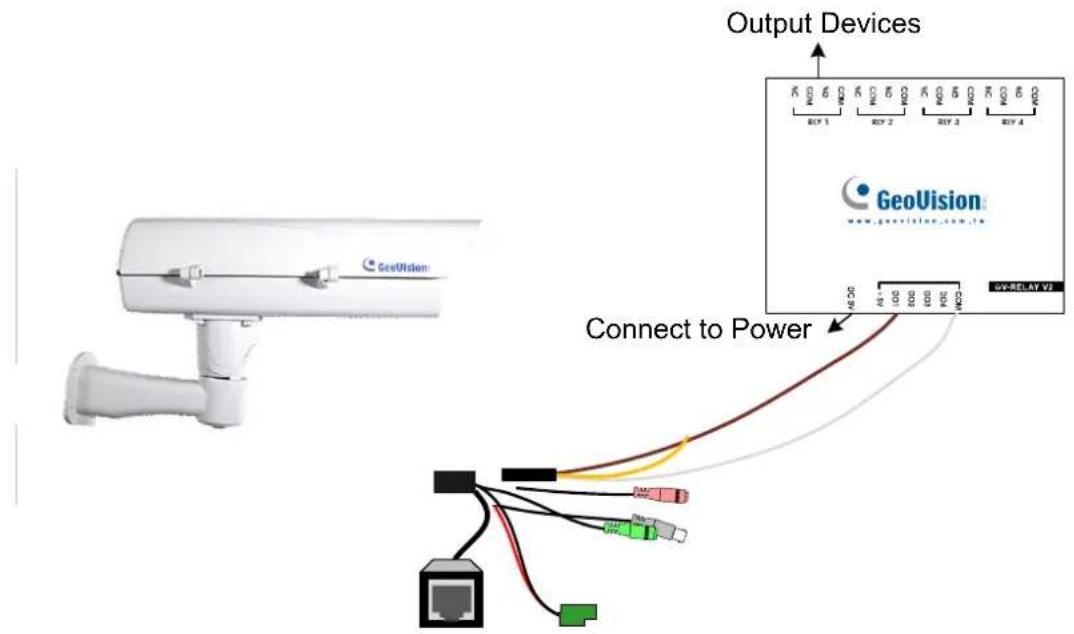

GV-Relay V2	Working with the GV-Relay V2, the GV-IP LPR camera is capable of driving the loads of relay outputs over 5 volts. The GV-Relay V2 provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.GV-Relay V2 is only available for GV-LPC1100 / 1200 / 2210 and GV-LPR1200.
GV-PoE Switch	For GV-IP LPR Camera 5R / GV-LPC2211 / LPC2011, the GV-POE Switch is designed to provide power along with network connection for IP devices.For other models, the GV-POE Switch can be used for data transmission only. It does not provide power to GV-IP LPR cameras.The GV-POE Switch is available in various models with different numbers and types of ports.

Note for Connecting to GV-System / GV-VMS

The GV-IP LPR Camera is designed to work with and record on GV-System / GV-VMS, a video management system.

Once the camera is connected to the GV-System / GV-VMS, the resolution set on the GV-System / GV-VMS will override the resolution set on the camera's Web interface. You can only change the resolution settings through the Web interface when the connection to the GV-System / GV-VMS is interrupted.

Note for Installing Camera Outdoor

When installing the GV-IP LPR Camera outdoor, mind the following:

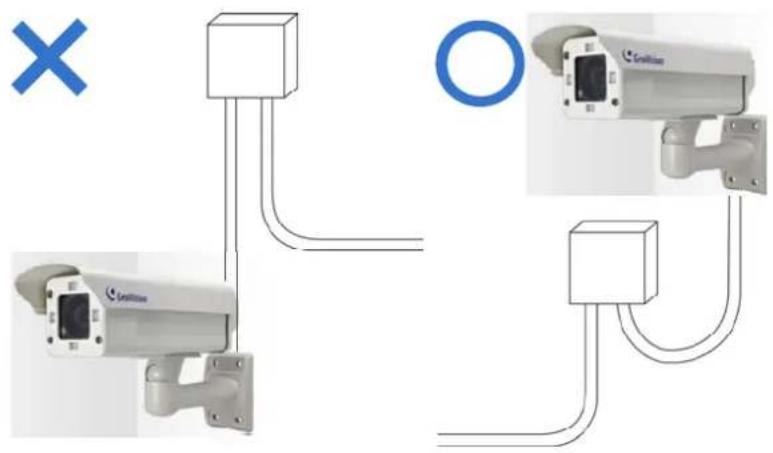

1. Set the camera above the junction box to prevent water from entering the camera along the cables.

1. Waterproof the PoE, power and TV-out cables with waterproof silicon rubber or the like.

Diagram showing a mechanical assembly with rotating components and a final elongated component (no text or symbols)

1. The camera casing can be hot due to its IR LED. Make sure you unplug the power cable and allow the camera casing to cool down before handling the camera.

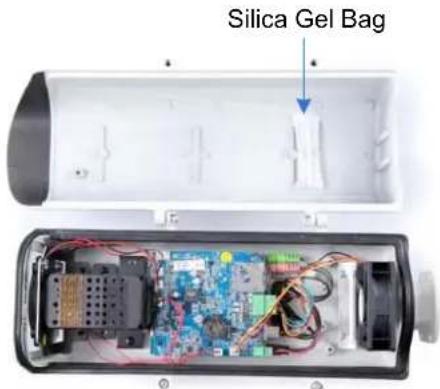

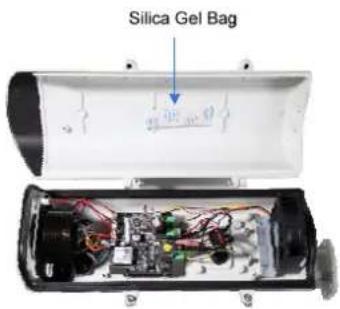

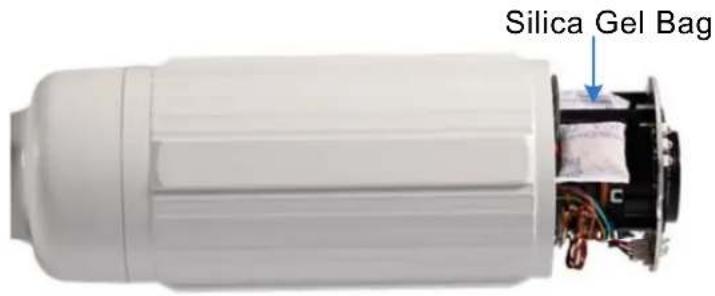

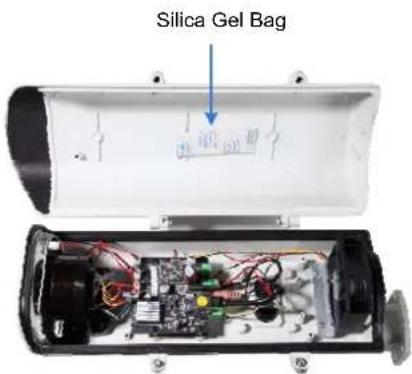

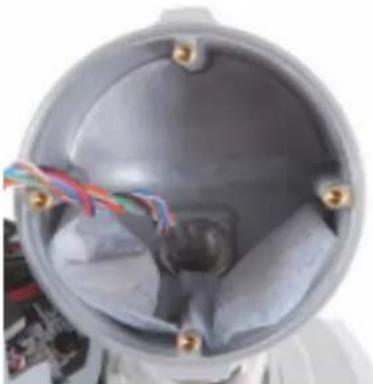

Note for Silica Gel Bags

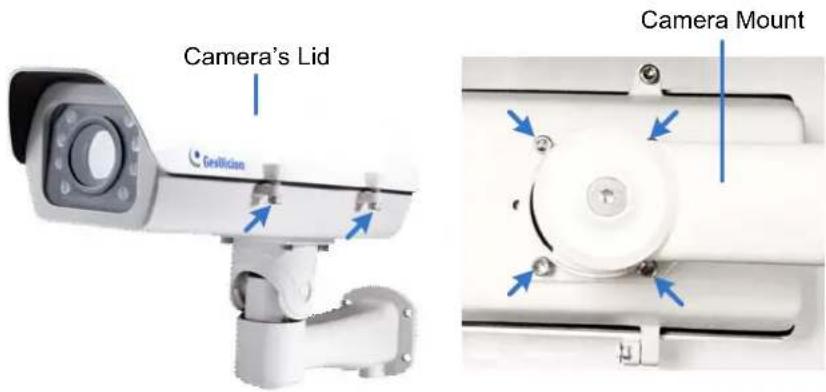

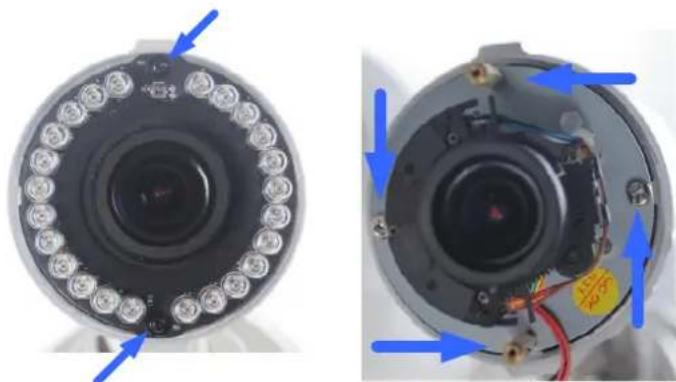

The silica gel loses its effectiveness when the dry camera is opened. To prevent the lens from fogging up, replace the silica gel bag every time when you open the camera and conceal the gel bag in the camera within two minutes of exposing to the open air.

Chapter 1 Introduction

1.1 GV-IP LPR Camera 5R

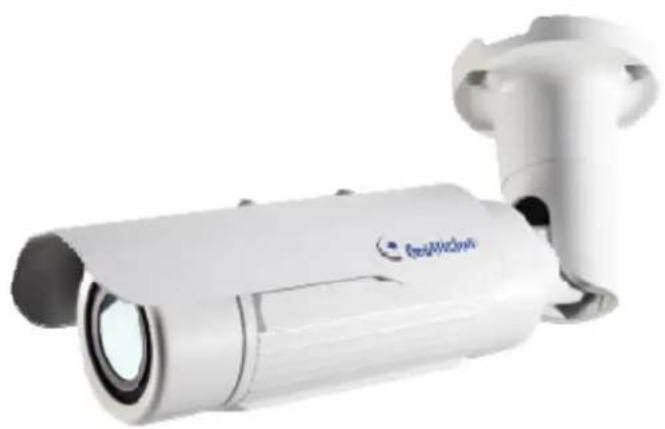

Exterior view of a white surveillance camera with 'Everi HiFiCloud' branding (no additional text or symbols visible)

Ideal for parking lot installation, the GV-IP LPR Camera 5R is a 1.3 MP B/W network camera designed for recognition of reflective license plates on vehicles traveling at 60 ~km / h (37 mph) or less. With its multiple LEDs and intelligent IR, the camera is able to automatically adjust its shutter speed to the scene and produce clear license plate capture under low-light conditions. The motorized varifocal lens take the advantage of its motorized focus / zoom in that the user can remotely adjust the focus and zoom through the Web interface. It is weather proof (IP67) and also able to work in environments with temperatures ranging from -20^ C (-4°F) to 50^ C (122°F).

The GV-IP LPR Camera 5R can be easily configured through its Web interface and you can record and play back recordings using the free GV-NVR software included in the standard package.

1.1.1 Features

• 1/3" B/W progressive scan CMOS
- Motorized varifocal lens for remote focus / zoom adjustment
• Dual streams from MJPEG or H.264
- Up to 30 fps at 1280 x 1024
• Maximum speed 60 km/h (37 mph)
• Recognition for reflective license plate only
- Ingress protection (IP67)
• Vandal resistance (IK10)
• Maximum IR distance 5 M (16.4 ft)
- Built-in fan
- Defog
- Motion detection
- Privacy mask
- Text overlay
- IP address filtering
• Power supplied through PoE (PoE+, IEEE 802.3 at)
• Support for iPhone, iPad, Android and 3GPP
• ONVIF (Profile S) conformant
• 30 languages on Web interface

1.1.2 System Requirements

To access the camera functions and settings through Web browser, ensure your PC is in good network connection and use one of the following Web browsers:

• Microsoft Internet Explorer 7.x or later
- Google Chrome
- Mozilla Firefox
- Safari
- Microsoft Edge

Note:

1. For users of Internet Explorer 8 or later, additional settings are required. For details, see Appendix C.
2. With non-IE browsers,

A. Motion Detection, Text Overlay and two-way audio are not supported.
B. The Play function is only available on the live view window (Figure 3-2).
C. RTSP streaming must be kept as enabled. For more details, see 4.3.6 RTSP.

Compatible Software Version

Model	Firmware Version	GV-System Version	GV-VMS	GV-ASManager
Camera 5R	V1.00	V8.5.8.0	N/A	V4.2
	V1.01 V8.5.9.0 or later	V14.10 or later	later	V4.22 or later
Note: The License Plate Recognition function is only supported by GV-VMS LPR V15.10 or later.

GV-IF

1.1.3 Packing List

• GV-IP LPR Camera 5R
• Self Tapping Screw x 3
• Plastic Screw Anchor x 3
- Torx Wrench x 2

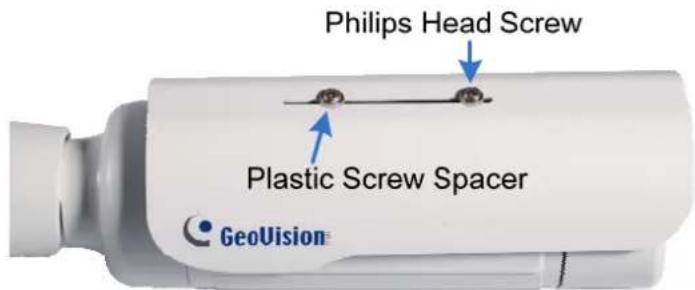

- Sun-Shield Cover Kit (1 Sun-Shield Cover, 2 Philips Head Screws, 2 Plastic Screw Spacers and 2 Hexagon Screws included)
- Silica Gel Bag
• GV-IP LPR Camera Software CD
• GV-NVR Software DVD
• GV-ASManager Software DVD
- Warranty Card

1.1.4 Device Installation

1.1.4.1 Installation Guidelines

To produce quality image and to avoid software recognition errors, make sure you adhere to the guidelines when installing your GV-IP LPR Camera 5R. See GV-LPR Camera Installation Guide.

1.1.4.2 Installing the Camera

After you have read through the installation guides and chosen an installation site, follow the steps below to install the GV-IP LPR Camera 5R.

1. Mark the installation site and drill three holes for screw anchors.
2. Insert the supplied screw anchors.
3. Secure the camera to the wall using the supplied screws.

White surveillance camera with two side-mounted buttons and a logo, no visible text or symbols on the device itself.

Figure 1-1

1. Remove the protection sticker from the camera's cover.
2. Connect the camera to the network and supply power via the PoE cable. See 1.1.5 Connecting the Camera.
3. Access the live view. See Getting Started, Chapter 2.
4. Based on the live view, adjust the angle, zoom and focus of the camera of the camera. For adjusting three shafts, see 1.1.6 Adjusting the Angles. For changing zoom and focus, see Figure 3-4 in 3.3 The Control Panel of the Live View Window.
5. Install the sun-shield cover to the camera. For details, see 1.1.8 Installing the Sun-Shield Cover.

1.1.5 Connecting the Camera

It is suggested to use GV-PA191 PoE Adapter to connect the GV-IP LPR Camera 5R to the network. Follow the steps below for connection.

1. Connect the camera's cable to the GV-PA191 PoE Adapter as illustrated below. The power and network will be supplied simultaneously.

Figure 1-2

1. When the Power LED on the front panel of the GV-PA191 PoE Adapter turns green, you are ready to access the live view, adjust the image clarity and configure the basics. See Getting Started, Chapter 2.

Note: The GV-PA191 PoE Adapter (AC Power Adapter included) can be purchased upon request.

1.1.6 Adjusting the Angles

The GV-IP LPR Camera 5R is designed to be adjustable in three shafts for easy and flexible installation.

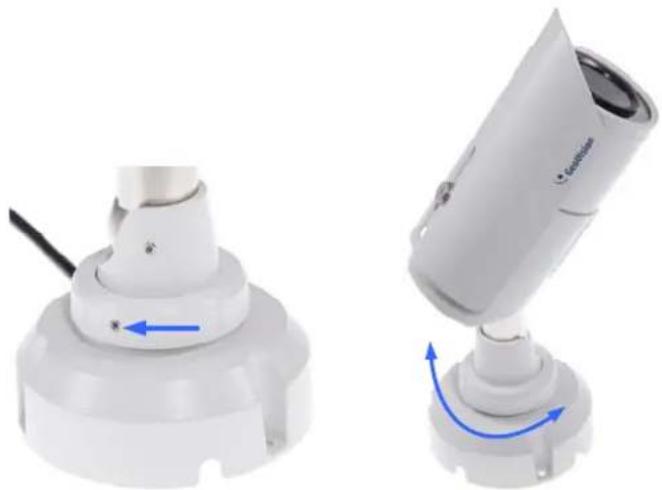

First Shaft

You can adjust the camera body by 360 degrees to the right or the left. Unscrew the panning lock screw with the torx wrench. After adjusting the camera, fasten the screw.

Close-up of a mechanical bearing component with a 360° angle annotation (no other text or symbols)

Figure 1-3

Second Shaft

You can adjust the camera body up and down by 90, 112.5, 135, 157.5 or 180 degrees by using the gears inside the camera body and the camera base.

1. Unscrew the tilting lock screw with the torx wrench.

Figure 1-4

1. Hold the camera body, and move the camera base to the right to separate the camera gears.

Figure 1-5

1. Adjust the angle of camera body to 90^ , 112.5^ , 135^ , 157.5^ or 180^ . Then move the camera base to the left to combine the gears.

Figure 1-6

1. Fasten the tilting lock screw.

Third Shaft

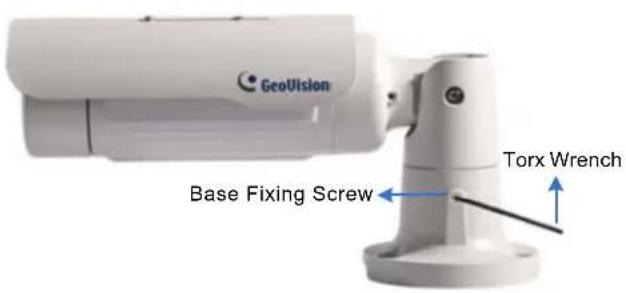

You can adjust the camera base by 360^ . Unscrew the base fixing screw with the torx wrench. After adjusting the camera base, fasten the screw.

Geovision camera module with 0~360° angle annotation (no other text or symbols)

Figure 1-7

1.1.7 Replacing the Silica Gel Bag

Once the cover of GV-IP LPR Camera 5R is opened, you must replace the original silica gel bag with a new one.

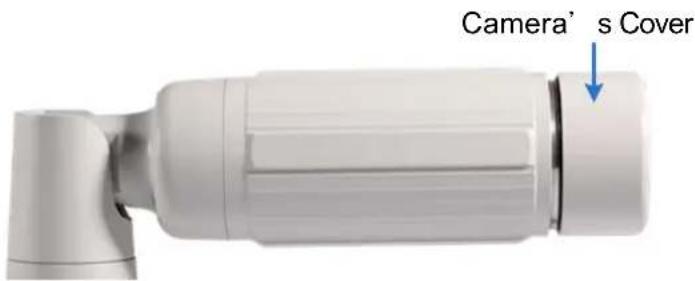

1. Loosen the camera's cover.

Figure 1-8

1. Remove the silica gel bag.

Figure 1-9

1. Insert a new silica gel bag to the camera module and fasten the camera's cover within 2 minutes of opening the silica gel bag package.

IMPORTANT: See the Note of Silica Gel Bags at the beginning of the manual.

1.1.8 Installing the Sun-Shield Cover

After setting up the Bullet Camera, now you can install the sun-shield cover to the camera.

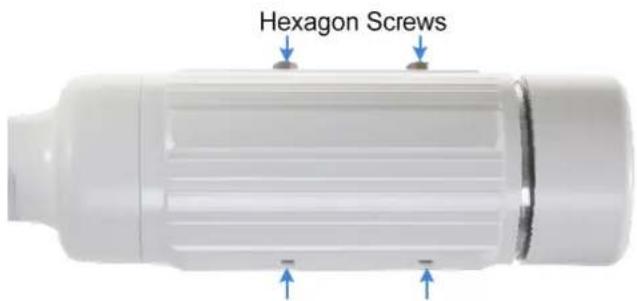

1. Fasten the hexagon screws either on top or below the camera.

Figure 1-10

1. Put the sun-shield cover on top of hexagon screws. Make sure to aim the rear hexagon screw at the edge of the sun-shield cover's aperture for optimal sun-shield performance.

Figure 1-11

1. Fasten the Philips head screws with the plastic screw spacers.

Figure 1-12

1.2 GV-LPC1100

Exterior view of a Geolition security camera (no visible text or symbols on body)

The GV-LPC1100 is a 1.3 MP B/W network camera designed for recognition of reflective license plates on vehicles traveling at 120 km/h (75 mph) or less. With its multiple LEDs and intelligent IR, the camera is able to automatically adjust its shutter speed to the scene and produce clear license plate capture for one lane under low-light conditions. The motorized varifocal lens take the advantage of its motorized focus / zoom in that the user can remotely adjust the focus and zoom through the Web interface. It is weather proof (IP67) and also able to work in environments with temperatures ranging from -40°C (-40°F) to 50°C (122°F).

The GV-LPC1100 can be easily configured through its Web interface and you can record and play back recordings using the free GV-NVR software included in the standard package.

1.2.1 Features

• 1/3" B/W progressive scan CMOS
• Dual streams from MJPEG or H.264
- Up to 30 fps at 1280 x 1024
• Maximum speed 120 km/h (75 mph)
• Recognition for reflective license plate only
- Ingress protection (IP67)
• Vandal resistance (IK10)
• Maximum IR distance 10 m (32.8 ft)
• DC 48V, High PoE (PoE++, 120 W)
• Built-in heater and fan
• Support for TV-out
• Support for I/O (1 in / 1 out)
- Two-way audio
- Defog
- Motion detection
- Privacy mask
- Text overlay
- IP address filtering
• Support for iPhone, iPad, Android and 3GPP
• ONVIF (Profile S) conformant
• 30 languages on Web interface

- Motorized varifocal lens for remote focus / zoom adjustment

1.2.2 System Requirements

To access the camera functions and settings through Web browser, ensure your PC is in good network connection and use one of the following Web browsers:

• Microsoft Internet Explorer 7.x or later
- Google Chrome
- Mozilla Firefox
- Safari
- Microsoft Edge

Note:

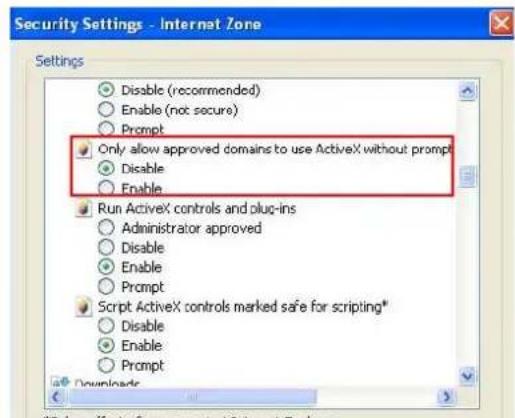

1. For users of Internet Explorer 8 or later, additional settings are required. For details, see Appendix C.
2. With non-IE browsers,

A. Motion Detection, Text Overlay and two-way audio are not supported.
B. The Play function is only available on the live view window (Figure 3-2).

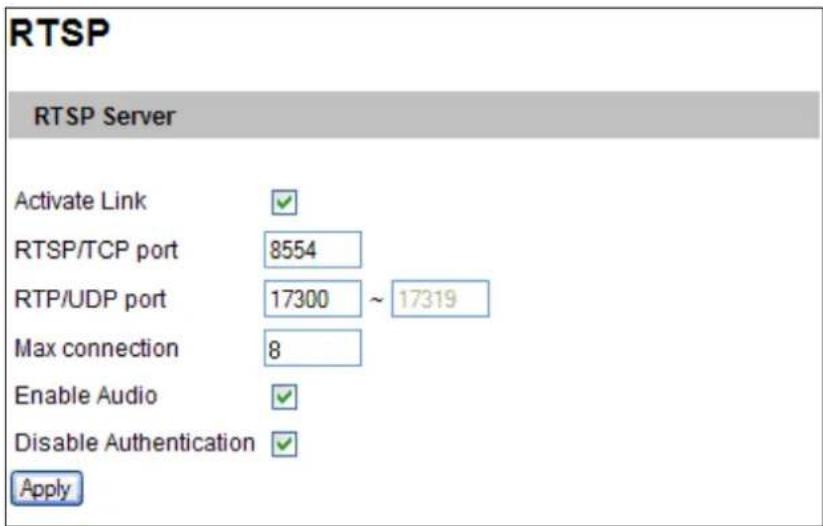

C. RTSP streaming must be kept as enabled. For more details, see 4.3.6 RTSP.

Compatible Software Version

Model	Firmware Version	GV-System Version	GV-VMS	GV-ASManager
GV-LPC1100	V1.01 V8.5.9.0 + Patch	V14.10	V4.23
Note: The License Plate Recognition function is only supported by GV-VMS LPR V15.10 or later.

1.2.3 Packing List

• The GV-LPC1100 camera
- Screw Anchor x 4
- Screw x 4
- Washer x 4
- Torx Wrench
• GV-PA482 PoE Adapter

• Power Adapter (DC 48V, 2.5A, 120 W)
- AC Power Cord
- Silica Gel Bag
• Adhesive tape for Silica Gel Bag
• GV-IP LPR Camera Software CD
• GV-NVR Software DVD
• GV-ASManager Software DVD
• GV-LPR Camera Installation Guide
- Warranty Card

1.2.4 Device Installation

1.2.4.1 Installation Guidelines

To produce quality image and to avoid software recognition errors, make sure you adhere to the guidelines when installing your GV-LPC1100. See GV-LPR Camera Installation Guide.

1.2.4.2 Installing the Camera

After you have read through the installation guides and chosen an installation site, follow the steps below to install the GV-LPC1100.

1. Mark the installation site and drill four holes for screw anchors.
2. Insert the supplied screw anchors.
3. Secure the camera to the wall using the supplied screws.

Geovision security camera with mounted sensors and sensor beams, no visible text or symbols

Figure 1-13

1. Connect the camera for power and network connection. See 1.2.5 Connecting the Camera.

2. Access the live view. See Getting Started, Chapter 2.

3. Based on the live view, adjust the angle, zoom and focus of the camera. Loosen the indicated screw with the supplied torx wretch and adjust the joint.

White geotextion security camera with attached sensor port (no visible text or symbols)

Tilt Adjustment

White GooVision security camera with blue circular arrow indicating rotation (no text or symbols on device body)

Pan Adjustment

White GeoVision surveillance camera with blue directional arrow indicating left side (no text or symbols on device body)

Figure 1-14

1.2.5 Connecting the Camera

GV-IP LPR Camera supports two power specifications: DC 48V, High PoE (120 W).

Follow the steps below to connect your GV-LPC1100 to power, network and other wires needed.

1.2.5.1 PoE Connection

Use the supplied GV-PA482 PoE Adapter to connect the camera to the power and network at the same time. Two Ethernet cables are required for the connection.

1. Inset one end of the Ethernet cable into the PoE 10/100 port on the GV-PA482. Connect the other end of the cable to your camera.

2. Insert one end of the Ethernet cable into the LAN 10/100 port on the GV-PA482. Connect the other end of the cable to the hub or router connecting to your computer.

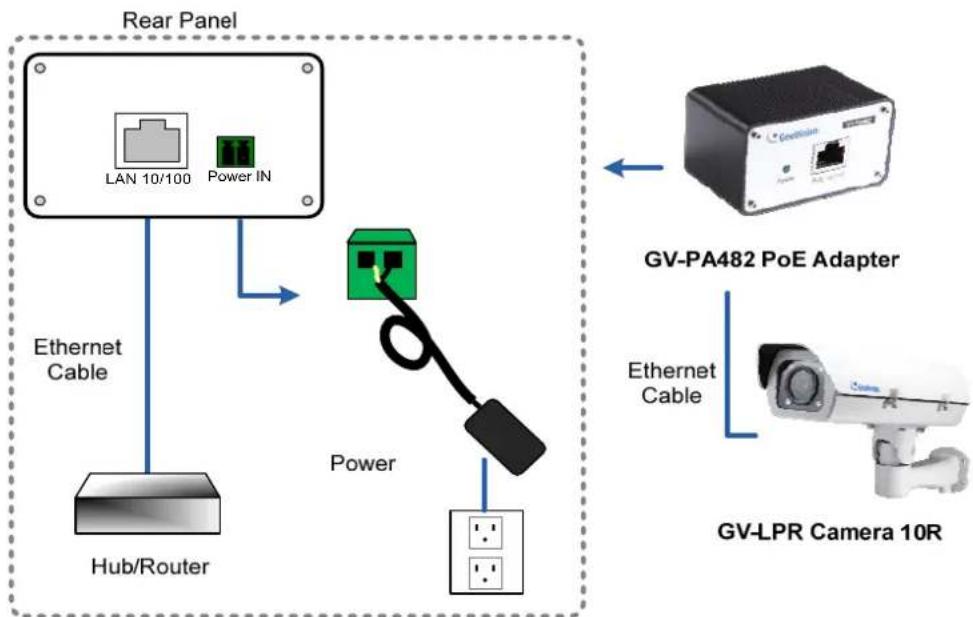

Figure 1-15

1. Insert the white wire of the supplied DC power adaptor into left-side pin of the terminal block on the GV-PA482, and the black wire to the right-side pin.
2. Attach the AC power cord to the DC power adaptor.
3. Connect the AC power cord to the power outlet.
4. When the Power LED on the front panel of the GV-PA482 turns green, you are ready to access the live view, adjust the image clarity and configure the basics. See Getting Started, Chapter 2.

1.2.5.2 Power Adapter Connection

Besides PoE connection, you can use the supplied DC power adaptor, and connect the camera to the power.

1. Plug the DC power adapter to the 2-pin terminal block on the camera by inserting the wire with white lines to the (+) pin and the black wire to the (-) pin.

Figure 1-16

1. Attach the AC power cord to the DC power adaptor.
2. Connect the AC power cord to a power source.

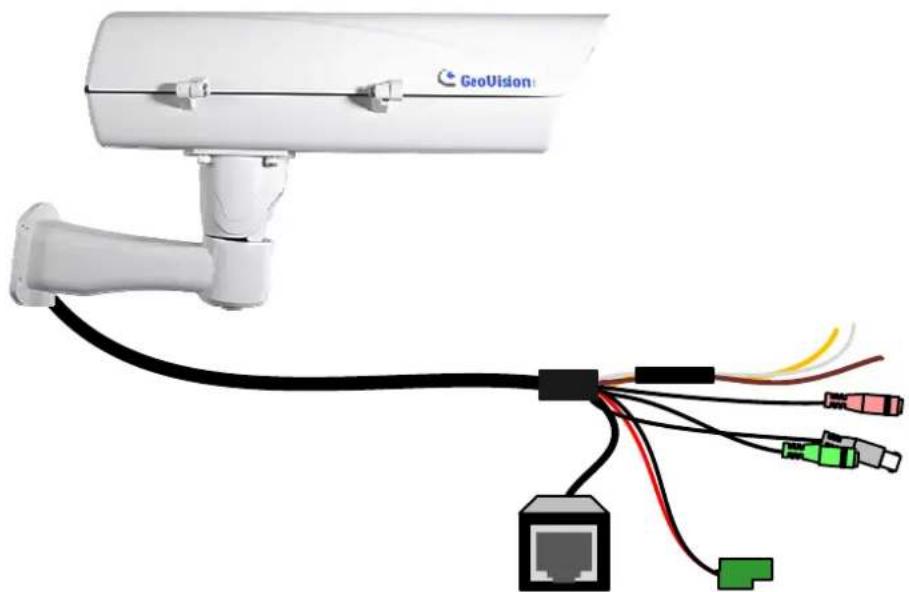

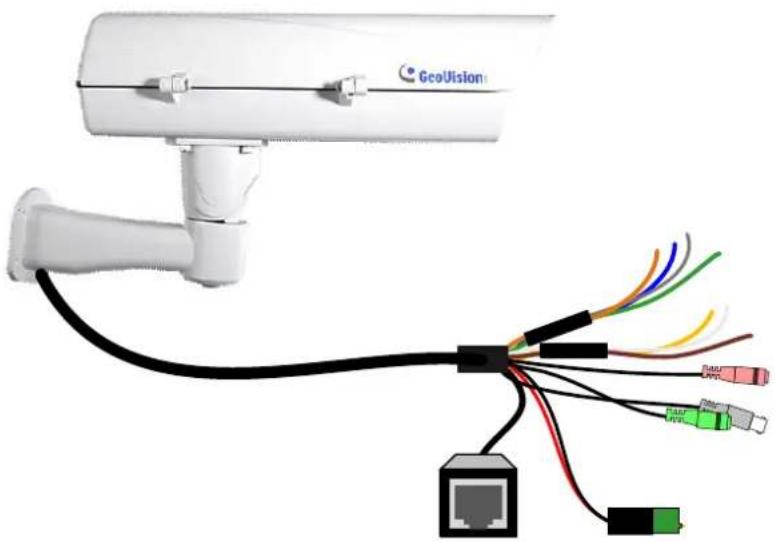

1.2.5.3 Wire Definition

Geovision security camera with attached network cable and connector (no text or symbols visible)

Figure 1-17

Camera

Wire Definition
RJ-45	Ethernet
Black BNC TV out
Green RCA Audio Out
Pink RCA Audio In
Brown	Digital Output
Yellow	Digital Input
White	GND
2-Pin Terminal Block Power

1.2.5.4 I/O Device Connection

The GV-IP LPR camera supports one digital input and one digital output of dry contact.

Voltage Load Expansion (Optional)

The GV-IP LPR camera can only drive a maximum load of 200mA 5V DC. To expand the maximum voltage load to 10A 250V AC, 10A 125V AC or 5A 100V DC, connect the camera to a GV-Relay V2 module (optional product). Refer to Figure 1-8 below.

GV-Relay V2 GV-IP LPR Camera
COM	Ground
DO1 Digital Out (Brown)

(White)

Figure 1-18

1.2.6 Replacing the Silica Gel Bag

Once the housing of GV-LPC1100 is opened, you must replace the original silica gel bag with a new one.

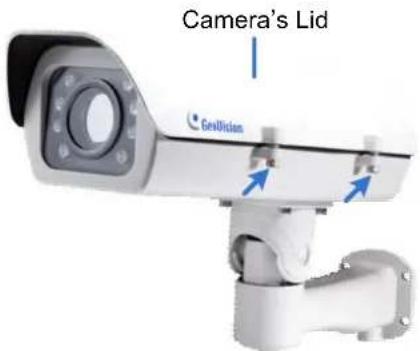

1. Loose the screws holding the camera's lid with the torx wrench.

Figure 1-19

1. Open the camera's lid and you will find a silica gel bag attached to the interior of the lid.

Figure 1-20

1. Remove the silica gel bag and place a new bag back to its original position.
2. Fasten the camera's lid within 2 minutes of replacing the silica gel bag.

IMPORTANT:

1. See the Note of Silica Gel Bags at the beginning of the manual.
2. GV-LPC1100 currently does not support recording to Micro SD card or Mini USB function.

1.3 GV-LPC1200 / LPR1200

Exterior view of a GEVIVision security camera (no visible text or symbols on body)

The camera is a 1 MP B/W network camera designed for recognition of reflective license plates on vehicles traveling at 200 km/h (124.27 mph) or less. With its multiple high-power LEDs and intelligent IR, the camera is able to automatically adjust its shutter speed to the scene and produce clear license plate capture for one lane under low-light conditions. The motorized varifocal lens take the advantage of its motorized focus / zoom in that you can remotely adjust the focus and zoom through the Web interface. It is weather proof (IP67) and also able to work in environments with temperatures ranging from -40^ (-40°F) to 50^ (122°F).

Only GV-LPR1200 is capable of recognizing the license plate numbers with the built-in LPR processor. GV-LPR1200 can compare captured license plates either with a standalone database created on GV-LPR1200, or a database downloaded from the access control software GV-ASManager. When there is a match, GV-LPR1200 will open a gate or barrier.

The camera can be easily configured through its Web interface and you can record and play back recordings using the free GV-NVR software included in the standard package.

1.3.1 Features

• Megapixel B/W progressive scan CCD
- Motorized varifocal lens for remote focus / zoom adjustment
• Dual streams from MJPEG or H.264
- Up to 30 fps at 1280 x 720
• Maximum speed 200 km/h (124.27 mph)
• Recognition for reflective license plate only
- Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• Maximum IR distance 20 m (65.6 ft)
• Built-in LPR processor to perform recognition (for GV-LPR1200 only)
- Standalone database (for GV-LPR1200 only)
• Built-in heater and fan
• Support for TV-out
• Support for I/O (2 in / 2 out)
- 10x optical zoom
- Two-way audio
- Recognized plate numbers export (for GV-LPR1200 only)
- Defog
- Motion detection
- Text overlay
- IP address filtering
• Support for iPhone, iPad, Android and 3GPP
• ONVIF (Profile S) conformant
• 30 languages on Web interface

1.3.2 System Requirements

To access the camera functions and settings through Web browser, ensure your PC is in good network connection and use the following Web browser:

• Microsoft Internet Explorer 7.x or later
- Google Chrome
- Mozilla Firefox
- Safari
- Microsoft Edge

Note:

1. For users of Internet Explorer 8 or later, additional settings are required. For details, see Appendix C.
2. With non-IE browsers,

A. Motion Detection, Text Overlay and two-way audio are not supported.
B. The Play function is only available on the live view window (Figure 3-2).
C. RTSP streaming must be kept as enabled. For more details, see 4.3.6 RTSP.

Compatible Software Version

	Version	Compatible Software Version Model Firmware
		GV-System	GV-VMS	GV-ASManager
GV-LPC1200	V1.10	V8.6.2.0	V15.10	V4.4.0.0
GV-LPR1200	V1.10

1.3.3 Packing List

• The GV-LPC1200 / LPR1200 camera
- Screw Anchor x 4

- Screw x 4

- Washer x 4

- Torx Wrench

• Power Adapter (DC 12V, 5A)
- AC Power Cord

• Silica Gel Bag
  • Adhesive Tape for Silica Gel Bag
  • GV-IP LPR Camera Software CD
  • GV-NVR Software DVD
  • GV-ASManager Software DVD
  • GV-LPR Camera Installation Guide
• Warranty Card

1.3.4 Installing the Camera

1.3.4.1 Installation Guidelines

To produce quality image and to avoid software recognition errors, make sure you adhere to the guidelines when installing your camera. See GV-LPR Camera Installation Guide.

1.3.4.2 Installing the Camera

After you have read through the installation guide and chosen an installation site, follow the steps below to install the camera.

1. Mark the installation site and drill four holes for screw anchors.
2. Insert the supplied screw anchors.
3. Secure the camera to the wall using the supplied screws.

Exterior view of a GeoSystem security camera mounted on a wall (no visible text or symbols)

Figure 1-21

1. Connect the camera for power and network connection. See 1.3.5 Connecting the Camera.

2. Access the live view. See Getting Started, Chapter 2.

3. Based on the live view, adjust the angle, zoom and focus of the camera. Loosen the indicated screw with the supplied torx wretch and adjust the joint.

Exterior view of a GeoVision security camera (no text or symbols visible on body)

Tilt Adjustment

White GooVision security camera with blue circular arrow indicating rotation (no text or symbols on device body)

Pan Adjustment

White medical imaging device labeled 'GeoUtsion' with blue directional arrow indicating movement (no text or symbols on device body)

Figure 1-22

1.3.5 Connecting the Camera

Follow the steps below to connect your camera to power.

1. Use a mini-flathead screwdriver to push the orange button, plug the DC power adapter to the 2-pin terminal block connected to the camera by inserting the wire with the white line to the (+) pin and the black line to the (-) pin. Then release the push button.

Figure 1-23

1. Attach the AC power cord to the DC power adaptor.
2. Connect the AC power cord to a power source.

Note: It may take longer for the camera to power on when under low temperature:

-20 \~ 0°C (-4°F \~ 32°F): about 20 minutes
- -40 \~ -20°C (-40°F \~ 4°F): about 45 minutes

1.3.5.1 Wire Definition

Wireless sensor device with colored connectors and a network switch (no text or symbols visible)

Figure 1-24

Camera

Wire Definition
RJ-45	Ethernet
Black BNC TV out
Green RCA Audio Out
Pink RCA Audio In
Brown Digital Output 1
Yellow	Digital Input
White	GND
Orange Digital Output 2
Blue	Digital Input
Green RS-485+ (for GV-LPR1200 only)
Gray RS-485- (for GV-LPR1200 only)
2-Pin Terminal Block Power

1

2

1.3.5.2 I/O Device Connection

The GV-IP LPR camera supports two digital inputs and two digital outputs of dry contact.

Voltage Load Expansion (Optional)

The GV-IP LPR camera can only drive a maximum load of 125mA 5V DC. To expand the maximum voltage load to 10A 250V AC, 10A 125V AC or 5A 100V DC, connect the camera to a GV-Relay V2 module (optional product). Refer to Figure 1-25 below.

GV-Relay V2 GV-IP LPR Camera
COM	Ground (White)
DO1 / DO2 Digital Out (Brown / Orange)

Figure 1-25

1.3.6 Replacing the Silica Gel Bag

Once the housing of GV-LPC1200 / LPR1200 is opened, you must replace the original silica gel bag with a new one.

1. Loose the screws holding the camera's lid with the torx wrench.

Figure 1-26

1. Open the camera's lid and you will find a sili ca gel bag attached to the interior of the lid.

Figure 1-27

1. Remove the silica gel bag and place a new bag back to its original position.
2. Fasten the camera's lid within 2 minutes of replacing the silica gel bag.

IMPORTANT: See the Note of Silica Gel Bags at the beginning of the manual.

1.3.7 Fitting the Battery

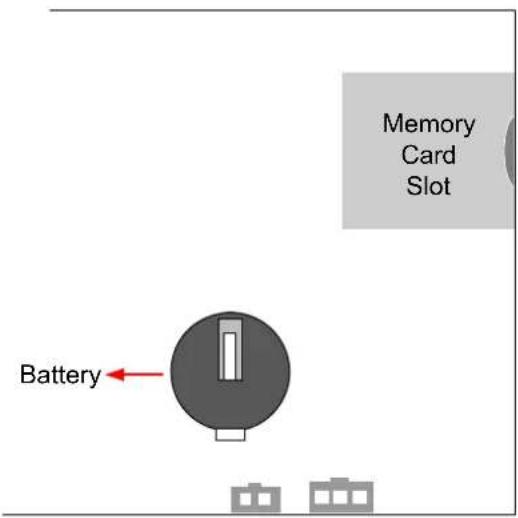

The camera includes a 3V lithium battery to provide power to the camera settings and real-time clock circuitry.

Figure 1-28

IMPORTANT:

1. Make sure the plastic insulation film under the battery is removed when you use the camera for the first time.

2. It is recommended to replace the battery annually.

1.3.8 Installing a Mini USB Cable

To use UMTS-compatible devices, you need to prepare a Mini USB-to-USB cable with the size of the Mini USB end smaller than 1 cm for threading and install it into the camera. Follow the steps for installation.

Figure 1-29

1. Loose 2 screws to open the camera's lid and 4 screws to remove the camera mount with the torx wrench.

Figure 1-30

1. Rotate to remove the indicated cap and remove the plug.

Figure 1-31

1. Take out the conduit connector inside the housing. Remove and disintegrate the connector. You should have 3 parts.

1

2

3
Figure 1-32

1. Make a side slit to part 1 with a cutter knife.

Figure 1-33

1. Thread the cable through part 3 and part 2, push the cable with the Mini USB end into part 1, thread through the camera bottom and plug it to the Mini USB port on the circuit board.

Interior view of an electronic device showing internal components including a Mini-USB Connector (no text or symbols on the diagram itself)

Figure 1-34

1. Re-install the connector and the cap (part 3) tightly to make sure the camera is watertight.

Note: Fill the gap between the Mini USB-to-USB cable and the conduit connector to waterproof the cable before securing the camera.

Close-up of a mechanical component with a blue arrow pointing to a cylindrical feature, mounted on a white circular base (no visible text or symbols)

Figure 1-35

1.4 GV-LPC2210

Exterior view of a Geolvision security camera (no visible text or symbols on body)

GV-LPC2210 is a 2 MP color network camera designed for recognition of reflective license plates on vehicles traveling up at 120 km/h (75 mph) or less. Equipped with a Super Low Lux CMOS image sensor, the camera is capable of displaying a color live view at near darkness. Its multiple high-power LEDs and build-in intelligent IR provide clear license plate for two lanes under low-light conditions at a maximum IR distance of 20 m (65.6 ft.). The motorized varifocal lens take the advantage of its motorized focus / zoom in that the user can remotely adjust the focus and zoom through the Web interface. It is weather proof (IP67) and also able to work in environments with temperatures ranging from -40°C (-40°F) to 50°C (122°F).

The GV-LPC2210 can be easily configured through its Web interface and you can record and play back recordings using the free GV-NVR software included in the standard package.

1.4.1 Features

• 1/2.8" Megapixel Progressive Scan super low lux CMOS
- Motorized varifocal lens for remote focus / zoom adjustment
• Dual streams from MJPEG or H.264
• Up to 30 fps at 1920 x 1080
• Maximum speed 120 km/h (75 mph)
• Recognition for reflective license plate only
- Ingress protection (IP67)
• Vandal resistance (IK10)
• Maximum IR distance 20 m (65.6 ft)
• DC 48V, AC 24V (optional), High PoE (PoE++, 120 W)
• Built-in heater and fan
• Support for TV-out
• Support for I/O (1 in / 1 out)
- Two-way audio
- Defog
- Motion detection
- Privacy mask
- Text overlay
- IP address filtering
• Support for iPhone, iPad, Android and 3GPP
• ONVIF (Profile S) conformant
• 31 languages on Web interface

1.4.2 System Requirements

To access the camera functions and settings through Web browser, ensure your PC is in good network connection and use one of the following Web browsers:

• Microsoft Internet Explorer 7.x or later
- Google Chrome
- Mozilla Firefox
- Safari
- Microsoft Edge

Note:

1. For users of Internet Explorer 8 or later, additional settings are required. For details, see Appendix C.
2. For users of non-IE browsers, download GV-Web Viewer to access full functioning user interface. For details, see 3.1 Accessing Your Surveillance Images.

Compatible Software Version

Model	Firmware Version	GV-System Version	GV-VMS	GV-ASManager
GV-LPC2210	V1.02 V8.6.2.0 + Patch	V14.10 +	Patch	V4.35
Note: The License Plate Recognition function is only supported by GV-VMS LPR V15.10 or later.

1.4.3 Packing List

• The GV-LPC2210 camera
- Screw Anchor x 4

- Screw x 4

- Washer x 4

- Torx Wrench x 1

• Power Adapter (DC 48V, 2.5A, 120 W)
- AC Power Cord

• Silica Gel Bag
  • Adhesive Tape for Silica Gel Bag
  • GV-IP LPR Camera Software CD
  • GV-NVR Software DVD
  • GV-ASManager Software DVD
  • GV-LPR Camera Installation Guide
• Warranty Card

1.4.4 Device Installation

1.4.4.1 Installation Guidelines

To produce quality image and to avoid software recognition errors, make sure you adhere to the guidelines when installing your GV-LPC2210. See GV-LPR Camera Installation Guide.

1.4.4.2 Installing the Camera

After you have read through the installation guides and chosen an installation site, follow the steps below to install the GV-LPC2210.

1. Mark the installation site and drill four holes for screw anchors.
2. Insert the supplied screw anchors.
3. Secure the camera to the wall using the supplied screws.

Exterior view of a surveillance camera with sensor beams and control points (no text or symbols visible)

Figure 1-36

1. Connect the camera for power and network connection. See 1.2.5 Connecting the Camera.

2. Access the live view. See Getting Started, Chapter 2.

3. Based on the live view, adjust the angle, zoom and focus of the camera. Loosen the indicated screw with the supplied torx wretch and adjust the joint.

Exterior view of a GeoVision security camera (no text or symbols visible on body)

Tilt Adjustment

White OcoVision security camera with blue circular arrow indicating rotation (no text or symbols on device body)

Pan Adjustment

White medical imaging device with blue directional arrow indicating leftward movement (no text or symbols on device body)

Figure 1-37

1.4.5 Connecting the Camera

The GV-LPC2210 supports two power specifications: DC 48V, High PoE (120 W).

Follow the steps below to connect your GV-LPC2210 to power, network and other wires needed.

1.4.5.1 PoE Connection

Use the GV-PA482 PoE Adapter to connect the camera to the power and network at the same time. Two Ethernet cables are required for the connection. For details, see 1.2.5.1 PoE Connection.

Note: Optionally purchasing GVPA482 PoE Adapter is required for applying PoE function.

1.4.5.2 Power Adapter Connection

Besides PoE connection, you can use the supplied DC power adaptor, and connect the camera to the power. For details, see 1.2.5.2 Power Adapter Connection.

1.4.5.3 Wire Definition

Wireless sensor device with attached network ports and colored connectors (no text or symbols visible)

Figure 1-38

Camera

Wire Definition
RJ-45	Ethernet
Black BNC TV out
Green RCA Audio Out
Pink RCA Audio In
Brown	Digital Output
Yellow	Digital Input
White	GND
2-Pin Terminal Block Power

1.4.5.4 I/O Device Connection

The GV-IP LPR camera supports one digital input and one digital output of dry contact.

Voltage Load Expansion (Optional)

The GV-IP LPR camera can only drive a maximum load of 200mA 5V DC. To expand the maximum voltage load to 10A 250V AC, 10A 125V AC or 5A 100V DC, connect the camera to a GV-Relay V2 module (optional product). Refer to Figure 1-39 below.

GV-Relay V2 GV-IP LPR Camera
COM	Ground
DO1 Digital Out (Brown)

(White)

Figure 1-39

1.4.6 Replacing the Silica Gel Bag

You may also open the camera to restore the factory default settings. Once the housing of GV-LPC2210 is opened, you must replace the original silica gel bag with a new one.

1. Loose the screws holding the camera's lid with the torx wrench.

Figure 1-40

1. Open the camera's lid and you will find a sili ca gel bag attached to the interior of the lid.

Figure 1-41

1. Remove the silica gel bag and place a new bag back to its original position.
2. Fasten the camera's lid within 2 minutes of replacing the silica gel bag.

IMPORTANT:

1. See the Note of Silica Gel Bags at the beginning of the manual.
2. GV-LPC2210 currently does not support recording to Micro SD card or Mini USB function.

1.5 GV-LPC2211/2011

Exterior view of a white surveillance camera (no text or symbols visible)

GV-LPC2211

GV-LPC2211 is a 2 MP color network camera designed for recognition of reflective license plates on vehicles traveling up at 120 km/h (75 mph) or less with extreme

temperatures (-30°C \~ 50°C / -22°F \~ 122°F) resistance. It is weather proof (IP67). Equipped with a Super Low Lux CMOS image sensor, the camera is capable of displaying a color live view at near darkness. Its multiple LEDs and build-in intelligent IR provide clear license plate for two lanes under low-light conditions at a maximum IR distance of 20 m (65.6 ft.) The motorized varifocal lens take the advantage of its motorized focus / zoom in that the user can remotely adjust the focus and zoom through the Web interface. The camera also allows automatic and precise control of exposure using its Piris, producing images with better clarity and contrast.

GV-LPC2011

GV-LPC2011 is a 2 MP color network camera designed for recognition of reflective license plates on vehicles traveling up at 60 km/h (37 mph) or less with extreme temperatures (-30°C \~ 50°C / -22°F \~ 122°F) resistance. It is weather proof (IP67). Equipped with a Super Low Lux CMOS image sensor, the camera is capable of displaying a color live view at near darkness. Its multiple LEDs and build-in intelligent IR provide clear license plate for two lanes under low-light conditions at a maximum IR distance of 9 m (29.6 ft.). The motorized varifocal lens take the advantage of its motorized focus / zoom in that the user can remotely adjust the focus and zoom through the Web interface. The camera also allows automatic and precise control of exposure using its P-iris, producing images with better clarity and contrast.

The GV-LPC2211/2011 can be easily configured through its Web interface and you can record and play back recordings using the free GV-NVR software included in the standard package.

1.5.1 Features

GV-LPC2211

• 1/2.8" color progressive scan super low lux CMOS
• Motorized varifocal lens for remote focus / zoom adjustment
  • Dual streams from MJPEG or H.264
• Up to 30 fps at 1920 x 1080
  • Maximum speed 120 km/h (75 mph)
  • Recognition for reflective License Plate only
• Intelligent IR
  • Day and Night function (with removable IR-cut filter)
• Megapixel lens
  • Maximum IR distance 20 m (65.6 ft)
  • P-iris lens for auto iris control
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • DC 12V / PoE (IEEE 802.3af)
• Wide Dynamic Range (WDR)
  • 3D noise deduction
• Defog
• Motion detection
• Privacy Mask
• Text overlay
• Tampering Alarm
• IP address filtering
  • Supports iPhone, iPad, Android & 3GPP
  • ONVIF (Profile S) conformant
  • 30 languages on Web interface

GV-LPC2011

• 1/2.8" color progressive scan super low lux CMOS
- Motorized varifocal lens for remote focus / zoom adjustment
• Dual streams from MJPEG or H.264
• Up to 30 fps at 1920 x 1080
• Maximum speed 60 km/h (37 mph)
• Recognition for reflective License Plate only
- Intelligent IR
• Day and Night function (with removable IR-cut filter)
- Megapixel lens
• Maximum IR distance 9 m (29.6 ft)
• P-iris lens for auto iris control
• Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
• DC 12V / PoE (IEEE 802.3af)
- Wide Dynamic Range (WDR)
• 3D noise deduction
- Defog
- Motion detection
- Privacy Mask
- Text overlay
- Tampering Alarm
- IP address filtering
• Supports iPhone, iPad, Android & 3GPP
• ONVIF (Profile S) conformant
• 30 languages on Web interface

1.5.2 System Requirements

To access the camera functions and settings through Web browser, ensure your PC is in good network connection and use one of the following Web browsers:

• Microsoft Internet Explorer 7.x or later
- Google Chrome
- Mozilla Firefox
- Safari
- Microsoft Edge

Note:

1. For users of Internet Explorer 8 or later, additional settings are required. For details, see Appendix C.
2. For users of non-IE browsers, download GV-Web Viewer to access full functioning user interface. For details, see 3.1 Accessing Your Surveillance Images.

Compatible Software Version

Model Firmware	Version	GV-System Version	GV-VMS GV-ASManager
GV-LPC2211 / 2011	V1.0 V8.6.2.0 +	Patch V14.10 +	V4.35
			Patch
Note: The License Plate Recognition function is only supported by GV-VMS LPR V15.10 or later.

1.5.3 Packing List

• GV-LPC2211/2011 Camera
- Sun-Shield Cover

Exterior view of a modern office building (no signage)

- Screw for Supporting Rack x 3

- Screw for Sun-shield Cover x 2

- RJ45 Connector

- Screw for Mounting Kit x 3

- Hex Wrench

• GV-NVR Software DVD
• GV-ASManager Software CD
• GV-LPR Camera Installation Guide
- Warranty Card

- Silica Gel Bag x 1

- Screw Anchor x 3

- Washer x 2

- Terminal Block

- Nut for Mounting Kit x 3

• GV-IP LPR Camera Software CD

1.5.4 Device Installation

1.5.4.1 Installation Guidelines

To produce quality image and to avoid software recognition errors, make sure you adhere to the guidelines when installing your GV-LPC2211/2011. See GV-LPR Camera Installation Guide.

1.5.4.2 Installing the Camera

1. Slide the sun-shield cover onto the top of the camera. You can also secure the sun shield cover onto the back of the camera. Adjust the position of the cover before fully securing the cover with the washer and the screw.

Figure 1-42

Note:

1. The GeoVision logo on the sun-shield cover should be closer to the front of the camera.

2. There are two holes for the screws at the back of the camera. You only need to fasten one screw to secure the sun shield cover.

3. Thread the Ethernet cable into the camera.

A. Remove the plug from the conduit connector.

Close-up of a black cylindrical electronic component with red wires and a blue arrow indicating direction (no text or symbols)

Figure 1-43

B. Disintegrate the removed conduit connector. Thread the Ethernet cable through the 3 parts.

Close-up of a black plastic electrical plug with coiled cable (no text or symbols visible)

Figure 1-44

C. Assemble the conduit connector.

Close-up of a black cylindrical electronic component with a metallic tip, no visible text or symbols

Figure1-45

1. Install the camera to the wall or ceiling using the screw anchors and screws for supporting rack.

Close-up of a white surveillance camera with blue directional arrows indicating ports (no text or symbols visible)

Figure 1-46

1. Access the live view. See Getting Started, Chapter 2.

IMPORTANT: To avoid waterproofing failures, the top of the camera must be facing upward for wall mount.

Close-up of a mechanical component with a labeled 'TOP' area, showing internal structure and mounting holes (no text beyond label)

Figure 1-47

1.5.4.3 Adjusting the Angles

The GV-LPC2211/2011 is designed to be adjustable in two shafts for easy and flexible installation.

First Shaft

You can adjust the camera base by 360^ . Unscrew the base fixing screw with the torx wrench. After adjusting the camera base, fasten the screw.

Two white camera sensors with blue directional arrows indicating rotation or movement (no text or symbols visible)

Figure 1-48

Second Shaft

You can adjust the camera body to the desired angle by tilting the camera module. Unscrew the tilting lock screw with the torx wrench. After adjusting the camera body, fasten the screw.

Three white surveillance cameras with blue directional arrows indicating rotation, mounted on a base (no text or symbols visible)

Figure 1-49

1.5.5 Connecting the Camera

The GV-LPC2211/2011 supports two power specifications: DC 48V, PoE (IEEE 802.3af).

Follow the steps below to connect your GV-LPC2211/20110 to power, network and other wires needed.

1.5.5.1 PoE Connection

You can optionally purchase GV-PA191 PoE to connect the camera to the power and network at the same time. Two Ethernet cables are required for the connection. For details, see 1.1.5 Connecting the Camera.

1.5.5.2 Power Adapter Connection

Besides PoE connection, you can use a DC power adaptor, and connect the camera to the power. For details, see 1.2.5.2 Power Adapter Connection.

1.5.5.3 Wire Definition

The data cable provides connections for power, ground and network access. The wires are defined below:

Exterior view of a security camera with attached cable (no text or symbols visible)

Figure 1-50

No. Wire Color Definition
1	Red DC 12V
2	Black Ground
3 Black (thick) PoE, Ethernet

1.5.6 Replacing the Silica Gel Bag

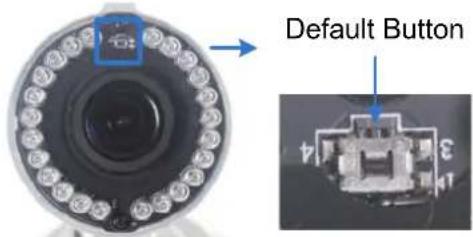

You may open the camera to load the factory default settings. Once the housing of GV-LPC2211/2011 is opened, you must replace the original silica gel bag with a new one.

1. Remove the camera cover from the camera.

Close-up of a cylindrical mechanical device with control buttons and a blue directional arrow (no text or symbols visible)

Figure 1-51

1. Loosen the camera's screws and the hexagon pillars as indicated below.

Close-up of a camera lens with LED array and internal components, shown from two angles (no text or symbols visible)

Figure 1-52

1. Take out the camera from the camera body

Exploded view of a smart air conditioner module showing internal circuit board and wiring (no text or symbols)

Figure 1-53

1. Cut the 2 silica gel bags apart with scissors and insert the new silica gel bags. The silica gel bags must be placed at the lower part of the camera body.

Close-up of a mechanical component with exposed wiring and internal components (no visible text or symbols)

Figure 1-54

1. Secure the 2 hexagon pillars to the upper and lower holes of camera module as indicated below.

Close-up of a camera lens assembly with visible wiring and mounting points (no text or symbols)

Figure 1-55

1. Secure the camera cover.

IMPORTANT: See the Note of Silica Gel Bags at the beginning of the manual.

Chapter 2 Getting Started

2.1 Looking Up the IP Address

By default, your camera is assigned with an unused IP address by the DHCP server when the camera is connected to the network. This IP address remains unchanged unless you unplug or disconnect your camera from the network.

Note: If your router does not support DHCP, the default IP address will be 192.168.0.10. In this case, it is strongly suggested to modify the IP address to avoid IP address conflict with other GeoVision IP device on the same LAN. To change the IP address, see Changing the IP Address later in this section.

Follow the steps below to find out the IP address of your camera:

1. Install the GV-IP Device Utility program from the Software DVD.

Note: The PC installed with GV-IP Device Utility must be under the same LAN with the camera you wish to configure.

1. On the PC desktop, select Start, point to Programs and select GV IP Device Utility to execute the program. The GV-IP Device Utility window appears and automatically searches for the GV-IP devices on the same LAN.

Figure 2-1

3. Click the Name or Mac Address column to sort.

Figure 2-2

4. Find the Mac Address of the camera, click its IP address and select Web Page.

Figure 2-3

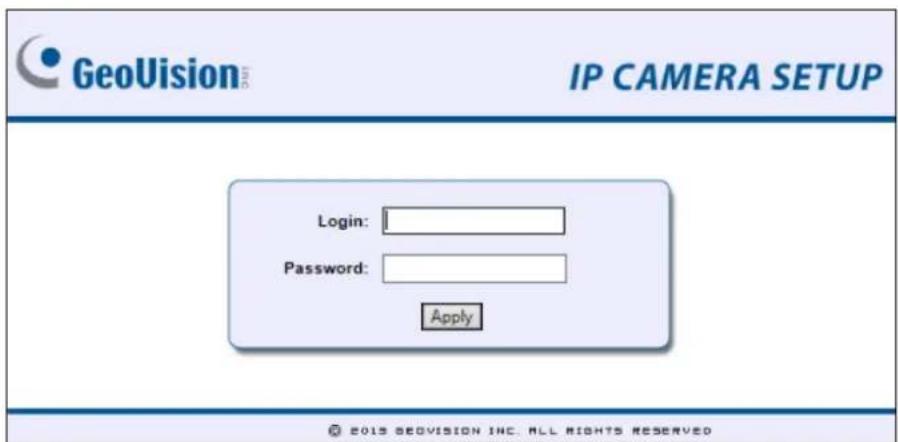

1. The login page appears.
2. Type the default ID and password admin and click Apply to log in.

2.2 Changing the IP Address

To modify the static IP address or set the camera to a public dynamic IP address, log in the Web interface to access the network setting page.

1. Open your Web browser, and type in the IP address.

2. For static network connection, type the default IP address http://192.168.0.10

3. For DHCP connection, follow steps in 2.1 Looking Up the IP Address to look up the current IP address.

4. In both Login and Password fields, type the default value admin. Click Apply.

5. In the left menu, select Network and then LAN to begin the network settings. This page appears.

Figure 2-4

1. Select Static IP address or PPPoE and type the required network information.
2. Click Apply. The camera is now accessible by entering the assigned IP address on the Web browser.

IMPORTANT:

1. If your camera uses a public dynamic IP address via PPPoE, use the dynamic DNS Service to obtain a domain name linked to the camera's changing IP address first. For details on Dynamic IP Address and PPPoE, see 4.7.2 Advanced TCP/IP and 4.6.1 LAN Configuration.
2. If PPPoE is enabled and you cannot access the camera, you may have to reset it to the factory default and then perform the network settings again. To restore the factory settings, see 5.3 Restoring to Factory Default Settings.

2.2 Configuring the Basics

Once you have installed and logged in the camera, you are ready to configure some of its primary settings through the Web interface:

• Date and time adjustment: see 4.7.1 Date and Time Settings.
- Login and privileged passwords: see 4.7.3 User Account.
• Network gateway: see 4.5 Network.
• Camera image adjustment: see 3.3 The Control Panel of the Live View Window.
• Video format, resolution and frame rate: see 4.1.1 Video Setting.

Chapter 3 Accessing the Camera

This section introduces the features of the Live View window for you to access the camera. Two types of user levels are allowed to log in the camera: Administrator and Guest. The Administrator has full access to all system configurations while the Guest can only access the live view and network status.

3.1 Accessing Your Surveillance Images

Follow these steps: as your surveillance images:

1. Open a Web browser.
2. Enter the IP address or domain name of the camera in the Location/Address field of your browser. To look up the IP address, see 2.1 Looking Up the IP Address.

Figure 3-1

1. Enter the login name and password.

2. The default login name and password for Administrator are admin.
   • The default login name and password for Guest are guest.

3. The live view web page is now displayed on your browser.

- For Internet Explorer, the live view page is similar to the image in Figure 3-3-2.

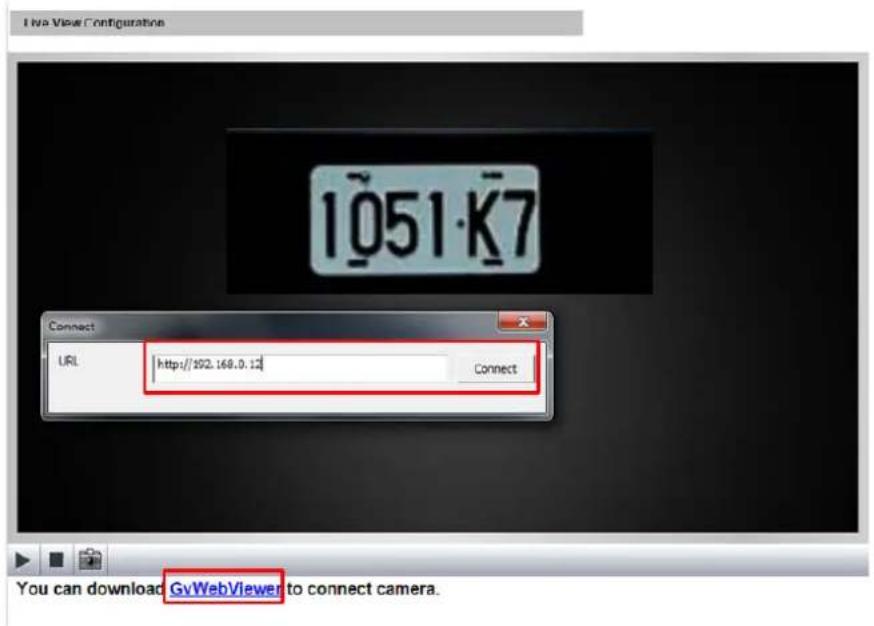

- For Mozilla Firefox, Google Chrome, Safari, or Microsoft Edge, the I live view page is similar to the image in Figure 3-3-1. Click GV-Web Viewer, type in the IP address of your camera, and click Connect to access the full functioning user interface.

Figure 3-2-1

Note: To enable the updating of images in Microsoft Internet Explorer, you must set your browser to allow ActiveX Controls and perform a once-only installation of GeoVision's ActiveX component onto your computer.

3.2 The Live View Window

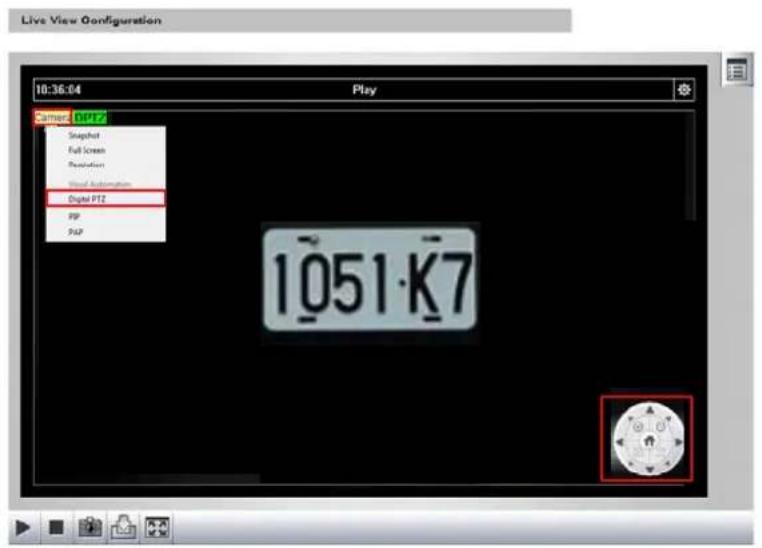

In the left menu, click Live View, and select Camera to see the live video.

Figure 3-2-2

No.	Name Function
1	Play Plays live video.
2	Stop Stops playing video.
3	Microphone	Talks to the surveillance area from the local computer. Note this function is not available for GV-IP LPR Camera 5R and GV-LPC2211/2011.
4	Speaker	Listens to the audio around the camera. Note this function is not available for GV-IP LPR Camera 5R and GV-LPC2211/2011.
5	Snapshot	Takes a snapshot of live video.--- See 3.4 Snapshot of a Live Video.
6	File Save	Records live video to the local computer.--- See 3.5 Video Recording.
7	Full Screen	Switches to full screen view. Right-click the image to have these options: Snapshot, Full Screen, Resolution, PIP and PAP. --- See 3.6 Picture-in-Picture and Picture-and-Picture View.
8	Show System Menu	Brings up these functions: Alarm Notify, Video and Audio Configuration, Remote Config, Show Camera Name and Image Enhance. --- See 3.7 Alarm Notification, 3.8 Video and Audio Configuration, 3.9 Remote Configuration, 3.10 Camera Name Display, 3.11 Digital PTZ, 3.12 Image Enhancement respectively.
9	PTZ Control	Enables the PTZ Control Panel or the Visual PTZ. The performable functions are Zoom In / Out, Focus In / Out, and Auto Focus. Note the Auto Focus function only works for GV-IP LPR Camera 5R and GV-LPC1100 while other LPR camera models can automatically focus.
10	I/O Control	Enables the I/O Control Panel or the Visual Automation. Note this function is only supported by cameras with I/O function. --- See 3.12 I/O Control.
11	Recognition Result	Displays the snapshots of the recognition results when the camera recognizes a license plate. Note this function is only supported by GV-LPR1200.

3.3 The Control Panel of the Live View Window

To open the control panel of the Live View window, click the arrow button on top of the viewer. You can access the following functions by using the right and left arrow buttons on the control panel.

Figure 3-3

[Information] Displays the version of the camera, local time of the local computer, time of the camera, the number of users logging in to the camera and the OCX registration path.

[Video] Displays the current video codec, resolution and data rate.

[Audio] Note this function is only supported by cameras with audio function. Displays the audio data rates when the microphone and speaker devices are enabled.

[I/O Control] Note this function is only supported by cameras with I/O function. Provides a real-time graphic display of the input and output status. You can force the output to be triggered by double-clicking its icon.

[Alarm Notify] Displays the captured images by motion detection. For this function to work, you must configure the Alarm Notify settings first. See 3.7 Alarm Notification.

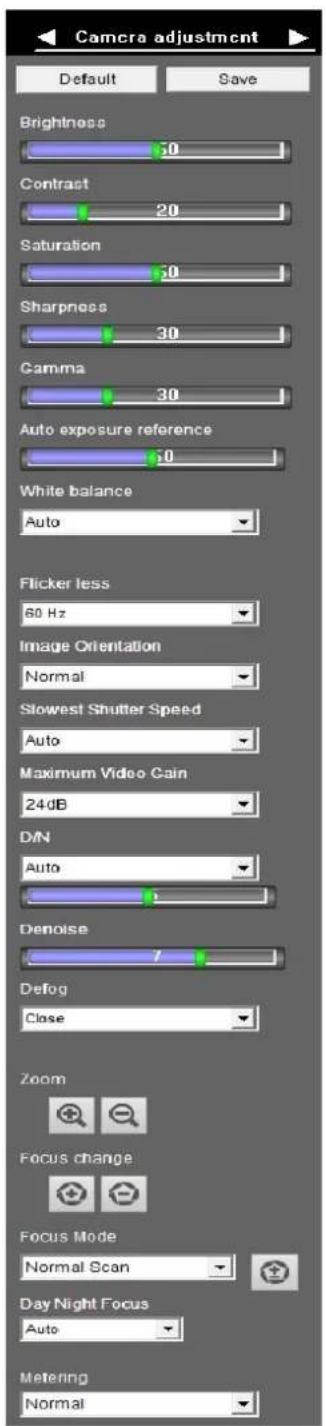

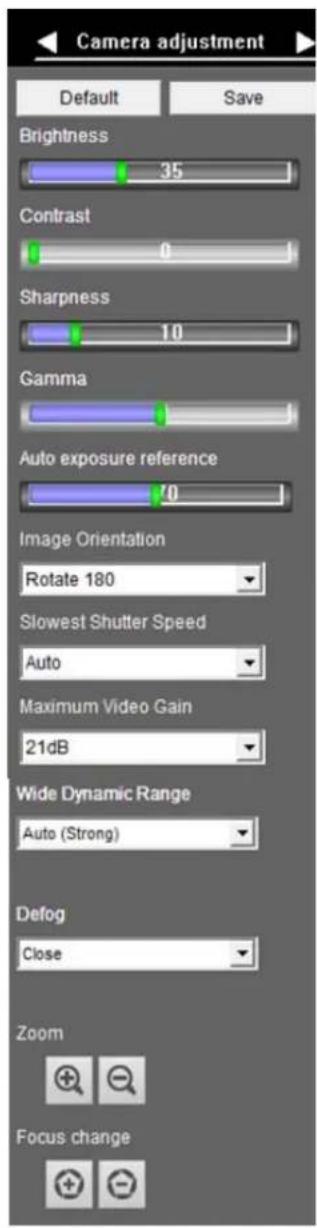

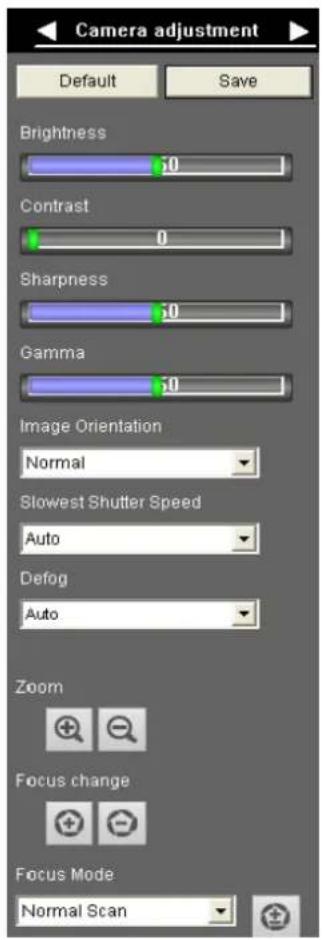

[Camera Adjustment] Adjusts the image quality settings. Click Save to store the changes to the settings.

GVmlERaLBR Ca GV-
GV-LPC1100

LPC1200 /
GV-LPR1200

GV-LPC2210 / 2211 /
2011

Figure 3-4

The minimum shutter speed ranges from 1/500 to 1/8000 sec.
■ Brightness: Adjusts the brightness of the image.
■ Contrast: Adjusts the relative differences between one pixel and the next.
■ Saturation: Adjusts the saturation of the image. Note this function is only available for GV-LPC2210 / 2211 / 2011.
■ Sharpness: Adjusts the sharpness of the image.
■ Gamma: Adjusts the relative proportions of bright and dark areas.
■ Auto Exposure Reference: Adjusts the exposure of the image. Note this function is only available for GV-LPC1200, GV-LPR1200 and GV-LPC2210 / 2211 / 2011.
■ White balance: The camera automatically adjusts the color to be closest to the image you are viewing. You can choose one of the four presets: Auto, Outdoor, Indoor, and Fluorescent. You can also choose Manual to adjust the white balance manually. Note this function is only available for GV-LPC2210 / 2211 / 2011.
- Flicker less: The camera automatically matches the frequency of your camera's image to the frequency of indoor light sources, e.g. fluorescent lighting. You can also select 50 Hz or 60 Hz manually. If these don't match, faint light and dark bars may appear in your images. Check the power utility to determine which frequency is used. Note this function is only available for GV-LPC2210 / 2211 / 2011.
■ Image Orientation: Adjusts the orientation of image by selecting Normal, Horizontal Mirror, Vertical Flip and Rotate 180 on the Live View window.
■ Slowest Shutter Speed: Sets the shutter speed. Shutter speed controls the amount of the digital center in the image sensor and directly impact presentation. A slow shutter speed allows higher light exposure that creates a brighter overall image by blurring moving objects and bringing out background details, and a faster shutter speed lowers color and image clarity in order to capture motions.

• GV-IP LPR Camera 5R, GV-LPC1100, from 1/250 to 1/2000 sec.

• GV-LPR1200, GV-LPC1200 / 2211 / 2210 / 2011, from 1/120 to 1/2000.

Select Auto for automatic shutter control or select a shutter speed value.

■ Maximum Video Gain: Changes the maximum gain level. Note this function is only available for GV-LPR1200 and GV-LPC1200 / 2210 / 2211 / 2011.

■ D/N: Note this function is only available for GV-LPC2210 / 2211 / 2011. Select Auto for automatic switch between day mode and night mode depending on the amount of light detected. Select Black and white to switch the camera to night mode. Select Color to switch the camera to day mode. The value 10 is the most light-sensitive. Only for GV-LPC 2210, select Trigger by Input to switch between day mode and night

mode once the input device (e.g. sensor or button) is triggered. See the same D/N setting in D/N, Special Video Settings, 4.1.1.1 Streaming 1/2.

■ Denoise: Reduces image noise especially under low-light conditions. The higher the denoise value, the stronger the effect. Note this function is only available for GV-LPC2210 / 2211 / 2011.
■ Defog: Select Auto to automatically enhance the visibility of images. Select Close to disable the function.
■ Wide Dynamic Range: Adjusts and generates clear live view when the scene contains very bright and very dark areas at the same time. Select Auto (Strong) to bring out details in the dark areas of the scene, select Auto (Weak) to bring out less details in the dark areas and at the same time keep the bright areas from overexposure, or select Auto (Normal) for a balanced effect. Select Close to disable the function. Note this function is only available for GV-LPC / LPR1200. See 4.5.3 WDR Settings to set a schedule for different image adjustments.
■ Zoom: Click the Zoom In ⊕ and Zoom Out 🔒 buttons to adjust the apparent distance of the scene.
■ Focus Change: Click the Focus In and Focus Out buttons to adjust the focus. To focus automatically, click the Focus Mode button.
■ Focus Mode: Select Normal Scan, Regional Scan or Full Scan and then click the Start button to automatically adjust the camera focus. The Normal Scan mode focuses the camera the fastest. The Regional Scan mode focuses the area selected on the live view. The Full Scan mode performs a detailed checkup and applies the best focus. Note this function is only available for GV-IP LPR Camera 5R and GV-LPC1100 / 2210.
■ Day Night Focus: Note this function is only available for GV-LPC2210 / 2211 / 2011. Saves focus settings for day mode and night mode. Select Auto to automatically focus. To configure fixed settings for day mode and night mode, select Manual and follow the steps below:

• Make sure the D/N is in Auto mode for the best effect. The following focus setting will be applied to the current D/N mode.
- Adjust the focus using the Focus In and Focus Out buttons and/or the Focus Mode function.
- Click Day Mode Save 🙏 or the Night Mode Save Ⓞ button depending on the current D/N mode.

- Metering: Controls the camera's exposure. Select Normal for the camera to adjust exposure based on the full live view. Select Regional Metering for the camera to adjust exposure of specified zones. Draw directly on the live view and a block marked with "AE (automatic exposure)" as establish up to 4 zones. To remove the block, right-click the block and select Delete. Note this function is only available for GV-LPC2210 / 2211 / 2011.

[Internal Temperature] Shows the current internal temperature of the camera and the normal temperature range.

[Download] Allows you to install programs from the hard drive.

3.4 Snapshot of a Live Video

To take a snapshot of live video, follow these steps:

1. Click the Snapshot button (No. 5, Figure 3-2). To Save As dialog box appears.
2. Specify Save in, type the File name, and select JPEG or BMP for Save as Type. You may also choose to display the camera name and/or the date, the text color and image quality for the snapshot.
3. Click the Save button to save the image in the local computer.

Note: You can also obtain a snapshot of the live view without logging in the user interface by executing the CGI command. See Appendix A.

3.5 Video Recording

You can record live video for a certain period of time to your local computer.

1. Click the File Save button (No. 6, Figure 3-2). The Save As dialog box appears.
2. Specify Save in, type the File name, and move the Time Period scroll bar to specify the time length of the video clip from 1 to 5 minutes.
3. Click the Save button to start recording.
4. To stop recording, click the Stop button (No. 2, Figure 3-2).

3.6 Picture-in-Picture and Picture-and-Picture View

The Live View window provides two types of close-up views: Picture-in-Picture (PIP) and Picture-and Picture (PAP). The two views are useful to provide clear and detailed images of the surveillance area.

Picture-in-Picture View

With the Picture-in-Picture (PIP) view, you can crop the video to get a close-up view or zoom in on the video.

Figure 3-5

1. Right-click the live view and select PIP. An inset window appears.
2. Click the insert window. A navigation box appears.
3. Move the navigation box around in the inset window to have a close-up view of the selected area.
4. To adjust the navigation box size, move the cursor to any of the box corners, and enlarge or diminish the box.
5. To exit the PIP view, right-click the image and click PIP again.

Picture-and-Picture View

With the Picture-and-Picture (PAP) view, you can create a split video effect with multiple close-up views on the image. A total of 7 close-up views can be defined.

Interior view of a supermarket with product shelves and promotional signage (no readable text or symbols)

Figure 3-6

1. Right-click the live view and select PAP. A row of three inset windows appears at the bottom.
2. Draw a navigation box on the image, and this selected area is immediately reflected in one inset window. Up to seven navigation boxes can be drawn on the image.
3. To adjust a navigation box size, move the cursor to an y of the box corners, and enlarge or diminish the box.

4. To move a navigation box to another area on the image, drag it to that are a.

5. To add, display/hide or to change the frame color of the navigation boxes, right-click the live view, select Mega Pixel Setting and click one of these options:

■ Enable Add-Focus-Area Mode: Allows the user to add navigation boxes to the image.
■ Display Focus Area of PAP Mode: Displays or hides the navigation boxes on the image
■ Set Color of Focus Area: Changes the color of the box frames.

1. To delete a navigation box, right-click the desired box, select Focus Area of PAP Mode and click Delete.

2. To exit the PAP view, right-click the image and click PAP again.

3.7 Alarm Notification

When a motion is detected, you can be alerted by a pop-up live video and view up to four captured images.

Figure 3-7

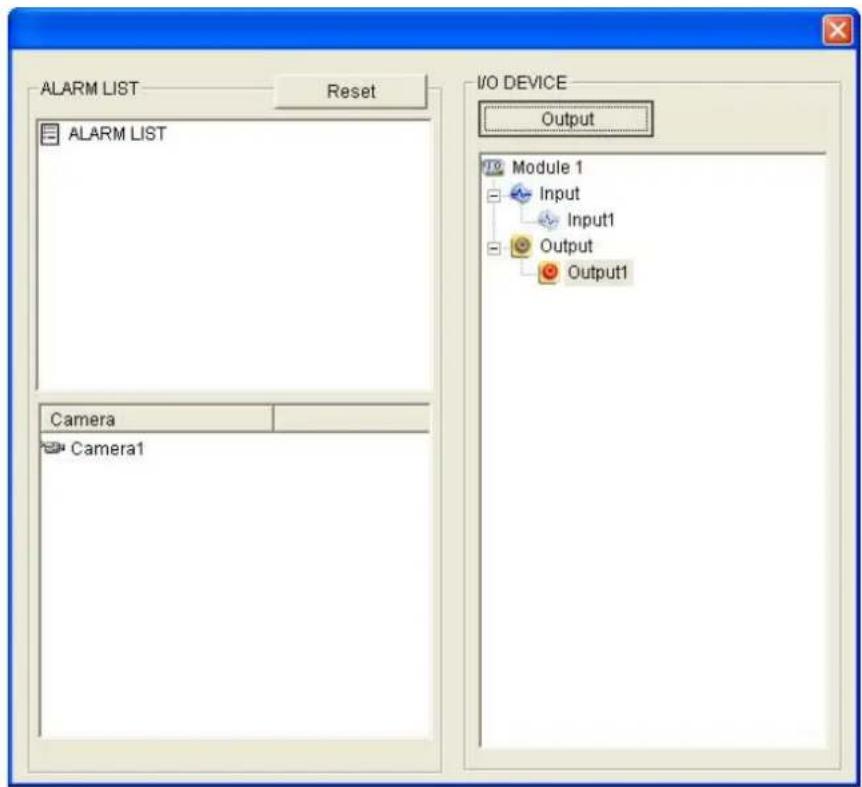

To configure this function, click the Show System Menu button (No. 8, Figure 3-2), and select Alarm Notify. This dialog box appears.

Figure 3-8

■ Motion Notify: Once motion is detected, the captured images are displayed on the control panel of the Live View window.
■ I/O Alarm Notify: Once the input device is triggered, the captured images are displayed on the control panel of the Live View window. For this function to work, the Administrator needs to install the input device properly. See 4.2.1 Input Setting. Note this function is only available for cameras with I/O function.
■ Alert Sound: Activates the computer alarm on motion.
■ Auto Snapshot: The snapshot of live video is taken every 5 seconds on motion.
■ File Path: Assigns a file path to save the snapshots.

3.8 Video and Audio Configuration

You can enable the microphone and speaker for two-way audio communication and adjust the set the number of frames to keep for live view buffer.

Clod AudShow System Menu button (No. 8, Figure 3-2), and select Video a Configuration.

■ eCkeepingSets the frames of frames to keep in live view buff

live view buffer can ensure a smooth live view, but the live view will be delayed for the number of seconds specified.

Figure 3-9

■ Audio Configure: You can enable the microphone and speaker and adjust the audio volume. Note this setting is not available for GV-IP LPR Camera 5R and GV-LPC2211 / 2011.

Figure 3-10

3.9 Remote Configuration

You can upgrade the device firmware over the network. Click the Show System Menu button (No. 8, Figure 3-2), and select Remote Config. The Remote Config dialog box will appear.

[Firmware Upgrade] In this tab, you can upgrade the firmware over the network. For details, see Chapter 5 Advanced Applications.

3.10 Camera Name Display

To display the camera name on the image, click the Show System Menu button (No. 8, Figure 3-2), and select Show Camera Name.

3.11 Image Enhancement

To enhance the image quality of live video, click the Show System Menu button (No. 8, Figure 3-2), and select Image Enhance. This dialog box appears.

Figure 3-11

■ De-Interlace: Covert the interlaced video into non-interlaced video.
■ De-Block: Remove the block-like artifacts from low-quality and highly compressed video.
■ Enable DirectDraw: Activate the DirectDraw function.

3.12 Digital PTZ

Digital PTZ allows non-PTZ cameras to simulate PTZ movements on live view. Note this function is only supported by GV-LPC2211 / 2011.

1. Click live view and select Digital PTZ.

Figure 3-12

1. To zoom in / out, move the cursor to the control panel at left corner and click the corresponding buttons. To bring the view back to its default image, click Home.

2. To adjust the view, zoom the image first and then click ▶ to move your camera up, down, left, right, left up, left down, right up or right down.

Figure 3-13

Note: The Focus In / Out and the speed level are not functional for Digital PTZ.

3.13 I/O Control

Note this function is only supported by cameras with I/O function. The I/O Control window provides a real-time graphic display of camera status, I/O status, and alarm events. Additionally, you can remotely force output to be triggered.

Figure 3-14

• To display the I/O control window, click the I/O Control button (No. 11, Figure 3-2) and select I/O Control.
• The Alarm List is displayed in three levels. The first level indicates date, the second indicates time, and the third indicates alarm ID. Clicking the Reset button will clear the list.
• To trigger an output device, highlight an output and then click the Output button.

3.14 Visual Automation

Note this function is only supported by cameras with I/O function. The Visual Automation allows you to change the current state of the electronic device by simply clicking on its image, e.g. turning the light ON. This feature is only available when the Visual Automation is set ahead by the Administrator. For details, see 4.1.5 Visual Automation.

Figure 3-15

• To access this feature, click the I/O Control button (No. 10, Figure 3-2) and select Visual Automation.
• To change the style of the set areas, click the green I/O button on the top left corner. You will have these options:

■ Show All: Displays all set areas.
■ Rect Float: Embosses all set areas.
■ Set Color: Changes the frame color of all set areas

Chapter 4 Administrator Mode

The Administrator can access and configure your camera over the network. The configuration categories include: Video and Motion, Events and Alerts, Monitoring, Recording Schedule, Network and Management.

Figure 4-1

Corresponding Section for Configuration Menu

Find the topic of interest by referring to the indicated section.

4.1 Video and Motion	4.1.1 Video Settings4.1.2 Motion Detection / Detection Mode4.1.3 Privacy Mask4.1.4 Text Overlay4.1.5 Tampering Alarm4.1.6 Visual Automation4.1.7 Recognition Engine Settings
4.2 I/O Control	4.2.1 Input Settings4.2.2 Output Settings4.2.3 RS485
4.3 Events and Alerts	4.3.1 Email4.3.2 FTP4.3.3 Center V24.3.4 VSM (Vital Sign Monitor)4.3.5 GV-Video Gateway / GV-Recording Server4.3.6 RTSP4.3.7 ONVIF4.3.8 POS4.3.9 Inquire Recognized Database4.3.10 Registry Database
4.4 Monitoring 4.4.1 Monitoring Settings
4.5 Schedule	4.5.1 I/O Monitor Settings4.5.2 Recognizing Schedule Settings4.5.3 WDR
4.6 Network	4.6.1 LAN Configuration4.6.2 Advanced TCP/IP4.6.3 UMTS4.6.4 IP Filtering4.6.5 SNMP Settings
4.7 Management	4.7.1 Date and Time Settings4.7.2 Storage Settings4.7.3 User Account4.7.4 Log Information4.7.5 Tools4.7.6 Language

4.1 Video & Motion

The camera supports dual streams, Streaming 1 and Streaming 2, which allow separate codec and resolutions settings for a single video transmission. In a bandwidth-limited network, such as mobile phone surveillance, this dual-stream feature allows you to view live video in lower resolution (Streaming 2), and record in highest resolution (Streaming 1) at the same time.

Comparison between Stream 1 and Stream 2:

Video Setting Options Stream 1 Stream 2
Video Signal Type	Different codec, resolutions and frame rates can be applied to Stream 1 and 2.
Watermark Setting	Yes
Audio Codec
Video Entropy Coding Setting
TV Out Setting
Status LED Control
Special View Setting
Note:1. Watermark Setting is not available in GV-LPC2211 / 2011.2. Special View Setting is only available in GV-LPC2210 / 2211 / 2011.3. H264 Video Entropy Coding Setting is only available in GV-LPC2210.

4.1.1 Video Settings

4.1.1.1 Streaming 1/2

Figure 4-2A

Figure 4-2B

[Name]

Rename the camera. The camera name will appear on the Live View. To display the camera name, see 3.10 Camera Name Display.

[Connection Template]

Select the type of your network connection. Unless you select Customized, this option will automatically bring up the recommended video resolution, frame rate, bandwidth and GOP size.

[Video Signal Type]

Select the codec type, resolution and frame rate. Choose H.264 or MJPEG for the main stream/sub stream. The supported resolutions are listed blow:

Models\Default Codec	Main Stream Sub	Stream
GV-IP LPR Camera 5RGV-LPC1100GV-LPC1200	MJPEG	H.264
GV-LPR1200GV-LPC2210 / 2211 / 2011	H.264	H.264

Video Resolution for GV-IP LPR Camera 5R, GV-LPC1100
Main Stream	4:3 1280 x 960,	640 x 480, 320 x 240
	16:9 1280 x 720,	640 x 360, 448 x 252
	5:4 1280 x 1024,	640 x 512, 320 x 256
Sub Stream	4:3 640 x 480, 3	20 x 240
	16:9 640 x 360,	448 x 252
	5:4 640 x 512, 3	20 x 256
Video Resolution for GV-LPC1200 / GV-LPR1200
Main Stream 16:9 1280 x 720
Sub Stream 16:9 640 x 360
Video Resolution for GV-LPC2210
Main Stream	4:3 1600 x 1200,	1280 x 960, 640 x 480, 320 x 240
	16:9 1920 x 1080,	1280 x 720, 640 x 360, 448 x 252
	5:4 1280 x 1024,	640 x 512, 320 x 256
Sub Stream	4:3 640 x 480, 3	20 x 240
	16:9 640 x 1080,	448 x 252
	5:4 640 x 512, 3	20 x 256
Video Resolution for GV-LPC2211 / 2011
Main Stream 16:9 1920 x 1080,		1280 x 720
Sub Stream 16:9 640 x 360

[Bandwidth Management]

When using the H.264 codec, it is possible to configure the bitrate settings to control bandwidth usage.

■ VBR (Variable Bitrate): The quality of the video stream is kept as constant as possible at the cost of a varying bitrate. The bandwidth is much more efficiently used than a comparable CBR. Set the image quality to one of the 5 standards: Standard, Fair, Good, Great and Excellent.
■ Maximal Bit Rate: When the system bitrate exceeds the specified Maximal Bit Rate, the system will automatically lower its bitrate so as not to exceed it. Select one of the bitrates from the drop-down list or select Auto if you do not want to enable this function. The default value is 6 MB
■ CBR (Constant Bitrate): CBR is used to achieve a specific bitrate by varying the quality of the stream. The bitrates available for selection depend on the image resolution.

[GOP Structure and Length]

Set the maximum number of seconds between every key frame.

[H264 Video Entropy Coding Setting] Note this function is only available for GV-LPC2210.

By default, the entropy coding is set to CAVLC. To change it to CABAC, click and select from the drop-down lost.

[Text Overlay Settings]

■ Overlaid with camera name: Includes camera names on live and recorded videos.
■ Overlaid with date stamps: Includes date stamps on live and recorded videos.
■ Overlaid with time stamps: Includes time stamps on live and recorded videos.
■ Overlaid with digital input description name: Includes the name of the selected input on live and recorded videos. Note this function is not available for GV-IP LPR Camera 5R.

[Text Overlay Settings (OSD)] Note this function is only available for GV-LPC 2210 / 2211 / 2011. Displays camera name, date, and/or time on the live view and recorded videos when viewing through GeoVision software and third-party software through ONVIF and RTSP.

■ Name: Type the camera name.
■ Font Size: Select the font size using the drop-down list.

■ Overlay with: Select one or more of the options below to be overlaid on the live view and recorded videos. Use the drop-down list to select the display position.

• Camera Name
  Date
• System Time

[Watermark Setting]

Enable this option to watermark all recordings. The watermark allows you to verify whether the video has been tampered while it was recorded. Note this function is not available in GV-LPC2211 / 2011. See 5.4 Verifying Watermark.

[TV Out]

Select the signal format for the video output of the camera as either NTSC or PAL. This function is disabled by default. Note this function is not available for GV-IP LPR Camera 5R and GV-LPC2211 / 2011.

Note: For smooth live view display of GV-IP LPR Camera 5R / GV-LPC1100 on TV monitor, the video resolution must be of 1280 x 1024 or lower. If dual streams are enabled, the sub stream must be set to 640 x 480.

[LED Control]

■ Ready LED: Select Disable if you do not wish to use the Status LED. Note this function is only available for GV-LPC1100 and GV-LPC2210 / 2211 / 2011.

[Special View Setting] Note this function is only available for GV-LPC2210 / 2211 / 2011..

■ D/N: Sets the sensitivity of day-night mode switch. The higher the sensitivity value, the more sensitive the switch is from day mode to night mode. The default value is 5.

• Auto: Select Auto for the camera to detect the amount of light present and automatically switch to monochrome in a poorly-lit scene. Move the slider to adjust the sensitivity level from 0 to 10.
• Black and White: Select this option for the live view to be in monochrome.
• Color: Select this option for the live view to be in color.

- Trigger by Input: This function is only supported by GV-LPC2210. Select this option to switch between day mode and night mode once the input device (e.g. sensor or button) is triggered.

■ BLC: Select On to enable Backlight Compensation (BLC). This function is used to adjust the color intensity of scenes with strong light at the background.
■ IR Light: Select Auto for automatic switch between day mode and night mode depending on the amount of light detected. Select Off to completely disable IR LEDs.

4.1.1.2 Recognition Result

Note the function is only supported by GV-LPR1200. This function allows you to display the recognized plate number, the date and time of recognition, or a desired text on the images of the recognition results.

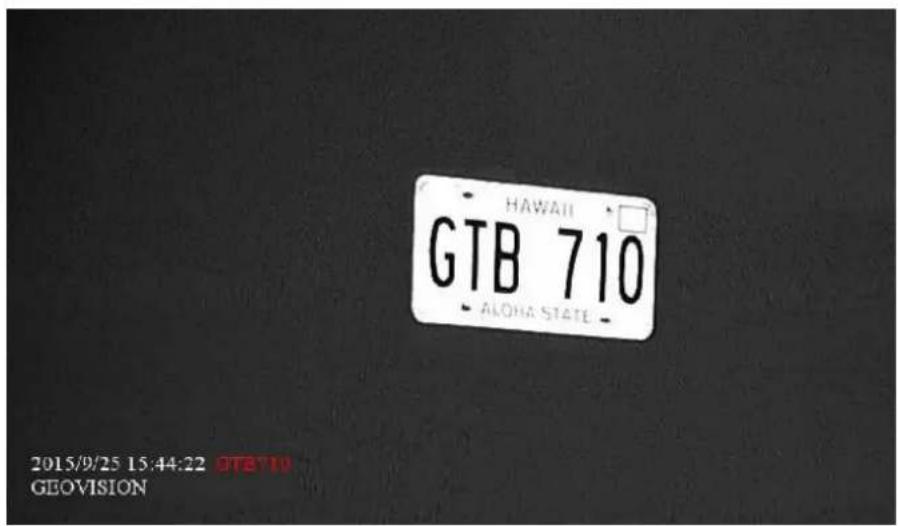

Figure 4-3A

Figure 4-3B

■ Overlay Logo on Recognition Results: Includes a desired text or description on recognition results.
■ Overlay Time on Recognitions Results: Includes date stamps on recognition results.
■ Overlay LPR Result on Recognition Results: Includes the recognized plate number on recognition results.
■ Overlay Text Position: Select a position from the drop-down list to overlay the text on recognition results.

4.1.2 Motion Detection / Detection Mode

4.1.2.1 GV-IP LPR Camera 5R / GV-LPC1100 / 1200 / 2210 / 2211 / 2011

Motion detection is used to generate an alarm whenever movement occurs within the scene. You can configure up to 8 detection zones with different sensitivity values. Create at least one detection zone to enable this function.

Figure 4-4a GV-IP LPR Camera 5R / GV-LPC1100 / GV-LPC2210

Figure 4-4b GV-LPC2211 / 2011

Figure 4-4c GV-LPC1200

1. Select a Sensitivity value. There are 10 sensitivity levels. The higher the value, the more sensitive the camera is to motion. The default sensitivity value is 9 for GV-IP LPR Camera 5R and GV-LPC1100 / 2211 / 2011 and 5 for GV-LPC1200.
2. For GV-LPC1200, you can select an Object Size to define the normal size of your targeted object. The default value is set to 1. The higher the value, the bigger the object's size is.
3. Define a detection zone by dragging an area on the image. Click Add when you are prompted to confirm the setting.
4. To create several areas with different sensitivity values, repeat Steps 1 and 2.
5. Click Save to save the above settings, or click Reset to clear all the selected areas.
6. For the camera to ignore environmental changes such as rain or snow, select the Ignore environmental changes. This option is not available for GV-LPC1200.
7. To reduce video noise when the lighting condition changes, select Noise Tolerance. This option is not available for GV-LPC1200.
8. If you want to trigger the alarm output when motion is detected, select Output 1 and click the Apply button. To activate the output settings, you must also start Input monitoring manually or by schedule. For related settings, see 4.4 Monitoring. This option is only available for the camera supporting I/O function.
9. For GV-LPC2211 / 2011, you can select Set Time Interval ranging from 1 to 3 seconds to specify the interval between motions in order to trigger an alert or a notification. Also select Set Duration ranging from 1 to 5 seconds to specify how long the alarm lasts.
10. Click the Apply button.

Note: The alert and notification of motion detection includes e-mail, FTP and Center V2 and Vital Sign Monitor notification. For details, see 4.3.1 E-Mail, 4.3.2 FTP, 4.3.3 Center V2 and 4.3.4 VMS (Vital Sign Monitor).

4.1.2.2 GV-LPR1200

For GV-LPR1200, you can set the detection mode to activate license plate recognition by motion detection or sensor triggers. You can define up to 8 detection areas for motion detection and plate recognition.

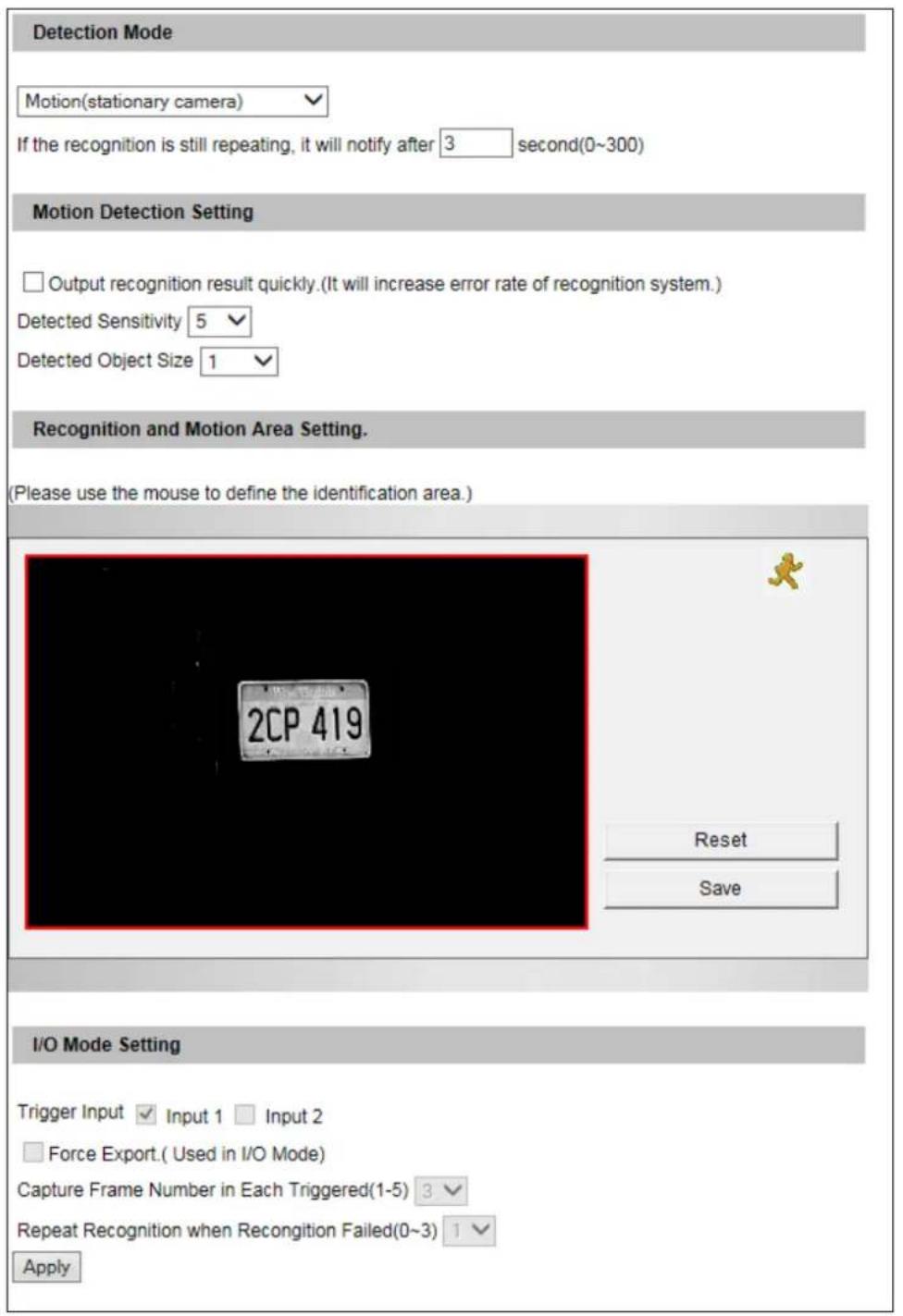

Figure 4-5

[Detection Mode] From the drop-down list on top left, select a method to activate license plate recognition.

■ Disable: Deactivate recognition.
■ Motion (Stationary Camera): Activate recognition by motion detection. Select this mode if your camera is fixed at one place.
■ Motion (Mobile Camera): Activate recognition by motion detection. Select this option if your camera is not fixed at one place or is installed on a vehicle.
■ Motion (Continuous Recognition): Activate round-the-clock recognition.
- Parking (I/O): This option is designed for parking areas. The recognition is activated by input triggers at the parking area. Select which inputs will trigger recognition in the I/O Mode Setting section below.
■ Parking (Motion): This option is designed for parking areas. The recognition is activated by motion detection at the parking area. Select this option if the parking area is without a gate installed to trigger the recognition.
If the recognition is still repeating, it will notify after the specified second: Select this option to avoid multiple recognition results for the same license plate due to the position of the camera. Specify the duration of a recognition result to be displayed if the next license plate recognized is the same as the previous one.

[Motion Detection Setting]

■ Output recognition result quickly (It will increase error rate of recognition system): Select this option if you want to have a faster recognition result at the cost of accuracy. This option is suitable for a large amount of traffic and the frames received will go through a fast recognition process (approximately at the processing rate of 1 frame per second).

■ Detected Sensitivity: Select the sensitivity level of motion detection from the drop-down list. The default value is set to 5. The higher the value, the more sensitive the system is to the motion.

- Detected Object Size: Select the value of the targeted object's normal size. The default value is set to 1. The higher the value, the bigger the object's size is.

[Recognition and Motion Area Setting] To configure the area of motion detection and plate recognition, first click Reset to clear the default setting. Then drag the mouse button to select an area of the image. You can define up to 8 areas to outline your detection areas. Every time when an area is selected, you will be prompted for confirmation.

Click Save to save the defined areas.

[I/O Mode Setting]

■ Trigger Input: Select to trigger Input 1 or Input 2.
■ Force Export (Used in I/O Mode): Select to display the symbol ***** to represent unknown license plates even though the recognition fails. If the option is not selected, the recognition failure will not be recorded.
■ Capture Frame Number in Each Triggered (1\~5): Select the number of image frames from 1 to 5 to be captured when the recognition is activated by input trigger.
■ Repeat Recognition when Recognition Failed (0\~3): Select the number of recognitions from 1 to 3 to be performed after the recognition fails and being activated by input trigger.

Click Apply to take effect.

For the related settings of input devices, see 4.2.1 Input Setting.

4.1.3 Privacy Mask

Note the function is only supported by GV-IP LPR Camera 5R and GV-LPC1100 / 2210 / 2211 / 2011.

The Privacy Mask can block out sensitive areas from view, covering the areas with dark boxes in both live view and recorded clips. This feature is ideal for privacy protection on locations with private information, keyboard sequences (e.g. passwords), and any place you would like to keep inaccessible to view.

Figure 4-6

1. Select the Enable option.
2. Drag the area(s) where you want to block out on the image. Click Add when you are prompted to confirm the setting.
3. Click the Save button to save all the settings.

4.1.4 Text Overlay

The Text Overlay allows you to overlay any text in any place on the camera view. Up to 16 text messages can be created on one camera view. The overlaid text will be saved in the recordings.

Figure 4-7

1. Select the Enable option.
2. Click Set Font to set up the font, font style and font size in a pop-up window.
3. Click any place on the image. This dialog box appears.

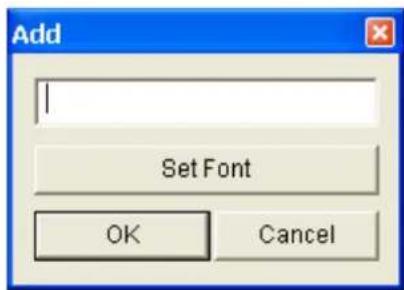

Figure 4-8

1. Type the desired text, and click OK. The text is overlaid on the image.
2. Drag the overlaid text to a desired place on the image.
3. Click Set Font to modify the font settings.
4. Click Save to apply the settings, or click Load (Undo) to revert to the last saved setting.
5. Click Preview to see how the text will appear on the image. Click Close to end the preview.

4.1.5 Tampering Alarm

Note the function is only supported by GV-LPC2210 / 2211 / 2011. Tampering Alarm is used to detect whether a camera is being physically tampered. An alarm can be generated when the camera is moved, covered up, or out of focus. The alarm types include triggered the output device, e-mail alert and notifying the connected GV-Center V2, GV-Vital Sign Monitor and GV-System / GV-VMS.

To establish the tampering alarm, set up at lest one alarm type:

• To trigger the output device when a tampering event occurs, enable the output setting and select Tampering Alarm. See 4.2.2 Output Settings.
• To trigger the e-mail alert when a tampering event occurs, enable the e-mail setting and select Tampering Alarm. See 4.3.1 E-Mail.
• To notify GV-Center V2, GV-Vital Sign Monitor and GV-System / GV-VMS when a tampering event occurs, enable the connection to these systems. See 4.3.3 Center V2, 4.3.4 Vital Sign Monitor and, 6.1 Setting up an IP Camera on GV-System, and 6.2 Setting Up IP Cameras on GV-VMS respectively.

Figure 4-9

To configure the tampering alarm:

1. Select the Enable option.
2. If you want the camera to ignore any movement or scene change in certain areas, click the button to drag areas on the camera view.

1. Select the desired detection sensitivity by moving the slider. The higher the value, the more sensitive the camera is to scene changes.

2. In the Tolerance Time of Alarm field, specify the time length allowed for scene changes before an alarm is generated.

3. In the Duration of Alarm field, specify the duration of the alarm after which the triggered output device will be turned off.

4. To trigger an alarm when the scene turns dark, e.g. when the lens of camera is covered, make sure the Alarm for Dark Images option is enabled. By default, this function is enabled.

5. Click Apply to save all the settings.

6. Start monitoring to enable the function. To have output alarm, it is required to start Input monitoring. See 4.4 Monitoring.

When the camera has been tampered, the output device can be activated. To turn off the output device immediately, return to this setting page, and click Restart Detection.

4.1.6 Visual Automation

Note this function is only supported by cameras with I/O function. This intuitive feature helps you automate any electronic device by triggering the connected output device. When you click on the image of the electronic device, you can simply change its current state, e.g. light ON.

Figure 4-10

1. Select the Enable option.
2. Drag an area on the image of the electronic device. This dialog box appears.

Figure 4-11

1. Assign the connected module and output device. In the Note field, type a note to help you manage the device. Click OK to save the settings.
2. To change the frame color of the set area, click the Set Color button.
3. To emboss the set area, select Float Up; or keep it flat by selecting Normal.
4. Click the Save Set button to apply the settings.
5. To perform the function, see 3.13 Visual Automation.

4.1.7 Recognition Engine Settings

Note this function is only available for GV-LPR1200. You can adjust the recognition engine to improve the recognition process and increase the accuracy.

Figure 4-12

[Engine Setting]

■ Country: Select a recognition engine to be set up.
■ Maximum number of characters: Set the maximum number of characters allowed on the license plate to activate the recognition process. If the number of characters exceeds the limit, the system will not start the recognition.
■ Minimum number of characters: Set the minimum number of characters allowed on the license plate to activate the recognition process. If the number of characters does not reach the minimum requirement, the system will not start the recognition.

■ Maximum height of characters: You can set the maximum height of characters on the license plate in pixels to activate the recognition process.
■ Minimum height of characters: Set the minimum height of characters on the license plate in pixels to activate the recognition process.
■ Maximum number of plates: Set the maximum number of plates to be recognized simultaneously.
■ Two Row Enable: This option can recognize two rows of characters on license plates. Note this option is only available on the engine version of V5000 or later.
■ Maximum numbers of plate in one row: Set the maximum number of characters in one row allowed on the license plate to activate the recognition process. If the number of characters exceeds the limit, the system will not start the recognition.
■ Minimum numbers of plate in one row: Set the minimum number of characters in one row allowed on the license plate to activate the recognition process. If the number of characters does not reach the minimum requirement, the system will not start the recognition.
■ Fast Slope Detection Enable: This option can increase the recognition speed by 10 % but decrease the accuracy by 3%.
■ Slope Detection Enable: The license plate tilting in a horizontal direction can be detected.

• Minimum angle of slope: Set the minimum tilt angle to be allowed to activate the recognition process.
  Maximum angle of slope: Set the maximum tilt angle to be allowed to activate the recognition process.

■ Slant Detection Enable: The license plate tilting in a vertical direction can be detected.

- Minimum angle of slant: Set the minimum tilt angle to be allowed to activate the recognition process.

- Maximum angle of slant: Set the maximum tilt angle to be allowed to activate the recognition process.

■ Special Plate Detection Enable: This option can recognize Traditional Chinese characters. This option and the following sub options are only available for the Taiwan recognition engine.

Maximum number of characters: Set the maximum number of special characters allowed on the license plate to activate the recognition process. If the number of characters exceeds the limit, the system will not start the recognition.

Minimum number of characters: Set the minimum number of special characters allowed on the license plate to activate the recognition process. If the number of characters does not reach the minimum requirement, the system will not start the recognition.
- Enable Word Filter: Enable the recognition for the character “軍” on license plates of military vehicles. Note this option is only available on the engine of Taiwan.
Special Enable Moto Enable: Enable the recognition for motorcycle license plate.
- Alphabet Filter Enable: Select this option to filter out extraneous alphabetical characters around the license plate and increase recognition accuracy.
- Digit Filter Enable: Select this option to filter out extraneous numerical characters around the license plate and increase recognition accuracy.

The following options can be enabled to avoid misidentification of certain characters in some countries.

■ I to 1 Enable: Always identify the character "I" as "1" (one).
■ 1 to I Enable: Always identify the character "1" as "I" (letter I).
■ 0 to O Enable: Always identify the character "0" as "O" (letter O).
■ Q to 0 Enable: Always identify the character "Q" as "0" (zero). Note this option is only available on the engine version of V5000 or later.
■ Enable Color Inverse: Enable the recognition for both license plates of “white characters on black background” and “black characters on white background”. By default, this option is enabled. Note this option is only available on the engines of China and Global.
■ Enable Gray Scale Inverse: Enable the recognition for the license plate of “white characters on black background” only. By default, this option is disabled. Note this option is only available on the engines of China and Global.
■ Enable TC: This function is only used to recognize the first Simplified Chinese character on China license plates. A China license plate consists of Simplified Chinese characters, English letters and numbers.
WeightChar: Emphasizes the analysis of a Simplified Chinese character, such as the character “沪”.
WeightCharRate(0-10): Defines the rate of occurrence of the weighted character. The higher the rate is defined, the more possible the weighted character will be recognized.
AutoChinese: Adds the weighted character to the recognition result if the camera does not recognize any Simplified Chinese character.

FixChinese: Overwrites with the weighted character regardless of whether the first Simplified Chinese character is recognized.

[Rule Setting] You can set up recognition rules to increase recognition accuracy. The rule can only consist of letters A and D, and its length must equal that of the license plate number. Use "A" and "D" to represent one alphabetical character and one numerical character of your license plate number respectively. For example, if the license plate is "ABC123" you can type "AAADDD" in one of the Rule fields. Up to 5 rules can be set.

• (When rule settings are A) 0 to D: Always identify the letter “O” as letter “D”. This is the default setting. It is useful to avoid misidentification in some countries’ license plates which is hard to distinguish between letter “O” and letter “D”. Select this option to activate a concurrent condition with the rules that you have set. For instance, if the rule entered in the field is “AADDD”, the recognition result will be “AD123” for license plate which appears to be “A0123”
• (When rule settings are A) 0 to O: Always identify the letter "O" as letter "O". Select this option to activate a concurrent condition with the rules that you have set. For instance, if the rule entered in the field is "AAADDA", the recognition result will be "IBZ02O" for license plate which appears to be "IBZ020"

4.2 I/O Control

Note this function is only supported by cameras with I/O function. You can connect your camera to other I/O devices with the I/O wires for extensible connection. Strip the desired wires first, and connect the auxiliary devices with the right wires according to the assignments to the wires in 1.3.5.3 Wire Definition.

4.2.1 Input Settings

To activate the sensor input, select Enable.

Figure 4-13

■ Normal State: You can set the input state to trigger actions by selecting Open Circuit (N/O) or Grounded Circuit (N/C).
■ Latch Mode: Enable this option to have a momentary output alarm.
- Trigger digital output relay: When this option is enabled, the output will be triggered once the input is activated.
■ Send Video to Center V2: Enable this option to send the images to Center V2 when the input is triggered.

Note:

1. The cameras with I/O function support dry-contact input devices.
2. The functions "triggering the output", "Recording starts when the input is triggered" and "sending video to Center V2" only work after you start Input monitoring manually or by schedule. To configure the input monitoring, see 4.4 Monitoring.

4.2.2 Output Settings

To start the output device, select Enable.

Note: Connect a gate or barrier only to output 1.

Figure 4-14

■ General Mode: Choose the output signal that mostly suits the device you are using: Open Circuit (N/O), Grounded Circuit (N/C).
■ Toggle Mode: The output continues to be triggered until a new input trigger ends the output.
■ Pulse Mode: The output is triggered for the amount of time you specify in the Trigger Pulse Mode for x Seconds field.

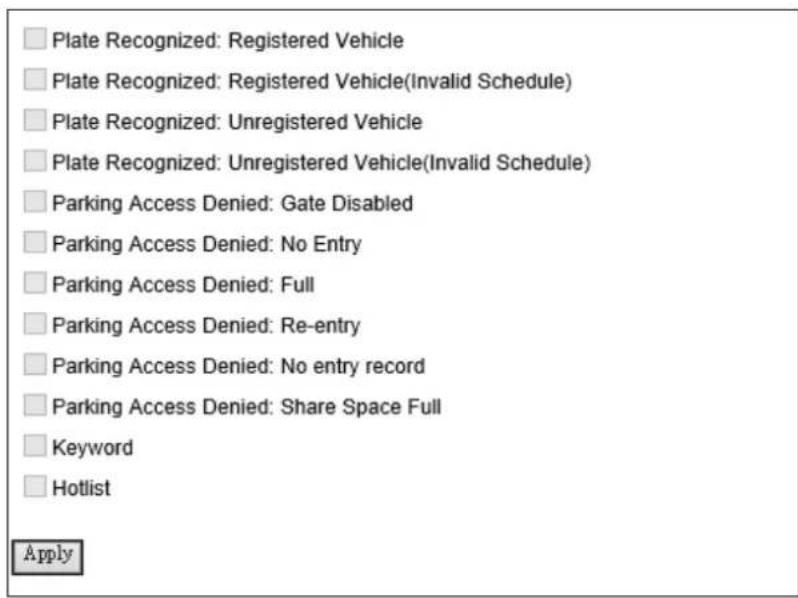

[Alarm Settings] Only for GV-LPR1200, you can choose to automatically trigger the digital output under the selected conditions, which can be categorized under the below events.

■ Memory Card related events: Rec Error / HD Full
■ Plate Recognition related events (Output 2 only): Unregistered / Registered Vehicle (Invalid Schedule) / Keyword / Hotlist
■ Parking Lot related events (Output 2 only): Gate Disabled / No Entry / Full / Re-entry / No Entry Record / Share Space Full

Note:

1. The Alarm Settings only work when the database of GV-LPR1200 is connected by GV-ASManager V4.4 or later. See 4.3.10 Registry Database to configure the settings.

2. The Parking Lot related functions only work when the parking lot function is enabled on GV-ASManager V4.4 or later. See 13.8 Managing Parking Lots on GV-ASManager User's Manual.

4.2.3 RS485

Note this function is only supported by GV-LPR1200. To export recognition data through RS-485, select Enable. GV-LPR1200 uses a baud rate of 9600.

Figure 4-15

[Select String Type]

■ Export Format: Select the desired recognition results from the drop-down list to export, including Plate Only, Plate ID and Time, and Plate File Name.

4.3 Events & Alerts

For motion and alarm events, the Administrator can set up two types of alert:

1. Send a captured image by e-mail or FTP. See 4.3.1 E-Mail and 4.3.2 FTP.
2. Notify Center Monitoring Stations such as Center V2, VSM (Vital Sign Monitor), by video or text alerts.

To enable above alerts, you must also set the following features:

• Motion Detection (See 4.1.2 Motion Detection / Detection Mode)
- For e-mail and FTP alerts, it is required to start monitoring (See 4.4 Monitoring).

4.3.1 E-mail

When a motion is detected, the camera can send an e-mail alert, containing a captured image to a remote user.

Important: To send e-mail alert upon motion, make sure you also enable the Motion Detection / Detection Mode function. For setup details, see 4.1.2 Motion Detection / Detection Mode.

Figure 4-16

To enable the e-mail functions:

1. Select Enable to set up e-mail notifications.
2. Server URL/IP Address: Type the SMTP Server's URL address or IP address.
3. Server Port: Type the SMTP Server's port number or keep the default value 25.
4. From email address: Type the sender's e-mail address.

5. Send to: Type the e-mail address(s) you want to send alerts to.

6. Alerts interval time in minute: Specify the interval between e-mail alerts. The valid interval is from 0 to 60 minutes. This option is useful for frequent event occurrence. Any event detected during the interval period will be ignored.

7. If the SMTP Server needs authentication, select Need authentication to login and type a valid Username and Password to log in the SMTP server. If the SMTP Server needs a secure connection (SSL), select This server requires a secure connection.
8. Email-Alarm Settings: Select an event to automatically send an e-mail alert.

■ Tampering Alarm: Sends an e-mail alert when a tampering event occurs. This function is only supported by GV-LPC2210 / 2211 / 2011.
■ Rec Error: Sends an e-mail alert upon a memory card writing error. This function is only supported by GV-LPR1200.
■ HD Full: Sends an e-mail alert when the memory card is full. This function is only supported by GV-LPR1200.
■ Motion Detection: Sends an e-mail alert when the camera detects a motion.
■ Digital Input: Sends an e-mail alert upon a triggered input event. Note this function is only supported by cameras with I/O function.

1. Click Apply.

2. In the left menu, select Monitoring and click the Start button to start monitoring.

4.3.2 FTP

You can also send the captured image to a remote FTP server for alerts.

Important: To send FTP alert upon motions, be sure to set up the detection area on the Motion Detection page. For details, see 4.1.2 Motion Detection / Detection Mode.

Figure 4-17

[Upload to a FTP server]

1. Select Enable to set up the FTP function.
2. Select Active Mode or Passive Mode, depending on the setting of your FTP server. Note this function is only supported by GV-LPC2210 / 2211 / 2011.
3. Server URL/IP Address: Type the URL address or IP address of the FTP Server.
4. Server Port: Type the port number of the FTP Server or keep the default value 21.
5. Type the Username and Password of the FTP Server.

6. Remote Directory: Type the name of the storage folder on the FTP Server.

7. Alerts interval time in minute: Specify the interval between FTP alerts. The interval can be between 0 and 60 minutes. The option is useful for frequent event occurrence. Any event triggers during the interval period will be ignored.

8. FTP-Alarm Settings:

■ Motion Detection: Select to automatically send a snapshot to the FTP Server upon motion detection. Select Continuously send images upon trigger events (Motion) to upload a series of snapshots to the FTP Server upon motion detection.
■ Digital Input: Note this function is only supported by cameras with I/O function. Select to automatically send a snapshot to the FTP Server when a digital input is triggered. Select Continuously send images upon trigger events (Input) to upload a series of snapshots to the FTP Server upon input trigger events.

■ Continuously Send Images: Note this function is only supported by GV-LPC2210 / 2211 / 2011. Sends images to the FTP server at the specified interval.

• Interval: Use the drop-down list to specify how frequent the images are sent to the FTP server.
• Enable Recycling: Select this option to recycle the FTP storage at the specified Keep Day.

• Keep Days: Specify how frequent the images saved at the FTP server are recycled. By default, the Keep Day is set to 1.

• In the left menu, select Monitoring and click the Start button to start monitoring.

[Act as FTP server] The function is only supported by GV-LPR1200.

1. Enable FTP access to the GV-IP Cam: Select to allow the camera to act as an FTP server for users to download AVI files.

2. Use alternative port: The default port is set to 21.

4.3.3 Center V2

The central monitoring station Center V2 can be notified of a motion event by live videos and text alerts. Up to two Center V2 servers can be connected. For live monitoring through Center V2, you must already have a subscriber account on each of the Center V2 server.

Important: To notify the Center V2 Server upon motion events, be sure to set up the detection area on the Motion Detection page. For details, see 4.1.2 Motion Detection / Detection Mode and 7.1 Center V2.

Figure 4-18

To enable the Center V2 connection:

1. Activate Link: Enable the monitoring through Center V2.
2. Host Name or IP Address: Type the host name or IP address of Center V2.
3. Port Number: Match the port to Port 2 on Center V2. Or keep the default value 5551. For details, see 7.1 Center V2.
4. User Name: Type a valid user name to log in to Center V2.
5. Password: Type a valid password to log in to Center V2.
6. Click Apply. The Connection Status should display "Connected" and connected time.
7. To establish connection to the second Center V2, click the Connection 2 tab and repeat the above steps for setup.

You can also find on this Center V2 settings page:

■ Cease motion detection messages from: Stops notifying Center V2 of motion detection.
■ Enable schedule mode: Starts the monitoring through Center V2 based on the schedule you set in the Select Schedule Time section.

[Select schedule time]

■ Span 1- Span 3: Enable recording (upon motion events) at up to 3 different time frames for a day, represented by Span 1 to Span 3.
■ Weekend: Enable recording (upon motion events) for both Saturday and Sunday or for Sunday only.

4.3.4 VSM (Vital Sign Monitor)

The central monitoring station VSM can be notified of a motion event by text alerts. Up to two Vital Sign Monitor servers can be connected. For live monitoring through VSM, you must already have a subscriber account on each of the VSM server.

IMPORTANT: To notify the Vital Sign Monitor upon motions, be sure to set up the detection area on the Motion Detection page. For details, see 4.1.2 Motion Detection / Detection Mode and 7.2 Vital Sign Monitor.

Figure 4-19

To enable the VSM connection:

1. Activate Link: Enable the monitoring through VSM.
2. Host Name or IP Address: Type the host name or IP address of VSM.
3. Port Number: Match the port to Port 2 on VSM or keep the default value 5609. For details, see 7.2 Vital Sign Monitor.
4. User Name: Type a valid user name to log into VSM.
5. Password: Type a valid password to log into VSM.
6. Click Apply. The Connection Status should display "Connected" and connected time.
7. To establish connection to the second VSM, click the Connection 2 tab and repeat the above steps for setup.

These options you can also find on this VSM setting page:

■ Cease motion detection messages from: Stops notifying VSM of motion detection.
■ Enable schedule mode: Starts the monitoring through VSM based on the schedule you set in the Select Schedule Time section. For schedule setup, refer to 4.3.3 Center V2.

4.3.5 GV-Video Gateway / GV-Recording Server

The GV-Video Gateway and GV-Recording Server are video streaming servers designed for large-scale video surveillance deployments. The GV-Video Gateway / GV-Recording Server (with recording capability) can receive up to 128 channels from various IP video devices, and distribute up to 300 channels to its clients. With the GV-Video Gateway / GV-Recording Server, the desired frame rate can be ensured while the CPU loading and bandwidth usage of the IP video devices are significantly reduced.

The camera can be connected with up to two GV-Video Gateway / GV-Recording Server. To send the video images to the GV-Video Gateway or GV-Recording Server, you must already have an account on each of the GV-Video Gateway / GV-Recording Server with the user name and password specified below.

Figure 4-20

To enable connection to GV-Video Gateway / GV-Recording Server:

1. Activate Link: Enable the monitoring through GV-Video Gateway / GV-Recording Server.
2. Host Name or IP Address: Type the host name or IP address of the GV-Video Gateway / GV-Recording Server.
3. Port Number: Match the communication port specified on GV-Video Gateway / GV-Recording Server. Or keep the default value 50000.
4. User Name: Type a valid user name to log into GV-Video Gateway / GV-Recording Server.
5. Password: Type a valid password to log into GV-Video Gateway / GV-Recording Server.
6. Click Apply. The Connection Status should display "Connected" and connected time.
7. To establish connection to the second GV-Video Gateway / GV-Recording Server, click the Connection 2 tab and repeat the above steps for setup.

You can also find the option:

■ Enable schedule mode: Starts the monitoring through GV-Video Gateway / GV-Recording Server based on the schedule you set in the Select Schedule Time section. For schedule setup, refer to 4.3.3 Center V2.

4.3.6 RTSP

The RTSP Server enables video and audio streaming to your 3G-enabled mobile phone.

Figure 4-21

■ Activate Link: Enable the RTSP / 3GPP service.
■ RTSP/TCP Port: Keep the default value 8554, or modify it if necessary.
■ RTP/UDP Port: Keep the default range from 17300 to 17319, or modify it if necessary. The number of ports for use is limited to 20.
■ Max Connection: Set the maximum number of RTSP and 3GPP connections to your camera. The maximum value is 8.
■ Enable Audio: This option is enabled by default. Select to enable audio streaming through RTSP. Note this function is not available for GV-IP LPR Camera 5R and GV-LPC2211 / 2011.
■ Disable Authentication: Authentication is disabled by default, with which the ID and password of your camera are not required when accessing live view through the RTSP command.

For details on remote monitoring with mobile phones, see Smart Device Connection, Chapter 8. For RTSP command, see Appendix B RTSP Protocol Support.

4.3.7 ONVIF

Note this function is only supported by GV-LPC1200, GV-LPR1200 and GV-LPC2210 / 2211 / 2011.

Configure the ONVIF settings for a third-party DVR.

Figure 4-22

■ Enable Authentication: The ID and password of the camera are required to access the camera by a third-party DVR through ONVIF.
■ Enable Discovery Mode: Allows the third-party DVR to browse this camera. This function is enabled by default.

4.3.8 POS

Note this function is only available for GV-LPR1200.

When the alarm events of motion detection and sensor trigger occur, the GV-System can get alerts with recognized license plate overlaid on the live images. This application is illustrated below.

Figure 4-23

Note: This application is only supported by GV-System V8.5.9 or later.

Figure 4-24

[Connection Port Settings] Both of POS Port and POS ACK Port are used for transmitting recognition results to GV-System. The default port numbers are 4000 and 3999 respectively.

■ POS Overlay Plate and Time: Select whether the recognition results will contain Plate ID and Time or only Plate ID when they are transmitted to GV-System.

The GV-LPR1200 will be added to GV-System through the POS device settings. To set up the GV-LPR1200 on GV-System, see 7.3 POS Device Setup, GV-DVR User's Manual on GV-NVR Software DVD.

4.3.9 Inquire Recognized Database

Note this function is only available for GV-LPR1200.

You can enquire the history of a plate number from the database stored in a memory card.

Note: Make sure you have inserted a memory card that contains the database of recognized license plate numbers.

Figure 4-25

1. Type a car plate number in the Plate ID field. The entries are case-sensitive.
2. Specify a start time and an end time by typing the year and using the drop-down lists.
3. Click the Search button to start matching.

Tip: To list all the license plates captured during a period, leave the Plate ID field blank and specify the time period.

4.3.10 Registry Database

Note this function is only available for GV-LPR1200.

You can automatically activate an output, for example, opening a gate when a captured license plate matches a number from a database based on the matching criterion.

You can create a standalone database on GV-LPR1200 or obtain the database from GV-ASManager, the software of license plate recognition and access control.

For the integration of GV-ASManager and GV-LPR1200, the vehicle database is transmitted from GV-ASManager and saved on the memory card. To set up the connection with the GV-ASManager for database download, see GV-ASManager Connection, Chapter 9.

Figure 4-26

To access the database from GV-ASManager:

- Make sure a memory card is inserted to the camera and the storage settings are configured. For detail, see 4.7.2 Storage Settings.

- Make sure the camera is connected with GV-ASManager to download the vehicle database, or the inserted memory card already contains the vehicle database.

- Make sure the output settings of the gate or barrier are configured and enabled. The gate or barrier must be connected to output 1 of GV-LPR1200. For detail, see 4.2.2 Output Settings.

Note: This function is only supported for GV-ASManager V4.3 or later.

Figure 4-26

[Registry Database]

1. Select Enable Registry Database.
2. Select a type of database for Database Control to specify the source of database.

■ AS Manager: Select to allow the vehicle database transmitted from GV-ASManager and saved on the memory card. To set up the connection with the GV-ASManager for database download, see GV-ASManager Connection, Chapter 9.

■ Standalone: Select to activate the function of Standalone Database. You can manually register license plates on GV-LPR1200. See Standalone Database, Support White List only below.

Note: When you activate Standalone Database, do not connect the camera to GV-ASManager.

1. Select one comparison type for Registry Database Comparison using the drop-down list. The detected license plate will trigger the output under the selected condition:

■ Complete (All Characters Match): The detected license plate matches every character of a license plate in database.
■ Like (One Character Mismatch): The detected license plate matches all except one character of a license plate in the database. The first and last characters of that license plate must remain unchanged.
■ Somewhat Like (Two Characters Mismatch): The detected license plate matches all except two characters of a license plate in the database. The first and last characters of that license plate must remain unchanged.

4. Click Apply.

[Standalone Database, Support White List only]

You have to select Standalone Database to activate this function.

- Plate Number: Type license plates and click Add to create your database. Click Query/Query All to search certain/all license plates. Click Delete/Delete All to remove certain/all license plates.

To set the Recognition Engine, recognition conditions, and recognition sensitivity for example, see 4.1.2 Motion Detection / Detection Mode and 4.1.6 Recognition Engine Settings.

To open a gate when the detected license plate is recognized as a registered vehicle, see 4.2.2 Output Settings to see how to set a gate as the output device.

4.4 Monitoring

Configure the monitoring settings for your camera.

4.4.1 Monitoring Settings

This function is not available for GV-IP LPR Camera 5R.

For GV-LPR1200 and GV-LPC1100 / 1200 / 2210, you can start monitoring manually, by schedule or by input trigger.

Figure 4-28-a

[Manual] Manually activates motion detection and I/O monitoring. Select one of the following options and click the Start button.

■ Select all: Manually starts both motion detection and I/O monitoring. Note this function is not supported by GV-LPC2210.
■ Input: Note this function is only supported for cameras with I/O function. Manually starts I/O monitoring. When the sensor input is triggered, its associated camera and output will be activated for recording and alerting.

[Schedule] The system starts motion detection and I/O monitoring according to the schedule you have set.

For GV-LPC2211 / 2011, start e-mail and FTP alert functions. Be sure to complete related settings on the Motion Detection, E-mail and FTP pages.

Figure 4-28-b

4.5 Schedule

Note this function is only supported by cameras with I/O function. The schedule is provided to activate I/O monitoring on a specific time each day.

4.5.1 I/O Monitoring Settings

You can set the schedule for I/O monitoring.

Figure 4-29

■ Span 1- Span 3: Set different time frames during the day to enable I/O monitoring. Each day can be divided into 3 time frames, represented by Span 1 to Span 3.
■ Weekend: Enable this option to start I/O monitoring all day on the weekend and define whether your weekend includes Saturday and Sunday or Only Sunday.
■ Special Day: Enable I/O monitoring on a specified day.

4.5.2 Recognizing Schedule Settings

Note this function is only available for GV-LPR1200. You can set the schedule for recognizing license plates.

Figure 4-30

Select a method for license plate recognition from the drop-down list on top left and set different time frames during the day to enable I/O monitoring.

■ Span 1- Span 3: Set a different recognition mode for each time frame during the day. Each day can be divided into 3 time frames, represented by Span 1 to Span 3. The time frame settings will work from Monday through Sunday.
■ Weekend: Enable this option to have a whole-day recognition on the weekend and select a recognition mode to be used. Define whether your weekend includes Saturday and Sunday or Only Sunday.
■ Special Day: Set the recognition mode on a specified day.

Note: If the settings for Special Day conflict with those for Span 1-3 or Weekend, the Special Day settings will get priority.

4.5.3 WDR Settings

Note this function is only available for GV-LPR / LPC1200. You can set a schedule of Wide Dynamic Range (WDR) for your camera to generate clear live view when the scene contains very bright and very dark areas.

Figure 4-31

■ Span 1- Span 3: Select Low, Middle, or High to set a different image adjustment, or select Off to disable the WDR function for each time frame during the day. Each day can be divided into 3 time frames, represented by Span 1 to Span 3. The time frame settings will work from Monday through Sunday.

4.6 Network

The Network section includes some basic but important network configurations that enable your camera to be connected to a TCP/IP network.

4.6.1 LAN Configuration

According to your network environment, select among Static IP, DHCP and PPPoE.

Figure 4-32

[LAN Configuration]

■ Dynamic IP address: The network environment has a DHCP server which will automatically assign a dynamic IP address to the camera. Click the Test DHCP button to see the currently assigned IP address or look up the address using GV-IP Device Utility.

■ Static IP address: Assign a static IP or fixed IP to the camera. Type the camera's IP address, Subnet Mask, Router/Gateway, Primary DNS server and Secondary DNS server.

Parameters Default
IP address 192.168.0.10
Subnet Mask 255.255.255.0
Router/Gateway	192.168.0.1
Primary DNS server 192.168.0.1
Secondary DNS server 192.168.0.2

■ PPPoE: The network environment is xDSL connection. Type the Username and Password provided by ISP to establish the connection. If you use the xDSL connection with dynamic IP addresses, first use the DDNS function to obtain a domain name linking to the camera's changing IP address.

For details on Dynamic DNS Server Settings, see 4.6.2 Advanced TCP/IP.

4.6.2 Advanced TCP/IP

This section introduces the advanced TCP/IP settings, including DDNS Server, HTTP port, streaming port and UPnP.

Figure 4-33A

Figure 4-33B

[Dynamic DNS Server Settings]

DDNS (Dynamic Domain Name System) provides a convenient way of accessing the camera when using a dynamic IP. DDNS assigns a domain name to the camera, so that the Administrator does not need to go through the trouble of checking if the IP address assigned by DHCP Server or ISP (in xDSL connection) has changed.

Before enabling the DDNS function, you should apply for a Host Name from the DDNS service provider's website. There are 2 providers listed in the camera: GeoVision DDNS Server and DynDNS.org.

To enable the DDNS function:

1. Enable: Enable the DDNS function.

2. Service Provider: Select the DDNS service provider you have registered with.

3. Host Name: Type the host name used to link to your camera. For the users of GeoVision DDNS Server, it is unnecessary to fill the field because the system will detect the host name automatically.
4. User Name: Type the user name used to enable the service from the DDNS.
5. Password: Type the password used to enable the service from the DDNS.
6. Click Apply.

[HTTP Port Settings]

The HTTP port enables connecting your camera to the Web. For security integration, the Administrator can hide the server from the general HTTP port by changing the default HTTP port 80 to a different port one within the range of 1024 through to 65535.

[HTTPS Settings]

By enabling the Hypertext Transfer Protocol Secure (HTTPS) settings, you can access the camera through a secure protocol. Note the customized certification function is currently not supported in GV-IP LPR Camera 5R, GV-LPC1100, and LPC2210 / 2211 / 2011.

[Camera Streaming Port Settings]

The VSS port enables connecting your camera to the GV-System. The default setting is 10000.

[UPnP Settings]

UPnP (Universal Plug & Play) is a networking architecture that provides compatibility among networking equipment, software and peripherals of the 400+ vendors that are part of the Universal Plug and Play Forum. It means that they are listed in the network devices table for the operating system (such as Windows XP) supported by this function. Enabling this function, you can connect to the camera directly by clicking on the camera listed in the network devices table. This function is enabled by default.

[QoS Settings]

The Quality of Service (QoS) is a bandwidth control mechanism that guarantees delay-sensitive data flows such as voice and video streams, obtain a certain amount of bandwidth to keep the streaming smooth.

To apply QoS to your camera, all network routers must support QoS and QoS must be enabled on these devices. To enable the QoS on the camera, enter a Differentiated Services Code Point (DSCP) value. This value is a field in an IP packet that enables different levels of services for the network traffic. When the video stream from the camera reaches a router, the DSCP value will tell the router what service level should be applied, e.g. the bandwidth amount. This value ranges from 0 to 63 in decimal format. The default value is 0 which means QoS is disabled. Click Apply to finish.

[Network Connection Check Settings]

When the network connection check is enabled, the camera will check for Internet connection and reboots automatically when it is disconnected from the Internet. This function is enabled by default.

4.6.3 UMTS

Note this function is only supported by GV-LPC1200 and GV-LPR1200.

UMTS stands for Universal Mobile Telephone System. UMTS is a third-generation (3G) broadband, packet-based transmission of text, digitized voice, video, and multimedia at data rates up to 2 megabits per second. UMTS offers a consistent set of services to mobile computer and phone users, no matter where they are located in the world.

After an UMTS-compatible wireless device is attached to the USB port and the UMTS function is enabled, the camera can have Internet access. For supported mobile broadband devices, see Appendix D.

Figure 4-34

Note: You need to prepare a Mini USB-to-USB cable and install in the camera. See 1.3.8 Installing a Mini USB Cable.

■ PIN number: Type the PIN number that is provided by your network operator.
■ Access Point Name (APN): Type Access Point Name that is provided by your network operator.
■ Username: Type a valid username to enable the UMTS service from your network operator.
■ Password: Type a valid password to enable the UMTS service from your network operator.
■ Maximum Transmission Unit (MTU): Type the Maximum Transfer Unit. The default value is 1500.
■ Retain UMTS Connection: Select this option to check the UMTS connection status and use the drop-down list to specify the desired time length for checking frequency. The camera will rebuild the connection if disconnection is detected.
- Check VPN Connection: Select this option to check the VPN (Virtual Private Network) connection status. To check the IP address, type the target IP address in the Check Target IP Address field.
■ UMTS Authentication Protocol: Use the drop-down list to select the UMTS Authentication Protocol provided by your network operator.
■ Enable Schedule Mode: Starts the UMTS connection automatically based on the schedule you set in the Select Schedule Time section. See 4.5.2 Recognizing Schedule Settings for the same settings.
■ 3G Connection Status: Indicates the connection status of UMTS or VPN.

4.6.4 IP Filtering

The Administrator can set IP filtering to restrict access to the camera.

Figure 4-35

To enable the IP Filter function:

1. Enable IP Filtering: Enable the IP Filtering function.
2. Filtered IP: Type the IP address from which you want to restrict the access.
3. Action to take: Select the action of Allow or Deny to be taken by the IP address(es) you have specified.
4. Click Apply.

4.6.5 SNMP Settings

The Simple Network Management Protocol (SNMP) allows you to monitor the status of the camera through SNMP network management software.

Figure 4-36

To allow management of SNMP software:

1. Select Enable SNMPv1 SNMPv2c to enable the function.
2. To enable access to Read/Write Name, type a community string. This will serve as a password to allow read and write access to the camera from the SNMP software.
3. To enable Read Only Name, type a community string to allow read-only access to the camera from the SNMP software.
4. For a more secured connection, select Enable SNMPv3 to enable SNMP version 3.
5. To enable access to Read/Write Name, type a community string.
6. Select an Authentication Type to be used for SNMP requests.

7. Type the Authentication Password and Current Password (Encrypted). You will need to type these passwords in the SNMP software to be able to access the camera.

8. To enable access to Read Only Name, type a community string to allows read-only access to the camera, and set up the Authentication Type, Authentication Password and the Current Password (Encrypted).

9. Click Apply to save the settings.

4.7 Management

The Management section includes the settings of data and time and user account. Also you can view the firmware version and execute certain system operations.

4.7.1 Date and Time Settings

The date and time settings are used for date and time stamps on the image.

Figure 4-37

[Date & Time on GV-IPCAM] Displays the current date and time on the camera.

[Time Zone] Sets the time zone for local settings. Select Enable Daylight Saving Time to automatically adjust the camera for daylight saving time. Type the Start Time and End Time to enable the daylight saving function.

[Synchronized with a Network Time Server] By default, the camera uses the timeserver of time.windows.com to automatically update its internal clock every 24 hours. You can change the host name or IP setting to the timeserver of interest. To change the time of automatic update, use the drop-down lists to specify the time.

[Synchronized with your computer or modify manually] Manually changes the camera date and time or synchronize its date and time with those of the local computer.

[Date and time overlay setting] Select the display format of date and time stamps on the image. For this function to work, you must also enable the Overlaid with date stamps and Overlaid with time stamps options in Figure 4-2B.

Note: When connecting to GV-System (V8.5.7.0 or later), the Daylight Saving Time of the camera can be synchronized automatically with that of GV-System by enabling Automatically adjust DST (Configure button < Camera Install < IP Camera Install).

Figure 4-37-1

GV-System: Configure button > Camera Install > IP Camera Install

GV-VMS: Toolbar > Configure > Camera Install > Setup button > General Setting

4.7.2 Storage Settings

Note this function is only supported by GV-LPR1200.

You can store the recognition results or images to the memory card slot in the camera. The image is stored in the JPEG compressed format.

Figure 4-38

Note: The captured images may be lost if you do not remove the memory card properly.

[Storage Settings]

■ Enable saving results on a memory Card: Enable this option to save the recognition results or images to the memory card.
■ Enable recycling: If this option is checked, the system will overwrite the oldest stored files when the space of the memory card is lower than the specified space. If this option is not checked, the system will stop recording when the specified space is reached.
- Keep days (3-365): Specify the number of days to keep the files from 3 day to 365 days. When both Keep days and Enable recycling are selected, the system applies whichever condition comes first. For example, if the specified smallest amount of storage space comes earlier than the designated keep days, then recycle is applied first.

■ Enable debug message to the storage: Debug message (see 4.7.4 Log Information) is deleted after reboot. Select this option to store log information to an inserted storage device.
■ Enable auto formatting when disk or partition is enabled to record: Select this option for the camera to automatically format the storage device when there is error during saving recognition results or images.

4.7.3 User Account

You can change the login name and password of Administrator and Guest accounts.

• The default Administrator login name and password are admin.
• The default Guest login name and password are guest. To allow a Guest user log in without entering the username and password, select Disable authentication for guest account.
  • To remain logged in after reboot, select Disable auto logout after reboot.
• The default FTP Server login name and password are lprftpserver. Note the FTP function is only supported by GV-LPR1200.

Figure 4-39

Note: You can also access this User Account interface simply by executing a CGI command. See Appendix A.

4.7.4 Log Information

The log contains dump data that is used by service personnel for analyzing problems.

Figure 4-40

4.7.5 Tools

This section allows you to execute certain system operations and view the firmware version.

Figure 4-41

[Host Settings] Enter a descriptive name for the camera.

[Auto Reboot Setup] Select Enable to activate automatic reboot and specify the time for reboot in the sub fields below.

■ Day Interval: Type the day interval between the reboots.
■ Reboot Time: Use the drop-down list to specify the time for automatic reboot.

[Firmware Update] This field displays the firmware version of the camera.

[System Settings] Click a Load Default button to restore the factory default settings with the network settings restored or not restored.

Note: After applying the default function, the default network connection will be DHCP or fixed IP (192.168.0.10) if the router does not support DHCP. Re-configure your network settings if necessary.

[Internal Temperature] This field displays the current chipset temperature inside the camera.

[Fan Status] This field shows whether the fan of the camera is enabled or not. Note this function is only supported by GV-LPC1200 / GV-LPR1200.

[Reboot] Click the Reboot button to reset the software configuration of the camera.

4.7.6 Language

You can select the language for the Web interface.

Figure 4-42

Use the Language drop-down list to select a language for the Web interface. By default, the language on the Web interface will be the same with the one used for the operating system.

Chapter 5 Advanced Applications

This chapter introduces more advanced applications.

5.1 Upgrading System Firmware

GeoVision periodically updates the latest firmware to the company website. You can update your camera firmware through the Web interface or GV-IP Device Utility included in the Software DVD.

Important Notes before You Start

Before you start updating the firmware, please read these important notes:

1. While the firmware is being updated, the power supply must not be interrupted.

WARNING: The interruption of power supply during updating causes not only update failures but also damages to your camera. In this case, please contact your sales representative and send your device back to GeoVision for repair.

1. Do not turn the power off within 10 minutes after the firmware has been updated.
2. If you use GV-IP Device Utility for firmware upgrade, the computer used to upgrade firmware must be under the same network as the camera.
3. Stop monitoring the camera.
4. Stop all the remote connections including Center V2, VSM (Vital Sign Monitor), ViewLog Server and 3GPP/RTSP.
5. Stop the connection to GV-System.
6. If firmware upgrade fails, you will need to restore the camera to its default settings. For details, see 5.3 Restoring to Factory Default Settings.

5.1.1 Using the Web Interface

1. In the Live View window, click the Show System Menu button (No. 8, Figure 3-2) and select Remote Config. This dialog box appears.

Figure 5-1

1. Click the Browser button to locate the firmware file (.img) saved at your local computer.
2. Click the Upgrade button to start upgrading.

5.1.2 Using the GV-IP Device Utility

The GV-IP Device Utility provides a direct way to upgrade the firmware to multiple cameras. Note the computer used to upgrade firmware must be under the same network with the cameras.

1. Insert the Software DVD, select GV IP Device Utility, and follow the onscreen instructions to install the program.
2. Double-click the GV IP Device Utility icon created on your desktop. This dialog box appears.

Figure 5-2

1. Click the Search button to locate the IP devices on the LAN or click the New button and assign the IP address to locate a camera on the network. Or highlight one IP device in the list and click the Delete button to remove it.

2. Click on the IP address of the camera and select Configure. This dialog box appears.

Figure 5-3

1. Click the Firmware Upgrade tab. This dialog box appears.

Figure 5-4

1. Click the Browse button to locate the firmware file (.img) saved at your local computer.

2. If you like to upgrade all the cameras in the list, check Upgrade all devices.

3. Type Password, and click Upgrade to start the upgrade.

5.2 Backing Up and Restoring Settings

With the GV-IP Device Utility included on the GV-IP LPR Camera Software CD, you can back up the configurations in the camera, and restore the backup data to the current unit or import it to another unit.

To back up the settings

1. Run GV IP Device Utility and locate the desired camera. See Steps 1-3 in 5.1.2 Using the GV-IP Device Utility.
2. Double-click the camera in the list. Figure 5-3 appears.
3. Click the Export Settings tab. This dialog box appears.

Figure 5-5

1. Click the Browse button to assign a file path.
2. Type Password, and click Export Settings to save the backup file.

To restore the settings

1. In Figure 5-3, click the Import Settings tab. This dialog box appears.

Figure 5-6

1. Click the Browse button to locate the backup file (.dat).
2. Select Upgrade all devices to import the settings into the same type of device in the same LAN. To import password settings and/or network settings, select Password Settings and/or Network settings.
3. Click the Upgrade setting button to start restoring.

5.3 Restoring to Factory Default Settings

To restore the factory default settings, you can use the camera's Web interface or operate directly on the camera.

5.3.1 Using the Web Interface

Follow the steps below to restore the factory default settings through the camera's Web interface.

1. In the left menu of the Web interface, Click Tools.
2. In System Settings field, click the Load Default button to restore the factory default settings.

5.3.2 Directly on the Camera

You can alternatively press the default button inside the camera.

1. Keep the power and network cables connected to the camera.
2. Loosen the camera's cover.
3. Press and hold the default button for 8 seconds.

GV-IP LPR Camera 5R

Close-up of an electronic circuit board with capacitors, resistors, and connectors (no visible text or symbols)

GV-LPC1100 / GV-LPC2210
Default Button

GV-LPC2211 / 2011

Close-up of a computer motherboard with visible circuitry and wiring (no readable text or symbols)

GV-LPC1200 / GV-LPR1200
Figure 5-7

1. Release the default button. When the process of loading default settings is completed, the camera reboots automatically.
2. Insert a new Silica Gel bag and fasten the camera's cover immediately. For details, see Replacing Silica Gel Bag in the respective camera section in Chapter 1.

5.4 Verifying Watermark

Note this function is not available in GV-LPC 2211 / 2011. The watermark is an encrypted and digital signature embedded in the video stream during the compression stage, protecting the video from the moment of creation. Watermarking ensures that an image is not edited or damaged after it is recorded. To enable the watermark function, see Watermark Setting, 4.1.1 Video Settings.

The Watermark Proof is a watermark-checking program. It can verify the authenticity of the recording before you present it in court.

5.4.1 Accessing AVI Files

To verify watermark, access the recorded AVI files by one of the following methods:

1. Use the File Save function (No. 6, Figure 3-2) to start recording on the local computer.
2. Locate recorded files on the GV-System.

5.4.2 Running Watermark Proof

1. Install Watermark Proof from the GV-IP LPR Camera Software CD. After installation, a WMProof icon is created on your desktop.
2. Double-click the created icon. The Water Mark Proof window appears.
3. Click File from the menu bar, select Open and locate the recording (.avi). The selected recording is then listed on the window. Alternatively, you can drag the recording directly from the storage folder to the window.
4. If the recording is unmodified, a check mark will appear in the Pass column. On the contrary, if the recording is modified or does not contain watermark during recording, a check mark would appear in the Failed column. To review the recording, double-click the listed file on the window.

5.4.3 The Watermark Proof Window

Figure 5-8

The controls in the window:

No.	Name Description
1	Open File Opens the recording.
2	First Frame Goes to the first frame of the file.
3	Play Plays the file.
4	Previous Frame Goes to the previous frame of the file.
5	Next Frame Goes to the next frame of the file.
6	Previous Watermarked Frame	Goes to the previous frame that contains watermark.
7	Next Watermarked Frame	Goes to the next frame that contains watermark.
8	Original vs. Extracted	The Extracted icon should be identical with the Original icon. If not, it indicates the recording has been tampered.
9	File List Displays the proof	results.

Chapter 6 DVR Configurations

The GV-IP LPR Camera can deliver live view images, date and time or even recognized plate numbers to the GV-System (GV-DVR/NVR) / GV-VMS for security surveillance. The following is the integration specifications:

• Regarding the compatible GV-System and GV-VMS versions for your camera, refer to System Requirements in Chapter 1 for respective cameras.
  • The camera allows for up to 8 streams of connection.
• When a camera is connected to a Web browser or any other applications, it takes up 1 stream; when it is connected to GV-System, it takes up 2 streams. When GV-LPR1200 is connected to GV-ASManager, it takes up 2 streams.

Note:

1. By default, the camera is in dual streams and will take up 2 streams when connected to GV-System / GV-VMS.
2. GV-System (GV-DVR/NVR) / GV-VMS can turn out to be a license plate recognition system PC LPR when installed with LPR Plugin program and GV-LPR Capture Dongle. The recognition function is only supported on GV-VMS V15.10 or later.

- The hardware compression and the "Pre-Recording Using RAM" feature cannot work on the videos from the camera. For details about the "Pre-Recording Using RAM" feature, see System Configuration, Chapter 1, DVR User's Manual on the GV-NVR Software DVD.

6.1 Setting Up IP Cameras on GV-System

Follow the steps below to manually connect your camera to GV-System.

Note: The following instructions are based on V8.5.7.0 software and user interfaces.

1. On the GV-System's main screen, click the Configure button, select System Configure, select Camera Install and click IP Camera Install. This dialog box appears.

Figure 6-1

• To automatically set up an IP camera, click Scan Camera to detect any IP cameras on the same LAN.
  • To manually set up an IP camera, click Add Camera.
  • To import IP cameras from the GV-IP Device Utility, click Import Camera.
  • To map IP devices through the GV-IP Device Utility program, click IP Device Utility.
  • To add all IP cameras within the IP address range, click Automatic Setup.

• Click Add Camera. This dialog box appears.

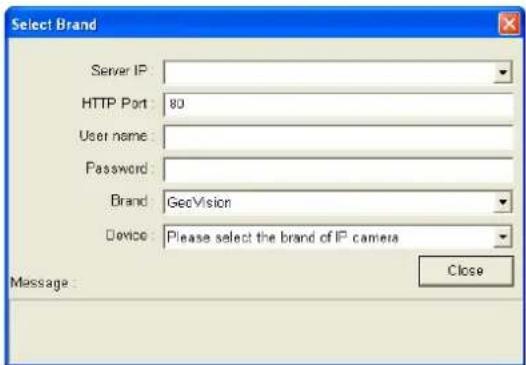

Figure 6-2

1. Type the IP address, username and password of the camera. Modify the default HTTP port if necessary.

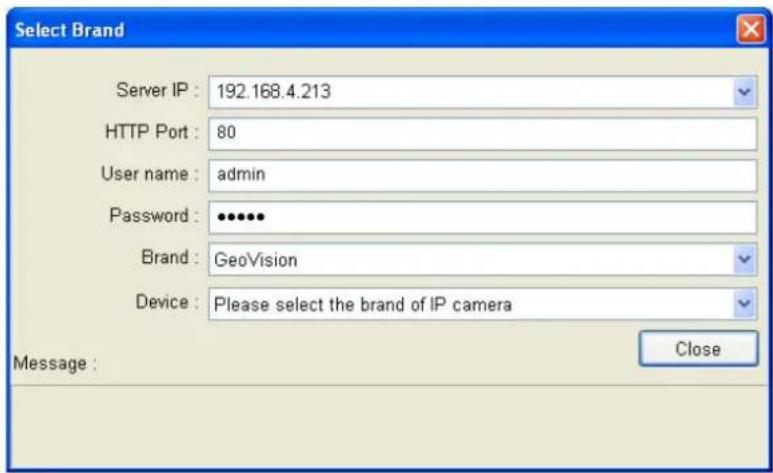

Figure 6-3

1. Select GeoVision from the Brand drop-down list and select your camera from the Device drop-down list. This dialog box appears.

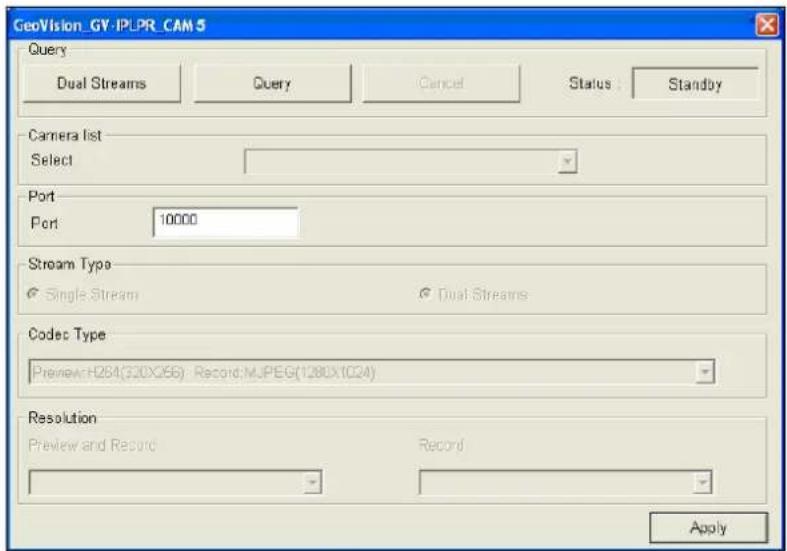

Figure 6-4

■ Dual Streams: Click this button to set the codec type to MJPEG in the main stream and to H.264 in the sub stream with the resolutions listed below.
■ Port: Modify the video streaming port number if necessary.
■ Stream Number: Click the Query button and select Single Stream or Dual Streams.
■ Codec type: The live view codec and resolution settings are displayed here.
■ Resolution: Select resolutions for preview and recording.

1. Click Apply. The camera is added to the list.

2. Click the listed camera, select Display position and select a channel number to map the camera to a channel on the GV-System.

Figure 6-5

1. The Status column now should display "Connected". Click OK. The dome view is displayed on the selected channel of GV-System.

6.1.1 Customizing Camera Settings

After the camera is connected and assigned with a display channel, you can configure the camera's settings such as frame rate, codec type and resolution. Right-click the camera to see the following list of options:

Figure 6-6

■ Change Setting: Changes the IP address, port number, username and password of the camera. This function is only available when the camera is disconnected.
■ Change Resolution: Changes the display ratio, live view resolution and record resolution.
■ Remote camera setting: Accesses the configuration interface of the connected camera.
■ Network Time Out: When network disconnection exceeds the specified time period, the camera status will be displayed as Connection Lost.
■ On Demand Display: Enables automatic adjustment of live view resolution and produces good image quality without causing high CPU usage.
■ Change live view codec: Changes the live view codec.
■ Change record codec: Changes the recording codec.
■ Live view decode postpone time: Specifies the number of milliseconds to postpone live view decoding. When network connection with the camera is unstable or when the time length between frames is not evenly distributed, postponing the live view decoding will make the video smoother.
■ Frames to keep in live view buffer: Specifies the number of frames to keep in the live view buffer.
■ Recording Codec Format: Specifies whether to record in standard or GeoVision type of JPEG, H.264 codec.

- Automatically Adjust DST: If enabled, the time on the camera's Web interface will be synchronized with the time of the GV-System when DST period starts or ends on the GV-System.

6.2 Setting Up IP Cameras on GV-VMS

Follow the steps below to manually connect your camera to GV-VMS.

Note:

1. The License Plate Recognition function is not supported on GV-VMS.

2. The following instructions are based on V14.10 software and user interfaces.

3. To access the IP Device Setup page, click Home 📄, select Toolbar , click Configure 🌐 and select Camera Install.

Figure 6-7

1. Click Add Camera ☐. This dialog box appears.

Figure 6-8

1. Type the IP address, username and password of the IP camera. Modify the default HTTP port 80 if necessary.
2. Select a camera brand and model name from the Brand and Device drop-down lists respectively. This dialog box appears.

Note: For the GV-IP LPR Camera 5R, select GV-IPLPRCam5.

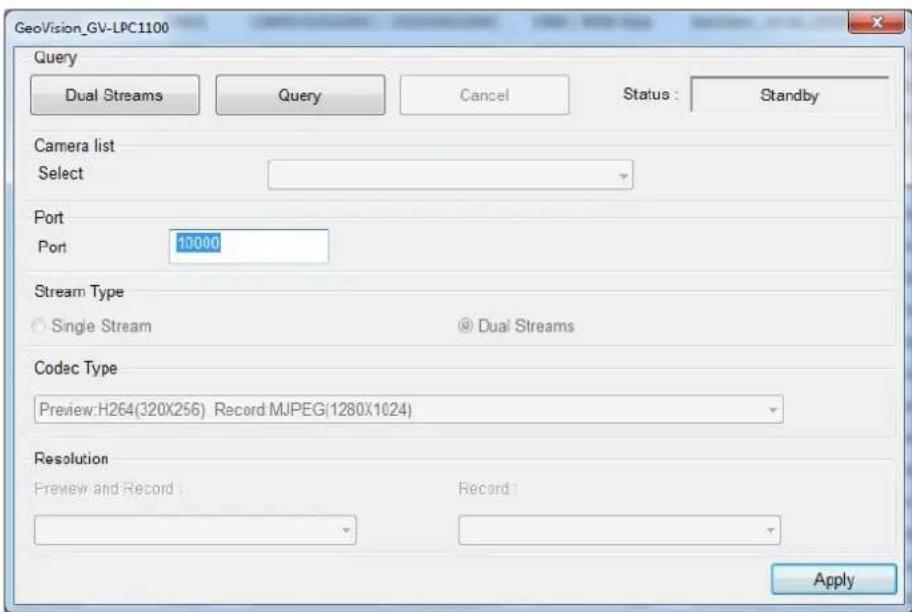

Figure 6-9

1. In the dialog box, configure the options which may vary depending on camera brands.

■ Dual Streams: The camera is set to dual streams by default. Select this option to apply the dual-streaming settings (lower resolution for live view and higher resolution for recording) if the camera supports dual streams.
■ Query: Detect and apply the current codec and resolution setting on the camera. This function may not be available for some third-party cameras.
■ Camera list: Select a camera number.
■ Port: Modify the video streaming port number if necessary.
■ Stream Type: You may have the option of Single Stream or Dual Streams depending on camera models.
■ Codec Type: You may have different codec options depending on camera models. If the selected camera supports dual streaming, the live view codec and recording codec can be set differently.
■ Resolution: You may select the different resolutions for live view and recording.

1. Click Apply to add the IP camera to the IP Device List.

2. To connect the added camera, click the box besides the ID column. Upon successful connection, the Status icon shows green, with the video resolution and bit rate being displayed in the correspondent columns.

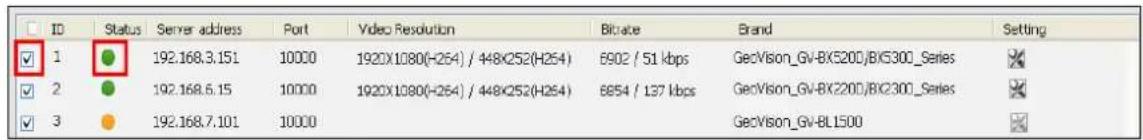

Figure 6-10

6.3 Remote Monitoring with Multi View

Note that Multi View is only supported by GV-IP LPR Camera 5R / GV-LPC1100. You can monitor the live view of the camera using the Multi View.

Connecting to the Camera

The Multi View program is available in the GV-System applications, and is also included in the Software DVD as an independent program. The following is an example of running the Multi View through WebCam Server on the GV-System.

1. To enable the remote access to the GV-System, click the Network button, select WebCam Server to display the Server Setup dialog box, and click OK to start the WebCam server.
2. At the local computer, open the Web browser and type the IP address of the GV-System. The Single View page appears.
3. Select Multi View and the desired viewing resolution. The valid user name and password are required for login. For the first-time user, you will be directed to the Download page. Install the Multi View program before you can run it.
4. On the Multi View window, click the Edit Host button. The Edit Host window appears.

5. To create a host, click the New button. You need to create a group before creating a host.

6. Select GV-IP Camera, GV-IP Speed Dome from the Device drop-down list. Type the host name, IP address, user name and password of the camera. Modify the default VSS port 10000 if necessary.

Figure 6-11

1. Click Save to establish connection.

For details on the Multi View functions, see Multi View Viewer, Chapter 8, DVR User's Manual on the GV-NVR Software DVD.

6.4 Remote Monitoring with E-Map

You can use the Remote E-Map to monitor the camera.

Creating an E-Map for the Camera

With the E-Map Editor, you can create an E-Map for the camera. The E-Map Editor is available in the two applications: Main System and E-Map Server. The following is an example of running the E-Map Editor from the Main System.

1. Go to Windows Start menu, point to Programs, select GV folder and click E-Map Editor.
2. To create an E-Map, click the Add Map button on the toolbar. A New Map file appears.
3. Double-click the New Map file, and click the Load Map button on the toolbar to import a graphic file.
4. To create a host, click the Add Host button on the toolbar and select Add Video Server.
5. Right-click the created New Host in the Host View, and select Host Settings. This dialog box appears.

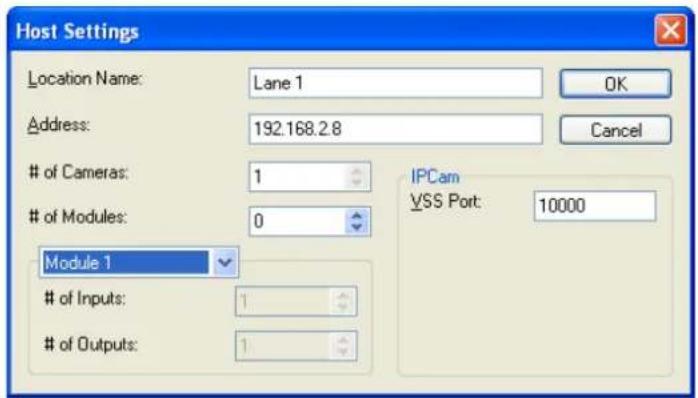

Figure 6-12

1. Give the camera a location name, and type its IP address (or domain name). Keep the default VSS port 10000, or modify it to match that of the camera.

2. Click OK to save the settings.

3. Expand the created host folder. Drag and drop the camera icon onto the imported E-Map.

4. Close the E-Map Editor. Click Yes when you are prompted to save the file.

For details on creating an E-Map file on the E-Map Server, see E-Map Server, Chapter 9, DVR User's Manual on the GV-NVR Software DVD.

Connecting to the Camera

Depending on where you save the created E-Map file (GV-System, E-Map Server or Control Center), the steps to open the Remote E-Map window for monitoring may vary slightly. The following is the connection example when you store the E-Map file in the GV-System.

1. To enable the remote access to the GV-System, click the Network button, select WebCam Server to display the Server Setup dialog box, and click OK to start the WebCam server.
2. At the local computer, open the Web browser and type the address of the GV-System. The Single View page appears.
3. Select Remote eMap. The valid user name and password are required for login. For the first-time user, you will be directed to the Download page. Install the E-Map program before you can run it.
4. On the Remote E-Map window, click the Login button and select the camera host to access its videos. The valid user name and password are required to log in the camera.

For details on the Remote E-Map functions, see The Remote E-Map Window, Chapter 9, DVR User's Manual on the GV-NVR Software DVD.

Chapter 7 CMS Configurations

This section introduces the related settings to enable connecting to the camera in the central monitoring stations Center V2 and VSM and Dispatch Server.

7.1 Center V2

The Center V2 can monitor the camera.

Figure 7-1

To set the appropriate port connecting to the camera, click the Preference Settings button, select System Configure, click the Network tab, and check Accept connections from GV-Compact DVR, Video Server & IP Cam. Keep the default port 5551 for the Port 2 option, or modify it to match the Center V2 port on the camera.

Figure 7-2

To define how to display the received video on motion detection, click the Preference Settings button and select System Configure. This dialog box appears.

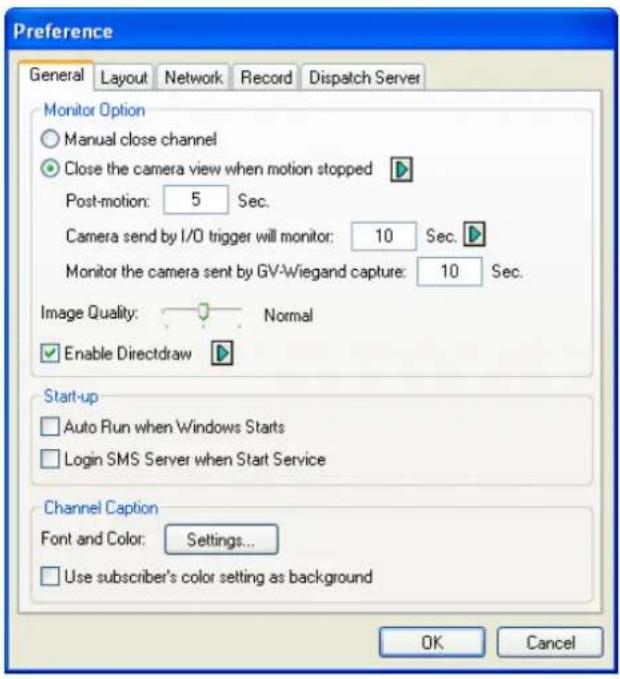

Figure 7-3

■ Manual close channel: Closes the triggered camera view manually.
■ Close the camera view when motion stopped: Closes the triggered camera view automatically when motion stops.
■ Post Motion: Specify the duration of the camera view remaining on the monitoring window after motion stops.
■ Camera send by I/O trigger will monitor: This feature is functional for cameras with I/O function only.

For further information on how to mange the received video from the camera, see GV-CMS Series User's manual.

7.2 Vital Sign Monitor

The Vital Sign Monitor can monitor the camera.

Figure 7-4

To set the appropriate port connecting to the camera, click Configure on the window menu, and select System Configure to display this dialog box. In the Connective Port field, keep the default value 5609 for the Port 2 option, or modify it to match the VSM port on the camera.

Figure 7-5

For further information on how to mange the received video from the camera, see GV-CMS Series User's manual.

7.3 Dispatch Server

The Dispatch Server can manage the camera and distribute them to the Center V2.

Figure 7-6

To enable connecting to the camera, click the Server Setting button on the toolbar, and enable Allow GV IP devices to login as subscriber from Port. Keep the default port 5551, or modify it to match the Center V2 port on the camera.

Figure 7-7

For further information on how to mange the received video from the camera, see GV-CMS Series User's manual

Chapter 8 Smart Device Connection

You can access the live view on your mobile devices using the mobile application GV-Eye. Android Smartphone, tablet, iPad, iPhone and iPod Touch are supported.

For details on system requirements, installation and setup, visit our website:

http://www.geovision.com.tw/english/5_8_App.asp

Chapter 9 GV-ASManager Connection

GV-LPR1200 and PC LPR can recognize license plates detected in the video source, and send the LPR results to GV-ASManager. Access can be granted when the detected license plate numbers match the vehicles registered in GV-ASManager's database. Before setting up GV-LPR1200 on GV-ASManager, see 4.3.10 Registry Database to enable the Registry Database for data comparison.

Note:

1. GV-LPR1200 is only compatible with GV-ASManager V4.3.0.0 or later.
2. GV-LPC2210 is only compatible with GV-ASManager V4.3.5.0 or later
3. For GV-IP LPR Camera 5R / GV-LPC1100 / GV-LPC1200 / GV-LPC2210 / 2211 / 2011, you can connect the camera to PC LPR system to perform the license recognition.

Follow the steps below to add GV-LPR1200 to GV-ASManager.

1. On the menu bar, click Setup and select Devices. This dialog box appears.

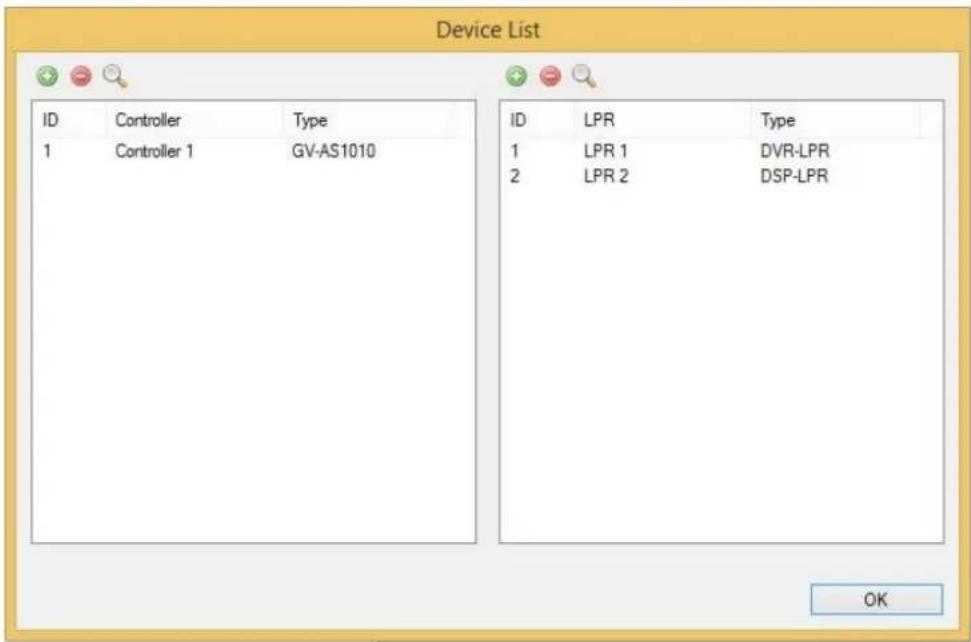

Figure 9-1

Note: You can also click the Search button to search for GV-LPR1200 detected under the same LAN.

1. On the right pane for LPR, click the Add button +. This dialog box appears.

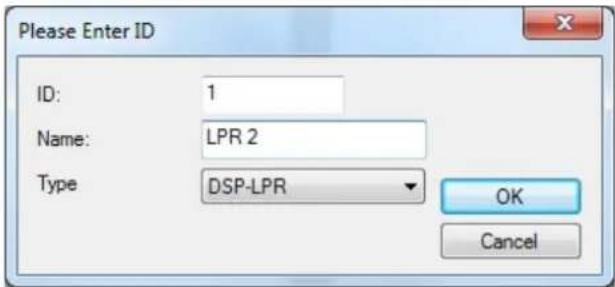

Figure 9-2

1. Type an ID number and Name for the LPR.
2. Use the drop-down list to select DSP-LPR.
3. Click OK. The LPR Setup page appears.

Figure 9-3

1. Assign the GV-LPR1200 to a Data Group if needed or select No Groups to disable the data group function. You can then allow or forbid a user to read / write / execute the functions assigned under the data group. Refer to 8.1 Setting Up System User, Chapter 8 in GV-ASManager User Manual for more details.
2. Under Connection, type the IP Address, User name and Password of the GV-LPR1200. You can also click the Search button to search for GV-LPR1200 detected in the same LAN.
3. You can modify the following settings if necessary.

■ Https Port: The default Https port is 443.

■ VSS Port: The default VSS port is 10000.

For the details on connecting GV-LPR1200 to GV-ASManger, see 13.3.2 Step 2: Adding GV-GV-DSP LPR to GV-ASManager and 13.3.3 Step 3: Configuring a Channel, Chapter 13 in GV-ASManager's User Manual.

For details on creating a vehicle database, see 13.4 Adding Vehicles, Chapter 13 in GV-ASManager's User Manual.

Specifications

GV-IP LPR Camera 5R

Camera
Image Sensor		1/3” B/W progressive scan CMOS
Picture Elements		1280 (H) x 1024 (V)
Camera Type		B/W
Shutter Speed		Automatic, Manual (1/500 ~ 1/8000 sec)
White Balance		Auto / Manual (2800K ~ 8500K)
S/N Ratio		50 dB
Max. Speed		60 km/h (37 mph)
Lens
Megapixel		1.3 MP
Lens Type		Motorized varifocal lens
Focal Length		3 ~ 9 mm
Maximum Aperture		F/1.2
Mount		Ø14 mm
Image Format		1/2.7"
Operation	Focus	Auto Focus
	Zoom	3x Optical Zoom
	Iris	DC drive
IR LED Quantity		12
Max. IR Distance		5 m (16.4 ft.)
Operation
Video Compression		H.264, MJPEG
Video Stream		Dual streams from H.264 and MJPEG
Frame Rate		30 fps at 1280 x 1024*The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes)
Image Setting		Brightness, Contrast, Sharpness, Gamma, Image Orientation, Shutter Speed, Defog, Zoom, Focus Change
Audio Support		N/A
Video Resolution
Main Stream	4:3	1280 x 960, 640 x 480, 320 x 240
	16.9	1280 x 720, 640 x 360, 448 x 252
	5:4	1280 x 1024, 640 x 512, 320 x 256
Sub Stream	4:3	640 x 480, 320 x 240
	16.9	640 x 360, 448 x 252
	5:4	640 x 512, 320 x 256
TV-Out		N/A
Network
Interface		10/100 Base-T Ethernet, RJ-45 connector
Protocol		DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), PSIA, QoS (DSCP), RTSP, SMTP, SNMP, TCP, UDP, UPnP, 3GPP/ISMA
Mechanical
Temperature Detector		Yes
Camera Angle Adjustment	Pan	0° ~ 360°
	Tilt	90° ~ 180°
	Rotate	0° ~ 360°
Connectors	Power	PoE
	Ethernet	RJ-45
	Audio	N/A
	Digital I/O	N/A
LED Indicator		No
General
Operating Temperature		-20°C ~ 50°C (-4°F ~ 122°F)
Humidity		10% ~ 90% (non-condensing)
Power Source		PoE+ (IEEE802.3at)
Max. Power Consumption		16.6 W
Dimensions	Camera Body	289.02 x 87.75 x 148.95 mm (11.4 x 3.45 x 5.86")
	Cable Length	1 m (3.28 ft)
	Max. Cable Diameter	ø 7.1 mm (0.28")
	Max. Connector Diameter	ø 25.2 mm (0.99")
Weight		1.4 kg (3.08 lb)

General
Ingress Protection	IP67
Vandal Resistance	IK10 for metal casing
Fan	Constantly On
Regulatory	CE, FCC, C-Tick, RoHS compliant
Power over Ethernet
PoE Standard	IEEE 802.3at Power over Ethernet / PD
PoE Power Supply Type	End-Span
PoE Power Output	DC 48V, 345mA (16.6 W Max.)
Web Interface
Installation & Management	Web-based configuration
Firmware Upgrade	Remote upgrade through Web Browser or GV-IP Device Utility included in the Software DVD
Access from Web Browser	Live View, Video Quality, Bandwidth Control, Image Snapshot, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay
Language	Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
Applications
Network Storage	GV-System (GV-DVR/NVR), GV-VMS, GV-Recording Server
Smart Device Access	- GV-Eye for Android and iOS- Embedded 3GPP/ISMA browser
Live Viewing	IE, Chrome, Firefox, Edge, Safari, GV-MultiView
CMS Server support	GV-Control Center, GV-Center V2, GV-Vital Sign Monitor
Note: All specifications are subject to change without notice.

GV-LPC1100

Camera
Image Sensor		1/3” B/W progressive scan CMOS
Picture Elements		1280 (H) x 1024 (V)
Camera Type		B/W
Shutter Speed		Automatic, Manual (1/500 ~ 1/8000 sec)
White Balance		Auto / Manual (2800K ~ 8500K)
S/N Ratio		50 dB
Max. Speed		120 km/h (75 mph)
Lens
Megapixel		1.3 MP
Lens Type		Motorized varifocal lens
Focal Length		9 ~ 22 mm
Maximum Aperture		F/1.2
Mount		Ø14 mm
Image Format		1/2.7"
Operation	Focus	Auto Focus
	Zoom	3x Optical Zoom
	Iris	P-Iris
IR LED Quantity		4 high power IR LEDs
IR Distance		8 ~ 10 m (26.2 ~ 32.8 ft)
Operation
Video Compression		H.264, MJPEG
Video Stream		Dual streams from H.264 and MJPEG
Frame Rate		30 fps at 1280 x 1024*The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes)
Image Setting		Brightness, Contrast, Sharpness, Gamma, Image Orientation, Shutter Speed, Defog
Audio Compression		G.711, AAC (Optional)
Audio Support		Two-way audio
Video Resolution
Main Stream	4:3	1280 x 960, 640 x 480, 320 x 240
	16.9	1280 x 720, 640 x 360, 448 x 252
	5:4	1280 x 1024, 640 x 512, 320 x 256
Sub Stream	4:3	640 x 480, 320 x 240
	16.9	640 x 360, 448 x 252
	5:4	640 x 512, 320 x 256
TV-Out		NTSC, PAL BNC connector (640 x 480 resolution)
Network
Interface		10/100 Base-T Ethernet, RJ-45 connector
Protocol		DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), PSIA, QoS (DSCP), RTSP, SMTP, SNMP, TCP, UDP, UPnP, 3GPP/ISMA
Mechanical
Temperature Detector		Yes
Camera Angle Adjustment	Pan	0° ~ 360°
	Tilt	90° ~ 180°
Connectors	Power	DC 48V, High PoE (PoE++, 120 W)
	Ethernet	RJ-45
	Audio	1 In (externally connecting a microphone)1 Out (Stereo phone jack, 3.5 mm / 0.14")
	Digital I/O	1 In / 1 Out
	TV-Out	BNC connector (640 x 480 resolution)*The TV-Out function only works in 640 x 480 resolution.For TV-Out to work properly, you must set the video resolution to 1280 x 1024 or lower. If both streams are enabled, the Sub Stream must be set to 640 x 480.
LED Indicator		N/A
General
Operating Temperature		-40°C ~ 50°C (-40°F ~ 122°F)
Humidity		10% ~ 90% (non-condensing)
Power Source		DC 48V 2.5A, High PoE (PoE++, 120 W)
Max. Power Consumption		50 W
Dimensions	Without support rack	406 x 145 x 109 mm (16" x 5.7" x 4.3")
	Cable Length	1 m (3.28 ft)
Weight	With support rack	3.32 kg (7.32 lb)
	Without support rack	2.62 kg (5.78 lb)
Ingress Protection		IP67
Vandal Resistance		IK10 for metal casing
Heater On		-40°C ~ 8°C (-40°F ~ 46.4°F)
Fan		Constantly On
Regulatory		CE, FCC, C-Tick, RoHS compliant
Power over Ethernet
PoE Standard		High Power Over Ethernet / PD
PoE Power Supply Type		Mid-Span
PoE Power Output		DC 48V, 2.5A (120 W Max.)
Web Interface
Installation & Management		Web-based configuration
Firmware Upgrade		Remote upgrade through Web BrowserGV-IP Device Utility included in the Software DVD
Access from Web Browser		Live View, Video Quality, Bandwidth Control, Image Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay
Language		Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Application
Network Storage	GV-System (GV-DVR/NVR), GV-VMS, GV-Recording Server
Smart Device Access	- GV-Eye for Android and iOS- Embedded 3GPP/ISMA browser
Live Viewing	IE, Chrome, Firefox, Edge, Safari, GV-MultiView
CMS Server support	GV-Control Center, GV-Center V2, GV-Vital Sign Monitor
GV-PA482
PoE Standard	High Power Over Ethernet (PoE++) / PSE
PoE Power Output	DC 48V, 2.5A (120 W Max.)
Ethernet Cable Length	Max 100 m (32.8 ft) from GV-PA482 to IP device, CAT5e
Power Input	AC 100V ~ 240V, 2.5A
Operating Temperature	-10°C ~ 50°C (14°F ~ 122°F)
Dimensions (L x W x H)	43 x 69 x 40 mm (1.69 x 2.72 x 1.57")
Weight	130 g (0.29 lb)
Note: All specifications are subject to change without notice.

GV-LPC1200 / LPR1200

Camera
Image Sensor		Megapixel B/W progressive scan CCD
Picture Elements		1280 (H) x 720 (V)
Camera Type		B/W
Shutter Speed		Automatic: 1/1000 ~ 1/10000 secManual: 1/250 ~ 1/2000 sec
S/N Ratio		52 dB
Max. Speed		200 km/h (124.27 mph)
Lens
Megapixel		1 MP
Lens Type		Motorized varifocal lens
Focal Length		4.7 mm ~ 47 mm
Maximum Aperture		F/3.5
Image Format		1.3"
Horizontal FOV		59.9° ~ 6.4°
Operation	Focus	Auto
	Zoom	10x optical zoom
	Iris	Auto
IR LED Quantity		8 high power IR LEDs
IR Distance		10 ~ 20 m (32.8 ~ 65.6 ft)
Operation
Video Compression		H.264, MJPEG
Video Stream		Dual streams from H.264 and MJPEG
Frame Rate		30 fps at 1280 x 720*The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes)
Image Setting		Brightness, Contrast, Sharpness, Gamma, Image Orientation, Shutter Speed, Defog, Maximum Video Gain
Audio Compression		G.711, AAC (Optional)
Audio Support		Two-way audio
Video Resolution
Main Stream		1280 x 720 (16:9)
Sub Stream		640 x 360 (16:9)
TV-Out		BNC connector (640 x 480 resolution)
Network
Interface		10/100/1000 Base-T Ethernet, RJ-45 connector
Protocol		DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), PSIA, QoS (DSCP), RTSP, SMTP, SNMP, TCP, UDP, UPnP, 3GPP/ISMA
Mechanical
Temperature Detector		Yes
Camera Angle Adjustment	Pan	0° ~ 330°
	Tilt	0° ~ 90°
	Power	DC 12V
	Ethernet	RJ-45
	Audio	1 In (microphone jack, 3.5 mm / 0.14")1 Out (stereo phone jack, 3.5 mm / 0.14")
	Digital I/O	2 In / 2 Out
	RS-485	For GV-LPR1200 recognition data output only:RS-485+ / RS-485-
Connectors	Local Storage	For GV-LPR1200 only:Micro SD card slot (SD/SDHC, SD version 2.0 only, Class 10)* SDXC and UHS-I card types are not supported.* GV-LPR1200 does not record videos to the memory card.
	TV-Out	BNC connector (640 x 480 resolution)
	Mini USB	Mini USB port on the circuit board (for UMTS)
LED Indicator		N/A
General
Operating Temperature		-40°C ~ 50°C (-40°F ~ 122°F)
Humidity		10% ~ 90% (non-condensing)
Power Source		DC 12V, 5A
Max. Power Consumption		54 W
Dimensions	Without support rack	406 x 145 x 109 mm (16" x 5.7" x 4.3")
	Cable Length	1 m (3.28 ft)
Weight	With support rack	3.32 kg (7.32 lb)
	Without support rack	2.62 kg (5.78 lb)
Ingress Protection		IP67
Vandal Resistance		IK10 for metal casing
Heater On		-40°C ~ 5°C (-40°F ~ 41°F)
Fan		Constantly On
Regulatory		CE, FCC, RCM, RoHS compliant
Region of License Plate		For GV-LPR1200 only:Australia / Austria / Belgium / Brazil / Bulgaria / Chile / China / Columbia / Cyprus / Czech / France / Germany / Guernsey / Hungary / Ireland / Italy / Israel / Mexico / New Zealand / Hong Kong / Norway / Holland / Poland / Portugal / Qatar / Russia / South Africa / Spain / Taiwan / UK / USA / Slovakia / Argentina
Web Interface
Installation & Management		Web-based configuration
Firmware Upgrade		Remote upgrade through Web BrowserGV-IP Device Utility included in the Software DVD
Access from Web Browser		Live View, Video Quality, Bandwidth Control, Image Snapshot, Audio, Picture in Picture, Picture and Picture, Text Overlay
Language		Arabic / Bulgarian / Czech / Danish / Dutch / English / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Application
Network Storage	GV-System (GV-DVR/NVR), GV-VMS, GV-Recording Server
Smart Device Access	- GV-Eye for Android and iOS- Embedded 3GPP/ISMA browser
Live Viewing	IE, Chrome, Firefox, Edge, Safari, GV-Edge Recording Manager
CMS Server support	GV-Control Center, GV-Center V2, GV-Vital Sign Monitor
LPR Management	GV-ASManager
Note: All specifications are subject to change without notice.

GV-LPC2210

Camera
Image Sensor		1/2.8” progressive scan super low lux CMOS
Picture Elements		1920 (H) x 1080 (V)
Camera Type		Color, B/W
Shutter Speed		Automatic, Manual (1/120 ~ 1/2000 sec)
White Balance		Auto / Manual (2800K ~ 8500K)
S/N Ratio		52 dB
Max. Speed		120 km/h (75 mph)
Lens
Megapixel		2 MP
Lens Type		Motorized varifocal lens
Focal Length		9 ~ 22 mm
Maximum Aperture		F/1.2
Mount		Ø14 mm
Image Format		1/2.7"
Horizontal FOV		38° ~ 18°
Operation	Focus	Auto Focus
	Zoom	2.5x Optical Zoom
	Iris	P-Iris
IR LED Quantity		4 high power IR LEDs
IR Distance		10 ~ 20 m (32.8 ~ 65.6 ft)
Operation
Video Compression		H.264, MJPEG
Video Stream		Dual streams from H.264 and MJPEG
Frame Rate		30 fps at 1920 x 1080*The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes)
Image Setting		Brightness, Contrast, Saturation, Sharpness, Gamma, Auto Exposure, White Balance, Flicker less, Image Orientation, Shutter Speed, Maximum Video Gain, D/N Sensitivity, Denoise, Defog, Metering
Audio Compression		G.711, AAC (Optional)
Audio Support		Two-way audio
Video Resolution
Main Stream	4:3	1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
	16.9	1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
	5:4	1280 x 1024, 640 x 512, 320 x 256
Sub Stream	4:3	640 x 480, 320 x 240
	16.9	640 x 360, 448 x 252
	5:4	640 x 512, 320 x 256
TV-Out		NTSC, PAL (640 x 480 resolution)
Network
Interface		10/100 Base-T Ethernet, RJ-45 connector
Protocol		HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF (Profile S)
Mechanical
Temperature Detector		Yes
Camera Angle Adjustment	Pan	0° ~ 270°
	Tilt	0° ~ 70°
Connectors	Power	DC 48V, AC 24V (optional), High PoE (PoE++, 120 W)
	Ethernet	RJ-45
	Audio	1 In (Stereo phone jack, 3.5 mm / 0.14")1 Out (Stereo phone jack, 3.5 mm / 0.14")
	Digital I/O	1 In / 1 Out
	TV-Out	BNC connector (640 x 480 resolution)
LED Indicator		N/A
General
Operating Temperature		-40°C ~ 50°C (-40°F ~ 122°F)
Humidity		10% ~ 90% (non-condensation)
Power Source		DC 48V 2.5A, AC 24V 3A (optional), High PoE (PoE++, 120 W)*If you require AC 24V 3A for optional operation, please specify upon ordering for the correct value of capacitance to be placed in the camera.
Max. Power Consumption		50 W
Dimensions	Without support rack	406 x 145 x 109 mm (16" x 5.7" x 4.3")
	Cable Length	1 m (3.28 ft)
Weight	With support rack	3.32 kg (7.32 lb)
	Without support rack	2.62 kg (5.78 lb)
Ingress Protection		IP67
Vandal Resistance		IK10 for metal casing
Heater On		-40°C ~ 8°C (-40°F ~ 46.4°F)
Fan		Constantly On
Regulatory		CE, FCC, RCM, RoHS compliant
Power over Ethernet
PoE Standard		High Power Over Ethernet (PoE++) / PD
PoE Power Supply Type		Mid-Span
PoE Power Output		DC 48V, 2.5A (120 W Max.)
Note: Optionally purchasing GV-PA482 PoE Adapter is required for applying PoE function.
Web Interface
Installation & Management		Web-based configuration
Firmware Upgrade		Remote upgrade through Web BrowserGV-IP Device Utility included in the Software DVD
Access from Web Browser		Live View, Video Recording, Video Quality, Bandwidth Control, Image Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text Overlay
Language		Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
Application
Network Storage		GV-System (GV-DVR/NVR), GV-VMS, GV-Recording Server
Smart Device Access		- GV-Eye for Android and iOS- Embedded 3GPP/ISMA browser
Live Viewing		IE, Chrome, Firefox, Edge, Safari
CMS Server support		GV-Control Center, GV-Center V2, GV-Vital Sign Monitor
LPR Management		GV-ASManager
Note: All specifications are subject to change without notice.

GV-LPC2211 / 2011

Camera LPC2211 LPC2011
Image Sensor		1/2.8" progressive scan super low lux CMOS
Picture Elements		1920 (H) x 1080 (V)
Camera Type		Color, B/W
Minimum Illumination	Color 0.05 Lux
	B/W	0.04 Lux
	IR ON 0 Lux
Shutter Speed		Automatic, Manual(1/120 ~ 1/2000 sec)
White Balance		Auto / Manual (2800K ~ 8500K)
S/N Ratio		56 dB
Max. Speed		120 km/h (75 mph) 60 km/h	(37 mph)
Lens LPC2211 LPC2011
Megapixel		2 MP
Lens Type		Motorized varifocal lens
Focal Length		9 ~ 22 mm 3 ~ 9 mm
Maximum Aperture		F/2.0 ~ F/3.5 F/1.7
Mount		Ø14 mm
Image Format		1/2.7"
Horizontal FOV		39° ~ 17° 102° ~ 40°
Operation	Focus	Remote Focus
	Zoom	2.5x Optical Zoom 3x Optical	Zoom
	Iris	P-Iris
IR LED Quantity		24 IR LEDs
IR Distance		10 ~ 20 m (32.8 ~ 65.6 ft)	5 ~ 9 m (16.4 ~ 29.6 ft)
Operation		LPC2211	LPC2011
Video Compression		H.264, MJPEG
Video Stream		Dual streams from H.264 and MJPEG
Frame Rate		30 fps at 1920 x 1080*The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes)
Image Setting		Brightness, Contrast, Saturation, Sharpness, Gamma, Auto Exposure, White Balance, Flicker less, Image Orientation, Shutter Speed, Maximum Video Gain, D/N Sensitivity, Denoise, Defog, Metering
Audio Compression		N/A
Audio Support		N/A
Video Resolution		LPC2211	LPC2011
Main Stream	16.9	1920 x 1080, 1280 x 720
Sub Stream	16.9	640 x 360
Network LPC2211 LPC2011
Interface		10/100 Base-T Ethernet, RJ-45 connector
Protocol		HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF (Profile S)
Mechanical LPC2211 LPC2011
Temperature Detector		Yes
Camera Angle Adjustment	Pan	0° ~ 360°
	Tilt	90° ~ 180°
Connectors	Power	2-pin terminal block, PoE
	Ethernet	RJ-45
	Audio	N/A
	Digital I/O	N/A
	TV-Out	N/A
LED Indicator		N/A
General LPC2211 LPC2011
Operating Temperature	Start-up -20°C ~	50°C (-4°F ~ 122°F)
	Operation -30°C ~	50°C (-22°F ~ 122°F)
Humidity		10% ~ 90% (non-condensation)
Power Source		DC 12V, PoE (IEEE 802.3af)
Max. Power Consumption		12.3 W
Dimensions		142.14x 77.72 x 102.75 mm (5.6" x 3.06" x 4.05")
Weight		810 g (1.8 lb)
Ingress Protection		IP67
Vandal Resistance		IK10 for metal casing
Regulatory		CE, FCC, RCM, RoHS compliant

Power over Ethernet LPC2211	LPC2011
PoE Standard	IEEE (802.3af Power over Ethernet / PD)
PoE Power Supply Type	End-Span
PoE Power Output	Per Port 48V DC, 350 mA, Max. 15.4 watts
Web Interface LPC2211 LPC2011
Installation & Management	Web-based configuration
Firmware Upgrade	Remote upgrade through Web BrowserGV-IP Device Utility included in the Software DVD
Access from Web Browser	Camera Live View, Video Recording, Video Quality,Bandwidth Control, Image Snapshot, Picture in Picture,Picture and Picture, Privacy Mask, Tampering Alarm, TextOverlay, Motion Detection, IP Address Filtering, DigitalPTZ
Language	Arabic / Bulgarian / Czech / Danish / Dutch / English/French / German / Greek / Hebrew / Hungarian /Indonesian / Italian / Japanese / Lithuanian / Norwegian /Persian / Polish / Portuguese / Romanian / Russian /Serbian / Simplified Chinese / Slovakian / Slovenian /Spanish / Swedish / Thai / Traditional Chinese / Turkish
Application LPC2211 LPC2011
Network Storage	GV-System(GV-DVR/NVR),GV-VMS,GV-RecordingServer
Smart Device Access	- GV-Eye for Android and iOS- Embedded 3GPP/ISMA browser
Live Viewing	IE, Chrome, Firefox, Edge, Safari
CMS Server support	GV-Control Center, GV-Center V2, GV-Vital Sign Monitor
LPR Management	GV-ASManager
Note:1. Try to avoid placing the camera where it can be subjected to direct LED light. The LEDlighting from vehicles, streetlights, etc. may cause flickering images.2. All specifications are subject to change without notice.

Appendix

A. The CGI Command

You can obtain a snapshot of the live view or access the User Account Web interface simply by executing CGI commands. Follow the details below:

IP address: 192.168.2.11

Username: admin

Password: admin

Desired Stream: 1

● To obtain a snapshot of live view, type the following into your Web browser:
http://192.168.2.11/PictureCatch.cgi?username=admin&password=admin&channel=1
- To access the User Account settings on the Web interface, type the following into your Web browser:

http://192.168.2.11/ConfigPage.cgi?username=admin&password=admin&page=UserSetting

B. RTSP Protocol Support

The cameras support RTSP protocol for both video and audio streaming. For RTSP command, enter:

rtsp://<IP of the GV-IP LPR Camera:8554/.sdp

For example, rtsp://192.168.3.111:8554/CH001.sdp

Note:

1. The RTSP server must be enabled on the Web interface. See Figure 4-20.
2. Only VLC and QuickTime players are supported for streaming video via RTSP protocol.

C. Settings for Internet Explorer 8 or later

If you use Internet Explorer 8 or later, it is required to complete the following setting.

1. Set the Security to Medium-high (default).
2. Enable Allow previously unused ActiveX controls to run without prompt.
3. Disable Only allow approved domains to use ActiveX without prompt.

D. Supported UMTS Protocol (3G Modem)

Brand Model
Huawei	E220, E392
	E169, E1692, E156, EC189, E1752, E1756, E1756C, E169C
Novatel	MC998D
	USB760, USB727, MC950D
ONDA	MSA523HS
ZTE	MF100
