Product Type	Smartphone
Dimensions	107 x 46 x 14 mm
Weight	80 g
Battery Capacity	900 mAh Li-Ion
Display	2.0 inch TFT, 176x220 pixels
Camera	1.3 MP rear
Processor	Single-core (estimated)
Internal Memory	20 MB
Expandable Storage	microSD up to 8 GB
Connectivity	Bluetooth 2.1, USB 2.0
Network	GSM 850/900/1800/1900
Operating System	Proprietary OS
Main Functions	Calls, SMS, Camera, Music Player, FM Radio, Alarm, Calculator
Battery Life	Standby: up to 300 h, Talk: up to 5 h
Charger	USB charger (5V, 0.7A)
Maintenance & Cleaning	Wipe with dry cloth; avoid liquids
Safety	Do not expose to moisture or high temperatures; use only LG approved accessories
Spare Parts & Repairability	Battery, charger, earphones available; repair by authorized service center
General Information	Model: GU285f; Brand: LG; Manual: 154 pages

Frequently Asked Questions - GU285f LG

How do I insert the SIM card?

Turn off the phone, remove the back cover and battery, then slide the SIM card into the slot with the gold contacts facing down.

How can I set a ringtone?

Go to Settings > Sound Profiles > choose a profile > Ringtone. Select from default tones or your own music files.

How do I take a photo?

Open the Camera app from the menu, aim, and press the center button or the side key (depending on model) to capture.

How do I transfer files to my computer?

Connect via USB cable, select 'Mass Storage' on the phone, then drag files to/from the memory card folder.

What battery does the LG GU285f use?

It uses a rechargeable Li-Ion battery with capacity 900 mAh, model LGIP-xxx (check battery label).

Can I expand the memory?

Yes, you can use a microSD card up to 8 GB. Insert it into the slot under the battery compartment.

How do I reset the phone to factory settings?

Go to Settings > Phone > Reset settings. This will erase all user data.

Is Bluetooth available?

Yes, it supports Bluetooth 2.1 for file transfer and headsets.

How to set an alarm?

Go to Organizer > Alarm, set time and repeat, then save.

What should I do if the phone freezes?

Remove the battery, wait 10 seconds, reinsert and power on. If problem persists, contact LG support.

USER MANUAL GU285f LG

Front view of a LG mobile phone with control buttons and display screen (no visible text or symbols beyond branding)

Illustration of two hands holding a smartphone with a small screen and directional arrow (no text or symbols)

Illustration of hands holding a smartphone with a partially visible screen (no text or symbols)

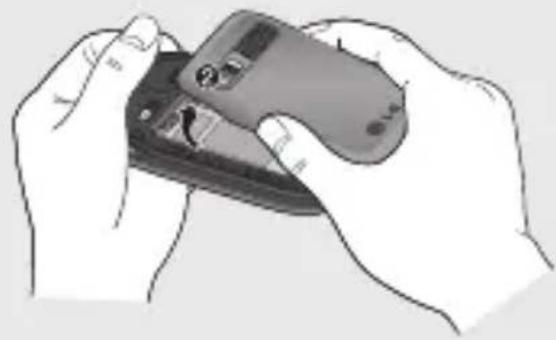

2 ถอดแบตเตอร์ออก

Line drawing of a hand holding an object, no text or symbols present

Illustration of hands holding a smartphone with a scroll on the screen (no text or symbols visible)

Illustration of two hands holding a smartphone (no text or symbols visible)

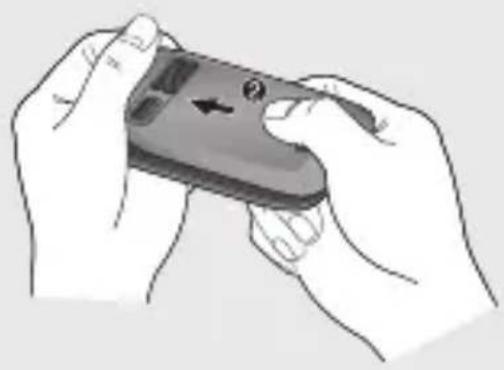

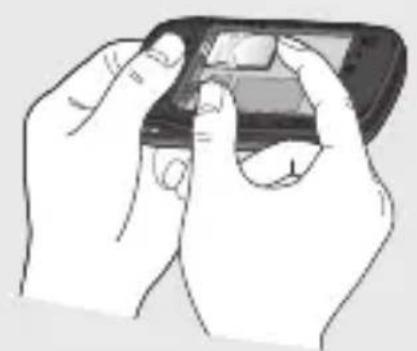

4 ใส่แบตเตอรี่

Illustration of two hands holding a smartphone (no text or symbols visible)

Illustration of two hands holding a mobile phone with a scroll wheel (no text or symbols visible)

Illustration of hands holding a smartphone with a hand pointing to the screen (no text or symbols visible)

Illustration of two hands holding a handheld device with a scroll wheel (no text or symbols visible)

Close-up of a mobile phone connected to a cable, showing a close-up of the cable being inserted (no text or symbols visible)

การ์ตหน่วยความจำ

Illustration of a mobile phone with an attached device and a magnified inset showing a small electronic component (no text or symbols visible)

Illustration of a mobile phone with an attached plug and a close-up of its circuit board (no text or symbols visible)

Illustration of a rectangular electronic component with three leads (no text or symbols)

3D rendering of a gray rectangular electronic device with a small circular mark on the side (no visible text or symbols)

ขุดหูฟังสเตอริโอ

Coiled black audio/video earpluses with connectors (no text or symbols visible)

หมายเหตุ

Declaration of Conformity

Suppliers Details

Name

LG Electronics Inc

Address

LG Electronics Inc. LG Twin Towers 20.

Yeouido-dong, Yeongdeungpo-gu, Seoul, Korea 150-721

Product Details

Product Name

GSM 850 / E-GSM 900 / DCS 1800 / PCS 1900 Quad Band and WCDMA Terminal Equipment

Model Name

GU2851

Trade Name

LG

C€ 0168

Applicable Standards Details

R&TTE Directive 1999/5/EC

EN 301 489-01 V1.6.1, EN 301 489-07 V1.3.1

EN 301 489-17 V1.2.1, EN 301 489-24 V1.4.1

EN 301 511 V9.0.2

EN 301 908-1 V3.2.1 EN 301 908-2 V3.2.1,

EN 300 328 V1.7.1

EN 503602001/EN62209-1:2006

EN 60960-1:2001

Supplementary Information

The conformity to above standards is verified by the following Notified Body(BABT)

BABT, Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD, United Kingdom Notified Body Identification Number: 0168

Declaration

I hereby declare under our sole responsibility that the product mentioned above to which this declaration relates complies with the above mentioned standards and Directives

LG Electronics Inc. - EU Representative

Veluwezoom 15, 1327 AE Almere, The Netherlands

Name

Issued Date

Seung Hyoun, Ji / Director

28 Apr. 2010

Signature of representative

การแก้ปัญหา

Front view of a LG mobile phone with control buttons and display screen (no visible text or symbols beyond branding)

Some of the contents in this manual may differ from your phone depending on the software of the phone or your service provider.

GU285f User Guide | ENGLISH

Congratulations on your purchase of the advanced and compact GU285f phone by LG, designed to operate with the latest digital mobile communication technology.

Contents

GUIDELINES

Guidelines for safe and efficient

use 8

01 SET UP

Getting to know your phone .....15

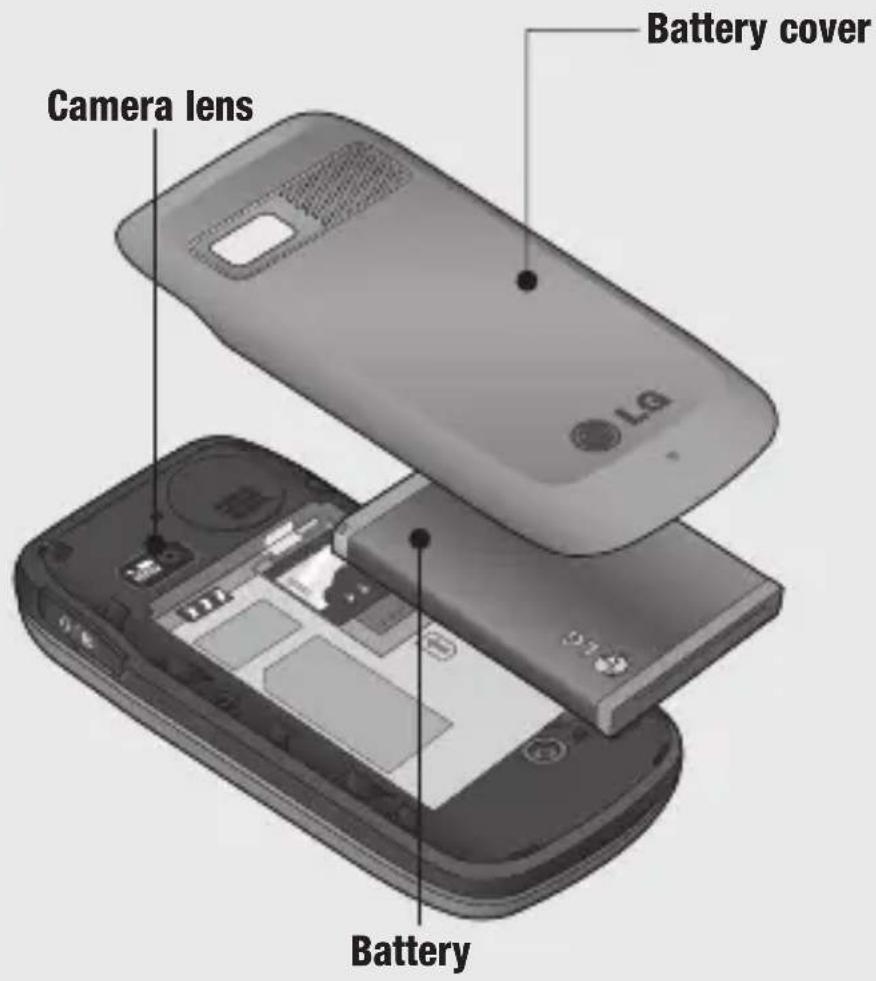

Open view ......16

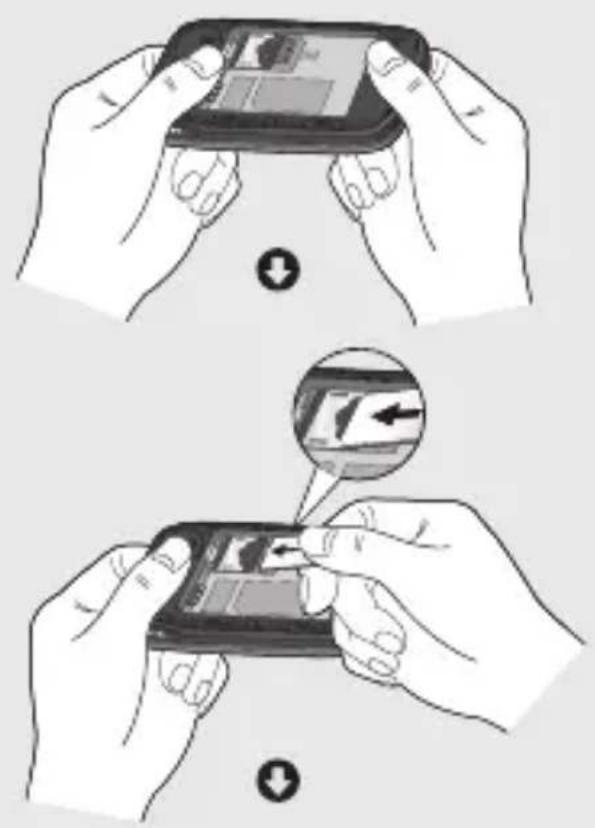

Installing the USIM and battery ....17

Memory card ......20

Installing a memory card ......20

Removing a memory card .....20

Formatting a memory card .....20

02 YOUR HOME SCREEN

Your Home screen ......21

The status bar ......21

03 THE BASICS

Calls 22

Making a call 22

Making a call from your contacts 22

Answering and rejecting a call ....22

Speed dialling....22

Viewing your call logs .....23

Using call divert 24

Using call barring .....24

Changing the call settings ......25

Common settings 25

Contacts 27

Searching for a contact .....27

Adding a new contact .....27

Adding a contact to a group .....27

Adding a picture to a contact .....28

Copying your contacts to your USIM / Handset ....28

Messaging....29

Messaging 29

Sending a message .....29

Entering text 29

Text input mode using the keypad 30

Setting up your email ....30

Sending an email using your new account ....30

Message folders 31

Managing your messages .....31

Using templates 32

Changing your text message settings 33

Changing your multimedia message settings ....33

Changing your email settings .....34

Changing your other settings .....35

04 GET CREATIVE

Camera....36

Taking a quick photo 36

Before you take your photo .....36

After you've taken your photo .....37

Changing the image size ......38

Viewing your saved photos .....38

Setting a photo as Wallpaper......38

Video camera 39

Shooting a quick video .....39

Before you take your video ......39

After you've shot your video .....39

Watching your saved videos .....40

Music 41

Music 41

Transferring music onto your phone 41

FM radio 42

Voice recorder 43

Using the Voice recorder .....43

Recording your voice memo .....43

Sending a voice recording .....43

My stuff 44

Images....44

Pictures options menu .....44

Sending a photo 45

Organising your images .....45

Deleting an image 45

Creating a slide show......46

Sounds 46

Using a sound 46

Videos 46

Watching a video 47

Using options while video is played 47

Sending a video clip 47

Games / Applications .....48

Others 48

Games & apps 49

Games & apps 49

Playing a game 49

05 GET ORGANISED

Organiser....50

Adding an event to your calendar....50

Editing a calendar event .....50

Sharing a calendar event .....51

Contents

Adding To-do list ......07 SETTINGS

Adding a memo ....51

Date fi nder ....

Tools....52

Quick menu....52

Setting your alarm .....52

Using your calculator ....52

Using the stopwatch .....53

Converting a unit ....53

Adding a city to your World time ....

06 BROWSER

Browser....54

Accessing the web....54

Adding and accessing your bookmarks....54

RSS reader 55

Saving a page ....55

Accessing a saved page .....55

Viewing your browser history .....55

Changing the web browser settings 55

057 SETTINGS

Settings ....56

51Changing your profi les .....56

Customising your profi les .....56

Changing your date & time .....56

Changing the language .....57

Changing your security settings ..57

Changing your display settings ...57

Resetting your phone ....58

Viewing memory status ....58

53 Connectivity ....59

Changing your connectivity settings 59

Changing your Bluetooth settings 60

Pairing with another Bluetooth device 60

55 Using a Bluetooth headset ......61

Transferring a fi le to your phone .61

Sending and receiving your fi les using Bluetooth ....62

USB connection mode ....63

Always ask mode....63

Mass storage-Use your phone

as a mass storage device .....63

phone with your PC......64

Phone Software update ......66

08 ACCESSORIES

Accessories 67

Technical data 68

General 68

Ambient Temperatures 68

Troubleshooting ....70

Guidelines for safe and efficient use

Please read these simple guidelines. Not following these guidelines may be dangerous or illegal.

Exposure to radio frequency energy

THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES

Your mobile device is a radio transmitter and receiver. It is designed and manufactured not to exceed the limits for exposure to radio frequency (RF) recommended by international guidelines (ICNIRP). These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines were developed by independent scientific organisations through periodic and thorough evaluation of scientific studies. The guidelines include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.

The exposure standard for mobile devices employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit stated in the international guidelines is 2.0 W/kg*. Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested frequency bands.

Although the SAR is determined at the highest certified power level, the actual SAR of the device while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a base station, the lower the power output of the device. Before a phone model is available for sale to the public, compliance with the European R&TTE directive must be shown. This directive includes as one essential requirement the protection of the health and the safety for the user and any other person.

The highest SAR value for this device when tested for use at the ear is 1.00 W/kg.

This device meets RF exposure guidelines when used either in the normal use position against the ear or when positioned at least 1.5 cm away from the body. When a carry case, belt clip or holder is used for body-worn operation, it should not contain metal and should position the product at least 1.5 cm away from your body. In order to transmit data fi les or messages, this device requires a quality connection to the network. In some cases, transmission of data fi les or messages may be delayed until such a connection is available.

Ensure the above separation distance instructions are followed until the transmission is completed. The highest SAR value for this device when tested for use at the body is 1.08 W/kg.

* The SAR limit for mobile devices used by the public is 2.0 watts/ kilogram (W/kg) averaged over ten grams of body tissue. The guidelines incorporate a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. SAR values may vary depending on national reporting requirements and the network band.

For SAR information in other regions please look under product information at www.lg.com.

Guidelines for safe and efficient use

Product care and maintenance

WARNING

Only use batteries, chargers and accessories approved for use with this particular phone model. The use of any other types may invalidate any approval or warranty applying to the phone, and may be dangerous.

• Do not disassemble this unit. Take it to a qualified service technician when repair work is required.
• Keep away from electrical appliances such as TVs, radios, and personal computers.
• The unit should be kept away from heat sources such as radiators or cookers.
• Do not drop.
• Do not subject this unit to mechanical vibration or shock.
• Switch off the phone in any area where you are required by special regulations. For example, do not

use your phone in hospitals as it may affect sensitive medical equipment.

• Do not handle the phone with wet hands while it is being charged. It may cause an electric shock and can seriously damage your phone.
• Do not to charge a handset near fl ammable material as the handset can become hot and create a fire hazard.
• Use a dry cloth to clean the exterior of the unit (do not use solvents such as benzene, thinner or alcohol).
• Do not charge the phone when it is on soft furnishings.
  • The phone should be charged in a well ventilated area.
• Do not subject this unit to excessive smoke or dust.

• Do not keep the phone next to credit cards or transport tickets; it can affect the information on the magnetic strips.

• Do not tap the screen with a sharp object as it may damage the phone.

• Do not expose the phone to liquid or moisture.
• Use the accessories like earphones cautiously. Do not touch the antenna unnecessarily.

Effi cient phone operation

Electronic and medical devices

All mobile phones may get interference, which could affect performance.

• Do not use your mobile phone near medical equipment without requesting permission. Please consult your doctor to determine if operation of your phone may interfere with the operation of your medical device.
• Some hearing aids might be disturbed by mobile phones.
• Minor interference may affect TVs, radios, PCs, etc.

Pacemakers

Pacemaker manufacturers recommend that a minimum separation of 15cm be maintained between a mobile phone and a pacemaker to avoid potential interference with the pacemaker. To achieve this use the phone on the opposite ear to your pacemaker and do not carry it in a breast pocket.

Hospitals

Switch off your wireless device when requested to do so in hospitals, clinics or health care facilities. These requests are designed to prevent possible interference with sensitive medical equipment.

Guidelines for safe and efficient use

Road safety

Check the laws and regulations on the use of mobile phones in the area when you drive.

• Do not use a hand-held phone while driving.
  • Give full attention to driving.
  • Use a hands-free kit, if available.
• Pull off the road and park before making or answering a call if driving conditions so require.
• RF energy may affect some electronic systems in your vehicle such as car stereos and safety equipment.
• When your vehicle is equipped with an air bag, do not obstruct with installed or portable wireless equipment. It can cause the air bag to fail or cause serious injury due to improper performance.

- If you are listening to music whilst out and about, please ensure that the volume is at a reasonable level so that you are aware of your surroundings. This is particularly imperative when near roads.

Avoid damage to your hearing

Damage to your hearing can occur if you are exposed to loud sound for long periods of time. We therefore recommend that you do not turn on or off the handset close to your ear. We also recommend that music and call volumes are set to a reasonable level.

Glass Parts

Some parts of your mobile device are made of glass. This glass could break if your mobile device is dropped on a hard surface or receives a substantial impact. If the glass breaks, do not touch or attempt to remove. Stop using your mobile device until the glass is replaced by an authorized service provider.

Blasting area

Do not use the phone where blasting is in progress. Observe restrictions, and follow any regulations or rules.

Potentially explosive atmospheres

• Do not use the phone at a refueling point.
• Do not use near fuel or chemicals.
• Do not transport or store fl ammable gas, liquid, or explosives in the same compartment of your vehicle as your mobile phone and accessories.

In aircraft

Wireless devices can cause interference in aircraft.

• Turn your mobile phone off before boarding any aircraft.
• Do not use it on the ground without permission from the crew.

Children

Keep the phone in a safe place out of the reach of small children. It includes small parts which may cause a choking hazard if detached.

Emergency calls

Emergency calls may not be available under all mobile networks. Therefore, you should never depend solely on the phone for emergency calls. Check with your local service provider.

Battery information and care

• You do not need to completely discharge the battery before recharging. Unlike other battery systems, there is no memory effect that could compromise the battery's performance.
• Use only LG batteries and chargers. LG chargers are designed to maximize the battery life.
• Do not disassemble or short-circuit the battery pack.

Guidelines for safe and efficient use

• Keep the metal contacts of the battery pack clean.
• Replace the battery when it no longer provides acceptable performance. The battery pack maybe recharged hundreds of times until it needs replacing.
• Recharge the battery if it has not been used for a long time to maximize usability.
• Do not expose the battery charger to direct sunlight or use it in high humidity, such as in the bathroom.
• Do not leave the battery in hot or cold places, this may deteriorate the battery performance.
• There is risk of explosion if the battery is replaced by an incorrect type.

• Dispose of used batteries according to the manufacturer's instructions. Please recycle when possible. Do not dispose as household waste.

• If you need to replace the battery, take it to the nearest authorized LG Electronics service point or dealer for assistance.

• Always unplug the charger from the wall socket after the phone is fully charged to save unnecessary power consumption of the charger.
• Actual battery life will depend on network configuration, product settings, usage patterns, battery and environmental conditions.

Getting to know your phone

Main screen OK key Left soft key Goes to My stuff directly. Multi-tasking key Call key Dials a phone number and answers incoming calls. Programmable hot key You can register the favourite menu as a hot key. Navigation keys Right soft key Goes to Contacts directly/go back to a previous screen. Clear Key Deletes a character with each press. End/Power key Ends or rejects a call. Turns the phone on/off. Returns to the Home screen when you use the menu.

• In menu: Navigates between menus.

Open view

Memory card slot Charger, cable, handsfree connector Camera lens

Camera lens Battery cover Battery

Installing the USIM and battery

1 Remove the battery cover

Press the battery cover release latch. Slide the battery cover and lift off easily.

Illustration of hands holding a smartphone with a scroll wheel (no text or symbols)

Illustration of hands holding a handheld device (no text or symbols visible)

2 Remove the battery

Lever the bottom edge of the battery and remove it carefully from the battery compartment.

Line drawing of a hand holding an object, possibly a small object or tool, with no visible text or symbols.

WARNING: Do not remove the battery when the phone is switched on, as this may damage the phone.

3 Install the USIM card

Slide the USIM card into the USIM card holder. Make sure that the gold contact area on the card is facing downwards. To remove the USIM card, push it out of the holder from the top.

WARNING: Do not insert the USIM card when the slide is open, as this may damage your phone and USIM card.

Installing the USIM and battery

Illustration showing two-step smartphone touch screen usage: adding a lock and adjusting the screen with an arrow icon.

4 Install the battery

Insert the top of the battery first into the top edge of the battery compartment. Ensure the battery contacts align with the terminals on the phone. Press the bottom of the battery down until it clips into place.

Illustration of two hands holding a smartphone with a scroll on the screen (no text or symbols visible)

Illustration of two hands holding a smartphone, one open and the other closed, with no visible text or symbols.

Illustration of two hands holding a mobile phone with a screen and a downward arrow (no text or symbols)

Illustration of hands holding a smartphone (no text or symbols visible)

5 Replace the battery cover

Insert the top of the battery cover and push down and slide until it clicks into place.

Illustration of hands holding a smartphone with a hand pointing to the screen (no text or symbols visible)

Illustration of two hands holding a handheld device with a circular button and arrow indicator (no text or symbols)

6 Charging your phone

Pull open the cover of the charger socket on the side of your GU285f. Insert the charger and plug into a mains electricity socket. Your GU285f will need to be charged until a message reading battery full appears on screen.

WARNING: Do not charge the e when it is on soft furnishings.

The phone should be charged in a well ventilated area.

Close-up of a mobile phone connected to a USB cable, showing a close-up of the cable's connector (no text or symbols visible)

Memory card

Installing a memory card

You can expand the memory space available on your phone using a memory card.

NOTE: A memory card is an optional accessory.

Open the memory card cover. Slide the memory card into the slot until it clicks into place. Make sure that the gold contact area is facing downwards.

Illustration of a mobile phone with a close-up of its screen and a magnified inset showing the device's internal components (no text or symbols visible)

Removing a memory card

Open the cover and carefully remove the memory card by gently pushing it in to the phone and quickly releasing it, as shown in the following diagram:

Illustration of a mobile phone with an inset showing a close-up of its circuit board (no text or symbols visible)

Formatting a memory card

Your memory card may already be formatted. If not you will need to do so before you can begin using it.

1 From the Home screen press and select Settings.

2 Choose Memory info and select External memory.

3 Press Format and enter the password, which is set to 0000 as default. Your card will be formatted and ready to use.

WARNING: When you format your memory card, all the content will be wiped. If you do not want to lose the data on your memory card, back it up fi rst.

Your Home screen

The status bar

The status bar uses various icons to indicate things like signal strength, new messages and battery life, as well as telling you whether your Bluetooth connection is active.

The table below explains the meaning of icons you're likely to see in the status bar.

Icon	Description
	Network signal strength (number of bars will vary)
	No network signal
[H3KB]	GPRS available
[CO3A]	3G available
	EDGE available
	Flight mode is activated
[SZTO]	Calls are diverted
[SHB3]	Roaming service
	WAP service is connected

TIP! You can quickly access chosen menus using your Favourites list. In standby mode press the programmable hot key. Select , and then Select to add a menu as a favourite.

Icon	Description
	Multitasking available
	Memory card installed
	An alarm is set
	Schedule
	New message
	New voice message
	Normal profile in use
	Silent profile in use
	Outdoor profile in use
	Headset profile in use
	Remaining battery life
	Battery empty

Calls

Making a call

1 Make sure your phone is on.
2 You can use the keypad after opening the slide. To delete a digit press 📄 or the back arrow.
3 Press to begin the call.
4 To end the call, press 📞 or slide the cover closed.

TIP! To enter + when making an international call, press and hold 0.

Making a call from your contacts

1 Select Contacts in the menu.
2 Using the keypad, enter the first letter of the contact you want to call and scroll to the contact.
3 Press to begin the call.

Answering and rejecting a call

When your phone rings, press Accept or press 📋 to answer the call.

While your phone is ringing you can press Silent to mute the ringing. This is useful if you have forgotten to change your profi le to Silent for a meeting.

Press 📋 or select Reject in order to reject an incoming call.

Speed dialling

You can assign a speed dial number to a contact you call frequently.

1 Press to open the main menu. Select Contacts, then select Speed dials from options.
2 Your voicemail is preset to speed dial 1 and you cannot change this. Select any other number either by using the navigation keys and selecting Set or by pressing the hard key number.

3 Your address book will open. Select the contact you'd like to assign to that number using the navigation keys then press Select.

To call a speed dial number, press and hold the assigned number until the contact appears on screen. The call will begin automatically and there is no need to press 📄.

Viewing your call logs

Press ● and select Calls.

All calls - View a complete list of all your dialled, received and missed calls.

Missed calls - View a list of any calls you have missed.

Dialled calls - View a list of all the numbers you have called.

Received calls - View a list of all the numbers that have called you.

Call duration - View details of how long you have spent on your calls; Last, dialled, received and All.

Call costs - View the charges applied to your last call or all calls. This service is network dependent, some operators are unable to support this.

Data volume - View the amount of all your received and sent data in Kilo bytes.

TIP! From any call log select Options and then Delete to delete selected items.

TIP! Use the navigation keys to highlight any single call entry in order to view the date and time of the call. To view the call duration select View.

Calls

Using call divert

1 Press, select Settings.
2 Select Call- Call divert. Or you can choose Deactivate all from options.
3 Choose voice calls or video calls.
4 Choose whether to divert all calls, when the line is busy, when there is no answer, when you are out of reach.
5 Choose Activate and select from "to voicemail centre" or "to other number" input number to be diverted if "to other number" is selected.
6 Search to browse Contacts for your divert number.

Note: Charges are incurred for diverting calls. Please contact your network provider for details.

TIP! To turn off all call diverts, choose Deactivate all from the Call divert menu.

Using call barring

1 Press, select Settings.
2 Select Call-Call barring.
3 Select voice call or video call.
4 Choose any or all of the fi ve options:

Outgoing calls International calls International calls except home country Incoming calls Incoming calls when abroad

5 Select Activate and enter the call barring password. Please check with your network operator for this service.

TIP! Select Fixed dial number from the settings - call menu to turn on and compile a list of numbers which can be called from your phone. You'll need your PIN2 code from your operator. When activated, only numbers included in the fixed dial list can be called from your phone.

Changing the call settings

1 Press, select Settings- Call.
2 From here you can amend the settings for:

Calldivert- Choose whether to divert your calls.

Call barring - Select which calls you would like to be barred.

Call waiting - Be alerted when you have a call waiting.

Fixed dial number - Choose a list of numbers that can be called from your phone.

Excusemessage - Save the predefi ned notifi cation message before you reject a call.

Common settings - Refer to below contents in details.

Common settings

Answer mode - Allows you to set the answering method. You can choose between Press send key, Slide up and Press any key.

Send my number

Set by network - Confi gures with the default settings determined by the service provider.

On - Your number will be sent when making an outgoing call.

Off - Your number will be withheld when making an outgoing call.

Minute minder - Determines whether to sound a tone every 1 minute when you are on the phone.

Auto redial - Allows you to set the auto redial function when a call attempt has failed.

Send DTMF - DTMF allows you to use numerical commands to navigate menus within automated messages.

Calls

Save new number - Selecting this option will save numbers that are not already in your contacts upon ending the call.

BT answer mode

Hands-free - You can answer a call using a Bluetooth headset.

Handset - Press on the handset to answer a call when using a Bluetooth headset.

Hang up mode - Set whether or not a call is ended upon closing the slide.

Call reject - You can set this feature On and select whether to reject all calls, contacts, groups, unregistered or No caller Id.

Contacts

Searching for a contact

1 Select Contacts from the main menu.
2 Using the keypad enter the first letter of the name of the contact you want to call.
3 To scroll through the contacts and their different numbers use the navigation keys.

Adding a new contact

1 Select Contacts and press left soft key Options.
2 Select Create new contact.
3 Choose whether to store your new contact on your Handset or USIM card.
4 Enter the information you want in the fi elds provided and select Done.

Or to use a slightly quicker method...

1 Enter the number you wish to store and press Options.
2 Choose Save number, and choose either New contact or Update contact.
3 Enter the relevant information and select Done.

Adding a contact to a group

You can save your contacts into groups. This is useful for keeping your work colleagues and family separate, for example. There are a number of groups including Family, Friends, Colleagues, School and VIP already set up on your phone.

1 Select Contacts and choose Groups.
2 Scroll to the group you wish to add a contact to and select View then select.

Contacts

3 Your contacts list will open. Scroll to any contacts you would like to add to the group and press 🔒, then select Done.

TIP! You can assign a ringtone to a group. Select the group you wish to assign the ringtone to, select Options and Edit Group - Group ringtone.

Note: You can only assign a contact to a group or add a picture to a contact that is saved in your phone (not SIM) memory.

Adding a picture to a contact

You can change the appearance of your contacts in your address book to include a picture.

1 Select Contacts and choose Create new contact.
2 Select square image to edit and insert a picture.
3 Choose Change.

4 Choose No image, Go to images, and Take a picture. If you select Go to images, you can choose an image that is saved in your phone memory. If you select Take a picture, your camera viewfi nder will open, so you can take a picture of your contact. Take the picture then press Insert.

5 Select Done.

Copying your contacts to your USIM / Handset

You can also choose to copy your contacts from your USIM to your handset or from your handset to your USIM.

1 Select Contacts, choose options - Storage location from options.
2 Select the menu Copy to USIM / Handset or Move to USIM / Handset.
3 Press Select if you are sure.

Messaging

Messaging

Your GU285f includes functions related to SMS (Short Message Service), MMS (Multimedia Message Service) and email, as well as the network's service messages. To use these functions press ● and select Messaging.

Sending a message

1 Create a new message press, select Messaging and choose Create new message.
2 Choose Message to send an SMS or MMS.
3 A new message editor will open. Message editor combines SMS and MMS in one intuitive mode that is easy to switch between. The default setting of the message editor is SMS mode.
4 Enter your message using the keypad. See Entering text on the next page for more information on how to enter text.

5 Select Options and choose Insert to add an Image, Video, Sound, Symbols, Template, Emoticon, Name & Number, New slide, Subject or More.

6 Select Send.

WARNING: If an Image, Sound, Video, New slide or Subject is added to the message editor, it will be automatically converted to MMS mode and you will be charged accordingly.

Entering text

You can enter alphanumeric characters using the phone's keypad. For example, storing names in Contacts, writing a message and creating scheduling events in the calendar all require entering text. The following text input methods are available in the phone: T9 mode, Abc mode, and 123 mode.

Note: Some fi elds may allow only one text input mode (e.g. telephone number in address book fi elds).

Messaging

To turn on T9 mode in the text entry fi eld, choose Options, select T9 On or simply press #; and hold for seceral seconds. with T9 on, you can switch text input mode by pressing #; . You will notice the text input mode indicator in the upper left comer of the display.

Complete each word with a space by pressing 0.

To delete a character, press 🔒 key.

T9 predictive mode

T9 predictive mode uses a built-in dictionary to recognise words you're writing based on the key sequences you press. Simply press the number key associated with the letter you want to enter, and the dictionary will recognise the word once all the letters are entered. For example, press 8, 3, 5, 3, 7, 4, 6, 6, 3 to write 'telephone'.

To input a symbol in the text entry fi eld, press the * key and select a symbol, then select OK.

Text input mode using the keypad

When you want to enter text, for example when writing a If you are entering a number, for example when making a call, the keypad number keys will default to numbers.

Setting up your email

You can stay in touch on the move using email on your GU285f. It's quick and simple to set up a POP3 or IMAP4 email account.

1 Press, select Messaging and choose Settings.
2 Select E-mail and then choose E-mail accounts.
3 Select Add and follow the pop up instruction and enter the information required.

Sending an email using your new account

To send/receive an email, you should set up an email account (see above).

1 Press, select Messaging and choose Create new message.

2 Choose E-mail and a new email window will open.

3 Write a subject line.

4 Enter your message using the keypad.

MailBox - This contains all your email messages. Select the account you want to use then select

Retrieve. Your GU285f will connect to your email account and retrieve your new messages.

Message folders

Press ☐, then select Messaging. The folder structure used on your GU285f should be self-explanatory.

Create new message - Create your new message.

Inbox - All the messages you receive are placed into your Inbox. From here you can reply, forward and more. See

Managing your messages.

Mailbox - All the mails you receive are placed into your Mailbox.

Drafts - If you don't have time to fi nish writing a message, you can save what you have written so far in here.

Outbox - This is a temporary storage folder used while messages are being sent and the messages which are failed to send.

Sent items - Copies of all the messages you send are kept into your Sent folder.

My folders - You can move messages of Inbox or Sent messages into My folders. Also you can move those messages of My folders into the original message box.

Templates - A list of pre written useful messages which you can edit, useful for a quick reply.

Emoticons - You can add, edit and delete emoticons. You can insert the emoticon which you preferred on writing a message.

Managing your messages

You can use your Inbox to manage your messages.

1 Press, select Messaging and choose Inbox.

Messaging

2 Select Options and then choose to:

Reply - Send a reply to the selected message.

Forward- Send the selected message on to another person.

Call - Call the person who sent you the message.

Save number - Save the number of the message.

Delete - Delete the selected message.

Create new message - Write a new Message, Email. regardless who sent you message.

Multi selection - Mark a message or all.

Copy & Move - Choose to copy or move the selected message to the SIM card or Handset.

Filter - Displays messages by desired message types.

Messageinfo- You can check the type, subject, where it is from, and its date and time.

If you see the message No space for messages, you can delete either messages or saved fi les to create more space.

Using templates

You can create templates for the Text and Multimedia messages you send most frequently. There are some templates already on your phone, which can be edited if you wish.

1 Press, select Messaging and choose Templates.

2 Choose Text templates or Multimedia templates. In text template menu, you can then select Options and choose Edit to change existing templates, or Add new to create new template.

3 To send a template, select Messaging and choose Create new message. Choose Message

4 Choose Options and select Insert, choose Template.

5 Choose template you want to send and select Send.

Changing your text message settings

Your GU285f message settings are pre-defi ned so that you can send messages immediately.

If you would like to change the settings, you can do this using the Settings options.

Press , select Messaging, then choose Settings and Text message. You can make changes to:

Text Message centre - Enter the details for your message centre.

Delivery report - Choose to receive confirmation that your message was delivered.

Validity period - Choose how long your message is stored at the message centre.

Message types - Choose text, Voice, Fax, X.400 or Email.

Character encoding - Choose how your characters are encoded. This affects the size of your message and therefore data costs.

Send long text as - Choose whether to send your message as Multiple SMS or MMS when you enter a text longer than 2 pages in the message fi eld.

Changing your multimedia message settings

Your GU285f message settings are pre-defi ned so that you can send messages immediately.

If you would like to change the settings, you can do so using the Settings options.

Press ●, select Messaging, then choose Settings and Multimedia message.

You can make changes to:

Retrieval mode - Choose to automatically or manually download multimedia messages depending on whether you are at home or roaming.

Messaging

Delivery report - Choose to request or allow a delivery report.

Read reply - Choose to request or allow a read reply.

Priority - Choose the priority level of your multimedia message.

Validity period - Choose how long your message is stored at the message centre.

Slide duration - Choose how long your slides appear on screen.

Creation mode - Allows you to select the contents type supported by MMS. (Restricted, Warning and Free)

Delivery time - Confi gures the delivery time of message to the recipient. The Multimedia message centre will deliver the message after the delivery time

MMS centre - Allows you to confi gure network information such as the MMSC and the Internet profi le, to send a multimedia message.

Changing your email settings

You can adapt your email settings to your own preferences.

1 Press, select Messaging and choose Settings.

2 Select E-mail then you can adapt the following settings:

E-mailaccounts - You can set up an email account.

Allow reply e-mail - Determines whether to allow sending a read confirmation mail for a read confirmation mail request.

Request reply e-mail - Determines whether to request a read confirmation mail.

Retrieveinterval- Choose how often your GU285f checks for new email messages.

Retrieve amount - Choose how many e-mails are retrieved in selected time.

Include message in fwd & reply - Choose whether or not to include the original message.

Includeattachment - Choose whether or not to include the original attachment.

Auto retrieval in roaming -

Choose whether or not to automatically retrieve your messages when roaming.

Newe-mailnotification -

Choose whether or not to be alerted to new emails.

Signature - Switch this feature on and Create an email signature.

Priority - Choose the priority level of your email messages.

Changing your other settings

Voicemail - You can edit the Voicemail.

Service message - Here you can switch off Service message, which means your messages will no longer be pushed directly to your device as they are received, only when you check for new messages. You can also change your service message security.

Info. service - Choose the Cell broadcast, channels and language of your info messages.

Camera

Taking a quick photo

1 Press and Select Camera to open the viewfinder.
2 Holding the phone and, point the lens towards the subject of the photo.
3 Position the phone so you can see the subject of your photo.
4 Press to take a photo.

Before you take your photo

Press Preview in Settings for the following options: Some of those settings will be shown at Video Camera Settings, too.

Image size- See Changing the image size on page 38.

Preview size - Select the preview image: Full image or Full screen.

Effect - Choose from four colour tone options: None (normal colour), Sepia, Black & White or Negative.

White balance - The white balance ensures that any white in your photo is realistic. In order for your camera to correctly adjust the white balance you may need to determine the light conditions. Choose from Auto, Incandescent, Sunny, Indoors or Cloudy.

Night mode - You can take better pictures at night by selecting On.

Timer - The timer allows you to set a delay after the capture button is pressed before the camera fires. Choose from None, 3 Sec, 5 Sec or 10 Sec. Great for when you want to include yourself in the photo.

Shot Mode - Choose from Normal, Burst shot and Frame shot. Burst shot lets you to take up to Three, Six, Nine shots automatically in very quick succession, great for taking photos of moving objects or at sporting events.

Quality - Choose between Super fine, Fine and Normal. The fi ner the quality, the sharper a photo will be. The fi le size will increase as a result, which means you will be able to store fewer photos in your memory.

Press Others in Settings for the following options:

Memory - Check the current status: Handset/ External.

Hide icons - Select the display of icon: Auto/ Manual.

Sound - Select shutter sound when taking a picture.

Swap Cam - select internal / External.

After you've taken your photo

Your captured photo will appear on the screen. The name of the image is shown at the top of the screen and you will see fi ve options displayed on the left side of the screen.

Images - Choose this to look at the other photos in your album. Your current photo will be saved.

Send - Select this send the photo as a Message, Email and Bluetooth. See page 29 for Sending a message.

New - Use this to take another photo straightaway. Your current photo will be saved.

Use as - Select to open a sub menu to use your image as Wallpaper, Picture ID, Start up or Shut down.

Delete - Deletes the photo you have just taken. Confi rm this by selecting Yes. The viewfi nder will reappear.

Camera

Changing the image size

You can change the size of the photo to save memory space. The more pixels means the larger the fi le size, this in turn means they take up more of your memory. If you want to fi t more pictures on your phone you can alter the pixel number to make the fi le size smaller.

1 Press Settings and select Image size from the toolbar.
2 Select a pixel value from the six numerical options.
3 Press Select to save your changes.

Viewing your saved photos

1 You can access your saved photos from within the camera mode and also from the Home screen. From the viewfinder, simply press images. From the Home screen press , then select My stuff and Images.

2 Use the navigation keys to select the photo you want to view and select View to open it.

Setting a photo as Wallpaper

From your image gallery, use the navigation keys to select an image and choose Options and Set as to use the selected image as Wallpaper, Picture ID Start-up or Shut down, Incoming call or Outgoing call.

Note: Picture ID can only be added to contacts saved to your phone, not your SIM.

Video camera

Shooting a quick video

1 Press ● and select Camera.
2 Choose Video camera.
3 Point the camera lens towards the subject of the video.
4 Press to start recording.
5 Rec will appear in the bottom right corner of the viewfinder and a timer will show the length of your video.
6 To pause the video select Pause and resume by selecting Resume.
7 Select Stop to stop recording.

Before you take your video

Videos - Select to look at the other video clips in your album

Camera - Convert from video camera mode to still camera mode.

Rec. - Start video recording

Zoom - Adjust the zoom using or .

Brightness - The higher the level, the brighter the screen.

After you've shot your video

The name of the video is shown along the bottom of the screen and fi ve options will be displayed at the bottom of the screen.

Videos - Select to look at the other video clips in your album. Your current video clip will be saved.

Play - Select to play the video you have just recorded.

New - Select to shoot another video straight away. Your current video will be saved.

Send - Select to send the video as a Message, E-mail or Bluetooth. See page 29 for Sending a message.

Delete - Delete the video you have just recorded and confirm by selecting Yes. The viewfinder will reappear.

Video camera

Watching your saved videos

1 You can access your saved videos either from within video camera mode or from the Home screen press , then select My stuff and Videos.
2 Your gallery will appear on screen.
3 Use the navigation keys to select the video you want to view and press ● key to watch it.

Music

Music

Your LG GU285f has a built-in MP3 player so you can play all your favourite music.

To access the MP3 player, press and select Music. From here you have access to:

Last played song - You can replay the music which you recently listened.

All songs - Contains all of the songs you have on your phone.

My playlists - Contains any playlists you have created.

Artists - Browse through your music collection by artist.

Albums - Browse through your music collection by album.

Genres - Browse through your music collection by genre.

Shuffle tracks - Plays tracks in random order

Transferring music onto your phone

The easiest way to transfer music onto your phone is via Bluetooth or your sync cable. To transfer music using Bluetooth:

1 Make sure both devices have Bluetooth switched on and are visible to one another.
2 Select the music file on the other device and choose to send it via Bluetooth.
3 When the fi le is sent you should to accept it on your phone by selecting Yes.
4 The fi le should appear in All songs.

Note : As a result of the Digital Rights Management (DRM) system, some of the media items you download from the Internet or receive by MMS may have a “Purchase right” menu to access them. You can acquire the key to purchase the right from the website which owns the rights to the contents.

Music

Music is copyright protected in international treaties and national copyright laws. It may be necessary to obtain permission or a licence to reproduce or copy music. In some countries national law prohibits private copying of copyrighted material. Please check the national legislation of the applicable country concerning the use of such material.

FM radio

Your LG GU285 has an FM radio feature so you can tune into your favourite stations to listen to on the move.

NOTE: You will need to insert your headphones in order to listen to the radio. Insert them into the headphone socket (this is the same socket that you plug your charger into).

Voice recorder

Using the Voice recorder

Use your Voice recorder to record voice memos or other sounds.

Recording your voice memo

1 Press and select Tools, then choose Voice recorder.
2 Press ● key to begin recording.
3 Choose Stop to end the recording.
4 Press Options and select Play to listen to the recording.

Note: You can listen to all of the voice recordings you have saved by selecting Go to sounds.

Sending a voice recording

1 Once you have fi nished recording, select Options.
2 Select Send via and choose from Message, Email, and Bluetooth. If you choose Message or Email, the recording will be added to the message and you can write and send it as normal. If you choose Bluetooth, you will be prompted to turn Bluetooth on.

My stuff

You can store any multimedia fi les in your phone memory so that you have easy access to all of your pictures, sounds, videos and games. You can also save your fi les to a memory card. The advantage of using a memory card is that you can free up space on your phone memory.

All your multimedia fi les are saved in My stuff. Press ● then select My stuff to open a list of folders.

Images

Images contains a folder of default images and default fl ash fi les pre-loaded onto your phone, images downloaded by you and images taken on your phone camera.

Pictures options menu

The options which are available to you in Images depend on what type of image you have selected.

In the Images folder, select Options to bring up the following options.

Delete - Delete the selected image.

Set as - Set the selected image as your Wallpaper, Picture ID, Start-up, Shut down, Incoming call and Outgoing call.

Rename - Change the file name of selected image.

Move - To move image to a different folder.

Copy - To copy image to a different folder.

Send via - Send the selected image to a friend via Message. Email, Bluetooth.

Print via Bluetooth - Print an image fi le via Bluetooth.

File info. - (Name, Size, Date, Time, Resolution, Type and Protect) of the selected image.

Multi- selection - Select one or more image(s) to delete.

Search - Search the image with file name.

Sort by - Arrange your images by Date, Type or Name.

Slide show - Watch a slide show of your images.

Grid view/List view - Change the way you view your photos.

Memory info - You can view the memory status (Handset memory or External memory).

Delete all - Delete all images.

Sending a photo

1 Press then select My stuff.
2 Select Images.
3 Select a photo and choose Options.
4 Select Send via and choose from Message, E-mail, Bluetooth.
5 If you choose Message or Email, your photo will be attached to the message and you can write and send your message as normal. If you choose Bluetooth, you will be prompted to turn Bluetooth on and your phone will search for a device to send the picture to.

Organising your images

1 Press then select My stuff.
2 Select Images.
3 Choose Options then select Sort by.
4 Choose from Date, Type or Name.

Deleting an image

1 Press then select My stuff.
2 Select Images.
3 Select an image and press Options.
4 Select Delete and confirm by pressing Yes.

My stuff

Creating a slide show

If you want to look at all of the images on your phone, or scan through what you've got, you can create a slide show to save having to open and close each individual image.

1 Press then select My stuff.
2 Select Images.
3 Choose the photo you would like to begin the slide show and select Options.
4 Choose Slide show and it will begin.
5 Press Stop to stop the slide show and Back to end the slide show and return to the Images folder.

During the slide show, press Options to choose Full screen view and Landscape view and settings. Select full screen view to view in fullscreen mode, Landscape view to change the orientation of the Pictures and settings to set the repeat type, Duration.

Sounds

The Sounds folder contains the Default sounds, your Download ringtones and sound fi les downloaded by you. From here you can manage, send or set sounds as ringtones.

Using a sound

1 Press then select My stuff.
2 Scroll to and select Sounds.
3 Select a sound and press Play to listen to it.
4 Select Options, Set as and choose from Voice ringtone, Video ringtone, Ringtone ID, Message tone, Start up and Shut down.

Videos

The Videos folder shows the list of downloaded videos and videos you have recorded on your phone.

Watching a video

1 Press then select My stuff.
2 Scroll to and select Videos.
3 Select a video and press Play.

Using options while video is played

By selecting Options, the video you are playing and you can choose from:

Delete - Delete the video.

Set as - You can use a video clip as ringtone.

Send via - Send via Message, Email, Bluetooth.

File info - View details of the video.

Landscape view - Reorientate the video.

Repeat - Repeat the video.

Sending a video clip

1 Press then select My stuff.
2 Scroll to and select Videos.
3 Select the video clip you want and press Options.
4 Press Send via and choose from Send via - Send via Message, E-mail, Bluetooth.
5 If you choose Message or E-mail, your video clip will be attached to the message and you can write and send the message as normal. If you choose Bluetooth, you will be prompted to turn Bluetooth on and your phone will search for a device to send the video to.

Note: The video may need to be resized before it can be sent by MMS. Some videos may be too large to send by MMS at all.

My stuff

Games / Applications

You can keep downloaded games and applications into this folder.

Others

From the Others menu, you can view the fi les which are not saved in the Pictures, Sounds, or Videos.

Games & apps

Games & apps

Your GU285f comes with preloaded games to keep you amused when you have time to spare. If you choose to download any additional games or applications they will be saved into this folder.

Playing a game

1 Press and select Games & apps and then Games.
2 You can use this menu to download new games and play the demo games already on your phone.

Note: An additional cost is incurred when connecting to the game download service. Check your data charges with your network provider.

Organiser

Adding an event to your calendar

1Press , and select Organiser, then Calendar.
2 Select the date you would like to add an event to. You can choose a date either by scrolling to it using the navigation keys or by selecting Options and Go to date in order to enter a date.
3SelectNew schedule and scroll down to enter the time you would like your event to begin. Scroll down and enter the end time of your event.
4 Enter a Subject for the event. Use the keypad to type letters and numbers.
5 Scroll down again and choose whether you would like to set an Alarm for the event. Scroll left or right to see the available options. You can set the alarm to go off at the starting time of the event or at a set period of time before the event starts to remind you the event is coming up.

LG GU285f | User Guide

6 Scroll down once more to select whether the event is occurring Once or repeated at Daily, Weekly, Monthly or Annually intervals. Also you can choose User setting. If the event is repeated, you can also scroll down to enter an Expiration date for when the events will stop completely.
7 Select Done and your event will be saved in the calendar. A square cursor will mark the days of any saved events.

Editing a calendar event

1 From the Home screen press , and select Organiser, then Calendar.
2 You can see a list of all your events. Scroll to the event you would like to edit and select View.
3 Press Options and Select Edit and scroll to the event detail you want to change. Make your modifi cations and select Done to store the edited event.

Note: You can delete an event from your calendar by viewing the event and then pressing Options and Delete.

Sharing a calendar event

1 From the Home screen press , and select Organiser, then Calendar.
2 Choose the event you would like to share and select Options.
3 Choose Send via and select from Text message, MMS, E-mail or Bluetooth.
4 Press Send and search a contact, press Send

Adding To-do list

You can view, edit and add tasks to do. Tasks are displayed in time order.

Adding a memo

1 From the Home screen press , and select Organiser, then Memo.
2 Select New memo and type your memo.
3 Select Save.
4 Your memo will appear on screen the next time you open the memo application.

TIP! You can edit an existing memo. Select the one you want to edit, press Options and select Edit.

Date fi nder

Date fi nder is a handy tool to help you calculate what the date will be after a certain amount of days has passed.

Tools

Quick menu

You can specify functions to save in the Quick menu. If you save frequently used functions in the Quick menu, you can quickly use them by pressing the corresponding key.

Setting your alarm

1 Press, and select Alarm clock.
2 Press New alarm.
3 Scroll down and enter the time you would like the alarm to sound at.
4 Choose the repeat type to indicate whether you would like your alarm to sound Once, Daily, Mon - Fri, Mon - Sat, Except holiday, or Choose weekday.
5 Scroll down and choose whether you would like the alarm type.
6 Scroll down to choose the interval of alarm snooze.

7 Scroll down and enter a name for the alarm or keep the suggested name.

8 Select Done.

Using your calculator

1 Press ☐, and select Tools, then Calculator.
2 Press the numeric keys to input numbers.
3 For simple calculations, select the function you require (+, -, ×, ÷) using the navigation keys followed by =.
4 For more complex calculations, select Options to choose a command.
5 Select Clear key to clear the screen and start a new calculation.

Using the stopwatch

1 Press , and select Tools, then Stopwatch.
2 Select Start to begin the timer.
3 Choose Lap if want to record a lap time. Up to 99 lap times can be saved
4 Select Stop to end the timer.
5 Choose Resume to restart the stopwatch at the time you stopped it at or select Reset to return to zero.

Converting a unit

1 Press, and select Tools, then Unit Converter.
2 Choose whether you would like to convert Currency, Area, Length, Weight, Temperature, Volume or Velocity.
3 Scroll left and right to select a unit, then scroll down and enter the unit quantity.

4 Scroll down to the unit conversion box and choose the unit measurement you want to convert into. The conversion will show automatically in the line below.

Note: For Currency convert, you need to set 'Rate' according to current Exchange rate first.

Adding a city to your World time

1 From the Home screen press , and select Tools, then World clock.
2 To find out the time of specific city, press Options and select New city.
3 Scroll down the list or enter the first letter of the city. Also you can select Map and choose a city.
4 Press Select.

TIP! You can select the first letter of the city required from the keypad to speed up the process

Browser

With a browser at the tip of your fi ngers, you can get up to date news and weather forecasts, as well as information on sports or traffi c, whenever you need it. In addition, the browser allows you to download the latest music, ringtones, wallpapers and games.

Accessing the web

1 Press and select Browser.
2 To access the browser homepage directly, select Browser then Home.

Note: An additional cost is incurred when connecting to this service and downloading content. Check your data charges with your network provider.

Adding and accessing your bookmarks

For easy and fast access to your favourite websites, you can add bookmarks and save web pages.

1 Press and select Browser.
2 Select Bookmarks. A list of your bookmarks will appear on the screen.
3 To add a new bookmark, select Options and choose New bookmark. Enter a name for your bookmark followed by the URL.
4 Press Done. Your bookmark will now appear in the list of bookmarks.
5 To access the bookmark simply scroll to the required bookmark and select Connect. You will be connected to your bookmarked page.

RSS reader

RSS reader provides news updates for the websites registered on your phone.

Saving a page

1 Access your required web page
2 Choose Options and scroll to Save, select This page.
3 Select OK.

Accessing a saved page

1 Press and select Browser.
2 Select Saved pages.
3 Select the required page and press Open.

TIP! This menu will also allow you to delete saved pages.

Viewing your browser history

1 Press and select Browser.
2 Select History.
3 A list of web page titles you have accessed recently will be displayed. To access one of these pages, scroll to the required page and select Open.

Changing the web browser settings

1 Press and select Browser.
2 Select Settings.
3 You can choose the way your mobile handles, displays and uses information when browsing the internet. You can amend settings within Profiles, Character encoding, Scrolling control, Show image, Java script Cache, Cookies, Security, and Reset settings.

4 Once you have changed your settings, press Select.

Settings

Within this folder you can adapt your settings to make your GU285f personal to you.

Note: For information on call settings see page 25.

Changing your profi les

1 Choose Settings and choose Profiles.
2 Choose from Normal, Silent, Outdoor and Flight mode.

Tip! Use this function to switch the flight mode On or Off. You will not be able to make calls, connect to the internet or send messages when Flight mode is switched On.

Customising your profi les

You can customise each profi le setting.

1 Press Settings and select Profiles.
2 Choose the profi le you want, select Options and choose Personalise.

3 You can change all of the tones, its volumes and alert options from here.

Changing your date & time

You can set functions relating to the date and time.

1 Press and open Settings.
2 Select Date & Time and choose from the list below:

Date & time setting - You can set the date and time like auto update setting or daylight saving.

Time format - You can set the time format to either 24 Hours or 12 Hours.

Date separator - You can set the date format (YYYY.MM.DD, DD.MM.YYYY, MM.DD.YYYY).

Date separator - You can enter the current time/current date set the date and time like auto update setting or daylight saving

Note Select On, and the phone will automatically update the date and time.

Note Select whether to activate the daylight saving function or not. You can set the Summer time difference of selected home city for 1 hour or 2 hours.

Changing the language

Go to Settings, select Phone and choose Language Main language, Writing language, to change the language for any text in your phone. Any change will also alter the language input mode.

Changing your security settings

Change your security settings to keep your GU285f and the important information it holds protected.

1 Press and open Settings.
2 Select Security and choose from the list below:

Handset lock - Choose a security code to lock your phone When switch on, When SIM changed, Immediately, None.

Lock application - Choose the menu to lock when you use the function.

PIN code request - Choose a PIN code to be requested when you turn your phone on.

Change codes - Change your PIN code, PIN2 code or Lock code.

Note: Lock code (4 digits) The Lock code protects the unauthorized use of your phone. It is usually supplied with the phone. This code is required to delete all phone entries and to activate “Reset settings” menu. The default number is “0000”.

Changing your display settings

1 Press and select Settings.
2 Select Screen and choose from:

Homescreen - Select Home

screen and choose a wallpaper to appear on your screen, Also you can set display item.

Settings

Handset theme - Quickly change the whole look of your screen.

Menu style - Change the menu view from List style to Grid style.

Font - Change the font size from Small, Medium, Large and Very large.

Greeting Message - After selecting On, you can write a welcome message. The message will appear on screen whenever you start-up the phone

Backlight - Choose how long the backlight remains on. Also, Use the navigation keys to adjust the Main screen brightness. Choose from 0%, 20%, 40%, 60%, 80% or 100%.

TIP! The longer the backlight is on for, the more battery power is used and you may need to charge your phone more often.

Other screens - Set the screen when making or receiving a call or switching on/ off the phone.

Resetting your phone

Use Reset settings in Settings to reset all the settings to the factory definitions. You need the security code to activate this function.

Viewing memory status

Your GU285f has three memories available: the phone, the USIM card and an external memory card (you may need to purchase the memory card separately).

You can use the memory manager to determine how each memory is used and see how much space is available.

Press Settings and choose Memory info and you will then see the current status of the memories (Handset common memory, Handset reserved memory, USIM memory and External memory) in your GU285f.

Connectivity

Changing your connectivity settings

Your connectivity settings have already been set up by your network operator, so you can enjoy your new phone straightaway. If you want to change any settings, use this menu.

Select Settings and choose Connectivity. Your options are:

Bluetooth - Set up your GU285f for Bluetooth use. You can adapt your visibility to other devices or search through devices your phone is paired with.

USB connection - You can select the USB connection mode on your phone for several uses.

Network - You can set Select network and Network mode

settings using this menu. Also you can add a preferable network to be connected to Preferred lists.

Internet profiles - This menu shows the Internet profi les. You can create new profi les, delete or edit them using the Options menu. However, you cannot delete or edit default confi gurations.

Access points - This menu shows the access points list. You can create new profi les, delete or edit them by using the Options menu. However, you cannot delete or edit default confi gurations.

Packet Data Conn. - If you select the ‘When available’ option, your phone is automatically registered to a GPRS network when you switch the phone on. If you select “When needed”, the GPRS connection is established for the duration of a WAP or application connection.

Streaming settings - Your network operator has already saved this information. You can edit it if you want to make changes.

Connectivity

Changing your Bluetooth settings

1 Select Connectivity, then choose Bluetooth.
2 Choose Settings. Make your changes to:

My device visibility - Set [My device visibility] [Visible] so that other devices can detect your phone when they are searching for a Bluetooth device. If you select Hidden, other devices will not be able to detect your phone when they are searching for a Bluetooth device. If you select Visible for 1 min other devices will not be able to detect your phone within 1 min.

My device name - You can name or rename your phone as it will appear on other devices. Your phone's name will be shown on other devices only when My device visibility is set to Visible.

Supported services - You can view the list of devices such as headsets and handsfree supported by this Bluetooth enabled phone.

LG GU285f | User Guide

My address - Check your Bluetooth address here.

Note : To improve security, we recommend that once you have confi gured or paired with a device, Visibility be set to Hidden. For incoming connections, regardless of whether or not the other device has been paired with your phone, you can choose to accept or reject the connection

Pairing with another Bluetooth device

By pairing your GU285f and another device, you can set up a passcode protected connection. This means your pairing is more secure.

1 Check your Bluetooth is Turn on and Visible. You can change your visibility in the Settings menu, by selecting My device visibility, then Visible.
2 From Bluetooth, choose Turn on and Select Search new device

3 Your GU285f will search for devices. When the search is completed Add and Retry will appear on screen.
4 Choose the device you want to pair with, select Add and enter a passcode then choose OK.
5 Your phone will then connect to the other device, on which you should enter the same passcode.
6 Your passcode protected Bluetooth connection is now ready.

Using a Bluetooth headset

1 Check your Bluetooth is On and Visible.
2 Follow the instructions that came with your headset to place it in pairing mode and pair your devices.
3 Your GU285f will then automatically connect to your Bluetooth headset and switch to headset profi le.

Transferring a fi le to your phone

You can also transfer fi les from your computer to your phone using Bluetooth.

1 Make sure your phone and computer have Bluetooth switched on and are visible to one another.
2 Use your computer to send the fi le via Bluetooth.
3 When the fi le is sent you will have to accept it on your phone by selecting Yes.

Note: Files sent using Bluetooth will be saved to the phone memory.

Connectivity

Sending and receiving your fi les using Bluetooth

Bluetooth is a great way to send and receive fi les as no wires are needed and connection is quick and easy.

You can also connect to a Bluetooth headset to make and receive calls.

Before you can start sharing fi les using Bluetooth, you will need to pair your phone with another Bluetooth device. For information on pairing devices, see Pairing with another Bluetooth device.

To switch Bluetooth on:

1 Select Connectivity, then choose Bluetooth.
2 Select Turn on.
3 Select Turn off to switch Bluetooth off.

To send a file:

1 Open the fi le you want to send, typically this will be a photo, video or music fi le.
2 Select Options and choose Send via, then Bluetooth.

LG GU285f | User Guide

3 Select Yes to turn Bluetooth on if it is not already activated.

4 Your GU285f will automatically search for other Bluetooth enabled devices within range.

5 Choose the device you want to send the file to and select Send.

To receive a file:

1 To receive fi les, your Bluetooth must be both Turn on and Visible.

2 A message will prompt you to accept the fi le from the sender. Select Yes to receive the fi le.

TIP! Keep an eye on the progress bar to make sure your fi le is sent.

Note The Bluetooth ^® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LG Electronics is under licence. Other trademarks and trade names are those of their respective owners.

USB connection mode

You can select the USB connection mode on your phone for several uses.

Always ask mode

If you set the “Ask always” as default, the phone will always prompt you to select a type of USB connection mode each time you connect the phone to a PC via the data cable. If you disable the “Ask always”, the connection mode will be the one you have manually set in Menu - Settings - Connectivity - USB Connection and one of the options Internet, Mass storage, PC Suite, or Music sync.

Mass storage-Use your phone as a mass storage device

Your GU285f can be used as a mass storage device, just like a USB stick. This is a great way of moving your fi les from your computer to your phone. If you've inserted a memory card, when connecting as Mass storage, the phone will be displayed and external memory.

1 Attach the USB cable to the device.
2 Select Mass storage from the popup menu in the device.
3 A removable disk folder will open automatically on your computer, two if you have a memory card inserted, showing all the folders on your phone or memory card.
4 Drag and drop your photos, videos, music or documents into the correct folders.
5 Safely remove your phone by clicking on the Safely remove hardware icon in your desktop toolbar.

Note : This function is not available for Macintosh computer

Connectivity

PC suite-Synchronise your phone with your PC

You can synchronise your phone with your PC to make sure all your important details and dates match, but also to backup your fi les to put your mind at ease.

Installing LG PC Suite on your computer

1 Go to www.lg.com and choose Middle East fi rst and then your country.
2 Select Manual & Software and click LG Mobile Support Tool application to download manual and software Click Yes and LG PC Suite installer will then appear. (Windows XP, Windows Media Player and more).
3 Select the language you would like the installer to run in and click OK.
4 Follow the instructions on screen to complete the LG PC Suite Installer wizard.

5 Once installation is complete, the LG PC Suite icon will appear on your desktop.

Connecting your phone and PC

1 Connect the USB cable to your phone and your PC.
2 Select PC Suit from the popup menu in the device.
3 Double click on the LG PC Suite icon on your desktop.
4 Click on Connection Wizard, then USB.
5 Click on Next, then Next again, then Finish. Your phone and PC are now connected.

Backing up and restoring your phone's information

1 Attach the USB cable to the device and select the PC Suite on the screen.
2 Click on the Backup icon, and select Backup or Restore.
3 Mark the contents you would like to back up or restore. Select the location you would like to

backup information to, or restore information from. Click OK.

4 Your information will be backed up.

Viewing your phone files on your PC

1 Attach the USB cable to the device and select the PC Suite on the screen.
2 Click on the Contents icon.
3 All of the documents, fl ash contents, images, sounds and videos you have saved onto your phone will be displayed on the screen in the LG Phone folder.

TIP! Viewing the contents of your phone on your PC helps you to arrange fi les, organise documents and remove contents you no longer need.

Synchronising your contacts

1 Attach the USB cable to the device and select the PC Suite on the phone screen.
2 Click on the Contacts icon.
3 Your PC will now import and display all contacts saved to your USIM card and handset.
4 Click on File and select Save. You can now select where you would like to save your contacts to.

Note To backup contacts saved to your USIM card, click on the SIM card folder on the left side of your PC screen. Select Edit at the top of the screen, then Select all. Right-click your contacts and select Copy to contact. Now click on the Handset folder on the left of your screen and all your numbers will be displayed.

Connectivity

Synchronising your messages

1 Attach the USB cable to the device and select the PC Suite on the screen.
2 Click on the Messages icon.
3 All of your PC and phone messages will be displayed in folders on your screen.
4 Use the tool bar at the top of your screen to edit and rearrange messages.

Phone Software update

LG Mobile Phone Software upgrade on web site

For more information and using this function, Please visit LGmobile.com site path: http://www.lg.com - select country - Manual & software banner This Feature allows you to upgrade your software to the latest version and conveniently on the internet without needing to visit our service center.

As the mobile phone software upgrade requires the user's full attention for the duration of the upgrade process, please be sure to check any instructions and notes that appear at each step before proceeding. Please note that removing the USB data communication cable or battery during the upgrade may seriously damage your mobile phone. To the extent permitted by law, the manufacturer takes no responsibility for loss of data during the upgrade process. You are advised to back up any important information in advance for safekeeping as the software upgrade could result in the deletion of personal data.

Accessories

These accessories were supplied with your GU285f.

Charger

Illustration of a rectangular electronic component with three leads (no text or symbols)

User Guide

Learn more about your GU285f.

Battery

3D rendering of a gray rectangular electronic device with a small circular mark on the side (no text or symbols visible)

Stereo headset

Coiled black cable connectors with USB port, no visible text or symbols

Note

• Always use genuine LG accessories. Failure to do this may invalidate your warranty.
• Accessories may be different in different regions; please check with our regional service company or agent for further inquires.

Technical data

Ambient Temperatures

Max: +55°C (discharging) +45°C (charging)

Min : -10°C

LG Service Center

by LG Electronics (Thailand) Co. Ltd.

72/127 Somdetprachaw Taksin Rd., Bookalo, Thonburi, Bangkok 10600

Working day : Mon-Sun 07:00 - 19:00

Call center : 0-2878-5757

Declaration of Conformity

Suppliers Details

Name

LG Electronics Inc

Address

LG Electronics Inc. LG Twin Towers 20.

Yeouido-dong Yeongdeungpo-gu, Seoul, Korea 150-721

Product Details

Product Name

GSM 850 / E-GSM 900 / DCS 1800 / PCS 1900 Quad Band and WCDMA Terminal Equipment

Model Name

GU2851

Trade Name

LG

C€ 0168

Applicable Standards Details

R&TTE Directive 1999/5/EC

EN 301 489-01 V1.6.1, EN 301 489-07 V1.3.1

EN 301 489-17 V1.2.1, EN 301 489-24 V1.4.1

EN 301 511 V9.0.2

EN 301 908-1 V3.2.1 EN 301 908-2 V3.2.1,

EN 300 328 V1.7.1

EN 50360:2001/EN52209-1:2006

EN 60950-1:2001

Supplementary Information

The conformity to above standards is verified by the following Notified Body(BABT)

BABT, Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD, United Kingdom Notified Body Identification Number : 0168

Declaration

I hereby declare under our sole responsibility that the product mentioned above to which this declaration relates complies with the above mentioned standards and Directives

LG Electronics Inc. - EU Representative

Velwezoom 15, 1327 AE Almere, The Netherlands

Name

Seung H Youn, J / Director

Issued Date

28.Apr.2010

Signature of representative

Trouble Shooting

This chapter lists some problems you might encounter while using your phone. Some problems require you to call your service provider, but most are easy for you to correct yourself.

Message Possible causes Possible Solutions
SIMerror	There is no SIM card in the phone or it is inserted incorrectly.	Make sure the SIM card is correctly inserted.
No network connection	SignalweakOutside GSM network area	Move towards a window or into an open area. Check the service provider coverage map.
Codesdo not match	To change a security code, you will need to confirm the new code by entering it again.	Contact your Service Provider.
Function cannot be set	Not supported by Service Provider, or registration required	Contact your Service Provider.
Callsnot available	DiallingerrorNew SIM card inserted Charge limit reached	New network not authorised. Check for new restrictions. Contact Service Provider or reset limit with PIN 2.

Message Possible causes Possible Solutions

Phone cannot be switched on	On/Off key not pressed long enoughBattery emptyBattery contacts dirty	Press the On/Off key down for at least two seconds.Keep charger attached for a longer time.Clean the contacts.
Charging error	BatterytotallyemptyTemperature out of range	Chargebattery.Make sure the ambient temperature is right, wait for a while, and then charge again.
	Contact problem	Check the power supply and connection to the phone. Check the battery contacts and clean them if necessary.
	No mains voltage	Plug in to a different socket or check the voltage.
	Charger defective	If the charger does not warm up, replace it.
	Wrong chargerBattery defective	Only use original LG accessories.Replace battery.
Phoneloses network	Signal too weak	Reconnection to another service provider is automatic.
Numbernot permitted	The Fixed dial number function is on.	Check settings.

LG

Digital Mobile

สำหรับส่งศืนบริษัท

(Product & Model) (Warranty Card Number)

MEI 75000000000000000000000000000000000000000000000000

(Date of Birth) [Gender]

ที่อยู่ : .....

(Address)

(Occupation) (Telephone No.)

ชื่อจากเร้าน :

(Dealer's Name)

ศูนย์บริการข้อมูล

Customer Information Center 0-2878-5757 or

1-800-

Insulé

www.ige.co.th

Customer Information Center

Tel. [phone] Fax, 0-2466-0250

LG

Electronics (Thailand)

Abstract black and white vertical bars with no text or symbols

(This warranty is valid only in Thailand)

1) We warranty 1 year on the commencing on the date of purchase and 11 the detail by completely.

2) With the warranty period we will eliminate, tree of charge, any type of misused or any defect in the part resulting from faults in material or workmanship either by repairing, or exchanging parts.

(Warranty Exclusion and Uncoverages)

1) If repair are not undertaken by LG Service Center or Authorize Service Center.
2) Damage to accessory due to misuse.
3) Defects caused by accident, fire, lightning, incorrect voltage and other acts beyond human control.

(Warranty Card Number)

40000 (Customer's Name)

(lnu):

|อังกมี

วัน เดือน ปี เก็ต :

UNM : ____ ____

[Date of Birth]
