USER MANUAL Series 3000 HC3412 PHILIPS

Black Philips 12-branded hair curler with a digital display showing the blade (no text or symbols on the device itself)

フィリップ スヘアーカッター

品番

HC3412/15

取扱説明書

保証書付

保証書は、この取扱説明書の

ページについておりますので販売店

Guidance in English 20\~30

● 保 証

保証とアフターサービス …… 31

仕様 32

無料修理規定 34

保証書 …… 最終ページ

必ずお守り ください

安全上のご注意

Diagram of a medical or surgical tool with a pointed tip and curved tube, no text or symbols present

Simple line drawing of a curved object with a circular base (no text or symbols)

Hand holding a device with an arrow pointing to it, no visible text or symbols

Diagram of a medical or surgical tool with a pointed tip and curved tube, no text or symbols present

Illustration of a hand holding a handheld device with arrows indicating motion or force (no text or symbols)

2 コームの取り外し

Illustration of a hand pressing down on a curved surface with arrows indicating direction (no text or symbols)

3 電源 スイッチON/OFF

Line drawing of a handheld electronic device with a double-headed arrow indicating rotation (no text or symbols)

ヘアーカッ 準備

用意するもの

・ヘ ア ー カッタ・くし

·コーム

・髪切り専用のハサミ

・髪を留める大きめのピン

・首に巻くタオル

・肩にかけるケープ

・毛払いブラシ

Illustration of a hand using a power tool to trigger an electric shock, with arrows indicating direction (no text or symbols)

Illustration of hands applying a hairdryer to a person's head (no text or symbols present)

2 サイド

Illustration of a person styling hair with a brush (no text or symbols present)

3 前髮

Illustration of a person using a hairbrush to trim their head (no text or symbols present)

Illustration of a person styling hair with a comb, showing hand and close-up of the brush (no text or symbols)

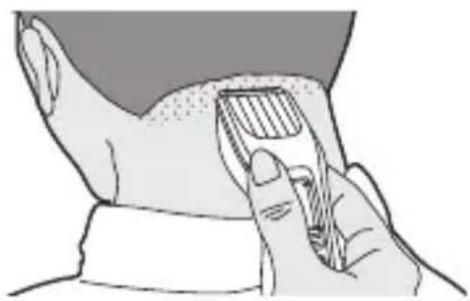

えり足の整え方

Illustration of a hand holding a curved object with arrows indicating direction (no text or symbols)

コームを外します。

Illustration of a hand holding a medical or surgical tool near a patient's arm (no text or symbols visible)

Illustration of a hand using a tool to interact with an earpiece, showing a black arrow indicating direction (no text or symbols present)

Illustration of a hand using a hairbrush to apply a brush to a person's ear (no text or symbols present)

Illustration of a person receiving a medical or therapeutic procedure with an arrow indicating direction (no text or symbols present)

Illustration of a person using a hairdryer to press their ear (no text or symbols present)

前側からもカーブに合わせて動かします。

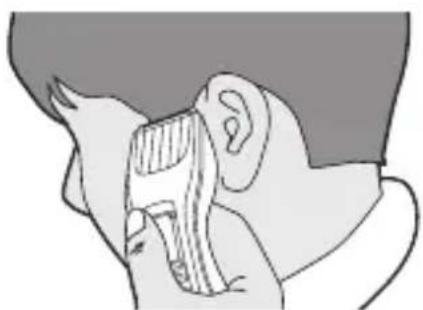

2 もみあげカット

Illustration of a hand pressing down on a curved surface with arrows indicating direction (no text or symbols)

コームを外します。

Side profile illustration of a person wearing a headset, showing ear and neck (no text or symbols)

Illustration of a human ear with a dashed outline indicating the ear area (no text or symbols)

Illustration of a human ear with a dashed outline indicating the ear area (no text or symbols)

Illustration of a human ear with a dashed outline indicating the ear area (no text or symbols)

刃の交換方法

部品の取り替え

本体は水洗いできません。

(刃とコームは水洗いが可能です)

Illustration of a hand holding a curved object with arrows indicating direction (no text or symbols)

Illustration of two identical mechanical components with a tool, connected by a diagonal line (no text or symbols)

Diagram showing two mechanical components with arrows indicating movement, no text or symbols present

Illustration of a hand inserting a plug into a device with a no-smoking symbol (no text or labels)

ニッケル水素電池のリサイクルについて

Illustration of a hand holding a ship with an arrow indicating motion (no text or symbols)

Diagram of a hand holding a device with an arrow indicating direction (no text or symbols present)

Illustration of hands using a tool to adjust or install electronic components (no text or symbols visible)

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

General description (Fig. 1)

1 Cutting element
2 Length setting slide
3 On/off slide
4 Charging light
5 Trimming comb
6 Cleaning brush
7 Adapter
8 Small plug

Important safety information

Read this important information carefully before you use the appliance and its accessories and save it for future reference. The accessories supplied may vary for different products.

Danger

- Keep the adapter dry.

Warning

• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.
• Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.

Caution

• This appliance is not washable. Never immerse the appliance in water and do not rinse it under the tap. Only the cutting element can be rinsed under the tap.
• Only use this appliance for its intended purpose as shown in the user manual.
• Do not use the adapter in or near wall sockets that contain or have contained an electric air freshener to prevent irreparable damage to the adapter.
• Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Electromagnetic fields (EMF)

- This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

• The appliance is suitable for mains voltages ranging from 100 to 240 volts.
• The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.

Charging

Charge the appliance fully before you use it for the first time or after a long period of disuse.

ENGLISH

It takes approximately 8 hours to fully charge the appliance.

When it is fully charged, the appliance has a cordless operating time of up to 75 minutes.

Note: After charging the appliance once fully for the first time, you can also use the appliance directly from the mains. Simply connect the appliance to the mains.

Charging with the adapter

Diagram of a hand holding a device with a power button and arrow indicating action (no text or symbols)

1 Make sure the appliance is switched off.

Diagram showing a plug inserted into a socket with an arrow indicating direction, and a magnified inset showing the socket's internal structure (no text or symbols)

2 Insert the appliance plug into the appliance and put the adapter in the wall socket.
3 After charging, remove the adapter from the wall socket and pull the appliance plug out of the appliance.

Charging indication

Line drawing of a handheld device with a circular button on the left (no text or symbols)

Charging

- When the appliance is charging, the charging light lights up green continuously.

Optimising the lifetime of the rechargeable battery

When you have charged the appliance for the first time, we advise you to use it until the battery is completely empty. Continue to use the appliance

until the motor almost stops operating during a session. Then recharge the battery. Follow this procedure at least twice a year.

Using the appliance

The hair length settings are indicated in millimeters, the comb cuts the hair to a length of 1mm to 23mm. The settings correspond to the remaining hair length after cutting.

When you trim for the first time, be careful. Do not move the trimmer too fast. Make smooth and gentle movements.

Tip: Start trimming at a high length setting and reduce the length setting gradually until you have reached the desired hair length.

Note: You can also use this appliance directly from the mains.

Switching the appliance on and off

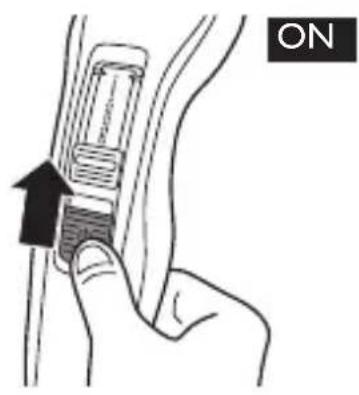

1 To switch on the appliance, slide the on/off button upwards.

2 To switch off the appliance, slide the on/off button downwards.

Trimming with comb

Illustration of a hand holding a device with arrows indicating motion or force (no text or symbols)

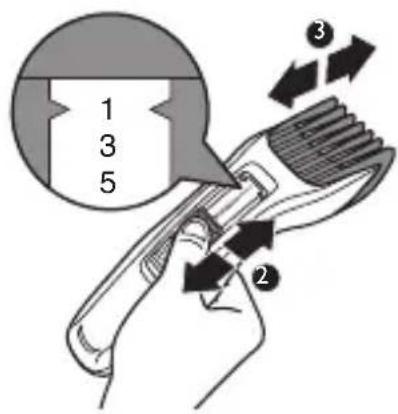

1 Attach the comb onto the appliance.

Diagram of a hairbrush with arrows indicating force or movement (no text or symbols)

2 Turn the length setting slide to the desired length setting.

Illustration of a person applying hair to their ear with an inset showing a textured surface (no text or symbols)

Note: When you trim for the first time, start at the highest length setting to familiarise yourself with the appliance.

3 Switch on the appliance.

4 To trim most effectively, move the trimmer against the hair growth direction. Make sure the surface of the comb always stays in contact with the skin.

Trimming without comb

Illustration of a hand holding a curved object with arrows indicating motion or force (no text or symbols)

You can use the trimmer without the comb to contour your beard, moustache, sideburns or neckline to a length of 0.5mm.

Be careful when you trim without comb because the cutting element removes every hair it touches.

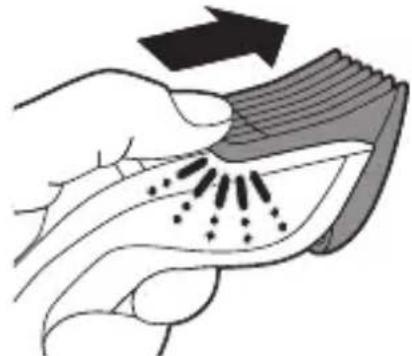

1 Push the comb off the appliance.
2 Switch on the appliance.

Illustration of a person receiving neck massage from a hair clip (no text or symbols)

3 Make well-controlled movements. Touch the hair lightly with the trimmer.

Cleaning

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as alcohol, petrol or acetone to clean the appliance.

Never immerse the appliance in water or rinse it under the tap.

Note: Only the cutting element and the comb can be cleaned with water.

Two diagrams showing a hand holding a small object above a larger object, connected by a rope to a vertical rod (no text or symbols present)

1 Make sure the appliance is switched off and disconnected from the mains.
2 Wipe the housing of the appliance with a dry cloth.
3 Push the comb off the appliance and clean it with the brush or rinse it under the tap.

Caution: Make sure that the comb is dry before you reattach it to the appliance.

4 Press the release button (1). The cutting element comes off the appliance (2).

ENGLISH

Diagram of a mechanical component being inserted into a housing (no text or symbols)

5 Clean the cutting element with the brush or rinse it under the tap. Shake off excess water and leave to dry.

Caution: Do not dry the cutting element with a towel, as this may damage the cutting element

Hand holding a device with a no-smoking symbol (no text or labels)

Caution: Make sure that the cutting element is dry before you reattach it to the appliance.

6 Clean the inside of the appliance with the brush.

Never immerse the appliance in water or rinse it under the tap.

7 To reattach the cutting element, insert the lug of the cutting element into the guiding slot.
8 Insert the lug of the cutting element into the guiding slot (1) and push the cutting element back onto the appliance (2).

Replacement

Only replace a worn or damaged cutting element with an original Philips cutting element, available from authorised Philips service centres.

1 Press the release button (1). The cutting element comes off the appliance (2).

2 Insert the lug of the new cutting element into the guiding slot (1) and push the cutting element back onto the appliance (2).

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details).

Recycling

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Removing the rechargeable battery

Only remove the rechargeable battery if it is completely empty.

1 Disconnect the appliance from the mains and let the appliance operate until the motor stops.
2 Press the release button (1) and remove the cutting element (2).
3 Insert the screwdriver between the motor unit and the back panel of the appliance. Press down the screwdriver as far as it will go

Illustration of a hand holding a small object with a black arrow pointing to it, surrounded by other hands (no text or symbols)

ENGLISH

4 Tilt the handle of the screwdriver downwards (1) and separate the back panel from the appliance (2).

Illustration of a hand holding a device with an arrow pointing to the interior (no text or symbols present)

5 Remove the side panels. Pull the bottom part of the printed circuit board with the rechargeable batteries attached from the appliance.

Illustration of hands using a tool to adjust or install electronic components (no text or symbols visible)

6 Cut the wires to separate the rechargeable batteries from the appliance.

Do not connect the appliance to the mains again after you have opened it.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.

Problem Possible cause Solution

The appliance produces an uneven cutting result.	The comb does not touch the skin when you move the appliance through the hair.	Make sure the comb is always fully in contact with the skin when you move the appliance through the hair.
	You only move the appliance in one direction.	Because not all hairs grow in the same direction, move the appliance in different directions (upwards, downwards and across).
	The setting of the comb has changed during trimming.	Check the setting of the comb. If you push the appliance too hard onto the scalp, you may accidentally change the setting of the comb.
	The attachment is not assembled correctly.	Detach the attachment and reattach it.
	The cutting performance decreases when the cutting element and the comb are dirty.	Clean the cutting element and the comb (see chapter ‘Cleaning and maintenance’).
The appliance does not work when I switch it on.	The appliance has an empty battery.	Charge the appliance (see chapter ‘Charging’). Make sure that the appliance plug is inserted properly into the appliance and the adapter is connected properly to the wall socket.
