Product Type	Wall-mounted integrated lighting and shade control switch
Model	CLS-C6RFB (iLux CLS-C6 Series)
Power Requirement	230 VAC, 50 Hz
Lighting Loads	Up to 6 dimmable or non-dimmable loads (LED, incandescent, magnetic low-voltage, neon/cold cathode, 2-wire dimmable fluorescent)
Shade/Drape Control	Up to 16 motors in up to 6 groups (presettable and non-presettable)
Scene Presets	Up to 16 scenes (8 with daylight harvesting, 8 without)
Communication	infiNET RF for control system integration; built-in IR receiver for optional remote control
Backlit Display	Two-digit numeric display with Min/Sec indicators; 6-segment bar graphs per load
Manual Controls	6 function buttons, ON/OFF, Lights/Shades mode buttons, Up/Down master, Save/Cancel
Operating Modes	Standard (scene recall), Lights (manual adjustment), Shades (manual shade control)
Daylight Harvesting	Supported via optional photocell (scenes 1-8 and ON scene)
Expansion	Can control up to 8 additional CLS-C6 units (54 lighting channels/54 shade groups)
Additional Keypads	Supports up to 16 Crestron keypads for multipoint control
Motion Detection	Not included on this model (available on CLS-C6M variants)
Color Options	White, Black, or Almond
Installation	Wall-mounted; dealer programming via front-panel mini phone jack
Cleaning Instructions	Wipe gently with a dry, soft cloth. Do not use liquid cleaners or abrasives.
Safety	For indoor use only. No user-serviceable parts. Refer all servicing to qualified dealer.

Frequently Asked Questions - iLux CLS-C6RFB Crestron

How do I recall a scene?

In Standard mode, press one of the six function buttons (typically Scenes 1-6) or press ON or OFF. The lights will fade to the preset levels over the programmed fade time.

How can I manually adjust a single light load?

Press the Lights button to enter Lights mode. Then press the right side of the corresponding function button to raise, or the left side to lower the light. The bar graph shows the current level.

How do I control shades manually?

Press the Shades button to enter Shades mode. Use the function buttons: right side opens, left side closes, press again to stop. The bar graph shows position for presettable motors.

How do I change a scene preset?

In Standard mode, press and hold the function button for the desired scene for 5 seconds. The display will flash 'Sc.' and the scene number. Use the function buttons to adjust light levels or press Shades to adjust shade positions. Press Save to store or Cancel to revert.

What does the blinking bar graph LED mean?

A blinking top LED on a bar graph indicates that the load is under daylight harvesting control (photocell active). The light level will automatically adjust based on ambient light.

Can I use a remote control?

Yes, the unit has a built-in IR receiver. You can use an optional Crestron IR remote control to recall scenes or adjust loads.

How do I reset the unit to factory defaults?

A full reset requires dealer programming. Do not attempt to reset via front panel; contact your installer for configuration changes.

Why are the function buttons glowing dimly?

When all lights are off, the function buttons glow dimly to help you locate the panel in the dark. This is normal behavior.

What if a function button does not work?

Check that the unit is in the correct mode (Standard, Lights, or Shades). If the problem persists, the button may have been reprogrammed by the dealer. Contact your installer.

How do I clean the unit?

Use a dry, soft cloth to wipe the surface. Do not use water, solvents, or abrasive cleaners. Ensure the unit is powered off before cleaning.

USER MANUAL iLux CLS-C6RFB Crestron

Crestron CLS-C6 Series

iLux® Integrated Lighting System

User Guide

Contents

iLux® Integrated Lighting System: CLS-C6 Series 1

Introduction....1

Operating Modes....5

Standard Mode....5

Lights Mode....5

Shades Mode 6

Changing Scene Presets....7

Problem Solving 8

Troubleshooting....8

Further Inquiries....8

iLux® Integrated Lighting System: CLS-C6 Series

Introduction

The CLS-C6 series of iLux ^® units are complete, integrated wall-mounted lighting system that can function as standalone devices and/or be part of a Crestron ^® solution total control system network. The units are intended for installation in boardrooms, auditoriums, home theaters, or anywhere versatile and cost-effective control of lighting and shades is required.

The units are functionally identical, except that certain units include a built-in motion sensor. Refer to the table on the next page for definition of available models. All models are available in three colors: white, black, or almond.

For simplicity in this guide, references to the CLS-C6 unit apply equally to all, except where noted.

Functional Summary

• Automated control of up to six lighting loads: LED*, incandescent, magnetic low-voltage, neon/cold cathode, 2-Wire Dimmable Fluorescent, and non-dimmable lights.
• Automated control of up to 16 shade and drape controllers, in up to six groups, for motorized window treatments, screens, and lifts
• Manual control of individual lighting loads and shade groups
• Versatile operation provides access to up to 16 stored scenes (lighting levels and shade position combinations)
• Built-in motion detector (certain units only) enables automated control based on room occupancy
• Built-in IR receiver allows wireless operation using an optional infrared remote control
• Multipoint control through up to 16 Crestron keypads (sold separately) allows control of rooms with several entrances or work areas
• Multi-unit expansion through support of up to eight additional CLS-C6 units, enables systems of up to 54 lighting channels and 54 shade groups
• Control system integration via two separate control networks; one for local devices and one for connection to a 2-Series control system
  • Supports Daylight Harvesting

CLS-C6 Model Definition

MODEL DESIGNATION	POWER REQUIREMENTS		MOTION	CONTROL SYSTEM INTEGRATION
	120 VAC	230 VAC DETECTOR Cresnet		®	infiNETTM
CLS-C6 X	X
CLS-C6M X	X X
CLSI-C6 X	X
CLSI-C6M X	X X
CLS-C6RF X		X
CLS-C6MRF	X		X		X
CLSI-C6RF	X		X
CLSI-C6MRF		X	X		X

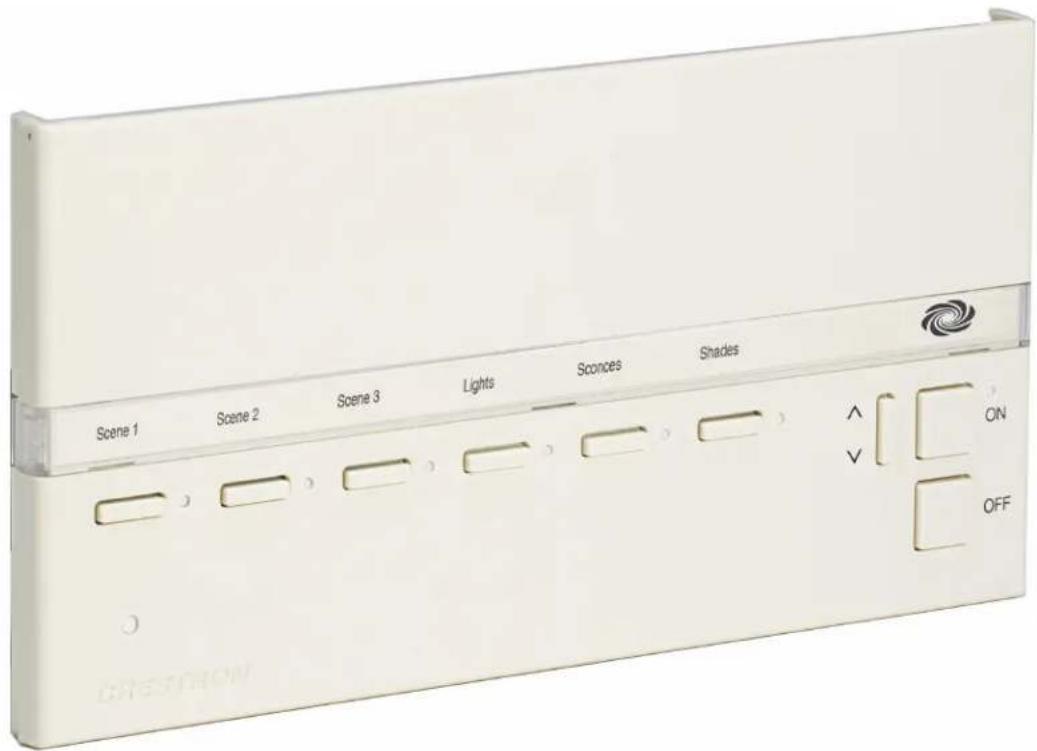

All controls and indicators for the CLS-C6 are located on the front of the unit. The front panel also contains a mini phone jack, under the flip-up cover, used for dealer programming functions, and an IR port for control via an optional IR remote control.

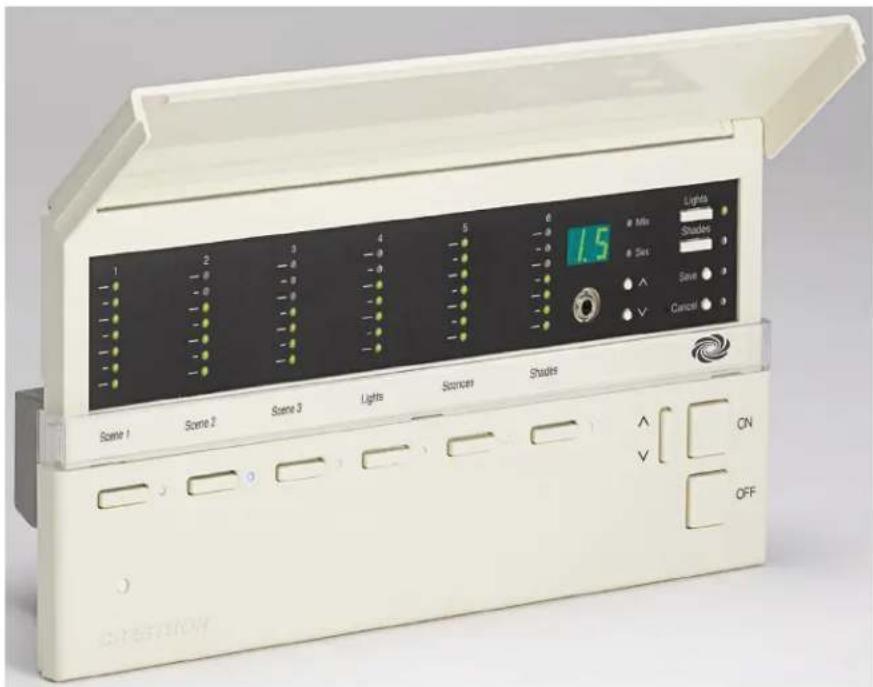

CLS-C6 (Cover Open)

Refer to the figure on the next page and the descriptions in the following paragraphs for operating controls and indicator details.

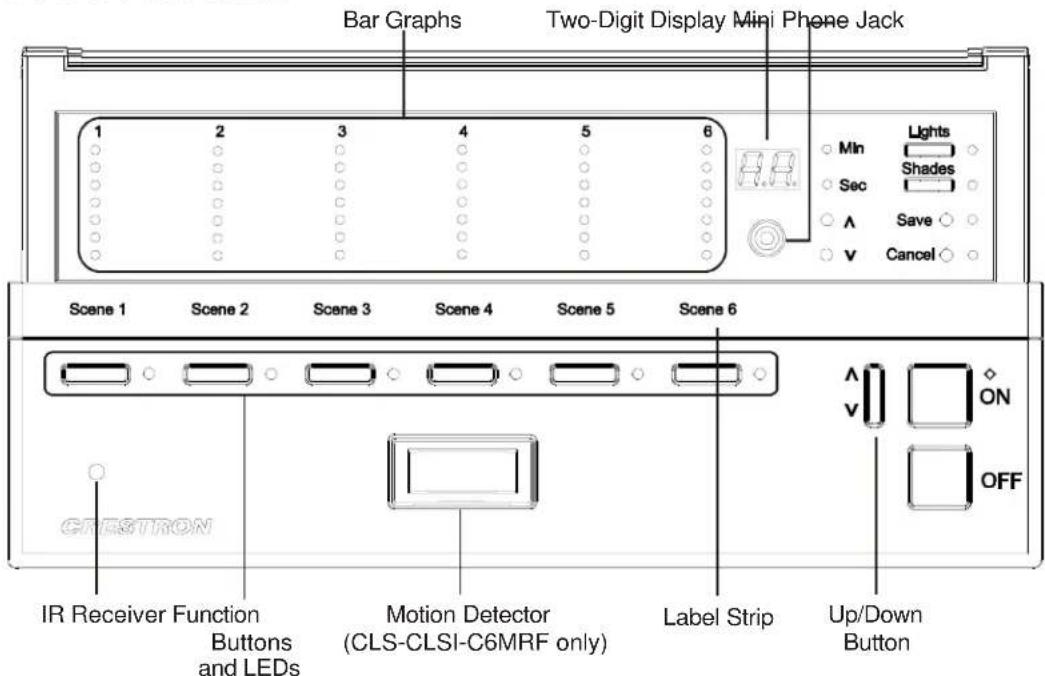

CLS-C6 Controls & Indicators

The table below and on the following page describes the function of the iLux unit's controls and indicators, which are listed in alphabetical order.

NOTE: Standard mode, Lights mode, and Shades mode mentioned in the following discussions are described in "Operating Modes" on page 5.

CLS-C6 Controls & Indicators Descriptions

CONTROLS & INDICATORS	DESCRIPTION
Bar Graphs	In Standard mode and Lights mode, the bar graph LEDs indicate the current light level for the six lighting loads. In Shades mode, they indicate the shade position for each of the shade groups.
Function Buttons	In Standard mode, these buttons are used to select/recall scenes. In Lights mode, they are used to make temporary adjustments to the six lighting loads. In Shades mode they are used to make temporary adjustments to the six shade groups.

(Continued on following page)

CLS-C6 Controls & Indicators Descriptions (Continued)

CONTROLS & INDICATORS DESCRIPTION
IR Receiver	The IR receiver responds to commands from an optional remote control.
Label Strip	The label strip identifies the use of the function buttons. The illustration shows the default purpose: selection of the first six scenes. The label in your unit may be different, depending on the unit's configuration and lighting/shades arrangement.
Lights Pushbutton and LED	Use this button to select the Lights mode. The LED illuminates accordingly.
Mini Phone Jack	This mini-phone jack is only to be used by your dealer.
Motion Detector (CLS/CLSI-C6M/C6MRF only)	In Standard mode, the motion detector recalls the On scene if there is activity in the room, and recalls the Off scene when there is no activity for thirty minutes.
OFF Button	The OFF button always recalls the Off scene. (Refer to “Standard Mode” on page 5.)
ON Button	The ON button always recalls the On scene. (Refer to “Standard Mode” on page 5.)
^, v, Save, and Cancel Pushbuttons and LEDs	Use these pushbuttons when changing scene presets. The Save and Cancel LEDs indicate when these functions are active. (Refer to “Changing Scene Presets” on page 7.)
Shades Pushbutton and LED	Use this switch to select the Shades mode. The LED illuminates accordingly.
Two-Digit Display	In Standard mode, the display is blank, except when showing scene fade time. The Min and Sec LEDs illuminate to indicate time in minutes or seconds.
^ Up/Down Pushbutton	In Standard mode and Lights mode, this button acts as lights master, adjusting all lighting loads simultaneously. In Shades mode, it adjusts all shade groups simultaneously.

Operating Modes

After installation, the CLS-C6 operates in one of three modes:

• Standard mode: this is the default mode; buttons are typically used to recall scenes, although they can be reprogrammed by the dealer for other functions.
  • Lights mode: this mode is used to manually adjust lighting loads.
• Shades mode: this mode is used to manually control shade groups.

The following descriptions do not include additional functionality made possible by dealer programming. Those functions are beyond the scope of this guide.

Standard Mode

Daylight Harvesting

The iLux supports use of a photocell to automatically reduce light levels when natural light is present (aka "Daylight Harvesting"). Each load can be set for a custom response to daylight levels, or set to not respond at all.

If a photocell is present, Scenes 1 through 8 (plus the ON scene) will automatically utilize Daylight Harvesting. Scenes 9 through 16 will ignore daylight harvesting at all times.

When under photocell control, the load level can change automatically based on the current photocell level and the scene setting. When this automatic behavior is enabled, the top bar graph LED for that load will blink.

By default, the six function buttons recall scenes 1 - 6. As a scene is recalled, the lights fade (change from one level to another) in a specified time, and any shades in the scene go to their specified levels.

The ON and OFF buttons recall the On and Off scenes, respectively. By default, the On scene will set all lights to full on. The Off scene will always set all lights to full off.

While fading, the LED for the selected scene recall button blinks, and then stays on when fade is complete; the two-digit display shows the time remaining; If you press the selected scene recall button again before fade is complete, the lights immediately go to their assigned levels and the LED turns solid.

The six bar graphs always show the current level of each lighting load.

When all lights are off, the LEDs for all function buttons glow dimly to make it easy to locate the panel in the dark.

The up/down button acts as a lights master, adjusting the level of all dimmable lighting loads simultaneously. Pressing the top of the button raises the lights; pressing the bottom of the button lowers them.

You can also select functions using an optional remote keypad or IR remote control.

Manual Load Adjustment With Daylight Harvesting

When a load is under photocell control, the top bar graph LED for that load will blink slowly. Manual adjustment of the load is still possible using the raise and lower buttons.

NOTE: Manual adjustment of the load does not disable the photocell. The load will change in response to the photocell, but the level will be shifted up or down according to an internal calculation that compensates for the amount of manual adjustment.

Lights Mode

Lights mode lets you manually adjust any of the six lighting loads.

To enter Lights mode, press the Lights button. The LED will light, and the six function buttons can now be used to adjust the six lighting loads.

• Press the right side of the function buttons to raise the lights; press the left side to lower the lights.
  • The six bar graphs show the current level of each lighting load.
• While a particular lighting load is being adjusted, the two-digit display shows its level. (“oF” indicates fully off; “on” indicates fully on; “1” – “99” indicate percent of the full on level.) Press the center of a function button to check light level without adjusting.
• The up/down button acts as an all lights master in this mode. Press the top of the button to raise the lights; press the bottom of the button to lower the lights.

The ON and OFF buttons operate normally while in Lights mode.

To exit Lights mode, press the Lights button again, or press Cancel. The LED will go off, and the unit will revert to Standard mode.

Shades Mode

Shades mode allows you to manually adjust any of the six shade groups.

To enter Shades mode, press the Shades button. The LED will light, and the six function buttons can now be used to adjust shade groups 1 through 6.

• Press the right side of the function buttons to open the shades; press the left side to close the shades. Press the button while the shade is moving to stop it.
• For presettable shade motors:

– The bar graphs show the current position of each shade group.
- While a particular shade group is being adjusted, the two-digit display shows its position. ("CL" indicates fully closed; "OP" indicates fully open; "1" - "99" indicate percent of the fully open position.)

- For non-presettable shade motors:

• The bar graphs will display nothing while a shade is not moving.
  While a particular shade group is being opened, its bar graph LEDs scroll up and the two-digit display shows "OP."
  While a particular shade group is being closed, the bar graph LEDs scroll down and the two-digit display shows "CL."

- The up/down button acts as a shades master in this mode, no matter what function is programmed for it. Press the top of the button to open the shades; press the bottom of the button to close the shades. Press the button while the shades are moving to stop.

The ON and OFF buttons operate normally while in Shades mode.

To exit Shades mode, press the Shades button again, or press Cancel. The LED will go off, and the unit will revert to Standard mode.

Changing Scene Presets

Scene Presets With Daylight Harvesting

If a photocell is present, Scenes 1 through 8 (plus the ON scene) will automatically utilize Daylight Harvesting. When this automatic behavior is enabled, the top bar graph LED for that load will blink.

NOTE: When editing scenes with photocell-controlled loads, photocell output will be temporarily disabled. When the scene is recalled, photocell control will resume and light levels may change. To reduce the possibility of unintended scene behavior caused by photocell reaction to sunlight, edit scenes at night.

The CLS-C6 scene settings can be modified using the front panel controls, without having to use a PC.

Changes to the lighting load levels and shade presets for one or more scenes can be accomplished as follows:

1. In Standard mode, press the function button of the scene you wish to modify and hold it for five seconds. (Make sure you press the center of the button so both sides make contact.)
2. The two-digit display will first count down as the lighting loads fade to their preset levels for that scene; it will then begin flashing between Sc. and the scene number; the Lights LED will be lit, and the Save and Cancel LEDs will flash.
3. Use the six function buttons to adjust the levels of the lighting loads for that scene. Press the left side of the buttons to lower the lighting loads; press the right side of the buttons to raise the lighting loads.
4. If you would like a certain lighting load to be unaffected by that scene recall, press and hold the center of the button (so both sides make contact) for three seconds. The top two and the bottom two LEDs of the associated bar graph will be lit (and the display will show - - ) to indicate that the level of the lighting load will not change when the scene is recalled.
5. To change the shade presets for that scene press the Shades button; the Shades LED will be lit.
6. Use the six function buttons to adjust the levels of the shade groups for that scene. Press the right side to raise the shades; press the left side to lower them. Note that for shades that are not “presettable,” only full open or full closed positions can be recalled as part of a scene.
7. If you would like a certain shade group to be unaffected by that scene recall, press and hold the center of the button (so both side make contact) for three seconds. The top two and the bottom two LEDs of the associated bar graph will be lit (and the display will show - - ) to indicate that the level of that shade group will not change when the scene is recalled.
8. To adjust the fade time, press the ^ and v buttons. When going up, the value will go from 0 seconds to 59 seconds, and then 1 minute to 99 minutes. When going down, the value will go from 99 minutes to 1 minute, and then 59 seconds to 0 seconds. The Min and Sec LEDs light as appropriate. Adjustment to fade time can be made when either Lights mode or Shades mode is active.
9. When all the lighting loads are at the desired level and shades are at the desired position, press Save to save these settings as the new preset for that scene. If you make a mistake while changing a setting, press Cancel to discard changes and return to Standard mode before pressing Save.
10. Repeat the above procedures for all scenes that require changes.

Problem Solving

Troubleshooting

The table below provides corrective action for possible trouble situations. If further assistance is required, please contact your dealer.

CLS-C6 Troubleshooting

TROUBLE POSSIBLE CAUSE(S)		CORRECTIVE ACTION
The unit does not respond as expected after changing preset.	Incorrect procedures were used to change the preset.	Refer to “Changing Scene Presets” on page 7 to revise the preset correctly.

Further Inquiries

If you cannot locate specific information or have questions after reviewing this guide, contact your dealer.
