Type	Video projector
Brand	Ricoh
Model	PJ WXL5670
Resolution	WXGA (1280 x 800)
Brightness	3000 lumens
Contrast Ratio	10,000:1
Light Source	Lamp
Lamp Life (Normal)	5000 hours
Lamp Life (Eco)	10000 hours
Keystone Correction	Vertical ±30°
Projection Size	30 - 300 inches
Input Ports	HDMI, VGA, Composite, S-Video, USB
Noise Level	33 dB (Normal) / 28 dB (Eco)
Dimensions (W x D x H)	315 x 224 x 108 mm
Weight	2.5 kg
Power Consumption	300 W (Normal) / 210 W (Eco)
Standby Power	Less than 0.5 W
Supported Aspect Ratio	16:10, 16:9, 4:3
Projection Lens	Manual zoom and focus
Warranty	2 years
Maintenance	Clean air filter every 500 hours; replace lamp when needed

Frequently Asked Questions - PJ WXL5670 RICOH

How do I connect my laptop to the Ricoh PJ WXL5670 projector?

Connect using an HDMI or VGA cable. Ensure the projector is turned on and select the correct input source using the Source button on the remote or projector.

What is the native resolution of the PJ WXL5670?

The native resolution is WXGA (1280 x 800), ideal for widescreen presentations and videos.

How do I clean the air filter on this projector?

Turn off the projector and unplug it. Locate the air filter cover (usually on the side). Remove the filter and gently vacuum or wash with mild soap if washable. Reinstall only after it is completely dry. Clean every 500 hours of use.

What is the recommended projection distance for a 100-inch screen?

With this projector's throw ratio, a 100-inch diagonal image is achieved at approximately 2.4 to 3.6 meters away, depending on zoom setting. Refer to the manual's distance chart for precise values.

How do I replace the lamp on the Ricoh PJ WXL5670?

Replace the lamp when the indicator lights up. Turn off the projector, wait for it to cool, then unplug. Remove the lamp cover, unscrew the old lamp, and insert a new one (model specific). Reset the lamp timer via the menu after replacement.

Can I use the projector for 3D content?

The PJ WXL5670 supports DLP Link for 3D. You need active shutter glasses compatible with DLP Link and a 3D source (e.g., Blu-ray player or PC). Enable 3D mode in the menu.

Why is the projector not turning on?

Ensure the power cable is connected and the power switch (if any) is on. Check that the lamp cover is securely closed. If the Lamp or Temp LED is flashing, consult the manual for error codes.

What audio output options does the projector have?

The projector has a built-in 10W speaker and a 3.5mm audio output jack for external speakers. Audio can also pass through HDMI.

How do I adjust the keystone correction?

Press the Keystone button on the remote or access the menu under Settings > Keystone. Use the arrow keys to adjust vertical keystone (up to ±30°). For horizontal keystone, rotate the projector physically or use optional adjustment.

Where can I download the manual for the Ricoh PJ WXL5670?

The user manual is available for free download in PDF format on notice-facile.com. You can also request a translation by selecting your language and providing your email.

USER MANUAL PJ WXL5670 RICOH

Abstract composition of five colored circles (orange, blue, pink, green, cyan) arranged in a scattered pattern on white background (no text or symbols)

Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to read the Precautions in this manual before using the machine.

Gradient bar transitioning from dark purple to white, no text or symbols present

Table of Contents

Table of Contents ......1

Usage Notice ......2

Precautions....2

Safety Labels of This Machine .....11

Regulation & Safety Notices ....13

Other Information 18

Introduction ......19

Product Features 19

Package Overview ......20

Product Overview 21

Connection Ports ....22

Control Panel....23

Remote Control 25

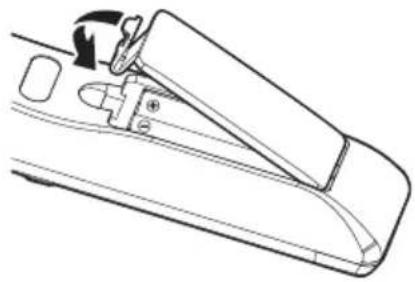

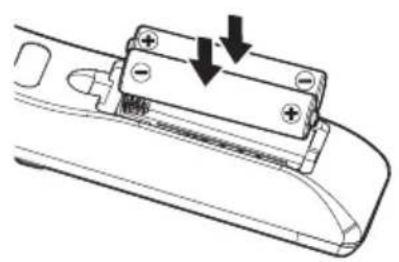

Remote Control Battery Installation.....27

Remote Control Operating Range .....28

Installing the Projector ....29

Basic Operations ......30

Connecting the Projector ....30

Connect to Computer/Notebook .....30

Connect to AV Equipment 31

Powering On/Off the Projector .....32

Powering On the Projector ....32

Powering Off the Projector ....33

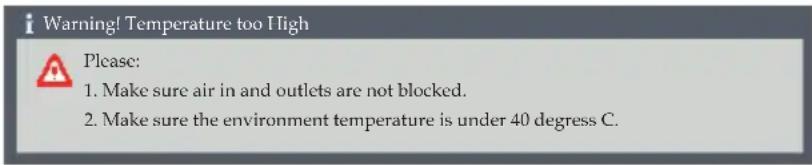

Warning Indicator 34

Adjusting the Projected Image .....35

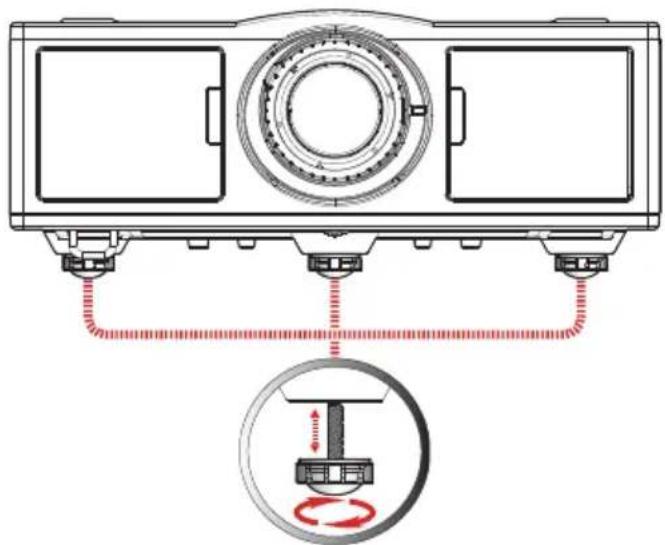

Adjusting the Position of Projector Image ... 35

Adjusting the Projector Focus ....36

Adjusting Lens Shift....37

Adjusting Projection Image Size......38

User Settings ....40

Using the On Screen Display (OSD) .40

How to operate ....40

PICTURE....41

SCREEN 45

SETTINGS 50

AUDIO 55

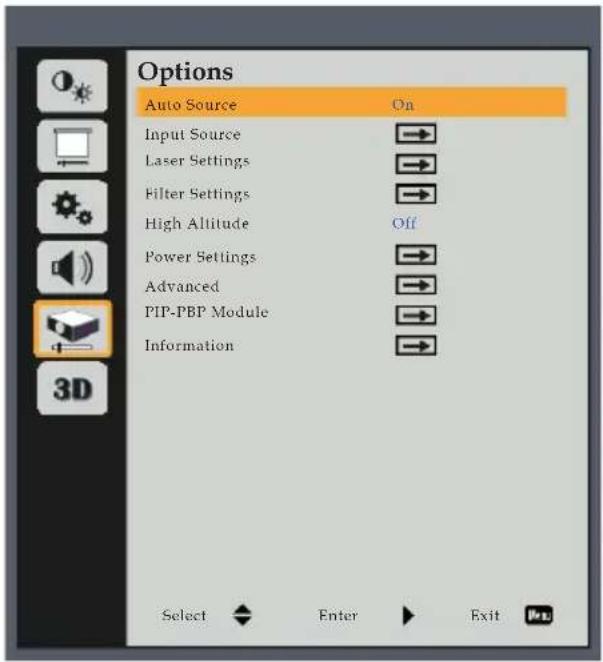

OPTIONS....56

3D....61

LAN Control 63

Controlling this Device with Web Browser....63

Connecting to the device ......63

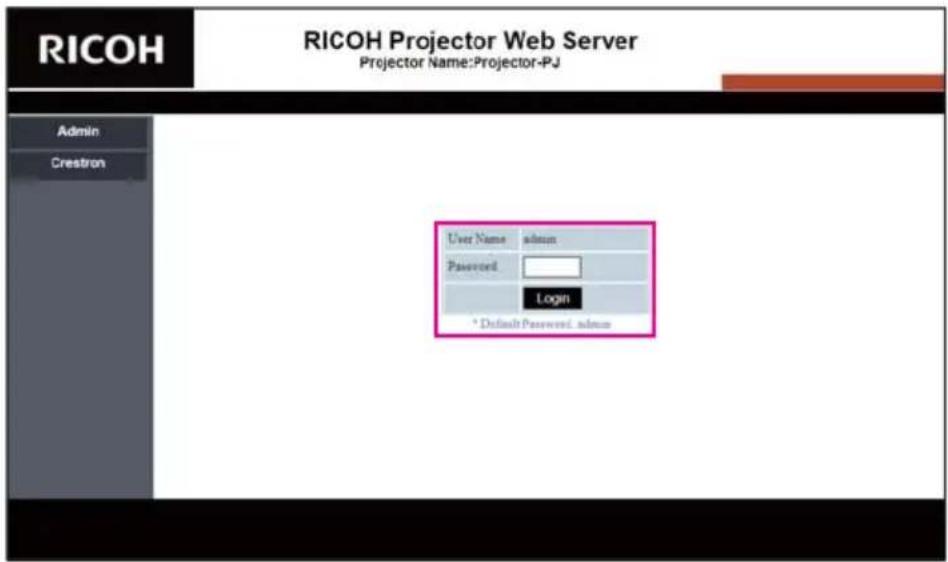

Log in....64

System Status 65

General Setup 66

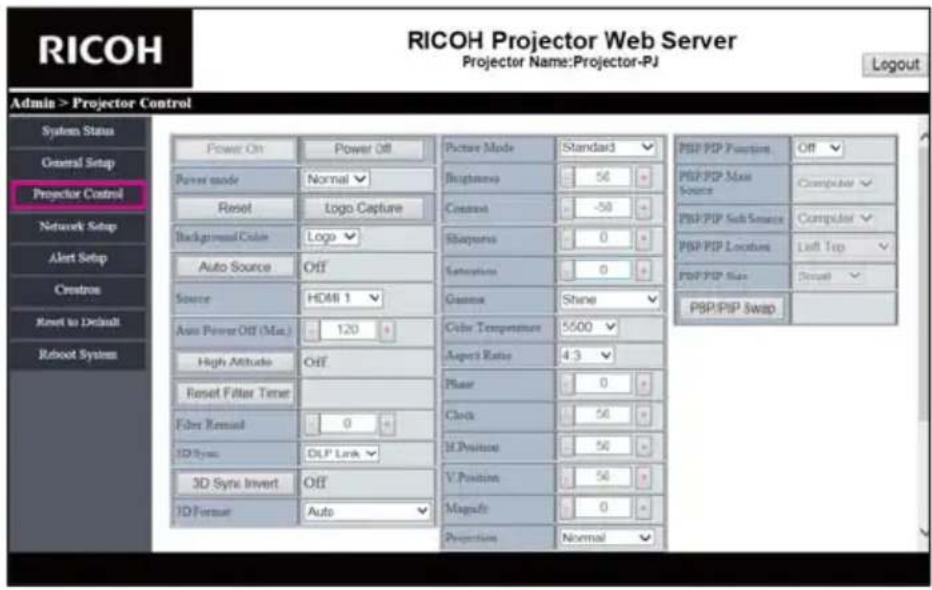

Projector Control 67

Network Setup 70

Alert Setup....71

Crestron....73

Crestron Tools 74

Crestron Info....74

Contacting the IT administrator of Crestron ..75

Reset to Default....75

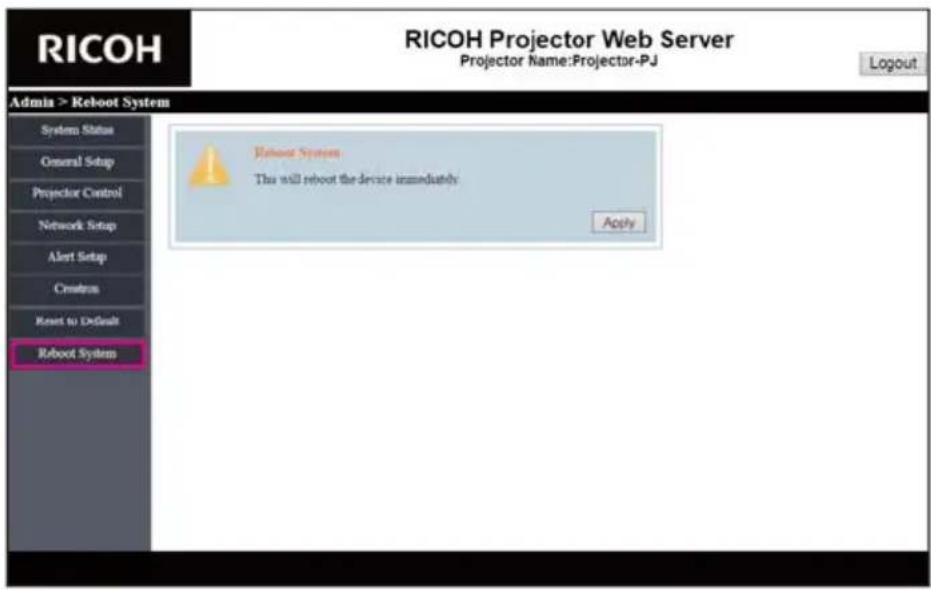

Reboot System 76

Control the Projector via the Projector Management Utility ....77

Installing Projector Management Utility ..78

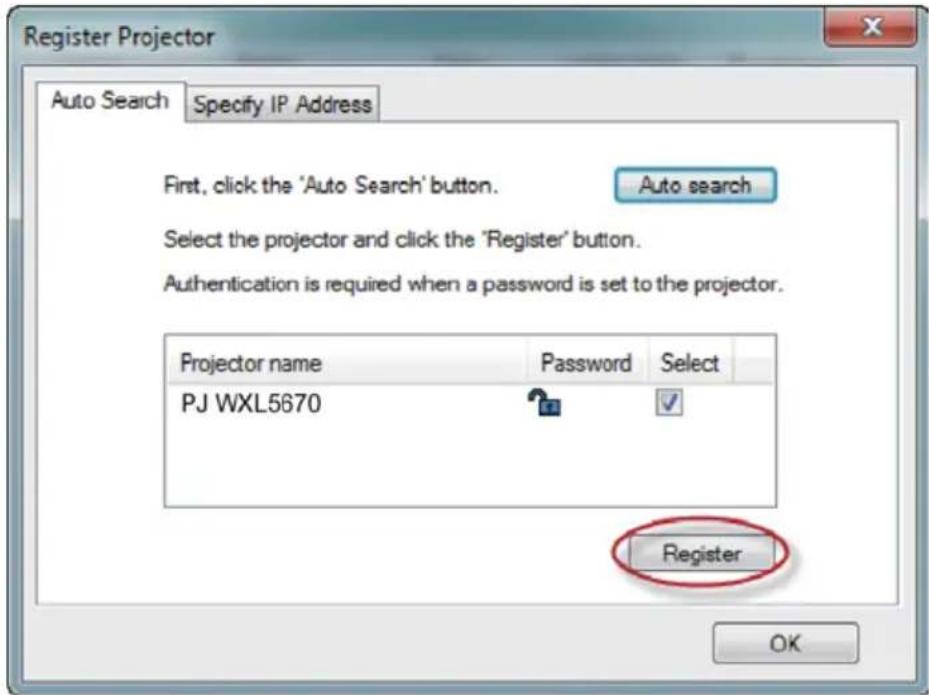

Control the projector with the projector Management Utility....81

Troubleshooting ....83

Appendices......87

List of Compatible Signals ....87

Configurations of Terminals .....93

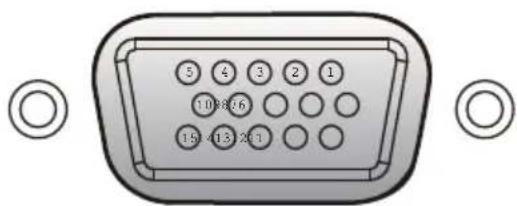

Terminal: Computer In (Mini D-sub 15 pin) [Monitor Out]....93

Terminal: PC Control (D-sub 9 pin) .....93

12V Trigger 94

Wired Remote 94

Specifications 95

Cabinet Dimensions 96

Trademarks....97

Precautions

Follow all warnings, precautions and maintenance as recommended in this user's guide to maximize the life of your unit.

■ Warning-

Indicates a potentially hazardous situation which, if instructions are not followed, could result in death or serious injury.

Caution-

Indicates a potentially hazardous situation which, if instructions are not followed, may result in minor or moderate injury or damage to property.

■Warning- Do not place vases, plant pots, cups, toiletries, medicines, small metal objects, or containers holding water or any other liquids, on or close to this machine. Fire or electric shock could result from spillage or if such objects or substances fall inside this machine
■Warning- Keep the machine and attachments out of the reach of children. If the machine is near children, it may cause injury.
■Warning- Plastic bags can be dangerous, please do not leave near babies and young children. To avoid the threat of suffocation, please keep away from their nose and mouth.
■ Warning- Do not use any power sources other than those that match the specifications shown in this manual. Doing so could result in fi re or electric shock.
■ Warning- Do not damage, break, or modify the power cord. Also, do not place heavy objects on the power cord, or pull the cord or bend it severely. Doing so could result in fire or electric shock.
- Warning- Touching the prongs of the power cable's plug with anything metallic constitutes a fi re and electric shock hazard.
■ Warning- The supplied power cord is for use with this machine only. Do not use it with other appliances. Doing so could result in fi re or electric shock.
■ Warning- It is dangerous to handle the power cord plug with wet hands. Doing so could result in electric shock.

Usage Notice

■ Warning- Be sure to disconnect the plug from the wall outlet at least once a year and check for the following:

■ There are burn marks on the plug.

■The prongs on the plug are deformed.

If any of the above conditions exist, do not use the plug and consult your dealer or service representative. Use of the plug could result in fire or electric shock.

■ Warning- Be sure to disconnect the power cord from the wall outlet at least once a year and check for the following:

- The power cord's inner wires are exposed, broken, etc.

- The power cord's coating has a crack or dent.

■When bending the power cord, the power turns off and on.

■Part of the power cord becomes hot.

■The power cord is damaged.

If any of the above conditions exist, do not use the power cord and consult your dealer or service representative. Use of the power cord could result in fire or electric shock.

■ Warning- Do not use the connection cable if it is deformed, cracked, or damaged. Doing so could result in fire or electric shock. If the connection cable is deformed, cracked, or damaged, contact your service representative to request a replacement cable.

■ Warning- When using an extension cord or power strip, only connect equipment whose total power consumption is within the power rating for the extension cord or power strip. If the power rating is exceeded, it may cause heat buildup and result in fi re.

■ Warning- If the machine emits smoke or odours, or if it behaves unusually, you must turn off its power immediately. After turning off the power, be sure to disconnect the power cord plug from the wall outlet. Then contact your service representative and report the problem. Do not use the machine. Doing so could result in fire or electric shock.

■ Warning- If metal objects, or water or other fluids fall inside this machine, you must turn off its power immediately. After turning off the power, be sure to disconnect the power cord plug from the wall outlet. Then contact your service representative and report the problem. Do not use the machine. Doing so could result in fire or electric shock.

Usage Notice

■ Warning- Never operate this unit on AC power during a thunderstorm. If you see lightning or hear thunder, never touch the unit, cables and/or peripherals. An electric surge caused by the storm, may result in an electrical shock or damage to the unit.
■ Warning- If the machine topples, or if a cover or other part gets broken, you must turn off its power immediately. After turning off the power, be sure to disconnect the power cord plug from the wall outlet. Then contact your service representative and report the problem. Do not use the machine. Doing so could result in fire or electric shock.
■ Warning- Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
■ Warning- Do not remove any covers or screws that are not mentioned in this manual. There are high voltage components inside the machine that may cause electric shock. Contact your service representative if any of the machine's internal components require maintenance, adjustment, or repair.
■ Warning- Do not disassemble or modify the machine. Doing so may cause injury or malfunction.
- Warning- Installing the Projector on a Wall or Ceiling: a) Do not attempt to clean or replace parts for a machine that is installed in a high location on a wall or ceiling. Doing so may cause it to fall down, resulting in an injury. b) Contact your sales or service representative to clean or replace parts for a machine that is installed on a wall or ceiling. c) If a machine is incorrectly installed on a wall or ceiling, it may fall down and cause an injury. Contact your sales or service representative if you want to install a machine on a wall or ceiling. d) Do not obstruct the machine's vents. Doing so risks fi re caused by overheated internal components. e) For users, do not install the projector by yourself. Contact your sales or service representative if you want to install the projector on a wall or ceiling.

Usage Notice

f) For sales or service representatives:

- Use brackets that are strong enough to support the projector. WXL5670/ WUL5670 Series weights less than 11.4kg.

- The projector must be installed in a location that is sturdy enough to support the full weight of the projector and brackets.

■ Caution- Keep the machine away from humidity and dust. Otherwise a fire or an electric shock might occur.

■ Caution- Do not place any objects on the machine. Doing so may cause the machine to topple over, possibly resulting in injury.

■ Caution- Do not place the machine on an unstable or tilted surface. If it topples over, an injury might occur.

■ Caution- Do not place the machine or use it in an environment where it might get wet such as from snow, rain, or being near water. Doing so could result in fire or electric shock.

■ Caution- Do not put your face or hand near the exhaust vents. Doing so could result in burns or an accident due to hot air coming from the exhaust vents.

■ Caution- Do not use the machine on soft material such as paper or cloth that might get sucked into the intake vents. Doing so may cause heat buildup inside the machine, resulting in malfunction, burns, or fire.

■ Caution- Do not place the machine in a location where air flow is poor. Doing so may cause fire due to internal components becoming overheated.

■ Caution- Do not place or store the machine in a location where direct sunlight or heat generation might occur. The heat may deform or wear out the exterior parts or negatively affect internal parts. Doing so could result in fi re.

■ Caution- Do not place low heat resistant material near the exhaust vents. Hot air may come from the exhaust vents, resulting in damage to the machine or an accident.

- Caution- Do not obstruct the machine's vents. Doing so risks fi re caused by overheated internal components.

Usage Notice

■ Caution- Push the power plug all the way into the power outlet. Do not use a power outlet with a loose connection. Doing so may result in heat buildup. Plug the power cord in the correct direction into the base. If they are not plugged in correctly, it could result in smoke, fi re, or electric shock.
■ Caution- If this machine is not going to be used for several days or longer at a time, disconnect its power cord from the wall outlet.
■ Caution- When disconnecting the power cord from the wall outlet, always pull the plug, not the cord. Pulling the cord can damage the power cord. Use of damaged power cords could result in fire or electric shock.
■ Caution- Be sure to disconnect the plug from the wall outlet and clean the prongs and the area around the prongs at least once a year. Allowing dust to build up on the plug constitutes a fi re hazard.
■ Caution- When performing maintenance on the machine, always disconnect the power cord from the wall outlet.
■ Caution- Do not place the power cord and connection cable in a way that might cause someone to trip and fall. The machine might fall over and cause an injury.
■ Caution- The machine may be very hot after it is turned off, especially the vents and the lower part of the unit where the lamp is located. Avoid touching these areas. Doing so may result in burns.
■ Caution- Do not place the machine on other equipment or vice versa. Doing so may cause heat buildup inside the machine or cause the other equipment to malfunction.
■ Caution- Do not increase the volume unless you are listening while increasing the volume. Also, lower the volume before turning off the power, because a loud sound may be emitted when the power is turned on and cause hearing damage.
- Caution- If the machine's interior is not cleaned regularly, dust will accumulate. Fire and breakdown can result from heavy accumulation of dust inside this machine. Contact your sales or service representative for details about and charges for cleaning the machine's interior.

Usage Notice

■ Caution- Unplug the power cord from the wall outlet before you move the machine. While moving the machine, take care that the power cord is not damaged under the machine. Failing to take these precautions could result in fire or electric shock.
■ Caution- Do not use attachments not recommended by RICOH. Use of an incompatible attachments could cause hazards or damage to the product.
■ Caution- Unplug this product from the wall outlet and take the product to qualified service personnel if you encounter any of the following conditions: a) The power supply cord or plug is damaged. b) Liquid has been spilled, or objects have fallen into the product. c) The product has been exposed to rain or water. d) The product does not operate normally when following the operating instructions. Adjust only those controls that are covered by the operating instructions. e) The product has been dropped or damaged in any way. (If the cabinet should break, please handle with care to avoid injury.)
■ Caution- This product incorporates glass components, including a lens. If this should break, please handle with care to avoid injury and contact your sales representative for repair service. Avoid any broken pieces of glass since they may cause injury.
■ Caution- Do not place anything in front of the lens while the projector is operating. Things placed in front of the lens may overheat and burn or start a fire.
■ Caution- Unauthorized substitutions may result in fire, electric shock, or other hazards. (Only the replacement of the lamp should be made by users.) Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to verify that the product is in proper operating condition.
■ Caution- Do not use the product in a closed installation location. Do not place the product in a box or in any other closed installation location. Otherwise it may overheat, which could result in a risk of fire.

ABOUT THE LASER LIGHT SOURCE

■ Warning- Do not look into the lens or vent when the product is on. The bright light may damage your eyes. Be especially careful in an environment with children.
■ Caution- This projector has built-in laser module. Possibly hazardous optical radiation emitted from this product. Do not stare into the beam. May be harmful to the eyes.
■ Caution- Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
■ Caution- Do not block the projection light when it is on. If you do so, the part that is blocking the projection light may get quite hot and deform, deteriorate or cause a burn or fire. The reflected light may make the lens hot and cause a product failure. To temporarily suspend projection, select the mute function. To suspend longer, turn off the product.

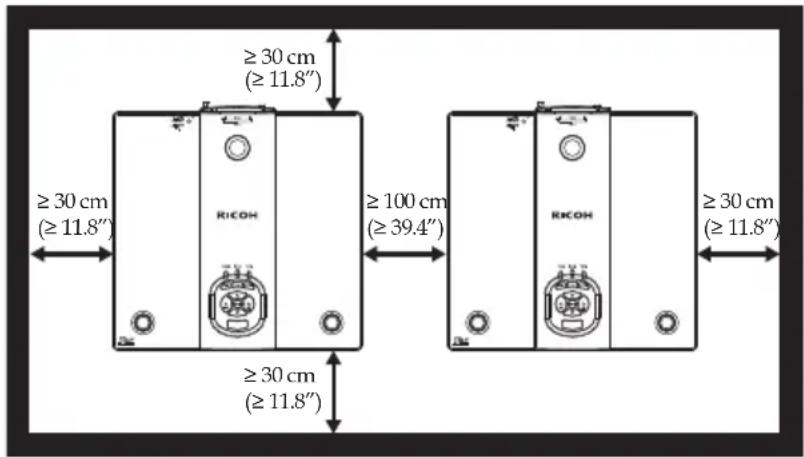

■ Caution- Leave 100 cm or over space between the projectors when projectors are installed side by side, so that intake and exhaust vents of the projectors are not obstructed.

≥ 30 cm (≥ 11.8") ≥ 30 cm (≥ 11.8") RICOH ≥ 100 cm (≥ 39.4") RICOH ≥ 30 cm (≥ 11.8") ≥ 30 cm (≥ 11.8")

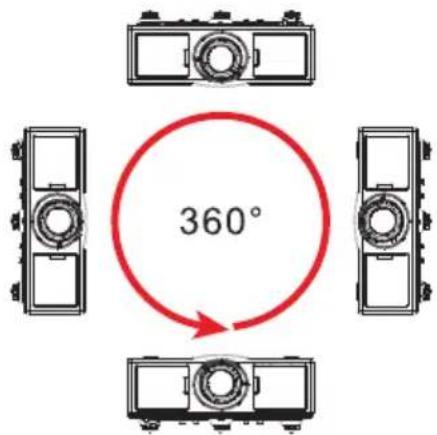

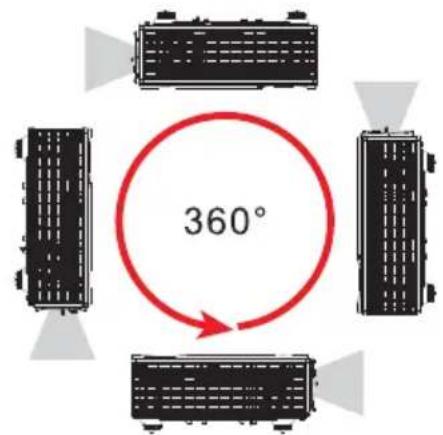

■ Caution- For 360° installation, install the projector more than 30 cm away from the wall or the floor. When the air intake and discharge outlet are obstructed, the temperature inside the projector will rise and this may result in a malfunction.

Usage Notice

≥ 30 cm (≥ 11.8") ≥ 30 cm (≥ 11.8") RICOH ≥ 30 cm (≥ 11.8") ≥ 30 cm (≥ 11.8")

■ Caution- When installing the projector on the right side (preferred), leave a space of at least 30 cm between the intake vent and the floor and a space of at least 100 cm for the exhaust vent.

≥ 100 cm (≥ 39.4") ≥ 30 cm (≥ 11.8") ≥ 30 cm (≥ 11.8") ≥ 30 cm (≥ 11.8")

Floor

■ Caution- When installing the projector on the left side, leave a space of at least 100 cm between the exhaust vent and the floor and a space of at least 30 cm for the intake vent.

≥ 30 cm (≥ 11.8") RICOH ≥ 30 cm (≥ 11.8") ≥ 30 cm (≥ 11.8") ≥ 100 cm (≥ 39.4")

Floor

■ Caution- Do not pile up more than 3 projectors.

REMOTE CONTROL BATTERY

Warning

- Never throw batteries into a fire.

Using the batteries improperly may cause them to explode or leak and may result in serious injury. If battery-leaking fluid contacts skin, wash the fluid off immediately with clean water and consult a doctor. If the fluid spills on an instrument, avoid contact and wipe it off using tissue paper. Then dispose of the used tissue paper as fl ammable garbage after moistening the tissue with water.

- Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

Notes

• Be sure to use AAA (R03) size batteries.
• Dispose of batteries in a designated disposal area.
• Attention should be drawn to the environmental aspects of battery disposal.
• If the remote control does not operate correctly, or if the operating range becomes reduced, replace the batteries.
• Avoid contact with water or liquid.
• Do not expose the remote control to moisture or heat.
• Do not drop the remote control.
• If the batteries have leaked in the remote control, carefully wipe the case clean and install new batteries.
• Dispose of used batteries according to the instructions.
• The remote control may fail to operate if the infrared remote sensor is exposed to bright sunlight or fluorescent lighting.

Important:

Contents of this manual are subject to change without prior notice. In no event will the company be liable for direct, indirect, special, incidental, or consequential damages as a result of handing or operating this product.

Safety Labels of This Machine

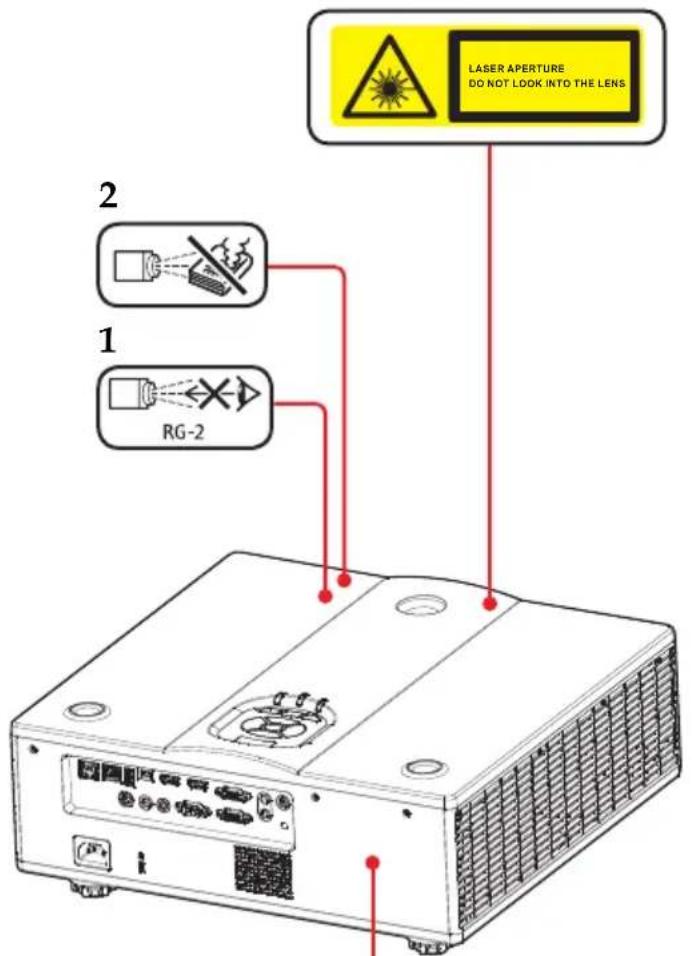

1. Do not look into the lens while the light source is on. The strong light from the light source may cause damage to your eyesight.
2. Do not place anything in front of the lens while the projector is operating. Things placed in front of the lens may overheat and burn or start a fire. If you want to temporarily stop the projected image, use the AV mute on the remote control or the keypad.
3. Do not remove any screws. Do not block or cover the vents.
4. Do not look into the lens. (For USA and Canada only).

5-1. Laser aperture warning: (For USA and Canada only).

• RICOH PJ WXL5670: CLASS 3R LASER PRODUCT-AVOID DIRECT EYE EXPOSURE
• RICOH PJ WUL5670: CLASS 2 LASER PRODUCT-AVOID DIRECT EYE EXPOSURE
- Do not look into the light source light using optical instruments (such as magnifying glasses and mirrors). Visual impairment could result.
- When turning on the projector, make sure no one within projection range is looking at the lens.

- Keep any items (magnifying glass etc.) out of the light path of the projector. The light path being projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause an unpredictable outcome such as a fire or injury to the eyes.

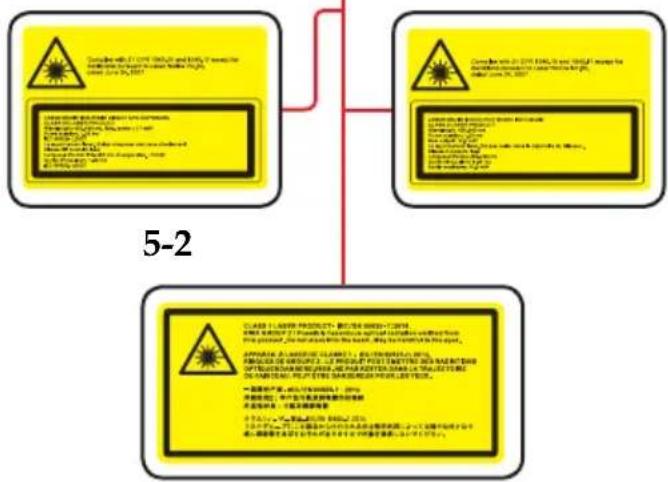

5-2. Laser aperture warning: (For other countries).

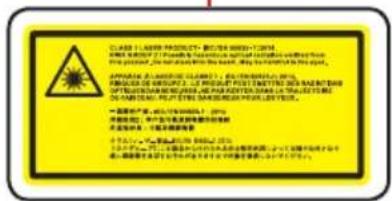

• CLASS 1 LASER PRODUCT - RISK GROUP 2
- Do not stare into the beam, maybe harmful to the eyes.

Usage Notice

3

WARNING VORSICHT AVERTISSEMENT AVVERTIMENTO ADVERTENCIA AVISO 警告 • Do not remove any screws. Do not block or cover the vents. • Outbrushes She kinde Schrambers. Die Luftbeefluss nicht blackomen oder abducters. • He retiner ensure vls. He pas abductor ou couvr les airbrushes. • He remover vll. He captures la press darts. • He retire aloigne banilla. He blanche au tape las salidas de ventilables. • Hide remover qualiquer parafuses. Hide electron ou tape as salidas de ventilación. • 不需要额外照明. 不需要喷嘴或喷嘴通风孔. • 本シを取り外さないでください。通常孔をふさがないでください。

4

1 RG-2 2 LASER APERTURE DO NOT LOOK INTO THE LENS

5-1: WXL5670

Class I: LAGSSE PRODUCT - BUSTEER WOODS - CORN CLASS II: LAGSSE PRODUCT - PRAVABLE LANANTICUM AND PROCESSED FROM EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS III: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS IV: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS V: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS VI: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS VII: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS VIII: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS IX: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS X: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS Y: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS Z: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS AA: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS AB: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS AC: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS AD: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS AE: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS AF: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS AG: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS AH: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS AI: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS AJ: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS AK: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS AL: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS AM: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS AN: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS AO: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS AP: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS AQ: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS AR: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS AS: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS AT: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS CLASS AU: LAGSSE PRODUCT - EXTRA-RESIDENT TO THE INTERESTANCE OF THE CONSENSUS

5-1: WUL5670

CLASS 1: 安全性PRODUCTION. 道路器及安全阀 ENGLISH PRODUCTION (Piping & Electrical Electrical Equipment) is required. Aerial view of the Piping & Electrical Equipment is required. Safety requirements for the Piping & Electrical Equipment are not allowed. Safety requirements for the Piping & Electrical Equipment are not allowed. Safety requirements for the Piping & Electrical Equipment are not allowed. Safety requirements for the Piping & Electrical Equipment are not allowed. Safety requirements for the Piping & Electrical Equipment are not allowed. Safety requirements for the Piping & Electrical Equipment are not allowed. Safety requirements for the Piping & Electrical Equipment are not allowed. Safety requirements for the Piping & Electrical Equipment are not allowed. Safety requirements for the Piping & Piping & Electrical Equipment are not allowed. Safety requirements for the Piping & Electrical Equipment are not allowed. Safety requirements for the Piping & Electrical Equipment are not allowed. Safety requirements for the Piping & Electrical Equipment are not allowed. Safety requirements for the Piping & Electrical Equipment are not allowed. Safety requirements for the Piping & Electrical Equipment are not allowed. Safety requirements for the Piping & Electrical Equipment are not allowed. Safety requirements for the Piping & Electrical Equipment are not allowed.

Regulation & Safety Notices

This appendix lists the general notices of your Projector.

Notice: Users in the United States of America FCC notice

MODEL NAME: RICOH PJ WXL5670/WUL5670

TRADE NAME: PROJECTOR

MODEL NAME: RICOH PJ WXL5670/ WUL5670

Tested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the device and receiver.
■ Connect the device into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.

RESPONSIBLE PARTY: Ricoh USA Inc. 5 Dedrick Place, West Caldwell, NJ 07006 Phone: [phone]

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.

Notes to Users in the State of California

Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.

WARNING: Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling.

Declaration of Conformity for EU countries

EMC Directive 2014/30/EC (including amendments)
Low Voltage Directive 2014/35/EC

Notice: Users in EU countries

CE Marking Traceability Information (For EU Countries Only)

Manufacturer:

Ricoh Co., Ltd.

3-6 Nakamagome 1-chome, Ohta-ku, Tokyo. 143-8555,

Japan

Importer:

Ricoh Europe PLC

20 Triton Street, London. NW1 3BF, United Kingdom

User Information on Electrical and

Electronic Equipment

Users in the countries where this symbol shown in this section has been specified in national law on collection and treatment of E-waste.

Our Products contain high quality components and are designed to facilitate recycling.

Our products or product packaging are marked with the symbol below.

This product contains substances which are harmful to humans and the environment.

Usage Notice

The symbol indicates that the product must not be treated as municipal waste. It must be disposed of separately via the appropriate return and collection systems available. By following these instructions you ensure that this product is treated correctly and help to reduce potential impacts on the environment and human health, which could otherwise result from inappropriate handling. Recycling of products helps to conserve natural resources and protect the environment.

For more detailed information on collection and recycling systems for this product, please contact the shop where you purchased it, your local dealer or sales/service representatives.

Notice: Users in Turkey

If you wish to discard this product, please contact your local authorities, the shop where you bought this product, your local dealer or sales/service representatives.

Laser Notice

• WXL5670: This Product is classified as Class 3R of IEC60825-1:2007 and also complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50, dated June 24, 2007.
• WUL5670: This Product is classified as Class 2 and complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50, dated June 24, 2007.

• IEC 60825-1:2014: CLASS 1 LASER PRODUCT - RISK GROUP 2.

Laser source specifi cation

3.5W laser diode x38

Wavelength: 450-460 nm

Pulse duration: 1.39 ms

Laser emission port

Notice: Users in the EU

Note for the Battery and/or Accumulator Symbol

In accordance with the Battery Directive 2006/66/EC Article 20 Information for end-users Annex II, the above symbol is printed on batteries and accumulators. This symbol means that in the European Union, used batteries and accumulators should be disposed of separately from your household waste. In the EU, there are separate collection systems for not only used electrical and electronic products but also batteries and accumulators. Please dispose of them correctly at your local community waste collection/recycling centre.

Notice: Users in Taiwan

廢電池請回收

Copyrights to Images

When projecting images using the projector, be careful not to infringe the copyright of protected materials.

The following are examples that may infringe the copyright of protected materials.

• Broadcasting images or movies for commercial purposes
• Modifying images or movies using functions such as freeze, magnify, or zoom to broadcast images for commercial purposes or public viewing
• Varying the aspect ratio of images or movies using a function that changes the screen size to broadcast images for commercial purposes or public viewing

Note to Users Viewing 3D Images

Pay attention to the following points when viewing images using 3D glasses with projector:

• How 3D images are viewed may vary according to the individual.
• Do not use 3D glasses for viewing any material other than 3D images.
• Before viewing 3D images, make sure to read the manuals provided with your 3D glasses and 3D compatible content.
• Avoid viewing 3D images for a long period of time. Take a break of 15 minutes or longer after every hour of viewing.
• If you feel sick while viewing 3D images, stop viewing them. If you continue to feel sick, consult a doctor.
• When viewing 3D image in a room where on LED lighting system or fl fluorescent lights are used, you may feel that the light in the room fl ickers. If this is the case, dim the lights until you do not notice any fl ickers, or turn off the lights.
• If you or any member of your family has a history of light-sensitive seizures, consult a doctor before viewing 3D images.

ProductFeatures

Outstanding features include:

■ Native resolution WXGA (1280x800), WUXGA (1920x1200)
■ Maximum resolution HDMI 1920x1200 @ 60Hz

■ Light weight <25.13 lbs (11.4 kg)
■ Manual focus projection 1:1.8 zoom lens
■ Built-in full screen NTSC / PAL / SECAM video capability with S-video / Composite / component through D-sub terminals
■ WUXGA / 1080P / UXGA / WXGA / Quad VGA / SXGA+ / SXGA / XGA / SVGA / VGA / MAC compatibility
■ User friendly multilingual on screen display
■ Automatic image resizing to WXGA (1280x800), WUXGA (1920x1200) full screen
■ The projector supports 360 degree free orientation operation (refer to page 29)

PackageOverview

This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if anything is missing.

Due to the difference in applications for each country, some regions may have different accessories.

Technical line drawing of a rectangular electronic device with internal components and mounting holes (no text or symbols)

Projector Remote Control

RICOH

(with Batteries, please see page 27)

CD-ROM

Line drawing of a U-shaped cable with multiple connectors (no text or symbols)

Line drawing of a U-shaped electrical plug with two terminal connectors (no text or symbols)

Line drawing of a U-shaped USB connector with connectors (no text or symbols)

RGB Cable Power Cord Micro USB to USB

Type A Cable (for dongle power)

Documentation:

Read This First
□ Warranty Card

About the CD-ROM

Contains an user's manual in PDF format and Projector Management Utility.

Support languages of User's Manual are English, Chinese, and Japanese.

ProductOverview

Technical diagram of an electronic device with numbered components and directional arrows indicating assembly or status.

1. Ventilation (inlet)
2. Control panel
3. Ventilation (outlet)
4. Speaker
5. Zoom lever
6. Lens
7. Remote receiver

8. Focus lever

9. Adjustable feet

10. Anti-theft lock hole (Kensington ^TM lock)
11. AC In socket
12. Connection ports

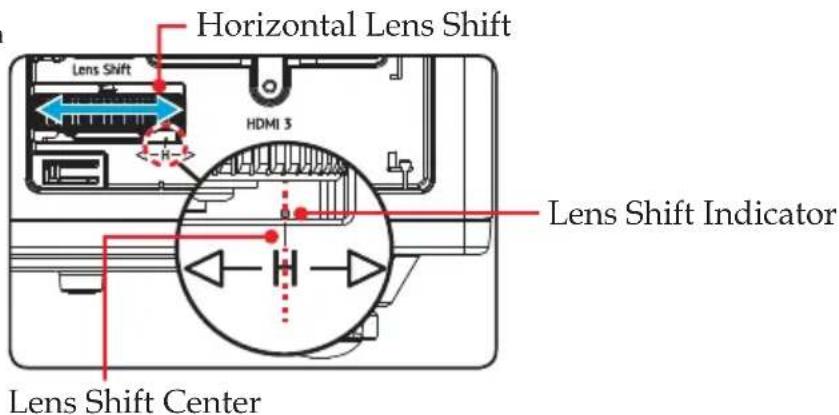

13. Lens shift (horizontal)
14. Lens shift lock
15. Lens shift (vertical)

ConnectionPorts

1 2 Lens Shift HDMI 3 4 5 6 7 8 9 1 0 1 1 1 2 LAN HDBaseT SV TSA Service HDMI 2 /MHL HDMI 1 Computer In Audio In HDMI® 3D Sync Wired Remote Trigger Out+12M PC Control Monitor Out Audio Out AC IN~ 19 18 17 16 15 14 13

Compatible with MHL version 2.2, the charging current 5V@0.9A.

1. HDMI3 In terminal (supports HDMI / MHL dongle)
2. 5V/1.5A terminal
3. Lens shift indicator
4. LAN terminal
5. HDBaseT terminal
6. 5V/1.5A terminal
7. Service terminal

8. HDMI 2/MHL In terminal

9. HDMI 1 In terminal

10. Computer In terminal

11. Audio In terminal

12. Microphone jack

13. Audio Out terminal

14. Monitor Out terminal

15. PC Control terminal

16. Trigger Out (+12v)

17. Wired Remote terminal

18. 3D Sync terminal

19. AC In socket

ControlPanel

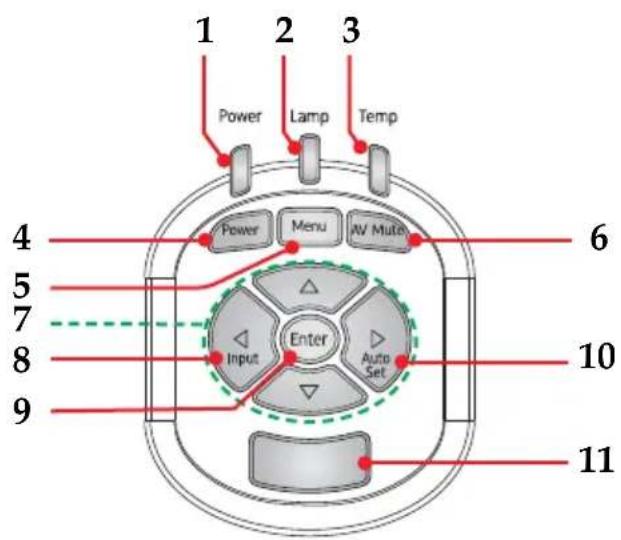

1 2 3 Power Lamp Temp 4 5 6 7 8 Enter 9 10 11

1 Power indicator Indicate the projector's power status.
2 Lamp indicator Indicate the projector's lamp status.
3 Temp indicator Indicate the inside of the projector's temperature status.
4 Power Refer to the “Power On/Off the Projector” section. (pages 32~33)
5 Menu Press “Menu” to launch the on screen display (OSD), or go back to the previous menu. (See page 40)
6 AV Mute Receives signals from the IR remote.Keep the signal path to the sensor unobstructed for uninterrupted communication with the projector.
7 Four Directional Select Keys	Use ▲, ▼, ◀ to select items or make adjustments to your selection.
8 Input Select an input for the main or PIP/PBP image.
9 Enter Select or confirm settings.

Introduction

10 Auto Set Automatically optimize image.

11 IR Receiver Receives signals from the IR remote. Keep the signal path to the sensor unobstructed for uninterrupted communication with the projector.

Remote Control

22 AV Mute 1 21 Auto Input Enter 20 Menu ECO 19 Keystone Volume + - 6 7 Computer Video HDMI 18 Digital A Digital B Magnify 3 8 4 Aspect Freeze +6 15 7 Status 8-9 10 Status Picture 14 OMHL 13 RICOH

1 Power Refer to the “Power On/Off the Projector” section. (See pages 32~33)
2 Input Press “Input” to choose your desired input source.
3 Enter Confirm your section of items in sub menu operation.
4 Four Directional Select Keys	Use ▲, ▼or◀to ▶lect items or make adjustments to your selection.
5 Eco Dim the projector lamp which will lower power consumption and extend the lamp life.
6 Volume +/-	Increase or decrease speaker volume.
7 Video This function is not supported.
8 HDMI Press “HDMI” to choose signal from HDMI 1, HDMI 2, or HDMI 3 In terminal.
9 Magnify Zoom in the projector display.
10 Number (0~9) Input numbers.
11 MHL Press “MHL” to control your MHL device.
12 Freeze Pause the screen image. Press again to resume the screen image.
13 Picture Select the preset picture mode.
14 Status Display the projector status.
15 Aspect	Use this function to choose your desired aspect ratio.
16 Digital A Press “Digital A” to choose a signal from HDBaseT In terminal.
17 Digital B This function is not supported.
18 Computer Press “Computer” to choose a signal from Computer In terminal.
19 Keystone +/- Adjust the image to compensate for distortion caused by tilting the projector.
20 Menu Press “Menu” to launch the On Screen Display (OSD), back to the top level of OSD for the OSD main menu operation. (See page 40)
21 Auto	Automatically synchronize the projector to the input source.
22 AV Mute	Momentarily turn off/on the audio and video.

Remote Control Battery Installation

① Push the clip to release the battery cover.

2 Install new batteries (AAA/R03). Ensure that you have the batteries' polarity (+/-) aligned correctly.

3 Close the battery cover and press it down until it clicks into place. Do not mix different types of batteries or new and old batteries.

Line drawing of a mechanical component with an arrow indicating motion (no text or symbols)

Diagram of a device handle with two arrows indicating downward movement (no text or symbols present)

Technical line drawing of a mechanical component or bracket (no text or symbols)

To ensure safe operation, please observe the following precautions :

■ Use AAA/R03 type battery.
■ Avoid contact with water or liquid.
■ Do not expose the remote control to moisture or heat.
■ Do not drop the remote control.
■ If the battery has leaked in the remote control, carefully wipe the case clean and install new battery.
■ Risk of an explosion if battery is replaced by an incorrect type.
■ Dispose of used battery according to the instructions.
■ Remove batteries from remote control when not using for extended periods.
■ The remote control may fail to operate if the infrared remote sensor is exposed to bright sunlight or fluorescent lighting.

Remote Control Operating Range

Point the remote control toward the projector (Remote Receiver) when pressing any button.

Maximum operating range for the remote control is about 23.0' (7m) and ±30° (horizontally), ±20° (vertically) in front of the projector.

23.0' (7m) ±30° (horizontally) ±20° (vertically) 23.0' (7m) ±30° (horizontally) ±20° (vertically)

Installing the Projector

When you select a position for the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Follow these general guidelines:

Position the projector on a flat surface at a right angle to the screen.
Position the projector to the desired distance from the screen. The distance from the lens of the projector to the screen, the zoom setting, and the video format determine the size of the projected image.
360 degree free orientation operation:

360°

360°

Basic Operations

Connecting the Projector

Connect to Computer/Notebook

Note

Make sure that the power plug is fully inserted into both the projector AC inlet and the wall outlet.
The AC outlet must be near this equipment and must be easily accessible.
Due to the difference in applications for each country, some regions may have different accessories.
When HDMI input is selected, only audio signal with HDMI can be output.
When Audio Out is connected, Built-in speaker doesn't sound.

1......HDMI dongle
2....USB cable
3. 3D emitter cable
4. LAN cable
5.....LAN cable (Cat5 cable)
6. ......USB cable
7......HDMI dongle
8......HDMI cable
9......RGB cable (supplied)
10...... Audio cable
11......Microphone cable
12......Audio cable
13...... RGB cable
14.... RS-232 cable
15.....12V DC jack
16...... Wired Remote Control cable
17.....Power cord (supplied)

To ensure the projector works well with your computer, please make sure the timing of the display mode is compatible with your projector. (See pages 87\~77)

Use the cables that come with the projector. (*)

Basic Operations

Connect to AV Equipment

Note

Make sure that the power plug is fully inserted into both the projector AC inlet and the wall outlet.

The AC outlet must be near this equipment and must be easily accessible.

Due to the difference in applications for each country, some regions may have different accessories.

When HDMI input is selected, only audio signal with HDMI can be output.

When Audio Out is connected, Built-in speaker doesn't sound.

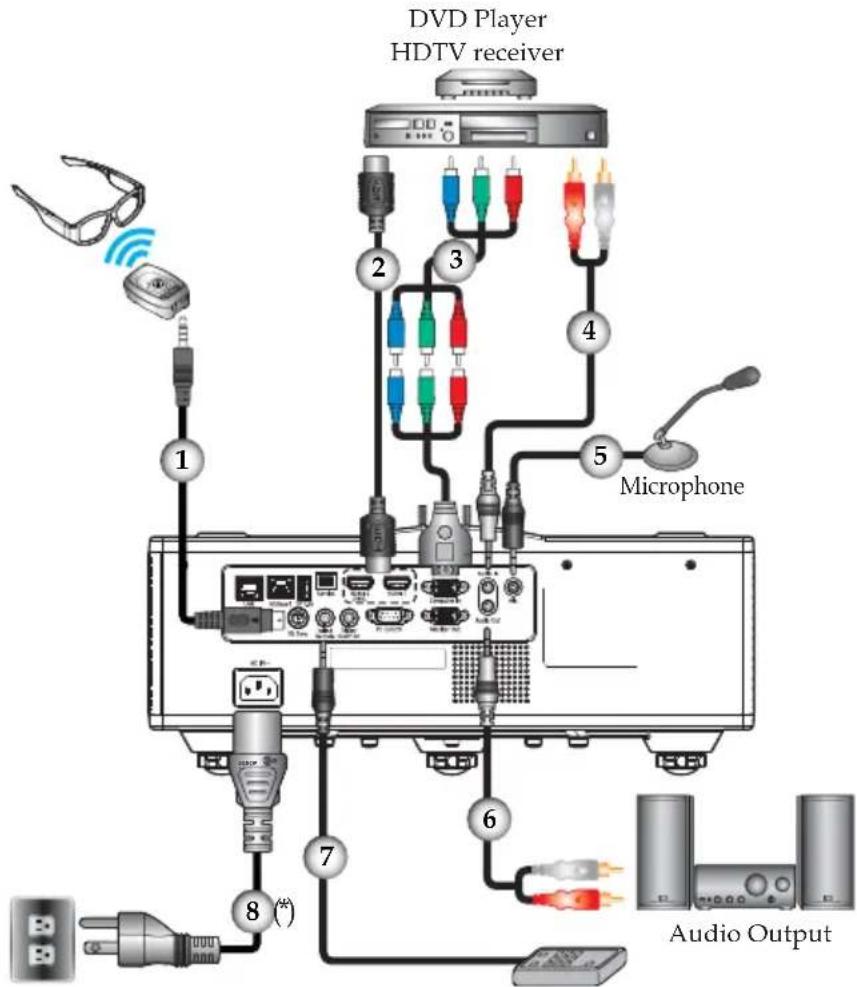

DVD Player HDTV receiver 1 2 3 4 5 Microphone 6 7 8 (*) Audio Output

1....3D emitter cable
2......HDMI cable
3....Component-RGB cable
4. Audio cable
5......Microphone cable
6. Audio cable
7....Wired remote cable
8....Power cord (supplied)

Basic Operations

Powering On/Off the Projector Powering On the Projector

If you connect multiple sources at the same time, press "Input" on the control panel or the desired source button on the remote control to switch inputs.

Turn on the projector first and then the signal sources.

1. Ensure that the power cord and signal cable are securely connected. The Power indicator will turn red.

2. Turn on the projector by pressing the button on the control panel or the button on the remote control. The Power indicator will flash red.

The startup screen will display and the Power indicator will turn blue.

1. Turn on your source (computer, notebook, video player, etc.) The projector will detect your source automatically. Make sure that the "Auto Source" has been set to "On".

CAUTION:

• Do not look into the lens while the laser is on. The strong light from the laser may cause damage to your eyesight.
• Do not block the air intake or exhaust. Doing so could cause a fire due to internal overheating.
• Do not place your hands, face, or other objects near the air exhaust, or the bottom of the unit. Doing so could result in injury and/or damage the object.

Power OR AV Mute Auto Input Power Menu AV Mute

Powering Off the Projector

1. Press the button and you will see a message as below on the on-screen display.

Power Off? Press power key again.

1. Press the button to turn off the projector. If you do not press the button again, the warning message will disappear after 10 seconds.

2. Disconnect the power cord from the electrical outlet and the projector.

Warning Indicator

When the “Temp” indicator lights red, it indicates the projector has overheated. The projector will automatically shut itself down.

Warning! Temperature too I high Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 40 degress C.

When the “Temp” indicator flashes red (0.5 sec on, 0.5 sec off) and the message below displays, it indicates the cooling fan failed. Stop using the projector and disconnect the power cord from the electrical outlet, then contact your local dealer or our service center.

Warning! Fan Locked The projector will switch off automatically.

For more information of the warning indicator, please see page 86.

Adjusting the Projected Image

Adjusting the Position of Projector Image

The projector is equipped with rear and front adjustable feet to raise and lower the image to fill the screen.

1. Locate the adjustable foot you wish to modify on the underside of the projector.

2. Rotate the adjustable ring clockwise to raise the projector or counter clockwise to lower it. Repeat with the remaining feet as necessary.

Technical diagram of a mechanical device with internal components and a circular component inset showing rotational motion (no text or symbols)

Note

The projector has one adjustable foot in the front and two adjustable feet on the rear. The maximum length of the feet is 18 mm. The tilt angle is -3.6^ to +3.6^ .

3.6° 18.00

Basic Operations

Adjusting the Projector Focus

You may turn the zoom lever to zoom in or out. To focus the image, turn the focus lever to left/right until the image is clear.

Focus Distances (lens to wall):

WXGA(WXL5670):
from 8.86 to 26.57 feet (from 2.70 to 8.10 meters)
from 4.59 to 31.5 feet (from 1.40 to 9.60 meters)

WUXGA(WUL5670):

from 8.53 to 25.26 feet (from 2.60 to 7.70 meters)

from 5.58 to 30.18 feet (from 1.70 to 9.20 meters)

Focus Lever Zoom Lever

Basic Operations

AdjustingLensShift

Do adjust lens shift, do the following:

1. Open the front side door of the projector.
2. Unlock the lens lock, before adjusting the lens shift.
3. Turn the vertical/horizontal lens shift knob to shift the lens.
4. Turn the lens lock clockwise to lock the lens in place. (Lens shift knob can still be rotated).
5. Close the front side door of the projector.

Vertical Lens Shift Front Side Door Lens Shift Lock Horizontal Lens Shift

Note

The stroke for the lens shift is designed to be regular triangle. When lens are adjusted to the central position horizontally(*), lens can be vertically shifted to the highest point.

Adjusting Lens Shift to the Center

To adjust the lens to the central position, do the following:

1. Repeat steps 1 \~ 2 in Adjusting Lens Shift.
2. Turn the horizontal lens shift knob until the lens shift indicator is aligned with the lens shift center.

Horizontal Lens Shift Lens Shift HDMI 3 Lens Shift Indicator Lens Shift Center

1. Repeat steps 4 \~ 5 in Adjusting Lens Shift.

Adjusting Projection Image Size

Projection Image Size (Diagonal) for:

• WXGA (PJ WXL5670): 30" to 300" (0.76-7.6m).
• WUXGA (PJ WUL5670): 30" to 300" (0.76-7.6m).

Top View Screen Screen (W) Projection Distance (D) Side View Screen Screen (H) Offset (Hd) Projection Distance (D) Height Diagonal Width

Horizontal Lens Shift Range = 0.1W Vertical Lens Shift Range = 0.2H (WXGA, WXL5670) Range = 0.2H (WUXGA, WUL5670) Image width (W) Horizontal Lens Shift Range = 0.1W Image height (H) Offset (Hd)

WXGA (WXL5670)

Diagonal length (inch) size of 16:10 Screen	Screen Size W x H Projection Distance (D)								Offset (Hd)
	(m) (inch)		(m) (feet) (cm) (feet)
	Width	Height Width	Height	Wide	Tele Wide	Tele Min	Max Min	Max
30	0.65	0.40	25.59	15.75	-	1.44	-	4.72	2.0	10.0	0.07	0.33
50	1.08	0.67	42.52	26.38	1.35	2.41	4.43	7.91	3.4	16.8	0.11	0.55
60	1.29	0.81	50.79	31.89	1.62	2.89	5.31	9.48	4.1	20.3	0.13	0.66
70	1.51	0.94	59.45	37.01	1.89	3.37	6.20	11.06	4.7	23.5	0.15	0.77
80	1.72	1.08	67.72	42.52	2.16	3.85	7.09	12.63	5.4	27.0	0.18	0.89
90	1.94	1.21	76.38	47.64	2.43	4.33	7.97	14.21	6.1	30.3	0.20	0.99
100	2.15	1.35	84.65	53.15	2.71	4.82	8.89	15.81	6.8	33.8	0.22	1.11
120	2.58	1.62	101.57	63.78	3.25	5.78	10.66	18.96	8.1	40.5	0.27	1.33
150	3.23	2.02	127.17	79.53	4.06	7.22	13.32	23.69	10.1	50.5	0.33	1.66
180	3.88	2.42	152.76	95.28	4.87	8.67	15.98	28.44	12.1	60.5	0.40	1.98
200	4.31	2.69	169.69	105.91	5.41	9.63	17.75	31.59	13.5	67.3	0.44	2.21
250	5.38	3.37	211.81	132.68	6.76	-	22.18	-	16.9	84.3	0.55	2.76
300	6.46	4.04	254.33	159.06	8.12	-	26.64	-	20.2	101.0	0.66	3.31

This table is for user's reference only.

WUXGA (WUL5670)

Diagonal length (inch) size of 16:10 Screen	Screen Size W x H Projection Distance (D)								Offset (Hd)
	(m) (inch)		(m) (feet) (cm) (feet)
	Width	Height Width	Height	Wide	Tele Wide	Tele Min	Max Min	Max
30	0.65	0.40	25.59	15.75	-	1.38	-	4.53	0.0	8.0	0.00	0.26
50	1.08	0.67	42.52	26.38	1.29	2.29	4.23	7.51	0.0	13.4	0.00	0.44
60	1.29	0.81	50.79	31.89	1.55	2.75	5.09	9.02	0.0	16.2	0.00	0.53
70	1.51	0.94	59.45	37.01	1.80	3.21	5.91	10.53	0.0	18.8	0.00	0.62
80	1.72	1.08	67.72	42.52	2.06	3.67	6.76	12.04	0.0	21.6	0.00	0.71
90	1.94	1.21	76.38	47.64	2.32	4.13	7.61	13.55	0.0	24.2	0.00	0.79
100	2.15	1.35	84.65	53.15	2.58	4.59	8.46	15.06	0.0	27.0	0.00	0.89
120	2.58	1.62	101.57	63.78	3.09	5.50	10.14	18.04	0.0	32.4	0.00	1.06
150	3.23	2.02	127.17	79.53	3.86	6.88	12.66	22.57	0.0	40.4	0.00	1.33
180	3.88	2.42	152.76	95.28	4.64	8.25	15.22	27.07	0.0	48.4	0.00	1.59
200	4.31	2.69	169.69	105.91	5.15	9.17	16.90	30.09	0.0	53.8	0.00	1.77
250	5.38	3.37	211.81	132.68	6.44	-	21.13	-	0.0	67.4	0.00	2.21
300	6.46	4.04	254.33	159.06	7.73	-	25.36	-	0.0	80.8	0.00	2.65

This table is for user's reference only.

Using the On Screen Display (OSD)

The Projector has a multilingual On Screen Display that allows you to make image adjustments and change a variety of settings.

How to operate

1. To open the OSD, press "Menu" on the Control Panel or Remote Control.
2. When OSD is displayed, use ▲▼ keys to select any item in the main menu. While making a selection on a particular page, press ▶ or “Enter” key to enter sub menu.
3. Use ▲▼ keys to select the desired item in the sub menu and press ▶ or "Enter" key to view further settings. Adjust the settings by using ◀▶key or ▲▼.
4. Select the next item to be adjusted in the sub menu and adjust as described above.
5. Press "Enter", and the screen will return to the previous menu.
6. Press "Menu" or key to return to the main menu.
7. To exit, press "Menu" again. The OSD menu will close and the projector will automatically save the new settings.

Note

If no button operation is made for approximately 10 seconds, the OSD will be closed automatically.

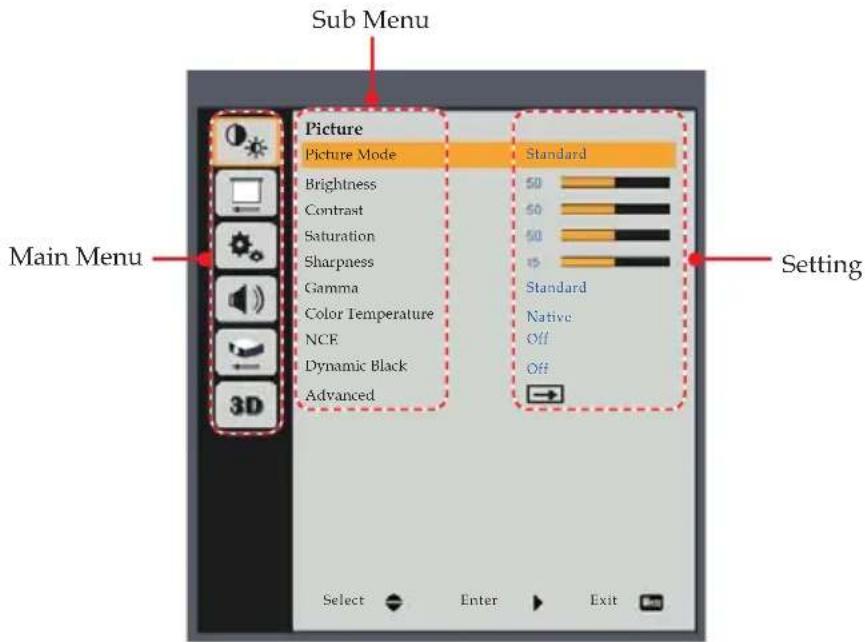

Sub Menu Picture Picture Mode Standard Brightness 50 Contrast 50 Saturation 50 Sharpness 15 Gamma Standard Color Temperature Native NCE Off Dynamic Black Off Advanced Main Menu Setting Select Enter Exit

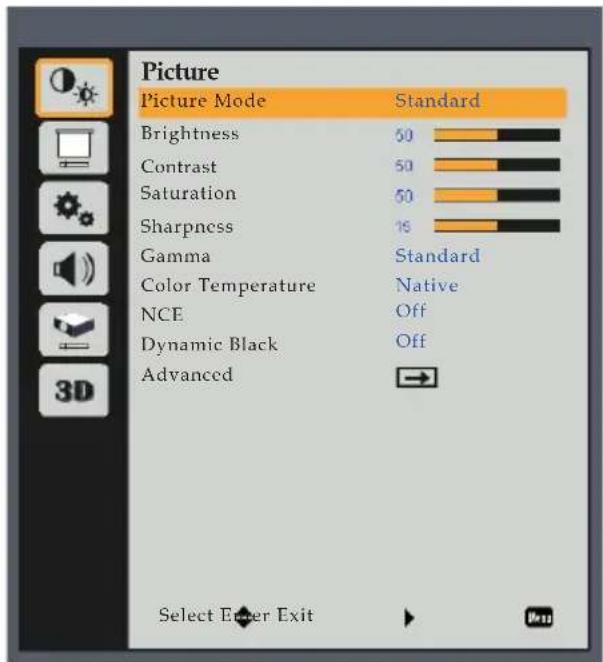

Picture Picture Mode Standard Brightness 50 Contrast 50 Saturation 50 Sharpness 16 Gamma Standard Color Temperature Native NCE Off Dynamic Black Off Advanced → Select Enter Exit


Picture Mode

There are factory presets optimized for various types of images. The available options:

Picture Mode Bright Standard sRGBVivid DICOM SIM.

Note

✿ Picture Mode, Color Temperature, NCE, and advanced picture functions are grayed out in 3D mode.

Bright: Mode for emphasizing brightness.
Standard: Mode for optimizing the balance between brightness and color reproduction.
▶ Vivid: Mode for emphasizing color.
sRGB: Standard color values.
DICOM SIM.: This mode is suitable for projecting a monochrome medical image such as an X ray radiography, MRI, etc.

Brightness

Adjust the brightness of the image.

Brightness 50

▶ Press the ◀ key to darken image.
Press the ▶key to lighten the image.

Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.

Contrast 50

Press the ◀ key to decrease the contrast.
Press the ▶key to increase the contrast.

Saturation

Adjust the color saturation of the image.

- “Saturation” function is only supported under Video signal in Computer source.

Saturation 50

Press the ◀ key to decrease the amount of color in the image.
Press the ▶key to increase the amount of color in the image.

Sharpness

Adjust the sharpness of the image.

Sharpness 15

Press the ◀ key to decrease the sharpness.
Press the key to increase the sharpness.

Gamma

Use this function to optimize the image output. The available options: 1.8 / 2 / Standard(2.2) / 2.4 / Shine.

Gamma ShineStandard(2.2)1.8 2.0 2.4

Color Temperature

Use this function to select the preset color temperature. The available options: 5500/6500/7500/Native.

Color Temperature Native 5500 6500 7500

NCE (Natural Color Enhancer)

Use this function to enhance color and reproduce vivid colors.

NCE On Off

On: Enable NCE.
Off: Disable NCE.

Dynamic Black

Use this function to enhance light and shade details of a movie scene.

Dynamic Black On Off

On: Enable Dynamic Black.
Off: Disable Dynamic Black.

Advanced

Configure the advanced image settings.

Advanced Wall Color White NCE Settings Select Enter Exit

Wall Color: Use this function to obtain an optimized screen image according to the wall color. The available options: White/ Light Yellow/ Light Blue/ Pink / Dark Green.

Wall Color

White

Light Yellow

Light Blue

Pink

Dark Green

NCE Settings: Conf i gure the image color settings.

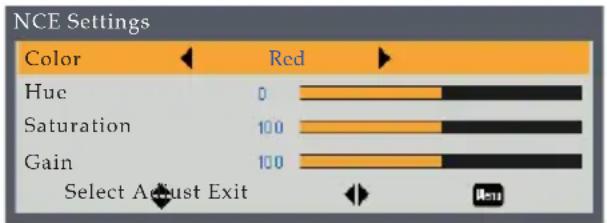

NCE Settings Color Red Hue 0 Saturation 100 Gain 100 Select August Exit

- Color: Use the ◀ or ▶ key to adjust the red, green, blue, cyan, yellow, magenta, and white color of the image.

Hue: Use the ◀ or ▶ key to adjust the color balance of red and green.

Saturation: Use the ◀ or ▶ key to adjust the color saturation.

Gain: Use the ◀ or ▶ key to adjust the color brightness.

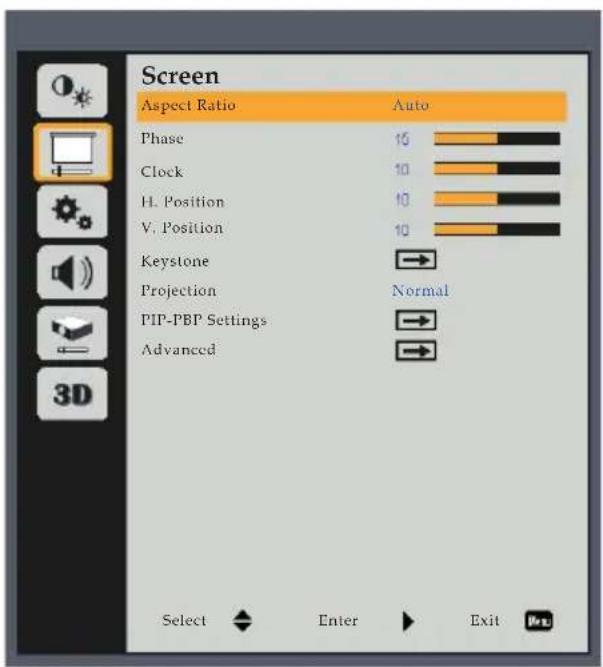

Screen Aspect Ratio Auto Phase 10 Clock 10 H. Position 10 V. Position 10 Keystone → Projection Normal PIP-PBP Settings → Advanced → Select Enter Exit Wm

SCREEN

Aspect Ratio

Use this function to choose your desired aspect ratio.

Aspect Ratio Auto 4:3 16:9 16:10

Auto: Automatically selects the appropriate display format. When input is 4:3, the image is displayed as 4:3. When input is 16:9 above, the image is displayed as 16:9.
4:3: Displays 4:3 aspect ratio.
16:9: Displays 16:9 aspect ratio.
16:10: Displays 16:10 aspect ratio.

Phase

Eliminate flicker from the image displayed. Use the ◀ or ▶ key to adjust the value.

Phase 15

Clock

Adjust the number of total dots in one horizontal period. Use the ◀ or ▶ key to adjust number to match your PC image.

Clock 10

- “Phase” and “Clock” functions are only supported under Computer Signal source.

User Settings

“H. Position” and “V. Position” functions are only supported under Computer Signal source.

H. Position (Horizontal Position)

Shift the projected image position horizontally.

H. Position 10

Press the ◀ key to move the image left.

Press the ▶key to move the image right.

V. Position (Vertical Position)

Shift the projected image position vertically.

V. Position 10

Press the ◀ key to move the image down.

▶ Press the ▶key to move the image up.

Keystone

Adjust image distortion caused by tilting the projector.

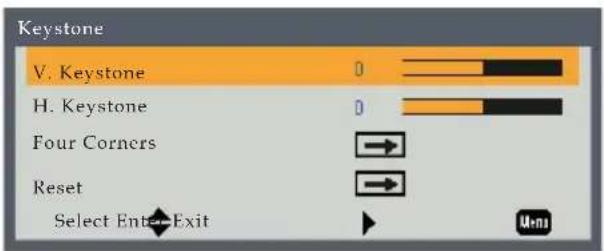

Keystone V. Keystone 0 H. Keystone 0 Four Corners → Reset → Select Enter Exit

V. Keystone: Adjust the vertical keystone.

V. Keystone 0

H. Keystone: Adjust the horizontal keystone.

H. Keystone 0

UserSettings

Four Corner: Compensate for image distortion by adjusting one corner at a time.

Four Corners Select Enter Exit

Reset: Return the keystone settings to the factory default values.

Reset Yes No Exit Menu

Projection

Use this function to select the projector mode, depending upon how the projector is mounted.

Projection Normal Ceiling Rear Rear Ceiling

Normal: This is the default selection. The image is projected directly onto the screen.
Ceiling: When selected, the image will appear upside down.
Rear: When selected, the image will appear reversed.
Rear Ceiling: When selected, the image will appear reversed in upside down position.

PIP (Picture in Picture)/PBP (Picture by Picture) Settings

Note

• PIP/PBP is not supported in the following combinations:
  HDMI1xHDBaseT HDMI2xHDMI3.
  In PIP function, Main Source will be displayed over the whole screen, and Sub Source will be displayed on the part of the screen.
• PIP/PBP function is not available when 3D function is turned on.
• PIP/PBP function will be automatically canceled if Blu-ray 3D signal is detected.

Use this function to display two image sources at once. From the list of active inputs, choose one input as a main source and the other as a sub source.

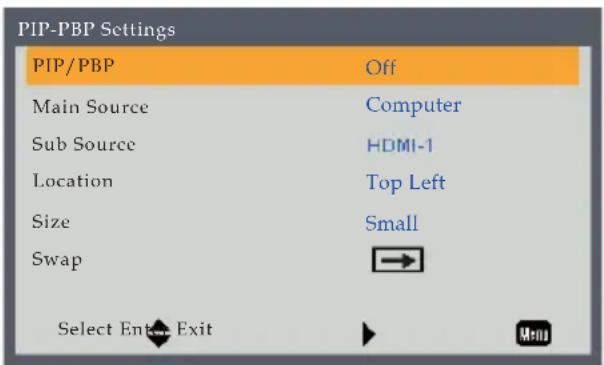

PIP-PBP Settings PIP/PBP Off Main Source Computer Sub Source HDMI-1 Location Top Left Size Small Swap Select Enter Exit ▶ Mini

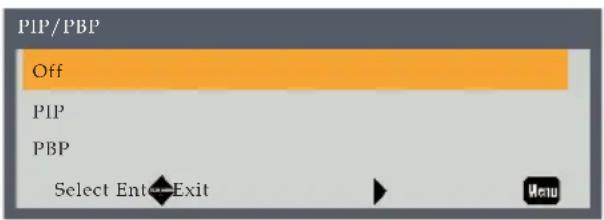

PIP/PBP: Choose your desired PIP/PBP layout. Select "Off" to display image from one input source only.

PIP/PBP Off PIP PBP Select Enter--Exit

Main Source: Choose the main source from the list of available input sources.

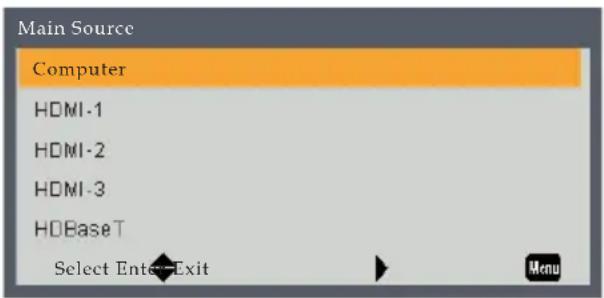

Main Source Computer HDMI-1 HDMI-2 HDMI-3 HDBaseT Select Enter--Exit Menu

Sub Source: Choose the sub source from the list of available input sources.

Sub Source Computer HDMI-1 HDMI-2 HDMI-3 HDBaseT Select Enter Exit Menu

UserSettings

Location: Choose your desired sub-window location.

Location

Top Left Top Right Bottom Left Bottom Right

Location: Choose your desired sub-window size. The available options: Large, Medium, and Small.

Size Large Medium Small

Swapping is available only when PIP/PBP is enabled.

Swap: Swap the sources of the main- and sub-windows.

Advanced

Configure the advanced screen settings.

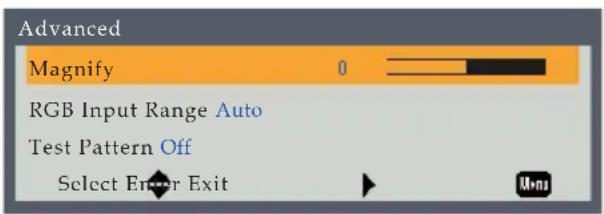

Advanced Magnify 0 RGB Input Range Auto Test Pattern Off Select Enter Exit

Magnify: Use the ◀ or ▶ key to zoom in or zoom out the image.

Magnify 0

- “RGB Input Range” function is only supported under HDMI source.

RGB Input Range: Adjust the color range of the HDMI image data.

RGB Input Range Auto Limited Range Full Range

- Auto: Automatically detect RGB range.

- Limited Range: Process the input image with a limited RGB range.

- Full: Select this mode when computer signal or full range signal from AV equipment is input.

HDMI/EQ: Adjust the HDMI equalizer value. Use this function in long cable transmissions.

HDMI EQ 2

Test Pattern: Use this function to choose your desired test pattern between grid, white, and color bar. Choose "Off" to disable this function.

Test Pattern Off Grid White(Color Bar)

User Settings

Settings Language English Auto Power Off (Min.) 20 Monitor Out (Standby) Off Network (Standby) Off Network Security Reset Select Enter Exit View

SETTINGS

Language

Choose the multilingual OSD. Press "Enter" to open the sub menu and then use the ▲ or ▼ or ◀key to select your preferred language. Press "Enter" to fi nalize the selection.

Language English Polski Suomi Deutsch 한국어 Magyar Svenska Rусский Češina Français Espanči 7inu 48310 愛體中文 Indonesia Nederlands Italiano Norsk Português Dansk Türkçe 简体中文 日本語 Select Enter Exit Un

Note

Default value of "Auto Power Off (Min)" is 20 min.

Auto Power Off (Min)

Set the countdown timer interval (in minutes). The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished. When countdown timer is selected to "0", auto power off is disabled.

i Power Down Timer Active Power Donw In 60 Sec.

Monitor Out (Standby)

Enable/Disable the Monitor output function.

Monitor Out (Standby) On Off

On: Enable the Monitor Out function at projector standby status.
Off: Disable the Monitor Out function at projector standby status.

Consult network administrator for network settings.

Network (Standby)

Enable/Disable the network function.

Network (Standby) On Off

On: Enable the network function at projector standby status.
Off: Disable the network function at projector standby status.

Network

Configure the network settings.

Network Status Disconnected DHCP Client Off IP Address 192.168.0.100 Subnet Mask 255 255 255.0 Gateway 192.168.0.254 DNS 192.168.0.1 Apply → MAC Address AA:BB:CC:DD:EE:FF Select Enter Exit Menu

Network State: Display the network connection status.

User Settings

DHCP Client: Select "On" to allow the projector to obtain an IP address automatically from your network. Select "Off" to manually assign IP, Subnet Mask and Gateway configuration.

DIICP Client On Off Exit Mon

IP Address: Set an IP address or display IP address provided from DHCP server when DHCP is set to "On".

IP Address 0 0 0 0

Subnet Mask: Set subnet mask number or display subnet mask number provided from DHCP server when DHCP is set to "On".

Subnet Mask 0 0 0 0

Gateway: Set the default gateway of the network connected to the projector or display the default gateway of the network provided from DHCP server when DHCP is is set to "On".

Gateway 0 0 0 0

DNS: Display the IP address of the domain name system (DNS) server.

DNS 0 0 0 0

UserSettings

Apply: Select "Yes" to apply the changes made in network configuration settings.

Apply Yes No Exit Men

MAC Address: Display MAC address.

Security

Configure the security settings.

Security Security Off Change Password Select Enter Exit Menu

Security: Select "On" to use the security verification when the turning on the projector. Select "Off" to be able to switch on the projector without a password verification.

The default security code is "123456".

Security On Off

Change Password: Set the password.

Security Enter Security Code (6 Digits) Exit Men

User Settings

Reset

Return the adjustments and settings to the factory default values. Choose "Yes" to return the display parameters on all menus except Language to the factory default settings.

Reset Yes No Exit Menu

Audio Mute Off Volume 7 Microphone Volume 15 Select Enter Exit View

AUDIO

Mute

Temporarily turn off the sound.

“Mute” function affects both internal and external speaker volume.

Mute OffOn

Choose "On" to mute the sound.
Choose "Off" to turn mute off.

Volume

Adjust the volume level.

Volume 7

Press the ◀ key to decrease the volume.
▶ Press the ▶ key to increase the volume.

Microphone Volume

Adjust the microphone volume level.

Microphone Volume 15

Press the ◀ key to decrease the volume.
Press the ▶key to increase the volume.

User Settings

Options Auto Source On Input Source Laser Settings Filter Settings High Altitude Off Power Settings Advanced PIP-PBP Module Information Select Enter Exit

OPTIONS

Auto Source

When this function is turned "On", the projector will search for other signals if the current input signal is lost. When this function is turned "Off", it will only search a specified connection port.

Auto Source On Off

Input Source

Use this option to enable/disable input sources. Press the ▶ key to enter the sub menu and select which sources you require. Press "Enter" to fi nalize the selection. The projector will only search for inputs that are enabled.

Input Source Computer HDMI -1 HDMI -2 HDMI -3 HDBaseT Select Enter Exit

Laser Settings

Use this option to view the laser diode usage status and configure the laser settings. Press the ▶ key to enter the sub menu and configure the desired settings.

Laser Settings Laser Hours Used 99998 Laser Power Mode Normal Select Enter Exit

Note

When ambient temperature is over 40^ C in operating, the projector will switch to "Eco." automatically.

▶ Laser Hours Used: Display the projection time.
Laser Power Mode: Set the brightness mode. Choose “Normal” to increase the brightness or choose “Eco.” to dim the projector laser diode which will lower power consumption and extend the laser diode life.

Laser Power Mode Normal Eco.

Note

Due to the difference in applications for each country, some regions may have different accessories.

Filter Settings

Use this option to view the filter status and configure the filter settings. Press the ▶ key to enter the sub menu and configure the desired settings.

This item is disabled for the projector sold in some regions.

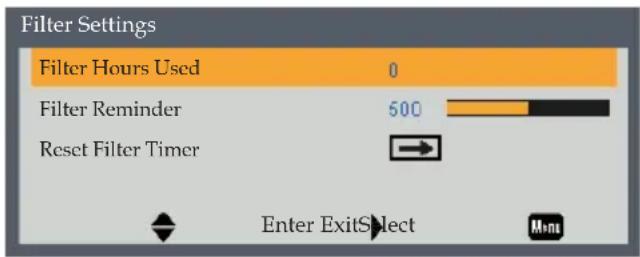

Filter Settings Filter Hours Used 0 Filter Reminder 500 Reset Filter Timer Enter ExitSelect Mini

Filter Hours Used: Display the filter hours.
Filter Reminder: Set the maximum filter time usage.

Filter Reminder 500

If the reminder function is enabled and the usage time reached its limit, a message will appear on the screen to remind you to clean or change the fi lter.

Warning! Dust Filters The usage time of the dust fi lter is reached. Please clean the dust fi liters for better performance.

Reset Filter Timer: Choose this function to reset filter timer.

Reset Filter Timer Yes No Exit

High Altitude

When “On” is selected, the fans will spin faster. Set High Altitude mode to “On” when the projector is used over 2500ft (750m) elevation.

High Altitude On Off

Power Settings

Use this option to configure the power settings. Press the ▶ key to enter the sub menu and confi gure the desired settings. If changes are made, they will take effect the next time the projector is powered on.

Power Settings Direct Power On Off Sleep Timer (Min.) 0 Enter ExitSelect

Direct Power On: Select "On" to automatically power on the projector when the AC power is supplied. If this option is set to "Off", user needs to press the "Power" button on the control panel or the "Button" button on the remote control to power on the projector.

Direct Power On On Off

UserSettings

Sleep Timer (Min.): Set the countdown timer interval. The projector will shut down automatically after the countdown has reached 0.

Sleep Timer (Min.) 0

Advanced

Use this option to configure advanced options. Press the ▶ key to enter the sub menu and confi gure the desired settings.

If changes are made, they will take effect the next time the projector is powered on.

Advanced Screen Capture Background Color Logo Enter ExitSelect

Note

Screen capture function is designed to capture a simple image, such as a company Logo. It may fail to capture a complex image, such as a natural image.

Screen Capture: Press "Enter" to capture an image of the picture currently displayed on screen in JPEG format.

Screen capture in progress Please wait

Background Color: Choose this function to display "Logo", "Blue", or "Black" as a background color if no signal is available. Choose "User" to select your desired "Screen Capture" image as the background wallpaper.

Background Color Logo User Blue Black

Information

Display the projector information.

Information Signal Information Picture mode Filter Hours Used Laser Hours Used Monitor out (Standby) Laser Power Mode Network Status FW Version Standard Off Normal Disconnected EnterSelected Exit

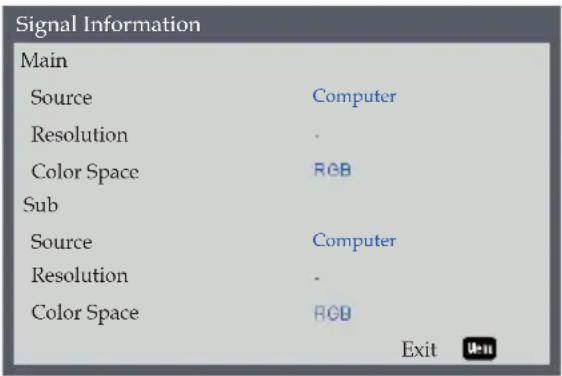

Signal Information: Display the main source and sub source related information.

Signal Information Main Source Computer Resolution . Color Space RGB Sub Source Computer Resolution . Color Space RGB Exit Len

Picture Mode: Display the currently used picture mode.
Filter Hours Used: Display the filter hours.
▶ Laser Hours Used: Display the laser diode hours.

Laser Hours Used Normal 0 Eco. 0 Total 0 Exit Unit

Note

Due to the difference in applications for each country, some regions may have different accessories.

Monitor out (Standby): Display the monitor out (standby) status.
▶ Laser Power Mode: Display the laser power mode.
▶ Network Status: Display the network status.
FW Version: Display the firmware version for System, MCU, PIP, and LAN.

FW Version System B01 MCU A01 PIP G01 LAN A01 Exit Len

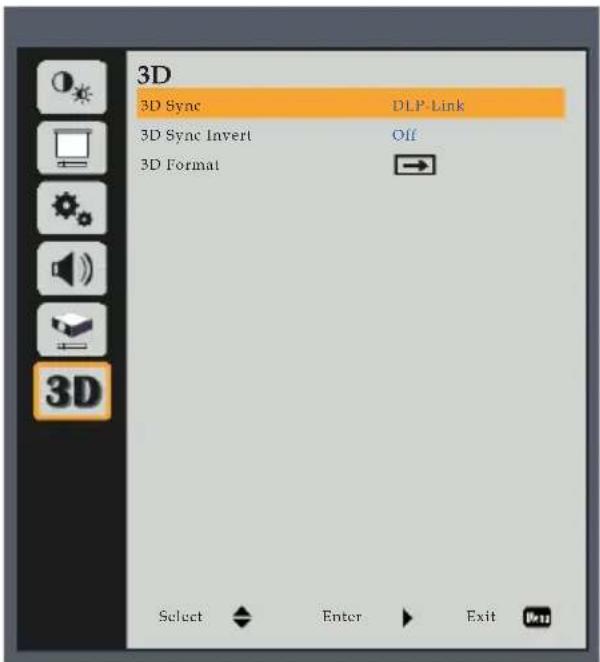

3D 3D Sync DLP Link 3D Sync Invert Off 3D Format Select Enter Exit

3D

3D Sync

Use this option to select the appropriate 3D function.

◆ Compatible 3D source, 3D content and Optical 3D glasses are required for 3D viewing.
- "3D Sync Invert" is only available when 3D is enabled.
This setting may need to change when re-start running 3D movie.
✿ 3D function is turned on automatically when Blu-ray 3D source is input.

3D Sync ExternalDLP-Link

DLP-Link: Choose "DLP-Link" to use optimized settings for DLP Link 3D Glasses.
External: Choose "External" to use optimized settings when using VESA 3D emitter and 3D Glasses.

3D Sync Invert

Use this option to enable/disable the 3D sync invert function.

3D Sync Invert OffOn

Off: Choose "Off" for default frame contents.
On: Choose "On" to invert left and right frame contents.

3D Format

Use this option to select the appropriate 3D format content.

3D Format Auto Side by Side (Half) Top and Bottom Frame Sequential Enter ExitSelect

Auto: Use this mode to let the system to automatically select the appropriate 3D format content.
Side by Side (Half): Use this mode for "Side by Side (Half)" format 3D content.
Top and Bottom: Use this mode for "Top and Bottom" format 3D content.
Frame Sequential: Use this mode for "Frame Sequential" format 3D content.

Note

When you are connecting the device to an existing network, set according to the instructions of the network administrator.

Controlling this Device with Web Browser

You can control this device from a PC by using a web browser.

Connecting to the device

1. Confirmation of the IP address of the device

Select the "Setting" "Network" in the menu of this device, and verify the IP address. (See pages 48-49 on the projector user's manual).

Note

This web page uses Java Script. Turn on and use the Java Script with the settings of the browser you intend to use.

LAN Network State Connected DHCP On IP Address 192.168.0.100 Subnet mask 265.265.266.0 Gateway 192.168.0.254 DNS 192.168.0.1 Apply → MAC 00-00-00-00-00-00 Select Enter Exit ►

2. Connection

Enter the IP address that was verified by opening the web browser.

For example, enter http://192.168.0.100/ if the IP address is displayed as shown above.

LAN Control

Log in

1. When you open the web page, you will see a screen like the one below.

If you are controlling by web browser, select "Admin".

When controlling by Crestron, choose "Crestron".

RICOH RICOH Projector Web Server Projector Name:Projector-PJ Admin Crestron User Name admin Password Login * Default Password, admin

Note

You can use only alphanumeric characters and symbols in the password. The maximum number of characters is 8. If you enter an invalid character, "Invalid Character" warning is displayed.

1. Enter the password in the "Password" fi eld.

When a password is enabled, you must enter the password. The initial password is "admin". When a password is disabled, the character of the Password will be dimmed.

Login by clicking the [Login] button.

LANControl

When you log in, a navigation bar for setting the projector will be displayed on the left side of the home screen.

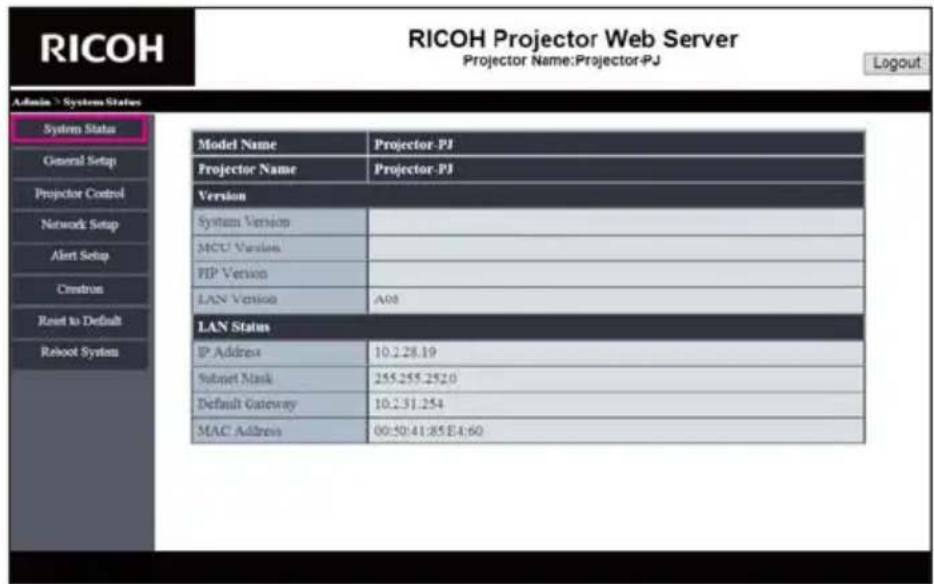

System Status

The current status of the projector is displayed.

You can check information such as firmware version number of the projector and IP address.

The version name displayed on the web page in the diagram may differ from the actual display.

RICOH Projector Web Server Projector Name:Projector-PJ Login Admin > System Status System Status General Setup Projector Control Network Setup Alert Setup Creatron Reset to Default Reboot System Model Name Projector PJ Projector Name Projector PJ Version System Version MCU Version FIP Version LAN Version 408 LAN Status IP Address 10.2.28.19 Subnet Mask 255.255.252.0 Default Gateway 10.2.31.254 MAC Address 00:50:41:35:E4:60

LAN Control

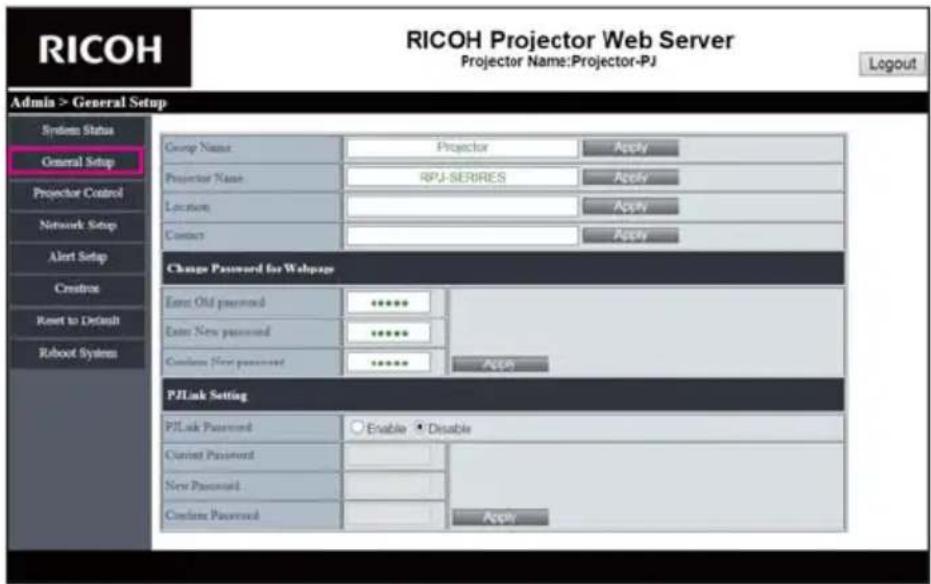

General Setup

You can change the projector name and password with this item.

The projector name set here is also used in PJLink control.

Only alphanumeric characters and symbols can be used as projector name. The maximum number of characters is 22.

You can use only alphanumeric characters and symbols in the password. The maximum number of characters is 8. If you enter an invalid character, "Invalid Character" warning is displayed.

If the characters of new password and the characters of confi rm (new) password do not match, error message will be displayed. In this case, re-enter the password.

RICOH Projector Web Server Projector Name:Projector-PJ Login Admin > General Setup System Status General Setup Projector Control Network Setup Alert Setup Create Reset to Default Robout System Group Name Projector Apply Projector Name RPJ-SERIRES Apply Location Contact Change Password for Webpage Error Old password **** Error New password **** Confirmed New password **** Apply PJLink Setting PJLink Password Enable Disable Current Password New Password Confirmed Password Apply

Changing group name.

Enter the new group name in the "Group Name" field.

Click "Apply".

Changing projector name.

Enter the new projector name in the "Projector Name" field.

Click "Apply".

Changing location information.

Enter the new location in the "Location" field.

Click "Apply".

Changing contact name.

Enter a new contact name in the "Contact" field.

Click "Apply".

Changing the password for Webpage (Web Control).

Enter the current password in the "Enter Old Password" field.

Enter the new password in both the "Enter New Password"

field and "Confirm New Password" field.

Click "Apply".

Changing the password for PJLink.

Click "Enable" to enable password.

Enter the current password in the "Current Password" field.

Enter the new password in both the "New Password" field and "Confirm Password" field.

Click "Apply".

Projector Control

RICOH Projector Web Server Projector Name:Projector-PJ Admin > Projector Control System Status General Setup Projector Control Network Setup Alert Setup Cretnus Reset to Default Roboot System Power On Power Off Picture Mode Standard PSP/PIP Function Off Power mode Normal Brightness 56 Computer Reset Logo Capture Costant -50 PSP/PIP Sub-Source Computer Background Color Logo Sheptons 0 PSP/PIP Location Left Top Auto Source Off Faturation 0 PSP/PIP Size Discrit Source HDMI 1 Gamma Shine PSP/PIP SWIP Auto Power Off (Max) 120 Color Temperature 5500 High Altitude Off Aspect Ratio 4.3 Reset Filter Timer Filter Remind 0 Phase 0 ID Sys: OLF Link Clock 56 3D Sys Invert Off IC Position 56 ID Format Auto V Position 56 Magazines 0 Properties Normal

You can control the projector with this item.

The items for control are described in this section.

Control button: When you click a button, the corresponding function will be performed.

Power On The power of the projector turns on.To turn ON, click "Settings" → "Network (standby)".
Power Off Turns	OFF the power of the projector.
Reset The control settings are reset to the factory defaults.
Logo Capture The projector captures a screenshot of the currently displayed screen.
Reset Filter Timer	The projector filter timer is reset.
PBP/PIP Swap The sources of the main- and sub-window are swapped.

LAN Control

Function button: When you click a button, the corresponding function will turn ON/OFF. (Function of the time of ON is described here.)

Auto Source You	will be automatically switched to the next input when the input signal is lost.
High Altitude The	projector is switched to High Altitude mode. Use this mode if the altitude is higher than 2500ft (750m).
3D Sync Invert The	default polarity in projector is automatically reversed and synced with your DLP Link 3D glasses.

Adjustment button: Projector can be adjusted by +/ - button.

Auto Power Off (Min.)	Set the countdown timer interval in minutes.
Filter Remind Set	the maximum fi lter time usage.
Brightness Adjust	brightness by +/- button.Value will return to the initial value when you click the Reset button.
Contrast Adjust	contrast by +/- button.Value will return to the initial value when you click the Reset button.
Sharpness Adjust	sharpness by +/- button.Value will return to the initial value when you click the Reset button.
Saturation Adjust	saturation by +/- button.Value will return to the initial value when you click the Reset button.
Phase Adjust phase	by +/- button.Value will return to the initial value when you click the Reset button.
Clock Adjust clock	by +/- button.Value will return to the initial value when you click the Reset button.
H.Position Adjust	horizontal position by +/- button.Value will return to the initial value when you click the Reset button.
V.Position Adjust	vertical position by +/- button.Value will return to the initial value when you click the Reset button.
Magnify Adjust	magnifi cation by +/- button.Value will return to the initial value when you click the Reset button.

Adjust the projector by selecting a value from the pull-down menu.

Power mode Select the desired power mode between “Normal” and “Eco”.
Background Color	Select a desired color to display as background if no signal is available. The available options include “Logo”, “Blue”, “Black” or image captured with “Logo Capture” function.s
Source Select the desired source between “Computer”, “HDMI 1”, “HDMI 2”, HDMI 3, and HDBaseT.
3D Sync Select an appropriate 3D function between “DLP-Link” or “External”.
Picture Mode Select the desired picture mode between “Bright”, “Standard”, “Vivid”, “sRGB”, and DICOM SIM.”.
Gamma Select the desired gamma between “1.8”, “2.0”, “Standard(2.2)”, “2.4”, and “Shine”.
Color Temperature	Select the desired color temperature between “5500”, “6500”, “7500”, and “Native”.
Aspect Ratio Select the desired aspect ratio between “Auto”, “4:3”, “16:9”, and “16:10”.
Projection Select the desired projection between “Normal”, “Ceiling”, “Rear”, and “Rear Ceiling”.
PIP/PBP Function	Turn the PIP/PBP function “On” or “Off”.

LAN Control

Network Setup

RICOH Projector Web Server Projector Name:Projector-PJ Login Admin > Network Setup System Status General Setup Projector Control Network Setup Alert Setup Centrus Reset to Default Robotic System IP Setup DHCP On Off IP Address 10 2 28 19 Subsea Mask 255 255 252 0 Default Gateway 10 2 31 254 DNS Server 192 160 1 167 Apply

Note

- IPV6 cannot be used in this device.

Set the network of the projector.

Automatically configuring the network settings from DHCP. Check automatic setting and then click "Apply".

Configuring the network settings manually. Check manual setting, enter appropriate values in the IP address, Subnet Mask, Default Gateway (Gateway) and DNS Server fields, and then click "Apply".

LANControl

Note

Only alphanumeric characters and symbols can be used in the password. The maximum number of characters is 32.
If the characters entered in the Current Password fi eld and the characters entered in the Conf i rm Password fi eld do not match, error message will be displayed. In this case, re-enter the password.

Note

When you have changed the settings, verify that the e-mail settings are done correctly. It is recommended that you send a test mail.
E-mail transmission protocol supports only SMTP. Other protocols cannot be used.
When Japanese or Chinese characters are used in an e-mail content, the e-mail may be received with unreadable characters. In such case, please use English characters for the e-mail content.

Alert Setup

You can send email alerts when an error occurs.

You can carry out settings for alert mail in this section.

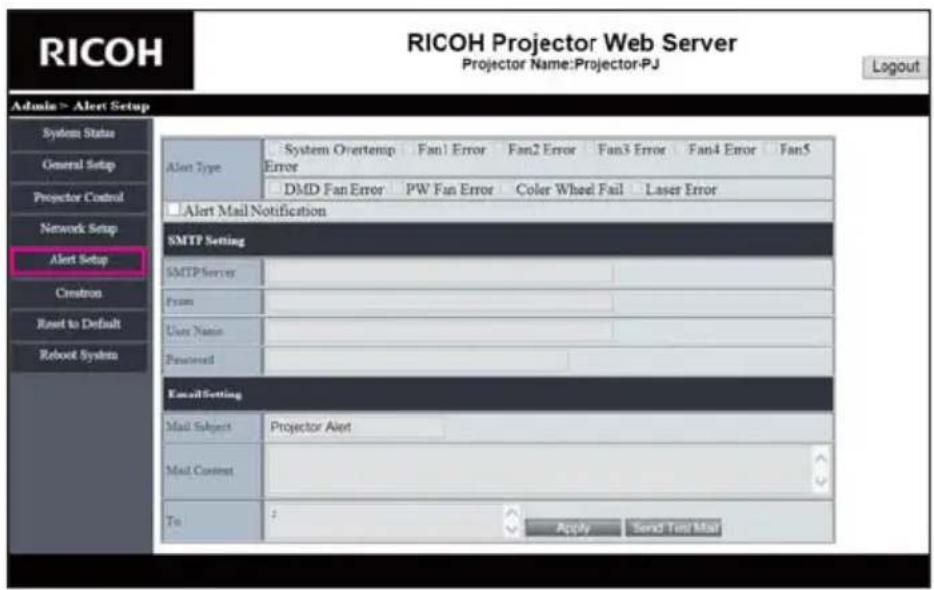

RICOH Projector Web Server Projector Name:Projector-PJ Login Admin > Alert Setup System Status General Setup Projector Control Network Setup Alert Setup Creatron Reset to Default Reboot System Alert Type System Overtemp Fan1 Error Fan2 Error Fan3 Error Fan4 Error Fan5 Error DMD Fan Error PW Fan Error Color Wheel Fail Laser Error Alert Mail Notification SMTP Setting SMTPServer From User Name Password EmailSetting Mail Subject Projector Alert Mail Content To 2 Apply Send Text Mail

Alert types

Check the type of error for which you want to send alert mail.

Alert mail notification

Check and perform the following settings.

SMTP Setting

Set the following:

• SMTP Server: Server address (server name) (SMTP server)
  • From: e-mail address of the sender
• User Name: User name of the mail server
• Password: Mail server password

Email Setting

• Mail Subject
• Mail Content
  • To: Enter the e-mail address of the sender.
• Click "Apply" to fix the value.

Conditions Conditions for sending Title of e-mail
[System Overtemp]	Temperature of the unit is high	Over Temperature:xxx.xxx.xxx.xxx*
[Fan1-5 Error/DMD Fan Error/PW Fan Error]	Cooling fan has stopped Fan	Lock:xxx.xxx.xxx.xxx*
[Color Wheel Fail]	Color wheel function has failed.	Color Wheel: xxx.xxx.xxx.xxx*
[Laser Error] The laser diode has failed. Laser: xxx.xxx.xxx.xxx*

Enter the IP address of projector in *xxx.xxx.xxx.xxx.

Send Test Mail

When you click [Send Test Mail], test email will be sent.

The text will be "Email Test xxx.xxx.xxx.xxx *".

Even if an error occurs during the e-mail transmission, no error will appear in the web browser.

LANControl

Crestron

You can use the control of projectors that uses Crestron.

When projector is in standby mode, only the "Power" button will work.

Power Vol - Mute Vol + Sources List Computer HDMI 1 HDMI 2 HDMI 3 HDBaseT Menu ▲ Re-Sync ◀ Enter ► AV mute ▼ Source Freeze Contrast Brightness Sharpness

Power: Switch ON/OFF the power.

Source List: Correspondence between the input display and input terminal of the device is as follows.

• Computer
• HDMI 1
• HDMI 2
• HDMI 3
• HDBaseT

Other buttons work in the same manner as Projector Control.

LAN Control

Crestron Tools

You can perform settings of the projector network and Crestron Room View.

Note

After setting the user password, you will be able to access Crestron's page by entering the password.
After enabling the Admin password, you will be able to access the page of Crestron tool only upon entering the Admin password.

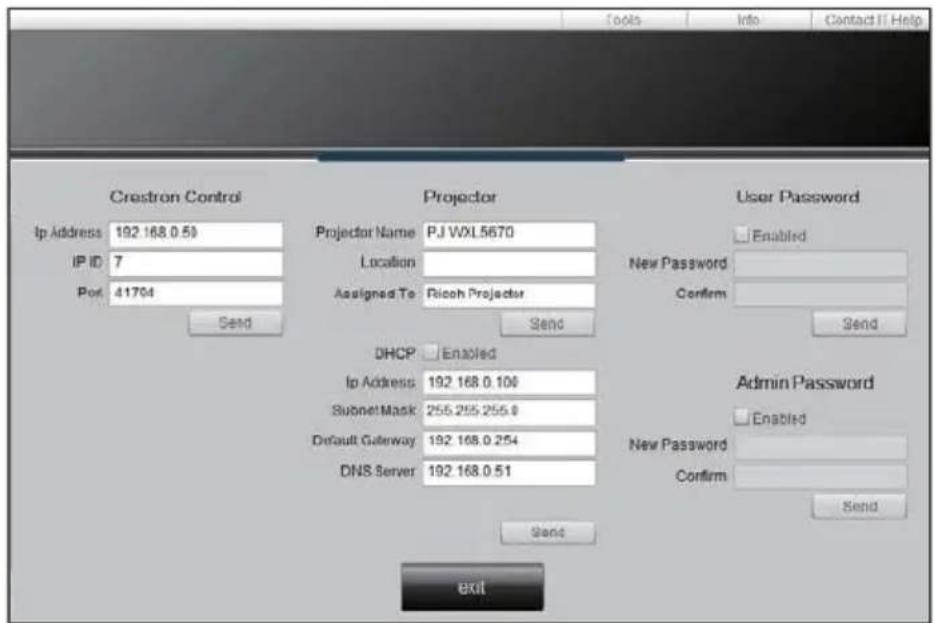

Tools Info Contact IT Help Crestron Control Projector User Password Ip Address 192.168.0.50 Projector Name PJ WXL5670 Location New Password IP ID 7 Port 41704 Assigned To Ricoh Projector Confirm Send DHCP Enabled Ip Address 192.168.0.106 Subnet Mask 255.255.255.8 Default Gateway 192.168.0.254 DNS Server 192.168.0.51 Send Admin Password Enabled New Password Confirm Send exit

Crestron Info

You can display information about the firmware version of the projector and status of the lamp.

Projector Information Projector Name PJ WXL5670 Location Firmware Version 801 Mac Address 00.50.41.85.69.81 Resolution Lamp Hours 7 Assigned To Ricoh Projector Projector Status Power Status Power On Source S-Video Picture Mode Bright Projection Front-Desktop Lamp Power Normal Error Status 0.No Error Exit

Contacting the IT administrator of Crestron

You can contact the IT administrators who are using X-Panel.

Crestron offers the following two types of fi les.

a)RoomViewExpress _6_3_3_7.exe

b)Xpanel.exe

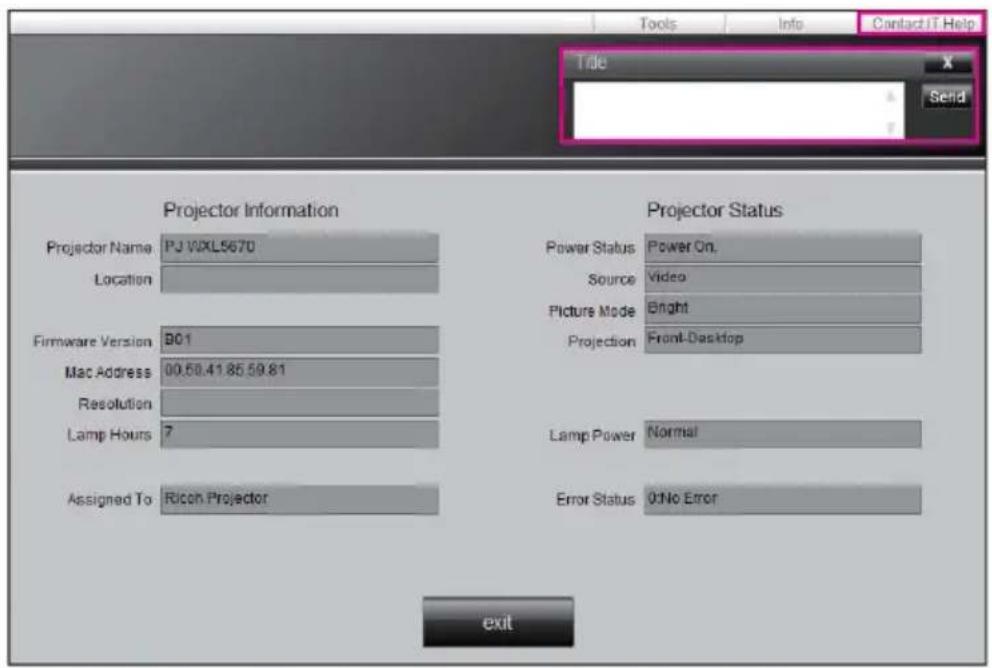

Projector Information Projector Status Projector Name PJ WXL5670 Location Power Status Power On. Source Video Picture Mode Bright Projection Front-Desktop Firmware Version B01 Mac Address 00.50.41.85.59.81 Resolution Lamp Hours 7 Lamp Power Normal Assigned To Rich Projector Error Status 0:No Error exit

Reset to Default

You can reset the network to factory settings. Press the reflect button.

RICOH Projector Web Server Projector Name:Projector-PJ Logout Admins > Reset to Default System Status General Setup Projector Control Network Setup Alert Setup Crontrus Reset to Default Robout System Reset Default This will restore the device to the factory default settings. Apply

LAN Control

Reboot System

You can restart the system.

Press the restart button.

RICOH Projector Web Server Projector Name:Projector-PJ Logout Admin > Reboot System System Status General Setup Projector Control Network Setup Alert Setup Creatron Reset to Default Reboot System Reboot System This will reboot the device immediately. Apply

Control the Projector via the Projector Management Utility

Note

This software is to control and monitor projectors manufactured by our company. The software may not work properly when used to control other projectors.

Projector Management Utility conforms to the PJLink class 1 standards, and is compatible with all class 1 commands.

A maximum of 100 projectors connected to the network can be managed using one computer.

Projector Management Utility operating environment is described below.

• Supported operating system
- Windows Vista (32-bit/64bit version) Ultimate, Business, Home Premium, Home Basic
- Windows 7 (32-bit/64bit version) Home Premium, Professional, Ultimate, Enterprise
- Windows 8 (32-bit/64bit version) Pro, Enterprise
- Windows 8.1 (32-bit/64bit version) Pro, Enterprise
- Windows Server 2008 SP2 (32-bit/64bit version)
- Windows Server 2008 R2 Standard SP1 (64bit version)

• Memory size
  Recommended memory size for the operating system of the computer you are using
• Display resolution 800 × 600 pixels or more

Installing Projector Management Utility

Note

To uninstall Projector Management Utility, use the program delete function in Control Panel to delete "Projector Management Utility".

Projector Management Utility is included on the supplied CD-ROM.

Log in to the computer with administrator privileges to install or uninstall utilities.

1. Close all applications.
2. Insert the CD-ROM in the CD-ROM drive of your computer, and then click [X] to close the user's manual window.
3. Right click the CD-ROM icon and select OPEN.
4. Open "Projector Management Utility" folder stored on the CD-ROM.
5. Double-click "setup.exe" stored in the "Projector Management Utility" folder.
6. Install the application by following the on-screen instruction.
7. When the installation is complete, exit the installer.
   A shortcut icon is created on the desktop.

Register projectors

1. Registers the projectors with Auto search

-Click [Register Projector] button.

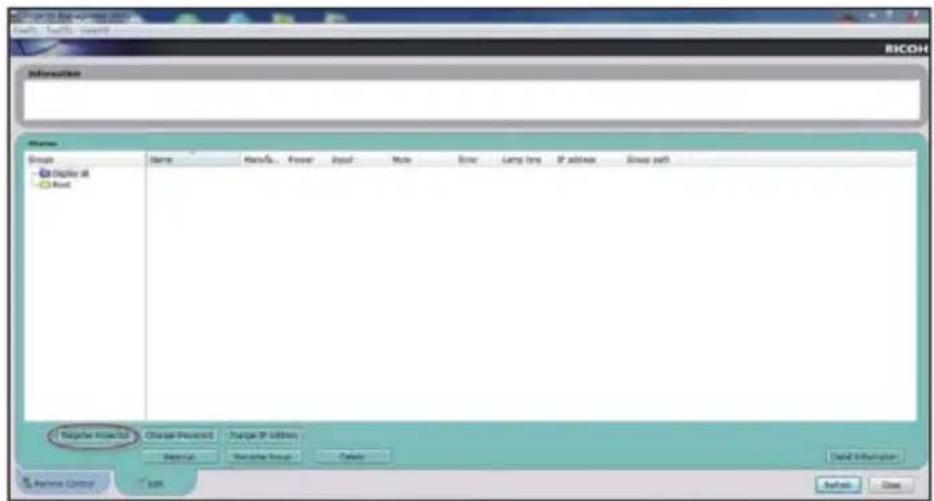

BICOH Information Name Group □ Digital at □ Root Name Format... Faser Input Note Error Lamp Ins P address Group soft Regular Home/Off Change Forward Change IP address Setup Remove Group Delay Add Information Active Group Edit Refresh Close

-Click [Auto Search] button.

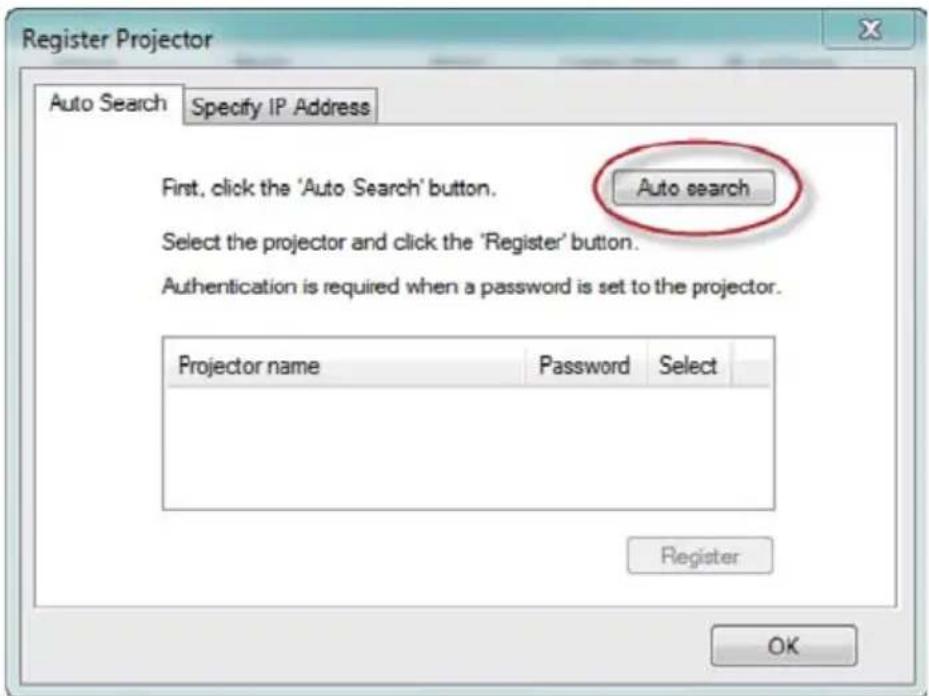

Register Projector Auto Search Specify IP Address First, click the 'Auto Search' button. Auto search Select the projector and click the 'Register' button. Authentication is required when a password is set to the projector. Projector name Password Select Register OK

-List of projectors which support PJLink are displayed in the window. Projector name is displayed as "*******" until authorization if password is enable.

Register Projector Auto Search Specify IP Address First, click the 'Auto Search' button. Auto search Select the projector and click the 'Register' button. Authentication is required when a password is set to the projector. Projector name Password Select ****** Register OK

LAN Control

-Select the desired projector and click [Register] button.

Password authorization is required if password of the projector is set to enable.

Register Projector Auto Search Specify IP Address First, click the 'Auto Search' button. Auto search Select the projector and click the 'Register' button. Authentication is required when a password is set to the projector. Projector name Password Select PJ WXL5670 Register OK

-Click [OK] button to return to the original screen.

2. Directly specifies the IP address and registers the projector.

-Enter IP address of the desired projector and click [Confir rm] button then the projector name will be displayed. After confi rming the projector name, click [Register] button.

Control the projector with the projector Management Utility

Click [Remote Control] tab and select the desired projector in the list. You can control the selected projector by clicking control buttons in the bottom of the window.

[Power] button

Turn "On/Off" the power of the projectors or groups selected from the Projector (/Group) List.

Power On Off

[Input] button

Switches the input source of the projectors or groups selected from the Projector (/Group) List.

Input source will not be changed if the projector doesn't support the selected input source.

Input RGB1 Set

A Table of input source name in the projector and the projector management utility.

The projector The projector Management Utility
Computer RGB	1
HDMI1 Digital	1
HDMI2 Digital	2
HDMI3 Digital	3
HDBaseT Digital	4

LAN Control

[Mute] button

Turn "On/Off" the muting of the projectors or groups selected from the Projector (/Group) List. The projector only supports Video & Audio mute.

Mute Video & Audio On Off Video & Audio Video Audio

[Detail Information] button

Show detail information of the selected projector.

If you experience trouble with the projector, refer to the following information. If the problem persists, please contact your local dealer or service center.

Problem: No image appears on screen

Ensure all the cables and power connections are correctly and securely connected as described in the “Connecting the Projector” section.
▶ Ensure the pins of terminals are not crooked or broken.
Make sure the projector is switched on.
Ensure that the "AV Mute" feature is not turned on.

Problem: Partial, scrolling or incorrectly displayed image

Press "Auto" on the remote control.
Adjust the computer display settings. Verify the resolution setting is less than or equal to 1600 x 1200 resolution. See your operating system's Help file.
If you are using a Notebook:

1. First, follow the steps above to adjust resolution of the computer.

2. Press the toggle output settings. For example: [Fn]+[F3]

PANASONIC, NEC => Fn+F3
HP, SHARP, TOSHIBA => Fn+F5
IBM, SONY => Fn+F7
DELL, EPSON => Fn+F8
FUJITSU => Fn+F10
APPLE => F7

If you experience diffi culty changing resolutions or your monitor freezes, restart all equipment including the projector.

Problem: The screen of the Notebook computer is not displaying a presentation

If you are using a Notebook PC:

Some Notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer's documentation for detailed information.

Problem: Image is unstable or flickering

Adjust the "Phase" or "Clock" to correct it. Refer to the "H. Position" or "V. Position" section for more information.
▶ Check and reconfi gure the display mode of your graphic card to make it compatible with the product.

Problem: Image is out of focus

Adjust the Focus Ring on the projector lens.
Make sure the projection screen is between the required distance. (refer to page 36)

Problem: The image is stretched when displaying 16:9 DVD

Change the aspect ratio by pressing the “Aspect” button on the remote control or select “SCREEN > Aspect Ratio” from the OSD menu to show image with proper aspect ratio.

Problem: Image is too small or too large

Adjust the Zoom lever on the top of the projector.
Move the projector closer to or further from the screen.
Press the “Aspect” button on the remote control or press the “Menu” button on the projector panel, go to “SCREEN > Aspect Ratio” and try the different settings.

Troubleshooting

Problem: Image is reversed

Select "SCREEN > Projection Mode" from the OSD menu to adjust the image.

Problem: Indicator lighting message

STATUS	POWER indicator		TEMP indicator	LAMP indicator
	(Red) (Blue) (Red) (Red)
STANDBY
POWER ON	[A23Y]
STANDBY LAN ON
WARMING UP STATE	Fl
Scalar DownloadMode
Error Status
POWERGOOD NG
FAN LOCK			Fl	[058K]
CW BREAKDOWN			Fl
OVERHEAT
LD OVERHEAT
LD VOLTAGE ERROR

Problem: Message Reminders

Temperature Error - the projector is overheat inside. Check the

Warning! Temperature too High

Please:

1. Make sure air in and outlets are not blocked.
2. Make sure the environment temperature is under 40 degrees C.

Fan Error - the cooling system fan is not working.

Warning! Fan Locked

The projector will switch off automatically.

Replacing the filter - the filter is about to reach its maximum usage time. Clean or replace the fi lter soon.

i Warning! Dust Filters

The usage time of the dust filter is reached. Please clean the dust filters for better performance.

List of Compatible Signals

A. VGA Analog
(1) PC Signal
Modes Resolution		V.Frequency (Hz)	H.Frequency (kHz)	Pixel CLK [MHz]	EDID Description
VGA	640 x 480	60 31.5		25.2	Established Timings 1
	640 x 480 67	35.0		26.8	Established Timings 1
	640 x 480 72	37.9		31.5	Established Timings 1
	640 x 480 75	37.5		31.5	Established Timings 1
	640 x 480	85 43.3 36.0
IBM	720x400 70 3	1.5 28.3			Established Timings 1
SVGA	800 x 600 56	35.1		36.0	Established Timings 1
	800 x 600 60	37.9		40.0	Established Timings 1
	800 x 600 72	48.1		50.0	Established Timings 2
	800 x 600 75	46.9		49.5	Established Timings 2
	800 x 600 85	53.7		56.3
Apple, Mac II	832x624	75 49.1 57.3			Established Timings 2
XGA	1024 x 768	60 48.4		65.0	WXGA: Established Timings 2XGA: Established Timings 2 and (Native) Detailed Timing / Descriptor Block 1
	1024 x 768 70	56.5		75.0	Established Timings 2
	1024 x 768 75	60.0		78.8	Established Timings 2
	1024 x 768 85	68.7		94.5
	1024x768 120	99.0 137.8			Standard Timing Identifi cation
Apple, Mac II	1152x870 75	68.7 100.0			Manufacturer's Reserved Timing

Appendices

A. VGA Analog
(1) PC Signal
Modes Resolution		V.Frequency (Hz)	H.Frequency (kHz)	Pixel CLK [MHz]	EDID Description
SXGA	1280x1024	60 64.0		108.0
	1280x1024 72	77.0		133.0
	1280x1024 75	80.0		135.0	Established Timings 2
QuadVGA	1280x960 60	60.0		101.3	Standard Timing Identifi cation
	1280x960 75	75.2		130.0
SXGA+ 1400x1050 60 65.3				121.8
UXGA	1600x1200 60	75.0		162.0	Standard Timing Identifi cation
	1920x1080 60	67.5		148.5
WUXGA	1920x1200 (RB)	60 74		154
(2) Extended Wide Timing
WXGA	1280x720	60 44.8		74.2	Standard Timing Identifi cation
	1280x800 60	49.6		83.5	WXGA: (Native) Detailed Timing / Descriptor Block 1XGA: Standard Timing Identifi cation
	1366x768 60	47.7		84.8
	1440x900 60	59.9		106.5	Standard Timing Identifi cation
WSXGA+ 1680x1050 60 65.3				146.3	WXGA: Standard Timing Identifi cationXGA: N/A
(3) Component Signal
480i	720x480(1440x480)	59.94(29.97) 15.7		13.5
576i	720x576(1440x576)	50(25) 15.6		13.5
480p 720x480 59.94 31.5				27.0
576p 720x576 50 31.3				27.0
720p 1280x720 60 45.0				74.25
720p 1280x720 50 37.5				74.25
1080i 1920x1080 60(30) 33.8				74.25
1080i 1920x1080 50(25) 28.1				74.25

Appendices

A. VGA Analog
(3) VGA Analog - Component Signal
Modes Resolution	V.Frequency (Hz)	H.Frequency (kHz)	Pixel CLK [MHz]	EDID Description
1080p 1920x1080	23.98/24 27.0		74.25
1080p 1920x1080 60 67.5			148.5
1080p 1920x1080	50 56.3 148.5
B. HDMI Digital
(1) PC Signal
Modes Resolution		V.Frequency (Hz)	H.Frequency (kHz)	Pixel CLK [MHz]	EDID Description
VGA	640x480 60 31.5			25..2	Established Timings 1
	640x480 67 35.0			26.8	Established Timings 1
	640x480 72 37.9			31.5	Established Timings 1
	640x480 75 37.5			31.5	Established Timings 1
	640x480 85 43.3 36.0
IBM 720x400 70 31.5 28.3					Established Timings 1
SVGA	800x600 56 35.1			36.0	Established Timings 1
	800x600 60 37.9			40.0	Established Timings 1
	800x600 72 48.1			50.0	Established Timings 2
	800x600 75 46.9			49.5	Established Timings 2
	800x600 85 53.7			56.3
Apple, Mac II	832x624 75 49.1 57.3				Established Timings 2
XGA	1024x768	60 48.4		65.0	WXGA: Established Timings 2XGA: Established Timings 2 and (Native) Detailed Timing / Descriptor Block 1
	1024x768 70 56.5			75.0	Established Timings 2
	1024x768 75 60.0			78.8	Established Timings 2
	1024x768 85 68.7			94.5
	1024x768	120 99.0 137.8			Standard Timing Identifi cation
Apple, Mac II 1152x870 75 68.7		100.0			Manufacturer's Reserved Timing
SXGA	1280x1024 60 64.0			108.0
	1280x1024 72 77.0			133.0
	1280x1024 75 80.0			135.0	Established Timings 2
Quad VGA	1280x960	60 60.0		101.3	Standard Timing Identifi cation
	1280x960 75	75.2		130.0
SXGA+ 1400x1050 60 65.3				121.8
UXGA	1600x1200 60	75.0		162.0	Standard Timing Identifi cation
	1920x1080 60	67.5 148.5
WUXGA	1920x1200 (RB)	60 74		154
(2) Extended Wide Timing
WXGA	1280x720	60 44.8		74.2	Standard Timing Identifi cation
	1280x800 60	49.6		83.5	WXGA: (Native) Detailed Timing / Descriptor Block 1 XGA: Standard Timing Identifi cation
	1366x768 60	47.7		84.8
	1440x900 60	59.9		106.5	Standard Timing Identifi cation
WXGA+ 1680x1050 60 65.3				146.3	WXGA: Standard Timing Identifi cation XGA: N/A
(3) HDMI - Video Signal
640x480p 640x480		59.94/60 31.5		25.2	Short Video Descriptor of CEA EDID Timing
480i	720x480 (1440x480)	59.94 (29.97) 15.7		13.5	Short Video Descriptor of CEA EDID Timing
576i	720x576 (1440x576)	50 (25) 15.6		13.5	Short Video Descriptor of CEA EDID Timing
480p 720x480 59.94 31.5				27.0	Short Video Descriptor of CEA EDID Timing
576p 720x576 50 31.3				27.0	Short Video Descriptor of CEA EDID Timing
720p	1280x720 60	45.0 74.25			(Native) Short Video Descriptor of CEA EDID Timing
(3) HDMI - Video Signal
Modes Resolution		V.Frequency (Hz)	H.Frequency (kHz)	Pixel CLK [MHz]	EDID Description
720p 1280x720 50 37.5				74.25	(Native)Short Video Descriptor of CEA EDID Timing
1080i 1920x1080 60 (30) 33.8				74.25	Short Video Descriptor of CEA EDID Timing
1080i 1920x1080 50 (25) 28.1				74.25	Short Video Descriptor of CEA EDID Timing
1080p 1920x1080 23.98/24		27.0		74.25	Short Video Descriptor of CEA EDID Timing
1080p 1920x1080 60 67.5				148.5	Short Video Descriptor of CEA EDID Timing
1080p 1920x1080		50 56.3 148.5			Short Video Descriptor of CEA EDID Timing
(4) HDMI 1.4a mandatory 3D timing- Video Signal
Frame Packing	720p 50				Short Video Descriptor of CEA EDID Timing
	720p 59.94/60				Short Video Descriptor of CEA EDID Timing
	1080p 23.98/24				Short Video Descriptor of CEA EDID Timing
Side-by-Side	1080i 50				Short Video Descriptor of CEA EDID Timing
	1080i	59.94/60			Short Video Descriptor of CEA EDID Timing
Top-and-Bottom	720p 50				Short Video Descriptor of CEA EDID Timing
	720p 59.94/60				Short Video Descriptor of CEA EDID Timing
	1080p 23.98/24				Short Video Descriptor of CEA EDID Timing
(5) Input signal frequency range:Analog: fh=15kHz~100kHz, fv=24Hz~60Hz, Max. pixel rate: 162.5MHz.Digital (HDMI): fh=15kHz~100kHz, fv=24Hz~60Hz, Max. pixel rate: 200MHz.

Configurations of Terminals

Terminal: Computer In (Mini D-sub 15 pin) [Monitor Out]

5 4 3 2 1 10 8 6 15 13 26 3

1	Red (R/Cr) Input [R Output]	9	DDC 5V [NC*]
2	Green (G/Y) Input [G Output]	10	Ground (Ver. sync.)
3	Blue (B/Cb) Input [B Output]	11	NC*
4	NC*	12	DDC Data [NC*]
5	Ground (Horiz.sync.)	13	Horiz. sync. Input [Output] (Composite H/V sync. Input)
6	Ground (Red)
7	Ground (Green)	14	Vert. sync. Input [Output]
8	Ground (Blue)	15	DDC CLK [NC*]

* Do not connect anything.

Terminal: PC Control (D-sub 9 pin)

9 8 7 6 5 4 3 2 1

Contact your dealer for control cable and commands.

1	NC*	6	NC*
2	TXD (Sending Data)	7	NC*
3	RXD (Receiving Data)	8	NC*
4	NC*	9	NC*
5	GND * Do not connect anything.

Appendices

12V Trigger

TIP (12 V) GND (0 V)

Wired Remote

GND PWR. SIG.

Specifications

■ List of general specifications

Item	WXGA (PJ WXL5670) WUXGA	(PJ WUL5670)
DLP chip 0.65" DMD	WXGA 0.67" DMD WUXGA
Projection Lens F# 2	3 - 3.15, f=17.63- 31.36mm, 1.8x Zoom Lens
Projection Distance(Focus range)	8.86~26.57 feet (2.70~8.10m)4.59~31.5 feet (1.40~9.60m)	8.53~25.26 feet (2.60~7.70 m)5.58~30.18 feet (1.70~9.20 m)
Throw Ratio(distance/width)	1.26 to 2.24 1.2 to 2.13
Dimension(WxDxH)	387 x 405 x 155.5mm (without protruding part)
	396.5 x 405 x 165.7mm (with protruding part)
Weight	Approx. 11.4 kg (25.1 lbs)
I/O Terminal	LANAudio OUTHDBaseTMicrophoneUSB 5V/1.5APC-ControlServiceTrigger Out (+12V)HDMI 2/MHLWired RemoteHDMI 13DSyncComputer InHDMI 3/MHL (located at front cover)Monitor OutUSB 5V/1.5A (located at front cover;Audio INsupports dongle power if necessary)
Speaker 10W x2
Laser diode life At least 20 000 hours
Noise Level (Typ.)	Full: Typ 35dB(A) /max 37dB(A)ECO: Typ 29dB(A) /max 31dB(A)
Environment	Operational Temperatures 41° to 104°F (5° to 40°C); up to 80% humidity (non-condensing)Storage Temperatures-4° to 140°F (-20° to 60°C); up to 80% humidity (non-condensing)
PowerConsumption	Eco Mode: 285WFull Mode: 470W
Standby Power 0.5W	or less

Note

• This model complies with the above specifications.
• Designs and specifications are subject to change without notice.
• This model may not be compatible with features and/or specifications that may be added in the future.

Cabinet Dimensions

Unit: mm

RICHON 387.0 405 159 129 61.3 155.5 165.7 131.5140 25 85 170 Holes for ceiling mouse Screw size and max.

Holes for ceiling mount Screw size and max. length: (4) M4-8 mm

Trademarks

• DLP is trademarks or registered trademark of Texas Instruments.
• Microsoft, Windows, Windows Vista, Internet Explorer and PowerPoint are either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
• HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
• DisplayPort, DisplayPort Compliance Logo are registered trademarks of Video Electronics Standards Association.
• MHL, Mobile High-Definition Link, and MHL Logo are trademarks or registered trademarks of MHL, LLC.
• Kensington is a trademark or registered trademark of ACCO Brands.
• Blu-ray is a trademark of Blu-ray Association.
• Other product and company names mentioned in this user's manual may be the trademarks or registered trademarks of their respective holders.
