Product Type	Video Projector
Brand	Ricoh
Model	PJ WUL6281
Display Technology	DLP
Native Resolution	WUXGA (1920 x 1200)
Brightness	6200 lumens
Contrast Ratio	30,000:1
Light Source	Laser Phosphor
Lamp Life	20,000 hours
Lens	Manual zoom and focus
Zoom Ratio	1.6x
Keystone Correction	Vertical, +/- 30°
Projection Size	40" to 300"
Aspect Ratio	16:10
Inputs	2 x HDMI, 1 x VGA, 1 x USB, 1 x RJ45
Outputs	1 x VGA, 1 x Audio 3.5mm
Dimensions (W x H x D)	405 x 164 x 355 mm
Weight	10.5 kg
Power Consumption	480 W (max)
Voltage	100-240 V AC, 50/60 Hz
Noise Level	35 dB (normal mode)
Operating Temperature	0°C to 40°C
Safety	Laser class 1, complies with IEC 60825-1
Maintenance	Clean air filter every 500 hours; replace laser module only by qualified service
Repairability	Spare parts available through authorized Ricoh service centers

Frequently Asked Questions - PJ WUL6281 RICOH

How do I clean the air filter?

Turn off the projector and unplug it. Open the filter cover, remove the filter, and use a vacuum cleaner to remove dust. Replace the filter if damaged.

Can I use the projector in a dusty environment?

Yes, but dust can reduce brightness and clog the air filter. Clean the filter more frequently (every 200 hours) if used in dusty conditions.

How do I connect a laptop?

Use an HDMI or VGA cable from your laptop to the corresponding input on the projector. Then select the correct input source via the remote or menu.

Why is the projector not turning on?

Check the power cord connection and ensure the wall outlet is working. Also check if the lamp cover is properly closed. If the power LED is off, contact support.

How do I adjust the image size?

Use the zoom ring on the lens to enlarge or reduce the image. Move the projector closer or farther from the screen for fine-tuning.

What is the recommended screen size?

The projector supports 40 to 300 inches. For best brightness, use a screen size between 100 and 150 inches.

Can I mount the projector on the ceiling?

Yes, it supports ceiling mounting using a compatible mount. Ensure the mount is rated for at least 10.5 kg and follow the installation instructions.

How do I update the firmware?

Download the latest firmware from Ricoh's support website. Copy it to a USB drive, insert into the projector, and select 'Firmware Update' from the menu.

What should I do if the image is blurry?

Adjust the focus ring on the lens. Also ensure the projector is at the right distance from the screen and the keystone correction is set correctly.

Is the projector compatible with 3D?

No, the Ricoh PJ WUL6281 does not support 3D content. It is a standard 2D projector.

USER MANUAL PJ WUL6281 RICOH

Abstract composition of five colored circles (orange, blue, pink, green, cyan) arranged in a scattered pattern on white background (no text or symbols)

1. Usage Notice
2. Introduction
3. Basic Operations
4. User Settings
5. LAN Control
6. Troubleshooting
7. Appendices

Table of Contents

Table of Contents ......1

Usage Notice....3

Introduction....3

Precautions....4

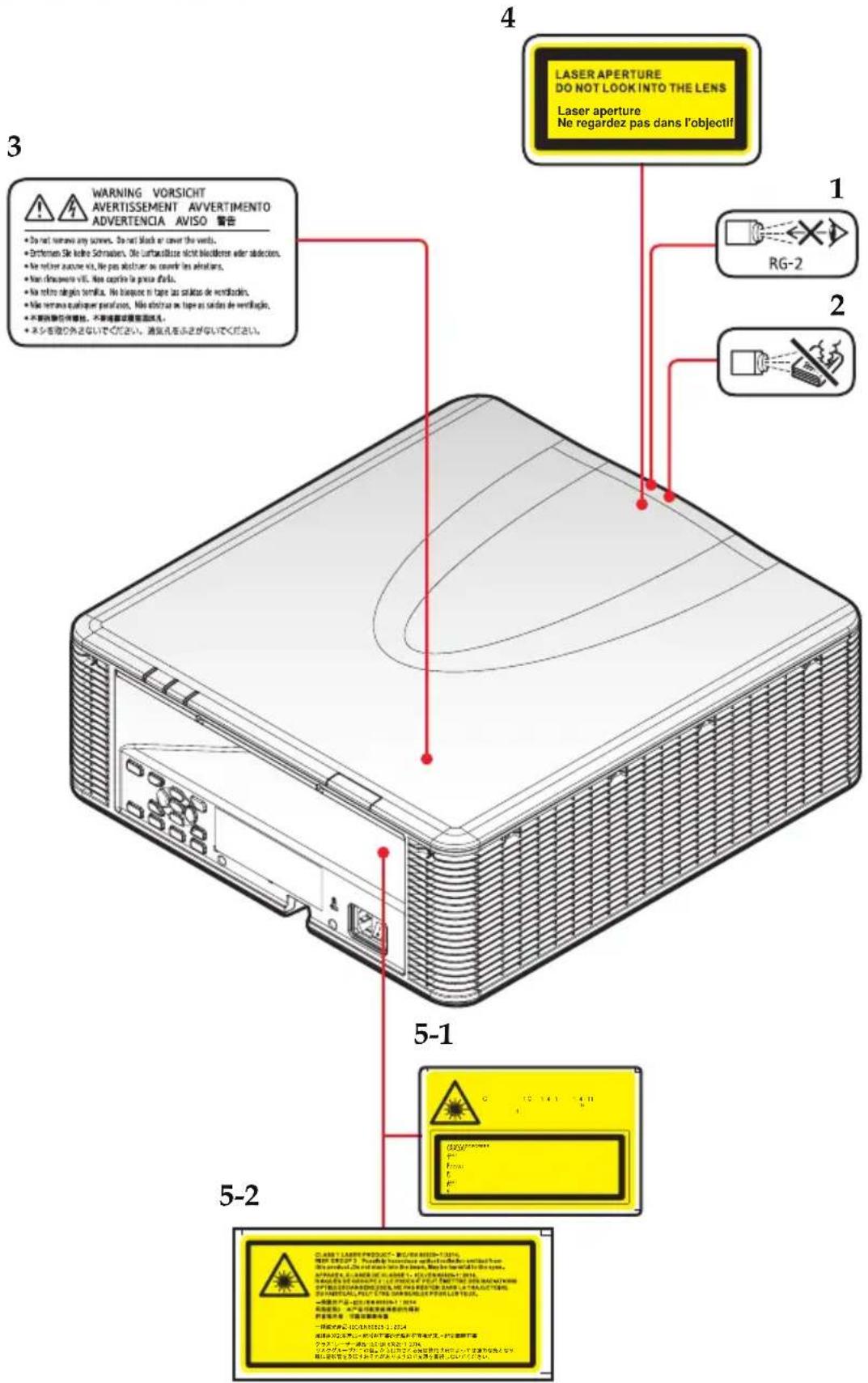

Safety Labels of This Machine......15

Regulation & Safety Notices......17

Other Information....23

Introduction......24

Product Features 24

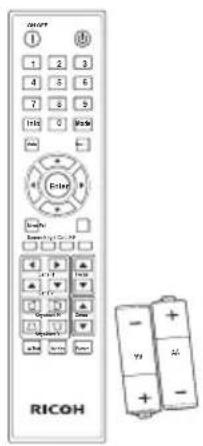

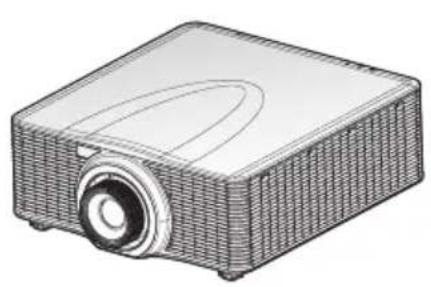

Package Overview....25

Product Overview ......26

Rear View....27

Connection Ports....28

Control Panel....29

Remote Control....30

Remote Control ID Setup 32

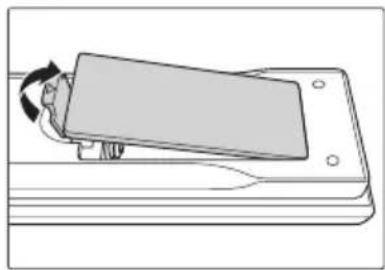

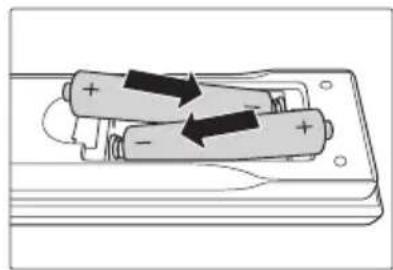

Remote Control Battery Installation.....33

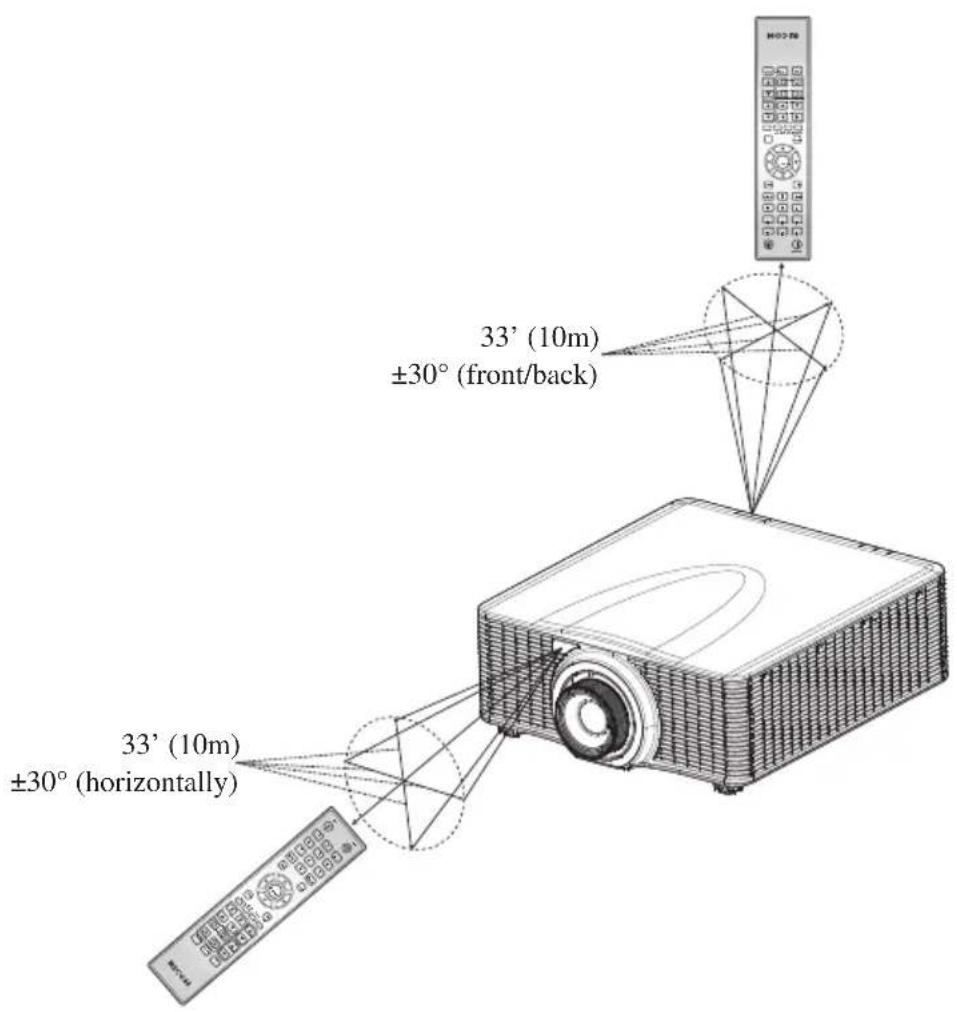

Remote Control Operating Range......34

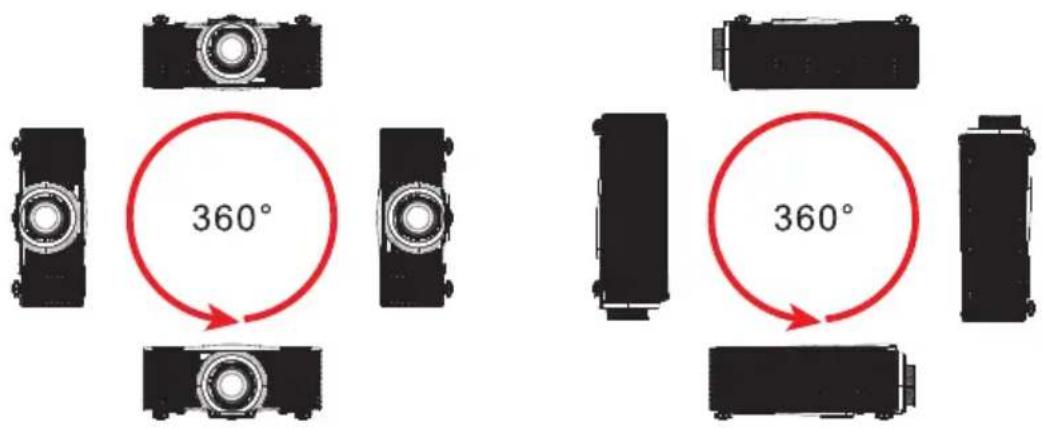

Installing the Projector 35

Installing the Projection Lens......36

Removing the Projection Lens......36

Basic Operations......37

Connecting the Projector ....37

Connect to Computer/Notebook......37

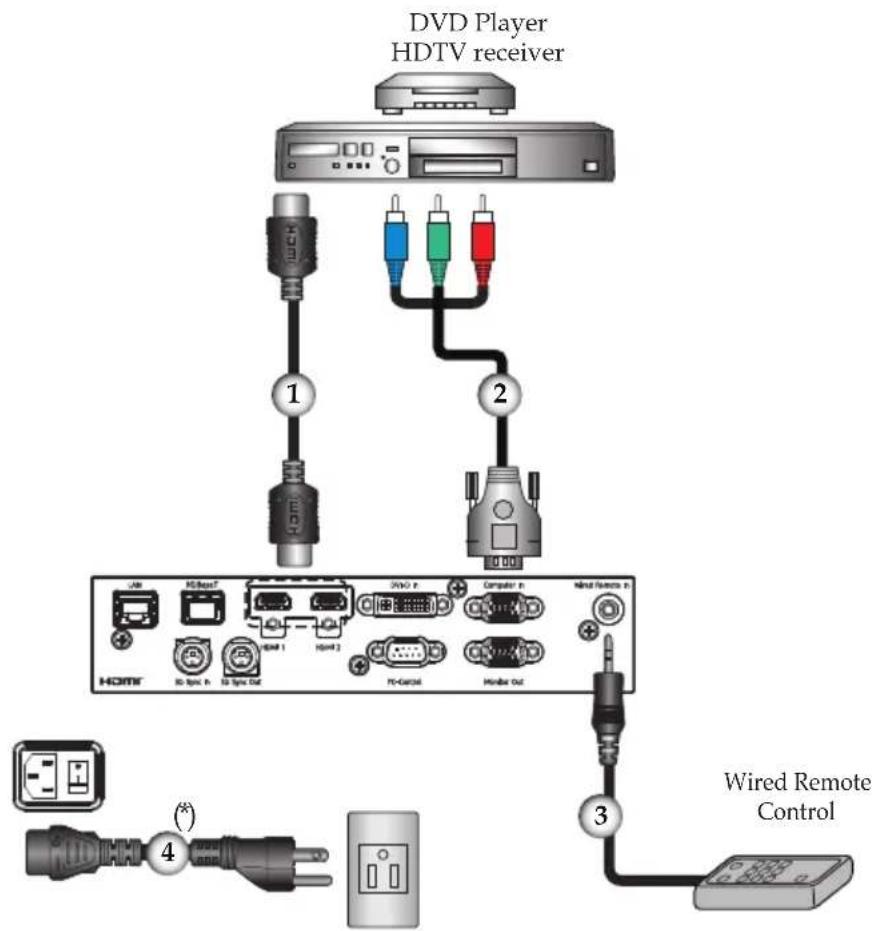

Connect to AV Equipment 38

Powering On/Off the Projector......39

Powering On the Projector 39

Powering Off the Projector 40

Warning Indicator 40

Status LED Indicator 41

Adjusting the Projected Image......42

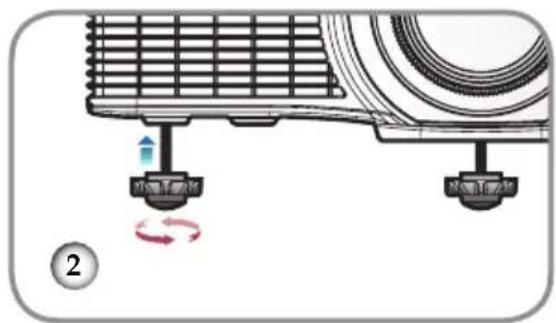

Adjusting the Position of Projector Image....42

Adjusting the Focus/Zoom......42

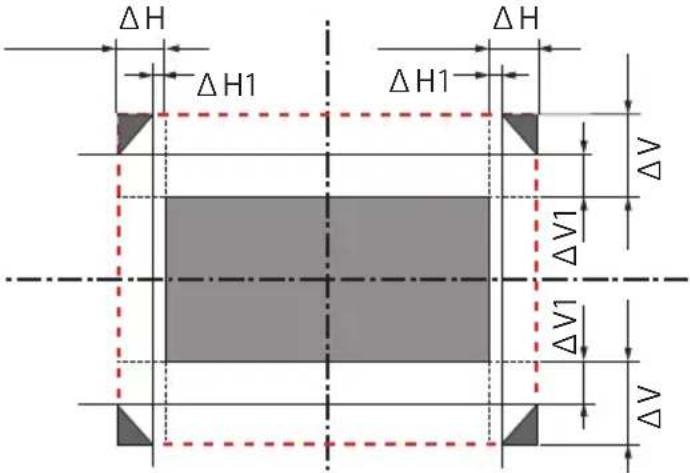

Adjusting Lens Shift......42

Projection Lens....43

Adjusting the Projecting Image's Position....45

User Settings 46

Using the On Screen Display (OSD)......46

How to operate....46

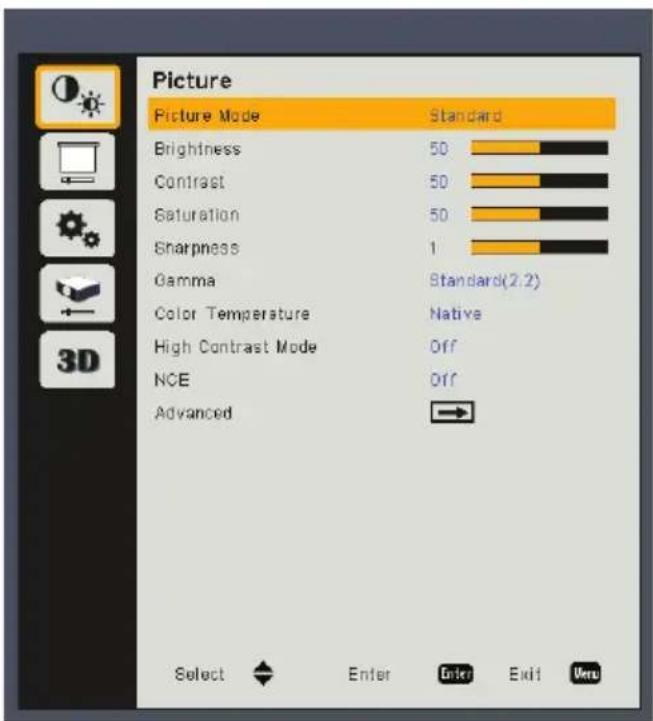

PICTURE....47

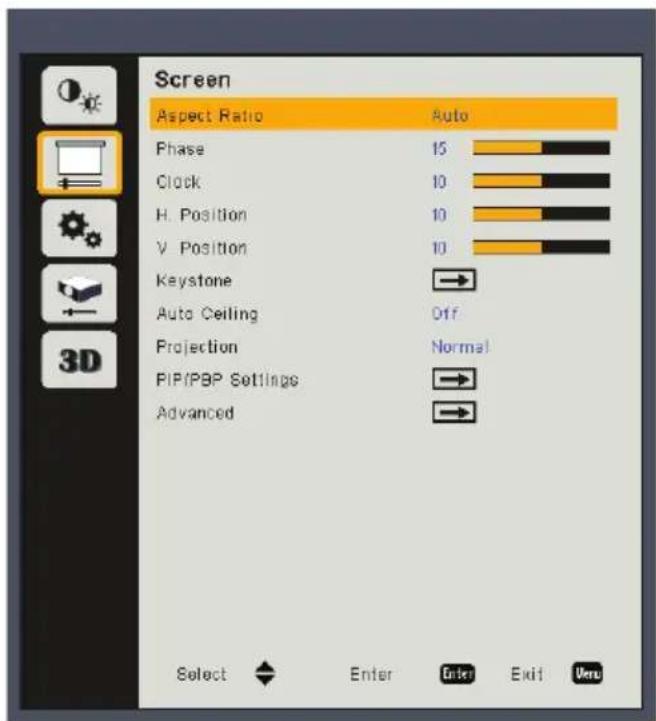

SCREEN 51

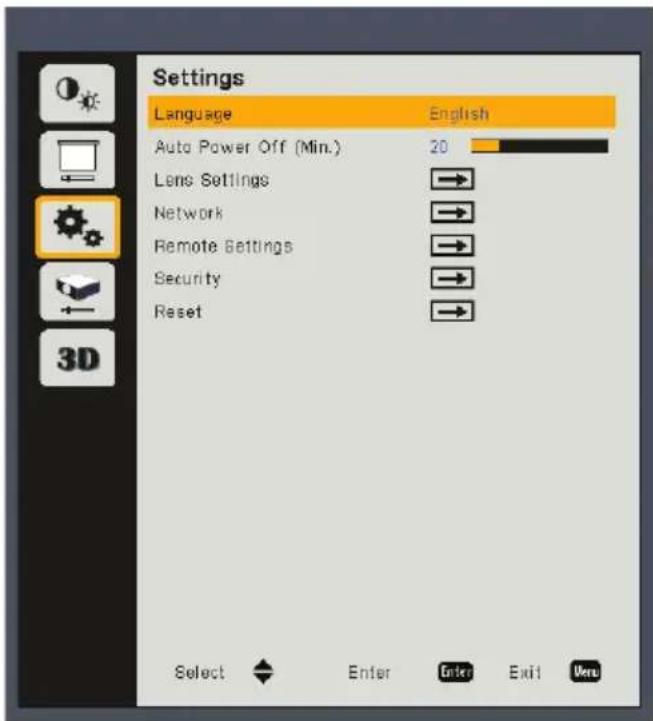

SETTINGS 57

Table of Contents

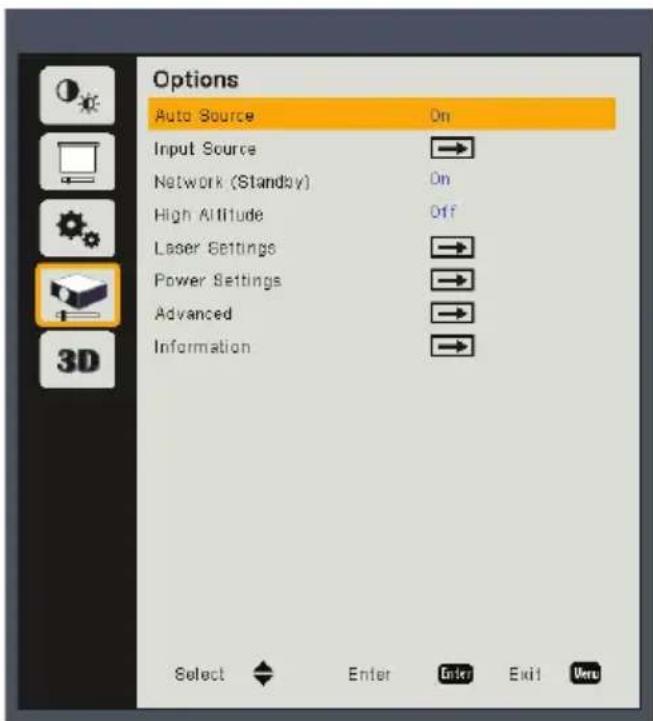

OPTIONS....63

3D....68

LAN Control ....70

Controlling this Device with Web Browser....70

Connecting to the device....70

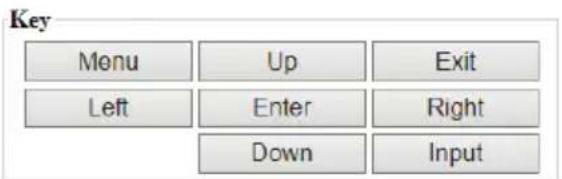

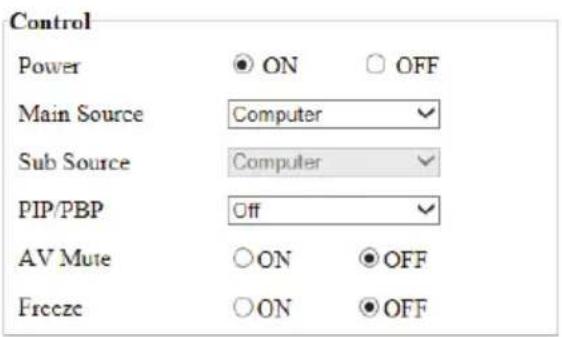

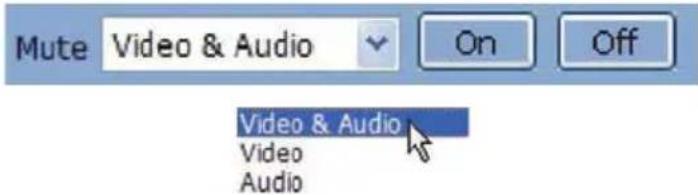

Using the web interface....71

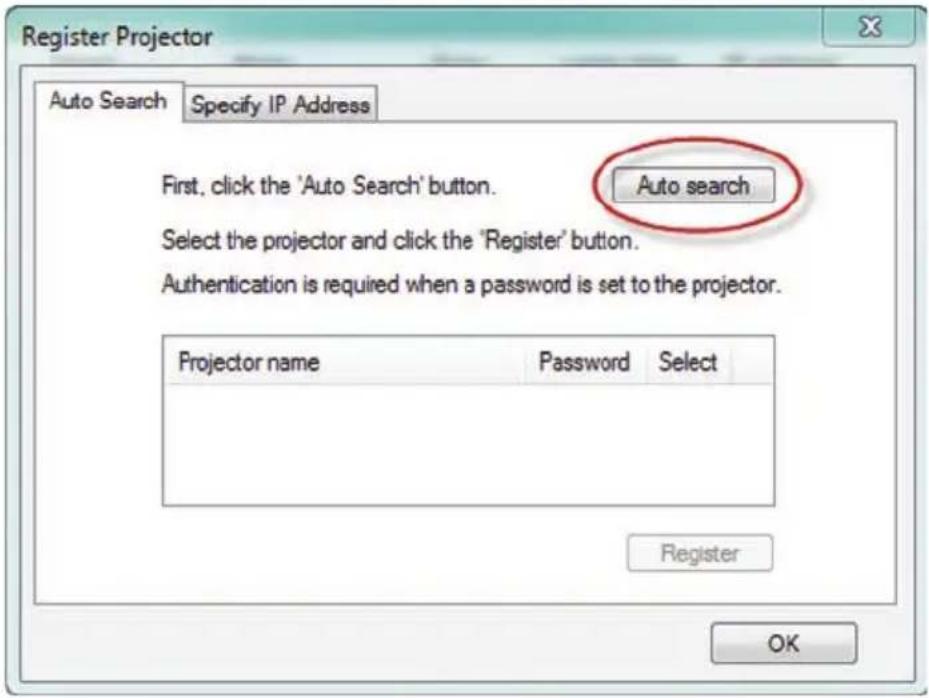

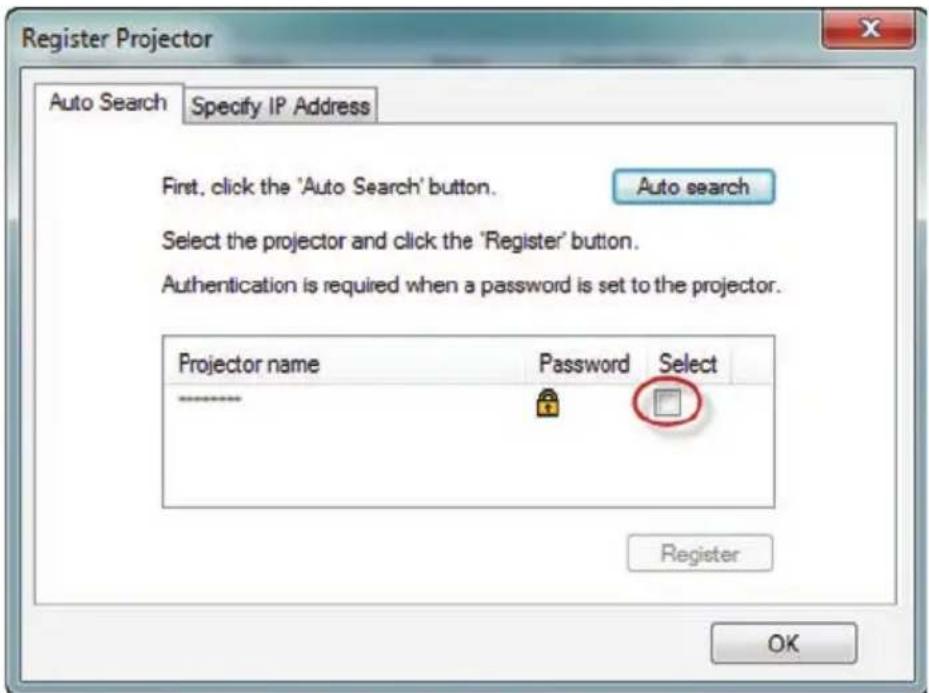

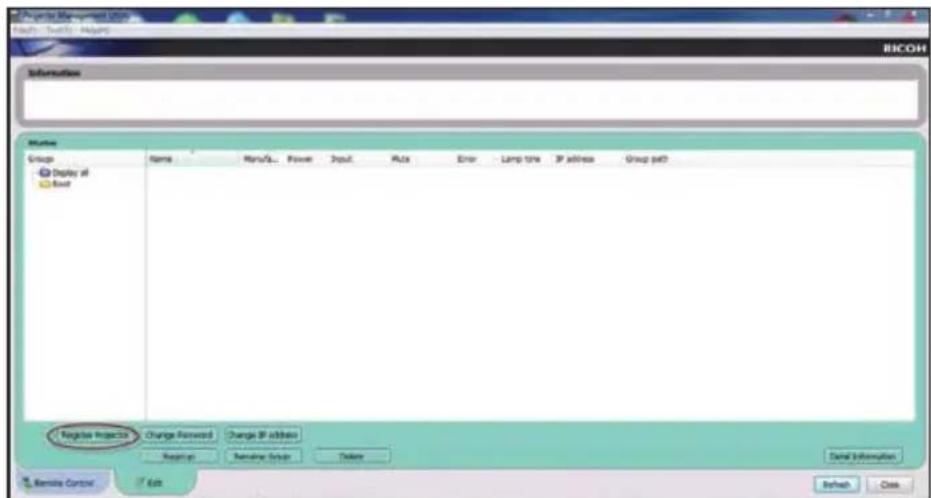

Control the Projector via the Projector Management Utility 75

Installing Projector Management Utility....76

Control the projector with the projector Management Utility....79

Troubleshooting 81

Appendices......85

List of Compatible Signals ....85

PIP/PBP Compatibility....88

Specifications....89

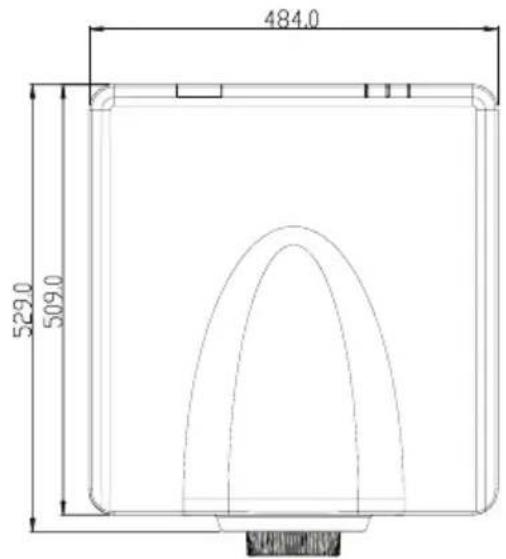

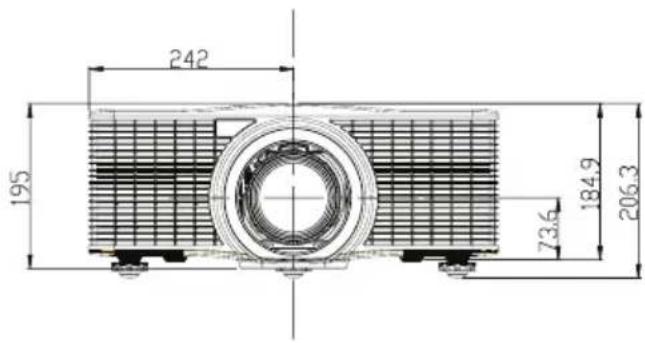

Cabinet Dimensions....90

Trademarks....91

Introduction

This manual contains detailed instructions and notes on the operation and use of this machine. For your safety and benefit, read this manual before using the machine. Keep this manual in a handy place for quick reference.

Important

Contents of this manual are subject to change without prior notice.

In no event will the company be liable for direct, indirect, special, incidental, or consequential damages as a result of handing or operating this product.

Some illustrations in this manual might be slightly different from the machine.

Caution

The manufacturer shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the manufactuere with your product.

Precautions

Follow all warnings, precautions and maintenance as recommended in this manual to ensure the safety when operating and installing this product.

In this manual, the following important symbols are used:

■ Warning-

Indicates a potentially hazardous situation which, if instructions are not followed, could result in death or serious injury.

Caution-

Indicates a potentially hazardous situation which, if instructions are not followed, may result in minor or moderate injury or damage to property.

Operating environment

This section explains safety precautions that should always be followed when using this machine.

■Warning- Do not place vases, plant pots, cups, toiletries, medicines, small metal objects, or containers holding water or any other liquids, on or close to this machine. Fire or electric shock could result from spillage or if such objects or substances fall inside this machine
■Warning- Keep the machine and attachments out of the reach of children. If the machine is near children, it may cause injury.
■ Warning- Never push objects of any kind into this machine through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the machine.
■ Caution- Keep the machine away from humidity and dust. Otherwise a fire or an electric shock might occur.
■ Caution- Do not place any objects on the machine. Doing so may cause the machine to topple over, possibly resulting in injury.
■ Caution- Do not place the machine on an unstable or tilted surface. If it topples over, an injury might occur.

Usage Notice

■ Caution- Do not place the machine or use it in an environment where it might get wet such as from snow, rain, or being near water. Doing so could result in fire or electric shock.
■ Caution- Do not put your face or hand near the exhaust vents. Doing so could result in burns or an accident due to hot air coming from the exhaust vents.
■ Caution- Do not use the machine on soft material such as paper or cloth that might get sucked into the intake vents. Doing so may cause heat buildup inside the machine, resulting in malfunction, burns, or fire.

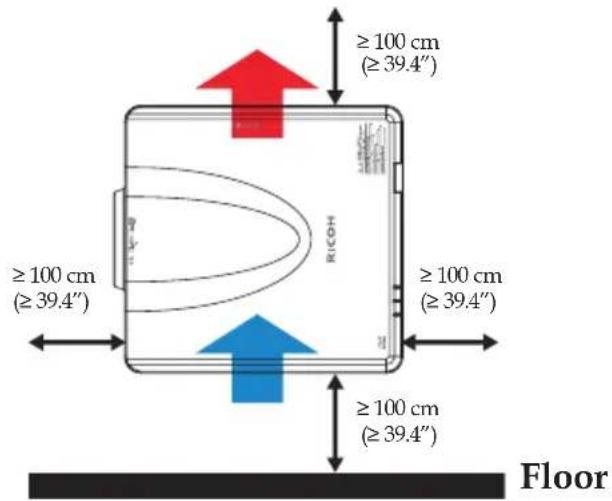

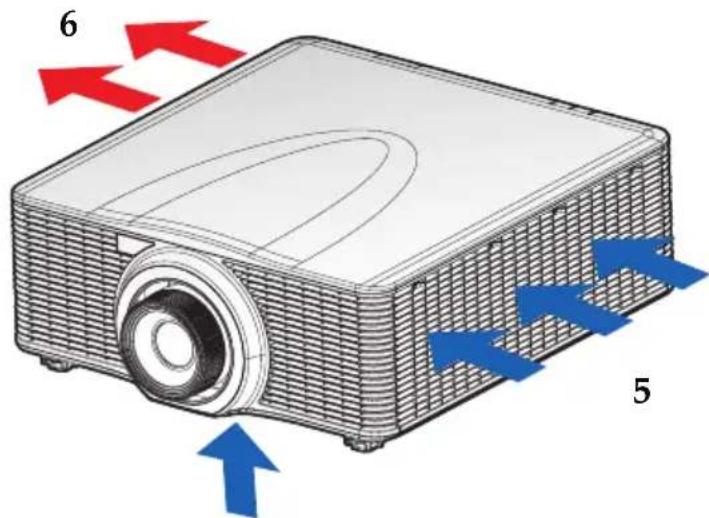

■ Caution- Do not place the machine in a location where air flow is poor. Doing so may cause fire due to internal components becoming overheated.
■ Caution- Do not place or store the machine in a location where direct sunlight or heat generation might occur. The heat may deform or wear out the exterior parts or negatively affect internal parts. Doing so could result in fire.
■ Caution- Do not place low heat resistant material near the exhaust vents. Hot air may come from the exhaust vents, resulting in damage to the machine or an accident.
- Caution- Do not obstruct the machine's vents. Doing so risks fi re caused by overheated internal components.
■ Caution- Do not place the power cord and connection cable in a way that might cause someone to trip and fall. The machine might fall over and cause an injury.
■ Caution- Do not use fl amamable sprays or solvents in the vicinity of the machine. Also, avoid tplacing these items in the vivinity of the machine, Doing so could result in fi re or electrical shock.
■ Caution- Do not expose the product to salt air or corrosive gas. Also, do not place the product in a laboratory or other location where a chemical reaction might occur. Doing so may cause the product to malfunction.

Handling power cords and power cord plugs

This section explains safety precautions about handling power cords and power cord plugs.

■ Warning- Do not use any power sources other than those that match the specifications shown in this manual. Doing so could result in fire or electric shock.
■ Warning- Do not use any frequencies other than those that match the specifications shown. Doing so could result in fi re or electrical shock.
■ Warning- Do not damage, break, or modify the power cord. Also, do not place heavy objects on the power cord, or pull the cord or bend it severely. Doing so could result in fire or electric shock.
- Warning- Touching the prongs of the power cable's plug with anything metallic constitutes a fire and electric shock hazard.
■ Warning- The supplied power cord is for use with this machine only. Do not use it with other appliances. Doing so could result in fi re or electric shock.
■ Warning- It is dangerous to handle the power cord plug with wet hands. Doing so could result in electric shock.
■ Warning- Be sure to locate the machine as close as possible to a wall outlet. This will allow easy disconnection of the power cord in the event of an emergency.
■ Warning- Be sure to disconnect the plug from the wall outlet at least once a year and check for the following:
■There are burn marks on the plug.
■The prongs on the plug are deformed.
If any of the above conditions exist, do not use the plug and consult your dealer or service representative. Use of the plug could result in fi re or electric shock.
■ Warning- Be sure to disconnect the power cord from the wall outlet at least once a year and check for the following:
The power cord's inner wires are exposedor broken.
The power cord's coating has a crack or dent.
■When bending the power cord, the power turns off and on.
■Part of the power cord becomes hot.
■The power cord is damaged.
If any of the above conditions exist, do not use

the power cord and consult your dealer or service representative. Use of the power cord could result in fire or electric shock.

■ Warning- Do not use the connection cable if it is deformed, cracked, or damaged. Doing so could result in fire or electric shock. If the connection cable is deformed, cracked, or damaged, contact your service representative to request a replacement cable.

■ Warning- When using an extension cord or power strip, only connect equipment whose total power consumption is within the power rating for the extension cord or power strip. If the power rating is exceeded, it may cause heat buildup and result in fi re.

■ Warning- Do not place the power cord and connection cable in front of the lens or exhaust vents when the product is turned on. Doing so may result in fi re.

■ Warning- Be sure to locate the machine as close as possible to a wall outlet. This will allow easy disconnection of the power cord in the event of an emergency.

■ Caution- Push the power plug all the way into the power outlet. Do not use a power outlet with a loose connection. Doing so may result in heat buildup. Plug the power cord in the correct direction into the base. If they are not plugged in correctly, it could result in smoke, fi re, or electric shock.

■ Caution- If this machine is not going to be used for several days or longer, disconnect its power cord from the wall outlet.

■ Caution- When disconnecting the power cord from the wall outlet, always pull the plug, not the cord. Pulling the cord can damage the power cord. Use of damaged power cords could result in fire or electric shock.

■ Caution- Be sure to disconnect the plug from the wall outlet and clean the prongs and the area around the prongs at least once a year. Allowing dust to build up on the plug constitutes a fi re hazard.

■ Caution- When performing maintenance on the machine, always disconnect the power cord from the wall outlet.

■ Caution- Unplug the power cord from the wall outlet before you move the machine. While moving the machine, take care that the power cord is not damaged under the machine. Failing to take these precautions could result in fi re or electric shock.

Handling the main machine

This section explains safety precautions about handling the main machine.

■Warning- Plastic bags can be dangerous, please do not leave near babies and young children. To avoid the threat of suffocation, please keep away from their nose and mouth.
■ Warning- If the machine emits smoke or odours, or if it behaves unusually, you must turn off its power immediately. After turning off the power, be sure to disconnect the power cord plug from the wall outlet. Then contact your service representative and report the problem. Do not use the machine. Doing so could result in fire or electric shock.
■ Warning- If metal objects, or water or other fluids fall inside this machine, you must turn off its power immediately. After turning off the power, be sure to disconnect the power cord plug from the wall outlet. Then contact your service representative and report the problem. Do not use the machine. Doing so could result in fire or electric shock.
■ Warning- Never operate this unit on AC power during a thunderstorm. If you see lightning or hear thunder, never touch the unit, cables and/or peripherals. An electric surge caused by the storm, may result in an electrical shock or damage to the unit.
■ Warning- If the machine topples, or if a cover or other part gets broken, you must turn off its power immediately. After turning off the power, be sure to disconnect the power cord plug from the wall outlet. Then contact your service representative and report the problem. Do not use the machine. Doing so could result in fire or electric shock.
■ Warning- Installing the Projector on a Wall or Ceiling: a) Do not attempt to clean or replace parts for a machine that is installed in a high location on a wall or ceiling. Doing so may cause it to fall down, resulting in an injury. b) Contact your sales or service representative to clean or replace parts for a machine that is installed on a wall or ceiling.

Usage Notice

c) If a machine is incorrectly installed on a wall or ceiling, it may fall down and cause an injury. Contact your sales or service representative if you want to install a machine on a wall or ceiling.

d) Do not obstruct the machine's vents. Doing so risks fi re caused by overheated internal components.

e) For users, do not install the projector by yourself.

Contact your sales or service representative if you want to install the projector on a wall or ceiling.

f) For sales or service representatives:

- Use brackets that are strong enough to support the projector. WUL6281 Series weights less than 17.5kg/38.6lb (without lens).

- The projector must be installed in a location that is sturdy enough to support the full weight of the projector and brackets.

- Use only the screws (four M6\~M10 screws) provided with the projector to install the brackets on the projector.

■ Caution- The machine may be very hot after it is turned off, especially the vents and the lower part of the unit where the laser module is located. Avoid touching these areas. Doing so may result in burns.

■ Caution- Do not place the machine on other equipment or vice versa. Doing so may cause heat buildup inside the machine or cause the other equipment to malfunction.

■ Caution- Do not use attachments not recommended by RICOH. Use of an incompatible attachments could cause hazards or damage to the product.

■ Caution- Unplug this product from the wall outlet and take the product to qualified service personnel if you encounter any of the following conditions:

a) The power supply cord or plug is damaged.
b) Liquid has been spilled, or objects have fallen into the product.
c) The product has been exposed to rain or water.
d) The product does not operate normally when following the operating instructions. Adjust only those controls that are covered by the operating instructions.
e) The product has been dropped or damaged in any way. (If the cabinet should break, please handle with care to avoid injury.)

Usage Notice

■ Caution- This product incorporates glass components, including a lens. If this should break, please handle with care to avoid injury and contact your sales representative for repair service. Avoid any broken pieces of glass since they may cause injury.
■ Caution- Do not place anything in front of the lens while the projector is operating. Things placed in front of the lens may overheat and burn or start a fire.
■ Caution- Unauthorized substitutions may result in fire, electric shock, or other hazards.
Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to verify that the product is in proper operating condition.
■ Caution- Do not use the product in a closed installation location. Do not place the product in a box or in any other closed installation location. Otherwise it may overheat, which could result in a risk of fire.

Handling the machine's interior

This section explains safety precautions about handling the machine's interior.

- Warning- Do not remove any covers or screws that are not mentioned in this manual. There are high voltage components inside the machine that may cause electric shock. Contact your service representative if any of the machine's internal components require maintenance, adjustment, or repair.

■ Warning- Do not disassemble or modify the machine. Doing so may cause injury or malfunction.

- Caution- If the machine's interior is not cleaned regularly, dust will accumulate. Fire and breakdown can result from heavy accumulation of dust inside this machine. Contact your sales or service representative for details about and charges for cleaning the machine's interior.

About the remote control batteries

This section explains safety precautions about the remote control batteries.

■ Warning- Never throw batteries into a fi re.

Using the batteries improperly may cause them to explode or leak and may result in serious injury. If battery-leaking fl uid contacts skin, wash the fl uid off immediately with clean water and consult a doctor. If the fl uid spills on an instrument, avoid contact and wipe it off using tissue paper. Then dispose of the used tissue paper as fl ammable garbage after moistening the tissue with water.

■ Warning- Keep new and used batteries away from children.

If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

■ Warning- For safety operation, follow the warnings below

regarding the batteries used in the remote control. If you use the battery incorrectly, it may result in fire or injury due to batteries leaking or exploiting.

■ Be sure to use AAA (R03) size batteries.
■ Dispose of batteries in a designated disposal area.
■Attention should be drawn to the environmental aspects of battery disposal.

If the remote control does not operate correctly, or if the operating range becomes reduced, replace the batteries.

■ Avoid contact with water or liquid.

■ Do not expose the remote control to moisture or heat.

■ Do not drop the remote control.

If the batteries have leaked in the remote control, carefully wipe off the case and install new batteries.

■ Dispose of batteries according to the local laws and regulations of your region.

■The remote control may fail to operate if the infrared remote sensor is exposed to bright sunlight or fluorescent lighting.

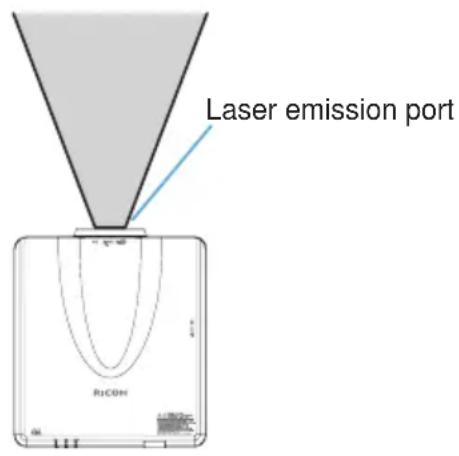

About the laser light source

This section explains safety precautions about the laser light source.

■ Warning- Do not look into the lens or vent when the product is on. The bright light may damage your eyes. Be especially careful in an environment with children.
■ Caution- This projector has built-in laser module. Possibly hazardous optical radiation emitted from this product. Do not stare into the beam. May be harmful to the eyes.
■ Caution- Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
■ Caution- Do not block the projection light when it is on. If you do so, the part that is blocking the projection light may get quite hot and deform, deteriorate or cause a burn or fire. The reflected light may make the lens hot and cause a product failure. To temporarily suspend projection, select the mute function. To suspend longer, turn off the product.
■ Caution- Leave 100 cm or over space between the projectors when projectors are installed side by side, so that intake and exhaust vents of the projectors are not obstructed.

≥100 cm (≥ 39.4") ≥100 cm (≥ 39.4") ≥100 cm (≥ 39.4") RICOH ≥100 cm (≥ 39.4") RICOH ≥100 cm (≥ 39.4") ≥100 cm (≥ 39.4")

Usage Notice

■ Caution- For 360° installation, install the projector more than 100 cm away from the wall or the floor. When the air intake and discharge outlet are obstructed, the temperature inside the projector will rise and this may result in a malfunction.

≥ 100 cm (≥ 39.4") ≥ 100 cm (≥ 39.4") ≥ 100 cm (≥ 39.4") RICON

■ Caution- When installing the projector on the left side (preferred), leave a space of at least 100 cm between the intake vent and the floor and a space of at least 100 cm for the exhaust vent.

≥100 cm (≥39.4") ≥100 cm (≥39.4") ≥100 cm (≥39.4") ≥100 cm (≥39.4") Floor

Usage Notice

■ Caution- When installing the projector on the right side, leave a space of at least 100 cm between the exhaust vent and the floor and a space of at least 100 cm for the intake vent.

≥100 cm (≥ 39.4") ≥100 cm (≥ 39.4") ≥100 cm (≥ 39.4") ≥100 cm (≥ 39.4") Floor

■ Caution- Do not pile up more than 3 projectors.

Safety Labels of This Machine

The manufacturer shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the manufactuere with your product.

1. Do not look into the lens while the light source is on. The strong light from the light source may cause damage to your eyesight.
2. Do not place anything in front of the lens while the projector is operating. Things placed in front of the lens may overheat and burn or start a fire. If you want to temporarily stop the projected image, use the AV mute on the remote control or the keypad.
3. Do not remove any screws. Do not block or cover the vents.
4. Do not look into the lens. (For USA and Canada only).

5-1. Laser aperture warning (For USA and Canada only):

• CLASS 3R LASER PRODUCT-AVOID DIRECT EYE EXPOSURE
• Do not look into the light source light using optical instruments (such as magnifying glasses and mirrors). Visual impairment could result.
• When turning on the projector, make sure no one within projection range is looking at the lens.

- Keep any items (magnifying glass etc.) out of the light path of the projector. The light path being projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause an unpredictable outcome such as a fire or injury to the eyes.

5-2. Laser aperture warning (For other countries):

• CLASS 1 LASER PRODUCT - RISK GROUP 2
- Do not stare into the beam, maybe harmful to the eyes.

WARNING VORSICHT AVERTISSEMENT AVERTIMENTO ADVERTENCIA AVISO 客告 • Do not remove any sores. Do not block an cover the vents. • Entformen Sie lebre Schraders. Die surface utilise slight blockers oder defects. • He never aucune va, He pas ablueur en couvert les altations. • He incivement vii. He circutin la press d'ada. • He retra obgien tornaia. He bausee si tape as solatos de verididos. • He never aucune parafons. He electras si tape as salides de veridings. • 不要拆除任何墙纸. 不要泄露的窗窗面线。 • 未示的外子不小于无法识别。请勿礼去无之为不为ください。 4 LASER APERTURE DO NOT LOOK INTO THE LENS Laser aperture Ne regardez pas dans l'objectif! 1 RG-2 2 5-1 5-2 5-2 • Let the laser aperture - 需力器应从一个开关上 • Let the laser aperture be a device with a switch from the circuit board to the other • Let the laser aperture be a device with a switch from the circuit board to the other • Let the laser aperture be a device with a switch from the circuit board to the other • Let the laser aperture be a device with a switch from the circuit board to the other • Let the laser aperture be a device with a switch from the circuit board to the other • Let the laser aperture be a device with a switch from the circuit board to the other • Let the Laser Aperture is not allowed for any use of the laser aperture or the laser aperture, but it is not allowed for any use of the laser aperture or the laser aperture.

Regulation & Safety Notices

This appendix lists the general notices of your Projector.

Notice: Users in the United States of America FCC notice

MODEL NAME: RICOH PJ WUL6281

TRADE NAME: PROJECTOR MODEL NAME: RICOH PJ WUL6281 Tested To Comply With FCC Standards FOR COMMERCIAL OR OFFICE USE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.

This device has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful inertference in which case the user will be required to correct the interference at his own expense.

RESPONSIBLE PARTY: Ricoh USA Inc. 70 Valley Stream Parkway Malvern, Pennsylvania, 19355 Phone: [phone]

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.

Notes to Users in the State of California

Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.

Declaration of Conformity for EU countries

■ EMC Directive 2014/30/EU (including amendments) ■ Low Voltage Directive 2014/35/EU

Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference.

Notice: Users in EU countries

CE Marking Traceability Information (For EU Countries Only)

Manufacturer:

Ricoh Co., Ltd.

3-6 Nakamagome 1-chome, Ohta-ku, Tokyo. 143-8555,

Japan

Importer:

Ricoh Europe SCM B.V.

Blankenweg 24, 4612 RC Bergen op Zoom,

The Netherlands

User Information on Electrical and Electronic Equipment

Users in the countries where this symbol shown in this section has been specified in national law on collection and treatment of E-waste.

Our Products contain high quality components and are designed to facilitate recycling.

Our products or product packaging are marked with the symbol below.

The symbol indicates that the product contains substances which are harmful to humans and the environment. This product must not be treated as municipal waste. It must be disposed of separately via the appropriate return and collection systems available. By following these instructions you ensure that this product is treated correctly and help to reduce potential impacts on the environment and human health, which could otherwise result from inappropriate handling. Recycling of products helps to conserve natural resources and protect the environment.

For more detailed information on collection and recycling systems for this product, please contact the shop where you purchased it, your local dealer or sales/service representatives.

Notice: Users in Turkey

Notice: Users in New Zealand, Australia

Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference.

Notice: Users in Taiwan

FCC Class A for Taiwan

警告使用者:

Note for battery disposal in Taiwan

廢電池請回收

Notice: Users in the EU

Note for the Battery and/or Accumulator Symbol

In accordance with the Battery Directive 2006/66/EC Article 20 Information for end-users Annex II, the above symbol is printed on batteries and accumulators. This symbol means that in the European Union, used batteries and accumulators should be disposed of separately from your household waste. In the EU, there are separate collection systems for not only used electrical and electronic products but also batteries and accumulators. Please dispose of them correctly at your local community waste collection/recycling centre.

Notice: Users in China FCC Class A for China

If you wish to discard this product, please contact your local authorities, the shop where you bought this product, your local dealer or sales/service representatives.

Laser Notice

For USA and Canada

This Product is classified as Class 3R of IEC60825-1:2007 and also complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50, dated June 24, 2007.

For EU countries, Japan, and China

IEC 60825-1:2014: CLASS 1 LASER PRODUCT - RISK GROUP 2.

Laser Warnings

This product is classified as Class 1 laser product-Risk Group 2 according to IEC 62471-5:2015. Do not stare into the direct beam when the laser light is on, which may result in permanent eye injuries.

Failure to comply with following warnings may result in death or serious injuries.

• This projector has a built-in Class 4 laser module. Never attempt to disassemble or modify the projector.
• Any operation or adjustment not specifically instructed in the User menu creates the risk of hazardous laser radiation exposure.

Usage Notice

• Do not open or disassemble the projector as this may cause damage or exposure to laser radiation.
• Do not stare into beam when the projector is on. The bright light may result in permanent eye damage.
• When turning on the projector, make sure no one within projection range is looking into the lens.
• Follow the control, adjustment, or operation procedures to avoid damage or injury from exposure of laser radiation.
• The instructions for the assembly, operation, and maintenance include clear warnings concerning precautions to avoid possible exposure to hazardous laser radiation.

Laser source specifi cation

166W Blue laser Power

Wavelength: 449-461 nm

Pulse duration: 1.66ms

Beam pointing Tilt Angle: 0.7

Laser emission port RiC0H

Other Information

Copyrights to Images

When projecting images using the projector, be careful not to infringe the copyright of protected materials.

The following are examples that may infringe the copyright of protected materials.

• Broadcasting images or movies for commercial purposes
• Modifying images or movies using functions such as freeze, magnify, or zoom to broadcast images for commercial purposes or public viewing
• Varying the aspect ratio of images or movies using a function that changes the screen size to broadcast images for commercial purposes or public viewing

Note to Users Viewing 3D Images

Pay attention to the following points when viewing images using 3D glasses with projector:

• How 3D images are viewed may vary according to the individual.
• Do not use 3D glasses for viewing any material other than 3D images.
• Before viewing 3D images, make sure to read the manuals provided with your 3D glasses and 3D compatible content.
• Avoid viewing 3D images for a long period of time. Take a break of 15 minutes or longer after every hour of viewing.
• If you feel sick while viewing 3D images, stop viewing them. If you continue to feel sick, consult a doctor.
• When viewing 3D image in a room where on LED lighting system or fl fluorescent lights are used, you may feel that the light in the room fl ickers. If this is the case, dim the lights until you do not notice any fl ickers, or turn off the lights.
• If you or any member of your family has a history of light-sensitive seizures, consult a doctor before viewing 3D images.

Product Features

Outstanding features include:

■ Native resolution WUXGA (1920x1200)
■ Maximum resolution HDMI 1920x1200 @ 60Hz

■ Power Zoom/Focus and full lens shift
■ User friendly multilingual on screen display
■ Automatic image resizing to WUXGA (1920x1200) full screen
■ The projector supports 360 degree free orientation operation (refer to page 35)
■ Optional lens suite with various throw ratio

Package Overview

This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if anything is missing.

Due to the difference in applications for each country, some regions may have different accessories.

3D rendering of a projector with visible lens and base (no text or symbols)

Projector

RICOH 1 2 3 4 5 6 7 8 9 Enter Power Ground Battery Power Ground Battery Power + - Y1 + - - + -

Remote Control (with Batteries, please see page 33)

CD-ROM

Line drawing of a U-shaped cable with multiple connectors (no text or symbols)

RGB Cable

Line drawing of a coiled electrical plug with two terminal connectors (no text or symbols)

Power Cord

Technical line drawing of a mechanical component with concentric rings and internal components (no text or symbols)

Lens Ring (For Type A2, A3, A4, or A5)

Documentation:

Read This First
□ Warranty Card

About the CD-ROM

Contains an user's manual in PDF format and Projector Management Utility.

Support languages of User's Manual are English, Chinese, and Japanese.

Product Overview

1 2 3 4

6 5

5

1. Remote Receiver (front)
2. Lens
3. Lens Ring
4. Adjustable Feet
5. Ventilation (inlet)
6. Ventilation (outlet)

Rear View

1 2 3 4 5 6 7 8 9 USB HDMI USB/USB1 USB/USB2 PC Control Computer In Select Remote In HDMI USB/USB1 USB/USB2 PC Control HDMI Out

1. Status Indicators
2. Remote Reciever (top)
3. Connector Port
4. Power Switch
5. AC In socket
6. Security Slot(Kengington™ Lock)
7. Security Bar
8. Ventilation(inlet)
9. Control Panel

Connection Ports

1 LAN 2 HDBaseT 5 6 7 HDMI 1 HDMI 2 DVI-D In Computer In Wired Remote In 3D Sync In 3D Sync Out PC-Control Monitor Out 8 9 HDMI

1. LANterminal
2. HDBaseT terminal
3. 3D Sync In termina
4. 3D Sync Out termina
5. HDMI 1/HDMI 2 In terminal
6. DVI-D In terminal
7. Computer In terminal
8. PC Control terminal
9. Monitor Out terminal
   10.Wired Remote In terminal

Control Panel

1 Power Refer to the “Power On/Off the Projector” section. (See pages 39~40).
2 Menu Press “Menu” to launch the on screen display (OSD), or go back to the previous menu. (See page 46).
3 Enter Select or confirm settings.
4 Input Select an input for the main or PIP/PBP image.
5 Four Directional Select Keys	Use ▲, ▼, ◀ to select items or make adjustments to your selection.
6 Autoset Automatically synchronize the projector to the input source.
7 Exit Back to previous Menu.
8 Lens Press “Lens” to adjust Lens shift position.
9 Focus Press “Focus” to adjust focus.
10 Zoom	Press “Zoom” to adjusti Zoom.
11 AV Mute	Momentarily turn off/on the audio and video.

Remote Control

ON OFF 1 2 3 4 5 6 7 8 9 Info 0 Mode 5 6 Auto Input 7 Enter 10 Menu Exit 11 Gamma Bright Cont. PIP 13 14 12 15 16 Lens H Focus 17 Lens V Lens V 18 19 Keystone H Zoom 20 Keystone V AV Multi Hot Key Pattern 21 22 23 RICOH

1 Power On Refer to the “Power On the Projector” section. (See page 39)
2 Power Off Refer to the “Power Off the Projector” section. (See page 40)
3 Number (0~9) Input numbers.
4 Information Displays source image information
5 Mode Select the preset picture mode.
6 Auto Automatically synchronize the projector to the input source.
7 Input Press “Input” to choose your desired input source.
8 Enter Confirm your section of items in sub menu operation.
9 Four Directional Select Keys	Use ▲, ▼, e↓ to select items or make adjustments to your selection.
10 Menu Press “Menu” to launch the On Screen Display (OSD), back to the top level of OSD for the OSD main menu operation. (See page 46)
11 Exit Back to previous Menu
12 Gamma Use this function to choose your desired gamma.
13 Brightness Use this function to choose your desired brightness.
14 Contrast Use this function to choose your desired contrast.
15 PIP Use this function to setup PIP/PBP.
16 Lens H Adjust the image position by lens shift horizontally.
17 Lens V Adjust the image position by lens shift vertically.
18 Focus	Adjust the focus.
19 Keystone H	Adjust the image to compensate for distortion caused by tilting the projector horizontally.
20 Keystone V	Adjust the image to compensate for distortion caused by tilting the projector vertically.
21 Zoom	Adjust the image size.
22 AV Mute	Momentarily turn off/on the audio and video.
23 Hot Key	Select your Present keys quickly
24 Pattern	Displays test pattern

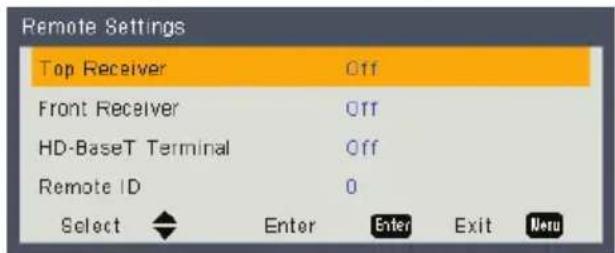

Remote Control ID Setup

The IR Remote shall allow individual addressing of projectors. Each projector shall be able to have an address set from 1 to 99.

1. ID Code 0 shall be used to address all projectors (default).
2. ID Codes 1 to 99 shall be used to address projectors set to address 1 to 99 respectively.

To use the remote to communicate with a specific projector, press "Hot Key" for 3 seconds, and then press two number keys within 2 seconds to select an ID code. Below is the code table for ID code 1 to 99.

ID Code	Change mode	Customer code
1	Press "Hot Key" for 3 seconds, and press "0" then "1" within 2 seconds.	0010
2	Press "Hot Key" for 3 seconds, and press "0" then "2" within 2 seconds.	0011
3	Press "Hot Key" for 3 seconds, and press "0" then "3" within 2 seconds.	0012
... ... ...
10	Press "Hot Key" for 3 seconds, and press "1" then "0" within 2 seconds.	0019
11	Press "Hot Key" for 3 seconds, and press "1" then "1" within 2 seconds.	001A
... ... ...
98	Press "Hot Key" for 3 seconds, and press "9" then "8" within 2 seconds.	0071
99	Press "Hot Key" for 3 seconds, and press "9" then "9" within 2 seconds.	0072

To return to default state where all projectors can be controlled, press "Hot Key" for 3 seconds, and press "0" then "0" to select ID code 0.

For all addresses, the keycodes shall remain the same. The Device code shall be modified according to the selected address.

Remote Control Battery Installation

To ensure the safe operation, follow the steps below to install the remote control batteries.

① Push the clip to release the battery cover.

2 Install new batteries (AAA/R03). Ensure that you have the batteries' polarity (+/-) aligned correctly.

3 Close the battery cover and press it down until it clicks into place. Do not mix different types of batteries or new and old batteries.

Diagram of a mechanical device with a rectangular component and rotating arm (no text or symbols)

Diagram of two batteries with bidirectional arrows indicating internal movement (no text or symbols)

Diagram of a mechanical component with a rectangular block and connecting rod (no text or symbols)

To ensure safe operation, please observe the following precautions :

■ Use AAA/R03 type battery.
■ Avoid contact with water or liquid.
■ Do not expose the remote control to moisture or heat.
■ Do not drop the remote control.
■ If the battery has leaked in the remote control, carefully wipe the case clean and install new battery.
■ Risk of an explosion if battery is replaced by an incorrect type.
■ Dispose of used battery according to the instructions.
■ Remove batteries from remote control when not using for extended periods.
■ The remote control may fail to operate if the infrared remote sensor is exposed to bright sunlight or fluorescent lighting.

Remote Control Operating Range

Point the remote control to the projector (remote receiver) when pressing any button.

Maximum operating range for the remote control is about 33.0' (10m) and ±30° (horizontally) in front of the projector.

33' (10m) ±30° (front/back) 33' (10m) ±30° (horizontally)

Installing the Projector

When you select a position for the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Follow these general guidelines:

Position the projector on a fl at surface at a right angle to the screen. The projector (with the standard lens) must be at least 4.3 feet (1.3 m) from the projection screen.
Position the projector to the desired distance from the screen. The distance from the lens of the projector to the screen, the zoom setting, and the video format determine the size of the projected image.
360 degree free orientation operation:

360° 360°

Installing the Projection Lens

1. Remove the front lens cap and rear lens cap from the optional lens.

2. Remove the dust cap from the projector.

3. Insert the projection lens.

4. Turn the projection lens clockwise until you feel it click into place to lock the lens in position.

5. Firmly install the lens ring to the lens.

Three-step illustration of a projector with a screw, showing mechanical assembly and tool path (no text or symbols)

When handling the projector after lens installation, make sure the front lens cap is placed on the lens to protect the lens surface from potential damage. When carrying or moving the projector, do not handle by the lens. This may damage the lens, the chassis or other mechanical parts within the projector.

Removing the Projection Lens

1. Ensure that the lens is at or near its center position. Attempting to remove the lens with a large offset may cause damage to the lens assembly. Center the lens while the projector is switched on by pressing the lens horizontal or vertical button and then pressing "Enter".

2. Turn the projector Off.

3. Allow the projector to cool down into standby mode before replacing the lens. Remove power cord after the projector has cooled down and prior to replacing the lens.

4. Remove the lens ring. Rotate the lens counter clockwise to disengage it from the lens mount. Remove the lens out of the lens mount.

5. Place the dust cap on the projector, and Front/rear lens cap.

Connecting the Projector Connect to Computer/Notebook

Note

Make sure that the power plug is fully inserted into both the projector AC inlet and the wall outlet.

The AC outlet must be near this equipment and must be easily accessible.

This diagram is for illustrative purposes only, and does NOT indicate that these accessories are supplied with the projector.

Due to the difference in applications for each country, some regions may have different accessories.

To ensure the projector works well with your computer, please make sure the timing of the display mode is compatible with your projector. (See page 85.)

1. LAN cable
   2....LAN cable (Cat5 cable)
   3...... HDMI cable
   4.....DVI-D cable
   5......RGB cable (supplied)
2. ....3D sync cable(to Master)

7......3D sync cable(to Slave)
8....RS-232C cable
9....RGB cable
10...... Wired Remote Control cable
11.....Power cord (supplied)

Basic Operations

Connect to AV Equipment

Note

Make sure that the power plug is fully inserted into both the projector AC inlet and the wall outlet.
The AC outlet must be near this equipment and must be easily accessible.
This diagram is for illustrative purposes only, and does NOT indicate that these accessories are supplied with the projector.
Due to the difference in applications for each country, some regions may have different accessories.

DVD Player HDTV receiver 1 2 3 4 Wired Remote Control

1......HDMI cable
2....Component-RGB cable
3....Wired remote cable
4....Power cord (supplied)

Powering On/Off the Projector

Powering On the Projector

Note

If you connect multiple sources at the same time, press "Input" on the control panel or the source button on the remote control to switch inputs.

Turn on the projector first and then the signal sources.

1. Ensure that the power cord and signal cable are securely connected. The Power indicator will turn red.
2. Turn on the projector by pressing the ⏻ button on the control panel or the □ button on the remote control. The Power indicator will flash red.

The startup screen will display and the Power indicator will turn blue.

1. Turn on your source (computer, notebook, video player, etc.) The projector will detect your source automatically.
2. Make sure that the "Auto Source" has been set to "On".

ON OFF 1 2 3 OR Menu Enter AutoSet

■ Warning- Do not look into the lens while the laser is on. The strong light from the laser may cause permanent eye injuries.
■ Warning- Do not block the air intake or exhaust. Doing so could cause a fi re due to internal overheating.
■ Warning- Do not place your hands, face, or other objects near the air exhaust, or the bottom of the unit. Doing so could result in injury and/or damage the object.

Basic Operations

Powering Off the Projector

1. Press the Ⓐ button on the control panel or remote control and you will see a message as below on the on screen display.

Power Off? Press power key again

1. Press the Ⓐ button to turn off the projector. If you do not press the ⏻ button again, the warning message will disappear after 10 seconds.
2. Disconnect the power cord from the electrical outlet and the projector.

Warning Indicator

When the "Temp" indicator lights red, it indicates the projector has overheated. The projector will automatically shut itself down.

Warning! Temperature too High Please. 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 40 degree C.

When the "Temp" indicator fl ashes red (0.5 sec on, 0.5 sec off) and the message below displays, it indicates the cooling fan failed. Stop using the projector and disconnect the power cord from the electrical outlet, then contact your local dealer or our service center.

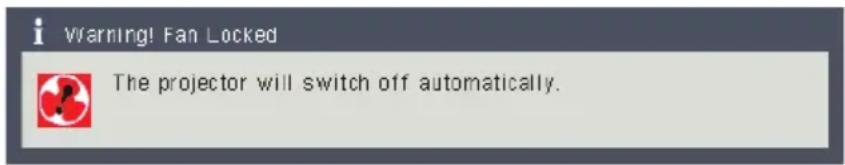

i Warning! Fan Locked The projector will switch off automatically.

For more information of the warning indicator, please see page 83.

Basic Operations

Status LED Indicator

Status LED indicators help identify the projector status. The indicators are defined as below.

STATUS	Light LED Status LED AV Mute LED
	(Green)	(Orange)	(Red)	(Green)	(Orange)	(Red)	(Green)	(Orange)
Standby
Power on(Warm up)
Power on(Laser diode on)
Power off(Cooling down)
AV mute is off(Image is dis-played)
AV mute is on(Image is black)
Projectorcommunication
Firmwareupgrade
Laser diodeexpired
Projector losesover 60% initialluminance
Error Status
Over tempera-ture
Fan failure

Power key of the control panel shows solid orange light when the projector is in standby mode.

Basic Operations

Adjusting the Projected Image

Adjusting the Position of Projector Image

Note

The projector has one adjustable foot in the front and two adjustable feet on the rear. The maximum length of the feet is 40 mm. The tilt angle is -7.35° to +7.35°.

The projector is equipped with rear and front adjustable feet to raise and lower the image to fill the screen.

1. Locate the adjustable foot you wish to modify on the underside of the projector.

2. Rotate the adjustable ring clockwise to raise the projector or counterclockwise to lower it. Repeat with the remaining feet when necessary.

Close-up of a mechanical component with a grid pattern and a blue arrow indicating a downward motion (no text or symbols)

Diagram of a car interior showing two sensors and a rotating wheel, with no visible text or symbols.

Adjusting the Focus/Zoom

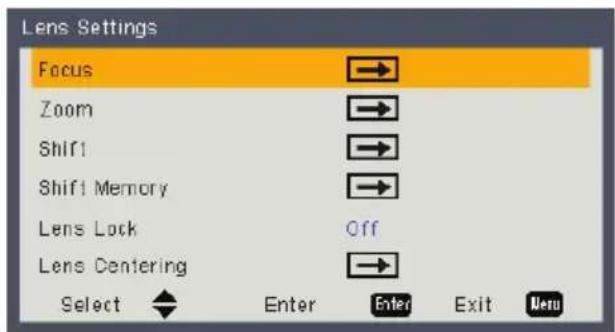

Press "Zoom" or "Focus" on the control panel or remote control and the indicator below it will light up. Use ▲, ▼◀ or ▶ to adjust the zoom or focus setting. (Use ▲ for remote control)

Adjusting Lens Shift

Press "Lens" on the control panel, or "Lens H" and "Lens V" on the remote control to adjust the lens position. Use ▲, ▼ ◀, or ▶ to shift the projection lens upward, downward, to the left or to the right. For more information about the lens shift range, please see page 43.

Projection Lens

This projector is equipped with optional lens suite with various throw ratio. A3 is the standard lens for this projector.

Projection Lens	Replacement Lens Type A1	Replacement Lens Type A2	Standard Lens Type A3		Replacement Lens Type A4	Replacement Lens Type A5
Focal Length (f) 11	11-14.06 14.03-	17.96 18.07-22.5	9 22.56-42.87 42		2.60-80.90
F number 2.30-2.53	2.30-2.57 2.00-	2.32 2.30-3.39 2.30-2.74
Focus spec (MTF)	67 lp/mm 67 lp/mm 47 lp/mm		67 lp/mm 67		lp/mm
Zoom Range(Ratio)	1.26X 1.28X 1.25X 1.9X
Zoom & Focus Adjustment	Motorized
Throw Ratio (WUXGA)	0.75-0.95 0.95-	1.22 1.22-1.53 1.52-2.92 2.90-5.50
Throw Distance (WUXGA)	0.79-6.21m 1.01~7.98m 1.30~9.96m 1.61~19.00m 3.18~34.77m
Projection Image Size	50~300"
Motorized Lens Shift (Lens shift range based on screen width and height)	Horizontal: ±15%;Vertical: ±50%
	Projection Lens ΔH ΔV		ΔH1 ΔV1
	Replacement Lens Type A2		15%	50%	-	-
	Replacement Lens Type A4
	Replacement Lens Type A5
	Standard Lens Type A3		15% 50%	2%	25%
	Replacement Lens Type A1 15% 50%		1%	25%

Basic Operations

Projection Lens	Replacement Lens Type A1	Replacement Lens Type A2	Standard Lens Type A3	Replacement Lens Type A4	Replacement Lens Type A5
Motorized Lens Shift (Lens shift range based on screen width and height)
	Standard Lens Type A3 / Replacement Lens Type A1 lens shift range:
	Lens shift accuracy: 0.5 pixel per step.When the lens is shifted beyond the described range of operation, the screen edges may become darker or the images may become out of focus.

Basic Operations

Adjusting the Projecting Image's Position

To determine where to position the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment.

Projection Lens			Replacement Lens Type A0	Replacement Lens Type A2		Standard Lens Type A3		Replacement Lens Type A4		Replacement Lens Type A5		Replacement Lens Type A1
			Ultra Short Throw	Wide Zoom S		standard Long Z		Zoom		Ultra-Long Zoom		Short Throw
Throw Ratio			0.361 (120")	0.95-1.22		1.22-1.53		1.52-2.92		2.90-5.50		0.75-0.95
Zoom Ratio NA 1.28X 1.25X 1.9X 1.9X 1.26X
Throw Distance			0.96~2.65m 1.01~7.98m 1.30~9.96m 1.61~19.00m 3.18~34.77m 0.79~6.21m
Projection screen size Projection distance (m)
Throw Ratio			0.361 (120")	0.95	1.22	1.22	1.53	1.52	2.92	2.9	5.5	0.75	0.95
Diagonal (inch)	Height (m)	Width (m)	(m)	Min (m)	Max (m)	Min (m)	Max (m)	Min (m)	Max (m)	Min (m)	Max (m)	Min (m)	Max (m)
50	0.67	1.08	NA	1.01	1.31	1.30	1.63	1.61	3.12	3.18	5.89	0.79	1.01
60	0.81	1.29	NA	1.22	1.57	1.57	1.97	1.94	3.76	3.78	7.05	0.96	1.22
70	0.94	1.51	NA	1.43	1.84	1.83	2.30	2.27	4.39	4.39	8.20	1.12	1.43
80	1.08	1.72	NA	1.63	2.11	2.10	2.63	2.60	5.03	5.00	9.36	1.28	1.64
90	1.21	1.94	NA	1.84	2.38	2.36	2.97	2.94	5.66	5.61	10.51	1.45	1.85
100	1.35	2.15	NA	2.05	2.64	2.63	3.30	3.27	6.30	6.21	11.67	1.61	2.05
110	1.48	2.37	NA	2.26	2.91	2.90	3.63	3.60	6.93	6.82	12.82	1.78	2.26
120	1.62	2.58	0.96	2.47	3.18	3.16	3.97	3.94	7.57	7.43	13.98	1.94	2.47
130	1.75	2.80	1.04	2.67	3.44	3.43	4.30	4.27	8.20	8.04	15.13	2.10	2.68
140	1.88	3.02	1.11	2.88	3.71	3.69	4.63	4.60	8.84	8.65	16.29	2.27	2.89
150	2.02	3.23	1.18	3.09	3.98	3.96	4.96	4.94	9.47	9.25	17.44	2.43	3.09
160	2.15	3.45	1.26	3.30	4.24	4.23	5.30	5.27	10.11	9.86	18.60	2.60	3.30
170	2.29	3.66	1.33	3.51	4.51	4.49	5.63	5.60	10.74	10.47	19.75	2.76	3.51
180	2.42	3.88	1.40	3.72	4.78	4.76	5.96	5.93	11.38	11.08	20.91	2.92	3.72
190	2.56	4.09	1.48	3.92	5.05	5.02	6.30	6.27	12.01	11.69	22.06	3.09	3.93
200	2.69	4.31	1.55	4.13	5.31	5.29	6.63	6.60	12.65	12.29	23.22	3.25	4.13
250	3.37	5.38	1.91	5.17	6.65	6.62	8.29	8.27	15.82	15.33	28.99	4.07	5.17
300	4.04	6.46	2.28	6.21	7.98	7.95	9.96	9.93	19.00	18.37	34.77	4.89	6.21
350	4.71	7.54	2.65	NA

Note

The lens position of A16 lens is fixed and it does not support lens shift operation.

Using the On Screen Display (OSD)

The Projector has a multilingual On Screen Display that allows you to make image adjustments and change a variety of settings.

How to operate

Follow the steps below to use the OSD menu to configure the projector settings.

1. To open the OSD, press "Menu" on the Control Panel or Remote Control.
2. When OSD is displayed, use ▲▼ keys to select any item in the main menu. While making a selection on a particular page, press ▶or "Enter" key to enter sub menu.
3. Use ▲▼ keys to select the desired item in the sub menu and press ▶or "Enter" key to view further settings. Adjust the settings by using ◀▶key or ▲▼.
4. Select the next item to be adjusted in the sub menu and adjust as described above.
5. Press "Enter", and the screen will return to the previous menu.
6. Press "Menu" or <key to return to the main menu.
7. To exit, press "Menu" again. The OSD menu will close and the projector will automatically save the new settings.

If no button operation is made for approximately 10 seconds, the OSD will be closed automatically.

Sub Menu Picture Picture Mode Standard Brightness 50 Contrast 50 Saturation 50 Sharpness 1 Gamma Standard(2.2) Color Temperature Native High Contrast Mode Off NCE Off Advanced Main Menu Settings Select Enter Enter Exit Menu

Picture Picture Mode Standard Brightness 50 Contrast 50 Saturation 50 Sharpness 1 Gamma Standard(2.2) Color Temperature Native High Contrast Mode Off NCE Off Advanced → Select Enter Enter Exit None


Picture Mode

There are factory presets optimized for various types of images. The available options:

Note

✿ Picture Mode, Color Temperature, NCE, and advanced picture functions are grayed out in 3D mode.

Picture Mode

Bright

Standard

Vivid

sRGB

Blending

DICOM SIM

Bright: Mode for emphasizing brightness.
Standard: Mode for optimizing the balance between brightness and color reproduction.
▶ Vivid: Mode for emphasizing color.
sRGB: Standard color values.
Blending: When using multiple projectors, this mode can eliminate the visible banding and create a single, seamless image across the screen.
▶ DICOM SIM.: This mode is suitable for projecting a monochrome medical image such as an X ray radiography, MRI, etc.

User Settings

Brightness

Adjust the brightness of the image.

Brightness 50

Press the ◀ key to darken image.

Press the key to lighten the image.

Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.

Contrast 50

Press the ◀ key to decrease the contrast.

Press the key to increase the contrast.

Saturation

Adjust the color saturation of the image.

- “Saturation” function is only supported under Video signal in Computer source.

Saturation 50

Press the ◀ key to decrease the amount of color in the image.

Press the ▶key to increase the amount of color in the image.

Sharpness

Adjust the sharpness of the image.

Sharpness 1

Press the ◀ key to decrease the sharpness.

Press the ▶key to increase the sharpness.

Gamma

Use this function to optimize the image output.

Options: 1.8 / 2 / Standard(2.2) / 2.4 / Shine.

Gamma 1.8 2 Standard(2.2) 2.4 Shine

Color Temperature

Use this function to select the preset color temperature.

Options: 5500/ 6500 / 7500 / Native.

Color Temperature 6500 8500 7500 Native

High Contrast Mode

Use this function to enhance the light and shade details of a movie scene.

High Contrast Mode Off Mode 1 Mode 2

Off: Disables High Contrast Mode.
Mode 1: Adjusts the contrast ratio for video contents automatically.
Mode 2: Increases contrast for black or dark contents automatically.

NCE (Natural Color Enhancer)

Use this function to enhance color and reproduce vivid colors.

NCE On Off

On: Enables NCE.
Off: Disables NCE.

User Settings

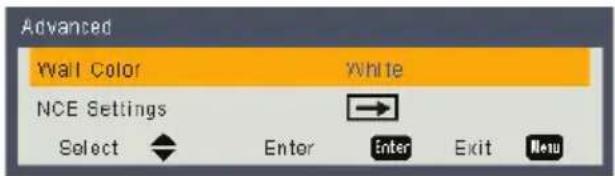

Advanced

Use this function to configure the advanced image settings.

Advanced Wall Color White NCE Settings Select Enter Enter Exit Menu

WallColor: Optimize image color according to the wall color. Options: White/ Light Yellow/ Light Blue/ Pink / Dark Green.

Wall Color White Light Yellow Light Blue Pink Dark Green

NCE Settings: Configures the image color settings.

NCE Settings Color Red Hue 0 Saturation 100 Gain 100 Reset Select Adjust Exit1 Exit

• Color: Use the ◀ key to adjust the red, green, blue, cyan, yellow, magenta, and white color of the image.
- Hue: Use the ◀ or ▶key to adjust the color balance of red and green.
- Saturation: Use the ◀ or ▶ key to adjust the color saturation.
- Gain: Use the ◀ or ▶ key to adjust the color brightness.

Screen Aspect Ratio Auto Phase 15 Clock 10 H. Position 10 V. Position 10 Keystone Auto Ceiling Off Projection Normal PIP/PBP Settings Advanced Select Enter Enter Exit Peru

SCREEN

Aspect Ratio

Use this function to choose your desired aspect ratio.

Aspect Ratio Auto 4:3 16:9 16:10

Auto: Automatically select the appropriate display format. When input is 4:3, the image is displayed as 4:3. When input is 16:9 above, the image is displayed as 16:9.
4:3: Display 4:3 aspect ratio.
16:9: Display 16:9 aspect ratio.
16:10: Display 16:10 aspect ratio.

Note

- “Phase” and “Clock” functions are only supported under Computer Signal source.

Phase

Eliminate flicker from the image displayed. Use the ◀ or ▶ key to adjust the value.

Phase 15

User Settings

Clock

Adjust the number of total dots in one horizontal period. Use the or key to adjust number to match your PC image.

Clock 10

H. Position (Horizontal Position)

Shift the projected image position horizontally.

“H. Position” and “V. Position” functions are only supported when connecting with Computer Signal source.

H. Position 10

Press the ◀ key to move the image left.

Press the ▶key to move the image right.

V. Position (Vertical Position)

Shift the projected image position vertically.

V. Position 10

Press the ◀ key to move the image down.

Press the ▶key to move the image up.

Keystone

Adjust image distortion caused by tilting the projector.

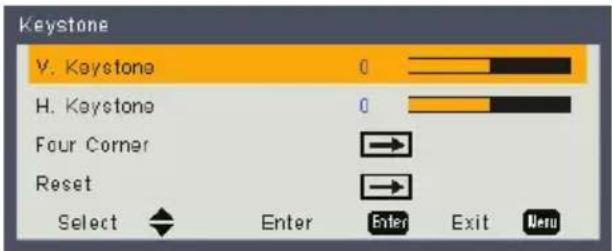

Keystone V. Keystone 0 H. Keystone 0 Four Corner → Reset → Select Enter Enter Exit New

V. Keystone: Adjust the vertical keystone.

V. Keystone 0

H. Keystone: Adjust the horizontal keystone.

H. Keystone 0

User Settings

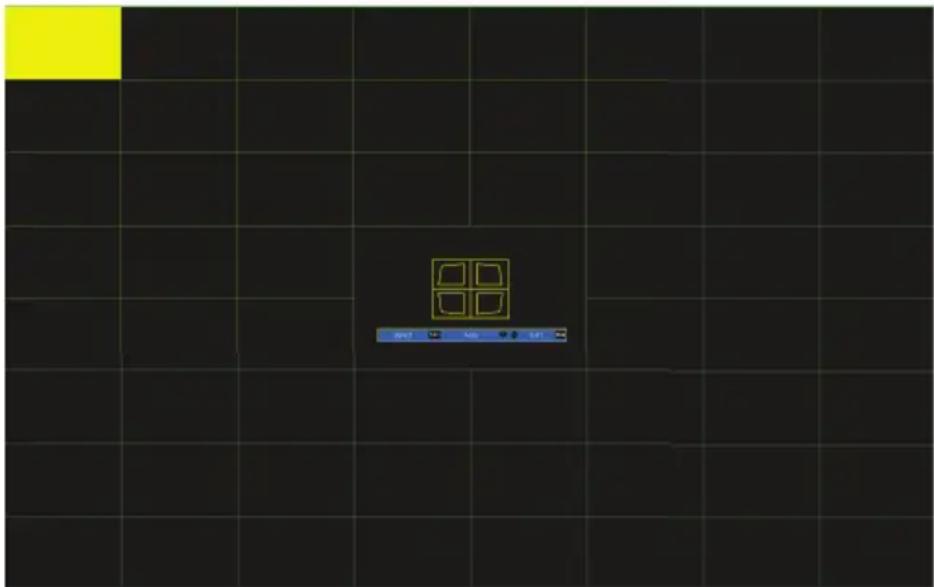

Four Corner: Compensate for image distortion by adjusting one corner at a time.

Game interface screenshot showing a yellow play button and a grid with a highlighted play button labeled '2011' and 'Add', plus a blue control panel at the bottom.

Reset: Return the keystone settings to the factory default values.

Reset Yes No Exit Menu

Auto Ceiling

Use this function to determine the image orientation when the projector is ceiling mounted.

Auto Ceiling On Off

On: Automatically detect the image orientation
▶ Off: Disable the Auto Ceiling function.

User Settings

Projection

Use this function to select the projector mode, depending upon how the projector is mounted.

Projection Normal Rear Ceiling Rear Ceiling

Normal: This is the default selection. The image is projected directly onto the screen.
Ceiling: When selected, the image will appear upside down.
Rear: When selected, the image will appear reversed.
Rear Ceiling: When selected, the image will appear reversed in upside down position.

Note

In PIP function, Main Source will be displayed over the whole screen, and Sub Source will be displayed on the part of the screen.

- PIP/PBP function is not available when 3D function is turned on.

PIP (Picture in Picture)/PBP (Picture by Picture)

Use PIP/PBP function to display two image sources at once. From the list of active inputs, choose one input as a main source and the other as a sub source.

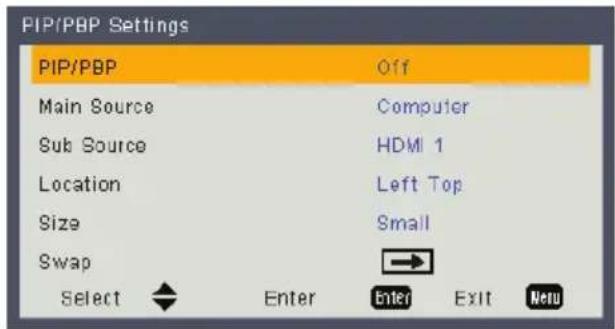

PIP/PBP Settings PIP/PBP Off Main Source Computer Sub Source HDMI 1 Location Left Top Size Small Swap Select Enter Enter Exit Menu

Please see the table below for the PIP/PBP compatibility of input sources.

PIP/PBP Matrix	HDBaseT	HDMI-1	DVI-D	HDMI-2 VGA
HDBaseT				√	√
HDMI-1				√	√
DVI-D				√	√
HDMI-2	√ √ √				√
VGA	√ √ √			√

User Settings

PIP/PBP: Choose your desired PIP/PBP layout. Select "Off" to display only one image from one input source.

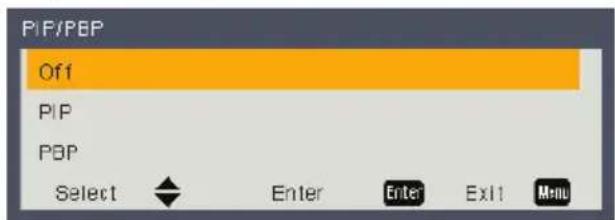

PIP/PBP Off PIP PBP Select Enter Enter Exit Menu

Main Source: Choose the main source from the list of available input sources.

Main Source Computer HDMI 1 HDMI 2 DVI-D HDBaseT Select Enter Enter Exit Menu

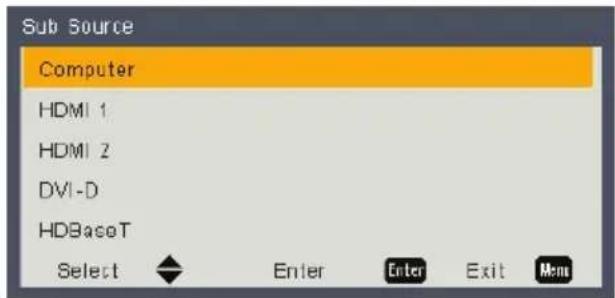

Sub Source: Choose the sub source from the list of available input sources.

Sub Source Computer HDMI 1 HDMI 2 DVI-D HDBaceT Select Enter Enter Exit Menu

Location: Choose your desired sub-window location.

Location Left Top Right Top Left Bottom Right Bottom

Size: Choose your desired sub-window size. The available options: Large, Medium, and Small.

Size Large Medium Small

Swap: Swap the sources of the main- and sub-windows.

Note

Swapping is available only when PIP/PBP is enabled.

User Settings

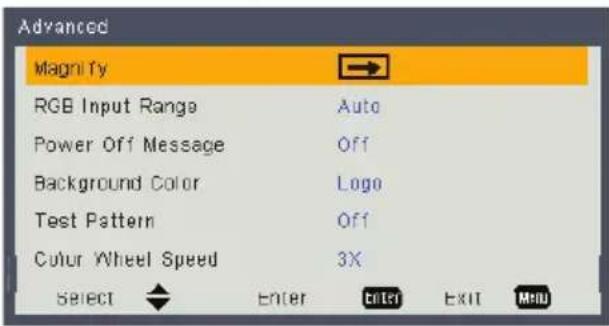

Advanced

Conf i gure the advanced display settings.

Advanced Magnify RGB Input Range Auto Power Off Message Off Background Color Logo Test Pattern Off Color Wheel Speed 3X Select Enter Cancel Exit Menu

Magnify: Use the ◀ or ▶ key to adjust the image size and position.
• H. Magnify: Adjust the image size horizontally.
• V. Magnify: Adjust the image size vertically.
• H. Shift: Shift the image position horizontally.
• V. Shift: Shift the image position vertically.
RGB Input Range: Adjust the color range of the HDMI image data.

RGB Input Range Auto Limited Range Full Range

Note

"RGB Input

Range" function is only supported under HDMI source.

• Auto: Automatically detect RGB range.
- Limited Range: Processe the input image with a limited RGB range.
• Full: Select this mode when computer signal or full range signal from AV equipment is input.

Power Off Message: Enable or disable the power off message.

BackgroundColor:Select "Logo", "Blue", or "Black" as a background color if no signal is available.

Background Color Logo Blue Black

Options: Off / Grid / White / Balck / Checkerboard / Color Bar

Test Pattern: Use this function to choose a test pattern. Choose "Off" to disable this function.

Test Pattern Off Grid White Black Checkerboard Color Bar

Color Wheel Speed: Set the color wheel speed to 2X or 3X.

Color Wheel Speed 2X 3X

Settings Language English Auto Power Off (Min.) 20 Lens Settings Network Remote Settings Security Reset Select Enter Enter Exit Menu

SETTINGS

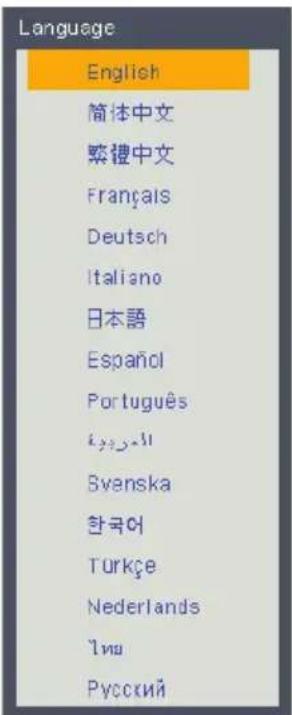

Language

Choose the multilingual OSD. Press "Enter" to open the sub menu and then use the ▲ or ▼ or ◀ ke▶ to select your preferred language. Press "Enter" to confirm the selection.

Language English 简体中文 繁體中文 Français Deutsch Italiano 日本語 Español Português Svenska 한국어 Turkçe Nederlands Типу Русский

User Settings

Auto Power Off (Min)

Set the countdown timer interval (in minutes). The countdown timer will start when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished. When countdown timer is selected to "0", auto power off is disabled.

Power Down Timer Active Power Down In 60 Sec.

Lens Settings

Use this menu to configure the lens settings.

Consult network administrator for network settings.

Lens Settings Focus Zoom Shift1 Shift1 Memory Lens Lock Off Lens Dentering Select Enter Enter Exit New

▶ Focus: Use the ▲ or ▼ key to adjust the image focus.

▲ ▼ Focus

Zoom: Use the ▲ or ▼ key to zoom in and zoom out the projected image.

Zoom

Shift: Use the ▲ or ▼ key to move the image to the left or right. Use the ▲ or ▼ key to move the image up or down.

Lens Shift

User Settings

Shift Memory: Save the lens focus, zoom, and position, and apply the saved lens settings. One projector can save up to fi ve locations.
- Load: Apply the previously saved lens settings.

Load Memory 1 Memory 2 Memory 3 Memory 4 Memory 5

- Save: Save the current lens settings, including focus, zoom, and position.

Save Memory 1 Memory 2 Memory 3 Memory 4 Memory 5

Lens Lock: Select "On" to lock the projector lens, and "Off" to unlock the lens.

Lens Lock On Off

Lens Centering: Select "Yes" to carry out lens calibration to clear the lens shift and bring it back to the center.

Are you sure? Yes No Exit Menu

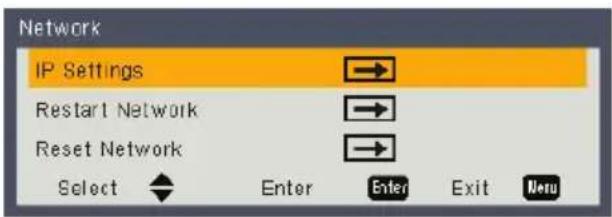

Network

Use this menu to configure the network settings.

Network IP Settings → Restart Network → Reset Network → Select Enter Enter Exit New

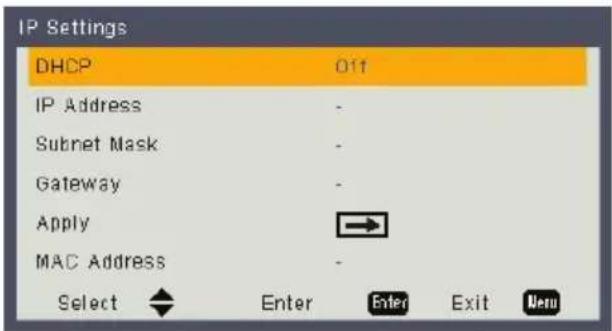

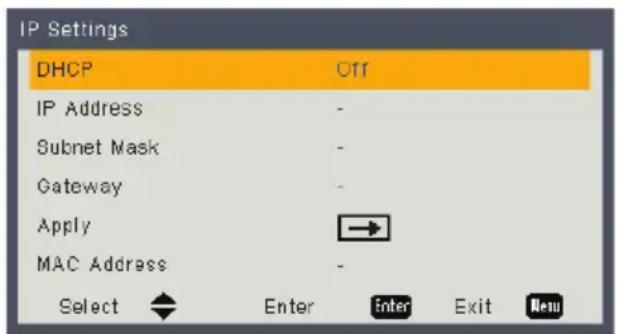

IP Settings: configure the IP settings.

IP Settings DHCP Off IP Address - Subnet Mask - Gateway - Apply → MAC Address - Select Enter Enter Exit New

User Settings

- DHCP: Select "On" to allow the projector to obtain an IP address automatically from your network. Select "Off" to manually assign IP, Subnet Mask and Gateway configuration.

DHCP On Off Exit New

- IP Address: Set an IP address or display IP address from DHCP server when DHCP is set to "On".

IP Address 0 0 0 0

- Subnet Mask: Set subnet mask number or display subnet mask number from DHCP server when DHCP is set to "On".

Subnet Mask 0 0 0 0

- Gateway: Set the default gateway of the network connected to the projector, or display the default gateway from DHCP server when DHCP is set to "On".

Gateway 0 0 0 0

- Apply: Select "Yes" to apply the changes made in network configuration settings.

Apply Yes No Exit Menu

• MAC Address: Display MAC address.

User Settings

▶ Restart Network: Select "Yes" to restart the network.
Reset Network: Select "Yes" to reset the network settings to factory default values.

Remote Settings

Use this menu to configure remote settings.

Remote Settings Top Receiver Off Front Receiver Off HD-BaseT Terminal Off Remote ID 0 Select Enter Enter Exit Menu

Top Receiver: Enable or disable the top remote receiver.
Front Receiver: Enable or disable the front remote receiver.
HD-BaseT Terminal: Select "On" to set the HD-BaseT terminal as the remote receiver.
Remote ID: Set the remote ID for multiple projectors. For more information, pease see Remote Control ID Setup on page 32.

Security

Confi gure the security settings.

Security Security Off Change Password Select Enter Enter Exit Menu

Security: Select "On" to use the security verification when the turning on the projector. Select "Off" to be able to switch on the projector without a password verification.

Security On Off

User Settings

Change Password: Set password for the projector.

The default security code is "123456".

Security Enter Security Code (8 Digits) Exit Nxl

Reset

Return the adjustments and settings to the factory default values. Choose "Yes" to return the display parameters on all menus except Language to the factory default settings.

Reset Yes No Exit Men

Options Auto Source On Input Source → Network (Standby) On High Altitude Off Laser Settings → Power Settings → Advanced → Information → Select Enter Enter Exit Menu

OPTIONS

Auto Source

When this function is turned "On", the projector will search for other signals if the current input signal is lost. When this function is turned "Off", it will only search a specified connection port.

Auto Source On Off

Input Source

Use this menu to enable/disable input sources. Press the key to enter the sub menu and select which sources you require. Press "Enter" to fi nalize the selection. The projector will only search for inputs that are enabled.

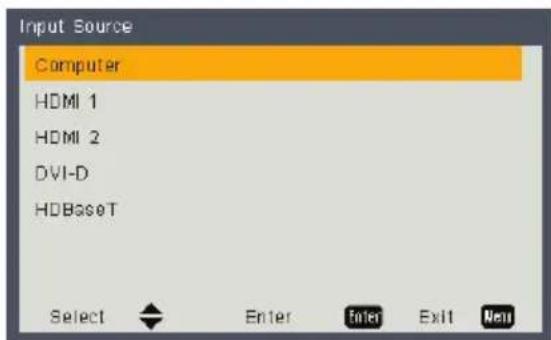

Input Source Computer HDMI 1 HDMI 2 DVI-D HDBaseT Select Enter Enter Exit New

Network Standby

Set the projector's standby mode.

Network (Standby) On Off

On: Allow the user to monitor the projector through network when the projector is standby.
Off: This mode has less power consumption which does not allow the user to communicate with the standby peojector.

High Altitude

When “On” is selected, the fans will spin faster. Set this mode to “On” when the projector is used over 5000ft (1500m) elevation.

High Altitude On Off

Laser Settings

Use this menu to view the laser diode usage status and configure the laser settings.

Laser Settings Laser Power Mode Constant Power Constant Power 0 Select Enter Enter Exit Menu

▶ Laser Power Mode: Set the brightness and color mode.

Laser Power Mode Constant Power Constant Intensity ECO1 ECO2

• Constant Power: Set the projector's power level to meet different installation requirements for brightness.
• Contrast Intensity: After setting the Constant Power, select Constant Intensity to maintain current brightness and color.
  • ECO 1: 80% of the contant brightness and color settings.
  • ECO 2: 50% of the contant brightness and color settings.

ConstantPower: Use the key to set the value for constant power mode.

Constant Power 15

Power Settings

Use this menu to configure the power settings.

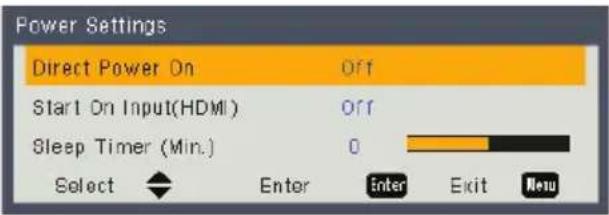

Power Settings Direct Power On Off Start On Input(HDMI) Off Sleep Timer (Min.) 0 Select Enter Enter Exit New

Direct Power On: Select "On" to automatically power on the projector when the AC power is supplied. If this option is set to "Off", user needs to press the "Power" button on the control panel or the "O" button on the remote control to power on the projector.

Direct Power On On Off

Start On Input (HDMI): Select "On" to automatically power on the projector when the HDMI input source is detected.

Start On Input(HDMI) On Off

Sleep Timer (Min.): Set the countdown timer interval. The projector will shut down automatically after the countdown has reached 0.

Sleep Timer (Min.) 0

Advanced

Use this menu to configure advanced options.

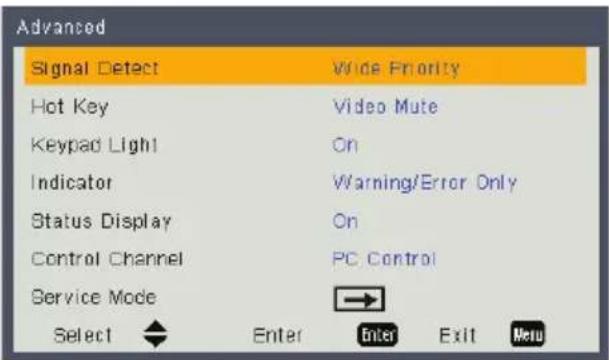

Advanced Signal Detect Wide Priority Hot Key Video Mute Keypad Light On Indicator Warning/Error Only Status Display On Control Channel PC Control Service Mode Select Enter Enter Exit Menu

User Settings

Signal Detect: Set signal detect mode to have the projector reacquire and lock to the input signal. This is used for poor signal quality.

Signal Detect Wide Priority 4:3 Priority

• Wide Priority: Supports 16:9 input source and most of the 4:3 input source.
  • 4:3 Priority: Supports 4:3 input source.

Hot Key: Assign a function to the "Hot Key" on remote control. Options: Video Mute / Aspect Ratio / Freeze / Information

Hot Key Video Mute Aspect Ratio Freeze Information

Keypad Light: Turn On or Off the keypad light.
Indicator: Set the LED status indicator.

Indicator Normal Warning/Error Only

• Normal: Set the LED status to normal behaviour. For more information, please see LED Status Indicator on page 41.
• Warning/Error Only: Only enables the warning and error LED indicator behavior.

Status Display: Turn On or Off the on screen messages, such as input source, IP Address, and Gamma information.
▶ Control Channel: Select the serial port path from PC Control or HDBaseT.

Control Channel PC Control HDBaseT

Service Mode: A pin is required to enter the service mode. Only Ricoh service technician is allowed to enter the service mode.

Information

This menu displays the projector information..

Information Signal Information Picture Mode Standard Total Hours 0 Laser Power 0 System Temp. 0 Network Status FW Version Select Enter Enter Exit New

▶ SignalInformation: Display the main source and sub source information.

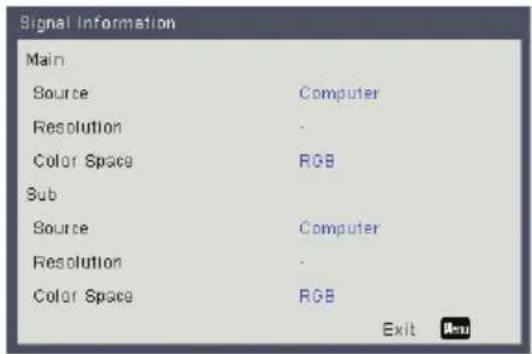

Signal Information Main Source Computer Resolution - Color Space RGB Sub Source Computer Resolution - Color Space RGB Exit Rem

Picture Mode: Display the currently used picture mode.
▶ TotalHours: Display the laser diode hours.
▶ LaserPower: Display the value set in Constant Power mode.
SystemTemp.:Display the system temperature.
▶ NetworkStatus: Display the network status, including IP Address, Subnet Mask, Gateway, and MAC Address.

Network Status IP Address 0 Subnet Mask 0 Gateway 0 MAC Address 0 Exit New

FWVersion: Display the firmware version for System, MCU, PIP, and LAN.

User Settings

3D 3D Sync Invert Off 3D Format 3D Sync DLP Link 3D Sync Out Normal External 3D Sync Off Frame Delay 10 Select Enter Enter Exit Menu

3D

Note

◆ Compatible 3D source, 3D content and Optical 3D glasses are required for 3D viewing.

“3D Sync Invert” is only available when 3D is enabled.

This setting may need to change when re-start running 3D movie.

✿ 3D function is turned on automatically when Blu-ray 3D source is input.

3D Sync Invert

Use this option to enable/disable the 3D sync invert function.

3D Sync Invert On Off

Off: Choose "Off" for default frame contents.
On: Choose "On" to invert left and right frame contents.

3D Format

Use this option to select the appropriate 3D format content.

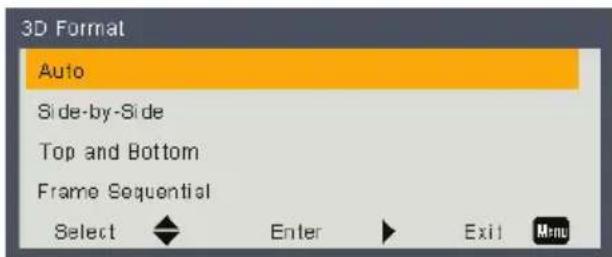

3D Format Auto Side-by-Side Top and Bottom Frame Sequential Select Enter Exit Menu

Auto: Use this mode to let the system to automatically select the appropriate 3D format content.
Side by Side (Half): Use this mode for "Side by Side (Half)" format 3D content.

Top and Bottom: Use this mode for "Top and Bottom" format 3D content.
Frame Sequential: Use this mode for "Frame Sequential" format 3D content.

3D Sync

Use this option to select the appropriate 3D function.

3D Sync DLP Link External

DLP Link: Choose "DLP-Link" to use optimized settings for DLP Link 3D Glasses.
External: Choose "External" to use optimized settings when using VESA 3D emitter and 3D Glasses.

3D Sync Out

Transmit a 3D sync signal by the 3D sync output corrector to the emitter or to the next projector for 3D blending purposes.

3D Sync Out Normal Path Through

Normal: Transmit a 3D sync signal to the emitter.
▶ Path Through: Transmit a 3D sync signal to next projector.

External 3D Sync

Set the source of the left or right reference.

External 3D Sync off On

Off: This is used for single 3D projector.
On: Select Field GPIO to make the first 3D output signal the same for multiprojectors application.

Frame Delay

Use this option to correct asynchronous displaying of images under 3D blending.

Frame Delay 10

Controlling this Device with Web Browser

You can control this device from a PC using a web browser.

Connecting to the device

1. Confirmation of the device's IP address

Select "Settings" → "Network" → "IP Settings" in the on screen display menu, and verify the IP address. (See page 59).

IP Settings DHCP Off IP Address - Subnet Mask - Gateway - Apply → MAC Address - Select Enter inter Exit New

2. Connection

Open a web browser, and enter the IP address that was verified.

For example, if "http://192.168.0.100/" is the IP address displayed in the "Network" menu, enter it in the web browser.

When you are connecting the device to an existing network, set according to the instructions of the network administrator.

Using the web interface

Web user interface provides an alternative way to control the device. There are four menus in the web system.

1. Main: Use this menu to set the input sources for the device.

Main Network Setting Configurations Information

Control Power ON OFF Main Source Computer Sub Source Computer PIP/PBP Off AV Mute ON OFF Freeze ON OFF

Key Menu Up Exit Left Enter Right Down.Input

LAN Control

1. Network Setting: Use this menu to configure the network settings.

Main Network Setting Configurations Information

Control Projector Name Proj@2408400010 Network Restart Execute Network Factory Reset Execute

LAN Settings DHCP ○ ON ● OFF IP Address 192 . 168 000 . 100 Subnct Mask 255 . 255 255 . 000 Default Gateway 192 . 168 000 . 254 MAC Address 00:50:41:89:99:CF Apply

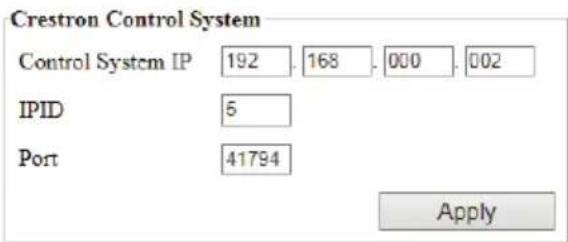

Crestron Control System Control System IP 192 . 168 . 000 . 002 IPID 5 Port 41794 Apply

1. Configurations: Use this menu perform the basic device configuration.

Main Network Setting Configurations Information

Picture Settings Brightness disabled Contrast disabled Saturation disabled Sharpness disabled

Configurations Picture Mode Bright Auto Ceiling On Network (Standby) Off

Laser Settings Laser Power Mode Constant Power Constant Power 99

Test Pattern Test Pattern Off

LAN Control

1. Information: Use this menu view the device information.

Main Network Setting Configurations Information

FW Version
DDP	V05.55
MCU	A00.47
LAN (Flash)	A03.24
Other
Model Name	WUL6281
Serial Number	2408X400010
Total Hours	167

Completely black image with no visible content, text, or symbols.

Control the Projector via the Projector Management Utility

This software is to control and monitor projectors manufactured by our company. The software may not work properly when used to control other projectors.

Projector Management Utility conforms to the PJLink class 1 standards, and is compatible with all class 1 commands.

A maximum of 100 projectors connected to the network can be managed using one computer.

Projector Management Utility operating environment is described below.

• Supported operating system
- Windows Vista (32-bit/64bit version) Ultimate, Business, Home Premium, Home Basic
- Windows 7 (32-bit/64bit version) Home Premium, Professional, Ultimate, Enterprise
- Windows 8 (32-bit/64bit version) Pro, Enterprise
- Windows 8.1 (32-bit/64bit version) Pro, Enterprise
• Windows Server 2008 SP2 (32-bit/64bit version)
- Windows Server 2008 R2 Standard SP1 (64bit version)
- Memory size
- Recommended memory size for the operating system of the computer you are using
- Display resolution
- 800 × 600 pixels or more

To uninstall Projector Management Utility, use the program delete function in Control Panel to delete "Projector Management Utility".

Installing Projector Management Utility

Projector Management Utility is included on the supplied CD-ROM.

Log in to the computer with administrator privileges to install or uninstall utilities.

1. Close all applications.
2. Insert the CD-ROM in the CD-ROM drive of your computer, and then click [X] to close the user's manual window.
3. Right click the CD-ROM icon and select OPEN.
4. Open "Projector Management Utility" folder stored on the CD-ROM.
5. Double-click "setup.exe" stored in the "Projector Management Utility" folder.
6. Install the application by following the on-screen instruction.
7. When the installation is complete, exit the installer.

A shortcut icon is created on the desktop.

Register projectors

1. Registers the projectors with Auto search

-Click [Register Projector] button.

Projects Management Unit File Edit Options Help BICOH Information Notes Group Display at Load Name Menu/L... Power Input Click Error Lamp time IP address Group pad? Register Inspector Change Forward Change IP address Request Remove Order Delete Send Information Remote Control Edit Refresh Class

-Click [Auto Search] button.

Register Projector Auto Search Specify IP Address First, click the 'Auto Search' button. Auto search Select the projector and click the 'Register' button. Authentication is required when a password is set to the projector. Projector name Password Select Register OK

-List of projectors which support PJLink are displayed in the window. Projector name is displayed as “*******” until authorization if password is enable.

Register Projector Auto Search Specify IP Address First, click the 'Auto Search' button. Auto search Select the projector and click the 'Register' button. Authentication is required when a password is set to the projector. Projector name Password Select ----- Lock Select Register OK

LAN Control

-Select the desired projector and click [Register] button.

Password authorization is required if password of the projector is set to enable.

Register Projector Auto Search Specify IP Address First, click the 'Auto Search' button. Auto search Select the projector and click the 'Register' button. Authentication is required when a password is set to the projector. Projector name Password Select PJ WXL5670 Register OK

-Click [OK] button to return to the original screen.

2. Directly specifies the IP address and registers the projector.

-Enter IP address of the desired projector and click [Confir rm] button then the projector name will be displayed. After confi rming the projector name, click [Register] button.

Control the projector with the projector Management Utility

Click [Remote Control] tab and select the desired projector in the list. You can control the selected projector by clicking control buttons in the bottom of the window.

[Power] button

Turn "On/Off" the power of the projectors or groups selected from the Projector (/Group) List.

Power On Off

[Input] button

Switches the input source of the projectors or groups selected from the Projector (/Group) List.

Input source will not be changed if the projector doesn't support the selected input source.

Input RGB1 Set

A Table of input source name in the projector and the projector management utility.

The projector The projector Management Utility
Computer RGB 1
HDMI1 Digital 1
HDMI2 Digital 2
DVI-D Digital 3
HDBaseT LAN

LAN Control

[Mute] button

Turn "On/Off" the muting of the projectors or groups selected from the Projector (/Group) List. The projector only supports Video & Audio mute.

Mute Video & Audio On Off Video & Audio Video Audio

[Detail Information] button

Show detail information of the selected projector.

Troubleshooting

If you experience trouble with the projector, refer to the following information. If the problem persists, please contact your local dealer or service center.

Problem: No image appears on screen

Ensure all the cables and power connections are correctly and securely connected as described in the “Connecting the Projector” section.
Ensure the pins of terminals are not crooked or broken.
Make sure the projector is switched on.
Ensure that the "AV Mute" feature is not turned on.

Problem: Partial, scrolling or incorrectly displayed image

Press "Auto" on the remote control.
Adjust the computer display settings. Verify the resolution setting is less than or equal to 1600 x 1200 resolution. See your operating system's Help file.
If you are using a Notebook:

1. First, follow the steps above to adjust resolution of the computer.
2. Press the toggle output settings. For example: [Fn]+[F3]

PANASONIC, NEC => Fn+F3
HP, SHARP, TOSHIBA => Fn+F5
IBM, SONY => Fn+F7
DELL, EPSON => Fn+F8
FUJITSU => Fn+F10
APPLE => F7

If you experience diffi culty changing resolutions or your monitor freezes, restart all equipment including the projector.

Problem: The screen of the Notebook computer is not displaying a presentation

If you are using a notebook:

Some notebooks may automatically deactivate their own screens when a second display device is in use. The method to reactivate the notebook screen depends on the manufacturer. Refer to your computer's documentation for detailed information.

Problem: Image is unstable or flickering

Adjust the "Phase" or "Clock" to correct it. Select "Screen > Phase" or "Screen > Clock" from the OSD menu to correct the image.
▶ Check and reconfi gure the display mode of your graphic card to make it compatible with the product.

Problem: Image is out of focus

Adjust the projector focus by pressing the "Focus" and directional keys on the remote control or control panel. Or, select "Settings >Lens Settings > Focus" from the OSD menu to make the adjustment.
Make sure the projection screen is between the required distance. (refer to page 43.)

Problem: The image is stretched when displaying 16:9 DVD

Change the aspect ratio by selecting "Screen > Aspect Ratio" from the OSD menu to show image with proper aspect ratio.

Problem: Image is too small or too large

Adjust the projector zoom by pressing the "Zoom" and directional keys on the remote control or control panel. Or, select "Settings > Lens Settings > Zoom" from the OSD menu to make the adjustment.
Adjust the aspect ratio by selecting "Screen > Aspect Ratio" from the OSD menu to show image with proper aspect ratio.

Problem: Image is tilted

Adjust the projector keystone by pressing the "Keystone H" and "Keystone V" buttons on the remote control. Or, select "Screen > Keystone" from the OSD menu to make the adjustment.

Problem: Image is reversed

Adjust the projection direction to correct it. Select "Screen > Projection > Rear" from the OSD menu to correct the image.

Problem: The projector stops responding to all controls

If possible, turn off the projector, then unplug the power cord and wait at least 60 seconds before reconnecting power.

Problem: If the remote control does not work

Check if the remote control is within its effective operating range. The maximum operating range for the remote control is about 33.0' (10m) and ±30° (horizontally) in front of the device's IR receiver (front and back). Make sure there is no obstruction between the remote control and the IR receiver.
Check the remote batteries. Make sure the batteries are inserted correctly. Replace the batteries if the are used up.
Ensure you have set the correct IR code to the remote control.

Error Messages

Temperature Error - the projector is overheat inside. Check the environmental condition.

Warning! Temperature too High Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 40 degree C.

Fan Error - the cooling system fan is not working.

i Warning! Fan Locked The projector will switch off automatically.

Troubleshooting

Indicator lighting message

Check the LED indicator to identify the device status. See below table for the definition of the LED lighting.

Note Steady light => Flashing =>

STATUS	Light LED Status LED AV Mute LED
	(Green)	(Orange)	(Red)	(Green)	(Orange)	(Red)	(Green)	(Orange)
Standby
Power on(Warm up)
Power on(Laser diode on)
Power off(Cooling down)
AV mute is off(Image isdisplayed)
AV mute is on(Image is black)
Projectorcommunication
Firmwareupgrade
Laser diodeexpired
Projector losesover 60% initialluminance
Error Status
Over temperature
Fan failure

Power key of the control panel shows solid orange light when the projector is in standby mode.

List of Compatible Signals

Signal Type	Resolution	Frame rate (Hz)	VGA	HDMI 1/2	DVI HDBaseT
PC	640x350 85		√ √	√ √
	640x400 85		√ √	√ √
	640x480 59		√ √	√ √
	640x480 60		√ √	√ √
	640x480 72		√ √	√ √
	640x480 75		√ √	√ √
	640x480 85		√ √	√ √
	720x400 60		√ √	√ √
	720x400 85		√ √	√ √
	768x480 60		√ √	√ √
	768x480 75		√ √	√ √
	768x480	85 √ √	√ √
	800x600 50		√ √	√ √
	800x600 56		√ √	√ √
	800x600 60		√ √	√ √
	800x600 72		√ √	√ √
	800x600 75		√ √	√ √
	800x600 85		√ √	√ √
	800x600 120		√ √	√ √
	848x480 50		√ √	√ √
	848x480 60		√ √	√ √
	848x480 75		√ √	√ √
	848x480 85		√ √	√ √
	960x600 50		√ √	√ √
	960x600 60		√ √	√ √
	960x600 75		√ √	√ √
	960x600 85		√ √	√ √
	1024x768 60		√ √	√ √
	1024x768 75		√ √	√ √
	1024x768 85		√ √	√ √
	1024x768 120		√ √	√ √
	1064x600 50		√ √	√ √
	1064x600 60		√ √	√ √
	1064x600 75		√ √	√ √
	1064x600 85		√ √	√ √
	1152x720 50		√ √	√ √
	1152x720 60		√ √	√ √
	1152x720 75		√ √	√ √
	1152x720 85		√ √	√ √
PC	1152x864 60		√ √	√ √
	1152x864 70		√ √	√ √
	1152x864 75		√ √	√ √
	1152x864 85		√ √	√ √
	1224x768 50		√ √	√ √
	1224x768 60		√ √	√ √
	1224x768 85		√ √	√ √
	1280x720 50		√ √	√ √
	1280x720 60		√ √	√ √
	1280x720 75		√ √	√ √
	1280x720 85		√ √	√ √
	1280x720 120			√ √ √
	1280x768 60		√ √	√ √
	1280x768 75		√ √	√ √
	1280x768 85		√ √	√ √
	1280x800 50		√ √	√ √
	1280x800 60		√ √	√ √
	1280x800 75		√ √	√ √
	1280x800 85		√ √	√ √
	1280x960 50		√ √	√ √
	1280x960 60		√ √	√ √
	1280x960 75		√ √	√ √
	1280x960 85		√ √	√ √
	1280x1024 50		√ √	√ √
	1280x1024 60		√ √	√ √
	1280x1024 75		√ √	√ √
	1280x1024 85		√ √	√ √
	1356x960 50				√
	1356x960 60				√
	1356x960 75				√
	1356x960 85				√
	1360x768	50 √ √	√ √
	1360x768 60		√ √	√ √
	1360x768 75		√ √	√ √
	1360x768 85		√ √	√ √
	1366x768 60		√ √	√ √
	1400x900 60		√		√
	1400x1050 50		√ √	√ √
	1400x1050 60		√ √	√ √
	1400x1050 75		√ √	√ √
	1440x900 60		√ √	√ √
	1440x900 75		√ √	√ √

Appendices

Signal Type	Resolution	Frame rate (Hz)	VGA	HDMI 1/2	DVI HDBaseT
PC	1600x900 60		√ √	√ √
	1600x1200 50		√ √	√ √
	1600x1200 60		√ √	√ √
	1680x1050 50		√ √	√ √
	1680x1050 60		√ √	√ √
	1680x1050 75		√
	1704x960 50		√ √	√ √
	1704x960 60		√ √	√ √
	1704x960	75 √
	1704x960	85 √
	1728x1080	50 √ √	√ √
	1728x1080	60 √ √	√ √
	1864x1050	50 √ √	√ √
	1864x1050	60 √ √	√ √
	1864x1050	75 √
	1920X1080	50 √ √	√ √
	1920X1080 60		√ √	√ √
	1920X1200RB	60	√ √	√ √
	1920X1200RB	50	√ √	√ √
	2128x1200 60		√
SDTV	480i 60		√ √	√ √
	576i 50		√
EDTV	480p 60		√ √	√ √
	576p 50		√ √	√ √
HDTV	1080i 25		√ √	√ √
	1080i 29		√ √	√ √
	1080i 30		√ √	√ √
	720p 50		√ √	√ √
	720p 59		√ √	√ √
	720p 60		√ √	√ √
	1080s 23				√
	1080s 24				√
	1080p 23		√ √	√ √
	1080p 24		√ √	√ √
	1080p 25		√ √	√ √
	1080p 29		√ √	√ √
	1080p 30		√ √	√ √
	1080p 50		√ √	√ √
	1080p 59		√ √	√ √
	1080p 60		√ √	√ √

Appendices

Signal Type	Resolution	Frame rate (Hz)	VGA	HDMI 1/2	DVI HD	BaseT
Mandatory 3D	Frame Packing 1080p	24
	Frame Packing 720p	50
	Frame Packing 720p	60
	Side by Side 1080i	50
	Side by Side 1080i	60
	Top and Bottom 720p	50
	Top and Bottom 720p	60
	Top and Bottom 1080p	24
Frame sequential 3D	1024x768 120
	1280x720 120

“RB” means “reduced blanking”

PIP/PBP Compatibility

PIP/PBP Matrix	HDBaseT	HDMI-1	DVI-D	HDMI-2 VGA
HDBaseT
HDMI-1
DVI-D
HDMI-2
VGA

Specifications

List of general specifications.

Item WUXGA (PJ WUL6281)
DLP chip 0.67" DMD WUXGA
Native resolution WUXGA (1920x1200)
Support resolution Up to WUXGA@60Hz (Reduced Blanking) & 2128x1200@60Hz
Projection lens	Lens type and throw ratio:Standard lens: A3 1.22-1.53Replacement lens:A0 0.361, A1 0.75-0.95, A2 0.95-1.22, A4 1.52-2.92, A5 2.90-5.50
Dimensions(WxDxH)	484 x 529 x 206 mm (without lens, with feet)
	484 x 529 x 195 mm (without lens and feet)
Weight 17.5 kg/38.6	Ibs (without lens), 17.9 kg/39.5 Ibs (with standard lens)
I/O Terminal	LANComputer InHDBaseTMonitor OutHDMI 2PC-ControlHDMI 1Wired RemoteDVI-D In3D Sync
Laser diode life At least 20,000 hours
Noise level (Typ.)	Normal: Typ 38 dB(A)ECO 1: Typ 38 dB(A)ECO 2: Typ 36 dB(A)
Environment	Operational Temperatures: 41° to 104°F (5° to 40°C); up to 85% humidity (non-condensing)Storage Temperatures: -14°F to 140°F (-10°C to 60°C); up to 90% humidity (non-condensing)
Power consumption	Normal Mode: 540W (typ.) / 621W (max.) @110V520W (typ.) / 598W (max.) @220VECO1 Mode: 415W (typ.) / 478W (max.) @110V400W (typ.) / 460W (max.) @220VECO2 Mode: 260W (typ.) / 299W (max.) @110V250W (typ.) / 288W (max.) @220V
Standby power 0.5W	or less

Note

This model complies with the above specifications.
◆ Designs and specifications are subject to change without notice.
This model may not be compatible with features and/or specifications may be added in the future.

Cabinet Dimensions

Unit: mm

484.0 529.0 509.0

Screw type: M6 x 4, Maximum screw length: 10mm

242 195 73.6 184.9 206.3

140.0 140.0 M6x4pcs 100.0 310.0 99.0 102.0 280.0 102.0

Trademarks

• DLP is trademarks or registered trademark of Texas Instruments.
• Microsoft, Windows, Windows Vista, Internet Explorer and PowerPoint are either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
• HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
• DisplayPort, DisplayPort Compliance Logo are registered trademarks of Video Electronics Standards Association.
• Kensington is a trademark or registered trademark of ACCO Brands.
• Blu-ray is a trademark of Blu-ray Association.
• Other product and company names mentioned in this user's manual may be the trademarks or registered trademarks of their respective holders.
