KX-MB2238CN - Printer PANASONIC - Free user manual and instructions

Product Type	Multifunction Printer (Print, Copy, Scan, Fax)
Brand	Panasonic
Model	KX-MB2238CN
Print Technology	Laser
Weight	Approx. 3.6 kg (7.9 lb)
Dimensions (Approx.)	420 x 380 x 320 mm (16.5 x 15.0 x 12.6 in)
Functions	Print, Copy, Scan, Fax
Paper Input Capacity	Standard tray: approx. 150 sheets; Manual tray: 1 sheet
Automatic Document Feeder (ADF)	Yes (for scanning and faxing)
Media Types	Plain paper, envelopes (Youkei #4/#10/DL), Japanese postcards
Display Language Setting	User-selectable English via feature #110
Consumables	Toner cartridge and drum unit (replaceable)
Power Source	AC 120 V, 60 Hz (typical for North America)
Power Consumption	Approx. 450 W (printing), 5.5 W (standby)
Interface	USB 2.0 (Type B)
Scanning Resolution	Up to 600 x 600 dpi (optical)
Copy Function	Enlarge/Reduce, 2-in-1, 4-in-1, 8-in-1, Duplex (manual)
Fax Compatibility	ITU-T G3, with memory transmission
Maintenance	Clean white plate, document feeder rollers, pickup rollers, and drum
Safety Precautions	Do not touch or scratch drum surface; handle toner cartridge carefully

Frequently Asked Questions - KX-MB2238CN PANASONIC

How do I clear a paper jam in the standard tray?

Open the front cover, remove the toner cartridge and drum unit, gently pull out the jammed paper, then reassemble. Refer to the Paper Jams section for detailed steps.

How do I clean the scanner white plate and glass?

Open the document cover, wipe the white plate and glass with a soft, lint-free cloth dampened with water or a mild glass cleaner. Do not use abrasive materials.

How do I replace the toner cartridge?

Open the front cover, remove the old toner cartridge horizontally, unpack the new one, shake it 5 times horizontally, remove the orange protective cover, and insert it until it clicks. Dispose of the old cartridge properly.

How do I set the display language to English?

Press Menu, navigate to Feature #110, and select 'English' from the list. Confirm to save.

What types of paper can I use?

You can use plain paper, envelopes (Youkei #4/#10/DL), and Japanese postcards. Avoid curled, torn, or sticky envelopes. Manual tray is not for fax reception.

How do I clean the document feeder rollers?

Open the ADF cover, locate the rollers, wipe them with a damp cloth. Close the cover and turn on the power. See the Cleaning section for details.

How do I perform a 2-in-1 copy?

Place your originals in the ADF or on the glass, press Copy, then select 2-in-1 from the layout options. Choose orientation and press Start.

How do I set up fax to receive calls and faxes automatically?

Press Menu, go to Feature #xxx (fax setup), select Auto Receive mode. The machine will detect fax tones and answer automatically.

How do I cancel a print or copy job?

Press the Stop button on the control panel. If the job continues, turn the printer off and on again.

What does the error message 'Check Paper' mean?

It indicates a paper jam or out-of-paper condition. Check the paper tray and internal paths for jammed paper. Ensure paper is loaded correctly and not wrinkled.

USER MANUAL KX-MB2238CN PANASONIC

Model KX-MB2238CN

KX-MB2538CN

You can select English for the display and reports (feature #110, page 68).

Send or receive documents via an email server.

Note:

Routine maintenance

Illegal copying

- Copying certain documents is illegal.

KX-MB2538

For KX-MB2238:

2. Installation

3. Remove the protective paper from the drum (①).

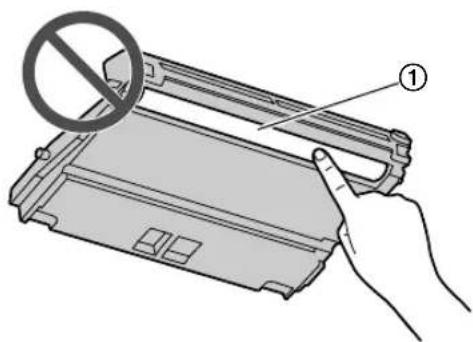

- Do not touch or scratch the surface of the drum.

5. Shake the toner cartridge horizontally more than 5 times.

6. Remove the orange protective cap from the cartridge (①).

- Do not touch the drum.

8 Close the front cover.

When replacing the toner cartridge and drum unit

① Power cord

1. Press the power button (①).

Turn off the power

Ringer volume

2 Fan the paper before loading to prevent paper jams.

3 Adjust the paper guide at the back.

For other paper sizes:

4 Load the paper with the print side facing down (①).

Important:

Note:

Approx. 3.6 kg

4.1.2 Manual Paper Tray / Multi-Purpose Tray

• Be sure to close the rear cover after printing.

Manual paper tray (pointing)

Note:

- The manual paper tray cannot be used for receiving faxes.

Note:

4.1.3 Output Tray

You can temporarily extend the output tray before printing.

Note:

4.2 Document Requirements

4.2.1 Effective Scanning Area

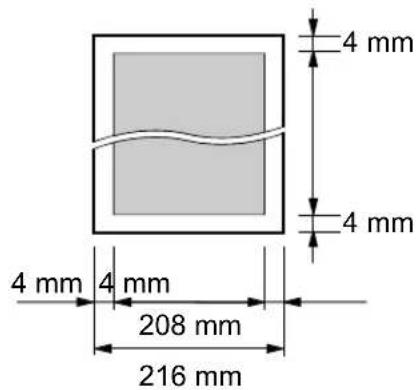

The effective scanning area is shown as the shaded area.

Scanner glass:

Automatic Document Feeder (ADF):

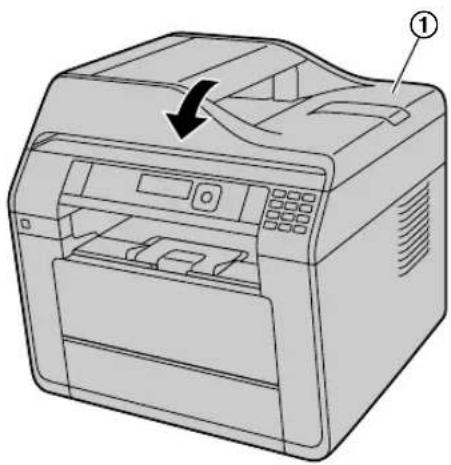

1 Open the document cover (①).

Printing on envelopes

- YOUKEI #4/#10/DL envelopes

Notes:

Diagonal seam structure with peel-off strip, multiple flaps

Twisted, curled, or rolled edges

Creases, folded corners

With clasp, with transparent window

Printing on Japanese postcards

- Use standard Japanese postcards.

• When printing on the back of a postcard (the side for stamps)

5.2 Easy Print Application

扫描方式	TIFF	JPEG	BMP	PDF
“阅览器”	●	●	●	●
“文件”	●	●	●	●
“电子邮件”	●	●	-	●
“OCR”	●	●	●	-
“电子邮件地址”*1*2	●	●	-	●
“FTP 服务器”*1*2	●	●	-	●
“SMB 文件夹”*1*2	●	●	-	●
“USB 存储器”*2*3	●	●	-	●

Using the Automatic Document Feeder (ADF):

Using the Automatic Document Feeder (ADF):

Originals, reduced copies

Collated documents, uncollated documents

Note:

Note:

Note:

Note:

How to receive faxes

Note:

How to receive phone calls and faxes

• "2-in-1"
• "4-in-1"
• "8-in-1"
• "Off"

"Page orientation"

• "Portrait"
• "Landscape"

"Duplex"

• "Long edge"
• "Short edge"
• "Off"

"Backlight" ()

• "Off"
• "Auto"

12.4 Canceling operations

("XXXXXXXXX" is the last 8 digits of the MAC address.)

Important:

Note:

Comment:

12. Practical information

Important:

Case 1:

When the recording paper is jammed near the standard paper tray:

1. Remove the jammed paper (①).

Case 2:

When the recording paper is jammed inside the rear cover:

1. Open the rear cover (①).

Note:

- The fusing unit (②) becomes hot. Do not touch.

Note:

Note:

14. Paper Jam

5. Close the rear cover completely.

Case 3:

When the recording paper is jammed inside the front cover:

1. Press the button (①), then open the front cover.

2. Remove the toner cartridge (①).

3. Remove the drum unit (①).

1. Remove the jammed paper.

3 Load the standard paper tray into the machine.

Note:

Note:

When the document is jammed near the document exit:

3 Close the ADF cover.

- Press [7] to clear this message.

15.1 Cleaning the white platen and glass

3 Close the document cover (1).

15.2 Cleaning the ADF rollers

4 Close the ADF cover.

5 Turn on the power switch.

15. Cleaning

4 Close the front cover.

5 Turn on the power switch.

15.4 Cleaning the Pickup Roller

15.5 Cleaning the Drum

Important:

Note:
