Product Type	Tablet
Model	BTPC-1022QC3GTV-B
Brand	Brigmton
Display Size	10.2 inches
Display Resolution	1280 x 800 pixels
Processor	Quad-core, up to 1.6 GHz
RAM	3 GB
Storage	32 GB (expandable via microSD)
Operating System	Android 10 (or newer)
Battery Capacity	6000 mAh
Dimensions	241 x 160 x 9.5 mm
Weight	510 g
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.2, 3G (optional)
Rear Camera	5 MP
Front Camera	2 MP
Ports	Micro USB, 3.5 mm headphone jack
Sensors	Accelerometer, G-sensor
Battery Charging	5V/2A via Micro USB
Safety Instructions	Use original charger; avoid exposure to water or extreme temperatures
Maintenance	Clean screen with soft dry cloth; do not use abrasive cleaners
Spare Parts	Battery not user-replaceable; contact service center
Repairability	Limited; professional servicing recommended
General Information	User manual available in English and other languages on Brigmton website

Frequently Asked Questions - BTPC-1022QC3GTV-B BRIGMTON

How do I charge the tablet?

Connect the included Micro USB cable to the tablet and a 5V/2A adapter. It takes about 3-4 hours for a full charge.

Can I expand the storage?

Yes, the tablet has a microSD card slot supporting up to 128 GB additional storage.

What is the battery life?

Battery life varies with usage, but typically lasts 5-7 hours of mixed use like web browsing and video playback.

Does the tablet support 4G or 3G?

The model BTPC-1022QC3GTV-B supports 3G connectivity via a SIM card slot. It does not support 4G LTE.

How do I reset to factory settings?

Go to Settings > Backup & Reset > Factory Data Reset. Confirm and the tablet will erase all data and restart.

Can I install apps from unknown sources?

Yes, enable Unknown Sources in Settings > Security. Be cautious when installing apps from outside the Play Store.

What should I do if the screen is unresponsive?

First, try a forced restart by holding the power button for 10 seconds. If still unresponsive, charge the battery for 30 minutes then try again.

How do I take a screenshot?

Press and hold the Power button and Volume Down button simultaneously for 2 seconds. The screenshot will be saved in the Gallery.

Does the tablet have a GPS?

The tablet includes a GPS module for location services, usable with offline maps.

Where can I find the user manual?

The user manual is available for download in PDF format on the Brigmton website or through the notice-facile.com page.

USER MANUAL BTPC-1022QC3GTV-B BRIGMTON

Abstract curved white shape on white background, no text or symbols present

BRIGMTON

surfing technology

CONEXIONES INALÁMBRICAS Y REDES

PANTALLA

MEMORIA

BATERÍA

LOCALIZACIÓN

IDIOMA Y ENTRADA

RESTABLECER-RESET

AÑADIR CUENTA

CÓMO INSTALAR APLICACONES

Método 1

Abstract curved shape with smooth gradient, no text or symbols present

BRIGMTON

surfing technology

INSTRUCTION MANUAL

TABLET-PHONE 10" 3G HD IPS 1280x800

BTPC-1022QC3G-TV

CONTENTS

CONTENT

SECURITY MEASURES

PRECAUTIONS

ON OFF

DESK

STANDBY MODE

- Wireless & networks

- More

- Sound

- Screen

- Memory

- Battery

- Applications

- Location

- Security

- Language and entry

- Reset-Reset

- Add Account

- Date and Time

- Accessibility

- Development options

- The device

Connection from the PC

INSTALLING APPLICATIONS

HOW TO CREATE ICONS ON THE DESKTOP

SECURITY

Read these safety instructions before using the device and save them for possible future reference. Always follow these basic safety precautions.

Battery, charger and other accessories

If the charger cable is damaged do not use the charger, to avoid any danger.

The outlet should be installed near the equipment and shall be easily accessible.

Use by children should be supervised to ensure they do not play with the charger.

The charger should always be easily accessible.

The device should not be exposed to dripping or splashing water.

No objects filled with liquid near the device.

Always leave a minimum distance of 10 cm around the unit to ensure adequate ventilation.

Do not place heat sources on top of the device.

The device is designed for use only in a temperate climate.

CAUTION: Danger of explosion if battery is incorrectly replaced or substituted by the same or equivalent type.

The battery must not be exposed to excessive heat such as sunshine, fire or the like.

The use of the device at full volume can damage the user's hearing and cause hearing problems.

SWITCH OFF IN RESTRICTED AREAS

Turn the device on when wireless device use is not allowed or when there is a risk of causing interference or danger, for example, at or near medical equipment, fuel, chemicals or blasting sites on board an aircraft.

ROAD SAFETY

Check the laws and regulations on the use of mobile devices in the areas where you drive.

- Do not handle the mobile when driving.

• Concentrate fully on driving

- Radio signals may affect some electronic systems in the vehicle, such as stereos and alarm.

INTERFERENCE

All wireless devices are susceptible to interference, which could affect performance.

Authorized personnel

Only qualified persons are authorized to install or repair this product.

ACCESSORIES

Use only batteries, chargers and other accessories that are compatible with this equipment. Do not connect incompatible products.

KEEP DRY EQUIPMENT

This equipment is not waterproof. Keep dry.

CHILDREN

Keep your mobile device in a safe place, out of reach of young children. The mobile device contains small parts that may present a choking hazard.

PRECAUTIONS

This mobile device meets guidelines for exposure to radio waves.

Your mobile device is a radio transmitter and receiver. It was designed to meet the international standards recommended limits to limit exposure to radio waves.

Radio frequency output of electronic devices can interfere with other electronic equipment and cause malfunctions. Although this mobile device is designed in accordance with EU standards on radio frequency emissions, wireless transmitters of mobile devices and electrical circuitry may cause interference with other electronic equipment. We therefore recommend the following precautions:

Aircraft: can cause interference in aircraft.

- Turn off your mobile before boarding the plane

- Do not use until allowed to do so by the flight crew.

Vehicles Radio frequency emissions from wireless devices may affect electronic systems in motor vehicles. In reference to your vehicle, check with the manufacturer or distributor.

Medical implants:

Medical equipment manufacturers recommend a minimum distance of 15 centimeters between a wireless device and an implanted medical device, such as a pacemaker or defibrillator to avoid any interference with the medical device. It is recommended that people equipped with these devices:

Always keep the mobile phone more than 15 cm away from the medical device.

-Follow the instructions provided by the manufacturer of medical implant.

- If it is equipped with a medical implant and have questions about using your mobile / wireless equipment, you should consult your doctor

Warning: When using a headset runs the risk of not hearing outside sounds properly. Do not use headset where it can endanger your safety. Some wireless devices may interfere with the proper functioning of hearing aids.

Other medical devices: mobile devices can interfere with the proper functioning of inadequately protected medical equipment. Consult a physician or the medical equipment manufacturer to see if the equipment is sufficiently protected against external wave signals radio.

Health services: hospitals and health care facilities may use equipment that is particularly sensitive to external radio frequency emissions. Turn off your mobile device when the staff required.

Hazardous Locations:

Turn off the device in potentially explosive areas. Follow all official instructions. Sparks in

such areas could cause an explosion or fire resulting in serious injury or death. You turn off the power at the pump, especially when you are near gas pumps. Strictly follow the usage restrictions in fuel depots, chemical plants or in areas with explosives.

ON/OFF

Hold the button to turn on / off the device.

Press to turn on / off the screen.

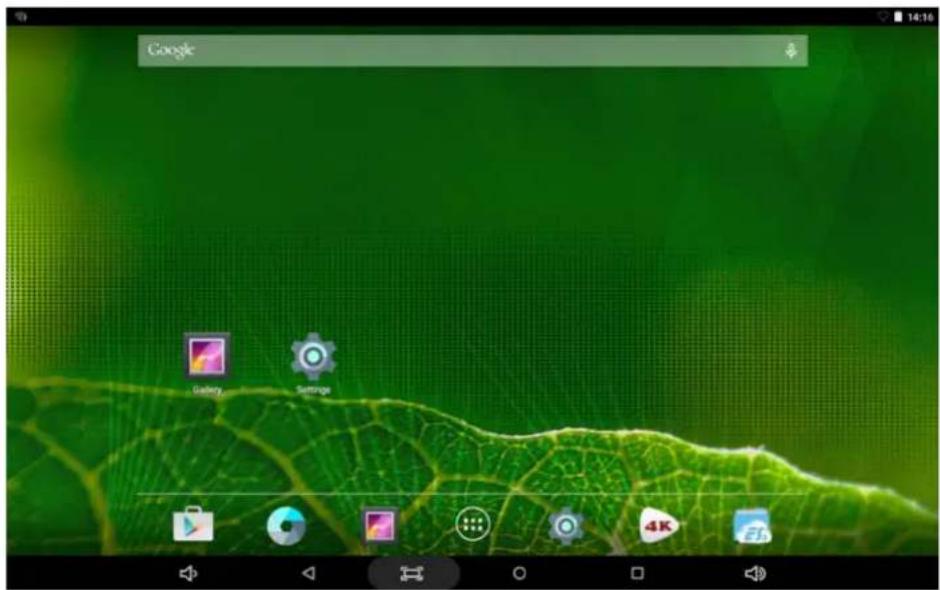

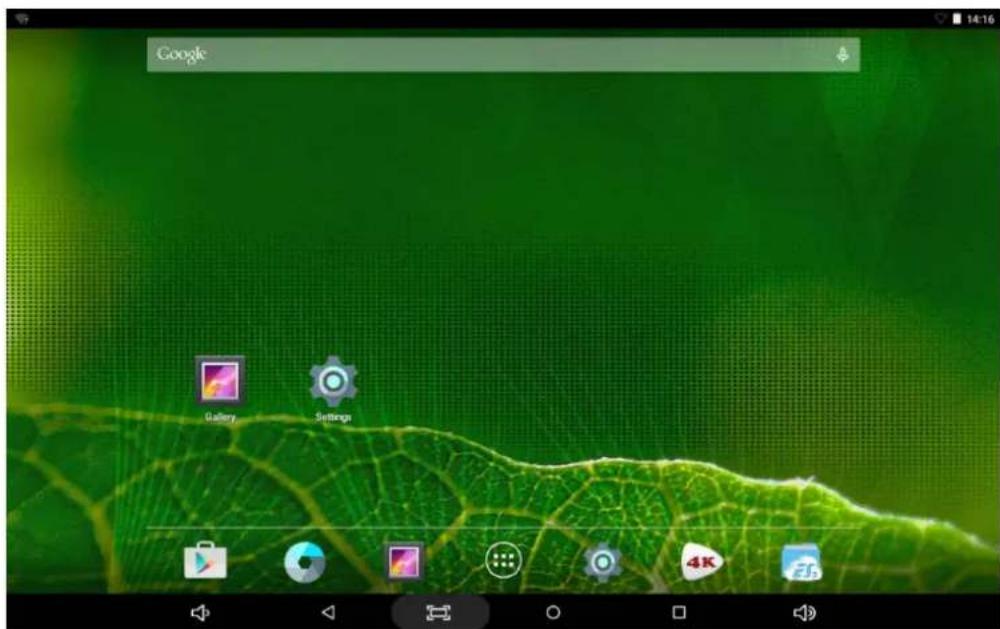

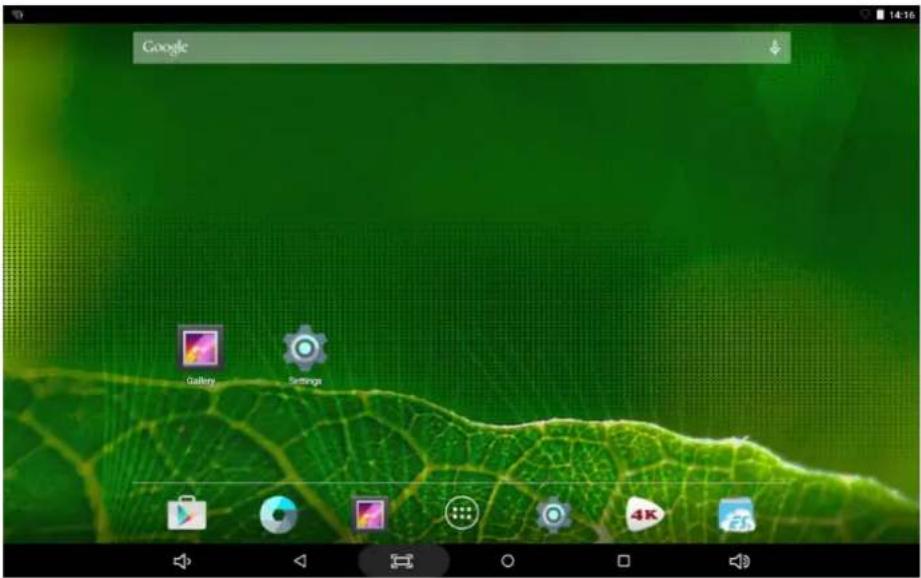

DESK

Once the device displays on the desktop:

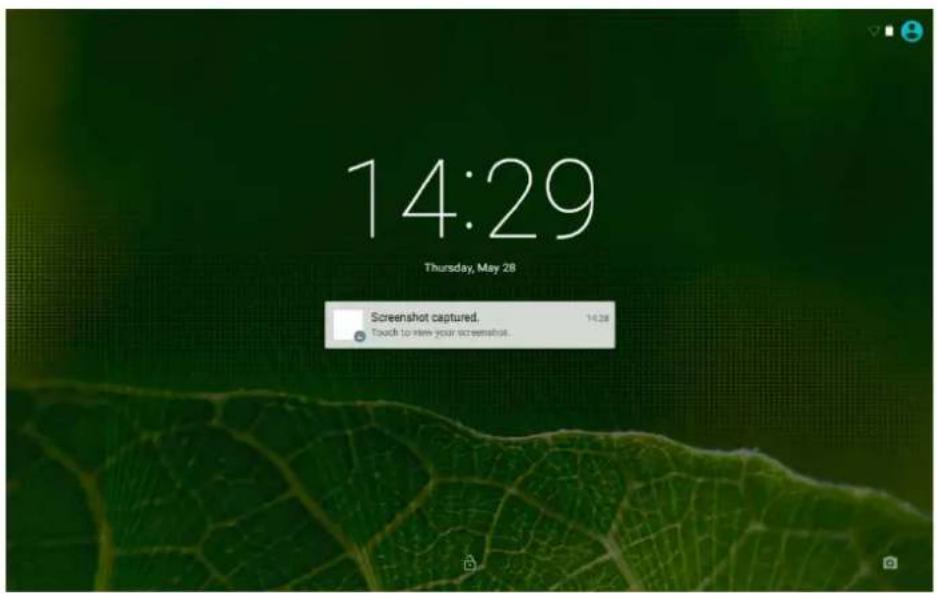

STANDBY MODE

Briefly press the power button to turn on / off the screen (standby mode on / off) After standby, slide the lock icon to unlock the screen.

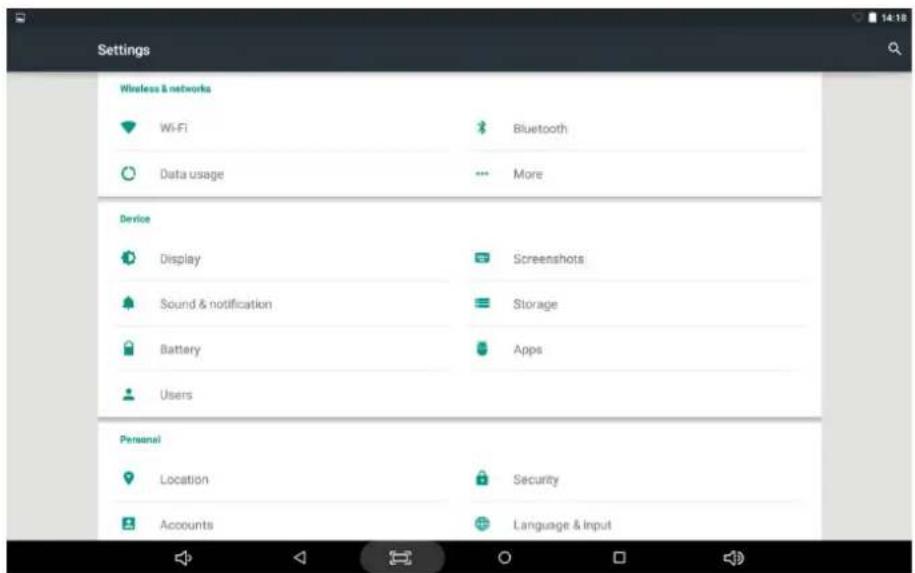

On the desktop configuration press:

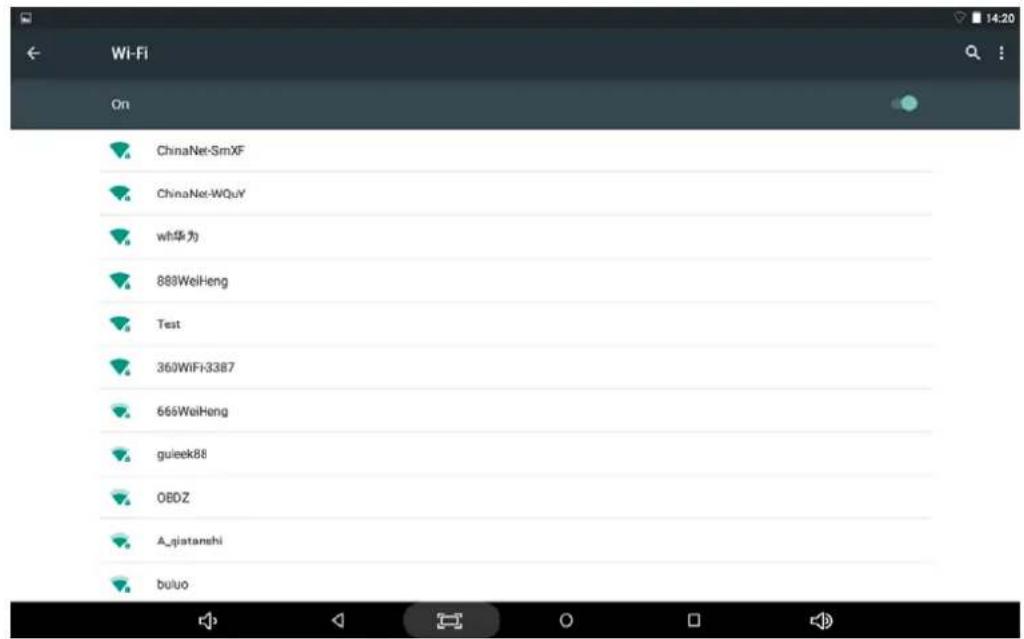

WIRELESS & NETWORKS

Click Wi-Fi on / off Wi-Fi: Configure each setting. Once turned on Wi-Fi connection will appear available networks.

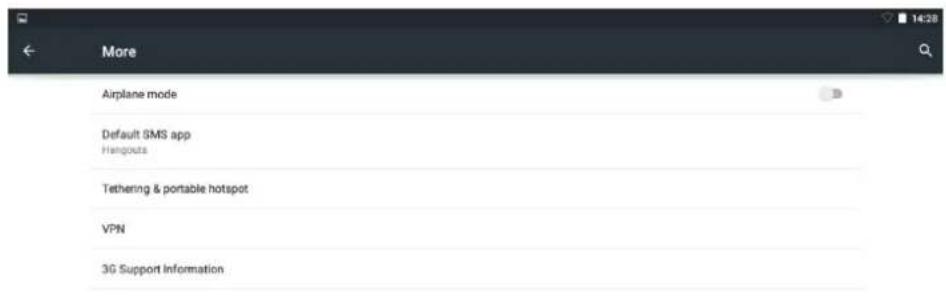

MORE

For more information on mobile data and Ethernet, VPN, Airplane mode and mobile networks.

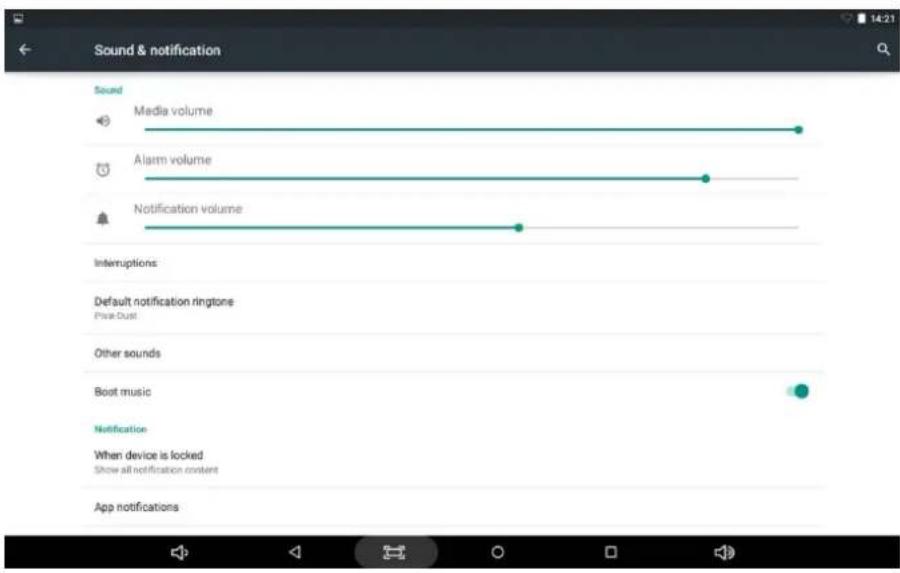

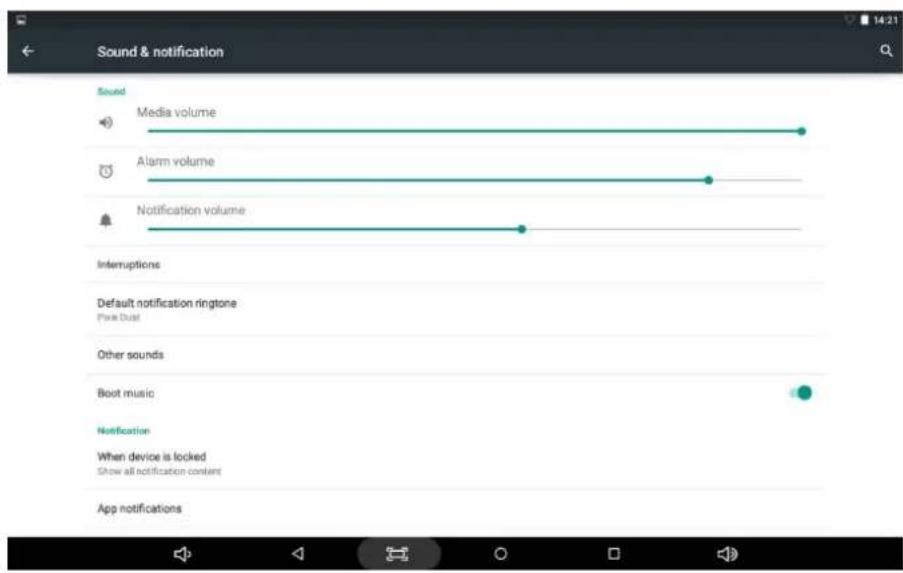

SOUND

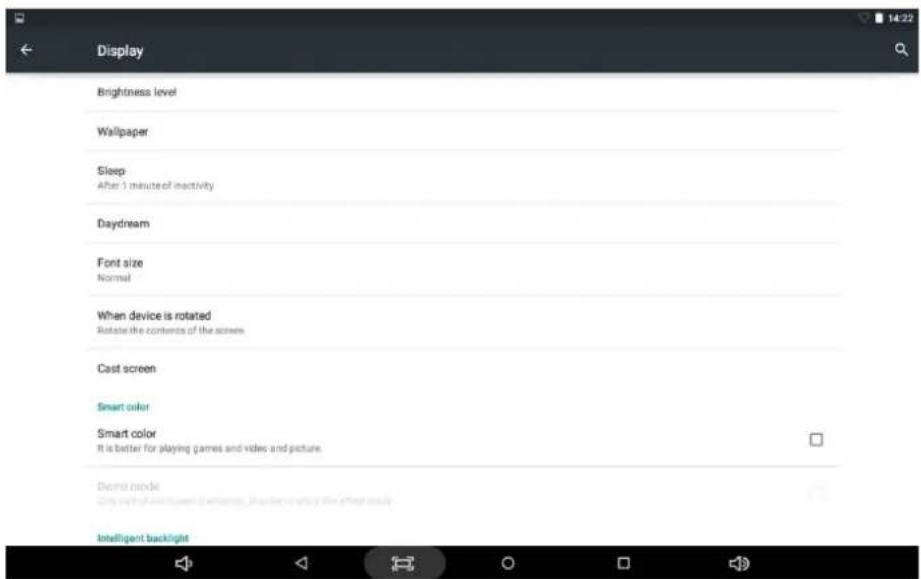

SCREEN

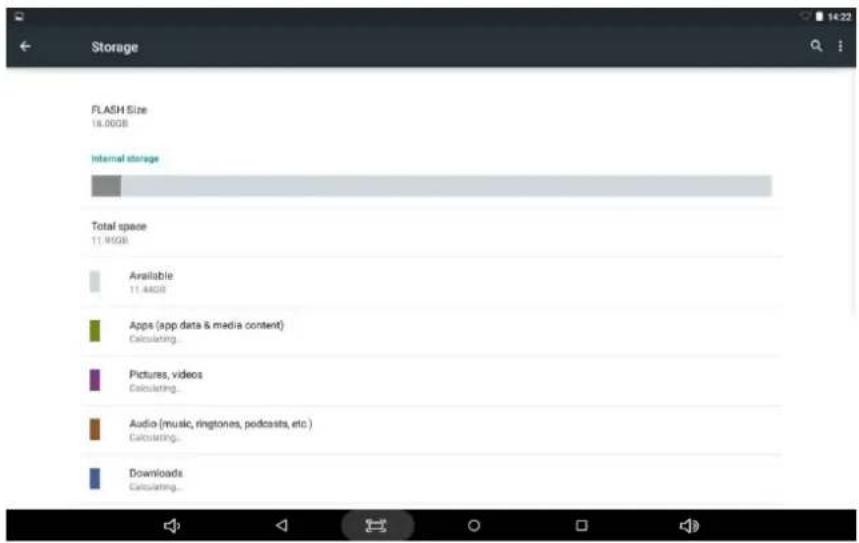

MEMORY

Check device memory and microSD card status.

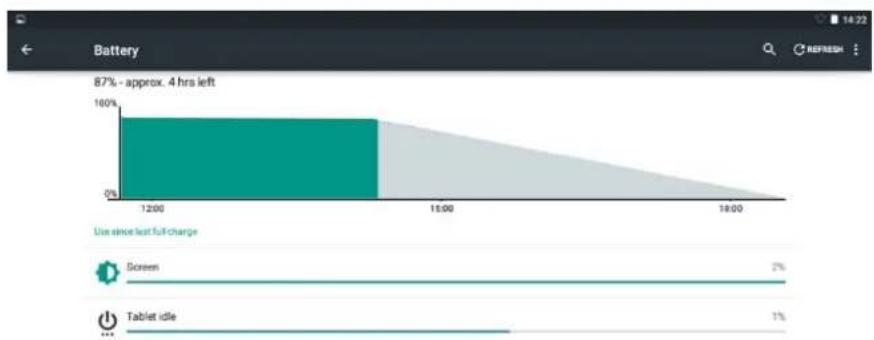

BATTERY

Check the battery status and options.

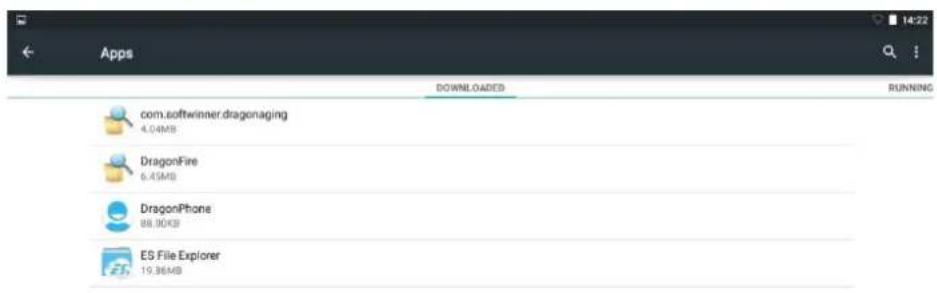

APPLICATIONS

Manage applications on your device.

LOCATION

You can turn the Google location service. Applications use data from sources such as WiFi and mobile networks to determine your approximate location.

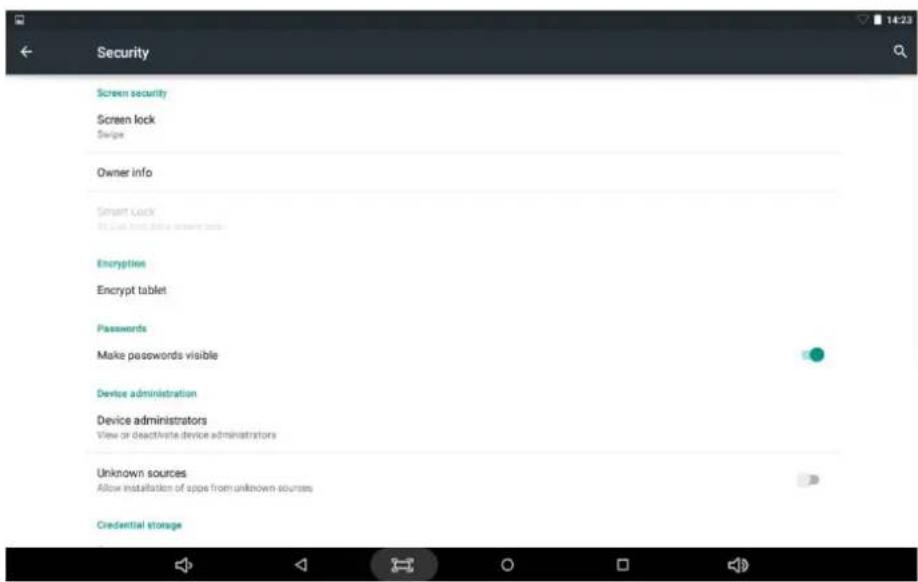

SECURITY

Screen Lock: Protect your device against unauthorized creating an unlock pattern screen personal use.

Make passwords visible: Displays the password as you type.

Unknown sources: To allow the installation of applications not from Google Play.

Install from SD card: Install encrypted certificates from SD card.

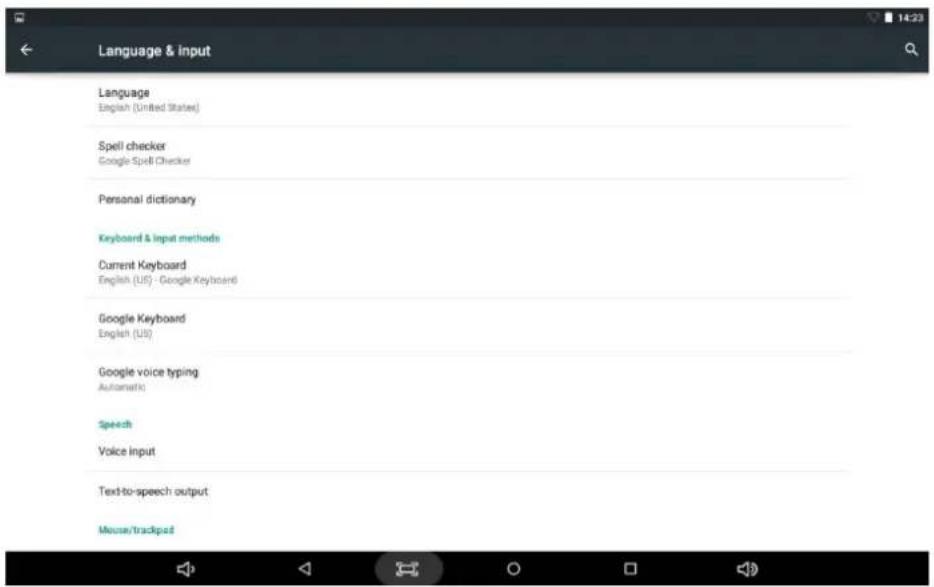

LANGUAGE AND ENTRY

Language: Select the desired language.

Keyboard and input method: Adjusting input methods.

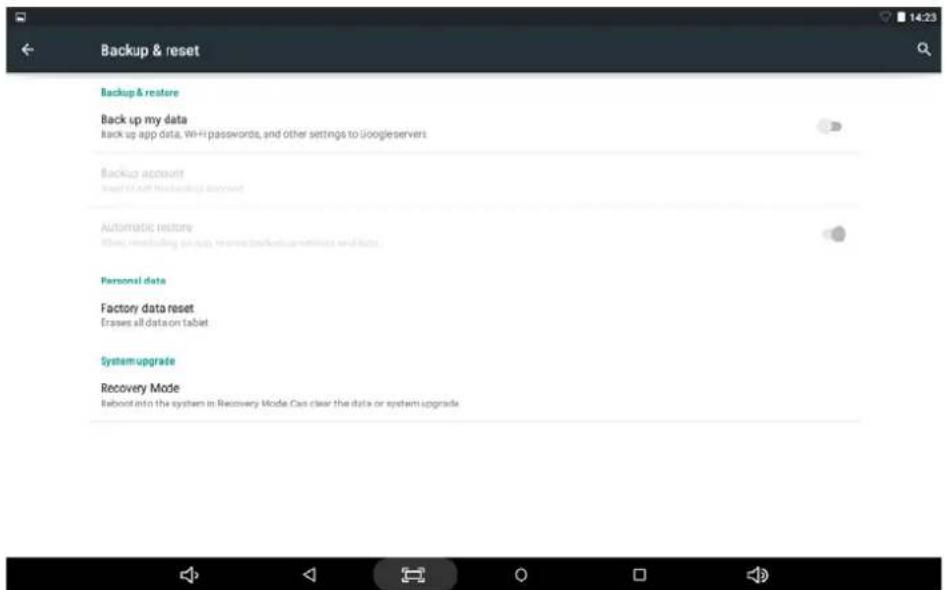

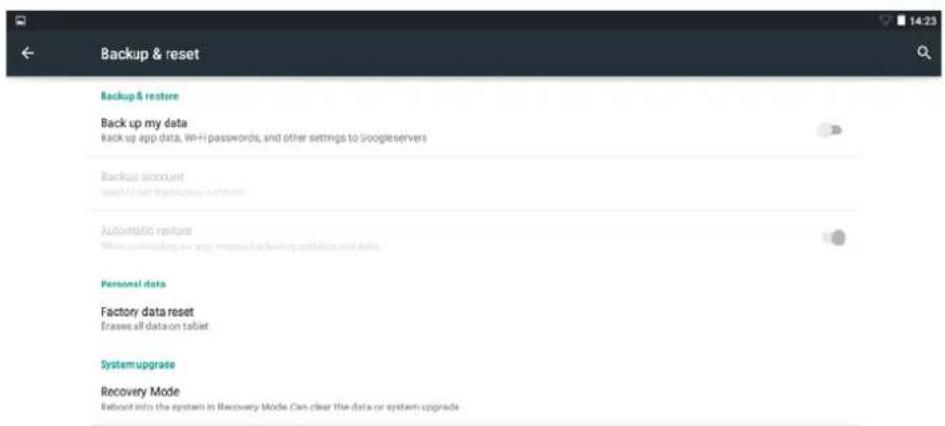

RESET

ADD ACCOUNT

Create a Google account. You must have Internet access. E-mails are automatically downloaded to the device.

DATE AND TIME

Set the date, time and format.

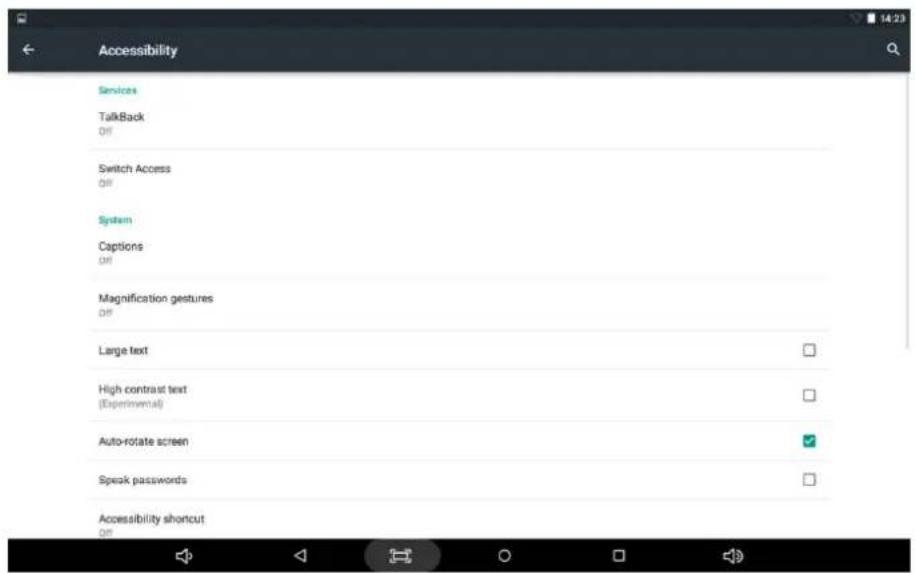

ACCESSIBILITY

DEVELOPMENT OPTIONS

Set options for application development

ON THE DEVICE

View status, legal information, etc.

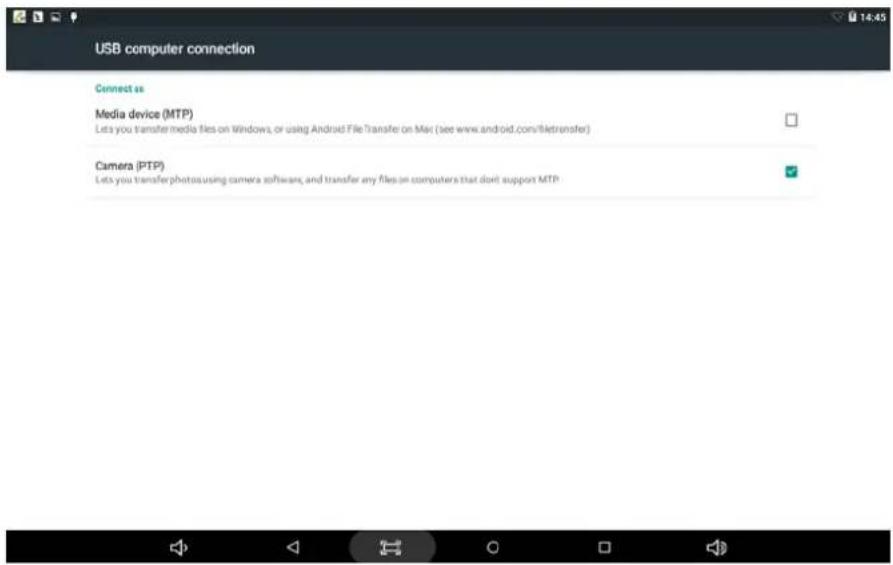

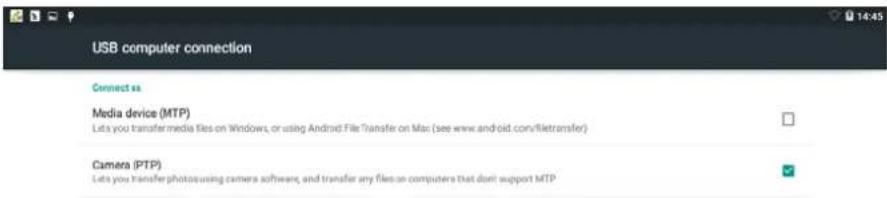

CONNECTION FROM THE PC

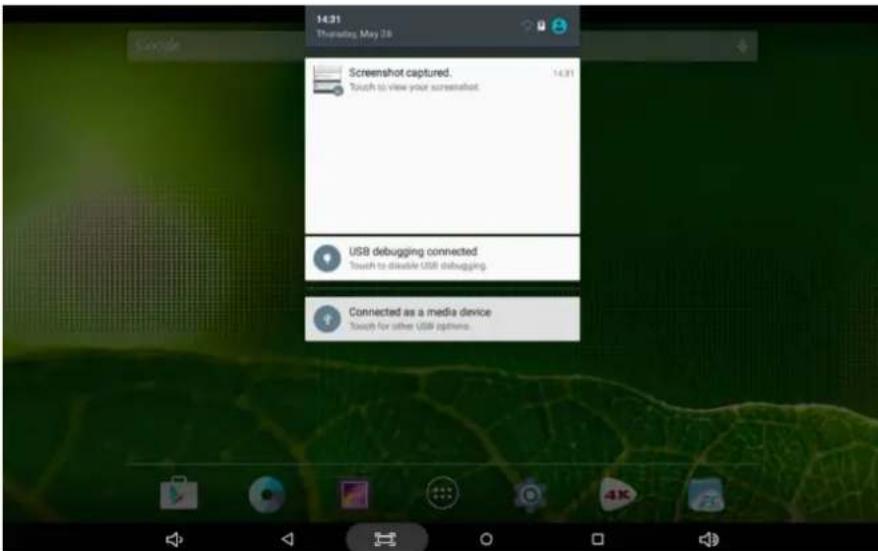

In the main desktop, connect the device to the PC, touch left side of the status bar on the desktop:

Press "USB connected" button, select "Turn on USB storage". The device will be recognized by your PC. Now you can use it as external storage.

INSTALLING APK

Method 1

1. Connect the device with internet.
2. Run "Google Play" and search the applications you want to install.
3. Follow the onscreen instructions for installation.

Method 2

1. Connect the device with the PC and copy the applications to install on the device (.apk)
2. Run "File Explorer" and find the apk.
3. Press the file to install and follow the instructions on the screen.

CREATING ICONS ON THE DESKTOP

Click on the desktop and follow the instructions on the popup.

PASTE ICONS

Hold an icon and follow the pop-up menu.

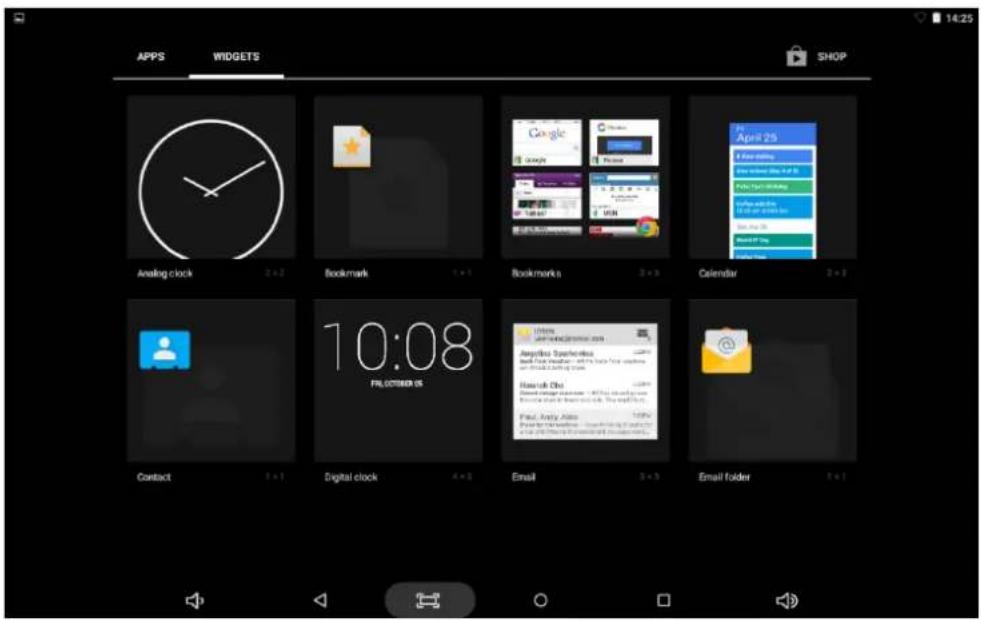

WIDGETS

"Features can change without notice"

BRIGMTON

surfing technology

IMPORTED

FERSON ELECTRÓNICA, S.A.

CIF: A-41111881

SANTA CLARA DE CUBA 12

SEVILLA

ESPAÑA

DECLARATION OF CONFORMITY

Ferson Electrónica, S.A. declares under our responsibility that the equipment meets the requirements indicated in the following directives:

EMC DIRECTIVES

EN60950-1:2006/A11:2009/A1:2010

EN 62311: 2088

EN 301 489-1 V1.9.2:2011-09

EN 301 489-17 V2.1.1:2009-05

EN 300 328 V1.7.1: 2006-10

ETSI EN 301 489-1 V1.9.2(2011-09)

ETSI EN 301 489-17 V2.1.1(2009-05)

Description of apparatus:

BRIGMTON Model BTPC-1022

Mobile Internet Device
