USER MANUAL 99-6532B Metra

Installation instructions for part 99-65328

Jeep Renegade 2015-up 99-6532B

KIT FEATURES

• ISO DIN radio provision with pocket
- Painted to match factory finish

Interior view of a car dashboard with air vent, steering wheel, and mounted vehicle (no visible text or symbols)

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (4) White panel clips • E) (4) #8 x 3/8" Phillips screws

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • XSVI-6523-NAV

Antenna Adapter: • 40-EU55 Amplified antenna adapter

Table of Contents

Dash Disassembly 2

Kit Assembly

- ISO DIN radio provision with pocket......3

TOOLS REQUIRED

• Panel removal tool
• Phillips screwdriver
• Torx driver

CAUTION: Metra recommends disconnecting the negative battery terminal before beginning any installation, unless the vehicle manufacturer recommends against so. Please check with your local Dealership for more information. All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before reconnecting the battery or cycling the ignition. Also, do not remove the factory radio with the key in the on position, or the vehicle running. It would be best to remove the key from the ignition and then wait a few seconds before removing the factory radio.

99-65328

Dash Disassembly

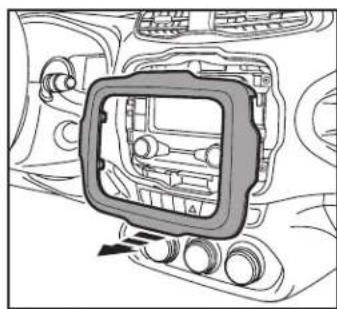

1. Unclip and remove the trim panel surrounding the factory radio. (Figure A)

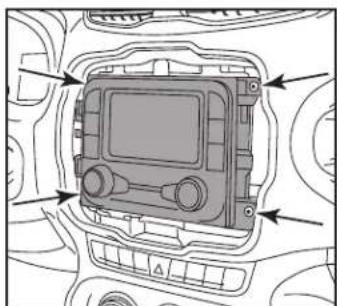

2. Remove (4) T-20 Torx Screws securing the radio. (Figure B)
3. Unplug and remove the radio.

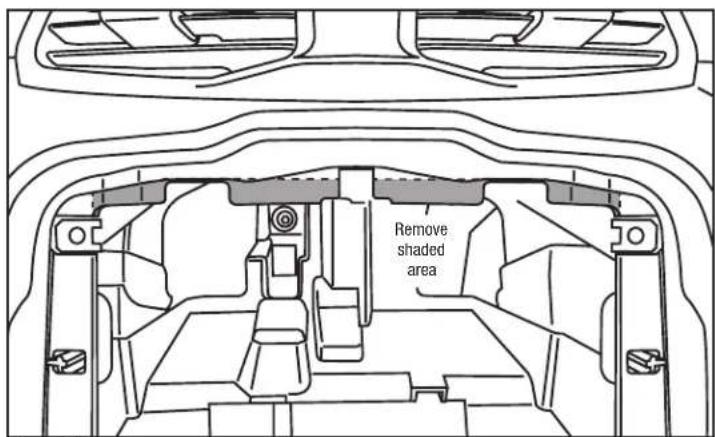

4. Cut shaded area at the top of the radio cavity. (Figure C)

Continue to kit assembly

Interior view of a car dashboard with a highlighted frame and directional arrow (no text or symbols)

(Figure A)

Diagram of a vehicle's internal components with directional arrows indicating movement or flow, likely for navigation or system control.

(Figure B)

Remove shaded area

(Figure C)

99-6532B

Kit Assembly

ISO DIN radio provision with pocket

1. Attach the (4) supplied white panel clips to the radio housing. (Figure A)
2. Attach the pocket to the radio brackets using (4) supplied #8 x 3/8" Phillips screws. (Figure B)
3. Remove the metal "DIN" sleeve and trim ring from the aftermarket radio.

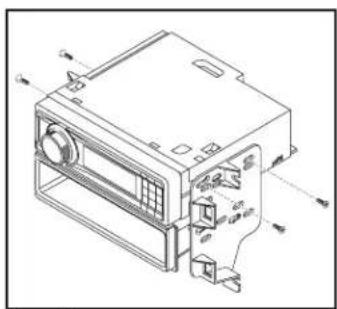

4. Attach the radio brackets to the radio using the screws supplied with the radio. (Figure C)

Technical line drawing of a 3D mechanical housing or enclosure with mounting holes and dashed alignment lines (no text or symbols)

(Figure A)

1. Locate the factory wiring harness and antenna connector in the dash, and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS. Re-connect the negative battery terminal and test the radio for proper operation.
2. Reassemble the dash in the reverse order of disassembly using the 99-6532 radio trim panel instead of the factory radio panel.

Technical line drawing of a device housing with labeled components (no text or symbols present)

(Figure C)

Technical line drawing of a mechanical component with mounting flanges and housing (no text or symbols)

(Figure B)

Installation instructions for part 99-65328

IMPORTANT

If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians
