Product Type	Steam Iron
Brand	Profilo
Model	PSI56130
Power Supply	220-240 V, 50/60 Hz, 16 A (earthed plug)
Maximum Impedance	0.27 Ω (to avoid voltage drops)
Soleplate Material	Stainless Steel
Water Tank Capacity	Approximately 300 ml (typical)
Temperature Settings	3 levels: Synthetics (•), Silk/Wool (••), Cotton/Linen (•••/max)
Steam Output	Adjustable steam control, continuous steam, and shot of steam
Vertical Steam	Yes, for garments on hangers (distance 10 cm)
Spray Function	Yes (not for silk)
Automatic Shut-Off	Yes, after 30 sec on soleplate/side, 8 min upright (with 2 min delay after plug-in)
Drip Protection	Automatic steam cut-off at low temperature to prevent dripping
Anti-Calc System	Multiple descaling: self-clean, Calc'n Clean (every 2 weeks), and anti-calc cartridge
Safety Features	Auto shut-off, earth connection, thermal fuse, child safety (supervision for ages 8+)
Cleaning Instructions	Wipe with damp cloth; use self-clean and Calc'n Clean functions; do not use scouring pads
Storage	Stand upright on rear, not on soleplate; do not wrap cord tightly
Intended Use	Household use only, up to 2000 m above sea level
Water Type	Tap water; if very hard, mix 1:1 or 1:2 with distilled water
Warranty	Void if damage from improper use or non-original accessories

Frequently Asked Questions - PSI56130 Profilo

How do I fill the water tank?

Set the steam control to 'off' and unplug the iron. Fill with clean tap water (do not exceed 'max' mark). Do not use perfume or condensation water from dryers.

What do the temperature settings mean?

The settings correspond to fabric types: • for synthetics, •• for silk and wool, ••• or max for cotton and linen. Start with the lowest temperature.

How does the auto shut-off work?

The iron switches off automatically if left unattended: after 30 seconds when resting on the soleplate or side, or after 8 minutes when upright. The pilot light will flash. Move the iron to reactivate.

Can I use the iron vertically?

Yes, for garments on a hanger. Set temperature to 'max', hold iron vertically 10 cm from fabric, and press the steam shot button repeatedly with at least 5-second intervals. Never aim at people or animals.

How do I clean the iron and remove scale?

Use the self-clean function by moving the steam control from 'off' to 'on' several times after use. For deeper cleaning, use the Calc'n Clean function every 2 weeks: fill tank, set to max, unplug, then press 'clean' button over a sink until one-third of water evaporates, repeating steps.

Why is my iron dripping water?

Dripping occurs if the temperature is too low for the steam setting. The drip protection automatically stops steam at low temperatures. Ensure you set the correct temperature for the fabric. Also, never decalcify the tank with chemicals.

Can I use tap water with decalcifiers?

No, do not add any liquids like perfume or decalcifiers. Use only clean tap water. If water is very hard, mix with distilled water in a 1:1 or 1:2 ratio.

What should I do if the soleplate becomes dirty?

Unplug and let cool. Wipe with a damp cloth. If synthetic fabric melted onto the soleplate due to high temperature, immediately rub off with a thickly folded damp cotton cloth. Do not use scouring pads or chemicals.

How do I store the iron after use?

Empty the tank by holding the iron with the point down and shaking lightly. Store in an upright position on the rear (not on the soleplate). Do not wrap the power cord too tightly.

Is this iron suitable for travel?

The iron is designed for household use up to 2000 m altitude. It has a 16A plug and may require an adapter in some countries. Always use an earthed socket. Check the voltage rating before use.

USER MANUAL PSI56130 Profilo

Black and white photo of a Profile iron with visible branding and power rating (no text-heavy elements)

TR KULLANIM KILAVUZU

BUHARLI ÜTÜ

3-5

EN USER MANUAL

STEAM IRON

6-8

TR

Congratulations on your choice of our appliance, and welcome among the users of PROFiLO products.

In order to achieve best possible results we recommend using exclusively original PROFiLO accessories. They have been specially designed for this product.

We urge that you read this user's manual carefully. Special attention needs to be paid to the safety precautions. Please save this manual so it can be referred to in the future use of the product.

Important safety and proper handling instructions

Always keep these basic safety instruction during ironing:

DANGER! / WARNING! Health hazard

• The iron must not be left unattended while it is connected to the supply mains.
• Remove the plug from the socket before filling the appliance with water or before pouring out the remaining water after use.

- The appliance must be used and placed on a stable surface.

- When placed on its stand, make sure that the surface on which the stand is placed is stable.

- The iron should not be used if it has been dropped, if there are visible signs of damage or if it is leaking water. It must be checked by an authorized Technical Service Centre before it can be used again.

- With the aim of avoiding dangerous situations, any work or repair that the appliance may need, e.g. replacing a faulty mains cable, must only be carried out by qualified personnel from an Authorised Technical Service Centre.

- This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.

- The appliance is designed for use only in households located up to 2000 m above sea level.

CAUTION! Not observance can result in damage to possessions

This appliance is to be connected and used in accordance with the information stated on its characteristics plate.
This appliance must be connected to an earthed socket. If it is absolutely necessary to use an extension cable, make sure that it is suitable for 16A and has a socket with an earth connection.
If the safety fuse fitted in the appliance blows, the appliance will be rendered inoperative. To restore normal operation the appliance will have to be taken to an authorised Technical Service Centre.
In order to avoid that, under unfavourable mains conditions, phenomena like transient voltage drops or lighting fluctuations can happen, it is recommended that the iron is connected to a power supply system with a maximum impedance of 0.27Ω. If necessary, the user can ask the public power supply company for the system impedance at the interface point.
The appliance must never be placed directly under the tap to fill the water tank.
Unplug the appliance from the mains supply after each use, or if a fault is suspected.
The electrical plug must not be removed from the socket by pulling the cable.
Never immerse the iron in water or any other fluid.
Do not leave the appliance exposed to weather conditions (rain, sun, frost, etc.).

GESTION

Information on the product and suggestions for its use

The iron is intended for domestic usage only and you can use it solely according to herewith manual.

Technical data

The iron technical parameters are included at the name plate.

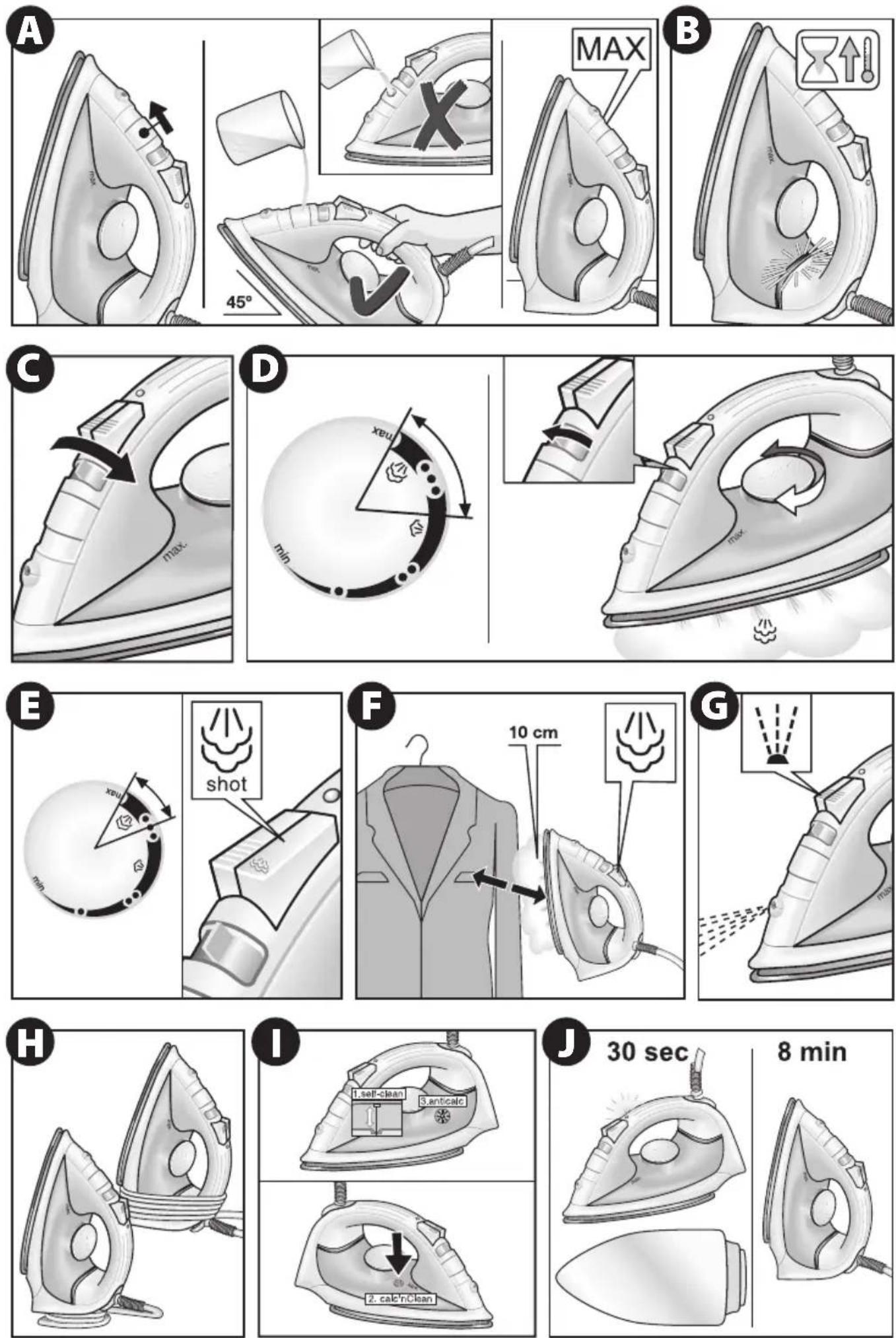

Filling the water tank

Set the steam regulator to the position and unplug the iron from the mains!

Use only clean water from the tap without mixing anything with it. The addition of other liquids, such as perfume, will damage the appliance.

Any damage caused by the use aforementioned products, will make the guarantee void.

Do not use condensation water from tumble dryers, air conditionings or similar. This appliance has been designed to use normal tap water.

To prolong the optimum steam function, mix tap water with distilled water 1:1. If the tap water in your district is very hard, mix tap water with distilled water 1:2.

Never fill beyond the "max" water level mark.

Setting the temperature

Sort laundry according to the fabric care labels and start at the lowest temperature “●”:

●	Synthetics
●●	Silk – Wool
●●●	Cotton – Linen

The pilot light switches on while the appliance is heating up and switches off as soon as the set temperature is reached. If the temperature of the hot iron drops, you can continue ironing while the iron heats up again to the set temperature.

Before using your appliance for the first time

Remove any label or protective cover from the soleplate.

Fill the tank of the iron with tap water and set the temperature control to "max". Plug in the appliance to the mains. When the steam iron has reached the desired temperature

(pilot light at the back of the water tank goes out), let the water create steam by setting the steam control to and by repeatedly pressing the button

During it first use the iron may produce certain

vapours and odours that will die away a few minutes.

Ironing without steam

Set steam control to the position.

Ironing with steam

① Set temperature control to and following the heating up, set the steam control to or.
② Set the temperature control to position “●●”: steam control to ⏻
③ Set the temperature control to position “●●●” or “max”: steam control to ⏻

shot of steam

① Set temperature to "max".
② Press button 🤗 repeatedly with intervals of at least 5 seconds.

Vertical steam

Never direct the steam jet at garments that are being worn

Never aim the steam at people or animals.

① Set temperature to "max". Hang article of clothing on a clothes hanger.
② Operate the iron in a vertical position at a distance of 10 cm / 4 in, and press the button repeatedly with pauses of at least 5 seconds.

Spray

Do not use the Spray function with silk.

After ironing

① Switch the steam control from to and back again several times (self-cleaning).
② Empty the tank: Hold the iron with the point down and shake lightly. Store standing on the rear, not on the base.
③ Do not wrap the power cord too tight!

Cleaning

the iron is only slightly soiled, pull out the plug and allow the soleplate to cool down.

Wipe the housing and the soleplate with a damp cloth only.

cloth melts due to too high temperature on the stainless steel soleplate, switch off the steam and rub off the residue immediately with a thickly folded, damp cotton cloth.

To keep the soleplate smooth, you should avoid hard contact with metal objects. Never use a scouring pad, or chemicals to clean the soleplate.

Never decalcify the tank or treat detergents or solvents: otherwise the iron will drip water whilst steaming!

Multiple descaling system

self-clean

Each time you use the steam regulator, the "self-clean" system cleans the mechanism of scale deposits.

Calc'n clean

The "calc'nClean" function helps to remove scale particles out of the steam chamber. Use this function approximately every 2 weeks, if the water in your area is very hard.

① Unplug the iron from the mains socket, set the steam regulator to the position and fill the water tank with water.
② Set the temperature selector to the "max" position and plug in the iron.
③ After the necessary warm-up period, the lamp goes out. Then, unplug the iron (very important!).
④ Hold the iron over a sink. Press the "clean" button until approximately one third of the water capacity of the tank is evaporated. Boiling water and steam will come out, carrying scale or deposits that might be there.
⑤ Release the "clean" button, and gently shake the iron for some seconds.
⑥ Repeat the steps 4 and 5 three times until the tank is empty. Then plug the iron in and heat it up again until the remaining water has evaporated.
⑦ Unplug the iron and let the soleplate cool down. Wipe the soleplate with a damp cotton cloth only.

anti-calc

The “anti-calc” cartridge has been designed to reduce the build-up of scale produced during steam ironing, helping to extend the useful life of your iron. Nevertheless the “anti-calc” cartridge cannot remove all of the scale that is produced naturally over time.

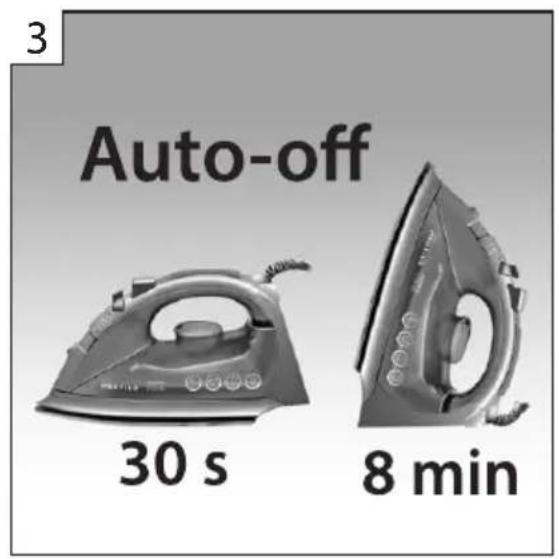

"secure" auto shut-off function

The "secure" auto shut-off function switches off the iron when it is left unattended, thus increasing security and saving energy. After plugging in the appliance, this function will be inactive for the first two minutes in order to give the appliance time to reach the set temperature.

After such time, if the iron is not moved for 8 minutes while in the upright position or 30 seconds while resting on its soleplate or on its side, then the safety circuit will switch the appliance off automatically and the pilot light will start flashing.

To reconnect the iron, just move it about gently.

Drip protection

If the temperature is set too low, the steam is automatically switched off to avoid dripping. There may be an audible click when this occurs.

Tips to help you save energy

Steam production consumes the most energy. To help minimise the energy used, follow the advice below:

Regulate the steam according to the selected ironing temperature, following the instructions in this manual.
Try to Iron the fabrics while they are still damp and reduce the steam setting. Steam will be generated from the fabrics rather than the iron. If you tumble dry your fabrics before ironing them, set the tumble drier on the 'iron dry' programme.
Stand the iron upright during pauses. Resting it horizontally with the steam regulator on generates wasted steam.

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline

determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

The manufacturer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.
