USER MANUAL Miles Medium Wide Habitat

Miles Medium Wide Shelving

Assembly Instructions - Please keep for future reference

MILES-MW-SS16-A

Dimensions

Width -120cm

Depth - 40cm

Height - 180cm

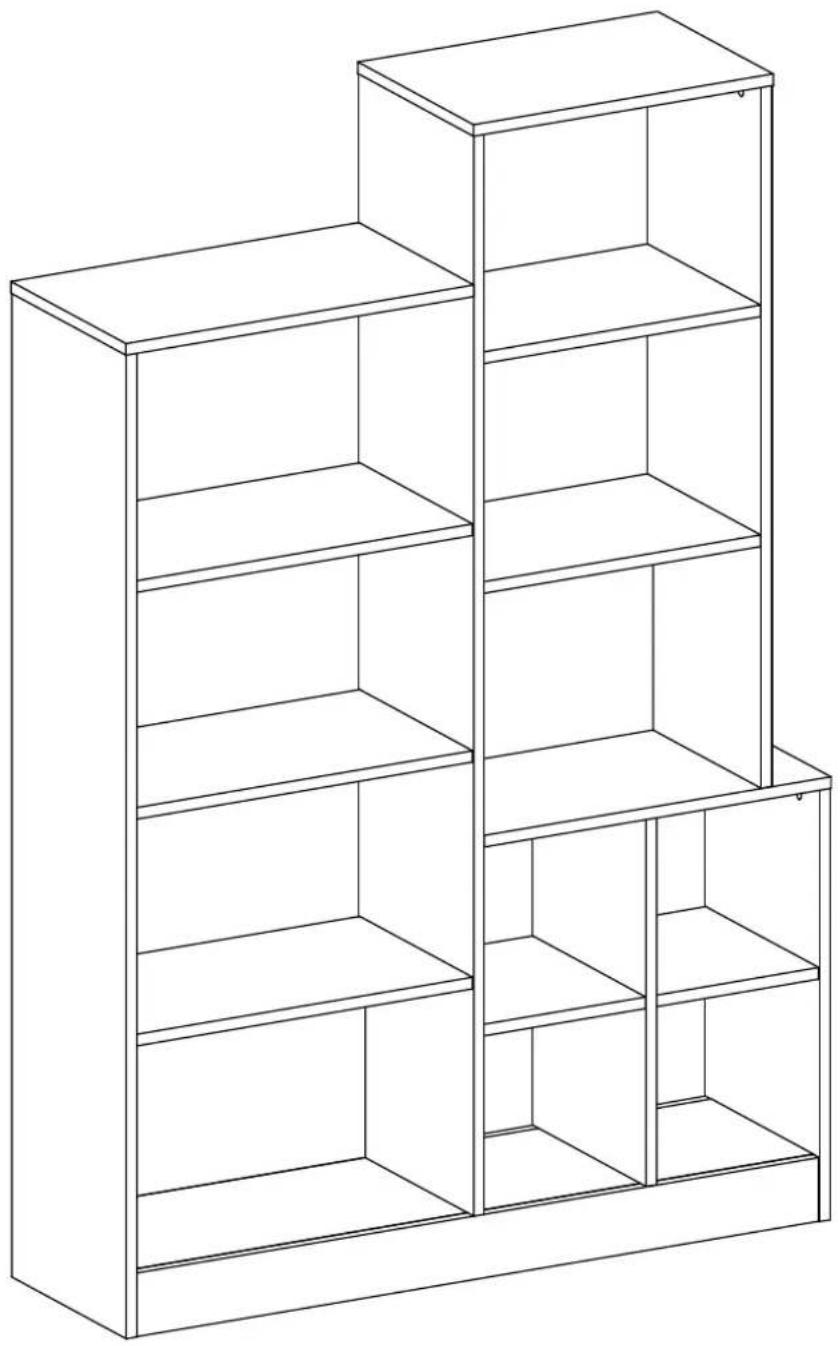

Line drawing of a multi-level shelf cabinet with no text or symbols

Tools required

Diagram showing four different types of human figure icons: checkmark, cross, screwdriver, and hammer.

Important - Please read these instructions before assembly

If you need help or have damaged or missing parts, email: [e-mail] or call: 0344 499 4686

habitat

Safety and Care Advice

Important - Please read these instructions fully before starting assembly

Check you have all the components and too listed on the front cover and pages 3 - 4.

Do not stand or put weight on the product, this could cause damage.

semble on a soft level surface to avoid imaging the unit or your floor.

Assemble the item as close to its final position

Remove all fi ttings from the plastic bags and separate them into their groups.

(in the same room) as possible. Do not place furniture directly in front of radiators, fires or any other source of heat.

We do not recommend the use of power drill/drivers for inserting screws, as this could

Keep children and animals away from the work area, small parts could choke if swallowed.

Make sure you have enough space to layout the parts before starting.

Parts of the assembly will be easier with 2 people.

damage the unit. Only use hand screwdrivers.

Dispose of all packaging carefully and responsibly.

General care and maintenance

Only clean using a damp cloth and mild detergent, do no use bleach or abrasive cleaners.

From time to time check that there are no loose screws on this unit.

This product should not be discarded with household waste. Take to your local authority waste disposal centre.

Cleaning and care of high gloss surfaces

Regular dusting with a dry cloth will keep your units clean.

Clean marks with a damp cloth.

Do not allow spillages to stay on the surface for long.

To remove stubborn stains, wipe over with a damp cloth and washing up liquid.

Do not use abrasive cleaners.

Do not clean with products containing the following: Acetone,

(e.g nail varnish remover). Ammonia (e.g. bleach). or Sodium hydroxide (e.g. Caustic soda, drain and oven cleaners).

In the event of accidental contact with aggressive cleaners, rinse thoroughly with water.

Use place mats to protect the surface from moisture and heat.

Maximum weight limit

Important: Recommended maximum load for each shelf is shown below.

Max. 10kg Max. 10kg Max. 10kg Max. 15kg Max. 10kg Max. 10kg Max. 15kg Max. 10kg Max. 15kg

General information

If for any reason you should have problems with your Habitat product, please contact the store from which you purchased it.

Please retain your receipt as proof of purchase

ne

If you have any comments or suggestions

regarding this product, assembly instruction

or service

Head Office via its web site:

www.habitat.co.uk

or write directly to: Habitat Retail Ltd. 489-499

Avebury Boulevard,

Milton Keynes MK9 2NW

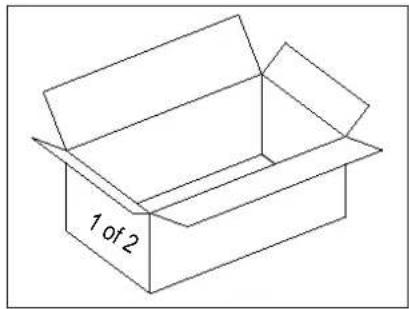

Please check you have all the panels listed below

BC Note: There are 'Batch Code' lables where shown on the indicated items, these should be retained.

1 of 2

2 of 2

Details :

B, C, D, F, H,

I, J, L, M, N, P

A E G K B D M N C O K F M P J L L H I H BC

Details :

A, G, E, K, O

Please check you have all the panels listed below

Fittings

Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings may be supplied than are required.

Ruler - To help correctly identify the fixings

0 10 20 30 40 50 60 70 80 90,100 1,10 120

10.25 10.35 10.45 10.55 10.65 10.75

Fittings pack in PK 1.2

A1Wooden dowels x 72	A2Screws x 32	A3Connector x 32
A4Connector covers x 16	A5 A6Hex key x 2 (3mm,7mm)	A6Screws x 4

Assembly Instructions

Step 1

A1x4 J Kx2 A1x4 O A1x4 N Mx2 Lx2 A1x4 P A1x4 I A1x12

Assembly Instructions

Step2

A2 A2×4 A1×2 A1×2 B D A2×6 A1×4 G A2×4 F A1×2 A2×4 Hx2 E A1×2 A1×2 A2×2 A1×4

Assembly Instructions

Step 3

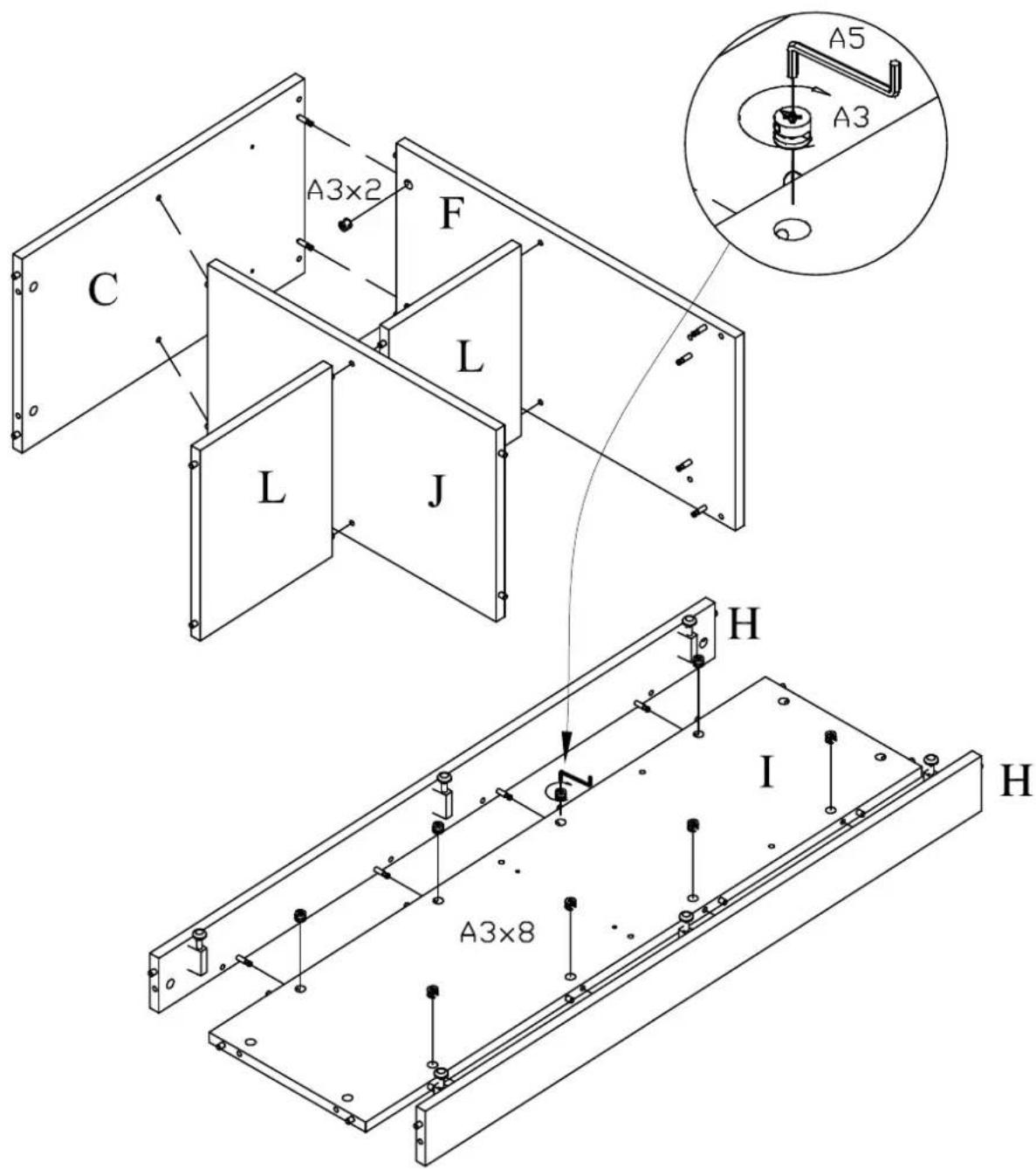

A3x2 C F L L J H I A3x8 A5 A3

Assembly Instructions

Step 4

A3 x6 A2 x4 A6 x2

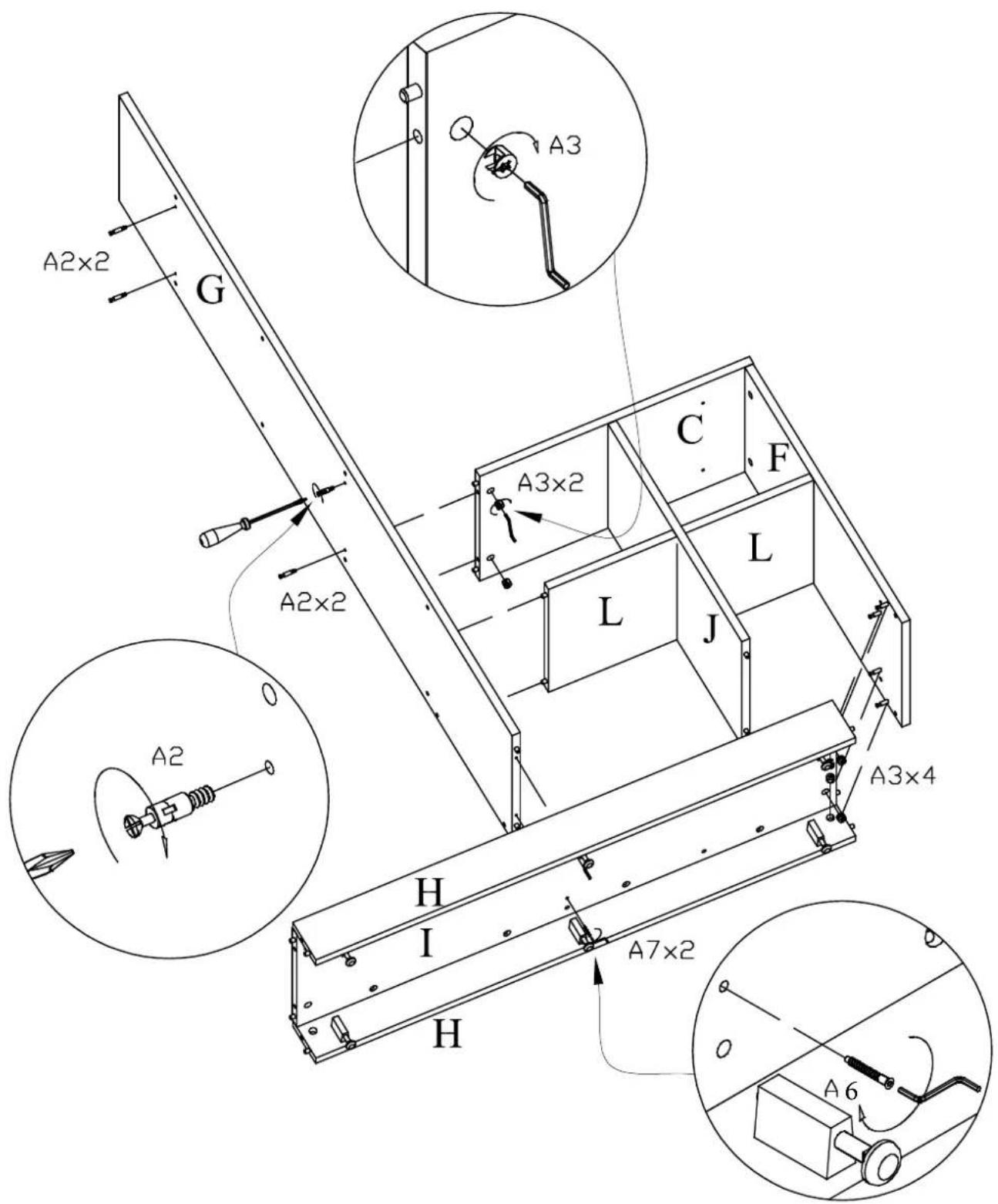

A2x2 G A2x2 A3 A3x2 C F L J H I A7x2 H A3x4 A6

Assembly Instructions

Step 5

B G A3×4 D M A3×4 N M I A3×4 A3

Assembly Instructions

Step 6

A 6x2 A6

Assembly Instructions

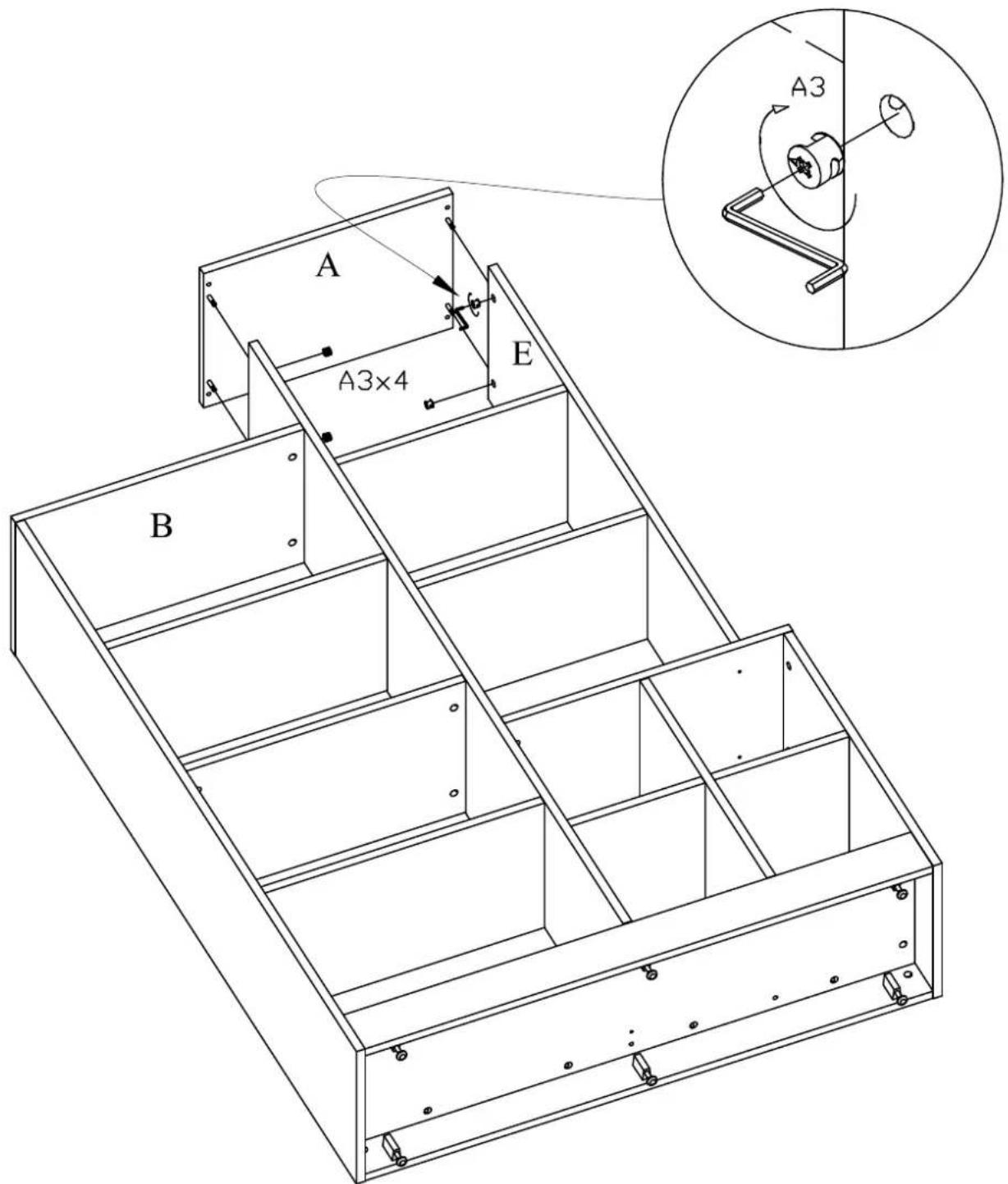

Step 7

A A3×4 E B A3

Assembly Instructions

Step 8

A4×4 A4×4 A4×4 A4×4 A4×4

Assembly Instructions

Step 9

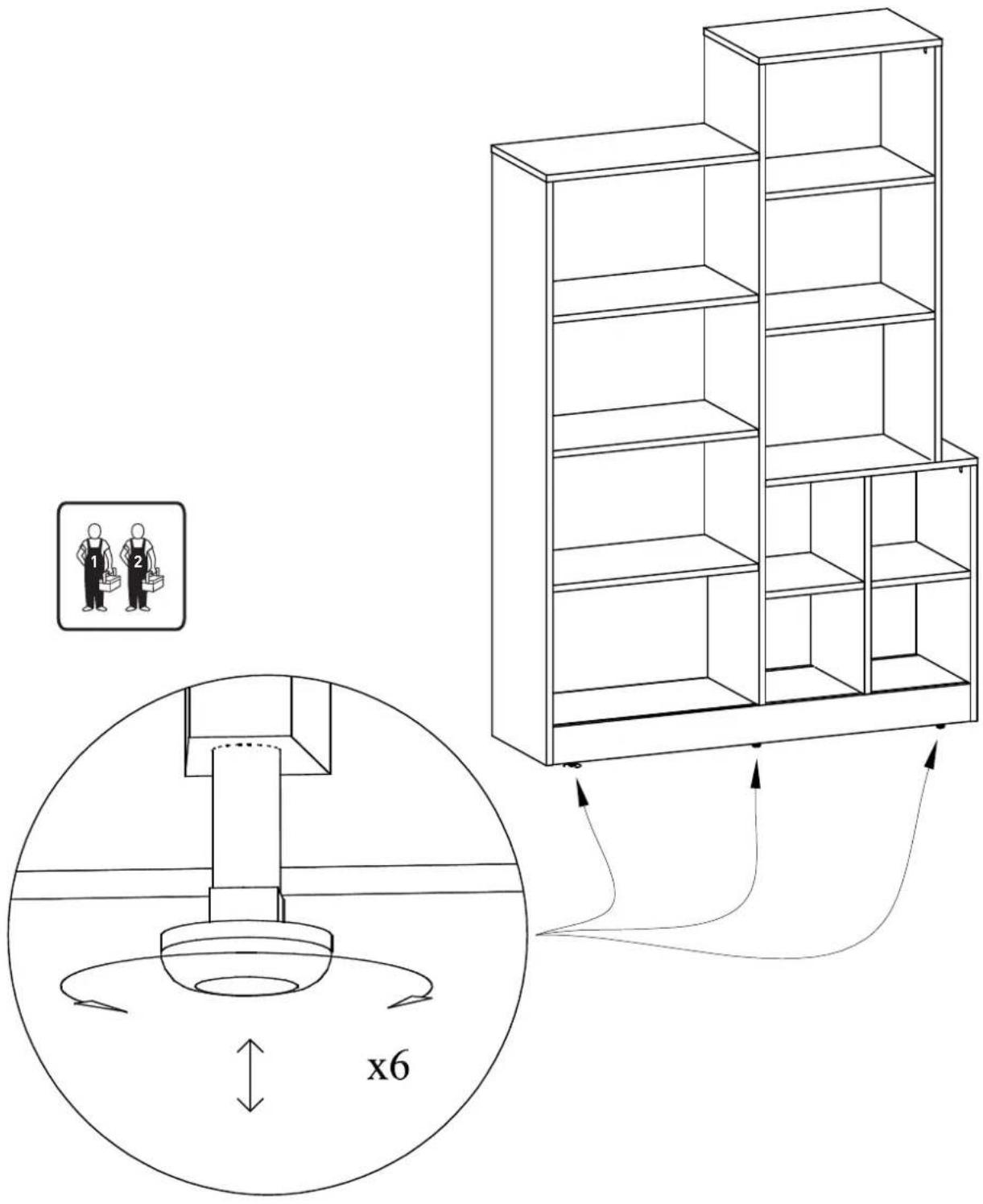

Technical diagram showing a multi-level shelving unit with a circular inset illustrating the mechanical setup with rotational motion and dimension annotation.

Assembly Instructions

Step10

Diagram showing a two-tiered shelving unit with a magnified inset illustrating the structural components of a cabinet, labeled with parts 1 and 2.

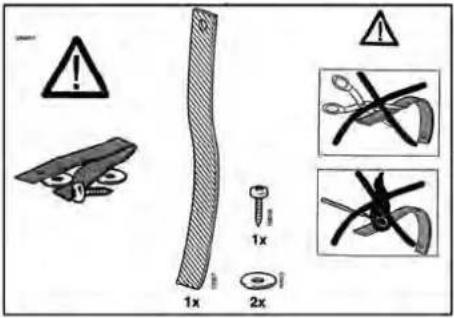

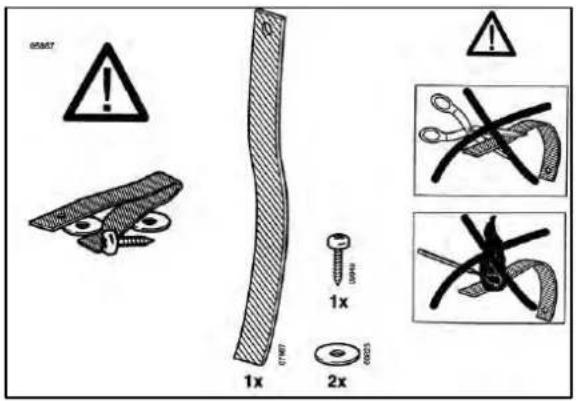

A Guide to - Wall Mounting & Fixings

Important note:

Wall Fixings:

- because of the variety of different wall types, Habitat cannot provide you with the exact fixings you will need to fix this product to the wall.

You must first identify the type of wall you intend to fix product onto and then contact your local hardware store to get the appropriate fixings.

Important: When drilling into walls always check that there are no hidden wires or pipes etc.

Make sure that the screws and wall plugs being used are suitable for supporting your unit. Consult a qualified tradesperson if you are unsure.

Hints:

1: General rule: ⚠️ Always use a larger screw and wall plug if you are not sure.
2: Ensure you use the recommended drill bit to match the wall plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic tiles. Ensure wall plugs are inserted beyond the thickness of the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well fitted and are a tight fit in the drilled hole.

Types of walls

You can use one of the following types of wall plug if your walls are made of brick, breeze block, concrete, stone or wood.

No.1 "General Purpose" wall plug

Diagram of a screw being inserted into a die, showing internal threading and surface texture (no text or symbols)

Generally aerated blocks should not be used to support heavy loads, use a specialist fitting in this case. For light loads, general purpose wall plugs can be used.

No.3 "Cavity Fixing" wall plug

Technical diagram of a screw fastener assembly with a pin inserted, showing internal threading and fastener tip (no text or labels)

For use with plasterboard partitions or hollow wooden doors.

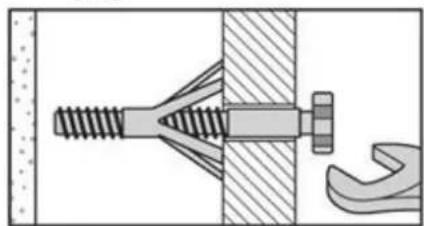

No.5 "Hammer Fixing" wall plug

Diagram showing a tool interacting with a mechanical component, no text or symbols present

For use with walls stuck with plasterboard. The hammer fixing allows it to be fixed to the wall rather than the plasterboard. Always check the fixing is secure to the retaining wall.

No.2 "Plasterboard" wall plug

Diagram of a screw fastener with a pin inserted, showing internal components and a cross-section (no text or labels)

For use when attaching light loads on to plasterboard partitions.

No.4 "Cavity Fixing-Heavy Duty" wall plug

Technical diagram of a mechanical assembly with threaded fastener and clamped component (no text or labels)

For use when fitting or supporting heavy loads such as shelving, wall cabinets and coat racks.

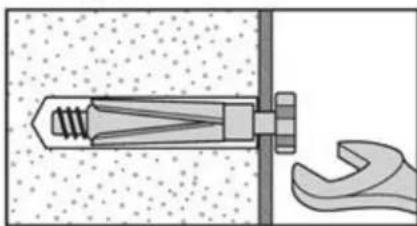

No.6 "Shield Anchor" wall plug Heavy loads

Diagram of a screwdriver inserted into a wall with a wrench, showing mechanical components (no text or symbols)

For use with heavier loads such as TV & HiFi speakers and satellite dishes etc.

Care & Maintenance

Safety: Always check the fitting and location to ensure your safety in and around the home.

Fitting: From time to time check the fitting to ensure the wall plugs or screws do not become loose.
