Bumble - Wardrobe Habitat - Free user manual and instructions

Product Type	Wardrobe
Brand	Habitat
Model	Bumble
Dimensions (H x W x D)	180 cm x 80 cm x 50 cm (approx.)
Weight	30 kg (approx.)
Material	Engineered wood with melamine finish
Color	White (or as per variant)
Number of Doors	2 sliding doors
Internal Shelves	2 adjustable shelves
Hanging Rods	1 hanging rod
Assembly Required	Yes
Assembly Time	Approximately 1-2 hours with two people
Tools Included	Hex key, screws, and dowels
Maximum Load per Shelf	15 kg
Maximum Load per Rod	10 kg
Safety Features	Wall attachment kit included for tip-over prevention
Care Instructions	Wipe clean with a damp cloth; avoid abrasive cleaners
Warranty	2 years against manufacturing defects
Spare Parts Availability	Contact Habitat customer service
Repairability Index	7/10 (modular design, common parts)
Intended Use	Bedroom storage

Frequently Asked Questions - Bumble Habitat

What are the dimensions of the Bumble wardrobe?

The approximate dimensions are 180 cm height, 80 cm width, and 50 cm depth. Please verify the exact dimensions in the product manual.

Is assembly required?

Yes, the wardrobe requires assembly. It is recommended to have two people and allow 1-2 hours. The necessary tools and instructions are included.

What is the maximum weight capacity per shelf?

Each shelf can hold up to 15 kg when evenly distributed. Avoid overloading to prevent damage.

How do I clean the wardrobe?

Wipe the surfaces with a soft damp cloth and mild detergent. Do not use abrasive cleaners or excessive water.

Does it come with a warranty?

Yes, Habitat offers a 2-year warranty against manufacturing defects. Retain your receipt.

Can I purchase replacement parts?

Contact Habitat customer service for spare parts. Provide your model and purchase details.

Is the wardrobe safe for children's rooms?

Yes, the wardrobe includes a wall attachment kit to prevent tipping. Always secure it to the wall.

What material is the wardrobe made of?

It is made of engineered wood with a melamine finish, which is durable and easy to clean.

How many shelves and hanging rods does it have?

The wardrobe features 2 adjustable shelves and 1 hanging rod for organizing clothes.

Can I paint the wardrobe?

Painting is not recommended as it may damage the melamine finish. If desired, use a suitable primer and paint for engineered wood.

USER MANUAL Bumble Habitat

Assembly Instructions - Please keep for future reference

BUMB-WD-AW17-A

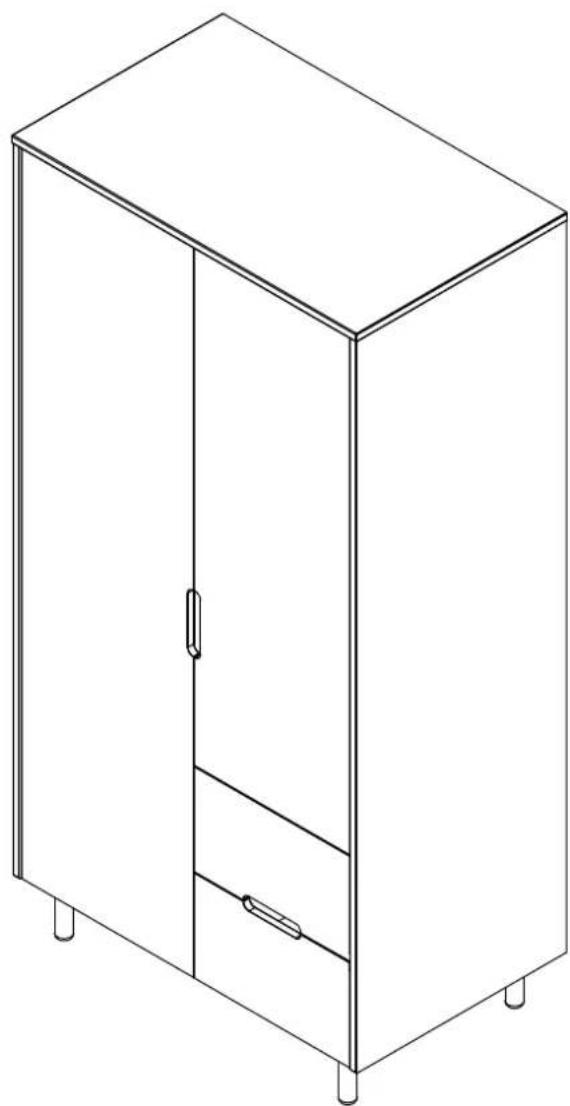

Dimensions

Width - 90cm

Depth - 55cm

Height- 180cm

Line drawing of a simple cabinet with two doors and a side drawer (no text or symbols)

Tools required

Technical line drawing of a mechanical component (no text or symbols)

Important – Please read these instructions before assembly

If you need help or have damaged or missing parts, email:

[e-mail] or call: 0344 499 4686

habitat

Safety and Care Advice

Important – Please read these instructions fully before starting assembly

• Check you have all the components and tools listed on the front cover and pages 2-3.
• Remove all fittings from the plastic bags and separate them into their groups.
• Keep children and animals away from the work area, small parts could choke if swallowed.

• Make sure you have enough space to lay out the parts before starting.

• Do not stand or put weight on the product, this could cause damage.

• Assemble the item as close to its final position ( in the same room) if possible.
• Do not place furniture directly in front of radiators, fires or any other source of heat.

- Parts of the assembly will be easier with 2 people.

- Assemble on soft level surface to avoid damaging the unit or your floor.

• We do not recommend the use of power drills / drivers for inserting screws, as this could damage the unit. Only use hand screwdrivers.

- Dispose of all packing carefully and responsibly.

General care and maintenance

• Take care when moving furniture - dragging pieces across the floor will damage the joints.
- Avoid exposing your furniture to direct and prolonged periods of sunlight and heat sources as fading and cracking may occur.

• Take care to prevent sharp objects e.g. toys, buckles and heels from coming into contact with your furniture, and avoid contact with chemicals e.g. cosmetics or hairs products which may permanently mark the surface.
- From time to time check that all the fittings are tight on this piece of furniture.

• Do not open multiple drawers at once as this could destabilise the unit.
• Do not over load drawers-5kg max each.

max 10kg max 10kg

Cleaning and care of lacquered wood

• Dust regularly with a clean dry cloth.

• Wipe up any spills immediately with a damp cloth and then dry the surface with a clean dry duster.

• Repeat this procedure for periodic cleaning.

• Remove stubborn stains with a weak washing up liquid solution and a damp cloth and dry after with a clean cloth.

• The use of furniture polishes or sprays is not necessary or recommended.

• Never use abrasive or corrosive cleaning agents.

General information

- If for any reason you should have problems with your Habitat product, please contact the store from which you purchased it.

- Please retain your receipt as proof of purchase. If you have any comments or suggestions regarding this product, assembly instructions or service received, please contact the store or Habitat Head Office via its web site: www.habitat.co.uk

or write directly to: Habitat Retail Ltd. 489-499 Avebury Boulevard, Milton Keynes MK9 2NW

Please check you have all the panels listed below

Isometric view of a rectangular metal plate with visible edges and holes (no text or symbols)

1 Top panel x 1

Isometric line drawing of a rectangular frame with four vertical posts and horizontal supports (no text or symbols)

2 Bottom panel+ legs x 1

3 Drawer front upper x 1

4 Drawer front lower x 1

Simple line drawing of a rectangular metal plate with mounting holes (no text or symbols)

5 Back clamp x 1

6 Drawer base x 2

7 Left drawer side x 2

8 Right drawer side x 2

Isometric line drawing of a rectangular plate with mounting holes and a central hole (no text or symbols)

9 Horizontal fix panel x 1

Isometric line drawing of a rectangular plate with two parallel black strips (no text or symbols)

10 Vertical fix panel x 1

11 Drawer back x 2

Please check you have all the panels listed below

Simple 3D line drawing of a rectangular plate with mounting holes and small dots, no text or symbols present.

14 Left side panel x 1

Isometric line drawing of a rectangular plate with internal cutouts and mounting holes (no text or symbols)

15 Right side panel x 1

Pure geometric diagram of a parallelogram with internal diagonal lines and tick marks (no text or symbols)

16 Back panel L+R

Isometric line drawing of a rectangular plate with four corner holes (no text or symbols)

17 Left door x 1

Isometric line drawing of a rectangular plate with two corner holes (no text or symbols)

18 Right door x 1

Components - Fittings

If you have damaged or missing components, call the Customer Helpline: 0344 499 4686

Please check you have all the fittings listed below

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.

Fittings contained in pack 1 of 2

Ruler - To help correctly identify the fittings

0 1 2 3 4 5 6 7 8 9 10 11 12 n

A 15mm Screw x 8	B 8/30mm Wooden dowel x 26	C 6/30mm Wooden dowel x 8
D 20mm Screw x 27	E Metal dowels x 33	F Door hinge x 5
G Large locking cams x 25	H Small locking cams x 8	I Hinge plates x 5
J 40mm Confirmat x 8	K Door stop x 1	L Felt pads x 6
M Hanger rail support x 2	N Hang	O Wall connector x 2
P Drawer base support x 4	R Allan key x1

Assembly Instructions

Step 1

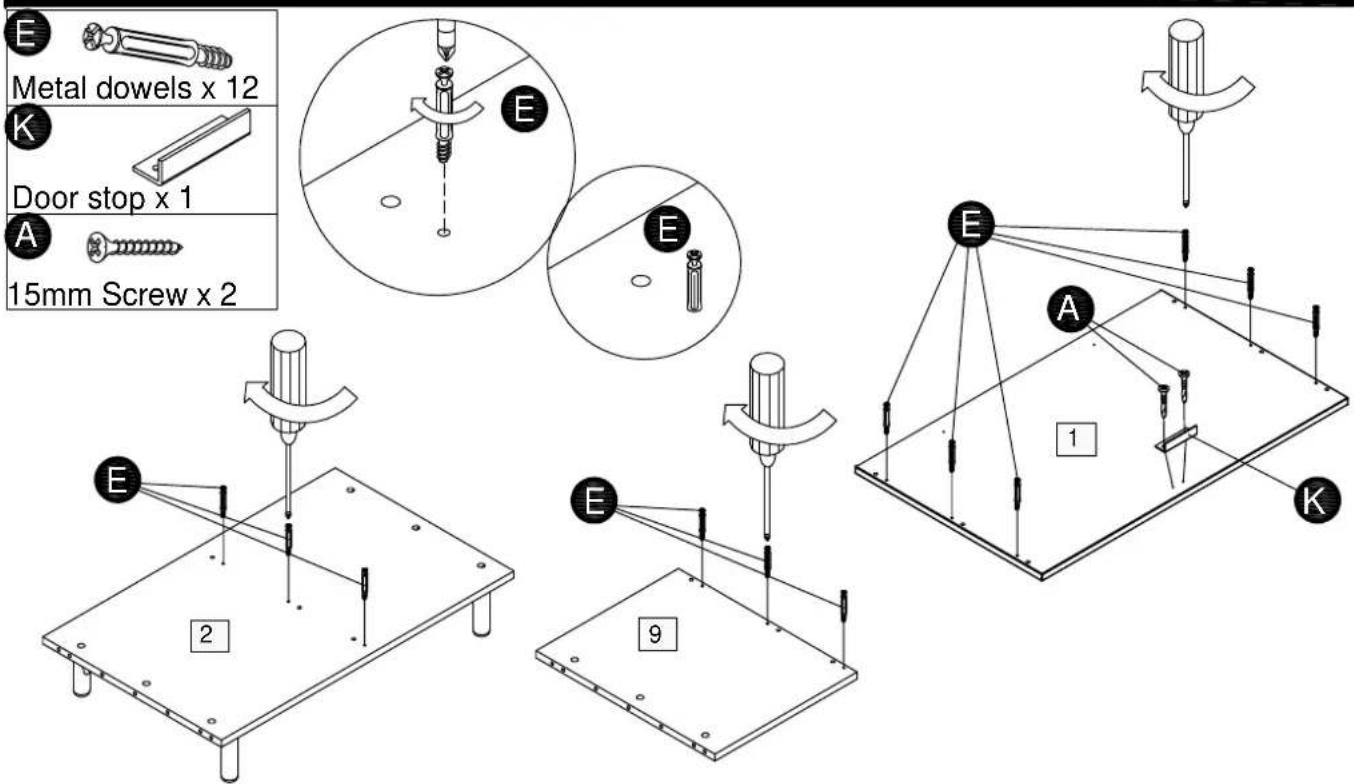

Metal dowels x 12 Door stop x 1 15mm Screw x 2 E E E A 1 K E E 9 2 9

Step 2

B 8/30mm Wooden dowel x 6 G Large locking cam x 6 9 10 2 G G 11 mm B

Assembly Instructions

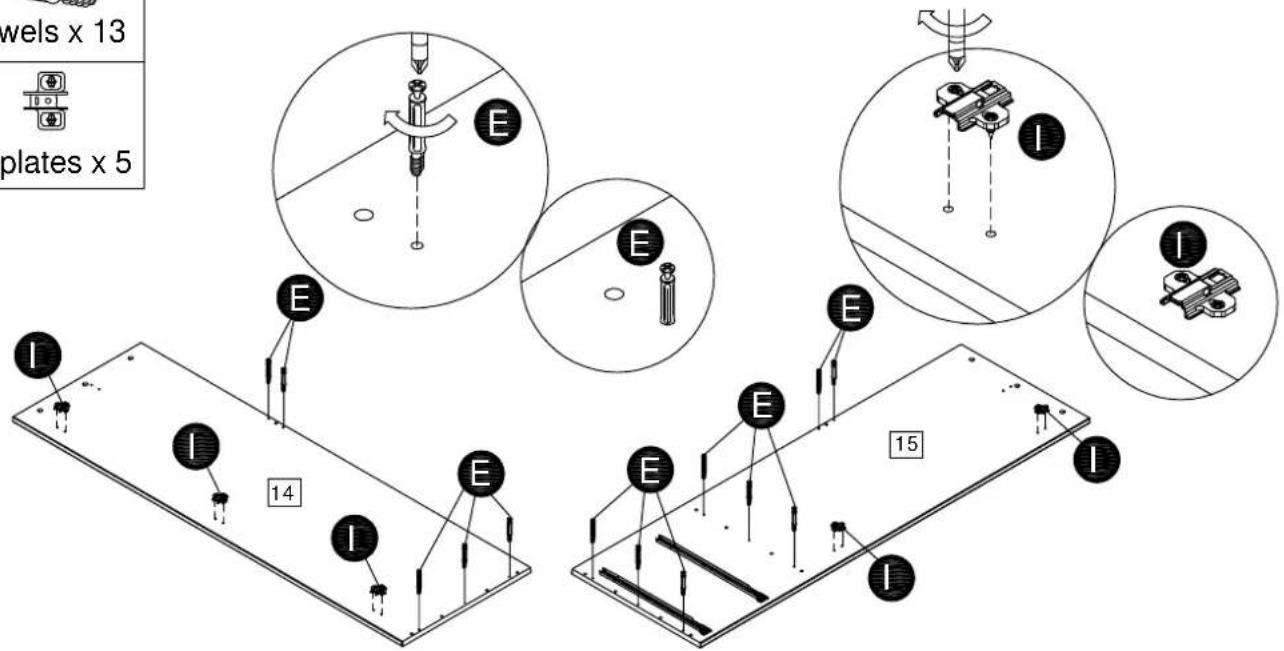

Step 3

E Metal dowels x 13 I Hinge plates x 5

wels x 13 plates x 5 E E E E E 14 15 I I I

Step 4

B 8/30mm Wooden dowel x 14 G Large locking cam x 13

3/30mm Wooden dowel x 14

B 11 mm B

Diagram showing mechanical components with labeled parts and directional arrows, including a G symbol at the bottom.

n x 13 G 15 5 G 9 10 2 G 14 B

Assembly Instructions

Step 5

B

8/30mm Wooden dowel x 6

G

Large locking cam x 6

n dowel x 6 m x 6 15 14 G 1 G B 11 mm F F 2 P.L. F

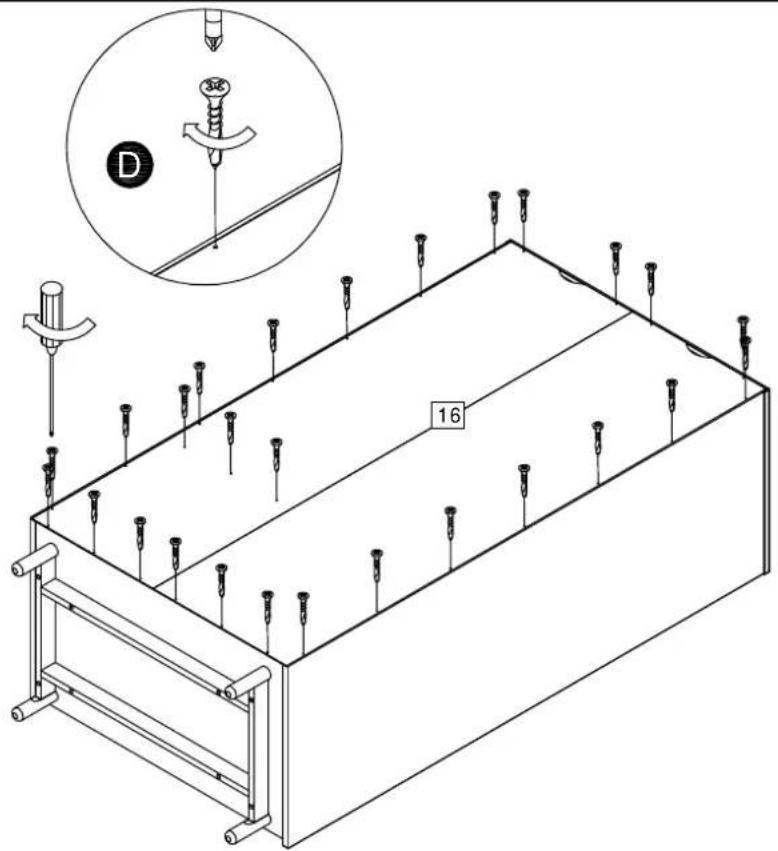

Step 6

D

20mm Screw x 27

Technical diagram of a mechanical assembly with labeled parts and a magnified inset showing a screwdriver inserted into a component.

Assembly Instructions

Step 7

Felt pads x 4

Please note - 2 extra felt pads are supplied for leveling unit up on uneven floors.

Assembly Instructions

Step 8

15mm Screw x 2

Wall connector x 2

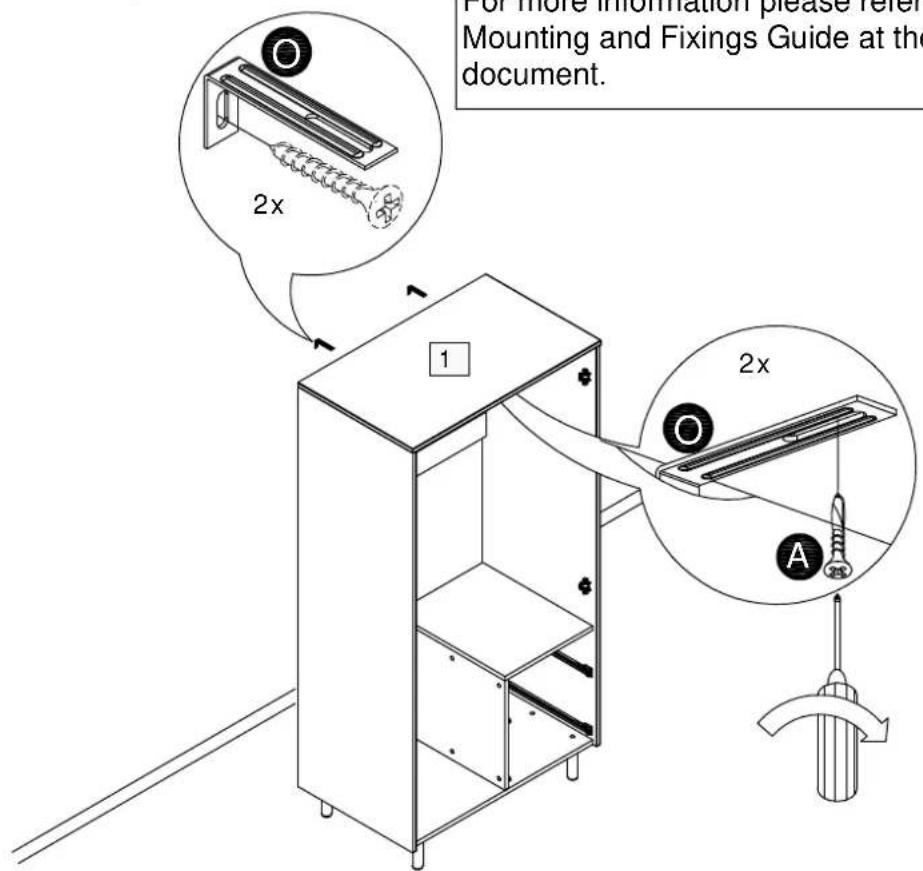

2x 16

WARNING!

In order to prevent overturning this product must be used with the wall attachment device provided.

Serious or fatal crushing injuries can occur from furniture tipping over. To help prevent topple over :-

• Use the wall attachment devices provided
• Never allow children to climb or hang on drawers
• Do not overload the drawer beyond maximum recommended loading of 5kg
• Unless specifically designed to accommodate, do not set TV's or other heavy objects on top of this product

2 wall brackets are provided with your product, however you will need to source suitable fixings for your wall type. If in doubt consult a qualified trades person.

Always ensure that the wall to be drilled into is free from hidden electrical wires, water and gas pipes.

For more information please refer to the Wall Mounting and Fixings Guide at the end of this document.

For more information please refer Mounting and Fixings Guide at the document. 2x 1 2x A

Assembly Instructions

Step 9

M

Hanger rail support x 2

N

Hanger rail x 1

14 15 N M

Step 10

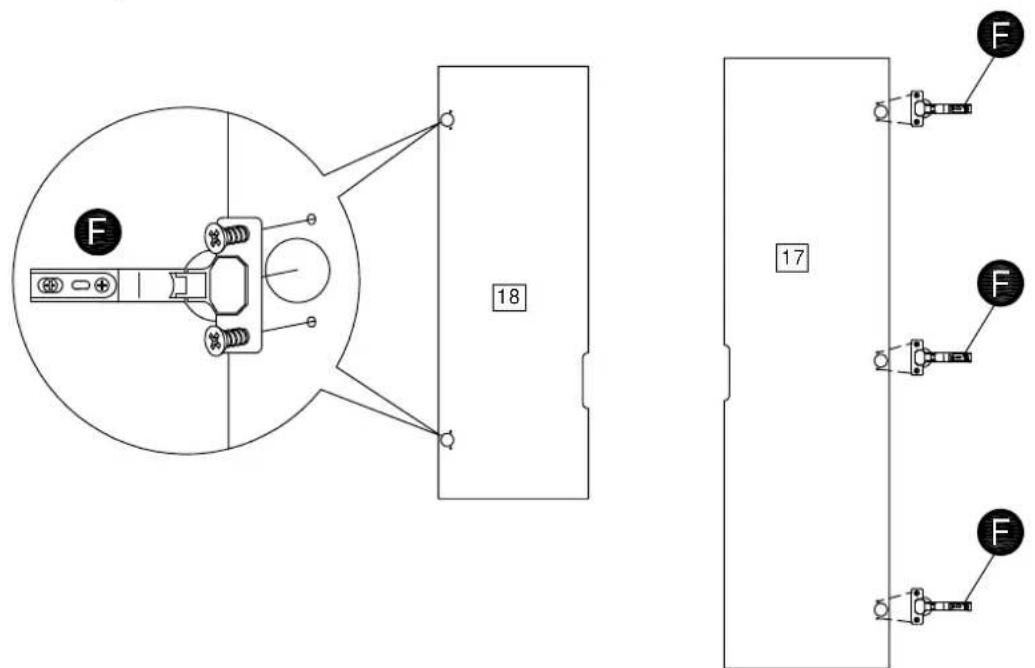

F

Door hinge x 5

F 18 17 F F F

Assembly Instructions

Step 11

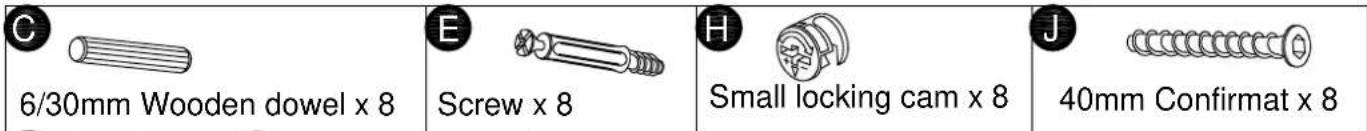

C 6/30mm Wooden dowel x 8 E Screw x 8 H Small locking cam x 8 J 40mm Confirmat x 8

P Drawer base support x 4 R Allan key x1

a:

Technical line drawing of a mechanical assembly with four cylindrical components and a base plate (no text or symbols)

Isometric line drawing of a mechanical assembly with four cylindrical pins and a base plate, labeled with number 4 (no text or symbols on the diagram itself)

Simple line drawing of a screw with a circular base and a labeled point E (no text or symbols beyond the label)

b:

Isometric line drawing of a rectangular electronic component with two terminals and a labeled section '7' (no text or symbols beyond the number)

Isometric line drawing of a rectangular electronic component with mounting holes and a numbered label (8) on the side, no text or symbols present.

Simple line drawing of a mechanical component inside a circle, no text or symbols present

C:

7 8 11 J J R

Assembly Instructions

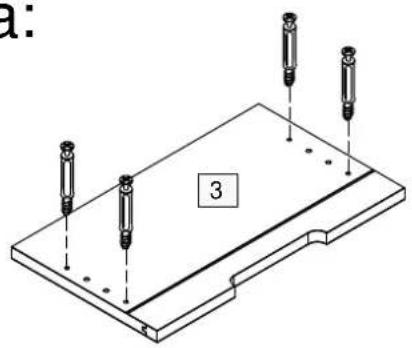

Step 11 continued

d:
2x

6 7 8 11

e: 3 6 7 8 11

4 6 7 8 11

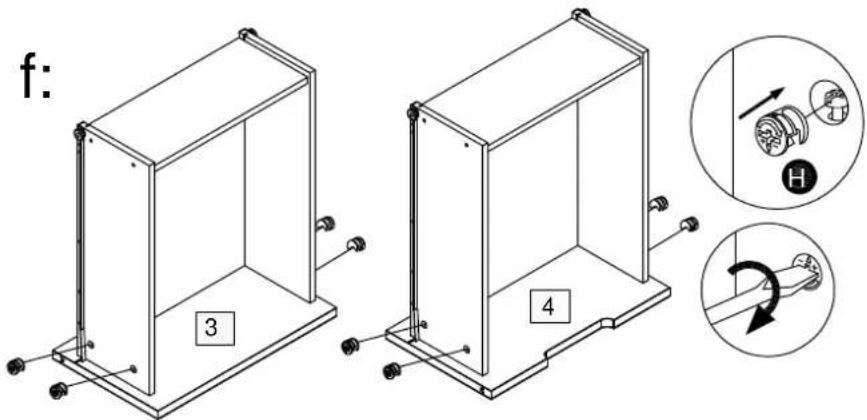

f: 3 4

g:

Technical line drawing of a rectangular frame with labeled point P and number 4 (no text or symbols beyond labels)

Technical line drawing of a mechanical device with labeled component 'P' and number '3' (no text or symbols beyond labels)

P

Assembly Instructions

Step 11 continued

Line drawing of a cabinet with an open drawer and a numbered arrow indicating rotation (no text or symbols)

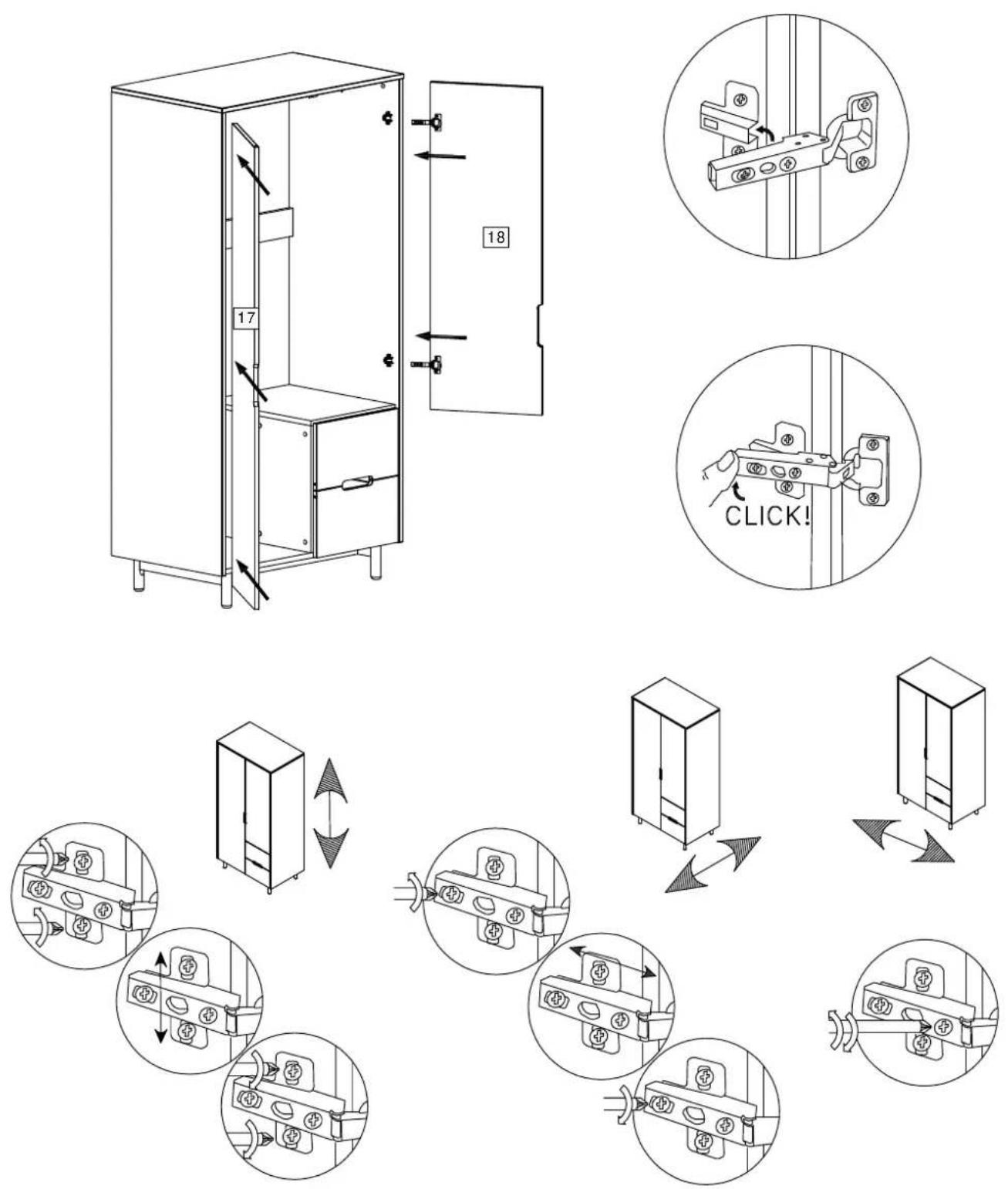

Step 12

15mm Screw x 4

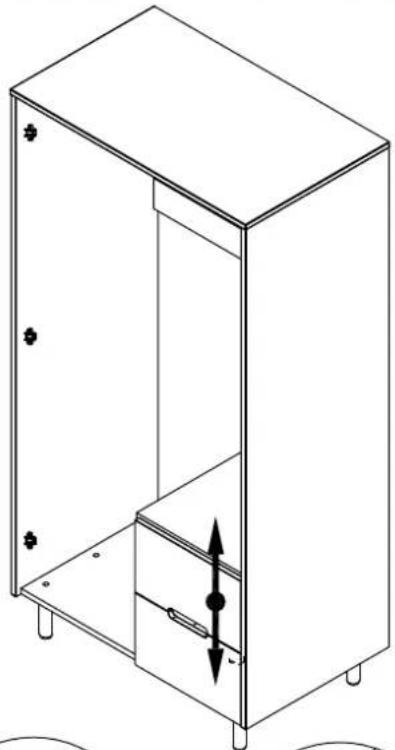

Drawer Height Adjustment

Isometric line drawing of a cabinet with internal components and directional arrows (no text or symbols)

a:

5 mm

b:

Technical diagram of a mechanical component with a circular cross-section and dimension lines (no text or symbols)

C:

Technical diagram of a mechanical linkage or bracket assembly with a circular motion arrow (no text or symbols)

d:

A

Assembly Instructions

Step 13

A Guide to - Wall Mounting & Fixings

Important note:

Wall Fixings:

- because of the variety of different wall types, Habitat cannot provide you with the exact fixings you will need to fix this product to the wall.

You must first identify the type of wall you intend to fix product onto and then contact your local hardware store to get the appropriate fixings.

Important: When drilling into walls always check that there are no hidden wires or pipes etc.

Make sure that the screws and wall plugs being used are suitable for supporting your unit. Consult a qualified tradesperson if you are unsure.

Hints:

1: General rule: ⚠️ Always use a larger screw and wall plug if you are not sure.
2: Ensure you use the recommended drill bit to match the wall plug and hole size.
3: Ensure you drill the hole horizontally, do not force the drill or enlarge the hole.
4: Take extra care when drilling high walls, ceilings and ceramic tiles. Ensure wall plugs are inserted beyond the thickness of the ceramic tiles to avoid the tiles splitting or cracking.
5: Ensure wall plugs are well fitted and are a tight fit in the drilled hole.

Types of walls

You can use one of the following types of wall plug if your walls are made of brick, breeze block, concrete, stone or wood.

No.1 "General Purpose" wall plug

Diagram showing a screw being inserted into a granular material, with no visible text or symbols.

Generally aerated blocks should not be used to support heavy loads, use a specialist fitting in this case. For light loads, general purpose wall plugs can be used.

No.3 "Cavity Fixing" wall plug

Technical diagram showing a screw fastening process with a pin inserted into a slot (no text or labels)

For use with plasterboard partitions or hollow wooden doors.

No.5 "Hammer Fixing" wall plug

Diagram showing a tool interacting with a surface, no text or symbols present

For use with walls stuck with plasterboard. The hammer fixing allows it to be fixed to the wall rather than the plasterboard. Always check the fixing is secure to the retaining wall.

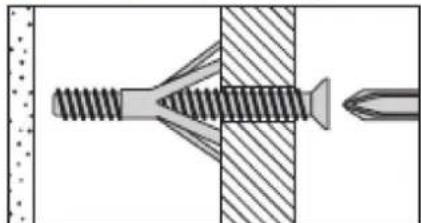

No.2 "Plasterboard" wall plug

Technical diagram showing a screw fastening tool interacting with a pin, enclosed in a hatched material (no text or symbols present)

For use when attaching light loads on to plasterboard partitions.

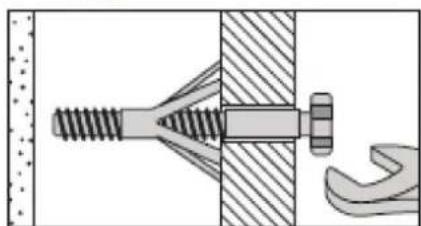

No.4 "Cavity Fixing-Heavy Duty" wall plug

Technical illustration of a mechanical fastener assembly with threaded spring and fastener (no text or symbols)

For use when fitting or supporting heavy loads such as shelving, wall cabinets and coat racks.

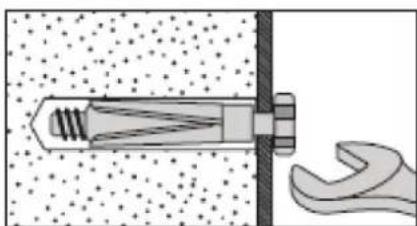

No.6 "Shield Anchor" wall plug Heavy loads

Diagram showing a screw being inserted into a socket with a wrench, no text or symbols present

For use with heavier loads such as TV & HiFi speakers and satellite dishes etc.

Care & Maintenance

Safety: Always check the fitting and location to ensure your safety in and around the home.

Fitting: From time to time check the fitting to ensure the wall plugs or screws do not become loose.
