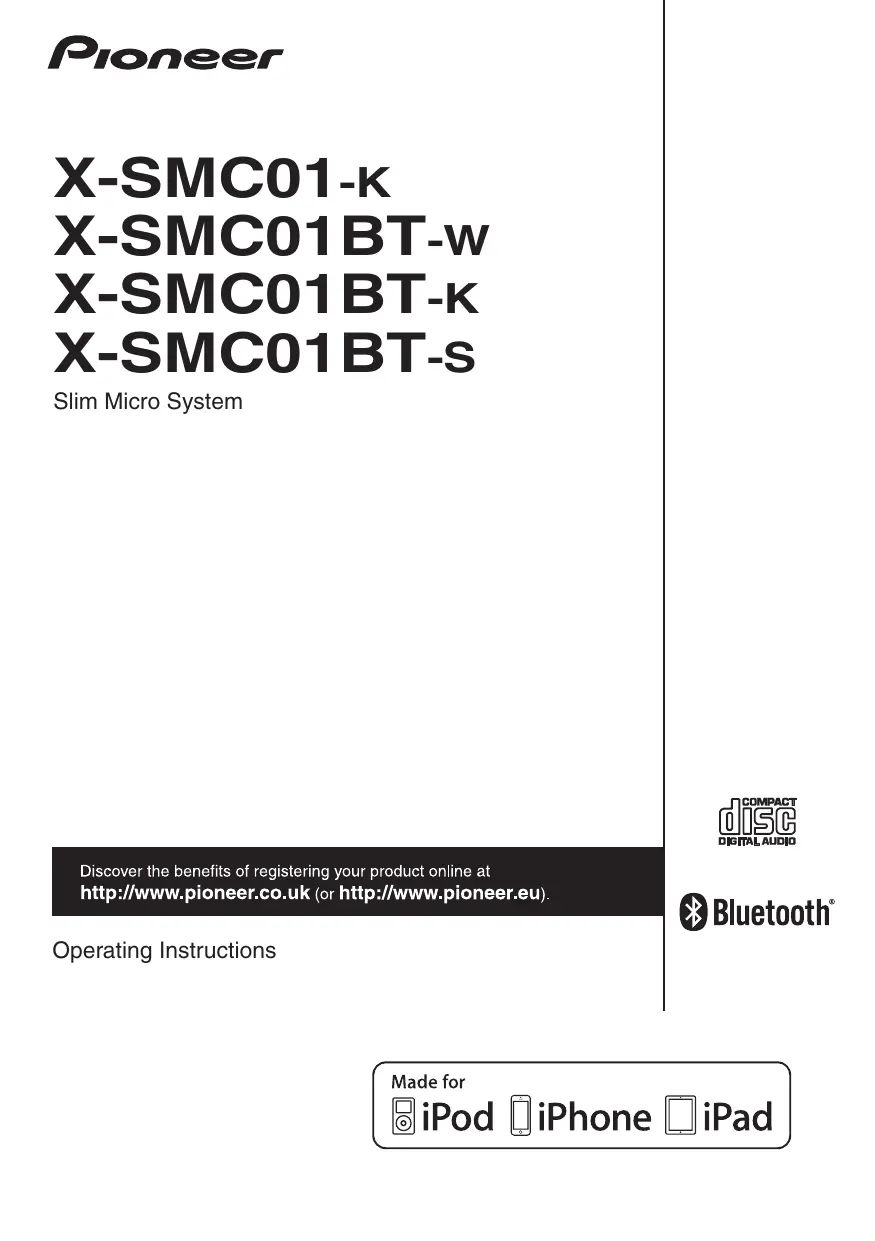

Proneer X-SMCO1-Kk X-SMCO1BT-w X-SMCO1BT-K X-SMCO1BT-s Slim Micro System DISMAL AUDIO Discover the benefits of registering your product online at http://www.pioneer.co.uk (or http://www.pioneer.eu) @ Bluetooth Operating Instructions E iPod [iPhone [liPad

SERVICE PERSONNEL. WARNING This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture D34241-1 81. En 034243 A1 En WARNING To prevent à fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment D34247a AE WARNING Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths. curtains) or by operating the equipment on thick carpet or a bed D342470+ At En Operating Environment Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 RH {cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight {or strong artificial light). DSa24er Ra En When using this product, confirm the safety information shown on the bottom of the unit and the AC adapter label 0342-24 81 en This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in à restaurant or use in à car or ship) and which requires repair will be charged for even during the warranty period Koët AEn CAUTION The OSTANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation). D342228 A En CAUTION This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007.

CLASS 1 LASER PRODUCT

58-228 A1 En WARNING Store small parts out of the reach of children and infants. f accidentally swallowed, contact a doctor immediately. DAS. AN En Store the AC adapter out of the reach of children and infants. The AC adapter cord may accidentally wind around the neck and it may cause suffocation.

Information for users on collection and disposal of old equipment and used batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national Symbol for ) equipment general household waste. legislation.

By disposing of these products and batteries correctly, you will help to save valuable (Sms! Sxamples) for batteries

resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipaliy, your waste disposal service or the point of sale where you purchased the items. These symbols are only valid in the European Union. For countries outside the European Union: If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal. KOSta_ A En AC adapter caution + Make sure to grasp the body of the AC adapter when removing it from the power outlet. I you pull the power cord, it may become damaged which could lead to fire and/or electrocution. Do not attempt to plug in or remove the AC adapter with wet hands. This may result in electrocution Insert the prongs of the AC adapter all the way into the power outlet. Ifthe connection is incomplete, heat may be generated which could lead to fire. Furthermore, contact with the connected prongs ofthe adapter may result in electrocution. Do not insert the AC adapter into a power outlet where the connection remains loose despite inserting the prongs all the way into the outlet Heat may be generated which could lead to fire. Consult with the retailer or an electrician regarding replacement of the power outlet. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cards, The power cords should be routed such that they are not likely to be stepped on. À damaged AC adapter and power cord can cause a fire or give you an electrical shock. Check the AC adapter and the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement. Radio wave caution This unit uses a 2.4 GHz radio wave frequency, which is a band used by other wireless systems (Microwave ovens and Cordless phones, etc. In this event noise appears in your television image, there is the possibility this unit (including products supported by this unit) is causing signal interference with the antenna input connector of your television, video, satellite tuner, ete. In this event, increase the distance between the antenna input connector and this unit (including products supported by this unit). Pioneer is not responsible for any malfunction of the compatible Pioneer product due to communication error/malfunctions associated with your network connection and/or your connected equipment. Please contact your Internet service provider or network device manufacturer. A separate contract with/payment to an Internet service provider is required to use the Internet POWER-CORD CAUTION Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause à short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. À damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement. S002 At En

Thank you for buying this Pioneer product. Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference. Contents 01 Before you start What's in the box Loading the batteries in the remote control Using the remote control When modng the unit 02 Part names and functions Remote control Hang from the wall to use Front panel Top panel/Rear panel 03 Connections Connecting antenna Using external antennas Plugging in 04 Getting started To turn the power on Setting the clock General control Input function Display brightness control Volume auto setting Volume control Muting. Sound controls Equalizer P.BASS control Bass/treble control Setting the wake-up timer Calling the wake-up timer Cancelling the weake-up timer Using the wake-up timer Using the sleep timer Using Headphones 05 iPod/iPhone/iPad playback Confirming what iPod/iPhone/iPad models are supported Connecting iPod/iPhone/iPad using supplied iPad stand Playing iPod/iPhone/iPad 06 Disc playback Playing discs or files Advanced CD or MP3/WMA disc playback Direct track search Repeat play. Random play Programmed play (CD or MP3/WMA) About downloading MP3/WMA About folder playback order Specify the folder to play Switch the display contents 07 USB playback Playing USB storage devices Repeat play.

Random play Specify the folder to play. Switch the display contents Playing in the desired order (Programmed Play) 08 Using the tuner Listening to the radio broadcasts Tuning Saving station presets To recall a memorised station To scan the preset stations. To erase entire preset memory Using the Radio Data System (RDS) An introduction to RDS. Searching for RDS programs. Information provided by RDS Using the Auto Station Program Memory (ASPM). Notes for RDS operation 09 Other connections Connecting auxiliary components 10 Bluetooth® Audio playback (X-SMCO1BT only) Music playback using Bluetooth wireless technology Remote control operation Pairing with the unit (Initial registration) Listen to music on the unit from a Bluetooth capable device BT STANDBY Radio wave caution Scope of operation Radio wave reflections Precautions regarding connections to products supported by this unit 11 Additional information Troubleshooting Playable discs and formats Regarding copy protected CDs Supported audio file formats Cautions on use When moving this unit Place of installation Da not place objects on this unit About condensation Cleaning the product Cleaning the lens: Handling discs Storing Cleaning discs About specially shaped discs About iPod/iPhone/iPad Auto power off setting Restoring all the settings to the defaults Specifications

Before you start What's in the box Please confirm that the following accessories are in the box when you open it. + Remote control + AC adapter + AAA batteries (RO3) x 2 + _FMwire antenna *_iPadstand + Warranty card + Quick start guide + Operating instructions (CD-ROM) Loading the batteries in the remote control 1 Open the rear lid and load the batteries as illustrated below.

The batteries included with the unit have been provided to allow you check product operation and may not last long. We recommend using alkaline batteries that have a longer life À CAUTION + When inserting the batteries, make sure not to damage the springs on the batterÿ's © terminals. This can cause batteries {a leak ar over heat O X Insert the battery by If a battery pushes and aligning the © pole bends the © terminal out against the remote of shape, there is controls © terminal possibilty of the alkaline battery shorting out Do not use any batteries other than the ones specified Also, do not use a new battery together with an old ane. When loading the batteries into the remote control, set them in the proper direction, as indicated by the polarity marks (® and ©) Do not heat batteries, disassemble them, orthrow them into flames or water. Batteries may have different voltages, even ifthey arethe same size and shape. Do not use different types of batteries together. To prevent leakage of battery fluid, remove the batteries if you do not plan to use the remote control for a long period oftime (1 month or mare). the fluid should leak wipe it carefully offthe inside ofthe case, then insert new batteries. fa battery should Ieak and the fluid should get on your skin, flush it off with large quantities of water. When disposing of used batteries, please comply with govemmental regulations or environmental public institution's rules that apply in your country/area. WARNING Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat explode or catch fire. can also reduce the life or performance of batteries.

01) (Before you start

Using the remote contr When moving the unit The remote has a range of about 7 m at an angle of about 30° Do not hold the unit by the electric slide CD door when from the remote sensor. carrying the unit. It could damage the unit Keep in mind the following when using the remote control + Make sure that there are no obstacles between the remote and the remote sensor on the unit Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the units remote sensor. Remote controllers for different devices can interfere with each other, Avoid using remotes for other equipment located close to this unit Replace the batteries when you notice a fall off in the operating range of the remote.

(Part names and functions ) Co2 Chapter Part names and functions 1 Ô STANDBY/ON Remote control Switches the receiver between standby and on (page 12). 2 Input function buttons Use to select the input source ta this receiver (pages 16, 17. 1, 23, 26 and 27) cn USB __ TUNER AUDIOIN 3 Control buttons nt) CLOCK/TIMER a Ro Use for setting the clock, as well as for setting and checking thé SLEEP See Using the sleep timer on page 14. 4 Numeric buttons (0 to 9) © 2 13] Use to enter the number (page 18) STANDEVON OPENCLOSE

imers (page 12) 6 © 66e [G) 5 CLEAR Use to clear the programmed play (page 19). RE & @l0Iere 6 Control buttons DISPLAY Press to change the display for songs playing back from CD or USB (page 20).

1oneer 10. Playback control buttons Use to control each function after you have selected it using the input function buttons (page 17)

_ 02) (Part names and functions 11 Tuner control buttons ST/MONO Use to switch the sound mode between stereo and monaural. (page 23) RDS ASPM Use to search for RDS Auto station program memory (page 24) RDS PTY Use to search for RDS program types (page 24). RDS DISPLAY Press to change the RDS display for information mode (page 24) 12 OPEN/CLOSE Use to open or close the electric slide CD door (page 17) 13 Sound control buttons Adjust the sound quality (page 13) 14 RANDOM Randomize order of track playback from a CD, iPod or USB (page 18) 15 REPEAT Press to change the repeat play setting from a CD, iPod or USB (page 18). 16 Volume control buttons Use to set the listening volume (page 12). 17 DIMMER Dims or brightens the display. The brightness can be controlled in four steps (page 12) Hang from the wall to use When hanging the unit from a wall, firmly screw the wall hanging screws (sold separately) into the wall, and confirm that the wall is capable of holding the unit safely. Hthe materials or strength of the wall cannot support the weight of the unit, then there is the possibility of the unit falling off. 1 Screw the wall hanging screws into the wall, putting them the specified attachment measurement (130 mm) apart. al hanging cree : {commercially available) 2 mm to 3 mm! Lock holes 6 rm to mm Screw head 99 mm to G12 mm crew diameter Dé mm Om T0 mm T BUmm | Suggested screw diameter Attachment measurement for wall hanging screws (Please use sorews that match the wall strength and wall materials) to the lock 2 _ Insert the wall hanging screw holes. 3 Slide to the left to secure in place. (Slide distance is around 10 mm) Note + When attaching the unit to the wall, there is the possibility of it falling depending on how it is attached. Take due care to avoid any accidents. Select à location for the placementinstallation of unit that is sufficientiy strong enough to hold the weight of the unit. K you do not know the strength etc. ofthe wall, then consult with a professional. The company bears no responsibility for accidents or damages caused by inadequate installation/attachment, incorrect use, modifications, natural disasters etc. Place al cables along the wall to prevent anyone from tripping over them. Do not exchange the changeable panel while the unit is hanging from a wall

(Part names and functions Front panel

1 Electric slide CD door 2 Remote sensor Receives the signals from the remote control. 3 Main display 4 Display panel 5 POWER ON indicator When the power is on, this indicator lights. 6 TIMER ator Lit when the unit power is off but when the timer setting is activated.

7 Speaker 8 USB terminal Use to connect your USB mass storage device or Apple iPod/ iPhone/iPad as an audio source (pages 15 and 21) 9 AUDIO IN socket Use to connect an auxiliary component using a stereo minijack cable (page 26) 10 Headphone socket Use to connect headphones. When the headphones are connected, there is no sound output from the speakers (page 14)

_ 02) (Part names and functions Top panel/Rear panel

X-SMCOIBT 1 © STANDBY/ON button Switches the receiver between standby and on (page 12). 2 INPUT button Selects the input source 3 EQ button (X-SMCO1) Used when switching sound mode (page 13). BT AUDIO button (X-SMCO1BT) Used when playing back music from a device with Bluetooth functionality (page 27) 4 Playback control buttons Select the desired track or file to be played back. Stop current playback. Stop playback or resume playback from the point Where it was paused. 5 VOLUME -/+ Use ta set the listening volume (page 12) 6 Disc tray open/close button Use ta open or close the electric slide CD door (page 17) 7 DCIN terminal Plug the supplied AC adapter (page 11) 8 FM antenna socket Connect provided FM wire antenna here (page 11)

Connections À CAUTION +_ Be suretotum offthe power and unplug the power cord from the power outlet whenever making or changing connections, + Connectthe power cord after all the connections between devices have been completed Connecting antenna Connect the FM wire antenna as shown below. To improve fgceptian and sound quality. connect external antennas (see Using external antennas below) 1 Connect the FM wire antenna into the FM antenna socket. For best results, extend the FM antenna fully and fix to a wall or door frame. Don't drape loosely or leave Gailed up. Using external antennas To improve FM reception Use a PAL connector (not supplied) to connect an external FM antenna One-teuch PAL connector 75 Q coaxial cable Plugging in À caurIon + Dasnat use any pawer cord other than the one supplied with this unit. Do not use the supplied power cord for any purpose other than that described below. The cord on the AC adaptor is 1.5 m long. Make sure that the body of the AC adaptor is not suspended off the ground during use, as this will place unnecessary force on ©. DC plug. In contact with the | Suspended offthe . k When inserting the AC adapter into a wall socket, make sure thatthere is no gap between the AC adaptor and the wall socket, Such a gap may cause a poor connection, and metal items like coins or paperclips falling into it may cause a short circuit and start a fire O X Front view Sideview Side view (co) Metal objects such as coins and paperclips Connect the AC adaptor into a wall socket. Only connect the AC adapter when all other connections to ihe unit have been compieted. Te AC outlet Power cord

_ 04) Ç Getting started Chapter Getting started To turn the power on Press the © STANDBY/ON to turn the power on. After use: Press the © STANDBY/ON to enter the power stand-by mode. 2 note + In standby mode, if iPo unit turns charge mode. Phone/iPad is connected, the <e> 1 Press © STANDBY/ON to turn the power on. 2 Press CLOCK/TIMER on the remote control. CLOCK" is shown on the main display. 3 Press ENTER. 4 Press 4/=> to set the day, then press ENTER. Setting the clock 5 Press æ/=+ to set the hour, then press ENTER. 6 Press æ/=+ to set the minute, then press ENTER to confirm. 7 Press ENTER. To confirm the time display: Press the CLOCK/TIMER. The time display will appear for about 10 seconds. To readjust the clock: Perform “Setting the clock” from step 1 + When power supply is restored after unit is plugged in again or after a power failure, reset the clock General control nput function When the INPUT on main unit is pressed, the current function will change to different mode. Press the INPUT repeatediy to select desired function. X-SMCO1 co = FM

X-SMCO1BT co > FM > USB/IPOD

Display brightness control Press DIMMER to dims the display brightness, The brightness can be controlled in four st Volume auto setting if you turn off and on the main unit with the volume set to 31 or higher, the volume starts at 30 and sets in to the last set Volume control Press the VOLUME -/+ on the unit or press VOLUME +/- on the remote control to increase or decrease the volume. À CAUTION +_ The sound level at a given volume setting depends on speaker eficiency, location. and various ather factors. le to avoid exposure to high volume levels. Do not turn the volume on to full at switch on. Listen to music at moderate levels, Excessive sound pressure from earphanes and headphones can cause hearing loss. Muting The volume is muted temporarily when pressing the MUTE on the remote control. Press again to restore the volume.

C Getting started Sound controls Equalizer ren the € EQUALIZER is pressed, the current mode setting FLAT Aflat and basic sound.

A powerlul sound that ACTIVE | emphasizes low and high tones A sound that allows the radio or DIALOGUE Vocals to be heard more easily

A sound that can be enjoyed NIGHT atnight even with lower volume. P.BASS control ren the power is first turned on, the unit will enter the P.BASS mode which emphasises the bass frequencies, To cancel the P.BASS mode, press the P.BASS on the remote control. Bass/treble control Press the BASS/TREBLE, then press bass or treble. @ note + The EQUALIZER and P.BASS cannot operate simuttaneously. The most recently selected of these two functions will be the one used. + BASS/TREBLE can 0! te alon( EQUALIZER or P.BASS. When one of the above two functions is selected, the function that is not selected be displayed as follows. 1 When P.BASS setting (ON/OFF) is changed + EQUALIZER : FLAT 2 When EQUALIZER setting is changed

Dem io adjust the Setting the wake-up timer Used to change the existing timer setting, or to set a new timer. 1 Press © STANDBY/ON to turn the power on. 2 Press and hold CLOCK/TIMER. 3 Press 4=/=> to select "ONCE" or “DAILY”, then press ENTER. ONCE - WVor DAILY 4 Press æ/=+ to select "TIMER SET”, then press ENTER. 5 Press æ/=+ to select the timer playback source, then press ENTER.

+ CD, FM. USB/IPOD, BT AUDIO

AUDIO IN can be selected as th: MCO'BT onbÿ) and playback sour 6 Press 4/= to select the timer day, then press ENTER. 7 Press 4/=+ to set the hour, then press ENTER. 8 Press 4/= to set the minute, then press ENTER. + Set the time to finish as in steps 7 and 8 above.

9. Adjust the volume press VOLUME +/-, then

press ENTER. 10 Press © STANDBY/ON to enter the power standby mode. + The TIMER indicator lights up.

_ 04) Ç Getting started Calling the wake-up timer An existing timer setting can be reused 1 Follow steps 1 to 3 in “Setting the wake-up timer”. 2 Press =/= to select "TIMER ON", then press ENTER. Cancelling the wake-up timer Turn off the timer setting. 1 Follow steps 1 to 3 in “Setting the wake-up timer”. 2 Press 4æ/=> to select "TIMER OFF", then press ENTER. Using the wake-up timer 1 Press © STANDBY/ON to turn the power off. 2 Atthe wake-up time, this unit will turn on automatically and play the selected input function. +_Hatthe wake-up time an iPod/iPhone/iPad is not connected ta the unit or a disc is not inserted, the unit will be turned on but will not play back the track Some discs may not be played automatically at the wake- up time. When setting the timer set at least one minute between the start and end time. Using the sleep timer The sleep timer switches off the unit after a specified time so you can fall asieep without worrying about it 1 Press SLEEP repeatedly to select a switch off time. Choose between 10 min, 20 min, 30 min, 60 min, 90 min, 120 min, 160 min, 180 min or OFF. The newly set value displays for 3 seconds, and then the setting is completed. ep timer can be set by pressing SLEEP while the remaining time is displayed. Using Headphones Connect the headphones plug to the PHONES terminal. When the headphones are connected, there is no sound output from the speakers.

| y + Do not turn the volume on to full at switch on and listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss. Before plugging in or unplugging the headphone. reduce the volume Be sure your headphone has a 3.5 mm diameter plug and impedance between 16.0 and 50 0. The recommended impedance is

Merely by cannecting your iPod'iPhane/iPad to this unit, you This unit cannot be used to record CD, tuner ar other can enjoy high-qualiy sound from your IPod/iPhone/iPad content on an iPod/iPhone/iPadl Playback setting for iPod/iPhone/iPad music can be performed from this unit or the iPod/iPhone/iPad itself. Connecting iPod/iPhone/iPad using supplied iPad stand Confirming what iPod/iPhone/iPad 1 Connect the iPod/iPhone/iPad cable to the models are supported USB terminal on the front of the unit. The iPod/iPhone/iPad playable on this unit are shown below. 2 PasstheiPod/iPhone/iPad cable through the bottom of the stand and connect it to the iPod/ iPhone/iPad. iPod nano 36/46/56/6G/7G / iPhone 45 - iPod touch 16/26/3G/46/5G 7

iPhone 5 Ÿ 3 Set the iPod/iPhone/iPad on the stand.

iPhone iPhone 3G iPhone 365 iPhone 4 iPhone 55 iPhone 5€ iPad mini iPad (3/46) iPad2 iPad @ note + Pioneer does not guarantee tha iPhone/iPad models other than the ones specified + Some functions may be restricied depending on the model or software version. iPod/iPhone/Pad is licensed for reproduction of non copyrighted materials or materials the user is legally permitted to reproduce. Features such as the equalizer cannot be controlled using m, and we recommend switching equalizer off belore connecting Pioneer cannot under any circumstances accept ility for any direct or indirect loss arising from venience or loss of recorded material resulting from iPod/iPhoneñPad failure. For detailed instructions on using the iPod/iPhone/iPad to the manual supplied with ihe iPod d tested for the software version of IPod/iPhone/iPad indicated on the website of Pianeer (http-/pioneer jp/homeaw/support/ ios/eu) +_ Installing software versions other than indicated on the website Of Pioneer to your IPod/Phone/iPad may result in incompatibility with this system

_ 05) Ç Pod/iPhone/iPad playback Playing iPod/iPhone/iPad 1 Connect your iPod/iPhone/iPad. +_Ifan iPod/iPhane/iPad is connected while the unit is turned on, playback of the iPod/iPhone/Pad will not begin 2 Press USB as the input source. USB/IPOD” is shown on the main display. 3 When the recognition is completed, will begin playing automatically. @ note + Fordetailed instructions on using the iPod/iPhone/iPad please refer to the manual supplied with the iPod/ iPhone/Pad. iPod/iPhone/iPad recharging occurs whenever an iPod/ iPhone/Pad is connected to this unit, (This function is supported in standby mode as well.) When input is switched from iPod to another function iPod/iPhone/iPad playback is temporarily stopped. When iPod/iPhone/iPad is not playing and no operations have been performed for more than 20 minutes, the unit will automatically power off. Auto power off can be switched to ON/OFF (page 35). © important this unit cannot play your iPod/iPhone/iPad, perform the following troubleshooting checks: + Check whether the iPod/iPhone/iPad is supported by this unit Reconnect the iPod/iPhane/iPad to the unit, If this. doesn't seem to work, try resetting your iPod/iPhone/ iPad. Check that iPod/iPhone/iPad software is supported by the unit the iPod/iPhone/iPad cannot be operated, check the following items: +_IstheiPod/iPhone/iPad connected correcti}? Reconnect the iPod/iPhone/iPad to the unit +_lsthe iPod/iPhone/iPad experiencing a hangup? Try resetting the iPod/Phone/iPad, and reconnect it to the unit

Disc playback This system can play back a standard CD, CD-R/RW in the CD format and CD-R/RW with MP3 or WMA files, ut cannot record on them. Some audio CD-R and CD-RW discs may not be playable due to the state of the disc or the device that was used for recording MP3: MP3 is a form of compression. I is an acronym which stands for MPEG Audio Layer 3. MP3 is a type of audio code which is processed by significant compression from the original audio source with very little loss in sound quality. +_ This system supports MPEG-1/2 Audio Layer3 (Sampling rates: 8 kHz to 48 kHz: Bit rates: 64 kbps to 384 kbps). + During VER file playback, time counter in the display may differ from its actual playback time. WMA: WMA (Windows Media Audio) iles are Advanced System Format files that include audio files which are compressed with Windows Media Audio codec. WMA is developed by Microsoft as an audio format file for Windows Media Player. This system supports WMA (Sampling rates: 32 kHz/44.1 KHz/48 kHz; Bit rates: 64 kbps to 320 kbps) During VER file playback, time counter in the display may differ from its actual playback time. Playing discs or files 1 Press à STANDBY/ON to turn the power on. 2 Press CD on the remote control or INPUT repeatedly on the main unit to select CD input. 3 Press À OPEN/CLOSE to open the electric slide CD door. 4 Insert the disc. Inset the disc with the printed label facing outward (you can see it) Inset the disc while pressing down on it uni the centre of he disc is held in place {until you hear a clicking sound) 5 Press À OPEN/CLOSE to close the electric slide CD door. 6 Press »II to start playback. After the last track is played, the unit will stop automatically À caurion Do not touch the lens. Be careful not to get your hand ar headphone cable caught when opening and closing the slide door. Do not insert two or mare discs into the disc tray at once. Do not play dises of special shapes (heart, octagon, etc). K may cause malfunctions. Do not touch the electric slide CD door when i is moving H power is lost while the electric slide CD door is open wait until the power is restored. @ note + Due to the structure ofthe disc information, it takes longer to read an MP3MWMA disc than a normal CD {approximately 20 to 90 seconds) + Whenthe beginning ofthe firsttrackis reached during fast reverse, the unit wil enter the playback mode (only for CD) + IFTV or radio interference oceurs during CD operation move the unit away fram the TV or radio. Q Ti + When no operation has done in CD mode and the audio fl is not played for mare than 20 minutes, the power will automatically tum off + Auto poner off can be switched to ON/OFF (page 35) Various disc functions Function | Main | Remote Operation unit | control Play Press in Îhe stop mode. Stop Press in Îhe playback mode. Pause Press in Ine playback mode. Press DA to resume playback from the paused point. Track up7 Press in Îne playback or stop down mode. I you press the button in the stop mode, press DeAl to start the desired track. Fast Press and hold down in the forward/ playback mode. reverse Release the button to resume playback.

Advanced CD or MP3/WMA disc playback rect track search By using the numeric buttons, the desired tracks on the current disc can be played Use the numeric buttons on the remote control to select the desired track whilst playing the selected disc. + Atrack number higher than the number of tracks on the disc cannot be selecte To stop playback: Press Repeat play Repeat play can play one track, all tracks or a programmed sequence continuous. To repeat one track: Press REPEAT repeatedly until *RPT ONE" appears, Press ENTER To repeat all tracks: Press REPEAT repeatedly until *RPT ALL" appears. Press ENTER To repeat desired tracks: Perform steps 1 to in “Programmed play (CD or MP3/WMA) section on next page and then press REPEAT repeatedly until RPT ALL" appears. Press ENTER. To cancel repeat pla Press REPEAT repeatedly until “RPT OFF" appears. Press ENTER. @ note +_ After performing repeat play, be sure to press ML Otherwise, the disc will play continuous. + During repeat play, random play is not possible. Random play The tracks on the disc can be played in random order automaticall. To random play all tracks: Press RANDOM repeatedi} unti ENTER RDM ON" appears. Press To cancel random play: Press RANDOM repeatedl} until ENTER @ note + In random play, the unit will select and play tracks automatically, ou cannot tracks) + During random play, repeat play is not possible RDM OFF" appears. Press

(Disc playback Programmed play (CD or MP3/WMA) About downloading MP3/WMA You can choose up to 32 selectians for playback in the order you like. 1 Whilst in the stop mode, press MEMORY/ PROGRAM on the remote control to enter the programming save mode. 2 Press @4« »»1 or the numeric buttons on the remote control to select the desired tracks. 3 Press ENTER to save folder and track number. 4 Repeat steps 2 to 3 for other folder/tracks. Up to 32 tracks can be programmed. *_lfyou want to check the programmed tracks, press MEMORY/PROGRAM. +_Hyou make a mistake, the last programmed tracks will be canceled by pressing CLEAR. 5 Press Il to start playback. To cancel the programmed play mode: To cancel the programmed play, press M twice on the remote control. The display will show “PRG CLR" and all the programmed content will be cleared Adding tracks to the program: Press the MEMORY/PROGRAM. Then follow steps 2 to 3to add tracks. @ note + When a disc is ejected anything programmed is clearec +_Ifyou press the © STANDBV/ON to enter the standby mode or change the function from CD to another, the programmed selections will be cleared During the program operation, random play is not possible. There are many music sites on the internet that you can download MP3/WMA music files. Follow the instructions from the website on how to download the music files. You can then play back these downloaded music files by burning them to a CD-R/RW disc, +_ Your downloaded song/files are for personal use only. Any other usage ofthe song without owner s permission, is against the law. About folder playback order If MP3AYMA filles are recorded in several folders, a folder number will be set to each folder automatically These folders can be selected by the FOLDER on the remote control. Ifthere is no supported file formats inside the selected folder, the folder is skipped and the next folder wall be selected Example: How the folder numbers are assigned if MP3/WMA format files are recorded are as shown below 1 ROOT folder is set as FOLDER 1. 2 As for folders inside ROOT folder (FOLDER A and FOLDER B), the folder which is recorded earlier on the disc will be set as FOLDER 2 and FOLDER 3. 3 As for folder inside FOLDER A (FOLDER C and FOLDER D), the folder which is recorded earlier on the disc will be set as FOLDER 4 and FOLDER

4 FOLDERE that is inside FOLDER D will be set as FOLDER 6. The folder and file order information which is recordk on the disc depends on the writing software, There maybe possibilities that this unit wi playback the files not according to our expected playback order. From a disc with MPS/WMA files up to 255 folders and 999 files (including non playable files) can be read.

Specify the folder to play To specify the folder to play, perform the following steps. 1 Press CD, and load an MP3/WMA disc. 2 Press FOLDER, and press #/4 to select desired playback folder. 3 Press ENTER. Playback will start from the first song of the selected folder. + Even ffitis stopped. itis possible to press $/4, to select a folder. Switch the display contents 1 Press DISPLAY. Hthe title, artist and album name has been written to the file, that information will be displayed. (The unit can only display alphanumeric characters. Non-alphanumeric character are displayed as "*") Number oftrack, playback —> Title/Artist/Album display time display

type display @ note +_ “Copyright protected WMA files" or ‘Unsupported files cannot be played back. In these case the files will be Skipped automatically. There may be cases where no information can be displayed + Displayingtitle, artist and album name is only supported for MP files. Number of tolder/track <— display

USB playback Playing USB storage devices K is possible to listen to two-channel audio using the USB interface on the front of this receiver. + Pioneer does not guarantee that any file recorded on a USB storage device will play or that power will be supplied to a USB storage device. Also note that Pioneer will accept no responsibility whatsoever for loss of files. on USB storage devices caused by connection to this unit 1 Press USB as the input source. “USB/IPOD” is shown on the main display. 2 Connect the USB storage device. The number of folders or files stored on the connected USB storage device appear on the main display automatically +_This receiver does not support a USB hub +_Ifan iPod/iPhone/iPad is connected to the unit, the unit will automatically begin charging it Repeat play Repeat play can play one track, all tracks or a programmed sequence continuous. To repeat one track: Press REPEAT repeatedly until “RPT ONE" appears. Press ENTER To repeat all tracks: Press REPEAT repeatedly until *RPT ALL" appears. Press ENTER. To repeat desired tracks: Perform steps 1 to 5 in “Programmed play (CD or MP3/WMA)' section on next page and then press REPEAT repeatedly until RPT ALL' appears. Press ENTER To cancel repeat play: Press REPEAT repeatedly until *RPT OFF appears. Press ENTER. After performing repeat play, be sure to press M. Otherise, the file of USB storage device will play continuous. + During repeat play, random play is not possible. Random play orage devi {commercially available) 3 When the recognition is completed, press > Il to start playback. + When changing to a different input source, stop the USB memory playback first, before changing. 4 Disconnect USB storage device from the USB terminal. Turn the power off before removing the USB storage device. @ note USB flash drive that supports USB 2.0 can be used This unit may not recognize a USB storage device, play files or supply power to a USB storage device. For details, see When a USB storage device is connected on page 32 When a USB storage device is not playing and no operations have been performed for more than 20 minutes, the unit will automatically power of. Auto power off can be switched to ON/OFF (page 35) The ile of USB storage device can be played in random order automatically To random play all tracks: Press RANDOM repeatediy until *RDM ON" appears. Press ENTER. To cancel random pla, Press RANDOM repeatedy until “ROM OFF" appears. Press ENTER +_In random play, the unit will select and play tracks automatically. (Vou cannot select the order of the tracks.) + During random play, repeat play is not possible.

_ 07) (USB playback Spei the folder to To specify the fo rte pe 1 Press USB, and connect the USB storage device. 2 Press FOLDER, and press 4/4 to select desired playback folder. 3 Press ENTER. perform the following steps. Playback will start from the first song of the se + Evenifitis stopped, itis possible to press #/4, to select a folder. Switch the display contents The unit can display the information recorded in t# starage device. For details, see Switch the display c page 20. Playing in the desired order (Programmed Play) The unit can play fold the desired order. For MPS/MIMA) on page 19. s stored on a USB storage device in ls, see Programmed play (CD or

Using the tuner Listening to the radio broadcasts The following steps show you how to tune in to FM radio broadcasts using the automatic (search) and manual (ste tuning functions. Once you are tuned to a station you can memorize the frequency for recall later. See Saving station presets below for more on how to do this. || à

Tuning 1 Pressthe Ô STANDBY/ON to turn the power on. 2 Press TUNER. 3 Press TUNE +/- on the remote control to tune in to the desired station. Automatic tuning Press and hold TUNE +/-, scanning will start automatically andthe tuner will stop at the first receivable broadcast Station Manual tuning: Press the TUNE +/- repeatedly to tune in to the desired Station @ note When radio interference occurs, automatic tuning may stop automatically at that point Automatic tuning will skip weak signal stations. To stop the automatic tuning, press 1 When an RDS (Radio Data System) station is tuned in the frequency will be displayed first. Finally, the station name will appear. Full auto tuning can be achieved for RDS stations using Auto Station Program Memory (ASPM) mode, see To receive an FM stereo transmission: +_ Press ST/MONO to select stereo mode and *AUTO” will be displayed. Improving poor FM reception: 1 Press ST/MONO repeatedly to select MONO. This will change the tuner from stereo to mono and usually mprove the reception. Saving station presets I you often listen to a particular radio station. it's convenient to have the receiver store the frequency for easy recal whenever you want to listen to that station (Preset tuning) This saves the effort of manuallytuning in each time, This unit can memorize up to 30 stations. ä © 1 Tune to a station you want to memorize. See Tuning above for mare on this 2 Press MEMORY/PROGRAM. The preset number will flash. 3 Press PRESET +/- to select the preset channel number. 4 Press MEMORY/PROGRAM to store that station in memory. the preset number has changed from flashing to lighting, before the station is memorised, repeat the operation from step 2 + Repeat steps 1 to 4 to set other stations, or to change a preset station. When a new station is stored in the memory, the station previously memorised for that preset channel number will be erased *_ Thebackupfunction protects the memorised stations for a few hours should there be a power failure or the AC power cord became disconnected'

To recall a memorised station 1 Press PRESET +/- to select the desired station. To scan the preset stations The stations saved in the memory can be scanned automatically. (Preset memory scan) 1 Press and hold PRESET +/—. The preset number will appear and the programmed stations will be tuned in sequentially, for 5 seconds each. 2 Press PRESET +/- again when the desired station is located. To erase entire preset memory 1 Press TUNER on the remote control. 2 Press CLEAR until “MEM CLR” appears. +_ All stations will be erased. Using the Radio Data System (RDS) An introduction to RDS Radio Data System (RDS) is a system used by most FM radio stations to provide listeners with various kinds of information- e name of the station and the kind of show they're broadcasting, for example. One feature of RDS is that you can search by type of program. For example, you can search for a station that's broadcasting a show with the program type, JAZZ. You can search the following program types: NEWS - News AFFAIRS - Current Affairs: INFO - General Information SPORT - Sport EDUCATE - Educational DRAMA - Radio plays, êtc. CULTURE - National or regional culture, theater etc. SOCIAL - Social afairs: RELIGION - Programs. concerning religion PHONE IN - Pub their views by Phone (TRAVEL - Holiday-type travel rather than traffic announcements xpressing SCIENCE - Science and LEISURE - Leisure interests technology and hobbies VARIED - Lsually talkbased JAZZ- Jazz material, such as quiz shows COUNTRY - Country music or interviews. NATION M Popular music in POP M - Pop music à language other than English ROCK M - Rock musi OLDIES - Popular music from the ‘50s and 60s FOLK M - Folk music DOCUMENT - Documentary TEST - Broadcasting wher testing emergency broadcast equipment or receivers. EASY M Easy listening LIGHT M Light classical music CLASSICS - Serious’ classic: music OTHER M Music not fiting above categories ALARM - Emergency WEATHER Weather reports afnauncement made under FINANCE - Stock market exceptional circumstances to reports, commerce, trading, Give warning of events causing ec. danger of a general nature. CHILDREN - Programs for children Searching for RDS programs You can search a program type listed above. 1 Press TUNER on the remote control. + RDS is only possible in the FM 2 Press RDS PTY on the remote control. "SELECT" will appear for about 6 seconds. 3 Press /= to select the program type you want to hear. Each time the button is pressed. the program type will appear. Ifthe button is held down, the program type will appear continuous}.

4. Whilst the selected program type is

displayed (within 6 seconds), Press RDS PTY again. After the selected program type has been lit for 2 seconds, SEARCH” will appear, and the search operation will start. @ note +_lfthe display has stopped flashing, start again from step

2. Kthe unit finds a desired program type, the

corresponding channel number will be lit for about 8 seconds, and then the station name will be displayed H you want to listen to the same program type of another station, press the RDS PTY whilstthe channel number or Station name is flashing, The unit will look for the next station.

(Using the tuner +_Ifno station can be found, *NO FOUND" will appear for 4 seconds. Information provided by RDS Each timethe RDS DISPLAY is pressed, the display wil switch 5 follows: gp name (PS) — Programme type (PTY) ] Frequency Radio text (AT) When tuning in to a station other than an RDS station or to an RDS station which sends weak signal the display will change in the following order: FM 98.80 MHz Using the Auto Station Program Memory (ASPM) Whilst in the ASPM operation mode, the tuner will automatically search for new RDS stations. Up ta 80 stations can be stored H you have already stored some stations in memory the number of new stations you can store will be less. 1 Press TUNER on the remote control. 2 Press and hold down RDS ASPM on the remote control. After "ASPM" has flashed for about 4 seconds, scanning will start (87.5 MHz to 108 MHz). After scanning, the number of stations stored in memory will be displayed for 4 seconds, and then *END" will appear for 4 seconds. To stop the ASPM operation before it is complete: Press M whilst it is scanning for stations. The stations which are already stored in memory will be kept there. @ note +_ the same station is broadcasting on different frequencies, the strangest frequency will be stored in memory. Any station which has the same frequency as the one stored in memory will not be stared. 30 stations have already been stored in memory, the scan will be aborted. you want to redo the ASPM operation, erase the preset memory. I no station have been stored in memory, “END” will appear for about 4 seconds. Hthe RDS signals are very weak, station names may not be stored in memory. The same station name can be stored in different channels. In a certain area or during certain time periods, the station names may temporarily be different. Notes for RDS operation If any of the following events occur, not mean that the unit is faulty: +_ PS", “No PS” and a station name appear alterately, and proper Ha particular station is not broadcasting properiy or a Station is conducting tests, the RDS reception function may not work proper. When you receive an RDS station whose signal is too weak, information like the station name may not be displayed +_“Na PS”, “No PTY" or “No RT will flash for about 5 seconds, and then the frequency will be displayed Notes for radio text: + The first 8 characters of the radio text will appear and then they will scroll across the display H you tune in to an RDS station which is not broadcasting any radio text, “No RT" will be displayed when you switch to the radio text position: Whilst radio text data is received or when the text contents change, *RT' will be displayed.

Chapter Other connections À CAUTION +_ Before making or changing the connections, switch off the power and disconnect the pawer cord from the AC outlet Connecting auxiliary components Connect the front panel AUDIO IN mini-plug jack to your auxiliary playback component +_ This method can be used to play music or it from iPod/iPhone/iPad that do not support use of an USB terminal. Portable audio plaer etc Stereo mini-plug cable (commercially | available) an nd 1 Switch input by pressing the INPUT on the main unit or the AUDIO IN on the remote control. When INPUT i: main di + lfthe AUDIO IN mini-plug jack is connecte phones jack, the volume of the unit will be at the volume on the playback component. I the sound is distorted after you lower the volume of the unit, try lowering the volume on the auxliary playback component elected "AUDIO IN” will be displayed on the to auxiliary justed by

Bluetooth® Audio playback (X-SMCO1BT only) Music playback using Bluetooth wireless technology

Bluetooth wireless technolo enabled device 9” Digital musi player Device not equipped with Bluet Wireléss lechnoiogyr Digital music player

The unit is capable of playing back music stored on Bluetooth capable devices (cell phones, digital music players etc.) wirelessiy. You can also use a Bluetooth audio transmitter {sold separatelÿ) to enjoy music from devices that do not have Bluetooth functionality. Please refer to the user's manual for your Bluetooth capable device for mare details @ note + The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PIONEER CORPORATION is under license, Other trademarks and trade names are those of their respective owners. The Bluetooth wireless technology enabled device must support A2DP profiles, Pioneer does not guarantee proper connection and aperation of this unit with all Bluetooth wireless technology enabled devices, Remote control operation The remote control supplied with this unit allows you to play and stop media, and perform other operations. @ note + The Sluetoofh wireless technology enabled device must support AVRCP profiles. Remote control operations canot be guaranteed or all Bluetooth wireless technology enabled devices. In order for the unit to playback music stored on a Bluetooth capable device, pairing must first be performed. Pairing should be performed when first using the unit with the Bluetooth capable device, or when the pairing data on the device has been erased for any reason Pairing is a step required to allow communication using Bluetooth wireless technology to be carried out. + Paiing is only performed the first time that you use the unit and the Bluetooth capable device together. +_ In order to allow communication using Bluetooth wireless technology ta take place, pairing must be performed on both the unit and the Bluetooth capable device. After pressing the BT AUDIO and switching to BT. AUDIO input. perform the pairing procedure on the Bluetooth capable device. If pairing has been performed correctly, you will not need to perform the pairing procedures for the unit as shown below Please refer to the user's manual for your Bluetooth capable device for more details. 1 Press the 6 STANDBY/ON and turn the power to the unit on. 2 Press the BT AUDIO. The unit switches to BT AUDIO and PAIRING will De displayed. 3 Turnonthe power to the Bluetooth capable device that you wish to pair with, and perform pairing procedure on it. +_ This unitwill be displayed as °XSMCOT" on all Bluetooth capable devices that you have. Pairing wall start + Place the Bluetooth capable device close tothe unit

ED (Bluetooth® Audio playback + Please refer to the user's manual for your Bluetooth capable device for details on when pairing can be performed and the procedures required for pairing When PIN code entry is requested, enter “0000”. (This unit does not accept any PIN code setting other than 0000" 4 Confirm on the Bluetooth capable device that pairing has been completed. I pairing with the Bluetooth capable device has been completed correctly, the name of the Bluetooth capable device will be displayed on the front panel of the unit. (Only single-byte alphanumeric characters can be displayed. Any character that cannot be displayed will be indicated by a "*".} Listen to music on the unit from a Bluetooth capable device 1 Press the BT AUDIO. The unit will switch to BT AUDIO input. 2 A Bluetooth connection will be created between the Bluetooth capable device and the unit. Procedures for connecting to the unit should be performed from the Bluetooth capable device. + Please refer to the user's manual for your Bluetooth capable device for details of the connection procedures. 3 Playback music from the Bluetooth capable device. @ note When Bluetooth capable devise is not playing and no operations have been performed for mare than 20 minutes, the unit wil automatically power of. + Auto power off can be switched to ON/OFF (page 35) BT STANDBY The following can be done when the unit is on standby with the BT AUDIO switched ON. By selecting a Bluetooth capable device that already has a connection history (pairing has already been conducted) with this unit, this unit will automatically turn on with the BT AUDIO function BT STANDBY settings Switch ON/OFF by long pressing the BT AUDIO button located on the top of the unit for 3 seconds, The setting operation can only be performed by using the BT AUDIO button on the unit, The setting cannot be performed using the remote control. @ note + When ne BT STANDBY is ON, ET STANDEY ON" is displayed on the main display.

+ When the BT STANDBY is OFF. ‘ET STANDBY OFF is displayed on the main display. Connection while in BT STANDBY mode with Bluetooth capable device When connection history (pairing has already been conducted) with a Bluetooth capable device exists forthe unit during BT STANDBY. the unit can receive a connection request directly rom the connection histary The unit will start using the BT AUDIO function, and connect with a Bluetooth capable device. Even devices that have already been paired with this unit will not connect during BT STANDBY in the following cases. In such cases, delete pairing history from the Bluetooth wireless technology device and perform pairing again Up to 8 pairing history can be recorded with this unit. connecting to a Bluetooth wireless technology device over 8 units, the oldest pairing history will be deleted. Hthe settings are reset to the factory setting, all pairing history will be deleted

(Bluetooth® Audio playback Radio wave caution This unit uses a 2.4 GHz radio wave frequency, which is a band used by other wireless systems (see list below). To prevent noise or interrupted communication, do not use this unit nearby such devices, or make sure these devices are switched off during use. + Cordless phones Cordiess facsimiles Microwave ovens Wireless LAN devices (IEEE802.11b/g) Wireless AV equipment Wireless controllers for game systems Microwave-based health aids + Some baby monitors Other, less common, equipment that may operate an the same frequency: Antitheft systems Amateur radio stations (HAM) Warehouse logistic management systems Discrimination systems for train or emergency vehicles @ note Inthe event noise appears in your television image, there is the possibility that a Bluetooth wireless technology enabled device or this unit (including products supported by this unit) are causing signal interterence with the antenna input connector of your television. video, satellite tuner, etc. In this event, increase the distance between the antenna input connector and the Bluetooth wireless technology enabled device or this unit (including products supported by this unit there is something obstructing the path between this unit (including devices supported by this unit) and the device equipped with Bluetooth wireless technology (such as a metal door, concrete wall or insulation containing tinfoil), you may need to change the location of your system to prevent signal noise and interruptions. Scope of operation Use of this unit is limited to home use. (Transmission distances may be reduced depending on communication environment} Inthe following locations, poor candition or inabiltyto receive radio waves may cause the audio to be interrupted or stopped +_ In reinforced concret buildings or steel framed ar iron: framed buildings + Near large metallic furiture. +_In a crowd of people or near a building or obstacle +_Ina location exposed to the magnetic field, static electricity or radio wave interference from radio communication equipment using the same frequency band (2.4 GHz) as this unit, such as a 2.4 GHz wireless LAN device (IEEE802.11b/g) or microwave oven. +_ you live in a heavily populated residential area (apartment, tonnhouse, etc.) and if your neighbors microwave is placed near your system, you may experience radio wave interference. Ifthis occurs, move your unitto a different place. When the microwave is not in use, there will be no radio wave interference. Radio wave reflections The radio waves received by this unit include the radio wave coming directly from the device equipped with Bluetooth wireless technology (direct wave) and waves coming from various directions due to reflections by walls, furniture and building (reflected waves). The reflected waves (due to obstacles and reflecting objects) further produce a variety of reflected waves as well as variation in reception condition depending on locations. Ithe audio cannot be received properiy due ta this phenomenon, try moving the location of the device equipped with Bluetooth wireless technology a little. Also note that audio may be interrupted due to the reflected waves when a person crosses or approaches the space between this unit and the device equipped with Bluetooth wireless technology. Precautions regarding connections to products supported by this uni! +" Complete connections for all devices supported by this unit, including all audio cords and power cables before connecting them ta this unit After completing connections to this unit, check the audio and power cables to confirm that they not twisted together. When disconnecting this unit, confirm that you have sufficient working space in the surrounding area When changing connections of audio or other cables for products supported by this unit, confirm that you have sufficient working space in the surrounding area

Additional information Troubleshooting Incorrect operations are often mistaken for trouble and mal component, check the points below. Sc and elec: nearest Pioni appliances being used. H the tr Ahorized servic +_lfthe unit does not operate normally due to metimes the trouble may lie in another component. Invest fects such as static el ctions. I you think that there is mething wrong with this e the other components Ks listed below, ask your fied even after exercising the cl work city disconnect the poner plug from the outlet and insert again to return to normal operating conditions. General problem Problem Check Remedy s the power cord unplus When power cord is unplugged, the setting cleared. Please set the clock again. you do not want to clear the Settings, do not unplug the power cord. Difference in volume between CDS, MP3, WMA, Pod/iPhone/iPad, Tuner and This IS not à problem win IIS unit The volume may sound differently depending on the Input source ording format AUDIO IN. This unit cannot be operaled Are you operating from far away? erale within 7 m, 80° ofthe remote sensor on {he front panel with the remote control (page 6) Is he remote control sensor exposed to direct sunlight or strong artificial light from a fluorescent bulb, ete.7 The remote control signals remote control sensor is & artificial light from may not be received proper the sed Lo direct sunlight or strong luorescent bull Are the batteries dead? Replace 1he batterk Disc cannot be played Is the disc scratched? atched disc y not play Is the disc diny? Wipe the dirt af Ine disc (page 34) Is he disc insert rrectiy? Make sure that the printed (page 17) label is facing outward, visible to you Is this unit placed in a humid location? There could be condensation Inside, Wait a while for ne condensation ta evaporate, Da not place {his unit near an air conditioner, etc. (page 34). und SKI played b Is the playback volume too loug?

er orfie names are jgnized. not Have you ed the maximum er or file names this gnize? Tolders can be recognized on one disc. cognized within one folder. Depending on the folder str however, this unit may not be able to recognize certain folders or The uni tums off automatically. no play back and no operation has done for 20 minute he unit turns off automatically pe switchedi to ON/OFF (page 35) Auto power off can b

(Addi ional information ) CE Problem Check Remedy Unable toconnectioa Arelhereany devices nearbythat so either move these devices away from ne uni, or stop using mit electromagneti waves in the other devices that emielectromagnetic was L band (microwaves other Bluetooth capable F capable device Inside {he same 00m, with no devicetoo Placeine he unit or is there obstacles between them, and within a range of 10 m een them? Ony a suggested range. The actual possible communication hange depending upon the surrounding environment range ma) ble device. ble device set to Checkthe settings on the Bluetoo le that allows for Blu wireless communication? Periorm 1e pairing operation again apable device erased ring setting? Please use a Blueloo!h capable device that supports A2DP. vice you are trying to onnect have à supported profile? The panel for Ine electri I can be attached as follows. Slide CD door has fallen of. Align the line below the arrow and the bottom of the panel, then slide downward using bath hands until you hear a clicking sound. pe panel is designed to E Note *_Ifthe panel is not attached correct}, the panel may not open or close properiy. may also cause irregular noise. 50 make sure the panel is pos + Disconnect from the AC outlet

When a USB storage device is connected Problem Check Remedy JSB storage device is nof ogni e device property Connect the device securely (all the way in) SB hubs. Connect ne US unit does not support U SES a s orage via a USB hub? device orage device supported | This unit only supports USB mass storage class devices. by this unit? ry and digital audio playback devices. in FATIE and FATS2 fi FAT. NTFS, HFS etc.) USB flash drive nat supports ‘This device does noî Support the use of external hard disc drives, This is not a problem with 1his unit. Turn the power off then back on. Some USB storage devices may not be recognized proper F Is the file copyright-protected (by Copyright-protected files cannot be played. DRM? This 15 not a problem win Inis uni. FIIES Slored on à compuler cannot be played. may not be possible Lo play some files. older ar file names are not Dotne folder orfile names contain The maximum number Of characlers displa or are not properiy more than 30 characters? flle names is 30 fable forthe folder and This is not a problem with this unit. The order in which the folder and file names are displayed depen on the order in which the fold Storage device. s or files were recorded on the What is the US: Some time n city? us: minutes). be required to load {he data when large capacity storage devices are connected (this could not supplied tothe Is AUTH ERR displayed on the front Turn the power off then back on. storage device panel display? No power is supplied if the power consumption too high Turn he poer fl. then disconnes and reconnect the USI orage Press INPUT Lo Swileh lo Îhe other mode, then swilch again to the USB mode. When an iPod/iPhone/iPad is connected Problem Remedy Cant op ate the iPod/Phone/iPad by the remote control. Make sure the Pod Pan ge 15). Can't operate the iPod/iPhone/iPad. Make sure the IPod/PhoneAPad is connecte core fer to recting iPod/iPhone/iPad using supplied iPad stand on je 15) itthe iPod/iPhoneyiPad is experiencing a hanguo. try resetting the iPod/iPhone/iPad, and reconnect it to the uni

(Addi ional information Playable discs and formats + Commercially available audio CDS. Audio D + CD-R/-RW/-ROM discs containing music recorded in the CD-DA format wma WA fes recorded on CD-R/-RWW/-ROM dises or USB storage devices mes MP3 fes recorded on CD-A7-RW7-ROM discs or USB storage devices Only the discs that have been ed can be played. Discs recorded in packet write mode (UDF format) are not compatible with this unit Corporation and product names mentioned herein are trademarks or registered trademarks of the respective corparations. Oniy dises recorded in 1509660 Level 1, Level 2 and Joliet can be played Files protected by DRM (Digital Rights Management) cannot be played. @ note This unit does not support multisession discs or muttiborder recording Muttsession/multiborder recording is a method in which data is recorded on a single disc in to or more sessions/borders. À “session” or “border” is one recording unit, consisting of a complete set of data from lead-in to leac-out. Regarding copy protected CDs This unit is designed to conform to the specifications of the audio CD format. This unit does not support the playback or function of discs that do not conform to these specifications. Supported audio file formats +_ This unit does not support lossless encoding. Cautions on use When moving this uni When moving this unit, be sure to first check that there is no disc loaded and disconnectthe iPod/iPhone/iPad, Then press © STANDBY/ON. wait for "STANDBY" disappears on main display ta turn off, then unplug the power cord. Damage may occur ifthe unit is transported or moved with a disc inserted, or when another device is connected to the USB terminal, or AUDIO IN mini-plug jack Place of installation + Choose a stable place nearthe TV or sterea system being used with this unit + Do not place this unit an top ofa TVorcolor monitor. Also install away from cassette decks and other devices easily affected by magnetic forces Avoid the following locations: + Places exposed to direct sunlight Humid or poarly ventilated places Extremely hot places Places exposed to vibrations Places in which there is much dust or cigarette smoke Places exposed ta soot, steam or heat (kilchens, etc.)

Do not place objects on this uni Do not place any objects on top of this unit Do not obstruct the ventilation holes. Do not use this unit on shaggy rugs, beds, sofas, etc. or wrapped in cloth, etc. Doing so wil prevent the heat from dispersing, leading to damage. Do not expose to heat. Do not place this unit on top of an amplifier or other component that generates heat. When rack mounting it, to avoid the heat given off by the amplifier or other audio component, place it on a shelf below the amplifier. + Tu offthe unit's power when not using it + Depending on signal conditions, striped patterns may appear on a TV screen and noise may enter the sound of radio broadcasts when the unit's power is on. K this happens, turn the unit s power off. About condensation this unit is moved suddenly from a cold place into a warm room (in winter, for example) or if the temperature in the room in which this unit is installed rises suddenty due to heater operation, etc., water droplets (condensation) may form inside (on operating parts and the lens). When condensation is present, this unit will not aperate properly and playback is not possible. Let this unit stand at room temperature for 1 or 2 hours with the power turned on {the time depends on the extent of condensation). The water droplets will dissipate and playback will become possible. Condensation can also occur in the summer if this unit is directly exposed to the air flow from an air-conditioner. I this happens, move this unit to a different place Cleaning the product + Unplug the power cord from the power outlet when cleaning this unit. + Clean this unit using a soft cloth. For tough dirt, apply some neutral detergent diluted in 5 to 6 parts water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe again with a soft, dry cloth. + Alcohol thinner, benzene, insecticides, etc., could cause the print or paint to peel off. Also, leaving rubber or vinyl products in contact with this unit for long periods of time could mar the cabinet + When using chemical-impregnated wipes, etc., read the cautions included with the wipes carefully. Cleaning the lens +_ This units lens should not become dirty in normal use, but if for some reason it should malfunction due to dust or dirt, consult your nearest Pioneer authorized service center, Although lens cleaners for players are commercially available, we advise against using them since some may damage the lens.

Handling discs Storing + Always place discs in their cases and store them vertically, avoiding hot, humid places, places exposed to direct sunlight and extremely cold places. +_ Be sure to read the cautions included with the disc. Cleaning discs + Discs may not play if there are fingerprints or dust on them. In this case, use a cleaning cloth, etc. to gentiy wipe the disc from the inside towards the outside. Do not use dirty cleaning cloths.

+ Do not use benzene, thinner or other volatile chemicals. Also do not use record spray or antistatic agents. Fortough dirt apply some water to a soft cloth, wring out thoroughiy, wipe of the dirt, then wipe off the moisture with a dy cloth. Do not use damaged (cracked or warped) discs. Do not let the signal surface of discs get scratched or dirty. Do not attach pieces of paper or stickers to discs. Doing 50 could warp discs, making it impossible to play them. Also note that rental discs often have labels attached to them, and the label's glue may have oozed out. Check that there is no glue around the edges of such labels before using rented discs.

About special shaped discs Specially shaped dises (heart-shaped, hexagonal, etc.) cannot be played on this unit. Do not attempt to play such discs, as they could damage this unit

(Addi ional information ) CE 1 Press © STANDBY/ON to turn the power on. About iPod/iPhone/iPad 2 Press CD on the remote control or INPUT repeatedly on the main unit to select CD input. 3 Press OPEN/CLOSE to open the electric slide CD door. 4 Press © STANDBY/ON while pressing 8. Use the buttons on this unit's top panel. *DEFAULT" is displayed while the settings are being restored. Power is turned off. Made for BiPod [iPhone Bluetooth technology works with iPhone 5, iPhone 5s, iPhone Sc, iPhone 45, iPhone 4, iPhone 365, iPhone 36, iPhone, iPad (rd and 4th generation), IPad 2, iPad, Pad mini, and iPod touch (2nd through 8th generation) USB works with iPhone 5, iPhone 5s, iPhone 5c, iPhone 4s, iPhone 4, iPhone 365, iPhone 46, iPhone, iPad (3rd and 4th generation), iPad 2, iPad, iPad mini, iPod touch (1st through Bth generation) and iPod nano (3rd through Tth generation) “Made for iPod," ‘Made for iPhone," and ‘Made for iPad mean that an electronic accessory has been designed to connect specificallyto iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation ofthis device or its compliance with safety and regulatory standards. Please note that the use of this accessary with iPod, IPhone, or iPad may affect wireless performance iPad, iPhone, iPod, iPod nano and iPod touch are trademarks of Apple Inc, registered in the ULS. and other countries. Auto power off setting Long press the I on the unit for 3 seconds to switch auto power off setting ON/OFF. The operation can be conducted using only the M on the unit. No need to set this using the remote control. Initial setting is set to ON. @ note When the auto pouer of is set to ON, *APD ON vil be displayed on the main display. When the auto power of is set to OFF, "APD OFF" will be displayed on the main display Restoring all the settings to the defaults Use the steps belowrto restore the all settings to their defaults.

11) CAddï ional information

Specifications + Amplifier section RMS Power Output: 10W+10W (1 kHz, 10 %, T.H.D., 8Q) + Tuner section Frequency Range (FM) 87.5 MHz to 108 MHz Antenna input (FM). 15 Q unbalanced + Bluetooth (X-SMCO1BT only) Version Bluetooth Specification Ver. 2.1 + EDR Output Bluetooth Specification Class 2 Estimated line-of-sight transmission distance" About 10 m Frequency range 2.4 GHz Modulation FHSS (Frequency Hopping Spread Spectrum) Supported Bluetooth profiles A2DP, AVRCP Supported Codec SBC (Subband Codec) Supported contents protection SCMST

• The line-of-sight transmission distance is an estimate. Actual transmission distances supported may differ depending on surrounding conditions. +__ Miscellaneous USB terminal SV,21A Power source. AC 100 V to 240 V, 50 Hz/60 Hz Power consumption Power on 25W Power stand-by 05 Worless Power stand-by (BT STANDBY ON)* 05Worless *XSMCO1BT only Dimensions 430 mm (W) x 218 mm (H) x 114 mm (D) Weight (without package) 2.8 kg + Speaker Type Passive radiator Fullrange 6.6 cm cone Passive radiator. 7.1 cm cone Playback frequency range 60 Hz to 20 kHz + Accessories Remote control AC adapter. AAA batteries (RO) FM wire antenna iPad stand Warranty card Quick start guide Operating instructions (CD-ROM) @ note + CD-ROM: Cannot be played on this unit +_ Specifications andthe design are subject to possible modifications without notice, due to improvements. 56)

Declaration of Conformity with regard to the R&TTE Directive 1999/5/EC Manufacturer: PIONEER CORPORATION 1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan EU Representative's: Pioneer Europe NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium http://www.pioneer.eu

[1 X-SMCO1BT-W, X-SMCO1BT-K, C €
