USER MANUAL TS1022 Middle Atlantic

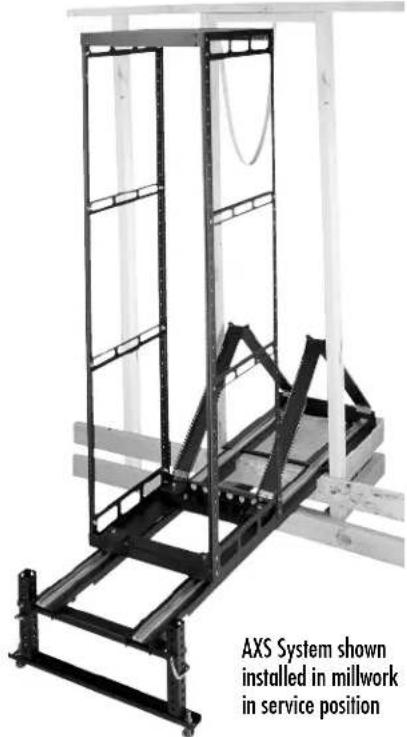

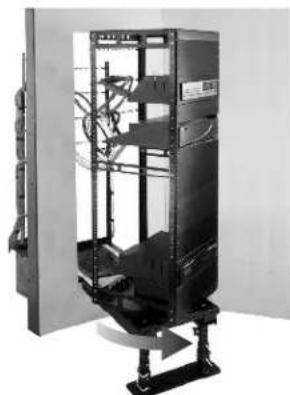

The AXS system allows an entire bay of equipment to pull out for easy installation or service. The telescoping service stand and tracks disconnect for storage.

Features

• Simplifies millwork cabinet design
• Shortens installation & service time
• Rack can be mounted from 3" to 40" off floor
  • Available with 26", 20" and 16-1/2" frame depths
• Articulating cable carriers provide effective cable management
• Frame heights from 10 spaces (17-1/2") or 15 spaces (26-1/4") to 43 spaces (75-1/4")
  • Service stand is quick and simple to install
  • Ball bearings allow smooth roll out
• 650 lb. weight capacity with proper weight distribution

Also available

Exterior view of a server rack unit with visible wiring and mechanical components (no text or symbols)

AX-SXR Rotating Slide-Out System for millwork and in-wall installations, please see A&E specification # 96-01000

Architects' and Engineers' Specifications

Patented EIA compliant 19" slide-out equipment rack for millwork installation shall be Middle Atlantic Products model #_ (refer to chart). Rack shall have _ useable rackspaces, overall height of _, and a useable depth of " (refer to chart). Rough-in millwork dimensions shall have a minimum depth of " (refer to chart) with a 1/2" setback, overall width of " (refer to specs) and a weight capacity of 650 lbs. with proper weight distribution. Rack shall be constructed of the following materials: top, base, caster brackets, and horizontal braces shall be 13-gauge steel with black powder coat finish, rack uprights shall be 11-gauge steel rackrail with tapped 10-32 mounting holes in universal EIA spacing. Rackrail shall be finished in black e-coat with marked rackspaces, top and bottom trim panels shall be 11-gauge aluminum with a black brushed and anodized finish. Cable carrier shall be constructed of the following materials: cable carrier and lower hinges shall be constructed of 16-gauge steel, center hinge shall be constructed of 10-gauge steel and cable carrier shall be finished in a black powder coat. Rack top shall have openings to accept up to 2 fans, model # AXS-FAN (one fan) or AXS-FAN-K (two fans). Service tracks and stands shall be constructed of a 13-gauge steel frame with an aluminum extrusion. Service tracks for AXS, SAX and AXS-xx-26 systems shall be model # TRACK50 with a 50" track length and 48" rack frame extension depth. Service Tracks for AX-SX and SSAX systems shall be model # TRACK25 with a 25" track length and 25" rack frame extension depth. Service stand shall be model # TRACKL (for 2-1/4" - 3-1/4" mounting height off floor), TS310 (for

3"-11" mounting height off floor), TS1022 (for 10"-22" mounting height off floor) and TS1640 (for 16"-40" mounting height off floor). Rack shall be GREENGUARD Indoor Air Quality Certified for Children and Schools. Rack shall be RoHS EU Directive 2002 / 95 / EC compliant. Rack shall be manufactured by an ISO 9001 and ISO 14001 Registered Company. Rack shall be warranted to be free from defects in material or workmanship for a period of 3 years.

OPTIONS

• Optional slim fan for AXS systems shall be model # AXS-FAN. Kit with 2 fans shall be model # AXS-FAN-K
• Optional 20" and 26" full-depth front and rear mount AXS rackshelf shall be model # SH-5A (fits AXS, AX-SX, SAX and SSAX), SH-5A-26 (fits AXS-XX-26)
• Optional cable management tray shall be model # AXS-WT25 (fits AX-SX, SSAX), AXS-WT50 (fits AXS, SAX)
• Brush gasket shall require 19-5/8" rough-in opening width and shall be model # BG17
• Gasket and guide to center rack and protect millwork requires 19-5/8" rough-in opening width and shall be model # AXS-GGxx (xx=depth of rack; 16, 20, 26)

Specifications for AXS System

All dimensions in inches [Bracketed dimensions are in millimeters]

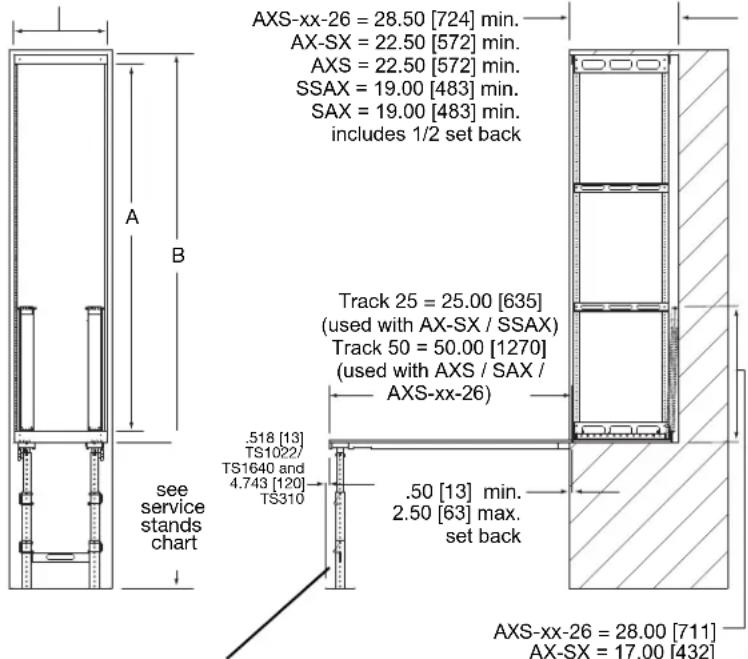

FRONT VIEW

Technical diagram of a mechanical assembly with labeled top view (no text or symbols on the diagram itself)

SIDE VIEW

19-1/4 [489] min. finished opening width without gasket 19-5/8 [498] when using optional gasket

NOTE: Service stand TS1022 and TS1640 in outer-most position will extend .517" beyond track, TS310 will extend 4.743" beyond track, TRACKL does not extend beyond track.

MILLWORK SPECIFICATIONS
A A B

OF USEABLE USEABLE RACK MILLWORK OPENING

* When using optional gasket and guide kit, 3/8" must be added to millwork opening height.
** AX-SX & SSAX only

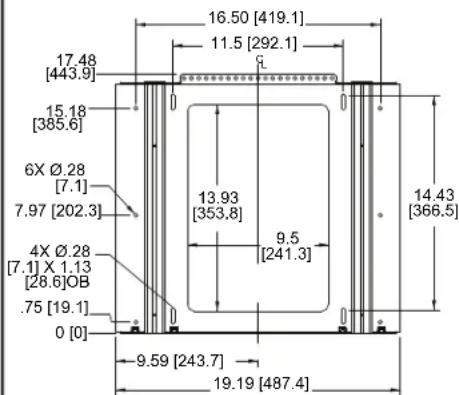

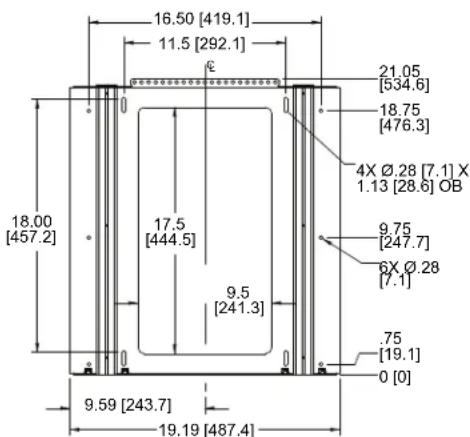

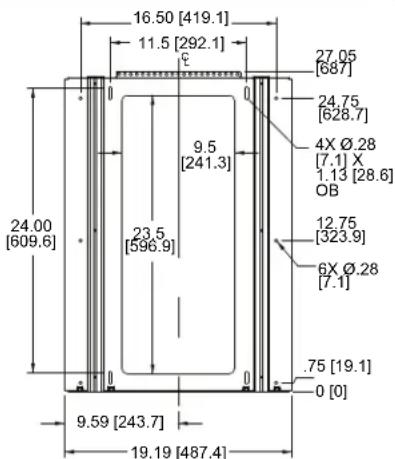

BASE DIMENSIONS

SAX-XX, SSAX-XX (frame depth = 16.5")

AXS-XX, AX-SXR-XX, AX-SX-XX (frame depth = 20")

AXS-XX-26 (frame depth = 26")

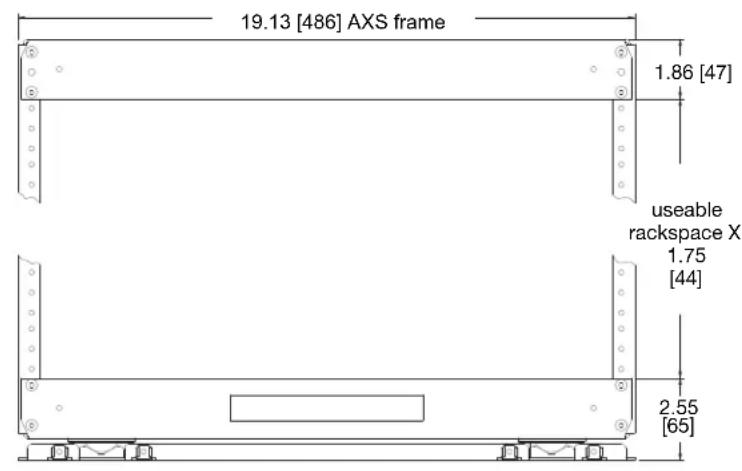

FRONT VIEW (AXS inner frame)

All dimensions in inches [Bracketed dimensions are in millimeters]

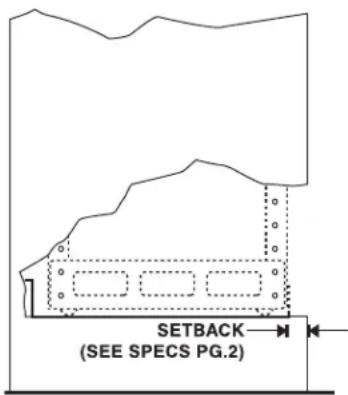

SETBACK

NOTE: To calculate rail to front edge clearance, use the numbers in "Millwork Specs" in conjunction with the clearance for any door or face you may provide for your millwork installation.

Millwork Specifications

Part #		Extension Length	Frame Depth	Millwork Opening Depth	Millwork Opening Width Millwork Opening Height
AXS-xx-26*	Replace ‘xx’ with the # of useable spaces (15 to 43 spaces)	48 [1219]	26 [660]	28-1/2 [724]	19-1/4 [489] min. *	number of useable rackspaces + 4.688 [119]
AXS-xx*	Replace ‘xx’ with the # of useable spaces (15 to 43 spaces)	48 [1219]	20 [508]	22-1/2 [572]	19-1/4 [489] min. *	number of useable rackspaces + 4.688 [119]
AX-SX-xx*	Replace ‘xx’ with the # of useable spaces (10 to 43 spaces)	25 [635]	20 [508]	22-1/2 [572]	19-1/4 [489] min. *	number of useable rackspaces + 4.688 [119]
SAX-xx*	Replace ‘xx’ with the # of useable spaces (15 to 43 spaces)	48 [1219]	16-1/2 [419]	19 [483]	19-1/4 [489] min. *	number of useable rackspaces + 4.688 [119]
SSAX-xx*	Replace ‘xx’ with the # of useable spaces (10 to 43 spaces)	25 [635]	16-1/2 [419]	19 [483]	19-1/4 [489] min. *	number of useable rackspaces + 4.688 [119]

* When used with gasket and guide kit millwork opening width must be 19-5/8 [498] min.

Service Stands
Part #	Height Range Off of the Floor
TRACKL	2-1/4 [57] to 3-1/4 [82]
TS310 3	[76] to 11 [279]
TS1022	0 [254] to 22 [559]
TS1640	6 [406] to 40 [1016]

Service Tracks: available in 2 lengths
Part # Use with Track Length
TRACK50 AXS, SAX, AXS-xx-26 50 [1270]
TRACK25 AX-6X, SSAX 25 [635]

All dimensions in inches [Bracketed dimensions are in millimeters]

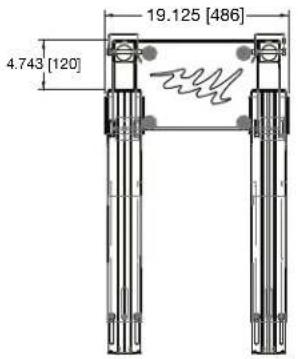

TRACKL with TRACK25 TS310 with TRACK25

Technical line drawing of a mechanical frame or bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with two vertical supports and a central bracket (no text or symbols)

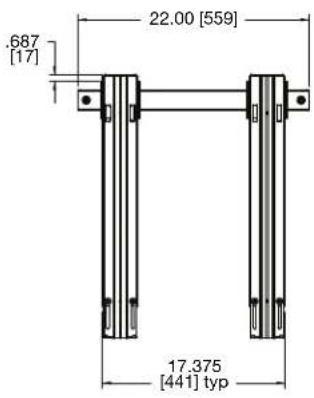

TS1640 with TRACK25TS1022 with TRACK25

Technical line drawing of two vertical support structures mounted on a base (no text or symbols)

Technical line drawing of a mechanical support frame assembly (no text or symbols)

Service Stands
Part #	Height Range Off of the Floor
TRACKL	2-1/4 [57] to 3-1/4 [82]
TS310 3	[76] to 11 [279]
TS1022	0 [254] to 22 [559]
TS1640	6 [406] to 40 [1016]

Optional cable management

tray is available to handle large cable bundles

PART # FITS

AXS-WT50 AXS, SAX AXS-WT25 AX-SX, SSAX

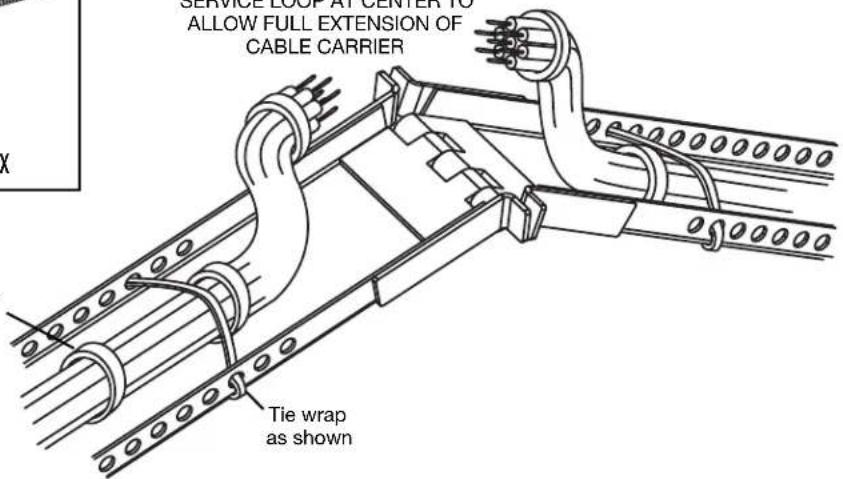

SERVICE LOOP AT CENTER TO ALLOW FULL EXTENSION OF CABLE CARRIER

Bundle wrap as shown

Also available from Middle Atlantic Products

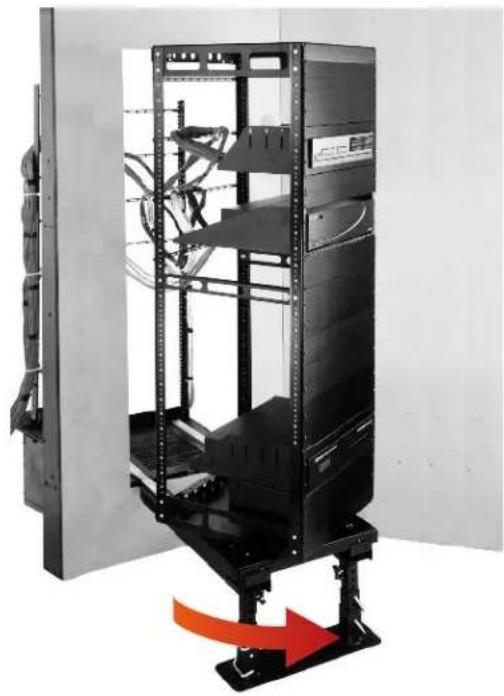

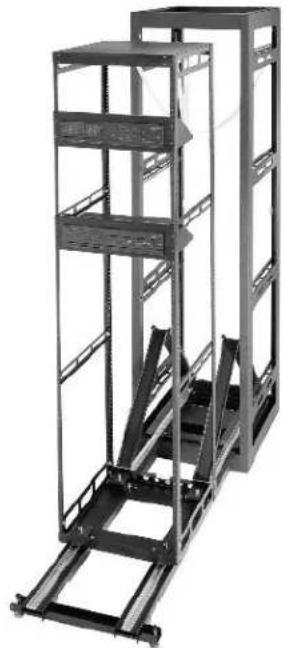

AX-SXR Rotating Slide-Out System for millwork and in-wall installations, please see A&E specification # 96-01000

Interior view of a server rack unit with black racks and connected cables, showing a red directional arrow indicating compression or movement (no text or symbols visible)

AXS System factory-installed in Middle Atlantic Products steel cabinets, please see A&E Specification # 96-055S.

Exterior view of a multi-level metal shelving unit with visible structural supports and mounting brackets (no text or symbols)

* For information on host cabinets, please see

A&E Specification

# 96-052SA (WRK-SA)

# 96-039 (MRK)

# 96-038 (ERK)
