Owner's Manual Havis Docking Station for Getac S410 Notebooks

DS-GTC-610 Series

DS-GTC-611

DS-GTC-614

DS-GTC-617

DS-GTC-611-3

DS-GTC-614-3

DS-GTC-617-3

DS-GTC-613

DS-GTC-615

DS-GTC-618

DS-GTC-613-3

DS-GTC-615-3

DS-GTC-618-3

3D CAD model of a mechanical housing component with mounting holes and internal compartments (no text or symbols visible)

Havis is pleased to provide this Owner's Manual to aid in the proper installation and use of the DS-GTC-610 Series Docking Station for Getac S410 Notebooks.

For questions regarding the set-up of your DS-GTC-610 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information.

This Owner's Manual applies to the following Part Numbers:

• READ ALL INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION.
• DO NOT STORE, INSTALL, OR OPERATE THE DOCKING STATION WHERE WATER, MOISTURE, STEAM, DUST, ETC. ARE PRESENT
• DO NOT DOCK OR UNDOCK YOUR COMPUTER UNLESS IT IS POWERED OFF. DOCKING OR UNDOCKING WITH YOUR COMPUTER IN ON, STANDBY, HIBERNATION, OR SLEEP MODES CAN CAUSE PERMANENT DAMAGE.
• FOR THE DS-GTC-611, DS-GTC-611-3, DS-GTC-612, DS-GTC-612-3, DS-GTC-615, DS-GTC-615-3, DS-GTC-617, & DS-GTC-617-3 DOCKING STATIONS: DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: This product requires a certified, automotive grade, Getac approved 120W power source rated for a continuous, regulated 19VDC output (Havis Part Number LPS-140 or equivalent). Failure to comply with this requirement will cause product damage that is NOT repairable and is NOT covered under warranty.
• FOR THE DS-GTC-613, DS-GTC-613-3, DS-GTC-618, & DS-GTC-618-3 DOCKING STATIONS: DO NOT CONNECT DIRECTLY TO VEHICLE VOLTAGE SOURCE: The Getac S410 notebook requires a certified, Getac approved power source rated for a continuous, regulated 19VDC output. Failure to comply with this requirement will cause product damage that is NOT repairable and is NOT covered under warranty.

NOTICE

• FOR DOCKING STATION MODELS EQUIPPED WITH A BUNDLED POWER SUPPLY (DS-GTC-615/615-3/617/617-3/618/618-3) REFER TO THE SUPPLIED GETAC POWER SUPPLY REFERENCE GUIDE.
• WHEN NOTEBOOK IS DOCKED, THE BATTERY WILL ONLY CHARGE BETWEEN 0^ to 50^ (32°F to 122°F).
  PLEASE REFER TO GETAC S410 OWNER'S MANUAL FOR MORE INFORMATION.

Table of Contents

Specifications 3

Parts Included 4

Port Replication Capability 5

Antenna Identification 5

Installation 6

Cable Management 7

Operation - Docking 8

Operation - Undoing 9

Precautions

• Do not place metal objects or containers of liquid on top of the Docking Station
• If a malfunction occurs, immediately unplug the Power Supply and remove the laptop
• Use only the specified Power Supply (Part # LPS-140) with this Docking Station
• Do not connect cables into ports other than what they are specified for
• Do not leave the Docking Station in a high temperature environment (greater than 85^, 185^ ) for a long period of time

Specifications

Power Supply Input 19V DC-In

Dimensions 2.4” (6.17 cm) H x 14.1” (35.7 cm) W x 11.8” (30.0 cm) D

Weight 5.1 lbs (2.3 kg)

Operating Environment -21°C to 60°C (-6°F to 140°F)

Storage Environment -40°C to 85°C (-40°F to 185°F)

EC DECLARATION OF CONFORMITY in accordance with EN 50498

Manufacturers Name: Havis, Inc.

Manufacturers Address: 75 Jacksonville Road, Warminster, PA 18974 USA

Declares under our sole responsibility that the product:

Product name: Havis Docking Station For Getac S410 Fully Rugged Convertible Notebook

Model: DS-GTC-61X, where 'X' may be any alphanumeric character and which describes product options.

May be followed by any alphanumeric characters which describe product options.

Product Options: This declaration covers all options of the above product which bear the CE Marking.

Is in conformity with the following standards or other normative documents:

Automotive EMC Directive EN 50498:2010, Electromagnetic compatibility (EMC) -

2004/108/EC: Product family standard for aftermarket electronic equipment in vehicles

Directive 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)

Supplementary Information:

The product herewith complies with the requirements of the Automotive EMC Directive 2004/108/EC, Annex I, 6.5, 6.6, 6.8, and 6.9. This product requires the use of a recommended e-Marked automotive power supply when used within vehicles.

Warminster, PA, USA June 1, 2016

Bruce Jonik, Director of Engineering, Havis, Inc.

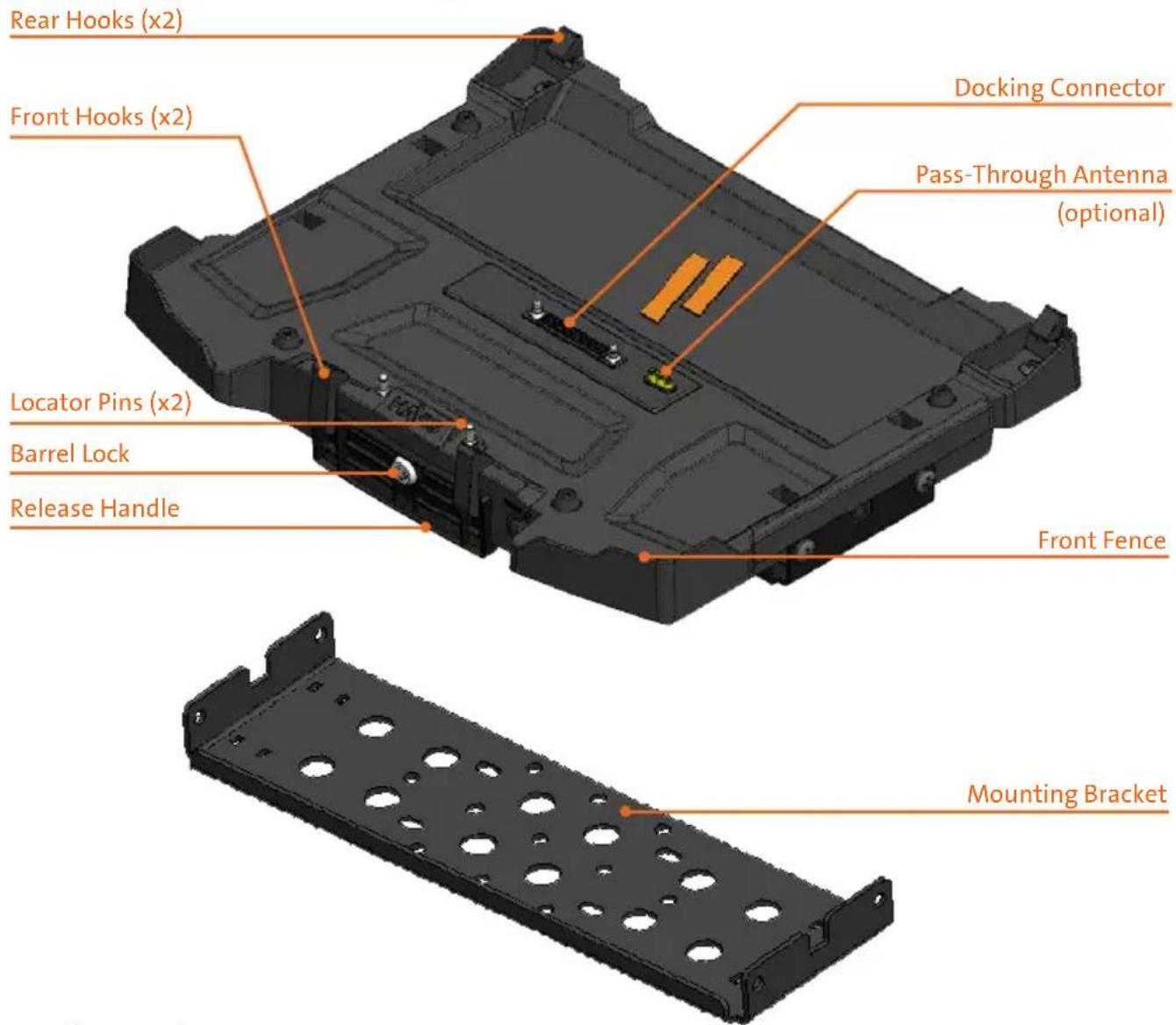

Docking Station

Rear Hooks (x2) Front Hooks (x2) Locator Pins (x2) Barrel Lock Release Handle Docking Connector Pass-Through Antenna (optional) Front Fence Mounting Bracket

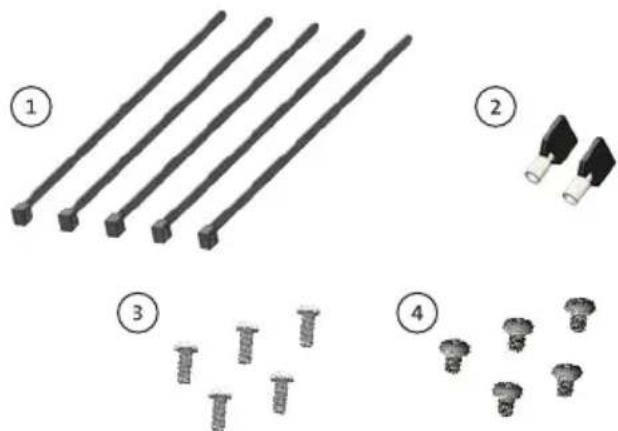

Hardware Kit (HWK-0046)

This Hardware Kit includes:

1. Zip Ties (5)
2. Keys (2)
3. 1/4"-20 x 5/8" long Button Head Screws (5)
4. Phillips 1/4"-20 x 3/8" long Screws (5)

Illustration of four types of screw fasteners: straight rods, two clamps, and three screws (no text or symbols)

Tools required for installation:

• 5/32" Hex Drive
  (For attaching Mounting Bracket to Motion Device with Button Head 1/4"-20 Screws)

- #3 Phillips

(For attaching Docking Station to Mounting Bracket with Button Head 1/4"-20 Screws)

Rearward Facing Ports

Forward Facing Ports

(DS-GTC-615, DS-GTC-615-3)

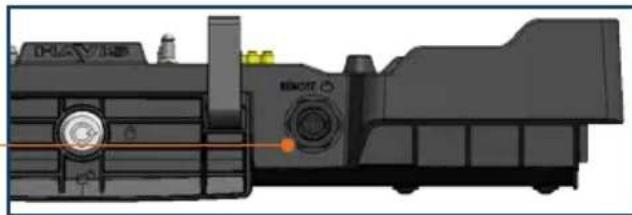

Remote Power

3D mechanical component diagram showing internal components and a highlighted orange line (no text or symbols)

NOTICE

The Remote Power button replicates the Getac S410 Notebook power button settings configured by the user.

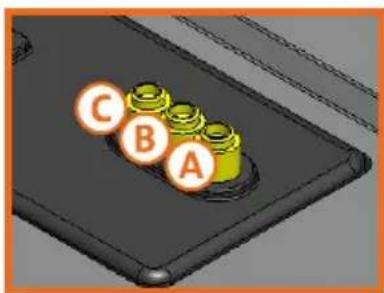

Laptop InterfaceAntenna Connectors (SM)

C B A

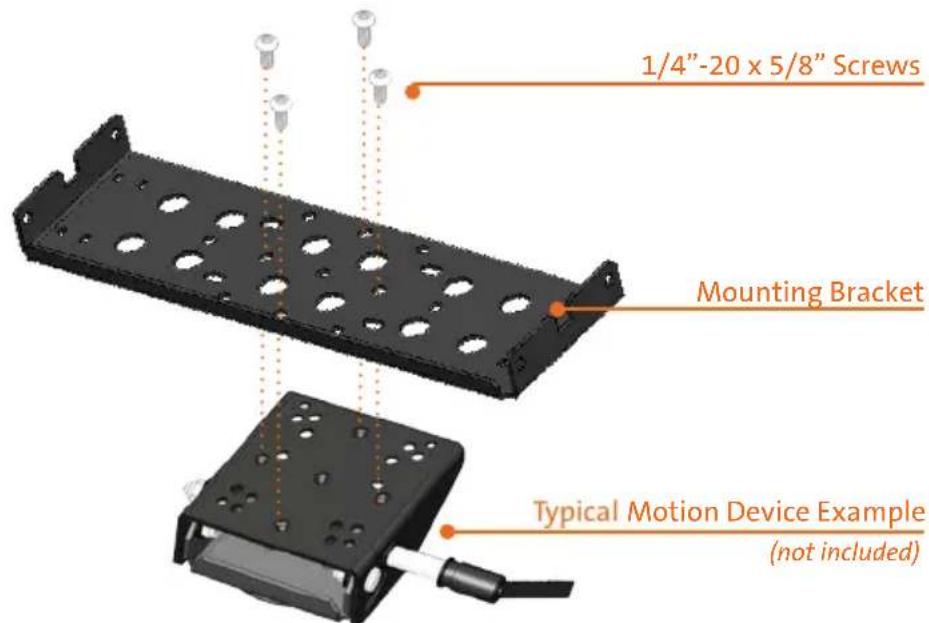

1) Remove the Mounting Bracket from the packaging. Install the Mounting Bracket to the Motion Device using (4) 1/4"-20 x 5/8" long screws (Hardware Kit Item 3). Torque screws to 80 in-lbs (9.0Nm) ± 10%.

NOTE: Numerous hole patterns present in Mounting Bracket will accommodate Havis Motion Devices as well as most competitors'

1/4"-20 x 5/8" Screws Mounting Bracket Typical Motion Device Example (not included)

NOTE: We recommend applying a drop of medium strength (blue) thread locking adhesive to the threads of all fasteners.

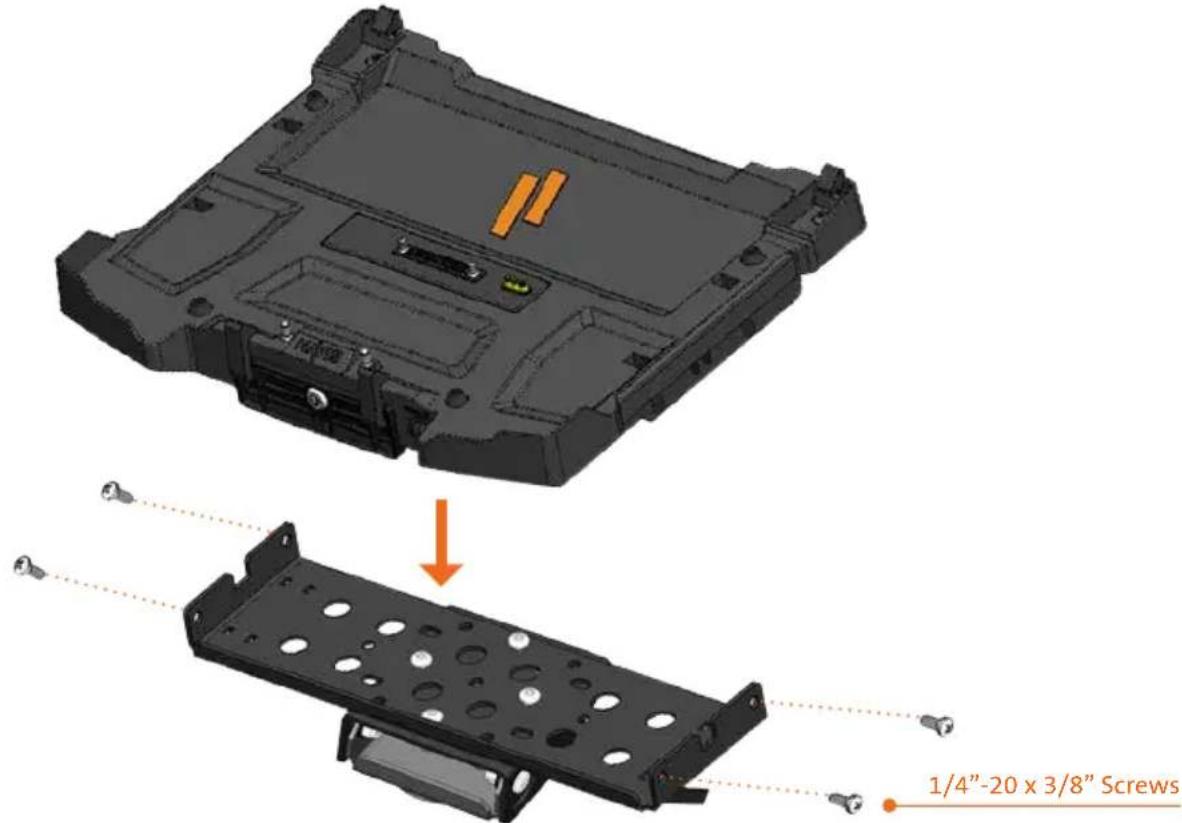

2) Lower the Docking Station to the Mounting Bracket as shown and secure with (4) 1/4"-20 x 3/8" long screws (Hardware Kit Item 4). Torque screws to 80 in-lbs (9.0 Nm) ± 10%.

1/4"-20 x 3/8" Screws

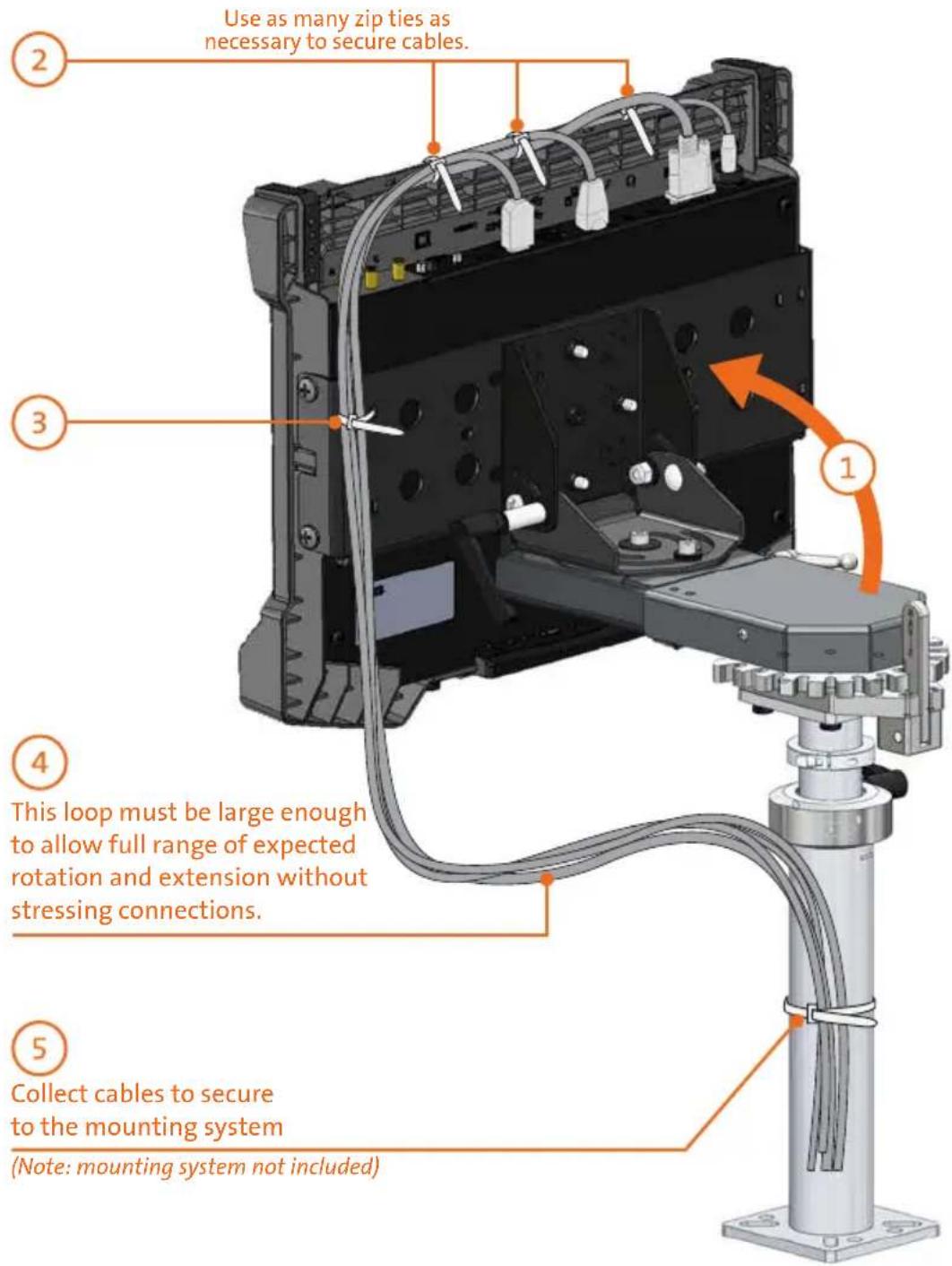

1) Orient the Docking Station in a position that is comfortable to work with.
2) Install all cables that are necessary for computing needs. Use Zip Ties (Hardware Kit Item 1) to strain relieve cables to the Strain Relief Points, routing all cables together to the front of the Docking Station.
3) Secure cable bundle to the Mounting Bracket with a supplied Zip Tie.
4) Create a service loop with cable bundle to ensure that no tension is on the connectors and to enable intended motion.
5) Tie off cables onto a stationary part of the mounting system. (Mounting system not included with Docking Station)

Use as many zip ties as necessary to secure cables. ② ③ ④ This loop must be large enough to allow full range of expected rotation and extension without stressing connections. ⑤ Collect cables to secure to the mounting system (Note: mounting system not included)

CAUTION

DO NOT FORCE NOTEBOOK ONTO DOCKING STATION. IF THERE IS RESISTANCE, CHECK THE ALIGNMENT OF NOTEBOOK ON DOCKING STATION.

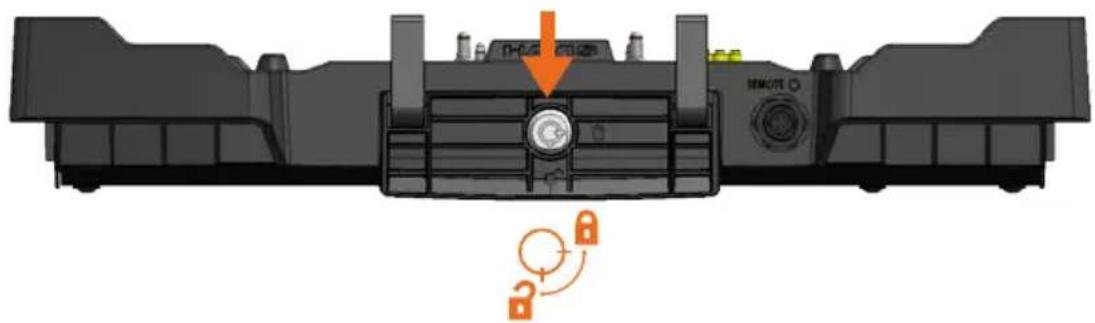

1) Ensure the Docking Station is unlocked.

Technical diagram of a mechanical component with labeled parts and an orange arrow indicating a specific feature (no readable text or symbols)

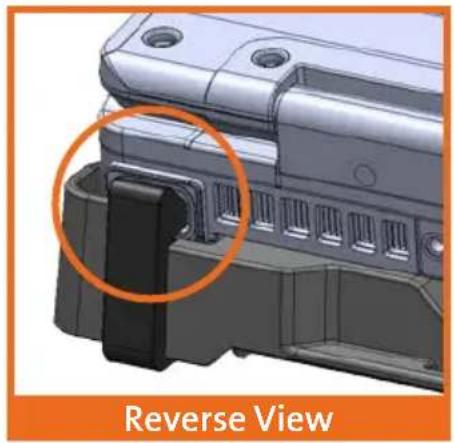

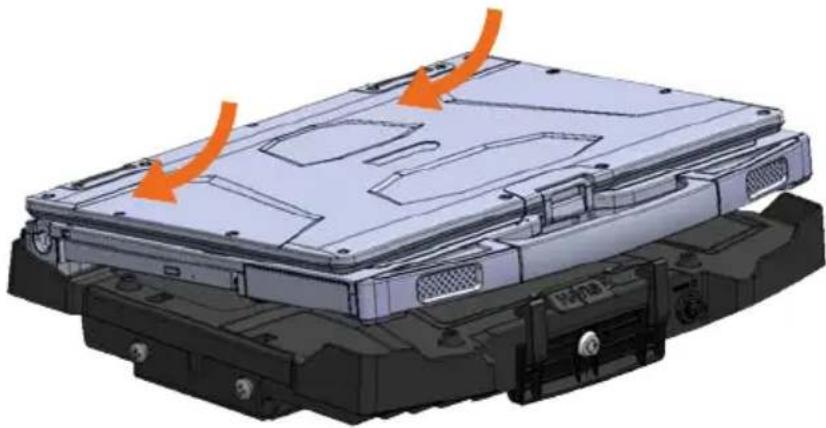

2) With front of computer elevated, load rear of computer into Docking Station ensuring the computer's rear hook pockets align with the Rear Hooks of the Docking Station as shown.

3D mechanical assembly diagram showing internal components with orange arrows indicating motion or force (no text or symbols)

3D mechanical component with a highlighted section and label 'Reverse View' (no other text or symbols)

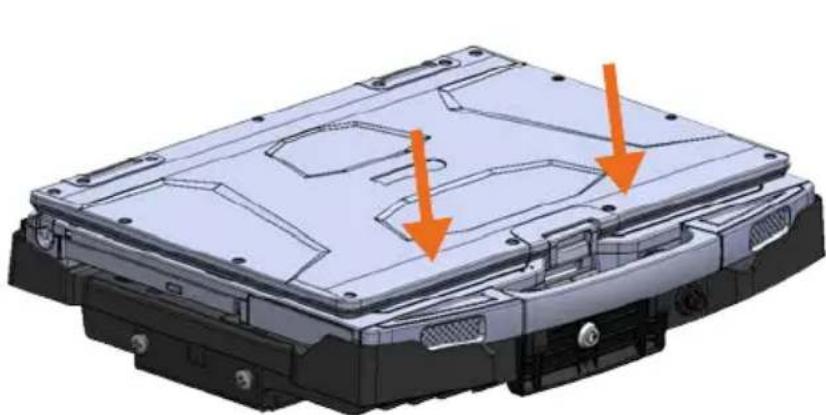

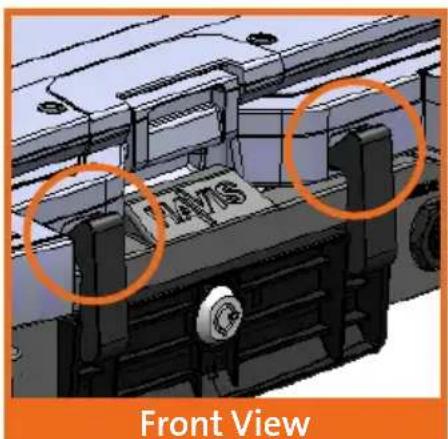

3) Lower front of computer onto Docking Station, ensuring computer properly aligns with the Locator Pins on the Docking Station. Apply light downward pressure to the front of computer, until Front Hooks on Release Handle snap into front hook pockets of computer.

3D CAD model of a mechanical housing component with two orange arrows indicating features (no text or symbols present)

3D CAD model of a vehicle front view showing structural components and a labeled component 'LAVS' (no readable text or symbols beyond labels)

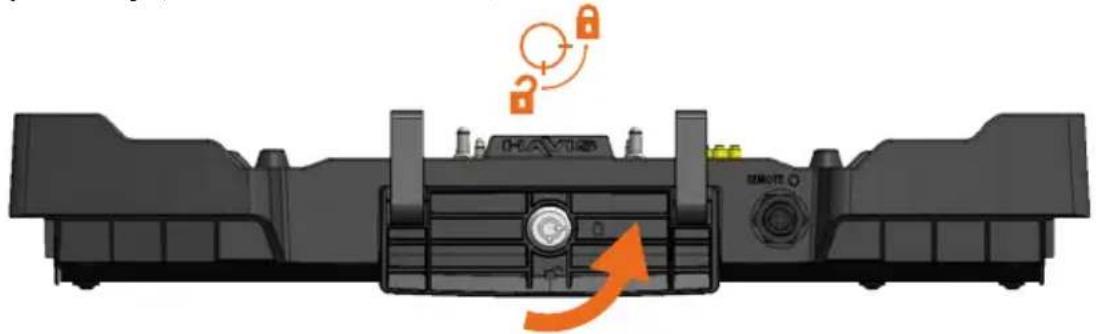

4) For theft deterrence, secure computer by locking Docking Station with supplied key (Hardware Kit Item 2).

3D diagram of a mechanical component with orange arrows indicating motion or force, no visible text or symbols

Operation - Undocking

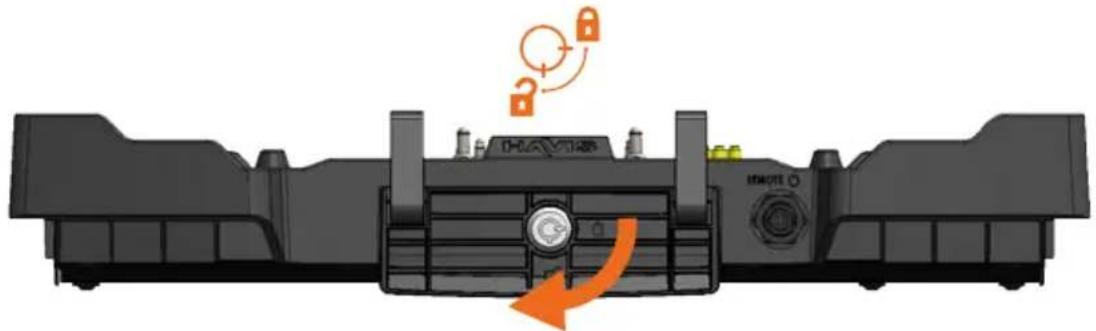

1) If previously locked, unlock Docking Station using supplied key.

3D diagram of a mechanical component with labeled parts and an orange arrow indicating rotation (no text or symbols present)

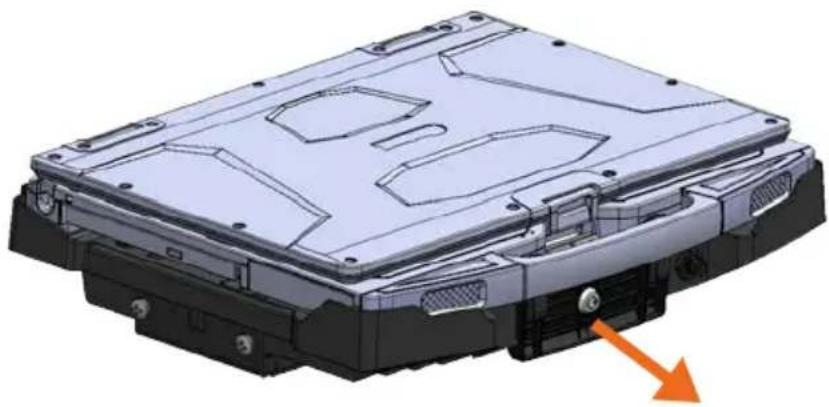

2) Pull handle to unlatch computer from Docking Station.

3D CAD model of a mechanical housing component with mounting holes and internal compartments, showing no text or symbols.

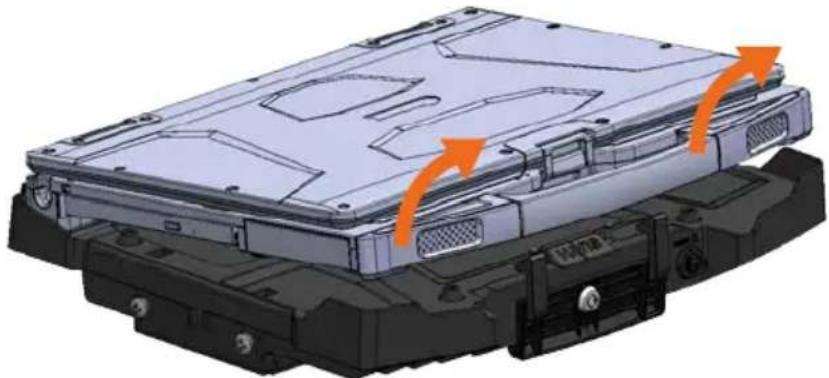

3) Once unlatched grab the handle of the computer and carefully lift out of Docking Station, front end first.

3D mechanical assembly diagram showing internal components with orange arrows indicating motion or force (no text or symbols)

Havis offers a wide variety of accessory products specifically for use with the DS-GTC-610 Series Docking Station. For more information or to order, please visit www.havis.com.

Three electronic devices with wires and connectors, no visible text or symbols

LPS-140

120W Power Supply

External power supply and cable for Getac Notebookwith LPS-208 accessory bracket and cigarette lighter adaptor.

3D rendering of a black electronic component with two circular holes and mounting feet (no text or symbols visible)

LPS-211

Multipurpose Mounting Bracket

Mount a Power Supply or USB Hub directly to your Docking Station with this versitle bracket.

Black plastic bracket component with two side slots (no text or symbols)

LPS-209

Power Supply Mounting Bracket

Mount the LPS-140 Power Supply directly to your Docking Station.

Two black metal bracket components with mounting holes, shown against a white background (no text or symbols)

Card Reader Mounting Brackets

Mount an E-Seek M250/260 card reader, or Magtek card reader to the side of the Docking Station.

Black handheld microphone with a long neck and pointed tip (no text or symbols visible)

DS-DA-318

Remote Power Cable & Button

Remote power cable and power button for DS-GTC-615 and DS-GTC-615-3 Docking Stations.

Black mechanical bracket with extended end (no text or symbols visible)

DS-DA-418

Screen Stiffener

Secure your laptop screen to prevent excess wear and reduce vibration while in use.

Close-up of a metallic key with a handle and metal bracket (no visible text or symbols)

DS-DA-503

Replacement Keys

Set of two (2) replacement keys for DS-GTC-610 Series Docking Stations.

Black rectangular electronic component with a small hole, shown in isometric view (no text or symbols)

DS-DA-809

Screen Blanking Solution with Tamperproof Cover

Powered by Blank-it, USB Dongle & Tamperproof Cover for DS-GTC-610 Series Docking Stations.

Havis, Inc.

75 Jacksonville Road

Warminster, PA 18974

www.havis.com 1-800-524-9900
