Product Type	USB 3.0 to VGA + Gigabit Ethernet Adapter
Brand	StarTech.com
Model	USB32VGAEH3
Host Interface	USB 3.0 (compatible with USB 2.0/1.1)
Video Output	1x VGA (D-Sub, 15-pin)
Network Interface	1x RJ45 Gigabit Ethernet (10/100/1000 Mbps)
Maximum Resolution	1920x1200 (VGA)
Dimensions	10.2 cm x 5.8 cm x 2.0 cm
Weight	95 g
Power Source	Bus-powered via USB; optional external power adapter (not included)
Power Consumption	2.5 W (max)
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 60°C
Humidity	10% to 80% (non-condensing)
Supported Operating Systems	Windows, macOS, Linux (driver required)
Compliance	CE, FCC, RoHS
Included Accessories	Quick start guide, driver CD (optional download)
Maintenance	Clean with a soft, dry cloth; do not use liquids
Safety Precautions	Avoid exposure to water, heat, and sharp objects
Spare Parts / Repairability	Not user-serviceable; contact technical support for issues

Frequently Asked Questions - USB32VGAEH3 StarTech.com

What operating systems are supported by the USB32VGAEH3?

The adapter supports Windows (7/8/10/11), macOS (10.10 and later), and Linux (kernel 3.0+). Drivers are required and can be downloaded from the StarTech.com website.

What is the maximum resolution supported via VGA?

The maximum resolution is 1920x1200 at 60 Hz. Lower resolutions are also supported.

Does the adapter require an external power source?

Under normal operation, the adapter is bus-powered via the USB 3.0 port. For high-power devices or unstable connections, an optional external power adapter (5V DC, 2A) may be used.

Can I use the Ethernet and VGA simultaneously?

Yes, both the VGA output and the Gigabit Ethernet port can be used at the same time without interference.

How do I install the driver?

Download the latest driver from the StarTech.com support page. On Windows, run the installer and follow the on-screen instructions. On macOS, the driver is included for recent versions; older versions may require manual installation.

Is this adapter compatible with USB 2.0 ports?

Yes, it is backward compatible with USB 2.0 and 1.1 ports, but performance may be limited (e.g., lower resolution or network speed).

What is the maximum Ethernet speed?

The built-in Gigabit Ethernet port supports 10/100/1000 Mbps (autosensing).

Does the adapter support audio over VGA?

No, VGA does not carry audio. The adapter provides only video output. For audio, use the computer's built-in audio or a separate USB audio device.

Can I connect multiple monitors via daisy-chaining?

No, this adapter supports a single external monitor via the VGA port. Use multiple adapters for multiple monitors.

How do I clean and maintain the adapter?

Unplug the adapter before cleaning. Use a soft, dry cloth to wipe the exterior. Avoid using liquids or abrasive cleaners. Store in a cool, dry place.

USER MANUAL USB32VGAEH3 StarTech.com

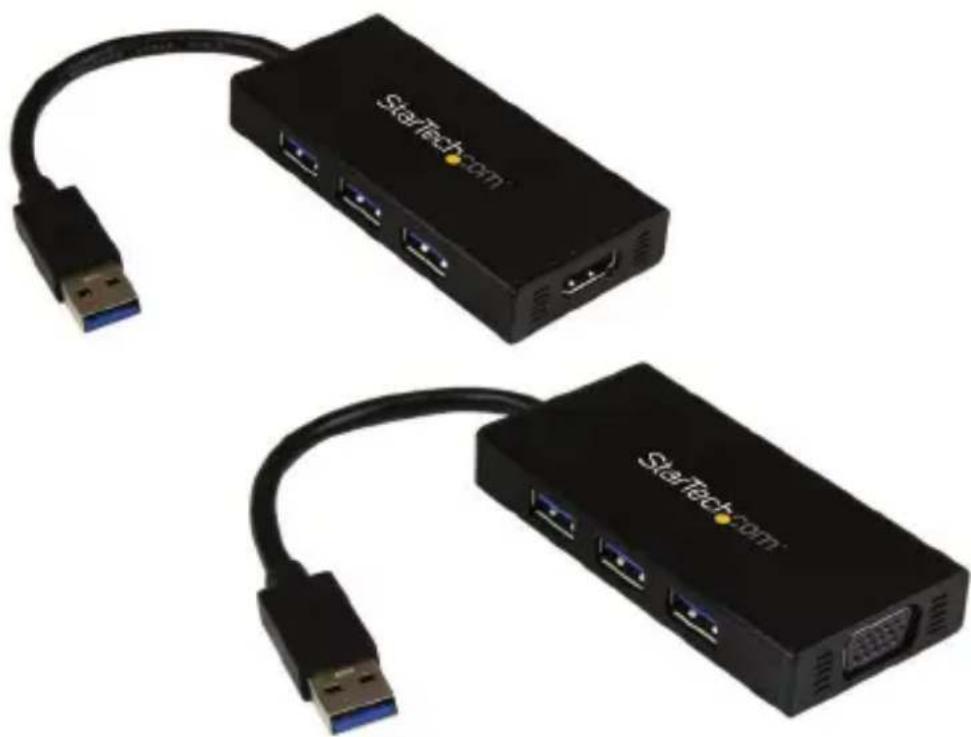

USB 3.0 to HDMI Adapter with 3-Port USB 3.0 Hub USB 3.0 to VGA Adapter with 3-Port USB 3.0 Hub

USB32HDEH3 / USB32VGAEH3

Two black StarTech.com audio devices with USB connectors and I/O ports, shown side by side (no text or symbols on device bodies)

*actual product may vary from photos

For the most up-to-date information, please visit: www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Introduction......1

Packaging Contents .... 1

System Requirements....1

Product Overview ...... 2

Front View - USB32HDEH3 2

Rear View....2

Front View - USB32VGAEH3....3

Rear View....3

Installation 4

Hardware Installation ....5

USB HUB Installation (Optional) 5

Multiple USB Video Adapter Installation 6

Configuring the USB Video Adapter....6

Display Settings 7

Identify Monitors ....7

Multi-Display Control Panel 8

Specifications....9

Technical Support 10

Warranty Information......10

Introduction

Packaging Contents

• 1x USB Display Adapter
• 1x Software CD
• 1x Manual

System Requirements

• USB-enabled computer system with available USB 3.0 or 2.0 port
• CPU: Quad Core 2.4GHz or higher (i5 recommended)
• RAM: 4GB or higher
- Microsoft® Windows 7 (32/64-bit); Windows 8/8.1 (32/64-bit)

Product Overview

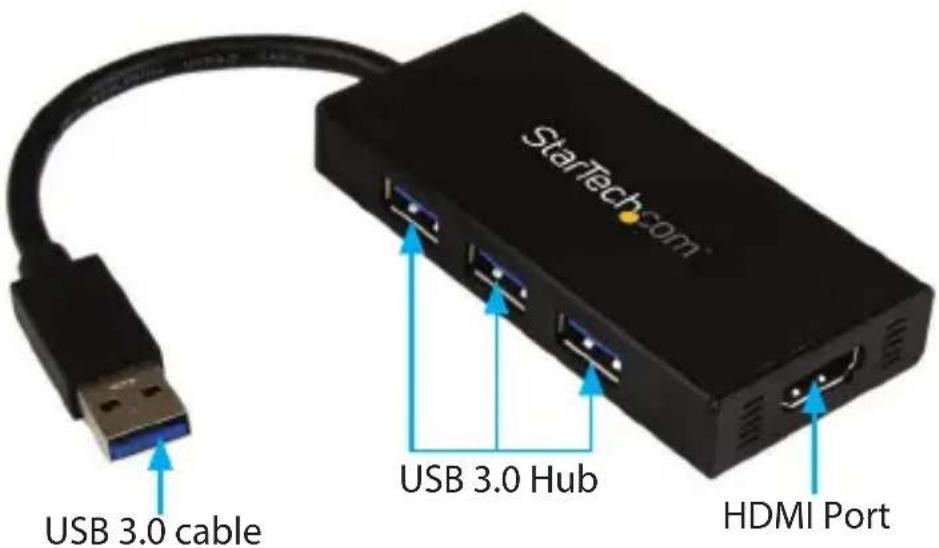

Front View - USB32HDEH3

StarTech.com USB 3.0 cable USB 3.0 Hub HDMI Port

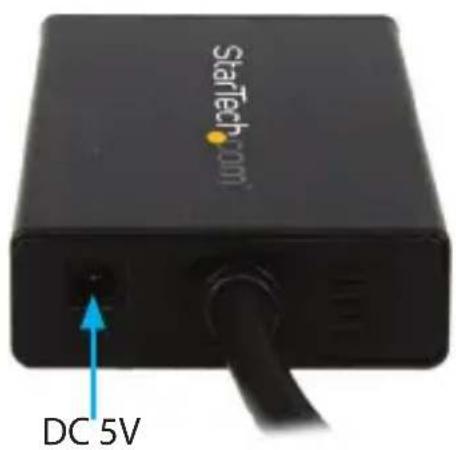

Rear View

StarTech.com DC 5V

Power adapter not included.

Note: A power adapter is only required when the output of ports exceeds 400mA.

Front View - USB32VGAEH3

StarTech.com USB 3.0 hub VGA Port USB 3.0 cable

Rear View

StarTech.com DC 5V

Power adapter not included.

Note: A power adapter is only required when the output of ports exceeds 400mA.

Installation

Driver Installation

Please ensure that the driver installation is complete prior to the physical installation (plugging in) of the USB 3.0 Video Adapter.

1. Download the latest drivers from the StarTech.com website (recommended), or insert the included Driver CD into your CD/DVD-ROM drive.
2. Locate the Setup.exe application. This file will be located in the root directory of the Driver CD (e.g. D:) or downloaded file from the StarTech.com website.
3. Executing the Setup.exe application will launch the following screen. Please click "Next" > start installation process. The set-up program will install the device driver and software application.

NOTE: Ensure that the USB Video Adapter is not connected to the host computer.

USB Display Device (Trigger Family) Driver Install Welcome to the InstallShield Wizard for USB Display Device (Trigger Family) The InstallShield Wizard will install USB DisplayDevice (Trigger Family) on your computer. To continue, click Next InstallUSB1 Next > Cancel

1. Once Windows has finished the driver installation, it will prompt you to restart the computer. Select "Yes, I want to restart my computer now", and click the "Finish" button.

Hardware Installation

1. Once the computer has restarted connect your USB display adapter via the USB cable to your PC.

Installing device driver software Click here for status.

1. The system will initiate driver and software application (screen may flash or go black during the install).

USB Display Device (Trigger Family) Driver Install InstallShield Wizard Complete The InstallShield Wizard has successfully installed USB Display Device(Trigger Family). Before you can use the program, you must restart your computer. ● Yes. I want to restart my computer now. ● No. I will restart my computer later. Remove any disk from that drive, and then click Finish to complete setup. InstallShield - Back Finish Cancel

1. Connect your display to the available video output port on the USB Display Adapter. The USB Video Adapter is now ready for use.

USB Hub Installation (Optional)

This device includes a built-in 3-port USB 3.0 hub, enabling you to add up to 3 additional USB 3.0 devices to the same USB 3.0 port.

NOTE: If the USB display adapter is connected to a USB 2.0 host port, the hub will only operate at USB 2.0 speeds.

1. Ensure the Hardware Installation steps have been completed. USB hub drivers will install as part of the installation when the device is connected.
2. Connect the USB cable from your desired USB device to any of the female USB ports on the USB Display Adapter.
3. After connecting your device(s) to the hub, follow the installation steps for your device(s) on-screen (if any).

Multiple USB Video Adapter Installation

Ensure you have the latest version of the drivers installed; otherwise, please download them from the StarTech.com website (www.startech.com).

1. Complete the standard driver installation steps up to the point of plugging in the first USB Video Adapter.
2. Connect another monitor/display to the second USB Video Adapter and turn on the display.
3. Connect the USB connector on the second USB Video Adapter to an available USB 3.0 port on the host computer. The driver installation will begin automatically.

Repeat these steps for each additional USB Video Adapter you wish to install. Once all USB Video Adapters are installed, reboot the computer. Please reboot one final time if prompted to do so.

Configuring the USB Video Adapter

Look for the "USB Video Adapter" icon ( ) on your Windows System Tray (next to the system tray clock). Right-click this icon to configure the adapter using the options explained below.

Identify Monitors Multi-Display Control Panel Display Settings Fixed Position Super Utility Customize...

Display Settings

Quick access to the Windows® "Display Settings" window.

This option allows you to use the Windows® Display Settings within the Control Panel to adjust screen resolution, orientation, appearance, and screen mirroring/extension.

All Control Panel Items ▶ Display ▶ Screen Resolution Search Control Panel Change the appearance of your displays 1. S21BSSI Display: 1. S21BSSI Resolutions: 1920×1080 (recommended) Orientation: Landscape Multiple displays Extend these displays This is currently your main display. Advanced settings Make text and other items larger or smaller What display settings should I choose? OK Cancel Apply

Identify Monitors

This option displays the identification number assigned by Windows ^® to differentiate between each monitor. Using an easy to read overlay this number is displayed in the upper right corner of each monitor.

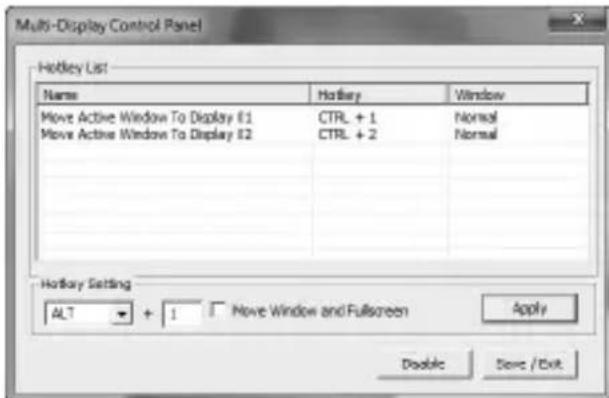

Multi-Display Control Panel

This unique feature allows for quicker and simpler management of a multi-display environment using a series of hotkeys to quickly move the active program window to the desired display (either on-board or each USB Video Adapter).

Multi-Display Control Panel Hotkey List Name Hohley Window Move Active Window To Display 61 Ctrl + 1 Normal Move Active Window To Display 62 Ctrl + 2 Normal Hotkey Setting ALT + 1 Move Window and Fullscreen Apply Double Save /Exit

The default setting of the hotkeys can be found in the Hotkey List of "Multi-Display Control Panel".

Example: Ctrl + 2 means: to move the window to Display 2

Specifications

AV Input USB 3.0
Interface USB
Max Resolution 1920 x 1200
AV Output	VGA (USB32VGAEH3) / HDMI (USB32HDEH3)
Chipset ID MCT Trigger T5-301
Color Black
Enclosure Type Plastic
Audio Yes (USB32HDEH3) / No (USB32VGAEH3)
Maximum Digital Resolutions 1920x1200
OS Compatibility	Windows® 7 (32/64 bit); Windows® 8/8.1 (32/64 bit)
Industry Standards SuperSpeed USB 3.0, USB 2.0
Supported Resolutions	Widescreen(16/32 bit): 1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720
	Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600
Wide Screen Supported Yes

Note: Connect a maximum of five USB Display Adapters on a single PC.

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
