Product Type	USB 3.0 to HDMI + USB 3.0 Hub + Gigabit Ethernet Adapter
Dimensions	3.5 x 2.2 x 0.8 in (89 x 56 x 20 mm)
Weight	2.8 oz (80 g)
Power Source	Bus-powered via USB 3.0; optional external 5V DC adapter
Video Output	HDMI up to 2048x1152 resolution
USB 3.0 Ports	3x USB 3.0 Type-A ports (backward compatible with USB 2.0/1.1)
Ethernet Port	Gigabit Ethernet (10/100/1000 Mbps) via RJ45
Supported Operating Systems	Windows 7/8/10/11, Mac OS X 10.8+, Linux
Maintenance	Wipe with a dry, lint-free cloth; do not use liquids or solvents
Safety Compliance	FCC, CE, RoHS
Spare Parts & Repairability	No user-serviceable parts; contact StarTech.com support for issues
Additional Features	Supports DisplayLink technology; plug-and-play installation

Frequently Asked Questions - USB32HDEH3 StarTech.com

How do I install the USB32HDEH3 adapter?

Connect the adapter to a USB 3.0 port on your computer. For video output, install the latest DisplayLink driver from the StarTech.com website. For the Ethernet and USB hub functions, drivers are automatically installed on Windows and macOS.

What video resolutions does it support?

It supports HDMI output up to 2048x1152 at 60 Hz. Lower resolutions like 1920x1080 and 1280x720 are also supported.

Can I use this adapter with a USB 2.0 port?

Yes, but performance will be limited. Video output may be restricted to lower resolutions and USB 3.0 ports will operate at USB 2.0 speeds. Gigabit Ethernet will also be slower.

Does it support multiple monitors?

Yes, you can add an external monitor via the HDMI port. With multiple adapters, you can connect several monitors, depending on your system's DisplayLink capabilities.

What is the maximum Ethernet speed?

The adapter supports Gigabit Ethernet (10/100/1000 Mbps) when connected to a USB 3.0 port. Actual speeds depend on network conditions.

Is external power required?

Most setups are bus-powered via USB 3.0. If you experience unstable operation, use the optional 5V DC power adapter (not included) for additional power.

Does this adapter work with macOS?

Yes, it is compatible with macOS 10.8 and later. Install the DisplayLink driver for macOS from the StarTech.com support page.

Can I use the USB ports for charging?

Yes, the USB 3.0 ports can charge devices, but charging speed is limited compared to dedicated chargers. For fast charging, use the optional power adapter.

What if the adapter is not recognized?

Try a different USB port, reinstall the DisplayLink driver, or check for Windows/macOS updates. If the issue persists, test with another computer to rule out hardware failure.

How do I clean the adapter?

Unplug the adapter and wipe it gently with a dry, lint-free cloth. Avoid using liquids, sprays, or abrasive materials that could damage the device.

USER MANUAL USB32HDEH3 StarTech.com

USB 3.0 to HDMI Adapter with 3-Port USB 3.0 Hub USB 3.0 to VGA Adapter with 3-Port USB 3.0 Hub

USB32HDEH3 / USB32VGAEH3

Two black StarTech.com audio devices with USB connectors and port labels (no readable text beyond branding)

*actual product may vary from photos

For the most up-to-date information, please visit: www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Introduction....1

Packaging Contents .... 1

System Requirements....1

Product Overview 2

Front View - USB32HDEH3 2

Rear View....2

Front View - USB32VGAEH3....3

Rear View....3

Installation 4

Hardware Installation ....5

USB HUB Installation (Optional) 5

Multiple USB Video Adapter Installation 6

Configuring the USB Video Adapter....6

Display Settings 7

Identify Monitors ....7

Multi-Display Control Panel 8

Specifications....9

Technical Support 10

Warranty Information......10

Introduction

Packaging Contents

• 1x USB Display Adapter
• 1x Software CD
• 1x Manual

System Requirements

• USB-enabled computer system with available USB 3.0 or 2.0 port
• CPU: Quad Core 2.4GHz or higher (i5 recommended)
• RAM: 4GB or higher
- Microsoft® Windows 7 (32/64-bit); Windows 8/8.1 (32/64-bit)

Product Overview

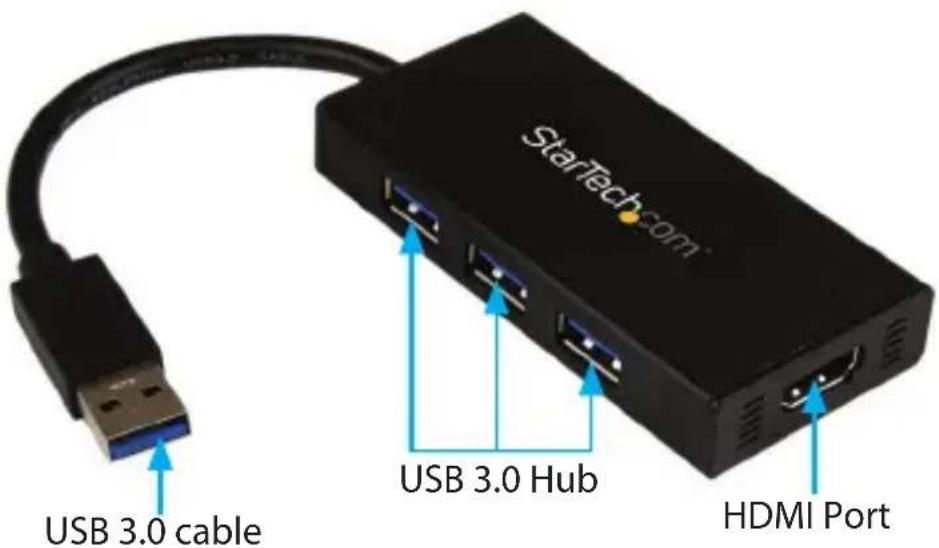

Front View - USB32HDEH3

Rear View

Power adapter not included.

Note: A power adapter is only required when the output of ports exceeds 400mA.

Front View - USB32VGAEH3

Rear View

Power adapter not included.

Note: A power adapter is only required when the output of ports exceeds 400mA.

Installation

Driver Installation

Please ensure that the driver installation is complete prior to the physical installation (plugging in) of the USB 3.0 Video Adapter.

1. Download the latest drivers from the StarTech.com website (recommended), or insert the included Driver CD into your CD/DVD-ROM drive.
2. Locate the Setup.exe application. This file will be located in the root directory of the Driver CD (e.g. D:) or downloaded file from the StarTech.com website.
3. Executing the Setup.exe application will launch the following screen. Please click "Next" > start installation process. The set-up program will install the device driver and software application.

NOTE: Ensure that the USB Video Adapter is not connected to the host computer.

1. Once Windows has finished the driver installation, it will prompt you to restart the computer. Select "Yes, I want to restart my computer now", and click the "Finish" button.

Hardware Installation

1. Once the computer has restarted connect your USB display adapter via the USB cable to your PC.

1. The system will initiate driver and software application (screen may flash or go black during the install).

1. Connect your display to the available video output port on the USB Display Adapter. The USB Video Adapter is now ready for use.

USB Hub Installation (Optional)

This device includes a built-in 3-port USB 3.0 hub, enabling you to add up to 3 additional USB 3.0 devices to the same USB 3.0 port.

NOTE: If the USB display adapter is connected to a USB 2.0 host port, the hub will only operate at USB 2.0 speeds.

1. Ensure the Hardware Installation steps have been completed. USB hub drivers will install as part of the installation when the device is connected.
2. Connect the USB cable from your desired USB device to any of the female USB ports on the USB Display Adapter.
3. After connecting your device(s) to the hub, follow the installation steps for your device(s) on-screen (if any).

Multiple USB Video Adapter Installation

Ensure you have the latest version of the drivers installed; otherwise, please download them from the StarTech.com website (www.startech.com).

1. Complete the standard driver installation steps up to the point of plugging in the first USB Video Adapter.
2. Connect another monitor/display to the second USB Video Adapter and turn on the display.
3. Connect the USB connector on the second USB Video Adapter to an available USB 3.0 port on the host computer. The driver installation will begin automatically.

Repeat these steps for each additional USB Video Adapter you wish to install. Once all USB Video Adapters are installed, reboot the computer. Please reboot one final time if prompted to do so.

Configuring the USB Video Adapter

Look for the "USB Video Adapter" icon ( ) on your Windows System Tray (next to the system tray clock). Right-click this icon to configure the adapter using the options explained below.

Display Settings

Quick access to the Windows® "Display Settings" window.

This option allows you to use the Windows® Display Settings within the Control Panel to adjust screen resolution, orientation, appearance, and screen mirroring/extension.

Identify Monitors

This option displays the identification number assigned by Windows ^® to differentiate between each monitor. Using an easy to read overlay this number is displayed in the upper right corner of each monitor.

Multi-Display Control Panel

This unique feature allows for quicker and simpler management of a multi-display environment using a series of hotkeys to quickly move the active program window to the desired display (either on-board or each USB Video Adapter).

The default setting of the hotkeys can be found in the Hotkey List of "Multi-Display Control Panel".

Example: Ctrl + 2 means: to move the window to Display 2

Specifications

AV Input USB 3.0
Interface USB
Max Resolution 1920 x 1200
AV Output	VGA (USB32VGAEH3) / HDMI (USB32HDEH3)
Chipset ID MCT Trigger T5-301
Color Black
Enclosure Type Plastic
Audio Yes (USB32HDEH3) / No (USB32VGAEH3)
Maximum Digital Resolutions 1920x1200
OS Compatibility	Windows® 7 (32/64 bit); Windows® 8/8.1 (32/64 bit)
Industry Standards SuperSpeed USB 3.0, USB 2.0
Supported Resolutions	Widescreen(16/32 bit): 1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720
	Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600
Wide Screen Supported Yes

Note: Connect a maximum of five USB Display Adapters on a single PC.

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
