Product Type	Compact Refrigerator with Freezer
Brand	Avanti
Model	SHP2503PS
Total Capacity	2.5 cu. ft. (71 L)
Refrigerator Capacity	Approx. 1.8 cu. ft.
Freezer Capacity	Approx. 0.7 cu. ft.
Dimensions (W x D x H)	17.5 x 18.5 x 32 inches (44.5 x 47 x 81.3 cm)
Weight	Approx. 45 lbs (20.4 kg)
Power Supply	115V AC, 60Hz
Energy Consumption	Approx. 215 kWh per year
Defrost Type	Manual defrost
Temperature Control	Adjustable thermostat dial
Interior Light	Yes, LED
Shelves	1 adjustable glass shelf, 1 fixed shelf
Door Storage	2 door bins, 1 egg tray
Freezer Features	Ice cube tray, small frozen storage
Reversible Door	Yes, handles on left or right
Leveling Legs	2 front leveling legs
Noise Level	Approx. 40 dB
Refrigerant	R600a (isobutane)
Installation	Freestanding, proper ventilation required
Cleaning	Clean with mild soap and water; avoid abrasive cleaners
Safety Features	Auto defrost heater, door ajar alarm (model dependent)
Spare Parts	Available through Avanti authorized service centers

Frequently Asked Questions - SHP2503PS Avanti

What is the capacity of the Avanti SHP2503PS refrigerator?

The total capacity is 2.5 cubic feet (71 liters), with approximately 1.8 cu. ft. for the refrigerator section and 0.7 cu. ft. for the freezer.

How do I adjust the temperature in this fridge?

Turn the thermostat dial inside the refrigerator. The '1' setting is warmest (least cooling) and '7' is coldest. A middle setting is recommended for normal use.

Does the Avanti SHP2503PS have a reversible door?

Yes, the door is reversible. You can mount the handles on either side to open left or right. Instructions are in the manual.

How do I defrost the freezer?

This model requires manual defrost. Turn off or unplug the fridge, remove food, and let ice melt. Do not use sharp tools to scrape ice.

What are the dimensions of this refrigerator?

Dimensions are approximately 17.5 inches wide, 18.5 inches deep, and 32 inches high (44.5 x 47 x 81.3 cm).

Is the interior light replaceable?

The interior light is an LED that is not user-replaceable. If it fails, contact Avanti service.

How do I clean the Avanti SHP2503PS?

Use a soft cloth with mild soap and water. Avoid abrasive cleaners. Wipe the interior and exterior, including the condenser coils regularly.

What type of refrigerant does it use?

It uses R600a (isobutane), a flammable but environmentally friendly refrigerant. Dispose properly.

How can I get spare parts or service?

Spare parts are available through Avanti authorized service centers. Check the Avanti website or contact customer service for nearest location.

Why is my refrigerator making noise?

Normal operation includes sounds from the compressor, fan, and refrigerant flow. If noise is excessive, ensure it is level on a solid floor and not touching walls or cabinets.

USER MANUAL SHP2503PS Avanti

Line drawing of a simple refrigerator with lid and front panel (no text or symbols)

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products, A Division of the Mackle Co., Inc.

P.O. Box 520604 - Miami, Florida 33152

www.avantiproducts.com

REFRIGERATOR SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual for your appliance. Always read and obey all safety messages.

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the Safety Alert Symbol and either the words "DANGER", "WARNING" or "CAUTION".

DANGER

Danger means that failure to heed this safety statement may result in severe personal injury or death.

WARNING

Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

CAUTION

Caution means that failure to heed this safety statement may result in minor or moderate personal injury, property or equipment damage.

All safety messages will alert to know what potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

IMPORTANT SAFEGUIDES

Before the refrigerator is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the refrigerator, follow basic precaution, including the following:

DANGER

• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord.
• It is recommended that a separate circuit, serving only your refrigerator be provided. Use receptacles that cannot be turned off by a switch or pull chain.
• Never clean refrigerator parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.
• Do not connect or disconnect the electric plug when your hands are wet.
• Unplug the refrigerator or disconnect power before cleaning or servicing. Failure to do so can result in electrical shock or death.
• Do not attempt to repair or replace any part of your refrigerator unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

WARNING

FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL

• Use two or more people to move and install refrigerator. Failure to do so can result in back or other injury.
• To ensure proper ventilation for your refrigerator, the front of the unit must be completely unobstructed. Choose a well-ventilated area with temperatures above 60^ F ( 16^ C) and below 90^ F ( 32^ C). This unit must be installed in an area protected from the element, such as wind, rain, water spray or drips.
• The refrigerator should not be located next to ovens, grills or other sources of high heat.
• The refrigerator must be installed with all electrical connections in accordance with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances is required.
• Do not kink or pinch the power supply cord of refrigerator.
• The fuse (or circuit breaker) size should be 15 amperes.
• It is important for the refrigerator to be leveled in order to work properly. You may need to make several adjustments to level it.
• Never allow children to operate, play with or crawl inside the refrigerator.
• Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage or discolor the interior.
• Do not use this apparatus for other than its intended purpose.

HELP US HELP YOU...

Read this guide carefully.

It is intended to help you operate and maintain your new refrigerator properly.

Keep it handy to answer your questions. If you don't understand something or you need more assistance, please call:

Avanti Customer Service 800-220-5570

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

CAUTION:

THIS REFRIGERATOR IS NOT DESIGNED FOR THE STORAGE OF MEDICINE OR OTHER MEDICAL PRODUCTS.

Write down the model and serial numbers.

You'll find them on a plate located on the rear outside wall of the refrigerator.

Please write these numbers here:

Date of Purchase

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your refrigerator.

If you received a damaged refrigerator, immediately contact the dealer (or builder) that sold you the refrigerator.

Save time and money. Before you call for service, check the Troubleshooting Guide. It lists causes of minor operating problems that you can correct yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further assistance.

FIRST, contact the people who serviced your refrigerator. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details, including your telephone number, and send it to:

Customer Service

Avanti Products

10880 NW 30 Street

Miami, FL 33172 USA

TABLE OF CONTENTS

Refrigerator Safety 2
Important Safeguides 3
Help Us Help You 4
Parts and Features 6
Important Safety Instructions 7
Installation Instructions 7
Before Using Your Appliance 7
Installation of Your Appliance 7
Electrical Connection 8
Reversing the Door Swing of Your Appliance 8
Operating Your Appliance 8
Temperature Control 8
Interior Light 9
Care and Maintenance	9
Defrosting Your Appliance	9
Cleaning Your Appliance	9
Power Failure	9
Vacation Time	9
Moving Your Appliance	9
Energy Saving Tips	10
Troubleshooting Guide	10
Service for Your Appliance	11

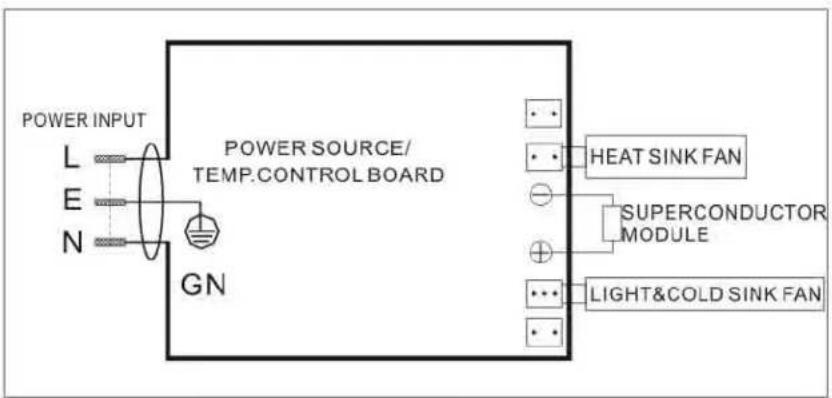

Wiring Diagram	11
Your Avanti Products Warranty	12
Instrucciones en Español	13 – 14
Registration Information and Registration Card	15

PARTS & FEATURES

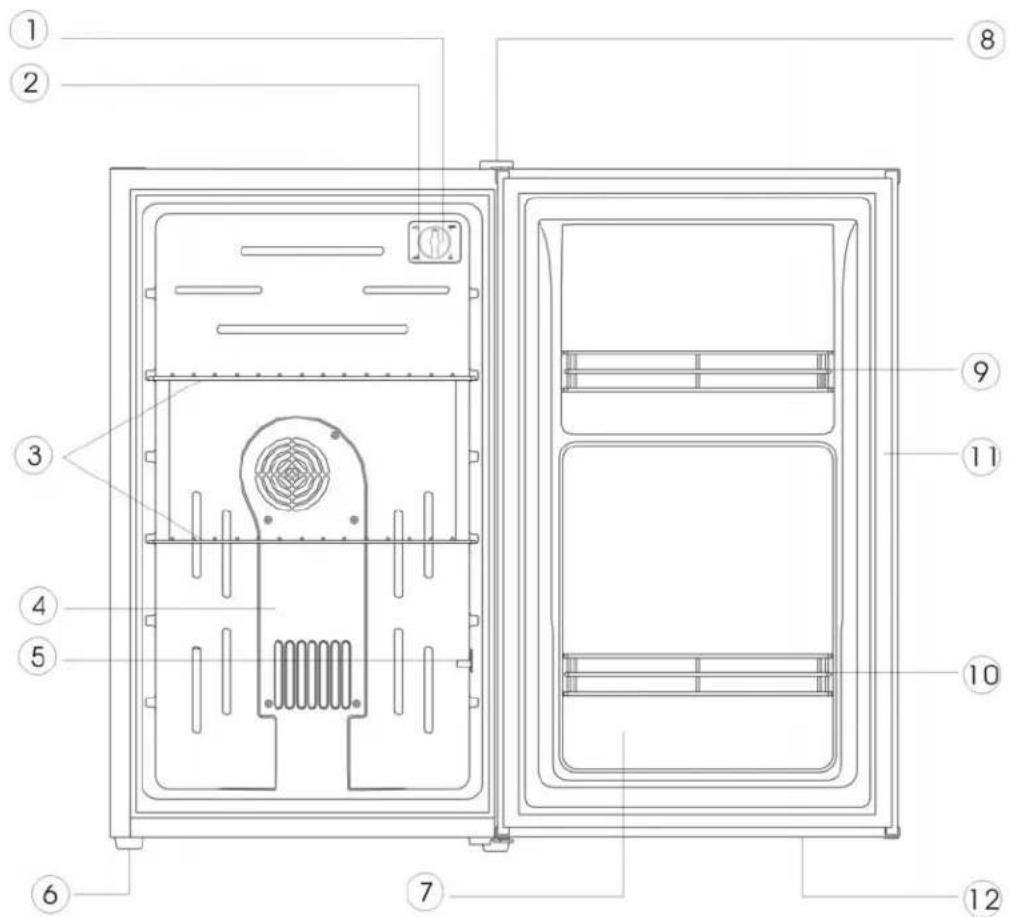

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

1. Temperature Control Knob
2. Light
3. Shelves (2)
4. Cold Sink Fan Cover
5. Light Switch

6. Legs

7. Door Liner

8. Upper Hinge Cover
9. Upper Door Bin
10. Lower Door Bin
11. Gasket
12. Door

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your refrigerator, follow these basic precautions:

Read all instructions before using the refrigerator.DANGER or WARNING:Risk of child entrapment.Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous . . . even if they will “just sit in the garage a few days”.Before you throw away your old refrigerator:Take off the door. Leave the shelf in place so that children may not easily climb inside.Never allow children to operate, play with, or crawl inside the refrigerator.Never clean refrigerator parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other refrigerator. The fumes can create a fire hazard or explosion.Do not repair or replace any part of the refrigerator or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions. Replace the fuse with the same type.-Save these instructions-

INSTALLATION INSTRUCTIONS

Before Using Your Refrigerator

• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts:

• 2 Shelves

• 1 Instruction manual

- Clean the interior surface with lukewarm water using a soft cloth.

Installing Your Refrigerator

• This refrigerator uses superconductor heat-pipe refrigeration technology (no compressor).
• This appliance is designed to be free standing only, and should not be recessed or built-in (Fully recessed).
• Place your refrigerator on a floor that is strong enough to support the refrigerator when it is fully loaded.
• Allow 5 inches of space between the back and sides of the refrigerator, which allows the proper air circulation to cool the heat sink.
• Locate the refrigerator away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the refrigerator not to perform properly.
• Avoid locating the refrigerator in moist areas.
• Plug the refrigerator into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Avanti Products service center.
• After plugging the appliance into a wall outlet, allow the unit to cool down for 2-3 hours before placing food in the refrigerator compartment.

Electrical Connection

Warning

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center.

This refrigerator should be properly grounded for your safety. The power cord of this refrigerator is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

Do not under any circumstances cut or remove the third ground prong from the power cord supplied.

This refrigerator require a standard 115/120 Volt A.C./60Hz electrical outlet with three-prong ground. Applicable AC adapter / plug has been provided.

The cord should be secured behind the refrigerator and not left exposed or dangling to prevent accidental injury.

Never unplug the refrigerator by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle.

Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance.

Reversing the Door Swing of Your Appliance

This refrigerator has the capability of the door opening from either the left or right side. The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please call customer service for reversal instructions.

LO MED OFF HI

Setting the Temperature Control

• Your refrigerator has only one control for regulating the temperature. The temperature control is located on the upper right hand corner of the compartment.
• To control the internal temperature, adjust the control knob according to the ambient temperature or purpose of use.
• The first time you turn the unit on, set the temperature control to "HI".
• The range of the temperature control is from position "OFF" to "HI".
• After 24 hours, adjust the temperature control to the setting that best suites your needs. The setting of "MED" should be appropriate for home or office refrigerator use.

NOTE:

- Turning the temperature control to "OFF" position stops the cooling cycle but does not shut off the power to the appliance.

- After 24 hours, adjust the temperature control to the setting that best suites your needs. The setting of "MED" should be appropriate for home or office refrigerator use.

TO PREVENT LIQUIDS FROM FREEZING YOU MUST ADJUST THE TEMPERATURE CONTROL TO THE MEDIUM SETTING AFTER THE INITIAL 24 HOUR PERIOD OF USE.

> Interior Light

This refrigerator is provided with a LED light located on the upper right hand corner of the compartment. The light will be on when the door is opened and be off when the door is closed.

CARE AND MAINTENANCE

> Defrosting Your Refrigerator

This model uses a superconductor heat-pipe cooling system with automatic defrosting system so there is no need to defrost it manually.

> Cleaning Your Refrigerator

• UNPLUG the refrigerator, and remove the shelf.
- Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
- Wash the shelf with a mild detergent solution.
- The outside of the refrigerator should be cleaned with mild detergent and warm water.
- Wring excess water out of the sponge or cloth before cleaning the area of the controls, or any electrical parts.
- Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.

CAUTION

Failure to unplug the refrigerator could result in electrical shock or personal injury.

Power Failure

Most power failures are corrected within a few hours and should not affect the temperature of your refrigerator if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your food.

Vacation Time

• Short vacations: Leave the refrigerator operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all food and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.

Moving Your Refrigerator

• Remove all the food.
• Securely tape down all loose items inside your refrigerator.
• Tape the door shut.
• Protect the outside of refrigerator with a blanket, or similar item.

Energy Saving Tips

• The refrigerator should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.
  • Overloading the refrigerator forces the superconductor cooling system to run longer.
• Reduce door openings and extended searches, remove as many item as needed at one time, and close the door as soon as possible.
• One characteristic of superconductor heat-pipe units is the length of time it requires to recover from having the door opened and shut frequently. It may be necessary to wait longer for the temperature to return to its former level once the door has been opened for too long. This is normal for the type of unit.
• Superconductor heat-pipe technology costs just pennies to operate. It is environmentally friendly due to the lack of CFC's.

PROBLEMS WITH YOUR REFRIGERATOR?

You can solve many common refrigerator problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE
Refrigerator does not operate.	Not plugged in.The circuit breaker tripped or a blown fuse.The appliance temperature control is set at “OFF” position.
Refrigerator is not cold enough.	The room temperature is hotter than normal.The door is opened too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.The refrigerator does not have the correct clearances.Abnormal voltage.
The light does not work.	Not plugged in.The circuit breaker tripped or a blown fuse.The LED light has burned out.
Vibrations. Check to assure that the refri	gerator is level.
The door will not close properly.	The refrigerator is not level.The door was reversed and not properly installed.The gasket is dirty.The shelves, bins, or baskets are out of position.

CAUSE

SERVICE FOR YOUR REFRIGERATOR

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti refrigerators. With the purchase of your Avanti refrigerator, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. Just call us toll-free.

AVANTI PRODUCTS CUSTOMER SERVICES

Product Information800-323-5029	Whatever your questions are about our products, help is available.
Part Orders800-220-5570	You may order parts and accessories that will be delivered directly to your home, by personal check, money order, Master Card, or Visa.
In-Home Repair Service800-220-5570	An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your refrigerator inside and out.

WIRING DIAGRAM

POWER INPUT L E N GN POWER SOURCE/ TEMP.CONTROL BOARD HEAT SINK FAN SUPERCONDUCTOR MODULE LIGHT&COLD SINK FAN

YOUR Avanti Products WARRANTY

Staple your sales receipt here. Proof of original purchase date is needed to obtain service under warranty.

WHAT IS COVERED

LIMITED ONE-YEAR

WARRANTY

For one year from the date of purchase by the original owner, Avanti Products will, at its option, repair or replace any part of the refrigerator, which proves to be defective in material or workmanship under normal use. During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the refrigerator has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days. Avanti Products will provide you with a reasonably similar replacement product that is either new or factory refurbished All Avanti Appliances of 3.5 cubic feet capacity or less must be brought/sent to the appliance service shop for repair.

WHAT IS NOT COVERED

• Content losses of food due to spoilage.
• Incidental or consequential damages.
• Parts and labor costs for the following will not be considered as warranty:
• Evaporator doors, door springs, and/or frames.
• Inner door panels, door shelves, door rails, and/or door supports.
  • Light and/or plastic housing.
• Plastic cabinet liners.
• Punctured evaporator that voids the warranty on the complete sealed system.

• Shipping and handling costs associated with the replacement of the unit.
  • Repairs performed by unauthorized servicers.

• Service calls that do not involve defects in material or workmanship such as customer education, door reversal, or proper installation.

• Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the State of Alaska.
• Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
• Replacement of house fuses or resetting circuit breakers.
• Failure of the product if it is used for other than its intended purpose.
• This warranty does not apply outside the Continental USA.

Thank you for purchasing this fine Avanti product. Please fill out this card and return it within 100 days of purchase and receive these important benefits to the following address:

Avanti Products, A Division of The Mackle Co., Inc.

P.O. Box 520604 - Miami, Florida 33152 USA

Protect your product:

We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

➢ Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

(detach here)

Avanti Registration Card

Name	Model #	Serial #
Address			Date	Purchased	Store/Dealer	Name
City	State	Zip	Occupation
As Your Primary Residence, Do You:
Area Code	Phone Number		□Own	□Rent
Did You Purchase An Additional Warranty:			Your Age:
□Extended	□Food Loss	□None	□under 18	□18-25	□26-30
Reason For Choosing This Avanti Product:			□31-35	□36-50	□over 50
Please indicate the most important factors that influenced your decision to purchase this product.			Marital Status:
			□Married	□Single
			Is This Product Used In The:
□Price			□Home	□Business
□Product Features			How Did You Learn About This Product:
□Avanti Reputation			□Advertising
□Product Quality			□In Store Demo	□Personal Demo
□Salesperson Recommendation			□Other
□Friend/Relative Recommendation			Comments
□Warranty
□Other

PRINTED IN CHINA
