USER MANUAL BCA244B Avanti

Line drawing of an open refrigerator with shelves and a cup on top (no text or symbols)

Model
RM241B

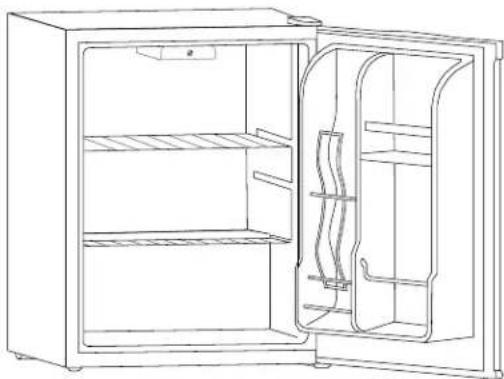

Line drawing of an open refrigerator with shelves and door (no text or symbols)

Model
BCA244B

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

Avanti has a policy of continuous improvement on its products and reserves the right to change materials and specifications without notice.

Avanti Products, A Division of the Mackle Co., Inc.

P.O. Box 520604 - Miami, Florida 33152

www.avantiproducts.com

TABLE OF CONTENTS

Refrigerator Safety 3
Important Safeguides 4
Help Us Help You 5
Parts and Features 6 – 7
Important Safety Instructions 8
Installation Instructions 8
Before Using Your Refrigerator 8
Installation of Your Refrigerator 9
Electrical Connection 9
Operating Your Refrigerator 10
Setting the Temperature Control 10
Care and Maintenance 11
Defrosting Your Refrigerator 11
Cleaning Your Refrigerator 11
Vacation Time 11
Moving Your Refrigerator 11
Energy Saving Tips 11
Problems with Your Refrigerator 12
Troubleshooting Guide 12
Service for Your Refrigerator 13
Wiring Diagram 13
Your Avanti Products Warranty 14
Instrucciones en Español 15 – 17
Registration Information 19

REFRIGERATOR SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual for your appliance. Always read and obey all safety messages.

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the Safety Alert Symbol and either the words" DANGER", "WARNING" or "CAUTION".

DANGER

Danger means that failure to heed this safety statement may result in severe personal injury or death.

WARNING

Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

CAUTION

Caution means that failure to heed this safety statement may result in minor or moderate personal injury, property or equipment damage.

All safety messages will alert you to know what the potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

IMPORTANT SAFEGUIDES

Before the refrigerator is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the refrigerator, follow basic precautions, including the following:

DANGER

• Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not use an extension cord.
• It is recommended that a separate circuit, serving only your refrigerator be provided. Use receptacles that cannot be turned off by a switch or pull chain.
• Never clean refrigerator parts with flammable fluids. These fumes can create a fire hazard or explosion. And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.
• Do not connect or disconnect the electric plug when your hands are wet.
• Unplug the refrigerator or disconnect power before cleaning or servicing. Failure to do so can result in electrical shock or death.
• Do not attempt to repair or replace any part of your refrigerator unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

WARNING

FOLLOW WARNING CALL OUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL

• Use two or more people to move and install refrigerator. Failure to do so can result in back or other injury.
• To ensure proper ventilation for your refrigerator, the front of the unit must be completely unobstructed. Choose a well-ventilated area with temperatures above 60^ F ( 16^ C) and below 90^ F ( 32^ C). This unit must be installed in an area protected from the elements, such as wind, rain, water spray or drips.
• The refrigerator should not be located next to ovens, grills or other sources of high heat.
• The refrigerator must be installed with all electrical, water and drain connections in accordance with state and local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in accordance with the National Electrical Code and local codes and ordinances is required.
• Do not kink or pinch the power supply cord of refrigerator.
• The fuse (or circuit breaker) size should be 15 amperes.
• It is important for the refrigerator to be leveled in order to work properly. You may need to make several adjustments to level it.
• All installation must be in accordance with local plumbing code requirements.
  • Make certain that the pipes are not pinched or kinked or damaged during installation.
• Check for leaks after connection.
• Never allow children to operate, play with or crawl inside the refrigerator.
• Although the unit has been tested at the factory, due to long-term transit and storage, the first batch of cubes must be discarded.
• Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners may damage or discolor the interior.
• Do not use this apparatus for other than its intended purpose.

HELP US HELP YOU...

Read this guide carefully.

It is intended to help you operate and maintain your new refrigerator properly.

Keep it handy to answer your questions. If you don't understand something or your need more help, please call:

Avanti Customer Service 800-220-5570

Keep proof of original purchase date (such as your sales slip) with this guide to establish the warranty period.

CAUTION:

THIS REFRIGERATOR IS NOT DESIGNED FOR THE STORAGE OF MEDICINE OR OTHER MEDICAL PRODUCTS.

Write down the model and serial numbers.

You'll find them on a plate located on the bottom outside wall of the refrigerator.

Please write these numbers here:

Date of Purchase

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your refrigerator.

If you received a damaged refrigerator, immediately contact the dealer (or builder) that sold you the refrigerator.

Save time and money. Before you call for service, check the Troubleshooting Guide. It lists causes of minor operating problems that you can correct yourself.

IF YOU NEED SERVICE

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are some steps to follow for further help.

FIRST, contact the people who serviced your refrigerator. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details, including your telephone number, and send to:

Customer Service

Avanti Products

10880 NW 30 Street

Miami, FL 33172

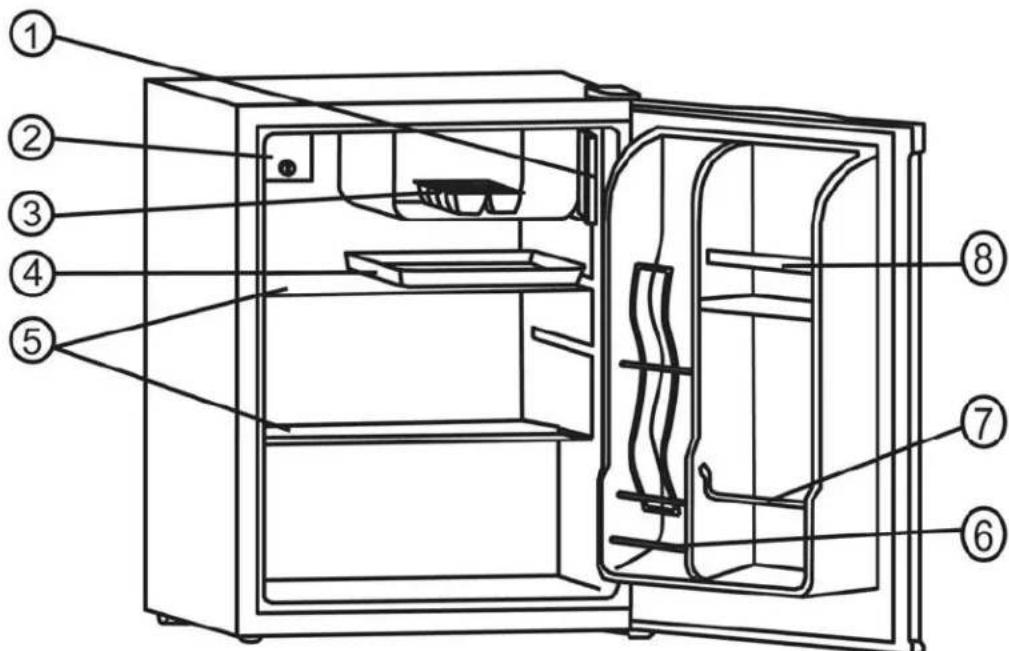

PARTS & FEATURES

Model: RM241B

Labeled diagram of an open refrigerator showing eight numbered compartments and internal structure

1	Chiller Door
2	Temperature Control
3	Chiller Section
4	Drip Tray
5 Glass Shelves (Total 2)Large (1)Small (1)
6	Beverage Can Dispense
7 2 – Liter Bottle Rack
8	Storage Bin

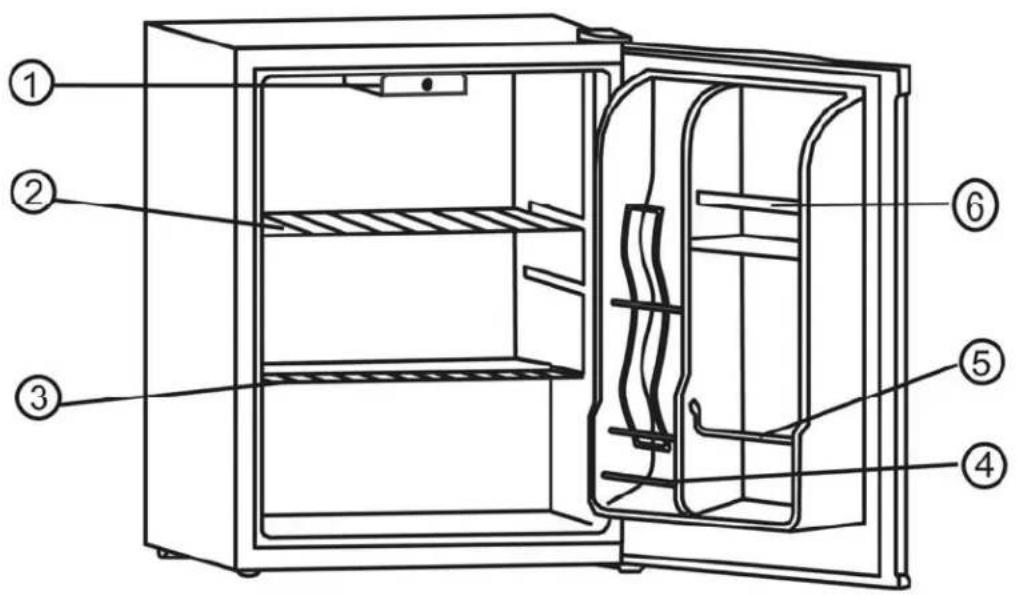

PARTS & FEATURES

Model: BCA244B

Labeled diagram of an open refrigerator showing six numbered compartments and internal structure

1	Temperature Control
2 Large Wire Shelf (Total 1)
3 Small Wire Shelf (Total 1)
4	Beverage Can Dispense
5 2 –	Liter Bottle Rack
6	Storage Bin

Important Safety Instructions

WARNING	To reduce the risk of fire, electrical shock, or injury when using your refrigerator, follow these basic precautions:
Read all instructions before using the refrigerator.DANGER or WARNING:Risk of child entrapment.Before you throw away your old refrigerator or freezer:Take off the doors. Leave the shelves in place so that children may not easily climb inside.Never allow children to operate, play with, or crawl inside the refrigerator.Never clean refrigerator parts with flammable fluids. The fumes can create a fire hazard or explosion.Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other refrigerator. The fumes can create a fire hazard or explosion.-Save these instructions-

INSTALLATION INSTRUCTIONS

Before Using Your Refrigerator

• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts:
• Instruction manual
• Ice Cube Tray – Model RM241B – ONLY
• Drip Tray – Model RM241B - ONLY
  • 2 Refrigerator shelves
  • Model RM241B – 2 Glass Shelves

• Model BCA244B – 2 Wire Shelves

• Before connecting the refrigerator to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

• Clean the interior surface with lukewarm water using a soft cloth.

➢ Installation of Your Refrigerator

• This appliance is designed to be free standing only, and should not be recessed or built-in.
- Place your refrigerator on a floor that is strong enough to support the refrigerator when it is fully loaded. To level your refrigerator, adjust the legs at the front of the refrigerator.
- Allow 5 inches of space between the back and sides of the refrigerator, which allows the proper air circulation to cool the compressor.
- Locate the refrigerator away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the refrigerator not to perform properly.
- Avoid locating the refrigerator in moist areas.
- Plug the refrigerator into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and or grounding should be directed toward a certified electrician or an authorized Avanti Products service center.
- After plugging the appliance into a wall outlet, allow the unit to cool down for 2-3 hours before placing food in the refrigerator compartment.

Unit Installation

Free Standing Units

To ensure not only the efficient operation of your unit but also your safety.

When installing your unit follow the steps as shown below:

- Place your unit on a flat level surface that is strong enough to support the unit once it is fully loaded.

- Your unit is equipped with adjustable height leveling legs to accommodate any minimal changes in the level of the surface on which it is installed.

Countertop / Table Top Units

When installing units that can be placed on countertops, keep the following in mind:

- Surface (countertop) is flat, level, and strong enough to support the unit once it is fully loaded.

- Surface is wide enough to accommodate the unit without any overhang.

- Surface is deep enough to accommodate the unit when the door is opened to 90^

Electrical Connection

Warning

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Avanti Products service center.

This refrigerator should be properly grounded for your safety. The power cord of this refrigerator is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

Do not under any circumstances cut or remove the third ground prong from the power cord supplied.

Use of extension cords is not recommended.

This refrigerator requires a standard 115/120-volt, 60Hz electrical outlet with three-prong ground.

The cord should be secured behind the refrigerator and not left exposed or dangling to prevent accidental injury.

Never unplug the refrigerator by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle.

Setting the Temperature Control

NOTE:

- If the unit is unplugged, power lost, or turned off; you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the refrigerator will not start.

MODEL RM241B MODEL BCA244B

4 3 5 2 6 0 1

0 6 1 5 4 3 2

• To control the internal temperature adjust the dial according to the ambient temperature or purpose of use.
• The first time you turn the unit on, set the temperature to the coldest setting "6".
• After 24 hours adjust the temperature control the setting that best suits your needs.
• The range of the temperature control is from warm "1" to cold "6". The "0" position turns the cooling cycle off but does not turn off the power to the unit.

• The setting of "4" should be adequate for home or office use.

• To control the internal temperature adjust the dial according to the ambient temperature or purpose of use.

• The first time you turn the unit on, set the temperature to the coldest setting "6".
  • After 24 hours adjust the temperature control the setting that best suites your needs.
• The range of the temperature control is from warm "1" to cold "6". The "0" position turns the cooling cycle off but does not turn off the power to the unit.
• The setting of "4" should be adequate for home or office use.

CARE AND MAINTENANCE

Defrosting Your Refrigerator

Defrost the refrigerator when the frost accumulated on the evaporator is about 5mm (1/5 inch) thick. Set the thermostat dial to "0" position. Remove frozen or perishable foods. Defrosting usually takes a few hours. After defrosting, return the thermostat dial to the desired position. To defrost quickly remove all foods from the refrigerator and leave the door open. Never use a knife or other metal instrument to scrape ice/frost from the evaporator.

Cleaning Your Refrigerator

• Turn the temperature control to "0", unplug the refrigerator, and remove the food, shelves, and trays.
• Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• Wash the shelves and trays with a mild detergent solution.
  • The outside of the refrigerator should be cleaned with mild detergent and warm water.
• Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
• Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.

Vacation Time

- Short vacations: Leave the refrigerator operating during vacations of less than three weeks.

- Long vacations: If the appliance will not be used for several months, remove all food and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.

Moving Your Refrigerator

• Remove all the food.
• Securely tape down all loose items inside your refrigerator.
• Turn the leveling screws up to the base to avoid damage.
• Tape the door shut.
• Be sure the refrigerator stays secure in the upright position during transportation. Also protect outside of refrigerator with a blanket, or similar item.

Energy Saving Tips

• The refrigerator should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the refrigerator. Overloading the refrigerator forces the compressor to run longer.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the refrigerator. This cuts down on frost build-up inside the refrigerator.
• Refrigerator storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the refrigerator less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

PROBLEMS WITH YOUR REFRIGERATOR?

You can solve many common refrigerator problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE
Refrigerator does not operate.	Not plugged in.The thermostat is set at “0”The circuit breaker tripped or blown fuse.
Turns on and off frequently.	The room temperature is hotter than normal.A large amount of food has been added to the refrigerator.The door is open too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.The refrigerator does not have the correct clearances.
Vibrations. Check to assure that the refrigerator is	evel.
The refrigerator seems to make too much noise.	The rattling noise may come from the flow of the refrigerant, which is normal.As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your refrigerator.Contraction and expansion of the inside walls may cause popping and crackling noises.The refrigerator is not level.
The door will not close properly.	The refrigerator is not level.The door was reversed and not properly installed.The gasket is dirty.The shelves, bins, or baskets are out of position.

CAUSE

SERVICE FOR YOUR REFRIGERATOR

We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti refrigerators. With the purchase of your Avanti refrigerator, you can have the confidence that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. Just call us toll-free.

AVANTI PRODUCTS CUSTOMER SERVICES

Product Information800-323-5029	Whatever your questions are about our products, help is available.
Part Orders800-220-5570	You may order parts and accessories that will be delivered directly to your home.You may order these items by personal check, money order, Master Card, or Visa.
In-Home Repair Service800-220-5570	An Avanti Products authorized service center will provide expert repair service, scheduled at a time that is convenient for you. Our trained servicers know your refrigerator inside and out.

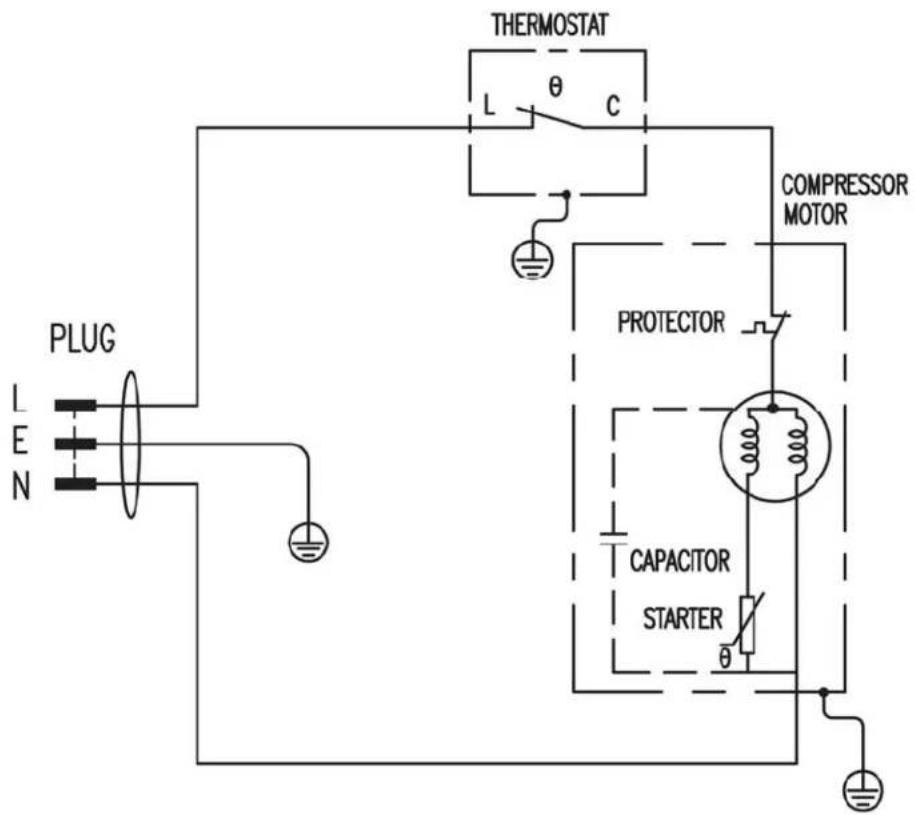

Wiring Diagram

PLUG L E N THERMOSTAT L θ C COMPRESSOR MOTOR PROTECTOR CAPACITOR STARTER θ

YOUR Avanti Products WARRANTY Staple your

sales receipt here. Proof of original purchase date is needed to obtain service under warranty.

WHAT IS COVERED

LIMITED ONE-YEAR

WARRANTY

For one year from the date of purchase by the original owner, Avanti Products will, at its option, repair or replace any part of the refrigerator, which proves to be defective in material or workmanship under normal use. During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the refrigerator has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days. Avanti Products will provide you with a reasonably similar replacement product that is either new or factory refurbished. All Avanti Appliances of 3.5 cubic foot capacity or less must be brought/sent to the appliance service shop for repair.

LIMITED SECOND THROUGH

FIFTH YEAR WARRANTY

For the second through the fifth year from date of original purchase, Avanti Products will provide a replacement compressor free of charge due to a failure. You are responsible for the service labor and freight charges. In rental or commercial use, the limited compressor warranty is one year and nine months. Cost to move the refrigerator to the servicers' shop and back to the user's home, as may be required, are the user's responsibility.

WHAT IS NOT COVERED

• Content losses of food due to spoilage.
• Incidental or consequential damages.
• Parts and labor costs for the following will not be considered as warranty:
• Evaporator doors, door springs, and/or frames.
• Inner door panels, door shelves, door rails, and/or door supports.
• Chest refrigerator lid liners.
• Vegetable crispers.
  • Light bulbs and/or plastic housing.
• Plastic cabinet liners.
• Punctured evaporator that voids the warranty on the complete sealed system.

• Shipping and handling costs associated with the replacement of the unit.
  • Repairs performed by unauthorized servicers.

• Surcharges including but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expenses for service calls to remote areas, including the State of Alaska.

• Service calls that do not involve defects in material or workmanship such as customer education, door reversal, or proper installation.
• Service calls that are related to external problems, such as abuse, misuse, inadequate electrical power, accidents, fire, floods, or acts of God.
• Replacement of house fuses or resetting circuit breakers.
• Failure of the product if it is used for other than its intended purpose.
• This warranty does not apply outside the Continental USA.

(This page left blank intentionally)

Registration Information

Thank you for purchasing this fine Avanti product. Please fill out this card and return it within 100 days of purchase and receive these important benefits:

➢ Confirm your warranty:

Your prompt product registration confirms your right to the protection available under the terms and conditions of your Avanti warranty.

Protect your product:

We will keep the model number and date of purchase of your new Avanti product on file to help you refer to this information in the event of an insurance claim such as fire or theft.

➢ Promote better products:

We value your input. Your responses will help us develop products designed to best meet your future needs.

(detach here)

Avanti Registration Card

Name	Model #	Serial #
Address			Date	Purchased	Store/Dealer	Name
City	State	Zip		Occupation

		As Your Primary Residence, Do You:
Area Code	Phone Number	□Own	□Rent

Did You Purchase An Additional Warranty:

□Extended □Food Loss □None	□under 18	□18-25	□26-30
Reason For Choosing This Avanti Product:	□31-35	□36-50	□over 50

Please indicate the most important factors Marital Status:

that influenced your decision to purchase this product.	□Married □SingleIs This Product Used In The:
□Price	□Home □Business
□Product Features	How Did You Learn About This Product:
□Avanti Reputation	□Advertising □Product Features
□Product Quality	□In Store Demo □Personal Demo
□Salesperson Recommendation	□Other____
□Friend/Relative Recommendation	Comments____
□Warranty
□Other____

PRINTED IN CHINA
