Operation / Installation Manual

Built-In Hob (LPG / NG)

RB-72S

RB-72G

RB-73TS

RB-73TG

RB-92G

RB-93TS

RB-93US

RB-93TG

RB-93UG

Rinnai Corporation

Content

Guide to Appliances RB-72S / RB-72G / RB-73TS / RB-73TG / RB-92G / RB-93TS	1
Guide to Appliances RB-93TG / RB-93US / RB-93UG	2
Guide to the Appliances	3
Specification	4
Safety Instructions	6
Using for the first time	8
Installation Guide	9
Operation	13
Suitable Pans	15
Cleaning and Care	16
Trouble Shooting Guide	19
Rinnai Customer Care Centers	20
Conversion from NG to LPG & LPG to NG	21
Caution For the Tempered Glass	21

Rinnai Customer Care Centers

China | 中国

Guangzhou Rinnai Gas & Electric

Room 2805, No.31 Jianghe Building,

Tianshou Road, Guangzhou, China

广州林内燃具电器有限公司

34th Street (Upper Block), Kyauktada Township, Yangon,

Myanmar

(1) 2023.

Highway, Dalandan Valenzuela City,

Philippines

Tel: [phone]

Fax : [phone]

Singapore

Rinnai Holdings (Pacific) Pte Ltd 61 Ubi Road 1

M02-20 & 21Oxley Bizhub

Singapore 408727

Tel:[phone] Fax:[phone]

Email: [e-mail] URL: www.rinnai.sg

61/1 Sol Kingkaew 9, Kingkaew Rd

Racha Thewa, Bangphli, Samutprakarn 10540,

Thailand

Rong Viet Commerce Company Limited

120 3/2 Street, Ward 12, District 10,

Ho Chi Minh City, Vietnam

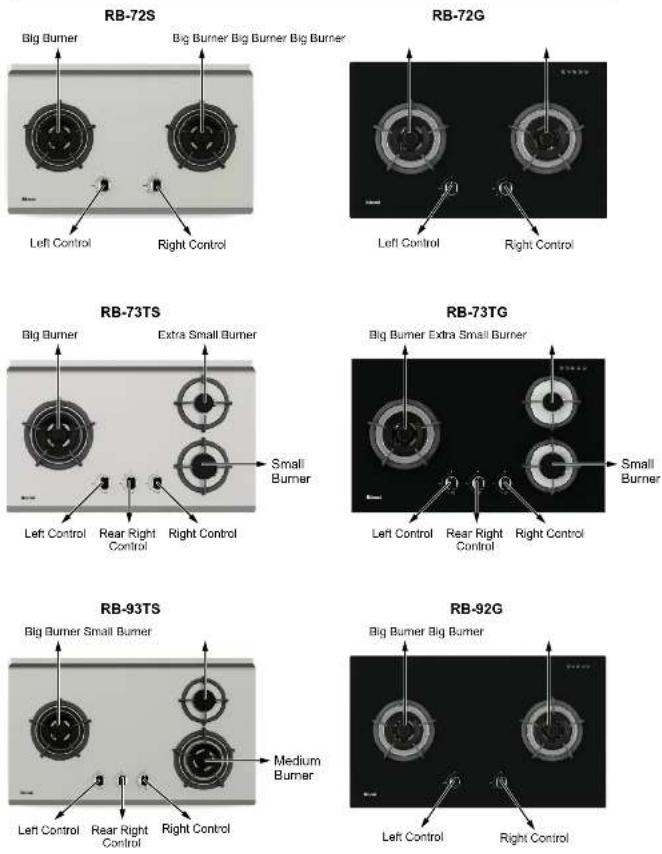

Guide to the Appliances

Guide to the Appliances

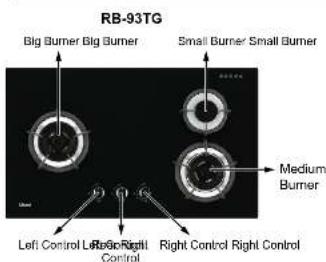

RB-93TG Big Burner Big Burner Small Burner Small Burner Medium Burner Left Control Left Side-Right Control Right Control Right Control

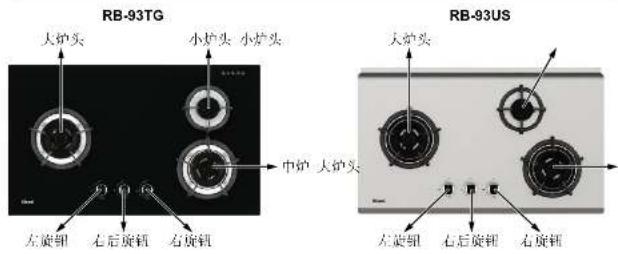

RB-93US Big Burner Rear Right Control

RB-93UG Big Burner Small Burner Big Burner Left Control Rear Right Control Right Control

清洁与保养

Guide to the Appliances

Burner Assembly

Small & Extra Small Burner Medium & Big Burner

Technical diagram showing labeled parts of a mechanical assembly with numbered annotations

Exploded view diagram of a mechanical assembly with numbered parts for identification

1 Burner Head
2 Burner Body
3 Electrode
4 Thermocouple
5 Ventury

1 Simmer Burner Head
2 Burner Body
3 Electrode
4 Thermocouple
5 Ventury
6 Burner Head

Safety Cut Off System

Thermocouple Electrode

Your hob equipped with a safety device (thermocouple) that prevents the flow of gas to the burners if the flames were to suddenly go off.

To use the burner again, turn the control clockwise to the OFF (●) position, and then switch it back on as normal. The safety cut-out operates independently from the electricity supply

To ensure that this device is active, switch on the burner as usual and, without releasing the control, press and hold it down firmly for 5 seconds after lighting the flame.

Specification

Rinnai Model No.		RB-72S	RB-72G	RB-73TS
Cut-out Size(mm)		650~730 x 350~410 R120	650~730 x 350~410 R120	650~730 x 350~410 R120
Product Size(mm)		760 x 460 x 147	770 x 460 x 147	760 x 460 x 147
Rating (kW)	LPG	Left: 5.5	Left: 5.5	Left: 5.5
		Right: 5.5	Right: 5.5	Rear Right: 1.5
		NIL	NIL	Front Right: 2.0
	NG	Left: 5.3 Left: 5.3		Left: 5.3
		Right: 5.3 Right: 5.3		Rear Right: 1.45
		NIL NIL		Front Right: 1.9
Top Plate		Stainless	Glass	Stainless
Burners		Left: (B)	Left: (B)	Left: (S)
		Right: (B)	Right: (B)	Rear Right: (ES)
		NIL	NIL	Front Right: (S)
Pan Support		Cast Iron	Cast Iron	Cast Iron
Knob		Cylindrical	Cylindrical	Cylindrical
Flame Safety Device		Yes	Yes	Yes
Ignition		(DC 1.5V) Battery D size	(DC 1.5V) Battery D size	(DC 1.5V) Battery D size

Rinnai Model No.		RB-73TG	RB-92G	RB-93TS
Cut-out Size(mm)		650~730 x 350~410 R120	705~840 x 405~480 R120	705~840 x 405~480 R120
Product Size(mm)		770 x 460 x 147	880 x 520 X 147 880 x	520 X 147
Rating (kW)	LPG	Left: 5.5	Left: 5.5	Left: 5.5
		Rear Right: 1.5	Right: 5.5	Rear Right: 2.0
		Front Right: 2.0	NIL	Front Right: 4.5
	NG	Left: 5.3	Left: 5.3	Left: 5.3
		Rear Right: 1.45	Right: 5.3	Rear Right: 1.9
		Front Right: 1.9	NIL	Front Right: 4.4
Top Plate		Glass	Glass	Stainless
Burners		Left: (B)	Left: (B)	Left: (B)
		Rear Right: (ES)	Right: (B)	Rear Right: (S)
		Front Right: (S)	NIL	Front Right: (M)
Pan Support		Cast Iron	Cast Iron	Cast Iron
Knob		Cylindrical	Cylindrical	Cylindrical
Flame Safety Device		Yes	Yes	Yes
Ignition		(DC 1.5V) Battery D size	(DC 1.5V) Battery D size	(DC 1.5V) Battery D size

清洁与保养

清洁和护理清洁和护理

Rinnai Model No.		RB-93TG	RB-93US	RB-93UG
Cut-out Size(mm)				705~840 x 405~480 R120.70
Product Size(mm)				880 x 520 X 147.880 x 5
Rating (kW)	LPG	Left: 5.5	Left: 5.5	Left: 5.5
		Rear Right: 2.0	Rear Right: 2.0	Rear Right: 2.0
		Front Right: 4.5	Front Right: 5.5	Front Right: 5.5
	NG	Left: 5.3	Left: 5.3	Left: 5.3
		Rear Right: 1.9	Rear Right: 1.9	Rear Right: 1.9
		Front Right: 4.4	Front Right: 5.3	Front Right: 5.3
Top Plate		Glass ClassStainless
Burners		Left: (B) Left: (B) Left: (B)
		Rear Right: (S) Rear Right: (S) Rear Right: (S)
		Front Right: (M)	Front Right: (B) Front Right: (B)
Pan Support		Cast Iron Cast Iron		Cast Iron
Knob		Cylindrical Cylindrical		Cylindrical
Flame Safety Device		Yes Yes		Yes
Ignition		(DC 1.5V) Battery D size (DC 1.5V) Battery D size (DC 1.5V) Battery D size

Note: The manufacturer reserves the right to effect any technological improvement or modification without prior notice

Safety Instructions

To avoid the risk of accidents and damage to the appliance, please read these instructions carefully before installation and using it for the first time. They contain important notes on installation, safety, operation and care.

Keep this manual in a safe place and ensure that new users are familiar with the instructions. Pass them on to any future owner.

Safety Precautions

All operations including installations, repairs, maintenance, gas and electrical connection or conversion to other types of gas must be carried out by a suitably qualified and competent person as set out by the local gas and electricity providers. You are to contact your local Rinnai Customer Care Centres if there is a need to convert to another type of gas.
○ Using the gas hob will cause a build-up of heat and moisture in the room in which it is installed. Ensure that the room has sufficient natural or mechanical means of ventilation, e.g. an extractor.
If the hob is used for very long periods of time additional ventilation of the room may be necessary, e.g. by opening windows or doors, or running the extractor on the highest setting.
This gas hob is not designed for commercial or professional use. It is only intended for use in domestic households. Any other usage of the appliance other than the purpose in which it is designed for could void the warranty. The manufacturer is exempt from all responsibilities resulting from incorrect or improper use or operation.
This appliance is not intended for use by people with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised whilst using it, or have been shown how to use it by a person responsible for their safety.
This appliance leaves the factory set to the type of gas that is indicated on the specifications plate. If this must be changed, call your local Rinnai Customer Care Centres.
Never open the outer casing of the appliance. Tampering with electrical connections or components and mechanical parts is highly dangerous to the user and can cause operational faults
The surfaces of cooking appliances heat up during use. Care must be taken when using these appliances. Keep children well away from this appliance.
- Fats or oil which is overheated can catch fire easily. Do not leave oil or fats to heat up unattended. If oil or fats do catch fire, never use water to put the fire out. Put the fire out by covering the pan with a lid and switch off the appliance.
Do not store or use corrosive chemicals, steamers, flammable materials or non-food products below or near this domestic appliance.
If the appliance has not been used for a long period of time it should be thoroughly cleaned before it is used again. It is also advisable to have the appliance tested for safety

操作

调节火焰调节火焰

If a cooker hood is installed above the gas hob, ensure that the burners are always covered with a pan when in use. Otherwise flames could reach the cooker hood, parts of which could then be damaged or set on fire.
Do not store flammable material under a cooker hood. The flames could set the cooker hood on fire.
Do not use the appliance as a resting place for anything else. The article could melt or catch fire if residual heat is still present or if the appliance is switched on by mistake.
Do not cover the appliance, e.g. with a cloth, kitchen foil, etc. This could be a fire hazard if residual heat is still present or the appliance is switched on by mistake.
Do not uses plastic or aluminium foil containers. These melt at high temperatures and could catch fire
Do not heat up unopened tins of food on the hob as pressure will build up in the tin, causing it to explode. This could result in injury and scalding or damage.
- Make sure all the components of the gas burners have been correctly assembled before switching on.
Pans must be the correct size for the burner they are used on (see "Suitable pans"). A pan which is too small will be unstable on the pan support. If the pan diameter is too large, flames can spread out to the sides and damage or burn the worktop, wall claddings or surrounding units and also parts of the hob.
o Connection to the gas supply must be carried out by a suitably qualified and competent person in strict accordance with current local safety regulations
- For safety reasons, this appliance may only be used when it has been built in.
○ Installation, maintenance and repairs may only be carried out by a suitably qualified and competent person in strict accordance with current local safety regulations.
During installation, maintenance and repair work, the appliance must be disconnected from the gas supply and mains electricity supply. While the appliance is under warranty, repairs should only be undertaken by a service technician authorised by Rinnai. Otherwise the guarantee is invalidated
- Faulty components must only be replaced with genuine original spare parts. The manufacturer can only guarantee the safety of the appliance when original replacement parts are used.
- Never leave the appliance unattended during operation. The graphics in this instruction manual are given as a guide only.

The Manufacturer cannot be held liable for any damages caused by non-compliance with these Warning and Safety Instructions.

Using for the first time

• Remove any protective foil and adhesive labels.
• Clean all removable parts of the burners with a solution of warm water and a little washing-up liquid applied with a soft sponge. Dry all parts thoroughly after cleaning and then reassemble the burners (see "Cleaning and care").
• Clean the stainless steel trough with a damp cloth, and then wipe dry.

The metal components have a protective coating which may give off a slight smell when heated up for the first time.

The smell and any vapours will dissipate after a short time, and do not indicate a faulty connection or appliance.

安装指引

接电接电

Fig 6 & Fig7

RB-72S / RB-72G / RB-92G

Fig 6

RB-73TS / RB-73TG / RB-93TS / RB-93TG / RB-93US / RB-93UG

Fig 7

安装指引

Installation Guide

电气连接电气连接

A B C E D Fig 5

Installation

All operations relating to installation, regulation and conversion to other types of gas must be carried out by an authorised installation personnel, respecting applicable regulations, standards and the specifications of the gas and electricity providers. Before you begin, turn off the appliance's electricity and gas supply. You are recommended to contact your local Rinnal Customer Care Centres to convert to another type of gas.

The units next to the appliance must be made of non-flammable materials. The laminated covering and glue for adhering it must be heat resistant.

This appliance cannot be installed above fridges, washing machines, and dish washer or similar.

An oven must have a power cooling fan to install a hob above it. Check the oven's dimensions in its installation manual.

If a cooker hood is installed, you must follow the installation manual's instructions, always keeping a minimum distance of 550 mm to the hob.

Preparing the Bench Top (Fig 2 & Fig 3)

Make an appropriate size cut in the work surface.

It is recommendable to place a non-flammable separator (e.g. metal or plywood) 10 mm from the bottom of the hob. This will prevent access to the base of the hob.

On wood work surfaces, varnish the cutting surfaces with a special glue. This protects them from moisture which could collect under the work surface.

Installation of Appliance

The adhesive seal (underside of the hob) are factory-fitted: do not under any circumstances remove them. The seal ensures that the entire work surface will be watertight, and prevents water seepage. In order to fit the appliance into the kitchen unit, first place the hob in the correct position. Insert and centre the hob. Press the sides of the hob until it is supported around its entire perimeter.

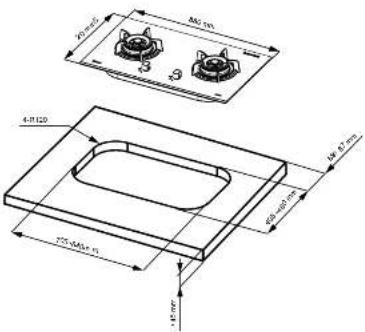

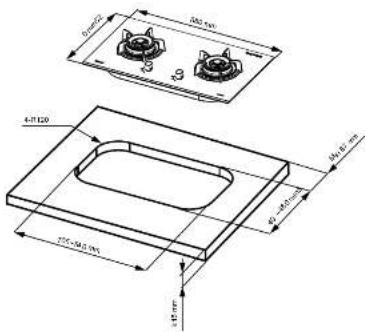

Removal of Hob (Fig 1)
