USER MANUAL TFTV388HD Palsonic

Line drawing of a flat-screen computer monitor with a blank screen (no text or symbols)

Safety Precautions

• Power Supply .... 1
• Installation 2
• Use and Maintenance .... 3
• Important Safety Instructions .... 4\~5

User Guidance Information

• Names of each part (Front View) / Accessories. 6
• Names of each part (Back View) 7
• Mounting on a Desktop / Installation Precautions .... 8
• Installing an Antenna .... 9
• Remote control 10\~11
• Precautions / How to use remote control 12

Connection

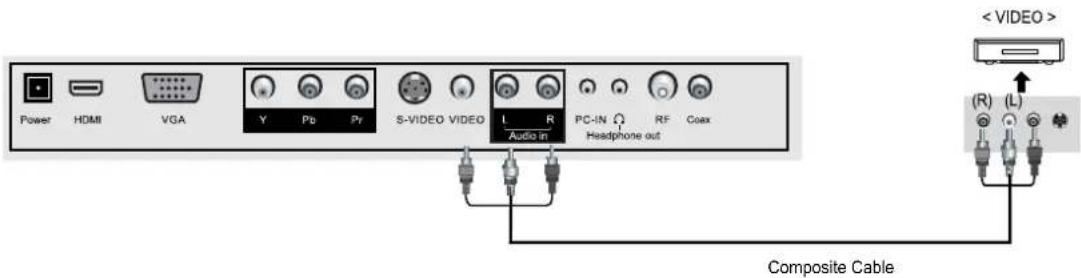

• VCR Connections / Watching Video Tape 13

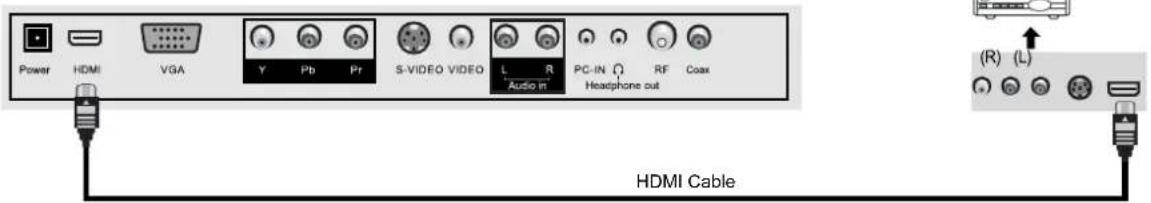

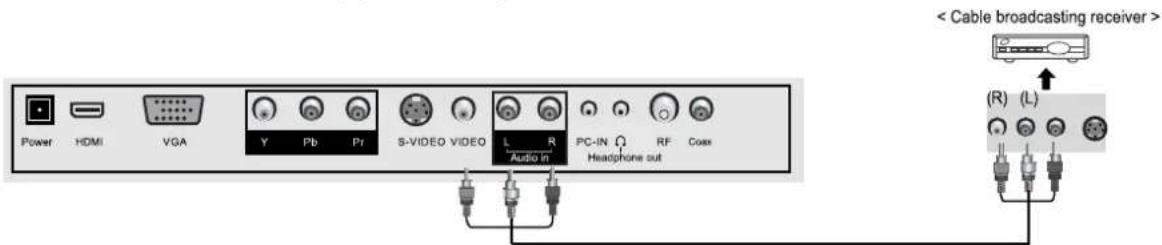

- Satellite/Cable TV Set-Top Box Connections / Watching Cable TV 14
- PC Connections / How to use as PC 15
• Audio Amplifier and Monitor Connections / Digital Amplifier Connection 16

Basic Use

- Powering the LCD TV / Selecting input source .... 17

Application

• Operating the Menu 18

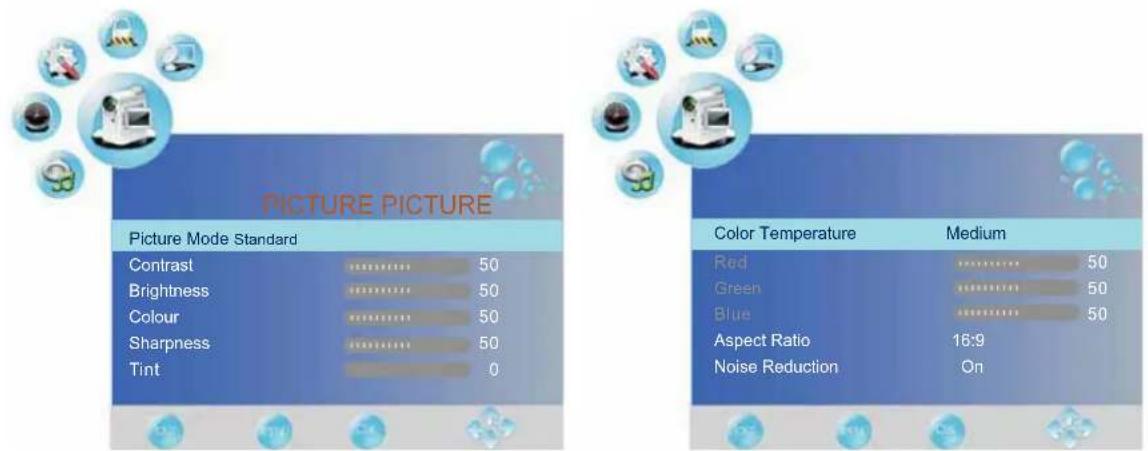

• Customizing the PICTURE Settings 19
• Customizing the SOUND Settings 20

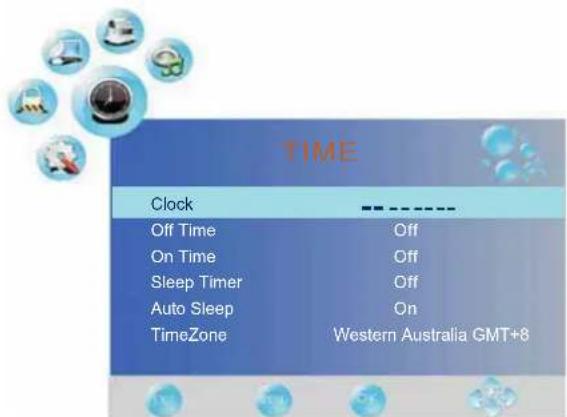

• Customizing the TIMER Settings 21
• Customizing the SETUP Settings 22

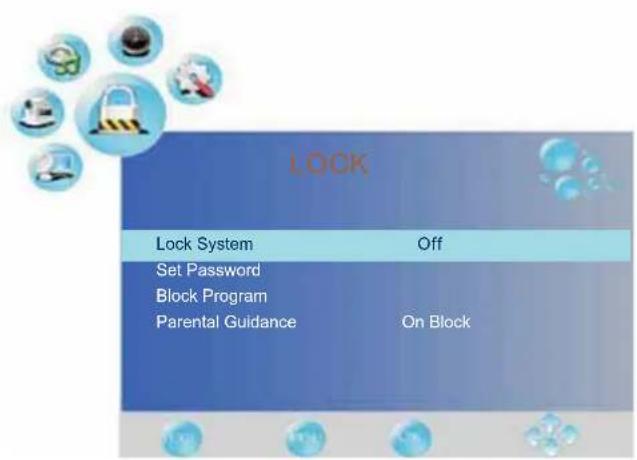

• Customizing the LOCK Settings 23
• Customizing the CHANNEL Settings 24\~25

Maintenance and Service

• Trouble shooting 26
• Specifications 27

Power Supply

Warnings

Do not touch the power plug with wet hands.

- Doing so may result in electric shock.

Do not use a damaged power cord or plug or a loose outlet.

- Doing so may result in fire or electric shock.

Do not plug several devices into the same outlet.

- Doing so may cause the outlet to overheat and start a fire.

Insert the power plug fully into the outlet.

- A loose or improperly inserted power plug may result in fire.

Do not bend the power cord excessively or place heavy objects on it.

- Doing so may result in fire or electric shock.

Be sure to ground the unit.

- Failing to do may lead to electric shock when a short circuit overload occurs. If necessary, install a ground fault circuit breaker. Never ground to a telephone line, lightning rod, or metal gas pipe. (doing so may result in fire, elect rick shock or other hazards.)

Cautions

When disconnecting the power cord from an AC outlet, always grasp it by the plug.

- Pulling on the cord can damage the internal wire and may result in fire.

Always unplug the unit before cleaning.

• Not doing so may result in fire or electric shock.

The purpose of these precautions is to ensure user safety and prevent property damage.

Be sure to read and observe all safety precautions.

Installation

Warnings

Do not place containers with liquids such as flower vases, soft drink cans, or medicine bottles or small metallic objects on top of the unit.

- If liquid enters the unit or any metal object fall into the unit, it may result in short-circuit, fire, or electric shock.

Do not place the unit where it is exposed to rain, excessive moisture or grease.

- Doing so may result in fire, electric shock, malfunction or deformation.

Do not use or store flamm albe or combustible materials near the unit.

- Doing so may result in fire or explosion.

Do not place the unit on an unstable surface, such as a wobbly stand or sloped table, or on any surface whose area is smaller than the bottom area of the unit.

- If a child climbs on the unit, it could topple and fall onto the child, resulting in serious injury to the child or damage to the unit. Place the unit on a flat stable surface.

Do not place a burning candle burning anti-mosquito incense, or lighted cigarette on top of the unit. do not place the unit near any heat source such as a fireplace or space heater.

- Doing so poses a serious risk of fire.

Do not place the unit in a poorly ventilated enclosure, such as a cabinet.

- Doing so poses a serious risk of fire.

Do not run power cords near heat producing appliances such as radiators, stoves, or irons.

- The excessive heat could melt the insulation and expose live wires, resulting in fire or electric shock

Do the antenna away from high voltage power lines and communication cables and make sure it is installed securely.

- If the antenna touches a power line, contact with the antenna could result in fire, electric shock, serious injury, or death.

Cautions

Install the unit at an adequate distance from the wall to ensure sufficient ventilation.

- It the temperature inside the unit rises, it may result in fire

Do not cover the unit with a tablecloth, curtain, or other material.

- If the temperature inside the unit rises, it may result in fire.

Be sure to place the unit on a level surface.

⚠️Warnings

Form a drip loop where the coaxial antenna cable enters your building to prevent rainwater from travelling along the cable and coming in contact with the antenna input terminal.

- If rainwater finds its way inside the unit, it may result in fire or electric shock.

- The following precautions are divided into "Warnings" and "Cautions".

Warning: Ignoring this precaution may result in death or serious injury. Caution: Ignoring this precaution may result in injury or property damage.

Use and Maintenance

Warnings

Disconnect the power cord from the wall outlet during an electrical storm.

- Not doing so may result in fire or electric shock.

Do not insert any metal objects, such as a screwdriver paper clip, or bent wire into the ventilation openings or A/V terminals.

- Doing so poses a serious risk of fire or electric shock.

Do not allow children to climb or hang on the unit.

• The unit could topple over on to a child and result in serious injury.

Never disassemble or modify the unit in anyway. Do not attempt to service the unit yourself.

- Doing so may result in fire or electric shock. If the unit requires repair, contact the service centre.

Cautions

When not using the unit for long periods of time, disconnect the power cord from the wall outlet.

- Dust could accumulate over time on the unit and cause it to generate heat and ignite or deteriorate insulation, which in turn may result in an electrical fire.

When moving the unit be sure to turn off the unit and unplug the power cord from the wall outlet.

- Moving the unit with the power cord connected to the outlet may cause damage to the cord, resulting in fire or electric shock.

If you notice any unusual odours or smoke around the unit, immediately disconnect the unit from the outlet and contact the service centre.

- Failure to do so may result in fire or electric shock.

Warnings

When removing the batteries from the remote control, make sure children do not swallow them. Keep the batteries out of the reach of infants and children.

- If a child has swallowed a battery, seek medical attention immediately.

Always use two or more people to lift or move the unit.

- If the unit is dropped, it could be damaged or other wise cause injury.

Wipe off any moisture, dirt, or dust on the power plug pins with a clean dry cloth.

- Failure to do so may result in fire or electric shock.

It is advisable to clean the interior of the unit at least once a year. Contact the store of purchase or service centre for information.

- Continuing to use the unit without cleaning off the dust build-up inside it may result in fire or electric shock.

Always turn off the unit and unplug the power cord when cleaning the unit. Use a soft dry cloth to clean the unit.

- Never clean with industrial strength polish, wax, benzene, paint thinner, air freshener, lubricant, detergent, or other such chemicals. Also, do not clean with a damp cloth.

Important Safety Instructions

Warnings and Precautions

To prevent any injuries, the following safety precautions should be observed in the installation, use, servicing and maintenance of this equipment.

Before operating this equipment, please read this manual completely, and keep it near by for future reference.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.

7) Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use the attachments / accessories specified by the manufacturer.

12) Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip over

Important Safety Instructions

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

- Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK), NO USER-SERVICABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONAL. The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclo- sure that may be of sufficient magnitude to con- stitute a risk of electric shock to persons. The exclamation point within an equilateral tri- angle is, intended to alert the user to the pres- ence of Important operating and maintenance (servicing)instructions in the literature accompanying the appliance. 5B-En

Apparatus with Class 1 construction shall be connected to a Mains socket outlet with a protective earthing connection.

WARNING

TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Caution:

• These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
• Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Names of each part

Front View

VENU OH- OH+ VOL- VOL+ TINHY POWER 1 2 3 4 5 6 7

1 MENU button - OSD Menu Display Button
② CH+/- button - Channel/Program +,- Button
③ VOL+/- button - Volume +,- Button
4 TV/AV button - Input Source Select Button
5 POWER button
6 LED Indicator
7 Remote Control Window

● The configuration of the components may look different from the following illustration.

User's Guide Power Cable Adaptor Remote Control

Accessories

Names of each part

Pure diagram of a device layout with rectangular blocks and connectors, no text or symbols present

Power HDMI VGA Y Pb Pr S-VIDEO VIDEO L R PC-IN Ω RF Coax 1 2 3 4 5 6 7 8 9 10 11 Headphone out

1 DC POWER IN (DC 12V 5A)

2 HDMI

3 VGA (D-Sub 15PIN)

4 YPbPr

5 S-VIDEO

6 VIDEO

7 AUDIO IN (R/L)

8 PC AUDIO IN

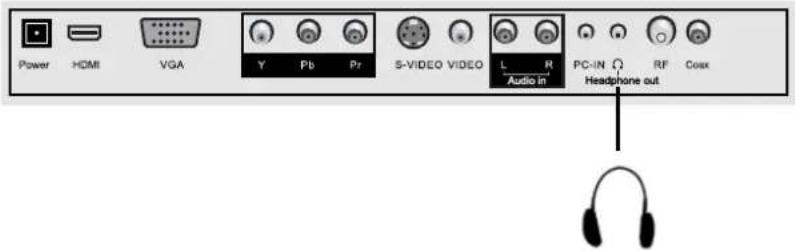

9 HEADPHONE OUT

10 RF

11 COAX OUT

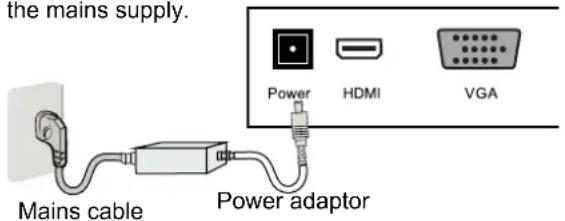

Power Connecting

1. Connect the small round plug on the power adaptor cable to the power input socket at the rear of the set.
2. Connect the mains cable between the power adaptor and the mains supply.

the mains supply. Mains cable Power adaptor Power HDMI VGA

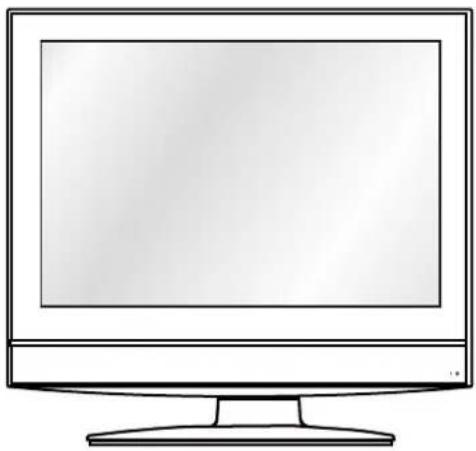

Mounting on a Desktop

Line drawing of a flat-screen computer monitor (no text or symbols)

- Your LCD TV can be mounted on a Desk top as shown in the figure above.

- This is not a floor-standing unit.

Installation Precautions

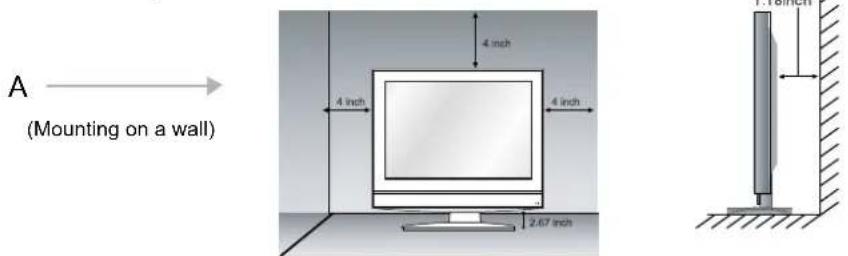

Wall Mounting

- Please secure enough space for safe use. (Please refer to A and B.) - Installation of the LCD TV in an improperly ventilated location can cause a fire or damage to the LCD TV due to increased temperature.

A (Mounting on a wall) 4 inch 4 inch 4 inch 2.67 inch

- Contact your dealer to purchase the "Adjustable-angle wall mount" required for wall-mounted installation.

Wall Mounting

The TV is provided with mounting holes for a VESA approved wall mounting bracket (NOT SUPPLIED). Remove the Two Posi screws holding the base to the base bracket and lift the base away (do not remove the base mounting bracket). Mount the VESA bracket using 4 x M4 x 8 Iso metric threaded screws (not supplied). Do not use screws longer than 8 mm, damage will occur to the internal parts. Fit the wall bracket securely following the manufacturers instructions.

Using the Stand

• Do not install on an unstable location with support area smaller than the LCD TV.
• Please refer to the desktop stand manual for details of installation.

B (Using the Stand) 4 inch 4 inch 4 inch 2.67 inch 1.18 inch

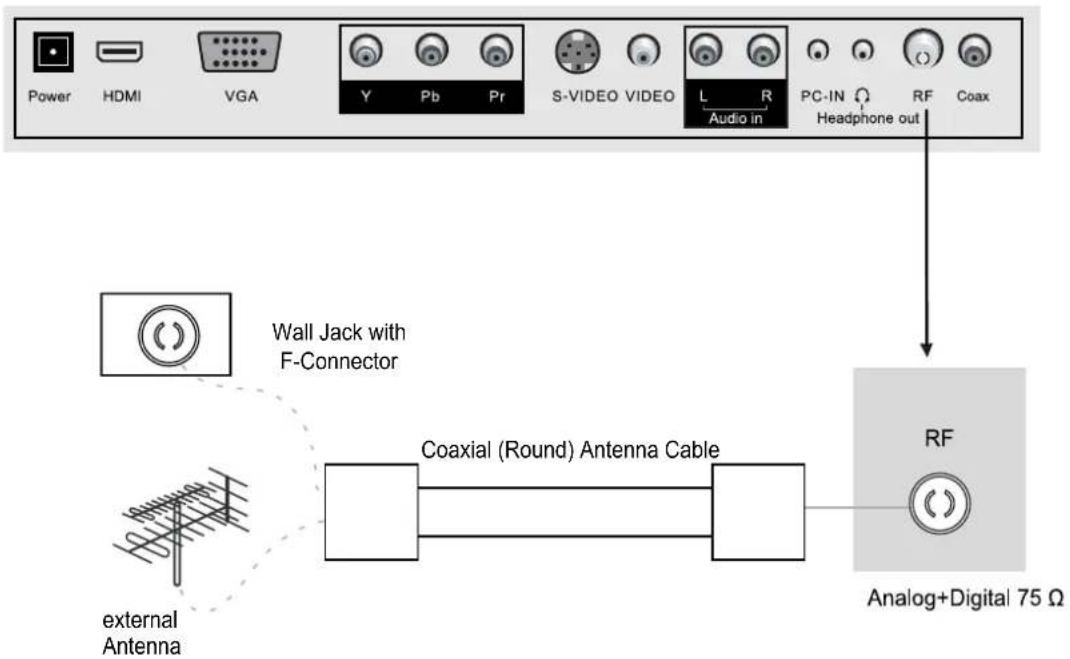

Installing an Antenna


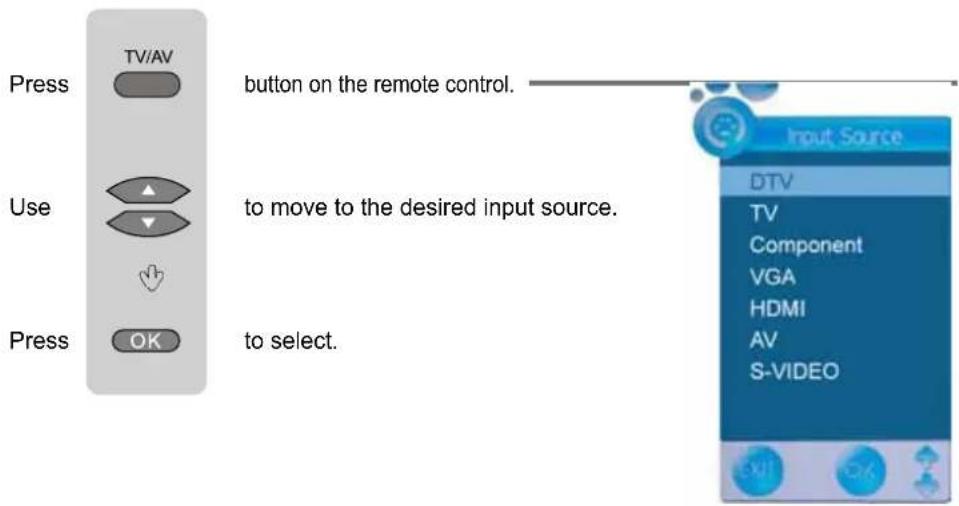

Press TV/AV button on the remote control to display the input source menu, press ▲ / ▼ button to select TV, then press ▶ button to confirm. Then you can receive the signal.

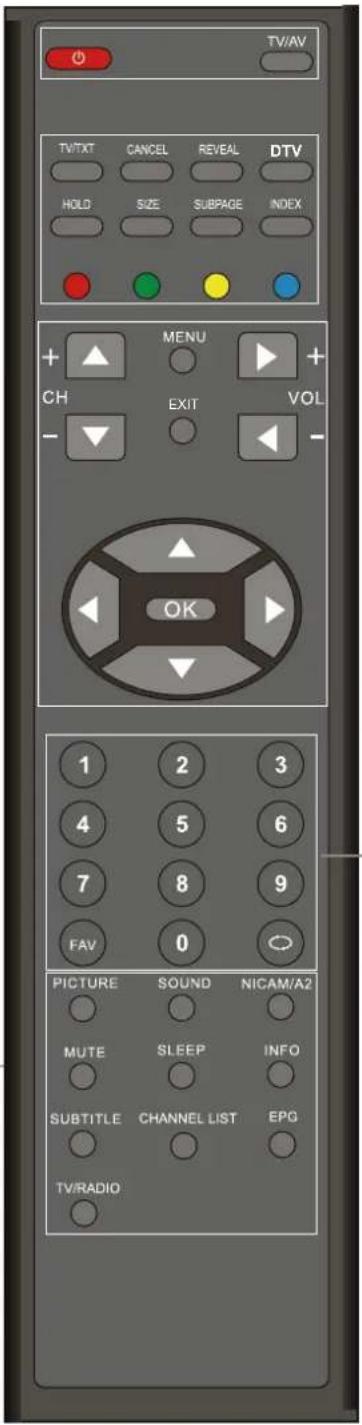

Remote Control

- Functions of remote control buttons

The remote control is Infra Red (IR). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle.

Buttons for Basic operating MENU

Press to display the OSD menu.

CH+/-

Channel/Program +/-

VOL+/-

Volume +/-

EXIT

Press to exit the OSD menu.

THUMBSTICK (▲/▼/◄/►/OK)

Allows you to navigate the on-screen menus and adjust the system settings to your preference.

TV/AV TV/TXT CANCEL REVEAL DTV HOLD SIZE SUBPAGE INDEX MENU CH EXIT VOL OK 1 2 3 4 5 6 7 8 9 FAV 0 PICTURE SOUND NICAM/A2 MUTE SLEEP INFO SUBTITLE CHANNEL LIST EPG TV/RADIO

POWER

Turn the TV on/standby

TV/AV

Display the input source menu.

Buttons for TELETEXT operating

You could use the functions of the buttons only in TELETEXT.

TV/TXT

Turn off/on the Teletext display.

CANCEL

Cancel the Teletext display.

REVEAL

Reveal any hidden text.

DTV

Switch to DTV source.

HOLD

Hold or carry on the current

subpage.

SIZE

Press to see top half of page double size, Press again

to see the bottom half of page double size. Press again for

normal size.

SUBPAGE

Press to subpage, again to cancel.

INDEX

Go to index.

Colour buttons

Short cuts-follow the coloured

links in the text.

Remote Control


Press repeatedly to cycle through the available video picture modes.

SOUND

Press to cycle through the different sound settings.

NICAM/A2

Nicam/A2 select.

MUTE

Press to mute the sound.

Press again or press VOL+ to unmute.

SLEEP

Shutdown timer.

INFO

Means information, to display brief information concerning the current channel you are viewing.

SUBTITLE

To switch the dialog at the bottom of the screen.

CHANNEL LIST

Display the programs list.

EPG

To show the Electronic Program Guide during no-menu state only.

TV/RADIO

Disc menu change between TV and Radio

TV/AV TV/TXT CANCEL REVEAL DTV HOLD SIZE SUBPAGE INDEX + MENU + CH EXIT VOL - OK 1 2 3 4 5 6 7 8 9 FAV 0 PICTURE SOUND NICAM/A2 MUTE SLEEP INFO SUBTITLE CHANNEL LIST EPG TV/RADIO

NUMBER BUTTONS

Choose channel directly. Press number buttons and press OK button to play the channel.

Return to the previous channel viewed.

FAV

Display the favorite program list.

Precautions

Avoiding Remote Control Problems

1. Check the polarity (+, -) of the batteries in the remote control.
2. Check that the batteries have power.
3. Check that the LCD TV is powered and that it is properly plugged in.
4. Check if any three-wavelength lamp, special fluorescent or neon sign is turned on near the LCD TV.

Inserting Batteries in the Remote Control

1. Open the cover completely.
2. Insert the two supplied batteries (AA, 1.5V). Ensure that the polarities (+ and -) of the batteries are aligned correctly.
3. Slide back the cover.

Step 1 Step 2 Step 3

CAUTION: Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the national code (Recycling program).

How to use remote control

• The remote control should be operated within 30 feet (7m) and 30^ to the left and the right of the IR receiver at the front of the LCD TV.
  • Used batteries should be disposed properly.

VCR Connections

• Connecting to the Composite terminal
• Connection terminals of other equipment differ by manufacture and model.

Power HDMI VGA Y Pb Pr S-VIDEO VIDEO L R Audio in PC-IN RF Coax

- Connect LCD TV's Composite In terminal to the VCR's Composite Out terminal using the Composite Cable. (Make sure the colour of the terminals and the colour of the cables are the same)

- Connecting to the S-Video terminal

Power HDMI VGA Y Pb Pr S-VIDEO VIDEO Audio in PC-IN RF Coax

• Use the S-Video cable for higher picture quality.

Watching Video Tape

1. Turn on the LCD TV and press
   on the remote control.
2. Use ▲ ▼ to move to "AV", press OK button to confirm.
3. If S-Video has been connected, select "S-Video".
4. Turn on the VCR, insert the tape and press play button.

Satellite/ Cable TV Set-Top Box Connections

• Connecting to the Composite terminal
• In order to watch Cable TV, Subscribe to your local Cable TV company and install a separate receiver (Set-Top-Box).
• Connection terminals of other equipment differ by manufacture and model.

Power HDMI VGA Y Pb Pr S-VIDEO VIDEO L R Audio in PC-IN RF Core < Cable broadcasting receiver > ( R ) ( L ) Headphone out

Composite Cable

• Connect LCD TV's Composite In terminal to the cable broadcasting receiver Composite Out terminal using the Composite cable. (Make sure the colour of the terminals and the colour of the cables are the same)
• Connecting to the S-Video terminal

Power HDMI VGA Y Pb Pi S-VIDEO VIDEO L R Audio in PC-IN RF Coax Headphone out (R) (L)

• Use the S-Video cable for higher picture quality.

S-Video Cable

- Connecting to the HDMI terminal

Power HDMI VGA Y Pb Pr S-VIDEO VIDEO L R Audio in PC-IN RF Coax Headphone out (HDMI Cable) (R) (L)

< Cable broadcasting receiver >

Watching Cable TV

1. Turn on the LCD TV and press

on the remote control.

1. Use

to move to "AV", press OK button to confirm.

• If S-Video has been connected, select "S-Video".

• If HDMI has been connected, select "HDMI".

• Turn on the broadcasting receiver and select the channel you wish to view.

PC Connections

- Connection terminal of other equipment differ by manufacture and model.

Power HDMI VGA Y Pb Pr S-VIDEO VIDEO L R Audio in PC-IN RF Coax Analog RGB (D-SUB 15) pin Cable PC Audio Cable < PC >

• Connect LCD TV's PC Input terminals to PC's RGB terminal using the D-Sub cable.
• Connect LCD TV's PC Audio terminal to PC's Audio terminal using the Audio cable. (Only for PC's with Audio terminal)

How to Use as PC Monitor

1. Turn on the LCD TV and press

on the remote control.

1. Use ▲ ▼ to move to "VGA", press OK button to confirm.

Headphone Connections

- Connecting to the Headphone

Power HDMI VGA Y Pb Pr S-VIDEO VIDEO L R Audio in PC-IN RF Cox Headphone out

Digital Amplifier Connections

• Connecting to the Digital Amplifier
• Connection terminals of other equipment differ by manufacture and model.

• Connection terminals of other equipment differ by manufacture and model. Coax Cable Power HDMI VGA Y Pb Pr S-VIDEO VIDEO L R Audio In PC-IN RF Coax Headphone out

Power the LCD TV

• Power on/off
• To turn the LCD TV on: Press "POWER" button on the LCD TV.
• To turn the LCD TV off: Press "POWER" button on the LCD TV.
• To turn on/off by remote control: Press the ⏻ button on remote control.

Selecting Input Source

- You can select between the TV signal and the input signal of other equipment connected to the TV. - Use this function to switch to the input source you wish to view.

Press TV/AV button on the remote control. Use to move to the desired input source. Press OK to select. Input Source DTV TV Component VGA HDMI AV S-VIDEO

Operating the Menu

1. Press the POWER button to turn the LCD TV on.
2. Press the TV-MENU button on the remote control, the on screen menu will appear.
3. Use the ◀ and ▶ buttons to select your main menu option.

PICTURE MENU:

Allows you to make adjustments to your picture settings.

(Select TV source for example)

Picture Mode Standard Contrast 50 Brightness 50 Colour 50 Sharpness 50 Text 0

SOUND MENU:

Allows you to customize the sound options and effects.

(Select TV source for example)

Sound Mode Standard Trestle 50 Bass 50 Balance 50 AutoVolume On SurroundSound Off

TIMER MENU:

Allows you to set up a variety of timer options.

(Select TV source)

TIME Clock Off Time Off On Time Off Sleep Timer Off Auto Sleep On TimeZone Western Australia GMT+8

OPTION MENU:

Allows you to setup a variety of setup options.

(Select TV source)

OPTION Language English Audio Language English Subtitle Language English Country Australia Restore Factory Default

LOCK MENU:

Allows you to set up a variety of lock options.

(Select TV source)

LOOK Lock System Off Set Password Block Program Parental Guidance On Block

CHANNEL MENU:

Allows you to search channels and set up a variety of channel options.

(Select TV source)

CHANNEL Auto Tuning DTV Manual Tuning ATV Manual Tuning Programme Edit CI Information

1. Use the ▼/▲ buttons to select an option of the sub-menu, and press the ▶ button.

While in adjusting mode, use the ◀ / ▶ to change the value of the item.

1. Press the EXIT button to exit the menu.

Note:

Only when you input the suitable signal, the relevant items can be activated.

Customizing the PICTURE Settings

Illustration of medical equipment icons around a central computer (no text or symbols)

PICTURE PICTURE
Picture Mode Standard

Contrast	50
Brightness	50
Colour	50
Sharpness	50
Tint	0

Circular icon set with medical equipment icons (no text or symbols)

Color Temperature

Red	50
Green	50
Blue	50
Aspect Ratio	16:9
Noise Reduction	On

Use the ◀ and ▶ buttons to select the PICTURE menu (as the picture above), press ▼ button to enter the menu.

The PICTURE menu includes the following options :

Picture Mode	Cycles among picture display modes: Standard, Dynamic, Soft, Personal.
Contrast	Controls the difference between the brightest and darkest regions of the picture.
Brightness	Controls the overall brightness of the picture.
Colour	Control the colour.
Sharpness	Increase this setting to see crisp edges in the picture; decrease it for soft edges.
Tint	Controls the tint.
Color Temperature	Cycles among colour modes: User,Warm, Medium, User.When you select “User” mode, you could adjust the colours below (Red, Green, Blue) by yourself.
Aspect Ratio	Cycles among screen display modes: Auto, 4:3, 16:9, Zoom1, Zoom2.
Noise Reduction	Reduce the noise point of the picture when you turn on the function by selecting “On”.
Screen (only exist in PC-RGB mode)Press ▶ button to enter the submenu to adjust the picture of the screen.

Customizing the PICTURE Settings

PICTURE PICTURE Picture Mode Standard Contrast 50 Brightness 50 Colour 50 Sharpness 50 Tint 0 Color Temperature Medium Red 50 Green 50 Blue 50 Aspect Ratio 16:9 Noise Reduction On

Use the ◀ and ▶ buttons to select the PICTURE menu (as the picture above), press ▼ button to enter the menu.

The PICTURE menu includes the following options :

Picture Mode	Cycles among picture display modes: Standard, Dynamic, Soft, Personal.
Contrast	Controls the difference between the brightest and darkest regions of the picture.
Brightness	Controls the overall brightness of the picture.
Colour	Control the colour.
Sharpness	Increase this setting to see crisp edges in the picture; decrease it for soft edges.
Tint	Controls the tint.
Color Temperature	Cycles among colour modes: User,Warm, Medium, User.When you select “User” mode, you could adjust the colours below (Red, Green, Blue) by yourself.
Aspect Ratio	Cycles among screen display modes: Auto, 4:3, 16:9, Zoom1, Zoom2.
Noise Reduction	Reduce the noise point of the picture when you turn on the function by selecting “On”.
Screen (only exist in PC-RGB mode)Press ▶ button to enter the submenu to adjust the picture of the screen.

Customizing the TIMER Settings

TIME Clock Off Time Off On Time Off Sleep Timer Off Auto Sleep On TimeZone Western Australia GMT+8

Use the ◀ and ▶ buttons to select the TIMER menu (as the picture above), press ▼ button to enter the menu.

The TIMER menu includes the following options :

Clock	Use the ◀ and ▶buttons to select the position, and use the ▼and ▲button to set the time.
Off Time	Press ▶ button to enter the submenu, you could set the time when the TV set will be turned off automatically, you could also set the frequency.
On Time	Press ▶ button to enter the submenu, you could set the time when the TV set will be turned on automatically, you could also set the frequency, volume and program.
Sleep Timer	Allows you to setup the sleep timer among: 5min, 10min, 15min, 30min, 45min, 60min, 90min, 120min, 180min, 240min and off.
Auto Sleep	Turn on/off the auto sleep function.
TimeZone	Allows you to select the time zone.

Customizing the TIMER Settings

TIME Clock Off Time Off On Time Off Sleep Timer Off Auto Sleep On TimeZone Western Australia GMT+8

Use the ◀ and ▶ buttons to select the TIMER menu (as the picture above), press ▼ button to enter the menu.

The TIMER menu includes the following options :

Clock	Use the ◀ and ▶buttons to select the position, and use the ▼and ▲button to set the time.
Off Time	Press ▶ button to enter the submenu, you could set the time when the TV set will be turned off automatically, you could also set the frequency.
On Time	Press ▶ button to enter the submenu, you could set the time when the TV set will be turned on automatically, you could also set the frequency, volume and program.
Sleep Timer	Allows you to setup the sleep timer among: 5min, 10min, 15min, 30min, 45min, 60min, 90min, 120min, 180min, 240min and off.
Auto Sleep	Turn on/off the auto sleep function.
TimeZone	Allows you to select the time zone.

Customizing the LOCK Settings

LOCK Lock System Off Set Password Block Program Parental Guidance On Block

Use the ◀ and ▶ buttons to select the LOCK menu (as the picture above), press ▼ button to enter the menu.

Note: You should enter the code to operate the menu.(original code is 0000)

The LOCK menu includes the following options :

Lock System	Allows you to turn on or off the system lock.
Set Password	Press ▶ button to enter the submenu, and you could change the password here.
Block Program	Press ▶ button to enter the submenu as the right picture, select a program, and press GREEN button to block it.
Parental Guidance	Cycles among block modes: Block R and Above, Block AV and Above, Block MA and Above, Block M andAbove, Block PG and Above, Block G and Above, Block All and No Block.

Customizing the CHANNEL Settings

CHANNEL Auto Tuning DTV Manual Tuning ATV Manual Tuning Programme Edit CI Information

Use the ◀ and ▶ buttons to select the CHANNEL menu (as the picture above), press▼ button to enter the menu.

The CHANNEL menu includes the following options :

Auto Tuning	Press ▶ button to start auto tuning (It contains ATV and DTV signals)
DTV Manual Tuning	Press ▶ button to enter the submenu. Press ◀ or ▶ button to select a channel and press OK button to start search.
ATV Manual Tuning	Press ▶ button to enter the submenu.
Storage To Current CH Search Fine-Tune Skip Frequency	Select a position to store the program. Select a program you want to tuning. Press ◀ and ▶ buttons to manual search. Press ◀ and ▶ buttons to fine-tune. Select “Yes” to skip the program when you scan the programs by CH+/- Display the current channel's frequency.
Press RED button to save all the setups you have changed.

Customizing the CHANNEL Settings

CHANNEL Auto Tuning DTV Manual Tuning ATV Manual Tuning Programme Edit CI Information

Use the ◀ and ▶ buttons to select the CHANNEL menu (as the picture above), press▼ button to enter the menu.

The CHANNEL menu includes the following options :

Auto Tuning	Press ▶ button to start auto tuning (It contains ATV and DTV signals)
DTV Manual Tuning	Press ▶ button to enter the submenu. Press ◀ or ▶ button to select a channel and press OK button to start search.
ATV Manual Tuning	Press ▶ button to enter the submenu.
Storage To Current CH Search Fine-Tune Skip Frequency	Select a position to store the program. Select a program you want to tuning. Press ◀ and ▶ buttons to manual search. Press ◀ and ▶ buttons to fine-tune. Select “Yes” to skip the program when you scan the programs by CH+/- Display the current channel's frequency.
Press RED button to save all the setups you have changed.

Trouble shooting

• Do not use other functions that are not mentioned in this user's manual.
• In case a problem occurs with your LCD TV, please take the following steps first.
• If you still have the problem, turn the power off and contact your dealer or an authorized service centre.

	ActionProblem
The screen does not appear.	Is the power plug pulled out? Insert the power plug.Press the power button of the remote control.
The screen appears too slowly after the power is turned on.	This problem occurs for a brief time in the process of image elimination processing in order to hide temporary screen noise that occurs when the power is turned on. But if the screen does not come after 1 minute contact your dealer or an authorized service centre.
Screen is too bright or too dark	Perform brightness adjustment or Contrast adjustment.
Screen is too large or too small	Adjust the screen size.
Stripes appear on the screen and it shakes.	Stop using wireless telephones, hair driers and electric drills.
The screen does not move	Press the PAUSE button. Check if the Pause button is pressed on external equipment.
Screen appears, Voice is not heard	1. Press the "MUTE" button.2. Increase the sound level by pressing volume adjustment button.3. Check if sound terminal of external input is connected properly.4. Check if audio cables are connected properly.5. Select and check the other input.If the sound still does not work and the other channels are the same after you have done as the above, contact your dealer or an authorized service centre.
Remote control does not work	1. Check if main power is On.2. Check that the batteries of the remote controller were loaded properly.3. Check to see if any obstacle exists between the LCD TV and the remote control, then remove it, if any.4. If the batteries have no power, replace them with two new batteries.

• This LCD TV is for household use and registered as harmless on electromagnetic waves.
• Therefore, you can use it in every location as well as residential areas.

Specifications

LCD Panel	Panel Size	15.4" TFT LCD
	Brightness	180
	Contrast Ratio	400:1
Max. Resolution		1280 x 800
Input Connector	VIDEO	1
	S-VIDEO	1
	YPbPr	1
	AUDIO (L/R)	1
	PC/AUDIO(L/R)	1
	HDMI	1
	RF	1
Output Connector	HEADPHONE	1
	COAX	1
Power Source		DC 12V 3.33A
Power Consumption		40W

• The cabinet design and electronics specifications will be modified without prior notice for improving the performance.

PALSONIC CORPORATION PTY LTD

1 JOYNTON AVENUE

WATERLOO NSW 2017 AUSTRALIA

TEL: [phone]

FAX: [phone]

www.palsonic.com.au

PALSONIC CUSTOMER SERVICE

TELEPHONE

AUSTRALIA: 1300 657 888
