USER MANUAL X-SMC3-S PIONEER

Discover the benefits of registering your product online at http://www.pioneer.co.uk (or http://www.pioneer.eu).

Operating Instructions

Mode d'emploi

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

D3-4-2-1-1_A1_En

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3_A1_En

WARNING

Before plugging in for the first time, read the following section carefully.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the AC adapter label.

D3-4-2-1-4*A1En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a_A1_En

Operating Environment

Operating environment temperature and humidity: +5^ to +35^ (+41^ to +95^) less than 85% RH (cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light) D3-4-2-1-7c*A1.En

When using this product, confirm the safety information shown on the bottom of the unit and the AC adapter label. D3-4-2-2-4_B1_En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period. K041_A1_En

WARNING

Store small parts out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately.

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10cm at top, 10cm at rear, and 10cm at each side).

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

D3-4-2-1-7b*A1_En

Radio wave caution

This unit uses a 2.4 GHz radio wave frequency, which is a band used by other wireless systems (Microwave ovens and Cordless phones, etc.). In this event noise appears in your television image, there is the possibility this unit (including products supported by this unit) is causing signal interference with the antenna input connector of your television, video, satellite tuner, etc. In this event, increase the distance between the antenna input connector and this unit (including products supported by this unit).

• Pioneer is not responsible for any malfunction of the compatible Pioneer product due to communication error/malfunctions associated with your network connection and/or your connected equipment. Please contact your Internet service provider or network device manufacturer.
• A separate contract with payment to an Internet service provider is required to use the Internet.

Information for users on collection and disposal of old equipment and used batteries

(Symbol for equipment)

Symbol examples) for batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

These symbols are only valid in the European Union.

For countries outside the European Union:

If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

K058a_A1_En

If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation). D3-4-2-2-1a_A1_En

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement.

S002*A1En

CAUTION

The STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation). D3-4-2-2a* A1_EN

AC adapter CAUTION

• Make sure to grasp the body of the AC adapter when removing it from the power outlet. If you pull the power cord, it may become damaged which could lead to fire and/or electrocution.
• Do not attempt to plug in or remove the AC adapter with wet hands. This may result in electrocution.
• Do not insert the power cord of AC adapter into a power outlet where the connection remains loose despite inserting the prongs all the way into the outlet. Heat may be generated which could lead to fire. Consult with the retailer or an electrician regarding replacement of the power outlet.

Store the AC adapter out of the reach of children and infants.

The AC adapter cord may accidentally wind around the neck and it may cause suffocation.

Thank you for buying this Pioneer product.

Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference.

Contents

01 Before you start

What's in the box 5

Loading the batteries in the remote control. 5

Using the remote control 5

02 Connections

Connecting the FM antenna 6

Connecting optional Bluetooth® adapter (optional). 6

Connecting USB storage devices. 6

Connecting your TV 6

Connecting to the network through the LAN interface 7

Connecting using LAN cable 7

Connecting using wireless LAN. 7

Plugging in 8

03 Part names and functions

Remote control. 9

Top panel. 10

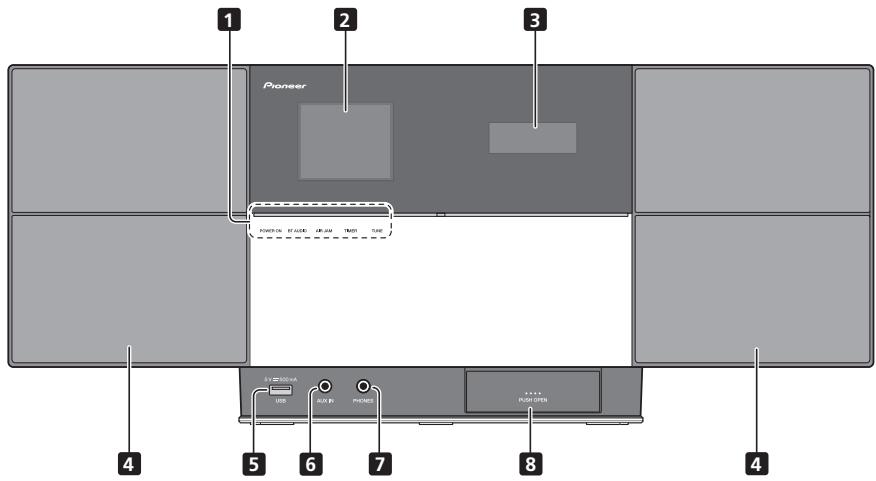

Front panel 11

Main display 12

04 Getting started

05 iPod/iPhone playback

Confirming what iPod/Phone models are supported 14

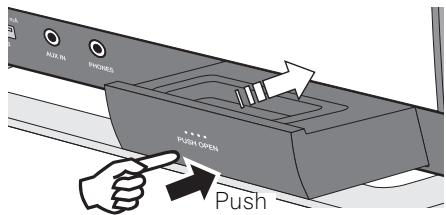

Connecting your iPod/iPhone 14

Connecting your TV 15

Playing your iPod/iPhone 15

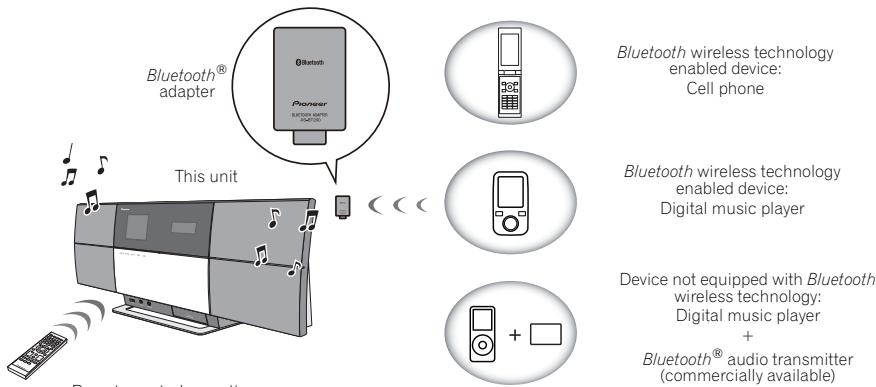

06 Bluetooth® Audio playback (optional)

Music playback using Bluetooth wireless technology. 17 Remote control operation. 17

Connecting optional Bluetooth® adapter 17

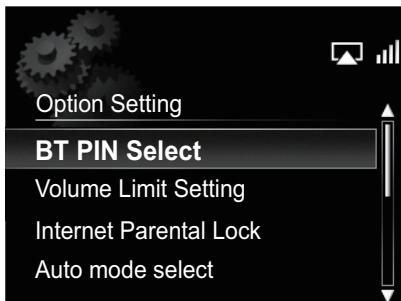

Setting the PIN code 18

Pairing Bluetooth® adapter and Bluetooth wireless technology device. 18

Listening to music contents of Bluetooth wireless technology device. 18

AIRJAM 19

07 USB playback

Playing files stored on USB storage devices 20

08 Internet radio

Listening to the Internet radio. 21

Connecting to a LAN network. 21

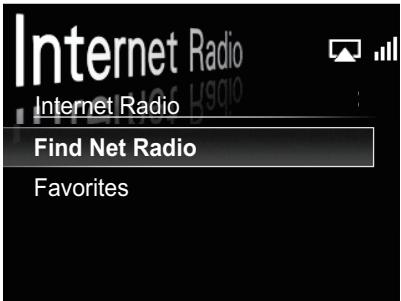

Listening to the Internet radio for the first time 21

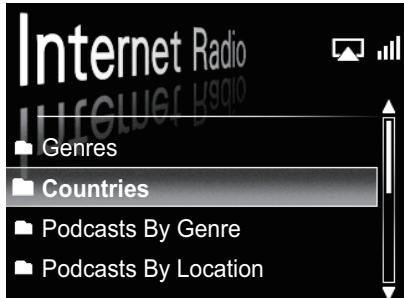

Tune into a station 21

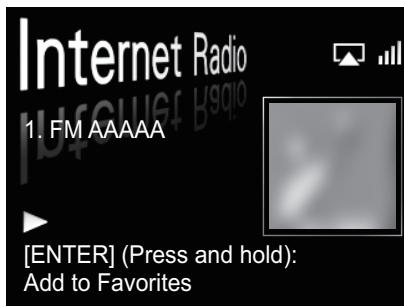

Adding the stations to the Favorites 22

To delete the stations from the list. 22

Advanced operations for the Internet radio 22

Registering broadcast stations not on the vTuner list from the special Pioneer site. 22

09 Music server

Introduction 23

About playable DLNA network devices 23

Using AirPlay on iPod touch, iPhone, iPad and iTunes 23

About the DHCP server function 23

Authorizing this unit 23

Playing audio files stored on PCs or other

components 24

Connecting to the LAN network. 24

Playback with Music Server 24

10 Using the tuner

Listening to the FM radio broadcasts. 25

Saving stations 25

Listening to station presets 25

11 Other connections

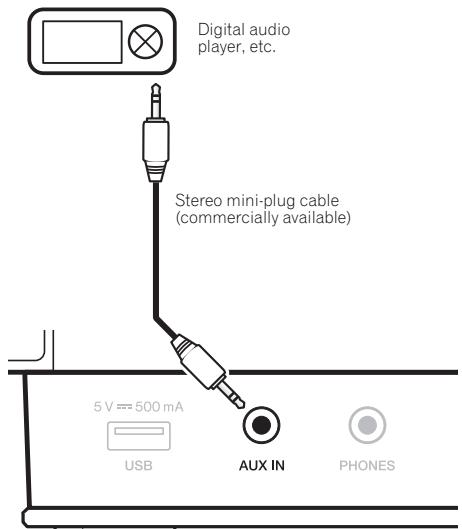

Connecting auxiliary components 26

Listening to auxiliary components 26

12 Changing the settings

Using the timer. 28

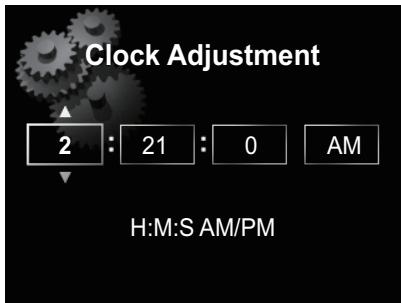

Setting the clock 28

Setting the wake-up timer. 28

Turning on/off the wake-up timer. 29

Using the wake-up timer. 29

Using the sleep timer 29

Network setting 29

Wired Setting 30

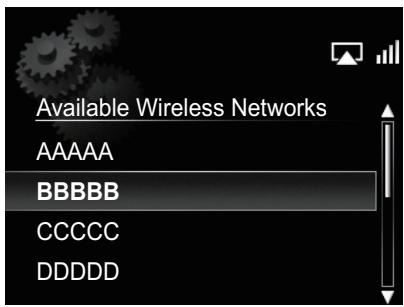

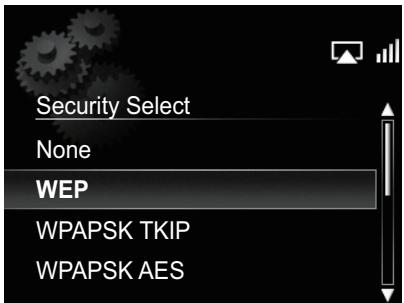

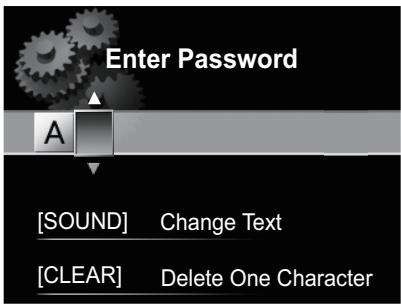

Wireless Setting. 30

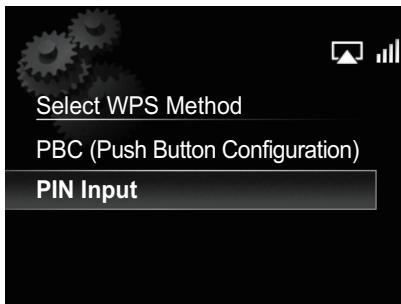

WPS connection setting 31

Connecting using PIN Input. 32

Friendly Name 32

Parental lock setup 32

Turn on/off the parental lock 32

Changing the password 32

Software Update. 33

Software Update messages 33

Sound settings 33

Using the Virtual Surround/Sound Retriever 33

Adjusting the bass and treble 33

Resetting the system 33

13 Additional information

Troubleshooting 34

Playable file formats. 39

Cautions on use 40

About network playback 40

About iPod/iPhone 42

About Wi-Fi® 42

Specifications. 43

• Illustrations featured in the Operating Instructions may have been modified or simplified for ease of explanation, and may therefore differ from the actual product appearance.

Chapter 1: Before you start

What's in the box

Please confirm that the following accessories are in the box when you open it.

Remote Control
Power cord
- AC adapter
FM wire antenna
- AAA batteries (R03) x 2
- Operating instructions (this document)

Loading the batteries in the remote control

1 Open the rear lid and load the batteries as illustrated below.

2 Close the rear lid.

The batteries included with the unit have been provided to allow you check product operation and may not last long. We recommend using alkaline batteries that have a longer life.

Caution

• When inserting the batteries, make sure not to damage the springs on the battery's terminals.
• Do not use any batteries other than the ones specified. Also, do not use a new battery together with an old one.
• When loading the batteries into the remote control, set them in the proper direction, as indicated by the polarity marks ( and ).
• Do not heat batteries, disassemble them, or throw them into flames or water.

WARNING

• Batteries may have different voltages, even if they are the same size and shape. Do not use different types of batteries together.
• To prevent leakage of battery fluid, remove the batteries if you do not plan to use the remote control for a long period of time (1 month or more). If the fluid should leak, wipe it carefully off the inside of the case, then insert new batteries. If a battery should leak and the fluid should get on your skin, flush it off with large quantities of water.
• When disposing of used batteries, please comply with governmental regulations or environmental public institution's rules that apply in your country/area.

Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

Using the remote control

The remote has a range of about 7m at an angle of about 30^ from the remote sensor.

Keep in mind the following when using the remote control:

• Make sure that there are no obstacles between the remote and the remote sensor on the unit.
• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit's remote sensor.
• Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit.
• Replace the batteries when you notice a fall off in the operating range of the remote.

Chapter 2:

Connections

• Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections.
• Connect the power cord after all the connections between devices have been completed.

Connecting the FM antenna

Connect the FM antenna plug onto the center pin of the FM antenna socket.

This unit's rear panel

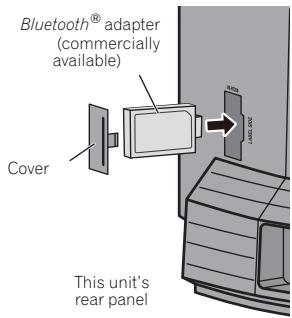

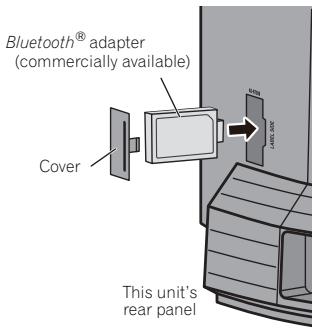

Connecting optional Bluetooth® adapter (optional)

Connect the Bluetooth® adapter (Pioneer Model No. AS-BT200) to AS-BT200 terminal on the rear panel.

• Open the AS-BT200 terminal's cover and connect the Bluetooth® adapter with the label side facing to the right, then close the cover.

Connecting USB storage devices

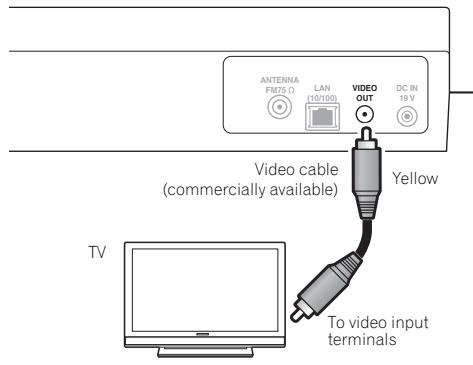

Connecting your TV

To watch iPod/iPhone images on a television, connect it using a composite video cable.

• When an iPod/iPhone is connected to this unit, the TV output setting of the iPod/iPhone is automatically set to 'ON'.2

This unit's rear panel

Note

To ensure optimum reception, make sure the FM antenna is fully extended and not coiled or hanging at the rear of the unit.
2. Some iPod allow the TV output setting to be changed while connected.
- When the iPod/iPhone is disconnected from this unit, the iPod/iPhone's TV output setting returns to its original state.

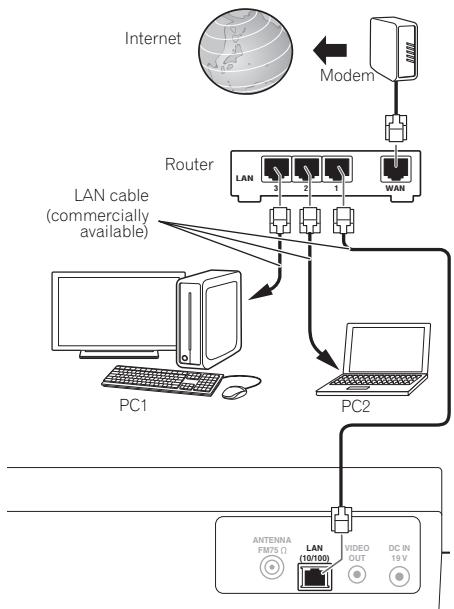

Connecting to the network through the LAN interface

By connecting this unit to the network via the LAN interface, you can play back audio files stored on components on the network, including your PC, and listen to Internet radio stations.

Connect the LAN terminal on this unit to the LAN terminal on your router (with or without the built-in DHCP server function) with a straight LAN cable (CAT 5 or higher). Also wireless connection to the network is possible.

Turn on the DHCP server function of your router. If your router does not have a built-in DHCP server function, you have to set up the network manually. For details, see page 29.

Connecting using LAN cable
This unit's rear panel

Connecting using wireless LAN

Note

1 In order to connect to the Internet, you must conclude a contract with an Internet Service Provider (ISP).
To listen to Internet radio stations, you must sign a contract with an ISP (Internet Service Provider) beforehand.
- Photo or video files cannot be played back.
- With Windows Media Player 11 or 12, you can even play back copyrighted audio files on this unit.

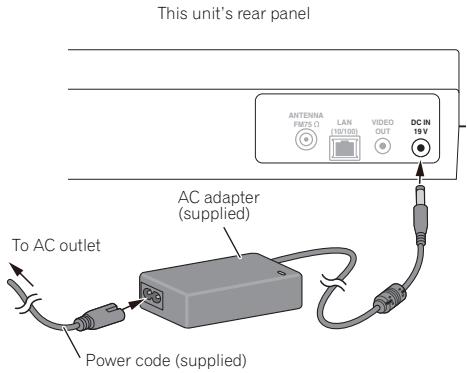

Plugging in

Important

• Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet.

After you've finished making all connections, plug the unit into an AC outlet.

1 Plug the supplied AC adapter into the DC IN socket on the back of the unit.
2 Plug the supplied power cord into the AC adapter then plug the other end into an AC outlet.

Chapter 3:

Part names and functions

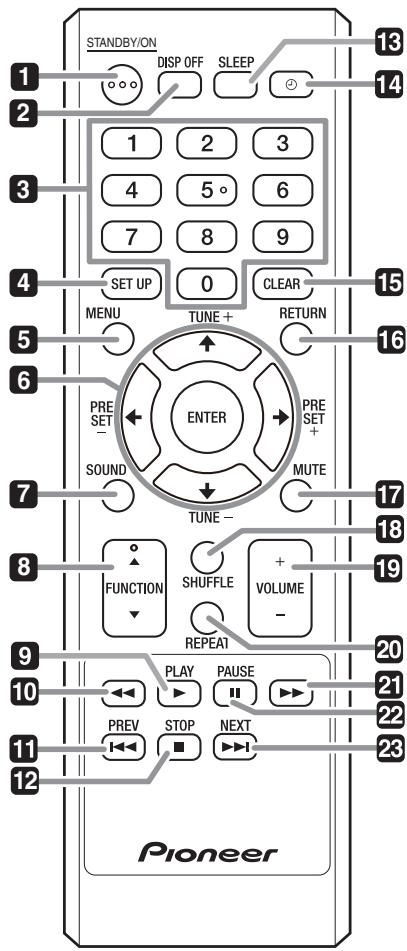

Remote control

1 STANDBY/ON

Press to turn the power on and off.

2 DISP OFF

Press to turn the display off when you do not need it.

3 Number buttons (0 to 9)

Use them to select the station preset when using the tuner, etc.

4 SET UP

Use this to change the settings such as Timer Setting (page 27), Clock Setting (page 27), Display Setting (page 27), Network Setting (page 27), Option Setting (page 28) and see System Info (page 28).

5 MENU

Select and play the track or file from the menu screen.

Use these to select items, change settings and move the cursor.

ENTER

Use this to implement the selected item or enter a setting that you have changed.

$$ P R E S T + / - $$

Use these to select station presets.

$$ T U N E + / - $$

Change the frequency one step at a time. To search for stations automatically, press and hold for about a few second.

7 SOUND

Turns Virtual Surround and Sound Retriever on and off (page 33). Also use to adjust the Bass and Treble.

8 FUNCTION ▲/▼

Use to change the input source. The source changes as below.

iPod BT Audio 1 Air Jam 1 USB FM Internet Radio Music Server AUX Return to the beginning (Undisplayed)

9 PLAY

Press to start playback.

Press during playback to fast-reverse.

Note

1 Optionally available. To use BT Audio and Air Jam function, you need to connect the commercially available Bluetooth® adapter: AS-BT200 to the unit. See page 17 for details.

11 PREV

Press to return to the beginning of the currently playing track or file. Press twice to move back to the beginning of the previous track or file.

12 STOP

Press to stop playback.

13 SLEEP

Use to put the unit in the sleep mode and select the amount of time before sleep (page 29).

14

Use to turn on and off the timer (page 28).

15 CLEAR

Press to clear the selected item. Use this for example if you input the wrong number.

16 RETURN

Press to return to the previous screen. Also, use to cancel the clock setting or the sound setting.

17 MUTE

Press to temporarily silence the sound.

18 SHUFFLE

Perform shuffle play of tracks on the selected iPod/iPhone, USB storage device or Music Server (page 15, 20, 24).

19 VOLUME + / -

Use to set the listening volume. (Default setting: 10)

20 REPEAT

Perform repeat play of tracks on the selected iPod/iPhone, USB storage device or Music Server (page 15, 20, 24).

21

Press during playback to fast-forward.

22 II PAUSE

Press to stop playback temporarily. Press again to resume.

23 NEXT

Press during playback to skip ahead to the beginning of the next track or file.

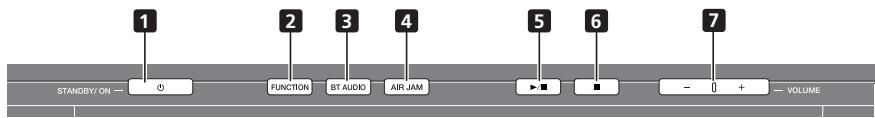

Top panel

1 STANDBY/ON

Press to turn the power on and off.

2 FUNCTION

Use to change the input source. The source changes as below.

iPod BT Audio ^1 Air Jam ^1 USB FM Internet Radio Music Server AUX Return to the beginning (Undisplayed)

3 BT AUDIO

Switches the input source to Bluetooth® Audio.

4 AIR JAM

Switches the input source to Air Jam.

5 /11

Press to start playback. During playback, pause/unpause playback.

6

Press to stop playback.

7 VOLUME - / +

Use to set the listening volume. (Default setting: 10)

Note

1 Optionally available. To use BT Audio and Air Jam function, you need to connect the commercially available Bluetooth® adapter: AS-BT200 to the unit. See page 17 for details.

Front panel

1 POWER ON

When the power is on, this indicator lights.

BT AUDIO

When BT Audio is selected as the input source, this indicator lights.

AIR JAM

When Air Jam is selected as the input source, this indicator lights.

TIMER

When the wake-up timer is set to On, this indicator lights.

TUNE

When the tuner receives FM broadcasts, the TUNE indicator lights.

2 Main Display
3 Sub Display
4 Speaker units
5 USB port
6 AUX IN

Use to connect auxiliary components.

7 PHONES
Use to connect headphones.
8 iPod/iPhone connector port

Note

1 Optionally available. To use BT Audio and Air Jam function, you need to connect the commercially available Bluetooth® adapter: AS-BT200 to the unit. See page 17 for details.

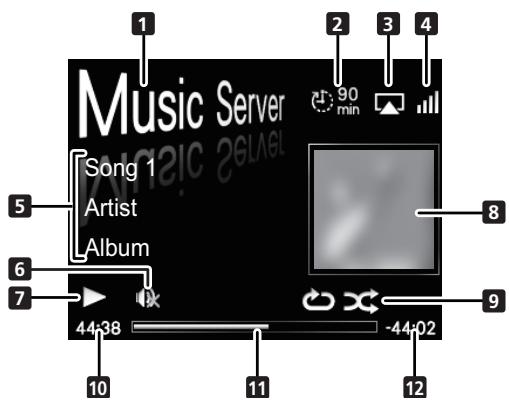

Main display

1 Input source

2 Sleep timer

When the sleep timer is set, the remaining time until power off is displayed.

3 AirPlay

This appears in blue during AirPlay operation, and in white during stop mode.

4 Network connection status

When the unit is connected to the wired network, this indicator lights.

When the unit is connected to the wireless network, this indicator lights.

When the unit is not connected to the network, this indicator lights.

5 Name of folder/file/track/artist/album/station, etc.

6 Mute

Displayed during Mute operation.

7 Play status

8 Artwork

Displayed when the currently playing file includes an album jacket image, etc.

9 Repeat and Shuffle

Repeat all files.

Repeat a file.

Shuffle

10 Elapsed playing time

11 Play bar

The bar becomes longer together with the elapsed playback time.

12 Remaining playing time

Chapter 4:

Getting started

When you use the unit for the first time, the following screens will be displayed.

Set up the following items to customize the unit.

1 Press STANDBY/ON.

About twenty seconds after turning on the power, the following splash screen appears. About one minute is required between turning the power on and completion of startup.

Setting Quick Start Mode to On will allow faster startup (page 28).

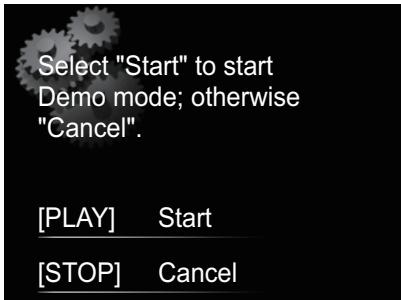

2 Use PLAY to activate Demo Mode or use STOP to deactivate Demo Mode.

The screen below will automatically appear after the screen in step 1.

• Demo Mode also can be activated in Auto mode select (page 28).

• When Start is selected, the demo mode operates. When starting up the next time, it will be necessary to set step 3.
• If Cancel is selected, operation will automatically proceed to step 3.

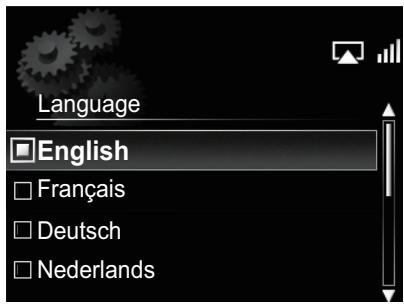

3 Use / to select the menu language of this unit, then press ENTER.

The setting is done.

Chapter 5:

iPod/iPhone playback

Merely by connecting your iPod/iPhone to this unit, you can enjoy high-quality sound from your iPod/iPhone. This unit can also be connected to a television set, letting you view images from your iPod/iPhone.

Playback and volume level setting for iPod/iPhone music and images can be performed from this unit or the iPod/iPhone itself.

Confirming what iPod/iPhone models are supported

The iPod/iPhone playable on this unit are shown below.

iPod/iPhone	Audio	Control	Video
iPod nano 2G	✓	✓	—
iPod nano 3/4/5/6G	✓	✓	✓*
iPod classic	✓	✓	✓
iPod touch 1/2/3/4G	✓	✓	✓
iPhone	✓	✓	✓
iPhone 3G/3GS	✓	✓	✓
iPhone 4	✓	✓	✓

• The iPod nano 6G cannot play back video, but can play slide shows only.

• This system has been developed and tested for the software version of iPod/Phone indicated on the website of Pioneer (http://pioneer.jp/homeav/support/ios/eu/).

• Installing software versions other than those indicated on the website of Pioneer to your iPod/iPhone may result in incompatibility with this system.

1 Select "Settings" from the top menu.

When using iPod touch or iPhone, select "General" after selecting "Settings".

2 Select "About".

The software version will be displayed.

Tip

• When using an iPod/iPhone not supported by this unit, use a commercially available cable to connect the iPod/iPhone to the AUX IN connector of this unit.

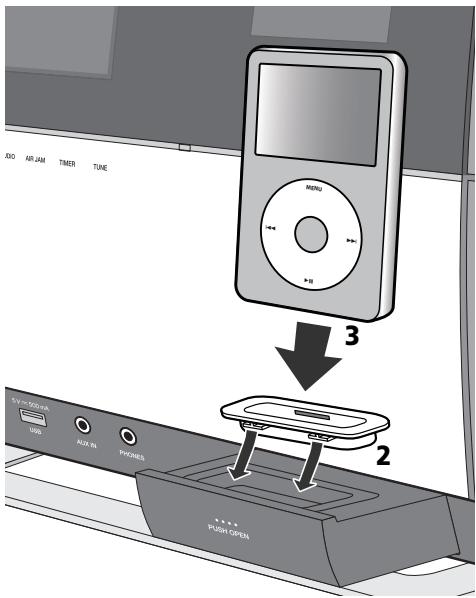

Connecting your iPod/iPhone

Caution

• When connecting iPod/iPhone units, always use the dock adapter provided with iPod/iPhone units, or a commercially available adapter designed to support iPod/iPhone. The iPod/iPhone cannot be connected without a dock adapter; attempting to connect an iPod/iPhone without it will cause damage or malfunction.
• An iPod/iPhone universal dock adapter is not supplied with this unit.

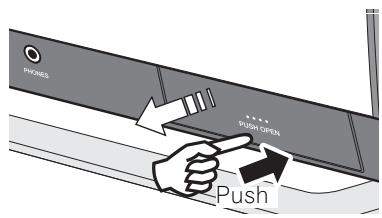

1 Open the iPod/iPhone connector port.2

2 Attach the dock adapter to iPod/iPhone connector port.

When attaching the dock adapter, be sure to orient the frontback directions of the dock adapter correctly. To attach, first place the protruding tabs on the front side of the adapter into the depressions on the iPod/iPhone connector port and press into position. When attaching the adapter, be careful not to strike the connectors.

Note

1 - Pioneer does not guarantee that this unit plays iPod/iPhone models other than the ones specified.
- Some functions may be restricted depending on the model or software version.
- iPod/iPhone is licensed for reproduction of non-copyrighted materials or materials the user is legally permitted to reproduce.
- Features such as the equalizer cannot be controlled using this system, and we recommend switching the equalizer off before connecting.
- Pioneer cannot under any circumstances accept responsibility for any direct or indirect loss arising from any inconvenience or loss of recorded material resulting from iPod/iPhone failure.
For detailed instructions on using the iPod/iPhone, please refer to the manual supplied with the iPod/iPhone.
2 When opening or closing the iPod/iPhone connector port, support the top of the unit with your hand to prevent it from moving.

3 Connect your iPod/iPhone.

• When your iPod/iPhone is not connected to the unit, close the iPod/iPhone connector port firmly.

Connecting your TV

To watch iPod/iPhone images on a television, connect it using a composite video cable.

• When an iPod/iPhone is connected to this unit, the TV output setting of the iPod/iPhone is automatically set to 'ON'.

Playing your iPod/iPhone

Caution

• When your iPod/iPhone is connected to this unit and you wish to operate the iPod/iPhone directly, be sure to hold the iPod/iPhone steady with the other hand to prevent malfunctions due to faulty contacts.

1 Connect your iPod/Phone.

• To connect your iPod/iPhone, see Connecting your iPod/ iPhone on page 14.

2 Press FUNCTION / to select iPod as the input source.

iPod is shown on the main display and starts playback.

The following operations are possible for iPod/iPhone.

Button	What it does
▶PLAY	Starts normal playback.
II PAUSE	Pauses playback.
■ STOP	Pauses playback.
I←PREV	Press to skip to the start of the current file, then previous files.
▶NEXT	Press to skip to the next file.
←	Press and hold to start fast reverse scanning.
▶	Press and hold to start fast forward scanning.
SHUFFLE	The currently selected iPod/iPhone tracks are played back in random order (shuffle play).
REPEAT	The currently selected iPod/iPhone tracks are played back repeatedly.*
MENU	Use to access the iPod/iPhone menu.
↑/↓/ENTER	Use to control the iPod/iPhone menu.

• Each time you press REPEAT the repeat modes changes as below.2

Repeat 1 Repeat all Normal playback

Repeat 1: Repeats a file currently played back.

Repeat all: Repeats all files.

When no device is connected to the iPod/iPhone connector port and this unit is not operated for 30 minutes or more, power will automatically turn off.

Note

1. Some iPod allow the TV output setting to be changed while connected.
2. When the iPod/iPhone is disconnected from this unit, the iPod/iPhone's TV output setting returns to its original state.
   2 No icon will be displayed on the main display when the unit is in the repeat mode or shuffle mode.
   3 Only when Power Save mode is selected in Auto mode select (page 28).

Important

If this unit cannot play your iPod/iPhone, perform the following troubleshooting checks:

• Check whether the iPod/iPhone is supported by this unit.
• Reconnect the iPod/iPhone to the unit. If this doesn't seem to work, try resetting your iPod/iPhone.
• Check the iPod/iPhone software is supported by this unit.

If the iPod/iPhone cannot be operated, check the following items:

• Is the iPod/iPhone connected correctly? Reconnect the iPod/iPhone to the unit.
• Is the iPod/iPhone experiencing a hangup? Try resetting the iPod/iPhone, and reconnect it to the unit.

Tip

• iPod/iPhone recharging occurs whenever an iPod/ iPhone is connected to this unit. (This function is supported in standby mode as well.)
• When input is switched from iPod to another function, the iPod/iPhone's power will be turned off automatically.
• If the unit is set to standby when an iPod/iPhone is connected, the iPod/iPhone will be turned off automatically.

Chapter 6:

Bluetooth® Audio playback (optional)

Remote control operation

Music playback using Bluetooth wireless technology

When the Bluetooth® adapter (Pioneer Model No. AS-BT200) is connected to this unit, a product equipped with Bluetooth wireless technology (portable cell phone, digital music player, etc.) can be used to listen to music wirelessly. Also, by using a commercially available transmitter supporting Bluetooth wireless technology, you can listen to music on a device not equipped with Bluetooth wireless technology. The AS-BT200 model supports SCMS-T contents protection, so music can also be enjoyed on devices equipped with SCMS-T type Bluetooth wireless technology.

Remote control operation

The remote control supplied with this unit allows you to play and stop media, and perform other operations.2

Connecting optional Bluetooth® adapter

1 Connect the Bluetooth® adapter to the unit when the unit is in standby mode.

• Remove the AS-BT200 terminal's cover and connect the Bluetooth® adapter with the label side facing to the right, then close the cover.

Note

1 The Bluetooth wireless technology enabled device must support A2DP profiles.
Pione does not guarantee proper connection and operation of this unit with all Bluetooth wireless technology enabled devices.
The Bluethood® word mark and logos are registered trademarks owned by Bluetho0h SIG, Inc. and any use of such marks by PIONEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners.
2 - The Bluetooth wireless technology enabled device must support AVRCP profiles.
- Remote control operations cannot be guaranteed for all Bluetooth wireless technology enabled devices.

2 Press STANDBY/ON to turn the power on.
3 Press FUNCTION / or BT AUDIO on the top panel of the unit to select BT AUDIO as the input source.

The BT AUDIO indicator lights and BT Audio is shown on the main display.

Setting the PIN code

Set this unit's PIN code to the same setting as that for the Bluetooth wireless technology device used. Supported PIN code setting values include 0000, 1234 or 8888.

Default setting: 0000

1 Press FUNCTION / or BT AUDIO on the top panel of the unit to select BT Audio as the input source.

The BT AUDIO indicator lights and BT Audio is shown on the main display.

2 Press SET UP.
3 Use / to select Option Setting BT PIN Select, then press ENTER.

4 Use / to select the PIN code, then press ENTER.

The PIN code is stored.

Pairing Bluetooth® adapter and Bluetooth wireless technology device

"Pairing" must be done before you start playback of Bluetooth wireless technology content using Bluetooth® adapter. Make sure to pair devices the first time you operate the system or any time pairing data is cleared. "Pairing" is the step necessary to register Bluetooth wireless technology device to enable Bluetooth communications. For more details, see also the operating instructions of your Bluetooth wireless technology device.

1 Press FUNCTION / or BT AUDIO on the top panel of the unit to select BT Audio as the input source.

The BT AUDIO indicator lights and BT Audio is shown on the main display.

2 Turn on the Bluetooth wireless technology device that you want to pair, place it near the system and set it into pairing mode.

Pairing starts.

3 Check to see that the Bluetooth® adapter is detected by the Bluetooth wireless technology device.

• If the Bluetooth wireless technology device cannot be connected to the unit, perform the connection operation from the Bluetooth wireless technology device.

Listening to music contents of Bluetooth wireless technology device

1 Press FUNCTION / or BT AUDIO on the top panel of the unit to select BT Audio as the input source.

The BT AUDIO indicator lights and BT Audio is shown on the main display.

2 Make connection between the Bluetooth wireless technology device and the unit.

• See Parring Bluetooth® adapter and Bluetooth wireless technology device above.

Note

1 When the Bluetooth® adapter is not connected and BT Audio is selected as the input source, the error message BT Adapter Not Connected will be shown on the main display.
2 - Pairing is required when you first use Bluetooth wireless technology device and Bluetooth® adapter. To enable Bluetooth communication, pairing should be done with both of your system and Bluetooth wireless technology device.

3 Press PLAY to start playback.

The following operations are now possible for Bluetooth wireless technology devices, using the remote control.

Button	What it does
▶PLAY	Starts normal playback.
II PAUSE	Pauses playback.
■ STOP	Stops playback.
▶ PREV	Press to skip to the start of the current file, then previous files.
▶I NEXT	Press to skip to the next file.
←	Press and hold to start fast reverse scanning.*
▶	Press and hold to start fast forward scanning.*

• This function may work differently depending on the connected device.
• When no Bluetooth wireless technology device is connected and no operation has been done for 30 minutes or more, the power will automatically turn off.2

AIR JAM

Air Jam — a Pioneer-exclusive application and available for free.

Air Jam lets you connect multi compatible devices to this unit using Bluetooth wireless technology. With it, you can make a group playlist directly on a supported device to play in your home theater through the unit. You and your friends can add songs from your devices to the playlist. Also Air Jam lets you delete the song before anyone has to hear it.

1 Press FUNCTION / or AIR JAM on the top panel of the unit to select AIR JAM as the input source.

The AIR JAM indicator lights and Air Jam is shown on the main display.

For more details on using Air Jam, access our website.

http://pioneer.jp/product/soft/iapp_airjam/en.html

Note

1 The Bluetooth wireless technology enabled device must support AVRCP profiles.
The operation of some Bluetooth wireless technology devices may differ from what is shown in the above table.
2 Only when Power Save mode is selected in Auto mode select (page 28).

Chapter 7:

USB playback

Playing files stored on USB storage devices

• This unit may not recognize a USB storage device, play files or supply power to a USB storage device. For details, see When a USB storage device is connected on page 35.
• Pioneer does not guarantee that any file recorded on a USB storage device will play or that power will be supplied to a USB storage device. Also note that Pioneer will accept no responsibility whatsoever for loss of files on USB storage devices caused by connection to this unit.

1 Press FUNCTION / to select USB as the input source.

USB is shown on the main display.

2 Connect the USB storage device.

The folders/files stored on the connected USB storage device appear on the main display automatically.

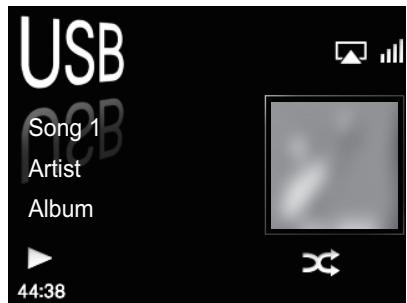

3 Use / to select the file, then press ENTER.

Playback starts.

• To return to the previous screen, press RETURN.
• Turn the power off before removing the USB storage device.

You can perform the following operations. Note that some buttons are not available for operation depending on the category currently being played back.

Button	What it does
▶ PLAY	Unpauses playback.
II PAUSE	Pauses playback.
■ STOP	Stops playback.
▶ PREV	Press to skip to the previous files.
▶NEXT	Press to skip to the next file.
SHUFFLE	The currently selected tracks are played back in random order (shuffle play).
REPEAT	The currently selected tracks are played back repeatedly.*

• Press repeatedly to switch between repeat play options. ' plays the currently playing file repeatedly. ' plays all the files repeatedly.

When a USB storage device is not playing and the unit has not been operated for 30 minutes or more, the power will automatically turn off.

The following screen appears on the main display when you play back audio files. Note that some file types may not be displayed.

Chapter 8: Internet radio

Listening to the Internet radio

Connecting to a LAN network

Connect to the network using the LAN interface.

For details on the connections, see Connecting to the network through the LAN interface on page 7.

Listening to the Internet radio for the first time

When you listen to the Internet radio first time, follow the instructions below to tune into your desired station.

1 Press FUNCTION / to select Internet Radio as the input source.

Internet Radio is shown on the main display.

2 Use ↑/↓ to select Find Net Radio, then press ENTER.

3 Use / to select the station, then press ENTER.

Tune into a station

1 Press FUNCTION / to select Internet Radio as the input source.

• The information of the station you last selected is displayed on the main display.

2 Press MENU to display the internet radio menu screen.

3 Use / to select Find Net Radio or Favorites, then press ENTER.

• Select Find Net Radio when you want to tune into a station which has not been added to Favorites.
• Select Favorites when you want to tune into a station which has been added to Favorites already.
• To add stations to the Favorites, see Adding the stations to the Favorites on page 22.

4 Use ↑/↓ to select the station, then press ENTER.

• When you select Find Net Radio, you can also select the available stations from the Internet radio menu.

Adding the stations to the Favorites

1 Tune into the station from Find Net Radio.

• Follow the instructions Tune into a station on page 21.
• The information of the station is displayed on the main display.

2 Press and hold ENTER for a few seconds.

To delete the stations from the list

1 Press MENU to display the internet radio menu screen.

2 Use / to select Favorites, then press ENTER.

3 Use / to select the station you want to delete, then press ENTER.

4 Use / to select Delete, then press ENTER.

Select OK to confirm.

• To cancel deleting the station, press RETURN.

Advanced operations for the Internet radio

Registering broadcast stations not on the vTuner list from the special Pioneer site

With this unit, broadcast stations not included on the list of stations distributed by vTuner can be registered and played. Check the access code required for registration on this unit, use this access code to access the special Pioneer Internet radio site and register the desired broadcast stations in your favorites. The address of the special Pioneer Internet radio site is:

http://www-radio-pioneer.com

1 Display Find Net Radio screen.

To display the Internet radio list screen, perform steps 1 to 3 at Listening to the Internet radio for the first time on page 21.

2 Use / to select Help, then press ENTER.

3 Use / to select Get access code, then press ENTER.

The access code required for registration on the special Pioneer Internet radio site is displayed. Make a memo of this address.

The following can be checked on the Help screen:

• Get access code - The access code required for registration on the special Pioneer Internet radio site is displayed.
  Show Your WebID/PW - After registering on the special Pioneer Internet radio site, the registered ID and password are displayed.
• Reset Your WebID/PW - Resets all the information registered on the special Pioneer Internet radio site. When reset, all the registered broadcast stations are also cleared. If you want to listen to the same stations, re-register after resetting.

4 Access the special Pioneer Internet radio site from your computer and perform the registration process.

Access the above site and use the access code in step 3 to perform user registration, following the instructions on the screen.

5 Register the desired broadcast stations as your favorites, following the instructions on the computer's screen.

Both broadcast stations not on the vTuner list and stations on the vTuner list can be registered. In this case they are registered on the unit as favorite broadcast stations and can be played.

Chapter 9: Music server

This unit can play audio files stored on PCs or other components on a Local Area Network (LAN).

Introduction

This unit allows you to listen to audio files or listen to Internet radio stations on a computer or other component connected to the unit via LAN interface. This chapter describes the setup and playback procedures required to enjoy these features. It is advisory that you also refer to the operation manual supplied with your network component.

• Photo or video files cannot be played back.
• With Windows Media Player 11 or Windows Media Player 12, you can even play back copyrighted audio files on this unit.

About playable DLNA network devices

This unit allows you to play music on media servers connected on an identical Local Area Network (LAN) as the unit. This unit allows you to play files stored on the following devices:

• PCs running Microsoft Windows Vista or XP with Windows Media Player 11 installed
• PCs running Microsoft Windows 7 with Windows Media Player 12 installed
• DLNA-compatible digital media servers (on PCs or other components)

Files stored in a PC or DMS (Digital Media Server) as described above can be played via command from an external Digital Media Controller (DMC). Devices controlled by this DMC to play files are called DMRs (Digital Media Renderers). This unit supports this DMR function. When in the DMR mode, such operations as playing and stopping files can be performed from the external controller. Volume adjustment and the muting control are also possible. The DMR mode is canceled if the remote control unit is operated while in the DMR mode (aside from certain buttons, including the VOLUME + /-, MUTE and DISP OFF).

Depending on the external controller being used, playback may be interrupted when the volume is adjusted from the controller. In this case, adjust the volume from the unit or remote control.

Using AirPlay on iPod touch, iPhone, iPad and iTunes

This unit supports AirPlay audio streaming from iPod touch (2nd, 3rd and 4th generations), iPhone 4, iPhone 3GS, iPad with iOS 4.2 or later, and iTunes 10.1 (Mac and PC) or later.

To use AirPlay, select your unit on your iPod touch, iPhone, iPad or in iTunes and start playback.

Input to the unit will switch automatically when AirPlay is in use.

The following operations can be performed when in AirPlay mode:

• Adjustment of the unit's volume from iPod touch, iPhone, iPad or iTunes.
• Pause/resume, next/previous track, and shuffle/repeat from the remote control of the unit.
• Display of the currently playing track information on the unit's main display, including artist, song/album name and album artwork.2

Tip

• A network environment is required to use AirPlay.
• The unit's name that shows up in the AirPlay UI on iPod touch, iPhone, iPad and iTunes can be changed by Friendly Name from Network Setting.
• AirPlay provided on this unit has been developed and tested based on the software versions for the iPod touch, iPhone, iPad and the software versions for iTunes that are indicated on the Pioneer website. AirPlay may not be compatible with iPod touch, iPhone, iPad or iTunes software versions other than those indicated on the Pioneer website.

About the DHCP server function

To play back audio files stored on components on the network, you must turn on the DHCP server function of your router.

In case your router does not have the built-in DHCP server function, it is necessary to set up the network manually. Otherwise, you cannot play back audio files stored on components on the network or listen to Internet radio stations. See Network setting on page 29 for more on this.

Authorizing this unit

This unit must be authorized to enable playback. The unit is automatically authorized when it is connected to a PC over a network. If not, please authorize this unit manually on the PC. The authorization (or permission) method for access varies depending on the type of server currently being connected. For more information on authorizing this unit, refer to the instruction manual of your server.

Note

1 For more information, see the Apple website (http://www.apple.com).
2 It may not be displayed other than song name.

Playing audio files stored on PCs or other components

Connecting to the LAN network

Be sure to connect PC or other components to the network using the LAN interface before you use this function.

For details on the connections, see page 7.

Playback with Music Server

Important

• You cannot access a PC on a network while you are logged onto a domain that is configured in a Windows network environment. Instead of logging onto the domain, log onto the local machine.
• There are cases where the time elapsed may not be correctly displayed.

1 Press FUNCTION / to select Music Server.

All available servers are shown on the main display.

• When no sever is available to play, "Empty" will be displayed.

2 Use ↑/↓ to select the server that the file you want to play is stored on, then press ENTER.

The folders/files stored on the server are shown on the main display.

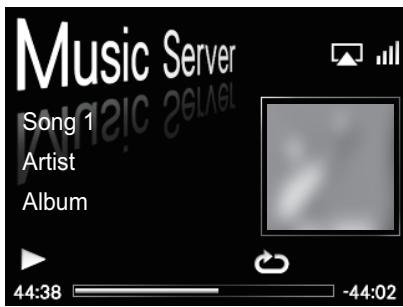

3 Use / to select the file you want to play, then press ENTER.

Playback starts.

• When the file you want to play is in the folder, select the folder first.
• If you press RETURN during playback, the previous (folder/files) screen will be displayed.

You can perform the following operations. Note that some buttons are not available for operation depending on the category currently being played back.

Button	What it does
▶ PLAY	Unpauses playback.
II PAUSE	Pauses playback.
■ STOP	Stops playback.
I▶ PREV	Press to skip to the previous file.
▶ I NEXT	Press to skip to the next file.
SHUFFLE	The currently selected tracks are played back in random order (shuffle play).
REPEAT	The currently selected tracks are played back repeatedly.*

• Press repeatedly to switch between repeat play options. ' ⋅' plays the currently playing file repeatedly. ' ⋅' plays all the tiles repeatedly.

Chapter 10:

Using the tuner

Listening to the FM radio broadcasts

The tuner can receive FM broadcasts, and can save your favorite stations.

1 Press FUNCTION / to select FM.

The tuned frequency will be displayed on the main display.

2 Tune into a station.

When the tuner receives FM broadcasts, the TUNE indicator lights.

There are two ways to do this:

Automatic tuning - To search for stations, press and hold TUNE +/- for about a few seconds. This unit will start searching for the next station, stopping when it has found one. Repeat to search for other stations.

Manual tuning - To change the frequency one step at a time, press TUNE +/-.

Saving stations

You can save up to 9 station presets so that you always have easy access to your favorite stations without having to tune in manually each time.

- Manually saving station presets

1 Press FUNCTION / to select FM.

The tuned frequency will be shown on the main display.

2 Tune into a station.

3 Press and hold a number button (1 to 9) for a few seconds.

The tuned frequency is preset to the selected number button. The previous station preset is overwritten.

- Automatically saving station presets

1 Press and hold PRESET + for a few seconds.

Auto tuning starts.

• The tuned frequencies will be preset to the buttons in numerical order.
• Auto tuning stops after the FM band has finished, or the limit of 9 presets has been reached.

Listening to station presets

1 Press FUNCTION / to select FM.

The tuned frequency will be shown on the main display.

2 Press the number button (1 to 9) that stores the FM radio station.

Tip

• Press PRESET +/- repeatedly to selected the station preset in numerical order.

Note

1 When a new broadcast frequency is stored in a station containing a previously stored frequency, the previous frequency will be overwritten with the new one.

Chapter 11:

Other connections

• Before making or changing the connections, switch off the power and disconnect the power cord from the power outlet.
• If the AUX IN miniplug jack is connected to auxiliary phones jack, the volume of the unit will be adjusted by the volume on the playback component. If the sound is distorted after you lower the volume of the unit, try lowering the volume on the auxiliary playback component.

Connecting auxiliary components

Connect the front panel AUX IN mini-plug jack to your auxiliary playback component.
- This method can be used to play music on this unit from iPods/iPones that do not support use of an iPod Dock.

This unit's front panel

Listening to auxiliary components

1 Press FUNCTION / to select AUX.

• AUX is shown on the main display.

2 Start playback of the auxiliary component.

Chapter 12:

Changing the settings

The factory default settings are indicated in italic.

1 Press SET UP to show the Initial Setup screen.
2 Use / to select the item, then press ENTER.
3 Follow the descriptions on the main display to change the setting.

Settings		What it does
Timer Setting		Setting the wake-up timer and the time the unit will be turned on.
Clock Setting	Clock Display (On/On (Standby)/Off)	• Select On to show clock on the sub display. • When On (Standby) is selected, the clock will appear in the sub-display even when the power is set to Off.
	Time Format (12H/24H)	Select the 12-hour (12H) clock or 24-hour (24H) clock.
	Clock Adjustment (Auto/Manual)	• Select Auto to adjust the clock automatically. • Select Manual to adjust the clock manually. How to adjust the clock, see page 28.
	Time Zone Default setting is GMT ±0.	Select the time zone of your area. Time Zone can be adjusted only when Clock Adjustment is set to Auto. e.g. If you are in Hawaii (GMT -10:00), use ↑/↓ to select Hawaii and press ENTER.
	Daylight Saving Time (On/Off)	Select On when daylight saving time is in effect. The time advances 1 hour.
Display Setting (Level3/Level2/Level1)		Dims or brightens the display.
Network Setting	Network Type (Wired/Wireless/Auto)	Select the network connection type. When Auto is selected, the network type is automatically switched between Wired and Wireless. It is depending on the occasion when the unit is powered on.

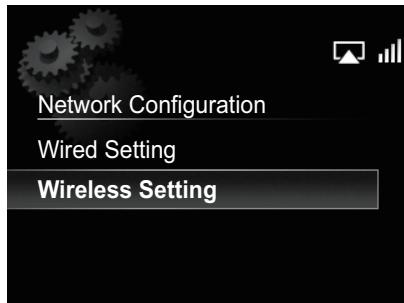

	Network Configuration (Wired Setting/Wireless Setting)	For details on settings, see page 29.
	WPS (PBC/PIN Input)	WPS connection settings, see page 31.
	Friendly Name	The name of this system displayed on a computer or other device connected to the network can be changed.
Settings	What it does
Option Setting	BT PIN Select(0000/1234/8888)Use this to set the Bluetooth PIN code. (page 18)
	Volume Limit Setting(On/Off)When On is selected, the volume can be set between 0 to 30.Each time this setting has been changed, the volume becomes to 0.
	Internet Parental Lock(Change Password/InternetParental Lock)Restricts usage of internet radio using password. Select Internet Parental Lock to On/Off.You can set up the password from Change Password. (page 32)
	Auto mode select(Power Save mode/Demo Mode/Off)When Power Save mode is selected, the unit will be automatically in the standby mode if no operation has done for more than 30 minutes.When Demo Mode is selected, the demonstration screen will start if no operation has done for more than 5 minutes.
	Language(English/Other languages)Change the language of the operation messages displayed on the main display. Other languages: French, German, Netherlands, Italian, Spanish, Russian, Japanese
	Quick Start Mode(On/Off)When this is set to On, the time required for bootup will be shortened. In addition, power-on will occur simultaneously when AirPlay is performed. Note, however, that when Quick Start Mode is set to On, the electrical current consumed in the power-off (standby) mode will be about the same as that required when the power is turned on. Also, if the power cord is disconnected while Quick Start Mode is set to On, the next time the plug is reconnected, about one minute warm-up will be required before the unit responds. Wait for one minute after reconnecting the cord before pressing STANDBY/ON.

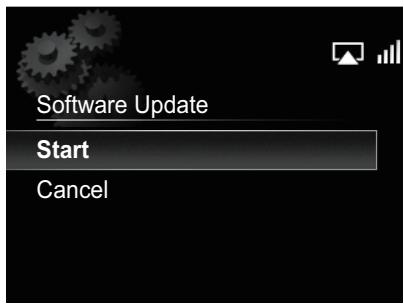

	Software UpdateUse this to update unit software.
System Info	Use this to check unit information details.

Using the timer

Setting the clock

Setting the clock before using the timer.1

1 Press SET UP.

The Initial Setup screen is displayed on the main display.

2 Select Clock Setting Clock Adjustment.

3 Select Auto or Manual.

If you select Manual, go to step 4.

• Auto works only when this unit is connected to the network. Connect to the network if you want to use automatic time adjustment.

4 Use / / / or number buttons to adjust the clock, then press ENTER.

• Using / moves the adjusting digit (hour/minute/second/AM, PM²).
  Using / increases or decreases values.

• If you press RETURN, the previous screen will be displayed.

Setting the wake-up timer

1 Press SET UP.

The Initial Setup screen is displayed on the main display.

Note

1 You'll need to set the clock again if you unplug the unit (or in case of a power failure).
2 The "AM" and "PM" indicators appear only when the Time Format is set to the 12H mode.
3 When the unit is in iPod, FM, Internet Radio, or Aux modes, you can set the timer.

2 Select Timer Setting.

The Timer Setting screen is displayed.

3 Use / / / or number buttons to adjust the clock, then press ENTER.

The TIMER indicator lights and the wake-up timer has been set.

• Using / moves the adjusting digit (hour/minute/ AM, PM ^1 ).
  Using / increases or decreases values.

• If you press RETURN, the previous screen will be displayed.
• The wake-up timer will turn on an input source at the volume level you selected when you set the timer.

Turning on/off the wake-up timer

1 Press to turn on the timer.

The TIMER indicator lights.
To turn off the timer, press during the timer is on.

Using the wake-up timer

1 Set the wake-up timer to on.
2 Press STANDBY/ON to turn the power off.

3 At the wake-up time, this unit will turn on automatically and play the selected input function.

If this unit is not operated for 60 minutes or more after playback is started by the wake-up timer, power will automatically turn off (standby mode).

Using the sleep timer

The sleep timer switches off the unit after a specified time so you can fall asleep without worrying about it.

1 Press SLEEP repeatedly to select a switch off time.

If a broadband router (with built-in DHCP server function) is connected to this unit, you can simply turn on the DHCP server function without having to set up the network manually. A broadband router without a DHCP server function connected to this unit must be set up as described below. Before you set up the network, consult with your ISP or the network manager for the required settings.

It is advised that you also refer to the operation manual supplied with your network component.

• Any changes made to a router without the DHCP server function must be reflected to unit network settings.

1 Press SET UP.

The Initial Setup screen is shown on the main display.

2 Select Network Setting Network Configuration.

3 Use ↑/↓ to select Wired Setting or Wireless Setting, then press ENTER.

Next steps are described separately between Wired Setting and Wireless Setting. Follow the instructions of the appropriate network type.

Wired Setting

1 Use / to select DHCP Off, then press ENTER.

The IP address setting screen is displayed.

2 Use / / / or number buttons to adjust the numbers, then press ENTER.

• / : Moves the adjusting digit.
• ↑/↓: Increases or decreases values.

Static IP Address

The IP address to be entered must be defined within the following ranges. If the IP address defined is beyond the following ranges, you cannot play back audio files stored on components on the network or listen to Internet radio stations.

Class A: 10.0.0.1 to 10.255.255.254 / Class B: 172.16.0.1

to 172.31.255.254 / Class C: 192.168.0.1 to

192.168.255.254

Subnet Mask

If an xDSL modem or a terminal adapter is directly connected to this unit, enter the subnet mask listed in your ISP documentation. In most of the cases, enter 255.255.255.0.

Gateway Address

If a gateway (router) is connected to this unit, enter the corresponding IP address.

Preferred DNS/Alternate DNS

If there is only one DNS server address listed in your ISP documentation, enter Preferred DNS. In case there are more than two DNS server addresses, enter Alternate DNS in the other DNS server address field.

Proxy Setup

Select Use Proxy Server when you connect this unit to the Internet via a proxy server. Enter the IP address of your proxy server in the Proxy Server Address field.

Also, enter the port number of your proxy server in the 'Proxy Port' field.

Wireless Setting

1 Use / to select Manual, then press ENTER.

Tip

• To select Auto, select the network name which you want to connect to and follow the instruction from the step 4.

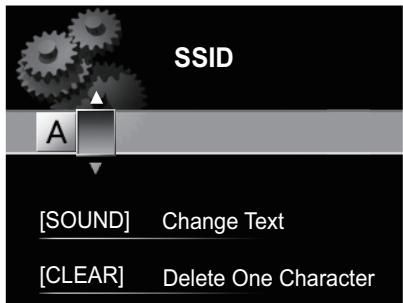

2 Use / / / to enter the SSID, then press ENTER.

• / : Moves the adjusting digit.
• ↑/↓: Changes displayed character.
• SOUND: Switches character types.
  CLEAR: deletes one character at a time.

3 Use / to select security type, then press ENTER.

If you select None. Step 5

4 Use / / / to enter the Pass Phrase or WEP Key.

• / : Moves the adjusting digit.
• ↑/↓: Changes displayed character.
• SOUND: Switches character types.
  CLEAR: deletes one character at a time.

5 Use ↑/↓ to select DHCP OFF, then press ENTER.

The IP address setting screen is displayed.

6 Use / / / or number buttons to adjust the numbers, then press ENTER.

• / : Moves the adjusting digit.
• ↑/↓: Increases or decreases values.
  CLEAR: deletes one character at a time.
• The items shown below are adjustable. For details on adjustable items, see step 2 in Wired Setting on page 30.

Static IP Address

Subnet Mask

Gateway Address

Preferred DNS/Alternate DNS

Proxy Setup

WPS connection setting

WPS is abbreviation of Wi-Fi Protected Setup. A standard established by the Wi-Fi Alliance industry group for a function allowing settings related to interconnection of WPS compatible wireless LAN devices and encryption to be made with simple operations.

This unit supports push-button configuration and PIN code configuration.

Important

Network Type must be set to Wireless or Auto to use WPS connection. See page 27 to change the network type.

1 Press SET UP.
The Initial Setup screen is shown on the main display.
2 Select Network Setting WPS.
3 Use / to select PBC (Push Button Configuration) or PIN Input, then press ENTER.

PBC (Push Button Configuration)

Connection settings are made automatically simply by pressing the WPS buttons on the WPS compatible wireless LAN device. Follow the instructions on the main display. This is the simplest way of making the settings, and is possible when the WPS compatible wireless LAN device is equipped with WPS button.

PIN Input

Connection settings are made by inputting the 8-digit PIN code shown on the main display to the access point to which you selected. Follow the instructions shown in Connecting using PIN code configuration on the right.

Connecting using PIN Input

1 Press SET UP and select Network Setting WPS PIN Input, then press ENTER.
2 Use / to select the access point which you want to connect, then press ENTER.

3 Confirm the PIN code of this unit, then press ENTER.

The PIN code of this unit is shown on the main display. You must check this PIN code to connect to the network.

4 Within 2 minutes after closing the PIN Code message, input the PIN Code to the access point selected in step 2.

• The PIN Code input method differs depending on the LAN device used. For details, consult the operating instructions accompanying your LAN device.

Friendly Name

1 Press SET UP.
2 Select Network Setting Friendly Name.

3 Use / / / to enter Friendly Name, then press ENTER.

• / : Moves the adjusting digit.
• ↑/↓: Changes displayed character.
• SOUND: Switches character types.
  CLEAR: deletes one characters at a time.

Parental lock setup

Restrict internet radio access for children. When Internet Parental Lock is set to On, you cannot listen to internet radio without entering a password.

Turn on/off the parental lock

1 Press SET UP.
The Initial Setup screen is displayed on the main display.
2 Select Option Setting Internet Parental Lock Internet Parental Lock.
3 Use / / / or number buttons to enter the password, then press ENTER.

• / : Moves the adjusting digit.
• ↑/↓: Increases or decreases numbers.
  CLEAR: deletes one characters at a time
  The factory default setting is "0000".

4 Use / to select On or Off, then press ENTER.

Changing the password

1 Press SET UP.
The Initial Setup screen is displayed on the main display.
2 Select Option Setting Internet Parental Lock Change Password.
3 Use / / / or number buttons to enter the current password, then press ENTER.
4 Use / / / or number buttons to enter the new password, then press ENTER.
- If you press RETURN, the previous screen will be displayed.

Note

1 Even if Internet Parental Lock is set to On, automatic clock adjustments using network will work.

Software Update

Use this procedure to update the unit's software. You can update the software via a USB storage device.

Updating via a USB storage device is performed by downloading the update file from a computer, reading this file onto a USB storage device then inserting the USB storage device into the USB port on the unit's front panel.

• If an update file is provided on the Pioneer website, download it onto your computer. When downloading an update file from the Pioneer website onto your computer, the file will be in ZIP format. Unzip the ZIP file before saving it on the USB storage device. If there are any old downloaded files or downloaded files for other models on the USB storage device, delete them.

Important

DO NOT unplug the power cord during updating.
- When updating via a USB storage device, do not disconnect the USB storage device.

1 Press SET UP.

The Initial Setup screen is displayed on the main display.

2 Select Option Setting Software Update Start, then press ENTER.

3 To update, select OK.

The updating screen appears and updating starts.

• The power turns off automatically once updating is completed.

Software Update messages

Status messages	Description
File Not Found.	No update file was found on the USB storage device. Store the file in the USB storage device's root directory.

Status messages	Description
Data format error.	Try disconnecting then reconnecting the USB storage device or storing the update file again. If the error still occurs, try using a different USB storage device.
Update failed.	Contact the authorized service center.

Sound settings

Using the Virtual Surround/Sound Retriever

You can add exciting effects to audio sources.

1 Press SOUND to select Virtual Surround or Sound Retriever.
2 Use / to select On or Off, then press ENTER.

About Sound Retriever

This function enhances sound data lost during compression of MP3 and other file types, allowing the user to enjoy sound quality closer to that of the original signal data.

Adjusting the bass and treble

Use the bass and treble controls to adjust the overall tone.

1 Press SOUND to select Bass or Treble.
2 Use / to adjust the bass or treble, then press ENTER.

You can adjust low and high sounds on a scale of -5 to +5 (eleven steps).

Resetting the system

Use this procedure to reset all system settings to the factory default.

Important

• Disconnect all components connected to this unit before the operation.

1 Press STANDBY/ON.

The unit turns on.

2 Press and hold and STANDBY/ON on the top panel for three seconds.

The unit turns off (standby mode).

All the settings will be reset to the factory default next time the unit is turned on.

Chapter 13:

Additional information

Troubleshooting

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.

• If the unit does not operate normally due to external effects such as static electricity disconnect the power plug from the outlet and insert again to return to normal operating conditions.

General problem

Problem	Check	Remedy
Settings you have made have been cleared.	Was the power cord unplugged forcibly while this unit's power was on?	Be sure to press STANDBY/ON on this unit's top panel or press STANDBY/ON on the remote control and wait for the POWER ON indicator on the front panel display to turn off before unplugging the power cord.
Difference in volume between MP3, WMA, iPod/ iPhone and Tuner.	This is not a problem with this unit.	The volume may sound differently depending on the input source and recording format.
This unit cannot be operated with the remote control.	Are you operating from far away?	Operate from within a distance of Operate within 7 m, 30° of the remote sensor on the front panel (page 5).
	Is the remote control sensor exposed to direct sunlight or strong artificial light from a fluorescent bulb, etc.?	The remote control signals may not be received properly if the remote control sensor is exposed to direct sunlight or strong artificial light from a fluorescent bulb, etc.
	Are the batteries dead?	Replace the batteries (page 5).
Picture is stretched, or aspect ratio cannot be switched on TV.	Is the aspect ratio properly set on the connected TV?	Refer to the TV's operating instructions and set the TV's aspect ratio properly.
The unit automatically turns off or the demonstration screen automatically starts.	Is Auto mode select set to Power Save mode or Demo Mode?	Change the setting of Auto mode select to Off (page 28).

When an iPod/iPhone is connected

Problem	Check	Remedy
Can't operate the iPod/ iPhone.		Make sure the iPod/iPhone is connected correctly (refer to Connecting your iPod/iPhone on page 14). Also, try disconnecting the iPod/iPhone then reconnecting it. If the iPod/iPhone is experiencing a hangup, try resetting the iPod/ iPhone, and reconnect it to the unit.

When a USB storage device is connected

Problem	Check	Remedy
USB storage device is not recognized.	Is the USB storage device properly connected?	Connect the device securely (all the way in).
	Is the USB storage device connected via a USB hub?	This unit does not support USB hubs. Connect the USB storage device directly.
	This is not a problem with this unit.	Turn the power off then back on.
		Some USB storage devices may not be recognized properly.
		This unit only supports USB mass storage class devices.
		Only the FAT16 and FAT32 file systems are supported. Other file systems (ex. FAT, NTFS, etc.) are not supported.
		This device does not support the use of external hard disc drives.
Folder or file names are not displayed in alphabetical order.	This is not a problem with this unit.	The order of the folder and file names depends on the order in which the folders or files were recorded on the USB storage device.
Much time is required to recognize the USB storage device.	What is the USB storage devices capacity?	Some time may be required to load the data when large capacity USB storage devices are connected (this could take several minutes).
Power is not supplied to the USB storage device.	Does an error message appear in the front panel display?No power is supplied if the power consumption is too high.	Turn the power off then back on.
		Turn the power off, then disconnect and reconnect the USB storage device.
		Press FUNCTION ▲/▼ to switch to the other mode, then switch again to the USB mode. (When the input is switched back to USB.)

Network

Problem	Check	Remedy
Cannot access to the network.	The LAN cable is not firmly connected.	Firmly connect the LAN cable (page 7).
	The router is not switched on.	Switch on the router.
Cannot access to the network using WPS.	Network Type is set to Wired.	Network Type must be set to Wireless or Auto to use WPS connection. See page 27 to change the network type.
Cannot access to the component or PC connected via network.	Internet security software is currently installed in the connected component.	There are cases where a component with Internet security software installed cannot be accessed.
	The audio component on the network which has been switched off is switched on.	Switch on the audio component on the network before switching on this unit.
	The component connected to the network is not properly set.	If the client is automatically authorized, you need to enter the corresponding information again. Check whether the connection status is set to “Do not authorize”.
	There are no playable audio files on the component connected to the network.	Check the audio files stored on the component connected to the network.
Playback does not start.	The component is currently disconnected from this unit or the power supply.	Check whether the component is properly connected to this unit or the power supply.
The PC or Internet radio is not properly operated.	The corresponding IP address is not properly set.	Switch on the built-in DHCP server function of your router, or set up the network manually according to your network environment (page 29).
	The IP address is being automatically configured.	The automatic configuration process takes time. Please wait.
The audio files stored on components on the network, such as a PC, cannot be played back.	Windows Media Player 11 or Windows Media Player 12 is not currently installed on your PC.	Install Windows Media Player 11 or Windows Media Player 12 on your PC (page 23).
	Audio files were recorded in formats other than MP3, WAV (LPCM only), MPEG-4 AAC, FLAC, and WMA.	Play back audio files recorded in MP3, WAV (LPCM only), MPEG-4 AAC, FLAC, or WMA. Note that some audio files recorded in these formats may not be played back on this unit.
	Audio files recorded in MPEG-4 AAC or FLAC are being played back on Windows Media Player 11 or Windows Media Player 12.	Audio files recorded in MPEG-4 AAC or FLAC cannot be played back on Windows Media Player 11 or Windows Media Player 12. Try using another server. Refer to the operation manual supplied with your server.
	The component connected to the network is not properly operated.	Check whether the component is affected by special circumstances or is in the sleep mode. Try rebooting the component if necessary.
	The component connected to the network does not permit file sharing.	Try changing the settings for the component connected to the network.
	The folder stored on the component connected to the network has been deleted or damaged.	Check the folder stored on the component connected to the network.
	Network connections could be restricted due to the computer's network settings, security settings, etc.	Check the computer's network settings, security settings, etc.
Cannot access Windows Media Player 11 or Windows Media Player 12.	In case of Windows Media Player 11: You are currently logged onto the domain through your PC with Windows XP or Windows Vista installed. In case of Windows Media Player 12: You are currently logged onto the domain through your PC with Windows 7 installed.	Instead of logging onto the domain, log onto the local machine (page 24).
Audio playback is undesirably stopped or disturbed.	The audio file currently being played back was not recorded in a format playable on this unit.	Check whether the audio file was recorded in a format supported by this unit. Check whether the folder has been damaged or corrupted. Even audio files listed as playable on this unit may sometimes not be played back or displayed (page 39).
	The LAN cable is currently disconnected.	Connect the LAN cable properly (page 7).
	There is heavy traffic on the network with the Internet being accessed on the same network.	Use 100BASE-TX to access the components on the network.
	When in the DMR mode, depending on the external controller being used, playback may be interrupted when a volume operation is performed from the controller.	In this case, adjust the volume from the unit or remote control.
	There is a connection routed through a wireless LAN on the same network.	There may be a shortage of bandwidth on the 2.4 GHz band used by the wireless LAN. Make wired LAN connections not routed through a wireless LAN.
		Install away from any devices emitting electromagnetic waves on the 2.4 GHz band (microwave ovens, game consoles, etc.). If this does not solve the problem, stop using other devices that emit electromagnetic waves.
Cannot listen to Internet radio stations.	The firewall settings for components on the network are currently in operation.	Check the firewall settings for components on the network.
	You are currently disconnected from the Internet.	Check the connection settings for components on the network, and consult with your network service provider if necessary (page 7).
	The broadcasts from an Internet radio station are stopped or interrupted.	Some Internet radio stations on the list of Internet radio stations for this unit (page 41) may occasionally not be available for listening.

Wireless LAN

Problem	Check	Remedy
Network cannot be accessed via wireless LAN.	Is Network Type set to Auto and the LAN cable connected to the unit?	Switch Network Type to Wireless or disconnect the LAN cable from the unit, then restart the unit.If Network Type is set to Auto and the LAN cable is connected to the unit, the unit recognizes the Network Type as Wired.
	This unit and base unit (wireless LAN router, etc.) are too far apart or there is an obstacle between them.	Improve the wireless LAN environment by moving the unit and base unit closer together, etc.
	There is a microwave oven or other device generating electromagnetic waves near the wireless LAN environment.	Use the system in a place away from microwave ovens or others device generating electromagnetic waves.
		Avoid using devices generating electromagnetic waves as much as possible when using the system with the wireless LAN.
	Multiple wireless devices are connected to the wireless LAN router.	When connecting multiple wireless devices, their IP addresses must be changed.
	Wireless LAN connections cannot be established between the unit and base unit (wireless LAN router, etc.).	The unit must be set in order to establish wireless LAN connections. See Connecting using wireless LAN on page 7.
	The IP address settings of the unit does not match the settings of the wireless LAN router, etc.	Check the IP address settings of the unit (including the DHCP setting).If the unit's DHCP setting is on, turn the unit's power off, then turn the power back on.Check that the IP address of the unit matches the settings of the wireless LAN router, etc.If the unit's DHCP setting is off, set an IP address matching the network of the base unit (wireless LAN router, etc.).For example, if the wireless LAN router's IP address is "192.168.1.1", set the unit's IP address to "192.168.1.XXX" (*1), the subnet mask to "255.255.255.0", the gateway and DNS to "192.168.1.1".(*1) Set the "XXX" in "192.168.1.XXX" to a number between 2 and 248 that is not assigned to other devices.
	The access point is set to conceal theSSID.	In this case, theSSID may not be displayed on the access point list screen. If not, set theSSID, etc., by making the wireless LAN settings on the unit manually.
	The access point's security settings use WEP 152-bit length code key or shared key authentication.	The unit does not support WEP 152-bit length code key or shared key authentication.

Playable file formats

This unit supports the following file formats. Note that some file formats are not available for playback although they are listed as playable file formats. Also, the compatibility of file formats varies depending on the type of server. Check with your server to ensure the compatibility of file formats supported by your server.

• If an attempt is made to play files with unsupported formats, the sound may be intermittent or be accompanied by noise. In such cases, confirm that the file format is compatible with this unit.
• Internet radio playback may be affected by the Internet communications environment, and in this case playback may not be possible even with the file formats listed here.

Category	Extension	Stream
MP3 <*1>	.mp3	MPEG-1/2 Audio Layer-3	Sampling frequency	8 kHz to 48 kHz
			Quantization bitrate	16 bit
			Channel	2 ch
			Bitrate	8 kbps to 320 kbps
			VBR/CBR	Supported/Supported
LPCM	<*2>	LPCM	Sampling frequency	8 kHz to 48 kHz
			Quantization bitrate	16 bit
			Channel	2 ch
WAV	.wav	LPCM	Sampling frequency	8 kHz to 192 kHz (Music Server (Wired))
				8 kHz to 48 kHz (Music Server (Wireless))
				8 kHz to 96 kHz (USB)
			Quantization bitrate	16 bit, 20 bit, 24 bit
			Channel	2 ch

Category	Extension	Stream
WMA	.wma	WMA2/7/8/9	Sampling frequency	8 kHz to 48 kHz
			Quantization bitrate	16 bit
			Channel	2 ch
			Bitrate	5 kbps to 320 kbps
			VBR/CBR	Supported/Supported
AAC	.m4a.aac.3gp.3g2	MPEG-4 AAC MPEG-4 HE AAC (AAC Plus v1/2)	Sampling frequency	32 kHz to 48 kHz
			Quantization bitrate	16 bit
			Channel	2 ch
			Bitrate	16 kbps to 320 kbps
			VBR/CBR	Supported/Supported
FLAC	.flac	FLAC	Sampling frequency	32 kHz to 192 kHz (Music Server (Wired))
				32 kHz to 48 kHz (Music Server (Wireless))
				32 kHz to 96 kHz (USB)
			Quantization bitrate	16 bit, 24 bit
			Channel	2 ch
			Bitrate	—
			VBR/CBR	—

1 "MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson multimedia."
2 Only streaming data from servers is concerned, so there is no extension.

Cautions on use

When moving this unit

When moving this unit, be sure to first disconnect the iPod/ iPhone, USB storage device, LAN cable or any other equipment connected to the unit. Then press STANDBY/ON on this unit (or STANDBY/ON on the remote control), wait for the POWER ON indicator on the front panel display to turn off, then unplug the power cord. Damage may occur if the unit is transported or moved when another device is connected to the iPod/iPhone connector port. USB, LAN (10/100) terminals, or AUX IN, PHONES mini-plug jacks.

Place of installation

• Choose a stable place near the TV or stereo system being used with this unit.
• Do not place this unit on top of a TV or color monitor. Also install it away from cassette decks and other devices easily affected by magnetic forces.

Avoid the following locations:

• Places exposed to direct sunlight
• Humid or poorly ventilated places
• Extremely hot places
• Places exposed to vibrations
• Places in which there is much dust or cigarette smoke
• Places exposed to soot, steam or heat (kitchens, etc.)

Do not place objects on this unit.

Do not place any objects on top of this unit.

Do not obstruct the ventilation holes.

Do not use this unit on shaggy rugs, beds, sofas, etc., or wrapped in cloth, etc. Doing so will prevent the heat from dispersing, leading to damage.

Do not expose to heat.

Do not place this unit on top of an amplifier or other component that generates heat. When rack mounting it, to avoid the heat given off by the amplifier or other audio component, place it on a shelf below the amplifier.

• Turn off the unit's power when not using it.
  Depending on signal conditions, striped patterns may appear on a TV screen and noise may enter the sound of radio broadcasts when the unit's power is on. If this happens, turn the unit's power off.

Cleaning the product

• Unplug the power cord from the power outlet when cleaning this unit.
• Clean this unit using a soft cloth. For tough dirt, apply some neutral detergent diluted in 5 to 6 parts water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe again with a soft, dry cloth.
• Alcohol, thinner, benzene, insecticides, etc., could cause the print or paint to peel off. Also, leaving rubber or vinyl products in contact with this unit for long periods of time could mar the cabinet.
• When using chemical-impregnated wipes, etc., read the cautions included with the wipes carefully.

About network playback

The network playback function such as Internet Radio or Music Server of this unit uses the following technologies:

Windows Media Player

See Windows Media Player 11/Windows Media Player 12 on page 23 for more on this.

Windows Media DRM

Microsoft Windows Media Digital Rights Management (WMDRM) is a platform to protect and securely deliver content for playback on computers, portable devices and network devices. Music Server functions as a WMDRM 10 for networked devices. WMDRM protected content can only be played on media servers supporting WMDRM.

Content owners use WMDRM technology to protect their intellectual property, including copyrights. This device uses WMDRM software to access WMDRM protected content. If the WMDRM software fails to protect the content, content owners may ask Microsoft to revoke the software's ability to use WMDRM to play or copy protected content. Revocation does not affect unprotected content. When you download licenses for protected content, you agree that Microsoft may include a revocation list with the licenses. Content owners may require you to upgrade WMDRM to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

DLNA

dlna

CERTIFIED

DLNA CERTIFIED® Audio Player

The Digital Living Network Alliance (DLNA) is a cross-industry organization of consumer electronics, computing industry and mobile device companies. Digital Living provides consumers with easy sharing of digital media through a wired or wireless network in the home.

The DLNA certification logo makes it easy to find products that comply with the DLNA Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5.

When a PC running DLNA server software or other DLNA compatible device is connected to this player, some setting changes of software or other devices may be required. Please refer to the operating instructions for the software or device for more information.

DLNA®, the DLNA Logo and DLNA CERTIFIED® are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

Content playable over a network

• Even when encoded in a compatible format, some files may not play correctly.
• Movie or Photo files cannot be played back.
• There are cases where you cannot listen to an Internet radio station even if the station can be selected from a list of radio stations.
• Some functions may not be supported depending on the server type or version used.
• Supported file formats vary by server. As such, files not supported by your server are not displayed on this unit. For more information check with the manufacturer of your server.

Disclaimer for Third Party Content

Access to content provided by third parties requires a high speed internet connection and may also require account registration and a paid subscription.

Third party content services may be changed, suspended, interrupted, or discontinued at any time without notice, and Pioneer disclaims any liability in connection with such occurrences.

Pioneer does not represent or warrant that content services will continue to be provided or available for a particular period of time, and any such warranty, express or implied, is disclaimed.

About playback behavior over a network

• Playback may stall when the PC is switched off or any media files stored on it are deleted while playing content.
• If there are problems within the network environment (heavy network traffic, etc.) content may not be displayed or played properly (playback may be interrupted or stalled). For best performance, a 100BASE-TX connection between player and PC is recommended.
• If several clients are playing simultaneously, as the case may be, playback is interrupted or stalled.
  Depending on the security software installed on a connected PC and the setting of such software, network connection may be blocked.

Pioneer is not responsible for any malfunction of the player and/or the Music Server features due to communication error/malfunctions associated with your network connection and/or your PC, or other connected equipment. Please contact your PC manufacturer or Internet service provider.

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

Microsoft, Windows, Windows Vista, Windows XP, Windows 2000, Windows Millennium Edition, Windows 98, and Windows NT are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Authorizing this unit

In order to be able to play with Music Server, this unit must be authorized. This happens automatically when the unit makes a connection over the network to the PC. If not, please authorize this unit manually on the PC.

The authorization (or permission) method for access varies depending on the type of server currently being connected. For more information on authorizing this unit, refer to the instruction manual of your server.

aacPlus

The AAC decoder uses aesPlus developed by Coding Technologies

(www.codingtechnologies.com).

FLAC

FLAC Decoder

Copyright c 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 Josh Coalson

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND COLLECTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR COLLECTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ASING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

About iPod/Phone

Made for

"Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

AirPlay, iPad, iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple, Inc., registered in the U.S. and other countries.

The AirPlay logo is a trademark of Apple Inc.

About Wi-Fi®

The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.

The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance.

Specifications

Amplifier section

RMS Power Output: Front Left/Right. 20 W + 20 W (1 kHz, 10% T.H.D., 8Ω)

Speaker section

Enclosure Passive radiator System. 1-way system Speakers: Fullrange .6.6 cm cone Passive radiator .7.7 cm cone Frequency range .60 Hz to 20 kHz

Miscellaneous

iPod .5V,1A USB .5V,500mA AS-BT200 .5V,100mA Power consumption .23W In standby mode .0.5W In standby mode (with Quick Start Mode On, and Interne radio input) .16 W Dimensions 520 mm (W) x 218 mm (H) x 156 mm (D) Weight (without package) .3.6 kg

ACadapter

Power requirements. AC 100 V to 240 V, 50 Hz/60 Hz Rated Output DC 19 V, 3.42 A

- Accessories

Remote control. 1
AAA batteries (R03) 2
FM wire antenna. 1
AC adapter 1
Power cord
Operating instructions (This document)

Note

• Specifications and the design are subject to possible modifications without notice, due to improvements.
• This product is not designed for use in Japan.

© 2011 PIONEER CORPORATION.

All rights reserved.

IMPORTANT

A propos de I'Pod/iPhone. 42

A propos de Wi-Fi® 42

Fiche technique 43

iPod/iPhone	Audio	Command	Vidente
iPod nano 2G	✓	✓	—
iPod nano 3/4/5/6G	✓	✓	✓*
iPod classic	✓	✓	✓
iPod touch 1/2/3/4G	✓	✓	✓
iPhone	✓	✓	✓
iPhone 3G/3GS	✓	✓	✓
iPhone 4	✓	✓	✓

La lecture commence.

La lecture commence.

Preferred DNS/Alternate DNS

Preferred DNS/Alternate DNS

Proxy Setup

© 2011 PIONEER CORPORATION.

iPod/iPhone	Audio	Control	Video
iPod nano 2G	✓	✓	—
iPod nano 3/4/5/6G	✓	✓	✓*
iPod classic	✓	✓	✓
iPod touch 1/2/3/4G	✓	✓	✓
iPhone	✓	✓	✓
iPhone 3G/3GS	✓	✓	✓
iPhone 4	✓	✓	✓

2 Selegione Clock Setting Clock Adjustment.

Preferred DNS/Alternate DNS

Preferred DNS/Alternate DNS

Proxy Setup

(1 kHz, 10%, T.H.D., 8Ω)

© 2011 PIONEER CORPORATION.

Declaration of Conformity with regard to the R&TTE Directive 1999/5/EC

Manufacturer:

PIONEER CORPORATION

1-1, Shin-ogura, Saiwai-ku Kawasaki-shi, Kanagawa 212-0031, Japan

EU Representative's:

Pioneer Europe NV

Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

http://www.pioneer.eu

English:

Hereby, Pioneer, declares that this X-SMC3-K/-S is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Suomi:

© 2011 PIONEER CORPORATION. All rights reserved.

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

340 Ferrier Street, Unit 2, Markham, Ontario L3R 2Z5, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd. Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: [phone]

K002_B3_En
