LT-37X987 - Television JVC - Free user manual and instructions

Product Type	LCD Flat Television
Model Number	LT-37X987
Screen Size	37 inches (94.0 cm) diagonal, 16:9 aspect ratio
Reception Format	NTSC, BTSC (MTS), ATSC Terrestrial, Digital Cable
Power Supply	AC 120V, 60 Hz
Power Consumption	185 W
Audio Output	10 W + 10 W (stereo)
Speakers	4 cm x 16 cm twin oblique cone x 2
Dimensions (with stand)	36.25 x 25.63 x 12.25 inches (91.9 x 65.2 x 31.2 cm)
Weight (with stand)	47.5 lbs (21.6 kg)
Video Inputs	Composite, S-Video, Component (Y, Pb, Pr), HDMI (2), PC (D-Sub)
Audio Inputs	Analog stereo (RCA), Digital optical input
Audio Outputs	Analog stereo (RCA), Optical digital audio (PCM/Dolby Digital)
Remote Control	RM-C18G with backlight, programmable for cable/satellite/VCR/DVD
V-Chip	US and Canadian rating systems for parental control
Closed Captioning	Analog CC1-CC4, Text T1-T4; Digital Auto/Manual with font/color settings
Multi-Screen	Split (2 channels) and Index (12 channel preview)
Aspect Ratios	Panorama, Cinema, Full, Panorama Zoom, Cinema Zoom, Regular, Slim
Picture Features	Dynamic Gamma, Smart Picture, Digital VNR, MPEG NR, Smart Sensor, Energy Saver Mode
Special Functions	Sleep Timer, On/Off Timer, Favorite Channels, Channel Label, Front Panel Lock
Safety Certifications	UL, FCC Class B, ENERGY STAR

Frequently Asked Questions - LT-37X987 JVC

How do I connect an external antenna or cable to my JVC LT-37X987?

Use a coaxial cable to connect the antenna or cable outlet to the 'VHF/UHF/ATSC/DIGITAL CABLE IN' connector on the back of the TV. Ensure the connection is secure. Then, run the Auto Tuner Setup from the onscreen menu to scan for available channels.

How do I program the remote control to operate my cable box or satellite receiver?

Slide the TV/CATV switch to CATV. Press and hold the DISPLAY button, then enter the first code from the cable box code list using the number pad. Release DISPLAY and test the remote. If it doesn't work, try the next code or use the search codes function by pressing POWER and RETURN+/TV simultaneously.

Why is there no picture or sound?

First, check that the power cord is plugged in and the TV is turned on. Ensure the antenna or cable connection is secure. Verify that the input source is correctly selected (e.g., TV, Input-1). If using an external device, make sure it is powered on and connected properly. Try running Auto Tuner Setup again if channels are missing.

How do I set the clock on my TV?

Press MENU, go to CLOCK/TIMERS, then SET CLOCK. Choose AUTO to use the XDS time signal from broadcast stations, or MANUAL to set the time yourself. If using AUTO, select your time zone and set Daylight Saving Time ON or OFF. If MANUAL, adjust hours, minutes, and time zone.

What are the V-Chip features and how do I block inappropriate content?

V-Chip allows you to block programs based on US TV ratings, Canadian ratings, or movie ratings (MPAA). Press MENU, go to INITIAL SETUP, then V-CHIP. Turn V-Chip ON, then set ratings limits for each category. You can also block unrated programs. A lock code (default 0000) prevents unauthorized changes.

How can I connect my DVD player or game console to the TV?

Use the appropriate cables: composite (yellow video + red/white audio) for standard devices, component (green, blue, red video + audio) for better quality, or HDMI for digital video and audio. Connect to the corresponding inputs on the back or side of the TV. Select the correct input source using the INPUT button on the remote.

The picture has double images (ghosting). What can I do?

Ghosting is often caused by signal reflection from buildings or other objects. Try adjusting your antenna position, direction, or height. If using an indoor antenna, move it closer to a window. A coaxial cable connection is less prone to interference than twin-lead wire.

How do I enable closed captioning?

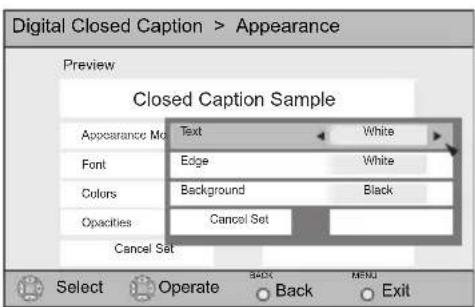

Press the C.C. button on the remote. For analog channels, go to MENU > INITIAL SETUP > CLOSED CAPTION > MODE > CAPTION, then select CC1 to CC4. For digital channels, set Type to Auto, Advanced, or Basic, then choose a Service (1-6). You can also customize font size, style, and colors.

What should I do if the remote control stops working?

First, check the batteries: replace them if needed, ensuring correct polarity. Remove any obstacles between the remote and the TV. Verify the TV/CATV switch is in the correct position. If still not working, reset the remote by removing batteries and pressing all buttons for 3 seconds, then reinsert batteries.

How do I clean the TV screen and cabinet?

For the cabinet, unplug the TV and wipe with a soft, slightly damp cloth. Use a mild detergent for stubborn spots. For the screen, use a soft, dry cloth. If very dirty, dampen the cloth with a diluted kitchen cleaner and wring thoroughly, then wipe and dry immediately. Do not use alcohol, solvents, or abrasive cleaners.

USER MANUAL LT-37X987 JVC

LCD Flat Television Users Guide

For Models:

LT-37X987

LT-32X987

Front view of a JVC TV remote control with multiple ports and buttons (no readable text or symbols)

Black flat-screen monitor with blank screen, no visible text or symbols

Illustration of LT-37X987 and RM-C18G

Important Note:

In the spaces below, enter the model and serial number of your television (located at the rear of the television cabinet). Staple your sales receipt or invoice to the inside cover of this guide. Keep this user's guide in a convenient place for future reference. Keep the carton and original packaging for future use.

Model Number:

Serial Number:

Important Safety Precautions

CAUTION:

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

To reduce the risk of electric shock. Do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION: TO INSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES REGARDING THE USE OF THIS UNIT.

1. Operate only from the power source specified on the unit.
2. Avoid damaging the AC plug and power cord.
3. Avoid Improper installation and never position the unit where good ventilation is unattainable.
4. Do not allow objects or liquid into the cabinet openings.
5. In the event of trouble, unplug the unit and call a service technician. Do not attempt to repair it yourself or remove the rear cover.

Changes or modifications not approved by JVC could void the warranty.

* When you don't use this TV set for a long period of time, be sure to disconnect both the power plug from the AC outlet and antenna for your safety.
* To prevent electric shock do not use this polarized plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure.

IMPORTANT RECYCLING INFORMATION

This product has a fluorescent lamp that contains mercury. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information, please contact your local authorities or for USA, the Electronic Industries Alliance: http://www.eiae.org

ENERGY STAR

- As an "ENERGY STAR" partner, JVC has determined that this product or product model meets the "ENERGY STAR®" guidelines for energy efficiency.

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Symbolic icon of a person pushing a ladder with a box, enclosed in a circle (no text or symbols)

13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
16) Avoid improper installation and never position the unit where good ventilation is impossible. When installing this TV, distance recommendations must be maintained between the set and the wall, as well as inside a tightly enclosed area or piece of furniture. Keep to the minimum distance guidelines shown for safe operation.

17) Cautions for installation

— Do not tilt the TV towards the left or right, or towards the back.
— Install the TV in a corner on the floor so as to keep cords out of the way.

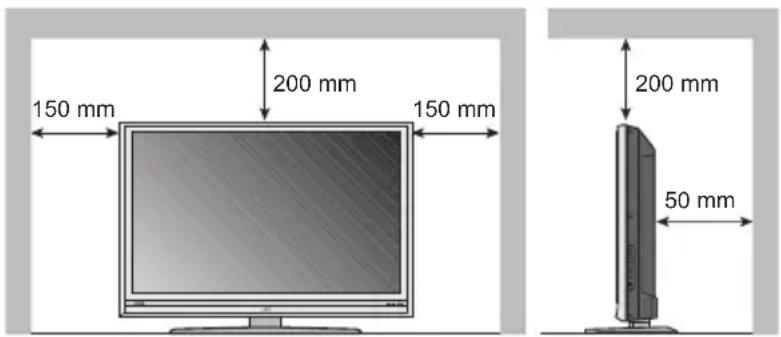

— The TV will generate a slight amount of heat during operation. Ensure that sufficient space is available around the TV to allow satisfactory cooling.

18) Make enough room for inserting and removing the power plug. Place the TV as close to the outlet as possible. The main power supply for this TV is controlled by inserting or removing the power plug.

19) Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

20) When this TV is connected to the wall outlet, it is always on standby even when all the LED lamps are not lit. To shut down the TV, unplug the TV from the wall outlet.

FCC Notice:

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Warnings

We have an important note for customers who subscribe to basic cable services (do not have a separate cable box) and plan to use their JVC TV remote control to select channels.

Once you run the Auto Tuner Setup (which detects and programs all the channels your TV is receiving through the RF input), every channel number available from your cable company will appear in your television's Channel Summary and they will all be marked as available for scanning. Even though every channel is detected and appears as available, you will only be able to view those that you specifically subscribe to from your cable company. This will likely mean there are blank channels between those channels you wish to scan or "surf".

We apologize for any inconvenience this may cause but it is important to note that this is not a malfunction of your television. If you want to sequentially scan those channels you subscribe to without blank ones in between, you can contact your cable company for their cable box and remote.

Avoiding Ghost Images

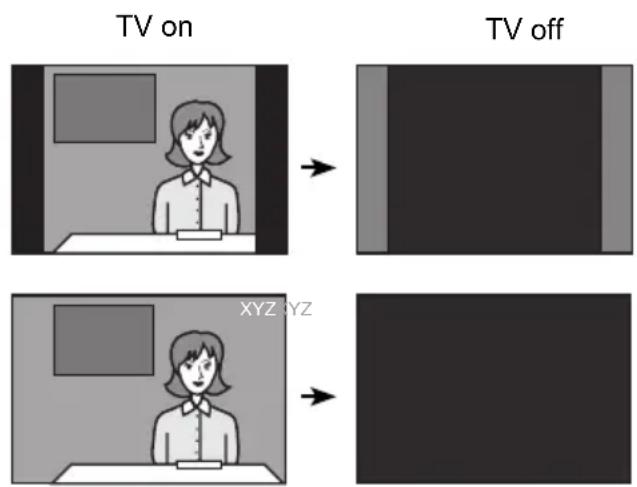

Displaying fixed images for extended periods of time can leave a subtle but temporary ghost image on your screen. To avoid this, mix your viewing pattern.

Examples include, but are not limited to the following:

• Stock-market report bars
- Shopping channel logos and pricing displays
• Video game patterns or scoreboards
- Bright station logos
- Internet web sites or other computer-style images.
• DVD discs, video tapes, laser discs
- Broadcast, cable, satellite channels or digital television tuners/converters.

For example...

Warnings (Continued...)

Caring for the Cabinet

Normally, light dusting with a soft, non-scratching duster will keep your TV clean.

If you wish to wipe down the television, first unplug it. Then wipe gently with a soft cloth, slightly moistened with water. You can add a few drops of mild liquid detergent to the water to help remove spots of oily dirt.

• DO NOT allow liquid to enter the TV through the ventilation slots.
• DO NOT use strong or abrasive cleaners on the TV.
- DO NOT spray liquids or cleaners directly on the TV's surface.
• DO NOT rub or scrub the TV harshly. Wipe the set gently with a soft cloth.

Caring for the Screen

The screen is treated with an electrostatic-proof coating. When it gets dirty, wipe it gently with a soft cloth. If the screen is very dirty, wipe it down with a cloth dipped in a diluted kitchen cleaner and thoroughly wrung-out. Then wipe immediately after with a clean, dry cloth.

Do not apply alcohol, organic solvents (like acetone), acidic or alkaline cleansers to the screen. These will remove the coating layer and cause discolorations.

Do not push or hit the screen. This could cause scratches on the screen surface and image distortions.

Important Safety Precautions . . 2

Warnings 5

Quick Setup 8

Unpacking your TV 8

Using the stand 8

TV Models 9

TV Remote Control 10

Getting Started 11

The Remote Control ..... 11

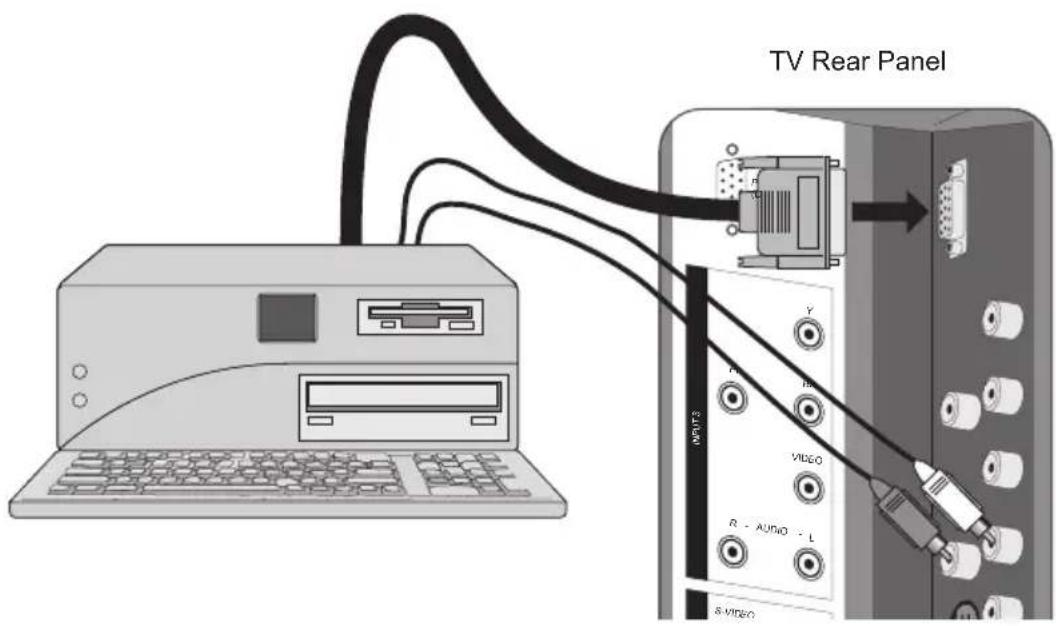

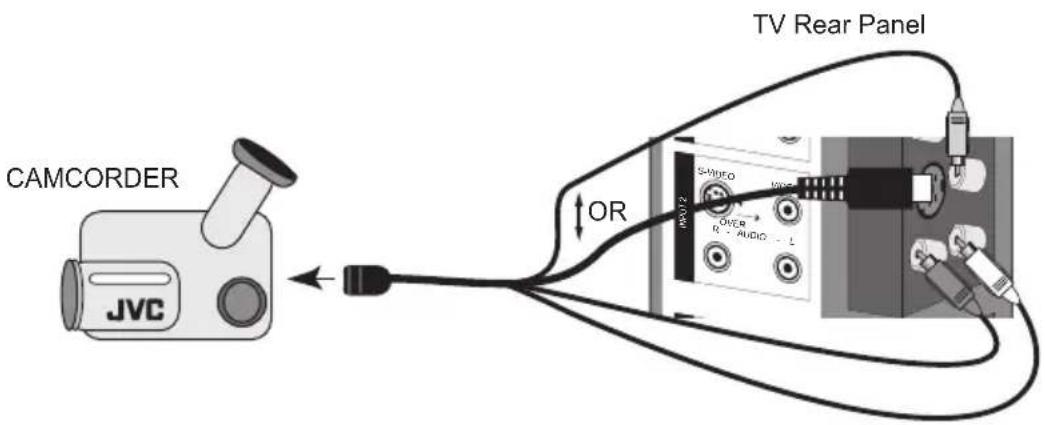

Connecting Your Devices ..... 12

Interactive Plug In Menu ..... 24

Programming your remote ..... 27

Onscreen Menus ..... 31

Using the Guide 31

Onscreen Menu System 32

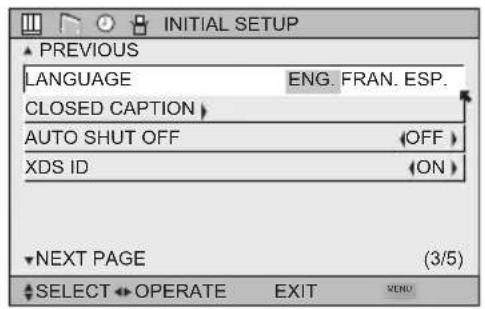

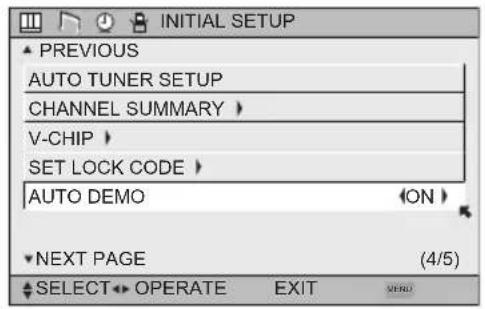

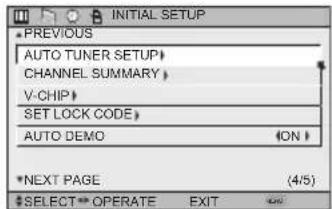

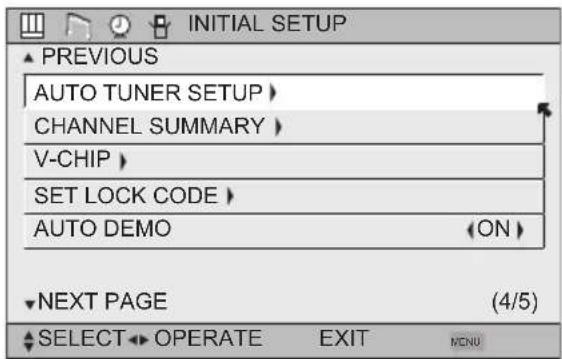

Initial Setup 34

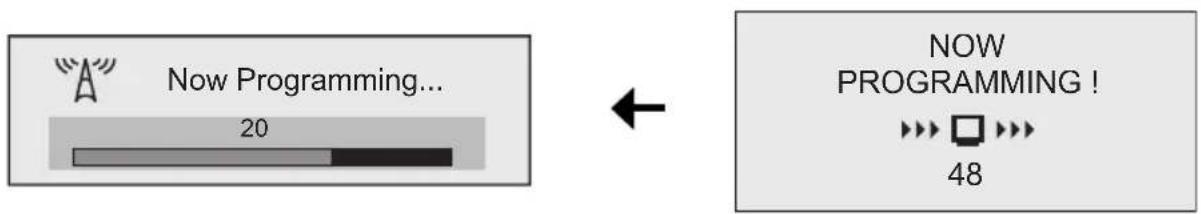

Auto Tuner Setup 34

Channel Summary 35

Channel Label 36

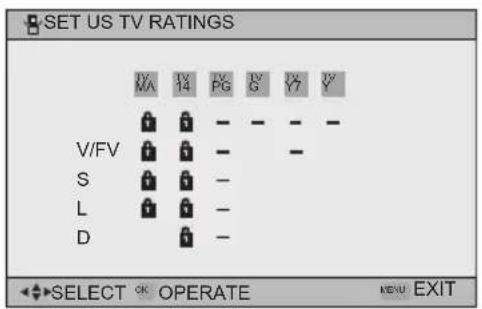

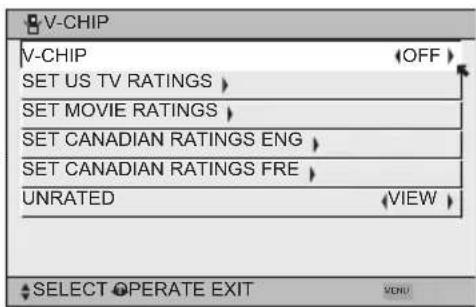

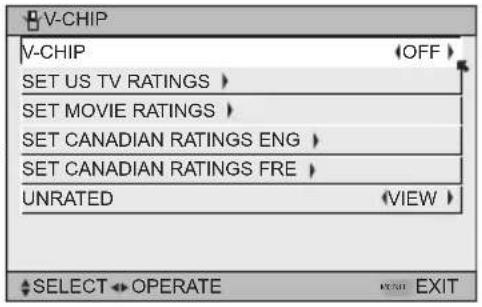

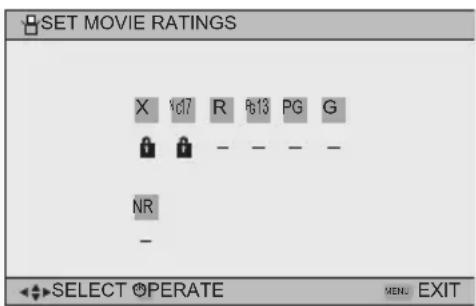

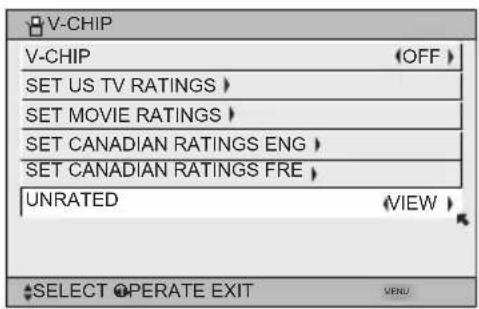

V-Chip 37

Set Lock Code 43

Auto Demo 44

Language 44

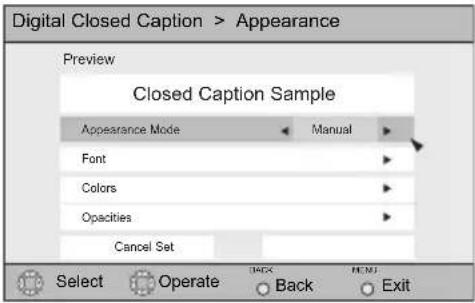

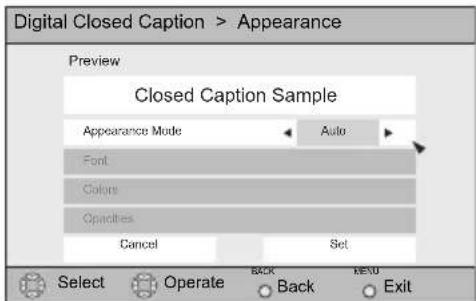

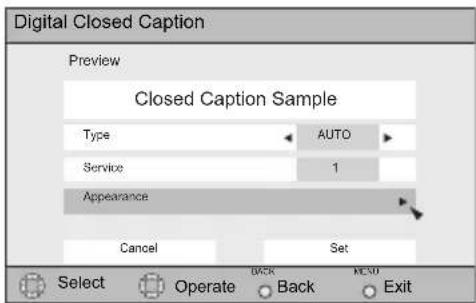

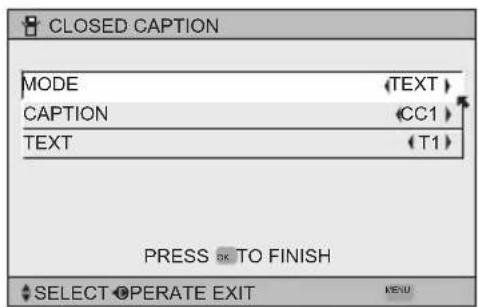

Closed Caption 45

Auto Shut Off 47

XDS ID 47

Noise Muting 48

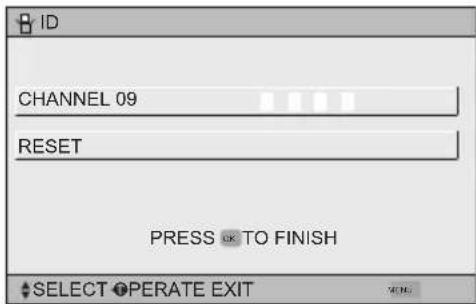

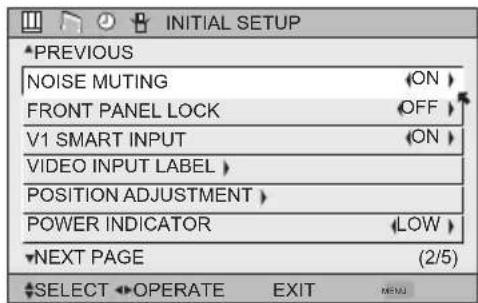

Front Panel Lock 48

V1 Smart Input 49

Video Input Label 50

Position Adjustment ..... 51

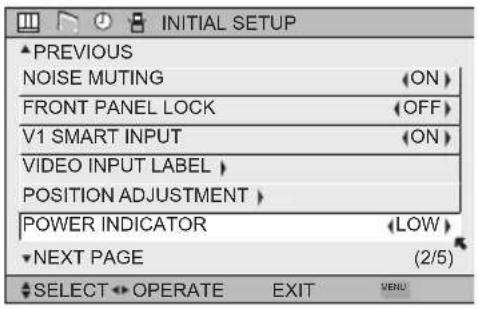

Power Indicator 51

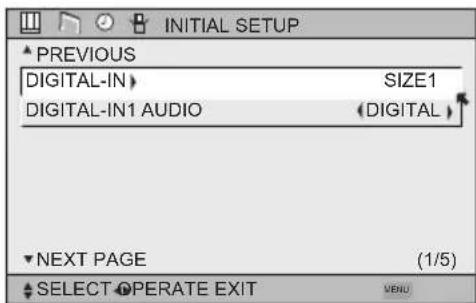

Digital-In 52

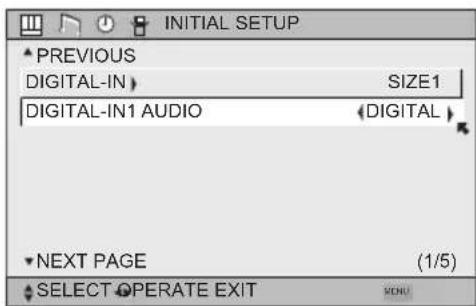

Digital-In1 Audio 52

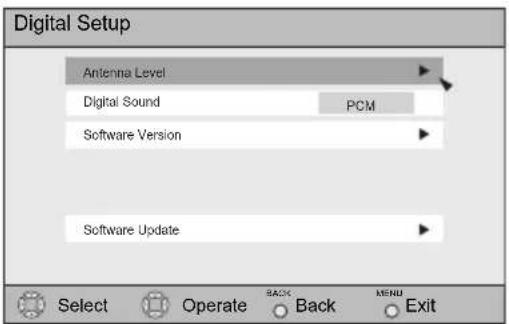

Digital Setup 53

Picture Adjust 55

Picture Settings 55

Color Temperature 55

Color Management 56

Dynamic Gamma 56

Smart Picture 56

Digital VNR 57

MPEG NR 57

Smart Sensor 57

Sensor Effect 58

Reset 58

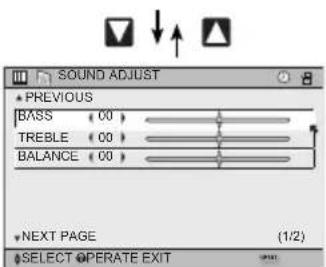

Sound Adjust 59

Sound Settings 59

Turn On Volume 59

Volume Limit 59

Reset 59

Clock/ Timers 60

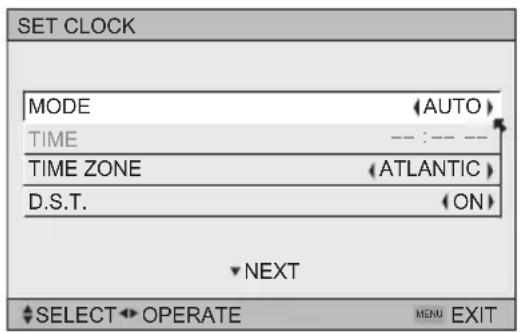

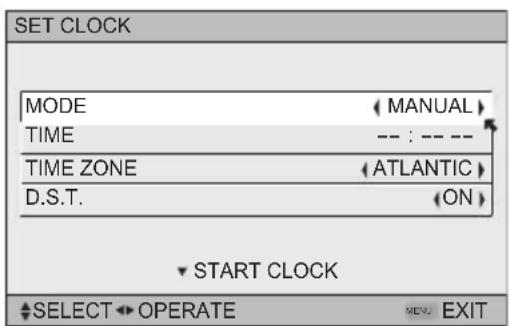

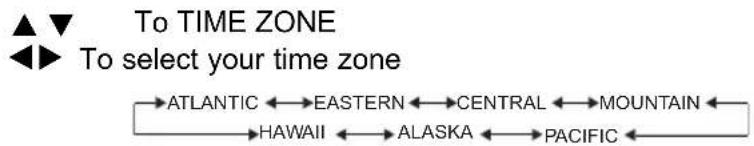

Set Clock 60

On/Off Timer 61

Button Functions ..... 62

Multi Screen Function ..... 62

Split 62

Index 63

Freeze 63

Swap 63

Select 63

Menu 63

OK 63

Back 63

Power 64

Number Buttons 64

Tune 64

Input 64

TheaterPro 64

Return+/TV 65

Sound 65

Video Status 66

Natural Cinema 66

Sleep Timer 67

ML/MTS 67

Muting 67

Display 68

C.C. 68

Channel +/- 68

Volume +/- 68

Favorite 69

Aspect 70

Aspect Ratios 70

TV/CATV Slide Switch 72

VCR/DVD Slide Switch 72

VCR Buttons 72

DVD Buttons 72

Light 72

D/A (Digital/Analog) 73

Sub Channel 73

Guide 73

OSD Information 74

Weak Signal 74

No Program 74

Invalid Signal 74

Troubleshooting ..... 75

Specifications 77

Warranty 78

Authorized Service Center . . . 79

Quick Setup

Unpacking your TV

Thank you for your purchase of a JVC LCD Flat Television. Before you begin setting up your new television, please check to make sure you have all of the following items. In addition to this guide, your television box should include:

1 Television

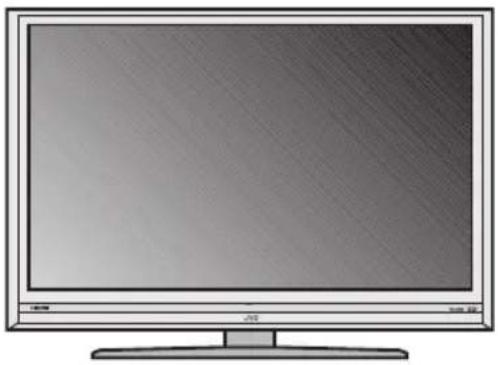

Illustration of a flat-screen computer monitor with no visible text or symbols on the screen or side.

1 Remote Control

Two AA Batteries

Note: Your television and/or remote control may differ from the examples illustrated here.

Quick Setup

TV Models

Before you connect your television to another device, please refer to the proper diagrams for your specific TV and remote. These will help assist you in understanding how to connect your television to another device, as well as use the remote to set up your television.

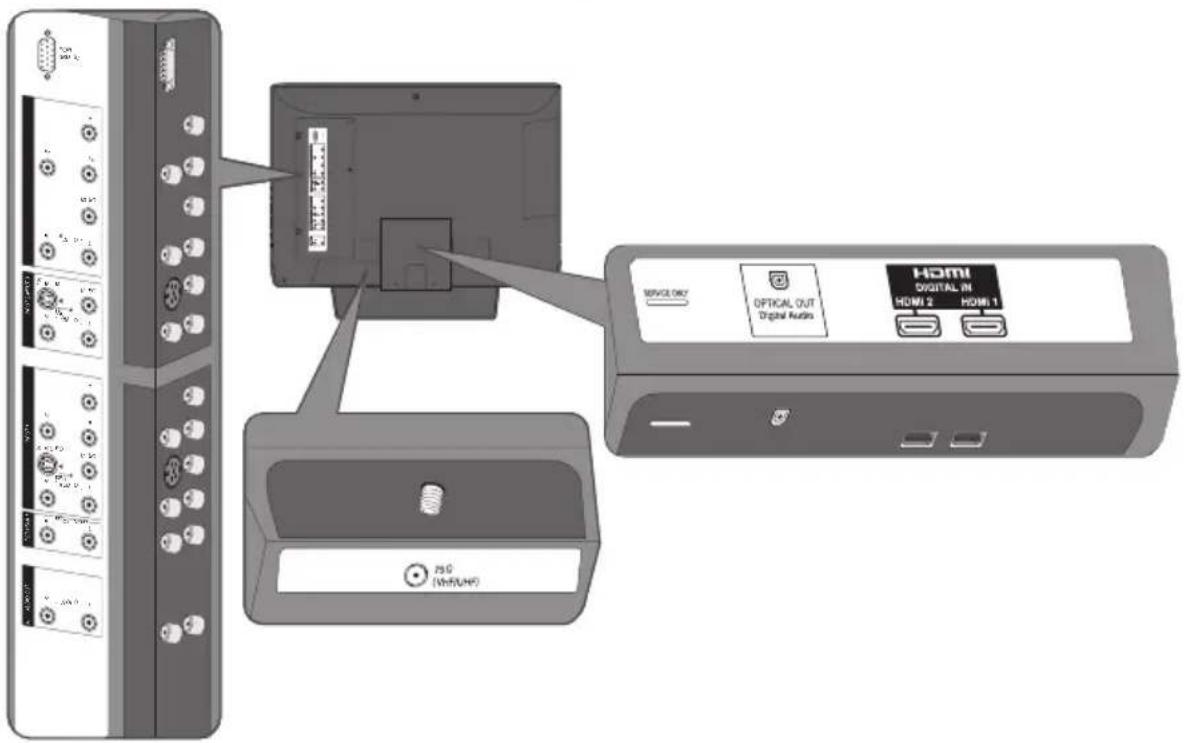

Rear Panel Diagram

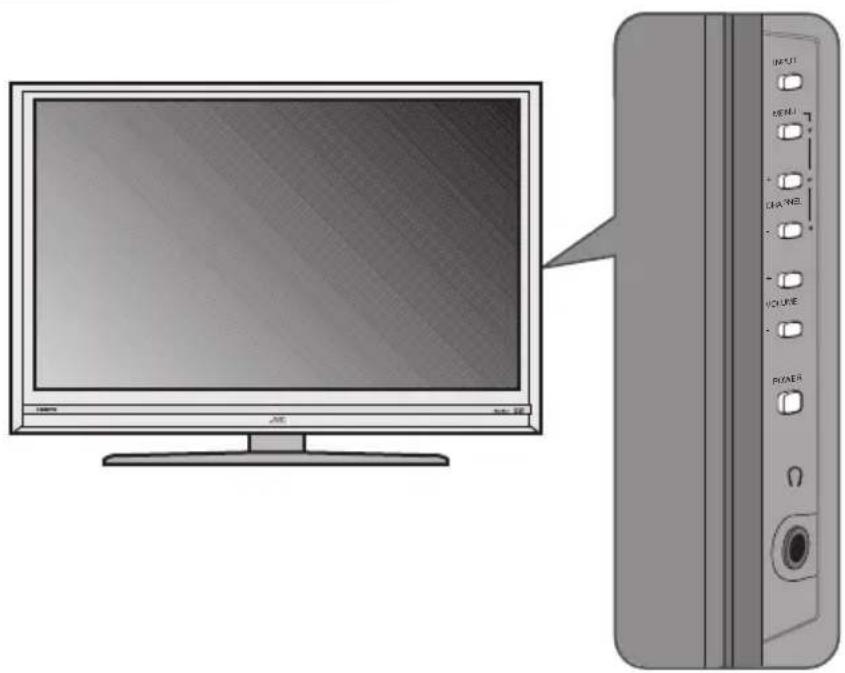

Side Panel Diagram

Quick Setup

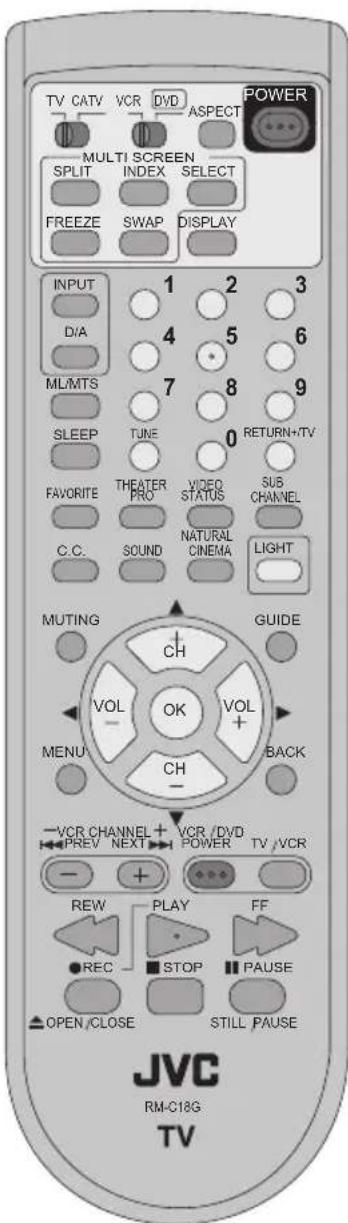

Remote Control

RM-C18G

Notes:

• For information on remote control buttons, see pages 62 - 73.
- SUB CHANNEL and GUIDE buttons are for digital channels. If your TV is connected to an ATSC antenna or Digital Cable, you can use these buttons.

Getting Started

These quick setup pages will provide you, in three easy steps, with the basic information you need to begin using your new television right away. If you have questions, or for more detailed information on any of these steps, please consult other sections of this manual.

Step 1 – The Remote Control

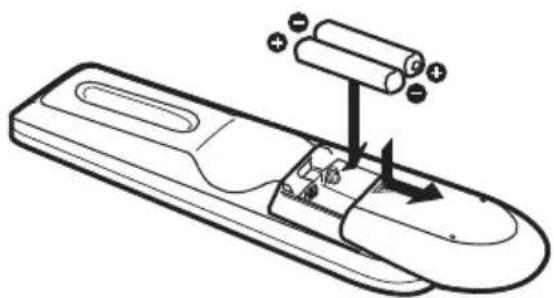

Before you can operate your remote control, you first need to install the batteries (included).

Slide the cover on the back of the remote down towards the bottom of the remote control. Insert two batteries (included) carefully noting the “+” and “-” markings, placing the “-” end in the unit first. Slide the cover back into place.

Diagram of a remote control device with batteries and a switch, showing internal components (no text or symbols)

When you change the batteries, try to complete the task within three minutes. If you take longer than three minutes, the remote control codes for your VCR, DVD, and/or cable box/satellite receiver may have to be reset. See pages 27 - 30.

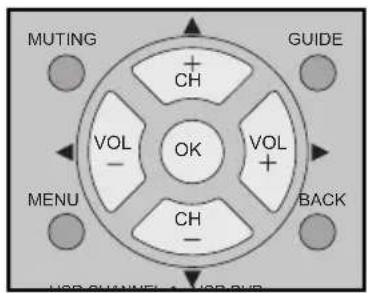

Key Feature Buttons

The four key feature buttons at the center of the remote can be used for basic operation of the television. The top and bottom buttons will scan forward and back through the available channels. To move rapidly through the channels using JVC's Hyperscan feature, press and hold CH+ or CH-. The channels will zip by at a rate of five channels per second. The right and left buttons will turn the volume up or down. These buttons are also marked with four arrows and are used with JVC's onscreen menu system. To use the onscreen menus, press the MENU button.

Basic Operation

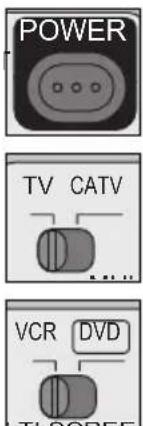

Turn the television on and off by pressing the POWER button at the top right corner of the remote. If this is the first time you are turning on the TV, the interactive plug-in menu appears.

• Make sure the TV/CATV switch is set to TV. Move the switch to CATV only if you need to operate a cable box.
• Slide the VCR/DVD selector switch to VCR to control a VCR. Slide to DVD to control a DVD player. Please see pages 27 to 30 for instructions on programming your remote control to operate a cable box, VCR or DVD player.

Quick Setup

Step 2 - Connecting your devices

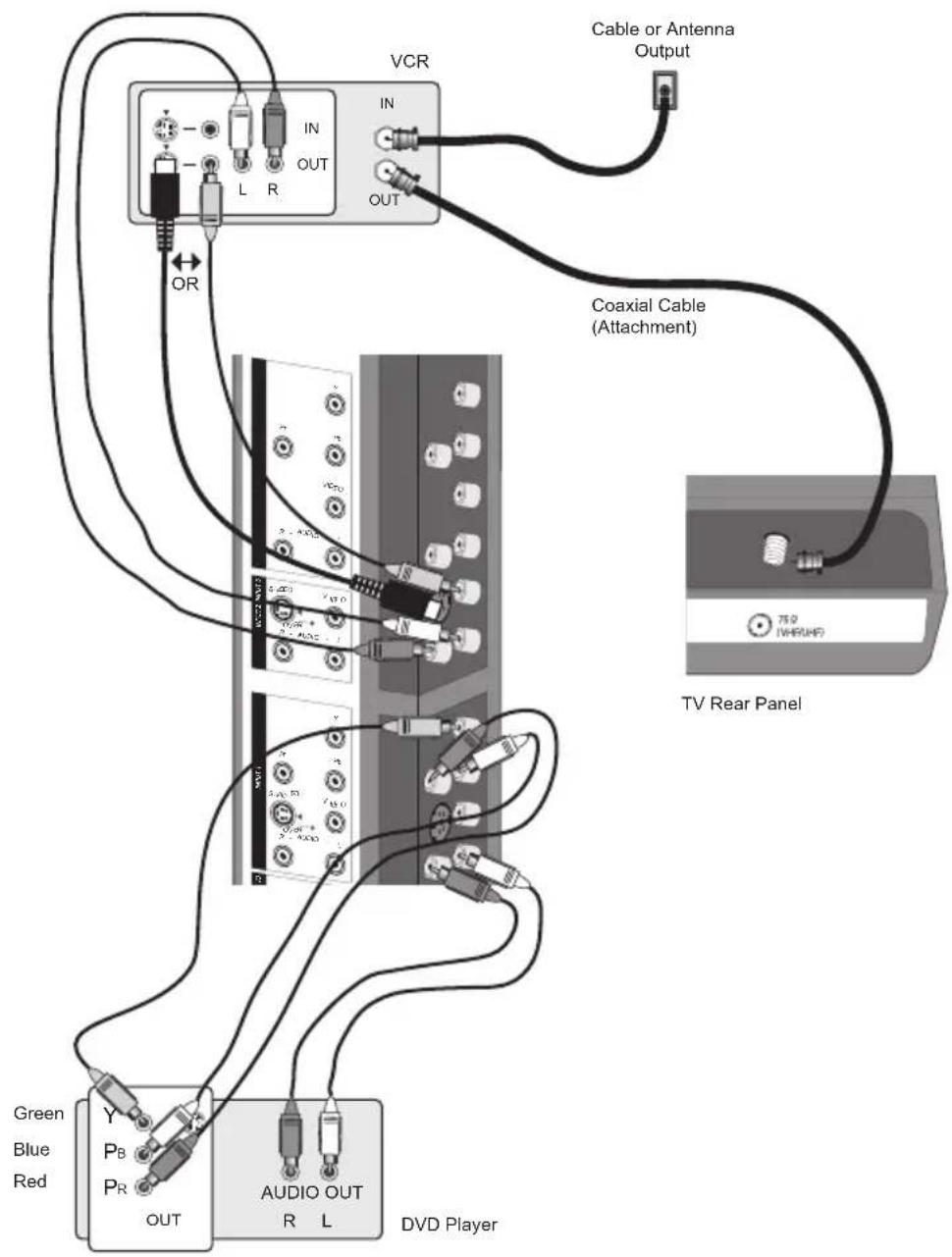

To make these connections, you will use plugs like the ones illustrated below.

Coaxial Cables

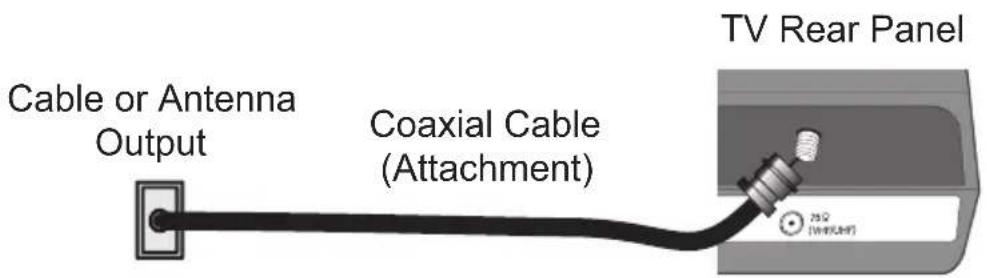

Used to connect an external antenna or cable TV system to your TV.

S-Video Cable

Used to make video connections with S-Video VCRs, Camcorders and DVD players.

Component Cables Composite Cables Audio Cables

Used to connect audio/video devices like VCRs, DVD players, stereo amplifiers, game consoles, etc.

Notes:

• These connections are examples.
- After you are finished connecting your devices, plug the power cord into the nearest power outlet and turn on the TV.
- If you follow these diagrams and the television does not work properly, contact your local cable operator.
- To connect a DVD player, see VCR Connection.
- If you have a satellite television system, refer to the satellite TV manual.

Quick Setup

Cable Holder

A cable holder which keeps your connection cables tidy is attached on the back of the stand. To open, loosen the screws with you fingers. After putting the cables in the cable holder, attach it to the back of the stand again by tightening the screws with your fingers.

Diagram of a cable installation or mounting bracket with arrows indicating direction (no text or symbols present)

Remove the terminal cover

There are connection terminals behind the cover on the left in the back of the TV. Remove the cover before connecting an antenna or other devices. The cover can be removed by removing the hooks. When replacing the cover, place the side of the cover against the TV and insert the hooks.

Note:

- Leave the terminal cover off if they do not fit properly. Do not force to replace the cover. Doing so may damage the connection cables and cover.

Diagram showing two circular arrows pointing to a mechanical component with no visible text or symbols

No VCR Connection

Quick Setup

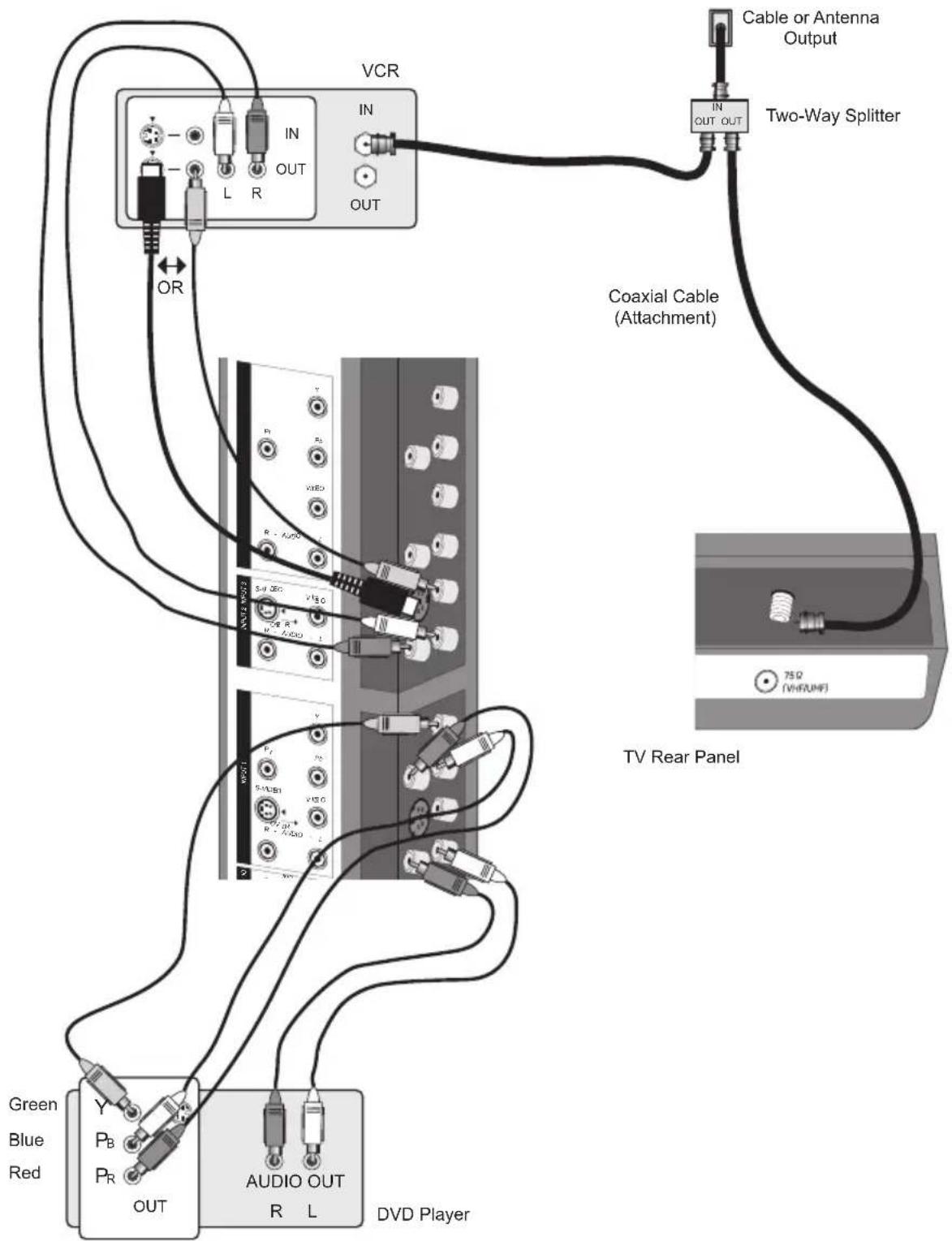

VCR Connection

Notes:

• Green, blue and red are the most common colors for DVD cables. Some models may vary colors. Please consult the user's manual for your DVD player for more information.
• Be careful not to confuse the red DVD cable with the red audio cable. It is best to complete one set of connections (DVD or audio output) before starting the other to avoid accidentally switching the cables.
  • You may also connect the DVD player to Input 1.

Diagram #1

Note:

- If this connection setup does not work for you, try the connection setup on page 15.

Quick Setup

Diagram #2

Quick Setup

Connecting to a Camcorder

You can connect a camcorder to you television by using the input jacks located on the back of the television.

1) Connect a yellow composite cable from the camcorder VIDEO OUT to the VIDEO IN on the back of the TV, OR connect an S-Video cable from the camcorder to the back of the TV.
2) Connect a white cable from the camcorder LEFT AUDIO OUT to the LEFT AUDIO IN on the back of the TV.
3) Connect a red cable from the camcorder RIGHT AUDIO OUT to the RIGHT AUDIO IN on the back of the TV.

Note:

- If your camcorder is a mono sound model it will have only one AUDIO OUT. Connect it to the LEFT AUDIO IN on the back of the TV.

Headphone Connection

You can connect a pair of headphones to the television using the headphone jack located on the side of the television.

1) Plug a headphone jack into the headphone jack on the television's side panel.

Diagram showing a microphone connected to an ear of headphones (no text or symbols present)

TV Side Panel

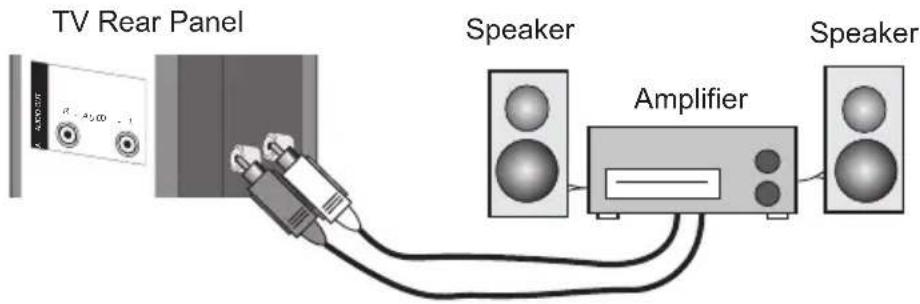

Connecting to an External Amplifier

1) Connect a white cable from the LEFT AUDIO OUTPUT on the back of the TV to the LEFT AUDIO INPUT on the amplifier.
2) Connect a red cable from the RIGHT AUDIO OUTPUT on the back of the TV to the RIGHT AUDIO INPUT on the amplifier.

Notes:

• Refer to your amplifier's manual for more information.
• You can use AUDIO OUTPUT for your home theater system.
• You can not output audio using the AUDIO OUTPUT under the following conditions:

1) When you have digital sound from an HDMI device connected to the HDMI 1 or HDMI 2 connection on the back of your TV. (See page 20).

2) When you have analog sound from a DVI device connected to the AUDIO IN "FOR HDMI 1" connection. (See page 19).

Quick Setup

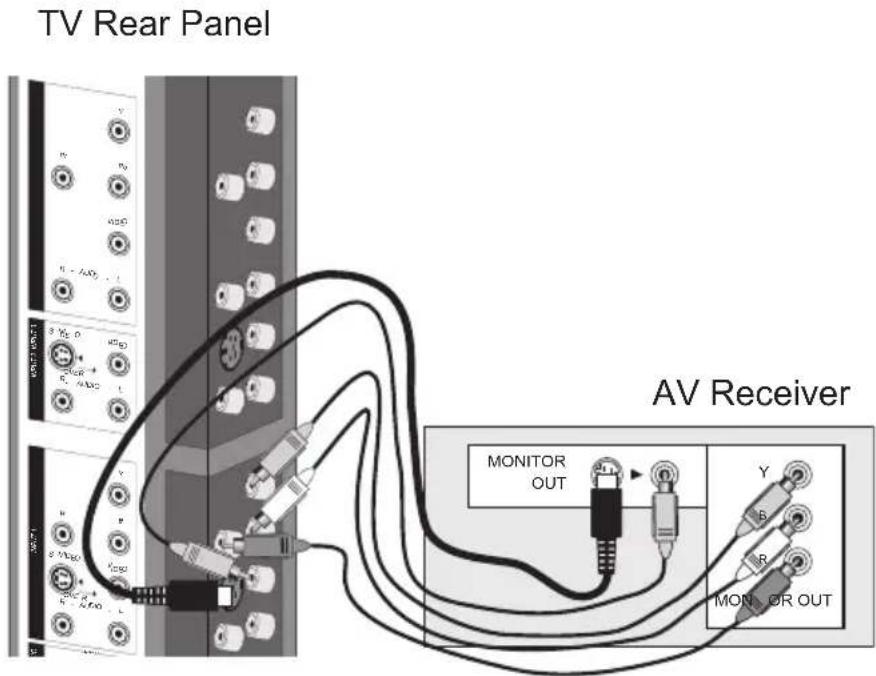

Connecting to an AV Receiver using your television's V1 Smart Input

By connecting your AV Receiver to your television's V1 Smart Input, you can watch picture sources from many different devices, without having to change or use the other input connections on your TV. This allows you to free up the other input connections so you can connect more devices to your television.

1) Connect an S-Video Cable from the AV Receiver's MONITOR OUT, to the S-Video INPUT-1 on the back of your television.
2) Connect a Yellow Composite Cable from the AV Receiver's MONITOR OUT, into the VIDEO INPUT-1 on the back of your television.
3) Connect a Green Component Cable from the AV Receiver's Y MONITOR OUT, into the Y VIDEO INPUT-1 on the back of your television.
4) Connect a Blue Component Cable from the AV Receiver's Pb MONITOR OUT, into the Pb VIDEO INPUT-1 on the back of your television.
5) Connect a Red Component Cable from the AV Receiver's R MONITOR OUT, into the Pr VIDEO INPUT-1 on the back of your television.

Notes:

• Please refer to your AV Receiver instruction manual for more information on connecting your speakers and other devices like a DVD player.
• Use your AV Receiver's remote to switch to the different devices you have connected.
• Some AV Receivers may not respond when the V1 Smart Input function is turned on.
• If you have video connections for each input device connected to your AV Receiver, you should not connect them using both S-Video and Composite connection at the same time when you are using V1 Input as the V1 Smart Input. In this case we recommend using the S-Video connection.

Connecting to a Digital TV Receiver

By connecting a Digital TV Receiver, high definition pictures can be displayed on your TV in their digital form.

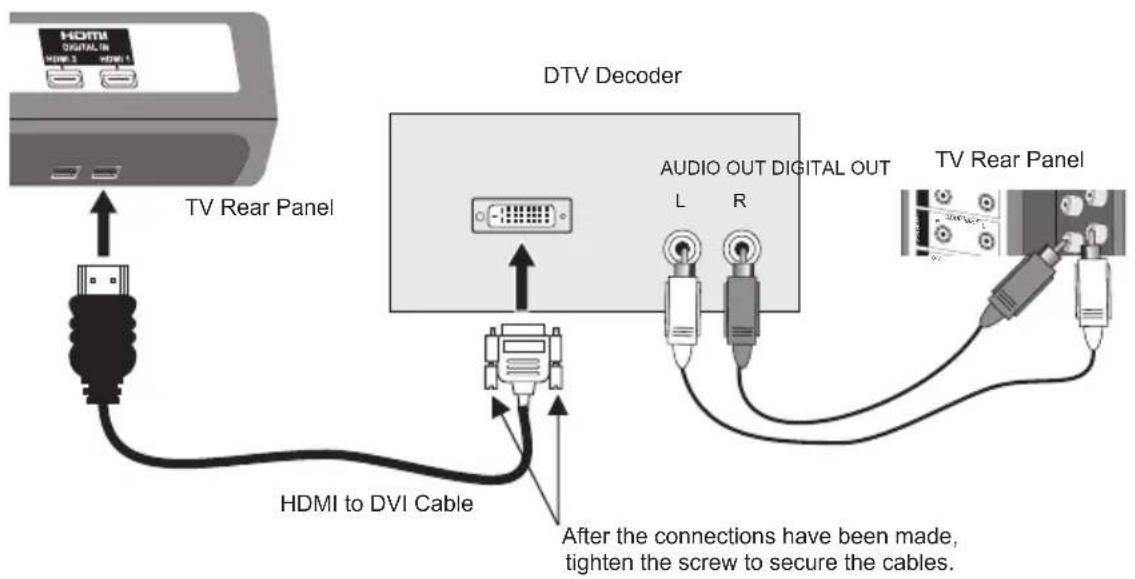

1) Connect the HDMI to DVI Cable from the DIGITAL OUT on the back of your DTV decoder to the DIGITAL-IN on the back of your television.
2) Connect a red cable from the DTV decoder RIGHT AUDIO OUT to the RIGHT AUDIO INPUT "FOR HDMI 1" on the back of your television.
3) Connect a white cable from the DTV decoder LEFT AUDIO OUT to the LEFT AUDIO INPUT "FOR HDMI 1" on the back of your television.

• Personal computer compatibility cannot be guaranteed.

- Use a HDMI to DVI cable (commercially available) in order to digitally connect the television with a DTV decoder.

Notes:

- If 480p signals (640x480 or 720x480) are displayed on the screen, the horizontal balance may be slightly shifted. Access the "DIGITAL-IN" in the initial setup menu to adjust it. (Refer to page 52.)

- When you do the above connection, set DIGITAL-IN1 AUDIO in the Initial Setup menu to ANALOG. See "DIGITAL-IN1 AUDIO", page 52.

• The Analog Audio input can only be used with the HDMI 1 input.

- When setting the "DIGITAL AUDIO – ANALOG / DIGITAL" menu setting on the TV, please note that this setting only effects the HDMI 1 jack and that if you use a DVI to HDMI adapter this connection must be made to the HDMI 1 along with analog audio cables.

Quick Setup

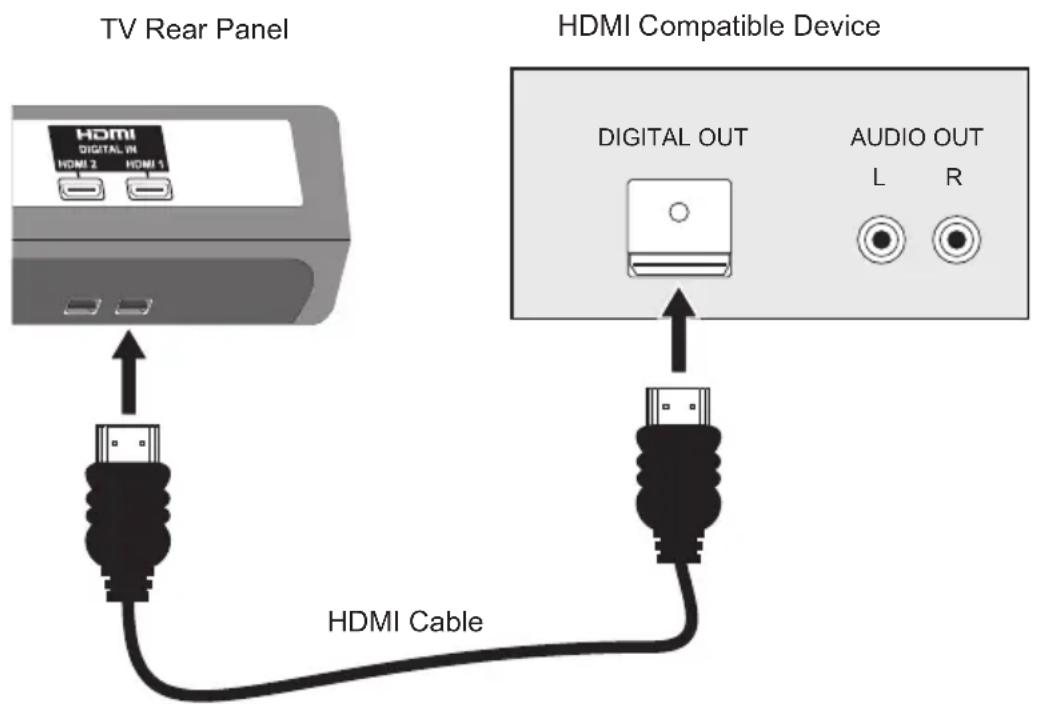

Connecting to an HDMI Compatible Device

By connecting an HDMI compatible device, high definition pictures can be displayed on your TV in their digital form. Some HDMI devices can include DVD players, D-VHS or other HDMI compatible device.

HDMI (High Definition Multimedia Interface) is the first industry supported, uncompressed, all digital audio/video interface. HDMI provides an interface between any audio/video source, such as a set-top box, DVD player, A/V receiver or an audio and/or video monitor, such as a digital television (DTV).

1) Connect the HDMI Cable from the DIGITAL OUT on the back of your DTV or HDMI device to the DIGITAL-IN on the back of your television.

Notes:

• When you do the above connection, set DIGITAL-IN1 AUDIO in the Initial Setup menu to DIGITAL. See "DIGITAL-IN1 AUDIO", page 52.
• Some decoders may not respond depending on the equipment that you have connected when it is connected to the HDMI.
• If the HDMI output device signal is changed (for example, 480i/60Hz is changed to 480p/60Hz), the screen may turn green and there may be some distortion for a short time until the signal becomes stable.
• When you have an HDMI device connected to the HDMI 1 connection on the back of your TV, your TV detects it, and blocks the analog audio signal coming into the "FOR HDMI 1" jacks. Therefore, you can not hear any analog sound from the other device connected to the "FOR HDMI 1" jacks, while you are viewing the images from the HDMI device.

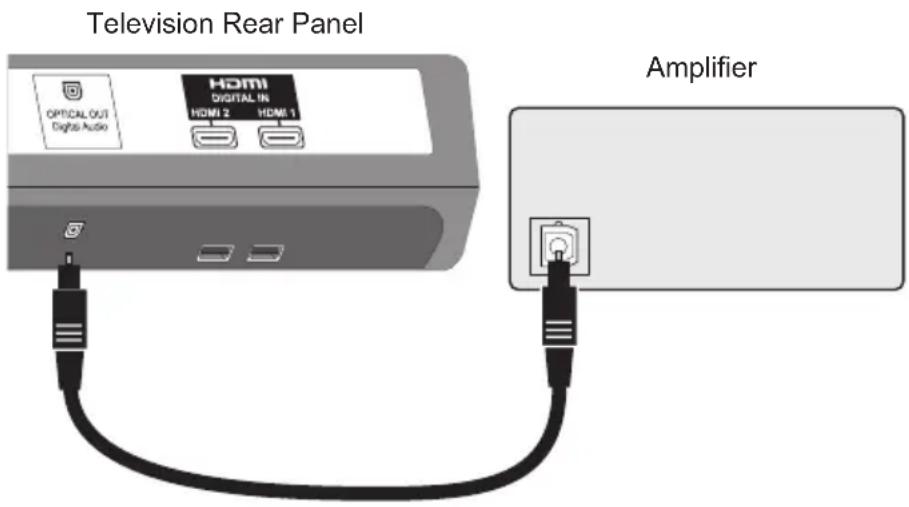

Connecting to an amplifier using your optical output

You can connect an amplifier that has an optical digital input terminal by using an optical digital cable from the optical output. The signal that is output can be PCM or Dolby Digital.

1) Connect the optical cable from underneath the television to the back of the amplifier.

Notes:

• This terminal can only output digital audio.
- In order to use the optical output connection, select PCM or Dolby Digital on Digital Sound in the Digital Setup Menu. See page 54.
• Refer to your owners manual on using your amplifier.

Quick Setup

Connecting to the computer

This TV can be used as a computer screen. Use a commercially available D-SUB cable to connect the TV's PC INPUT terminal to the computer's analog RGB output terminal. If you want to listen to the sound from the computer, use a commercially available RCA cable to connect the INPUT-3 audio input terminal to the computer's audio output terminal.

Notes:

• Refer to your computer manual for a detailed explanation of the connections concerning your computer.
  • Make sure that the connectors are facing the correct way when connecting.
  • After connecting, tighten the two screws to fix the connectors in place.

Looking at the images from a computer

After starting the computer, press the INPUT button to choose INPUT-3. You can listen to the sound when the sound from the computer is connected to the INPUT-3 AUDIO input terminal.

Notes:

- When the sound from the computer is connected to INPUT-3 by choosing external input INPUT-3, the sound from the computer can be listened to, but the images from the computer cannot be seen.

Table of signals for each type of computer

Resolution	Vertical Frequency (Hz)	Horizontal Frequency (kHz)
640 x 480 (VGA)	60.0	31.5
1024 x 768 (XGA)	60.0	48.4

• Only the above formats are supported.
• Even with the above formats at 60 Hz, some problems may be experienced depending on the quality of the synchronous signal. (Depending on the quality, some pictures may not be displayed correctly).
• Apple Macintosh* computers are not supported.

When a picture is not displayed

With some computers, some problems can be solved by changing the settings. Check the computer's refresh rate and set it to 60Hz. Computers that cannot set the refresh rate to 60 Hz, can not be used with this TV. Refer to the computer's instruction manual.

*Apple Macintosh is a registered trademark of Apple Computer, Inc.

Note:

- If you are inputting a PC signal that is invalid, "Invalid Signal" will appear on the TV screen. It appears when the input is PC and it is a single screen.

Quick Setup

Step 3 – The Interactive Plug In Menu

When you turn your television on for the first time the interactive plug-in menu will appear. The plug-in menu helps you to get your TV ready to use by letting you set your preferences for:

• The language in which you want the onscreen menus to appear.
• Setting the TV's clock to the correct time so your timer functions will work properly. You can choose "AUTO" or "MANUAL" for setting the clock.
• The auto tuner setup of which channels you wish to receive.

We recommend you complete the interactive plug-in items before you start using your television.

Notes:

• The interactive plug-in menu setting does not appear if your TV has been turned on before. In this case use the onscreen menus to perform these settings. See pages 44, 60 and 34.
• If you press the Menu button while setting up the interactive plug-in menu, it will skip over it.

Language

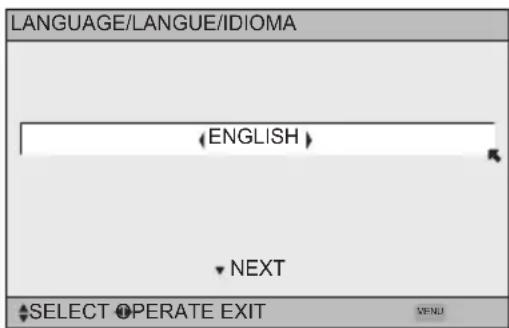

After the “JVC INTERACTIVE PLUG IN MENU” has been displayed, the TV automatically switches to the LANGUAGE settings. You can choose to view your onscreen menus in three languages: English, French (Français) or Spanish (Español).

◀▶ To choose a language: (English, Français or Español)
▼ To NEXT (To set clock)

(To be continued...)

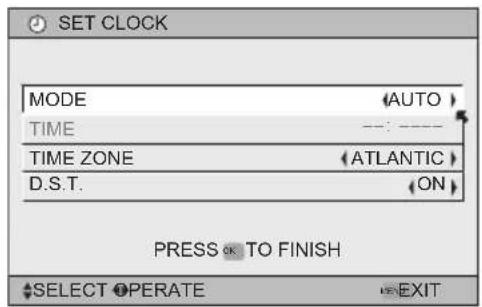

Auto Clock Set

Before you use any of your TV's timer functions, you must first set the clock. You may precisely set your clock using the XDS time signal broadcast by most public analog broadcasting stations. If you do not have this in your area, you will have to set the clock manually. See manual clock set below. To set the clock using the XDS signal:

◀▶	To choose AUTO
▼	To TIME ZONE
◀▶	To select your time zone: (Atlantic, Eastern, Central, Mountain, Pacific, Alaska or Hawaii)
▼	To move to D.S.T. (Daylight Savings Time)
◀▶	To turn D.S.T. ON or OFF
▼	To NEXT (To Auto Tuner Setup)

Notes:

• D.S.T. can be used when it is set to ON in the SET CLOCK menu.
- Only when the MODE is set to AUTO, the Daylight Saving Time feature automatically adjusts your TV's clock for Daylight Saving.
- The real time and D.S.T. may not be set correctly depending on the broadcasting signal and receiving conditions. In this case, set your clock manually.
- You will have to reset the clock after a power interruption. You must set the clock before operating any timer functions.

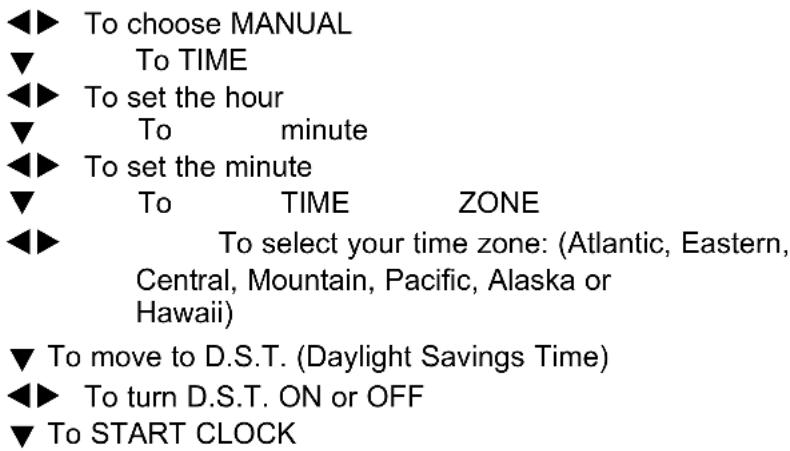

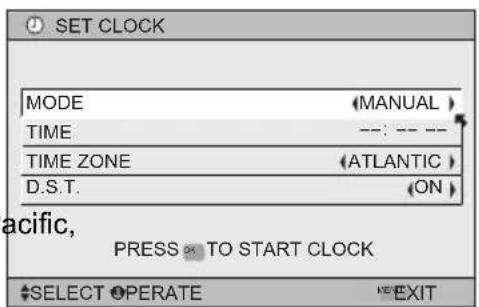

Manual Clock Set

To set your clock manually (without using the XDS signal), choose MANUAL. If you choose AUTO, see auto clock set above.

Note:

- You will have to reset the clock after a power interruption. You must set the clock before operating any timer functions.

(To be continued...)

Quick Setup

Auto Tuner Setup

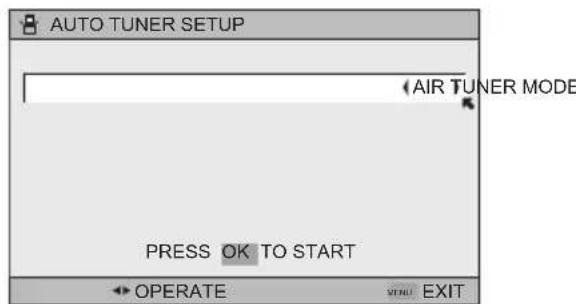

In auto tuner setup, the TV automatically scans through all available channels, memorizing the active ones and skipping over blank ones or channels with weak signals. This means when you scan (using the CHANNEL +/- buttons) you will receive only clear, active channels.

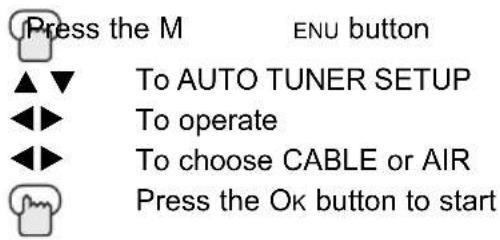

◀▶ To choose CABLE or AIR (or SKIP when you skip Analog Auto Tuner Setup) R MODE ▼ To START

After Analog Auto Tuner Setup is finished, Digital Auto Tuner Setup starts.

When the setup is finished, "THANK YOU! SETUP IS NOW COMPLETE" is displayed. Your quick setup is now complete. You can now begin watching your television, or you can continue on in this guide for more information on programming your remote control, or using the JVC onscreen menu system to customize your television viewing experience.

Notes:

• If you want to cancel the Auto Tuner Setup, press the MENU button.
• Noise muting will not work during Auto Tuner Setup.
• If you choose SKIP, it finished without doing the Auto Tuner Setup.

Cable Box and Satellite Users: After your auto tuner setup is complete, you may, (depending on the type of hookup), have only 1 channel, usually 3 or 4 in the auto tuner memory. This is normal.

Programming your remote control

You can program your remote to operate your cable box, satellite receiver, VCR or DVD player by using the instructions and codes listed below. If the equipment does not respond to any of the codes listed below or to the code search function, use the remote control supplied by the manufacturer.

Cable Box or Satellite Codes

The remote control is programmed with cable box and satellite codes for power on/off, channel up/down, and 10 key operation.

1) Find the cable box or satellite brand from the list of codes shown below.
2) Slide the 2-way selector switch to "CATV".
3) Press and hold down the DISPLAY button, then enter the first code number listed with the 10 key pad.
4) Release the DISPLAY button, and confirm the operation of the cable box/satellite receiver.

- If your cable or satellite box does not respond to the first code, try the others listed. If it does not respond to any code, try the search codes function, on page 30.

Cable Box Codes		Cable Box Codes		Digital Satellite Systems	Codes
ABC	024	Puser	032
Archer	032, 025	RCA	061, 070	Echostar (Dish Network)	100, 113, 114, 115
Cableview	051, 032	Realistic	032
Citizen	022, 051	Regal	058, 064, 040, 041, 042, 045, 068	Express VU	100, 113
Curtis	058, 059
Diamond	024, 032, 025	Regency	034	G.E.	106
Eagle	029	Rembrandt	037, 032, 051, 038	G.I.	108, 120, 121, 122
Eastern	034
GC Brand	032, 051	Samsung	051	Gradiente	112
Gemini	022, 043	Scientific Atlanta	057, 058, 059	Hitachi	104, 111
General Instrument/Jerrold	065, 024, 025, 026, 027, 020, 021, 022, 057, 023, 072, 074	SLMark	051, 047	HNS (Hughes)	104
		Sprucer	051, 056	Magnavox 102,	103
		Stargate	032, 051	Panasonic	105
Hamlin	040, 041, 042, 045, 058, 064	Telecaption	067	Philips	102, 103, 116
Hitachi	049, 024	Teleview	047, 051	Primestar	108
Macom	049, 050, 051, 054	Texscan	044	Proscan	106, 109, 110
		Tocom	035, 036, 066, 074	RCA	106, 109, 110
Magnavox	033
Memorex	030	Toshiba	050, 048	Sony	107
Movietime	032, 051			Star Choice	104, 108
		Unika	032, 025	Toshiba	101, 104, 117, 118, 119
Oak	039, 037, 048	Universal	022, 032
Panasonic	055, 056, 060, 071, 073	Videoway	052	Uniden	102, 103
Paragon	063	Viewstar	029, 030
Philips	028, 029, 030, 052, 053, 031, 069	Zenith	063, 046
		Zenith/Drake Satellite	046
Pioneer	047, 062
Pulsar	051, 032

Quick Setup

VCR Codes

The remote control is programmed with VCR codes for power on/off, play, stop, fast-forward, rewind, pause, record, channel up/down operation.

1) Find the VCR brand from the list of codes shown below.
2) Slide the first 2-way selector switch to "TV" and the other 2-way selector switch to "VCR".
3) Press and hold down the DISPLAY button, then enter the first code number listed with the 10 key pad.
4) Release the DISPLAY button, and confirm the operation of the VCR.

• If your VCR does not respond to the first code, try the others listed. If it does not respond to any of the codes, try the search codes function on page 30.
• After you program your remote, some VCR buttons may not work properly. If so, use the VCR's remote.
• To record, hold down the REC button on the remote and press PLAY.

VCR	Codes	VCR VCR	Codes		Codes
Admiral	035	Marantz	003, 004, 005	Samsung	037, 060, 062, 033, 089
Aiwa	027, 032, 095	Marta	064
Akai	029, 072, 073, 074	Memorex	024, 067	Samtron	089
		MGA	038, 040, 047, 048, 041, 042	Sansui	003, 026, 020, 052
Audio Dynamic	003, 005
Bell & Howell	063, 071	Minolta	058, 045, 093	Sanyo	063, 067, 091, 071
Broksonic	020, 026, 094	Mitsubishi	038, 040, 047, 048, 041, 042, 078, 090	Scott	059, 060, 062, 067, 038, 040, 047, 048, 026, 020
Canon	023, 025
CCE	043	Multitech	047, 027, 062
Citizen	064	NEC	003, 004, 005, 000	Sears	063, 064, 065, 066, 058
Craig	063, 029, 064
Curtis Mathes	045, 024, 027, 093	Olympic	024, 023	Sharp	035, 036, 080, 088
Daewoo	043, 059, 024, 092	Optimus	028, 021, 035, 064
DBX	003, 004, 005	Orion	026, 020	Shintom 075
Dimensia	045, 093	Panasonic	023, 024, 021, 022	Signature 2000	027, 035
Emerson	043, 026, 077, 061, 025, 042, 020, 076	Penney	024, 058, 045, 063, 003, 004, 005, 093	Singer	075
Fisher	063, 066, 067, 065, 071, 091	Pentax	058, 005, 045, 093	Sony	028, 029, 030, 053, 054, 055
				SV 2000	027
Funai	027, 026, 020, 000	Philco	031, 024, 027, 023, 026, 020, 043	Sylvania	031, 023, 024, 027
G.E.	033, 045, 024			Symphonic	027, 081
Go Video	037, 051, 049, 050, 089	Philips	031, 023, 024, 086	Tashiro	064
Goldstar	064	Pioneer	023	Tatung	003, 004, 005
Gradiente	083, 084, 081, 000, 001	Proscan	045, 058, 023, 024, 031, 046, 059, 060, 093, 033, 087	Teac	003, 004, 027, 005
Hitachi	023, 045, 058, 093, 027, 081			Technics	021, 022, 023, 024
		Quasar	021, 022, 023, 024	Teknika	024, 027, 070
Instant Replay	024, 023			Thomson 033, 096
Jensen	003	Radio Shack	033, 024, 063, 036, 067, 040, 027	Toshiba	059, 046, 079
JVC	003, 004, 005, 000, 001, 002, 006, 007	RCA	033, 045, 058, 023, 024, 031, 046, 059, 060, 083, 084, 085, 087, 093, 096	Vector Research	005
Kenwood	003, 004, 064, 005			Wards	035, 036, 067, 044, 064
LG 064		Realistic 024, 063, 036, 067, 040, 027		Yamaha	063, 003, 004, 005
LXI 027, 064, 058, 065, 066, 063, 067				Zenith 044, 082	064, 094
Magnavox	031, 023, 024, 086

DVD Codes

The remote control is programmed with DVD codes for power on/off, play, stop, fast-forward, rewind, previous/next chapter, tray open/close, and still/pause operation.

1) Find the DVD player brand from the list of codes shown below.
2) Slide the first 2-way selector switch to "TV" and the other 2-way selector switch to "DVD".
3) Press and hold down the DISPLAY button, then enter the first code number listed with the 10 key pad.
4) Release the DISPLAY button, and confirm the operation of the DVD player.

• If your DVD player does not respond to the first code, try the others listed. If it does not respond to any of the codes, try the search codes function on page 30.
• After you program your remote, some DVD buttons may not work properly. If so, use the DVD player's remote.

		DVD Player		DVD Player	CodesDVD Player Codes Cod
Aiwa 043		Mintek 057		Sharp	028
Apex 040, 054, 055		Mitsubishi 025		Silvania	038
Bose 058		Next Base	056	SMC	048
Denon 020, 037		Onkyo 041, 052		Sony 024, 045, 046, 047
Funai	038	Oritron 044		Technics	020
Go–Video 032		Panasonic	020	Thomson 021
Harman Kardon	053	Philips 023, 036		Toshiba	023
Hitachi 031		Pioneer	022	Venturer	051
JVC 000		Polk Audio	036	Vialta	050
Kenwood 035, 020		Raite	033	Wave	042
KLH	051	RCA	021, 026	Yamaha	020, 049
Konka 039		Sampo	034	Zenith	027, 032
Koss	050	Samsung	030

Quick Setup

Search Codes

Cable/Satellite Search Codes Function

1) Slide the first 2-Way Mode Selector switch to CATV.
2) Press the POWER and RETURN+/TV buttons. Hold for at least three seconds and release.
3) Press the POWER button on the remote, and see if the cable or satellite box responds.
4) If there was a response, press RETURN+/TV. The codes are now set. If there was no response, repeat Step 3. If you repeat Step 3 a total of 80 times without a response, use the remote control that came with your equipment.
5) Press RETURN+/TV to exit.

VCR/DVD Search Codes Function

1) Slide the first 2-way selector switch to "TV" and the other 2-way selector switch to "VCR" or "DVD".
2) Press the VCR or DVD POWER and RETURN+/TV buttons. Hold for at least three seconds and release.
3) Press the VCR or DVD POWER button, and see if the VCR or DVD responds.
4) If there was a response, press RETURN+/TV. The codes are now set. If there was no response, repeat Step 3. If you repeat Step 3 a total of 80 times for the VCR (40 times for the DVD player), and there is no response, use the remote control that came with your equipment.
5) Press RETURN+/TV to exit.

Onscreen Menus

Using the Guide

Certain symbols are used throughout this guide to help you learn about the features of your new television. The ones you will see most frequently are:

▲ ▼ Up and Down arrows mean press the CH+ or CH- buttons. Pressing the CH+ or CH- buttons let you:

• Move vertically in a main menu screen
• Move through a submenu screen
• Move to the next letter, number, or other choice in a submenu
• Scan through TV channels (when not in a menu screen)

Left and right arrows mean press the VOLUME+ or VOLUME- buttons to move left or right to:

• Select a highlighted menu item
• Select an item in a submenu
• Select numbers in certain menu options
• Turn the volume up or down (when not in a menu screen)

The "press button" icon means you should press the button named on your remote control. (Button names appear in SMALL CAPITAL LETTERS.)

The "helping arrow" icon points to the highlighted or selected item in a menu.

To bring up the onscreen menu, press the MENU button on the remote control. The item that appears in green is the one currently selected. If you use the Menu button on the TV's side panel instead of the remote, an additional menu screen showing VIDEO STATUS and ASPECT will appear between INITIAL SETUP and PICTURE ADJUST. The "interactive plug-in menu" will appear the first time the TV is plugged in.

Note:

- Menus shown in this book are illustrations, not exact replications of the television's onscreen displays.

Onscreen Menus

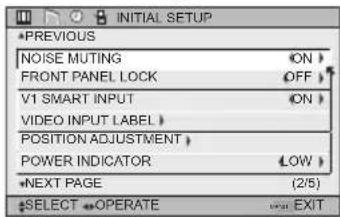

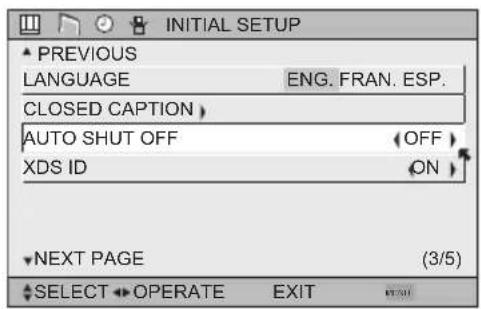

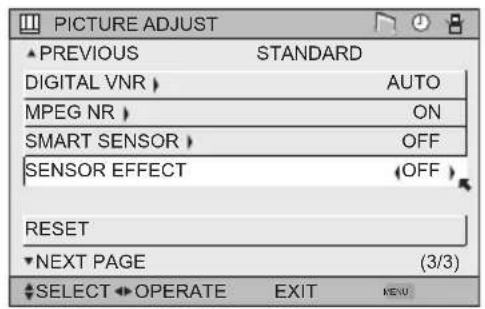

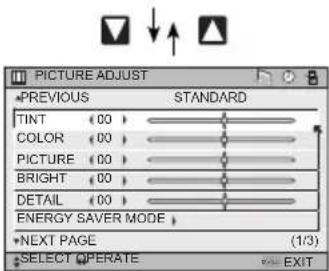

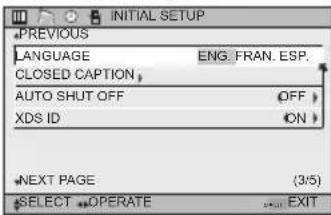

The Onscreen Menu System

Your television comes with JVC's onscreen menu system. The onscreen menus let you make adjustments to your television's operation simply and quickly. Examples of the onscreen menus are shown on the next page. Detailed explanations on using each menu follow later in this guide. For information about the interactive plug-in Menu, see pages 24 - 26.

The Onscreen Menu System

To open the onscreen menu system, press the MENU button on the remote control. You navigate within the onscreen menus by using the four directional arrow buttons on the remote control. (These buttons are also the CH +/- and VOL +/- buttons. Channel and volume functions will not operate when the onscreen menu is active).

The selected feature and option on a menu screen are highlighted in a different color.

Selected Option (Green)

Selected Option (Blue)

To move to a different feature use the ▲▼ arrows to move up or down the list. When you press the up arrow at the top of the list or the down arrow at the bottom, the next menu screen will appear. Use the arrows ◀▶ to select an option from the highlighted feature. Pressing MENU on the remote control will close the onscreen menu system and return you to normal television viewing.

Each menu and its features will be discussed in the following pages of this guide.

Notes:

• If you do not press any buttons for about a minute, the onscreen menu will automatically shut off.
• Button names in this guide are shown in SMALL CAPITAL LETTERS.
• Menus may appear in different sizes onscreen depending on the aspect ratio selected.
• Some menu items may not appear in menu screens when certain aspect ratios or inputs are selected.

Onscreen Menus

ss the MENU button

INITIAL SETUP 05

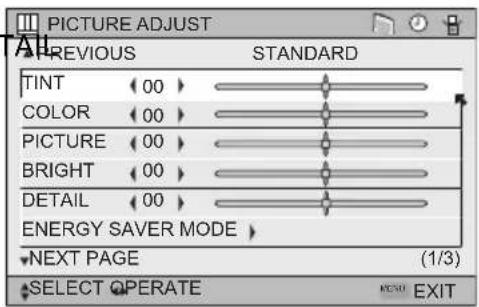

PICTURE ADJUST 01

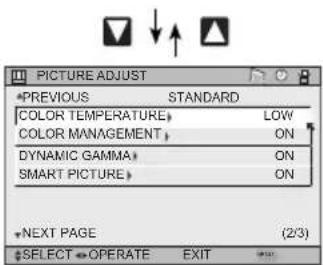

PICTURE ADJUST 02

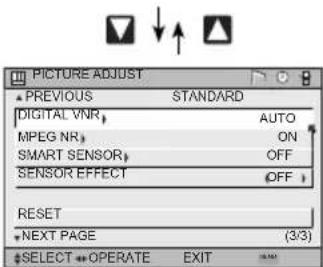

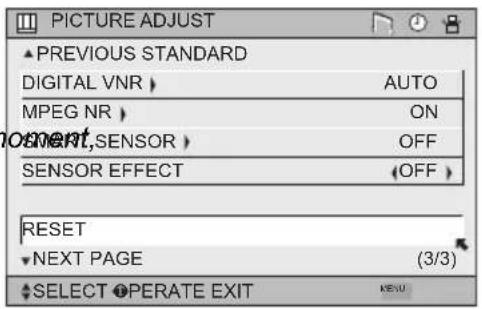

PICTURE ADJUST 03

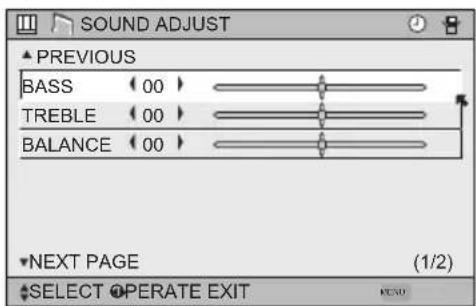

SOUND ADJUST 01

Two parallel horizontal arrows with small geometric symbols (inverted triangle and square) on the left, no text or labels present.

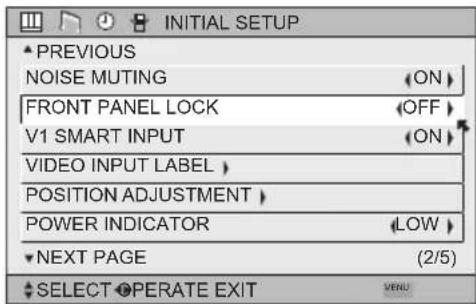

INITIAL SETUP 04

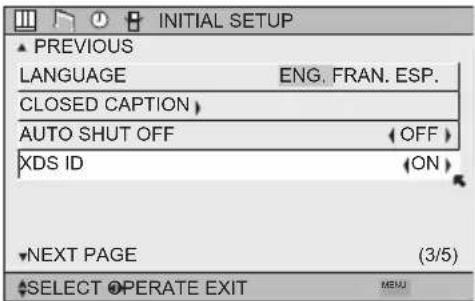

INITIAL SETUP 03

INITIAL SETUP 02

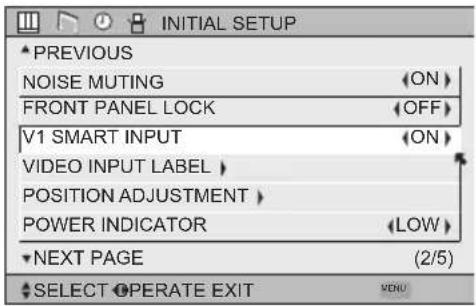

INITIAL SETUP 01

CLOCK/TIMERS

• The DIGITAL-IN menu can only be displayed when a 480p picture signal is input to the digital-in terminal and the picture is being displayed on the screen.
• When the MENU button on the TV side panel is pressed, the FRONT PANEL CONTROL menu between INITIAL SETUP 05 and PICTURE ADJUST 01 will appear.

Onscreen Menus

Auto Tuner Setup

The auto tuner setup function is described on page 26 as the interactive plug-in menu. If you need to run the auto tuner setup again, follow the steps below.

The auto tuner is finished when the message PROGRAMMING OVER! appears onscreen.

Note:

• Auto Tuner Setup in Digital Cable will take approximately 14 minutes.

Onscreen Menus

Channel Summary

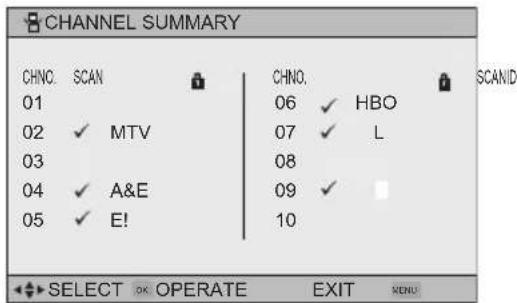

Channel summary allows you to customize the line-up of channels received by your TV. Regarding analog channels, you can add or delete channels from the line-up or prevent any unauthorized viewers from watching any or all 181 channels. Regarding digital channels, the only channels that will appear are the ones that are broadcasting.

ess the M

ENU button

To CHANNEL SUMMARY

To operate

The Channel summary screen will now be displayed with the channels set to scan marked with an “√”. Regarding analog channels, you can delete channels from the scan by removing the “√”. If any channels were missed during auto tuner setup and you wish to add them, you may by placing an “√” next to the channel number.

- Digital channels can not be added to the channel summary if the auto tuner setup did not find them.

To the SCAN column

Press the OK button to include or delete

scan

ess the MENU button when finished

Analog Channels

Digital Channels

Note:

- The number of a digital channel may change, depending on the time of some broadcastings. If this channel existed and now had disappeared, the lock channel or scanned channel by the channel summary for that channel will be cancelled.

Onscreen Menus

How to set the channel label. (This is only for analog broadcasting.)

ess the M

ENU button

To CHANNEL SUMMARY

To operate

To the ID column

ess the Ok button to enter

To select the character you want

To move to the next space

...continue to follow these directions for all four

ess the Ok button to finish

Your characters are now set

ess the MENU button when finished

If you want to reset the characters you set:

ess the MENU button

To CHANNEL SUMMARY

To operate

To the ID column

ess the O

κ button to enter

To select RESET

ess the Ok button to finish

Your characters are now reset

Notes:

• You can use characters for: Alphabet, numbers, marks and spaces.
• It is possible to set the maximum of 40 channel labels.
• If you try to set more than the 40 maximum, the message "MEMORY OVERFLOW" will appear.

You can block access to a channel by activating the channel lock.

ss the M

ENU button

To

CHANNEL

SUMMARY

To operate

To the Lock Column ( 🔒 )

ss the ZERO button to lock or unlock that channel

ss the MENU button when finished

Onscreen Menus

Channel Guard Message

When a viewer attempts to watch a guarded channel, the following message appears:

To watch a channel that you have locked, enter the Lock Code using the 10 key pad.

If the wrong code is entered, the message "INVALID LOCK CODE!" will flash on the screen.

The channel cannot be accessed until the correct code is entered.

THIS CHANNEL IS LOCKED BY CHANNEL GUARD.

PLEASE ENTER LOCK CODE BY 10 KEY PAD TO UNLOCK IT.

NO. - - - -

Notes:

• Once a channel has been unlocked, it will remain unlocked until the television is turned off.
  • See also "Set Lock Code", page 43.

V-Chip

Your TV is equipped with V-Chip technology which enables you to block channels or content that you feel to be inappropriate for children, based on US and Canada rating guidelines. V-Chip has no effect on video signals from DVD discs or Camcorder connection.

Note: Some programs, and movies are broadcast without a ratings signal. Even if you set up V-CHIP ratings limits, these programs will not be blocked. See page 38 for information on how to block unrated programs.

Note (for Canadian viewers): The V-Chip function is based on specifications designed for the United States and therefore may not work properly in Canada.

You can customize the V-Chip settings of your television to match your personal tastes. The V-Chip menu below is the starting point for your V-Chip settings

You can use US V-Chip settings (for programming broadcast from the United States), Canadian V-Chip settings (for programming broadcast from Canada), and movie ratings. You may use any or all of the settings (US V-Chip, Canada V-Chip, Movie ratings). Descriptions for setting each of the three V-Chip formats appear in the next six pages along with descriptions of the rating categories.

To access the rating categories:

Press the M

ENU button

To V-CHIP

To operate (Lock icon will appear)

Press ZERO to access the V-Chip menu

To turn V-Chip ON or OFF (V-Chip must be turned ON for rating settings to operate)

To move to SET US TV RATINGS, SET MOVIE RATINGS, or SET CANADIAN RATINGS (see following pages for descriptions of each item)

Onscreen Menus

Unrated Programs

Unrated programming refers to any programming which does not contain a rating signal. Programming on television stations which do not broadcast rating signals will be placed in the "Unrated Programming" category.

Examples of Unrated programs:

• Emergency Bulletins
• Locally Originated Programming
• News
• Political Programs
  • Public Service Announcements • Religious Programs
• Sports
• Weather
  • Some Commercials

Note:

- TV programs or movies that do not have rating signals will be blocked if the unrated category is set to BLOCK.

Directions to Block Unrated Programs

You can block programs that are not rated.

Press the MENU button

To V-CHIP

To operate (The lock icon 🔒 appears)

Press ZERO to access V-Chip setup options

To UNRATED

To VIEW or BLOCK

Press

MENU when done

US V-Chip Ratings

U.S. PARENTAL RATING SYSTEMS

Programs with the following ratings are appropriate for children.

☐ TV Y is Appropriate for All Children

Programs are created for very young viewers and should be suitable for all ages, including children ages 2 - 6.

TV Y7 is for Older Children

Most parents would find such programs suitable for children 7 and above. These programs may contain some mild fantasy violence or comedic violence, which children should be able to discern from reality.

Programs with the following ratings are designed for the entire audience.

☐ TV G stands for General Audience

Most parents would find these programs suitable for all age groups. They contain little or no violence, no strong language, and little or no sexual dialog or situations.

☐ TV PG Parental Guidance Suggested

Programs may contain some, but not much, strong language, limited violence, and some suggestive sexual dialog or situations. It is recommended that parents watch these programs first, or with their children.

☐ TV 14 Parents Strongly Cautioned

Programs contain some material that may be unsuitable for children under the age of 14 including possible intense violence, sexual situations, strong coarse language, or intensely suggestive dialog. Parents are cautioned against unattended viewing by children under 14.

☐ TV MA Mature Audiences Only

These programs are specifically for adults and may be unsuitable for anyone under 17 years of age. TV MA programs may have extensive V, S, L, or D.

Viewing Guidelines

In addition to the ratings categories explained above, information on specific kinds of content are also supplied with the V-Chip rating. These types of content may also be blocked. The content types are:

•	V/FV is for VIOLENCE/FANTASY VIOLENCE
•	S stands for SEXUAL CONTENT
•	L stands for strong LANGUAGE
•	D stands for suggestive DIALOG

Onscreen Menus

Setting US V-Chip Ratings

ess the MENU button

To V-CHIP

To operate (lock icon 🔒 appears)

To turn V-Chip ON or OFF

To move to SET US TV RATINGS

To operate

Directions to set US V-Chip Ratings

Line up the cursor in the column (TV PG, TV G, etc.) with the content row (V/FV, S, etc.) and press the ▲▼or ◀▶ to move the cursor to the correct location. Press Ok to turn the locking feature on or off. An item is locked if the 🔒 icon appears instead of a “—”.

For example. To block viewing of all TV 14 shows, move the cursor to the top row of that column and add a lock icon. Once you've put a lock on the top row, everything in that column is automatically locked.

To the TV 14 Column

Press the Ok button to lock

Press the MENU button when finished

Note:

- If you want to change the setup, move the cursor to the top column and change the lock icon to “—” by pressing OK again. You may then select individual categories to block.

Movies Ratings

□ NR – Not Rated

This is a film which has no rating. In many cases these films were imported from countries which do not use the MPAA ratings system. Other NR films may be from amateur producers who didn't intend to have their film widely released.

NR (Not Rated) Programming may contain all types of programming including children's programming, foreign programs, or adult material.

□ G – General Audience

In the opinion of the review board, these films contain nothing in the way of sexual content, violence, or language that would be unsuitable for audiences of any age.

PG – Parental Guidance

Parental Guidance means the movie may contain some contents such as mild violence, some brief nudity, and strong language. The contents are not deemed intense.

☐ PG-13 – Parents Strongly Cautioned

Parents with children under 13 are cautioned that the content of movies with this rating may include more explicit sexual, language, and violence content than movies rated PG.

□ R - Restricted

These films contain material that is explicit in nature and is not recommended for unsupervised children under the age of 17.

□ NC-17 – No One Under 17

These movies contain content which most parents would feel is too adult for their children to view. Content can consist of strong language, nudity, violence, and suggestive or explicit subject matter.

☐ X – No One under 18

Inappropriate material for anyone under 18.

Directions to set Movie (MPAA) Ratings

Press the MENU button

To V-CHIP

To operate (Lock icon 🔒 appears)

ERPtesacZess V-Chip setup options

To SET MOVIE RATINGS

To enter movies menu

For example: To block viewing of programming rated NC-17 shows, move the cursor to the NC-17 column and add a lock icon. Once you've put a lock on the NC-17 column, X column is automatically locked.

To the NC-17 Column

Press the Ok button to lock

Press the MENU button to finish

- If you want to change the setup, move the cursor to the column and change the lock icon to “—” by pressing Ok again.

Onscreen Menus

Canadian V-Chip Ratings

□ E - Exempt

Exempt programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming.

C – Programming Intended for Children

Violence Guidelines: There will be no realistic scenes of violence. Depictions of aggressive behavior will be infrequent and limited to portrayals that are clearly imaginary, comedic or unrealistic in nature.

☐ C8+ – Programming Intended for Children 8 and Over

Violence

Guidelines: Any realistic depictions of violence will be infrequent, discreet, of low intensity and will show the consequences of the acts. There will be no offensive language, nudity or sexual content.

□ G

G

General

Audience

Programming will contain little violence and will be sensitive to themes which could affect younger children.

PG – Parental Guidance

Programming intended for a general audience, but which may not be suitable for younger children. Parents may consider some content not appropriate for children aged 8-13.

☐ 14+ – 14 Years and Older

Parents are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens. Programming may contain mature themes and scenes of intense violence.

□ 18+ - Adult

Material intended for mature audiences only.

Directions to set Canadian V-Chip Ratings

Press the MENU button

To V-CHIP

To operate (lock icon 🔒 appears)

Press ZERO to access V-Chip setup options

To SET CANADIAN RATINGS ENG (for English)

To enter ratings menu

For example: To block viewing of programming rated 14+ shows, move the cursor to the 14+ column and add a lock icon. Once you've put a lock on the 14+ column, 18+ column is automatically locked.

To the 14+ Column

Press the Ok button to lock

ess the MENU button to finish

Notes:

• If you want to change the setup, move the cursor to the column and change the lock icon to “—” by pressing Ok again.
• For instructions on "SET CANADIAN RATINGS FRE (in French)", please see page 42 in the French side of this user's guide.

Onscreen Menus

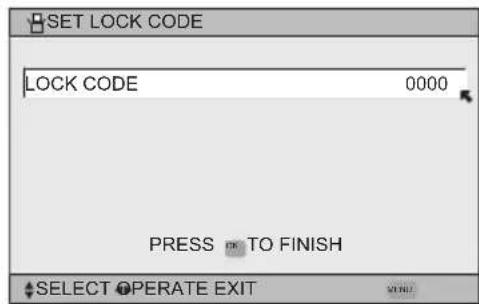

Set Lock Code

Channel guard and V-Chip settings are protected by a four-digit lock code. Your TV comes preset with a lock code of "0000". You may change the code to any four-digit number you wish. To change the lock code, follow the steps below.

The first digit will be highlighted

◀▶ To select the number ▲ ▼To move to the next digit

Continue to follow these directions for all four numbers

Press the OK button to finish (your lock code is now set) Press the MENU button when finished

When a viewer attempts to watch a blocked channel, this message appears:

THIS PROGRAMMING EXCEEDS YOUR RATING LIMITS. PLEASE ENTER LOCK CODE BY 10 KEY PAD TO UNLOCK IT. NO. ----

The channel will remain blocked until the correct lock code is entered (see above for information on setting your lock code).

Notes:

• After a power interruption you must reset the lock code.
- Write your lock code number down and keep it hidden from potential viewers.
- If you forget the lock code, a new code may be set using the steps listed above.

Onscreen Menus

Auto Demo

Auto Demo allows you to start the High Speed response Demonstration automatically or not.

Press the M ENU button

To AUTO DEMO

To turn the mode ON or OFF

Press the M ENU button when finished

Note:

- This demo is set to ON by default until you turn it OFF in the main menu system.

Language

The language function is described on page 24 as the interactive plug-in menu. If you need to choose the language again, follow the steps below.

Press the MENU button

To LANGUAGE

To choose a language: ENG. (English), FRAN. (French) or ESP. (Spanish)

Press the MENU button when finished

Onscreen Menus

Closed Caption

Many broadcasts now include an onscreen display of dialog called closed captions. Some broadcasts may also include displays of additional information in text form. Your television can access and display this information using the closed caption feature. To activate the closed caption feature, follow the steps below. There are three methods. When you are watching analog channels, you can perform Analog Setting of closed caption. When you are watching digital channels, you can perform Digital Auto Setting or Digital Manual Setting.

Analog Setting

Press the MENU button

▲▼ To CLOSED CAPTION

◀▶ To enter

▲▼ To MODE

◀▶ To select CAPTION or TEXT in MODE

▲▼To CAPTION or TEXT

To select a caption (CC1 to CC4) or text channel (T1 to T4)

Press the Ok button to save

Press the MENU button when finished

Digital Auto Setting

Press the MENU button

To CLOSED CAPTION

◀▶ To enter

▲▼ To Type

◀▶ To select Auto, Advanced or Basic

Auto: Shows closed caption a priority for digital channels over analog channels. It is set automatically.

Advanced: Shows only the digital closed caption.

Basic: Shows only the analog closed caption.

▲▼ To Service

◀▶ To select 1, 2, 3, 4, 5 or 6

▲▼ To Appearance

◀▶ To enter

◀▶ To select Auto

▲▼ To Set

Press the OK button to save

The font/type and color are set automatically.

Press the M ENU button when finished

Note:

- If you want to cancel the settings, select cancel.

Onscreen Menus

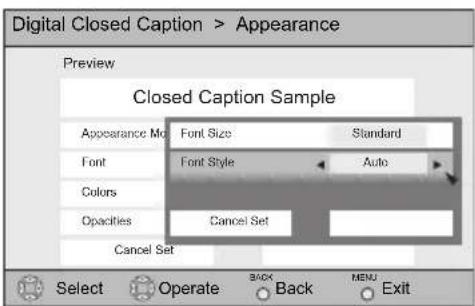

Digital Manual Setting

Press the M

ENU button

▲ ▼

To CLOSED CAPTION

◀

To enter

▲ ▼

To Type

◀

To select Auto, Advanced or Basic

▲ ▼

To Service

◀

To select 1, 2, 3, 4, 5 or 6

▲ ▼

To Appearance

◀

To enter

◀

To select Manual

▲▼

To Font

◀

To enter

▲ ▼

To select Font Size or Font Style

◀

To select the setting you like

Font Size: Auto, Standard, Large or Small

Font Style: Auto, Serif Mono, Serif, Sanserif mono, Sanserif, Casual, Cursive or Small Capital

▲ ▼

To Set

Press the Ok button to save

▲ ▼

To Colors

◀

To enter

▲▼

To select Text, Edge or Background

◀

To select the setting you like

Auto, White, Black, Red, Green, Blue, Yellow, Magenta or Cyan

▲ ▼

To Set

Pre

s the O

κ button to save

▲ ▼

To Opacities

◀

To enter

▲ ▼To select Text/Edge or Background

◀

To select Auto, Transparent, Translucent, Solid. or Flashing

▲ ▼

To Set

Pre

s the O

κ button to save

Pre

s the M

ENU button when finished

Notes:

• Closed caption subtitles are usually found on closed caption channel CC1. Some programs may include additional text information which is usually found on text channel T1. The other channels are available for future use.
• Closed captioning may not work correctly if the signal being received is weak or if you are playing a video tape.
• Most broadcasts containing closed captioning will display a notice at the start of the program.
  • To select the mode, press the C.C. button. See page 68.
• When ZOOM aspects like PANORAMA or CINEMA are selected, Digital Closed Captions may be cut off or distorted.

All fonts used for digital closed caption and digital menus are licensed from Monotype Imaging

Auto Shut Off

This function automatically shuts off your TV when there is no signal from the channel the TV is on.

Press the M

ENU button

To AUTO SHUT OFF

To turn ON or OFF

Press the M

ENU button when finished

- If the channel that you have on does not receive a signal for more than one minute, the blinking text "NOT RECEIVING A SIGNAL AUTO SHUT OFF IN 9 MIN." appears on the screen, and starts the countdown. If no signal is being received within 10 minutes, the TV shuts itself off.

XDS ID

XDS ID Display provides a channel's call letters, the network's name, and even a program name. The XDS ID information is provided by the broadcaster.

Press the M

ENU button

To

XDS

ID

To turn ON or OFF

Press the MENU button when finished

Onscreen Menu

Noise Muting

This feature inserts a blank gray screen over channels which are not broadcasting or are too weak to be received clearly.

Press the M ENU button

To NOISE MUTING

To turn noise muting ON or OFF

Press the M ENU button when finished

Notes:

• Noise muting will not work during auto tuner setup or when you operate channel summary.
• Noise muting will not work when the digital TV is displayed.

Front Panel Lock

This allows you to lock the keys on the side of the TV, so that a child may not accidentally change your viewing preferences.

Press the MENU button

To FRONT PANEL LOCK

To turn ON or OFF

Press the MENU button when finished

You can turn off this feature in the following ways:

• Unplug the power cord, and plug it back in. Do this if your batteries die, or you lose your remote control.
  • Use the remote control.
• Press the MENU button on the side of the TV for more than 3 seconds. In this case, the OSD for FRONT PANEL LOCK will appear.

Note:

- To turn ON/OFF the TV, press the power button for more than 3 seconds. This feature will remain ON.

Onscreen Menus

V1 Smart Input

This feature is used if you have connected an AV Receiver to your television. By turning this feature on, your television can automatically detect the signal source from your components that are connected to your AV Receiver.

Press the M ENU button

To V1 SMART INPUT

To turn ON or OFF

Press the MENU button when finished

Notes:

• If you do not have an AV Receiver connected to your television, turn this feature OFF.
• Some AV Receivers may not work with this function.

Onscreen Menus

Video Input Label

This function is used to label video input connections for the onscreen displays.

Press the M

ENU button

Press the OK button to save

Press the M ENU button when finished

INITIAL SETUP
▲PREVIOUS
NOISE MUTING	(ON)
FRONT PANEL LOCK	(OFF)
V1 SMART INPUT	(ON)
VIDEO INPUT LABEL
POSITION ADJUSTMENT
POWER INDICATOR	(LOW)
▼NEXT PAGE	(2/5)
▲SELECT OPERATE EXIT

VIDEO INPUT LABEL
VIDEO-1	VCR
VIDEO-2	DVD
VIDEO-3	SAT
DIGITAL-IN1	STB
DIGITAL-IN2	STB
PRESS TO FINISH
SELECT OPERATE EXIT

Preset Labels	Select when...
VCR	You have a VCR connected to the video input
DVD	You have a DVD connected to the video input
PVR	You have a Personal Video recorder connected to the video input
DVHS	You have a Digital VCR connected to the video input
STB	You have a Set-top Box connected to the video input
SAT	You have a Satellite Receiver connected to the video input
AMP	You have an Amplifier connected to the video input
GAME	You have a Video Game connected to the video input
CAM	You have a Video Camera connected to the video input
DISC	You have a Video Disc player connected to the video input

Onscreen Menus

Position Adjustment

Position adjustment allows you to adjust the position of the picture on the screen vertically when the aspect is set to panorama or cinema.

Press the M

ENU button

To POSITION ADJUSTMENT

To enter

To adjust the position

Press the MENU button to finish

Notes:

• To reset the adjustment to the center, press the Ok button.
• When the arrow disappears, while you are adjusting the position, the position is at its maximum limit.
• If you select Regular size, Slim size and Full size with aspect or Multi Screen, position adjustment option is not seen.
• When you change the screen size, perform the position adjustment again.
• Position adjustment allows you to adjust the screen position vertically and horizontally when the aspect is set Panorama Zoom or Cinema Zoom for 1080i and 720p signals, or when PC mode is set.
• It is also possible to use Position Adjustment when you are in PC Mode

Power Indicator

Power indicator allows you to adjust the brightness of the power indicator.

Press the MENU button

To POWER INDICATOR

To turn LOW, HIGH or OFF

Notes :

• When OFF is selected: The LED disappears if you have a TV signal. The LED is lit as "LOW" when there is no TV signal.
• When the On Timer turns ON, the LED is lit as "LOW" when you turn the power off.
• If you set a timer on the TV, the power indicator will light even if the TV is on stand by.

Onscreen Menus

Digital-In

The DIGITAL-IN option can only be displayed in the INITIAL SETUP menu when an HDMI480p picture signal is being input to the DIGITAL-IN terminal. This option adjusts the position when an HDMI or DVI 480p picture signal is being displayed on the screen. There are two types of HDMI480p picture signals: 640x480 and 720x480. If the displayed picture is slightly shifted, the position can be adjusted by selecting either SIZE1 or SIZE2.

Press the M ENU button

▼To DIGITAL-IN

To enter

▼To select AUTO, SIZE1 or SIZE2

Press the MENU button to finish

Notes:

• The DIGITAL-IN menu can only be displayed when a HDMI or DVI 480p picture signal is input to the Digital-In terminal and the picture is being displayed on the screen.
• You can select AUTO only when the signal is 480p for HDMI. When you select AUTO, the television will select "SIZE1" or "SIZE2" automatically.

Digital-in1 Audio

This feature is used if you have a DTV or HDMI compatible component connected to your TV.

ess the MENU button

To DIGITAL-IN1 AUDIO

To select ANALOG, DIGITAL or AUTO

Press the MENU button when finished

Notes:

• If you connect the HDMI device to the HDMI 1, choose DIGITAL. If you connect the DVI device to the HDMI 1, choose ANALOG.
• Refer to your DTV or HDMI component's instruction manual for more information.
• When you select AUTO, the television will select "ANALOG" or "DIGITAL" automatically, depending on the audio input from the HDMI.
• When you select DIGITAL, select PCM on Digital Sound menu. See page 54.

Onscreen Menus

Digital Setup

Use this function when you are receiving a digital broadcast.

The onscreen will appear

Notes:

• Software Update will only appear when the SD Card is inserted.
• If you are watching an analog channel, you can still access the digital setup menu at anytime, while you are doing this, the background screen will turn blank. In this case, the tuner will switch to digital, since you are accessing the digital setup menu.

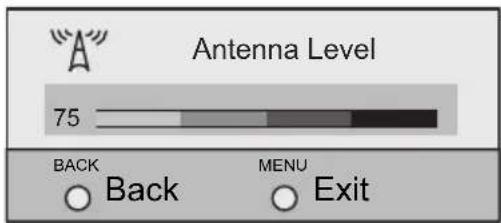

Antenna Level

Confirms the present antenna level.

Onscreen Menus

Digital Sound

You can select the optical digital sound output, either PCM or Dolby Digital when your TV is connected to an amplifier that has Dolby Digital decoder. If you select Dolby Digital, you can enjoy listening in 5.1ch sound when watching digital broadcasts.

Press the M ENU button

To DIGITAL SETUP

To enter

▲▼To Digital Sound

◀▶ To select PCM or DOLBY DIGITAL

Press the M ENU button when finished

Notes:

• If your amplifier does not have Dolby Digital decoder, select PCM. If you don't select PCM, it cannot output the sound from the speakers.
• For connecting an amplifier using the optical output, see page 21.

DIGITAL

DOLBY

Manufactured under license from Dolby Laboratories. "Dolby", and the double-D symbol are trademarks of Dolby Laboratories.

Software Version

You can confirm the Software Version.

Press the MENU button

▲▼ To DIGITAL SETUP

◀▶ To enter

▲ ▼To Software Version

◀▶ To enter

◀▶ Select close when you are finished confirming your software version

Press the M

ENU button when finished

Software Update

At first, insert the SD(Multi-media) card into the memory card slot. This function will appear only when you insert an SD Card.

Press the M ENU button

▲▼To DIGITAL SETUP

◀▶ To enter

▲ ▼To Software Update

◀▶ To enter

▲▼Checks the card if it needs an update or not

Press the MENU button when finished

Onscreen Menus

Picture Settings

These settings allow you to change and adjust the way the picture appears on your television.

TINT

Tint allows you to adjust the levels of red and green in your TV picture.

COLOR

The color function lets you make all the colors in the TV picture appear either more vivid or subtle.


Picture allows you to adjust the levels of black and white on the TV screen, giving you a darker or brighter picture overall.

BRIGHT

You can adjust the overall brightness of the TV picture with the Bright control.

DETAIL

The Detail feature adjusts the level of fine detail displayed in the picture.

ENERGY SAVER MODE

The energy saver mode adjusts the level of brightness on the TV screen.

Adjust the Picture Settings

▲ ▼

Press the MENU button

To TINT, COLOR, PICTURE, BRIGHT, DET or ENERGY SAVER MODE

To enter

▶ To adjust the setting

▼To move to the next setting

Press the M

ENU button when finished

Color Temperature

You can decide how strong or dull the colors appear on the TV screen.

Press the MENU button

To

COLOR

TEMPERATURE

To

enter

▼To set LOW or HIGH

Press the MENU button when finished

Onscreen Menus

Color Management

This TV supports the COLOR MANAGEMENT function to ensure dull colors are compensated to produce natural hues.

ess the M

ENU button

▼To COLOR MANAGEMENT

To

enter

To select the mode "ON" or "OFF"

ess the M

ENU button when finished

Dynamic Gamma

JVC's Dynamic Gamma Circuitry (DGC) makes it easier to see dark areas when a picture has many dark areas, and makes it easier to see the bright areas when a picture has many bright areas. DGC is turned on, DGC analyzes and adjusts the total level of picture brightness balance, especially in dark areas where the level of grayscale is often lost, turning completely to black DGC automatically enhances the detail in these dark areas providing a more dynamic image with finer detail, so the optimum picture settings are automatically set for each picture. Normally use with DGC on.

ess the MENU button

▼To DYNAMIC GAMMA

To enter

To turn ON or OFF

ess the MENU button when finished

Smart Picture

Smart Picture detects the APL (Average Picture Level) and adjusts the contrast suitable for what you are watching.

ess the MENU button

▼To SMART PICTURE

To enter

▼To select the mode "ON" or "OFF"

Press the MENU button when finished

Note:

- When you have "DYNAMIC" selected in the "VIDEO STATUS", Smart Picture is not selected.

Onscreen Menus

Digital VNR

This function can be selected to change the effect of Digital VNR (Video Noise Reduction).

ess the M

ENU button

▲▼To DIGITAL VNR

◀▶ To enter

▲ ▼To select the effect you like

AUTO: adjusts the effect of VNR automatically

MIN: adjusts the effect of VNR to minimum

MAX: adjusts the effect of VNR to maximum

OFF: turns the effect of VNR off

DIGITAL VNR

AUTO

MIN

MAX

OFF

ess the M

ENU button when finished

Note:

- If it is in PC, Digital VNR will not be displayed.

MPEG NR

This function effects the block noise removal and mosquito NR (Noise Reduction) simultaneously.

ess the MENU button

▲▼To MPEG NR

◀▶ To enter

▲ ▼To select ON or OFF

MPEG NR

ON

OFF

Press the MENU button when finished

Note:

- When you are receiving digital channels, block noise removal will have no effect.

Smart Sensor

This function automatically adjusts the brightness on your TV according to the amount of light in the room.

ess the MENU button

▲▼To SMART SENSOR

◀▶ To enter

▲ ▼To select ON or OFF

SMART SENSOR

ON

OFF

Press the MENU button when finished

Onscreen Menus

Sensor Effect

With Sensor Effect ON, a "leaf" icon will appear on your TV screen when Smart Sensor brightness adjustment occurs.

ess the M

ENU button

To SENSOR EFFECT

To select ON or OFF

Press the MENU button when finished

Reset

Reset resets all picture adjustments (tint, color, picture, bright, detail, color temperature, dig. noise clear, Color Management, Dynamic Gamma, Smart Picture Digital VNR, MPEG NR, Smart Sensor and Sensor Effect) at once to the default settings.

ess the MENU button

To

RESET

To

enter

The onscreen menu disappears for a m and then the settings are reset to the default setting for all the picture adjustments.

ess the M

ENU button when finished

Onscreen Menus

Sound Settings

These settings allow you to change and adjust the sound on your television.

BASS – You can increase or decrease the level of low-frequency sound in the TV's audio with the bass adjustment.

TREBLE – Use treble to adjust the level of high-frequency sound in your TV's audio.

BALANCE – Adjust the level of sound between the TV's left and right speakers with the balance setting.

Adjust the Sound Settings

Note:

• You can reset the sound adjustments (BASS, TREBLE
and BALANCE) you set at once as the default setting when you select reset. See page 58.
- You can adjust BALANCE only when A.H.S.+ is off. See page 65.

Turn On Volume

Turn On Volume allows you to set the volume level when you turn the TV on.

Press the MENU button

Press the M ENU button to finish

Volume Limit

Volume Limit allows you to set the maximum volume level.

Press the MENU button

Press the M ENU button to finish

Reset

Reset resets all Sound Adjustments (Bass, Treble, Balance, Turn On Volume and Volume Limit) at once to the default settings. See page 58 on how to use reset.

Onscreen Menus

Set Clock

The set clock function is described on page 25 as the interactive plug-in menu. You can choose to set the clock automatically or manually. If you need to set the clock again, follow the steps below.

Press the M		ENU button
▲▼	To	SET	CLOCK
◀▶	To	enter

When you set the clock automatically, choose AUTO by pressing the ◀ or ▶ arrows.

▲ ▼To D.S.T. (daylight savings time) ◀▶ To turn D.S.T. ON or OFF

Press Ok to finish Press the MENU button when finished

When you set the clock manually, choose MANUAL by pressing the ◀ or ▶ arrows.

▲▼ To move to the hours ◀▶ To set the hours ▲▼ To move to minutes ◀▶ To set the minutes ▲▼ To TIME ZONE ◀▶ To select your t

▲ ▼To D.S.T. (daylight savings time) ◀▶ To turn D.S.T. ON or OFF Press Ok to start clock THANK YOU !!

Press the MENU button when finished

Notes:

• D.S.T. can be used when it is set to ON in the SET CLOCK menu.
- Only when the MODE is set to AUTO, the Daylight Saving Time feature automatically adjusts your TV's clock for Daylight Saving.
- The real time and D.S.T. may not be set correctly depending on the broadcasting signal and receiving conditions. In this case, set your clock manually.
- You will have to reset the clock after a power interruption. You must set the clock before operating any timer functions.

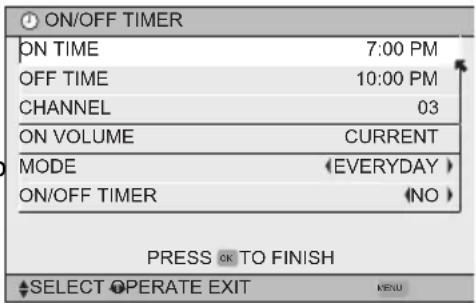

On/Off Timer

The on/off timer lets you program your television to turn itself on or off. You can use it as an alarm to wake up, to help you remember important programs, or as a decoy when you're not home.

ss the M

ENU button

To ON/OFF TIMER

To enter (begins with ON TIME)

To set the hour (AM/PM) you want the TV to turn on

move to minutes

To set the minutes

To accept ON TIME and move to OFF TIME (the time the TV will turn off). Set the ME the same way as ON TIME

accept OFF TIME and move to CHANNEL

To select channel

ON VOLUME

To set the volume level

move to MODE

To select ONCE or EVERYDAY

To

ON/OFF

TIMER

Choose YES to accept the timer setting, choose NO if you don't wish to accept

s the OK button to finish

ss the M

ENU button to exit the menu

Notes:

• The on/off time cannot be set to locked or guarded channels.
• In order for the on/off timer to work, the clock must be set.
  • After a power interruption, the timer settings must be reset.
• The digital channel is set only set to the marked channel in channel summary.
• The blocked channel cannot be set.

Button Functions

Multi Screen Function

Your television has two kinds of screen: SPLIT (2 channels) and INDEX (12 channels).

Note: After you press any multiscreen buttons, if you press the menu button, only the picture adjust screen will appear.

Split

Activate the split-screen option by pressing SPLIT on the remote control. The channel (or input) you were watching before pressing SPLIT will appear on the left, the new channel will appear on the right. The sound will continue to come from the main screen channel (or input). To turn split-screen off and return to normal television viewing, press SPLIT again or press the BACK button.

07	V-1
MAIN SCREEN PICTURE	SPLIT SCREEN PICTURE

Notes:

• If the signal that you are watching is coming from the HDMI input, you cannot enter the SWAP or INDEX mode.
• Main Screen and Split Screen will not display the same channel or input at the same time.
• Split screen will not display digital channel.
• You can enter the SPLIT mode when the screen is in NORMAL or INDEX mode.
• Split-screen functions will not work with locked channels or channels blocked by V-Chip ratings limits. A gray screen will display instead.
• With split screen, the picture from the component terminal and DIGITAL-IN terminal will not be displayed.
• The aspect of MAIN CHANNEL PICTURE becomes 16:9 when you input the picture of 480p, 720p and 1080i from the component terminal and DIGITAL-IN terminal.
• After you press the SELECT button, and select SPLIT SCREEN when you press the OK button, select normal screen. If you don't operate, the MAIN CHANNEL SCREEN will be automatically selected about 8 seconds later.
• Aspect does not work in SPLIT mode.
• When it is PC output, Main and Split screen will not be displayed.
• When you are in PC mode, SPLIT, INDEX or FREEZE can not be used.
• When you press the Menu button in SPLIT mode, it appears only as Picture Adjust menu.

Button Functions

Index

This allows you to quickly look at up to 12 channels at a time so that you can decide which one to watch.

1	2	3	4
5	6	7	8
9	10	11	12

Notes:

• Only analog channel input signal will be displayed.
• You can watch the channel added in channel summary. See page 35.

Freeze

Pressing the FREEZE button causes the screen to change to the split-screen display with the still picture displayed on the right. In order to return to the normal display, press the FREEZE button once again.

Swap

You can exchange the channel (or input) displayed in the split screen window for the main screen image by pressing the SWAP button.

Note:

- It will only work in SPLIT mode.

Select

With SELECT, you can select the picture (channel) while viewing SPLIT screen. When you press SELECT button, the channel number on the top will be highlighted. Each press of SELECT will shift the channel.

Menu

The MENU button allows you to access JVC's onscreen menu system. Press MENU to activate the onscreen menu system.

- See individual topics like "Sound Adjust" for specific information on using menus.

OK

This button confirms your selection when you are in one of the onscreen menus.

Back

This button allows you to go back in the menu to change a selection or correct a mistake.

Button Functions

Power

Turns the TV on or off.

ess the P

OWER button

Note:

• After turning the power on, you can not turn the power off for about one minute.

Number Buttons - 10Key Pad

Use the number buttons on the remote control to move directly to a specific channel. For example, to move to channel 12:

0

(Zero)

1

(One)

2

(Two)

Tune

Lets you decide the input channel and select it. After you press the number buttons on the remote, press the TUNE button. For example, to move to channel 12:

1

(One)

2

(Two)

Press

the

TUNE button

Input

Selects the signal input source for the television: VIDEO-1, 2, 3, DIGITAL-IN1 or DIGITAL-IN2 for video devices like VCRs, DVD players or camcorders.

ess the INPUT button

By every press of the INPUT button, you can change the input mode.

Notes:

• When you return to TV mode, press the RETURN + / TV button or direct 10 key pad or CHANNEL + / - button.
• You can also access by pressing the INPUT button on the side of the TV instead of the remote control.
• If you have a PC connected to the TV, select VIDEO-3.

TheaterPro D6500K

The TheaterPro D6500K color temperature technology function makes sure that the video you watch is set to the standard color temperature, so that what you see is as true to what the film to video editors intended it to be.

Press

HEATHEPRO buttonT

Button Functions

Return +/TV

The RETURN+/TV button has three functions:

Return - Returns to the channel viewed just before the channel currently onscreen.

Return+ - Lets you program a specific channel to return to while scanning through the channels using the CH+ and CH- buttons.

TV - Returns to the TV mode.

ess the R

ETURN+/TV and hold for three seconds

RETURN CHANNEL PROGRAMMED!

The channel currently active has been programmed as your return+ channel. Now scan through the channels using the CHANNEL+/- buttons.

ess the RETURN+/TV

You will return to your programmed channel.

• To cancel your return+ channel, press and hold the RETURN+ button for three seconds. The message "RETURN CHANNEL CANCELLED!" will appear.
• Return+ works only with the Channel+/− buttons. Pressing any number key will cancel return+.

Sound

By pressing the SOUND button, you can change the A.H.S.+ (Advanced Hyper Surround plus) mode, VOICE ENHANCEMENT, SMART SOUND or MaxxBass on or off.

A.H.S.+ - Adds a more spacious surround sound. Music gives basic effect and movie for more effect.

VOICE ENHANCEMENT - Gives a clearer sound quality of the voices in what you are watching.

SMART SOUND - Decreases high sound levels, giving a regulated sound level.

MaxxBass - Emphasizes the bass sound

ess the S

OUND button

To select A.H.S.+, VOICE ENHANCEMENT, SMART SOUND or MaxxBass

To choose the setting

ess the M

ENU when finished

SOUND EFFECT
A.H.S.+	MOVIE	MUSIC OFF
VOICE ENHANCEMENT		ON OFF
SMART SOUND		ON OFF
MaxxBass	HIGH	LOW OFF

MaxxBass is a registered trademark of Waves Audio Ltd. in the USA, Japan and other countries.

Notes:

• Smart Sound may become an unnatural effect, depending on the signal source.
• You can adjust BALANCE only when A.H.S.+ is off.
• When headphones are being used, MaxxBass can not be selected.

Button Functions

Video Status

The VIDEO STATUS button gives you a choice of four TV picture display settings, including a display of your own preferences.

Standard - Resets the picture display to the factory settings.

Dynamic - Gives a vivid picture with better contrast when viewing in a brightly lit room.

Theater - Gives a rich, film-like look to video when viewing in a dimly lit room.

Game - Used for when you are playing video games connected to your TV.

VIDEO STATUS

STANDARD

DYNAMIC

THEATER

GAME

ess the V

IDEO STATUS button

By every press of the VIDEO STATUS button, you change the mode.

Note:

• You can also change the mode by pressing the ▲▼ buttons.
  • Each mode is memorized for each input connected to the TV.
• You can also access the FRONT PANEL CONTROL screen by using the MENU button on the side of the TV instead of the remote control. It appears between INITIAL SETUP and PICTURE ADJUST screen, and it has VIDEO STATUS and ASPECT menus. Choose VIDEO STATUS by pressing MENU ▼ on the side panel and choose a mode by using the CHANNEL +/- buttons ( ◀ OPERATE ▶ ).

• There are four video status settings: Dynamic, Standard, Theater and Game. Each video status setting has a separate memory for HD (1080i/720p) and SD (480p/480i) video signal. Each video status can be chosen along with your favorite picture settings (Tint, Color, Picture, Bright, Detail, etc.)

• When an HD signal is displayed: Your HD settings are recalled for the video status you are using.

• When an SD signal is displayed: Your SD settings are recalled for the video status you are using.
• This function considers PC input as an HD signal and PIP and SPLIT screens as an SD signal.

Natural Cinema

Natural cinema corrects the problem of blurred edges which may occur when viewing a program originally shot on film (such as motion pictures) or animation. If you notice blurring at the edges of these programs, press NATURAL CINEMA and set it to AUTO. Natural Cinema helps correct conversion errors that occur when film, which is shot at 24 frames-per-second, is broadcast at the television rate of 30 frames-per-second.

Press the NATURAL CINEMA button

Notes:

- The natural cinema mode is automatically set to "AUTO" in the following cases:

• Turning on or off
• Changing the channel or input mode
• Using multi-screen functions

- If you are in PC mode, Natural Cinema can not be used.

NATURAL CINEMA

AUTO

ON

OFF

Sleep Timer

The Sleep Timer can turn the TV off for you after you fall asleep. Program it to work for a total time of up to 180 minutes.

ss the S

LEEP button

Sleep Timer Message

60 seconds before the automatic shutoff, this message will appear:

You then have 60 seconds to press the SLEEP button to delay the shut off.

ML/MTS

MTS technology allows several audio signals to be broadcast in analog at once, giving you a choice in what you wish to hear with a TV program. In addition to mono or stereo sound, an MTS broadcast may also include a second audio program (SAP).

ess the ML/MTs button

By every press of the ML/MTS button, you change the mode

	MTS
ON AIR	STEREO
ON AIR	SAP
	MONO

Notes:

• When you are receiving a digital broadcast, if there are other languages, you can change the language by pressing the ML/MTs button.
• Keep the TV in stereo mode to get the best sound quality. The sound will work in stereo mode even if a certain broadcast is in mono sound only.
• Choose the mono setting to reduce excessive noise on a certain channel or broadcast.
• Selecting SAP will allow you to hear an alternative soundtrack, if one is available.
• MTS unavailable if your television's Input source is in input 1, 2 or 3 mode, as described on page 64.
• ML/MTS will not work when you are using the Digital-In.
• You can also change the mode by pressing the ▲ ▼ buttons.

Muting

The MUTING button instantly turns the volume down completely when you press it. Press MUTING and the volume level will instantly go to zero. To restore the volume to its previous level, press MUTING again.

Button Functions

Display

The display screen shows the current status of timers, inputs and XDS ID.

ss the D

ISPLAY button

The screen to the right shows the following information:

• The current channel or AV input (Channel 05)
• The current time (12:20 pm)
- Sleep timer status/minutes remaining (The Sleep Timer is off)
- On/off timer status (Set to turn on everyday at 7:00 PM, off at 10:00 PM)
• Each Press of the DISPLAY button changes the display mode:

Display - Full screen shown above

Time - Shows the current time only

Channel - Shows the current channel

Off - Turns display off

Notes:

• You may also turn off the display at any step by pressing MENU.
• If the clock, sleep timer or on/off timer are not set, the display screen will show: "CLOCK NOT SET", "SLEEP TIMER OFF", and "ON/OFF TIMER OFF" respectively.

C.C. (Closed Caption)

Use the C.C. (Closed Caption) button to select the mode of closed caption.

ss the C.C. button

Notes:

• SMART CAPTION will appear when you press the MUTING button, only on channels where the broadcast contains closed captioning.
• When you select ON, it will be the mode selected in the Closed Caption Menu.
  • See page 45 when you set the caption/text mode.
• You can also change the mode by pressing the ▲▼buttons.
• If you are in PC mode, C.C. can not be used.

CLOSED CAPTION

OFF

SMART CAPTION

ON

Channel +/-

Use these buttons to move up or down all the available channels your TV is able to receive.

Volume +/-

Use these buttons to raise or lower the TV's volume level. The maximum is the level you set in Volume Limit. See page 59.

Button Functions

Favorite

The Favorite button allows you to select your favorite channels easily. First, you must register the channels that you like. See how to register below.

AVORITE button

The favorite channel list will appear.

To select the channel you want to watch

ss the Ok button

It will change to the channel you have selected.

Register the favorite channel

Press the channel number you want to register

The channel program will change.

less the FAVORITE button for three seconds

The channel will be registered in the favorite channel list.

FAVORITE
▲PREVIOUS
101	CBS
102	FOX
D103	PBS2
<	>
D107	HBO
8	ABC
▼NEXT

Notes:

• Both analog and digital channels can be registered. The digital channels have a "D" in front of the channel number.
• The maximum number of channels you can register is 24.
• If you have registered the maximum number of channels, and try to register more channels, the oldest channel you registered will be deleted.
• Sub channels can not be registered.
• The newest channel you registered will appear at the top of the list.

Delete the favorite channel

ss the FAVORITE button

The favorite channel list will appear.

To select the channel you want to delete

To enter

ss the Ok button

The channel was deleted.

ss the F

AVORITE button when finished

Note:

- Before pressing the FAVORITE button when you are finished, press the ◀ button again, and you can return to the deleted channel.

Button Functions

Aspect

This feature will help you adjust the picture you are watching to give you the best possible picture quality.

Aspect Ratios

PANORAMA - With this ratio a normal 4:3 aspect picture is stretched to fit the dimensions of the 16:9 aspect screen.

Two-panel image showing a sequence of balloons with one being added to another, no text or symbols present.

CINEMA - This ratio "zooms in" on the center part of a 4:3 aspect picture, blowing it up to fill the 16:9 screen.

Diagram showing a transformation of balloons from a rectangular frame to a simplified view (no text or symbols)

FULL - This is the ratio to use when watching 16:9 High-Definition broadcasts.

Two-panel image showing a sequence of balloons with one being added to another, no text or symbols present.

PANORAMA ZOOM - This ratio stretches the High-Definition 16:9 aspect image to eliminate the black side bars.

Diagram showing two stages of balloons shifting from left to right, with no text or symbols present.

CINEMA ZOOM - This ratio stretches the High-Definition 16:9 aspect image to eliminate the black surrounding bars.

Diagram showing a transformation of balloons from a square frame to a rectangle, with no text or symbols present.

REGULAR - The regular ratio is used when you want to watch a 4:3 broadcast or recorded program without modifying the original picture to fit the dimensions of your 16:9 screen. The 4:3 picture will fill the screen from top to bottom, while black bars will appear to fill up the remaining space along the picture's sides. The 4:3 picture will be centered within the boundaries of the 16:9 screen.

SLIM - This aspect mode shrinks the screen of 16:9 to 4:3. There are some programming that is already stretched by mistake at broadcasting companies, so this mode corrects it. Black side bars will appear.

Diagram showing two panels of balloons with different sizes, one rotated to form a black rectangle (no text or symbols)

Aspect Ratios in PC Mode

REGULAR - This is the original aspect mode.

FULL - This aspect mode stretches the image to fit the dimensions of the 16:9 aspect screen.

Aspect Ratios (Continued)

Press

the

ASPECT button

s Bepresting the can change the size.

When you change the aspect ratios, it is different from their broadcast or recorded program.

SD (480i, 480p) NTSC, 480i, 480p

HD (1080i, 720p) ATSC (1080i, 720p)

ATSC (480i, 480p)

PC

Notes:

• You can also choose the size by pressing the ▲▼ buttons.
• When you change the aspect ratio or signal, reset the picture position to center.
• You can also access the FRONT PANEL CONTROL screen by using the MENU button on the side of the TV instead of the remote control. It appears between INITIAL SETUP and PICTURE ADJUST screen, and it has VIDEO STATUS and ASPECT menus. Choose ASPECT by pressing Menu ▼ on the side panel and choose a mode by using the CHANNEL +/- buttons ( ◀ OPERATE ▶ ).
• "SLIM" can only be displayed when the signal is ATSC (480i or 480p).
• If the television receives a 16:9 signal from your HDMI device, the aspect mode will turn to FULL automatically. If the television receives a 4:3 signal from your HDMI device when you are in FULL aspect mode, it will return to REGULAR aspect mode. If you change the aspect mode after the television changed it to FULL automatically, the television will change to the aspect mode you chosen.

Button Functions

TV/CATV Slide Switch

Use either the television's own tuner or a cable box to select channels. Set this switch to TV to operate the television's built-in tuner. Move the switch to CATV to operate a cable box.

Note:

• See page 27 for information on programming your remote for cable box operation.

VCR/DVD Slide Switch

You can control a VCR or DVD player with the buttons on the lower part of the remote control. Move the slide switch to VCR or DVD to operate.

Notes:

• The remote is preset with the code 000 to control JVC-brand VCR's. For any other manufacturer's brand VCR, please see the code chart and instructions on page 28.
• The remote is preset with the code 000 to control JVC-brand DVD players. For any other manufacturer's brand DVD player, please see the code chart and instructions on page 29.

VCR Buttons

You can use this remote control to operate the basic functions of your VCR. These functions include: play, record, rewind, fast-forward, stop, pause, channel scan, TV/VCR, power on and power off.

Move the selector switch to VCR to operate.

- The remote is preset with the code 000 to control JVC-brand VCR's. For any other manufacturer's brand VCR, please see the code chart and instructions on page 28.

DVD Buttons

You can also use this remote control to operate the basic functions of your DVD player. These functions include: play, rewind, fast-forward, stop, still/pause, previous/next, tray open/close, power on and power off.

Move the selector switch to DVD to operate.

- The remote is preset with the code 000 to control JVC-brand DVD players. For any other manufacturer's brand DVD player, please see the code chart and instructions on page 29.

Light

Your remote control includes illuminated buttons for key features like CHANNEL +/- and VOLUME +/-. Press the LIGHT button to turn the illumination on for 5 seconds.

Button Functions

D/A (Digital/Analog)

The D/A button changes the analog and digital channel. Each time you press the D/A button, you can switch back and forth the analog and digital channels. Digital channels have a "D" in front of the channel number.

ess the D/A button

To watch digital channels

For example, to move to channel D23:

ess 2 (Two)

ess 3 (Three)

Press

UNE button

T

Sub Channel

The main channel sometimes has minor channels (Sub Channels). By using the SUB CHANNEL button, you can select a sub channel easily.

For example, to move to sub channel 123-45:

ess 1, 2 and 3 in order

ess the SUB CHANNEL button

ess 4 and 5 in order

ess the TUNE button

Note:

- If there are more than 2 major channels, select the digital channel by using the ▲▼buttons and then press the OK button.

Guide

You can view the program from the GUIDE.

Notes:

• The GUIDE function will only work when you are receiving digital program only.
• The GUIDE will not show the correct time and date if you have not performed the set clock function on your television. See page 60.

OSD Information

Weak Signal

This OSD appears when the digital channel that you have selected is too weak to receive or no signal is being detected for that channel.

No Program

If the external input terminal you selected, or were watching is not receiving a signal, "NO PROGRAM" appears on the television screen. It appears when that external input terminal is not receiving a signal and you have the Noise Muting function OFF and you have a single screen. It moves automatically every two seconds to prevent the screen from burn-in.

Note:

- Even if "NO PROGRAM" appears on the screen, your timer functions and auto shut off functions that you set, are still active.

Invalid Signal

If you are inputting a PC signal that is invalid, "Invalid Signal" will appear on the TV screen. It appears when the input is PC and it is a single screen.

Refer to the table below to check the condition. If you think that there is a problem, contact the JVC Service Center where you purchased the television.

PROBLEMS	CHECK
There is no power	• See if the power cord became unplugged.• Check for a blown fuse or circuit breaker or a power outage.
There is no picture or sound	• The antenna could be disconnected.• The input mode could be set improperly. See page 64.• The tuner (Auto Tuner Setup) could be set improperly. See page 34.• The TV station may be having difficulties. Check to see if other stations are working.• Use the HDMI cable with HDMI logo HDMI. See page 20.• You can not output audio using the AUDIO OUTPUT under the following conditions:1) When you have digital sound from an HDMI device connected to the HDMI 1 or HDMI 2 connection on the back of your TV. (See page 20).2) When you have analog sound from a DVI device connected to the AUDIO IN "FOR HDMI 1" connection. (See page 19).• When you have an HDMI device connected to the HDMI 1 connection on the back of your TV, your TV detects it, and blocks the analog audio signal coming into the "FOR HDMI 1" jacks. Therefore, you can not hear any analog sound from the other device connected to the "FOR HDMI 1" jacks, while you are viewing the images from the HDMI device.(See page 20).
Remote control is not operating properly or at all	• Check to see that the batteries are still working and properly installed.• Make sure the remote has a clear sight path to the TV.• Check that the TV/CATV switch is in the proper position.• You may be too far from the TV. You must be within 23 feet (7 meters).
You cannot select a certain channel	• Make sure the channels have been programmed. See "Channel Summary", page 35.• Check to see if the channel is locked. See "Channel Summary - Lock" page 36.
The power turns off by itself	• Make sure the set did not become unplugged.• Perhaps the On/Off Timer is set. See page 61.• Check to see if the Sleep Timer was set. See page 67.
It does not operate correctly	• This television is operated by a microprocessor. It is possible that external noise or interference is causing the problem. If the television does not function correctly, remove the electrical plug from the wall outlet and wait a while before inserting it into the wall outlet again and operating the television.
The clock is wrong	• The power was interrupted and the clock was not reset. See page 60.
The color quality is poor	• Tint and Color may be improperly adjusted. See page 55.• The Video Status mode may be turned to the wrong setting. See page 66.
There are lines across the picture	• There could be interference from another electrical appliance, such as a computer, another TV or VCR. Move any such appliances further away from the TV.
The picture is spotted	• There could be interference from a high-wattage appliance, like a hairdryer or vacuum, operating nearby. Move the antenna away from the appliance or change to a coaxial cable connection which is less prone to interference.
There are double pictures (ghosts)	• A building or passing airplane can reflect the original signal and produce a second, slightly delayed one. Adjust your antenna position.
Picture is snowy (image noise)	• Your antenna may be damaged, disconnected or turned. Check the antenna connection. If the antenna is damaged, replace it.
Screen is 80% black	• The Closed Caption Text mode is on. Turn it off in the Closed Caption Menu, page 45.
Stereo or bilingual programs can't be heard	• Make sure the MTS settings are correct. See page 67.

Troubleshooting

PROBLEMS	CHECK
Static electricity	• It is normal to feel static electricity if you brush or touch the screen.
You hear occasional crackling sounds	• It is normal for the TV to make crackling sounds when first turned on or off. Unless the sound or picture become abnormal, this is fine.
It does not operate correctly	• Press the CHANNEL- and VOLUME- buttons on the side panel of the TV simultaneously for a few seconds. The Digital Tuner will be reset. If this does not reset it correctly, unplug the power cord and plug it back in.
Voice Enhancement feature is not noticeable or less noticeable	• The SMART SOUND feature makes the effect of VOICE ENHANCEMENT less noticeable.Please turn SMART SOUND to “OFF” to hear the full effect of the VOICE ENHANCEMENT feature. See page 65.

The following are not malfunctions.

• The television may make a creaking sound if the temperature of the room or the temperature of the inside of the television changes. If there is no problem with the screen or sound, then there is no need to worry.
• Although the picture may be temporarily disturbed and noise may be seen on the screen if the power is turned on immediately after it has been turned off, this is not a malfunction.

Model	LT-37X987	LT-32X987
	LCD Flat TelevisionType
Reception Format	NTSC, BTSC System (Multi-Channel Sound) ATSC Terrestrial, Digital Cable
Reception Range	VHF 2 to 13, UHF 14 to 69 at ATSC,CATV 135 Sub, Mid, Super, Hyper and Ultra bands at Digital Cable
	VHF 2 to 13, UHF 14 to 69 CATV 125 Sub, Mid, Super, Hyperand Ultra bands (191 channel frequency synthesizer system) at Analog• Reception of channel A-5 ("95" of the TV set's on-screen cable channelnumbers) is not recommended for your TV set.
Power Source	AC 120V, 60 Hz
Power Consumption	185W	175W
Screen Size	37 inch / 94.0 cmmeasured diagonally,16:9 ratio	32 inch / 80.3 cmmeasured diagonally,16:9 ratio
Audio Output 10W	+ 10W
Speakers	4cm x 16cm twin oblique cone x 2	5cm oblique cone x 2
Antenna Terminal(VHF/UHF,ATSC/DIGITALCABLE IN)	75 ohms (VHF/UHF)(F-type connector)
Input 1, 2, 3Terminal	S (Input 1, 3)Y: 1 Vp-p positive, 75 ohms (negative sync provided)C: 0.286 Vp-p (burst signal), 75 ohmsVideo: 1 Vp-p, 75 ohmsAudio: 500 mVrms (-4dBs) high impedance
Input 1, 3 Terminal(component terminal)	1080i / 720p / 480p / 480iY: 1 Vp-p positive, 75 ohms (negative sync provided)Pb/Pr: 0.7 Vp-p 75 ohms
DIGITAL-IN(HDMI input terminal)	HDMI Jack x 2• Personal computer compatibility cannot be guaranteed.Video: 1080i / 720p / 480p / 480i / VGAAudio: 2ch PCM, 32 / 44.1 / 48 KHz 16 / 20 / 24 bit
Audio Output Jacks(FIX)	FIX : 500mVrms (-4dBs), Low Impedance
Optical OutputDigital Audio	Digital Out (optical) x 1
PC Input Jack	Analog RGB D-SUB (15 pin) x 1• PC signal is available. Refer to page 23 for details on the signals which can be input.
Dimensions (inch/cm)W X H X D	36 1/4 x 25 5/8 x 12 1/4(with stand)91.9 x 65.2 x 31.2(with stand)	31 1/2 x 23 1/4 x 12 1/4(with stand)80 x 59.2 x 24.5(with stand)
	36 1/4 x 23 7/8 x 5 3/4(without stand)91.9 x 60.4 x 12.1(without stand)	31 1/2 x 21 1/2 x 5 1/8(without stand)80 x 54.5 x 13.1(without stand)
Weight (lbs / kg)	47.5 / 21.6 (with stand)	39.6 / 18 (with stand)
	41.6 / 18.9 (without stand)	35.6 / 16.2 (without stand)
Accessories	Refer to "unpacking your TV", page 8

Specifications subject to change without notice.

- The open source software is embedded in this product. For more information, please go to: http://software.jvc.com/opensource/lnx/DP/05_AtscQam/download.html

For Canadian model televisions, see separate sheets for Canadian Warranty information.

JVC COMPANY OF AMERICA (JVC) warrants this product and all parts thereof, except as set forth below ONLY TO THE ORIGINAL RETAIL PURCHASER to be FREE FROM DEFECTIVE MATERIALS AND WORKMANSHIP from the date of original purchase for the period shown below. ("The Warranty Period")

FOR DIRECT-VIEW COLOR TELEVISION, PICTURE TUBE is covered for Two(2)years.

Parts

1 YEAR

Labor

1 YEAR

THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND IN THE COMMONWEALTH OF PUERTO RICO.

WHAT WE WILL DO:

If this product is found to be defective within the warranty period, JVC will repair or replace defective parts with new or rebuilt equivalents at no charge to the original owner. Such repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers. Parts used for replacement are warranted only for the remainder of the Warranty Period. All products may be brought to a JVC authorized service center on a carry-in basis. Color televisions with a screen size of 27" or greater qualify for in-home service. In such cases, a technician will come to your home and either repair the TV there or remove and return it if it cannot be repaired in your home.

WHAT YOU MUST DO FOR WARRANTY SERVICE:

Please do not return your product to the retailer

Instead, return your product to the JVC authorized service center nearest you. If shipping the product to the service center, please be sure to package it carefully, preferably in the original packaging, and include a brief description of the problem(s). Please call 1-800-252-5722 to locate the nearest JVC authorized service center. Service locations can also be obtained from our website http://www.jvc.com. If your product qualifies for in-home service, the service representative will require clear access to the product.

If you have any questions concerning your JVC Product, please contact our Customer Care Center at 800-252-5722

WHAT IS NOT COVERED:

This limited warranty provided by JVC does not cover:

1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized by JVC to render such service, or if affixed to any attachment not provided with the products, or if the model or serial number has been altered, tampered with, defaced or removed;
2. Initial installation, installation and removal from cabinets or mounting systems.
3. Operational adjustments covered in the Owner's Manual, normal maintenance, video and audio head cleaning;
4. Damage that occurs in shipment, due to act of God, and cosmetic damage;
5. Signal reception problems and failures due to line power surge;
6. Video Pick-up Tubes/CCD Image Sensors are covered for 90 days from the date of purchase;
7. Accessories;
8. Batteries (except that Rechargeable Batteries are covered for 90 days from the date of purchase);
9. Products used for commercial purposes, including, but not limited to rental.

There are no express warranties except as listed above.

THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.

JVC SHALL NOT BE LIABLE FOR ANY LOSS OF USE OF THE PRODUCT, INCONVIENCE, OR ANY OTHER DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE TO TAPES, RECORDS OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET FORTH ABOVE.

Some states do not allow the exclusion of incidental or consequential damages or limitations on how long an implied warranty lasts, so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

JVC COMPANY OF AMERICA

DIVISION OF JVC AMERICAS CORP.

1700 Valley Road

Wayne, NJ 07470

http://www.jvc.com

REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY. FOR DETAIL OF REFURBISHED PRODUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION PACKAGED WITH EACH REFURBISHED PRODUCT.

For customer use:

Enter below the Model No. and Serial No. which is located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.:

Serial No.:

Purchase date :

Name of dealer :

TO OUR VALUED CUSTOMER

THANK YOU FOR PURCHASING THIS JVC PRODUCT.

WE WANT TO HELP YOU ACHIEVE A PERFECT EXPERIENCE.

NEED HELP ON HOW TO HOOK UP? NEED ASSISTANCE ON HOW TO OPERATE? NEED TO LOCATE A JVC SERVICE CENTER? LIKE TO PURCHASE ACCESSORIES?

JVC® IS HERE TO HELP!

TOLL FREE: 1(800)252-5722

http://www.jvc.com

Remember to retain your Bill of Sale for Warranty Service.

Do not attempt to service the product yourself

Caution

To prevent electrical shock, do not open the cabinet.

There are no user serviceable parts inside.

Please refer to qualified service personnel for repairs.

JVC COMPANY OF AMERICA

Division of JVC Americas Corp.

1700 Valley Road

Wayne, New Jersey, 07470

JVC®

JVC CANADA, INC.

21 Finchdene Square

Scarborough, Ontario

Canada, M1X 1A7
