USER MANUAL MSHDUS5LX Addonics

Exterior view of a black Addonics server rack unit with control panel and drive buttons (no readable text beyond branding)

1:5 Combo mSATA HDD Duplicator (MSHDUS5LX)

www.addonics.com

Technical Support

If you need any assistance to get your unit functioning properly, please have your product information ready and contact Addonics Technical Support at:

Hours: 8:30 am - 6:00 pm PST

Phone: [phone]

Email: http://www.addonics.com/support/query/

Overview

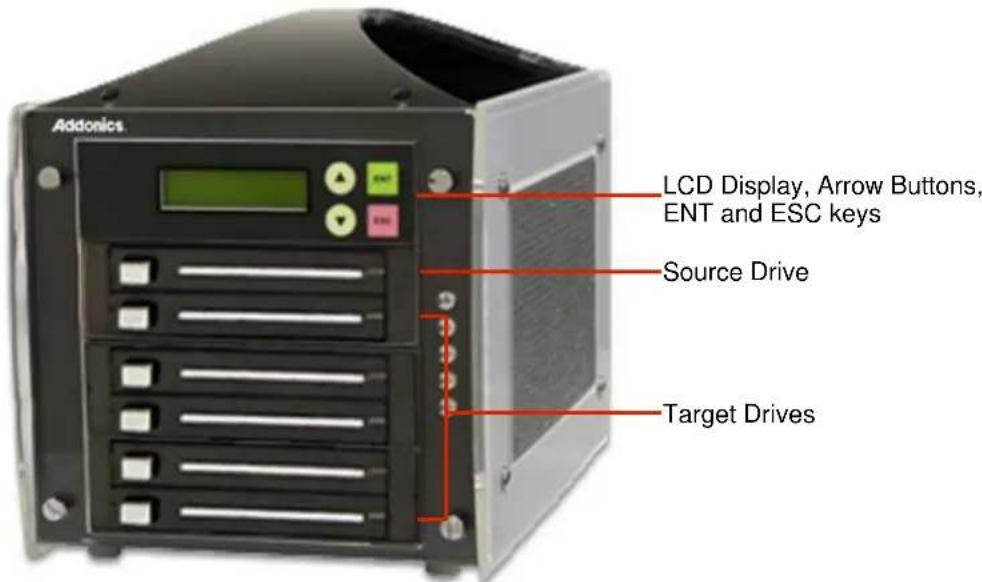

Addonics LCD Display, Arrow Buttons, ENT and ESC keys Source Drive Target Drives

LCD Display: shows current function selected, information or progress.

Arrow keys: used to select menus or options.

ENT key: Used to select options or sub-menus, select options or starts functions.

ESC key: Used to exit sub-menus, discard option changes, or cancel functions (when held).

Red athletic hard drive module with black casing and gold connectors (no visible text or symbols)

Black cable with two terminal connectors, one connected to a power outlet (no text or symbols visible)

mSATA to SATA Adapter (Quantity 6) Power Cord (U.S. Version shown)

WARNING: Please remember to set the power supply to your local outlet voltage prior to plugging in the power cord. Failure to do so may damage the power supply.

Drive Installation

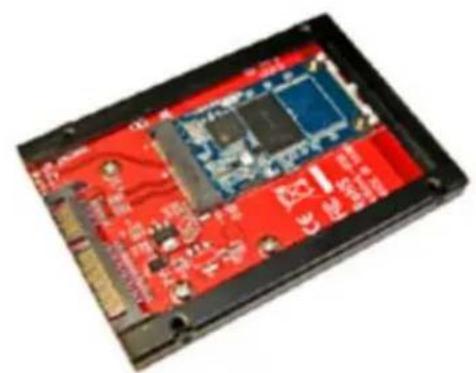

Step 1. Insert the mSATA SSD into the mSATA connector on the PCB.

Step 2. Push down the other end of the mSATA SSD until it is latched securely by the hold down clip.

NOTE: The completed flash drive has the same dimension of a 9mm 2.5" HDD

Step 3. Turn over the flash drive.

Red and black electronic device casing with visible circuitry and components (no text or symbols)

Red and blue electronic circuit board with visible components (no readable text or symbols)

Black rectangular electronic component with small red pins and a horizontal line at the base (no text or symbols visible)

Step 4. On the Duplicator, move the silver button slightly to the right to open the door.
Step 5. Insert the completed adapter into the drive bay with the SATA connector toward the rear, metal side up. The drive should slide in easily, don't force it.
Step 6. Close the door on the drive bay. It should also give little resistance, don't force it. As soon as the drive is in position it will power up.

Quick Start

By default, the duplicator will initialize, scan for drives and offer the copy function. Insert the source and target drives, power up the unit, wait for the copy function to appear, then press ENT.

Canceling Functions

When selecting menu options, canceling is done by pressing ESC. When the unit is busy performing an operation such as copy, verify, or overwrite, the operation can be canceled by holding the ESC button until the unit beeps.

Duplicator Functions

The duplicator has three menu sections: The Main menu, Setup Options, and Advanced Setup Options. Setup Options is accessed through the Main menu. Advanced Setup Options is accessed by holding the ESC button from any other menu until the unit beeps.

Main Menu

1. Copy HDD

Scans the ports, then copies from the source to any targets found.

2. Async Copy HDD

Scans the ports, then copies from the source to any targets found. More drives may be added before the process is complete, they will begin the process as soon as they are detected.

3. Compare HDD

Scans the ports, then any targets found will be compared to the source.

4. Async Compare

Scans the ports, then any targets found will be compared to the source. More drives to compare may be added before the process is complete, they will begin the process as soon as they are detected.

5. PreScan Source

Reads all blocks on the source drive to confirm no I/O errors are encountered.

6. ReScan BUS

Manually scans all ports and reports how many units were found.

7. Source Size

Examines the source drive and reports total space and space used, if drive contains compatible partitions. Press up/down to change display, ESC to exit.

8. Secure Erase

Scans all ports, then erases all data on all connected drives.

NOTE: some drives will remain in a locked state when the process is complete. Drives that are locked may not appear to an operating system and will cause an I/O error if used as a target in the duplicator. If this happens, start secure erase again and hold ESC to cancel the operation a few moments after it begins.

9. Overwrite

Overwrite is used to write data onto the entire hard disk, it will destroy all data on all HDDs connected to the duplicator (including Source HDD) by writing data to all sectors. There are 4 sub-options: One pass (zero), One pass (random), 3 pass and 7 pass.

10. Setup

Enters the Setup menu. See Setup Options.

11. Adv Setup

Enters the Advanced Setup Menu. Only available by holding ESC on any Main Menu option. See Advanced Setup Options.

Setup options

10-1. Language

Use this option to select the language of the system, currently only English is supported.

10-2. Copy Size

Controls how much of the source drive to use for copy operations, in percentage. Default setting is ALL (100%).

10-3. Startup Menu

Sets the first menu option to appear after boot. Default setting is Copy HDD.

10-4. Auto Compare

Controls whether or not targets are compared automatically when copy is complete. Default setting is OFF.

10-5. Button Sound

Enables audible beep when pressing buttons. Default setting is ON.

10-6. Device Info

Displays information about connected drives. Main display is drive manufacturer and size. Press up/down to select drives, ENT to display model number and firmware revision of selected drive.

10-7. System Info

Displays firmware version and date.

10-8. Fast Copy

When this setting is ON, the duplicator will attempt to copy the source drive's contents instead of the entire disk. Also controls Compare function. Default setting is OFF.

NOTE: Target drive size is still required to be equal to or greater than source. Only works with source drives formatted using Master Boot Record. If the source drive has a boot record other than MBR, the entire disk will be copied as if Fast Copy were OFF. If the source drive is formatted with a Master Boot Record and contains only FAT32 or NTFS partitions, identical partitions will be created on the target(s) and only the files will be copied. If the source drive with MBR format includes partitions other than FAT32 or NTFS, all sectors of all partitions (including FAT32 and NTFS) will be duplicated.

Enabling Fast Copy may not produce bootable duplicates.

10-9. Auto Start Drive

When source drive is present, inserting a target drive will cause copy process to begin automatically. Default setting is OFF.

10-10. Auto Start Timer

Sets delay in time after target insertion before beginning auto copy process if Auto Start Drive is ON. Default setting is OFF (no delay).

10-11. Tolerance Size

Sets the minimum target size in percentage compared to the source that is allowed to use for copying. Default is 100% (equal in size).

NOTE: Leaving this setting at 100% or using for minor adjustments only is strongly recommended. Permitting target size less than source size may result in inaccurate copies.

10-12. BootTime Delay

This option is used to set boot delay time. Default setting is 5 seconds.

10-13. Quick Compare

Sets Compare function to stop after a small amount of data has been verified, up to 100MBytes. Default setting is OFF.

10-14. Copy with Size

Causes duplicate drive to report to an operating system the exact same total size as source when copy is complete. Works only on drives formatted using a Master Boot Record. Default setting is OFF.

Advanced Setup Options

11-01. Read Error Skip

Allows duplicator to ignore I/O errors while reading source drive. Default setting is OFF.

11-02. Update Firmware

Used to apply firmware updates. Connect a drive formatted as FAT containing one partition with the firmware file in the root directory.

NOTE: This function scans the entire disk before proceeding. Providing a drive that is as small as possible is strongly recommended.

11-03. Compare Firmware

Used to confirm correct firmware. Connect a drive formatted as FAT containing one partition with the firmware file in the root directory.

NOTE: This function scans the entire disk before proceeding. Providing a drive that is as small as possible is strongly recommended.

11-04. Quick Erase HDD

Scans the ports, then quickly erases all sectors on all connected drives.

11-05. Full Erase HDD

Scans the ports, then completely erases all sectors on all connected drives.

11-06. H/W Diagnostic

Starts comprehensive tests for Ram, LCD, buttons, ports and Flash.

11-07. Load Default

Resets all configuration settings to default.

11-08. Copy HPA

Enables copy functions to duplicate the source drive's Host Protected Area. Normally this area is defined as not available to a host controller as defined by ATA/SATA specifications.

11-09. Burn In

Runs a function continuously until aborted. Selections are Copy & Compare, Compare, Async Cpy & Cmp, Async Compare.
