USER MANUAL 34445 MooreCo

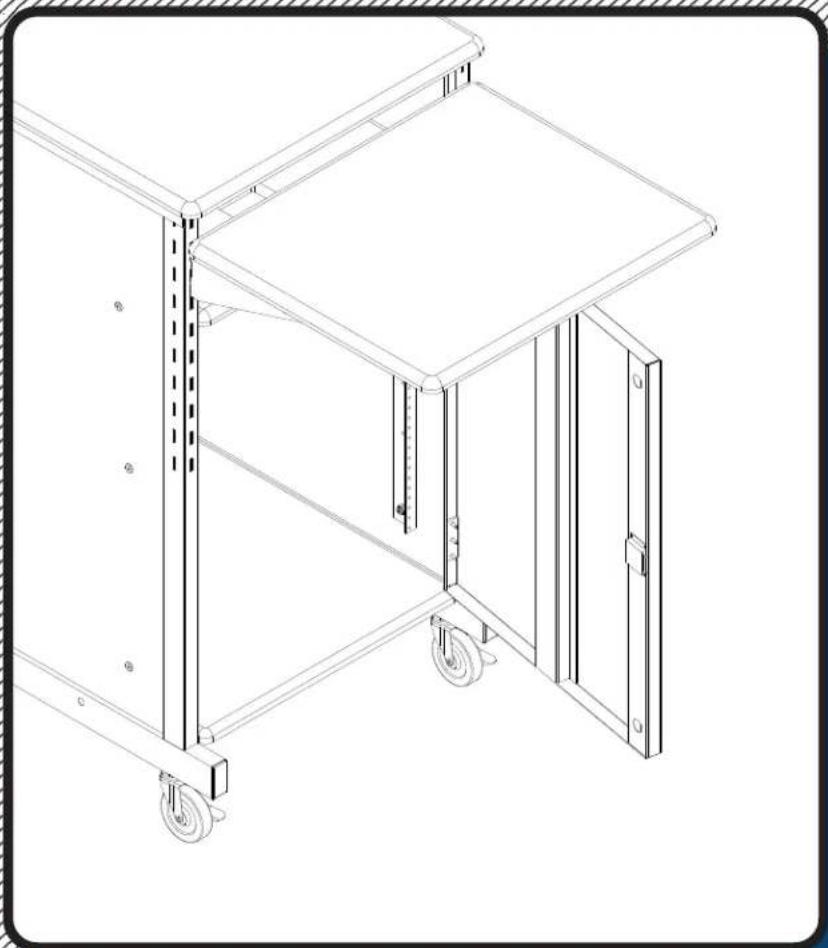

#34445 Optional Door/Rack Xtra-Wide Presentation Cart

Technical line drawing of a mechanical cart with wheels and doors, no text or symbols present

Assembly Instructions

Part Drawing Description Qty				Part Drawing Description Qty
P-1 Me				Hardware ListA M6X12mm Socket Screw 4 EA
P-2		2 EA		B M4X10mm Csink Screw 12 EA
P-3		1 EA		C Sheet Metal Screw 4 EA(For Lock)
P-4		1 EA		D Look Nut M6 4 EA
P-5		2 EA		E Allen Wrench 1 EA
				F Key 2 EA
				G Wrench 1 EA

READ THROUGH INSTRUCTIONS FROM

BEGINNING TO END BEFORE STARTING TO ASSEMBLE UNIT.

1.) Identify and Separate all the Parts and Hardware.

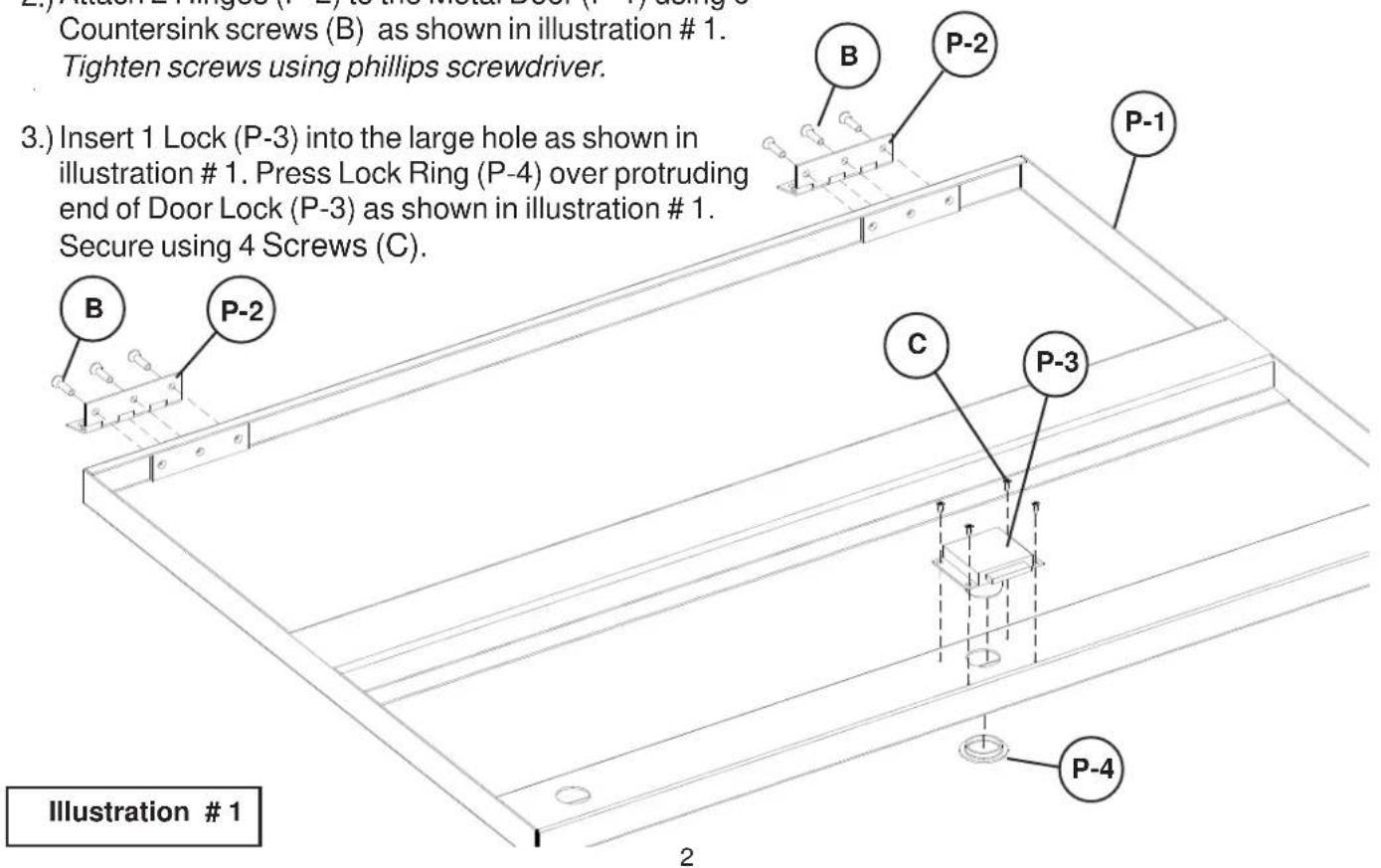

2.) Attach 2 Hinges (P-2) to the Metal Door (P-1) using 6 Countersink screws (B) as shown in illustration # 1. Tighten screws using phillips screwdriver.
3.) Insert 1 Lock (P-3) into the large hole as shown in illustration # 1. Press Lock Ring (P-4) over protruding end of Door Lock (P-3) as shown in illustration # 1. Secure using 4 Screws (C).

2.) Attach 2.1 rings (P-2) to the Imetar Door (P-4) using 6. Countersink screws (B) as shown in illustration # 1. Tighten screws using phillips screwdriver. 3.) Insert 1 Lock (P-3) into the large hole as shown in illustration # 1. Press Lock Ring (P-4) over protruding end of Door Lock (P-3) as shown in illustration # 1. Secure using 4 Screws (C). Illustration # 1 B P-2 B P-2 P-1 C P-3 P-4 2

4.) Attach 2 Rack Rails (P-5) to the Left and Right Leg Assembly of Xtra-wide Presentation Cart #27517 using 4 screws (A) and 4 Locknuts (D) as shown in illustration #3.

Tighten screws using Allen Wrench (E) and Wrench (G).

27517 Left Leg

27517 Right Leg

D

P-5

D

Illustration # 2

A

5.) Attach Metal Door (P-1) to the Right Leg (P-2) of Xtra-Wide Presentation Cart #27517 using 6 screws (B) as shown in illustration #3.

Illustration # 3

P-5 P-1 B P-2 Illustra

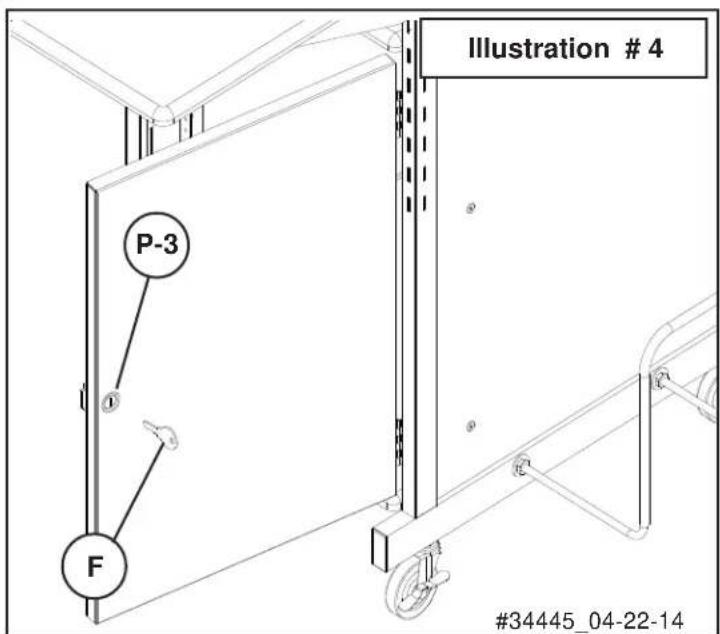

6.) Lock Door using Key (F) as shown in illustration # 4.

P-3 F #34445_04-22-14 Illustration # 4
