CATALOG

User's required reading 22

The operating common knowledge 22

The product's features 23

Security characteristics 23

Technical parameters 24

Product structure 24

Assembling instructions.... 25

Pipe connections 25

Cautions items 25

Operating instructions 27

Operating guides 28

Daily and common maintenances 28

Electricity diagram 28

Trouble causes & trating methods 29

Packing list.... 29

• Jocel won't load any responsibilities to this electric water heater's inappropriate installation.
• Before installing and using the electrical water heater, please carefully read the entire instructions. If not following the required methods in this instruction brochure to make installations or use it, it may cause the severe hazard accidents and the property losses.
• Before opening the electrical water heater's any covered decks or doing some cleaning and mending to the electrical water heater, please make try to pull away the power-source plug first.

• Before operating it each time, you must make sure the electrical water heater is filled with water first. After that, you can put through the power source.
• When no tap water provides, you mustn't use the water in the tank of electrical water heater.
• For the cold and frozen regions in winter, when not using it for a longer period of time, you should make the water in the tank of electrical water heater empty.
  The emptiness-making method refers to "Security Characteristics" in this instructions brochure.
• When the electrical water-heater is in normal work, the pressure-leakage mouth of the security valve may exist the water drops to drip out. This belongs to the normal conditions. Take care not to block this pressure - leakage mouth.
  You can use the plastic pipes to lead flowing. However, you must keep it through with atmosphere.
• The power-source outlet must have the reliable ground connections for the use.
• Double-level Temperature-limiting Protection Switch: This electric water heater possesses one required artificial position-resetting double-level temperature-limiting protection switch. Enabling to automatically cut off the power sources when the electrical water heater is over-heat by the accidents or the water temperature is too-high. Guaranteeing the two poles are cut off. That ensures to be safe.

- The Position-resetting Methods of the Double-Position Temperature-limiting Device:

I) Pull down the power-source plug
2) Make the plastic lid on the right side of the electrical water-heater to be opened with tools.
3) Press down the white-color position resetting button on the two-positional temperature limiter.
4) Close the plastic cover.
5) Slightly reduce the temperature-setting value.
6) Reinsert the plug of the power source and put through the power source.

• If the above-mentioned operations still can't let the whole unit put through the power and work normally, which indicates the water temperature in the tank is still over-high. Please open the water exiting valve and pour out the heat water for several minutes, then repeat the above mentioned procedures after waiting the water temperature reduces.
• In order to ensure the efficiencies of electricity-leakage protection function, you can press the testing button once every week. At this time, the position- resetting button will kip up. Then make the position-recovery button press down, it will immediately resume the normal operations.

THE PRODUCT'S FEATURES

• Unique Profile: Fashionable personalized design, leading the market's new tide.
• Inner tank protection by Blue/Ultra diamond Enamel Coating & Magnesium Anode. More advanced with high efficiencies & longer longevity.
• High efficiencies energy saving & temperature maintaining heat isolation layer: Adopting the thickened non-fluorine amine-gathering resin whole body's bubble-making heater isolation layers, good temperature-keeping performance. Reducing the heat loss with the maximum degrees. Under the electricity cutting off and temperature keeping conditions, still exiting efficiencies the hot water for provisions within 48 hours.
  Three-band power selection: 1000W /200OW/3000W.

SECURITY CHARACTERISTICS

• Security Valve: This electrical water heater fits a mono-directional security valve. It must be installed at the water entering hole sector of this unit of the electrical water heater. When the tank's pressure is over 0.8 MPa, this valve will automatically leak the pressure. It may exist the water drops to fail down at the pressure leakage mouth sector. In any conditions, this pressure leakage mouth must not be blocked. You must keep it anti-through with the atmosphere. (Diagram 1)
  Note: For the interior-ventilating styled security valve, its pressure leakage exit sector may not exits the water drops to drip down. Otherwise, during the heating procedure, the water-entering pipe's outer cover under the safety valve may have a certain temperature. This belongs to the normal conditions. This indicates that it is internally-draining the leakage pressure.
• If need to make the tank empty, first close the water-entering valve door, open the water-exiting valve door. Then tear down the fixed screw nails on the security valve with tools. Make the plastic handle lift up; let the water in the tank naturally flow out. (Diagram 2).

Fixed Screw Nail 0.8MPa Pressure-leakage Mouth

Diagram 1

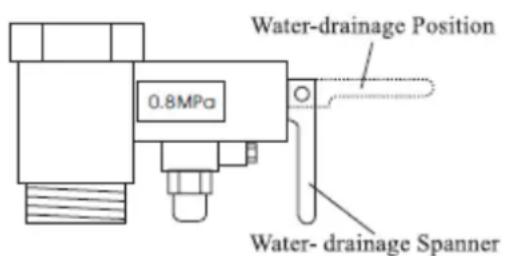

Water-drainage Position 0.8MPa Water- drainage Spanner

Diagram 2

Rated voltage	220V~	Rated power	1000W/2000W/3000W
Rated frequency	50Hz	Rated current	4.5A/9.09A/13.6A
Rated pressure	0.8 Mpa	Rated Volume	60L, 80L, 100L
Rated water temperature	75°C	Heating efficiency	>90%
Water-proof degree	IPX4	Structure mode	Hermetically closed typed water storage style
Fitted socket	250V~, 16A	Fixing mode	Vertically hanging type

PRODUCT STRUCTURE

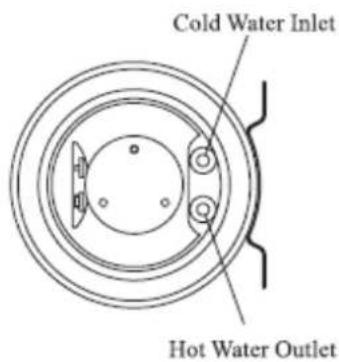

Cold Water Inlet Hot Water Outlet

Diagram 3

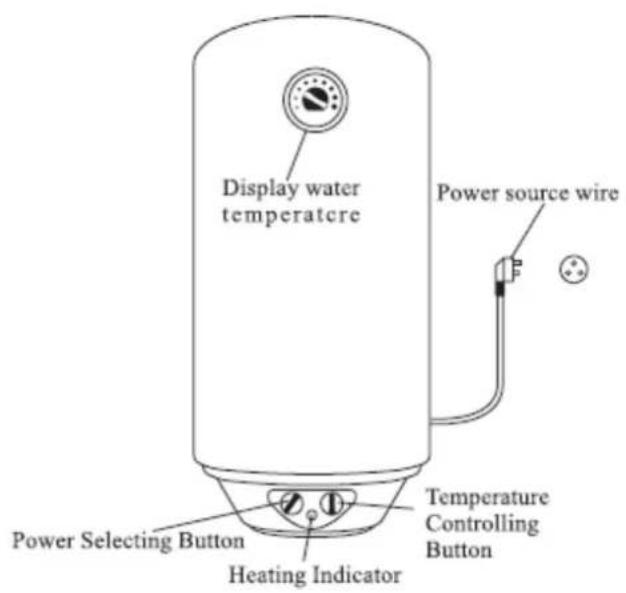

Display water temperature Power source wire Power Selecting Button Heating Indicator Temperature Controlling Button

Diagram 4

- This electrical water heater should be mounted on the solid cement walls.

Furthermore, the places where are close to the power source's sockets and conveniently use the water.

Cautions: Please try to use our cornpany's fitted accessories to mount this electrical water heater. After confirming the brackets to be firmly fixed for the reliabilities, then you can hang on this electrical water heater. Otherwise, the electrical water heater may fall down from the walls, and cause the severe damaging accidents.

- Before determining the bolt hole's position, you should guarantee the right side of the electrical water heater to be more than 200mm away the ground. This will be convenient to leave out a certain space to maintain when it is necessary.

- Assembling Method: After selecting the proper positions well, use the fitted inflation bolts to fix the hanging firm Cement Wall board firmly, and then hang on the

Firm cement wall Inflation Bolt

Diagram 5

PIPE CONNECTIONS

• Ali the pipe parts are G 1/2". Wind a certain raw material tape at the water-entering mouth sector of the electrical water heater (Blue Sign Identification). Then re-install the mono-directional security valve well.
• The remaining pipe's connection method can be referred to NO.7 figure (Diagram 6).
• If the user wants to offer the water by poly-routes, then you can refer to the No. 8 figure for connecting the pipes (Diagram 7).

CAUTIONS

• The installed walls must be solid; the inflation bolts must be tau tly spun. And install it firmly. Mustn't loosen and prohibit to mount it in the heart-emptied bricks or the brick crevices.
• The power source's socket must be adopted the super-quality nono-plastic tri-pole one .which complies with the state's gangs, and it must be fitted the qualified ground wire, which must be installed at the properly high positions K and the uneasily water-showered damp places. This outlet had better be typically used for the electrical water heater (Diagram 8).
• When it is in the initiative operation, you must make the tank totally fill with water, after that, you can put through the power sources.

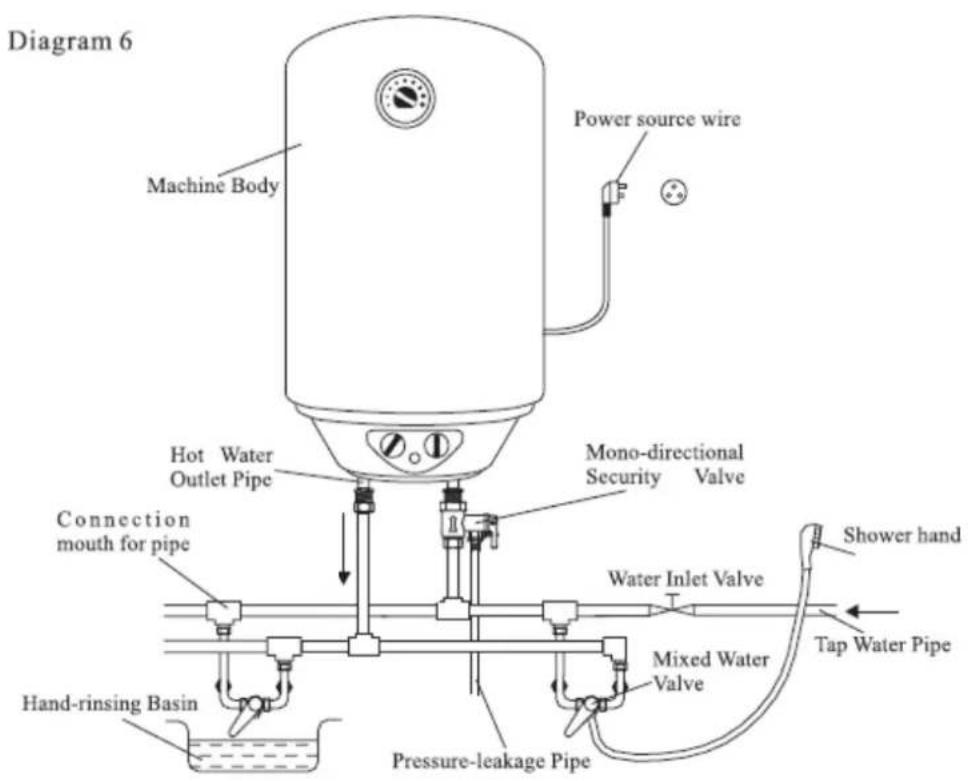

Diagram 6 Machine Body Power source wire Hot Water Outlet Pipe Mono-directional Security Valve Connection mouth for pipe Water Inlet Valve Shower hand Mixed Water Valve Tap Water Pipe Hand-rinsing Basin Pressure-leakage Pipe

Diagram 7

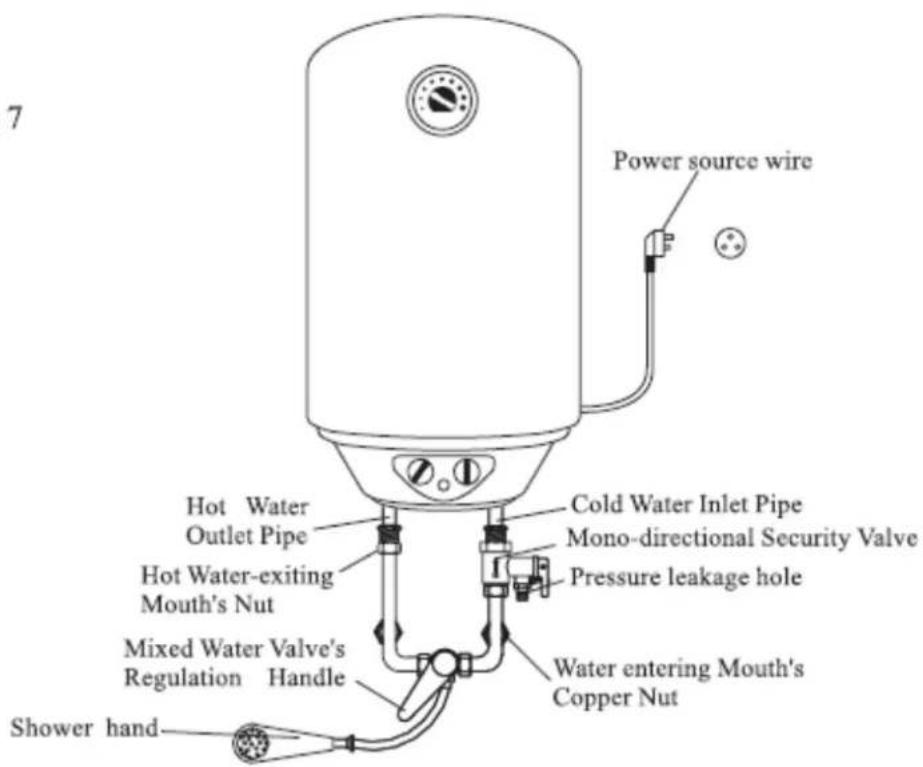

Power source wire Hot Water Outlet Pipe Cold Water Inlet Pipe Mono-directional Security Valve Pressure leakage hole Hot Water-exiting Mouth's Nut Mixed Water Valve's Regulation Handle Water entering Mouth's Copper Nut Shower hand

- Water Entering: After fixing ali the pipes, then make the cold and heat water-blending valve rotate to the high temperature sector according to the clockwise direction. And reopen the old water pipe's water entering valve. At this time, the electrical water heater's tank will start to enter the water. Waiting that the shower sector of the water exiting mouth is in normal condition, which indicates that the tank has full filled with water.

Cautions: During the electrical water heater is in the normal operating procedures, the water-entering valve of the cold water pipe's mouth-entering sector must be in the open condition from the

Simple line drawing of a pole with a hanging rod and a suspended electrical component (no text or symbols)

Diagram 8

beginning to the end. At this time, the water-entering valve can still make the functions of regulating the water-existing mouth section's flowing strength and weakness. However, the cold and hot mixed water valve can only regulate the water temperatures and make the function of closing the water exiting.

• Putting through the power: After confirming the tank to be fully filled the water, you can make the power source's plug into the outlet and put through the power sources.
• Hot water operations: After the electrical water heater normally works and the heats for a long period of time, you can use the hot water in the tank, you need to make the cold and hot mixed valve rotate with the clockwise direction slow fly from the low temperature to the high temperatures in the closed condition. And adjust it to your proper temperature. At that time, the shower mouth can come out the hot water. After finishing the uses, you can turn it to the closed section by the anti-clockwise direction and shut off the mixed water valve.

Cautions: When adjusting the water temperature of the water-exiting mouth, you don't make the shower directly to the human body; you should test the water temperature first to avoid burning to damages.

• Overheating Protections: Under the condition of putting through the power, but the heating pipe won't heat from the beginning to the end. That means the two power-selecting switches will be in the putting through position. At this time, it may appear the overheat protections (that is to make functions by the double-positional temperature-limiting protection switch).
• Automatically balance the temperatures: When the water temperature in the tank reaches the set one, it will automatically cut off the power and halt heating. Meanwhile, the heating indicator will put out. The electrical water heater will be in the temperature-maintaining condition. When the water temperature in the tank reduces to a certain one, it will automatically begin to heat. After reaching the temperature, it will automatically cut off the power and be in the temperature-keeping condition. It will circulate to automatically work like these.
• Notes: If the power wire damaged, it must be changed by professional man from the manufacturer or maintenance center.

- Temperature setting: According to your required temperature, rotate the temperature-adjusting knob by the clockwise direction. You can select to use the heating temperatures without grades in the temperature ranges of twenty to seventy-five degrees Celsius from closing to the low, medium and high bands or from low to high.

- Power selecting: This unit is set three-band power offering your selections. 1000W, 2000W, 3000W.

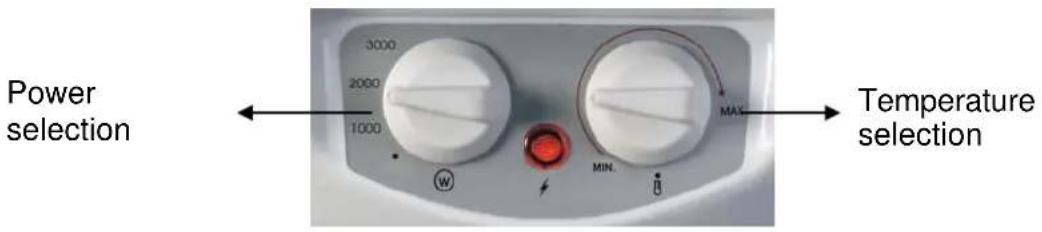

Power selection 3000 2000 1000 W MIN. MAX Temperature selection

DAILY AND COMMON MAINTENANCES

• Frequently checking the connection of power source's plug and the outlet is in good condition. Reliable, whether heating. The plug's outlet is well connected the ground or not.
• When it isn't in the operation for a long period of time, typically in the low temperature zones and avoiding the water freezing in the tank, which will cause the cracks of tank. After finishing use each time, you should make the water in the tank pour out.
• In order to assure the electrical water heater to work with high efficiencies, you'd better clean the heating parts once each year. Remove the water dirt's deposits accumulated on the electrical heating parts and the tank's base (shorten the clean period if the water quality is bad).

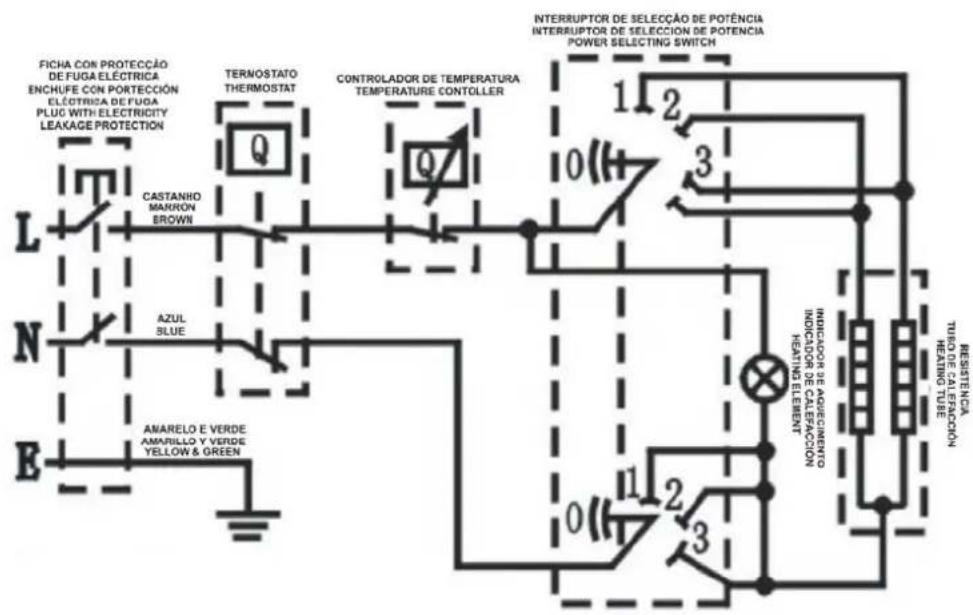

ELECTRICITY DIAGRAM

No notice to any change of the diagram.

PROBLEM	CAUSES	RESOLUTION
The failure of indicator lighting	1. The power-source plug no power or bad contacts.	Inspect whether it exist the power
	2. The interior wire materials damage.	Contact the Technical Assistance
	3. Indicador damage.
	4. The overheating protector making functions.
Low water-exiting temperature	1. Dificient heating time	Await the heating time
	2.The mixed water valve's temperature adjustment is over low.	Adjust the mixed water exiting temperature to be high
	3. Temperature-controller mal-function	Call Technical Assistance
	4. The heating tube damage
No water coming out at the hot water mouth	1. Halting the tap water	Awaiting the tap water to provide the water
	2. Too low tap water pressure	When awaiting the water pressure to raise high, re-use it.
	3. The mixed water valve damage	Change it
Water leakage	1. The various pipe mouth's connection positions are not hermetically sealed.	Hermetically seal the connection mouth well
	3. The tank leaks the water	Hire the professional member to check and amend it.

PACKING LIST

N.°	NAME	Unit (Piece)
1	Electric water heater	1
2	Instruction Manual	1
3	Inflation bolt	2
4	Security valve	1

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc..
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. With the modification or disappearance of the nameplate of the appliance.
2. Exceeded the period of 2 years for home appliances and 06 months for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt
