Product Type	Canister Vacuum Cleaner
Brand	Sanyo
Model	SC-184R
Dimensions (L x W x H)	Approx. 40 x 25 x 30 cm
Weight	Approx. 5 kg
Power Consumption	1600 W
Voltage	220-240 V, 50/60 Hz
Cord Length	Approx. 5 m
Dust Capacity	2 L (bag or container)
Filtration System	HEPA filter
Noise Level	Approx. 75 dB
Attachments Included	Crevice tool, brush, upholstery nozzle
Vacuum Type	Dry vacuum
Bag Type	Disposable dust bag (or bagless)
Maintenance	Clean or replace filter regularly; empty dust bag when full
Safety Features	Thermal overload protection; do not vacuum liquids
Repairability	Spare parts available (filters, bags, brushes)
Certification	CE, RoHS

Frequently Asked Questions - SC-184R SANYO

How do I change the dust bag on the Sanyo SC-184R?

Open the front cover of the canister. Remove the full bag by pulling it out. Insert a new bag, ensuring it clicks into place. Close the cover securely.

Why is my vacuum cleaner losing suction?

Check if the dust bag is full or the filter is clogged. Also inspect the hose for blockages. Clean or replace the filter as needed.

Can I use the SC-184R to vacuum liquids?

No, this model is designed for dry vacuuming only. Using it on liquids can damage the motor and void warranty.

How often should I clean the HEPA filter?

It is recommended to clean the HEPA filter every 3-6 months, or more frequently if used heavily. Replace it annually.

What attachments come with the Sanyo SC-184R?

The vacuum typically includes a crevice tool for tight spaces, a dusting brush for furniture, and an upholstery nozzle.

The vacuum cleaner turns off suddenly. What should I do?

The thermal overload protection may have activated. Turn off and unplug the vacuum. Let it cool for 30 minutes before restarting. Check for blockages.

How do I replace the belt on the brush roll?

Disconnect the hose from the canister. Remove the brush cover on the floor nozzle. Take out the old belt and install a new one, ensuring it fits snugly around the brush and motor shaft.

Is the Sanyo SC-184R bagless or does it use bags?

Depending on the variant, it may use disposable dust bags. Check your manual. If bagged, replace when the indicator shows full.

Where can I find spare parts for this model?

Spare parts are available online through Sanyo authorized dealers or third-party retailers. Typical parts include filters, bags, belts, and nozzles.

Can I wash the HEPA filter?

It depends on the filter type. Some HEPA filters are washable; others are not. If washable, rinse under cold water and air dry completely before reinserting. Never use soap.

USER MANUAL SC-184R SANYO

Vacuum Cleaner Instruction Manual

Model: SC184R

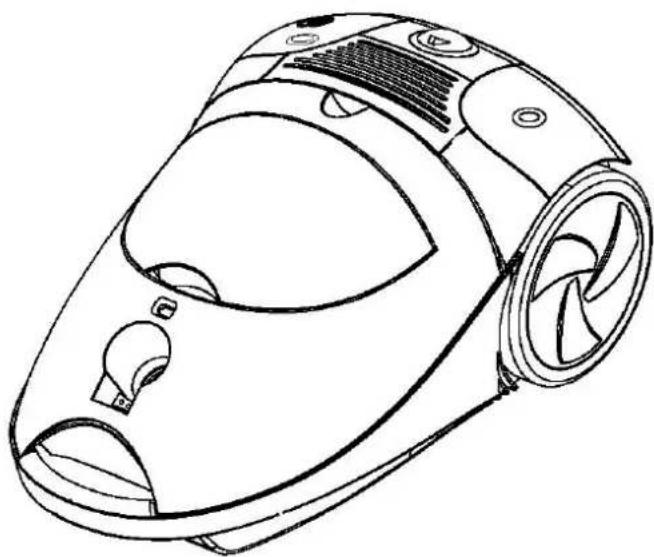

Line drawing of a vacuum cleaner head with fan and ventilation slots (no text or symbols)

Please Read The Instruction Manual Carefully Before Use Save these instructions

CONTENT

Important Safeguards....1

Parts name and operation instruction....2

Dustbag....4

Maintenance of the filter....5

Technical Specification....6

Important safeguards

When using an electrical appliance, basic precautions should always be followed, including the following.

READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER

WARNING – to reduce the risk of fire, electric shock or injury:

1. Do not leave the vacuum cleaner when plugged in. Unplug it from the outlet when not in use and before servicing.
2. Do not use outdoors or on wet surfaces.
3. Do not allow it to be used as a toy. Close attention is necessary when used by or near children or infirmed persons.
4. Use only as described in this manual. Use only the manufacture's recommended attachments.
5. Do not use with a damaged cord or plug. If the vacuum cleaner is not working as it should, or if it has been dropped, damaged, left outdoors or dropped into water, return it to a service centre.
6. Do not pull or carry by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Do not run the vacuum cleaner over the cord. Keep the cord away from heated surfaces.
7. Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
8. Do not handle the plug or the vacuum cleaner with wet hands.
9. Do not put objects into the openings. Do not use with any openings blocked: keep free of dust, lint, hair and anything that may reduce air flow.
10. Keep hair, loose clothing, fingers and all the parts of your body away from openings and moving parts.
11. Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
12. Do not use without dust compartment and/or filters in place.
13. Turn off all controls before unplugging.
14. Use extra care when cleaning on stairs.
15. Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas where they may be present.
16. Do not place any heavy items on top of the vacuum cleaner.
17. Do not step on the hose or pull it too strongly.
18. Do not pick up items such as pieces of waste paper or cloth which look as though they may cause the hose to become blocked.
19. Do not clean or store the vacuum cleaner in places where there are high temperatures.
20. Store the vacuum cleaner away from excessive humidity.
21. When carrying the vacuum cleaner, hold it by the carrying handle.
22. Before servicing the vacuum cleaner, allow all metal parts to cool first.
23. If the supply cord of this appliance is damaged, it must only be replaced by a service centre appointed by the manufacturer, because special purpose tools are required.

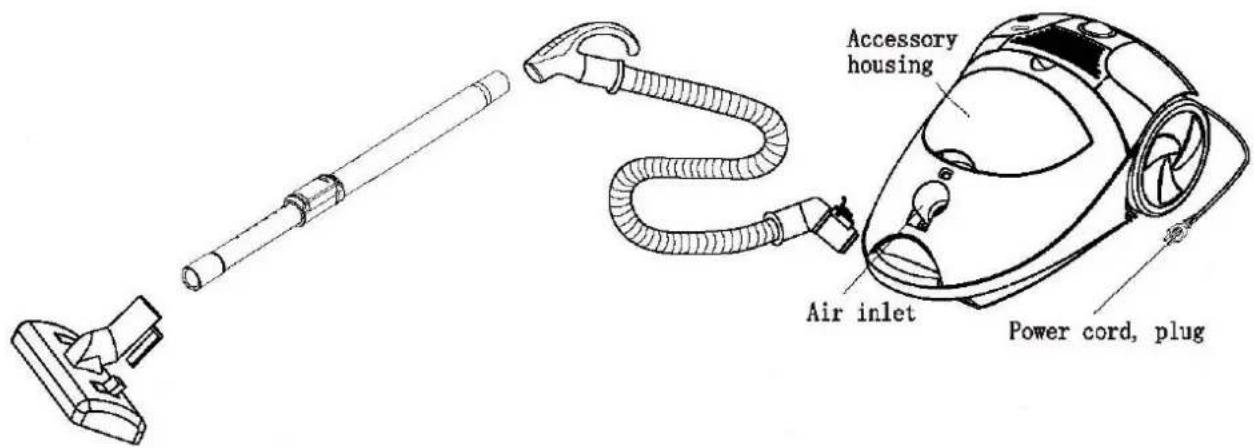

Parts name and how to use:

Accessory housing

Used for storing accessories like the crevice tool, upholstery brush.

Crevice tool

Used for cleaning gaps, corners, weatherboarding and between cushions.

Upholstery brush

Used for cleaning sofa, curtain or dust on the decorating surfaces.

Speed controller

You may switch ON/OFF the appliance and adjust the suction power steplessly by sliding the knob along the speed controller.

Connection between hose and cleaner body

Push the hose connector's flange into the air inlet of the appliance firmly until it is locked by the hose connector's button. When disconnecting the hose, press the hose connector button and pull the hose out.

Power cord winding

Please take care when retracting the cord. Pull the plug out of the socket, hold the plug and press the cord winder knob.

Dust indicator

When the dust indicator turns red, it maybe caused by:

A: air is blocked, you should check the appliance; B: the dustbag is full, you should replace the paper dustbag or empty the cloth dustbag.

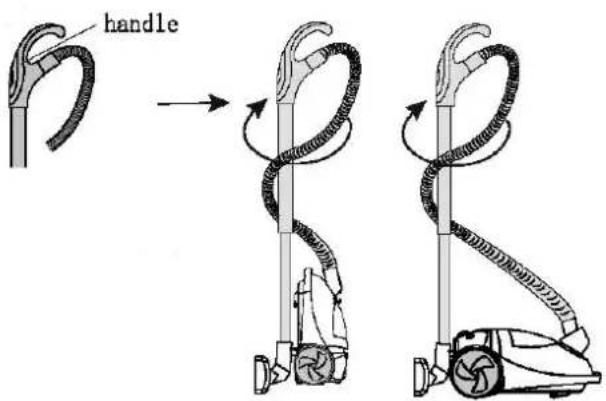

Storage:

Hold the handgrip and rotate it clockwise to wrap the hose around the hard tube.

Put the brush holder into the upper hole of the main body.

Button-push type extension tube. Push the button as in the drawing indicated. Move the inner tube to get the length you need, release the button.

Rotation type extension tube. Loosen the tube clamp and extend the tube to the required length retighten the tube clamp

Diagram showing a mechanical assembly with two components and a hand holding a curved tool (no text or symbols)

When connecting please rotate them so that they can fit tightly together.

Mechanical assembly diagram showing a tool interacting with a cylindrical component (no text or symbols)

Carpet-floor nozzle

When connection please rotate them so that they can fit tightly together.

Dustbag

1. Never use the appliance without dustbag.
2. Replace the dustbag once it is damaged.
3. Clean cloth dustbag termly to assure long life.

4. Switch the appliance OFF before replace dust bag.

5. Press the clamp and open the front cover.

Line drawing of a hand using a vacuum cleaner to clean the engine compartment (no text or symbols)

1. Remove dustbag holder together with dustbag.

Line drawing of a car engine bay with hands operating it (no text or symbols)

1. Close the cover.

2. When you use: A. Paper dustbag: replace it with a new one. B. Cloth dustbag: pull out the plastic clip, empty dust and put it back.

Diagram of a robotic car with open lid and internal components, showing motion direction (no text or symbols)

Note: It is impossible to close the cover when no dustbag inserted.

Maintenance of the filter

1. Clean the filter more than two times one year. It shall be cleaned when visible dust appears.
2. Switch the appliance OFF and pull out the plug from the socket before replacing the filter.

Front filter

1. Open the front cover, pull out the front filter.

Diagram of a hand inserting a card into a device inside a container, with an upward arrow indicating action (no text or symbols present)

1. Clean it with clean water, dry it in the sun.

1. Put it back after the filter is completely dry.

Rear filter

1. Open the rear cover, pull out the rear filter.

Hand holding a car tire with an upward arrow indicating motion (no text or symbols)

1. Clean it with clean water, dry it in the sun.

1. Put it back after the filter is completely dry.

Hand holding a car with a downward arrow indicating motion (no text or symbols)

Caution:

1. Never use this appliance without filter.
2. Never clean the filter with washing machine, never dry it with hair dryer

Technical Specification

Model number SC184R
Suction Power 24kPa
Noise =< 78dB(A)
Voltage AC230-240V~50Hz
Max Power 1800W
Power Control On Handgrip
Dustbag Capacity 5L
