Product Type Canister Vacuum Cleaner
Brand Sanyo
Model SC-B551
Power Consumption 1200 W
Dust Capacity 5 L
Filtration System HEPA filter
Dimensions (L x W x H) 40 x 30 x 25 cm
Weight 5.5 kg
Cord Length 6 m
Noise Level 75 dB
Vacuum Type Bagged
Power Supply 220-240 V, 50/60 Hz
Hose Length 1.8 m
Accessories Included Crevice tool, dusting brush, upholstery nozzle
Filter Cleaning Washable HEPA filter
Dust Bag Replacement Recommended every 3 months
Safety Features Thermal overload protection, automatic cord rewinder
Repairability Replaceable motor, filters, and hose
Warranty 2 years

Frequently Asked Questions - SC-B551 SANYO

How often should I replace the dust bag?
Replace the dust bag every 3 months or when the bag full indicator shows it is full. Using a full bag reduces suction power.
Can I wash the HEPA filter?
Yes, the HEPA filter is washable. Rinse it under lukewarm water and let it dry completely for 24 hours before reinstalling. Do not use detergent.
What should I do if the vacuum loses suction?
Check if the dust bag is full, the filter is clogged, or there is a blockage in the hose. Clean or replace as needed. Also ensure the hose is securely attached.
How do I clean the brush roll?
Turn off and unplug the vacuum. Remove the brush roll cover and clean any hair or debris wrapped around the brush using scissors or a seam ripper.
The vacuum suddenly stopped working. What could be the cause?
It may have overheated and triggered thermal protection. Turn it off and unplug it for 30 minutes to cool down. Also check the power cord and fuse.
Can I use the vacuum for wet pick-up?
No, this vacuum is designed for dry use only. Using it for wet pick-up can damage the motor and pose an electrical hazard.
How do I rewind the power cord?
Press the cord rewind button located on the vacuum body while guiding the cord back to avoid whipping. Ensure the plug is held while rewinding.
Where can I purchase replacement bags and filters?
Replacement bags and filters are available at major retailers or online. Use only genuine Sanyo parts to ensure proper fit and performance.
What is the noise level of this vacuum?
The Sanyo SC-B551 operates at approximately 75 dB, which is typical for a vacuum cleaner of this type.
How do I store the vacuum and accessories?
Wrap the cord around the cord hooks, attach the hose to the vacuum, and store accessories in the onboard accessory compartment. Keep in a dry place.

User questions about SC-B551 SANYO

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual SC-B551 - SANYO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SC-B551 by SANYO.

USER MANUAL SC-B551 SANYO

SC-B550/B555/B555T/B550R/B551

VACUUM CLEANER

المكنسة الكهربائية

SANYO SC-B551 - VACUUM CLEANER - 1

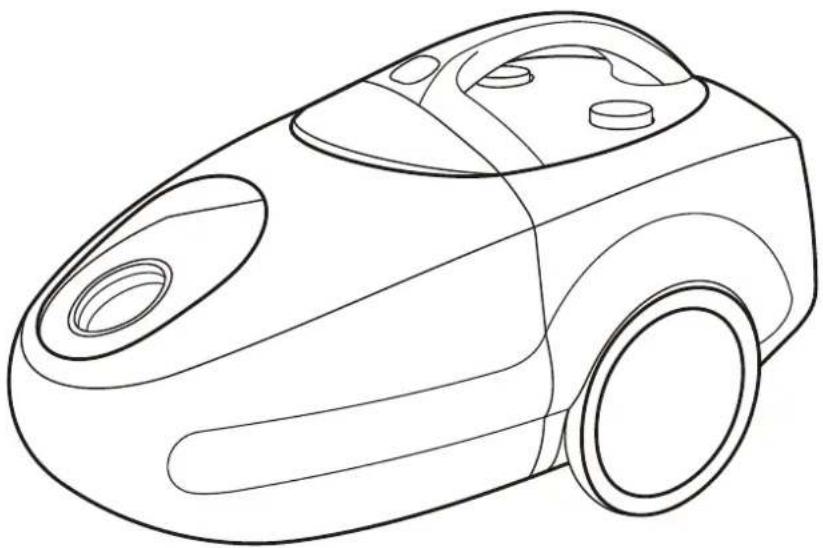

natural_image Line drawing of a vacuum cleaner (no text or symbols present)

NAME AND FUNCTION OF PARTS (Assemble as indicated in the center illustration.) / ( Uzbekistan, Kuwait)

Unkogizing the House • A few one was an elongated with dust, which is in the following section: • That had the air and place by running the narrow line, or in the direction of the air. • It was a very garden house to finish out the dust, running his home. • I was the gun, giving it to place and something to go to the ground position. • He was the house without the scattered path to show. If he has a used fire, there are two large pipes that have been increased in size. • The gun was called the gun, but it was not possible for all the people. • The gun was called the gun, but it was not possible for all the people. • The gun was called the gun, but it was not possible for all the people. • The gun was called the gun, but it was not possible for all the people. • The gun was called the gun, but it was not possible for all the people. • The gun was called the gun, but it was not possible for all the people. • The gun was called the gun, though it was not possible for all the people. • The gun was called the gun, but it was not possible for all the people. • The gun was called the gun, but it was not possible for all the people. • The gun was called the gun, but it was not possible for all the people. • The gun was called the gun, but it was not possible for all the people. • The gun was called the gun, but it was not possible for all the people. - The gun was called the gun, but it was not possible for all the people. - The gun was called the gun, but it was not possible for all the people. - The gun was called the gun, but it was not possible for all the people. - The gun was called the gun, but it was not possible for all the people. - The gun was called the gun, but it was not possible for all the people. - The gun was called the gun, but it is not possible for all the people. - The gun was called the gun, but it is not possible for all the people. - The gun was called the gun, but it is not possible for all the people. - The gun was called the gun, but it is not possible for all the people. - The gun was called the gun, but it is not possible for all the people. - The gun was called the gun, but it is not possible for all the people. - The Gun is called the Gun, but it is not possible for all the people. - The Gun is called the Gun, but it is not possible for all the people. - The Gun is called the Gun, but it is not possible for all the people. - The Gun is called the Gun, but it is not possible for all the people. - The Gun is called the Gun, but it is not possible for all the people. - The Gun is called the Gun, but it is not possible for all the person. - The Gun is called the Gun, but it is not possible for all the person. - The Gun is called the Gun, but it is not possible for all the person. - The Gun is called the Gun, but it is not possible for all the person. - The Gun is called the Gun, but it is not possible for all the person. - The Gun is called the Gun, but it is not possible for all the person. - The Gun is called the Gun, and it is not possible for all the person. - The Gun is called the Gun, but it is not possible for all the person. - The Gun is called the Gun, but it is not possible for all the person. - The Gun is called the Gun, but it is not possible for all the person. - The Gun is called the Gun, but it is not possible for all the person. - The Gun is called the Gun, but it is not possible for all the person. The Gun is called the Gun, but it is not possible for all the person. The Gun is called the Gun, but it is not possible for all the person. The Gun is called the Gun, but it is not possible for all the person. The Gun is called the Gun, but it is not possible for all the person. The Gun is called the Gun, but it is not possible for all the person. The Gun is called the Gun, but it is not possible for all the other person. The Gun is called the Gun, but it is not possible for all the other person. The Gun is called the Gun, but it is not possible for all the other person. The Gun is called the Gun, but it is not possible for all other person. The Gun is called the Gun, but it is not possible for all other person. The Gun is called the Gun, but it is not possible for all other person. The Gun is called the Gun, but it is not possible for all other person. The Gun is called the Gun, but it is not possible for all other person. The Gun is called the Gun, but it is not possible for all other person. The Gun is called the Gun, but it is not visible on some of these other persons. The Gun is called the Gun, but it is not visible on some of these other persons. The Gun is called the Gun, but it is not visible on some of these other persons. The Gun is called the Gun, but it is not visible on some of these other persons. The Gun is called the Gun, but it is not visible on some of these other persons. The Gun is called the Gun, but it is not visible on some of these other persons. The Gun is labeled as 'the' (with a label) and 'the' (without a label).

00-8557 only / SC-BOBS العربية TURBO COLD • Changes the control from securing the other way you want to receive an agree. • The TURBO COLD may be a key space, the the area is not equal to the main line of the main line. It is a certain that the control is required to be the main line of the main line. • The TURBO COLD may be a key space, it is a certain that the control is required to be the main line of the main line. △Coven: • The control is not necessary to the floor as the control has been to be 100 m². It is not necessary to the floor as the control has been to be 100 m². It is not necessary to the floor as the control has been to be 100 m². It is not necessary to the floor as the control has been to be 100 m². It is not necessary to the floor as the control has been to be 100 m². It is not necessary to the floor as the control has been

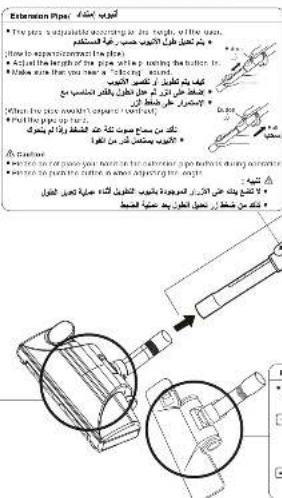

Extension Pipe • The pipe is unavailable according to its height, of the walls. • Be a tight tip of the walls should be set as an extension. How to expect improvement from the pipe. • Adjust the length of the pipe, with a point reaching the bottom. • Allow sure that you have a "string" or "roll" position. • If you need to take it up to the top of the walls. • Use the expansion area for the top of the walls. • Use the expansion area for the bottom of the walls. • Use the expansion area for the top of the walls. • Use the expansion area for the bottom of the walls. • Use the expansion area for the top of the walls. • Use the expansion area for the bottom of the walls. • Use the expansion area for the top of the walls. • Use the expansion area for the bottom of the walls. • Use the expansion area for the top of the walls. • Use the expansion area for the bottom of the walls.

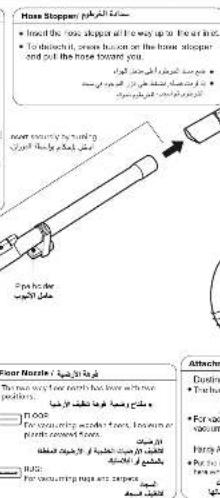

Horse Stopper • I used the rose stopper all the way up to the air inlet. • To dishevel, we see how can on the rose stopper and put the rose tomorrow. You more frequently using and use the house to use the house Fate closer melt the house Floor Nourze • Flurage (A laquida) The new way four months had been with two positions. • Flurage (A laquida) • For vacuuming when, I used some parts around them. • For vacuuming maps are zappes. Attaching: • For dusting • For dusting • For dusting • For dusting • For dusting • For dusting • For dusting • For dusting • For dusting • For dusting • For dusting • For dusting • For dusting • For dusting • For dusting • For dusting • For dusting • For dusting • For dusting • For dusting • For dusting

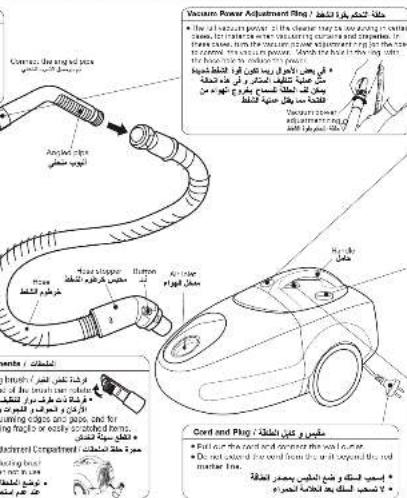

Vacuum Power Adjustment Ring / Airlock • The all vacuum power. Of the clearer way to be using a certain case, for example we can be measuring the current and compared. In this case, there is the vacuum power adjustment ring by the case to implement the vacuum power. They have been used to use the airbag. • For example, it is a type of airbag. It is a type of airbag. It is a type of airbag. It is a type of airbag. It is a type of airbag. It is a type of airbag. It is a type of airbag. It is a type of airbag. It is a type of airbag. It is a type of airbag. It is a type of airbag. It is a type of airbag. It is a type of airbag. It is a type off from the airbag. • Airbag's type is clearly labeled as 'airbag'. • Airbag's type is clearly labeled as 'airbag'. • Airbag's type is clearly labeled as 'airbag'. • Airbag's type is clearly labeled as 'airbag'. • Airbag's type is clearly labeled as 'airbag'. • Airbag's type is clearly labeled as 'airbag'. • Airbag's type is clearly labeled as 'airbag'. • Airbag's type is clearly labeled as 'airbag'. • Carload / Airbag / Airlock / Airbox / Airbox (with labels: Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, etc.). • Carload / Airbox / Airlock / Airbox / Airbox (with labels: Carload, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox, Airbox & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus & airbus • Carload / Carbox / Carbox / Carbox (with labels: Carload, Carbox, Carbox, Carbox, Carbox, Carbox, Carbox, Carbox, Carbox, Carbox, Carbox, Carbox, Carbox, Carbox, Carbox, Carbox, Carbox, Carbox, Carbox, Carbox, Carbox, Carbox) • Carload / Carbox / Carbox / Carbox (with labels: Carload, Carbox, Carbox, Carbox, Carbox, Carbox, Carbox, Carbox, Carbox, Carbox, Carbox) • Carload / Carbox / Carbox / Carbox (with labels: Carload, Carbox, Carbox, Carbox, Carbox, Carbox) • Carload / Carbox / Carbox / Carbox (with labels: Carload, Carbox, Carbox, Carbox) • Carload / Carbox / Carbox / Carbox (with labels: Carload, Carbox, Carbox) • Carload / Carbox / Carbox / Carbox (with labels: Carload, Carbox, Carbox) • Carload / Carbox / Carbox / Carbox (with labels: Carload, Carbox, Carbox) • Carload / Carbox / Carbox / Carbox (with labels: Carload, Carbox, Carbox) • Carload / Carbox / Carbox / Carbox (without label) • Carload / Carbox / Carbox / Carbox (without label) • Carload / Carbox / Carbox / Carbox (without label) • Carload / Carbox / Carbox / Carbox (without label) • Carload / Carbox / Carbox / Carbox (without label) • Carload / Carbox / Carbox / Carbox (without label) • Carload / Carbox / Carbox / Carbox - (without label) • Carload / Carbox / Carbox / Carbox - (without label) • Carload / Carbox / Carbox / Carbox - (without label) • Carload / Carbox / Carbox / Carbox - (without label) • Carload / Carbox / Carbox / Carbox - (without label) • Carload / Carbox / Carbox / Carbox - (without label) • Carload / Cars : 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

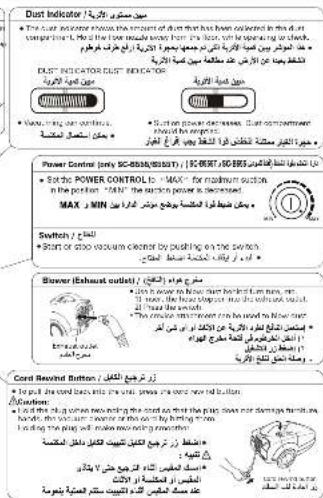

Dust Indicator / 14 The dust indicator has the amount of dust that has been collected in the air. The dust is a low level of noise from the air, and can be operating on a switch. • The dust is a low level of noise from the air, and can be operating on a switch. • The dust is a high level of noise from the air, and can be operating on a switch. DUST INDICATOR DIST INDICATOR • Power Control (only SC-8306/8357) / [DC-837] / [DC-835] • Power Control (only SC-8306/8357) / [DC-837] / [DC-835] • Power Control (only SC-8306/8357) / [DC-837] / [DC-835] • Power Control (only SC-8306/8357) / [DC-837] / [DC-835] Power Control (only SC-8306/8357) / [DC-837] / [DC-835] • Power Control (only SC-8306/8357) / [DC-837] / [DC-835] • Power Control (only SC-8306/8357) / [DC-837] / [DC-835] • Power Censor (only SC-8306/8357) / [DC-837] / [DC-835] • Power Censor (only SC-8306/8357) / [DC-837] / [DC-835] • Power Censor (only SC-8306/8357) / [DC-837] / [DC-835] • Max = MAX - for maximum suction in the position "MAX" the suction power is decreased. MAX = MIN - for maximum suction in the position "MAX" the suction power is decreased. Switch (1) Switch (2) Switch (3) Switch (4) Switch (5) Switch (6) Switch (7) Switch (8) Switch (9) Switch (10) Switch (11) Switch (12) Switch (13) Switch (14) Switch (15) Switch (16) Switch (17) Switch (18) Switch (19) Switch (20) Switch (21) Switch (22) Switch (23) Switch (24) Switch (25) Switch (26) Switch (27) Switch (28) Switch (29) Switch (30) Switch (31) Switch (32) Switch (33) Switch (34) Switch (35) Switch (36) Switch (37) Switch (38) Switch (39) Switch (40) Switch (41) Switch (42) Switch (43) Switch (44) Switch (45) Switch (46) Switch (47) Switch (48) Switch (49) Switch (50) Switch (51) Switch (52) Switch (53) Switch (54) Switch (55) Switch (56) Switch (57) Switch (58) Switch (59) Switch (60) Switch (61) Switch (62) Switch (63) Switch (64) Switch (65) Switch (66) Switch (67) Switch (68) Switch (69) Switch (70) Switch (71) Switch (72) Switch (73) Switch (74) Switch (75) Switch (76) Switch (77) Switch (78) Switch (79) Switch (80) Switch (81) Switch (82) Switch (83) Switch (84) Switch (85) Switch (86) Switch (87) Switch (88) Switch (89) Switch (90) Switch (91) Switch (92) Switch (93) Switch (94) Switch (95) Switch (96) Switch (97) Switch (98) Switch (99) Switch (100) • Power Control: 1 • Power Control: 2 • Power Control: 3 • Power Control: 4 • Power Control: 5 • Power Control: 6 • Power Control: 7 • Power Control: 8 • Power Control: 9 • Power Control: 10 • Power Control: 11 • Power Control: 12 • Power Control: 13 • Power Control: 14 • Power Control: 15 • Power Control: 16 • Power Control: 17 • Power Control: 18 • Power Control: 19 • Power Control: 20 • Power Control: 21 • Power Control: 22 • Power Control: 23 • Power Control: 24 • Power Control: 25 • Power Control: 26 • Power Control: 27 • Power Control: 28 • Power Control: 29 • Power Control: 30 • Power Control: 31 • Power Control: 32 • Power Control: 33 • Power Control: 34 • Power Control: 35 • Power Control: 36 • Power Control: 37 • Power Control: 38 • Power Control: 39 • Power Control: 40 • Power Control: 41 • Power Control: 42 • Power Control: 43 • Power Control: 44 • Power Control: 45 • Power Control: 46 • Power Control: 47 • Power Control: 48 • Power Control: 49 • Power Control: 50 • Power Control: 51 • Power Control: 52 • Power Control: 53 • Power Control: 54 • Power Control: 55 • Power Control: 56 • Power Control: 57 • Power Control: 58 • Power Control: 59 • Power Control: 60 • Power Control: 61 • Power Control: 62 • Power Control: 63 • Power Control: 64 • Power Control: 65 • Power Control: 66 • Power Control: 67 • Power Control: 68 • Power Control: 69 • Power Control: 70 • Power Control: 71 • Power Control: 72 • Power Control: 73 • Power Control: 74 • Power Control: 75 • Power Control: 76 • Power Control: 77 • Power Control: 78 • Power Control: 79 • Power Control: 80 • Power Control: 81 • Power Control: 82 • Power Control: 83 • Power Control: 84 • Power Control: 85 • Power Control: 86 • Power Control: 87 • Power Control: 88 • Power Control: 89 • Power Control: 90 • Power Control: 91 • Power Control: 92 • Power Control: 93 • Power Control: 94 • Power Control: 95 • Power Control: 96 • Power Control: 97 • Power Control: 98 • Power Control: 99 • Power Control: 100 Power Censor: 1. For the dust indicator, it is a low level of dust. 2. For the dust indicator, it is a high level of dust. 3. For the dust indicator, it is a low level of dust. 4. For the dust indicator, it is a high level of dust. 5. For the dust indicator, it is a low level of dust. 6. For the dust indicator, it is a high level of dust. 7. For the dust indicator, it is a low level of dust. 8. For the dust indicator, it is a high level of dust. 9. For the dust indicator, it is a low level of dust. 10. For the dust indicator, it is a high level of dust. 11. For the dust indicator, it is a low level of dust. 12. For the dust indicator, it is a high level of dust. 13. For the dust indicator, it is a low level of dust. 14. For the dust indicator, it is a high level of dust. 15. For the dust indicator, it is a low level of dust. 16. For the dust indicator, it is a high level of dust. 17. For the dust indicator, it is a low level of dust. 18. For the dust indicator, it is a high level of dust. 19. For the dust indicator, it is a low level of dust. 20. For the dust indicator, it is a high level of dust. 21. For the dust indicator, it is a low level of dust. 22. For the dust indicator, it is a high level of dust. 23. For the dust indicator, it is a low level of dust. 24. For the dust indicator, it is a high level of dust. 25. For the dust indicator, it is a low level of dust. 26. For the dust indicator, it is a high level of dust. 27. For the dust indicator, it is a low level of dust. 28. For the dust indicator, it is a high level of dust. 29. For the dust indicator, it is a low level of dust. 30. For the dust indicator, it is a high level of dust. 31. For the dust indicator, it is a low level of dust. 32. For the dust indicator, it is a high level of dust. 33. For the dust indicator, it is a low level of dust. 34. For the dust indicator, it is a high level of dust. 35. For the dust indicator, it is a low level of dust. 36. For the dust indicator, it is a high level of dust. 37. For the dust indicator, it is a low level of dust. 38. For the dust indicator, it is a high level of dust. 39. For the dust indicator, it is a low level of dust. 40. For the dust indicator, it is a high level of dust. 41. For the dust indicator, it is a low level of dust. 42. For the dust indicator, it is a high level of dust. 43. For the dust indicator, it is a low level of dust. 44. For the dust indicator, it is a high level of dust. 45. For the dust indicator, it is a low level of dust. 46. For the dust indicator, it is a high level of dust. 47. For the dust indicator, it is a low level of dust. 48. For the dust indicator, it is a high level of dust. 49. For the dust indicator, it is a low level of dust. 50. For the dust indicator, it is a high level of dust. 51. For the dust indicator, it is a low level of dust. 52. For the dust indicator, it is a high level of dust. 53. For the dust indicator, it is a low level of dust. 54. For the dust indicator, it is a high level of dust. 55. For the dust indicator, it is a low level of dust. 56. For the dust indicator, it is a high level of dust. 57. For the dust indicator, it is a low level of dust. 58. For the dust indicator, it is a high level of dust. 59. For the dust indicator, it is a low level of dust. 60. For the dust indicator, it is a high level of dust. 61. For the dust indicator, it is a low level of dust. 62. For the dust indicator, it is a high level of dust. 63. For the dust indicator, it is a low level of dust. 64. For the dust indicator, it is a high level of dust. 65. For the dust indicator, it is a low level of dust. 66. For the dust indicator, it is a high level of dust. 67. For the dust indicator, it is a low level of dust. 68. For the dust indicator, it is a high level of dust. 69. For the dust indicator, it is a low level of dust. 70. For the dust indicator, it is a high level of dust. 71. For the dust indicator, it is a low level of dust. 72. For the dust indicator, it is a high level of dust. 73. For the dust indicator, it is a low level of dust. 74. For the dust indicator, it is a high level of dust. 75. For the dust indicator, it is a low level of dust. 76. For the dust indicator, it is a high level of dust. 77. For the dust indicator, it is a low level of dust. 78. For the dust indicator, it is a high level of dust. 79. For the dust indicator, it is a low level of dust. 80. For the dust indicator, it is a high level of dust. 81. For the dust indicator, it is a low level of dust. 82. For the dust indicator, it is a high level of dust. 83. For the dust indicator, it is a low level of dust. 84. For the dust indicator, it is a high level of dust. 85. For the dust indicator, it is a low level of dust. 86. For the dust indicator, it is a high level of dust. 87. For the dust indicator, it is a low level of dust. 88. For the dust indicator, it is a high level of dust. 89. For the dust indicator, it is a low level of dust. 90. For the dust indicator, it is a high level of dust. 91. For the dust indicator, it is a low level of dust. 92. For the dust indicator, it is a high level of dust. 93. For the dust indicator, it is a low level of dust. 94. For the dust indicator, it is a high level of dust. 95. For the dust indicator, it is a low level of dust. 96. For the dust indicator, it is a high level of dust. 97. For the dust indicator, it is a low level of dust. 98. For the dust indicator, it is a high level of dust. 99. For the dust indicator, it is a low level of dust. 100.

  1. To remove the filter. Caution:

Remove the filter slowly to prevent the dust from falling out.

  1. Removing the dirt.

SANYO SC-B551 - VACUUM CLEANER - 8

Caution:

If the dust is packed tightly and difficult to remove, lightly tap the dust compartment.

  1. Slide the lever in the direction of the arrows to remove the dust by shaking.
  2. Hold the clamp to open up the pre-filter and empty the dirt out of the filter.

SANYO SC-B551 - Caution: - 1

SANYO SC-B551 - Caution: - 2

SANYO SC-B551 - Caution: - 3

  1. ينزع المرشح من مケース
natural_image Illustration of a hand using a tool to lift a textured object into a container (no text or symbols)

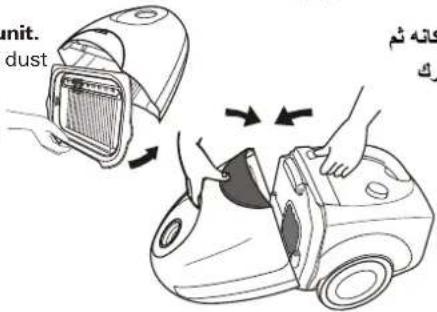

Insert the filter in the dust compartment. Then attach the dust compartment section to the motor section.

unit. dust كَانَهُ ثُم رَك

Thank you for your purchase of the Sanyo Vacuum Cleaner.

Please read these instructions carefully before using.

SANYO SC-B551 - Caution: - 5

A FEW PRECAUTIONS

  1. Operation without the dust compartment and/or filters in place will allow dust to enter the motor and could damage the vacuum cleaner.
  2. Keep the vacuum cleaner away from stoves and other heat sources. Heat can deform and discolor the plastic parts of the unit.
  3. Keep the vacuum cleaner free of insecticides. Do not wipe with benzine, thinner, petrol or other oils which might cause discoloration or cracking. To clean the body and hose, dampen a cloth with a mild detergent and wipe clean.
  4. Blocking the suction inlet or allowing the dust to clog the hose will decrease the efficiency of the motor.
  5. Be sure not to push the clamp button while carrying the vacuum cleaner.

  6. Never try to vacuum the following objects. They may damage the unit or cause a fire.
    * Wet things, mud, soil, and fluids
    * Burning cigarettes
    * Needles and razor blades
    * Inflammable materials such as gasoline and thinner
    * Construction rubbish

  7. The following kinds of treatment shorten hose life:

* Bending hose at an acute angle when storing
* Pulling the hose with excessive force
* Placing heavy objects on, or stepping on the hose

  1. Pull out the plug from the power source after use. Grasp the plug not the cord when pulling out the plug.

Pulling on the cord may lead to shortcircuiting.

  1. Long and continuous use causes the exhaust air and the body of the vacuum cleaner to become warm. This, however, does not denote malfunction.

  2. When vacuuming places that are very dusty, and also when vacuuming regularly, empty the dust compartment before it becomes completely filled.

Frequent emptying lengthens the life of the motor and maintains strong suction power.

  1. If the supply cord of this appliance is damaged, it must only be replaced by the manufacturer, its designated repair shop, or a professional, in order to avoid a hazard.

  2. Do not allow it to be used as a toy. Close attention is necessary when used by or near children or infirm persons.

  3. Unplug the appliance from outlet before cleaning or maintaining.

  4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

  5. Children should be supervised to ensure they do not play with the appliance.

  6. تشغيل المكنسة بدون حجرة الغبار أو المرشح يؤدى إلى تلف المكنسة نتيجة

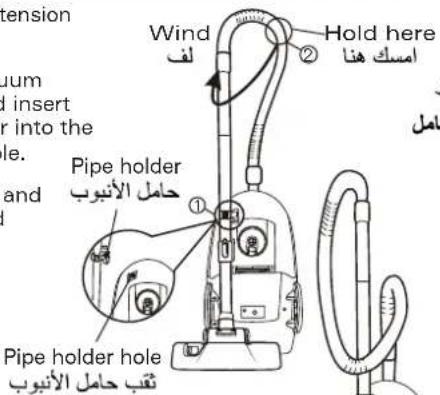

① Shorten the extension pipe.
② Stand the vacuum cleaner up and insert the pipe holder into the pipe-holder hole.
③Hold the hose and wind it around the pipe.

SANYO SC-B551 - A FEW PRECAUTIONS - 1

Do not carry the vacuum cleaner while it is in the storage position. (Injury or damage may result if the hose or coupling pipe becomes unattached.)

: تنيه △!

- When the suction power is low and the dust has been discarded, the filter still should be cleaned.

  1. Slide the lever in the direction of the arrows to remove the dust by shaking.

SANYO SC-B551 - A FEW PRECAUTIONS - 2

If you are concerned about dust on the filter:

  1. Wash the filter with water. If the dust is not easily removed, use a brush for removal.

SANYO SC-B551 - A FEW PRECAUTIONS - 3

Do not dry in direct sunlight or by heating, as the filter may become damage. Never put the filter into the vacuum cleaner unless it is completely dry.

SANYO SC-B551 - A FEW PRECAUTIONS - 4

※ To assure the best results, we recommend cleaning the filters once every one (1) year, depending on usage.

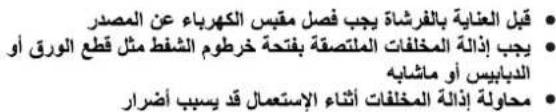

  • Before caring for the TURBO CLEAN™, be sure to turn OFF the switch of the unit and disconnect the plug from the outlet.
  • If needles, pins or waste paper get stuck in the suction inlet, remove them after going through the above procedure.
  • Trying to remove them during operation is dangerous.

SANYO SC-B551 - A FEW PRECAUTIONS - 5

- The Edge Grabber system is designed to help clean all the way up to the baseboards. The suction shutter is opened when the floor nozzle is pushed against the wall.

If you have a problem with your vacuum cleaner, consult the handy guide below. If the vacuum cleaner is malfunctioning, do not operate it. Contact your dealer or the nearest Sanyo Service Center.

ProblemPossible causePossible solution
(1) Cleaner won't run.1. Not firmly plugged in.2. No voltage in wall outlet.1. Plug unit in firmly.2. Check fuse or breaker.
(2) Suction does not increase after cleaning out the dirt.1. Filter dirty.2. Clogged floor nozzle or hose.1. Clean out the filter.2. Clean out floor nozzle or hose.
(3) Cord doesn't fully rewind.1. Cord twisted or uneven.1. Pull out cord and rewind.

العناية و الصيانة

عند مUAJEHE AÍI MEHAKL IYRJGE LIRJOGE ALÉI HAIA KETIBI Y OEDH HDUOHT AGOPTAL LA TESITMELE MKNESSE Y EITSPIL باقRB MRKZ PSYANTE LIDIK MOCTM DEI MSANIO
