USER MANUAL WeMove Discovery NGM

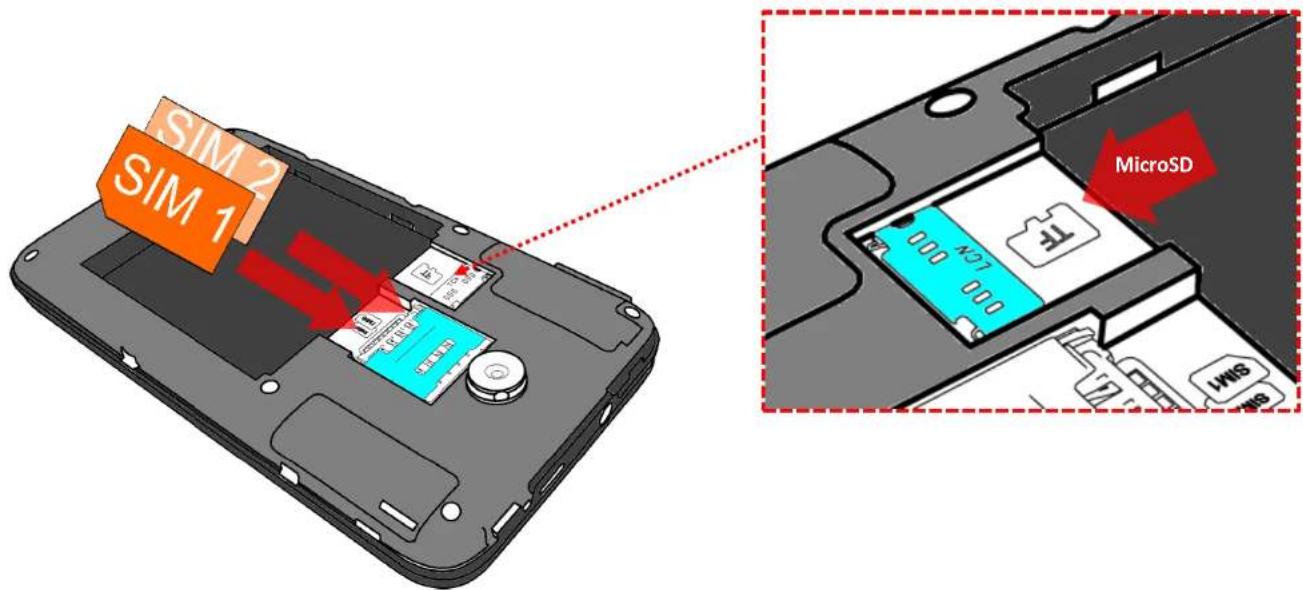

Installing the USIM cards

The USIM card stores informaon as your personal phone number, PIN code, carrier services numbers, contacts and other important details. To access the USIM slots, turn o the phone, slide o the back cover and extract the baery. The USIM cards must be inserted into their slots with the gold contacts facing downwards, follow the scheme. Slot SIM1 supports UMTS USIM.

Installing the memory card

In order to use all funcons of NGM WEMOVE DISCOVERY, it is advisable to install a micro-SD card: it must be inserted in the back side of the phone, aer powering it o and removing the baery. A dedicated slot fort the memory card is placed near the SIM-slots. Slide in the memory card with the gold contacts facing downwards.

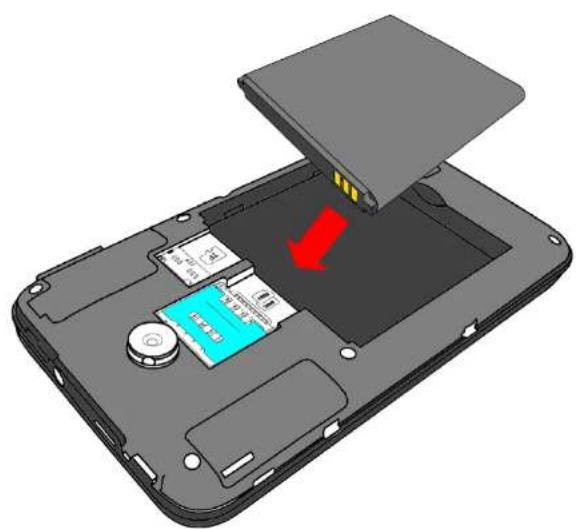

Inserng the baery

Your device is provided with a lithium-ion baery and is designed to be used exclusively with original NGM baeries and chargers. The baery must be inserted into the backside of the phone (see illustraon below). Align the baery contacts with the phone connector inside the baery tray, and let it slide down in posion. When done, put the hind cover of the phone back and make slight pressures along the cover rim.

3D illustration of a device with an open lid and internal components, showing a red arrow indicating a process or operation (no text or symbols present)

Charging the baery

Please charge the baery completely before starng to use the device. Use the provided USB cable, connecng one end to the provided wall socket adaptor (placed into a socket) and the other end to the USB connector placed on the le side of the phone. The phone can also be charged by connecng it to a PC USB port but in that case it will charge more slowly. While the baery is charging, an animaon on screen will show the charging progress if the phone is on. Once charge is completed, the icon will be lled and the phone can be disconnected from the grid. With the phone turned o, a red led will indicate the charging process and will turn green when the baery is full.

Warning: Do not connect the phone to a boong-up or running down PC to avoid voltage jumps. In order to preserve the correct functioning of the device and in order not to compromise warranty, the sole use of original NGM baery chargers and accessories are recommended. Please charge the baery indoors, in a dry and favorable environment. It's normal for the baery to get s lightly warm during the charging process. The baery will reach the full capacity when cycled several mes.

Laptop interior showing rearrest and front panel with red arrows indicating movement or features (no text or symbols)

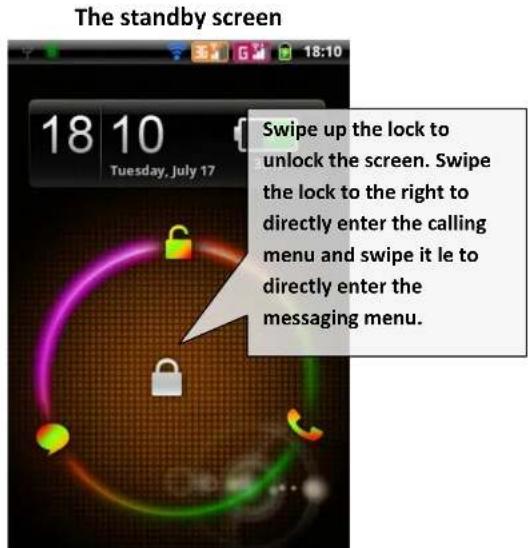

Turn on, turn o and standby

Press and hold the Power on/off key to turn the phone on. Press and hold the same key and conrm your intenon to turn o the phone or to set the vibraon or the ight mode. A quick pressure of the on/o key sets the phone on standby-mode (screen o) or to go back to the standby screen (see below).

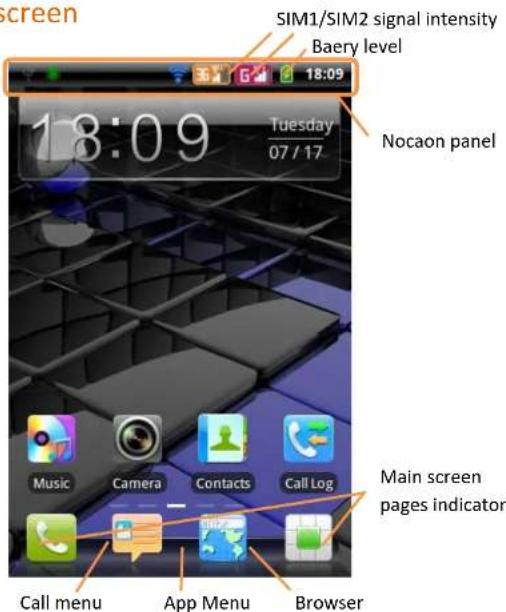

The main screen

The main screen is the starng point for the use of all applicaons of the phone. Other main screen pages are available (as indicated by the white spots), just swipe the screen le or right. These pages can be freely personalized with one's favorite applicaons, shortcuts and widgets. Just keep pressed the icon of the wished funcon in the applicaon menu and then place the icon on the preferred main screen. To remove the icons, keep them pressed and drag them to the bin that appears in the lower part of the screen.

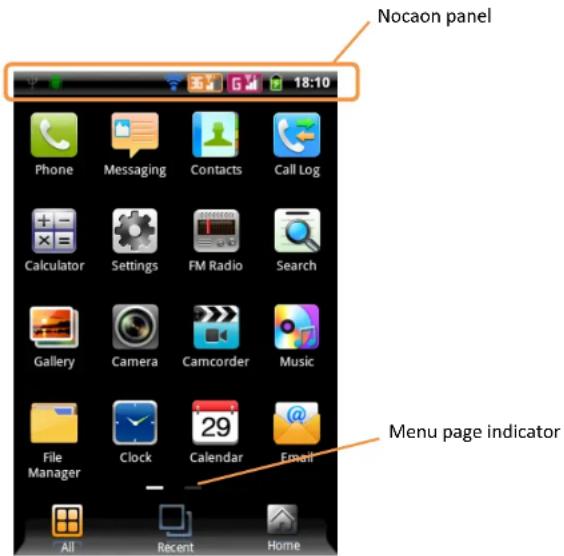

The Main Menu

Use the touch screen by touching, pressing, sliding your nger over it. Select an applicaon from the main menu or scroll the main menu pages right/le to nd the desired one.

Alternatively, you can use the Touch Pad to scroll the menu pages, the applicaons and select them by pressing it. The number of indicators show your posion and the number of main menu pages. Press the back key to get back to the previous screen or press Home to get back into the main screen.

Managing calls

You can rapidly acvate/deacvate the USIM cards in Sengs > SIM management at any moment. The management of the incoming and outgoing calls of your NGM ORION allows you to set the USIM card for Voice calls, Video calls and Data conncon.

To access the management menu, choose Sengs > SIM management > Voice call/Video call/Data Connecon. A preferred USIM can also be chosen for each contact in the Phonebook; select Sengs > SIM management > Contacts & SIM.

Voice calls

From the main screen, touch the Call Menu icon in order to open the calling screen. Use the virtual keypad to digit the desired phone number.
Select the green calling icon and then choose the USIM card that you want to call with.
To end the call, touch the END phone icon.
To answer a call, drag the phone icon to the right; to reject the call, drag it to the le. To reject a call with an SMS, drag the phone icon upwards. To silence an incoming call, brief press the Volume "+" or "-" keys on the le side of the device.

Call a number from the call history

From the main screen, select Call Menu and the Call log folder to access rapidly all last outgoing, missed and incoming calls of both USIM cards.
Click onto the icon to the right of the number.
Select the acon that you wish from the popup menu (Call, Send message or Video call.
If the contact is associated to a USIM, any acon will be done with that USIM otherwise the preferred USIM will be used.

Videocalls

Thanks to the front camera, you can make video calls with NGM WEMOVE DISCOVERY.

From the call logs, select the ▶ symbol to the right of the number and select Video Call from the popup menu.
From the Phonebook, select the contact icon, so a small popup menu with the following icons will appear: Call, Send message and Video call. Slect the last one to make a video call.

Managing contacts

Add a new contact

From the main menu, select the Contacts icon.
Select the "+" on the upper right side of the screen and the storage (Phone, USIM1 or USIM2).

Insert Name, Number and eventual other details (if saving on the phone memory).
Conrm by selecng Save.

Add a new contact from the call logs

From the main screen, select Call Menu and the Call log folder.
Keep the desired number pressed until a popup with various opons appears.
Select Add to Contacts and conrm if you want to add the number to an existing contact or if you want to create a new one.
Enter the name and eventual other informaon and conrm by selecng Save.

Set ringtones

Select a ringtone

From the main menu, select Sengs > Audio proles.
In General, select Voice Call or Video Call ringtone and select the desired ringtone separately for the two USIM cards.

If you wish to set a personalized ringtone, from Music you can select a song and by pressing the contextual menu, choose Set as ringtone. Aer, the song will be available in the list of selectable ringtones.

Note: you can use *mid,*wav or *mp3 les as ringtones. The same procedure can be used for the other Audio Proles.

Screen lock and shortcuts

From the main menu, select Sengs > Security > Set up screen lock. Select the desired unlocking mode (None, Paern, PIN or Password) and conrm. In order to quickly lock the screen, brief press on the power on/o key of the phone. To unlock it, follow the instrucons on the screen.

Rapid acvaon of vibraon mode

Rapidly disable ringtones and message alerts by pressing Volume “-” from the main screen until it gets to minimum and then switches to Vibraon mode.

Managing the two USIM cards

From the main menu, select Sengs > SIM management.
Select the “SIM1” and/or “SIM2” icons to acvate/deacvate the USIM cards selectively in any moment: just check/uncheck the box next to the desired USIM.

Send and receive messages

Send SMS and MMS

From the main screen or the main menu, select Messaging > Compose new message so you open the text input page.
Write the rst few leers of a contact name into the recipients bar and select the desired contact from the popup

contact list that will appear, or directly insert the recipient's number.

Write the text into the dedicated space.
Open the contextual menu and Aach to insert mulmedia les (the message will automatically be converted into MMS).
Press either Send-key, dierently colored.

Connecvity

The operaon system requires an acve data conncon. If data trac is not included in your phone contract, it could imply extra costs. In that case it is advisable to congure the internet access through WiFi. The acvaon/deacvaon of the data trac on the USIM is in Sengs > SIM management > Data conncon.

Connect to the Internet using Wi-Fi

Connect to the wireless net using the Wi-Fi funcon. In order to acvate it, from the main menu choose Sengs > Wireless and Networks > Wi-Fi. Congure Wi-Fi and manage the access points with the Wi-Fi Sengs. Rapid acvaon/deacvaon is possible on the nocaon panel with the dedicated key.

Please follow all warnings and indications concerning the use of wireless devices in areas where the use of such funcons is restricted (airplanes, hospitals, etc.). Switch to Oine mode when you have to use only the funcons that do not need Network access.

Navigate the Web

Connect to the Internet

From the main screen or the main menu, select Browser. Write the URL into the address bar to start navigaon.

If you choose to navigate with the phone network data conncon, please make sure to be informed about the costs or choose a "at" data tari with your operator. Alternatively, you can use the Wi-Fi conncon (see paragraph "Connecvity").

Email

Congure an account in the Email applicaon of the Main Menu, following the indicaons.

Using Bluetooth

Connect to a Bluetooth device

Switch on the other Bluetooth™ device. Refer to the documentaon of the device.
From the main menu, select Sengs > Wireless and Networks > Bluetooth to acvate Bluetooth. For a rapid acvaon/deacvaon use the dedicated key on the nocaon panel.
Select Sengs > Wireless and Networks > Bluetooth sengs > Scan for devices to nd other Bluetooth devices.
Among the found devices, select the name of the device that you want to pair. The phone will try to pair the device, eventually asking for a pairing code.

GPS geolocalizaon

The Global Posioning System (GPS) is a system based on the satellite-related posion determinaon, with global and connuous covering. In order to access the funcon, select

Sengs > Locaon > use GPS satellites. Inside the same menu you can also acvate Use wireless networks, GPS EPO assistance, and A-GPS that contributes in the posion nding using the available Wireless Networks and the Data conncon.

When the GPS funcon is acve, the phone begins to collect data from the available satellites and determines the current posion. Limit the use of baery and memory by switching o this funcon when you don't use it.

The phone integrates the NGM NAVIGATION SYSTEM©, that is accessible through the main menu. For more details please visit www.ngm.eu.

Rapid access

Rapid access to recent applicaons

When you are inside any applicaon, press and hold the Home key: a list of the most recent applicaons that have been opened will be shown and can be directly selected.

Contextual menu

Inside every applicaon, press the Contextual menu key, that will open a list of opons related to the applicaon currently running on the device.

Nocaon panel

Open the nocaon panel by touching the upper area containing the baery and signal-intensity icons and drag it downwards. To hide the panel, push it up again starng from the boom. From the panel you have rapid access to a list of nocaons from the USIM or the System and in the upper part, to maximum 5 management widgets at once; scroll the widget-bar le and right to visualize other ones.

Display sengs: Brightness, Timeout, Auto rotaon.
Connectivity: Wi-Fi, Bluetooth, GPS, Data connnecon, Airplane mode.
User proles: General, Silent, Meeng and Outdoor.

SwiKey text input

The default text input method is the SwiKey keyboard. SwiKey is an advanced predictive text input system; when wring SMS, MMS or E-mails, this mode predicts the word while you are wring it, changing it at every key pressure. During the rst use, the program will suggest with popups the innovaons and peculiaries of this wring system.

SwiKey has an “intelligent” Diconary that retrieves words also from other applicaons in the phone, such as the phonebook or the social networks etc.

For the correct use of this funcon, a micro-SD has to be installed into the phone.

To change the text input parameters, select Sengs > System Tab > Language and Keyboard > SwiKey for NGM-Mobile

Warning: NGM Italia will not bear responsibility for any incompliance with the above guidelines or improper use of the mobile phone. The company reserves the right to modify any of the content in this user guide without previous public announcement. The content of this manual may vary from the actual content displayed in the mobile phone. In such case, the laer shall govern.

Cercaons

Declaraon of conformity (R&TTE)

We, NGM Italia

Declare under our sole responsibility that the product idened as GSM / WCDMA / Wi-Fi Mobile Phone:

NGM WEMOVE DISCOVERY

Conforms to the following standards and speciaons:

Health EN 50360, EN 62209-1

Safety EN 60950-1+A11

EMC EN 301 489-1/-7/-17

Radio EN 301 511

EN 300 328

We declare that all the series of fundamental radio test have been conducted and that the aforesaid product meets all the essenal requirements of the Direcve 1999/5/EC.

The conformity assessment procedure referred to in Arcle 10 and detailed in Annex IV of Direcve 1999/5/EC has been followed with the involvement of the following need bodies:

PHOENIX TESTLAB GmbH

Königswinkel 10,

D-32825 Blomberg,

Germany

C€ 0700

All technical documents conserved at NGM Italia S.r.l. Available on request.

(UE Authorized Representave)

NGM Italia S.r.l.

Via L. Da Vinci, 7 – Poncelli

56020 Santa Maria a Monte (Pi)

S.A.R. (Specific Absorpon Rate)

Informaon on SAR cercaons

Cell phones are radio transceivers. They have been projected not to exceed the radio wave exposure limits recommended by internaonal guidelines. These guidelines have been determined by the internaonal independent scienc organizaons ICNRP and IEEE and include security limits to ensure protecon to all persons, independently from their age and health conditions.

This phone meets European Union (EU) requirements concerning exposure to radio waves coming from telecommunicaon and radio devices. The exposure standard for mobile phones employs a unit of measurement known as SAR (Specific Absorpon Rate). The SAR limit recommended by the EU Council is 2.0 W/kg averaged over ten grams of body issue.

The highest SAR value for this model phone when tested for use at the ear was 0,916 wa/kg [1,2]. Although the SAR is determined at the highest cered power level, the actual SAR of the phone while operang can be well below the maximum value. This is because the phone is designed to operate at mulple power levels so as to use only the power required to reach the network. In general, the closer you are to a base staon, the lower the power output of the phone. The lediglich

Declaraon of Conformity here above proves that the designated product is in compliance with the essenal requirements and other relevant provisions of the R&TTE - Direcve (European Radio & Terminal Telecommunicaons Equipment)1999/5/EC

[1] These controls have been made according to internaonal guidelines on controls.
[2] For the use next to the body, this telephone model has been controlled and is conform to the directives for the exposion to electromagnec radiaon, when used with accessories provided by or approved by NGM and not containing metallic parts and that posion the mobile phone at least at 1.5 cm distance from the body.

Warnings

WHO (World Health Organizaon) conrms that the actual scienc informaon does not indicate the necessity to adapt parcular precauons for the use of cell phones.

Nevertheless, for all those users not comforted by these data, NGM advises to limit their own and their children's exposure, for instance by reducing the calling me, or by using earpieces or hands-free devices to keep the mobile phone distant from the body and the head.

For more informaon on the argument, NGM invites to consult the WHO document (Fact sheet N°193, June 2011) entled Electromagnec elds and public health: mobile phones at the following web address:

hp://www.who.int/mediacentre/factsheets/fs193/en/index.html

NGM advises to use mobile devices of any brand or model with moderaon and to keep them at a minimum distance of 1,5cm from the body or to use earpieces or other hands-free devices.
