Product Type	Range Hood
Brand	GE
Model	JVE40STSS
Width	30 inches
Power Supply	120 VAC, 60 Hz
Fan Speeds	2 (High and Low)
Controls	Rocker switches for fan and light
Lighting	2 x 15W maximum Compact Fluorescent Lamps (CFL) with GU24 base (included)
Ducting	3 1/4" x 10" rectangular; can be vented vertically or horizontally; also can be used in recirculating mode with charcoal filters
Grease Filters	2 reusable metal filters; clean monthly in hot water and detergent or dishwasher
Charcoal Filters	Optional; replace every 6-12 months; Kit WB02X11000
Venting Options	Outside exhaust (vertical or horizontal) or recirculating (non-vented)
Installation Type	Under cabinet
Compatible Range Width	Up to 30 inches
ENERGY STAR	Certified only when vented to the outside
Warranty	1 year limited from date of purchase
Safety Features	Grounding required; safety warnings for grease fires and electric shock
Replacement Lamp Part	WB08X10064 (GE 15W CFL GU24)
Optional Accessories	Power cord connection kit JXHC1
Duct Length Maximum	65 equivalent feet for 3 1/4" x 10" rectangular duct

Frequently Asked Questions - JVE40STSS GE

How do I clean the metal grease filters?

Soak and swish the filters in hot water and detergent. Do not use ammonia or abrasives. Rinse, shake dry, and replace. They can also be cleaned in a dishwasher.

How often should I replace the charcoal filters?

Replace charcoal filters every 6 to 12 months, depending on usage. Order Kit WB02X11000 from GE. Note: Do not wash or put in dishwasher.

How do I change the light bulbs?

Turn off power. Slide the lens cover horizontally and pull down. Grasp the bulb by the plastic base and unscrew. Replace with a GE 15W CFL with GU24 base (part WB08X10064).

Can this hood be used without ducting to the outside?

Yes, you can use it in recirculating mode by installing optional charcoal filters. Note: In recirculating mode, it is not ENERGY STAR certified.

What type of ductwork is required for outside venting?

Use 3 1/4 x 10 rectangular metal duct. Maximum duct length is 65 equivalent feet. For round duct, use a transition adaptor with at least 7 diameter.

The fan is not working. What should I check?

Check if the fuse is blown or circuit breaker tripped. Also ensure the filters are not excessively soiled. If the problem persists, call service.

How do I install the hood under a cabinet?

Refer to the installation instructions. Remove filters, knock out appropriate duct and wiring openings, mount the hood using keyhole slots, connect ductwork and wiring, then replace filters.

What is the warranty coverage?

GE provides a one-year limited warranty from date of purchase, covering parts and labor for defects in materials or workmanship. Exclusions apply.

Why do the lights flicker or appear dim?

CFLs may flicker or appear dim on startup; this is normal. Allow a few minutes to warm up. If it persists, replace with a GE 15W GU24 lamp.

How do I clean the stainless steel surface?

Use warm sudsy water or a stainless steel cleaner. Always wipe in the direction of the grain. Avoid steel wool pads.

USER MANUAL JVE40STSS GE

Operating/Care and Cleaning Instructions

Charcoal Filters 5

Grease Filters 4

Hood Lights....5

Painted Surfaces 5

Stainless Steel Surfaces 5

Vent Controls 4

Installation Instructions..6-13

Troubleshooting Tips ..... 14

Consumer Support

Consumer Support 16

Warranty 15

*ENERGY STAR® labeled product

As an ENERGY STAR ^® partner, GE has determined that this product meets the ENERGY STAR ^® guidelines for energy efficiency.

Write the model and serial numbers here:

Model # ____

Serial # ____

Find these numbers on a label on the back wall of the hood.

Owner's Manual and Installation Instructions

JVE40

SAFETY PRECAUTIONS

⚠ WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
B. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
C. Do not use this unit with any solid-state speed control device.
D. If using a cord connection kit, use only with range hood cord-connection kit JXHC1 that has been investigated and found acceptable for use with this model range hood.
E. This unit must be grounded.

CAUTION - FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS AND VAPORS.

WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING\*:

A. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN—You may be burned.
C. DO NOT USE WATER, including wet dishcloths or towels—a violent steam explosion will result.
D. Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit.
* Based on "Kitchen Fire Safety" published by NFPA.

⚠ WARNING – TO PROVIDE PROTECTION AGAINST ELECTRIC SHOCK, CONNECT TO PROPERLY GROUNDED OUTLETS ONLY.

⚠ WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

A. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
B. Always turn hood ON when cooking on high heat or when flambéing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface element.

⚠ WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
B. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities. When applicable, install any makeup (replacement) air system in accordance with local building code requirements. Visit GEAppliances.com for available makeup air solutions.
C. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.

WARNING - TO REDUCE THE RISK OF FIRE AND TO PROPERLY EXHAUST AIR, BE SURE TO DUCT AIR OUTSIDE—DO NOT VENT EXHAUST AIR INTO SPACES WITHIN WALLS OR CEILINGS OR INTO ATTICS, CRAWL SPACES OR GARAGES.

WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

Do not attempt to repair or replace any part of your hood unless it is specifically recommended in this guide. All other servicing should be referred to a qualified technician.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

READ AND SAVE THESE INSTRUCTIONS

PRÉCAUTIONS EN MATIÈRE DE SÉCURITÉ

AVERTISSEMENT – POUR RÉDUIRE LE RISQUE D'INCENDIE, DE SECOUSSE ÉLECTRIQUE OU DE BLESSURE CORPORELLE, OBSERVEZ LES PRÉCAUTIONS SUIVANTES :

Using the hood controls.

Throughout this manual, features and appearance may vary from your model.

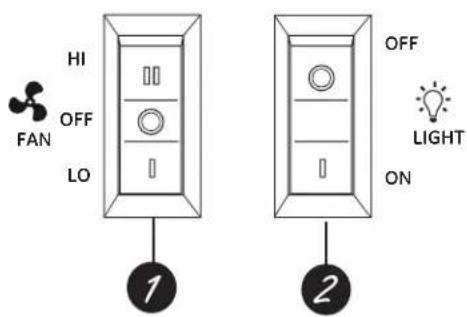

Rocker Switch Controls

FAN Control

Press the rocker switch at the top to turn the fan on HI and at the bottom to turn it on LOW. The center position is OFF.

Continuous use of the fan system while cooking helps keep the kitchen comfortable and less humid. It also reduces cooking odors and soiling moisture that create a frequent need for cleaning.

LIGHT Control

Press the rocker switch at the bottom to turn the light ON while cooking. Press the rocker switch at the top to turn the light OFF.

Care and cleaning of the vent hood.

Be sure electrical power is off and all surfaces are cool before cleaning or servicing any part of the vent hood.

If it ever becomes necessary to replace the metal grease filters, they may be ordered from your GE supplier.

Reusable Metal Grease Filters

The hood has 2 metal reusable grease filters.

The metal filters trap grease released by foods on the cooktop. They also help prevent flaming foods on the cooktop from damaging the inside of the hood.

For this reason, the filters must ALWAYS be in place when the hood is used. The grease filters should be cleaned once a month, or as needed.

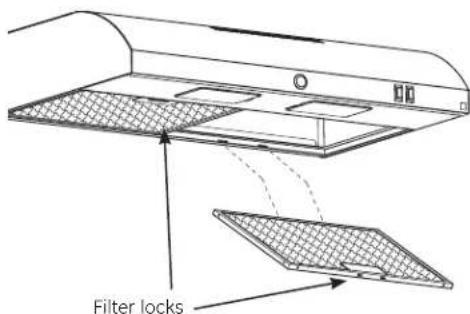

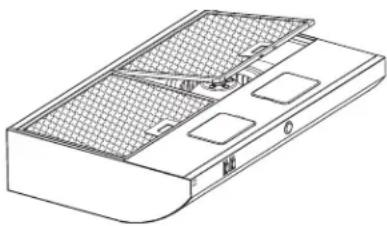

To remove, press the filter locks back and pull the filters down and out.

To replace, insert the rear filter tabs in the frame slots at the back of the opening. Push the filters up and lock them into place.

To clean the grease filters, soak them and then swish them around in hot water and detergent. Don't use ammonia or ammonia products because they will darken the metal. Do not use abrasives or oven cleaners. Light brushing can be used to remove embedded dirt. Rinse, shake and let them dry before replacing. They may also be cleaned in an automatic dishwasher.

NOTE: Before cleaning, make sure the charcoal filters, if present, are unclipped and removed. See the Charcoal Filters section.

Care and cleaning of the vent hood. GEAppliances.com

Isometric line drawing of a device casing with internal grid structure and labeled ports (no text or symbols)

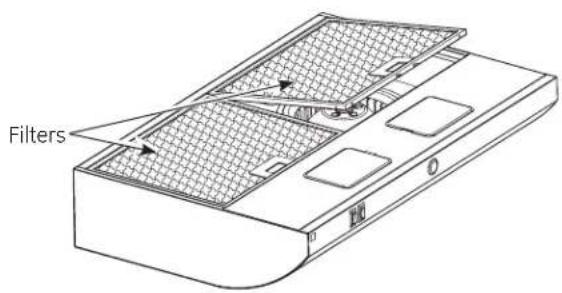

The charcoal filters are clipped inside of each reusable metal grease filter.

Charcoal Filters (on some models)

The charcoal filters cannot be cleaned. They must be replaced.

Order Kit no. WB02X11000.

This kit can be ordered from your GE supplier.

NOTE: Charcoal filters are not included with the hood. They must be ordered from your GE supplier.

If the model is not vented to the outside, the air will be recirculated through disposable charcoal filters that help remove smoke and odors.

The charcoal filters should be replaced when they are noticeably dirty or discolored (usually after 6–12 months, depending on hood usage).

NOTE: DO NOT rinse, or put charcoal filters in an automatic dishwasher.

Note: If the hood in installed for recirculation mode, it is not ENERGY STAR® certified.

Painted Surfaces (on some models)

To clean the hood surface, use a hot, damp cloth with a mild detergent suitable for painted surfaces. Use a clean, hot, damp cloth to remove soap. Dry with a dry, clean cloth.

Do not use steel-wool pads or other abrasive cleaners. They will scratch the surface. Wipe with a clean, hot, damp cloth after using cleansers.

Stainless Steel Surfaces (on some models)

Do not use a steel wool pad; it will scratch the surface.

To clean the stainless steel surface, use warm sudsy water or a stainless steel cleaner or polish. Always wipe the surface in the direction of the grain. Follow the cleaner instructions for cleaning the stainless steel surface.

To inquire about purchasing stainless steel appliance cleaner or polish, or to find the location of a dealer nearest you, please call our toll-free number:

National Parts Center 800.626.2002 GEAppliances.com

Line drawing of a kitchen air conditioner unit with ventilation grilles and cooling fans (no text or symbols)

Hood Lights

WARNING:

Hg - Lamp contains Mercury. Manage in accord with disposal laws. See www.lamprecycle.org or 1-800-435-4448.

For installation, handling and disposal precautions, refer to the fluorescent lamp packaging literature.

WARNING:

To reduce the risk of electric shock, do not connect electrical power to the hood without both lamps in place.

CAUTION:

- Do not touch the hood lamps when they are on. They may be hot enough to cause injury.

To prevent injury from broken lamps, handle lamps carefully and do not operate hood without lamp lens covers in place.

This hood requires two Compact Fluorescent Lamps (CFL) with a GU24 base (included), maximum 15 watts.

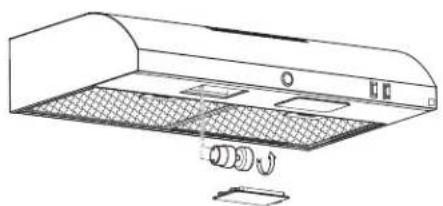

To change the lamps:

When installing or replacing a lamp, make sure that power to the light has been turned off. Never allow a lamp to come into contact with water.

2 Remove the lens cover by sliding it in a horizontal direction and pulling it down and away from the hood.

3 Grasp the lamp by the plastic base portion of the lamp and unscrew it.

4 Replace with energy saving GE 15W Compact Fluorescent Lamp with GU24 base GE Service Part: WB08X10064.

Installation Range Hood Instructions

Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: GEAppliances.com

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT – Save these instructions for local inspector's use.
• IMPORTANT – Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level – Installation of this appliance requires basic mechanical and electrical skills.
  • Completion time - 1-3 hours
  • Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.

FOR YOUR SAFETY:

WARNING - Before beginning the installation, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

⚠ WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
B. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities. When applicable, install any makeup (replacement) air system in accordance with local building code requirements. Visit GEAppliances.com for available makeup air solutions.
C. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.

WARNING – TO REDUCE THE RISK OF FIRE AND TO PROPERLY EXHAUST AIR, BE SURE TO DUCT AIR OUTSIDE—DO NOT VENT EXHAUST AIR INTO SPACES WITHIN WALLS OR CEILINGS OR INTO ATTICS, CRAWL SPACES OR GARAGES.

DUCTWORK REQUIREMENTS

WARNING – TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

NOTE: Read the ductwork sections only if you do not have existing ductwork. If you have existing ductwork, skip to the "Damage" section and proceed.

The venting system must exhaust to the outside.

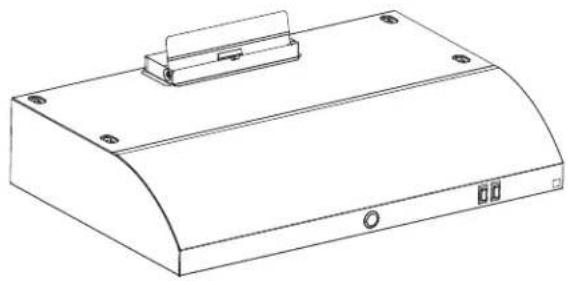

This hood can be vented vertically through upper cabinets or horizontally through an outside wall. Ductwork is not included.

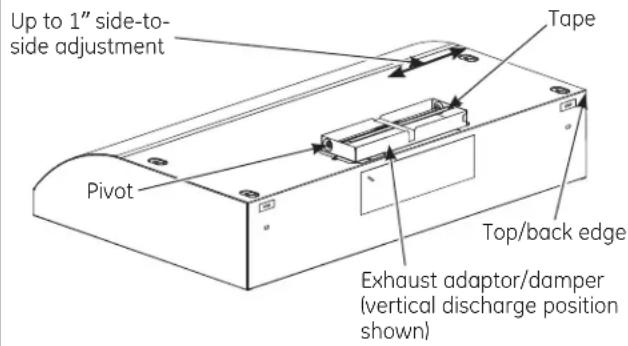

Exhaust connection:

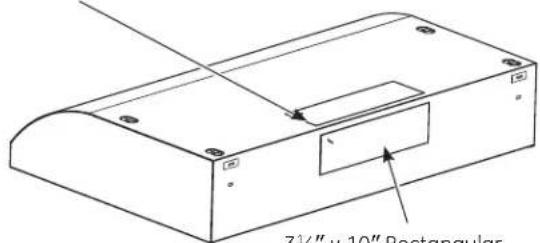

The hood exhaust has been designed to mate with standard 3 14 " × 10" rectangular ducting.

If a 7" round duct is required, a rectangular-to-round transition adaptor must be used*. Do not use less than a 7" diameter duct.

Maximum duct length:

For satisfactory air movement, the total duct length of a 314 " × 10" rectangular should not exceed 65 equivalent feet.

NOTE: It's important that ducting be installed using the most direct route and with as few elbows as possible. This ensures clear venting of exhaust and helps prevent blockages. Also, make sure dampers swing freely and nothing is blocking the ducts.

Elbows, transitions, wall and roofcaps, etc., present additional resistance to airflow and are equivalent to a section of straight duct longer than their actual physical size. When calculating the total duct length, add the equivalent lengths of all transitions and adaptors plus the length of all straight duct sections. The charts on the following pages show you how to calculate total equivalent ductwork length using the approximate feet of equivalent length of some typical ducts.

* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have to be cut to fit, using the tin snips, in order to allow free movement of the damper. Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any hood.

GROUNDING INSTRUCTION

⚠ WARNING – Improper grounding can result in a risk of electric shock.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is qualified for use with a power cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or service technician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance.

WORKSHEET - CALCULATE TOTAL EQUIVALENT DUCTWORK LENGTH

DUCTPIECES LENGTH × USEQUIVALENT NUMBERSED = TOTAL
	31⁄4"× 10"Rect., straight	1 Ft. × ( ) =	Ft.
	7" Round, straight	1 Ft. × ( ) =	Ft.
	31⁄4"× 10"elbow	14 Ft. × ( ) =	Ft.
	31⁄4"× 10"elbow	8 Ft. × ( ) =	Ft.
	31⁄4"× 10"	33 Ft. × ( ) =	Ft.
, wall cap	31⁄4"× 10"Rect.with damper	24 Ft. × ( ) =(18 ft. w/o damper) × ( ) = Ft.	Ft.
Subtotal column 1 = Ft.

MAXIMUM DUCT LENGTH: For satisfactory air movement, the total duct length of a 314 " x 10" rectangular should not exceed 65 equivalent feet.

NOTE: Any home ventilation system, such as a ventilation hood, may interrupt the proper flow of combustion air and exhaust required by fireplaces, gas furnaces, gas water heaters and other naturally vented systems. To minimize the chance of interruption of such naturally vented systems, follow the heating equipment manufacturer's guidelines and safety standards such as those published by NFPA and ASHRAE. When applicable, install any makeup (replacement) air system in accordance with local building code requirements. Visit GEAppliances.com for available makeup air solutions.

DUCTPIECES LENGTH ×		EQUIVALENT NUMBERUSED = TOTAL
	7" Round,90° elbow	14 Ft. × ( ) =	Ft.
	7" Round,45° elbow	9 Ft. × ( ) =	Ft.
	7" Roundwall capwithdamper	28 Ft. × ( ) =(21 ft. w/odamper) × ( ) =	Ft.Ft.
	7" Roundroof cap	39 Ft. × ( ) =	Ft.
	7" Roundto 314 "×10"rect.transition	1 Ft. × ( ) =	Ft.
	7" Roundto 314 "×10"rect.transition,90° elbow	5 Ft. × ( ) =	Ft.
Subtotal column 2 = Ft.Subtotal column 1 = Ft.Total ductwork =
			Ft.

DAMAGE-SHIPMENT/INSTALLATION

• If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement.
• If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
• If the unit is damaged by the installer (if other than the customer), repair or replacement must be made by arrangement between customer and installer.

NOTES:

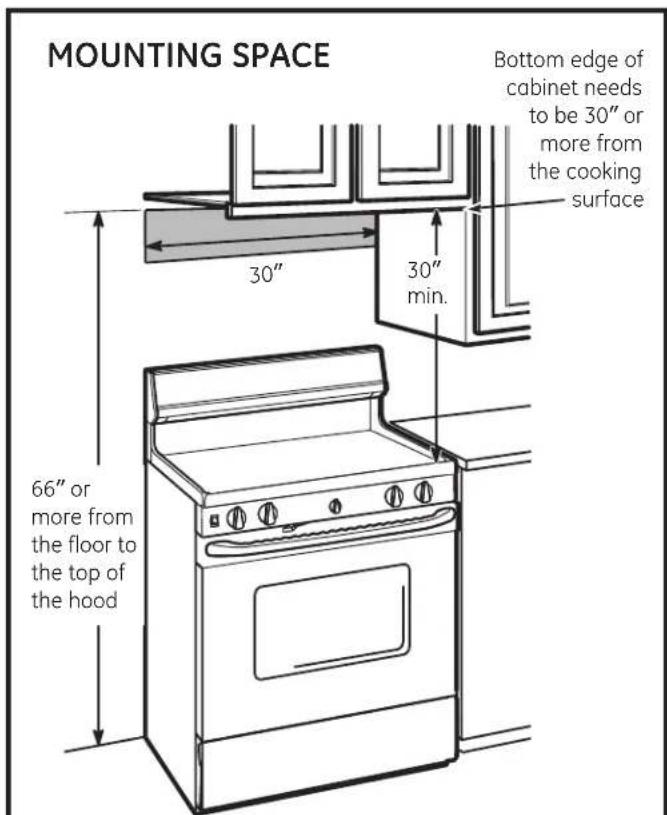

• This range hood is for installation over ranges up to 30" wide.
• If you are going to vent your range hood to the outside, see the "Ducting Requirements" section for exhaust duct preparation.

TOOLS YOU WILL NEED

Flat blade and Phillips screwdrivers

Pencil

Duct tape

Saw (saber or keyhole)

Electric drill

Metal snips (in some applications)

1/4" pivoting hex socket

Tape measure

Wire stripper

Flashlight

Level

1/4" Nutdriver

PARTS INCLUDED

PART QUANTITY
	Metal Grease Filters 2
Mounting Screws 4
	Exhaust Adaptor/Damper 1(for 31⁄4" x 10" rect. venting)
###	Exhaust Adaptor Screws 1

OPTIONAL ACCESSORIES

This kits can be ordered from your GE supplier.

Note: If the hood in installed for recirculation mode, it is not ENERGY STAR® certified.

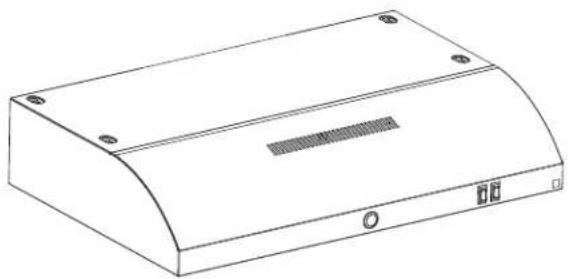

1 CHOOSE VENT OPTION

Determine the vent option that your installation will require from the following choices:

The outside vent exhaust option that your installation requires will determine the hood knockouts that you will use.

IMPORTANT: If the hood is to be installed in a recirculating, non-vented ductless manner, do not knock out any vent openings in the hood. Only an electrical access hole will be knocked out of the hood.

Outside top exhaust

(Vertical duct—3¼" × 10" Rectangular)

Line drawing of a curved metal enclosure with mounting holes and a clip (no text or symbols)

Recirculating

(Non-vented ductless—Optional)

Line drawing of a curved metal enclosure with mounting holes and a textured internal grille (no text or symbols)

Outside rear exhaust

(Horizontal duct—3 1/4" × 10" Rectangular)

Line drawing of a curved metal enclosure with mounting holes and a circular base (no text or symbols)

2 REMOVE FILTERS

Remove the protective shipping film from the edges of the metal grease filters. Press the filter locks back and lift the filters out. Set them aside.

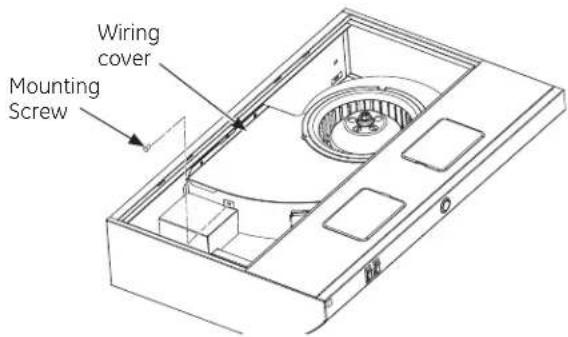

3 REMOVE WIRING COVER FROM THE JUNCTION BOX

Remove the wiring cover from inside the hood. Set the cover and its mounting screw aside.

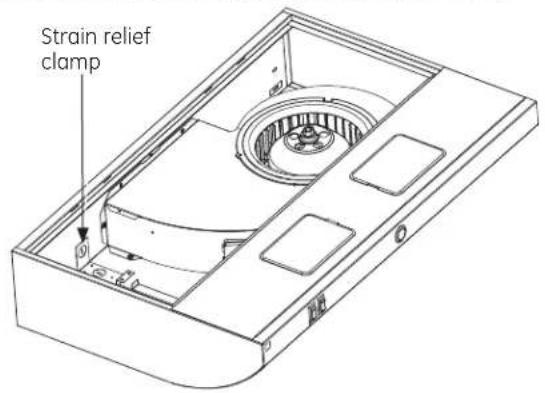

4 REMOVE WIRING KNOCKOUT

Remove either the top or the back wiring knockout as needed and install an approved strain relief clamp.

5REMOVE DUCT KNOCKOUT(S)

If recirculating, non-vented ductless see note below and skip to Step 7 and proceed.

Using a flat blade screwdriver, remove the appropriate duct knockout(s) from the top or back of the hood.

3 ^1/4 " x 10" Rectangular vertical discharge.

Remove top rectangular duct knockout only.

3½" × 10" Rectangular horizontal discharge. Remove rear rectangular duct knockout only.

NOTE: If the hood is to be installed in a recirculating, non-vented ductless manner, order charcoal filters, kit number WB02X11000 for 30" hood models. These kits can be ordered from your GE supplier. Skip to Step 7C and proceed.

NOTE: If the hood in installed for recirculation mode, it is not ENERGY STAR® certified.

6 FOR 3 14 " x 10" RECTANGLE DUCTED DISCHARGE INSTALLATIONS:

Attach exhaust adaptor/damper over knockout opening with two exhaust adaptor screws. Make sure damper pivot is nearest to top/back edge of hood. Remove tape from damper flap.

NOTE: The exhaust adaptor/damper can be installed up to 1 inch on either side of the hood center to accommodate off-center ductwork. In extreme off-center installations, one end of the duct connector may need to be trimmed to clear the electrical cable clamp.

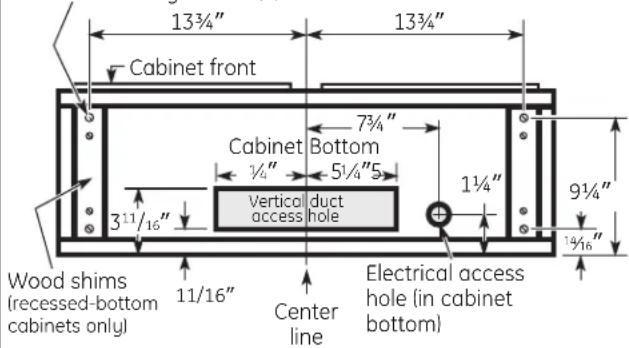

7 MARK HOLES

Select the vent option that your installation will require and proceed to that section:

A. Outside top exhaust (Vertical duct-3½" x 10" Rectangular)

- Use the diagram or the hood as a template and mark the locations on the cabinet for ductwork, electrical wiring and keyhole screw slots.

Hood mounting screws (4)

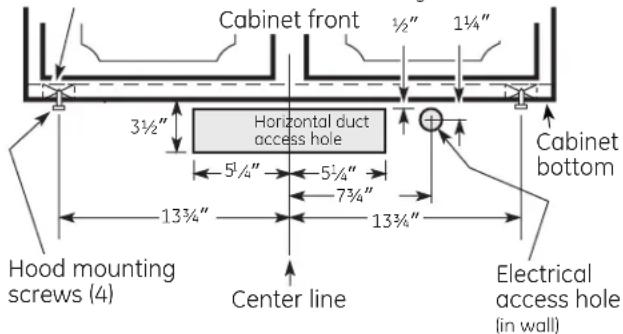

B. Outside rear exhaust (Horizontal duct-3 ^1/4 " x 10" Rectangular)

- Use the diagram or the hood as a template and mark the locations on the cabinet for ductwork, electrical wiring and keyhole screw slots.

Wood shims (recessed-bottom cabinets only)

C. Recirculating (non-vented ductless)

• Use the hood as a template and mark the locations on the cabinet for the electrical wiring and keyhole screw slots.
• Since the hood is to be recirculated (not to be vented outside), do not cut out any vent openings in the wall or cabinet bottom.

8 CHOOSE VENTING OPTION

The hood can be set to vent outside or to recirculate air back into the kitchen.

• To vent to the outside, refer to steps 5 and 6.
- To recirculate air into the kitchen, remove two screws securing the duct block off plate. Discard plate. Replace two screws.

Note: Hood is ENERGY STAR® certified only when it vents air to the outside.

Line drawing of a technical component with a rectangular component mounted on a curved base (no text or symbols)

9 FOR RECESSED-BOTTOM CABINETS ONLY

- If the cabinets have front, side or back trim, make 2 wood shims the width of the trim and attach them to the cabinet bottom recess on both sides. See Step 7 for marking locations.

10 CUT HOLES

Cut holes at marked locations for duct and electrical wiring. For the vertical duct, cut out 3/4" extra toward the front of the cabinet so you can move the duct freely when installing the hood. It may also ease installation by cutting the hole 10½" instead of 10".

Hand holding a tool against a metal frame, no text or symbols visible

11 RUN WIRES

Run the electrical wires through the wall or cabinet according to National Electrical Code and applicable local codes.

NOTE: DO NOT turn the power on until installation is complete.

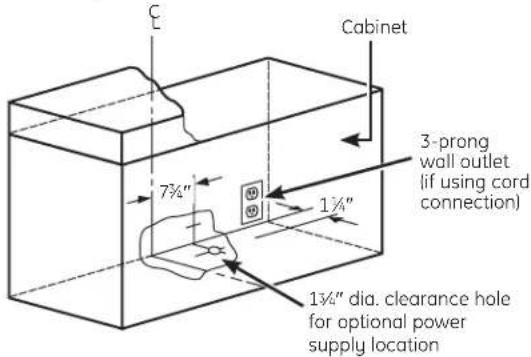

12 OPTIONAL POWER CORD KIT JXHC1

Use only with range hood cord-connection kits that have been investigated and found acceptable for use with this model range hood.

For installation with a standard 3-prong, grounded wall outlet, Power Cord Connection Kit model JXHC1 must be used. This kit contains a power cord and the hardware required to connect it to the range hood. It is available at extra cost from your GE supplier. Follow the Installation Instructions packed with the kit.

NOTE: If using optional Power Cord Kit JXHC1, feed the power cord through the hole in the top cabinet while raising the hood. Loop any excess length of cord and tie away with a suitable tape or tie.

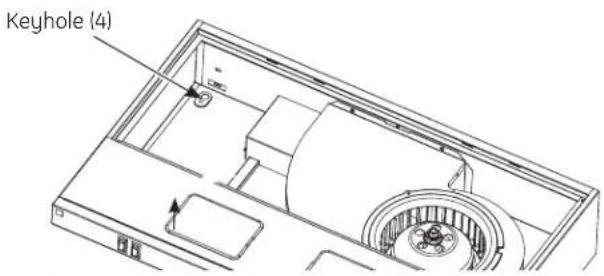

13 SCREW IN PARTWAY

Drive a mounting screw (from the hardware packet) partway into each center of the narrow neck of the keyhole slots marked on the cabinet bottom.

14 FEED IN WIRES

Lift the hood into position and feed the house wiring through the wiring knockout.

15 SECURE HOOD

Slide the hood back against the wall. Tighten the mounting screws. Be sure the screw heads are in the narrow neck of the keyhole slot.

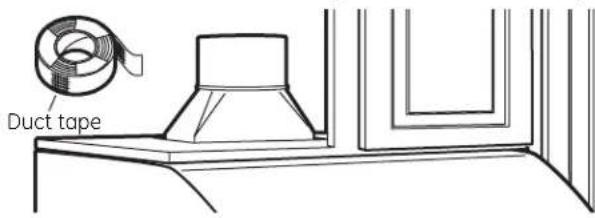

16 CONNECT DUCTWORK TO HOOD

Use duct tape to make joints secure and air tight. Note: Illustration shows rectangular to round duct adapter.

17 INSTALL LAMPS

WARNING:

(Hg) - Lamp contains Mercury. Manage in accord with disposal laws. See www.lamprecycle.org or 1-800-435-4448.

For installation, handling and disposal precautions, refer to the fluorescent lamp packaging literature.

WARNING:

To reduce the risk of electric shock, do not connect electrical power to the hood without both lamps in place.

CAUTION:

Do not touch the hood lamps when they are on. They may be hot enough to cause injury.
To prevent injury from broken lamps, handle lamps carefully and do not operate hood without lamp lens covers in place.

This hood requires two Compact Fluorescent Lamps (CFL) with a GU24 base (included), maximum 15 watts.

To change the lamps:

When installing or replacing a lamp, make sure that power to the light has been turned off. Never allow a lamp to come into contact with water.
2 Remove the lens cover by sliding it in a horizontal direction and pulling it down and away from the hood.
3 Grasp the lamp by the plastic base portion of the lamp and unscrew it.
4 Replace with energy saving GE 15W Compact Fluorescent Lamp with GU24 base GE Service Part: WB08X10064.

Technical line drawing of a kitchen air conditioner unit with ventilation grilles and cooling fins (no text or symbols)

18 FOLLOW ELECTRICAL CODE

Complete the electrical wiring according to National Electrical Code and local codes.

NOTE: This hood must be permanently grounded. Connect house wiring (120 VAC) to hood wiring.

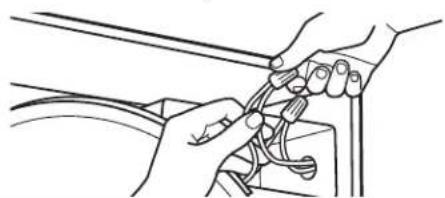

19 CONNECT WIRING

Connect house black to hood black wire, house white to hood white wire, and house ground to hood green/yellow wire. Securely tighten the strain relief clamp onto the house wiring.

Line drawing of hands manipulating a cable or wire (no text or symbols)

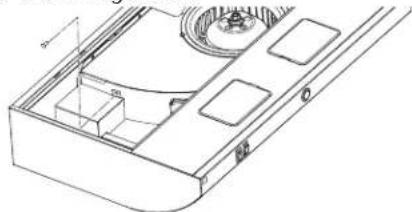

20 REPLACE WIRING COVER

Replace the wiring cover.

Technical line drawing of a mechanical assembly with no visible text or symbols

21 REPLACE FILTERS

The installation is complete. Turn on power at service panel, and test for proper operation.

Technical line drawing of a spray gun with a mesh cover and ventilation slots (no text or symbols)

TROUBLESHOOTING CHECKLIST

If the hood seems to be operating at high speed when the control is not set on high, or if ventilation seems inadequate, check the following:

☐ Knockouts not removed from hood.
☐ Damper blade not opening.
☐ Reduced airflow because the duct is too small or the duct length is too long.
☐ The duct is blocked.
□ Undersized or restrictive wall or roof cap.

Before you call for service...

Troubleshooting Tips Save time and money! Review the following chart first and you may not need to call for service.

Problem Possible Causes What To Do
Fan does not operate when the switch is on	A fuse may be blown or a circuit breaker may be tripped.	Replace fuse or reset circuit breaker.
Fan fails to circulate air or moves air more slowly than normalReplace the filter if it is too soiled to clean. If it solve the problem, call for service.makeup air solutions.	Excessively soiled filter.	Wash and replace the filters. See theReusable Metal Grease Filters section.is not soiled, or if replacing the filter does notSufficient makeup (replacement) air is required for exhausting appliances to operate to rating. Check with local building codes, which may require or strongly advise the use of makeup air. VisitGEAppliances.comfor available
Fan continually cycles off and on	The motor is probably overheating and turning itself off. This can be harmful to the motor. Filter may be excessively soiled.	Replace the filter if it is soiled. If it is not soiled, or if replacing the filter does not solve the problem, call for service.
Compact Fluorescent Lamp appears dim on start up	This is normal for Compact Fluorescent Lamps especially on first installation.	Allow lamp to run for several minutes. If this warm up time does not solve the problem replace the lamp.
Compact Fluorescent Lamp briefly flickers on start up	This is normal for Compact Fluorescent Lamps especially on first installation.	Allow lamp to run for several minutes.If this warm up time does not solve the problem replace the lamp.
After replacing one lamp, the new lamp appears to be a temperature different color	The replacement lamp may have a different color3000K instead of 2700K.The replacement lamp may be from a different manufacturer.	Use a GE 15W GU24 base lamp with a 2700K rating.GE Service Part number WB08X10064.Use a GE 15W GU24 base lamp with a GE Service Part number WB08X10064.

GE Range Hood Warranty.

All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service on-line, visit us at GEAppliances.com, or call 800.GE.CARES (800.432.2737). Please have serial number and model number available when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: GE Will Replace:

One Year

From the date of the

Any part of the range hood which fails due to a defect in materials or workmanship.

During this limited one-year warranty, GE will also provide, free of charge, all labor and

original purchase in-home service to replace the defective part.

What GE Will Not Cover:

■ Service trips to your home to teach you how to use the product.
- Improper installation, delivery or maintenance.
■ Product damage or failure of the product if it is abused, misused, modified, used for other than the intended purpose, or used commercially.
■ Replacement of house fuses or resetting of circuit breakers.
■ Damage to the product caused by accident, fire, floods or acts of God.

■ Incidental or consequential damage caused by possible defects with this appliance.
■ Damage caused after delivery.
■ Product not accessible to provide required service.
■ Installation or service for a makeup (replacement) air system.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service Location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

Consumer Support.

GE Appliances Website GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts or even schedule service on-line.

Schedule Service GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio GEAppliances.com

GE supports the Universal Design concept---products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

Extended Warranties GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories GEApplianceParts.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Register Your Appliance GEAppliances.com

Register your new appliance on-line---at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.

Isometric line drawing of a device with mesh insulation and labeled ports (no text or symbols)

Technical line drawing of a ceiling fan with internal components and a separate lamp (no text or symbols)

Luces de la campana

ADVERTENCIA:

Line drawing of a curved metal enclosure with mounting holes and a clip (no text or symbols)

Line drawing of a rectangular electronic device with mounting holes and a central slot (no text or symbols)

Line drawing of a curved metal enclosure with mounting holes and a circular base (no text or symbols)

2 RETIRE LOS FILTROS

Technical line drawing of a 3D mechanical part with mounting holes and a rectangular cutout (no text or symbols)

Salida horizontal rectangular de

Line drawing of a kitchen fan with ventilation grilles and mounting holes (no text or symbols)

9 PARA GABINETE CON MUESCA EN EL FONDO ÚNICAMENTE

Line drawing of a hand holding a tool against a metal frame (no text or symbols)

11 CORRA LOS CABLES

■ To reduce the risk of electric shock, do not connect electrical power to the hood without both lamps in place.

PRECAUCIÓN:

Line drawing of a kitchen air conditioner unit with ventilation grilles and a coiled hose (no text or symbols)

18 SIGA EL CÓDIGO ELÉCTRICO

Line drawing of hands manipulating a cable or wire (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

21 COLOQUE LOS FILTROS

Technical line drawing of a flat-screen air duct with mesh insulation (no text or symbols)

General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Registre su electrodoméstico GEAppliances.com
