USER MANUAL LR590SBST Lloyd

Line drawing of a two-decker cabinet with two vertical bars (no text or symbols)

Dear Customer

Congratulations on being the proud owner of Lloyd Refrigerator. Your Refrigerator comes with a Lloyd Guarantee of Quality.

Lloyd takes great pride in providing its customers with perfect products that adheres to international quality standards.

Lloyd is committed to international quality standards.

Lloyd is committed to provide the ultimate customer satisfied customers of Lloyd.

At Lloyd, feedback and suggestions based on your product usage experience are greatly appreciated.

Please feel free to contact us at [e-mail]

NIPUN SINGHAL DIRECTOR

Table of Contents

No ce 1

Warning 2

Features 3

Installa on Procedure 4

Refrigerator Modes 5

Shelf Adjustment 6

Rack Adjustment 6

Refrigerator Compartment 7

Freezer Compartment 9

Introduc on to Func ons 10

Maintenance 12

Troubleshoo ng 13

Energy Saving Tips 14

Notice

• Please read the safety instructions before using the refrigerator.
• Due to Lloyd's con nuous improvement policy, the product may be subject to change without prior no ce.
• When disposing the refrigerator, kindly contact your local waste disposal dealer for advice on safe disposal.

Warning

• The refrigerator uses an AC supply of 220-240V at 50 Hz frequency. In case, the voltage uctua on is high (over the scope of 187 V – 264 V), it may cause permanent damage to components like the compressor or the main board of the refrigerator. In such a case, the installa on of a voltage regulator (above 1000 W) is highly recommended.
• In case of a power failure or during cleaning, pull out the power plug. Wait for a period of at least 5 min before reconnecting the plug to avoid any damage to compressor due to continuous starts.
• Do not spray or rinse water on the refrigerator. This may affect the electrical insulation of the refrigerator.
• Keep ven la on openings of the appliance clear of obstruc on
• Do not use any mechanical devices or other means to accelerate the defros ng process.
  • Take care that the refrigerant circuit is not damaged.
• Do not use or keep electrical appliances inside the appliance.
• Make sure the appliance is unplugged a er use or during any maintenance ac vity is being performed.
• The appliance is not intended for use by persons (including children) with reduced physical, mental and sensory

capabili es, unless supervised by a person responsible for their safety.

• If the supply cord is damaged, it should be replaced by Lloyd Authorised service personal only.
• Do not put boles of carbonated drinks in the freezer. It may freeze the contents causing the bole to break.
• Do not store explosive substances inside the appliance.

Features

• Everfresh Technology

Lloyd's Everfresh Technology makes sure that the food stays fresh for long periods of me.

- Defrost pre-cold

The defrost pre-cold technology helps in keeping the temperature inside the refrigerator stable.

- Ap tude De-fros ng

Lloyd's intelligent Ap tude Defros ng System controls the temperature inside the refrigerator as per the frequency of usage thus giving a higher e ciency

- An -Heat Technology

The refrigerator has thick foaming in the an -heat layer thus minimizing energy losses

- Gliding shelves

The freezer and refrigerator racks are special designed for convenience of use for the consumer.

Other features are:

• CFC and No -Frost Design

LLOYD Refrigerator offers an environment friendly option with no frost and no CFC release.

- Opening Door Alarm

Beeps if you leave open the door over 30 sec or if door is not properly closed this will save a lot of energy and helps to keep the nutritional value of food intact.

• LED Informa on Screen

LED informa on touch screen with apps for easy opera on. (Available in model no LR590SBST.

•Vitamin Fresh Technology

LLOYD introduced a unique range of refrigerator, equipped with revolutionary vitamin safe and hygiene active technology, that locks the nutritional value and keep it fresh for longer duration.

Installation Procedure

• Please do not shake, It or invert the refrigerator when moving, The It angle should not exceed an angle of 45 degrees.
• Please make sure that the refrigerator is not placed near any heat source, in direct sunlight, in an environment with high moisture.
• Please ensure proper circula on of air around the appliance. Make sure that a gap of atleast 30 cms on both sides and 10 cms at the back of the refrigerator is kept.
• Make sure the appliance is installed on a level oor. If the oor is not level, please make sure that a leveller is used to ensure perfect alignment of the appliance.
• Remove all packaging material before using the refrigerator. This includes foam at the base and adhesive tapes holding the accessories inside and outside the appliance.
• Clean both, inside and outside of the refrigerator with a wet cloth (a mild detergent can be used). Please make sure the appliance is wiped dry.
• Prepare an independent socket with grounding contact for the refrigerator. The appliance shouldn't share a mul - purpose socket with any other appliances.

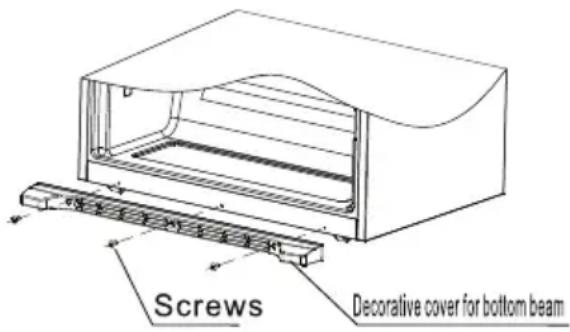

  • Install the bo om beam as shown in the gure.

Please take note that the decora ve beam at the bo om is to give the appliance a be er look and not installing it would not a ect the performance of the appliance.

Refrigerator Modes

• Intelligent Mode –In this mode, the refrigerator will automatically set the temperature as per the load in the compartment.
• Human Mode – This mode can be if you need to set the temperature to a particular value as per your specific requirement, you can use

1 Freezer door rack
2 Freezer compartment glass shelf
3 Ice-maker box
4 Ice box
5 Freezer compartment drawer

6 Refrigerator compartment glass shelf
7 Vegetable crisper
8 Substance box
9 Refrigerator door rack
10 Lower cover

Shelf Adjustment

You can adjust the shelves to a position as per your requirements. For this, please move the shelf outwards in direction (1), turn the shelf in direction (2) and then pull out the shelf in direction (3).

Rack Adjustment

You can use this func onality for either cleaning the rack or changing the height of the rack as per the height of the food. For this, please hold with both hands move the rack I direc on (1) and then pull the rack towards you in direc on (2).

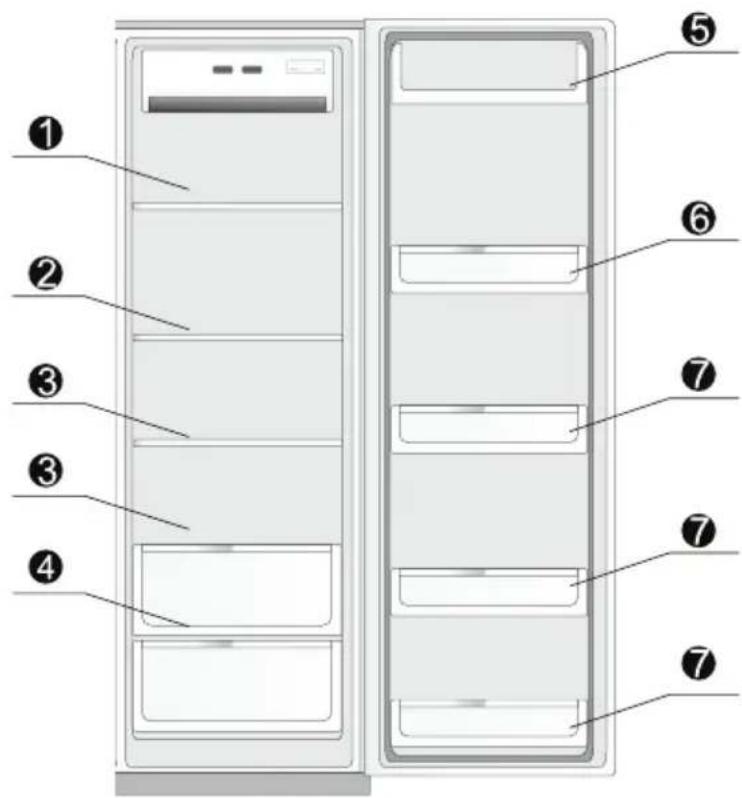

Refrigerator Compartment

Due to the nature of the air conditioning cycle, the temperatures in all the areas of the refrigerator are different Hence, different types of foods should be placed in different compartments. Following are the recommendation of food types to be stored in compartments:

1. Store pasta, milk, etc.
2. Store fast food, dairy products, etc.
3. Store cooked meat, cooked vegetable etc.
4. Store fruits and vegetables.
5. Store egg, bu er, cheese, etc.
6. Store easy open n can, canned food, spices, etc.
7. Store all kinds of boiled drinks and foods.

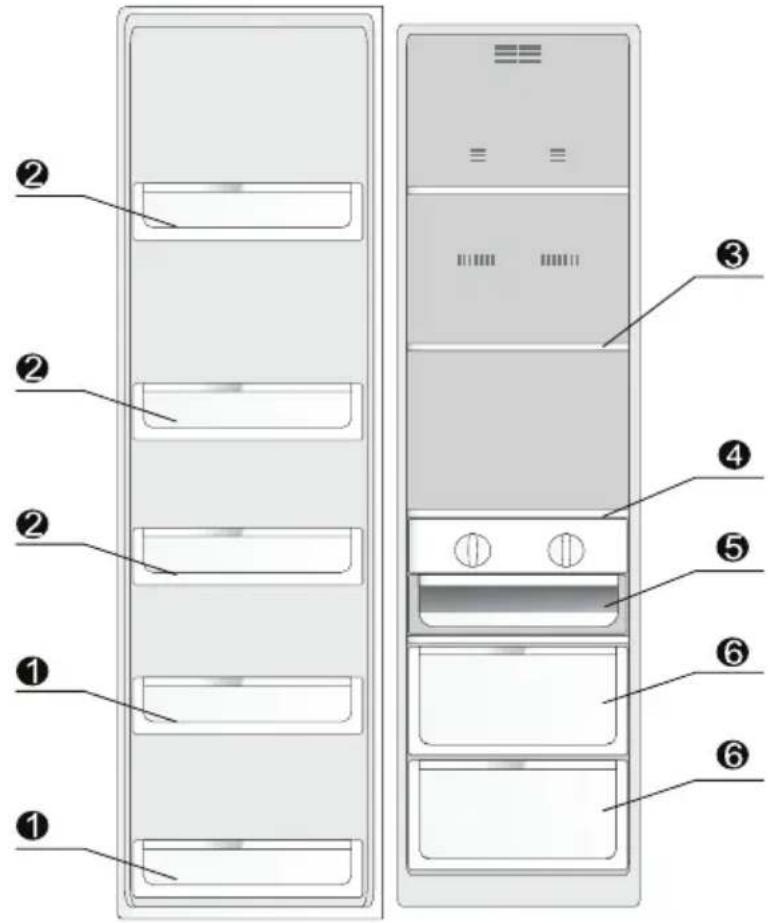

Freezer Compartment

The freezer compartment is for long term food storage. The temperature of the freezer compartment is too low and hence it can keep food fresh for longer periods of me.

1. Use the door of the freezer to store short term food and ice-cream.

2. Use the grills for storing frozen food.

3. Use the glass shelves for using storage of frozen foods such as sh, meat and ice-cream.

4. The rotary ice-maker is to produce ice

5. You can store ice cubes in the ice box.

6. Fish, meat and poultry with food packaging can be stored in the freezer drawer.

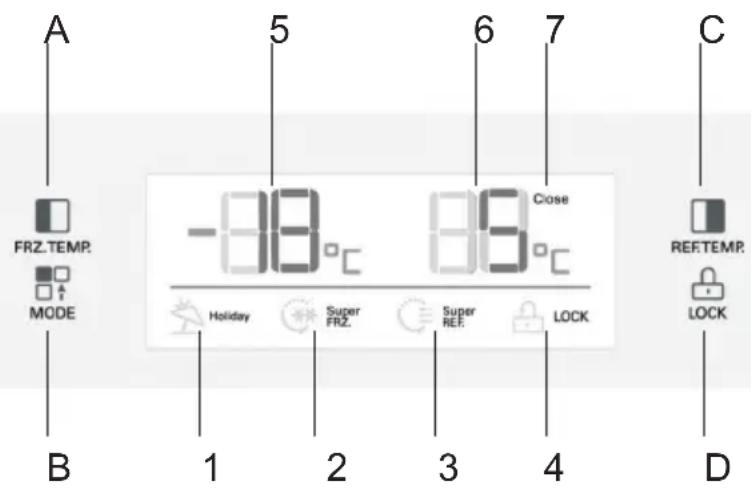

Introduction to Functions

1. Bu on Op ons

a. Freezer Compartment temperature adjustment

Press once and the screen will display the current freezer compartment temperature. Press again and you can set the temperature from -16^ to -24^

b. Mode Se ngs

Press the bu on to cycle between the following four modes - Vaca on mode - Quick Freezer Mode - Quick Cool and Freezer - Quick Cool - None

c. Refrigerator Compartment temperature adjustment

Press once and the screen will display the current refrigerator compartment temperature. Press again and you can set the temperature from 2^ C to 8^ C.

You can tap and hold this bu on for 3 seconds to switch o the refrigerator compartment. Similarly, when the refrigerator compartment is switched o , you can tap and

hold this bu on for 3 seconds to switch on the compartment

d. Lock/Unlock Se ngs

Press the bu on to put the refrigerator in Lock Mode. When in locked mode, tap and hold this bu on for 3 seconds to release the lock.

2. Display Op ons

a. Vaca on Mode

This icon displays if the appliance is in the vaca on mode.

b. Quick Freeze Mode

The icon displays if the freezer compartment is the rapid cool mode or not.

c. Quick Cool Mode

The icon displays if the freezer compartment is the rapid cool mode or not.

d. Lock Icon

This icon tells if the refrigerator is in the locked state or now.

e. Freezer Compartment Temperature

This icon displays the temperature inside the freezer compartment.

f. Refrigerator Compartment Temperature

This icon displays the temperature inside the refrigerator compartment.

g. Close Icon

Maintenance

The freezer compartment will defrost automa cally.

Cleaning

Some food stored in the refrigerator may have bad odour and hence it is necessary to clean the refrigerator from me to me.

• Switch o the appliance and pull out the power plug before cleaning
• Use so towel or sponge with warm water to clean the refrigerator.
• Wipe dry the refrigerator using a dry cloth.

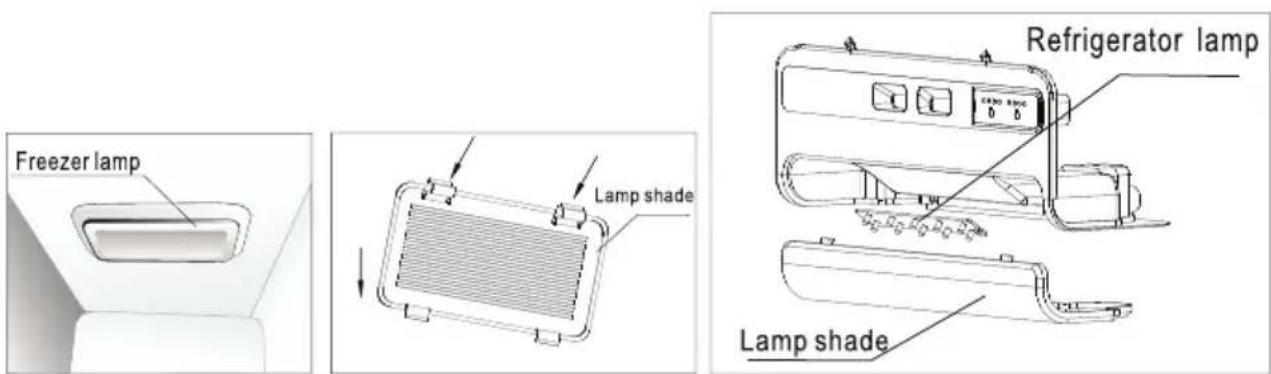

Replacement of Interior Lights

The replacement of the Interior Lights should be carried out by professionals only.

Speci ca ons - 12V DC, LED

Switch of the appliance.

As per the photo, remove the shade along the drive direc on of the arrow and then ghten the screws, remove the LED lights.

Restore and replace an -steps.

Troubleshooting

Occurrence Possible	Cause/Solu ons
Not Working	Make sure the power supply is connected and the plug is ghtly inserted into the outletCheck the voltage level (if too low)
Not Cooling	Temperature is set to a higher valueToo much food/ liquid stored in freezerHot/Warm Food stored recentlyDoors being opened too frequentlyHeat Source Nearby
Noisy Opera on	Refrigerator not placed on a levelled oor.
Refrigerator Freezing Food	Check if the appliance is placed in a windy area
Foul Smell/Odour	Smelling food not packed properlyFood gone foulInner cabinet needs cleaning

If you are unable to resolve the issue a er taking care of the above points, please contact a Lloyd authorized service personnel.

Energy Saving Tips

• The appliance should be placed in the coolest area of the room. Avoid placing the appliance near any heat producing appliances, heating ducts or in direct sunlight
• Do not keep keep hot food directly into the refrigerator. Let the food cool down to room temperature before keeping it in the refrigerator. Overloading the appliance may cause the compressor to run for a longer me. Foods that freeze at a slower rate may lose quality or get spoilt early.
• Be sure to wrap the food properly and wipe the containers dry before placing them in the appliance. This cuts down on frost build up in the appliance.
• Appliance storage bin should not be lined with aluminium foil, wax paper or toilet paper. Liners interfere with the cold air circula on in the appliance making the refrigerator less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many as items needed at one me and close the door as soon as possible.

WARRANTY TERMS AND CONDITIONS

LLOYD ELECTRIC ENGINEERING LIMITED (hereina er referred to as 'the company') guarantees to the purchaser that this product carries a warranty for the period men oned below, commencing from the date of purchase. The company will repair or replace free of charge any part or parts of the product, if the defect is due to the faulty material or workmanship. Warranty involves repairing of defective product/parts and does not entle purchaser for the replacement of complete product.

Product	Warranty Period	Part Not Covered
Refrigerator	Comprehensive - 1 year Compressor - 5 years	Plas c / Glassware / Bulb / Tube

1. This warranty is con ned to the rst purchaser of the product only.
2. Repair or replacement will be carried out through the Company's Service Centres or it's Authorised Service Centres.
3. For units installed beyond the municipal limits of the jurisdic on of the authorised service centre/company's service centre, all expenses incurred in collec on the unit or part/s thereof from the company's service centre/authorised service centre, as well as expenses incurred in connec on with depu ng of service personnel/ technicians towards to and fro travel, conveyance and other incidentals etc. will be borne by the customer.
4. In the event of repairs/replacement of any part/s of the unit, this warranty will therea er con nue and remain in force only for the unexpired period of the warranty. Moreover, the me taken for repair/replacement and in transit whether under the warranty or otherwise shall not be excluded from the warranty period.
5. The company or it's authorised service centre, reserves the right to retain any part/s or component/s replaced at it's discretion in the event of a defect no ced in the equipment during the warranty period.
6. (a) Any change of address shall be in mated to concerned service centre for con nua on of warranty.
   (b) Warranty for the unexpired period shall continue a re the product is inspected by the concerned service centre and the product is found free from transit damage. The customer shall have to pay a visiting charge towards inspection, as applicable.
   (c) In case of any transit damage, the product shall be repaired by the concerned service centre on charges and warranty for unexpired period to continue.

7. The warranty does not cover demonstra on/ installa on of the product purchased.

8. The company's obliga on under this warranty shall be limited to repair or providing replacement of part/s only. The maximum claim /s if entertained by the company will be subject to the maximum retail price of the product purchased or the purchase price, whichever is lower.

9. In the event of any unforeseen circumstance, and spares not being available, the company's prevailing depreciation on rules will be binding on the purchaser to accept as a commercial solution in lieu of repairs.
10. The warranty is issued at New Delhi, and Courts at New Delhi shall have exclusive jurisdic on over ma ers covered or owing from this warranty.
11. The company's obliga on under this warranty shall be limited to repairing or providing replacement of part/s, which are found to be detect ve.
12. Repairs during warranty period shall be carried on "Carry In" basis. Wherein for service the purchaser shall bring the product to the Service Centre with whom the set is registered for warranty service. The warranty does not cover cost of transporta on of system from place of installa on to the Service Centre.
13. The concerned Service Centre will advise the customer whether to e ect the repair at site or its Service Centre.
14. Any part/s of the system replaced by the company at it's discrete on shall be with a functionally operational part.

THIS WARRANTY IS NOT APPLICABLE IN ANY OF THE FOLLOWING CASES:

1. The warranty card is not duly lled and mailed back to the service centre for registra on by the purchaser.
2. The completed warranty card and invoice is not presented to authorised personnel at the time of repair.
3. The product is not purchased from an Authorised LLOYD dealer.
4. The product is not used according to instructions given in the instruction manual.
5. Defects caused by improper use as determined by the company personnel.
6. Modi ca on or altera on of any nature is made in the electrical circuitry/ or physical construc on of the set.
7. Installa on/ repair work is carried out by persons/agency other than authorised by the company.
8. Site (premises where the product is kept) conditions that do not con rm to the recommended operating conditions of the machine.
9. The original serial number is removed, obliterated or altered from the machine or cabinet.
10. Defects due to cause beyond control like lightning, abnormal voltage, acts of God or while in transit to service centre or purchaser's residence
