USER MANUAL LFR330SS Lloyd

Pure technical line drawing of a vertical rectangular frame with no text, numbers, or symbols

Dear Customer

Congratulations on being the proud owner of Lloyd Refrigerator. Your Refrigerator comes with a Lloyd Guarantee of Quality.

Lloyd takes great pride in providing its customers with perfect products that adheres to international quality standards.

Lloyd is committed to international quality standards.

Lloyd is committed to provide the ultimate customer satisfied customers of Lloyd.

At Lloyd, feedback and suggestions based on your product usage experience are greatly appreciated.

Please feel free to contact us at [e-mail]

NIPUN SINGHAL DIRECTOR

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazards.

WARNING:

-WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
-WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
-WARNING: Do not damage the refrigerant circuit.
-WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
-Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

Please follow the safety hints listed below :

The power supply for the unit should be exactly the same as described on the data sheet, and use the standard tri-prong socket.

The unit should be operated in the absence of flammable or explosive fumes. It is prohibited to put flammable, acid or volatile goods in cabinet.

Please unplug the unit first when you replace the light bulb or repair the refrigerator.

Please unplug the unit immediately if you find any abnormal smell or smoke, and contact your local service center.

Please don't allow water on the cabinet, or put a vessel full of water on the refrigerator. If the refrigerator is wet, the electrical insulation capability may be weakened.

Hanging or sitting on the door is very dangerous, it may overturn the unit and subvert the goods in (or on) the refrigerator.

OK!

Akohol Beiced Aotet

Cartoon illustration of a distressed refrigerator with a fishbowl above its head, showing a sad face and waving hand (no text or symbols)

Illustration of two people climbing a building with expressive faces (no text or symbols)

Note: Figures in the user manual are only for reference. The actual product may differ slightly.

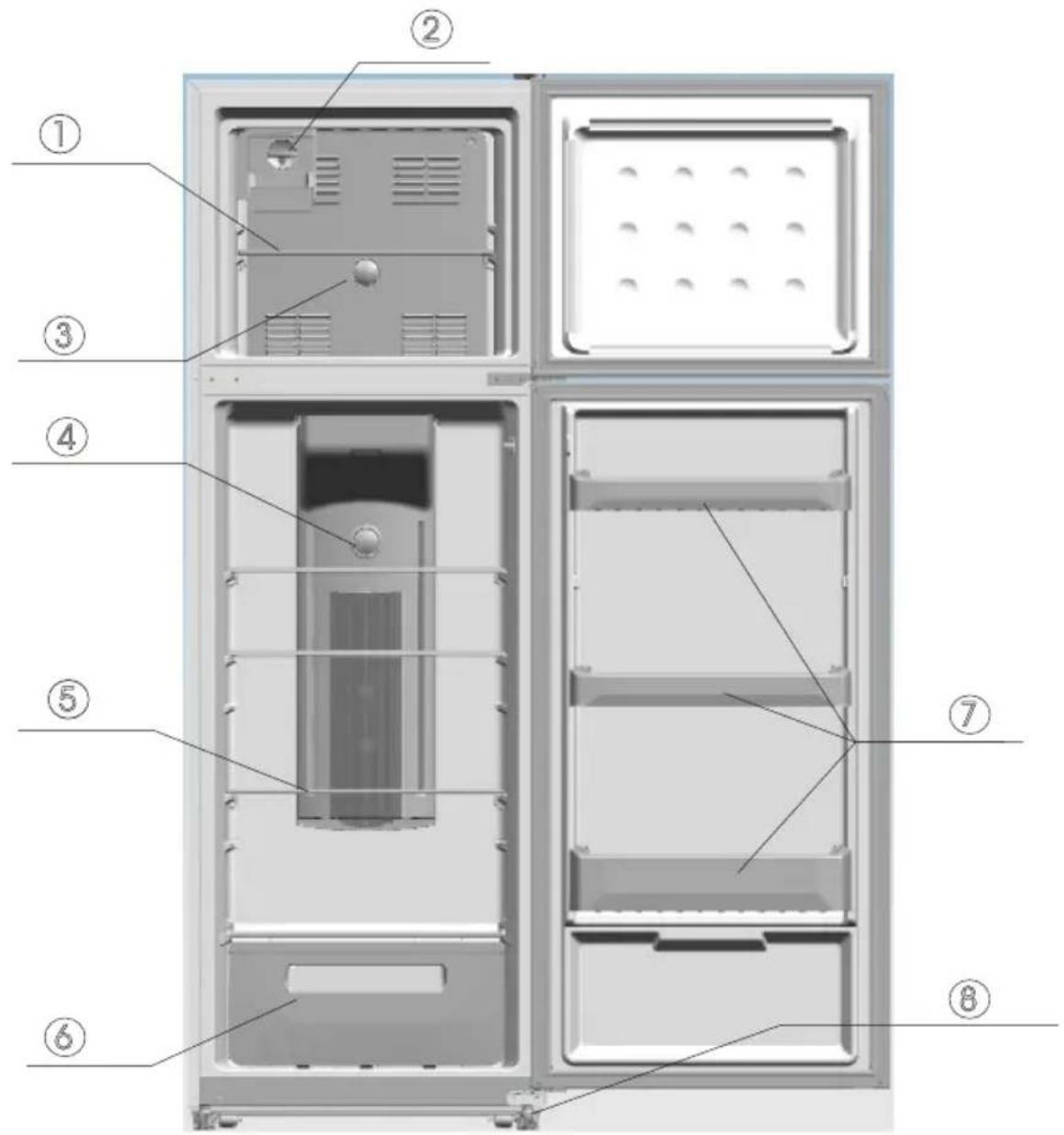

Labeled diagram of an refrigerator interior showing eight numbered compartments and storage areas

1. Freezer Shelf

2. Ice Maker

3. Control Knob Freezer

4. Control Knob Refrigerator

5. Shelf

6. Crisper

7. Door Tray

8. Adjustable Foot

The unit should be placed in a ventilated and dry environment. Do not put the unit under direct sunlight, and keep it as far as possible from heat sources.

Illustration of a refrigerator with a sad face and a crossed-out refrigerator (no text or symbols)

The unit should be placed on flat and steady ground. Keep the unit level by adjusting the front leg levelers.

Adjust levelers

Don't put the unit in cold area.

Cartoon illustration of a person inside a refrigerator with snowflakes around (no text or symbols)

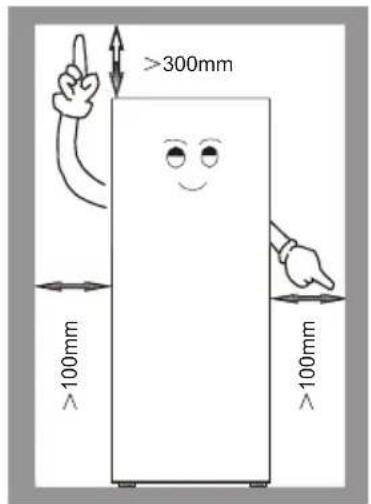

There should be enough space around the unit as shown, to allow proper ventilation.

No less than 10cm from the back of the refrigerator to the adjacent walls respectively. This requirement is good for open and close of the door and also for heat emission.

>300mm 100mm 100mm

Make sure the unit has been placed properly and all instructions have been followed.

Use the appliance safely

Adjust the control knob to the middle position, and then plug in the unit. After closing the door for several minutes, both side of cabinet becomes warm.

The surface temperature will rise to a steady value eventually. Hot

30 minutes later, open the freezer compartment door, feel the cold air, that means the unit works properly. After some time set the compartment temperature as per needs.

Cartoon illustration of a smiling face and a large clock, no text or symbols present

The temperature in the fresh compartment is between 0-4 degrees C. Although this lower temperature can limit the bacteria propagation, it is not suitable for a long period of food storage.

FRESH FOOD STORAGE

Cooked food should be cooled down to room temperature before putting into the refrigerator.

It is better to put the food in a sealed bag before placing into the refrigerator.

Cartoon illustration of a steaming dish and a refrigerator with a sad face (no text or symbols)

Simple line drawing of a hand holding an apple above a bag filled with apples (no text or symbols)

In order to keep vegetables fresh in the crisper, moisture should be removed first, otherwise, the vegetables may spoil. Vegetables in a bag may be stored for a longer period.

Simple line drawing of a leaf with leaves spilling out (no text or symbols)

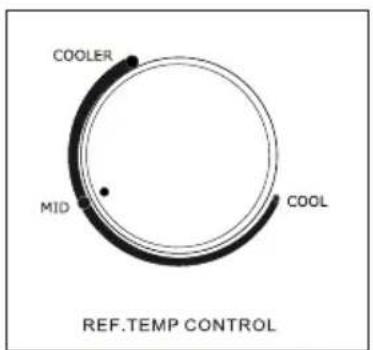

CONTROL KNOB

It used to adjust the temperature of the different compartments. The user can adjust for desired temperature.

COOLER MID COOL REF.TEMP CONTROL

The user can adjust the temperature of cooling or freezing by turning the control knob located at the back of the cooling zone cabinet. According to the above Picture:

The left knob is used for controlling temperature of cooling while the right one is for freezing.

R-TEMP control knob

Turn the knob clockwise, the cabinet temperature will fall counter-clockwise, the temperature will rise.

F-TEMP control knob

Turn the knob counter-clockwise, the cabinet temperature will fall, clockwise, the temperature will be raised.

FROZEN FOOD STORAGE

The temperature of the freezer is less than -18°C. It is to store food for a long period.

After buying frozen food, please put it into the freezer compartment as soon as possible.

The best reserve temperature is below -18°C -18°C

Any hot food must be cooled down to room temperature before it is put into the freezer.

Please don't put glass containers filled with liquid into the freezer compartment as the glass may break.

It is better to sort the food before putting them into the freezer. Put the same kind of foods together to help minimize the time of the freezer door opening when you take the food out, and helps to save energy.

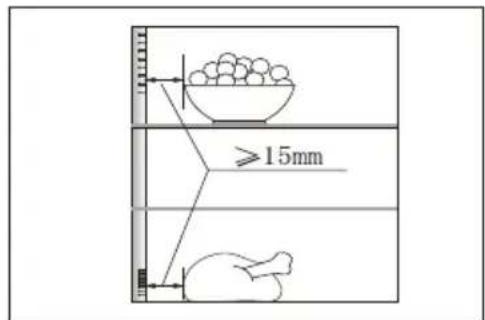

The food should not be kept too close to the outlet or inlet of the airflow, It may affect the air circulation.

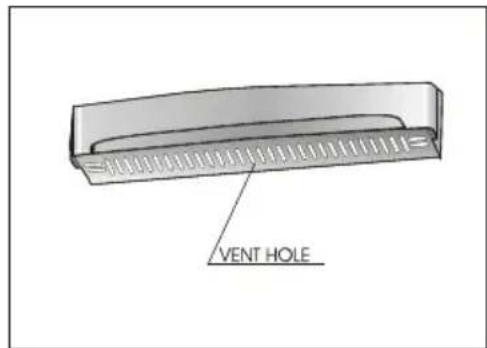

DOOR TRAY

There are some ventilation holes on the bottom of the door tray. Prevent blocking all of them when you keep food.

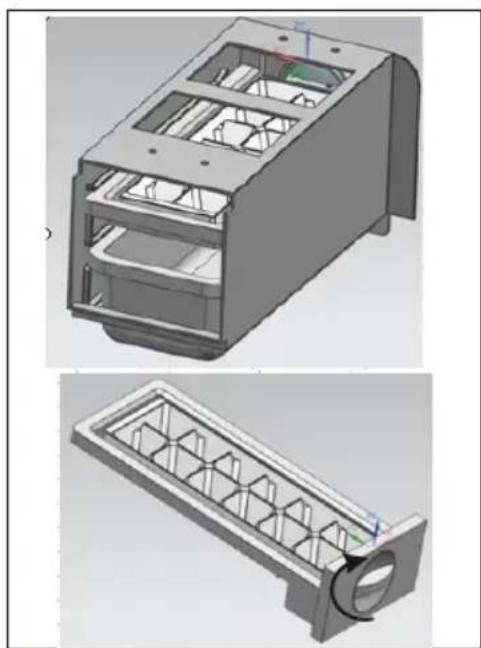

ICE TRAY

The ice tray is to make ice cubes.

Fill with cold drinkable water to a height of four-fifth of the ice tray, and place it in the freezer for about 3 hours.

When the cubes are fully frozen, twist the knob to separate the ice from cubes, take ice from the box below, Do not over-bend the ice maker tray to avoid breaking it.

Line drawing of a kitchen appliance with three plates and a tray (no text or symbols)

≥15mm

VENT HOLE

3D CAD renderings of a mechanical housing component, showing front and side views with internal cavities (no text or symbols)

CLEANING

Always unplug the unit before cleaning.

The unit should be cleaned frequently both inside and outside using water and a little neutral detergent. Never use boiling water, harsh cleaning agents, acid, alkali, benzene etc.

Illustration of a person cleaning a refrigerator with a smaller jar nearby (no text or symbols)

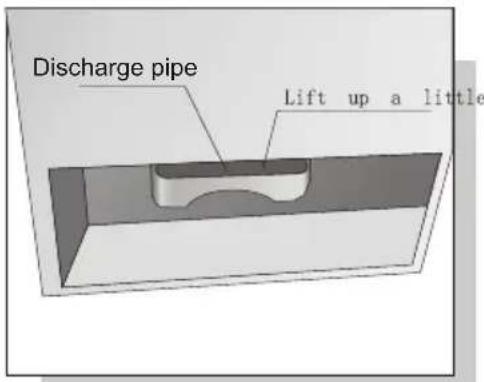

WATER PAN CLEANING

Make sure the fridge is unplugged before you take out the water pan.

The water pan is locked in the back of the cabinet. Its function is to collect and evaporate the defrosted water. Usually it does not need special care, but if you find some water overflow or odd smell, it needs to be checked and cleaned. Pull out the power cord first. Lift the water pan up a little, and then pull it straight out carefully. (Caution: make sure the discharge pipe is not too hot). After cleaning, re-fix the water pan into its original position. Make sure that the pipe is on top of the water pan before you push it into the original position.

Illustration showing a refrigerator with a surprised face, a steaming cup, and a thermometer, suggesting a chemical or food safety concept.

Discharge pipe Lift up a little

LEAVING THE UNIT SWITCHED OFF

If the unit is switched off for a long time, the plug should be pulled out, and the unit should be cleaned thoroughly. Ensure that the door is not completely closed (leave suitable gap), and place the unit in a well-ventilated area to avoid any odor.

Illustration of a smiling refrigerator with exhaust flames next to a window (no text or symbols)

Before calling for service, please check the following issues first:

The reason of the trouble

Trouble	Possibility
The unit doesn't work	● Power is not on.● Low voltage
The unit works inefficiently	● The control knob is set at a “low number” position● Too much food in the unit● Hot food in the unit● Door opened & closed too frequently● There is a heat source nearby● The unit is exposed to direct sunlight
Noise	● Floor is not flat, and the unit is not placed steadily.● Contents are not placed in the right position
Food frozen	● Control knob is set too high.● Food is kept near the outlet of the cold draught.

FOLLOWING PHENOMENON IS NORMAL

The sound like a rivulet is caused by the refrigerant flowing inside of the system pipe.

While the unit runs, heat is emitted from both sides of the cabinet.

When the weather is too humid, the edges around door may have a little moisture. Wipe it with a dry cloth.

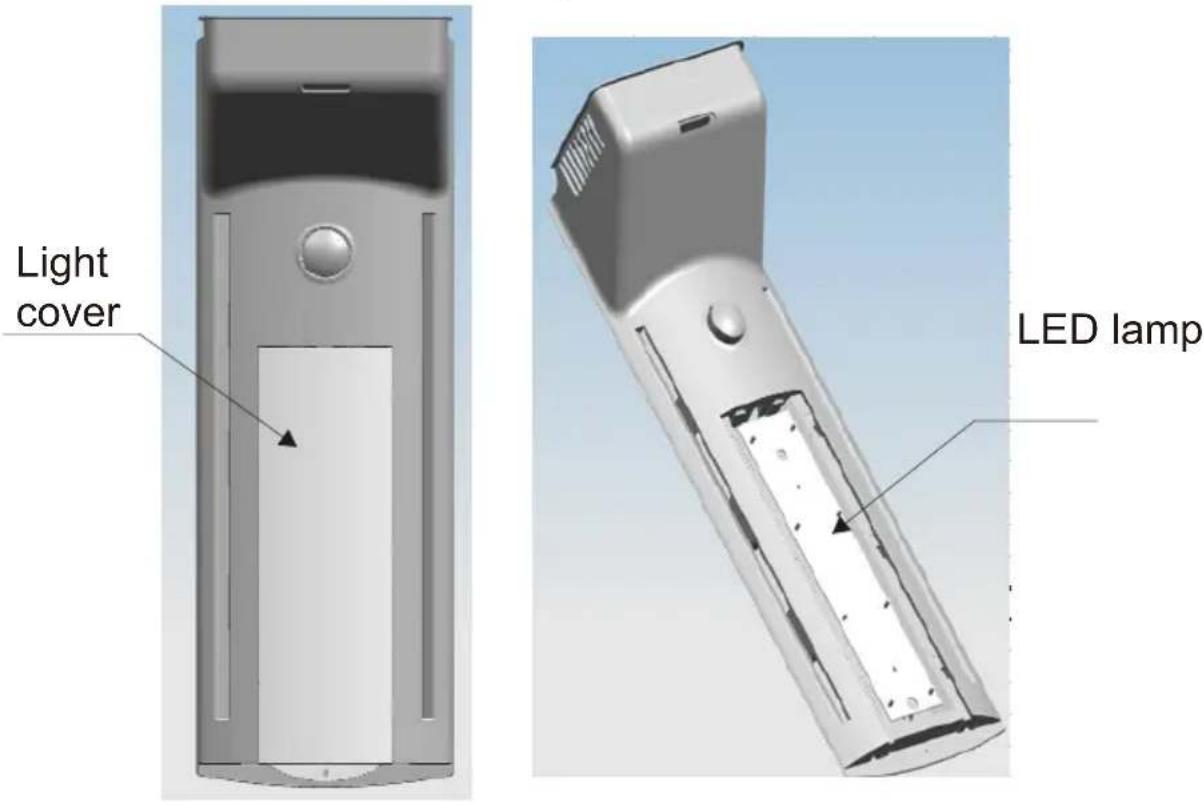

Light cover LED lamp

CHANGING THE LIGHT BULB

Please contact the service agent or similarly qualified persons if the light needs to be changed.

Before changing the light board, please unplug the fridge first, then pull down the light cover and change the light board according to the picture, as shown above.

Make sure the light board is 220-240V\~/50Hz/2W.

Correct Disposal of this product

Correct Disposal of this productThis marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Energy Saving Tips

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and away from direct sunlight.
• Allow hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper towels. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

A) TYPE X ATTACHMENT WITH SPECIALLY PREPARED CORD-DAMAGED SUPPLY CORDS MUST BE REPLACED BY A SPECIAL CORD OR ASSEMBLY AVAILABLE FROM THE MANUFACTURER OR ITS SERVICE AGENT
B) TYPE Y ATTACHMENT-DAMAGED SUPPLY CORDS TO BE REPLACED BY THE MANUFACTURER, SERVICE AGENT OR SIMILARLY QUALIFIED PERSON TO AVOID HAZARD
C) TYPE Z ATTACHMENT-DAMAGED SUPPLY CORD CANNOT BE REPLACED AND THE APPLIANCE SHOULD BE SCRAPPED

SPECIFICATION

Model LFR330SS
Climate Class N/ST/T
Protection Against Electric Shock	I
Rated Voltage/Frequency 220V-240V/50Hz
Rated Power(W) 90
Rated Defrost Power(W) 150
Lamp Rated Power(W) MAX 2
Rated Current(A) 0.42
Foaming Agent Cyclopentane
Energy Consumption(kwh/24h) 0.76
Total Gross Volume(L) 310
Gross Freezer Volume(L) /
Total Storage Volume(L) 294
Freezer Storage Volume(L)	57
Refrigerator Storage Volume(L)	237
Refrigerant,Amount	R600a,42g
Freezing Capacity(kg/24h)	3.0
Net Weight(kg)	58
Gross Weight(kg)	65
Product Dimensions(mm)(wxdxh)	598x642x1764

WARRANTY TERMS AND CONDITIONS

LLOYD ELECTRIC ENGINEERING LIMITED (hereinafter referred to as 'the company') guarantees to the purchaser that this product carries a warranty for the period mentioned below, commencing from the date of purchase. The company will repair or replace free of charge any part or parts of the product, if the defect is due to the faulty material or workmanship. Warranty involves repairing of defective product/parts and does not entitle purchaser for the replacement of complete product.

Product	Warranty Period	Part Not Covered
Refrigerator	Comprehensive - 1 year Compressor - 5 years	Plastic / Glassware / Bulb / Tube

1. This warranty is confined to the first purchaser of the product only.
2. Repair or replacement will be carried out through the Company's Service Centres or it's Authorised Service Centres.
3. For units installed beyond the municipal limits of the jurisdiction of the authorised service centre/company's service centre, all expenses incurred in collection the unit or part/s thereof from the company's service centre/authorised service centre, as well as expenses incurred in connection with deputing of service personnel/ technicians towards to and fro travel, conveyance and other incidentals etc. will be borne by the customer.
4. In the event of repairs/replacement of any part/s of the unit, this warranty will thereafter continue and remain in force only for the unexpired period of the warranty. Moreover, the time taken for repair/replacement and in transit whether under the warranty or otherwise shall not be excluded from the warranty period.
5. The company or it's authorised service centre, reserves the right to retain any part/s or component/s replaced at it's discretion in the event of a defect noticed in the equipment during the warranty period.
6. (a) Any change of address shall be intimated to concerned service centre for continuation of warranty.
   (b) Warranty for the unexpired period shall continue after the product is inspected by the concerned service centre and the product is found free from transit damage.
   The customer shall have to pay a visiting charge towards inspection, as applicable.
   (c) In case of any transit damage, the product shall be repaired by the concerned service centre on charges and warranty for unexpired period to continue.

7. The warranty does not cover demonstration/ installation of the product purchased.

8. The company's obligation under this warranty shall be limited to repair or providing replacement of part/s only. The maximum claim /s if entertained by the company will be subject to the maximum retail price of the product purchased or the purchase price, whichever is lower.

9. In the event of any unforeseen circumstance, and spares not being available, the company's prevailing depreciation rules will be binding on the purchaser to accept as a commercial solution in lieu of repairs.
10. The warranty is issued at New Delhi, and Courts at New Delhi shall have exclusive jurisdiction over matters covered or flowing from this warranty.
11. The company's obligation under this warranty shall be limited to repairing or providing replacement of part/s, which are found to be detective.
12. Repairs during warranty period shall be carried on "Carry In" basis. Wherein for service the purchaser shall bring the product to the Service Centre with whom the set is registered for warranty service. The warranty does not cover cost of transportation of system from place of installation to the Service Centre.
13. The concerned Service Centre will advise the customer whether to effect the repair at site or its Service Centre.
14. Any part/s of the system replaced by the company at its discretion shall be with a functionally operative part.

THIS WARRANTY IS NOT APPLICABLE IN ANY OF THE FOLLOWING CASES:

1. The warranty card is not duly filled and mailed back to the service centre for registration by the purchaser.
2. The completed warranty card and invoice is not presented to authorised personnel at the time of repair.
3. The product is not purchased from an Authorised LLOYD dealer.
4. The product is not used according to instructions given in the instruction manual.
5. Defects caused by improper use as determined by the company personnel.
6. Modification or alteration of any nature is made in the electrical circuitry/ or physical construction of the set.
7. Installation/ repair work is carried out by persons/agency other than authorised by the company.
8. Site (premises where the product is kept) conditions that do not confirm to the recommended operating conditions of the machine.
9. The original serial number is removed, obliterated or altered from the machine or cabinet.
10. Defects due to cause beyond control like lightning, abnormal voltage, acts of God or while in transit to service centre or purchaser's residence
