Product Type	32-inch (76 cm) Colour Television
Display Technology	CRT with 100 Hz digital scan
Screen Format	16:9 Widescreen
Dimensions (approx.)	Width: 800 mm, Height: 600 mm, Depth: 500 mm
Weight (approx.)	25 kg
Power Supply	AC 230-240 V, 50 Hz
Power Consumption (max)	190 W
Standby Power Consumption	4 W
Sound Output	2 x 12 W (10% THD)
Number of Programmes	100
Tuning System	Automatic (ATS) with country selection, manual fine tuning
Picture Enhancement	Digital Comb Filter, DCTI, DLTI, Noise Reduction
Sound Features	AVL, Dynamic Bass, 5-band equalizer, Virtual Dolby Surround (optional)
Teletext	512 pages, Fastext/Toptext (optional), 512/1024/2048 pages
PIP (Picture-in-Picture)	2 tuner, with SWAP, SIZE, POSITION, ZAPP, Double Window
Connectivity	2 SCART (RGB), 3rd SCART optional, S-Video, RCA AV, Headphone jack
Child Lock	Yes, programmable for specific channels
Timer Functions	On/Off timer, programmable
Languages	18 languages in menu
Cleaning Instructions	Use a slightly damp cloth or chamois leather; never use abrasive cleaners
Safety Precautions	Keep ventilation clear; do not expose to liquids; unplug when cleaning
Spare Parts & Service	Contact Prima Australasia Pty Ltd, service hotline: [phone]

Frequently Asked Questions - TTV-32PF10 TELEFUNKEN

How do I perform automatic tuning?

Press the blue Setup button or go to Menu > Setup. Select AUTOPROGRAM, choose your country, then press OK. The TV will search and store all available channels.

How can I fine-tune a channel manually?

In the Setup menu, select FINE TUNING and use the Volume buttons to adjust. Then select STORE and press OK to save.

How do I use the PIP (Picture-in-Picture) feature?

Press the PIP button on the remote to enable. Use the INPUT button to select AV input for the PIP window. You can swap main and PIP using SWAP, change size with SIZE, and move position with POS.

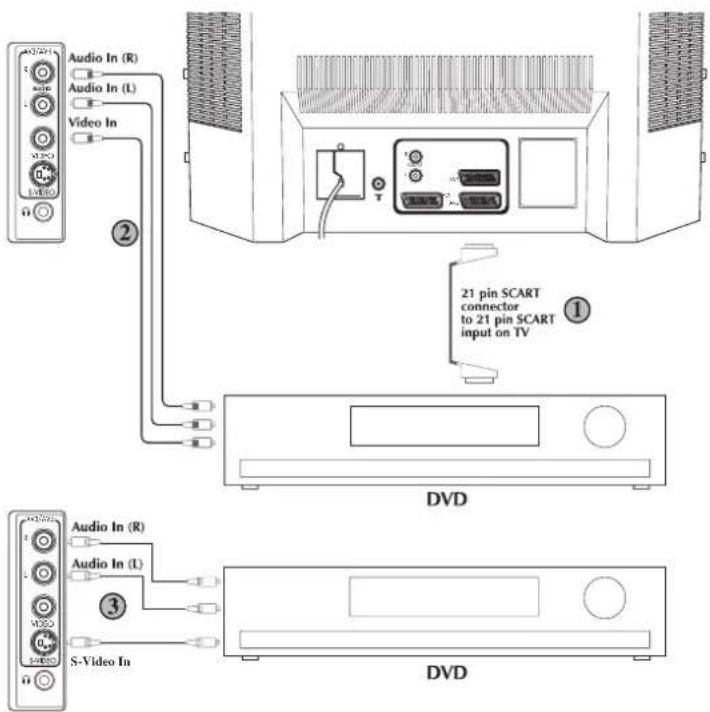

How can I connect an external device like a DVD player?

Use a SCART cable to connect to AV1, AV2, or AV3 (optional). Alternatively, use RCA composite cables to AV3/AV4 input. Select the corresponding AV input using the AV button on the remote.

How do I set the Child Lock?

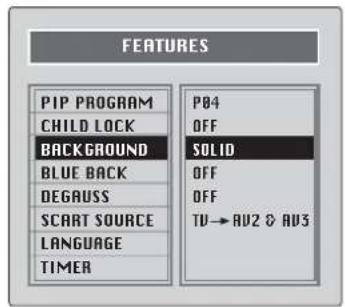

Press the purple button to open Features menu. Select Child Lock and use Volume buttons to turn it ON for the current program. To cancel, set it OFF while watching that program.

What should I do if the picture is poor or snowy?

Check the aerial connection and direction. Try fine tuning. Ensure no external sources are causing interference. Adjust the picture settings (brightness, contrast, etc.) from the Picture menu.

How do I activate and use Teletext?

Press the TEXT button. Enter the page number using numeric buttons. Use coloured buttons for Fastext. To exit, press TV/TX. You can mix text with TV using the MIX button.

Why is there no sound?

Check if the TV is muted (press Mute button). Ensure volume is turned up. Also check if headphones are connected (sound is then only through headphones). Adjust balance in Sound menu.

How do I reset the TV to default settings?

Press the PP button on the remote to revert to default settings for volume, colour, contrast, brightness. You can also factory reset by going to Setup and resetting, but manual suggests pressing PP.

Where can I get spare parts or service?

Contact Prima Australasia Pty Ltd at P.O. Box 326 Braeside Victoria 3195 Australia or call service hotline [phone]. Do not attempt to repair yourself.

USER MANUAL TTV-32PF10 TELEFUNKEN

76 cm Colour Television

TTV32PF10

List of contents

Special features ......2

Safety instructions ....3

Getting started ....4

Aerial connection....4

Switching on....4

Battery fitting....4

Control unit....5

Front and rear panel....5

External connections table....6

Remote control 6

Using the TV ....7

Tuning the TV 8

Automatic tuning 8

Manual tuning....9

Program organizing ....11

TV setup ......12

Sound menu 12

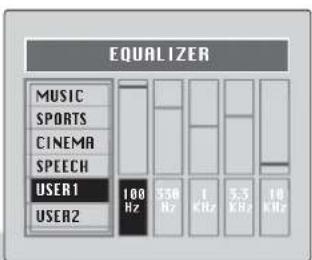

Sound Features ....13

Picture menu....14

Features Menu 15

Picture format 17

Subwoofer....17

Other features ....18

PIP 18-19

Using teletext....20-21

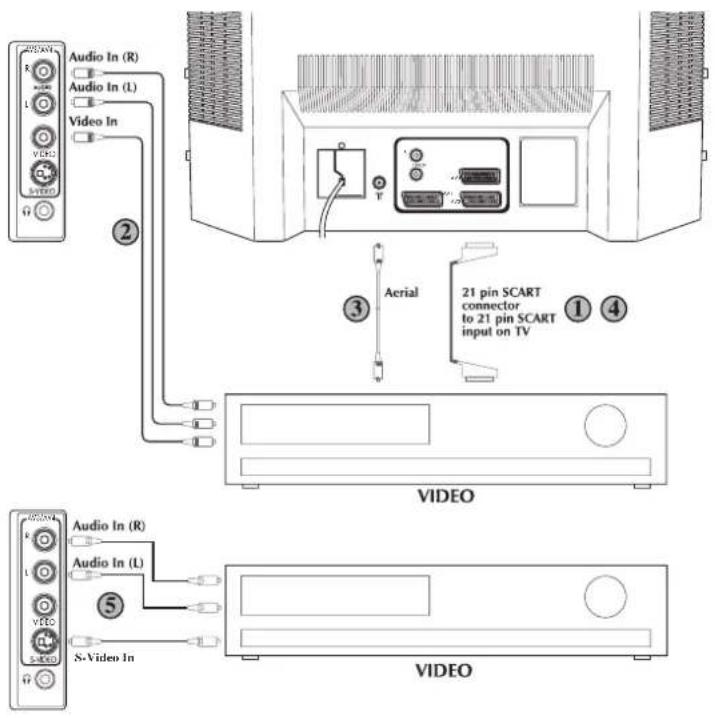

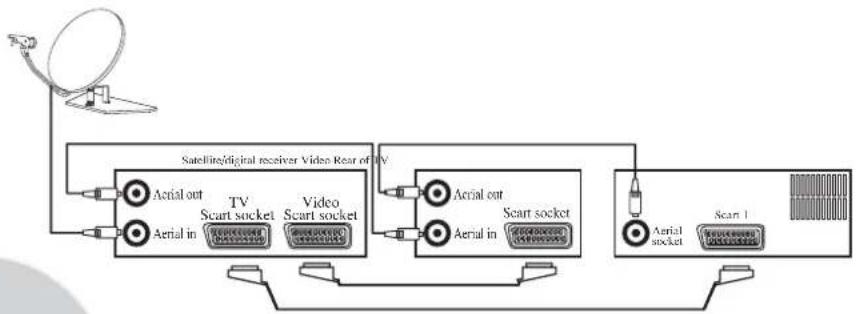

Connecting external equipment....22-26

Help and service tips ......27

Technical specifications table ......28

Television

Thank you for buying this television which is designed to give you many years of satisfactory service.

You may already be familiar with using a television but do please take time to read these instructions. They are designed to familiarize you with the unit's many new features and to ensure you get the very best out of your purchase.

Special features

• 100 Hz digital scan.
• 512 page teletext (1024/2048 pages optional).
• Fastext and/or Toptext (Optional).
• Letterbox, Subtitle 1 & 2, 16:9, 14:9 picture formats (for Widescreen TV sets).
  • Digital Color Transition Improvement (DCTI).
  • Digital Comb Filter (DCF).
  • Digital Luminance Transition Improvement (DLTI).
• Manual degaussing.
• Scan Velocity Modulation (SVM.) (Optional).
  • TILT function (Optional).
  • Dynamic Focus (Optional).
• 3 step Zoom function.
• Picture freeze function.
• Automatically switch to stand by in five minutes after a channel ceases to transmit or selecting a channel, which has no transmission (Auto off function).
• PIP (2 tuner).
• PIP sound via headphone jack (except Secam LL).
  • Virtual Dolby surround (Optional).
• Subwoofer (optional).
  • Dynamic Bass Enhancement.
• Back audio out.
• 5 band graphic equalizer.
  • Automatic Volume Limiting (AVL).
• Program Editing Table.
• Naming the channels.
• Your TV can receive stereo channels directly (NICAM optional).
  • Automatic tuning system with country selection (ATS).
  • 100 Program Memory.
  • Cable/Hyperband tuner.
• Manual Fine Tuning.
• Child Lock.
• Return to the last channel viewed (SWAP).
• Normalization system to recall the setting in memory after the volume, colour, contrast, brightness settings have been changed (PP).
• Picture adjustment using one button (Picture Smart Control).
• Sound adjustment using one button (Sound Smart Control).
• Advanced On Screen Display.
  • Infrared Remote Control.
• Programmable on/off timer.
• Multi language menu system (18).
• Stereo headphone socket.
• 2 Scart Sockets: Video cassette recorder, satellite receiver, video disc player,DVD, TV games or a home computer can be connected to this AV socket with an appropriate connecting cable (3rd Scart socket is optional).
  • S-Video connection.
  • Audio/Video RCA sockets.

Safety is Important

Your safety and the safety of others is important. Please, therefore, ensure you read the Safety instructions before you operate this television.

Safety instructions

Read all the safety instructions before first use of your TV.

- Position the television so that direct light does not fall on the screen. Excessive light will cause a washed out effect.

- Position the power supply lead and other leads so that they are not likely to be walked on or pinched by things placed on or against them.

- Do not place objects filled with liquid such as vase or flower pot on the television top.

Do not expose the TV to dripping or splashing of liquids.

Do not place naked flame sources such as lighted candles on the TV set.

- Make sure that no naked flame sources, such as lighted candles, are placed on top of the appliance. - Do not place the television near heat sources such as radiators, ovens, stoves, etc.

- Do not use the television near any apparatus that produces a magnetic field such as HI-FI speakers or electric motors otherwise colourpurity may be affected.

- The heat built up in the set escapes through ventilation holes, so do not cover the set by drapes, clothes etc. that may block air circulation. Do not place the television on carpet or soft furnishings. - NEVER let children push anything into the holes or slots on the case.

- Clean the TV Screen using a slightly damp cloth or chamois leather. Never use abrasive cleaning agents like liquid or aerosol cleaners. - Remove the mains plug from the socket outlet while cleaning.

- If you wish to place the television on a shelf or in a wall unit always ensure there is a minimum air gap of 8cm around the top, sides and rear of the television, to assist ventilation.

- Your TV set is designed to operate with mains voltages 230-240V 50 Hz AC. Do not connect your TV set to power sources other than the mains supply.

Getting started

Remove your Television carefully from the box. You may wish to store the packaging for future use.

In the box

Inside your this package you should have:

• Television
• Remote control
• User guide
  • AAA batteries x 2

Read these instructions before use.

Aerial connection

To connect an aerial, plug the aerial lead into the aerial socket on the rear of the TV.

Hand inserting a plug into an electrical outlet (no text or symbols visible)

You can use an outdoor or indoor aerial. However, if you use an indoor aerial the quality of the reception may be reduced and adjustment of the aerial may be required when changing programs.

Please note

If you live in a poor reception area or use an indoor aerial you may experience loss or corruption of teletext transmissions.

Switching on

Mains power

Connect the mains plug into the mains socket and switch on. Connect the TV mains plug into your domestic mains socket outlet (230-240V 50 Hz AC).

Please Note

When not in use disconnect the plug from the mains power supply.

Press the Power button on the front of the TV. The standby indicator will illuminate.

Press a Numeric button or the Program up or Program down button on the remote handset or Program up or Program down button on the front panel to switch the TV on.

The standby indicator remains on. The picture will appear after a few seconds.

Press the Standby button to switch the TV to standby. The standby indicator will brighter.

Please Note

Do not leave the television on standby unattended or overnight.

Switching the TV on for the first time

To install your TV, please read the sections "TV controls" and "Tuning the television".

Battery fitting

Insert the 2 AAA Batteries supplied into the compartment on the rear of the remote control, ensure you follow the polarity diagram inside the compartment.

Illustration of a rectangular object with a textured surface and two small circular features on its side (no text or symbols)

Control Unit

Front panel

General

Program ON/OFF switch Stand by Depends on model)

Stand by indicator

External Connections: (Front or side) (External connections: (Rear)

Right audio RCA (Red)

Left audio RCA (White)

Video RCA (Yellow)

S-Video connection

Headphone socket

AV1 scart (RGB)

AV2 scart (Composite)

AV3 scart (RGB) (Optional)

Power cable

Aerial socket

You may wish to connect audio amplifier or any similar devices to audio out. The output is always the current channel you are watching.

Please note

• See the external connections table on next page for available connections depending on the size and model of your TV set.
• Do not use Video RCA and S-Video connections at the same time, otherwise they will effect the picture each other.
• RGB inputs from scart will give you better picture quality.

External connections table

Picture tube size/typee	28"4:3	28"16:9	29"4:3	32"16:9	33"4:3
AV1 Scart	STD. STD. STD. STD.				STD.
AV2 Scart	STD. STD. STD. STD.				STD.
AV3 Scart	OPT. OPT. OPT. OPT. OPT.
Headphone socket	STD. STD. STD. STD.				STD.
Audio/Video RCA	OPT. STD. STD. STD.				STD.
S-Video socket	OPT. STD. STD. STD.				STD.
Back audio out	STD. STD. STD. STD.				STD.

STD : Standard

OPT : Optional

N/A : Not available

Please note:

The Audio/Video RCA, S-Video and Headphone socket can be placed on the front panel or on the right-hand side of the cabinet depending to the model of your TV.

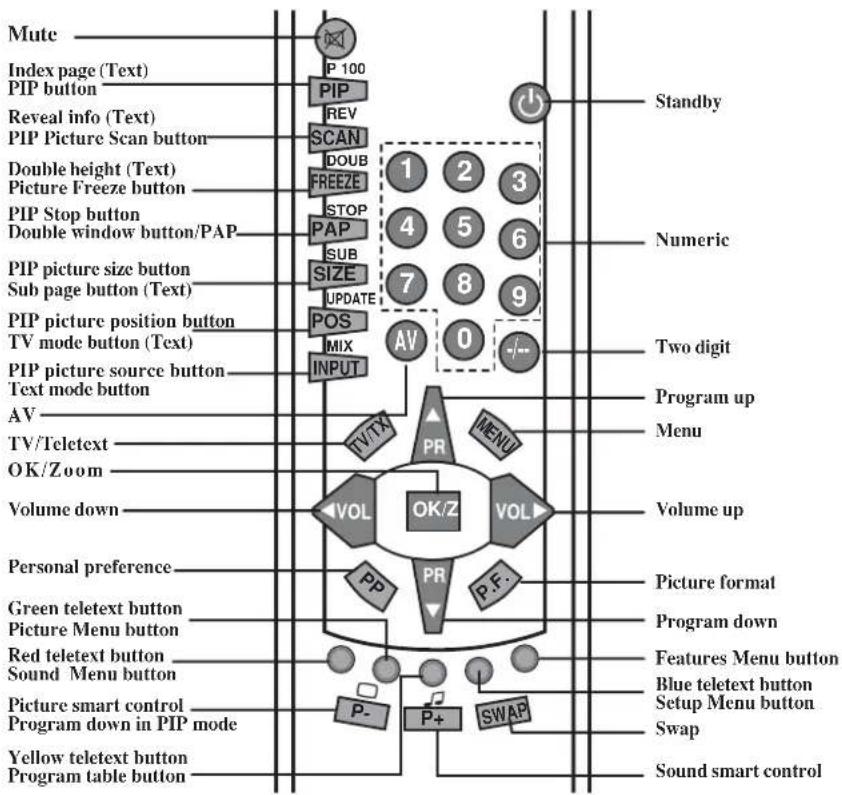

Remote control

Using the TV

Turning on for the first time and Tuning

When you first turn your TV on, "Language" menu will appear. To search on the languages, use the Program up or Program down. Volume up or Volume down buttons and choose your desired language and press "OK" button.

Then "Country Selection" menu will appear. Choose your country using Program up or Program down. Volume up or Volume down and press "OK" button. "Auto-program" process will begin and all the channels will be searched and stored.

TV controls

Stand-By mode

When your TV is working on, press the red "STAND-BY" button on the right upper corner of your remote control to switch off and the Stand-By indicator (Led) will be brighter. To turn on your TV again, press one of the numeric buttons, Program up or Program down.

Please Note: If you will not use your TV for a long time, do not leave it on Stand-By mode, instead switch it off from the power button on the front panel of the TV set. If you always leave your TV on Standby-BY mode, demagnetization process will not occur and that will cause colour problems. If this occurs, press the power button to switch off your TV and wait until it cools off.

Program selection

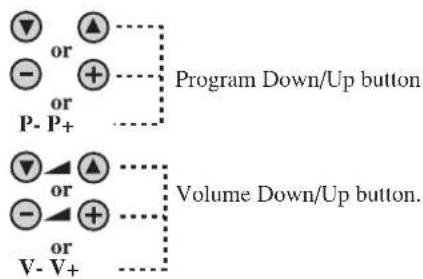

Press the Program up or Program down buttons on the TV or remote control or press a Numeric button to select a programme.

To select a program whose number is greater than 9 using the numeric buttons, press the -- button first and then press the two

Numeric buttons. For example, to

button followed by and then1

-/---select program 12, press the 2

You can also select a program by pressing in the Yellow button to see the Program Table.

Use the Program up and Program down buttons to scroll through the program numbers. When you find the program number you want press the OK button again.

Press the TV/TX button to close the Program Table.

Volume

Press the Volume + or Volume - button on the TV or the vol Vol button on the remote control. A sound level bar will appear on the screen.

Mute

To mute the sound press the Mute button on the remote control. A loudspeaker symbol will appear on the screen.

PP

Press the Mute button again to restore the sound. The symbol will disappear.

Pressing Volume up buttons will also restore the sound. But pressing the Volume down button will decrease the volume without restoring the sound.

Swap
Personal preference. Press the PP button to revert to the default settings for the TV. (See TV setup).

Select the program you would like to recall by pressing SWAP button. Selected program number will appear on the upper left side of the screen. While watching any program, you can recall the selected one by pressing SWAP button again. If you press swap button again you can recall the last program you watched. You can cancel SWAP function by pressing MENU button.

PR 01 → SWAP PR 11 → R 12 → PR 13... → SWAP PR 01

AV

Your TV has 3 scarts so every time you press your AV button, your input will change as follows:

1 AV1 when using SCART socket 1 (RGB support) (Option).
2 AV2 when using SCART socket 2.
3 AV3 when using SCART socket 3
(RGB support) (Optional).
4 AV3-S for S-Video equipment to scart 3 (S-VHS/Scart adaptor is needed).
5 AV4 when using the RCA sockets of the TV.
6 AV4-S when using the S-video socket.

Press the AV button again to return to TV.

Tuning the television

There are two ways of tuning your television: Manual, where you control the tuning process or

Autoprogram where the television does it all automatically.

Your TV will sort all the channels with the ATS. Sorting will be performed in the following order:

a- Selected country's channels with teletext and channel names.
b- Selected country's channels with teletext and without channel names.
c- Selected country's channels without teletext.
d- Foreign channels with teletext and channel names.

Please Note

If the TV is set to a channel with no signal the TV will return to standby in 5 minutes.

The last minute remaining is displayed on the screen.

Automatic tuning (Autoprogram)

There are two ways to access the SETUP menu:

Press the blue Setup button.

or

Press the Menu button and use the

Program down button to select SETUP. Press theOK button to

enter the SETUP menu.

Please note

The system will display automatically on SYSTEM row i.e. BG, L, I, DK depending the receiving broadcasting system of the country. In some countries the broadcasting system can be both in BG/DK or BG/LL'. Only the TV sets produced with Pal Secam BG/DK or Pal Secam BG/LL' systems can receive both BG/DK or BG/LL' broadcasts. In this case the user can select the required SYSTEM using Volume up/down buttons.

Please note

If you do not press any buttons for 15 seconds the TV will exit the menu system.

Use the Program down button to select AUTOPROGRAM and press the OK button. A list of countries will appear. Select the desired country using Program and Volume buttons.

When you are sure the aerial is connected properly press the OK button. Autoprogram will start. AUTOPROGRAM will flash.

To cancel Autoprogram whist it is working press the Menu button repetitively.

As Autoprogram stores a channel it will appear briefly on the screen before the search continues.

Your TV is now tuned and ready to use.

Please note:

If auto sort fails to arrange the programs in the required sequence please refer to program organizing.

Manual tuning

If you want to tune manually:

In the Setup menu select PROGRAM NO using the Program down button and use the Volume up button to change the Program No to 01.

Starting with Program 01, tune in the first channel as follows:

Use the Program down button to select SEARCH.

Press the Volume up or Volume down button to start the tuning search.

When the search finds a strong channel signal it will stop searching. The picture will appear.

Use the Program downbutton to select PROGRAM NO.

Use the Volume up/down or numeric buttons to select the desired program number.

Use the Program down button to select STORE. Press the OK button and STORED will appear on the STORE line.

You have now stored the first channel.

Use the Program up button to select again SEARCH and continue the tuning procedure until you have tuned in all the programs you want or the television can receive.

Tuning with channel numbers

Enter the SETUP menu by pressing the blue button.

Press OK button when CHANNEL row is blue.

Use OK button to select "S" for cable channels and "C" for terrestrial broadcast.

Enter the channel number using the Numeric buttons or use the Volume up/down buttons on your remote control.

Use the Program down button to select PROGRAM NUMBER.

Use the Volume up/down or numeric buttons to select the desired program number.

Use the Program down button to select STORE. Press the OKbutton and STORED will appear on the STORE line.

You have now stored the first channel.

Use the Program up button to select again CHANNEL and continue the tuning procedure until you have tuned in all the programs you want or the television can receive.

To exit the SETUP menu press the TV/TX button.

Fine tuning

Although the search and Autoprogram will automatically try and tune to the best reception, in areas of poor reception a bit of fine tuning may be required.

In the SETUP menu use the Program up/down buttons to select FINE TUNING. Use the Volume up and Volume down buttons to fine tune.

When you have finished use the Program down button to select STORE and press the OK button.

Program organizing

Once you have tuned in all the channels you want, you can change their program number, if required, and name them.

To enter the PROGRAM TABLE menu press the Menu button and select PROGRAM TABLE and press the OK button or press directly the Yellow button.

PROGRAM 01 will be selected and the channel stored under PROGRAM 01 will be shown on the screen.

The details of the program will be shown across the top of the screen i.e. P1 CH31.

The buttons used to edit the programs are shown at the bottom of the display:

Blue button - Name

Green button - Move

Pink button - Delete

Red button - Skip

To name the programs

Press theBlue button, the selected line will turn blue and the CH will be highlighted.

Use the Program up and Program down buttons to select the letters and numbers and the Volume up and Volume down buttons to move through the name.

Press the Blue button again to store the name.

Repeat this process to name all the programs.

Please Note

Some TV channels may send their names with teletext transmission. In this case their names will be automatically shown on the name line.

To move the programs

You can move the programs around the program list to the order you want

Select the program you want to move and press the Green button. The program will turn to yellow. Select the number you want to move and press the Green button again and the program will be moved to that number.

All the following programs are shifted down by one place.

To delete a program

To delete a program, select it and press the Pink button.

The program will be deleted.

All the following programs are shifted up by one position.

To skip programs

Skipped programs will not appear when you move through the program list using the Program up/Program down buttons. They can still be selected using the numeric buttons or the OK button.

Select the programs you want to skip and press the Red button. The program will turn red. To unskip the program press the Red button again.

To exit the PROGRAM EDIT press the TV/TX button once or the Menu button twice.

When you select a program, the information you entered in the PROGRAM EDIT menu will appear on the top of the screen i.e. P1 BBC1. This will disappear after about three seconds.

TV set up

The TV set up is accessed through a menu system.

Once you have stored your set up, this is the set up the TV will default to when you switch it on.

To enter the MAIN menu press the Menu button.

Once in the MAIN menu use the Program up and Program down buttons to select items in the menu and the OK to access sub menus or use the coloured fastext buttons for quick access.

Red button - SOUND Green button - PICTURE Pink button - FEATURES

Please note

If you do not press any buttons for 15 seconds the TV will exit the menu system.

Sound menu (red button)

Select the required item in the menu using the Program up/down buttons and make the changes pressing Volume up/down buttons. Use the OK button to enter HEADPHONE and SOUND FEATURES sub menus.

Volume

Sets default volume using the Volume up and down buttons.

To save your settings, select STORE and press the OK button. STORED will be displayed. Press the Menu button to go back to the previous menu.

Balance

Sets the sound balance mode using the Volume up and down buttons

To save your settings, select STORE and press the OK button. STORED will be displayed. Press the Menu button to go back to the previous menu.

Sound type

This item shows STEREO when receiving stereo transmission and MONO for mono transmissions.

The TV can be produced to receive the NICAM broadcasts as a optional feature.

If the channel you are watching is in Nicam stereo the On Screen Display will show NICAM STEREO for a while.

Please Note

If, while watching a nicam stereo channel, the signal strength drops and the system cannot receive nicam stereo the OSD will show MONO. If the signal strength increases again and nicam stereo can be received again, the OSD will show NICAM STEREO.

Dual I/II

Some broadcasters supply the programs in two languages. To able to listen the second language select DUAL II by SOUND TYPE using Volume up/down buttons.

To save your settings, select STORE and press the OK button. STORED will be displayed. Press the Menu button to go back to the previous menu.

Headphone

You can set up the volume, balance, bass treble and sound type (stereo or mono) of the headphone output. Use OK button to enter the HEADPHONE menu.

You can also listen to the PIP window by choosing PIP from the SOURCE line. (Except Secam L TV sets).

Use Program down button to go to SOURCE and press Volume Up or down button to select PIP.

Please Note

1. PIP listening through the headphone jack is not available in Secam LL TV sets.

2. If the mainscreen is AV input source, you can not listen to any other input sources from the headphone jack. In such cases headphone source can not be chosen as PIP.

To save your settings, select STORE and press theOK button. STORED will be displayed. Press theMenu button to go back to the previous menu.

Sound Features

You can set up the Sound Mode, AVL Mode Dynamic Bass, Subwoofer (Optional) and Equalizer from Sound Features menu.

To access the Sound Features menu press the Red button on the remote control and press Volume down button to select Sound Features.

Press OK to enter the Sound Features.

Sound mode

You can select NORMAL, SPATIAL or DOLBY VIRTUAL (optional) using the Volume up/down buttons.

SPATIAL sound is an ‘expanded stereo’. It gives the impression that the two speakers in the TV are further apart than they really are.

"Virtual Dolby Surround sound is based on Dolby Pro Logic decoding for the reproduction of Left, Right, Centre and Surround channels using two loudspeakers.

Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

Please Note

To get the surround effects in “Dolby Virtual” mode, you must apply a Dolby Pro Logic coded input to the TV. You can’t adjust the AVL and EQUALIZER in DOLBY VIRTUAL mode.

AVL

TV transmitters have different sound levels. AVL (automatic volume limiting) maintains the same sound level as you switch from program to program. To apply this press Volume up or down button and select ON for AVL in Sound Features menu.

Dynamic Bass

To give depth effect to bass sound you can select Dynamic Bass as ON.

To supply this press Volume up or down button and select ON for Dynamic Bass in Sound Features menu.

Note: If you select Dynamic Bass as ON Subwoofer will also be automatically ON. (If the set has subwoofer option).

Equalizer

To access the 5 band equalizer menu press Volume up or down button and press OK on the Equalizer line.

14

In this menu there are a series of preset equalizer settings for different types of sound output.

There are four music settings - MUSIC, SPORTS, CINEMA, SPEECH and USER1 & USER2 modes.

USER modes allow you to set your own sound outputs as follows:

Press the OK button to enter the EQUALIZER menu.

Use the Program down button to select USER1.

Press OK button to adjust the frequency band levels.

Use the Volume up button to select the KHz column you want to change.

Use the Program up/down buttons to make the changes.

To save your settings, press the OK button. Press the Menu button to go back to the previous menu.

You can also adjust the settings of USER2 by the same method.

You can change the equalizer setting while watching the TV using the sound Smart control.

Press the sound Smart control to page through the different equalizer settings and select the one you want.

Once you have switched the TV off the equalizer setting will revert to the stored setting.

When you have finished in the Sound sub-menu select STORE and press the OK button.

To exit the sub-menu press the Menu button and return to the main menu.

Picture menu (Green button)

The picture menu allows you to set up the following:

BRIGHTNESS

CONTRAST

COLOUR

SHARPNESS

and the other PICTURE FEATURES

To change, for example, the color, select it using Program up and down buttons.

Use the Volume up and Volume down buttons to change the setting.

To save your settings, select STORE and press the OK button. STORED will be displayed.

These settings are stored as USER picture type.

You can change the picture type while watching the TV using the picture Smart control.

Press the picture Smart control to page through the different picture types and select the one you want: SOFT, NATURAL, RICH or USER.

Picture Features

In the picture menu use the Program down button to select PICTURE FEATURES and press OK.

In this menu you can adjust the picture quality features.

Use the Program up and down buttons to select your desired picture feature and use Volume up and down buttons to adjust this feature.

NOISE REDUCTION: You can reduce the noise effects in the pictures by selecting low, medium or high.

CTI (Colour Transient Improvement): You can improve the colour transitions in the picture by selecting ON or OFF.

IMPORTANT NOTE: Your TV has Digital Comb Filter and DLTI (Digital Luminance Transient Improvement) features to improve picture quality. These features are set ON and they can not be changed by the end user.

Features Menu (Purple button)

To select Features menu press the menu button and using the Program up and down buttons select Features.

You can also select the Features menu directly by pressing the purple button on the remote control.

The Features menu allows you to set up the following:

Use the Program up and down buttons to select the feature you wish to change and use Volume up and down buttons to adjust this feature.

PIP Program: You can select the program to be displayed on the PIP sub-picture by pressing

Volume up and down buttons or you can also press the numeric buttons to select the PIP program directly. To select AV input press the AV button repetitively.

Child Lock: Using the Child Lock, you can lock any Program you want so that adult channels can not be watched by children.

You can cancel child lock any time you want. To cancel Child Lock, select Child Lock as OFF when you are watching that program.

Background: You can adjust the menu background as SOLID, CONTRAST REDUCTION and NONE.

Blue Back: When there is no broadcast, you can select the background purely blue instead of snowy picture.

Select blue back as ON.

Degauss: If you leave your TV on standby mode for a long time or because of strong electromagnetic field sources, there may be cloudy effects over the picture.

To prevent such effects select DEGAUSS and press Volume up button. DEGAUSS will be ON for a short time, the screen will be cleaned and DEGAUSS will be OFF again.

Scart Source: You can select the output from your TV to the devices connected to your 2nd and 3rd scarts. So if you want to record or copy the program you are watching, you should output this program to AV2 or AV3, inputs.

The following options are possible • TV →AV2 & AV3: The current program you are watching, • TUNER1 →AV2 & AV3: The program you have last selected,

- TUNER2 → AV2 & AV3: The program you have last selected for PIP sub-picture, - AV1, AV2, AV3, AV3-S, AV4, AV4-S → AV2 & AV3: The devices connected to these inputs; are output to the 2nd and 3rd scarts.

Note: TUNER2 option, is not available in Sec LL' TV sets. Note: 3rd. Scart is optional.

Language: You can select one of the 18 languages by pressing OK button in the language selection.

Timer: Use Program up and down buttons to select Timer in the features menu. Using the Timer function, you can switch to a specific program at a pre-programmed time or you can turn your TV off at the time you want your TV to be turned off.

Press OK to access the Timer menu.

Clock: Use the numeric buttons to set the real time.

On Time: Use the numeric buttons to set the time that you want your TV to be turned on (TV should be on stand-by mode).

Off Time: Use the numeric buttons to set the time that you want your TV to be turned off (Stand-by mode).

Program No: Use the numeric buttons to set the program number that will be shown when you set the On Time.

Picture format

You can adjust the picture format of your TV according to the program format you are watching. Press the "P.F." button to change the Picture format.

Available formats are AUTO, 16:9, 14:9, 4:3, Letterbox, Subtitle1, Subtitle2.

16:9 and 14:9 are the screen formats of widescreen TV sets (28" SF/PF, 32" SF/PF). The TV will automatically switch to this format if it detects 16:9 format from the SCART inputs.

16:9 Colour television

4:3 Colour television

4:3 TV picture format.

14:9 TV picture format.

16:9 TV picture format.

L Box (Letter box), Useful for watching video, some film formats and Pal-Plus format.

Subtitle1: If you can not see subtitles at the bottom of the screen, especially when watching 4:3 pictures in Letter box format, select Subtitle1.

Subtitle2: When Subtitle1 is not enough, select the picture format as Subtitle2.

Subwoofer (optional)

A sub woofer speaker can be fitted within the TV case as an option depending to the model.

For 33"(84cm) TV sets there is an external subwoofer (optional) to be fixed as shown below.

Select Sound menu and press Program down button to access Sound Features menu. Press Program down button and select SUBWOOFER line.

Press the Volume up button to switch the Subwoofer on or off.

Note: If your TV has Subwoofer and if you turn on the Dynamic Bass, the subwoofer will also automatically turn on. You can not turn your subwoofer off when Dynamic Bass is on.

Setup menu (blue button)

Program table menu (yellow button)

These two menus are explained under 'Tuning the TV' and "Program Organizing".

OTHER FEATURES

Picture freeze

When you press "FREEZE" key on your remote control, the picture on the screen becomes fixed. To get out of the position, press the same key again.

Picture scan

You can scan the programs starting from the current program you have been watching, on the screen within twelve frames. Press "SCAN" key on your command for this. To view the desired one from these programs, press "OK" during scanning. The program you chose will appear on the screen. To exit, press "SCAN" key.

Blank programs will not be scanned.

Zoom Function

Pressing OK/Z button zooms in to the picture. Zoom function is performed towards the center of the picture.

There are 3 steps Zoom, each time you press the OK/Z button. ZOOM1, ZOOM2, ZOOM3. You can also scroll on the picture by pressing Program up or down and Volume up and down buttons.

PIP OPERATION (OPTIONAL)

2 Tuner PIP function allows you to to watch 2 programs or other inputs like DVD, VCR or satellite receiver at the same time through its PIP window. It includes lots of functions like, SWAP, SIZE, POSITION, ZAPP and DOUBLE WINDOW.

On and off

Press the PIP button to switch on the PIP picture. Press again to switch it off.

Input mode selection for PIP picture

Press the INPUT button to select the AV input signal for the PLP picture.

Each time this button is pressed, each input signal for the PIP picture is displayed as shown below.

Swapping between main and PIP pictures

Press the SWAP button to exchange the main and PIP pictures.

↓

ZAPP: Program selection for PIP picture

Press the P-/P+ buttons The selected sub-program number is displayed just below the sub picture.

PiP User Hints

1- It is not possible to watch AV2, AV2S at the same time on main screen and PIP screen. PIP picture will automatically switch to AV3 mode and it is also valid for AV3 and AV3S.
2- In NTSC mode from scart, only one SCAN MODE is available and double window (PAP) can not be displayed.
3- During tuning scan, all programs that are found after Auto-Programming will be displayed.
4- PIP picture in AV2S and AV3S inputs are only black and white.

PIP picture size

Repeatedly press the SIZE button to select the desired PIP picture size. The sub picture appears as 1/9 size of the main picture, followed by 1/16.

Illustration of a butterfly with flowers and a bird, accompanied by an inset showing a duck swimming (no text or symbols)

Illustration of a butterfly holding a magnified inset showing a duck and its adult, with no visible text or symbols.

DOUBLE WINDOW

If you press the PAP button then the double window function will be displayed by putting the PIP window on the half of the main picture.

Illustration of two birds and a butterfly, one standing on water and the other on a hillside (no text or symbols)

PAT (Picture and Text)

In the double window function, you can also display the teletext screen in the second window. Press the PAP button to see the double window function and then press the purple button on the remote control to see the PAT mode.

TeleText Mode

PPT (Picture Picture Text)

In the double window function, you can also display two pictures and one teletext page at the same time.

1. Press the PAP button to see the double window function.

2. Press the TV/TX button on the remote control.

3. Press the purple button on the remote control to see the PAT mode.

PIP picture position change

Press the POS button repeatedly until desired position is achieved. The PIP picture moves clockwise.

Illustration of a butterfly in water with four sequential panels showing different stages of growth or recovery (no text or symbols)

Program scan

This function enables you to search all the stored stations in 12 PIP pictures.

To select desired one press OK button. To exit press SCAN key.

Grid of 12 colorful and symbolic illustrations including a globe, bird, elephant, and birds (no text or symbols)

Using Teletext

Teletext is an information system that displays text on your TV screen. Using the teletext control buttons you can view pages of information that are listed in the teletext index.

Please Note

No on screen display is available in text mode. The contrast, brightness and colour cannot be changed but the volume control is still available.

20

To enter Text mode

Please Note

Make sure the TV channel you are watching transmits teletext.

Press the Text The text page will appear, normally the index page.

To exit Text mode

Press the TV/T6XTThe TV will return to the channel you were watching.

To select a page of text

Find the number of the page in the index and enter it using the Numeric buttons. The number of the page will appear in the top left hand corner of the screen.

The page counter will search for your page. When it finds it, the page will be displayed.

To move to the next page of text press the Program up

To move to the previous page press the Program down

To return to the index page press the P100 button.

TV/text mix

To view a page of text whilst watching a TV program press he MIX button. The text will be superimposed over the TV program.

Press the MIX button again to return to the text page.

Page search whilst watching TV

In Text mode press theUpdate button. The TV will return to TV mode with the text page number in the top left hand corner of the screen.

Enter the page number you want using the Numeric

The top line of the text page will appear whilst the text searches for your page. When the page is found the number will remain in the top left hand corner of the screen.

Press the Update to view your selected page of text.

Double height text

If you have difficulty reading the text on the TV you can double the height of the text.

Press the Double height The top half of the page will be displayed in double height text.

Press the Double height again. The bottom half of the page will be displayed in double height text.

Press the Double height again to return to the full page.

Page Stop

If the page of text you have selected contains sub pages, these sub pages will automatically be displayed in order with a delay to allow you to read the page.

To stop the move to the next sub page press the STOP button. STOP will appear in the top left hand corner.

To continue moving through the sub pages press the STOP button again.

To select a sub page

If the page of text you are viewing contains sub pages, the number of the sub page you are on and the total number of sub pages is displayed on the right of the screen i.e. 1/7.

To select a sub page press the SUB button. The number in the top left hand corner will be replaced by S followed by 4 asterisks.

Enter the number of the sub page, using the Numeric buttons in the format S0001 for sub page 1.

The teletext will search for the sub page. This may take some time. To return to the TV whilst the teletext is searching press the Update button.

When the page number is found it will appear in the top left hand corner of the screen.

Press the Update button again to view the text page.

To reveal information

REV SCAN	Press the Rev button to reveal concealed information (quiz answers etc.).
REV SCAN	Press the Rev button again to conceal the information again.

Clock

Press the Sub button, whilst watching a TV program, to display the time.

Fastext

At the bottom of the teletext screen is a row of subject headings in red, green yellow and blue.

The remote control has a row of coloured buttons corresponding to the row of coloured subjects on the screen.

Pressing one of the coloured buttons will take you directly to the page corresponding to the subject heading.

Toptext (optional)

At the bottom of the teletext screen is a row of subject headings in yellow and blue. Pressing yellow or blue buttons on the remote control, selects the related Subject. Next page can be selected by pressing the red button and previous page can be selected by pressing the green button.

Note: Fastext and Toptext features are not available in every program.

Connecting external equipment

You can connect a wide range of audio and video equipment to your TV.

Connecting a video recorder

① Via SCART

Make sure the TV and video recorder are both switched off.

Plug one end of the SCART lead (not supplied) into the back of the video recorder and the other end into one of the SCART sockets on the back of the TV.

Switch on the video recorder and the TV.

Press the AV button on the remote control to select AV1, AV2 or AV3 (optional) to correspond with SCART socket you are using on the back of the TV.

Please note:

You can connect a RGB external equipment via Scart 3 (optional) or Scart 1. It is necessary to you use full Scart cable for this purpose.

Select the video outputs of external device by using its menu to RGB if it's available.

② Via RCA lead (optional)

Make sure the TV and video recorder are both switched off.

Plug one end of the RCA lead into the video and audio out sockets on the back of the video recorder and plug the other end into the video and audio in sockets of the TV.

If the sound is in mono use the Audio Input L. In the SOUND menu select MONO.

Press the AV button repetitively and select the AV3 (AV4 optional) mode.

Please note:

When using RCA lead, you should select AV4 in 3 Scart models and AV3 in 2 Scart models.

③ Via aerial socket

Make sure the TV and video recorder are both switched off.

Unplug the aerial lead from the TV and plug it into the aerial socket on the video recorder (if fitted).

Plug a coaxial plug into the RF out socket on the rear of the video recorder and plug the other end into the aerial socket of the TV.

Switch on the video recorder and the TV.

If your video recorder has a test signal, switch it on. (Refer to the video recorder user guide).

See 'Tuning the TV' and carry out the tuning procedure for the video recorder test signal. Select a program number 0.

④ S-Video Player

If you have an S-Video player you can connect it to SCART socket 3 (optional) via an adaptor from scart to S-Video/RCA audio (not supplied).

Press the AV button repetitively to select AV3-S.(3 scart models only)

⑤ Via RCA lead and S-Video socket

You can also connect it through the S-Video socket of the TV.

Plug the S-Video plug into the S-Video socket and the audio leads into the audio sockets.

Press the AV button repetitively to select AV3-S or AV4-S (optional).

Connecting a DVD player

①Via SCART

Make sure the TV and DVD player are both switched off.

Plug one end of the SCART lead (not supplied) into the back of the DVD player and the other end into one of the SCART sockets on the back of the TV.

Switch on the DVD and the TV.

Press theAV button on the remote control to select AV1, AV2 or AV3 correspond with SCART socket you are using on the back of the TV.

Note: Scart 1 and Scart 3 (optional) will give you RGB picture quality. For DVD connections RGB capable scart sockets (AV1 or AV3) are recommended.

② Via RCA lead (optional)

Make sure the TV and DVD player are both switched off.

Plug one end of the RCA lead into the video and audio out sockets on the back of the DVD player and plug the other end into the video and audio in sockets of the TV.

Press the AV button repetitively and select the AV3 (AV4 optional) mode.

③ Via RCA lead and S-Video socket You can also connect it through the S-Video socket of the TV.

Plug the S-Video plug into the S-Video socket and the audio leads into the audio sockets.

Press the AV button repetitively to select AV3-S or AV4-S (optional).

Connecting a decoder

Via SCART

Make sure the TV and decoder are both switched off.

Plug one end of the SCART lead (not supplied) into the back of the decoder and the other end into the SCART 1 on the back of the TV.

Switch on the decoder and the TV.

Press the AV button on the remote control to select AV1.

② Via RCA lead

Make sure the TV and decoder are both switched off.

Note: For Decoder connection Via RCA lead your Decoder device should have the tuner built in.

Plug one end of the RCA lead into the video and audio out sockets on the back of the decoder and plug the other end into the video and audio in sockets on the TV.

Press the AV button repetitively and select the AV3 mode (AV4 optional).

Please Note

You can record from one external device to another via scart sockets. You should select the source and destination of video using FEATURES menu. If you select the source as AV3/AV3-S or AV4/AV4-S (optional) you will have a "WARNING: COPY FUNCTION ACTIVE" message on the screen. You will not have picture at AV4/AV4-S if you select source AV3/AV3-S or vice versa.

You can connect NTSC supported equipment to the TV via the SCART sockets and adjusting the colour via the PICTURE menu.

Select TINT by using Program down button and use to adjust the colour. Volume up and down buttons.

Connecting TV with video and satellite/digital receiver

Connecting TV with camcorder

Connecting TV games and computer

Help and service tips

The TV does not work

Make sure it is plugged into the mains supply and switched on.

Poor picture

• Is the aerial plugged in?
- If you are using a set top aerial is it properly aligned for the best signal.
• Make sure the aerial is not to close to neon lights, loudspeakers etc.
- Try changing the direction of the outdoor aerial. High buildings and mountains can cause ghost pictures or double images.
• The picture quality may be reduced by connecting two external sources at once. Disconnect one of the sources.
- Adjust the fine tuning.

No picture

• Is the aerial plugged in properly?
• Is the aerial lead damaged?
- Are all the plugs in the aerial lead fitted correctly?
- Have you pressed the correct buttons on the remote control?

No sound

• Is the sound muted? Press the Mute button.
  • Is the volume turned down?
  • Are there headphones connected?

Sound coming from only one speaker

• Is the balance set to one side? See the sound menu.
• If you have external speakers, has one of them become disconnected.

No response to the remote control

• Try changing the batteries.
- Is there an obstruction between the remote control and the sensor on the TV.

If nothing works

If you have tried the above solutions and none seem to work, try switching the unit off and on again.

If this does not work contact your supplier or TV repair technician. Never attempt to repair a defective TV yourself.

Symptoms

Solutions

Check if on/off switch is "on"

Try a different channel, if OK, probably station trouble

Check aerial connections on back of set

Check aerial broken wires

Re orientate aerial

Probably local interference, such as an appliance

Adjust fine tuning control

Adjust brightness control

Adjust contrast control

Check if station is broadcasting colour

Adjust colour control

Check batteries in the remote control handset.

Switch the TV set OFF and ON from mains

Move the loudspeakers away from the television

Switch off the television set at the mainsand switch on again after 15 minutes

No picture, no sound

√

√

√

√

√

√

Poor sound, picture OK

√

√

√

Poor Picture, sound OK

√

√

√

√

√

√

Weak picture

√

√

√

√

√

Blurred picture

√

√

√

√

Double image

√

√

√

√

√

Lines in picture

√

√

√

√

√

√

Distorted picture

√

√

√

√

Weak reception on some channels

√

√

√

√

√

√

√

√

Horizontal bars

√

√

√

√

Picture rolls vertically

√

√

√

√

√

Poor colour

√

√

√

√

√

√

√

√

√

√

√

√

√

No colour

√

√

√

√

√

√

√

√

√

Remote control not working

√

√

TV does not accept any command

√

Teletext rolling up/down

√

Inappropriate colour, color spots

√

√

√

√

√

√

Technical specifications table

Picture tube size/typee	28"4:3	28"16:9 SF	28"16:9 PF	29"4:3 SF	29"4:3 PF	32"16:9 SF	32"16:9 PF	33"4:3
Screen size	70 cm	70 cm 70	cm 70	cm 72 cm	82 cm	82 cm	84 cm
Visible screen size	66 cm	66 cm 66	cm 68	cm 68 cm	77 cm	77 cm	80 cm
Sound Output (%10 THD)	2x12 W	2x12 W	2x12 W	2x12 W	2x12 W	2x12 W	2x12 W	2x12 W
Power consumption	175 W	175 W	180 W	180 W	185 W	185 W	190 W	200 W
Stand by Power consumption	4 W	4 W	4 W	4 W	4 W	4 W	4 W	4 W
Subwoofer	optional20 W	optional20 W	optional20 W	optional20 W	optional20 W	optional20 W	optional20 W	optional20 W
Dolby Virtual	optional	optional	optional	optional	optional	optional	optional	optional

SF : Superflat picture tube

PF : Pureflat picture tube

16:9: Widescreen TV

4:3 : Conventional TV

Please note:

Using a subwoofer causes 20 W extra power consumption and supplies maximum 20 W extra sound output.

General technical specifications

Power Supply

AC: 230-240V 50Hz

Number of preset programmes ..... 100

RF Aerial input 75 ohm (unbalanced)

Speaker empedance 8 ohm

Sound Systems..... Mono/Stereo/NICAM (optional)

Batteries 2x AAA

Receiving channels VHF (Band I Channels 2-4)

VHF (Band III Channels 5-12)

UHF (Channels 21-69)

Receiving broadcast system.... PAL BG

PAL SECAM BG

PAL SECAM BG DK/DK'

PAL SECAM BG LL

PALI

Please note: Your TV set is produced to receive only "one" of this color and sound system options which is based one your countries norms and can not be changed by user except BG/DK and BG/LL' if both systems are available to receive (BG or DK and BG or LL'). Please refer to "Tuning the TV".6

PRIMA AUSTRALASIA PTY LTD

P.O. Box 326 Braeside Victoria 3195 Australia

www.primaaustralasia.com.au

FOR SERVICE CALL 1300 366 144
