USER MANUAL 6519DD SYLVANIA

Line drawing of a vintage CRT television rear panel with front panel, buttons, and ventilation grilles (no text or symbols)

13" MODEL ILLUSTRATED

This Owner's Manual is made of recycled paper.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

The caution marking is located on the rear of the cabinet.

IMPORTANT SAFEGUARDS

1. Read instructions- All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions-The safety and operating instructions should be retained for future reference.
3. Heed Warnings-All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow Instructions-All operating and use instructions should be followed.
5. Cleaning-Unplug TV/DVD from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

1. Attachments-Do not use attachments not recommended by the TV/DVD manufacturer as they may cause hazards.
2. Water and Moisture-Do not use this TV/DVD near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
3. Accessories-Do not place this TV/DVD on an unstable cart, stand, tripod, bracket, or table. The TV/DVD may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the

TV/DVD. Any mounting of the appliance should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care.

Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

PORTABLE CART WARNING AVERTISSEMENT POUR UNE TABLE ROULANTE PORTATIVE

Silhouette of a person pushing a cart with another person on top, enclosed in a circular frame (no text or symbols)

1. Ventilation-Slots and openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of the TV/DVD and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the TV/DVD on a bed, sofa, rug, or other similar surface. This TV/DVD should never be placed near or over a radiator or heat register. This TV/DVD should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
2. Power Sources-This TV/DVD should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For TV/DVDs intended to operate from battery power, or other sources, refer to the operating instructions.
3. Grounding or Polarization-This TV/DVD is equipped with a polarized alternating-current line plug(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

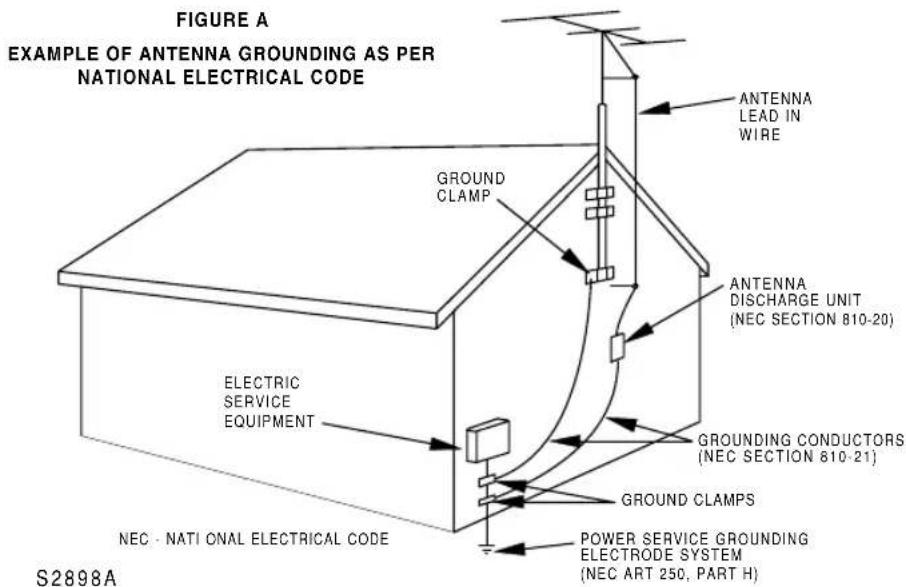

FIGURE A EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE ANTENNA LEAD IN WIRE GROUND CLAMP ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) ELECTRIC SERVICE EQUIPMENT GROUNDED CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS NEC - NATIONAL ELECTRICAL CODE POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) S2898A

1. Power-Cord Protection-Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

2. Outdoor Antenna grounding-If an outside antenna or cable system is connected to the TV/DVD, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

3. Lightning-For added protection for this TV/DVD receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV/DVD due to lightning and power-line surges.

4. Power Lines-An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

5. Overloading-Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry-Never push objects of any kind into this TV/DVD through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the TV/DVD.

1. Servicing-Do not attempt to service this TV/DVD yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

2. Damage Requiring Service-Unplug this TV/DVD from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged or frayed.

b. If liquid has been spilled, or objects have fallen into the TV/DVD.

c. If the TV/DVD has been exposed to rain or water.

d. If the TV/DVD does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV/DVD to its normal operation.

e. If the TV/DVD has been dropped or damaged in any way.

f. When the TV/DVD exhibits a distinct change in performance-this indicates a need for service.

1. Replacement Parts-When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

2. Safety Check-Upon completion of any service or repairs to this TV/DVD, ask the service technician to perform routine safety checks to determine that the TV/DVD is in proper operating condition.

3. Heat-This TV/DVD product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

IMPORTANT COPYRIGHT INFORMATION

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited.

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.

LASER SAFETY

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM. LOCATION: INSIDE, NEAR THE DECK MECHANISM.

This Class B digital apparatus complies with Canadian ICES-003.

A NOTE ABOUT RECYCLING

This product's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

The serial number of this product may be found on the back of the unit. No other TV/DVD has the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase
Dealer Purchase from
Dealer Address
Dealer Phone No.
Model No.
Serial No.

LOCATION

For safe operation and satisfactory performance of your TV/DVD, keep the following in mind when selecting a place for its installation:

• Shield it from direct sunlight and keep it away from sources of intense heat.
• Avoid dusty or humid places.
• Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes at the top and bottom of the unit. Do not place the unit on a carpet because this will block the ventilation holes.
  • Install unit in a horizontal position.
• Avoid locations subject to strong vibration.
• Do not place the TV/DVD near strong magnetic fields.
• Avoid moving TV/DVD to locations where temperature differences are extreme.

AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

• Do not handle the power cord with wet hands.
• Do not pull on the power cord when disconnecting it from an AC wall outlet. Grasp it by the plug.
• If, by accident, water is spilled on your unit, unplug the power cord immediately and take the unit to our Authorized Service Center for servicing.
• Do not put your fingers or objects into the TV/DVD disc loading tray.
• Do not place anything directly on top of the unit.

WARNING

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. If a DVD is played in a TV/DVD which has moisture, it may damage the DVD and TV/DVD. Therefore when the condensation occurs inside the unit, turn POWER on and allow at least 2 hours for the unit to dry out.

SUPPLIED ACCESSORY

- Remote Control Unit (PART NO.: NE207UD)

- 2 AA Batteries

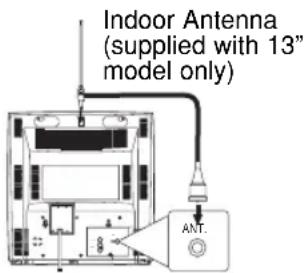

Indoor Antenna (13" model only supplied) 19" model not supplied) PART NO. (0EMN00673 or 0EMN01599 or 0EMN01755)

SYMBOLS USED IN THIS MANUAL

The following symbols below appear in some headings and notes in this manual, with the following meanings

TV

: Description refers to TV operation (in the TV mode).

DVD-V

: Description refers to playback of DVD video discs (in the DVD mode).

CD

: Description refers to playback of audio CDs (in the DVD mode).

MP3

: Description refers to playback of MP3 discs (in the DVD mode).

QUICK

: Description refers to the items to be set by the QUICK mode (in the DVD mode).

■IMPORTANT SAFEGUARDS ....2

■PRECAUTIONS ....4

■FEATURES....7

■ OPERATING CONTROLS AND FUNCTIONS . . .8 INSTALLING THE BATTERIES .....9

■PREPARATION FOR USE ....10

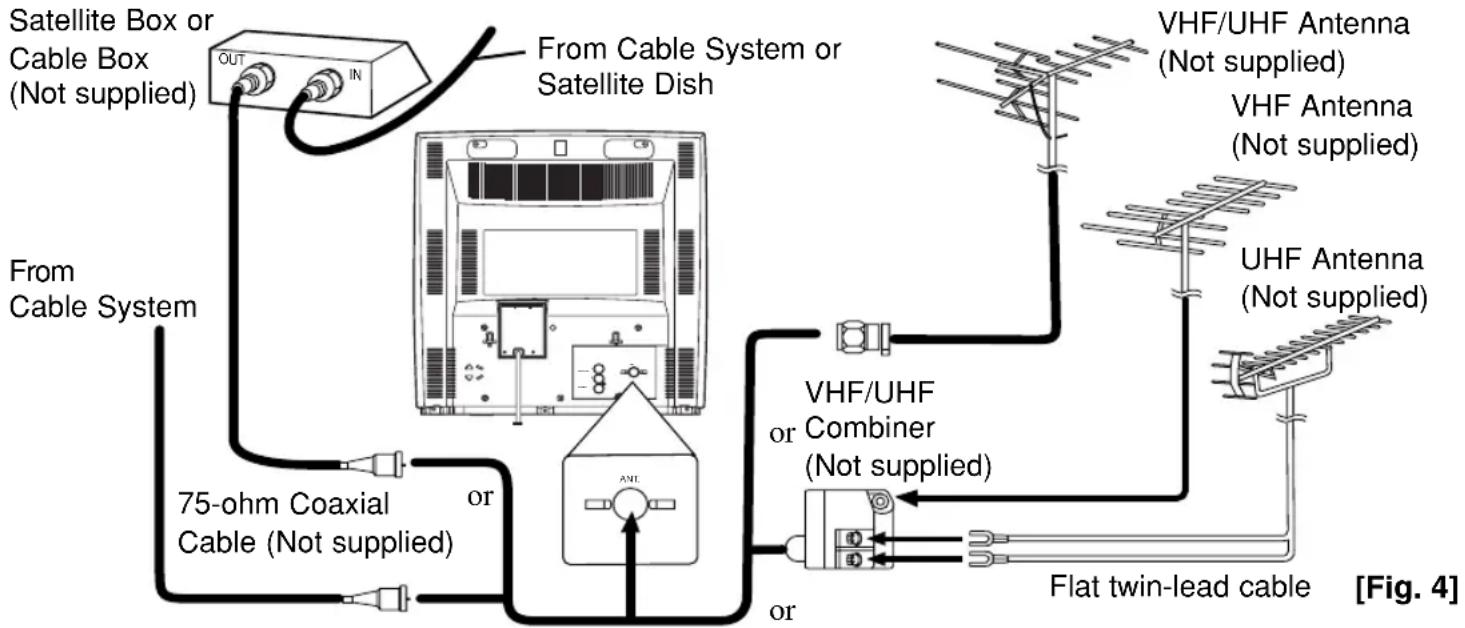

ANTENNA/CABLE CONNECTIONS .....10

INDOOR ANTENNA ....10

CONNECTING TO EXTERNAL INPUT JACKS .11

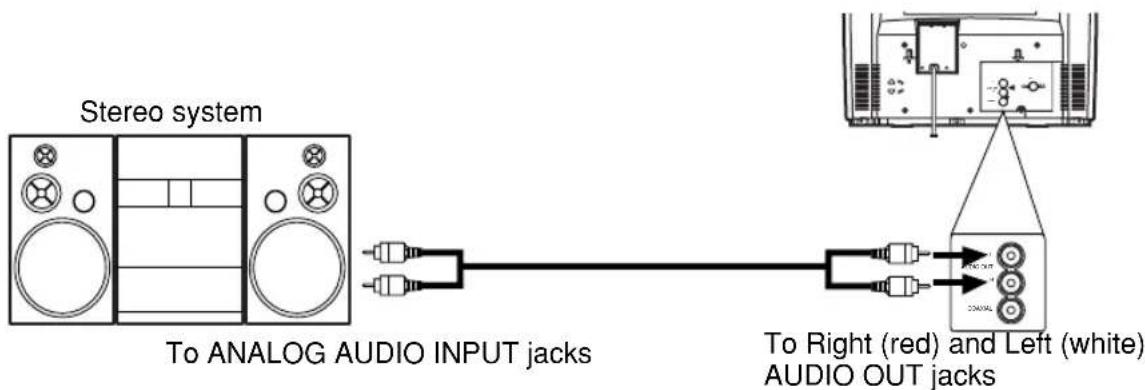

CONNECTING TO A STEREO SYSTEM ....12

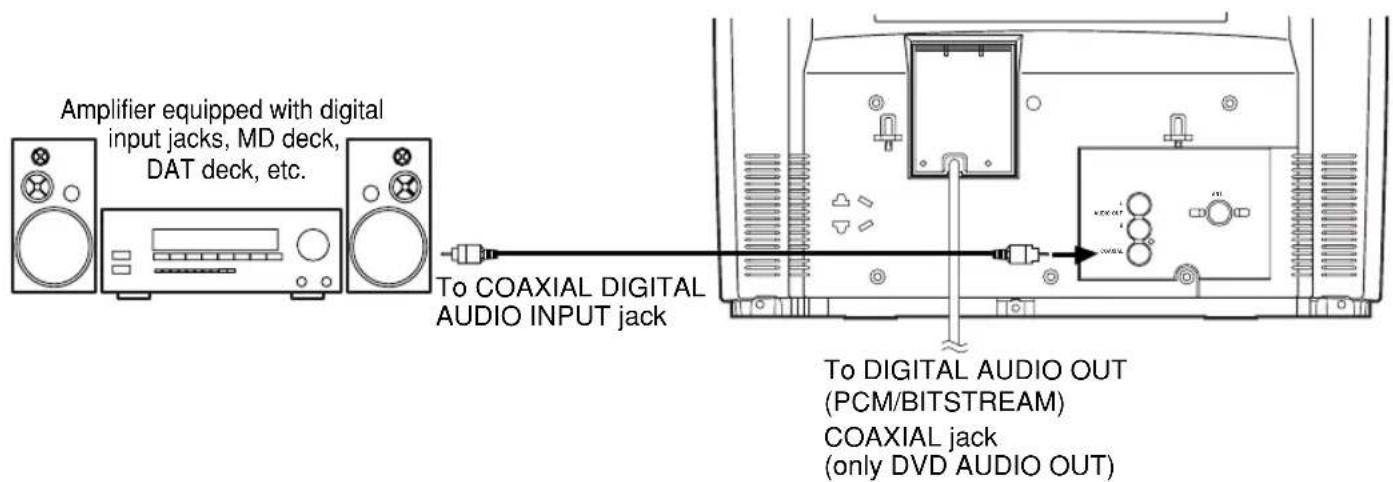

CONNECTING TO AN AMPLIFIER EQUIPPED WITH DIGITAL INPUT JACKS, MD DECK OR DAT DECK (for DVD only) ..12

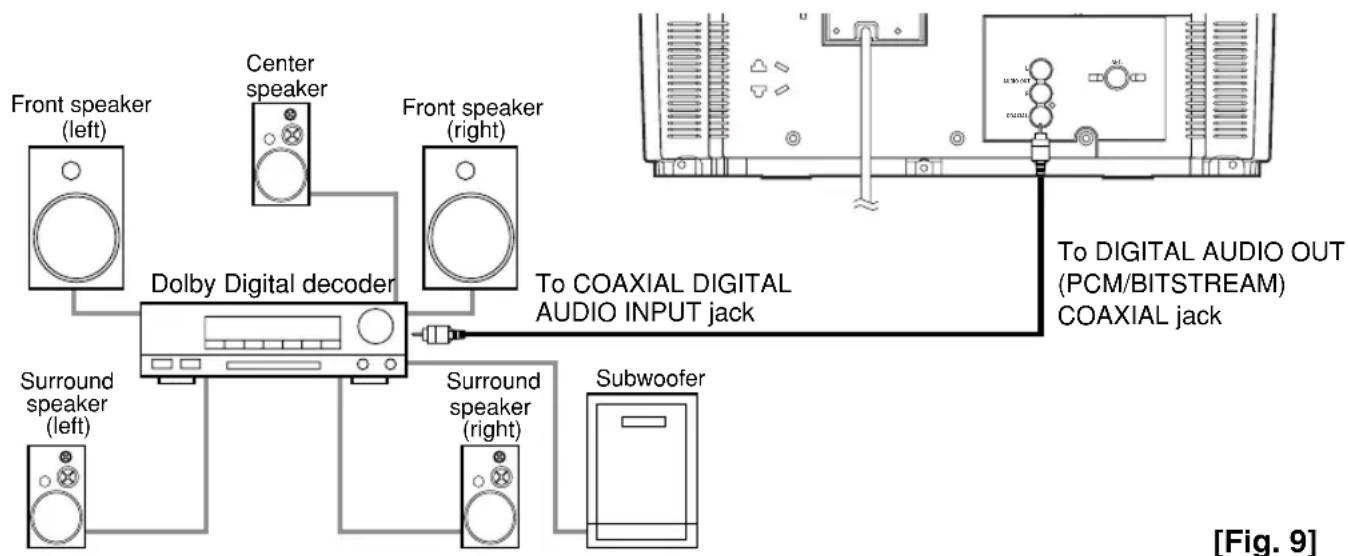

CONNECTING TO A DOLBY DIGITAL DECODER (for DVD) .....13

TV SECTION

■SET UP FOR USE .....14

CHANNEL SET UP FOR THE FIRST TIME ..14

DELETING (OR ADDING) CHANNEL .....14

CHANNEL SET UP AGAIN .....15

SELECTING THE LANGUAGE .....15

WATCHING A TV PROGRAM .....16

DEGAUSSING ....16

PICTURE CONTROL ....16

SLEEP TIMER....17

CLOSED CAPTION SYSTEM .....17

V-CHIP SET UP....18

DVD SECTION

■ABOUT THE DISCS ....20

PLAYABLE DISCS .....20

DISC TYPES .....20

■PLAYING A DISC .....21

BASIC PLAYBACK .....21

GENERAL FEATURES .....21

DISC MENU 21

TITLE MENU ....21

RESUME....22

PAUSE....22

STEP BY STEP PLAYBACK .....22

FAST FORWARD/REVERSE SEARCH ....22

SLOW FORWARD / SLOW REVERSE .....22

ZOOM 22

■SEARCH FUNCTION .....23

TRACK SEARCH .....23

TITLE / CHAPTER SEARCH .....23

TIME SEARCH .....23

MARKER SETUP SCREEN .....23

DISPLAY SETTING .....29

AUDIO SETTINGS ....29

PARENTAL CONTROL ....30

■TROUBLESHOOTING GUIDE ....31

■MAINTENANCE ....33

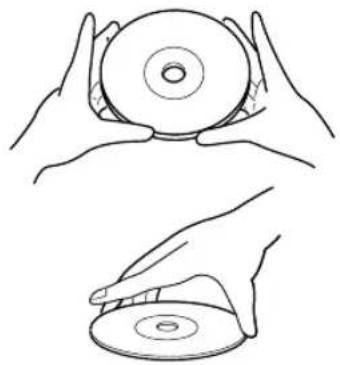

DISC HANDLING ....33

■SPECIFICATIONS ....34

■WARRANTY ....Back Cover

TV Mode

- 181 channel capability PLL frequency synthesizer tuner with direct station call

(A converter may be necessary to view scrambled cable channels.)

• Infrared remote control

- Trilingual on screen menu display selectable in English, Spanish, or French

- Sleep Timer

The Sleep Timer function enables you to shut off the power without pressing POWER after a desired time period.

- Closed Caption Decoder

You may view specially labeled (cc) TV programs, movies, news, etc. with either a dialogue caption or text display added to the program.

• Auto Shut Off Function

If there is no air signal input from the antenna terminal and no operation for 15 minutes, the TV will turn itself off automatically.

• V-CHIP

Enables parents to prevent their children from watching inappropriate material on TV.

DVD Mode

• Dolby Digital sound

This player can handle Dolby Digital surround sound having 5.1 channels when connected to a Dolby Digital decoder.

- Still/fast/slow/step playback

Various playback modes are available including still pictures, fast forward/reverse, slow motion and step frames.

- Random playback for audio CD and MP3

This player can shuffle the order of tracks to play them in random order.

- Program playback for audio CD and MP3

You can program the order of tracks to play them in any desired order.

• DVD menus in a desired language

You can display DVD menus in a desired language, if available on a DVD.

- Screen saver/Auto power-off functions

The screen saver program starts when there is no input from the player for five minutes in the stop mode. When the screen saver program is activated for 15 minutes, the power is automatically turned off.

- Subtitles in a desired language

You can select a desired language for the display subtitles, if that language is available on a disc.

- Selecting a camera angle

You can select the desired camera angle, if a disc contains sequences recorded from different angles.

- Choices for audio language and sound mode

You can select the desired audio language and sound mode, if different languages and modes are available on a disc.

- Parental lock

You can set the control level to limit playback of discs which may not be suitable for children.

• Automatic detection of discs

This player automatically detects if the loaded disc is DVD, audio CD or MP3 on disc.

- On-screen display

Information about the current operation can be displayed on a TV screen, allowing you to confirm the currently active functions (such as program playback), on the TV screen using the remote control.

- Search

Chapter search / Title search / Track search / Time search

- Repeat

Chapter / Title / Track / Group / All / A-B

- Zoom

Magnified screen can be displayed.

- Marker

The part designated by user can be called back.

- Resume Play

User can resume to playback from the part at which the play was stopped.

- Virtual Surround

- Bit rate indication

• DRC (Dynamic range control)

You can control the range of sound volume.

This manual covers 13" and 19". The operation of the two models are exactly the same except the appearance. 13" model is illustrated in this manual.

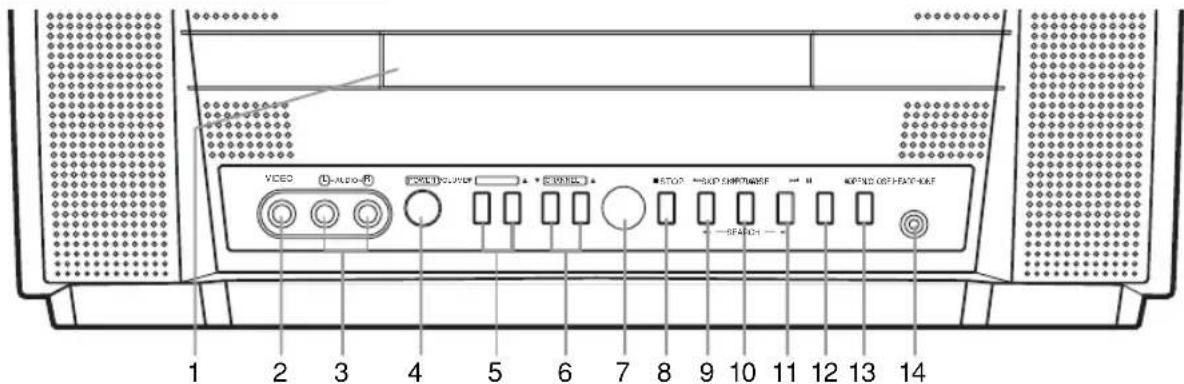

TV/DVD FRONT PANEL [Fig. 1]

VIDEO 1 -AUDIO-B 2 -TICKI-INPUT 3 -SINTEL 4 -STOP 5 -HOLD SHIFTINGER 6 -M 7 -SPATCH - 8 -SPATCH - 9 -HOLD SHIFTINGER 10 -M 11 -HOLD SHIFTINGER 12 -M 13 -HOLD SHIFTINGER 14 -M 1 2 3 4 5 6 7 8 9 10 11 12 13 14

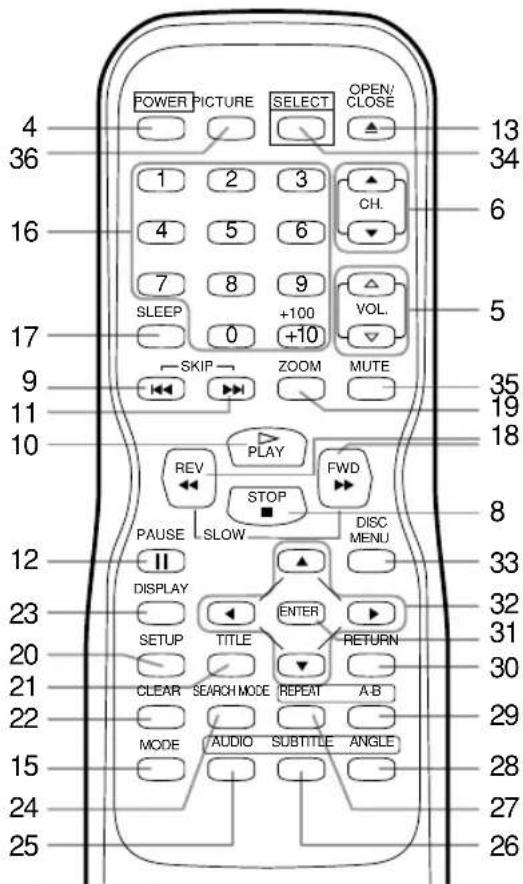

REMOTE CONTROL [Fig. 2]

POWER PICTURE SELECT OPEN/ CLOSE 13 34 16 1 2 3 ▲ CH. 6 4 5 6 7 8 9 ▲ SLEEP +100 VOL. - 0 +10 ▼ SKIP ZOOM MUTE 9 35 11 19 10 18 12 11 DISPLAY STOP FWD DISC MENU 23 ENTER SETUP TITLE RETURN 20 21 CLEAR SEARCH MODE REPEAT A.B 22 MODE AUDIO SUBTITLE ANGLE 15 28 24 27 25

1. Disc loading tray

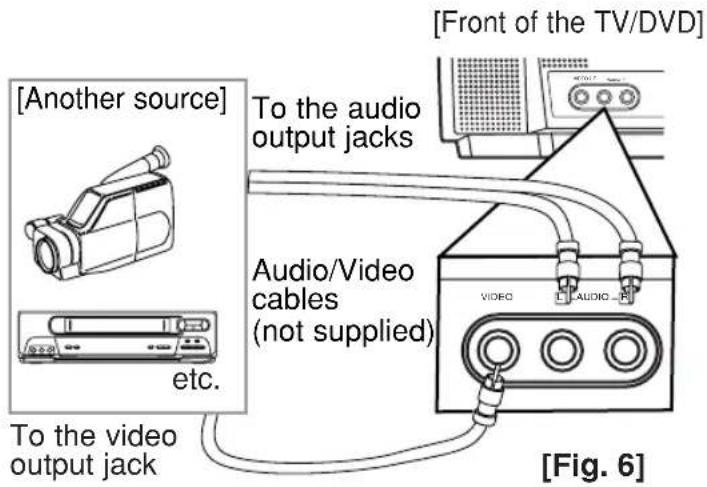

2. VIDEO input Jack [page 11]

Connect to the video output jack of a video camera or VCR.

1. AUDIO L/R input Jacks [page 11]

Connect to the audio output jacks of a video camera or VCR.

1. POWER Button [page 14]

Press to turn the power on and off.

1. VOLUME ▲/▼ (VOL. △/▽) Buttons

Press to control the volume level for the DVD and TV.

1. CHANNEL ▲/▼ (CH. ▲/▼) Buttons [page 14]

Press to select memorized channel.

Press to change to TV mode when DVD mode.

1. Remote Sensor Window

2. STOP Button [page 21]

Stops operation of the disc.

1. SKIP ◀◀Button [page 23]

Plays back from the beginning of the current chapter or track.

SEARCH (REV) ◀◀Button (Front Panel) [page 22]

During playback or in the pause mode, press and hold button down for a few seconds to change reverse playback speed.

1. PLAY Button [page 21]

Starts playback of the disc contents.

Press to change to DVD mode when TV mode.

1. SKIP ▶▶|Button [page 23]

Plays back from the beginning of the next chapter or track.

SEARCH (FWD) ▶▶Button (Front Panel) [page 22]

During playback or in the pause mode, press and hold button down for a few seconds to change forward playback speed.

1. PAUSE Button [page 22]

Pauses the current disc operation.

1. OPEN/CLOSE Button [page 21]

Press to insert discs into or remove them from the tray.

1. HEADPHONE Jack

To connect headphone (not supplied) for personal listening.

1. MODE Button [pages 24-26]

Activates program playback or random playback mode when playing CDs or MP3.

1. Number Button

TV Mode: [page 14]

Press two digits to directly access the desired channel.

Remember to press a "0" before a single digit channel.

+100 Button-

Press to select cable channels which are equal or greater than number 100.

DVD Mode: [page 23]

Press to enter the desired number.

+10 Button-

Press to enter the desired numbers which are equal or greater than number 10.

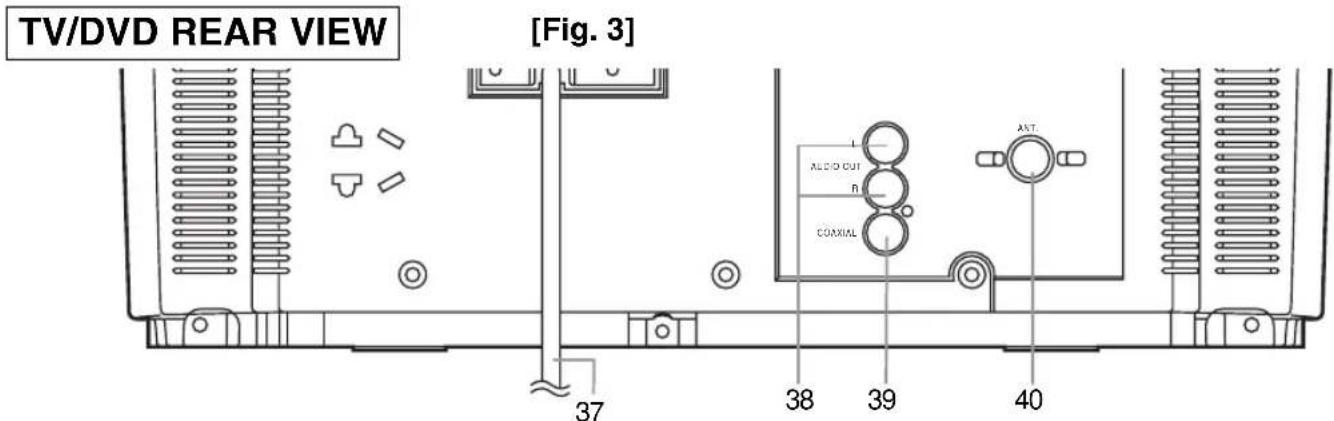

TV/DVD REAR VIEW [Fig. 3] 37 38 39 40 AUDIO CUT n COAXIAL ANT.

17. SLEEP Button [page 17]

Press SLEEP to display the sleep timer and start the function. The shut off time can be determined by the number of times you press this button. (0, 30, 60, 90, or 120 minutes)

18. REV ◀◀Button [page 22]

Press to view the DVD picture in fast reverse motion. Press PAUSE, then press this button to begin slow motion playback. Press this button repeatedly to change the reverse speed of slow motion.

FWD ▶▶Button [page 22]

Press to fast forward the Disc. Press PAUSE, then press this button to begin slow motion playback. Press this button repeatedly to change the forward speed of slow motion.

19. ZOOM Button [page 22]

Expands the picture to fill the entire screen.

20. SETUP Button [pages 14,28-30]

Press to enter or exit the TV menu or DVD setup mode.

21. TITLE Button [page 21]

Displays the title menu.

22. CLEAR Button [pages 23-25]

Resets a setting.

23. DISPLAY Button TV Mode:

Press to display the channel number on the screen. If you press it again, the channel number will disappear.

DVD Mode: [page 27]

Displays the current status on the TV screen for checking purposes.

24. SEARCH MODE Button [page 23]

Press to locate a desired point.

25. AUDIO Button [page 26]

Press to select a desired audio language or sound mode.

26. SUBTITLE Button [page 26]

Press to select a desired subtitle language.

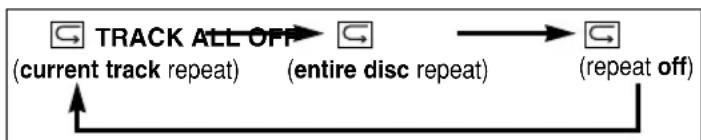

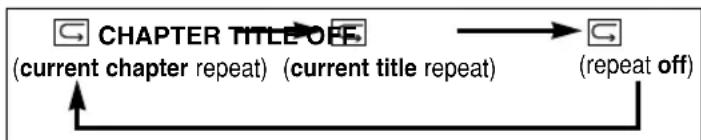

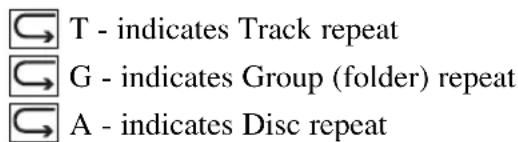

27. REPEAT Button [page 24]

Repeats playback of the current disc, title, chapter or track.

28. ANGLE Button [page 26]

Press to change the camera angle to see the sequence being played back from a different angle.

29. REPEAT A-B Button [page 24]

Repeats playback of a selected section.

30. RETURN Button [page 26]

Returns to the previous operation.

31. ENTER Button [pages 14, 21]

Press to accept a setting.

32. Arrow Buttons

TV Mode: [page 14]

Press to select a setting mode from the menu on the TV screen.

Press to select or adjust from a particular menu.

DVD Mode: [page 21]

Use when making settings while watching the display on a TV screen.

33. DISC MENU Button [page 21]

Displays the menus in the DVD.

34. SELECT Button [pages 11, 21]

Press to change to TV mode, external input mode or DVD mode.

NOTE: When you select the DVD mode by this button, press PLAY or OPEN/CLOSE first.

Otherwise, the DVD features are not operated.

35. MUTE Button

Press MUTE to turn off the sound portion of the TV program. (Volume level display turns LIGHT RED from LIGHT BLUE.) Press MUTE again or press VOL. △ or ▽ to restore sound.

36. PICTURE Button [page 16]

Press to enter picture adjustment mode.

37. Power cord

Connect to a standard AC outlet (120V/60Hz).

NOTE: Remove the power cord from the hook to avoid breaking a wire before you connect to a standard AC outlet.

38. AUDIO L/R output Jack

Connect to the analog audio input of an external amplifier or decoder.

39. COAXIAL digital audio out Jack (DVD Audio Only)

Connect to the digital input of an external amplifier or decoder.

40. ANT. in Jack

Connect to an antenna, cable system, or satellite system.

INSTALLING THE BATTERIES

1) Open the battery compartment cover by pressing the cover on the remote unit in the direction of the arrow.

2) Insert 2 "AA" penlight batteries into the battery compartment in the direction indicated by the polarity (+/-) markings.

3)Replace the cover.

NOTES

- Do not mix alkaline and manganese batteries.

- Do not mix old and new batteries.

ANTENNA/CABLE CONNECTIONS

Satellite Box or Cable Box (Not supplied) From Cable System 75-ohm Coaxial Cable (Not supplied) From Cable System From Cable System or Satellite Dish VHF/UHF Antenna (Not supplied) VHF Antenna (Not supplied) UHF Antenna (Not supplied) VHF/UHF or Combiner (Not supplied) flat twin-lead cable [Fig. 4]

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

NOTE:

Before plugging the an antenna into the ANT. IN jack of the TV/DVD, check that the pin is not bent. If it is bent, straighten the pin as illustrated, then plug the pin into the ANT. IN jack of the TV/DVD.

(Needs to be straightened)(Straight pin)

VHF/UHF COMBINED ANTENNA

A VHF UHF 75 ohm combination antenna can be connected to ANT terminal.

VHF/UHF SEPARATE ANTENNAS

In some areas it will be necessary to use an outdoor antenna.

CABLE WITHOUT CONVERTER/DESCRAMBLER BOX

Use this connection if your cable system connects directly to your TV/DVD without a converter box. Use the TV/ DVD Remote Control to select channels.

CABLE WITH CONVERTER/DESCRAM-BLER BOX OR SATELLITE BOX

If your cable service supplies you with a converter box or if you use a satellite system, you can use the basic connection shown here.

Channel selection must be made with the converter box or satellite box. This means that channels cannot be changed using the TV/ DVD Remote Control.

TO VIEW A SCRAMBLED/UNSCRAMBLED CHANNEL

1. Set the TV/DVD channel selector to the output channel of the Cable Converter Box or Satellite Box. (Ex. CH3)

2. Select the channel to view at your Cable Converter Box or Satellite Box.

INDOOR ANTENNA

The Indoor Antenna (supplied with 13" model only) is detachable. Insert the stem of the antenna into the hole on the upper-back portion of the TV/DVD. Connect the Indoor Antenna to the TV/DVD as shown in the diagram. For the best reception, fully extend the Indoor Antenna and make the necessary adjustments. (Avoid touching the top section when adjusting.)

NOTE:

The connection of an Indoor antenna may not always give acceptable TV reception.

Indoor Antenna (supplied with 13" model only) ANT.

[Fig. 5]

CONNECTING TO EXTERNAL INPUT JACKS

When you watch a program recorded on an another source (VCR or video camera), use the audio/video input jacks on the front of the TV/DVD.

Connect the audio/video output jacks of another source to the AUDIO L/R and VIDEO jacks of this TV/DVD. Then press SELECT until "AUX" appears on the screen.

NOTE:

- When you connect a monaural VCR (another source) to this TV/DVD, connect the Audio output jack of the monaural VCR (another source) to the AUDIO L jack of this TV/DVD. The audio will output in both L and R channel equally.

[Another source] To the audio output jacks Audio/Video cables (not supplied) [Front of the TV/DVD] etc. To the video output jack [Fig. 6]

CONNECTING TO A STEREO SYSTEM

[Fig. 7]

NOTES:

• Be sure to turn off the power to all components in the system before connecting another component.
• Refer to the Owner's Manuals for your stereo system and any other components to be connected to the TV/DVD.
• The monaural sound is output from the stereo system when the TV/DVD is in the TV mode.

CONNECTING TO AN AMPLIFIER EQUIPPED WITH DIGITAL INPUT JACKS, MD DECK OR DAT DECK (for DVD only)

Use an audio coaxial digital cable available at retail for the audio connections.

Amplifier equipped with digital input jacks, MD deck, DAT deck, etc. To COAXIAL DIGITAL AUDIO INPUT jack To DIGITAL AUDIO OUT (PCM/BITSTREAM) COAXIAL jack (only DVD AUDIO OUT)

[Fig. 8]

NOTES:

• The audio source on a disc in a 5.1 channel Dolby Digital surround format cannot be recorded as digital sound by an MD or DAT deck.
• Be sure to turn off the power to all components in the system before connecting another component.
• Refer to the Owner's Manuals for the components to be connected to the TV/DVD.
• Set DOLBY DIGITAL to OFF for audio output in the setup mode. Playing a TV/DVD using incorrect settings may generate noise distortion, and may also damage the speakers. (See page 29 to set DOLBY DIGITAL to OFF.)

CONNECTING TO A DOLBY DIGITAL DECODER (for DVD)

If using this TV/DVD to play a DVD disc in a 5.1 channel Dolby Digital surround format, the TV/DVD outputs a DOLBY DIGITAL Data stream from its COAXIAL digital audio out jack. By hooking the player up to a Dolby Digital decoder, you can enjoy a more convincing, realistic ambience with powerful and high-quality surround sound as enjoyed in movie theaters.

Use audio coaxial digital cables available at retail for the audio connections.

[Fig. 9]

NOTES:

• Be sure to turn off the power to all components in the system before connecting another component.
• Refer to the Owner's Manuals for the components to be connected to the TV/DVD.
• If connected to a Dolby Digital decoder, set DOLBY DIGITAL to ON for audio output in the setup mode. (See page 29 to set DOLBY DIGITAL to ON.)
• Unless connected to a Dolby Digital decoder, set DOLBY DIGITAL to OFF for audio output in the setup mode. Playing a TV/DVD using incorrect settings may generate noise distortion, and may also damage the speakers.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

You can program the tuner to scan all the channels you receive in your area.

NOTE: Channel memory programming is NOT needed when connected to a cable box or satellite box. Just select the TV/DVD channel selector to the output channel of the cable box or satellite box (Ex CH3). Then select the channel to be viewed on the Cable Box or Satellite Box.

CHANNEL SET UP FOR THE FIRST TIME

TV

1 Plug in the TV/DVD power cord Plug the TV/DVD power cord into a standard AC outlet.

NOTE:

- If some digits appear in the corner of the screen, press POWER without unplugging the power cord.

2 Turn on the TV/DVD Press POWER to turn on the TV/DVD.

3 Select the On Screen

Language

Press ▲or ▼to point to “LAN-GUAGE”.

Then, press ENTER to select "ENGLISH" or "ESP" = Spanish or

“FRA” = French. “[ ]” indicate the selected language.

- SET UP -

▶LANGUAGE [ENGLISH] ESP FRA AUTO PRESET

4 Begin auto preset

Press ▲ or ▼ to point to “AUTO PRESET”. Then, press ENTER. The tuner scans and memorizes all active channels in your area.

- SET UP -

LANGUAGE [ENGLISH] ESP FRA

▶ AUTO PRESET

NOTES:

• The TV/DVD distinguishes between standard TV channels and cable(CATV) channels.
• The TV/DVD may memorize TV channels as CATV channels if reception conditions is poor. If this happens, try AUTO PRESET action again when reception conditions are better. See “CHANNEL SET UP AGAIN” on page 15.

5 After scanning

The tuner stops on the lowest memorized channel. If you want to recall the selected channels, you can select the desired channel directly with Number or CHANNEL(CH.) ▲or ▼.

DELETING (OR ADDING) CHANNEL

TV

The channels you no longer receive or seldom watch can be deleted from the memory. (Of course, you can add the deleted channel into the memory again.)

1 Select "CHANNEL SET UP"

Press SETUP on the remote control.

Press ▲ or ▼ to point to “CHANNEL SET UP”.

Then, press ENTER.

- TV SETUP -

▶ CHANNEL SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF]

2 Select "ADD/DELETE CH"

Press ▲ or ▼ to point to "ADD/DELETE CH".

Then, press ENTER.

- CHANNEL SET UP -

▶ADD / DELETE CH (TV) AUTO PRESET

3 Enter the desired channel number

Press ▲or ▼ until your desired channel number appears. (You can also use Number or CH. ▲/▼ to enter it.) (Example: CH8)

08

ADD / DELETE

4 Delete (or add) it from (into) memory

Press ENTER. The channel number changes to light red. The channel is deleted from memory.

Added channel: Light blue. Deleted channel: Light red.

• To delete another channel, repeat steps [3] and [4].
• If you press ENTER again, the channel is memorized again.

5 Exit the channel setup mode

Press SETUP on the remote control to returns to TV mode.

NOTE: To confirm that channel(s) has been deleted or added, press CHANNEL(CH.) ▲or ▼.

CHANNEL SET UP AGAIN

TV

1 Select "CHANNEL SET UP"

Press SETUP on the remote control.

Press ▲or ▼to point to “CHANNEL SET UP”.

Then, press ENTER.

- TV SETUP -

▶ CHANNEL SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF]

2 Begin auto preset

Press ▲ or ▼ to point to “AUTO PRESET”. Then, press ENTER.

The tuner scans and memorizes all the active channels in your area.

- CHANNEL SET UP -

ADD / DELETE CH (TV)

▶ AUTO PRESET

NOTES:

• The TV/DVD distinguishes between standard TV channels and cable(CATV) channels.
• The TV/DVD may memorize TV channels as CATV channels if reception conditions is poor. If this happens, try AUTO PRESET action again when reception conditions are better.

3 After scanning

The tuner stops on the lowest memorized channel.

SELECTING THE LANGUAGE

TV

NOTE: This function effects only the language on the screen menu and not the audio source.

1 Select "LANGUAGE"

Press SETUP on the remote control.

Press ▲ or ▼ to point to “LAN-GUAGE”.

Then, press ENTER to select “ENGLISH” or “ESPAÑOL”= Spanish or “FRANÇAIS”= French.

TV SETUP

CHANNEL SET UP V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF]

2 Exit the Language mode

Press SETUP on the remote control to return to TV mode.

NOTE: If Spanish or French is selected accidentally,

1) Press SETUP on the remote control.
2) Press ▲ or ▼ to point to “IDIOMA [ESPAÑOL]” or “LANGUAGE” [FRANÇAIS].
3) Press ENTER to select your desired language.
4) Press SETUP to exit.

WATCHING A TV PROGRAM

TV

1 Turn on the TV/DVD

Press POWER to turn on the TV/DVD.

2 Select the channel number

Press CHANNEL(CH.) ▲ or ▼ to select your desired channel number or press Number on the remote control.

Note for using the Number on the remote control:

• When selecting cable channels which are higher than 99, press +100 first, then, press the last two digits. (Example: to select channel 125, first press “+100” then press “2” and “5”).
• You must precede single-digit channel numbers with a zero (For example: 02, 03, 04 and so on).

Remember:

- If the TV/DVD is connected to a cable box or satellite box, the TV/DVD must be on CH3 or CH4, then the channel to be viewed must be selected on the cable box or satellite box.

3 Adjust sound

Press VOLUME(VOL.) / or to adjust the volume.

VOLUME 20

NOTE:

- If you press the CHANNEL(CH.) ▲ or ▼ in the DVD mode, you can change the TV channels. Even if you turn off the TV/DVD in the DVD mode, when you turn it on again, it will go into the TV mode.

DEGAUSSING

Magnetism from nearby appliances and speakers might affect the color of the TV picture.

If this happens, move this unit away from the appliance. If the color is still not correct, disconnect power cord from AC outlet then reconnect it after 30 minutes.

PICTURE CONTROL

TV

The TV/DVD's picture controls – BRIGHT, CONTRAST, COLOR, TINT and SHARPNESS – are preset to factory specifications. Although they are usually the best, you may need to make some further adjustments for a natural looking image.

Make sure ...

• TV/DVD power must be turned on.

1 Select "PICTURE CONTROL"

Press PICTURE on the remote control.

2 Select item you want to adjust

Press ▲ or ▼ until desired control is displayed.

BRIGHT

CONTRAST

COLOR

TINT

SHARPNESS

BRIGHT -□□□□□□□■□□□□□□□+

3 Adjust the picture control

Press ▶ or ◀ to adjust to your desired level within 5 seconds.

NOTE:

- At step 3, the picture adjustment display will disappear from the TV screen after about 5 seconds unless you press any buttons, even though you may not be finished. In this case, repeat from step [1].

	◀	▶
BRIGHT to decrease to increase brightness brightness
CONTRAST to decrease to increase contrast contrast
COLOR	to pale	to brilliant
TINT	to purple	to green
SHARPNESS	to soft	to clear

- If there is a power failure of any kind, the unit will retain its memory for this feature.

SLEEP TIMER

TV

The Sleep Timer function enables you to shut off the power without pressing POWER after a desired time period.

1 Set "SLEEP TIMER"

Press SLEEP on the remote control. You may change the sleep time with pressing SLEEP on the remote control repeatedly. The timer is set up to 120 minutes, 30 minutes each time SLEEP is pressed.

SLEEP 120 MINUTE

To cancel the sleep timer:

Press SLEEP repeatedly until "SLEEP 0 MINUTE" is displayed.

NOTES:

• When you disconnect the unit from the AC outlet, or if you have a power failure, the sleep time will be lost.
• To view the time left for sleep timer press SLEEP once when SLEEP display disappears. After 10 seconds, display will disappear again.

CLOSED CAPTION SYSTEM

TV

You can view specially labeled (cc) TV programs, movies, news, etc. with either a dialogue caption or text display.

CAPTION mode: By choosing the caption mode, you can watch dramas, movies and news while captioning the dialogues and the contents of news.

TEXT mode: By choosing the text mode, you can watch half screen text information if you want.

1-2: You may get these captions or text information by selecting either "1" or "2". Caption "2" is used, usually for a second language if available.

NOTE:

Not all programs are broadcast with closed captions. Your television is designed to provide error free closed captions from high quality antenna, cable and VCR signals. Conversely, poor quality signals are likely to result in caption errors or no captions at all. Common signal conditions which may cause captions errors are listed below:

• Automobile ignition noise
• Electric motor brush noise
- Weak snowy reception on TV screen
- Multiplex signal reception displaying picture ghosts or airplane flutter.

NOTE:

If the TV/DVD displays a black box on the TV screen, this means that the TV/DVD is set to the TEXT mode. To clear screen, select [CAPTION1], [CAPTION2] or [OFF].

Simple gray rectangle inside a rounded square frame (no text or symbols)

Make sure ...

• TV/DVD power must be turned on.

1 Select "CAPTION"

Press SETUP on the remote control. Press ▲ or ▼ to point to “CAP-TION”.

- TV SETUP - CHANNEL SET UP V-CHIP SET UP LANGUAGE. [ENGLISH] ▶CAPTION [OFF]

2 Select your desired caption menu

Press ENTER until your desired caption menu appears. ([CAPTION1], [CAPTION2], [TEXT1] or [TEXT2])

- TV SETUP - CHANNEL SET UP V-CHIP SET UP LANGUAGE [ENGLISH] ▶CAPTION [OFF]

3 Exit the caption setting mode

Press SETUP on the remote control to return to TV mode.

TO CANCEL THE CLOSED CAPTION SYSTEM

Repeat steps [1] and [2], select [OFF] using ENTER. Press SETUP on the remote control to return to TV mode.

WHEN THE CLOSED CAPTION MODE IS ON

The On-Screen Display will disappear after 5 seconds.

• This is also true when MUTE is pressed.
- If there is a power failure of any kind, the unit will retain its memory for this feature.

V-CHIP SET UP

TV

V-CHIP enables parents to prevent their children from watching inappropriate material on TV.

V-CHIP reads the ratings for programming (except for news and sports programs, unedited movies on premium cable channels, and Emergency Broadcast System signals), then denies access to programming if the program's rating meets the limitations you select. In this case, “PROTECTED PROGRAM by ...” message appears on the TV screen.

To block ratings, follow the steps below.

- Programming may be rated by the Motion Picture Association of America (MPAA) or according to the Television Parental Guidelines. In order to block any inappropriate programming, set your limits in both places (MPAA RATING and TV RATING).

TV RATING SET UP

Make sure ...

• TV/DVD power must be turned on.

1 Select "V-CHIP SET UP"

Press SETUP on the remote control.

Press ▲ or ▼ to point to “V-CHIP SET UP”.

Then, press ENTER.

TV SETUP

CHANNEL SET UP

▶ V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF]

2 Input Access code

Press Number on the remote control to enter 4-digit access code. The default code is 0000.

ACCESS CODE

3 Select "TV RATING"

Press ▲ or ▼ to point to “TV RAT-ING”.

Then, press ENTER.

- V-CHIP SET UP -

▶ TV RATING MPAA RATING CHANGE CODE

4 Select your desired item

Press ▲ or ▼ to point to your desired item.

Then, press ENTER to select [BLOCK] or [VIEW].

• When you select a rating category and turn it [BLOCK], the higher rating will turn [BLOCK] automatically. Also, the lower rating will turn [VIEW] automatically.
• When you turn “TV-Y” to [VIEW], the all ratings will turn to [VIEW] automatically.

Selection Rating Category Explanations

TV-Y Appropriate for all children

TV-Y7 Appropriate for children seven and older

TV-G General Audience

TV-PG Parental Guidance suggested.

TV-14 Unsuitable for children under 14

TV-MA Mature audience only

When you select TV-Y7, TV-PG, TV-14, or TV-MA and you press ENTER, the sub-ratings will appear on the TV screen.

If you select the rating category (example: TV-PG) and turn it [BLOCK] or [VIEW], the sub-ratings (example: V for Violence) will turn [BLOCK] or [VIEW] automatically.

You can set the sub-ratings to [BLOCK] or [VIEW] individually when the rating category is set to [BLOCK].

To set the sub-ratings individually, follow the steps below.

- When you select [TV-Y7]: Press ▼ or ▲ to select “FV” (Fantasy Violence). Then, press ENTER to select [BLOCK] or [VIEW].

TV-Y7 ▶FV [BLOCK] [BLOCK]

- When you select [TV-PG], [TV-14] or [TV-MA]:

Press ▼or ▲to select “D”(Suggestive Dialog), “L”(Coarse Language), “S”(Sexual Situation), or “V”(Violence). Then, press

TV-PG [BLOCK] ►D [BLOCK] L [BLOCK] S [BLOCK] V [BLOCK]

ENTER to select [BLOCK] or [VIEW].

NOTE: When you select [TV-MA], "D" does not appear on the TV screen.

- The sub-ratings which set to [BLOCK] appears next to the rating category in the TV RATING menu.

TV-Y [VIEW] TV-Y7 ( ) [VIEW] TV-G [VIEW] TV-PG (DLSV) [BLOCK] TV-14 (DLSV) [BLOCK] TV-MA ( LSV) [BLOCK]

5 Exit the V-Chip setting mode

Press SETUP on the remote control to return to original mode.

MPAA RATING SET UP

Make sure ...

• TV/DVD power must be turned on.

1 Select "V-CHIP SET UP"

Press SETUP on the remote control.

Press ▲ or ▼ to point to “V-CHIP SET UP”.

Then, press ENTER.

- TV SETUP - CHANNEL SET UP ►V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF]

2 Enter 4-digit access code

Press Number on the remote control. The default code is 0000.

ACCESS CODE

3 Select "MPAA RATING"

Press ▲ or ▼ to point to “MPAA RATING”.

Then, press ENTER.

- V-CHIP SET UP - TV RATING ▶MPAA RATING CHANGE CODE

Selection Rating Category Explanations
G General	Audience
PG Parental Guidance suggested.
PG-13 Unsuitable for children under 13
R Restricted; under 17 requires accompanying parent or adult guardian
NC-17 No	one under 17 admitted
X Mature	audience only

4 Select your desired item

Press ▲ or ▼ to point to your desired item.

Then, press ENTER to select [BLOCK] or [VIEW].

G [VIEW] PG [VIEW] PG-13 ▶R [BLOCK] NC-17 X [VIEW] [BLOCK] [BLOCK]

• When you select the rating category and turn it [BLOCK], the higher rating will turn [BLOCK] automatically. Also, the lower rating will turn [VIEW] automatically.
• When you turn “G” to [VIEW], the all ratings will turn to [VIEW] automatically.

5 Exit the V-Chip setting mode

Press SETUP on the remote control to return to original mode.

CHANGE ACCESS CODE

To change access code, follow the steps.

1 Select "V-CHIP SET UP"

Press SETUP on the remote control.

Press ▲ or ▼ to point to “V-CHIP SET UP”.

Then, press ENTER.

- TV SETUP - CHANNEL SET UP ►V-CHIP SET UP LANGUAGE [ENGLISH] CAPTION [OFF]

2 Enter 4-digit access code

Press Number on the remote control. The default code is 0000.

ACCESS CODE

3 Select "CHANGE CODE"

Press ▲ or ▼ to point to "CHANGE CODE".

Then, press ENTER.

- V-CHIP SET UP - TV RATING MPAA RATING ▶CHANGE CODE

4 Enter 4-digit access code

Press Number to enter your desired access code in the NEW CODE space. Then, enter the same code in the CONFIRM CODE space. V-CHIP SET UP screen appear on the screen.

NEW CODE CONFIRM CODE

- If you enter wrong code, repeat step 4, making sure you enter the same new code exactly in the confirm code space.

5 Exit the V-Chip setting mode

Press SETUP on the remote control to return to original mode.

NOTE:

- If you unplug the power code or power failure occurs, the changed access code will be lost and will return to default (0000). Change your access code again as necessary.

PLAYABLE DISCS

The following discs can be played back on this TV/DVD.

• DVD video

• DVD-R/RW*

- DVD+R/RW*

- Audio CD

- CD-R/RW*

• MP3*

* Depending on the types or the writing method of the medium some discs can not be played.

• Some DVD-R/RW, DVD+R/RW, or CD-R/RW discs made on personal computers, or on DVD recorders may not be played back properly due to the factors such as scratches, dirt or special properties of the disc.
• Discs made on personal computers may not be played back properly due to the different environment or the settings of the application you use. We recommend always to use the standardized, rightly formatted discs. (Please contact the sales agency for more detail).

This player conforms to the NTSC color system. You cannot play discs recorded in other color systems such as PAL or SECAM.

- Some discs include region codes as shown below.

- The number inside the symbol refers to a region of the world, and a disc encoded in a specific region format can only be played back on TV/DVD with the same region code.

The following discs cannot be played back on this TV/DVD.

• DVD with region codes other than 1 or ALL.
• DVD-ROM
• DVD-RAM (Never play back, otherwise malfunction may result.)
- CD-ROM
• VSD
• CDV (Only plays back the audio part.)
• CD-G (Only plays back the sound.)
- CD-I (Never play back, otherwise malfunction may result.)
• SACD
- Photo CD (Never play back, otherwise malfunction may result.)
- Video CD (Never play back, otherwise malfunction may result.)

Any other discs without compatibility indications.

DISC TYPES

[DVD]

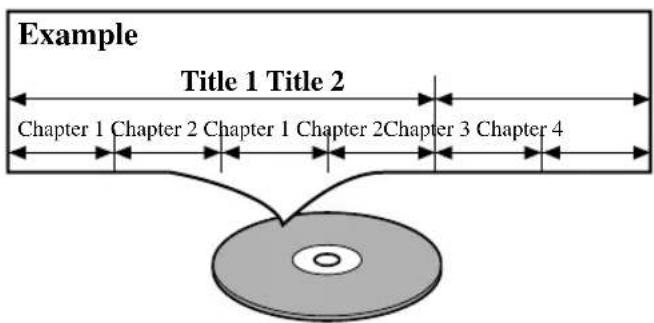

Data on a DVD is divided into sections called "titles", and then into subsections called "chapters", each of which is given a title or chapter number. Playback conditions are preset on some DVD video discs, and these playback conditions take priority over user operations on this player. If a function you selected does not run as desired, refer to the manual accompanying the disc.

Example Title 1 Title 2 Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3 Chapter 4

[ AUDIO CD]

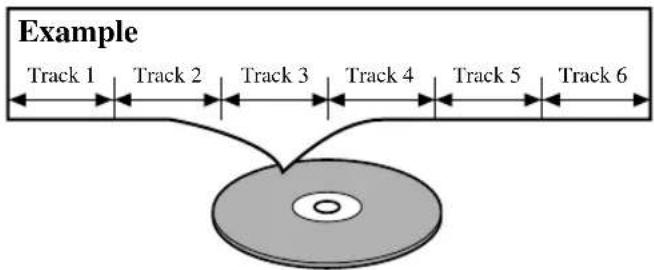

Data on an audio CD is divided into sections called "tracks", each of which is given a track number.

[MP3]

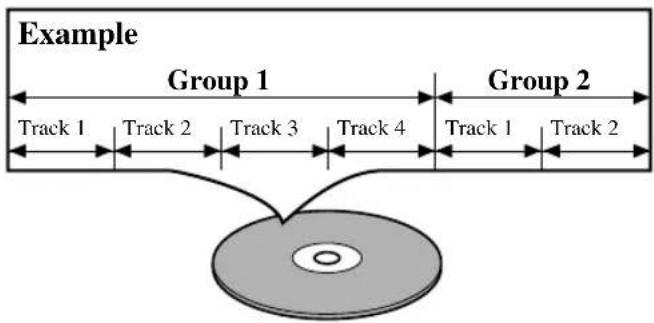

Data on an MP3 is divided into sections called "groups", and then into subsections called "tracks", each of which is given a group or track number.

BASIC PLAYBACK

DVD-V

CD

Getting started

• Turn on the power of amplifier and any other components, if necessary.
  1 Press POWER.
• The power will turn on.
  2 Press OPEN/CLOSE to open disc loading tray.
  3 Place the chosen disc in the tray, with the label facing up.

Illustration of a hand using a circular disc to cut a curved object on a flat surface (no text or symbols)

4 Press PLAY.

• The tray will close automatically, and playback will then start from the first chapter or track of the disc. If the playback does not start automatically, press PLAY.
• When you playback the DVD which a title menu is recorded, it may appear on the screen. In this case, refer to “TITLE MENU”.

5 Press STOP to stop playback.

NOTES

- When the DVD mode has been switched to the TV mode, the DVD mode shuts down first and then TV picture and sound appears in about 4 seconds. Similarly, when POWER is pressed to turn off in the DVD mode, this mode shuts down first and then the TV/DVD's power is turned off.

- A “prohibited icon” may appear at the top-right on the TV screen during operation, warning that a prohibited operation has been encountered by the DVD or the disc.

• With DVDs that use titles for playback program signals, playback may start from the second title, or it may skip these titles.
• During the playback of a two layered disc, pictures may stop for a moment. This happens when the 1st layer switches to the 2nd layer. This is not a malfunction.

GENERAL FEATURES

DVD may contain menus to navigate the disc and access special features. Press appropriate numerical key or use Arrow (▼/▲/►/◄) to highlight your selection in the DVD main menu and press ENTER to confirm.

NOTES

• Select DVD mode by pressing SELECT on the remote control. Then, press PLAY or OPEN/CLOSE before you operate the DVD functions.
• Unless stated, all operations described are based on remote control use. Some operations can be carried out using the menu bar on the TV screen.

DISC MENU

DVD-V

1 Press DISC MENU.

- The DVD main menu will appear.

2 If the feature is not available, symbol may appear on the TV screen.
3 If disc menu is available on the disc, audio language, subtitle options, chapters for the title and other options will appear for selection.
4 Press Arrow (▼/▲/▶/◀) to select an item, and ENTER to confirm selection.

TITLE MENU

DVD-V

1 Press TITLE.

- The title menu will appear.

2 If the feature is not available, symbol may appear on the TV screen.
3 Press Arrow (▼/▲/▶/◀) to select an item, and ENTER to confirm selection.

CALLING UP A MENU SCREEN DURING PLAYBACK

For DVD-Vs

• Press DISC MENU to call up the DVD menu.
• Press TITLE to call up the title menu.

NOTE

- Contents of menus and corresponding menu operations may vary between discs. Refer to the manual accompanying the disc for details.

RESUME

DVD-V

CD

1 During playback, press STOP.
- Resume message will appear on the TV screen.
2 Press PLAY, playback will resume from the point at which playback was stopped.
- To cancel resume, press STOP twice.
- If turn off the TV/DVD, resume function will be cancelled.

PAUSE

DVD-V

CD

1 During playback, press PAUSE.
- Playback will pause and sound will be muted.
2 To continue playback, press PLAY.

STEP BY STEP PLAYBACK

DVD-V

1 During playback, press PAUSE.
- Playback will pause and sound will be muted.
2 The disc goes forward by one frame each time PAUSE is pressed.
3 To exit step by step playback, press PLAY.

FAST FORWARD/REVERSE SEARCH

DVD-V

The image contains no text or content. It is a blank rectangular box.

MP3CD

1 During playback, press FWD ▶▶ or REV ◀◀ repeatedly to select the required forward or reverse speed: x2, x8, x50, x100.
- For audio CDs, the speed is fixed at ×16.
- For MP3, the speed is fixed at ×8.
2 To return to normal playback, press PLAY.

Note for using buttons on the main unit:

During playback, press and hold down the SKIP▶▶/SEARCH▶▶ or SKIP◀◀/SEARCH◀◀ on the TV/DVD for a few seconds to begin Search in x2 speed. Press and hold down again to change speed to x8. Repeat this procedure to change to x50 and x100.

SLOW FORWARD / SLOW REVERSE

DVD-V

1 During playback, press PAUSE.
2 Press FWD ▶▶ or REV ◀◀.
3 Press FWD ▶▶ or REV ◀◀ repeatedly to select the required speed: 1/16, 1/8, 1/2 of the normal playback.
4 To return to normal playback, press PLAY.

Note for using buttons on the main unit:

Press PAUSE, then, press and hold down the SKIP ▶▶/SEARCH▶▶ or SKIP◀◀/SEARCH◀◀ on the TV/DVD for a few seconds to begin Search in 1/16 speed of the normal playback. Press and hold down again to change speed to 1/8. Repeat this procedure to change to 1/2.

ZOOM

DVD-V

The Zoom function allows you to enlarge the video image and to pan through the enlarged image.

1 Press ZOOM during playback.
- Playback will continue.
2 Press ZOOM repeatedly to select the required zoom factor: ZOOM1, ZOOM2, ZOOM3, or OFF.
3 Use the Arrow (▲/▼/◄/►) to move the zoomed picture across the screen.

4 To exit zoom mode, press ZOOM to OFF. NOTES

• Zooming function does not work while disc menu is shown.
• Zooming function is not available on some discs.

TRACK SEARCH

CD

There are three ways to begin playback on an Audio CD at a specific Track.

Using Number on the remote control

1 Press Number to enter the desired Track number.

• Playback will start at the selected track.
• For single digit tracks (1-9), press a single number (eg. track 3, press 3).
• To play track 26, press +10, 2, 6.

Using SEARCH MODE

1 Press SEARCH MODE.
- The track search display appears.
2 Within 30 seconds, select a desired track number using Number on the remote control.
- For single digits press 0 first.
- Playback will start at the selected track.

Using SKIP |◀◀▶▶|

During playback, press SKIP ▶▶to move the next track. Press it repeatedly to skip subsequent tracks. Press SKIP ◀◀▶to go back to beginning of the current track. Press it repeatedly to go to the previous tracks.

- If SKIP is pressed while the playback is paused, the playback will be paused again after skipping to the next track.

NOTE

- SKIP ◀◀◀ ▶▶▶ are not available when playback is stopped.

TITLE / CHAPTER SEARCH

DVD-V

1 Press SEARCH MODE once for the Chapter search, twice for the Title search during playback.

2 Enter the desired chapter/title number using Number on the remote control.

• Playback will start at the selected Chapter or Track.
• Press CLEAR to erase the incorrect input.
• For single digits press 0 first.

TIME SEARCH

DVD-V

CD

1 During playback, press SEARCH MODE three times (CD: twice) to display the Time Search on the TV screen.
2 Within 30 seconds, enter a desired disc time using Number on the remote control.

- Playback will start at the specified time.

- Press CLEAR to erase the incorrect input.

MARKER SETUP SCREEN

DVD-V

CD

Use markers to memorise your favorite places on a disc.

1 Press SEARCH MODE four times (CD: three times) during playback.

- The display screen and Markers will appear on the TV screen.

2 Press Arrow (◀/▶) to select 1, 2, 3, 4, 5, 6, 7, 8, 9, or 10 and ensure that “- : - - : - -” appears in the display.

3 When reaches the desired point, press ENTER.

- The Title or Track and elapsed playing time will appear in the TV screen.

4 To return to the Marker later, press SEARCH MODE four times (CD: three times) during playback and Arrow (◄/►) to choose the desired marker, then press ENTER.

NOTES

• Opening the disc tray or turning off the power or select AC at step 2 and press ENTER will erase all Markers.
• To clear a marker, using Arrow (◀/▶), position the cursor on to the marker number to be cleared and press CLEAR.
• You can mark up to 10 points.

5 Press SEARCH MODE or RETURN to exit.

REPEAT

REPEAT is available only during playback.

REPEAT TITLE / CHAPTER

DVD-V

To activate the repeat function, press REPEAT during playback.

- The repeat mode changes as described below every time you press the button.

NOTES

• Repeat Title/Chapter is not available with some scenes.
• The REPEAT setting will be cleared when moving to other title or chapter.

REPEAT TRACK

CD

To activate the repeat function, press REPEAT during playback.

- The repeat mode changes as described below every time you press the button.

NOTES

• Repeat setting will be cleared when moving to other track.
• Repeat playback does not function during repeat A-B playback.

REPEAT A-B

DVD-V CD

1 Press REPEAT A-B at your chosen starting point.

- A- appears briefly on the TV screen.

2 Press REPEAT A-B again at your chosen end point.

- A-B appears briefly on the TV screen, and the repeat sequence begins.

3 To exit the sequence, press REPEAT A-B.

NOTES

• The repeat A-B section can only be set within the current title (for DVDs), or current track (for audio CDs).
• Repeat A-B is not available with some scenes in DVD.
• To cancel the A point which was set, press CLEAR.
• Repeat A-B playback does not function during title, chapter, track or all repeat playback.

PROGRAM

CD

You may determine the order in which tracks will play.

1 In stop mode, press MODE.

- The PROGRAM screen will appear.

2 Press ▲ or ▼ to select a track, then press ENTER.

- Press CLEAR to erase the most recently entered program.

PROGRAM CD [A/D/D] TOTAL: 0.00.00 1 3.00 2 4.00 3 5.00 4 6.00 5 7.00 6 8.00 7 9.00 1/2 1/1 1 2.00

3 Repeat step 2 until you have selected all the tracks you want to play in the program.

4 Press PLAY to play the programmed tracks.

NOTES

• While the program is being played back, the STOP works as follows.
• Press STOP once and then PLAY again, playback will restart from the point where STOP was pressed. (Program continued)
• Press STOP twice and then PLAY again, playback will restart from the track in the usual way. (Program cleared)
• Up to 99 programs can be entered.
• If you like to repeat the current track in the program, press REPEAT repeatedly until ☑TRACK appears during playback. If you like to repeat the entire program press REPEAT repeatedly until ☐ALL appears during playback.

RANDOM PLAYBACK

CD

This shuffles the playing order of tracks instead of playback in the sequence.

1 In stop mode, press MODE twice.

- RANDOM screen appears.

RANDOM 4D AUDIO TOTAL 0:55.55 RANDOM PROGRAM --no indication -- OK

2 Press PLAY to start random playback.

NOTE

- If you like to repeat the current track in the random selection, press REPEAT repeatedly until TRACK appears during playback. If you like to repeat the entire random selection press REPEAT repeatedly until appears during playback.

MP3 PLAYBACK

MP3

When a CD with MP3 files is in the TV/DVD, the MP3 menu will appear on the TV screen in stop mode.

1 In stop mode, press Arrow (▲/▼) to select the desired group track.

- If a group is selected, press ▶ or ENTER to go on to the track selection screen. Press Arrow (▲/▼) to choose a track, then press ENTER.

FILE LIST FOLDER MP3 DISC NAME FIRST PLAY Fholder name Fholder name Fholder name Fholder name Fholder name Fholder name FIRST PLAY 1/2

• If a track is selected, press ENTER to start playing
  tracks. Starting from the one you've just chosen the subsequent tracks will be played.
• Choose FIRST PLAY to start playback from the beginning of the listed tracks.
• Press TITLE to return to the first item.

2 Press STOP to stop playback.

NOTES

• Folders are known as Groups; files are known as Tracks.
• MP3 files are accompanied by icon.
• Maximum of 255 folders can be recognized.
• Maximum of 256 files can be recognized.
• Up to 8 hierarchies can be created.

This player recommends the use of files recorded at the below specifications:

• Sampling frequency: 44.1kHz or 48kHz
• Constant bit rate: 112kbps \~ 320kbps.

TRACK SELECTION

MP3

1 Press SEARCH MODE during playback.

• The FILE LIST will appear.

2 Select a desired track using Arrow (▲/▼/◄/►).

• Press ▶ when you want to go to the next hierarchy.
• Press ◀ when you want to go back to the previous hierarchy.

3 Press PLAY to start playback.

NOTES

• Press SEARCH MODE to exit.
• Some selections may take a while to be recognized.

PROGRAM

MP3

This feature allows you to program an MP3 disc to play in a desired sequence.

1 In stop mode, press MODE.

- The PROGRAM screen will appear.

2 Select a desired track using Arrow (▲/▼/◄/►). Then, press ENTER.

• Press ▶ when you want to go to the next hierarchy.
• Press ◀ when you want to go back to the previous hierarchy.
• Press CLEAR to erase the most recently entered program.

3 Repeat step 2 until you have selected all the Tracks you want to play in the program.
4 Press PLAY to start programmed playback.

RANDOM PLAYBACK

MP3

1 In stop mode, press MODE twice.

- RANDOM screen appears.

2 Press PLAY to start random playback.

SUBTITLE LANGUAGE CAM

DVD-V

The DVD allows you to select a language for subtitles during DVD disc (if available) playback.

1 Press SUBTITLE during playback.

2 Press SUBTITLE repeatedly to select your desired subtitle language.

- The subtitle language will be displayed on the display bar at the top of the screen.

3 To turn off subtitles, press SUBTITLE repeatedly until OFF appears.

NOTES

• Some discs allow audio language setting/subtitle language setting on the disc menu. (Operation varies between discs, so refer to the manual accompanying the disc.)
• If the desired language is not shown after pressing SUBTITLE several times, the disc does not have subtitles in that language.
• If you choose a Language that has a 3 letter language code, the code will be displayed every time you change the Subtitle language setting. If you choose any other languages, ‘---’ will be displayed instead. (Refer to page 28.)

AUDIO LANGUAGE

DVD-V

The TV/DVD allows you to select a language during DVD disc (if multi language available) playback.

1 Press AUDIO during playback.

2 Press AUDIO repeatedly to select your desired language.

NOTE

- Pressing AUDIO may not work on some DVDs with multiple audio languages (e.g. DVDs which allow audio language setting on the disc menu).

STEREO SOUND MODE

CD

1 Press AUDIO repeatedly during playback to select between STEREO, L-CH or R-CH.

- STEREO - both right and left channels are active (stereo)

L-CH - only left channel is active R-CH - only right channel is active

NOTE

- If the Virtual Surround setting is ON, the sound mode will be fixed to STEREO, and can not be changed.

CRA ANGLE

DVD-V

Some DVD discs contain scenes which have been shot simultaneously from various angles. You can change the camera angle when the (icon appears on the screen.

1 Press ANGLE during playback.

- The selected angle will be displayed on the display bar at the top of the screen.

2 Press ANGLE repeatedly to select your desired angle.

BLACK LEVEL SETTING

DVD-V

Adjust the Black Level Settings to make the black parts of the picture brighter.

1 Press MODE during playback.

2 Press ENTER to switch ON/OFF. ON: Makes the dark parts brighter. OFF: Shows the original picture as recorded.

3 Press MODE twice or RETURN to exit.

VIRTUAL SURROUND

DVD-V MP3CD

You can enjoy stereophonic visual space on your existing stereo system.

1 Press MODE twice (CD/MP3: once) during playback.

2 Press ENTER to set it 1 (Natural effect) or 2 (Emphasized effect) or OFF.

3 Press MODE or RETURN to exit.

NOTE (for CD play only)

- Virtual Surround will not be effective if the sound mode is set to something other than STEREO.

You can check the information about the current disc by pressing DISPLAY on the remote control.

For DVD-Vs

1 Press DISPLAY during playback to show current Chapter.

- The elapsed and remaining playing time of the current chapter will be displayed.

2 Press DISPLAY again to show current Title.

- The elapsed and remaining playing time of the current title will be displayed.

3 Press DISPLAY again.

• The BIT RATE and the current repeat setting will be displayed.
• If you are playing a dual layered disc, the layer number will also be displayed (L0: Layer 0 is playing. L1: Layer 1 is playing).

4 Press DISPLAY again to exit the display.

For audio CDs

1 Press DISPLAY during playback to show the current Track.

- The elapsed and remaining playing time of the current track will be displayed.

2 Press DISPLAY again to show current Total Track.

- The elapsed and remaining playing time of the current total track will be displayed.

3 Press DISPLAY again to exit the display.

For MP3

1 Press DISPLAY during playback.

- The name of the file currently in play will be displayed.

2 Press DISPLAY again to show the track number, the repeat status, and the playback status at the top of the screen.

- will be displayed when repeat play has been selected.

T - indicates Track repeat G - indicates Group (folder) repeat A - indicates Disc repeat

3 Press DISPLAY again to exit the display.

LANGUAGE SETTING

DVD-V

Language options are not available with some discs.

1 Press SETUP twice in STOP mode so that the DVD SETUP menu appears.

- If the menu does not appear, press PLAY, STOP, then SETUP twice.

OUT FOS TOLY QUICK SETUP TV MODE 43 LETTER BOX DOLBY DIGITAL ON

2 Press ▶ to select CUSTOM, then press ENTER.

- CUSTOM mode will appear.

3 Press Arrow (◄/►) to select LANGUAGE, then press ENTER to confirm.

LANGUAGE AUDIO ORIGINAL SUBTILE OFF DISC MENU ENGLISH

4 Press Arrow (▲/▼) to select the next items, then press ENTER.

AUDIO:

• Sets the audio language.
  SUBTITLE:
• Sets the subtitle language.
  DISC MENU:
• Sets the language for DVD menu.

5 Press Arrow (▲/▼) to select a setting, then press ENTER.

• If OTHER is selected on the AUDIO, SUBTITLE or DISC MENU screen, press four-digit number to enter the code for the desired language. (Refer to the language code list below.)
• Only the languages supported by the disc can be selected.

6 Press SETUP to exit.

NOTE

- Language Setting for Audio and Subtitle is not available with some discs. Then use the AUDIO and the SUBTITLE button. Details are on page 26.

TO CHANGE THE ON-SCREEN MENUS

You can access the TV SETUP menu by pressing SETUP from the DVD mode. Refer to “Selecting the Language” on page 15 to changing the on-screen menus.

- In case of selecting from the DVD mode, you cannot select “CHANNEL SET UP”, “V-CHIP SET UP”, or “CAPTION” menus.

Language Code		Language Code
A-B		L-N
Abkhazian	4748	Laothian	5861
Afar	4747	Latin	5847
Afrikaans	4752	Latvian; Lettish	5868
Albanian 6563		Lingala	5860
Amharic	4759	Lithuanian	5866
Arabic	4764	Macedonian	5957
Armenian	5471	Malagasy	5953
Assamese	4765	Malay	5965
Aymara	4771	Malayalam	5958
Azerbaijani	4772	Maltese	5966
Bashkir	4847	Maori	5955
Basque	5167	Marathi	5964
Bengali; Bangla 4860		Moldavian	5961
Bhutani	5072	Mongolian	5960
Bihari	4854	Nauru	6047
Bislama	4855	Nepali	6051
Breton	4864	Norwegian [NOR]	6061
Bulgarian	4853	O-R
Burmese	5971	Occitan	6149
Byelorussian	4851	Oriya	6164
C-E		Oromo(Afan)	6159
Cambodian	5759	Panjabi	6247
Catalan	4947	Pashto; Pushto	6265
Chinese [CHI]	7254	Persian	5247
Corsican	4961	Polish	6258
Croatian	5464	Portuguese [POR] 6266
Czech	4965	Quechua	6367
Danish [DAN]	5047	Rhaeto-Romance	6459
Dutch [DUT]	6058	Romanian [RUM] 6461
English [ENG]	5160	Russian [RUS]	6467
Esperanto	5161	S
Estonian 5166		Samoan	6559
F-H		Sangho	6553
Faroese	5261	Sanskrit	6547
Fiji	5256	Scots Gaelic	5350
Finnish [FIN]	5255	Serbian	6564
French [FRE]	5264	Serbo-Croatian	6554
Frisian	5271	Sesotho	6566
Galician	5358	Setswana	6660
Georgian	5747	Shona	6560
German [GER]	5051	Sindhi	6550
Greek [GRE]	5158	Singhalese	6555
Greenlandic	5758	Siswat	6565
Guarani	5360	Slovak	6557
Gujarati	5367	Slovenian	6558
Hausa	5447	Somali	6561
Hebrew	5569	Spanish [SPA]	5165
Hindi	5455	Sundanese	6567
Hungarian [HUN] 5467		Swahili	6569
I-K		Swedish [SWE]	6568
Icelandic [ICE]	5565	T
Indonesian	5560	Tagalog	6658
Interlingua	5547	Tajik	6653
Interlingue	5551	Tamil	6647
Inupiak	5557	Tatar	6666
Irish [IRI]	5347	Telugu	6651
Italian [ITA]	5566	Thai	6654
Japanese [JPN]	5647	Tibetan	4861
Javanese	5669	Tigrinya	6655
Kannada	5760	Tonga	6661
Kashmiri 5765		Tsonga	6665
Kazakh	5757	Turkish [TUR]	6664
Kinyarwanda	6469	Turkmen 6657
Kirghiz	5771	Twi	6669
Kirundi	6460	U-Z
Korean [KOR]	5761	Ukrainian	6757
Kurdish	5767	Urdu	6764
		Uzbek	6772
		Vietnamese	6855
		Volapuk	6861
		Welsh	4971
		Wolof	6961
		Xhosa	7054
		Yiddish	5655
		Yoruba	7161
		Zulu	7267

If you choose a Language that has a 3 letter language code, the code will be displayed every time you change the Audio or Subtitle language setting on page 26. If you choose any other languages, ‘---’ will be displayed instead. (3 letter language code is written in bracket.)

DISPLAY SETTING

DVD-V

You can change certain aspects of the DVD display screens and on-screen messages on the TV screen.

1 Press SETUP twice in STOP mode so that the DVD SETUP menu appears.

- If the menu does not appear, press PLAY, STOP, then SETUP twice.

QUICK SETUP TV MODE 43 LETTER BOX DOLBY DIGITAL ON

2 Press ▶ to select CUSTOM, then press ENTER.

- CUSTOM mode will appear.

3 Press Arrow (◀/▶) to select DISPLAY, then press ENTER to confirm.

DISPLAY TY MODE ANGLE ICON ON 43 LETTER BOX AUTO POWER OFF ON

4 Press Arrow (▲/▼) to select the below items, then press ENTER.

TV MODE: QUICK

• Press Arrow (▲/▼) for an item selection, then press ENTER.
• Select 4:3 LETTER BOX for a black bars appears on top and bottom of the screen.
• Select 4:3 PAN & SCAN for a full height picture with both sides trimmed.
• The default setting is 4:3 LETTER BOX.

ANGLE ICON:

• Press ENTER repeatedly to turn Angle icon ON or OFF.
• The default setting is ON.

AUTO POWER OFF:

• Press ENTER repeatedly to turn Auto Power off ON or OFF.
• The default setting is ON and it will turn the TV/DVD to off automatically after 15 minutes of no use.

5 Press SETUP to exit.

AUDIO SETTINGS

Choose the appropriate Audio settings for your equipment as it only affect during the playback of DVD discs.

1 Press SETUP twice in STOP mode so that the DVD SETUP menu appears.

- If the menu does not appear, press PLAY, STOP, then SETUP twice.

QUICK SETUP TV MODE 43 LETTER BOX DOLBY DIGITAL ON

2 Press ▶ to select CUSTOM, then press ENTER.

- CUSTOM mode will appear.

3 Press Arrow (◄/►) to select AUDIO, then press ENTER to confirm.

AUDIO DRC OFF DOLEY DIGITAL ON DOWN SAMPLING ON

4 Press Arrow (▲/▼) to select the below items, then press ENTER.

DRC (Dynamic Range Control):

• To compress the range of sound volume.
• The default setting is OFF.

DOLBY DIGITAL: QUICK

Set to On when the unit is connected to a Dolby Digital Decoder.

(ON: Output by Dolby Digital)

(OFF: Convert the Dolby Digital to PCM (2 channel stereo))

- The default setting is ON.

DOWN SAMPLING:

• Set to ON when outputting in 48 kHz.
• The default setting is ON.

When playing disc with copyright Protection

- If you select OFF, copyright protection will be activated and sound will be down sampled at 48kHz.

5 Press SETUP to exit.

DVD-V

Parental Control limits the disc viewing that exceed your settings. (with a password or playback will stop.) This feature allows you to prevent discs with alternative scenes from being played by your children.

PARENTAL LEVEL

Parental Level allows you to set the rating level of your DVD discs. Playback will stop if the disc's ratings exceed the level you set.

1 Press SETUP twice in STOP mode so that the QUICK SETUP menu appears.

- If the menu does not appear, press PLAY, STOP, then SETUP twice.

2011 2013 2015 QUICK SETUP TV MODE DOLBY DIGITAL ON 43 LETTER BOX

2 Press ▶ to select CUSTOM, then press ENTER.

3 Press Arrow (◀/▶) to select PARENTAL, then press ENTER.

PARENTAL PARENTAL LEVEL ALL

4 Enter your four-digit password then press ENTER.
5 Press Arrow (▲/▼) to select PARENTAL LEVEL, then press ENTER.
6 Press Arrow ( / ) to select the desired level.
7 Press SETUP to exit

NOTES

• When doing this for the first time, enter any 4 digits. (except for 4737) That number will be used as the password from the second time onward.
• To change the password, press Arrow (▲/▼) to select CHANGE at step 5, then press ENTER. Enter the four-digit pass-word, then press ENTER.
• With some DVDs, it may be difficult to find if they are compatible with parental lock. Be sure to check if the parental lock function operates in the way that you have set.
• Record the password in case you forget it.

CONTROL LEVELS

• ALL

All parental lock is cancelled.

- Level 8

DVD software of any grade (adult/general/children) can be played back.

- Levels 7 to 2

Only DVD software intended for general use and children can be played back.

- Level 1

Only DVD software intended for children can be played back, with those intended for adult and general use prohibited.

1 Press 4, 7, 3, 7 at step 4. Then enter your new password.

- Password will be cleared and parental level will be set to ALL.

2 Proceed the above Steps 5-7 again.

If the TV/DVD does not perform properly when operated as instructed in this Owner's Manual, check the player, consulting the following checklist.

Problem Corrective Action
No power.	Make sure the power plug is connected to an AC outlet.Make sure the power is turned on.
The TV/DVD does not respond to the remote control.	Check if the power plug is connected to an AC outlet.Check the batteries in the remote control.Aim the remote control directly at the remote sensor. If necessary, remove all the obstacles between the sensor and the remote.You have to be within 23 feet of the TV/DVD.Check if the correct mode is selected. If not switch the mode by pressing SELECT on the remote control,whichever you need.

TV Mode

Problem Corrective Action
No Picture or Sound	Try a new channel, if OK, then possible station trouble.Make sure the power is turned on.Press SELECT on the remote control to select TV mode. Then try other TV feature.Is antenna connected to terminal on the back of the set?If outside antenna is being used, check for broken wire.
Bars On Screen	If outside antenna is being used, check for broken wire.Check for local interference.
Picture Distorted or Blurred	Try a new channel, if OK, then possible station trouble.If outside antenna is being used, check for broken wire.
Picture Rolls Vertically Lines or Streaks in Picture	Try a new channel, if OK, then possible station trouble.If outside antenna is being used, check for broken wire.Check for local interference.
No Color	Try a new channel, if OK, then possible station trouble.Is antenna connected to terminal on the back of the set?If outside antenna is being used, check for broken wire.Adjust COLOR control.
Poor Reception on Some Channels Ghosts in Picture	Try a new channel, if OK, then possible station trouble.Is antenna connected to terminal on the back of the set?If outside antenna is being used, check for broken wire.Check for local interference.
Weak Picture	Try a new channel, if OK, then possible station trouble.Is antenna connected to terminal on the back of the set?If outside antenna is being used, check for broken wire.Adjust CONTRAST & BRIGHT control.
Sound OK, Picture Poor	Try a new channel, if OK, then possible station trouble.Is antenna connected to terminal on the back of the set?If outside antenna is being used, check for broken wire.Check for local interference.Adjust CONTRAST & BRIGHT control.
Picture OK, Sound Poor	Try a new channel, if OK, then possible station trouble.Check for local interference.
Different color marks on screen.	Magnetism from nearby appliances and geomagnetism might affect the color of the TV picture. Move the TV/DVD away from the appliances, the TV/DVD can repair itself automatically. If you want to repair immediately, unplug the TV/DVD power cord, then plug it in again 30 minutes or so later.
Closed Caption Problem Possible Remedy
My TV is showing captions • You are watching a live broadcast and spelling errors made by the closed captioning production company may pass through uncorrected. that are misspelled.	A prerecorded program will not show any misspelled words because of the normal time available for editing the captions.
My TV will not show the text • Captions that are delayed a few seconds behind the actual dialogue in its entirety or there is a delay of what is being said.	are common for live broadcast. Most captioning production companies can display a dialogue to a maximum of 220 words per minute. If a dialogue exceeds that rate, selective editing is used to insure that the captions remain up-to-date with the current TV screen dialogue.
My captions are scrambled with • Interference caused by building, power lines, thunderstorms, etc. white boxes on the TV screen.	may cause scrambled or incomplete captions to appear.
My program guide listed a TV show as being closed captioned but none of the captions were displayed.	• Broadcasters may at times use a time compression process to the actual program so that additional advertising time can be given. Since the decoder cannot read the compressed information, captions will be lost.
My TV screen shows a black box on certain channels.	• You are in the TEXT mode. Select CAPTION mode or CAPTION [OFF].

DVD Mode

Problem	Corrective Action
No picture.	Connect the video cables firmly.Insert a correct video disc that plays on this TV/DVD.Press SELECT on the remote control to select DVD mode. Next, press PLAY or OPEN/CLOSE. Then, try other DVD feature.
Disc cannot be played.	Insert the disc.Clean the disc.Place the disc correctly, with the label side up.Cancel the parental lock or change the control level.
No sound.	Connect the audio cables firmly.Turn the power of the audio component on.Correct the audio output settings.Correct the input settings on the audio component.
No DTS audio is output.	This TV/DVD does not support DTS audio. This is not a malfunction.
Distorted picture.	There are some cases where pictures may be slightly distorted, which are not a sign of a malfunction.Although pictures may stop for a moment, this is not a malfunction.
Audio or subtitle language does not match the set up	The selected language is not available for audio or subtitles on the DVD.This is not a malfunction
The camera angle cannot be changed	The DVD does not contain sequences recorded from different camera angles. This is not a malfunction
Audio or subtitle language cannot be changed	The DVD does not contain audio source or subtitles in the selected language. This is not a malfunction.
“Prohibited icon” appears on the screen, prohibiting an operation	That operation is prohibited by the player or the disc.This is not a malfunction.
CD sound dropoutNo CD reproductionDVD picture dropoutDVD picture freezeDVD picture in mosaicNo DVD reproduction	Scratched disc. Replace the disc with unscratched one.

NOTES:

• Some functions are not available in specific modes, but this is not a malfunction. Read the description in this Owner's Manual for details on correct operations.
• Playback from a desired track and random playback are not available during program playback.

CABINET CLEANING

• Wipe the front panel and other exterior surfaces of the TV/DVD with a soft cloth immersed in lukewarm water and wrung dry.
• Never use a solvent or alcohol. Do not spray insecticide liquid near the TV/DVD. Such chemicals may cause damage and discoloration to the exposed surfaces.

SERVICING

- Should your TV/DVD become inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Turn off, unplug the power cord, and please call our help line at 1-800-968-3429, to locate an Authorized Service Center.

IF THE LASER OPTICAL PICKUP UNIT IS DIRTY

- If the player still does not perform properly when it is operated while referring to the relevant sections and to "TROUBLESHOOTING GUIDE" in this Owner's Manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.

DISC HANDLING

- Use discs which have the following logos on them. (Optical audio digital discs.)

- Handle the discs so that fingerprints and dust do not adhere to the surfaces of the discs.

Line drawings of hands holding a CD and a disc (no text or symbols)

- Always store the disc in its protective case when it is not used.

Illustration of an open CD or DVD case with a hand holding a disc (no text or symbols visible)

• To clean-off, use a soft cloth.
- Do not use a hard cloth since this will mar the disc.
- Wipe the disc in a straight line from center to edge.
- Never wipe with a circular motion.
- Do not use detergent or abrasive cleaning agents.

BEYOND CLEANING SPRAY THINER VOLATILE POLVENT

GENERAL SPECIFICATIONS ELECTRICAL SPECIFICATIONS

TV

CRT : 13 or 19 inch in-line gun, 90^ deflection tube

Television system: NTSC-M TV Standard

Closed caption system: §15.119/FCC

Channel coverage:

VHF: 2 \~ 13

UHF: 14 \~ 69

CATV: 2 \~13, A \~ W,

W+1 \~ W+84,

A-5 \~ A-1, 5A

Tuning System: 181 channel

frequency synthesized tuning system

Channel access: Direct access keyboard, programmable scan and up/down

DVD

Discs: DVD video, Audio CD

Output signal format: NTSC color

Frequency response

(output jack)

DVD (linear sound): 20 Hz to 22 kHz (sample rate: 48 kHz) 20 Hz to 44 kHz (sample rate: 96 kHz)

CD: 20 Hz to 20 kHz

Signal-to-noise ratio

(S/N ratio)(output jack) CD: 100 dB (EIAJ)

Dynamic range

(output jack) DVD (linear sound): 85 dB CD: 84 dB (EIAJ)

Total distortion factor CD: 0.07% (EIAJ)

Wow and flutter: Below the measurement limitation (+/-0.001% W PEAK) (EIAJ)

Sound output: 2 speakers, 1W, 8 ohm

OTHER SPECIFICATIONS

Terminals

Antenna input: VHF/UHF/CATV 75 ohm unbalanced (F-type)

Video input: RCA connector × 1

Audio L/R input: RCA connector ×2 Headphone: 1/8" stereo (3.5 mm)

Coaxial digital audio output

(only DVD): One pin jack, 500m Vpp (75 ohm)

Analog audio L/R output: RCA connector ×2

Remote control: Digital encoded infrared light system

Operating

temperature: 5^ C to 40^ C ( 41^ F\~ 104^ F)

Power requirements: AC 120V, 60Hz

[13 inch model]

Power requirement : AC 120V/60Hz

Power consumption

(Maximum): 65W

Dimensions : H:15-13/16"(402mm) W:14-1/2"(368mm) D:14-13/16"(376mm)

Weight : 21.6lbs (9.8kg)

[19 inch model]

Power requirement : AC 120V/60Hz

Power consumption

(Maximum): 80W

Dimensions : H:19-1/2"(495mm) W:19-11/16"(500mm) D:18-3/4"(476mm)

Weight : 43.2lbs(19.6kg)

• Designs and specifications are subject to change without notice.
• If there is a discrepancy between languages, the default language will be English.

INDICE

DIGITAL (Para DVD)....38

TV SECTION

FUNAI CORP. will repair this SYLVANIA product, free of charge in the USA in the event of defect in materials or workmanship as follows:

DURATION:

PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date of original retail purchase. Two (2) years for Picture Tube. Certain parts are excluded from this warranty.

LABOR: FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from the date of original retail purchase.

LIMITS AND EXCLUSIONS:

THIS WARRANTY IS EXTENDED ONLY TO THE ORIGINAL RETAIL PURCHASER. A PURCHASE RECEIPT OR OTHER PROOF OF ORIGINAL RETAIL PURCHASE WILL BE REQUIRED TOGETHER WITH THE PRODUCT TO OBTAIN SERVICE UNDER THIS WARRANTY.

This warranty shall not be extended to any other person or transferee.

This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced, missing or if service was attempted by an unauthorized service center. This SYLVANIA Limited warranty does not apply to any product not purchased and used in the United States.

This warranty only covers failures due to defects in material or workmanship which occurs during normal use. It does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or product not supplied by FUNAI CORP., or damage which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product or damage which results from fire, flood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE CONTROL), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.

FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES.

ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY A FUNAI AUTHORIZED SERVICE CENTER. THIS WARRANTY IS VALID WHEN THE UNIT IS CARRIED-IN TO FUNAI AUTHORIZED SERVICE FACILITY.

IMPORTANT:

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE, IF, AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORP.

ATTENTION:

FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE.

To locate your nearest SYLVANIA Authorized Service Center or for general service procedure, please call 1-800-968-3429 or write to the following:

FUNAI CORPORATION, INC.

Customer Service

100 North Street; Teterboro, NJ 07608

Tel :[phone]

http://www.funai-corp.com

PLEASE DO NOT SHIP YOUR UNIT TO THE TETERBORO ADDRESS.
