Product Type	Vehicle Mount
Model	C-HDM-203
Brand	Havis
Material	Aluminum alloy, ABS plastic
Dimensions (L x W x H)	12 x 8 x 2 inches
Weight	2.2 lbs
Compatible Devices	Laptops up to 15.6 inches
Mounting Type	Floor mount, seat bolt mount
Adjustability	Tilt, swivel, 360° rotation
Locking Mechanism	Key lock included
Power Supply	None (passive mount)
Operating Temperature	-20°C to 60°C
Maintenance	Wipe with damp cloth, dry thoroughly
Cleaning	Mild soap and water, avoid abrasives
Safety	Secure locking prevents device dislodging
Spare Parts	Available via Havis customer service
Repairability	Modular design, easily replaceable components
Warranty	3-year limited warranty
Certifications	SAE J1455, MIL-STD-810G
Installation	Includes hardware and instructions

Frequently Asked Questions - C-HDM-203 Havis

What devices are compatible with the Havis C-HDM-203 mount?

The C-HDM-203 is designed for laptops up to 15.6 inches. Always check the device dimensions against the mount's adjustable cradle.

How do I install the C-HDM-203 in my vehicle?

The mount installs using either floor bolts or seat bolts. Follow the provided instructions for your specific vehicle model. Tighten all bolts to the recommended torque.

Is the mount adjustable for different viewing angles?

Yes, the C-HDM-203 offers tilt and swivel adjustments with 360° rotation. Lock the desired angle using the tension knobs.

Does the mount include a locking mechanism?

Yes, it comes with a key lock to secure your device. The key is included in the package.

What is the weight capacity of the C-HDM-203?

The mount can safely hold up to 15 lbs. Do not exceed this limit to ensure safety.

How do I clean and maintain the mount?

Clean with a soft damp cloth and mild soap. Avoid harsh chemicals. Dry thoroughly. Periodically check and tighten all fasteners.

Is the mount suitable for extreme temperatures?

Yes, it is rated for -20°C to 60°C. The materials are UV-resistant and withstand typical vehicle interior conditions.

Can I purchase spare parts for the C-HDM-203?

Yes, spare parts such as knobs, cradles, and mounting plates are available through Havis customer service.

Does the mount come with a warranty?

Havis offers a 3-year limited warranty against defects. Register your product online for full coverage.

Where can I find the user manual for the C-HDM-203?

The manual is available for free download on notice-facile.com. Search for 'Havis C-HDM-203' to access PDF instructions.

USER MANUAL C-HDM-203 Havis

Havis Heavy Duty Passenger Side Mounts

General Installation Instructions

Required tools to complete installation.

• Large Metric Socket Set (1/2" drive)
- Small Metric and US Standard Socket Set (1/4" drive)
- 7/8" Wrench
• 1/2" Wrench
- 7/16" Wrench
• US Standard Allen Wrench Set
• Phillips head Screwdriver

Interior view of a vehicle's seat and dashboard assembly (no visible text or symbols)

Complete assembly in vehicle (2010 Ford Focus)

Required parts to complete assembly Optional parts for assembly

Docking Station (UT-X shown) ChargeGuard® CG-X A Motion Device C-MD-202 Top Offset Platform C-HDM-300 Series (C-HDM-303 shown) Power Supply LPS-100/200 Series Adaptor Plate C-HDM-301 (included with Top Offset Platform) B OR Swing Arm with Motion Device C-MD-102 Support Arm C-HDM-401 Pole Mount C-HDM-200 Series (C-HDM-202 shown) HDM Base & Offset Bracket C-HDM-100 Series (C-HDM-118 shown) CAUTION DO NOT MATE COMPUTER TO DOCKING STATION UNLESS COMPUTER'S DOCKING CONNECTOR ACCESS DOOR IS FULLY OPEN OR DAMAGE MAY RESULT.

For installation of Havis products, ALWAYS...

• Read all instructions before installing any Havis, Inc. Products.
• Check for obstructions (wire, brake lines, fuel tank, etc.)
• Use hardware provided with install kit

Close-up of hands installing a black electronic component with a red arrow indicating the pin (no text or symbols visible)

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

1

Close-up of a hand using a tool to adjust or install a mechanical component, with inset showing close-up details (no visible text or symbols)

A) Remove the plastic caps that cover the seat bolts. Remove the OEM seat bolts, seat nuts and seat studs, making sure to keep the seat bolts for HDM Base installation (Step 3).
B) Remove all rubber thread protectors from the mounting holes on the HDM Base.

3

Close-up of hands using a wrench to adjust the internal components of a vehicle gear (no visible text or symbols)

Align the HDM Base mounting holes to seat bolt locations and loosely attach the seat bolts. Use caution to avoid stripping the threads. Fully tighten the bolts once HDM Base is properly in place.

NOTE: Some HDM Bases mount under the vehicle seat bracket and reuse OEM seat bolts (A), while other HDM Bases mount over the top of vehicle seat bracket and use provided spacers and bolts (B).

5

Close-up of a hand using a wrench to adjust a mechanical component (no visible text or symbols)

Attach the assembled Offset Bracket and Pole to the HDM Base inside the vehicle, using supplied 5/16" x 3/4" hex bolts, lock washers, and flat washers. Make sure to adjust Offset Bracket to desired position before all hardware is fully tightened.

NOTE: If your application needs to be closer to center of vehicle, see optional C-HMD-409 Offset Plate.

2

Close-up of a car seatbelt with a hand adjusting the compartment (no visible text or symbols)

Lift the seat to place the HDM Base between the seat brackets and the floor.

NOTE: Loosening rear seat bolts may be required for ease of installation.

4

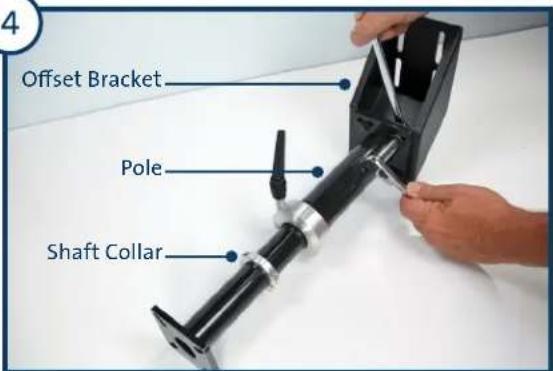

Offset Bracket Pole Shaft Collar

On the workbench, assemble the Offset Bracket and Pole using supplied 5/16" x 1" hex bolts, lock washers, and nuts (x4). Make sure all hardware is fully tightened. Attach the shaft collar anywhere on the inner pole, making sure to leave the shaft collar loose in order to adjust Pole height once installed in vehicle (Step 12).

6

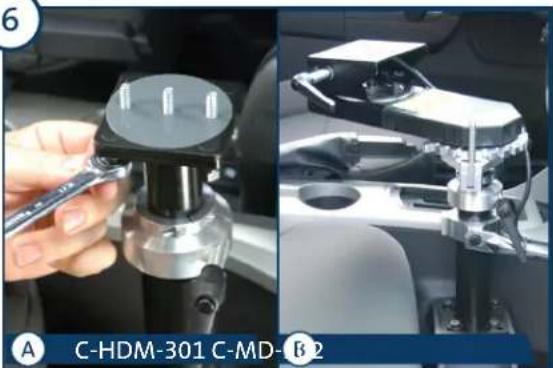

Two-panel image showing a hand holding a tool next to a mechanical device, and a close-up of a mechanical assembly with no visible text or symbols.

A) Align the Adaptor Plate mounting studs to the top of the inner pole, then attach using the supplied 5/16" lock washers, flat washers, and nuts. Place the large plastic washer on top of Adaptor Plate.

B) Align Swing Arm with Motion Device mounting holes to the top of the inner pole, then attach using 1/4" lock washers, flat washers, and bolts.

NOTE: Make sure all hardware is fully tightened.

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

A) Install the Top Offset with the supplied hardware and handle. Tighten the hardware to allow minimal motion. Place the large plastic washer on the Top Offset. B) No adjustment required, please proceed to Step 8.

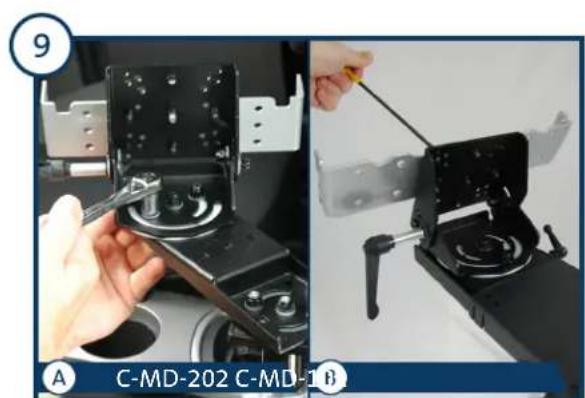

Two-panel image showing a hand operating a mechanical clamp device, with no visible text or symbols.

A) Connect the Motion Device assembly to the Top Offset. Tighten the hardware to allow minimal motion. NOTE: Motion Device has two (2) sets of holes. 3-bolt pattern allows for 90 rotation. 2-bolt pattern allows for 180 rotation. B) Motion Device is already connected, please proceed to step 10.

Close-up of a hand using a tool to adjust or install an electronic device component (no visible text or symbols)

Attach the Docking Station to the mounting bracket.

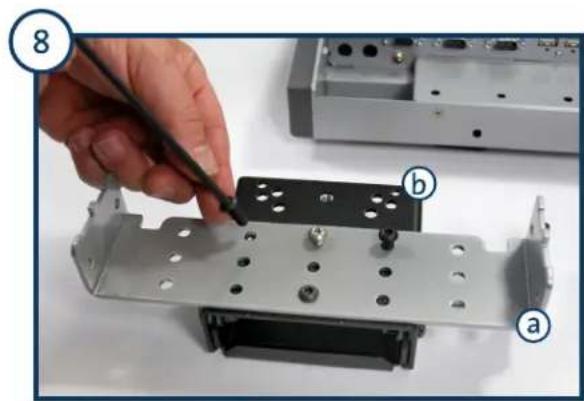

Close-up of a hand using a tool to adjust or install a metal bracket component (no visible text or symbols)

Remove mounting bracket (a) from the bottom of the Docking Station and attach to the Motion Device (b). NOTE: If attaching a Universal Laptop Mount (UT-X Series or C-3090 Series), mount directly to the Motion Device.

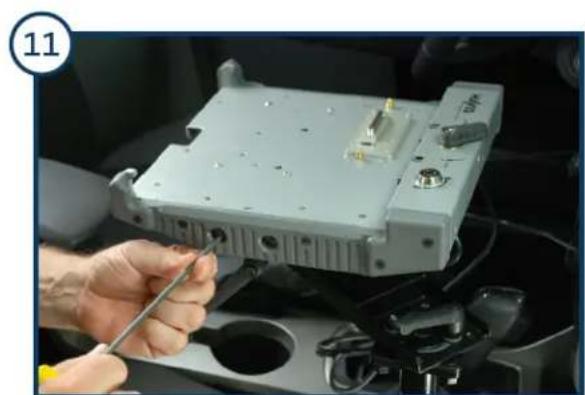

Interior view of an electronic device showing a drive bay with cables and connectors (no visible text or symbols)

Attach the Power Supply to the designated mounting location on the Docking Station.

Close-up of a hand adjusting a mechanical component inside a car (no visible text or symbols)

Adjust the shaft collar to desired height and fully tighten.

Havis Heavy Duty Passenger Side Mounts General Installation Instructions

2010 Ford Focus used for instructions

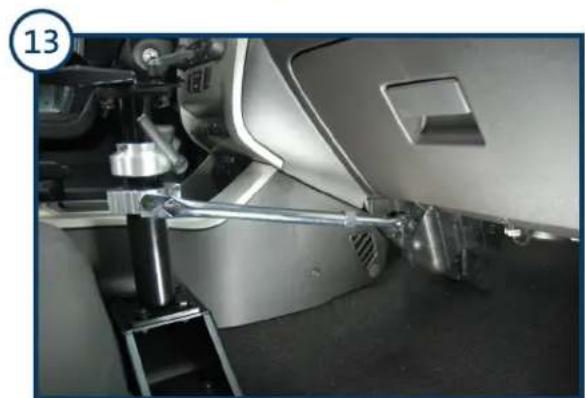

Close-up of a mechanical assembly with metallic components and a numbered label (13) in the corner, no readable text or symbols on the main subject.

To attach the optional two-piece support collar to the Pole, attach the side support arm to the two-piece support collar. Attach the side support arm to the underside of the dash with the supplied L bracket. Make sure all hardware is fully tightened.

Close-up of a hand pressing a small electronic device on a black remote control panel (no visible text or symbols)

Congratulations, the installation is complete. To properly dock your computer into the Havis Docking Station, you must first open the docking connector door on the bottom of your computer or damages may occur.

17 a b

a) With the computer seated, turn the docking latch to the DOCK position. b) Secure by locking the barrel lock with the supplied key.

Close-up of a yellow automotive electrical contactor with black wiring and red connectors, mounted on a perforated metal surface (no visible text or symbols)

If you are installing the optional ChargeGuard® Power Management System, run power wires to the ChargeGuard and connect to the fused, 12 volt battery. (Additional instructions inside the ChargeGuard box.)

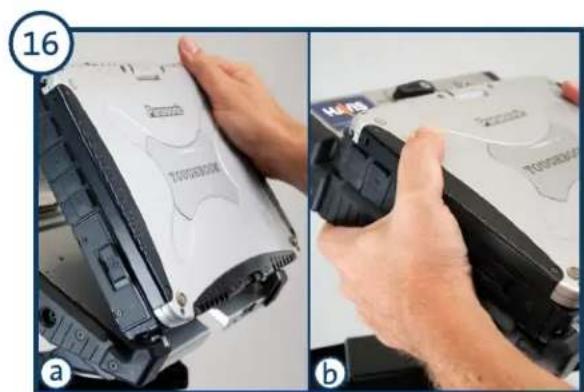

Two-step photo showing hands installing a device component from a battery pack, labeled (a) and (b), with no visible text or symbols.

a) Load the front of the computer into the front hooks of the Docking Station. b) Gently lower the back of the laptop down into the docking connector.

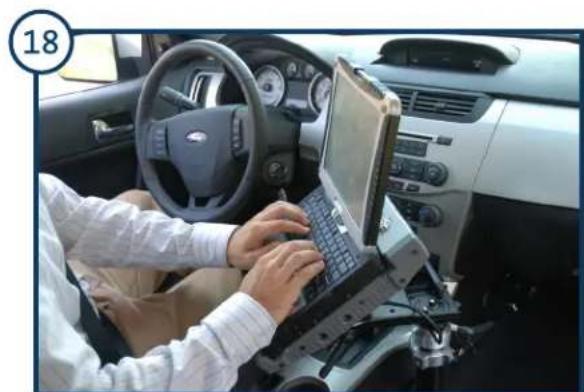

Interior view of a car with hands using a laptop on the steering wheel (no visible text or symbols)

You have successfully and safely docked your computer. Please visit www.Havis.com for more mounting and computing accessories.
