USER MANUAL PDP-434HDE PIONEER

PLASMA DISPLAY SYSTEM SYSTEME D'ÉCRAN PLASMA PLASMA DISPLAY-SYSTEM

PDP-504HDE PDP-434HDE

Operating Instructions

Mode d'emploi

Bedienungsanleitung

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/ EEC.

The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 13A (Media Receiver)/13A (Plasma Display) fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked or and of the same rating as above, which is also indicated on the pin face of the plug, must be used.

Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted.

In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the mains plug and fit an appropriate type.

DANGER:

The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of in a safe manner.

Under no circumstances should the cut-off plug be inserted elsewhere into a 10A socket outlet, as a serious electric shock may occur.

To fit an appropriate plug to the mains lead, follow the instructions below:

IMPORTANT:

The wires in the mains lead are coloured in accordance with the following code:

Blue: Neutral

Brown: Live

Green & Yellow: Earth

As the colours of the wires in the mains lead of this product may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

• The wire which is coloured blue must be connected to the plug terminal which is marked N or coloured black.
• The wire which is coloured brown must be connected to the plug terminal which is marked L or coloured red.
  Ensure that neither the brown nor the blue wire is connected to the earth terminal in your three-pin plug.
  Before replacing the plug cover make sure that:
• If the new fitted plug contains a fuse, its value is the same as that removed from the cut-off plug.
• The cord grip is clamped over the sheath of the mains lead, and not simply over the lead wires.

IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.

IMPORTANT

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION: THE POWER SWITCH DOES NOT COMPLETELY SEPARATES THE UNIT FROM THE MAINS IN OFF POSITION. THEREFORE INSTALL THE UNIT SUITABLE PLACES EASY TO DISCONNECT THE MAINS PLUG IN CASE OF THE ACCIDENT. THE MAINS PLUG OF UNIT SHOULD BE UNPLUGGED FROM THE WALL SOCKET WHEN LEFT UNUSED FOR A LONG PERIOD OF TIME.

WARNING: THE APPARATUS IS NOT WATERPROOFS, TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE AND DO NOT PUT ANY WATER SOURCE NEAR THIS APPARATUS, SUCH AS VASE, FLOWER POT, COSMETICS CONTAINER AND MEDICINE BOTTLE ETC.

This product complies with the Low Voltage Directive (73/23/ EEC, amended by 93/68/EEC), EMC Directives (89/336/EEC, amended by 92/31/EEC and 93/68/EEC).

WARNING: BEFORE PLugging IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY.

THE VOLTAGE OF THE AVAILABLE POWER SUPPLY DIFFERS ACCORDING TO COUNTRY OR REGION. BE SURE THAT THE POWER SUPPLY VOLTAGE OF THE AREA WHERE THIS UNIT WILL BE USED MEETS THE REQUIRED VOLTAGE (E.G. 230V OR 120V) WRITTEN ON THE REAR PANEL.

WARNING: THIS PRODUCT EQUIPPED WITH A THREE-WIRE GROUNDING (EARTHLING) TYPE PLUG. A PLUG HAVING A THIRD (GROUNDING, EARTHLING) PIN, IT WILL ONLY FIT INTO A GROUNDING (EARTHLING) TYPE POWER OUTLET. THIS IS A SAFETY FEATURE. IF YOU ARE UNABLE TO INSERT THE PLUG INTO THE OUTLET, CONTACT YOUR ELECTRICIAN TO REPLACE YOUR OBSOLETE OUTLET. DO NOT DEFEAT THE SAFETY PURPOSE OF THE GROUNDING (EARTHLING) TYPE PLUG.

The following symbols are found on labels attached to the product. They alert the operators and service personnel of this equipment to any potentially dangerous conditions.

WARNING

This symbol refers to a hazard or unsafe practice which can result in personal injury or property damage.

CAUTION

This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death.

WARNING: NO NAKED FLAME SOURCES SUCH AS LIGHTED CANDLE, SHOULD BE PLACED ON THE APPARATUS.

IF NAKED FLAME SOURCES ACCIDENTALLY FALL DOWN, FIRE SPREAD OVER THE APPARATUS THEN MAY CAUSE FIRE.

VENTILATION: WHEN INSTALLING THIS UNIT, MAKE SURE TO LEAVE SPACE AROUND THE UNIT FOR VENTILATION TO IMPROVE HEAT RADIATION. FOR THE MINIMUM SPACE REQUIRED, SEE PAGES 15 AND 16.

WARNING: SLOTS AND OPENINGS IN THE CABINET ARE PROVIDED FOR VENTILATION AND TO ENSURE RELIABLE OPERATION OF THE PRODUCT AND TO PROTECT IT FROM OVERHEATING, TO PREVENT FIRE HAZARD, THE OPENINGS SHOULD NEVER BE BLOCKED AND COVERED WITH ITEMS, SUCH AS NEWSPAPERS, TABLE-CLOths, CURTAINS, ETC. ALSO DO NOT PUT THE APPARATUS ON THE THICK CARPET, BED, SOFA, OR FABRIC. HAVING A THICK PILE.

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.

In some countries or regions, the shape of the power plug and power outlet may sometimes differ from that shown in the explanatory drawings. However the method of connecting and operating the unit is the same.

01 Important User Guidance Information

02 Safety Precautions

03 Operational Precautions

04 Supplied Accessories

Plasma Display 11

Media Receiver 11

05 Part Names

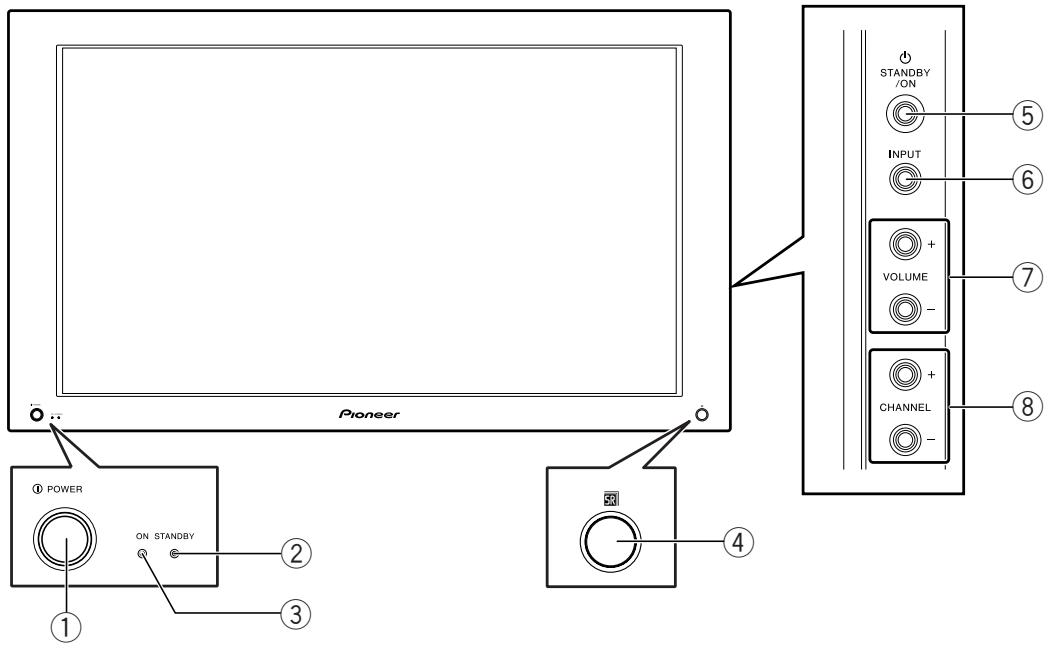

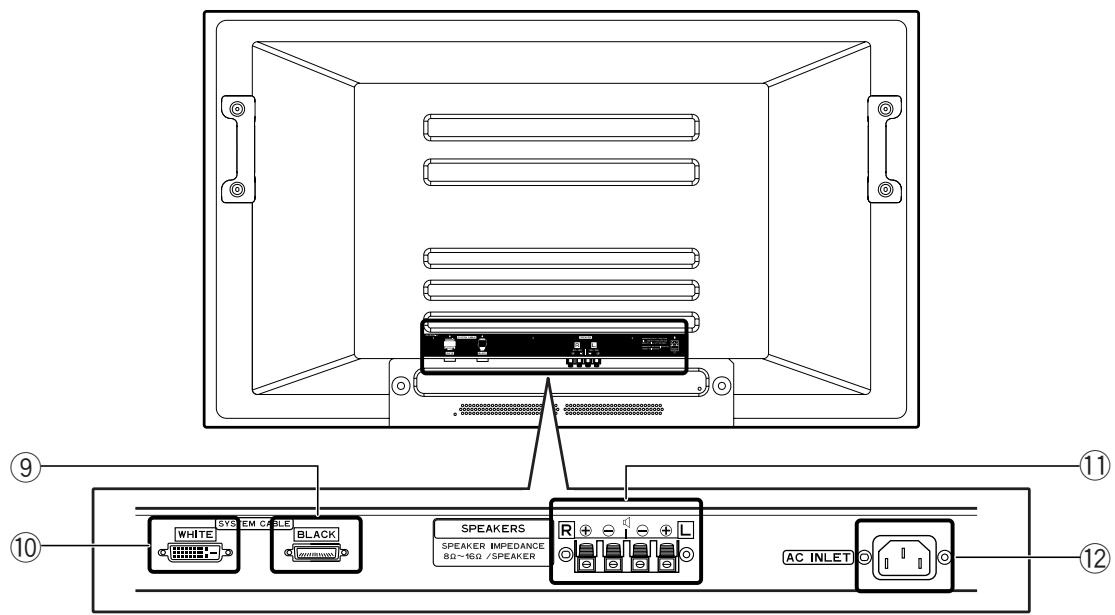

Plasma Display 12

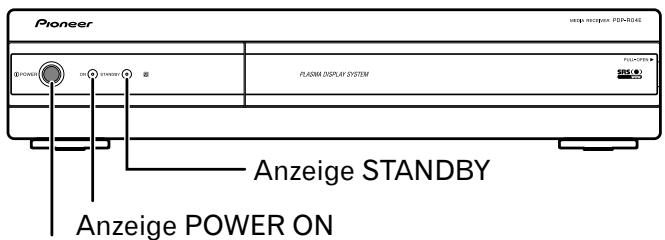

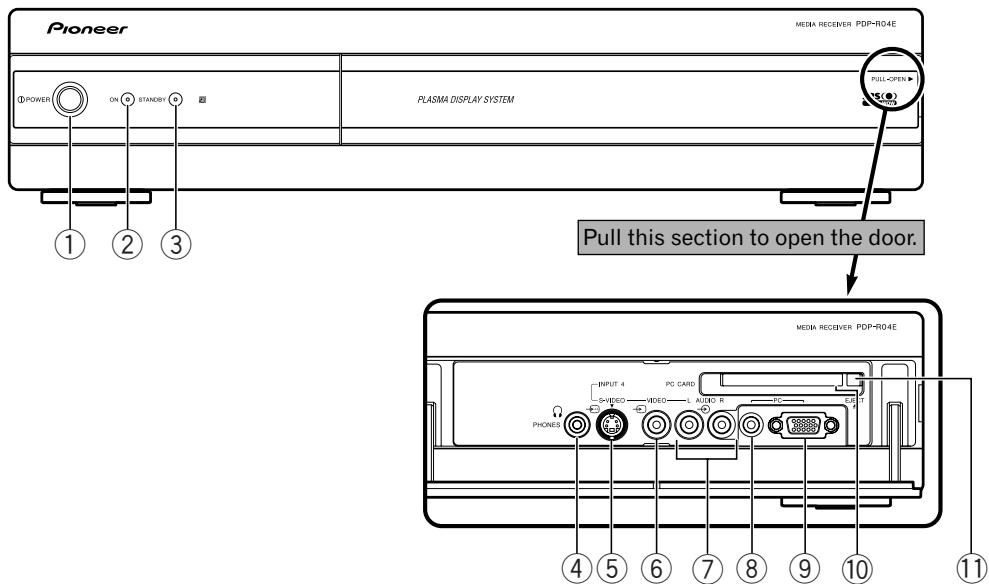

Media Receiver 13

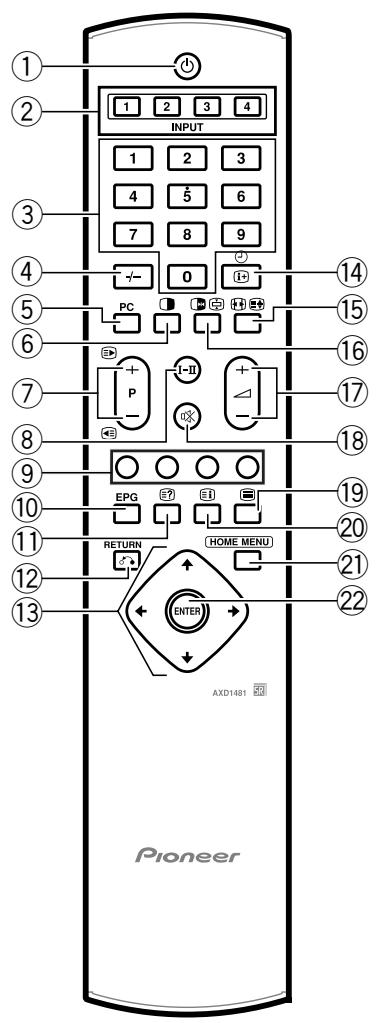

Remote control unit 14

06 Preparation

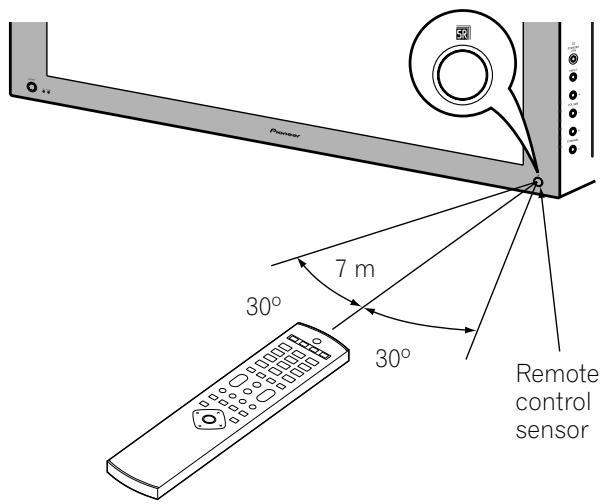

Allowed operation range of the remote control unit .... 15

Installing the Plasma Display 15

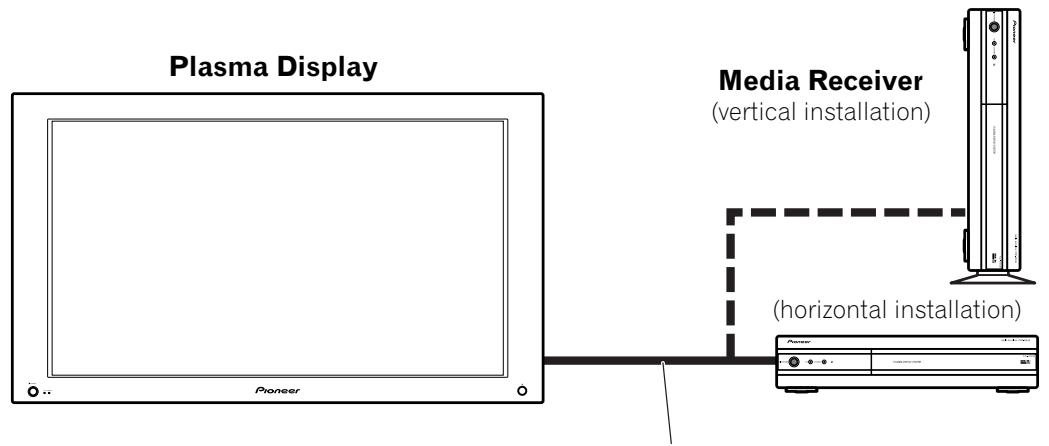

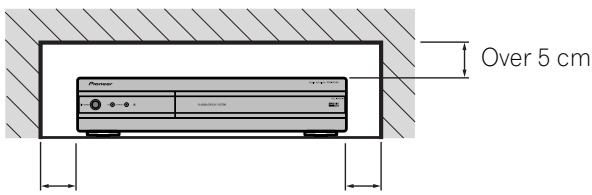

Installing the Media Receiver 16

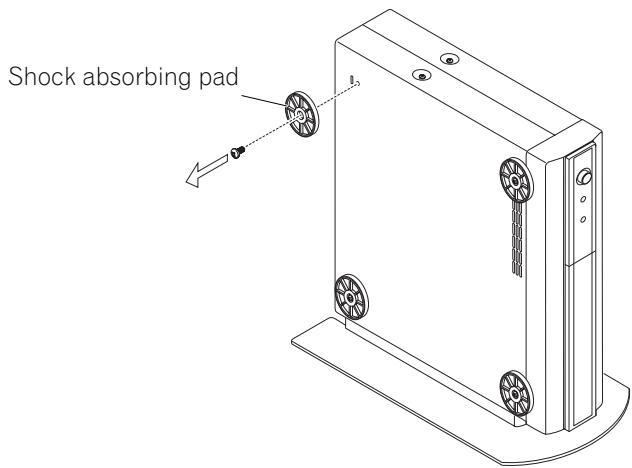

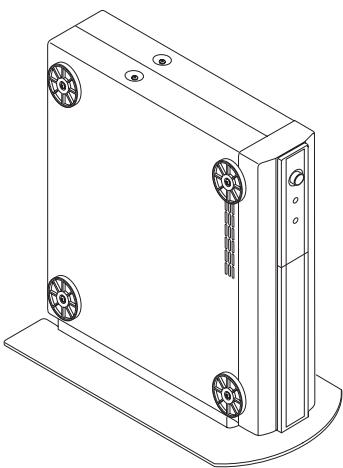

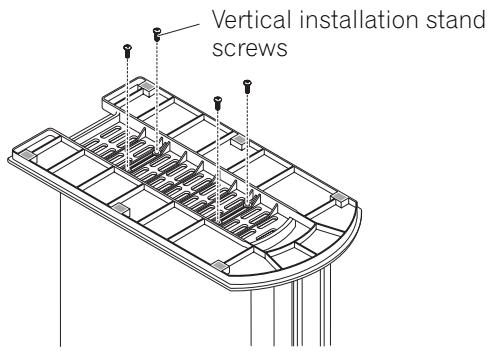

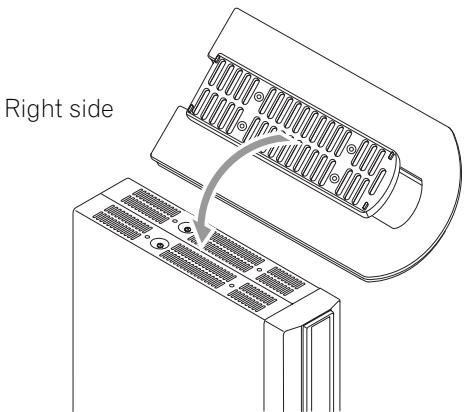

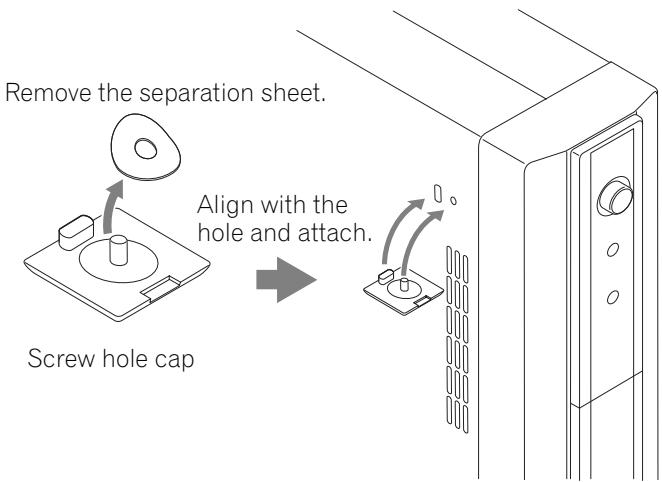

Installing the Media Receiver vertically 17

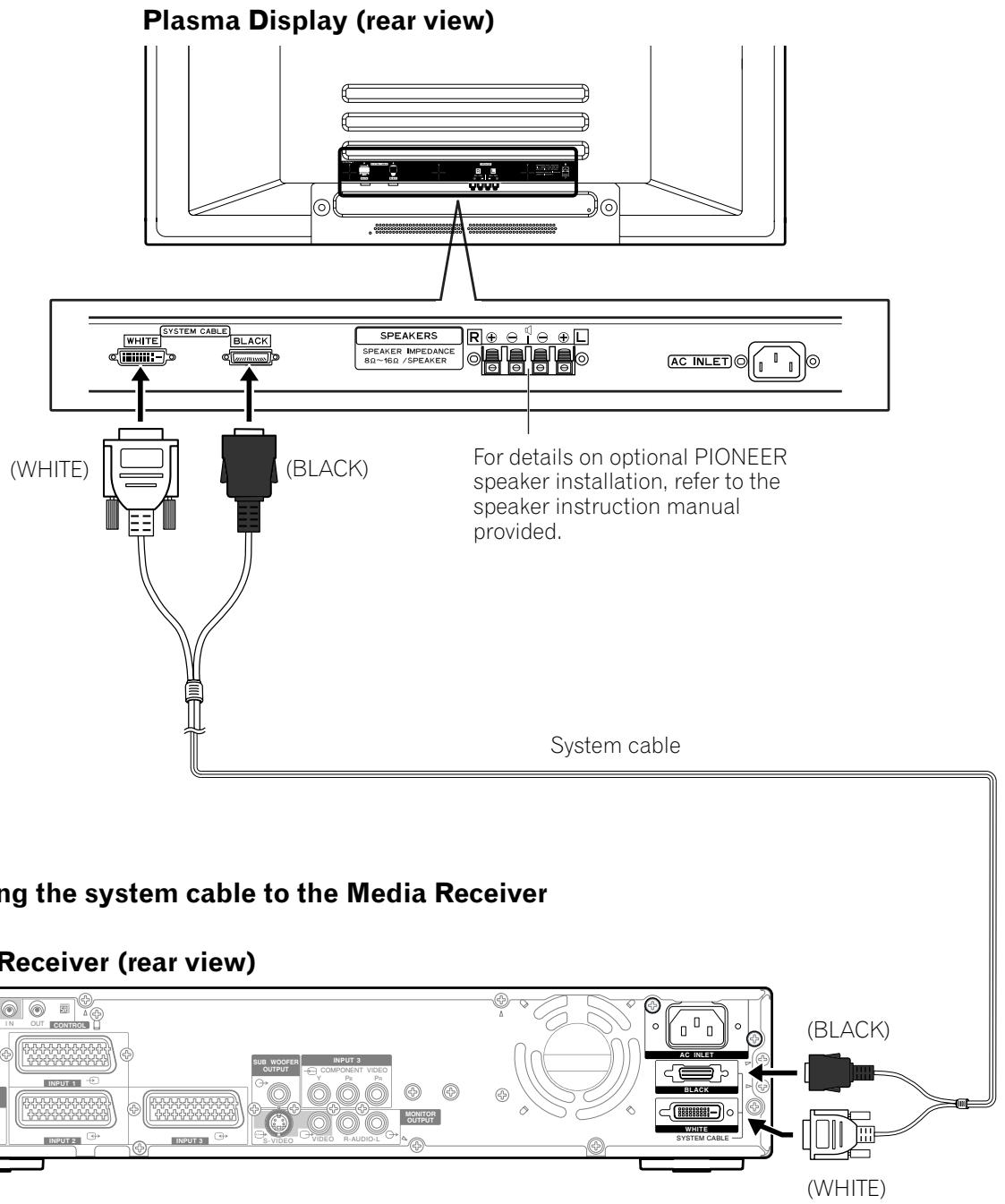

Setting the system 18

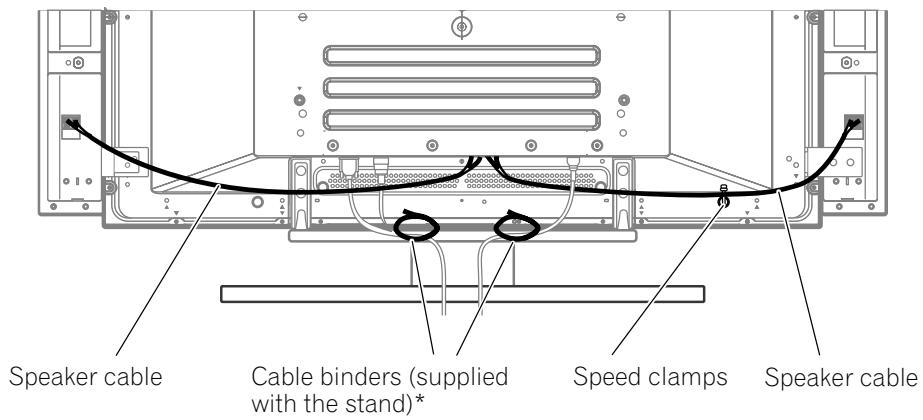

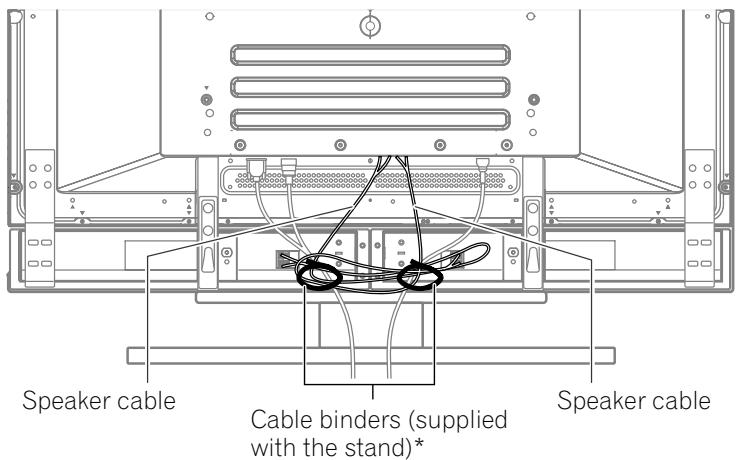

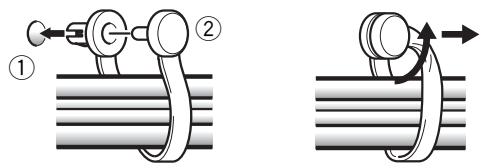

Routing cables 19

Using the remote control unit 20

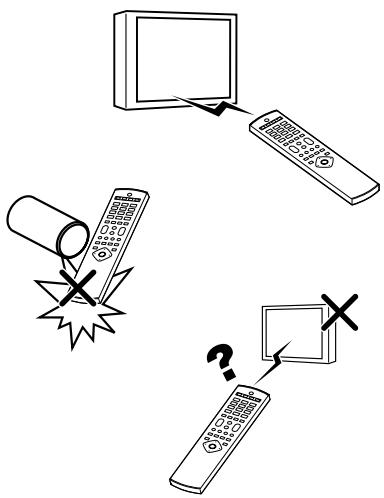

Cautions regarding the remote control unit 20

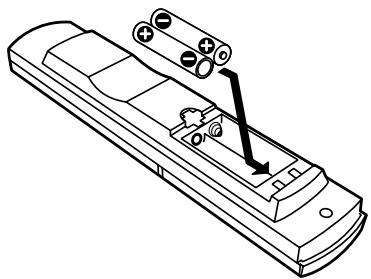

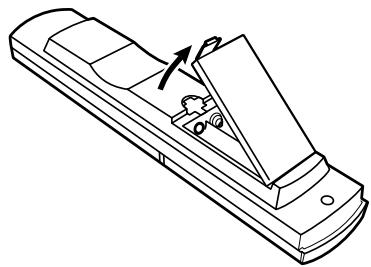

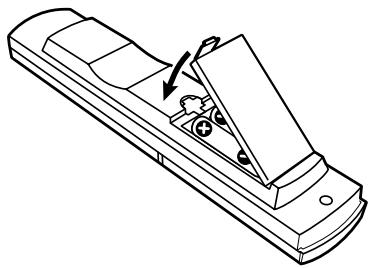

Inserting batteries 20

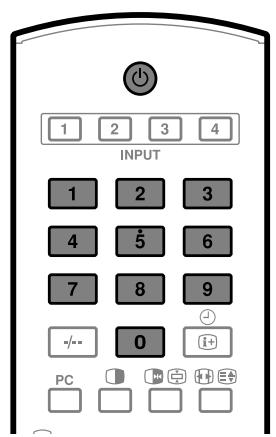

Cautions regarding batteries 20

Basic connections 21

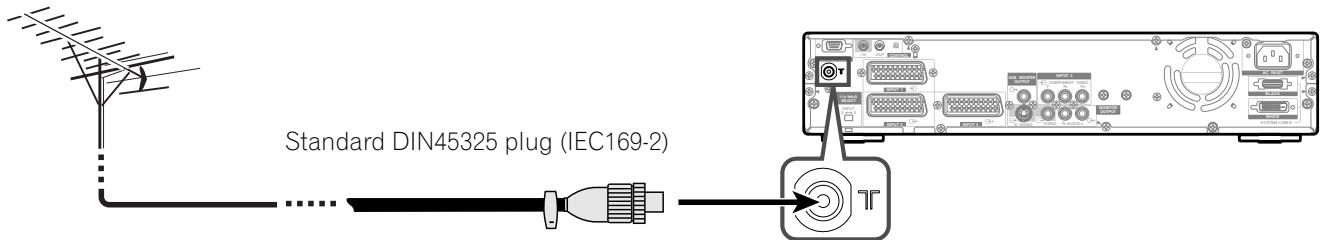

Connecting to an antenna 21

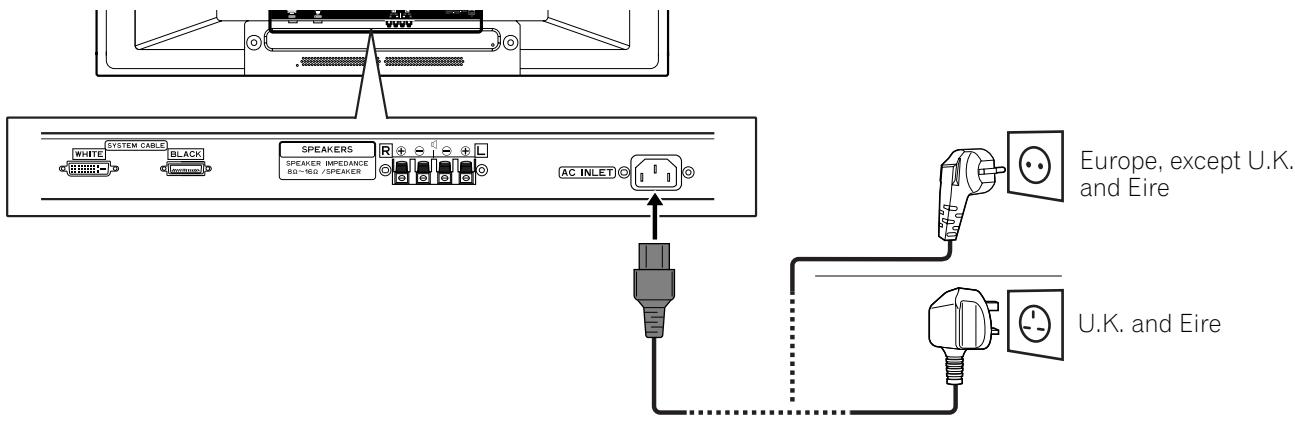

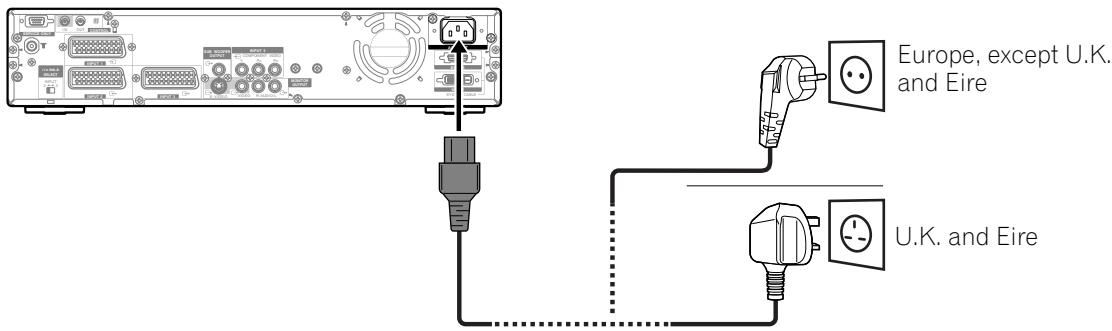

Connecting the power cord 21

07 Watching TV

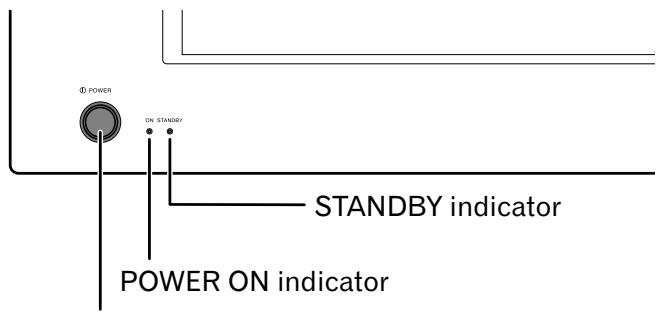

Turning on the power 22

Turning off the power 22

Changing channels 23

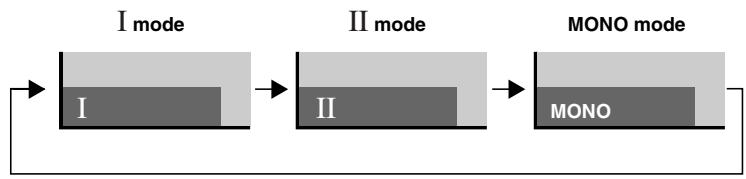

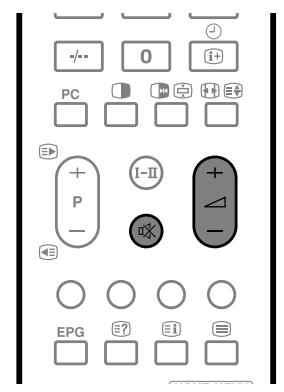

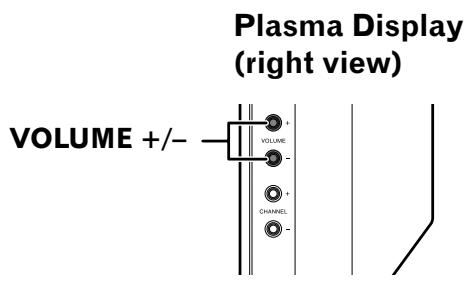

Changing the volume and sound 24

Using the multiscreen functions 26

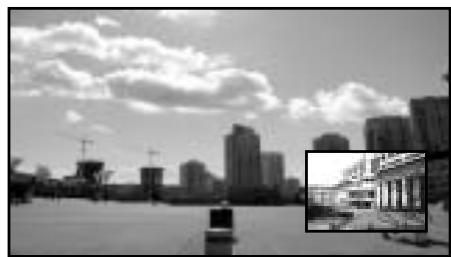

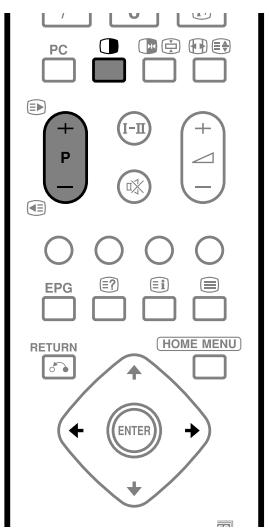

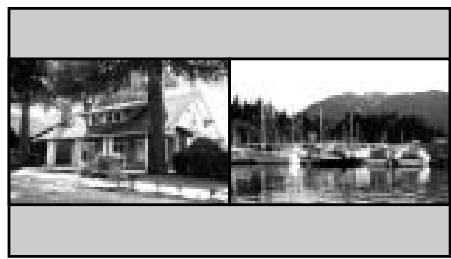

Splitting the screen 26

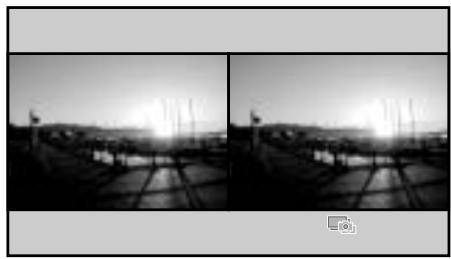

Freezing images 26

08 Basic Adjustment Settings

Using the menu 27
AV mode menus. 27
PC mode menus 28
Menu operation keys 29

Setting up TV channels automatically 29

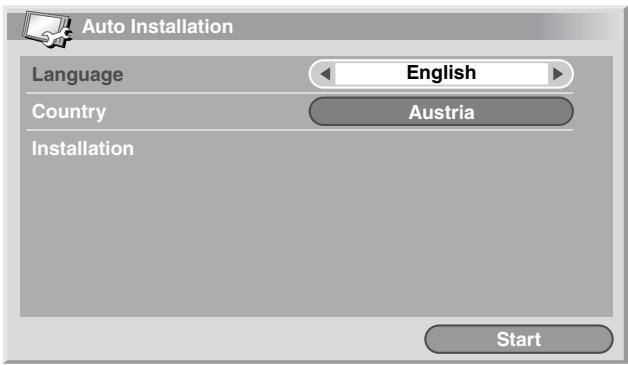

Using Auto Installation 29

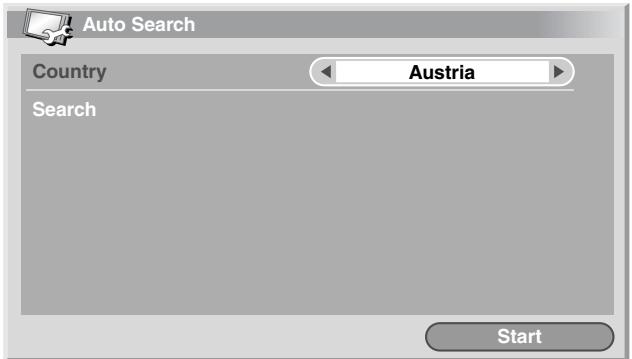

Using Auto Search 30

Setting up TV channels manually 30

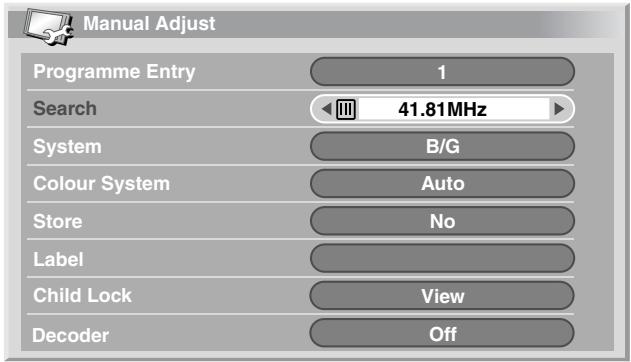

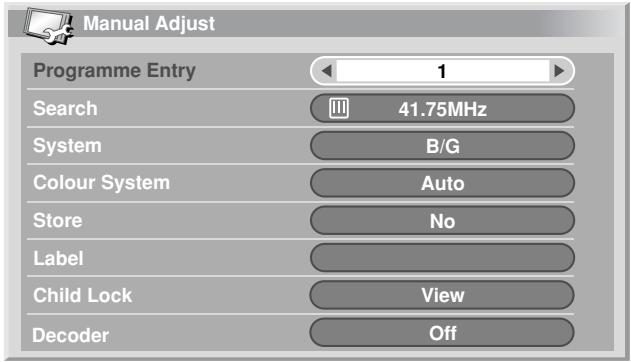

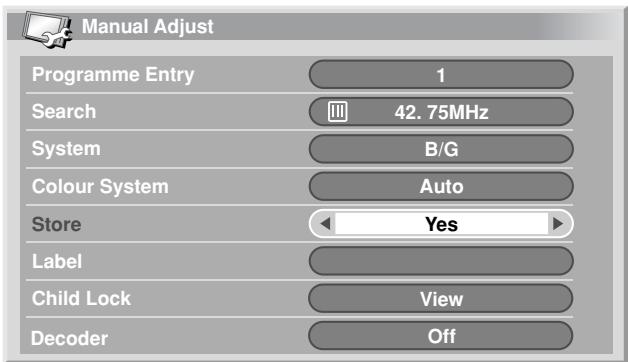

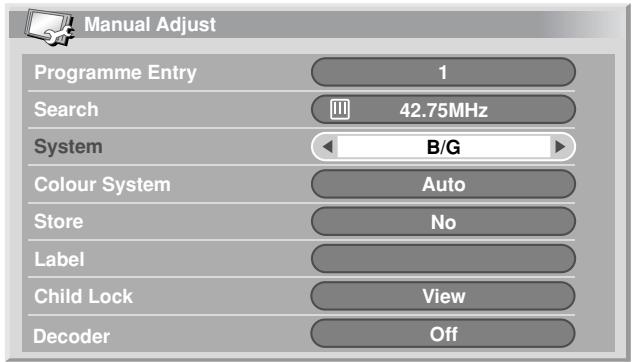

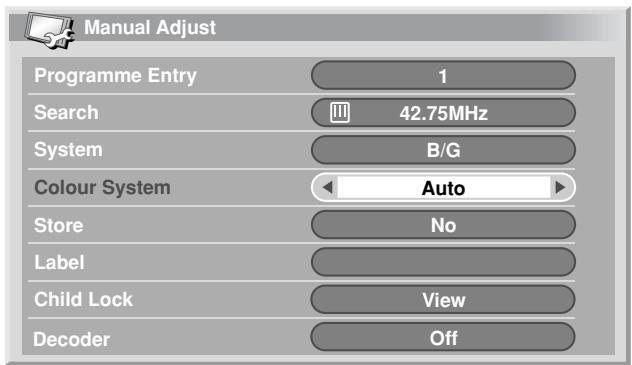

Using Manual Adjust 30

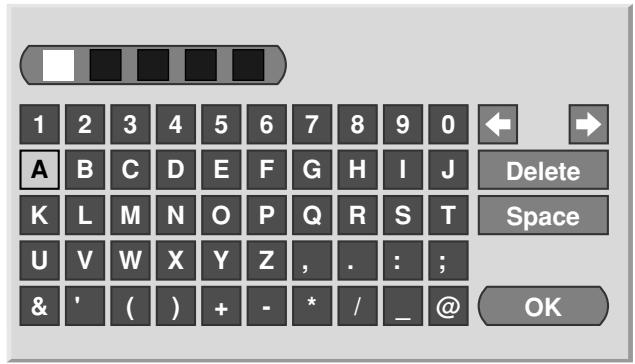

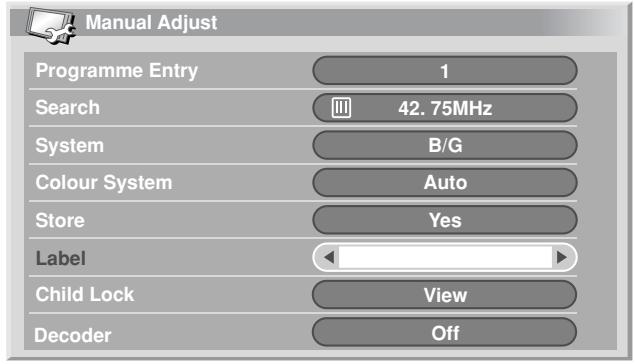

Labeling TV channels 32

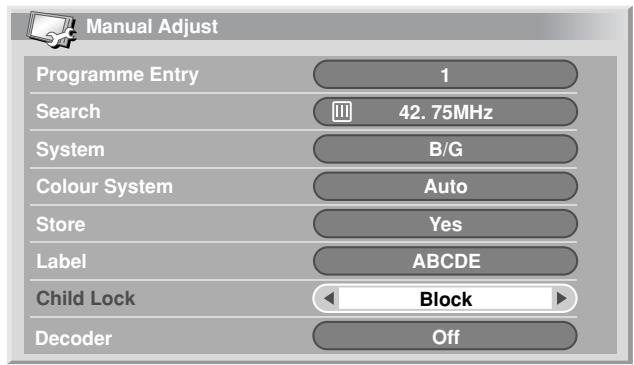

Setting Child Lock 32

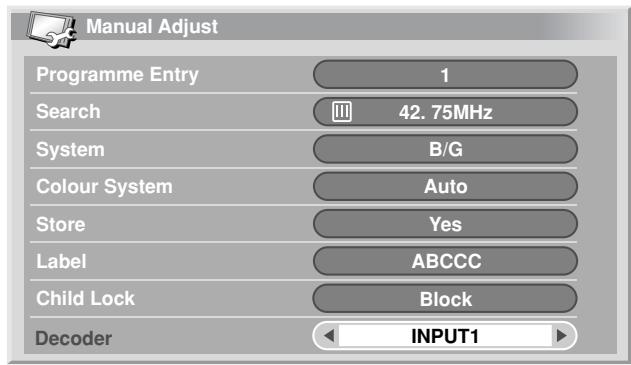

Selecting a decoder input terminal 33

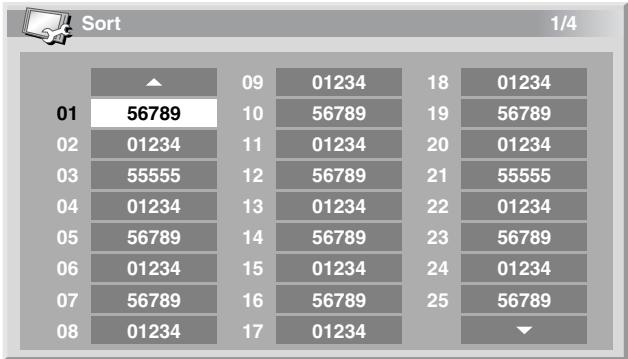

Sorting preset TV channels 33

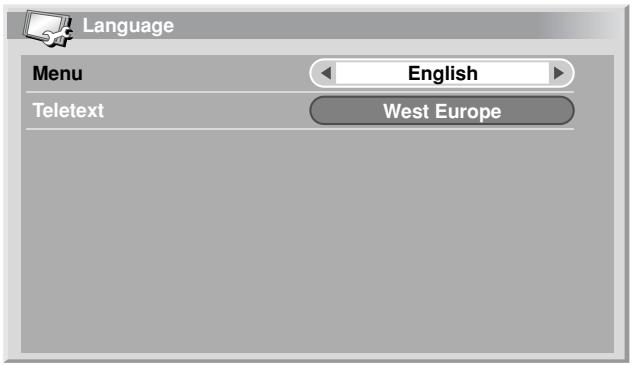

Language setting 34

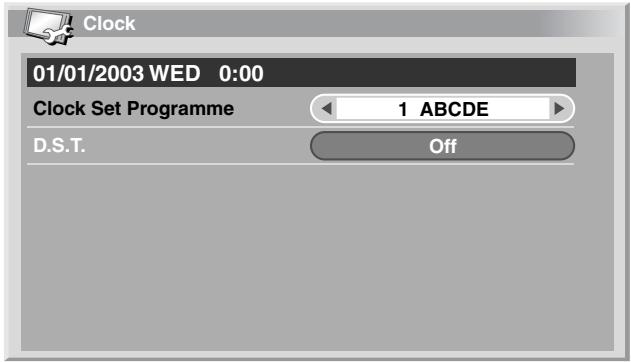

Clock setting 34

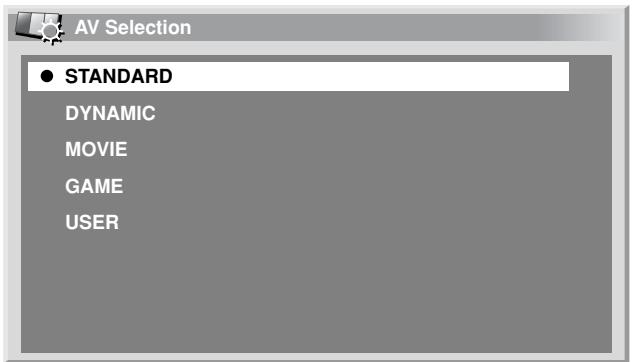

AV Selection 35

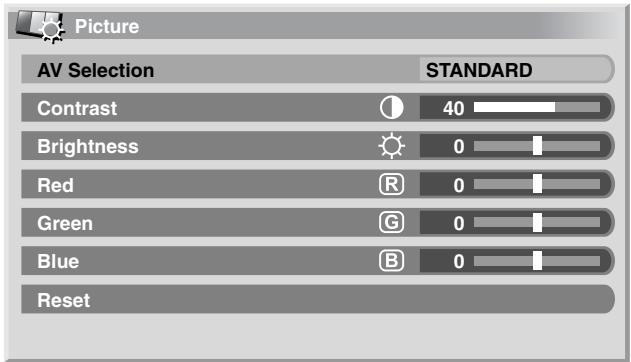

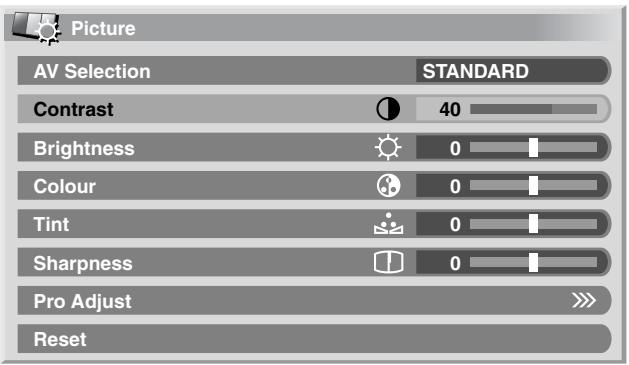

Picture adjustments 36

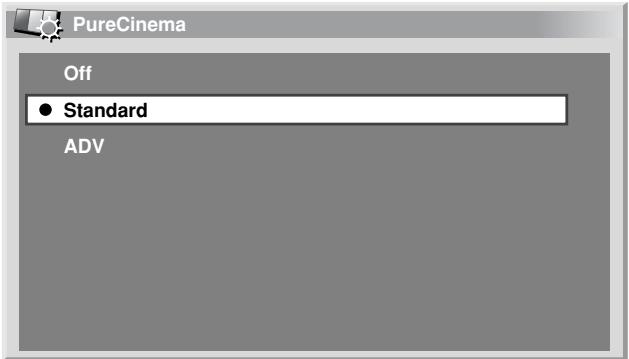

PureCinema 37

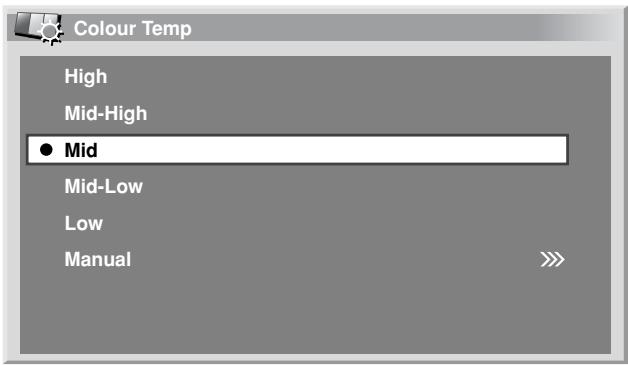

Colour temperature 37

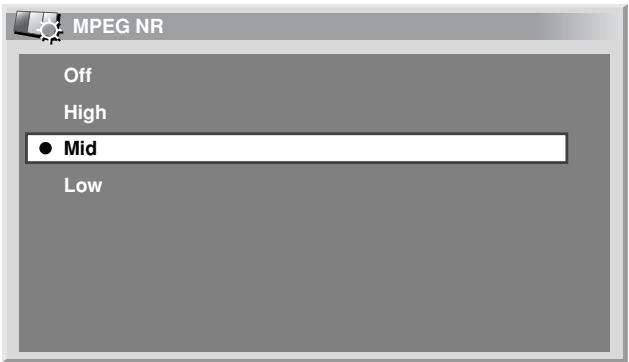

MPEG NR 38

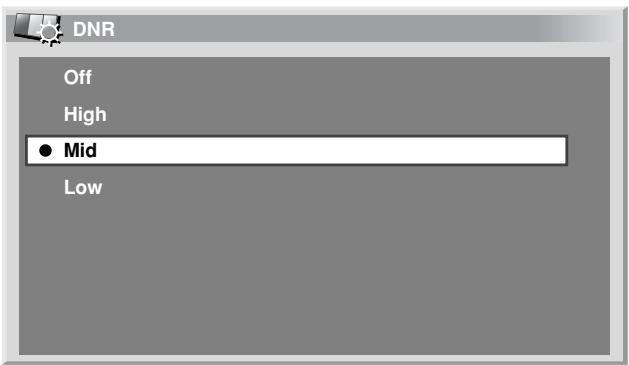

DNR 39

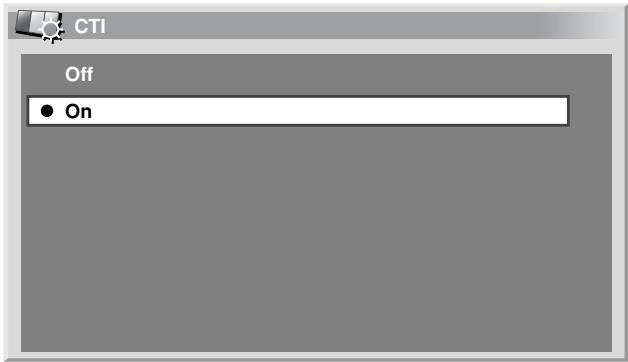

CTI 39
DRE 40

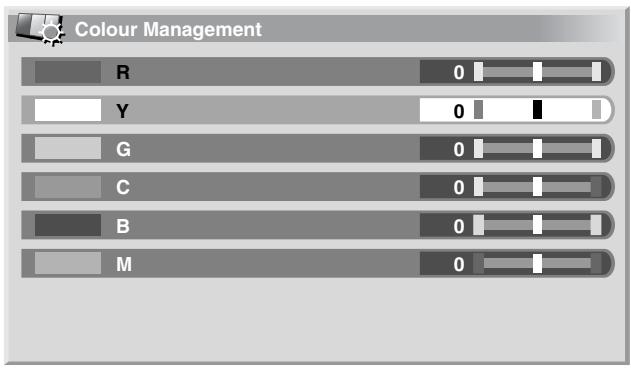

Colour Management 40

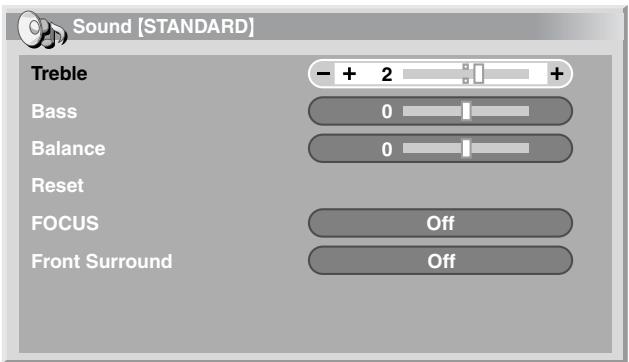

Sound adjustments 41

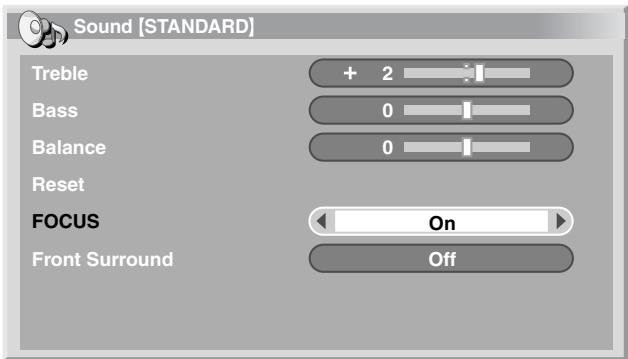

FOCUS 41

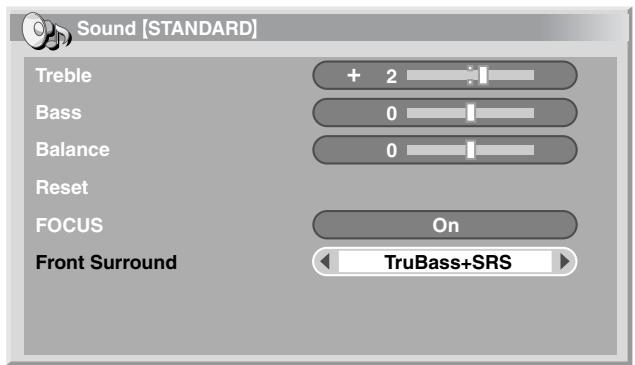

Front Surround 42

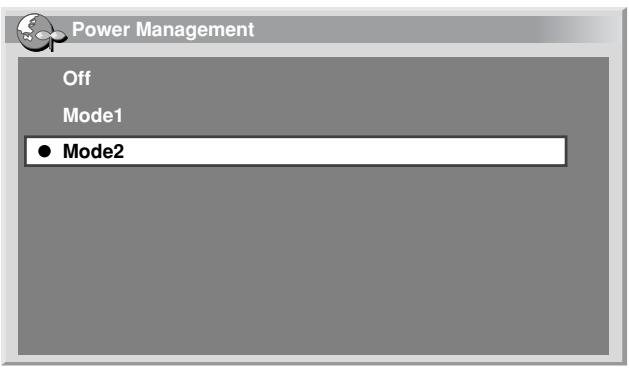

Power Control 42

Power Control for AV source 42
Power Control for PC source 44

09 Using the Teletext Functions

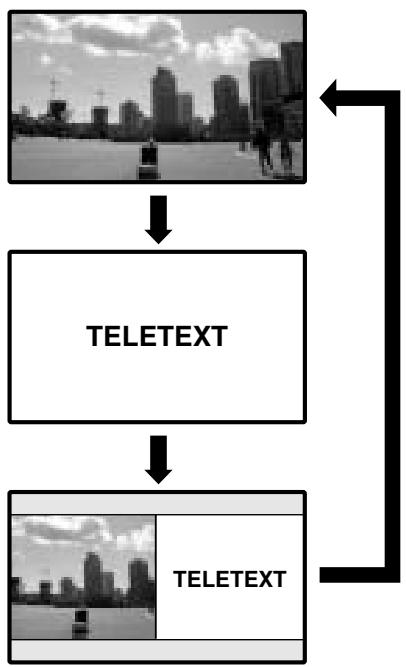

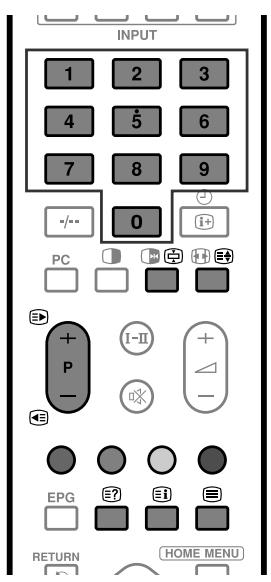

What is Teletext? 45
Operating the Teletext basics 45
Turning on and off Teletext 45
Selecting and operating Teletext pages 45

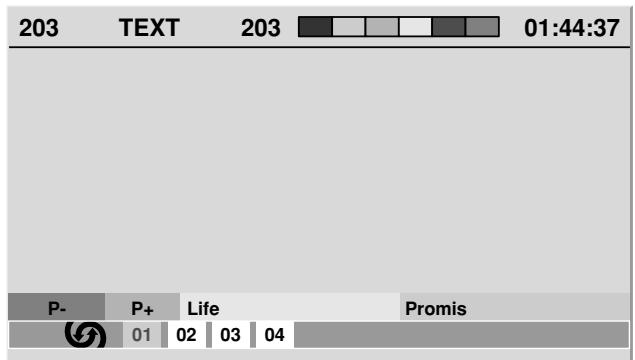

Displaying subpages 46

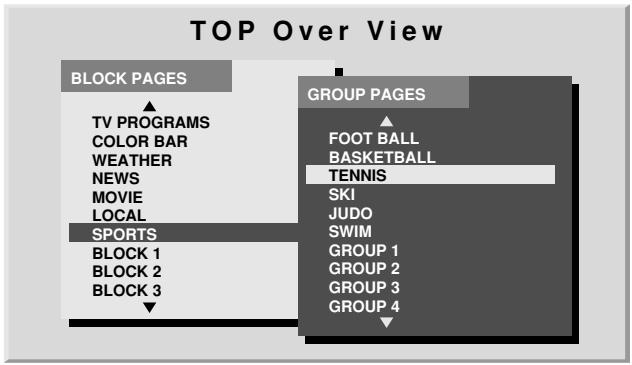

Displaying TOP Over View 46

10Enjoying through External Equipment

Watching a decoder image 47

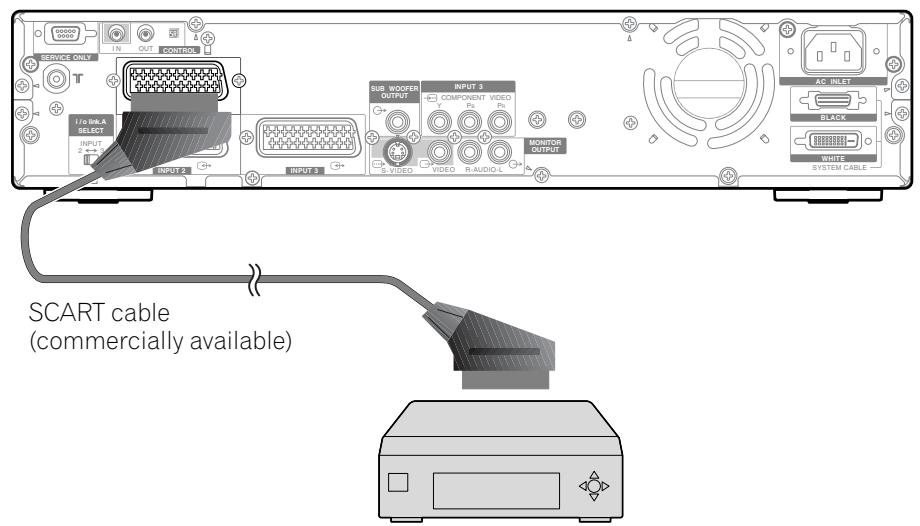

Connecting a decoder 47

Displaying a decoder image 47

Watching a VCR image 48

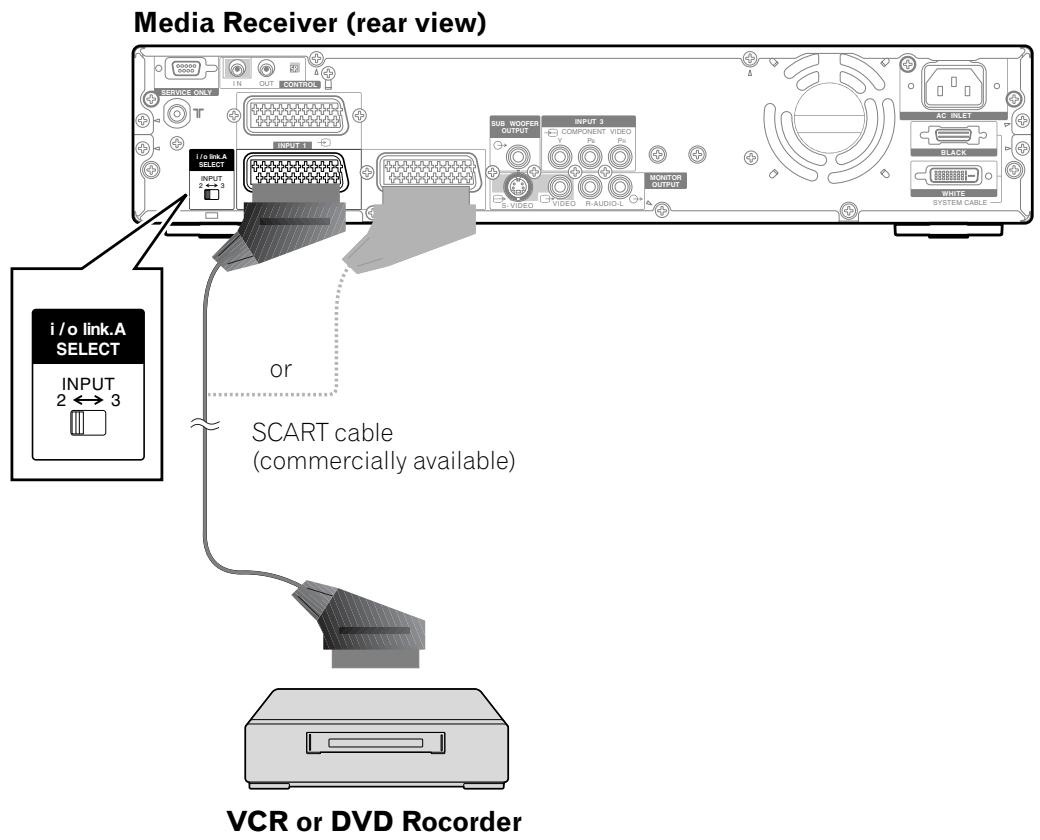

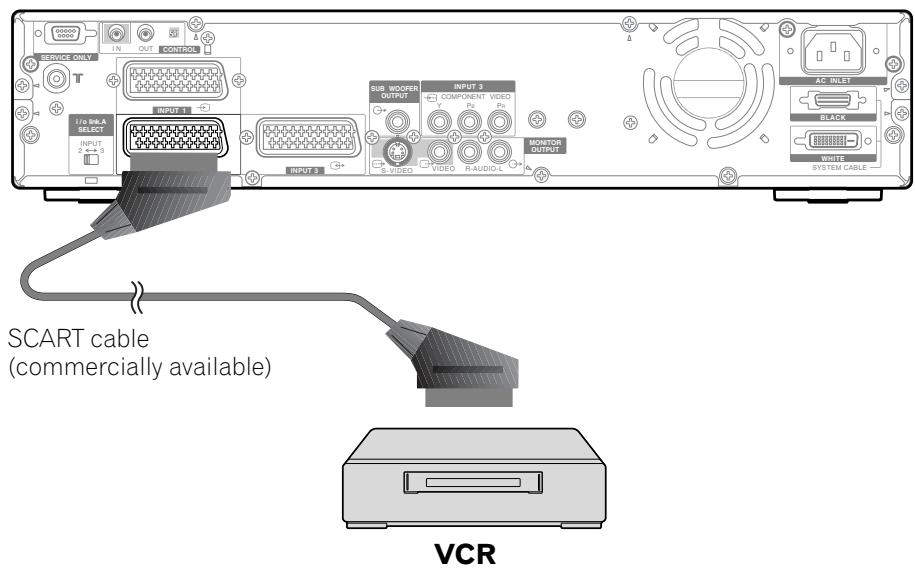

Connecting a VCR 48

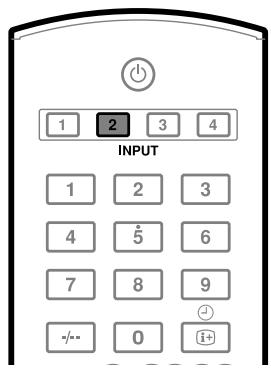

Displaying a VCR image 48

Using i/o Link.A 49

Watching a DVD image 50

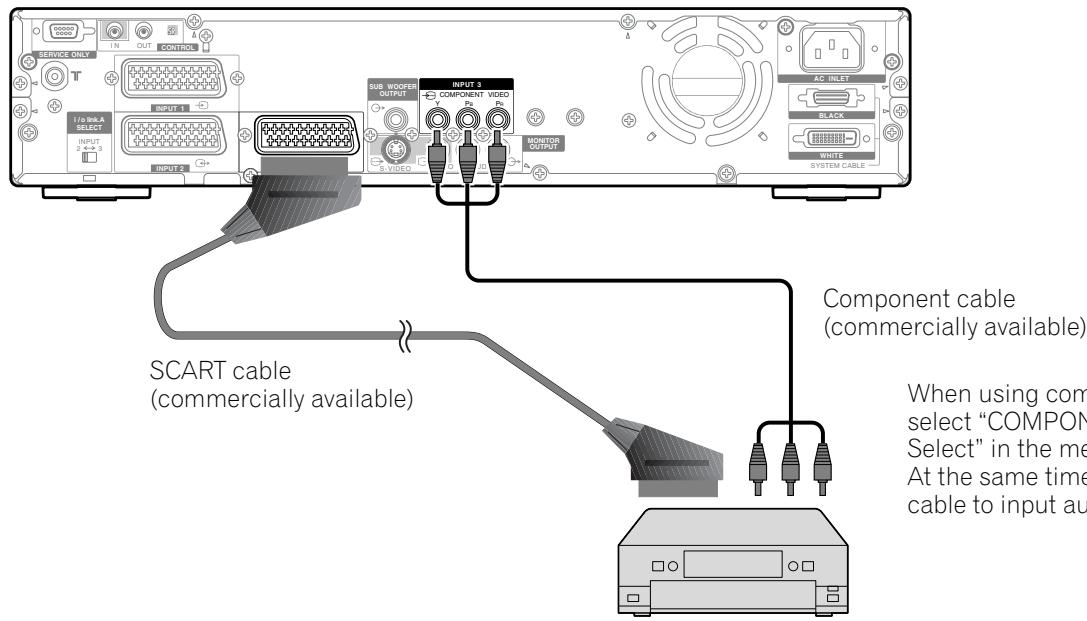

Connecting a DVD player 50

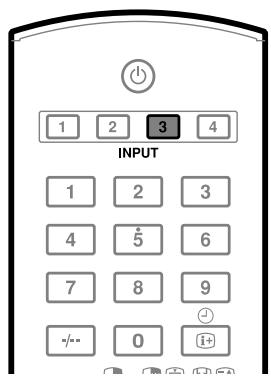

Displaying a DVD image 50

Enjoying a game console and watching

camcorder images 51

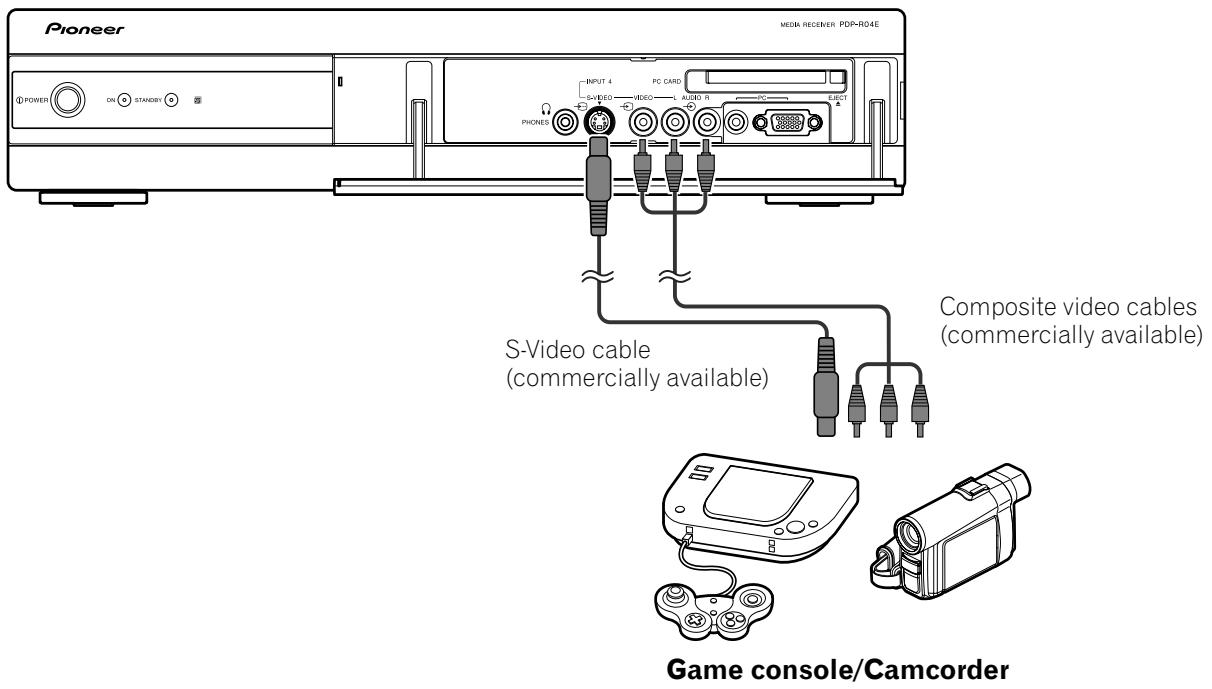

Connecting a game console or camcorder 51

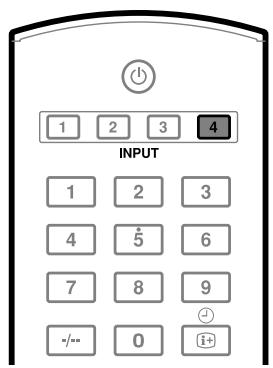

Displaying an image from the game console or camcorder 51

Watching an image from a personal computer 52

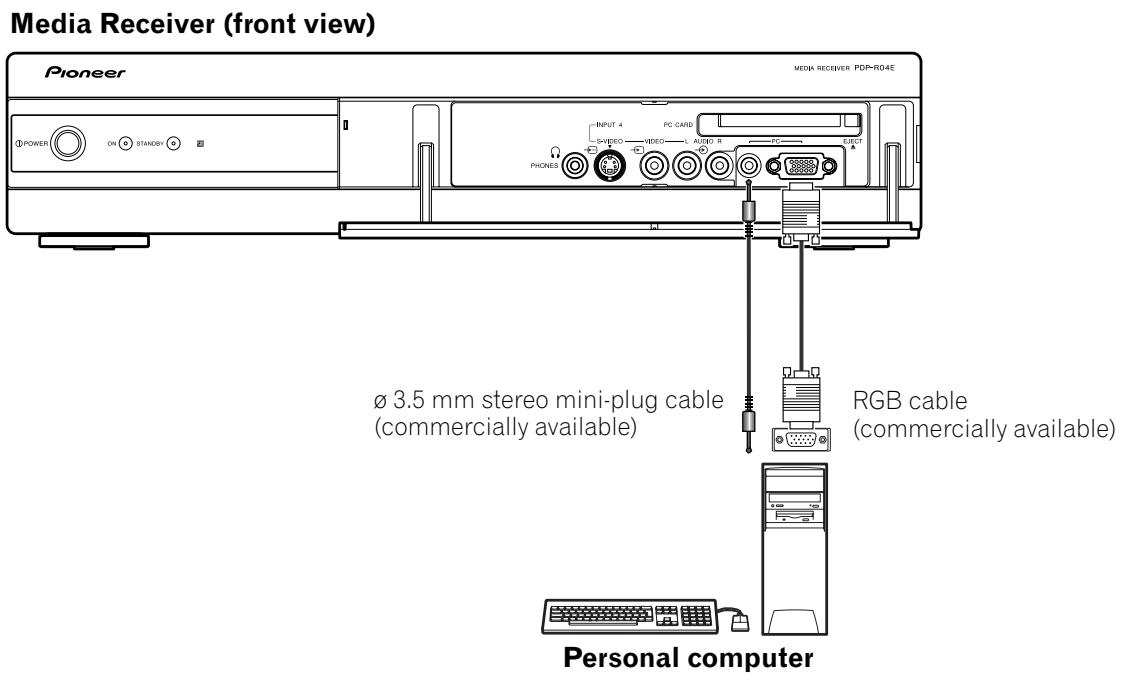

Connecting a personal computer 52

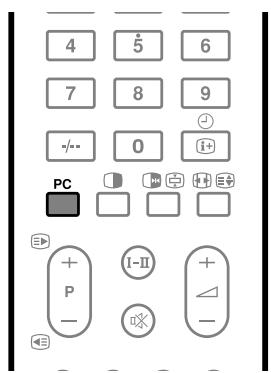

Displaying an image from a personal computer ...... 52

Computer compatibility chart 52

Enjoying through audio equipment in connection 53

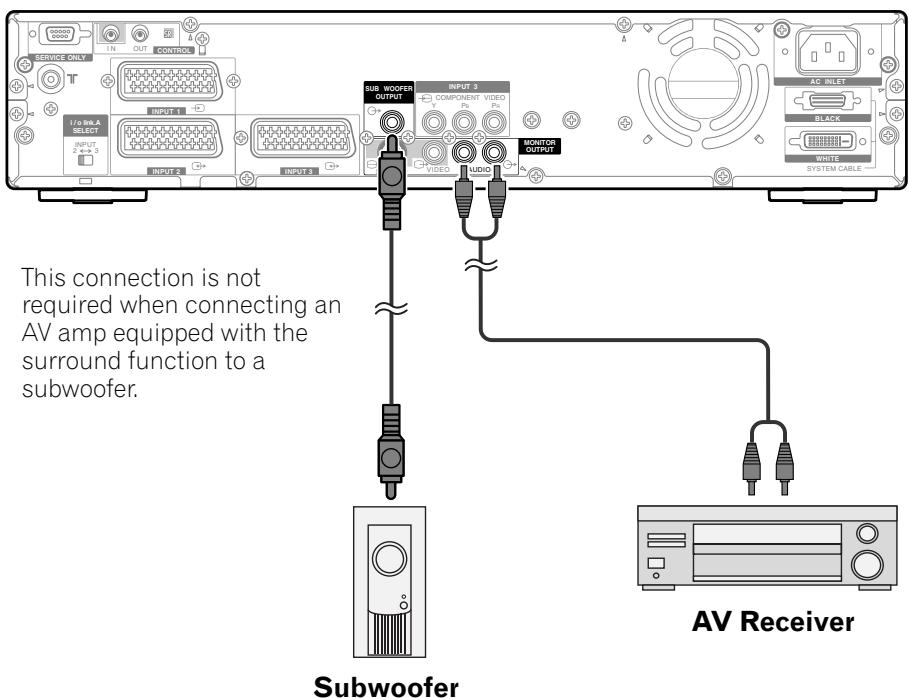

Connecting audio equipment 53

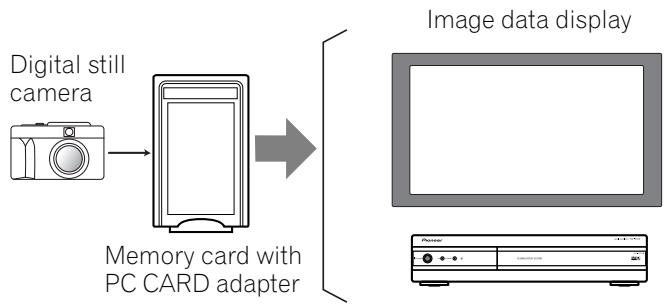

Enjoying through memory cards

(Home Gallery function) 54

Readable memory cards 54

Readable data files 54

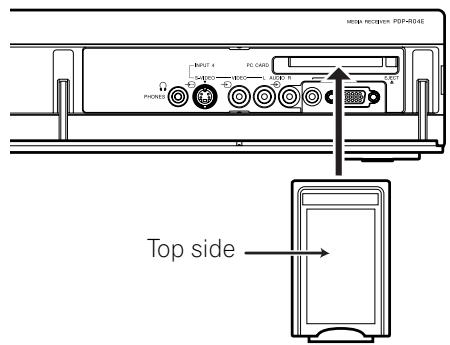

Inserting a memory card 54

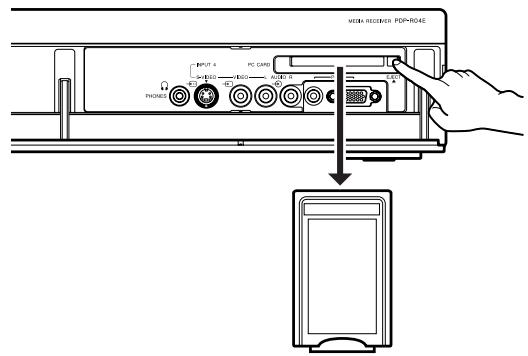

Removing a memory card 54

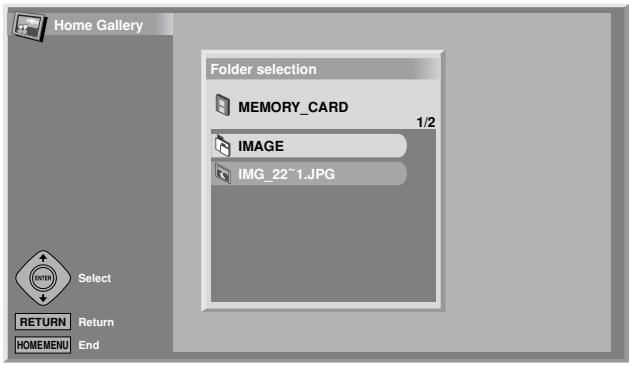

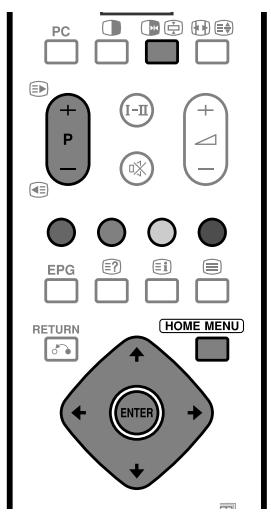

Starting the initial Home Gallery screen 55

Selecting a folder 55

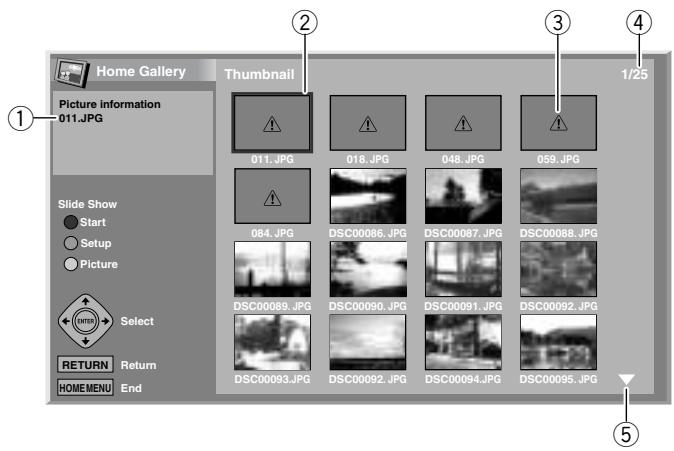

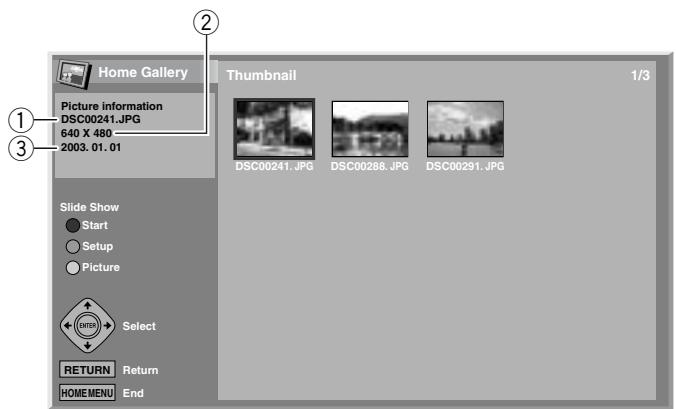

Starting a thumbnail screen 56

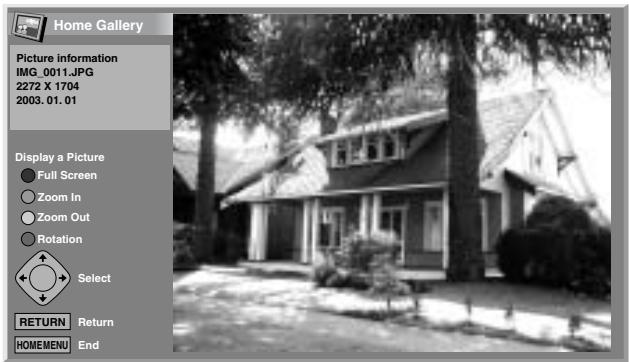

Starting a standard single-image screen 56

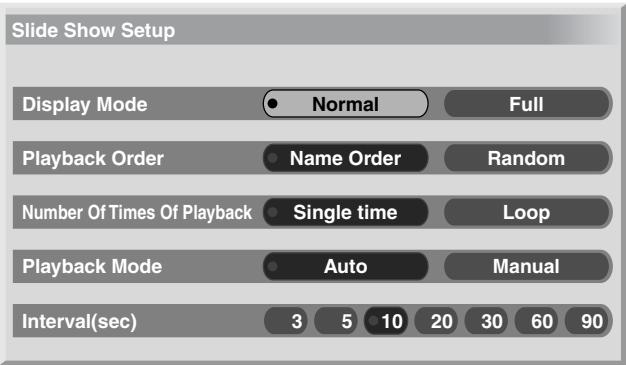

Starting the Slide Show Setup screen 57

Starting the Slide Show screen 58

Adjusting the picture quality 58

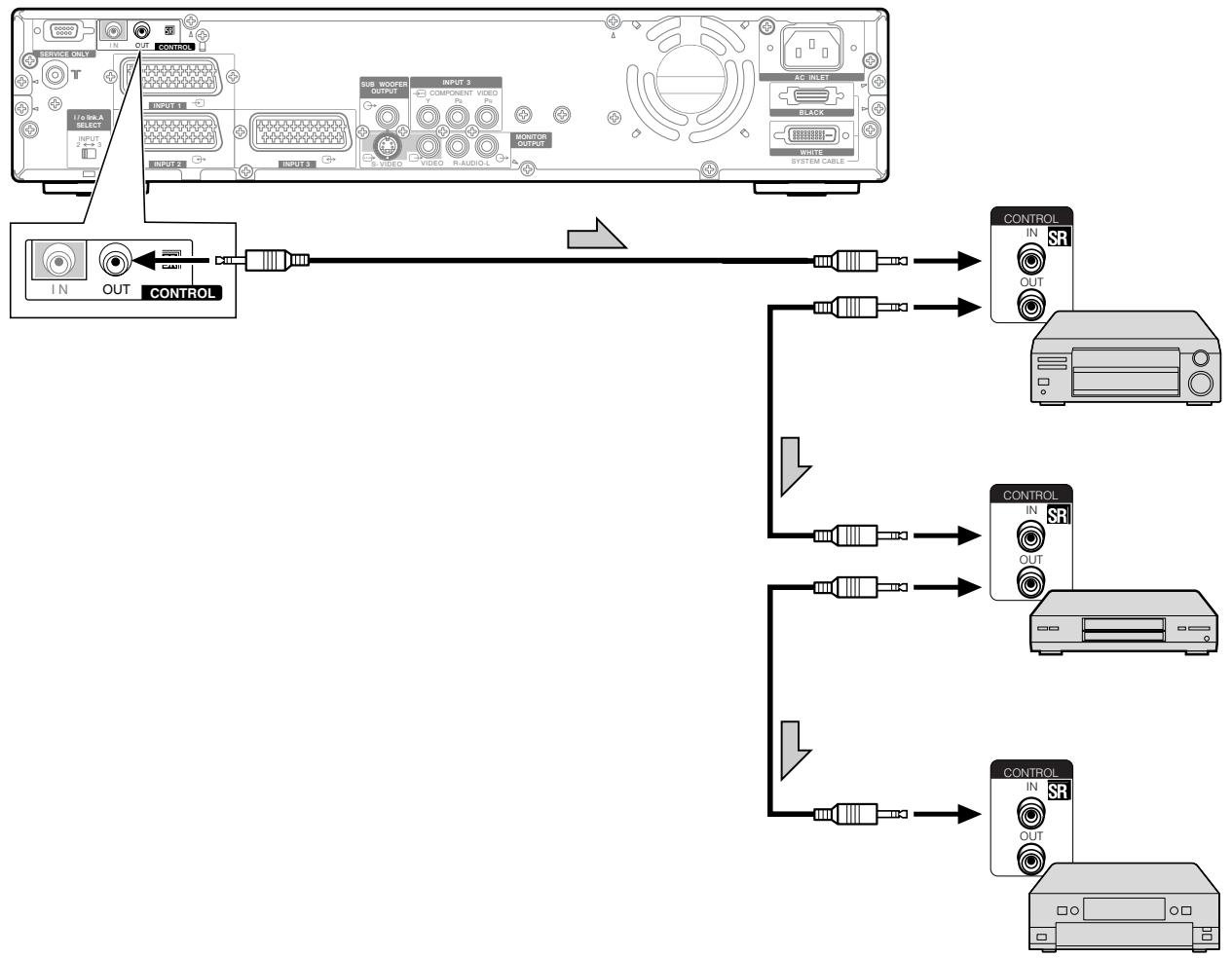

Connecting control cords 59

About SR+ 59

11 Using the Electronic Programme Guide (EPG)

Setting up for using the EPG 60

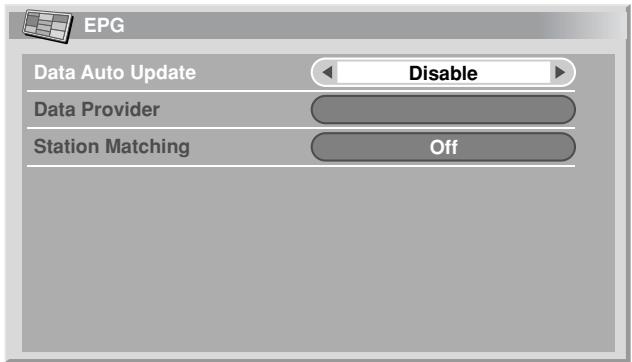

Updating EPG information automatically. 60

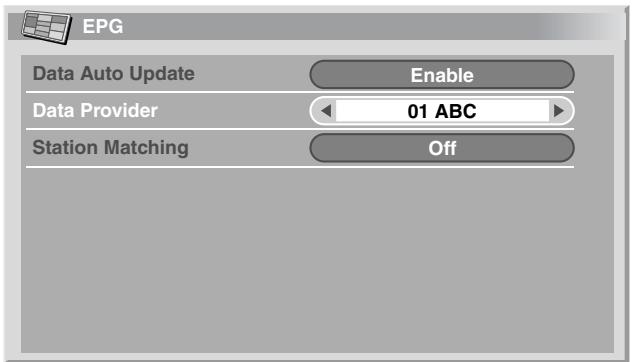

Specifying an EPG information provider 60

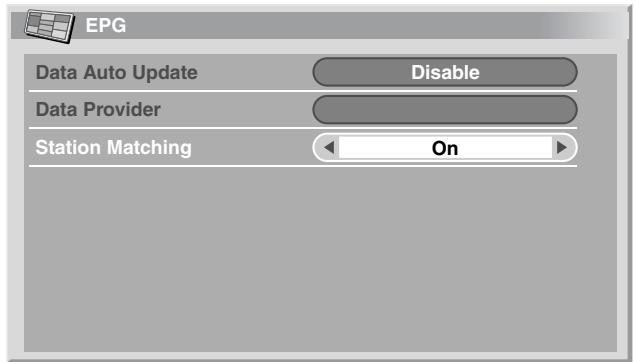

Restricting the display of EPG information 61

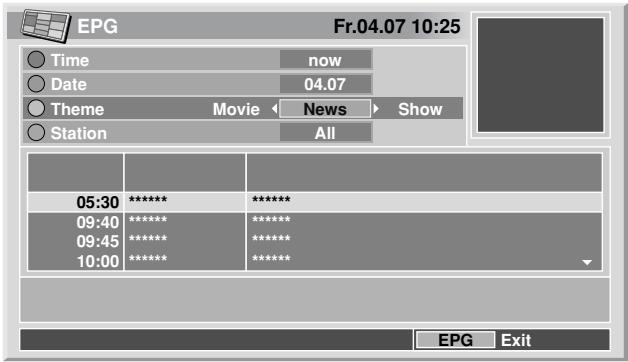

Searching programmes 61

Viewing programme information 62

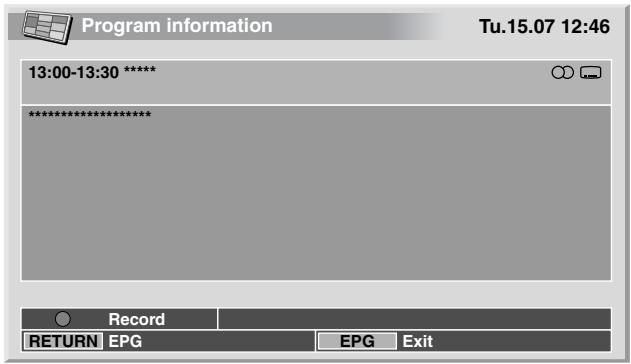

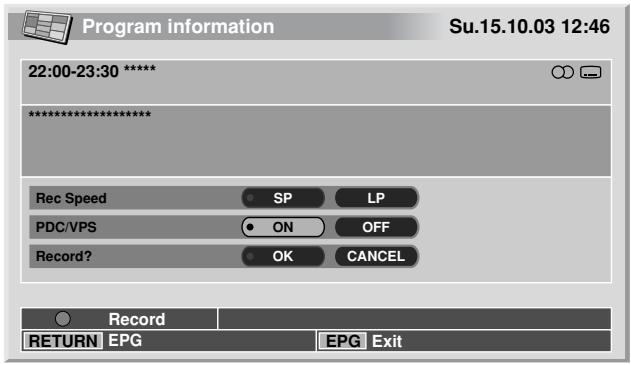

Recording a programme using a recording

equipment 62

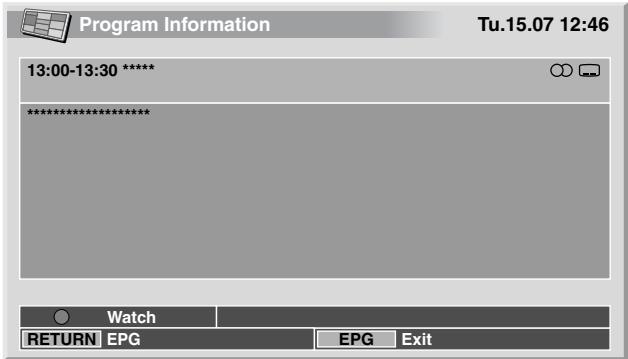

Selecting a programme for immediate watch 63

12 Useful Adjustments Settings

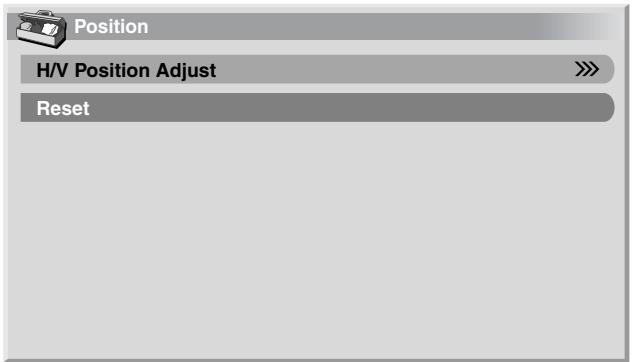

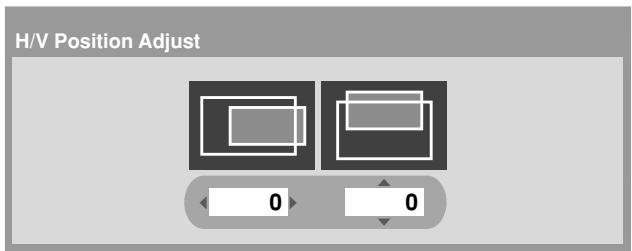

Adjusting image positions (AV mode only) 64

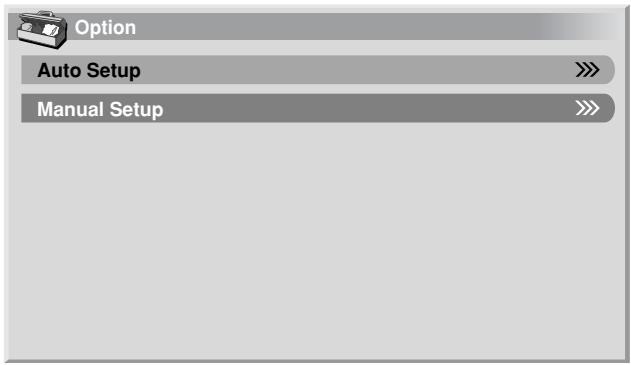

Adjusting image positions and clock automatically

(PC mode only) 64

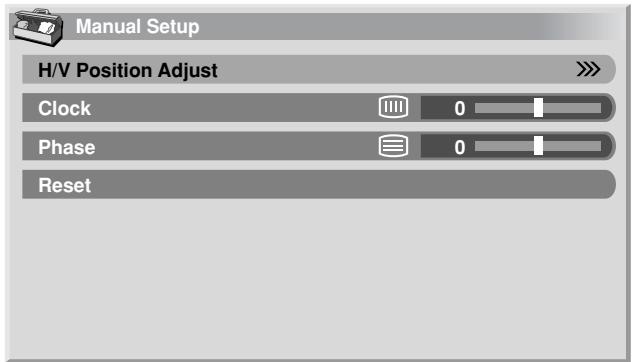

Adjusting image positions and clock manually

(PC mode only) 65

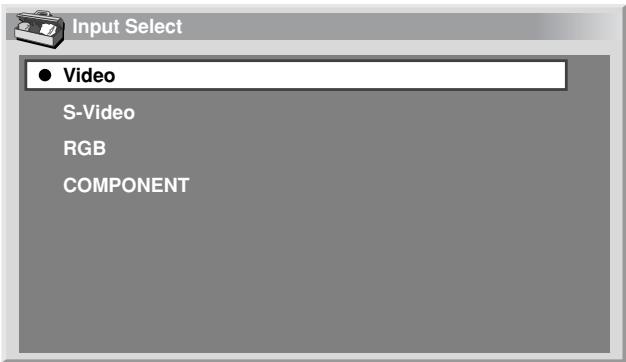

Selecting an input signal type 65

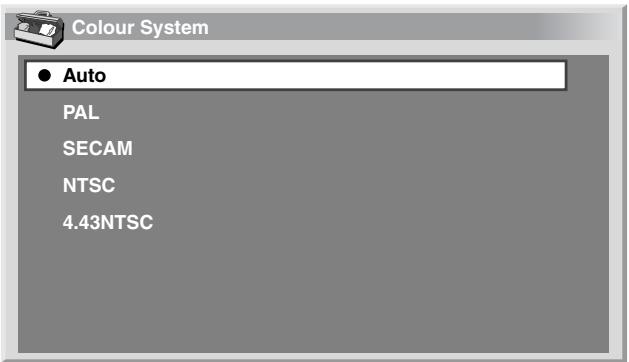

Colour system setting (AV mode only) 66

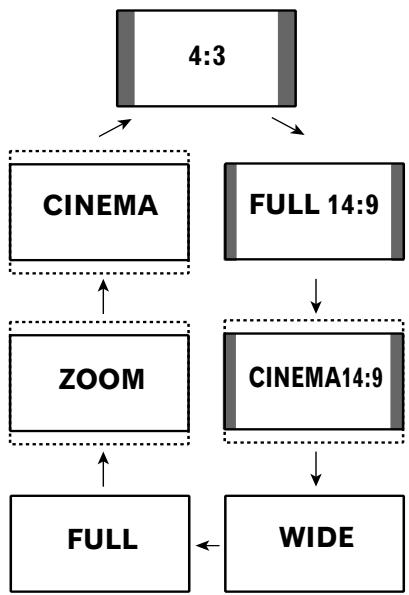

Select a screen size 67

Manual Selection 67

Auto Selection 68

Wide screen signalling (WSS) (AV mode only) 68

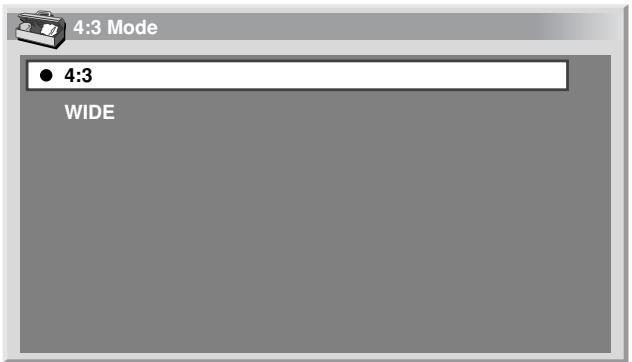

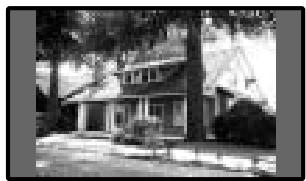

Picture aspect ratio (AV mode only) 69

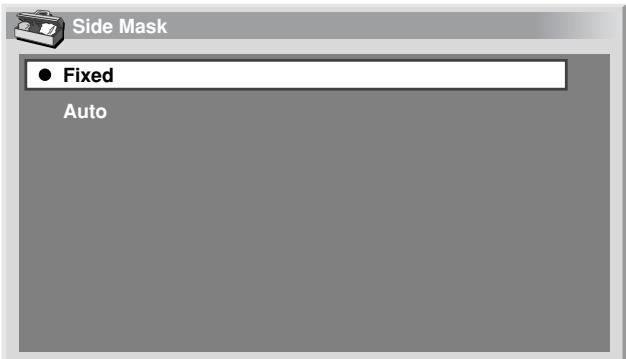

Changing the brightness at both sides of the screen

(Side Mask) 69

Sleep Timer 70

Using a password (AV mode only) 70

Entering a password 70

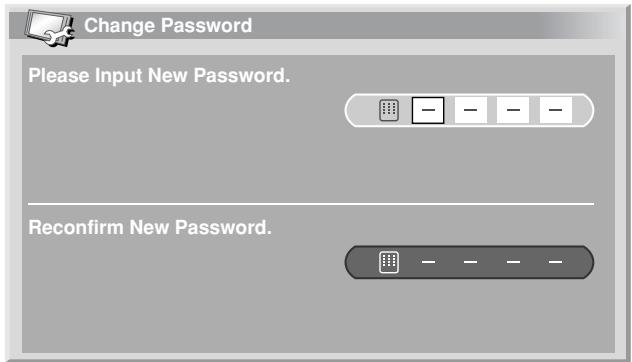

Changing the password 71

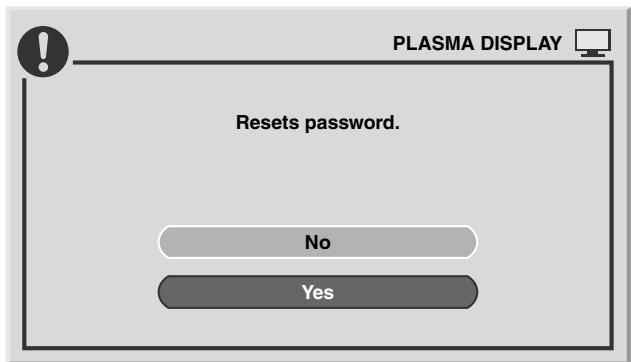

Resetting the password 71

13 Appendix

Troubleshooting 72

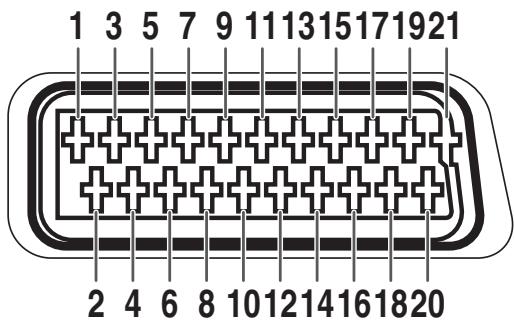

Connecting pin assignments for SCART 74

Specifications 75

In order to obtain maximum enjoyment from this Pioneer PureVision PDP-504HDE/PDP-434HDE Plasma Display System, please first read this information carefully.

With the Pioneer PureVision PDP-504HDE/PDP-434HDE, you can be assured of a high quality Plasma Display System with long-life and high reliability. To achieve images of exceptional quality, this Pioneer Plasma Display System incorporates state-of-the-art design and construction, as well as very precise and highly advanced technology.

Over the course of its lifetime, the luminosity of the Pioneer PDP-504HDE/PDP-434HDE Plasma Display System will diminish very slowly, such as with all phosphor-based screens (for example, a traditional tube-type television). To enjoy beautiful and bright images on your Pioneer Plasma Display System for a long time, please carefully read and follow the usage guidances below:

Usage guidelines

All phosphor-based screens (including conventional tube-type televisions) can be affected by displaying static images for a prolonged period. Plasma Display System's are no exception to this rule. After-image and permanent effects on the screen can be avoided by taking some basic precautions. By following the recommendations listed below, you can ensure longer and satisfactory results from your plasma:

• Whenever possible, avoid frequently displaying the same image or virtually still moving pictures (e.g. closed-captioned images or video game images which have static portions).
• Do not display Teletext for a prolonged period of time.
• Avoid viewing the On Screen Display for extended periods, from a decoder, DVD player, VCR and all other components.
• Do not leave the same picture freeze-framed or paused continuously over a long period of time, when using the still picture mode from a TV, VCR, DVD player or any other component.
• Images which have both very bright areas and very dark areas side by side should not be displayed for a prolonged period of time.
• When playing a game, the "GAME" mode setting within "AV Selection" is strongly recommended. However, please limit its use to less than 2 hours at a time.
• After playing a game, or displaying a PC image or any still image, it is best to view a normal moving picture in the "WIDE" or "FULL" screen setting for more than 3 times the length of the previous still moving image.
• After using the Plasma Display System, always switch the display to "STANDBY" mode.

Installation guidelines

The Pioneer PureVision PDP-504HDE/PDP-434HDE Plasma Display System incorporates a very thin design. To ensure safety, please take the proper measures to mount or install the Plasma Display, in order to prevent the unit from tipping over in the event of vibration or accidental movement.

This product should be installed by using only parts and accessories designed by PIONEER. Use of accessories other than the PIONEER stand or installation bracket may result in instability, and could cause injury. For custom installation, please consult the dealer where the unit was purchased. To ensure correct installation, experienced and qualified experts must install the unit. PIONEER will not be held responsible for accident or damage caused by the use of parts and accessories manufactured by other companies.

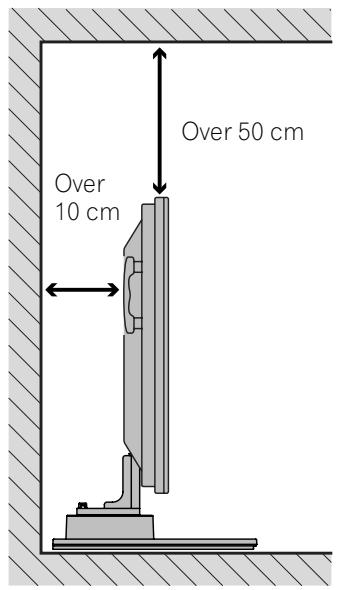

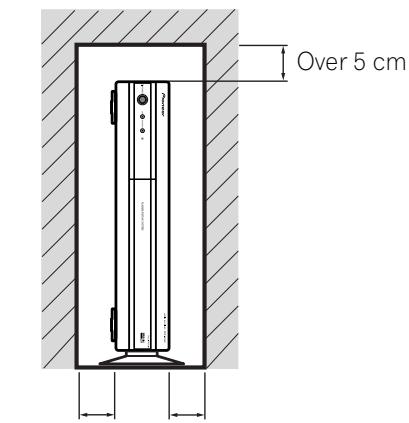

To avoid malfunction and overheating, make sure that the vents on the main unit are not blocked when installing to ensure proper heat emission:

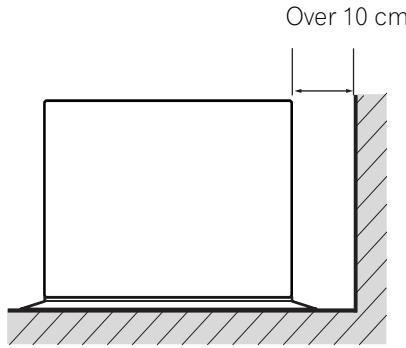

• Distance the unit slightly from other equipment, walls, etc. For the minimum space required around the unit, see pages 15 and 16.
• Do not fit the unit inside narrow spaces where ventilation is poor.
• Do not cover with a cloth, etc.
• Clean the vents on the sides and rear of the unit to remove dust build-up, by using a vacuum cleaner set to its lowest suction setting.
• Do not place the product on a carpet or blanket.
• Do not leave the product tilted over except the case of vertical installation of the Media Receiver.
• Do not reverse the product.

Using the unit without proper ventilation may cause the internal temperature to rise, and could result in possible malfunction. When the surrounding or internal temperature exceeds a certain degree, the display will automatically power off in order to cool the internal electronics and prevent hazardous occurrences.

Any malfunction may occur due to: an inappropriate installation site, improper assembly, installation, mounting, or operation of this product, modifications made to the product. However, PIONEER cannot be held responsible for such accidents or malfunction.

NOTE

Typical effects and characteristics of a phosphor-based matrix display, e.g., permanent residual images upon the phosphor of the panel, and the existence of a minute number of inactive light cells in the screen, are not covered by local warranties.

CAUTION

Panel sticking and after-image lag

• Displaying the same images such as still images for a long time may cause after-image lagging. This may occur in the following two cases.

1. After-image lagging due to remaining electrical load

When image patterns with very high peak luminance are displayed for more than 1 minute, after-image lagging may occur due to the remaining electric load. The after-images remaining on the screen will disappear when moving images are displayed. The time for the after-images to disappear depends on the luminance of the still images and the time they had been displayed.

2. After-image (lag image) due to burning

Avoid displaying the same image on the Plasma Display continuously over a long period of time. If the same image is displayed continuously for several hours, or for shorter periods of time over several days, a permanent after-image may remain on the screen due to burning of the fluorescent materials. Such images may become less noticeable if moving images are later displayed, but they will not disappear completely.

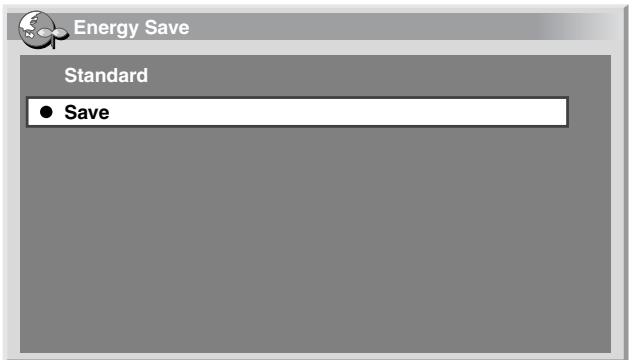

• The energy save function can be set to help prevent damage from screen burning (see page 42).

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your product, please read the following precautions carefully before using the product.

1. Read instructions—All operating instructions must be read and understood before the product is operated.
2. Keep this manual in a safe place—These safety and operating instructions must be kept in a safe place for future reference.
3. Observe warnings—All warnings on the product and in the instructions must be observed closely.
4. Follow instructions—All operating instructions must be followed.
5. Cleaning—Unplug the power cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.
6. Attachments—Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents.
7. Water and moisture—Do not use the product near water, such as bathtub, washbasin, kitchen sink and laundry tub, swimming pool and in a wet basement.
8. Stand—Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the manufacturer.
9. When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and rueven floor surface can cause the product to fall from the cart.

1. Ventilation—The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.
2. Power source—This product must operate on a power source specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.

3. Power cord protection—The power cords must be routed properly to prevent people from stepping on them or objects from resting on them. Check the cords at the plugs and product.

4. The plasma Display used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the plasma Display breaks.

5. Overloading—Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.
6. Entering of objects and liquids—Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.
7. Servicing—Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.
8. Repair—If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs.

a. When the power cord or plug is damaged.
b. When a liquid was spilled on the product or when objects have fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly described in the operating instructions.

Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician.

e. When the product has been dropped or damaged.

f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product needs servicing.

1. Replacement parts—In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.
2. Safety checks—Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.

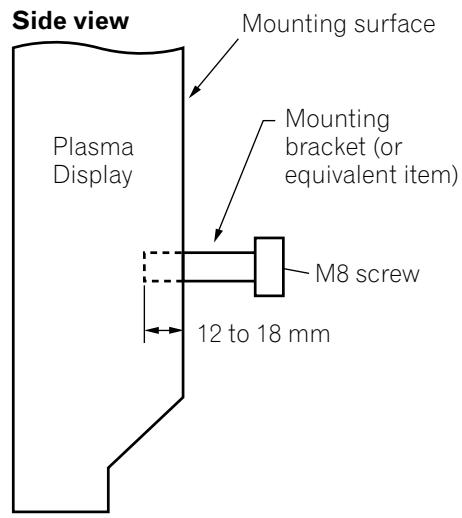

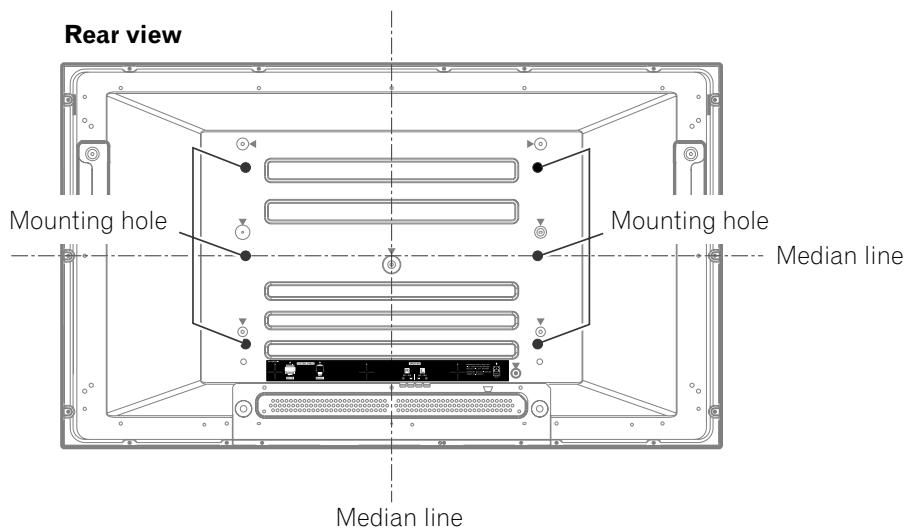

3. Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.
4. Heat sources—Keep the product away from heat sources such as radiators, heaters, stoves and other heat- generating products (including amplifiers).
5. Unplug the power cord from the AC outlet before installing the speakers.
6. Never expose the screen of the Plasma Display to a strong impact, for example, by hitting it. The screen may be broken, resulting in fire or personal injury.
7. Do not expose the Plasma Display to direct sunlight for a long period of time. The optical characteristics of the front protection panel changes, resulting in discoloration or warp.
8. The Plasma Display weighs about 38 kg (83.8 lbs.) for the PDP-504PE and about 30.5 kg (67.3 lbs.) for the PDP-434PE. Because it has small depth and is unstable, unpack, carry, and install the product with one more person at least and use the handles.

Installation Precautions

Observe the following precautions when installing with any items such as the optional stand.

When using the optional stand, brackets, or equivalent items

• Ask your dealer to perform the installation.
• Be sure to use the supplied bolts.
• For details, see the instruction manual that comes with the optional stand (or equivalent items).

When using other items

• Consult your dealer.
• The following six mounting holes can be used for the installation:

CAUTION

• Be sure to use four or more mounting holes symmetrical to the vertical and horizontal median lines.
• Use M8 screws, which go 12 to 18mm in depth from the mounting surface of the Plasma Display. See the side view above.
• Be careful not to block the ventilation opening at the rear of the Plasma Display.
• Be sure to install the Plasma Displayed on a flat surface because it contains glass.
• The screw holes other than the above are to be used only for the specified products. Never use them for mounting non-specified products.
• Do not mount or remove the Plasma Display to or from the stand, with speakers attached.

NOTE

• It is strongly recommended to use the optional PIONEER mounting products.
  PIONEER shall not be liable for any personal injury or product damage that results from the use of mounting items other than the optional PIONEER products.

CAUTION

PIONEER bears no responsibility for any damages arising from incorrect use of the product by you or other people, malfunctions when in use, other product related problems, and use of the product except in cases where the company must be liable.

Plasma Display protection function

When still images (such as photos and computer images) stay on the screen for an extended period of time, the screen will be slightly dimmed. This is because the protection function of the Plasma Display automatically adjusts the brightness to protect the screen when detecting still images; so this does not designate malfunction. The screen is dimmed when a still image is detected for about three minutes.

Infrared rays

The Plasma Display releases infrared rays because of its characteristics. Depending on how the Plasma Display is in use, the remote controls of nearby equipment may be adversely affected or wireless headphones using infrared rays are interfered by noise. If this is the case, place that equipment at a location where its remote control sensor is not affected.

Radio interference

While this product meets the required specifications, it emits a small amount of noise. If you place such equipment as an AM radio, personal computer, and VCR close to this product, that equipment may be interfered. If this happens, place that equipment far enough from this product.

Fan motor noise

When ambient temperature of the Media Receiver becomes high, the rotation speed of the cooling fan motor increases. This may make you feel that the fan motor is noisy at such an occasion.

Do not attach such items as labels and tape to the product.

• This may result in the discoloration or scratch of the cabinet.

When not using the product for a long period of time

• If you do not use the product for a long period of time, the functions of the product may be adversely affected. Switch on and run the product occasionally.

Condensation

• Condensation may take place on the surface or inside of the product when the product is rapidly moved from a cold place to a warm place or just after a heater is switched on in winter morning, for example. When condensation takes place, do not switch on the product and wait until condensation disappears. Using the product with condensation may result in malfunction.

Cleaning the screen

• When cleaning the screen of this product, gently wipe it with a dry soft cloth; the supplied cleaning cloth or other similar cloths (e.g., cotton and flannel). If you use a hard cloth or rub the screen hard, the surface of the screen will be scratched.
• If you clean the surface of the screen with a wet cloth, water droplets on the surface may enter into the product, resulting in malfunction.

Cleaning the cabinet

• The cabinet of this product is mostly composed of plastic. Do not use chemicals such as benzine or thinner to clean the cabinet. Using these chemicals may result in quality deterioration or coating removal.
• Do not expose the product to volatile gas or fluid such as pesticide. Do not make the product contact with rubber or vinyl products for a long period of time. The effect of plasticizer in the plastic may result in quality deterioration or coating removal.
• If you clean the surface of the cabinet with a wet cloth, water droplets on the surface may enter into the product, resulting in malfunction.

Handles at the rear of the Plasma Display

• Do not remove the handles from the rear of the Plasma Display.
• When moving the Plasma Display, ask another person for help and use the handles attached to the rear of the Plasma Display. Do not move the Plasma Display by holding only a single handle. Use the handles as shown.
• Do not use the handles to hang the product when installing or carrying the product, for example. Do not use the handles for the purpose of preventing the product from tilting over.

Plasma Display

Power cord (2 m)
(For Europe, except U.K. and Eire)

(For U.K. and Eire)

Only the power code that is appropriate in your country or region is supplied.

Speed clamp × 3

Bead band x 3

Warranty card

Cleaning cloth

Speaker cushion x 3 (Use when installing the optional speakers at the bottom of the Plasma Display.)

Media Receiver

Power cord (2 m)
(For Europe, except U.K. and Eire)

(For U.K. and Eire)

Only the power code that is appropriate in your country or region is supplied.

Remote control unit

AA size battery x 2 (Manganese battery)

Screw × 4 (for stand)

Screw hole cap x 4

Stand

System cable (3 m)

Two operating instructions

NOTE

• Always use the power cord supplied with the Plasma Display and the one supplied with the Media Receiver for each respective unit.

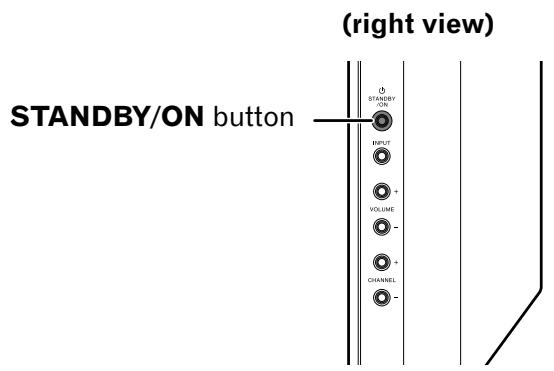

Plasma Display

Front view

(1) POWER button
(2) STANDBY indicator
③ POWER ON indicator
④ Remote control sensor

(5) STANDBY/ON button
⑥ INPUT button
⑦ VOLUME + / - buttons
⑧ CHANNEL +/- buttons

Rear view

The terminals have faced downward.

⑨ SYSTEM CABLE terminal (BLACK)
⑩ SYSTEM CABLE terminal (WHITE)

(1) SPEAKER (right/left) terminals
⑫ AC INLET terminal

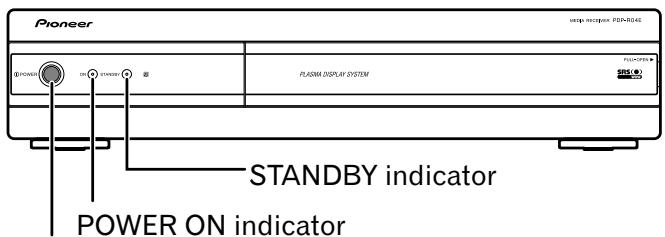

Media Receiver

Front view

① POWER button
② POWER ON indicator
(3) STANDBY indicator
(4) PHONES output terminal
⑤ INPUT 4 terminal (S-VIDEO)

⑥ INPUT 4 terminal (VIDEO)
⑦ INPUT 4 terminals (AUDIO)
⑧ PC INPUT terminal (AUDIO)
⑨ PC INPUT terminal (ANALOG RGB)
PC CARD slot
⑪ PC CARD eject button

Rear view

① Antenna input terminal
(2) RS-232C terminal (used in the factory setup)
③ Control input terminal
④ Control output terminal
⑤ INPUT 1 terminal (SCART)
⑥ SUB WOOFER OUTPUT terminal
⑦ INPUT 3 COMPONENT VIDEO terminals (Y, PB, PR)
⑧ AC INLET terminal

⑨ i/o link.A SELECT switch
⑩ INPUT 2 terminal (SCART)
① INPUT 3 terminal (SCART)
⑫ MONITOR OUT terminal (S-VIDEO)
⑬ MONITOR OUT terminal (VIDEO)
14 MONITOR OUT terminals (AUDIO)
⑮ SYSTEM CABLE terminal (WHITE)
SYSTEM CABLE terminal (BLACK)

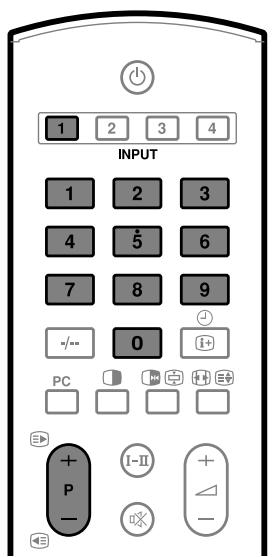

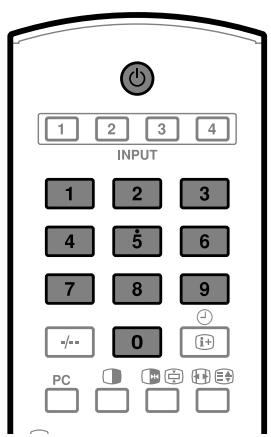

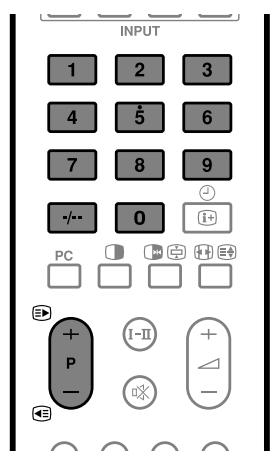

Remote control unit

(1)

Places the system into the standby mode.

② INPUT 1, 2, 3, 4

Selects an input source.

③ 0 - 9

Switches on the power to the Plasma Display. TV/External input mode: Selects a channel.

TELETEXT mode: Selects a page.

(4) - / -

Selects the two digit mode.

⑤ PC

Selects the PC terminal as an input source.

(6)

Switches the screen mode among 2-screen, picture-in-picture, and single-screen.

⑦ P + / P -

TV/External input mode: Selects a channel.

TELETEXT mode: Selects a page.

⑧ I-Ⅱ

Sets the sound multiplex mode.

Colour (RED/GREEN/YELLOW/BLUE)

TELETEXT mode: Selects a page.

10 EPG

Displays the Electronic Programme Guide.

⑪ ？

TELETEXT mode: Displays hidden characters.

12

(RETURN)

Restores the previous menu screen.

14/+/←/→

Selects a desired item on the setting screen.

14 i+

Displays the channel information.

15

TV/External input mode: Changes the wide screen size.

TELETEXT mode: Switches Teletext images. (full/upper half/lower half)

16

Freezes a frame from a moving image. Press again to cancel the function.

中

TELETEXT mode: Stops updating Teletext pages.

Press again to release the hold mode.

17 + / -

Sets the volume.

18

Mutes the sound.

19

Selects the TELETEXT mode.

(all TV image, all TEXT image, TV/TEXT image)

20 3i

TELETEXT mode: Displays an Index page for the CEEFAX/FLOF format. Displays a TOP Over View page for the TOP format.

② HOME MENU

TV/External Input mode: Displays the Menu screen.

② ENTER

Executes a command.

NOTE

• When using the remote control unit, point it at the Plasma Display.

Allowed operation range of the remote control unit

Operate the remote control unit while pointing it toward the remote control sensor (SR) located at the bottom right of the front panel of the Plasma Display. The distance from the remote control sensor must be within 7 m and the angle relative to the sensor must be within 30 degrees in the right, left, upward, or downward direction.

When the remote control unit does not function properly

• When any obstacle exists between the remote control unit and the remote control sensor, the remote control unit may not function.
• As the batteries become empty, the remote control unit can function within a shorter distance from the remote control sensor. Replace the batteries with new ones early enough.
• The Plasma Display emits very weak infrared rays from its screen. If you place such equipment operated through infrared remote control as a VCR nearby, that equipment may not receive commands from its remote control unit properly or entirely. If this is the case, place that equipment at a location far enough from the Plasma Display.
• Depending on the installation environment, infrared rays from the Plasma Display may not allow this system to properly receive commands from the remote control unit or may shorten allowable distances between the remote control unit and the remote control sensor. The strength of infrared rays emitted from the screen differs, depending on images displayed on the screen.

Installing the Plasma Display

Locating

• Avoid direct sunlight. Maintain adequate ventilation.
• The length of the system cable used to connect the Plasma Display and the Media Receiver is about 3m .
• Because the Plasma Display is heavy, be sure to have someone help you when moving it.

CAUTION

• If you place anything on the top of the Media Receiver it will not receive enough ventilation and will not operate properly.

NOTE

• Allow enough space around the upper and back parts when installing to ensure ventilation around the backside.

Using the optional PIONEER stand

• For details on installation, refer to the instruction manual provided with the stand.

Using the optional PIONEER speakers

• For details on installation, refer to the instruction manual provided with the speaker.

CAUTION

Operating Environment

Operating environment temperature and humidity: +0^ to +40^ ; less than 85% RH (cooling vents not blocked)

Avoid installing in the following locations:

Under direct exposure to sunlight
Under strong artificial light
In high humidity
Poorly ventilated

Installing the Media Receiver

System cable
(approx. 3 meters)

CAUTION

• Do not place a VCR or any other device on top of the Media Receiver.
• When installing, allow enough space on the sides and above the Media Receiver.
• Do not block the cooling vent on any side of the Media Receiver or the rear ventilation fan opening of the Media Receiver.

Over 5 cm
Over 5 cm

Over 5 cm
Over 5 cm

Installing the Media Receiver vertically

You can use the accompanying stand to install the Media Receiver vertically.

Installing the Media Receiver vertically

Insert the vertical installation stand into the side of the Media Receiver.

Secure the vertical installation stand with screws.

You can remove the shock absorbing pads.

Keep the shock absorbing pads and screws. They are required when you place the Media Receiver in the horizontal position.

Plug the screw holes using the caps provided.

CAUTION

• When you have installed the Media Receiver vertically, always use the accompanying stand. If you place the unit directly on the floor the cooling vents will be blocked which will result in mechanical failure.

Setting the system

Connecting the system cable to the Plasma Display

CAUTION

• THESE SPEAKER TERMINALS CAN BE UNDER HAZARDOUS VOLTAGE WHEN YOU CONNECT OR DISCONNECT THE SPEAKER CABLES, TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT TOUCH UNINSULATED PARTS BEFORE DISCONNECTING THE POWER CORD.

Routing cables

Speed clamps and bead bands are included with this system for bunching cables. Once properly bunched, follow the steps below to route the cables.

When the speakers are installed on the sides
(rear view)

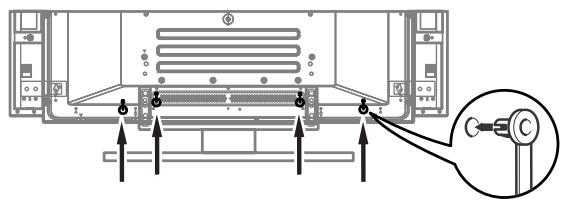

Attaching speed clamps to the main unit

Attach the speed clamps using the 4 holes marked with below, depending on your routing system.

Attaching and removing speed clamps

Insert ① into an appropriate hole on the rear of the Plasma Display and snap ② into the back of ① to lock the clamp.

Speed clamps are designed to be difficult to undo once in place. Please attach them carefully.

Use pliers to twist the clamp 90^ , pulling outward. The clamp may deteriorate over time and become damaged if removed.

When the speakers are installed at the bottom

*Cable binder
Using the cable binders supplied with the stand, put the speaker and system cables together so that the cables are invisible from the front. At that time be careful not to apply any force to the connection sections of the cables.

Using the remote control unit

Use the remote control unit by pointing it towards the remote control sensor. Objects between the remote control unit and the sensor may prevent proper operation.

Cautions regarding the remote control unit

• Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity.
• Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the unit.
• The remote control unit may not work properly if the remote control sensor of the Plasma Display is under direct sunlight or strong lighting. In such case, change the angle of the lighting or Plasma Display set, or operate the remote control unit closer to the remote control sensor.

Inserting batteries

If the remote control unit fails to operate Plasma Display System functions, replace the batteries in the remote control unit.

1 Open the battery cover.

2 Insert the two AA size batteries supplied with the product.

• Place batteries with their terminals corresponding to the (+) and (-) indicators in the battery compartment.

3 Close the battery cover.

Cautions regarding batteries

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not use alkaline batteries. When you replace the batteries, use manganese ones.
• Place the batteries with their terminals corresponding to the (+) and (-) indicators.
• Do not mix batteries of different types. Different types of batteries have different characteristics.
• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.
• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.
• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
• If you will not use the remote control unit for an extended period of time, remove the batteries from it.

CAUTION

• WHEN DISPOSING OF USED BATTERIES, PLEASECOMPLYWITH GOVERNMENTAL REGULATIONS OR ENVIRONMENTAL PUBLIC INSTRUCTION'S RULES THAT APPLY IN YOUR COUNTRY/AREA.

Basic connections

Connecting to an antenna

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for a coaxial cable.

75-ohm coaxial cable (round cable)
(commercially available)

Antenna cable-commercially available

If your outdoor antenna uses a 75- ohm coaxial cable with a standard DIN45325

plug (IEC169-2), plug it into the antenna terminal at the rear of the Media Receiver.

Connecting the power cord

Plasma Display (bottom view)

Media Receiver (rear view)

NOTE

• Always turn off the main power of the Plasma Display and Media Receiver when connecting the power cords.
• Disconnect the power cord from the power outlet, Plasma Display and Media Receiver when the system is not going to be used for a long period of time.

Unless you set up TV channels that you can watch under the current conditions, you cannot tune in those channels. For the procedure, see "Setting up TV channels automatically" on pages 29 to 30.

Plasma Display
POWER button

Media Receiver
POWER button

Turning on the power

1 Press POWER on the Plasma Display.
- The STANDBY indicator on the Plasma Display flashes red.
2 Press POWER on the Media Receiver.
- The system is turned on or placed into the standby mode.
3 Confirm that the STANDBY indicators light up red, and then press any button from 0 to 9 on the remote control unit or STANDBY/ON on the Plasma Display to turn the system on.
- In the standby mode, when you press 0, the power turns on and the on-screen image comes from the INPUT 1 source. Or, when you press any button from 1 to 9, a TV image displays.
- The POWER ON indicators on the Plasma Display and Media Receiver light up in green.

NOTE

• In this manual, "system" mean the Plasma Display Panel and Media Receiver.
• You can also reverse steps 1 and 2.

Turning off the power

1 Press on the remote control unit or STANDBY/ON on the Plasma Display.

• The system enters standby mode and the image on the screen disappears.
• Both STANDBY indicators light up in red.
• It is recommended to place the system into the standby mode after using it. This allows the system to automatically receive Electronic Program Guide information signals in the standby mode.

2 Press POWER on the Media Receiver.

• The STANDBY indicator on the Media Receiver turns off and the one on the Plasma Display flashes red.

3 Press POWER on the Plasma Display.

• The STANDBY indicator on the Plasma Display turns off.

NOTE

• You can also reverse steps 2 and 3.
• If you are not going to use this system for a long period of time, be sure to remove the power cord from the power outlet.
• When the system is placed into the standby mode, the main power flow is cut and the system is no longer fully operational. A minute flow of power feeds the system to maintain operation readiness.

Plasma Display/Media Receiver status indicators

Indicator Status				System Status
Plasma Display		Media Receiver
POWER ON	STANDBY	POWER ON	STANDBY
●	●	●	●	Power to the Plasma Display and Media Receiver is off. Or the power cords have been disconnected.
●	●	●	●	Power to the system is on.
●	●	●	●	The system is in the standby mode.
●	● Flashing	●	●	Power to the Media Receiver is off. Or the power cord has been disconnected from the Media Receiver.
●	●	●	● Flashing	Power to the Plasma Display is off. Or the power cord has been disconnected from the Plasma Display.

For other than the above, see "Troubleshooting" on page 72.

Channel display

Changing channels

Using P + / - on the remote control unit

• Press P+ to increase the channel number.
• Press P - to decrease the channel number.

When viewing Teletext information:

• Press P+ to increase the page number.
• Press P - to decrease the page number.

NOTE

• CHANNEL + / - on the Plasma Display operates the same as P + / - .

Using 0 - 9 on the remote control unit

Select channels directly by pressing buttons 0 to 9.

EXAMPLE

To select channel 2 (1-digit channel), press 2.
- To select channel 12 (2-digit channel), press - / - to select 2-digit input. Then press 1, followed by 2.

When viewing Teletext information:

View a page directly which is 3-digit page number from 100 to 899 by pressing buttons 0 to 9. With Teletext, you do not use --2 . See page 45.

NOTE

• In the standby mode, when you press 0, the power turns on and the on-screen image comes from the INPUT 1 source. Or, when you press any button from 1 to 9, a TV image displays.

Volume adjustment

Mute

Changing the volume and sound

Using + / - on the remote control unit

To increase the volume, press + .
To decrease the volume, press .

NOTE

• VOLUME + / - on the Plasma Display operates the same as + / - .

Using on the remote control unit

mutes the current sound output.

1 Press.
- "..." appears on the screen.
2 Press again to cancel the mute mode.
- Pressing + can also cancel the mute mode.

Using I-II on the remote control unit

Each time you press I-III, MTS toggles as shown below.

		Setting
		I	II	MONO
NICAM Broadcasts	Stereo	1	1	1
		AAA NICAM STEREO 10:00	AAA NICAM STEREO 10:00	AAA MONO 10:00
	Bilingual	2	2	2
		BBB NICAM I 10:00	BBB NICAM II 10:00	BBB MONO 10:00
	Monaural	3	3	3
		CCC NICAM MONO 10:00	CCC NICAM MONO 10:00	CCC MONO 10:00
A2 Broadcasts	Stereo	4	4	4
		DDD STEREO 10:00	DDD STEREO 10:00	DDD MONO 10:00
	Bilingual	5	5	5
		EEE DUAL I 10:00	EEE DUAL II 10:00	EEE MONO 10:00
	Monaural	6	6	6
		FFF MONO 10:00	FFF MONO 10:00	FFF MONO 10:00

NOTE

• In each of the sound multiplex mode selected using the I-II button, the display changes depending on broadcasting signals being received.

• Once the MONO mode is selected, the Plasma Display System sound remains mono even if the system receives a stereo broadcast. You must switch the mode back to I or II mode if you want to hear stereo sound again.

• Selecting a sound multiplex mode while the input source is INPUT 1 to 4 or PC does not change the type of sound. In this case, sound is determined by the video source.

Using the multiscreen functions

Splitting the screen

Use the following procedure to select the 2-screen or picture-in-picture mode.

2-screen

Picture-in-picture

1 Press to select the display mode.
Each time you press , the display mode is switched among 2-screen, picture-in-picture, and single-screen.
2 Press to select a screen to be active.
- “ ” appears on the active screen, which outputs sound.
3 To select the desired input source, press the appropriate input source button.
4 If watching TV programmes, press P + / P- to change the channel.

NOTE

• The multiscreen function cannot display images from the same input source at the same time. If you make such an attempt, a warning message appears.
• When you press HOME MENU, the single-screen mode is restored and the corresponding menu is displayed.
• When in the 2-screen mode, images displayed on the right screen may look less fine, depending on images.

Freezing images

Use the following procedure to capture and freeze one frame from a moving image that you are watching.

1 Press

• A still image appears on the right screen while a moving image is shown on the left screen.

2 Press again to cancel the function.

NOTE

• With the screen split, any image cannot be frozen.
• When this function is not available, a warning message appears.

Using the menu AV mode menus

Home Menu	Item	Description	Page
Picture	AV Selection	Select from the five display mode options; STANDARD, DYNAMIC, MOVIE, GAME, and USER.	35
	Contrast	Adjusts the picture between light and shade.	36
	Brightness	Adjusts picture brightness.	36
	Colour	Adjusts colour intensity.	36
	Tint	Adjusts skin colour to a more natural tone for all colour system.	36
	Sharpness	Adjusts picture sharpness.	36
	Pro Adjust	Adjusts the levels of PureCinema, Colour Temp, MPEG NR, DNR, CTI, DRE, and Colour Management.	37–40
	Reset	All image adjustment settings return to the factory defaults.	36

Sound	Treble	Adjusts the treble weaker or stronger.	41
	Bass	Adjusts the bass weaker or stronger.	41
	Balance	Adjusts audio output between left and right speakers.	41
	Reset	All audio adjustment settings return to the factory defaults.	41
	FOCUS	Shift the sound coming direction (sound images) upward and produces clear sound contours.	41
	Front Surround	Provides three-dimensional sound effects and/or deep, rich bass.	42

Power Control	Energy Save	Saves power by decreasing picture brightness.	42

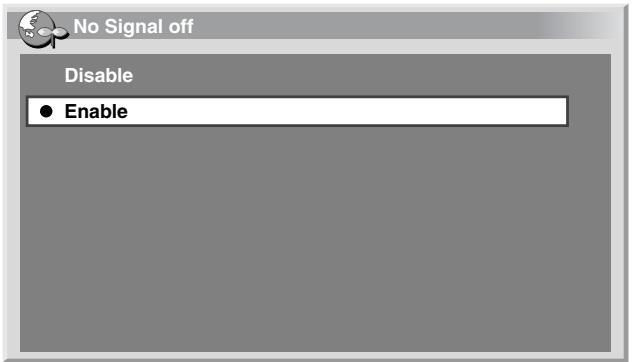

	No Signal off	Places the system into the standby mode when no signal is received for 15 minutes.	43
	No Operation off	Places the system into the standby mode when no operation is performed for three hours.	43

Sleep Timer

Automatically places the system into the standby mode when the selected time elapses.

70

Option	Position	Adjusts the vertical and horizontal positions of displayed images.	64
	WSS	Allows you to view information in the wide screen mode when wide screen signals are included in Teletext data.	68
	4:3 Mode	Select the aspect ratio of video signals.	69
	Colour System	Select the colour system compatible with images on the screen.	66
	Input Select	Set the type of signals to be received from the INPUT 1, INPUT 2, or INPUT 3 terminal.	65
	Side Mask	With the 4:3 screen size selected, sets the brightness of the gray side masks that appear at both sides of the screen.	69

Setup	Auto Installation	Allows you to set up TV channels and select a language to be used for on-screen display.	29
	Programme Setup	Sets up TV channels.	30–33
	Password	Prevents other persons from changing important settings.	70–71
	Clock	Corrects the date and time.	34
	Language	Select the language to be used for on-screen display such as menus and instructions and the one to be used in the TELETEXT mode.	34

EPG	Data Auto Update	Automatically acquires EPG information from a specified broadcasting station.	60
	Data Provider	Select a broadcasting station to acquire EPG information.	60
	Station Matching	Displays EPG information about only TV programmes that can be actually received and watched.	61

Home Gallery

With a memory card inserted, allows you to view JPEG images saved in the card.

54–58

PC mode menus

Home Menu	Item	Description	Page
Picture	AV Selection	Select from the two display mode options; STANDARD and USER.	35
	Contrast	Adjusts the picture between light and shade.	36
	Brightness	Adjusts picture brightness.	36
	Red	Adjusts red colour intensity.	36
	Green	Adjusts green colour intensity.	36
	Blue	Adjusts blue colour intensity.	36
	Reset	All image adjustment settings return to the factory defaults.	36
Sound	Treble	Adjusts the treble weaker or stronger.	41
	Bass	Adjusts the bass weaker or stronger.	41
	Balance	Adjusts audio output between left and right speakers.	41
	Reset	All audio adjustment settings return to the factory defaults.	41
	FOCUS	Shifts the sound coming direction (sound images) upward and produces clear sound contours.	41
	Front Surround	Provides three-dimensional sound effects and/or deep, rich bass.	42
Power Control	Energy Save	Saves power by decreasing picture brightness.	42
	Power Management	Automatically places the system into the standby mode when no signal is received from the personal computer.	44
Sleep Timer		Automatically places the system into the standby mode when the selected time elapses.	70
Option	Auto Setup	Automatically optimizes image positions and clock.	64
	Manual Setup	Allows you to manually adjust image positions and clock.	65
Home Gallery		With a memory card inserted, allows you to view JPEG images saved in the card.	54-58

Menu operation keys

Use the following keys on the remote control to operate the menu. For detailed menu operations, see appropriate pages that describe individual functions.

HOME MENU:

Press to open or close the Home menu.

Press to select a menu item. For some menu items, you can select parameters using these keys.

Press to select a parameter or adjustment level for menu items.

ENTER:

Press to proceed to lower menu levels. For some menu items, you need to press this key to complete selections.

RETURN:

Press to return to upper menu levels.

Setting up TV channels automatically

This section describes how to automatically search and set up TV channels.

Using Auto Installation

When the Plasma Display System is switched on for the first time after purchase, the initial auto installation is initiated. You can automatically set language, country and channels in successive operations.

Press / to select "Language", and then press

to select a language.

• You can select from among 12 languages; English, German, French, Italian, Spanish, Dutch, Swedish, Portuguese, Greek, Finnish, Russian, and Turkish.

Press / to select "Country", and then press

to select your country.

Press / to select "Start", and then press ENTER.

• Auto Installation automatically starts.
• To quit Auto Installation in progress, press RETURN.

After Auto Installation has been finished, press HOME MENU to exit the menu.

NOTE

• You can start Auto Installation from the Home menu after moving to another country, for example. Before doing steps 1 to 4 above, do the following steps 1 to 3.

① Press HOME MENU
(2) Press / to select "Setup", and then press ENTER.
③ Press ↑/↓ to select "Auto Installation", and then press ENTER.

• The password entry screen appears. Enter your 4-digit password using buttons 0 - 9 .

• If no channel is found, check the antenna connections, and then retry Auto Installation.

Using Auto Search

Use Auto Search when you just want TV channels to be automatically searched and set up.

1 Press HOME MENU.
2 Press / to select "Setup", and then press ENTER.
3 Press / to select "Programme Setup", and then press ENTER.
- The password entry screen appears. Enter your 4-digit password using buttons 0 - 9 .
4 Press / to select "Auto Search", and then press ENTER.
5 Press / to select "Country", and then press
/ to select your country.

6 Press / to select "Start", and then press ENTER.

• Channel search automatically starts.
• To quit channel search in progress, press RETURN.

7 Press HOME MENU to exit the menu.

NOTE

• If no channel is found, check the antenna connections, and then retry Auto Search.

Setting up TV channels manually

This section describes how to set up TV channels manually.

Using Manual Adjust

Use Manual Adjust to set up TV channels manually.

1 Press HOME MENU.
2 Press / to select "Setup", and then press ENTER.
3 Press / to select "Programme Setup", and then press ENTER.

• The password entry screen appears. Enter your 4-digit password using buttons 0 - 9 .

4 Press / to select "Manual Adjust", and then press ENTER.
5 Press / to select "Programme Entry", and then press / to select a programme number.
- You can select 1 through 99.

6 Press / to select "Search", and then enter a frequency using buttons 0 - 9 and ENTER.

• You can also press / to enter a frequency.

7 Press / to select "System", and then press / to select a sound system.

• You can select from among "B/G", "D/K", "I", "L", and "L".

8 Press / to select "Colour System", and then press / to select a colour system.

• You can select from among "Auto", "PAL", "SECAM", and "4.43NTSC".

9 Press / to select "Store", and then press / to select "Yes".

• With “Yes” selected, you can select the channel using P + / P- . With “No” selected, you cannot select the channel using P + / P- .
• To set up for another channel, repeat steps 5 to 9.

10 Press HOME MENU to exit the menu.

NOTE

• The above procedure transfers and sets the selected channel information to the connected recording equipment such as a VCR or DVD recorder.
• Manual Adjust also allows you to make selections for "Label", "Child Lock", and "Decoder". See "Labeling TV channels", "Setting Child Lock", and "Selecting a decoder input terminal".

Labeling TV channels

You can name TV channels that you have set up, using up to five characters. This may help you easily identify the channels during selections.

1 Follow steps 1 to 4 provided for using Manual Adjust.

After selecting a channel for label entry (using Programme Entry), do the followings steps.

2 Press / to select "Label", and then press ENTER.

• The name entry screen appears.

3 Press / or / to select the first character, and then press ENTER.

• The cursor moves to the second character.

4 Repeat step 3 to enter up to five characters.

• To correct entered characters, select [] or [] on the screen, and then press ENTER. The cursor moves to the proceeding or subsequent character.
• To delete the current character, select [Delete] on the screen, and then press ENTER.
• To put a space for the current character, select [Space] on the screen, and then press ENTER.

5 To complete the name entry, press / or / to select [OK] on the screen, and then press ENTER.
6 Press HOME MENU to exit the menu.

Setting Child Lock

Child Lock inhibits selected TV channels from being tuned and watched.

1 Follow steps 1 to 4 provided for using Manual Adjust.

After selecting a channel for label entry (using Programme Entry), do the followings steps.

2 Press / to select "Child Lock", and then press

/ to select "Block".

• The selection is switched between "View" and "Block".

3 Press HOME MENU to exit the menu.

Selecting a decoder input terminal

If you have connected a decoder, select a decoder input terminal (INPUT1).

1 Follow steps 1 to 4 provided for using Manual Adjust.

After selecting a channel for label entry (using Programme Entry), do the followings steps.

2 Press / to select "Decoder", and then press

/ to select "INPUT1".

3 Press HOME MENU to exit the menu.

NOTE

• With "Off" (factory default) selected, you cannot watch any images from the decoder.

Sorting preset TV channels

Use the following procedure to change the sequence of the preset TV programmes.

1 Press HOME MENU.
2 Press / to select "Setup", and then press ENTER.
3 Press / to select "Programme Setup", and then press ENTER.

• The password entry screen appears. Enter your 4-digit password using buttons 0 - 9 .

4 Press / to select "Sort", and then press ENTER.

• The Sort screen appears.

5 Press / or / to select a channel to be shifted, and then press ENTER.
6 Press / or / to select a new location, and then press ENTER.
- Sorting is executed.
7 Press HOME MENU to exit the menu.

NOTE

• To change a page on the Sort screen in step 6, select / on the screen with / to select a page, and then press ENTER.
• The above procedure transfers and sets only the shifted channel information to recording equipment such as a VCR or DVD recorder.

Language setting

You can select the language to be used for on-screen display such as menus and instructions, from among 12 languages; English, German, French, Italian, Spanish, Dutch, Swedish, Portuguese, Greek, Finnish, Russian and Turkish.

For the language to be used in the TELETEXT mode, you can also select from among West Europe, East Europe, Greece/Turkey, Russia, and Arabia.

To select a language for on-screen display

1 Press HOME MENU.
2 Press / to select "Setup", and then press ENTER.
3 Press / to select "Language", and then press ENTER.
4 Press / to select "Menu", and then press / to select a language.

5 Press / to select "Teletext", and then press / to select a language.
6 Press HOME MENU to exit the menu.

Clock setting

Use the following procedure to set the time correctly.

1 Press HOME MENU.
2 Press / to select "Setup", and then press ENTER.
3 Press / to select "Clock", and then press ENTER.
4 Press / to select "Clock Set Programme", and then press / to select a TV channel to be used for auto clock setting.

5 Press / to select "D.S.T."
6 Press / to select "On" or "Off" depending on whether summer time is employed in your area.
7 Press HOME MENU to exit the menu.

NOTE

• If the system fails to set the date and time through the selected TV channel, the "Time & Date" entry screen appears. Set the correct, current time.

AV Selection

AV selection gives you five viewing options to choose from to best match the Plasma Display System environment, which can vary due to factors like room-brightness, type of programme watched or the type of image input from external equipment.

1 Press HOME MENU.
2 Press / to select "Picture", and then press ENTER.
3 Press / to select "AV Selection", and then press ENTER.
4 Press / to select the desired option, and then press ENTER.

For AV source

Item	Description
STANDARD	For a highly defined image in a normally bright room
DYNAMIC	For a very sharp image with the maximum contrast
MOVIE	For a movie
GAME	Lowers image brightness for easier viewing
USER	Allows the user to customize settings as desired. You can set the mode for each input source.

For PC source

Item	Description
STANDARD (factory default)	For a highly defined image in a normally bright room
USER	Allows the user to customize settings as desired. You can set the mode for each input source.

5 Press HOME MENU to exit the menu.

NOTE

• If you have selected "DYNAMIC", you cannot select "Contrast", "Brightness", "Colour", "Tint", "Sharpness", and "Pro Adjust"; these menu items are dimmed.

Picture adjustments

Adjust the picture to your preference for the chosen AV Selection option (except DYNAMIC).

1 Press HOME MENU.
2 Press / to select "Picture", and then press ENTER.
3 Press / to select an item to be adjusted, and then press ENTER.

4 Press / to select the desired level.

• When an adjustment screen is in display, you can also change an item to be adjusted, by pressing / .

5 Press HOME MENU to exit the menu.

For AV source

Item	← button	→ button
Contrast	For less contrast	For more contrast
Brightness	For less brightness	For more brightness
Colour	For less colour intensity	For more colour intensity
Tint	Skin tones become purplish	Skin tones become greenish
Sharpness	For less sharpness	For more sharpness

For PC source

Item	← button	→ button
Contrast	For less contrast	For more contrast
Brightness	For less brightness	For more brightness
Red	For weaker red	For stronger red
Green	For weaker green	For stronger green
Blue	For weaker blue	For stronger blue

For PC source or Home Gallery, the following screen appears.

NOTE

• Select "Pro Adjust", and then press ENTER to make settings for "PureCinema", "Colour Temp", "MPEG NR", "DNR", "CTI", "DRE", and "Colour Management". See pages 37 to 40.
• To restore the factory defaults for all the items, press / to select "Reset" in step 3, and then press ENTER. A confirmation screen appears. Press / to select "Yes", and then press ENTER.

PureCinema

Automatically detects a film-based source (originally encoded at 24 frames/second), analyses it, then recreates each still film frame for high-definition picture quality.

1 Press HOME MENU.
2 Press / to select "Picture", and then press ENTER.
3 Press / to select "Pro Adjust", and then press ENTER.
4 Press / to select "PureCinema", and then press ENTER.
5 Press / to select the desired parameter, and then press ENTER.

Item	Description
Off	Deactivates the PureCinema.
Standard	Produces smooth and vivid moving images (film specific) by automatically detecting recorded image information when displaying DVD or high-definition images (e.g., movies) having 24 frames per second.
ADV	Produces smooth and quality moving images (as shown on theater screens) by converting to 72 Hz when displaying DVD images (e.g., movies) having 24 frames per second.

6 Press HOME MENU to exit the menu.

NOTE

• Not all parameters can be selected for some types of input signals.

Example 1: "ADV" cannot be selected when PAL or SECAM signals are being input.

Example 2: "Standard" cannot be selected when 480p or 720p signals are being input.

Colour temperature

Adjust the colour temperature to suit whitish tone.

1 Press HOME MENU.
2 Press / to select "Picture", and then press ENTER.
3 Press / to select "Pro Adjust", and then press ENTER.
4 Press / to select "Colour Temp", and then press ENTER.
5 Press / to select the desired level, and then press ENTER.

Item	Description
High	White with bluish tone
Mid-High	Intermediate tone between High and Mid
Mid	Natural tone
Mid-Low	Intermediate tone between Mid and Low
Low	White with reddish tone
Manual	Colour temperature adjusted to your preference

6 Press HOME MENU to exit the menu.

NOTE

You can manually adjust the colour temperature, using the following procedure:

① Select "Manual" in step 5 above, and then press and hold ENTER for more than three seconds to display the manual adjustment screen.
(2) Press / to select an item to be adjusted, and then press ENTER.
(3) Press / to select the desired level, and then press ENTER.

Item		← button	→ button
R High	Fine adjustment for bright portions	For weaker red	For stronger red
G High		For weaker green	For stronger green
B High		For weaker blue	For stronger blue
R Low	Fine adjustment for dark portions	For weaker red	For stronger red
G Low		For weaker green	For stronger green
B Low		For weaker blue	For stronger blue

• To perform adjustment for another item, press RETURN, and then repeat steps ② and ③.
• You may press / to immediately change an item to be adjusted.

④ Press HOME MENU to exit the menu.

MPEG NR

This eliminates mosquito noise from video images when, for example, a DVD is played, resulting in noise-free images.

1 Press HOME MENU.
2 Press / to select "Picture", and then press ENTER.
3 Press / to select "Pro Adjust", and then press ENTER.
4 Press / to select "MPEG NR", and then press ENTER.
5 Press / to select the desired level, and then press ENTER.

Item	Description
Off	Deactivates the MPEG NR.
High	Enhanced MPEG NR
Mid	Standard MPEG NR
Low	Moderate MPEG NR

6 Press HOME MENU to exit the menu.

DNR

Select the DNR (Digital Noise Reduction) level to eliminate video noise for a clean crisp image.

1 Press HOME MENU.
2 Press / to select "Picture", and then press ENTER.
3 Press / to select "Pro Adjust", and then press ENTER.
4 Press / to select "DNR", and then press ENTER.
5 Press / to select the desired level, and then press ENTER.

Item	Description
Off	Deactivates the DNR.
High	Enhanced DNR
Mid	Standard DNR
Low	Moderate DNR

6 Press HOME MENU to exit the menu.

CTI

Use the CTI (Colour Transient Improvement) to make images have clearer colour contours.

1 Press HOME MENU.
2 Press / to select "Picture", and then press ENTER.
3 Press / to select "Pro Adjust", and then press ENTER.
4 Press / to select "CTI", and then press ENTER.
5 Press / to select the desired parameter, and then press ENTER.

Item	Description
Off	Deactivates the CTI.
On	Activates the CTI.

6 Press HOME MENU to exit the menu.

DRE

Use the DRE (Dynamic Range Expander) to adjust dark and bright portions on images so that the contrast between brightness and darkness becomes clearer.

1 Press HOME MENU.
2 Press / to select "Picture", and then press ENTER.
3 Press / to select "Pro Adjust", and then press ENTER.
4 Press / to select "DRE", and then press ENTER.
5 Press / to select the desired level, and then press ENTER.

Item	Description
Off	Deactivates the DRE.
High	Enhanced DRE
Mid	Standard DRE
Low	Moderate DRE

6 Press HOME MENU to exit the menu.

Colour Management

Perform fine hue adjustment for each basic colour.

1 Press HOME MENU.
2 Press / to select "Picture", and then press ENTER.
3 Press / to select "Pro Adjust", and then press ENTER.
4 Press / to select "Colour Management", and then press ENTER.
5 Press / to select an item to be adjusted, and then press ENTER.

6 Press to select the desired level.

Item	← button	→ button
Red	Closer to magenta	Closer to yellow
Yellow	Closer to red	Closer to green
Green	Closer to yellow	Closer to cyan
Cyan	Closer to green	Closer to blue
Blue	Closer to cyan	Closer to magenta
Magenta	Closer to blue	Closer to red

• To perform adjustment for another item, press RETURN, and then repeat steps 5 and 6.
• You may press / to immediately change an item to be adjusted.

7 Press HOME MENU to exit the menu.

Sound adjustments

You can adjust the sound quality to your preference with the following settings.

Adjust the sound to your preference for the chosen AV Selection option. See page 35.

1 Press HOME MENU.
2 Press / to select "Sound", and then press ENTER.
3 Press to select an item to be adjusted.
4 Press to select the desired level.

Item	← button	→ button
Treble	For weaker treble	For stronger treble
Bass	For weaker bass	For stronger bass
Balance	Decreases audio from the right speaker	Decreases audio from the left speaker

5 Press HOME MENU to exit the menu.

NOTE

• To restore the factory defaults for all the items, press / to select "Reset" in step 3, and then press ENTER. A confirmation screen appears. Press / to select "Yes", and then press ENTER.
• You cannot adjust the sound quality for listening with phones.
• If you perform sound adjustments with phones connected, the new settings will become effective for sound from the speakers after the phones are disconnected.

FOCUS

This shifts the sound coming direction (sound images) upward and produces clear sound contours.

1 Press HOME MENU.
2 Press / to select "Sound", and then press ENTER.
3 Press / to select "FOCUS", and then press / to select the desired parameter.

Item	Description
Off (factory default)	Deactivates the FOCUS.
On	Activates the FOCUS.

4 Press HOME MENU to exit the menu.

NOTE

• The effect of this function differs depending on signals.
• You cannot set up the sound field for listening with phones.
• If you set up the sound field with phones connected, the new setting will become effective for sound from the speakers after the phones are disconnected.

Front Surround

This provides three-dimensional sound effects and/or deep, rich bass.

1 Press HOME MENU.
2 Press / to select "Sound", and then press ENTER.
3 Press / to select "Front Surround", and then press / to select the desired parameter.

Item	Description
Off	Deactivates both the SRS and TruBass.
SRS	Reproduces highly effective threedimensional sound.
TruBass (factory default)	Provides deep, rich bass using a new technology.
TruBass + SRS	Provides both TruBass and SRS effects.

4 Press HOME MENU to exit the menu.

NOTE

• SRS (WOW) designates a status where the FOCUS is on and TruBass + SRS has been selected for Front Surround.
• () is a trademark of SRS Labs, Inc.
• WOW technology is incorporated under license from SRS Labs, Inc.
• The effect of this function differs depending on signals.
• You cannot set up the sound field for listening with phones.
• If you set up the sound field with phones connected, the new setting will become effective for sound from the speakers after the phones are disconnected.

Power Control

Power Control provides convenient functions for power saving.

Power Control for AV source

Energy Save

Power consumption is saved by decreasing picture brightness.

1 Press HOME MENU.
2 Press / to select "Power Control", and then press ENTER.
3 Press / to select "Energy Save", and then press ENTER.
4 Press / to select "Save", and then press ENTER.

Item	Description
Standard (factory default)	Does not decrease picture brightness.
Save	Decreases picture brightness to save power.

5 Press HOME MENU to exit the menu.

NOTE

• You can also select this function using the Home menu when the input source is a PC.

No Signal off

The system will be automatically placed into the standby mode if no signal is received for 15 minutes.

1 Press HOME MENU.
2 Press / to select "Power Control", and then press ENTER.
3 Press / to select "No Signal off", and then press ENTER.
4 Press / to select "Enable", and then press ENTER.

Item	Description
Disable (factory default)	Does not place the system into the standby mode.
Enable	Places the system into the standby mode if no signal is received for 15 minutes.

5 Press HOME MENU to exit the menu.

NOTE

• Five minutes before the system is placed into the standby mode, a message appears every minute.
• The system may not be placed into the standby mode when noise signals are present at the Media Receiver after a TV program finishes.

No Operation off

The system will be automatically placed into the standby mode when no operation is performed for three hours.

1 Press HOME MENU.
2 Press / to select "Power Control", and then press ENTER.
3 Press / to select "No Operation off", and then press ENTER.
4 Press / to select "Enable", and then press ENTER.

Item	Description
Disable (factory default)	Does not place the system into the standby mode.
Enable	Places the system into the standby mode if no operation is performed for three hours.

5 Press HOME MENU to exit the menu.

NOTE

• Five minutes before the system is placed into the standby mode, a message appears every minute.

Power Control for PC source

Power Management

The system will be automatically placed into the standby mode when no signal is received from the personal computer.

1 Press HOME MENU.
2 Press / to select "Power Control", and then press ENTER.
3 Press / to select "Power Management", and then press ENTER.
4 Press / to select "Mode1"or"Mode2", and then press ENTER.

Item	Description
Off (factory default)	No power management
Mode1	• Places the system into the standby mode when no signal is received from the personal computer for eight minutes. • Even when you start using the computer and a signal is received again, the system stays off. • The system is switched on again by pressing STANDBY/ON on the Plasma Display or 0 – 9 on the remote control unit. The system is out of PC mode. (See page 22.)
Mode2	• Places the system into the standby mode when no signal is received from the personal computer for eight seconds. • When you start using the computer and a signal is input again, the system is switched on. • The system is switched on again by pressing STANDBY/ON on the Plasma Display or 0 – 9 on the remote control unit. The system is out of PC mode. (See page 22.)

5 Press HOME MENU to exit the menu.

What is Teletext?

Teletext broadcasts pages of information and entertainment to specially equipped television sets. Your Plasma Display System receives Teletext signals broadcast by TV networks, and decodes them into graphical format for viewing. News, weather and sports information, stock exchange prices and programme previews are among many services available.

Operating the Teletext basics

Turning on and off Teletext

1 Select a TV channel or external input source providing a Teletext programme.
2 Press to display the Teletext (full screen).
3 Press again to display the Teletext on the right screen and normal image on the left screen.

Each time you press l , the screen switches as shown to the left.
- If you select a programme with no Teletext signal, "Cannot display Teletext." appears.

Selecting and operating Teletext pages

Use the following remote control buttons to select and operate Teletext pages.

Colour (RED/GREEN/YELLOW/BLUE):

You can select a group or block of pages displayed in the coloured brackets at the bottom of the screen by pressing the corresponding colour (RED/GREEN/YELLOW/BLUE) on the remote control unit.

0-9:

Directly select any page from 100 to 899 by using 0 - 9

Selects the next or previous page.

三：

Each time you press , the teletext image switches as shown below.

E:

To display hidden information such as an answer to a quiz, press 37 .

• Press again to hide the information.

：

To stop updating Teletext pages, press

• Press again to release the hold mode.

3i:

Displays an Index page for the CEEFAX/FLOF format. Displays a TOP Over View page for the TOP format.

NOTE

• Before displaying the Teletext, return the screen to the single-screen mode.

Displaying subpages

You can display several subpages as they are transmitted.

Subpage screen

1 Press to display Teletext.
- If you open a page containing subpages, the subpages are automatically displayed in sequence.
2 To quit automatic subpage change, press / .
- You can then manually change subpages by pressing / .

NOTE

• Pressing l causes the page to be changed and the subpage screen to disappear.
• Pressing stops automatic subpage change and performs its respective button function.

Displaying TOP Over View

When receiving TOP Teletext, you can read a TOP text overview.

TOP Over View screen

1 Press to display Teletext.
2 While receiving TOP Teletext, press i to display TOP Over View.
3 Press / and / to select the desired block or group pages, and then press ENTER.

NOTE

• When the TOP Over View screen is in display, no other buttons are available than -/ + , I-II, and.

Enjoying through External Equipment

You can connect many types of external equipment to your Plasma Display System, like a decoder, VCR, DVD player, personal computer, game console, and camcorder. To view images coming from external equipment, select the input source using the INPUT buttons on the remote control or the INPUT button on the Plasma Display.

CAUTION

• To protect all equipment, always turn off the Media Receiver before connecting to a decoder, VCR, DVD player, personal computer, game console, camcorder, or other external equipment.

NOTE

• Refer to the relevant operation manual (DVD player, personal computer, etc.) carefully before making connections.

Watching a decoder image

Connecting a decoder

Use the INPUT 1 terminal when connecting a decoder and other audiovisual equipment.

Media Receiver (rear view)
Decoder

Displaying a decoder image

To watch a decoder image

① Press buttons 0-9 or P + / P- to select a programme specified for decoder setting (page 33).
② Press INPUT 1 on the remote control unit or press INPUT on the Plasma Display to select INPUT1.

NOTE

• Be sure to use INPUT1 to connect a decoder.
• If decoder images do not come in clearly, you may need to change the input signal type setting using the menu. See pages 65 and 66.
• Refer to your decoder operation manual for the signal type.

Watching a VCR image

Connecting a VCR

Use the INPUT 2 or 3 terminal when connecting a VCR and other audiovisual equipment.

If your VCR supports TV-VCR advanced "AV link" systems (page 49), you can connect the VCR to the INPUT 2 or 3 terminal on the Media Receiver using the fully-wired 21-pin SCART cable.

AV link advanced system

• Download tuning information directly from TV to VCR (Preset download).

• While watching TV, you can record a programme with a one-touch press of the VCR recording button. (WYSIWYR*)

• Refer to your VCR operation manual as some VCRs have an exclusive key for WYSIWYR.

• When you press the play button on the VCR, the system automatically turns on from standby and displays a VCR image.

NOTE

• TV-VCR advanced "AV link" systems may not be compatible with some external sources.

Media Receiver (rear view)

Displaying a VCR image

To watch a VCR image, press INPUT 2 on the remote control unit or press INPUT on the Plasma Display to select INPUT2.

NOTE

• If VCR images do not come in clearly, you may need to change the input signal type setting using the menu. See pages 65 and 66.
• Refer to your VCR operation manual for the signal type.

Using i/o Link.A

This system incorporates three typical i/o Link.A functions for smooth connections between Media Receiver and other audiovisual equipment.

One Touch Play

While the Plasma Display System is in standby mode, it automatically turns on and plays back images from the audiovisual source (e.g. VCR, DVD).

WYSIWYR (What You See Is What You Record)

When the remote control unit of the connected VCR has the WYSIWYR button, you can automatically start recording by pressing the WYSIWYR button.

Preset Download

Automatically transfers channel preset information from the tuner on the Plasma Display System to the one on the connected audiovisual equipment (e.g. VCR) via the INPUT 2 or 3 terminal.

NOTE

• The i/o Link.A functions work only when the audiovisual equipment is connected to the INPUT 2 or 3 terminal on the Media Receiver with i/o Link.A via a fully wired 21-pin SCART.
• Either INPUT 2 or 3 is available for i/o Link.A, depending on the switch on the rear of the Media Receiver.
• Using this switch, select the input terminal to which recording equipment such as a VCR has been connected.
  Refer to operation manuals of each external equipment for the details.

Watching a DVD image

Connecting a DVD player

Use the INPUT 3 terminal when connecting to a DVD player and other audiovisual equipment.

NOTE

• If a SCART cable has been connected to the INPUT 3 terminal with the i/o Link.A activated, input signals (other than Component) are automatically identified and displayed. If the i/o Link.A has been deactivated, Video is always selected for signals other than RGB because the system cannot identify among RGB, Y/C (S-Video), and CVBS (Video) signals; for example, receiving Y/C (S-Video) signals results in monochrome display.

Media Receiver (rear view)
DVD player

When using component cable, select "COMPONENT" for "Input Select" in the menu. See page 65. At the same time connect a SCART cable to input audio signals.

Displaying a DVD image

To watch a DVD image, press INPUT 3 on the remote control unit or press INPUT on the Plasma Display to select INPUT3.

NOTE

• If DVD images do not come in clearly, you may need to change the input signal type setting using the menu. See pages 65 and 66.
• Refer to your DVD player operation manual for the signal type.

Enjoying a game console and watching camcorder images

Connecting a game console or camcorder

Use the INPUT 4 terminal to connect a game console, camcorder, and other audiovisual equipment.

Media Receiver (front view)

Displaying an image from the game console or camcorder

To watch an image coming from the game console or camcorder, press INPUT 4 on the remote control unit or press INPUT on the Plasma Display to select INPUT4.

NOTE

• The INPUT 4 terminals are checked for cable connections in the order where; 1) S-Video, 2) Video.
• Connect external equipment to only terminals that are to be actually used.

Watching an image from a personal computer

Connecting a personal computer

Use the PC terminals to connect a personal computer.

NOTE

• The PC input terminals are DDC1/2B-compatible.

Displaying an image from a personal computer

To watch an image coming from the personal computer, press PC on the remote control unit or press INPUT on the Plasma Display to select "PC".

When connecting to a personal computer, the correct input signal type is automatically detected. If the personal computer image does not come in clearly, you may need to use Auto Setup menu. See page 64.

Computer compatibility chart

Resolution	Frequency	Remarks
720 × 400	70 Hz
640 × 480	60 Hz
	65 Hz	Macintosh 13" (67 Hz)
	72 Hz
	75 Hz
800 × 600	56 Hz
	60 Hz
	72 Hz
	75 Hz
832 × 624	74.5 Hz	Macintosh 16"
1024 × 768	60 Hz
	70 Hz
	75 Hz	Macintosh 19"
1280 × 768	56 Hz
	60 Hz
	70 Hz

NOTE

• The PC terminals cannot be used for audiovisual equipment.

Enjoying through audio equipment in connection

Connecting audio equipment

You can enjoy more powerful sound by connecting such audio equipment as an AV receiver or subwoofer.

Media Receiver (rear view)

NOTE

• For details, refer to the operation manual for the audio equipment to be connected.
• Signals are always output to the MONITOR OUTPUT terminal regardless of channels and input.
• Signals are always output to the SUB WOOFER OUTPUT terminal except when phones are in connection.

Enjoying through memory cards (Home Gallery function)

On this system, you can watch JPEG images that have been captured and stored in memory cards using a digital still camera.

Readable memory cards

This system can read memory cards that conform to the PCMCIA Type II and whose formats are the FAT12, FAT16, FAT32, or VFAT.

Readable data files

This system can read only JPEG files that meet the following conditions:

• Extensions are JPG or JPEG.
• JPEG 4:2:2 format
• The image resolution must be less than 2400 pixels in the horizontal direction and 1800 pixels in the vertical direction.
• The image resolution must be higher than 160 pixels in the horizontal direction and 120 pixels in the vertical direction.

NOTE

• This system may not be able to display images, depending on the type of your PC CARD adapter or memory card.
• This system may not be able to display images modified or edited using a personal computer or other equipment.

Inserting a memory card

1 Open the front door on the Media Receiver.
2 Hold the memory card with its top side faced upward, and then insert it into the PC CARD slot.

• Insert the memory card as far as it goes.
• When you insert the memory card while the system is on, the initial Home Gallery screen appears.

Front of the Media Receiver (with the front door opened)

Memory card with PC CARD adapter

3 Close the front door on the Media Receiver.

Removing a memory card

To remove a memory card, quit the memory card screen, and then push the PC CARD eject button. The memory card is ejected.

NOTE

• Be sure to quit the Home Gallery screen before removing the memory card. If you remove the memory card while the Home Gallery screen is in display, data in the memory card may be damaged.
• Do not insert or remove a memory card into/from the PC CARD slot immediately after the system is switched on or off. This may cause data in the memory card to be damaged.

Starting the initial Home Gallery screen

When you insert a memory card while the system is on, the following initial screen appears automatically.

To start the initial Home Gallery screen from the Home menu:

If a memory card has been already inserted into the PC CARD slot, use the Home menu to start the initial Home Gallery screen.

1 Press HOME MENU.
2 Press / to select "Home Gallery", and then press ENTER.

Selecting a folder

The initial Home Gallery screen shows folders saved in the memory card. Different types of icons appear depending on the contents of folders.

• Designates a folder that contains another folder.

• Designates a folder that contains one or more image files.

• Designates a folder that contains no image file.

• Designates an image file saved under the root directory.

To select a desired folder, press / and then ENTER. Images in the selected folder are displayed in thumb-nail format (page 56).

Starting a thumbnail screen

When a folder is selected on the initial Home Gallery screen, images in the folder are displayed in thumbnail format.

① File name
② Image selection cursor
③ Appears for unreadable images.
(4) Total number of images in the folder
⑤ Appears when the folder contains more than 16 images. Press / to scroll the screen.

To highlight a desired image, press / and / to move the cursor. Information about the highlighted image appears at the top left of the screen.

① File name
② Number of pixels (horizontal × vertical)
③ Save date

To quit the Home Gallery function, press HOME MENU.

Starting a standard single-image screen

When the thumbnail screen is in display, press / and / to highlight a desired image, and then press ENTER. The thumbnail screen is quitted and only the selected image is displayed.

With the above screen displayed, you can use the following keys to perform various operations:

/ and / :

Scrolls the displayed image when the entire image is not displayed.

RED:

Displays the image using the full screen. To quit the full-screen display, press RETURN.

GREEN:

Enlarges the displayed image (if allowed by the image).

YELLOW:

Reduces the displayed image (if enlarged by pressing the GREEN button).

BLUE:

Rotates the displayed image clockwise. Each press rotates the image in the sequence; 90^ , 180^ , and then 270^ .

HOME MENU:

Quits the Home Gallery function.

NOTE

• Be careful not to display the same image for an extended period of time. The image may be burnt into the screen, resulting in a residual image.
• Images smaller than 1024 × 768 pixels are displayed with blank surrounding.
• You may not be able to enlarge or reduce images because of their original sizes.

Starting the Slide Show Setup screen

When the thumbnail screen is in display, press GREEN to start the screen for setting up for Slide Show that sequentially changes images.

1 Press / to select "Display Mode", and then press / to select "Normal" or "Full".

• With "Full" selected, images are displayed using the full screen.

2 Press to select "Playback Order", and then press to select "Name Order" or "Random".

3 Press / to select "Number Of Times Of Playback", and then press / to select "Single Time" or "Loop".

• With "Loop" selected, Slide Show is repeated until RETURN is pressed.

4 Press / to select "Playback Mode", and then press / to select "Auto" or "Manual".

• With "Auto" selected, images are automatically changed at the specified intervals.
• With "Manual" selected, images are changed each time you press P + / P -

5 If you have selected "Auto" in step 4, press / to select "Interval(sec)", and then press / to select the desired display duration for individual images.

• You can select from among 3 seconds, 5 seconds, 10 seconds, 20 seconds, 30 seconds, 60 seconds, and 90 seconds.

6 To start the Slide Show screen, press the red button.

• To restore the thumbnail screen, press RETURN.
• To quit the Home Gallery function, press HOME MENU.

Starting the Slide Show screen

After setting up for Slide Show, you can start Slide Show to sequentially change images.

1 To start the Slide Show screen, press the red button when the Slide Show Setup screen or a thumbnail screen is in display.

• With "Auto" selected for "Playback Mode", images are automatically changed at the specified intervals.
• With "Manual" selected for "Playback Mode", press P + / P- to change images.
• While images are automatically changed, you can stop and hold automatic image change for approximately 90 seconds by pressing l .

2 When quitting the Slide Show screen, press RETURN to restore the thumbnail screen or HOME MENU to quit the Home Gallery function.

NOTE

• With "Random" selected for "Playback Order" selected, you cannot press P- to manually change images.

Adjusting the picture quality

When a thumbnail screen is in display, press YELLOW. The same picture adjustment screen as the PC source is displayed. For the subsequent procedure, see page 36.

Connecting control cords

Connect control codes between the Media Receiver and other PIONEER equipment having the SR logo. You can then operate the connected equipment by sending commands from its remote control unit to the remote control sensor on the Media Receiver.

After the CONTROL IN terminals have been connected, the remote control sensors on the connected equipment do not accept commands from the remote control units. Face the remote control units to the remote control sensor on the Plasma Display when operating the connected equipment.

About SR+

The CONTROL OUT terminal on the rear of the Media Receiver supports SR+ that allows linked operations with a PIONEER AV receiver. SR+ presents functions such as the input switch linkage operation function and the DSP surround mode display function. For more information, see the user's manual for the PIONEER AV receiver supporting SR+ .

NOTE

• While in connection through SR+ , the volume on this system is temporarily minimized.

NOTE

• Make sure that the power is turned off when making connections.
• Complete all component connections before making control cord connections.

Media Receiver (rear view)

The control cables (commercially available) are monaural cables with mini plugs (no resistance).

Use the Electronic Programme Guide (EPG) to search desired TV programmes or view information about them. Using the timer, it also allows you to preset desired programmes for recording with a VCR.

Setting up for using the EPG

Updating EPG information automatically

Specify whether or not the system is to automatically acquire EPG information from a specified broadcasting station.

1 Press HOME MENU.
2 Press / to select "EPG", and then press ENTER.
3 Press / to select "Data Auto Update", and then press to select "Disable" or "Enable".

Item	Description
Disable (factory default)	Deactivates the EPG.
Enable	Automatically acquires EPG information at midnight and when watching a broadcast- ing station specified as an EPG information provider.

4 Press HOME MENU to exit the menu.

Specifying an EPG information provider

Specify a broadcasting station to acquire EPG information.

1 Press HOME MENU.
2 Press / to select "EPG", and then press ENTER.
3 Press / to select "Data Provider", and then press / to select the desired broadcasting station.

4 Press HOME MENU to exit the menu.

Restricting the display of EPG information

Use this function to display the EPG information about only TV programmes that can be actually received and watched.

1 Press HOME MENU.
2 Press / to select "EPG", and then press ENTER.
3 Press / to select "Station Matching", and then press / to select "On".

Item	Description
Off (factory default)	Displays all broadcasting stations’ EPG information processed by the specified EPG information provider.
On	Displays EPG information about TV programmes that can be actually received and watched.

4 Press HOME MENU to exit the menu.

Searching programmes

1 Press EPG.
2 Press the colour button to select a search parameter.
3 Press to perform selection for the parameter.

• A list of searched programmes appear.

4 Press EPG to exit the menu.

NOTE

• For "Time" or "Date", you cannot select the past time or date.
• Before displaying EPG information, tune to a TV channel and return the screen to the single-screen mode.
• While EPG information is in display, only the following buttons are functional:

, +, 叹 and I - II .

Icons displayed on the Programme List and Programme Information

Icon	Meaning
4:3	Aspect ratio 4:3
16:9	Aspect ratio 16:9
○○	Bilingual
○○	Stereo
----	Channel with subtitles

Viewing programme information

1 Press EPG.
2 Press / to select the desired programme, and then press ENTER.

Information about the selected programme appears.

3 Press / to scroll the information.
- To return to the programme list screen, press RETURN.
4 Press EPG to exit the menu.

Recording a programme using a recording equipment

When recording equipment (such as a VCR or DVD recorder) is in connection, you may use the Electronic Programme Guide to preset TV programmes for recording.

1 Press EPG.
2 Press / to select the desired programme, and then press ENTER.

• Information about the selected programme appears.

3 Press the red button.
4 Press / to select "Rec Speed".
5 Press to select "SP" (standard) or "LP" (extended).

6 Press / to select "PDC/VPS".
7 Press / to select "ON" or "OFF".
8 Press / to select "Record?".
9 Press to select "OK", and then press ENTER.
10 Press EPG to exit the menu.

NOTE

• Make sure to leave the VCR power on when presetting TV programmes for recording.
• You can return to the programme list screen by pressing RETURN.
• This function is available only when recording equipment has been connected to the INPUT 2 or 3 terminal with the i/o Link.A activated, using a SCART cable.
• For programmes preset (for recording) using the EPG, you can perform deletion or change only on the recording equipment (VCR or DVD recorder) which is a transfer destination.

Selecting a programme for immediate watch

Using the EPG, you can also select a TV programme currently on air to immediately start watching.

1 Press EPG.
2 Press / to select the desired programme currently on air, and then press ENTER.

Information about the selected programme appears.

3 Press the green button.
- The EPG menu is quitted and the selected TV programme is displayed using the entire screen.

Adjusting image positions (AV mode only)

Adjust the horizontal and vertical positions of images on the Plasma Display.

1 Press HOME MENU.
2 Press / to select "Option", and then press ENTER.
3 Press / to select "Position", and then press ENTER.
4 Press / to select "H/V Position Adjust", and then press ENTER.

5 Press / to adjust the vertical position or press / to adjust the horizontal position.

6 Press HOME MENU to exit the menu.

NOTE

• To restore the factory defaults for all the items, press / to select "Reset" in step 4, and then press ENTER. A confirmation screen appears. Press / to select "Yes", and then press ENTER.
• Adjustments are stored separately according to input source.

Adjusting image positions and clock automatically (PC mode only)

Use Auto Setup to automatically adjust positions and clock of images coming from a personal computer.

1 Press HOME MENU.
2 Press / to select "Option", and then press ENTER.
3 Press / to select "Auto Setup", and then press ENTER.

• Auto Setup starts.

4 Press HOME MENU to exit the menu.

NOTE

• When Auto Setup is finished, "Auto Setup completed." appears.
• Auto Setup may fail with a PC image composed of similar patterns or monochrome. If not successful, change the PC image and try again.
• Be sure to connect the computer to the Media Receiver and switch it on before starting Auto Setup.

Adjusting image positions and clock manually (PC mode only)

Usually you can easily adjust the positions and clock of images using Auto Setup. Use Manual Setup to optimize the positions and clock of images when necessary.

1 Press HOME MENU.
2 Press / to select "Option", and then press ENTER.
3 Press / to select "Manual Setup", and then press ENTER.
4 Press / to select the item to be adjusted, and then press ENTER.

5 Press / (and / ) to perform adjustment.

• Use / only when you adjust the vertical position after selecting "H/V Position Adjust".

6 Press HOME MENU to exit the menu.

NOTE

• To restore the factory defaults for all the items, press

/ to select "Reset" in step 4, and then press ENTER. A confirmation screen appears. Press / to select "Yes", and then press ENTER.

Selecting an input signal type

After connecting to the INPUT 1, INPUT 2, or INPUT 3 terminal, specify the type of video signals to be received from the connected equipment. For the type of the signals, see the operation manual that came with the connected equipment.

Before starting the menu, press INPUT 1, INPUT 2, or INPUT 3 on the remote control unit or press INPUT on the Plasma Display to select an input source.

1 Press HOME MENU.
2 Press / to select "Option", and then press ENTER.
3 Press / to select "Input Select", and then press ENTER.
4 Press / to select a signal type, and then press ENTER.

• For INPUT1, you can select Video or RGB.
• For INPUT2, you can select Video or S-Video.
• For INPUT3, you can select Video, S-Video, RGB, or COMPONENT.

5 Press HOME MENU to exit the menu.

NOTE

• If no image appears or images appear in inappropriate colours, specify another video signal type.
• For the signal types to be specified, check the operation manual that came with the connected equipment.

Colour system setting (AV mode only)

If an image does not appear clearly, select another colour system (e.g., PAL, NTSC).

1 Press HOME MENU.
2 Press / to select "Option", and then press ENTER.
3 Press / to select "Colour System", and then press ENTER.
4 Press / to select a video signal system, and then press ENTER.

• You can select "Auto", "PAL", "SECAM", "NTSC", or "4.43NTSC".
• With "Auto" selected, input signals are automatically identified.

5 Press HOME MENU to exit the menu.

NOTE

• The factory default is "Auto".
• You need to perform colour system setting for each of INPUT 1 to 4.
• For colour system setting for each channel, see pages 30 and 31.

AV mode

PC mode except for XGA signals

PC mode for XGA signals

Select a screen size

Manual Selection

Press to switch among the screen size options selectable for the type of video signals currently received.

Each time you press + , the selection is switched.
- The selectable screen sizes differ depending on the types of input signals.

AV mode

Item	Description
4:3	For 4:3 “standard” pictures. A side mask appears on each side.
FULL 14:9	For 14:9 squeeze pictures. A thin side mask appears on each side.
CINEMA 14:9	For 14:9 letterbox pictures. A thin side mask appears on each side, and you may also see bars on the top and bottom with some programmes.
WIDE	In this mode the picture is progressively stretched toward each side of the screen.
FULL	For 16:9 squeeze pictures.
ZOOM	For 16:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.
CINEMA	For 14:9 letterbox pictures. Bars may appear on the top and bottom on some programmes.

PC mode except for XGA signals

Item	Description
4:3	Fills the screen without altering the input signal aspect ratio.
FULL	Full 16:9 screen display
Dot by Dot	Matches input signal with same number of screen pixels.

PC mode for XGA signals

(Ex. 1024 × 768 input at PDP-504HDE)

Item	Description
4:3	Matches input signal with the same number of screen pixels. Optimized for 1024 × 768 display
FULL1	Full 16:9 screen display Optimized for 1024 × 768 display
FULL2	For wide signal display Use when displaying 1280 × 768 signal resolution.

NOTE

• The specifications given for the PC mode is for the PDP-504HDE. For the PDP-434HDE, the number of panel pixels is different, and thus signal processing and actual viewing conditions will vary slightly.

Auto Selection

If you set "WSS" and "4:3 Mode" in the Option menu, the optimum screen mode is automatically chosen for every video signal containing the WSS information.

Wide screen signalling (WSS) (AV mode only)

WSS allows the system to switch automatically among the different screen formats.

1 Press HOME MENU.
2 Press / to select "Option", and then press ENTER.
3 Press / to select "WSS", and then press ENTER.
4 Press / to select "On", and then press ENTER.

Item	Description
On	Activates the WSS function.
Off (factory default)	Deactivates the WSS function.

5 Press HOME MENU to exit the menu.

NOTE

• Manually select an appropriate screen size if an image does not automatically switch to a correct screen format.
• When the video signal contains no WSS information, the function will not work even with "On" selected.

Picture aspect ratio (AV mode only)

With the WSS function switched to "On", select the display format for 4:3 aspect ratio signal input.

1 Press HOME MENU.
2 Press / to select "Option", and then press ENTER.
3 Press / to select "4:3 Mode", and then press ENTER.
4 Press / to select "4:3" or "WIDE", and then press ENTER.

Item Description

4:3	Keeps the 4:3 aspect ratio and presents side masks.
WIDE (factory default)	Wide image without side masks.

4:3

WIDE

5 Press HOME MENU to exit the menu.

Changing the brightness at both sides of the screen (Side Mask)

With the 4:3/FULL 14:9/CINEMA 14:9 screen size selected for the AV mode, you can change the brightness of the gray side masks that appear at both sides of the screen.

1 Press HOME MENU.
2 Press / to select "Option", and then press ENTER.
3 Press / to select "Side Mask", and then press ENTER.
4 Press / to select the desired parameter, and then press ENTER.

Item	Description
Fixed (factory default)	Always sets the same brightness for the gray side masks.
Auto	Adjusts the brightness of the gray side masks according to the brightness of images.

5 Press HOME MENU to exit the menu.

Sleep Timer

When the selected time elapses, the Sleep Timer automatically places the system into the standby mode.

1 Press HOME MENU.
2 Press / to select "Sleep Timer", and then press ENTER.
3 Press / to select the desired time, and then press ENTER.

Remain 90min

Off

30min

60min

90min

120min

• You can select from among "Off" (cancel), "30 min", "60 min", "90 min", and "120 min".

4 Press HOME MENU to exit the menu.

Sleep Timer

NOTE

• Five minutes before the selected time elapses, the remaining time appears every minute.
• To check the remaining time, do steps 1 and 2.

Using a password (AV mode only)

This system provides the Child Lock function for preventing children from watching inappropriate programmes. You need to enter a password when watching programmes with "Block" specified. Before the system is shipped, "1234" is preset as the factory-default password. You can however, change the password as you want.

When using the Home menu you select "Auto Installation", "Programme Setup", or "Password", a screen prompting password entry appears to prevent others from changing the programme settings at their choices.

Entering a password

In a case where you select a channel blocked with Child Lock or password entry is requested when attempting to open the menu, enter a password correctly.

1 Enter a correct 4-digit password using buttons 0-9.

NOTE

• If you fail password entry three times, "Invalid password." appears, and the menu is closed. In order to display the password entry screen again to unlock the password, select the blocked channel or open the menu again.

Changing the password

Use the following procedure to change the password.

1 Press HOME MENU.
2 Press / to select "Setup", and then press ENTER.
3 Press / to select "Password", and then press ENTER.

• The password entry screen appears. Enter the current 4-digit password using buttons 0 - 9 .

4 Press / to select "Change Password", and then press ENTER.

5 Enter a 4-digit password to be newly set, using buttons 0 - 9
6 Enter the same password that you have entered in step 5.

• If an unmatched password is entered, the operation goes back to step 5 for reentry from the beginning.
• If you fail password change three times by entering unmatched passwords, the menu is closed.

7 Press HOME MENU to exit the menu.

NOTE

• Take a note of the newly set password and keep it handy.

Resetting the password

1 Press HOME MENU.
2 Press / to select "Setup", and then press ENTER.
3 Press / to select "Password", and then press ENTER.

• The password entry screen appears. Enter your 4-digit password using buttons 0 - 9 .

4 Press / to select "Reset", and then press ENTER.

5 Press / to select "Yes", and then press ENTER.
6 Press HOME MENU to exit the menu.

NOTE

• The above procedure will reset the password to the factory default (1234).

Cut along the dotted line and file after reading and filling out.

We suggested you write down your password so you don't forget it.

PDP-504HDE/PDP-434HDE

Your password No.:

If you forget the password

When the message "Please Input Your Password" is displayed in step 3 above, press the ENTER button on the remote control unit and hold it down for 3 seconds or longer.

The password reverts to "1234".

Troubleshooting

Problem	Possible Solution
• No power. • The system cannot be switched on.	• Make sure that the Plasma Display and the Media Receiver are connected correctly. (See page 18.) • Is the power cord disconnected? (See page 21.) • Has the main power been turned on? (See page 22.) • Check if you pressed buttons 0 - 9 on the remote control unit. (See page 22.) • If the indicator on the system lights up red, press 0 - 9.
• Green and red rectangles appear on the screen alternately.	• Check if the system cable has been disconnected or almost disconnected? (See page 18.)
• The system cannot be operated.	• External influences such as lightning, static electricity, etc., may cause improper operation. In this case, operate the system after first turning the power of the Plasma Display and the Media Receiver, or unplugging the power cord and re-plugging it in after 1 or 2 minutes.
• Remote control unit does not operate.	• Are batteries inserted with polarity (+, -) aligned? (See page 20.) • Are batteries worn out? Replace with new batteries. (See page 20.) • Operate the remote control unit while pointing it toward the remote control sensor on the Plasma Display. (See page 15.) • Are you using it under strong or fluorescent lighting? • Is a fluorescent light illuminated to remote control sensor?
• No image and audio is presented.	• Check if the input source for video or PC has been unintentionally selected although you want to watch a TV channel. (See page 23.) • Check if you have selected a channel blocked with Child Lock. (See page 32.) Enter a password to temporarily cancel Child Lock. (See page 70.)
• No picture.	• Is connection to other components correct? (See pages 47 to 53.) • Is a non-compatible PC signal being input? (See page 52.) • Is the Input Select setting correct? (See page 65.)
• Images are presented but no audio is output.	• Check if you have selected the minimum volume. (See page 24.) • Check if you have muted sound. (See page 24.) • Check if phones are still in connection with the PHONES output terminal. (See page 13.) • When using INPUT 4 or PC as the input source, check that the audio terminal is also in connection. (See pages 51 and 52.)
• Sound is reversed between the right and left. • Sound is output from only a single speaker.	• Check if the speaker cable connections have been reversed between the right and left or if the speaker cable from either speaker has been disconnected. (See pages 12 and 19.) • Has the balance been correctly adjusted? (See page 41.)
• Picture is cut off.	• Is the image position correct? (See pages 64 and 65.) • Has the correct screen size been selected? (See pages 67 and 68.)
• Strange colour, light colour, dark or colour misalignment.	• Adjust the picture tone. (See pages 35 to 40.) • Is the room too bright? The picture may look dark in a room that is too bright. • Check the colour system setting. (See pages 31 and 66.)
• Power is suddenly turned off.	• The system's internal temperature has increased. Remove any objects blocking vent or clean. (See pages 15 and 16.) • Check the power control setting. (See pages 43 and 44.) • Check the sleep timer setting. (See page 70.)

Code	Message	Check
SD04	Powering off. Internal temperature too high. Check temperature around PDP.	Check if the ambient temperature of the Plasma Display is high.
SD05	Powering off. Internal protection circuits activated, Is there a short in speaker cable?	Check the speaker cable connections between the Plasma Display and the speakers.
SD11	Powering off. Internal temperature too high. Check temperature around media receiver.	Check if the ambient temperature of the Plasma Display and the Media Receiver is high.

Signal names for 15-pin mini D-sub connector

(Front view)

Pin No.	Signal name
①	R
②	G
③	B
④	Not connected
⑤	Not connected
⑥	GND (ground)
⑦	GND (ground)
⑧	GND (ground)
⑨	+5V
⑩	GND (ground)
⑪	Not connected
⑫	SDA
⑬	HD
⑭	VD
⑮	SCL

NOTE

• A Macintosh adaptor may be required for use with some Macintosh computers.

Connecting pin assignments for SCART

Various audio and video devices may be connected via the SCART terminals.

SCART (INPUT 1)

1. Audio right output
2. Audio right input
3. Audio left output
4. Common earth for audio
5. Earth for blue
6. Audio left input

7. Blue input

8. Audio-video control

9. Earth for green
10. Not used
11. Green input
12. Not used
13. Earth for red

14. Not used

15. Red input

16. Red/Green/Blue control
17. Earth for video
18. Earth for Red/Green/Blue control
19. Video output
20. Video input
21. Plug shield

SCART (INPUT 2)

1. Audio right output
2. Audio right input
3. Audio left output
4. Common earth for audio
5. Earth
6. Audio left input

7. Not used

8. Audio-video control

9. Earth
10. AV link control
11. Not used
12. Not used
13. Earth

14. Not used

15. Chroma S-Video input

16. Not used
17. Earth for video
18. Earth
19. Video output
20. Video input/S-Video input
21. Plug shield

SCART(INPUT3)

1. Audio right output
2. Audio right input
3. Audio left output
4. Common earth for audio
5. Earth
6. Audio left input

7. Blue input

8. Audio-video control

9. Earth
10. AV link control
11. Green input
12. Not used
    13 Earth

13. Not used

14. Red input/Chroma S-Video input

15. Red/Green/Blue control
16. Earth for video
17. Earth
18. Video output
19. Video input/S-Video input
20. Plug shield

Specifications

Item	50"Plasma Display, Model: PDP-504PE	43" Plasma Display, Model: PDP-434PE
Number of Pixels	1280 × 768 pixels	1024 × 768 pixels
Audio Amplifier	13 W + 13 W (1 kHz, 10 %, 8 Ω)	13 W + 13 W (1 kHz, 10 %, 8 Ω)
Surround System	SRS/FOCUS/TruBass	SRS/FOCUS/TruBass
Power Requirement	220–240 V AC, 50/60 Hz, 352 W (0.5 W Standby)	220–240 V AC, 50/60 Hz, 295 W (0.5 W Standby)
Dimensions	1270 (W) × 737 (H) × 98 (D) mm	1120 (W) × 652 (H) × 98 (D) mm
Weight	38 kg (83.8 lbs.)	30.5 kg (67.3 lbs.)

Item			Media Receiver, Model: PDP-R04E
Colour System			PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60
TV Function	Receiving System		B/G, D/K, I, L/L'
	Tuner	VHF/UHF	E2-E69ch, F2-F10ch, I21-I69ch, IR A-IR Jch
		CATV	Hyper-band, S1-S41 ch
	Auto Channel Preset		99 ch, Auto Preset, Auto Label, Auto Sort
	STEREO		NICAM/A2
Terminals	Rear	INPUT 1	SCART (AV in, RGB in, TV out)
		INPUT 2	SCART (AV in/out, S-VIDEO in, AV link *1)
		INPUT 3	SCART (AV in/out, S-VIDEO in, RGB in, AV link *1), Component Video in
		Antenna	75 Ω Din Type for VHF/UHF in
	Front	INPUT 4	S-VIDEO, AV in
		PC	15 Pin mini D-Sub, Audio in
MONITOR OUTPUT Terminal		(Rear)	S-VIDEO out, AV out
SUB WOOFER OUTPUT Terminal		(Rear)	Variable
PHONES OUTPUT Terminal		(Front)	16-32 Ω recommended
Power Requirement			220-240 V AC, 50/60 Hz, 38 W (0.4 W Standby)
Dimensions			420 (W) × 90 (H) × 297 (D) mm
Weight			5.0 kg

*1Switchable
- Design and specifications are subject to change without notice.

Trademarks

• SRS and the SRS (Q)^* symbol are trademarks of SRS Labs, Inc.
  SRS and WOW technologies are incorporated under license from SRS Labs, Inc.
• This product includes FontAvenue® fonts licensed by NEC Corporation. FontAvenue is a registered trademark of NEC Corporation.
• Apple and Macintosh are registered trademarks of Apple Computer, Inc.
• Microsoft is a registered trademark of Microsoft Corporation.
• DDC is a registered trademark of Video Electronics Standards Association.
• Power Management is a registered trademark of Sun Microsystems, Inc.
  VGA and XGA are registered trademarks of International Business Machines Co., Inc.
• The names of the companies or institutions are trademarks or registered trademarks of the respective companies or institutions.

IMPORTANT

Précautions relatives aux piles

Câble coaxial 75 Ohms

Plasma Display 11
Media-Receiver 11

FOCUS 41
Front Surround 42

Energiesparmodi 42

Media Receiver
Taste POWER

Einschalten

For the handling procedures and the other functions, refer to the dedicated operation manual.

Using HDMI Input

The INPUT 3 terminals include HDMI terminals to which digital video and audio signals can be input. To use the HDMI terminal, activate the terminal and specify the types of video and audio signals to be received from the connected equipment. For the types of these signals, see the operation manual that came with the connected equipment.

Input signal correlation table

1920*1080i@50Hz

720*576p@50Hz

1280*720p@50Hz

720(1440)*576i@50Hz

1920*1080i@59.94/60Hz

720*480p@59.94/60Hz

1280*720p@59.94/60Hz

720(1440)*480i@59.94/60Hz

NOTE

• PC signals are out of correspondence.

Connecting HDMI equipment

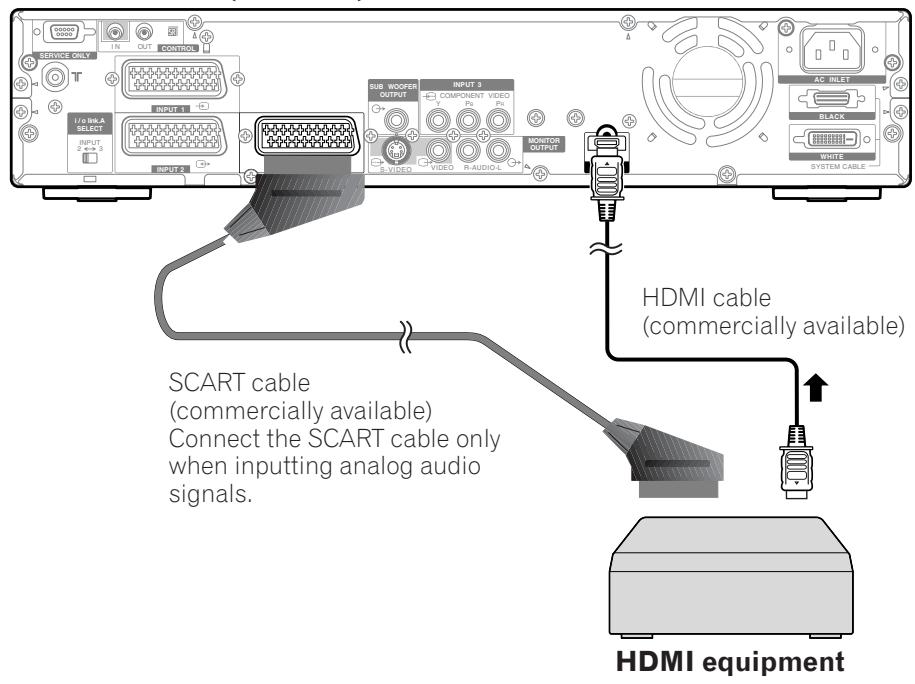

Media Receiver (rear view)

To activate the HDMI terminal:

1 Press HOME MENU.
2 Press / to select "Option", and then press ENTER.
3 Press / to select "HDMI Input", and then press ENTER.
4 Press / to select "Setting", and then press ENTER.
5 Press / to select "Enable", and then press ENTER.

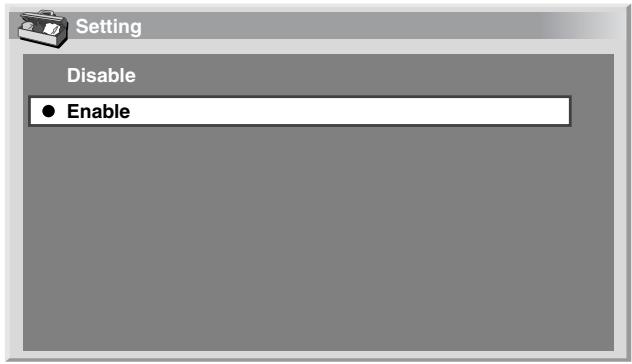

Item	Description
Disable (factory default)	Deactivates the HDMI terminal.
Enable	Activates the HDMI terminal.

To specify the type of digital video signals:

1 Press HOME MENU.
2 Press / to select "Option", and then press ENTER.
3 Press / to select "HDMI Input", and then press ENTER.
4 Press / to select "Video", and then press ENTER.
5 Press / to select the type of digital video signals, and then press ENTER.

• If you select "Auto", an attempt will be made to identify the type of digital video signals when digital video signals are received.

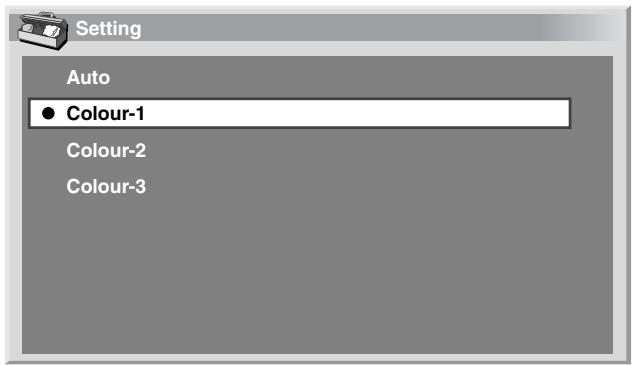

Item	Description
Auto (factory default)	Automatically identifies input digital video signals.
Colour-1	Sets the format of digital video signals to the Component 4:2:2.
Colour-2	Sets the format of digital video signals to the Component 4:4:4.
Colour-3	Sets the format of digital video signals to the RGB

6 Press HOME MENU to exit the menu.

NOTE

• If you select a parameter other than "Auto", make such a setting that results in natural colour.
• If no image appears or images appear in inappropriate colours, specify another digital video signal type.
• For the digital signal types to be specified, check the operation manual that came with the connected equipment.

To specify the type of audio signals:

1 Press HOME MENU.
2 Press / to select "Option", and then press ENTER.
3 Press / to select "HDMI Input", and then press ENTER.
4 Press / to select "Audio", and then press ENTER.
5 Press / to select the type of audio signals, and then press ENTER.

• If you select "Auto", an attempt will be made to identify the type of audio signals when audio signals are received.

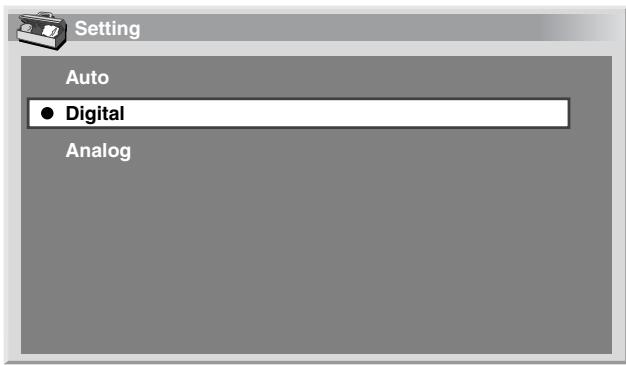

Item	Description
Auto (factory default)	Automatically identifies input audio signals.
Digital	Accepts digital audio signals.
Analog	Accepts analog audio signals.

6 Press HOME MENU to exit the menu.

NOTE

• If no sound is output, specify another audio signal type.
• For the signal types to be specified, check the operation manual that came with the connected equipment.

• Depending on the equipment to be connected, you also need to connect a SCART cable for analog audio signals.

• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

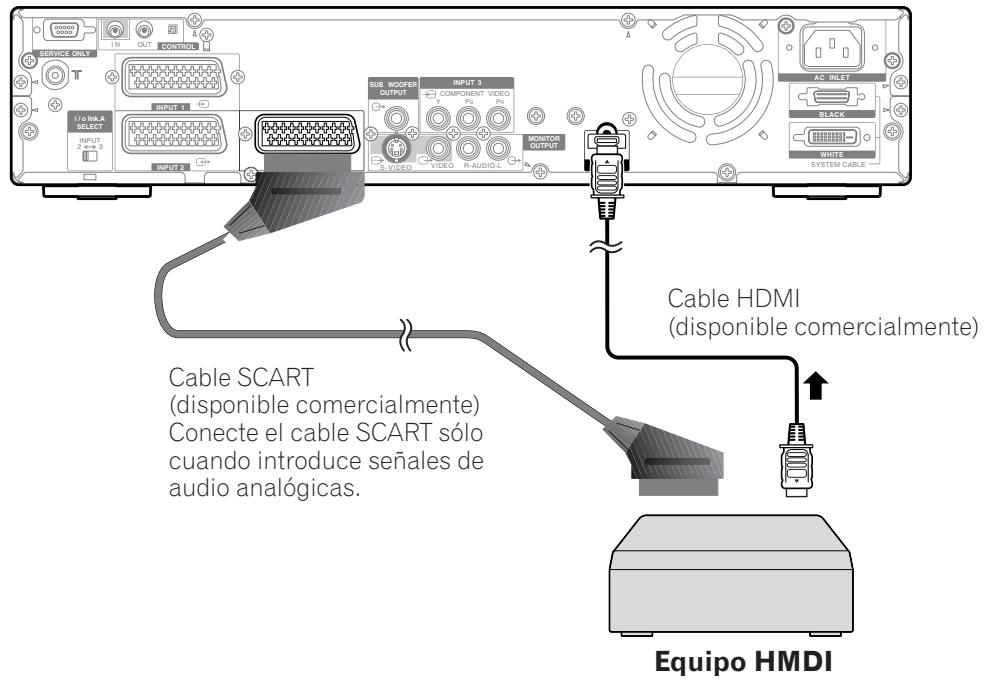

Media Receiver (vista trasera)

Published by Pioneer Corporation.

Copyright © 2003 Pioneer Corporation.

All rights reserved.
