USER MANUAL KH60CB KELVINATOR

ELECTRICAL COOKING HOB

User's instructions

ENGLISH

Dear User

Thank you for choosing our product.

We are sure that this complete, modern, functional and practical electrical appliance will fully meet your requirements as it has been carefully designed and manufactured with high-quality materials.

We recommend that you read and follow these instructions carefully. They will enable you to use this electrical appliance to its full potential the very first time you use it.

THE DOCUMENTATION FOR THIS APPLIANCE MUST BE KEPT IN A SAFE PLACE FOR FUTURE CONSULTATION.

We hope you enjoy using this modern hob.

Best wishes

THE MANUFACTURER

CONTENTS

User's instructions

Installation

U s e

Maintenance

Fitter's instructions

l n s t a l l a t i

Position

Electrical connections

IMPORTANT:

THIS APPLIANCE IS DESIGNED FOR DOMESTIC USE. THE MANUFACTURER IS NOT LIABLE IN THE EVENT OF DAMAGE TO PERSONS OR OBJECTS CAUSED BY INCORRECT INSTALLATION, IMPROPER OR ERRONEOUS USE.

USER'S INSTRUCTIONS

INSTALLATION

All the installation procedures (electrical connections) must be carried out by an electrician in accordance with the standards and laws in force.

This product is in installation class Y.

The equipment may be installed in any type of unit made of brickwork, metal, wood, veneered and laminated plastic, as long as they are able to withstand a maximum temperature of 90^ C.

Keep a distance of 50 mm from the back edge and 110 mm from the left side.

See figure 1.

For specific instructions, see the fitter's section.

USE

Turn the knob to the setting you require for cooking, taking into account that the higher the number, the greater the heat.

Turn on the normal and rapid plates by turning the knob anticlockwise. This will turn the switch, with its 6 settings, plus the “zero” position (Fig. 3).

The hob composition (fig. 4):

• 1. Electric hotplate ∅ 180 cm;
• 1. Electric hotplate ∅ 145 cm;
• 1. Electric hotplate ∅ 180 cm;
• 1. Electric hotplate ∅ 145 cm.

When the lamp is lit, it means that the plate is "on".

For certain types of lamp, it is perfectly normal for a weak light to stay on even when the plates have been switched off.

TIPS AND WARNINGS:

For the best results and maximum plate life, use only utensils that are recommended for electric plates, i.e. utensils that have a reinforced, perfectly flat bottom.

The utensils must also be the same diameter, or slightly wider than the plate used. They must never be smaller.

Never use the plates without utensils, or when the utensil is empty.

When a liquid has boiled, or has been heated, turn down the heat to prevent it boiling over.

Turn the knob to the "0" position when you have finished cooking.

Knob setting	Cooking operation
0	Off
12	For melting processes (butter or chocolate)
2	For keeping foods hot and heating small amounts of liquid
3	For heating larger amounts and beating custards and sauces
4	Slow boiling, for soups, pasta and risotto, continuing steaming processes, and cooking steaks and friend foods in general
45	Browning meat, roasted potatoes, fried fish, bringing large, amounts of water to the boil
6	Quick fryng, char-grilled steaks, ect.

MAINTENANCE

ANY ADJUSTMENT, MAINTENANCE, ETC. MUST BE CARRIED OUT WITH THE HOB UNPLUGGED AT THE MAINS.

To extend the life of the hob, it has to be cleaned periodically. Follow these instructions:

- Electric plates

To clean a plate, heat it up for a few moments so as to burn any products that

may have been left during manufacture.

Turn off the hob at the mains and leave the hob to cool; then clean with a damp cloth and lubricate with oil while it is still warm.

- Control panel

To keep the control panel in pristine condition, you must not clean it with abrasive products or dirty, dry cloths. To make cleaning easier, the knobs can be removed by pulling them upwards, but do not use the control panel as a lever; if the knob is difficult to remove, place a cloth under the knob and lever it off carefully.

- Enamelled parts

Clean the hob when it is cold using soap and water. Then dry the hob with a dry, clean cloth. Do not clean the hob when it is hot so that the colour of the enamel does not fade.

- Stainless steel parts

Use products that are available in shops.

FITTER'S INSTRUCTIONS

INSTALLATION

All the installation procedures (electrical connections) must be carried out by an electrician in accordance with the standards and laws in force.

ANY ADJUSTMENT, MAINTENANCE, ETC. MUST BE CARRIED OUT WITH THE HOB UNPLUGGED AT THE MAINS.

POSITION

The hob is designed to be fitted into a work surface which is larger then the hob. See Fig. 1 and 2.

If the hob is to be fitted into a surface/oven, follow the instructions of the oven manufacturer and ensure that the ventilation complies with Fig. 5. The two pieces of equipment must have their electrics connected separately both for electrical reasons and to make them easier to remove.

The hob is supplied with a seal (C) to prevent infiltration into the unit. The seal must be fitted carefully into its seat, as per Fig. 6.

Fasten the hob with the brackets (A), as shown in Fig. 6.

ELECTRICAL CONNECTIONS

Before connecting the electrics, ensure that:

• the household power supply meets the requirements on the plate located under the hob and featured in this booklet;
• there is an earth system and that it works correctly;
• if the hob does not have a power cable, use material that meets the requirements indicated on the plate located under the hob and featured in this booklet;
• for a direct connection to the mains, there must be an omnipolar cut-off device on the power-supply line, with a contact cut-off distance of 3 mm or over. The device must also be located in an accessible position near the hob (the yellow-green earth wire must not be interrupted).

To connect the electrics, follow the instructions:

• Turn the hob upside down;
• Unscrew the 4 bolts that fasten the casing to the electric plates;
• Open the casing, paying attention to the wires for the electric plates and to the light;
• Thread the wire through the correct feed hole and fasten it;
• Connect the wire as shown in the enclosed wiring diagram;
• Replace the casing, paying attention to the wires for the electric plates;
• Fasten the bolts that secure the casing to the electric plates.

WIRE SECTION (RESISTANT UP TO 90°C)

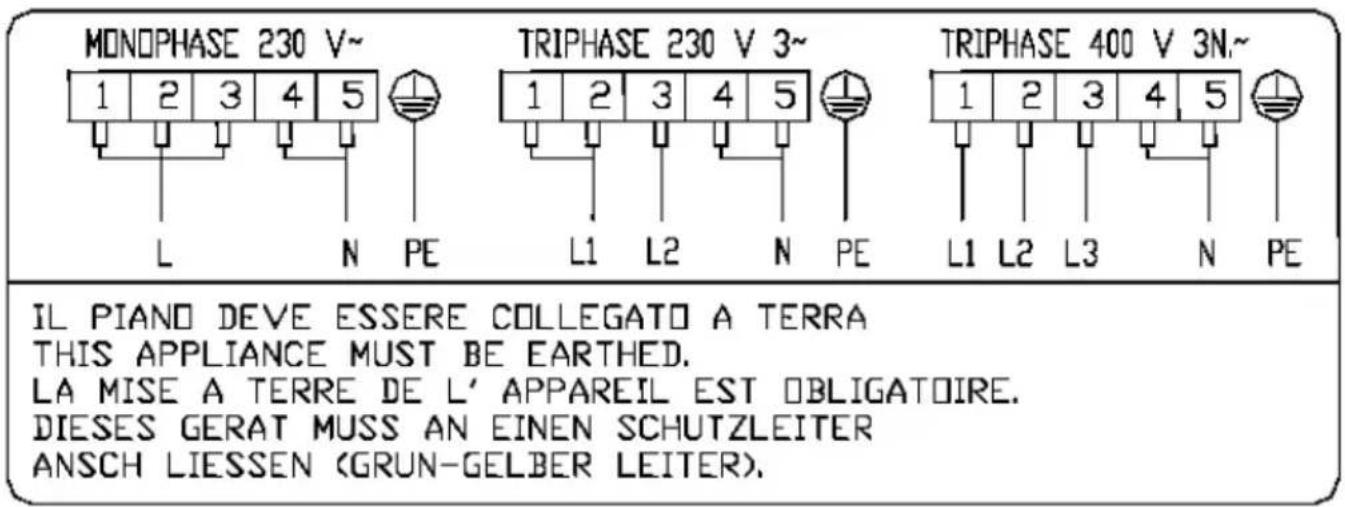

MONOPHASE 230 V~ 1 2 3 4 5 L N PE TRIPHASE 230 V 3~ 1 2 3 4 5 L1 L2 N PE TRIPHASE 400 V 3N~ 1 2 3 4 5 L1 L2 L3 N PE IL PIANO DEVE ESSERE COLLEGATO A TERRA THIS APPLIANCE MUST BE EARTHED. LA MISE A TERRE DE L' APPAREIL EST OBLIGATOIRE. DIESES GERAT MUSS AN EINEN SCHUTZLEITER ANSCH LIESSEN (GRUN-GELBER LEITER).

N.B.: THIS DIAGRAM TAKES INTO ACCOUNT A COINCIDENCE FACTOR OF 0.75; THE CABLE MUST HAVE AN EARTH WIRE (YELLOW-GREEN) THAT IS 20 MM LONGER THAN THE OTHERS.

THE MANUFACTURER IS NOT LIABLE IN ANY WAY IF THE INSTRUCTIONS IN THIS BOOKLET AND THE STANDARD SAFETY MEASURES ARE NOT OBSERVED.

Fig. 1

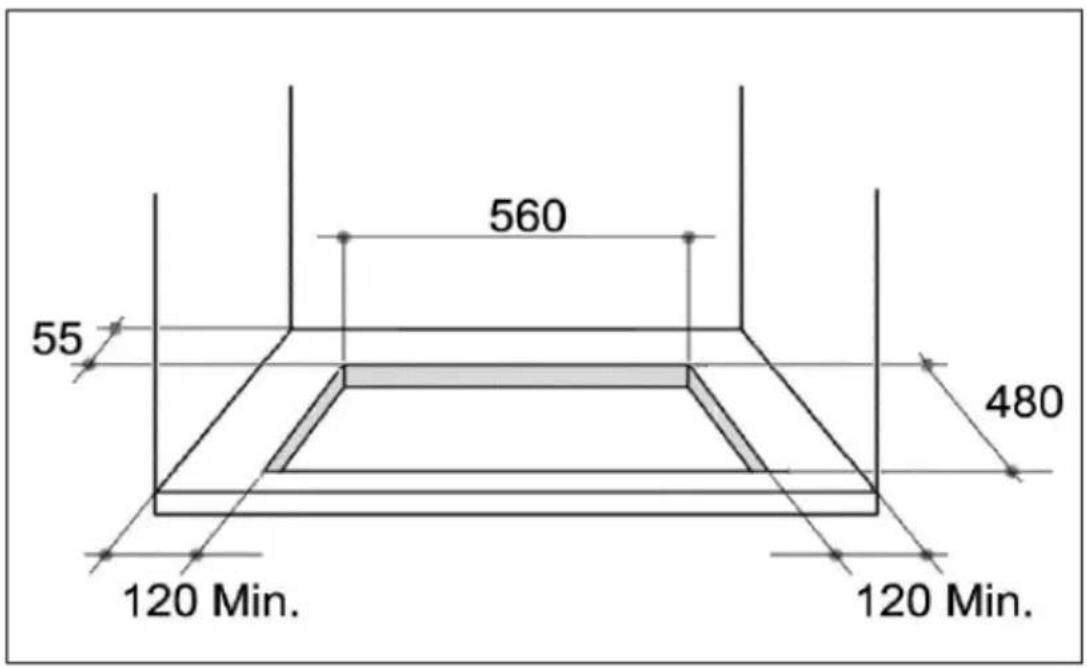

560 55 480 120 Min. 120 Min.

Fig. 2

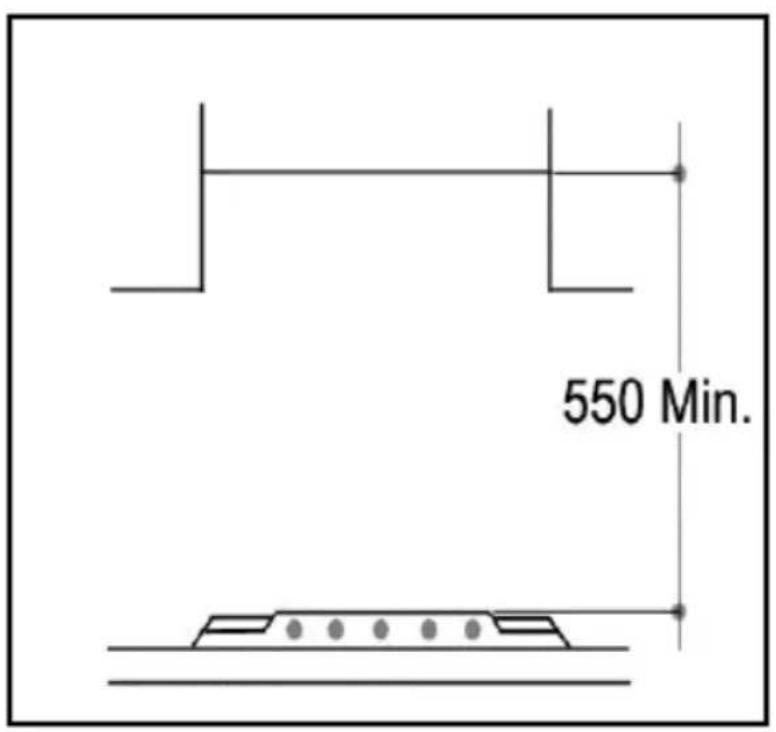

550 Min.

Fig. 3

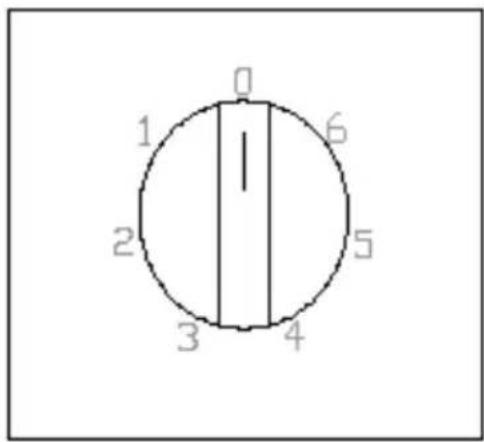

0 1 6 2 5 3 4

Fig. 4

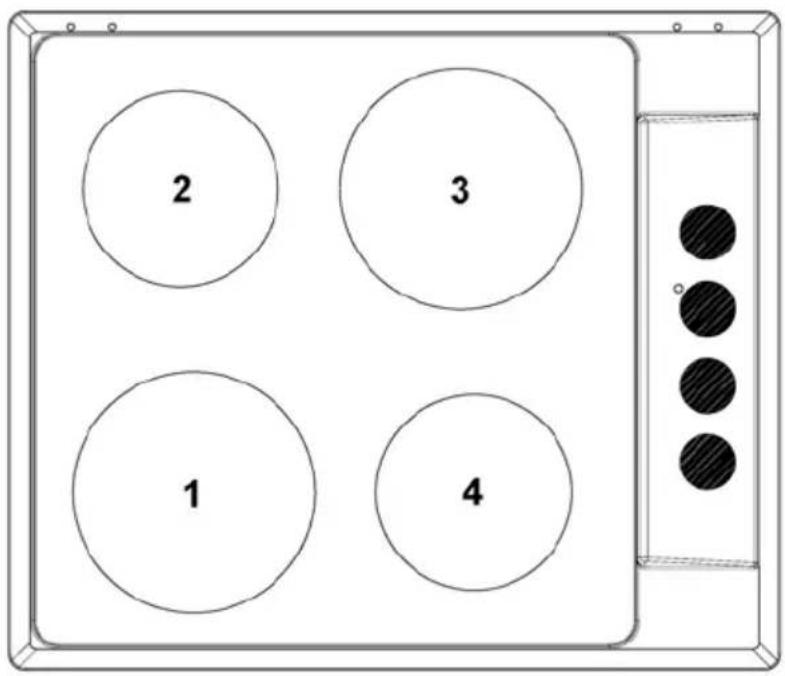

2 3 1 4

Fig. 5

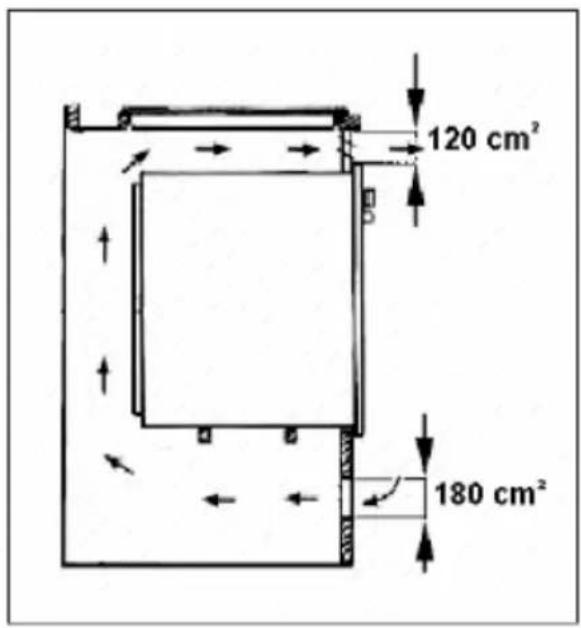

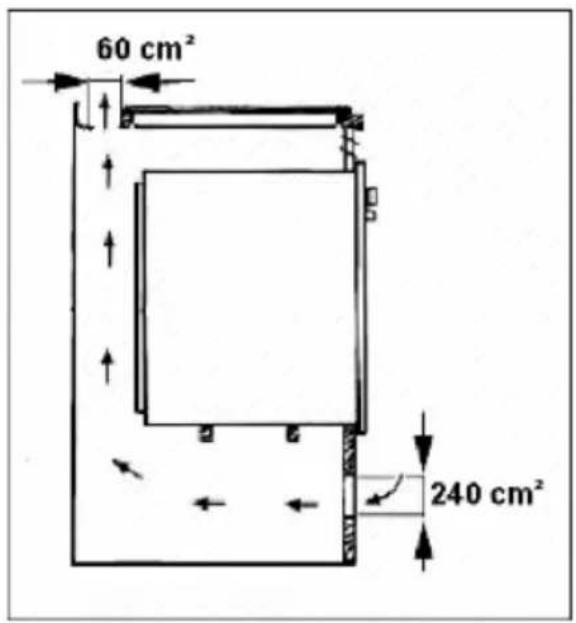

60 cm² 240 cm²

120 cm² 180 cm²

Fig. 6

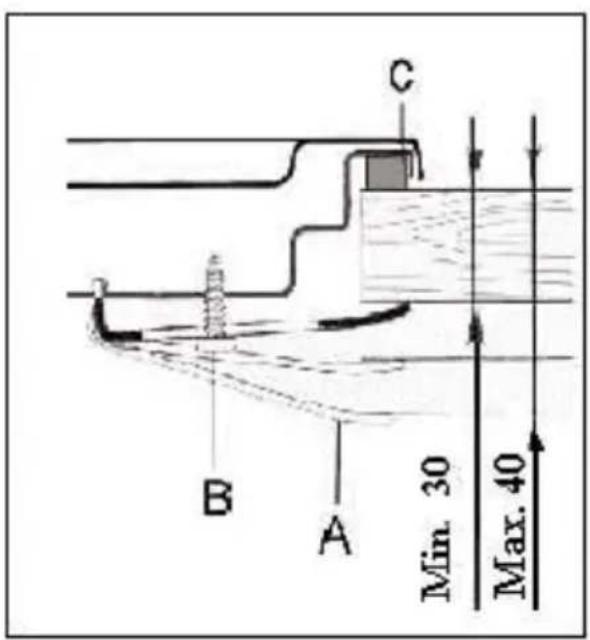

C B A Min. 30 Max. 40

Service and Spares

In the event of your appliance requiring service, or if you wish to purchase spare parts, contact your local Kelvinator Service Centre by telephoning:

0860 234 481 (South African Customers) + 27-11-579-0800 (International Customers)

Help us to help you

Please determine your type of enquiry before writing or telephoning. When you contact us we need to know:

• Your name
• Telephone Number
  ■ Physical Address where appliance is located
  ■ Model and Serial Number of the appliance
  ■ Clear and concise details of the fault

Customer Care

For general enquiries or information regarding Kelvinator appliances contact:

Customer Care Department

Kelvinator

P.O. Box 3657

Johannesburg

2000

South African Customers: 0860 234 481

International Customers: [phone]

E-mail:

[e-mail]

Guarantee Conditions

1. The guarantee is valid for Twelve (12) months commencing when the appliance is handed over to the first retail purchaser, which must be verified by purchase invoice or similar documentation.
2. Kelvinator guarantees the equipment against defective material or faulty manufacture, provided it is used for domestic use from the date of purchase by the original purchaser. If not used as above-mentioned, the warranty period will limited.
3. If the appliance is used or installed more than Fifty (50) kilometres from the nearest Kelvinator Authorised Service Agent, the additional distance covered shall be for the account of the purchaser.
4. The risk in regard to appliances to be repaired shall at all times remain with the purchaser.
5. This guarantee is given on condition that only genuine Kelvinator parts and accessories are used at all times in the appliance.
6. Kelvinator shall not be responsible for damage of any kind resulting from electricity fluctuations, faults in the building wiring, faulty installations, improper use of controls or failure to use the appliance in accordance with the operating instructions and/or general misuse and/or abuse, which would include unforeseen accidents, wear and tear, and/or earthquake, flood, lightning or any other natural disaster beyond the control of Kelvinator.
7. Any attempt by an unauthorised person to repair or tamper with the appliance shall render this guarantee null and void.
8. This guarantee does not include bulbs, loose glass, glass oven doors, enamelled surfaces, discolouring of stainless steel surfaces, filters and other parts subject to wear and tear.
9. Kelvinator shall not be responsible in terms of this guarantee for the replacement or repair of any parts of the appliance if damaged during transit, where packaging damage is visible.
10. Repairs carried out under guarantee do not extend the guarantee period for the appliance. Parts removed during guarantee repairs become the property of Kelvinator.
11. This guarantee shall be available only to a purchaser of Kelvinator appliances from an authorised Electrolux Home Products/Kelvinator Dealer or Distributor in and where the appliance has been retained for use in the Republic South Africa, Namibia, Swaziland, Lesotho and Zimbabwe.
12. Failure to produce documentary proof of the date or original acquisition by the original purchaser will result in normal charges being levied for the work carried out and the parts supplied.
13. The liability of Kelvinator under this guarantee is limited to the replacement and/or repair of the defective parts within the guarantee period and does not extend to be installation or removal of the appliance. Furthermore, Kelvinator does not accept responsibility or liability to compensate for any consequential loss or damage of any kind caused by or due to the failure of operation or malfunction of any equipment to which this guarantee applies.
14. It is at the sole discretion of Kelvinator that, in terms of guarantee, consideration be given to replace the appliance due to various parts failing of a similar nature or in the event of the appliance being in a state of beyond repair.
