USER MANUAL KHC601BL KELVINATOR

Thank you for choosing our product.

We are sure that this complete, modern, functional and practical electrical appliance will fully meet your requirements as it has been carefully designed and manufactured with high-quality materials.

We recommend that you read and follow these instructions carefully.

They will enable you to use this electrical appliance to its full potential the very first time you use it.

THE DOCUMENTATION FOR THIS APPLIANCE MUST BE KEPT IN A SAFE PLACE FOR FUTURE CONSULTATION.

We hope you enjoy using this modern hob.

Best wishes

THE MANUFACTURER

CONTENTS

User's instructions

Installation	5
U s e	5
Maintenance	7

Fitter's instructions

Installation							8
P	o	s	i	t	i	o	n
Electrical connections							8

IMPORTANT:

THIS APPLIANCE IS DESIGNED FOR DOMESTIC USE. THE MANUFACTURER IS NOT LIABLE IN THE EVENT OF DAMAGE TO PERSONS OR OBJECTS CAUSED BY INCORRECT INSTALLATION, IMPROPER OR ERRONEOUS USE.

USER'S INSTRUCTIONS

INSTALLATION

All the installation procedures (electrical connections) must be carried out by an electrician in accordance with the standards and laws in force. This product is in installation class Y.

The equipment may be installed in any type of unit made of brickwork, metal, wood, veneered and laminated plastic, as long as they are able to withstand a maximum temperature of 100^ C.

Keep a distance of 50 mm from the back edge and 110 mm from the left side.

See figure 1.

For specific instructions, see the fitter's section.

Connect extremities of return rods in the relative axles placed in the oven and in the control panel. Then fix oven in relative site using fitting screws (for control panel use special little claps).

USE

CONTROL KNOBS and COOKING ZONE (Fig. 4)

Cooking zones are controlled by knobs connected to an energy regulator. Clockwise numbers 1 to 6 are used to indicate cooking settings where 1 is the minimum setting and 6 the maximum setting. Number 0 is the off position. Extensible zones, on models where available, are activated on position 6.

The zone controlled by each knobs is identified by the adjacent cooking zone identification.

RESIDUAL HEAT INDICATOR (HOT HOS INDICATOR)

Each heating element has a corresponding residual heat indicator light. This light switches on automatically once the corresponding cooking zone has been switched on. Once a cooking zone has been turned off, the corresponding residual light will stay on for a period of time necessary for the cooking zone to cool down to 50^ C.

During this time avoid touching the cooking zone and take precautions to ensure children cannot touch it.

SAFETY TIPS FOR USING THE COOKTOP

Before switching on, check which knob controls the desired cooking zone. It is best to place the pot or pan on the cooking zone before switching on, and remove it only after switching off.
Use only flat bottomed pans with a regular surface (exercise caution with cast iron pans). Irregular bottoms can scratch the glass-ceramic surface. Check the bottom is clean and dry
Do not use the cooktop if the surface is broken or damaged.
F Bear in mind that the cooking zones remain hot for a relatively long time (about 30 min.) after switching off.
Do not allow heavy or sharp objects to fall on the glass-ceramic cooktop.
If you find a crack on the cooktop, disconnect the appliance from the mains electricity immediately and contact the After-sales Service.
Do not stare at the halogen lamps on the cooktop.
Never cook food directly on the glass-ceramic cooktop; always use suitable pots or containers.

Knob setting	Cooking operation
0	Off
12	For melting processes (butter or chocolate)
2	For keeping foods hot and heating small amounts of liquids
3	For heating larger amounts and beating custards and sauces
4	Slow boiling, for soups, pasta and risotto, continuing steaming processes, and cooking steaks and fried foods in general
45	Browning meat, roasted potatoes, fried fish, bringing large amounts of water to the boil
6	Quick frying, char-grilled steaks, ect.

MAINTENANCE

ANY ADJUSTMENT, MAINTENANCE, ETC. MUST BE CARRIED OUT WITH THE HOB UNPLUGGED AT THE MAINS.

INSTRUCTION FOR USE

Before cooking for the first time, it is necessary to clean the surface of the appliance. This should be done using only recommended ceramic hob cleaners.

After cleaning, the appliance should be operated on the following manner to remove any residues or moisture that may be present within the appliance: one at a time, turn the heating plates on and set at maximum and operate (without pans) for a period of 5 mins, then turn off. An odour may be given off during this operation, this is normal.

INSTALLATION

All the installation procedures (electrical connections) must be carried out by an electrician in accordance with the standards and laws in force. ANY ADJUSTMENT, MAINTENANCE, ETC. MUST BE CARRIED OUT WITH THE HOB UNPLUGGED AT THE MAINS.

POSITION

The hob is designed to be fitted into a work surface which is larger then the hob. See Fig. 1 and 2.

If the hob is to be fitted into a surface/oven, follow the instructions of the oven manufacturer and ensure that the ventilation complies with Fig. 5. The hob is supplied with a seal to prevent infiltration into the unit. The seal (C) must be fitted carefully into its seat. Fasten the hob with the brackets (A), as shown in Fig. 6.

ELECTRICAL CONNECTIONS

Before connecting the electrics, ensure that:

• the household power supply meets the requirements on the plate located under the hob and featured in this booklet;
• there is an earth system and that it works correctly;
• for a direct connection to the mains, there must be an omnipolar cut-off device on the power-supply line, with a contact cut-off distance of 3 mm or over. The device must also be located in an accessible position near the hob (the yellow-green earth wire must not be interrupted).

THE MANUFACTURER IS NOT LIABLE IN ANY WAY IF THE INSTRUCTIONS IN THIS BOOKLET AND THE STANDARD SAFETY MEASURES ARE NOT OBSERVED.

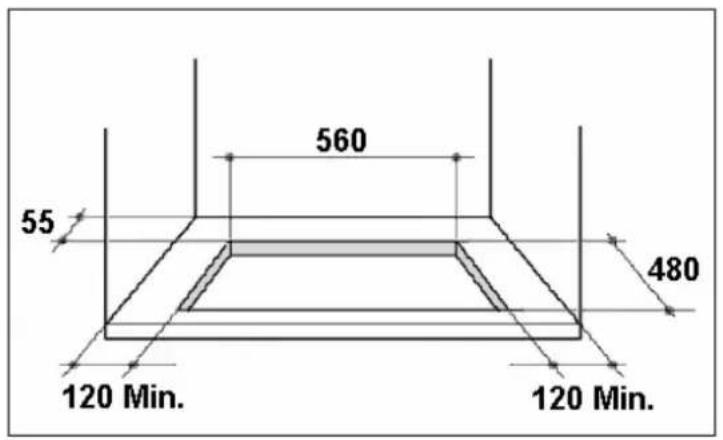

Fig.1

560 55 480 120 Min. 120 Min.

Fig.2

550 Min.

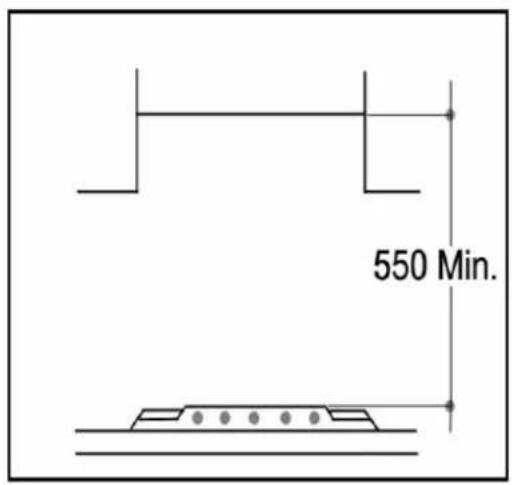

Fig.3

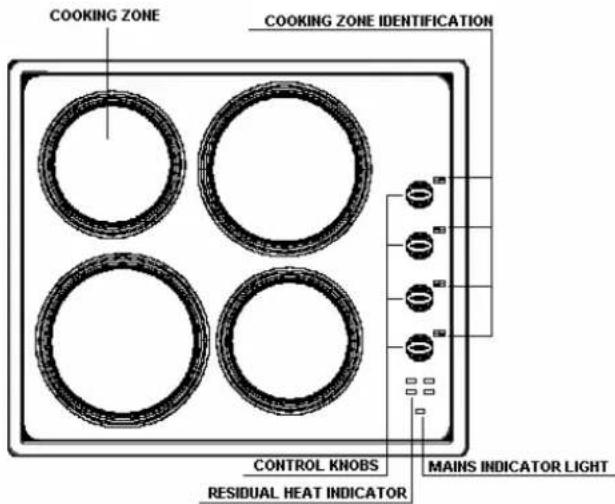

COOKING ZONE COOKING ZONE IDENTIFICATION CONTROL KNOBS RESIDUAL HEAT INDICATOR MAINS INDICATOR LIGHT

Fig.4

0 1 2 3 4 5 6

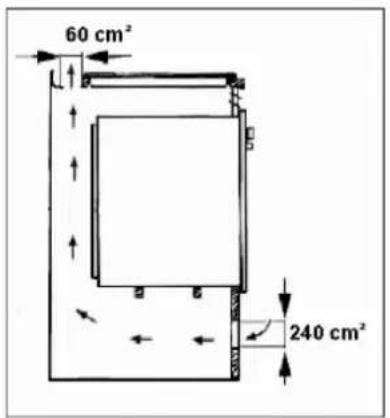

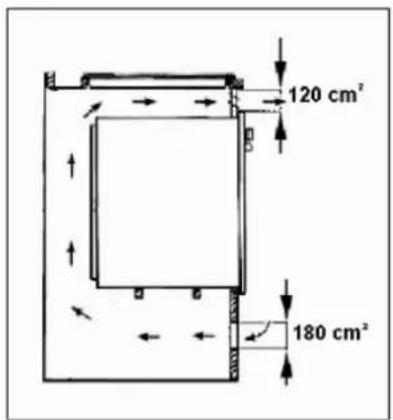

Fig.5

60 cm² 240 cm²

120 cm² 180 cm²

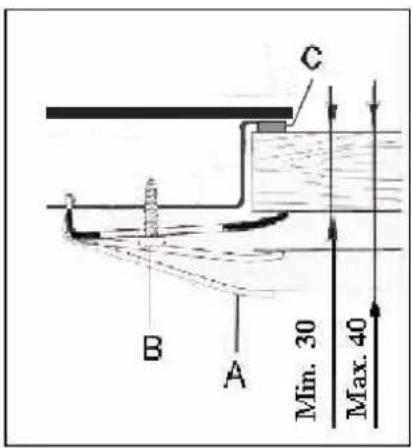

Fig.6

C B A Min. 30 Max. 40
