Product Type	Electric Hob
Model	KHS601SS
Brand	Kelvinator
Number of Cooking Zones	4
Cooking Zone Details	2 x ∅180 mm, 2 x ∅145 mm electric hotplates
Control Type	Rotary knobs with 6 heat settings plus Off
Indicator Light	Yes (lights when plate is on)
Power Supply Options	230 V~ monophase, 230 V 3~ triphase, 400 V 3N~ triphase
Installation Class	Y
Required Clearances	50 mm from back edge, 110 mm from left side
Material	Stainless steel (SS model)
Sealing Gasket	Included
Fixing Brackets	Included (4 brackets)
Maintenance	Clean with damp cloth; oil hotplates after cleaning
Knob Removal	Pull upwards for cleaning
Safety Note	Must be disconnected from mains before maintenance
Installation	Must be carried out by a qualified electrician
Guarantee	12 months from date of purchase (domestic use)

Frequently Asked Questions - KHS601SS KELVINATOR

How do I turn on the hotplates?

Turn the knob anticlockwise to the desired setting (1-6). The indicator light will illuminate to show the plate is active.

What cookware should I use on this hob?

Use utensils with a reinforced, perfectly flat bottom. The diameter should match or be slightly wider than the hotplate. Never use smaller pans.

How should I clean the hob?

For hotplates, heat them briefly to burn off residues, then turn off, let cool, clean with a damp cloth, and lubricate with oil while still warm. For stainless steel, use shop-available products. Do not use abrasive cleaners.

Why does the indicator light stay on dimly even when the plate is off?

For certain lamp types, a weak light may remain on when the plate is switched off. This is normal and not a defect.

Can I install the hob above an oven?

Yes, but follow the oven manufacturer's instructions and ensure adequate ventilation as per Fig. 5 in the manual. The two appliances must be electrically separate.

What are the electrical requirements for installation?

The hob can be connected to 230 V~ monophase, 230 V 3~, or 400 V 3N~. An omnipolar cut-off device with a 3 mm contact separation must be installed on the supply line. The appliance must be earthed.

How do I remove the knobs for cleaning?

Pull the knobs upwards. If they are stuck, place a cloth under the knob and lever it off carefully. Do not use the control panel as a lever.

What does the guarantee cover?

The 12-month guarantee covers defective material or faulty manufacture for domestic use. It does not cover bulbs, glass, enamelled surfaces, discolouring of stainless steel, filters, or parts subject to wear and tear.

What should I do if a hotplate is not heating?

First, check that the knob is turned to a setting and the indicator light is on. If the light is on but no heat, the hotplate may be faulty. Contact Kelvinator Service Centre for repairs.

Is this hob suitable for induction cookware?

No, this is an electric hotplate hob, not an induction hob. It works with any ferrous or non-ferrous cookware as long as the bottom is flat.

USER MANUAL KHS601SS KELVINATOR

ELECTRICAL COOKING HOB

User's instructions

KHS601BL

KHS601SS

ENGLISH

Dear User

Thank you for choosing our product.

We are sure that this complete, modern, functional and practical electrical appliance will fully meet your requirements as it has been carefully designed and manufactured with high-quality materials.

We recommend that you read and follow these instructions carefully. They will enable you to use this electrical appliance to its full potential the very first time you use it.

THE DOCUMENTATION FOR THIS APPLIANCE MUST BE KEPT IN A SAFE PLACE FOR FUTURE CONSULTATION.

We hope you enjoy using this modern hob.

Best wishes

THE MANUFACTURER

CONTENTS

User's instructions

Installation

U s e

Maintenance

Fitter's instructions

l n s t a l l a t i

Position

Electrical connections

IMPORTANT:

THIS APPLIANCE IS DESIGNED FOR DOMESTIC USE. THE MANUFACTURER IS NOT LIABLE IN THE EVENT OF DAMAGE TO PERSONS OR OBJECTS CAUSED BY INCORRECT INSTALLATION, IMPROPER OR ERRONEOUS USE.

USER'S INSTRUCTIONS

INSTALLATION

All the installation procedures (electrical connections) must be carried out by an electrician in accordance with the standards and laws in force.

This product is in installation class Y.

The equipment may be installed in any type of unit made of brickwork, metal, wood, veneered and laminated plastic, as long as they are able to withstand a maximum temperature of 90^irc C.

Keep a distance of 50 mm from the back edge and 110 mm from the left side.

See figure 1.

For specific instructions, see the fitter's section.

USE

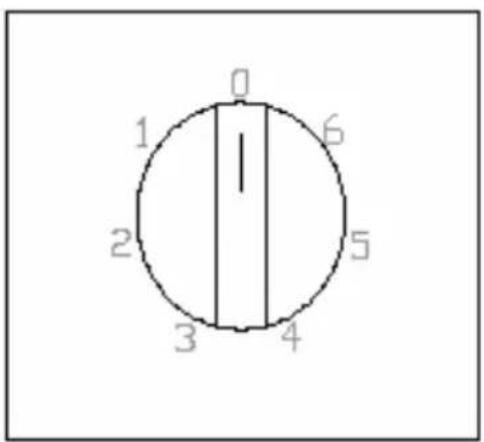

Turn the knob to the setting you require for cooking, taking into account that the higher the number, the greater the heat.

Turn on the normal and rapid plates by turning the knob anticlockwise. This will turn the switch, with its 6 settings, plus the “zero” position (Fig. 3).

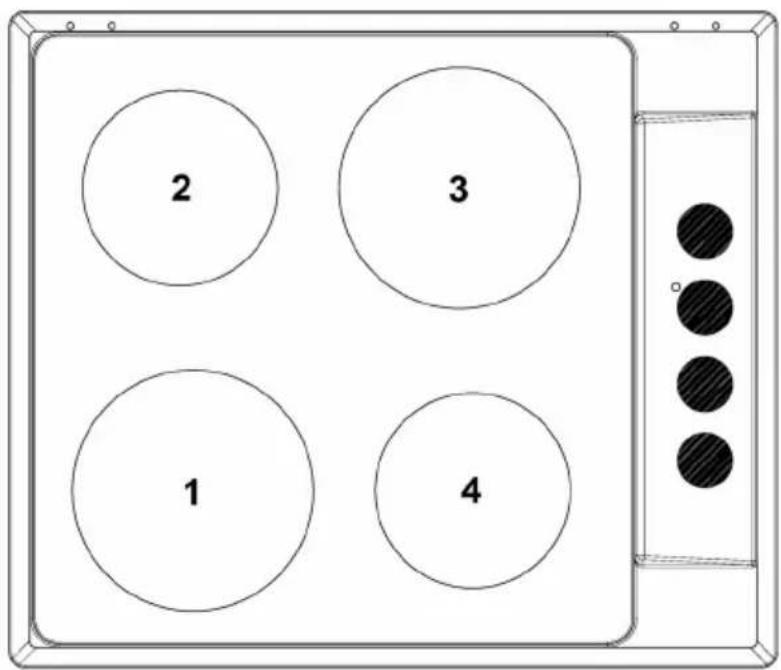

The hob composition (fig. 4):

• 1. Electric hotplate ∅ 180 cm;
• 1. Electric hotplate ∅ 145 cm;
• 1. Electric hotplate ∅ 180 cm;
• 1. Electric hotplate ∅ 145 cm.

When the lamp is lit, it means that the plate is "on".

For certain types of lamp, it is perfectly normal for a weak light to stay on even when the plates have been switched off.

TIPS AND WARNINGS:

For the best results and maximum plate life, use only utensils that are recommended for electric plates, i.e. utensils that have a reinforced, perfectly flat bottom.

The utensils must also be the same diameter, or slightly wider than the plate used. They must never be smaller.

Never use the plates without utensils, or when the utensil is empty.

When a liquid has boiled, or has been heated, turn down the heat to prevent it boiling over.

Turn the knob to the "0" position when you have finished cooking.

Knob setting	Cooking operation
0	Off
12	For melting processes (butter or chocolate)
2	For keeping foods hot and heating small amounts of liquid
3	For heating larger amounts and beating custards and sauces
4	Slow boiling, for soups, pasta and risotto, continuing steaming processes, and cooking steaks and friend foods in general
45	Browning meat, roasted potatoes, fried fish, bringing large, amounts of water to the boil
6	Quick fryng, char-grilled steaks, ect.

MAINTENANCE

ANY ADJUSTMENT, MAINTENANCE, ETC. MUST BE CARRIED OUT WITH THE HOB UNPLUGGED AT THE MAINS.

To extend the life of the hob, it has to be cleaned periodically. Follow these instructions:

- Electric plates

To clean a plate, heat it up for a few moments so as to burn any products that

may have been left during manufacture.

Turn off the hob at the mains and leave the hob to cool; then clean with a damp cloth and lubricate with oil while it is still warm.

- Control panel

To keep the control panel in pristine condition, you must not clean it with abrasive products or dirty, dry cloths. To make cleaning easier, the knobs can be removed by pulling them upwards, but do not use the control panel as a lever; if the knob is difficult to remove, place a cloth under the knob and lever it off carefully.

- Enamelled parts

Clean the hob when it is cold using soap and water. Then dry the hob with a dry, clean cloth. Do not clean the hob when it is hot so that the colour of the enamel does not fade.

- Stainless steel parts

Use products that are available in shops.

FITTER'S INSTRUCTIONS

INSTALLATION

All the installation procedures (electrical connections) must be carried out by an electrician in accordance with the standards and laws in force.

ANY ADJUSTMENT, MAINTENANCE, ETC. MUST BE CARRIED OUT WITH THE HOB UNPLUGGED AT THE MAINS.

POSITION

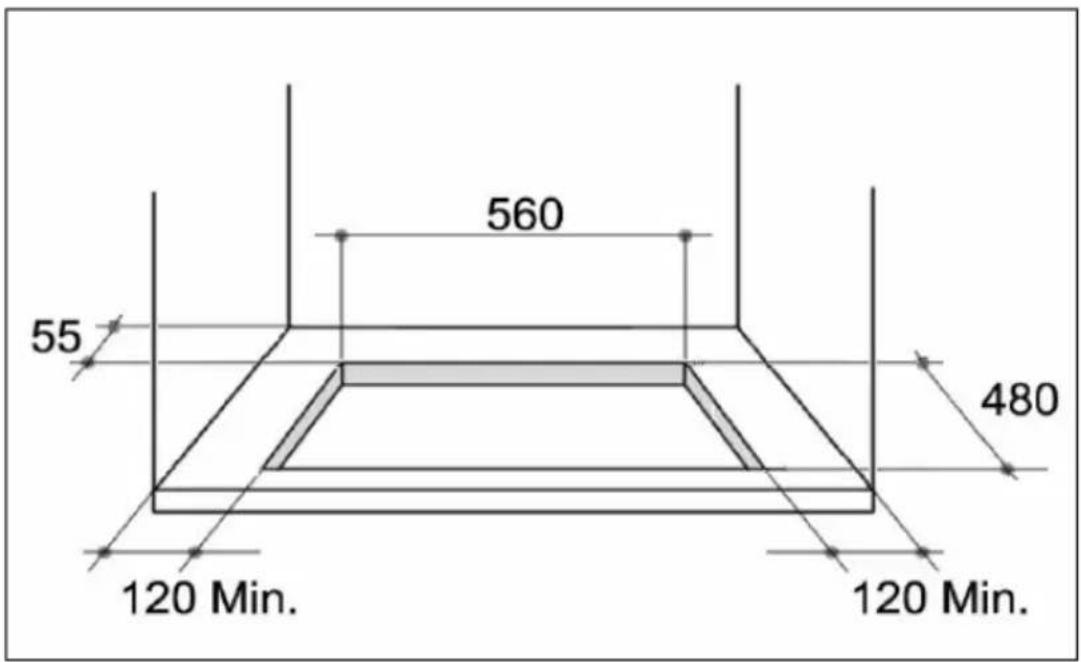

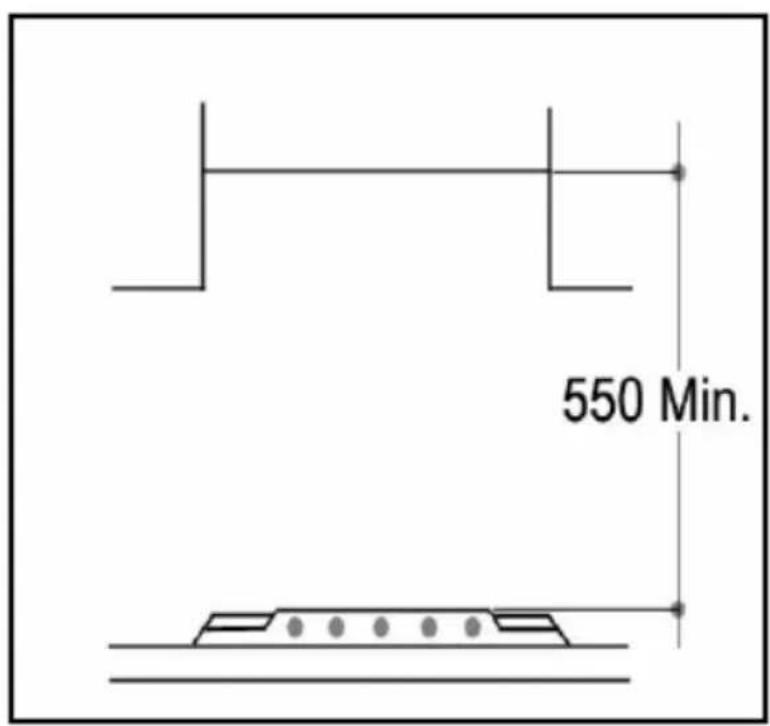

The hob is designed to be fitted into a work surface which is larger then the hob. See Fig. 1 and 2.

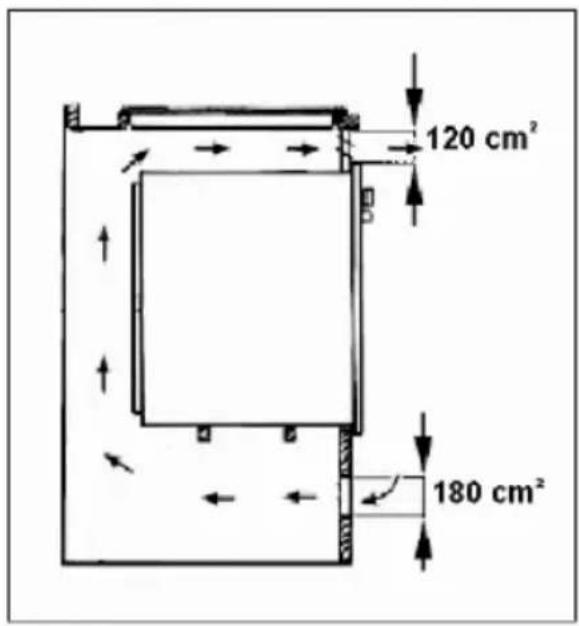

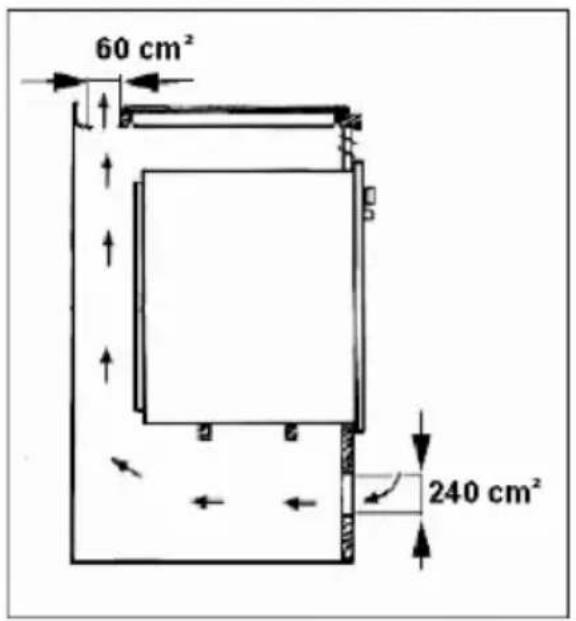

If the hob is to be fitted into a surface/oven, follow the instructions of the oven manufacturer and ensure that the ventilation complies with Fig. 5. The two pieces of equipment must have their electrics connected separately both for electrical reasons and to make them easier to remove.

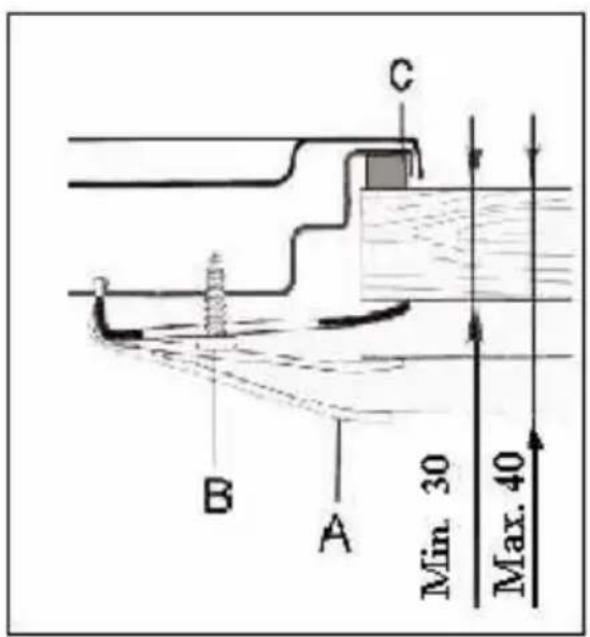

The hob is supplied with a seal (C) to prevent infiltration into the unit. The seal must be fitted carefully into its seat, as per Fig. 6.

Fasten the hob with the brackets (A), as shown in Fig. 6.

ELECTRICAL CONNECTIONS

Before connecting the electrics, ensure that:

• the household power supply meets the requirements on the plate located under the hob and featured in this booklet;
• there is an earth system and that it works correctly;
• if the hob does not have a power cable, use material that meets the requirements indicated on the plate located under the hob and featured in this booklet;
• for a direct connection to the mains, there must be an omnipolar cut-off device on the power-supply line, with a contact cut-off distance of 3 mm or over. The device must also be located in an accessible position near the hob (the yellow-green earth wire must not be interrupted).

To connect the electrics, follow the instructions:

• Turn the hob upside down;
• Unscrew the 4 bolts that fasten the casing to the electric plates;
• Open the casing, paying attention to the wires for the electric plates and to the light;
• Thread the wire through the correct feed hole and fasten it;
• Connect the wire as shown in the enclosed wiring diagram;
• Replace the casing, paying attention to the wires for the electric plates;
• Fasten the bolts that secure the casing to the electric plates.

WIRE SECTION (RESISTANT UP TO 90°C)

MONOPHASE 230 V\~

TRIPHASE 230 V 3\~

TRIPHASE 400 V 3N.\~

IL PIANO DEVE ESSERE COLLEGATO A TERRA

THIS APPLIANCE MUST BE EARTHED.

LA MISE A TERRE DE L'APPAREIL EST OBLIGATOIRE.

THE MANUFACTURER IS NOT LIABLE IN ANY WAY IF THE INSTRUCTIONS IN THIS BOOKLET AND THE STANDARD SAFETY MEASURES ARE NOT OBSERVED.

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6
